TrustedTM
PD-T8831
TM
Trusted
40 Channel Analogue FTA
Non-incendive
Introduction
The TrustedTM 40 Channel Analogue Input FTA Non-incendive T8831 is designed to act as the main
interface between a nonincendive field device in a hazardous area generating an analogue signal and
the Trusted
Features
TM
TMR Analogue Input Module T8431.
• 40 input channels per FTA.
• Industry standard field device connections (2-wire).
• Limited power for connection to nonincendive field wiring.
• Standard DIN rail compatibility.
• Simple installation and connection.
• 24V dc operation.Fused field power supply per channel.
• On-board LED indication field power supply integrity.
Issue 6 Sep 05 PD-T8831 1
Trusted
Issue Record
Issue
Number Date Revised by Technical CheckAuthorised by Modification
6 Sep 05 J W Clark Format
TM
Analogue Input FTA T8831
Issue 6 Sep 05 PD-T8831 2
Trusted
TM
Analogue Input FTA T8831
Figure 1 T8831 Layout
Issue 6 Sep 05 PD-T8831 3
Trusted
TM
Analogue Input FTA T8831
Table of Contents
1. Description ...................................................................................................................................7
2. Installation....................................................................................................................................8
3. Associated Cable Selection .........................................................................................................8
4. Assembly Pinout Connections .....................................................................................................9
4.1. PWR TB1 Connections................................................................................................................9
4.2. TB3 (Auxiliary Input) ....................................................................................................................9
4.3. TB2 (Field Terminals) ................................................................................................................10
4.4. SK1 ............................................................................................................................................11
5. Specifications.............................................................................................................................12
Figures
Figure 1 T8831 Layout..............................................................................................................................3

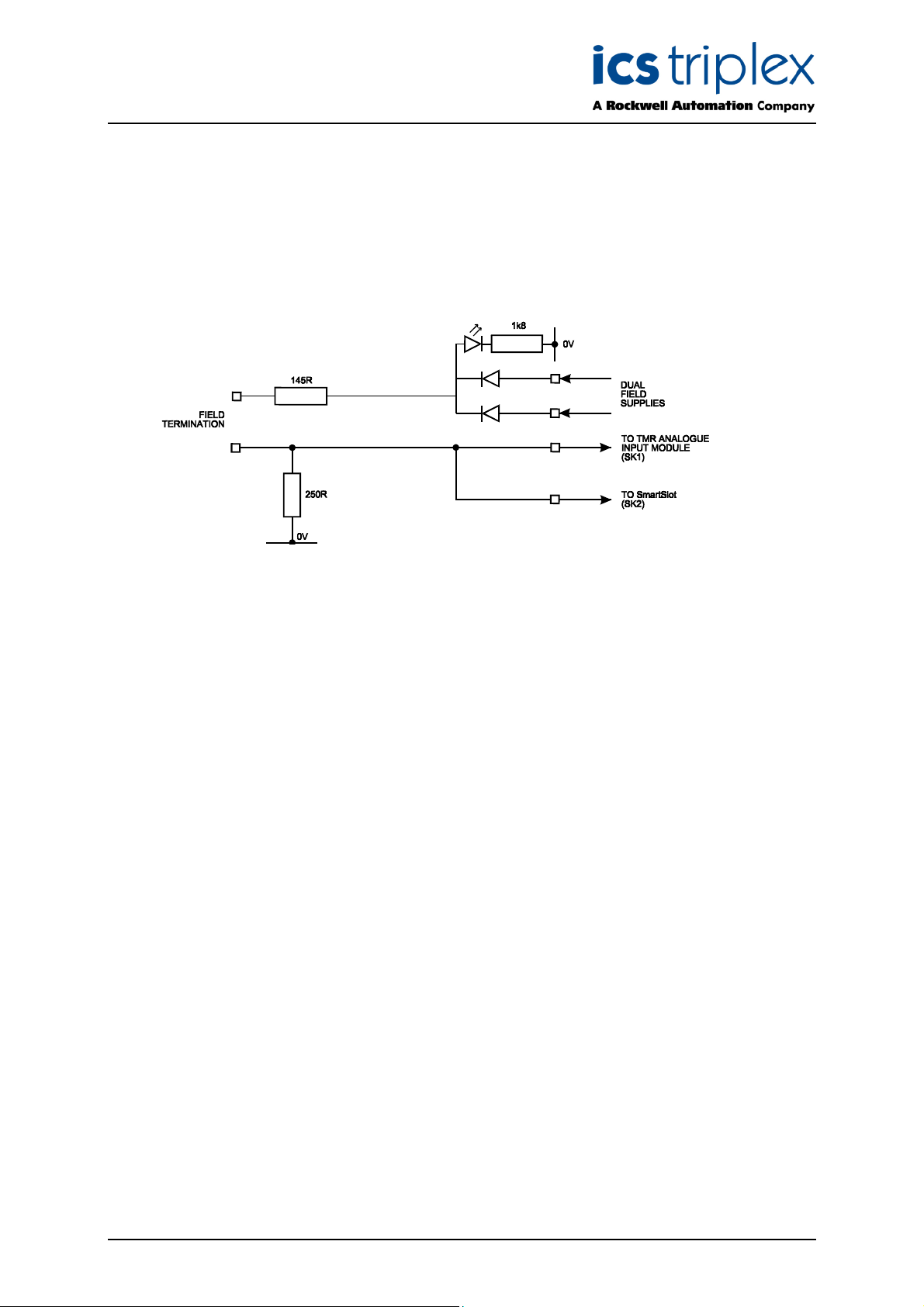

Figure 2 Single Channel Schematic .........................................................................................................7
