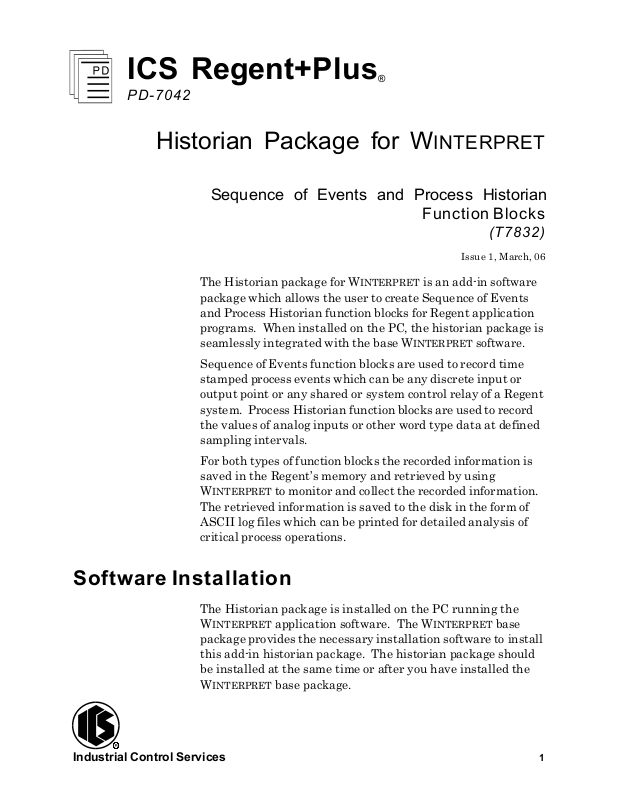

ICS Regent

+Plus

®

PD-7042

Historian Package for W

Sequence of Events and Process Historian

The Historian package for WINTERPRET
package which allows the user to create Sequence of Eve
and Process Historian function blocks for Regent application
programs. When installed on the PC, the historian package is
seamlessly integrated with the base WINTERPRET

Sequence of Events function blocks are used to record time
stamped process events which can be any discrete input or
output point or any shared or system control relay of a Regent
system. Process Historian function blocks are used to record
the values of analog inputs or other word type data at defined
sampling intervals.

INTERPRET

Function Blocks

(T7832)

Issue 1,

is an add-in software

March, 06

nts

software.

For

both types of function blocks the recorded information is
saved in the Regent’s memory and retrieved by using
W

INTERPRET to monitor and collect the recorded information.

The retrieved information is saved to the disk in the form of
ASCII log files which can be printed for detailed analysis of
critical process operations.

Software Installation

The Historian package is installed on the PC running the
W

INTERPRET

package provides the necessary installation software t
this add-in historian package. The historian package should
be installed at the same time or after you have installed the
W

INTERPRET

Industrial Control Services

1

application software. The W

base package.

INTERPRET

base

o install

Historian Package for W

Important!

INTERPRET

(T7832)

Installation Procedure

The files on the Historian package diskette are in compressed

form. You cannot simply copy the files to your hard drive —
they must be decompressed before they will run. You must
have the WINTERPRET base package distribution disk in order
to run the setup procedure to install the Historian package.

To install the His

1. Insert the WINTERPRET base package distribution disk into

drive A: or B:

2. Start Windows (if it isn’t already running).

3. Choose Run from the Program Manager’s File menu.

4. Type a:\

W

INTERPRET base package disk in drive B: type

b:\setup.exe

5. In the WINTERPRET Setup dialog box enter the name of the

directory in which you have installed the WINTERPRET
base package (This assumes that you have already
installed WINTERPRET). Choose Continue.

torian package, use the following sequence:

setup.exe

.) Choose OK or press ENTER.

in the text box. (if you inserted the

6. In the WINTERPRET Installation dialog box check the

Historian package box.

7. Choose OK to have the setup program install the Historian

package software.

When the installation is completed, you can run the
W

INTERPRET application and create Sequence of Events and

Process Historian function blocks in you application
programs.

Working with Historical Function Blocks

The Sequence of Events and Process Historian function blocks
are created as part of
contain other types of function blocks. A single application
program is made up of as many as 50 function blocks of any
type or combination.

When you installed the Historian package, additional
software was added to W

an application program which may also

INTERPRET

to allow you to work with

2

Industrial Control Services

Historian Package for

W

INTERPRET

(T7832)

Sequence of Events and Process Historian function blocks.
With this additional software you can create historian
function blocks by opening a project, opening a program and
opening (or creating) a function block.

For an overview about Regent application programs and
function blocks and how to create them using WINTERPRET

,
refer to Section 5, Working with Programs and Function
Blocks in the Regent User’s Guide.

Sequence of Events Function Blocks

Sequence of events function blocks let you record changes of
state in discrete I/O points and shared control relays. Using
these function blocks you can define a set of I/O points and
shared variables for which changes are to be monitored and
recorded. The points that you configure for SOE recording are
called Event Entries. The record of these events is stored in
the Regent's memory. After events are recorded, WINTERPRET
can read them from the Regent, save them, and print them.

Each sequence of events function block has a Start contact to
define when event recording is to begin and end, a Clear
contact to define when the event buffer is to be cleared, and a
size value to define the size of the event buffer. There is also a
Count register for monitoring the amount of the event b
currently filled.

uffer

The event entries for a sequence of events function block must
be discrete I/O points or shared control relays (including
system control relays).

PD

- 7

042

March, 06

When an application program containing a Sequence of
Events function block is loaded and running, and the SOE
Start contact is on, the events configured are monitored for
state changes. When an event changes state, an entry is
made in the SOE buffer which records the time stamp, and the
status (on/off) of the event. As subsequent events o

ccur,
additional entries are stored in the SOE buffer. When the
SOE buffer is full, new events overwrite the oldest events in
the SOE buffer.

3

Historian Package for W

INTERPRET

(T7832)

Process Historian Function Blocks

Process historian function blocks let the Regent record and
time stamp the values of selected process variables. In a
typical application, the process historian begins recording
when a start signal occurs. At periodic intervals, it records
time stamps and values into a historical buffer in the Regent.
When this historical buffer is full, recording continues by
overwriting the oldest time stamps and values in the list.

Because the recording mode of the process historian is
controlled by a start bit within the Regent, process historian
can be used to capture selected process variable information
during critical process control, alarm or interlock conditions.
This historical recording can be performed at high speed
(maximum once per scan) within the Regent. The data can be
retrieved by monitoring the process historian function bloc
using W
historical data is saved to a Log file which can be viewed,
printed, or analyzed using database, spreadsheet or other
third party analysis software.

INTERPRET. When retrieved from the Regent the

k

Process historian function blocks can be included in programs
containing other types of function blocks (such as ladder logic,
continuous control, floating point math, analog scaling, ASCII
output, and sequence of events).

Users of the process historian function blocks discover
operating details of their processes that they had never before
observed or recorded. Their analysis of this data leads to more
accurate definition of the process safety interlocks which can
result in fewer nuisance trips.

Monitoring and Collecting Historical Data From the Regent

The Regent is capable of buffering historical data in its
memory without requiring any external communications
equipment connected (like a PC running WINTERPRET
function stores the information in the allocated historian
buffers for each function block. To retrieve the information
from the internal memory buffers, you can use WINTERPRET
monitor and collect the historical buffers and save the
information as Log files in ASCII text file form on the PC.

). This

to

4

Industrial Control Services

Historian Package for

W

INTERPRET can print these log files so you can obtain a hard

W

INTERPRET

(T7832)

copy of the historical data. Printouts include time stamps,
event tag names, event status and description.

Using WINTERPRET version 3.2 or later, the monitor and
collect function can be configured to echo the collected
historical data to a

device (such as a comm port or printer
port) while the historical collection occurs. This provides
automatic printing of the historical data in real-time.

Using the Sequence of Events Editor

The Sequence of Events Editor lets you create and edit
sequence of events function blocks. When you create an SOE
function block you will define a list of event entries and the
control parameters that govern the recording operations for
the function block. Each sequence of events function block
can have a maximum of 6500 event entries.

Sequence of Events function blocks are created using the Add
Function Block or Insert Function Block from the Program
Editor. After you have created a new sequence of events
function block the Sequence of Events Editor window is
opened as shown in Figure 1.

PD

- 7

042

March, 06

Figure 1. The Sequence of Events Editor Window.

5

Historian Package for W

Using the drop-down menus you can select commands to
configure the sequence of events function block event entries,
control parameters, print the function block and a host of
other configuration operations.

INTERPRET

(T7832)

File Menu

The File Menu gives you access to the standard function block
file commands which include: Save Function Block, Revert to
Last Saved, Compile, View Error Messages, Edit Function
Block Description, Edit Function Block Details, Print
Function Block, Print Setup, Log Off and Exit. For more
information on all of these commands refer to Commands
Common to all Function Blocks in Section 5 of the Regent
User’s Guide.

Edit Menu

Add Entry and Insert Entry

Choose Add Entry to create a new event entry at the end of
the list of existing entries. Choose Insert Entry to insert a
new event entry at the current cursor position. Normally the
order of the event entries is not important because they
simply represent the list of discrete events that are to be
monitored and recorded as they change state.

6

After choosing Add or Insert Entry a dialog box will open
where you can define the variable name for the event entry.
The Add Entry dialog is shown in Fig

Figure 2. Sequence of Events: Add Entry Dialog.

You only need to enter the name of the variable for each
entry. The description of the variable will automatically be
imported by the editor from the I/O, shared variable or system
variable definitions.

Industrial Control Services

ure 2.

Historian Package for

W

INTERPRET

(T7832)

An event variable must be defined as an I/O point, a shared
control relay or system control relay. If you enter the name of
a local control relay for an event entry, you will get an error
when you compile the function block.

After you have used the Add Entry and Insert Entry
commands, your event entries will be listed in the Sequence of
Events Editor Window like those shown in Figure 3.

Figure 3. Example of Event Entries in the Sequence of

Edit Entry

Events Editor Window.

Use the Edit Entry command to edit and modify the
configuration for a specific event entry.

Delete Entry

Use the Delete Entry command to delete an event entry from
the list. Select the entry you wish
Entry from the Edit menu.

Control Parameters

to delete and choose Delete

Use the Control Parameters command to define the execution
parameters for the sequence of events function block. The
control parameters you define apply to all of the event entries,
not individual entries.

When you select the Control Parameters command from the
Edit menu the following dialog box is opened:

PD

- 7

042

March, 06

7

Historian Package for W

INTERPRET

(T7832)

Figure 4. Sequence of Events Control Parameters.

Start Contact

The Start contact is a discrete variable name that an
application program may turn on to enable the sequence of
events to begin recording events. When the Start contact is
turned off, the sequence of events stops recording. Typically,
ladder logic is used to turn on the Start contact, based upon
process events or time conditions such as alarms detected,
timer timed out, etc.

The Start contact is automatically recorded by the sequence of
events when it changes state. It does not have to be included
in the event entries list.

Clear Contact

The Clear contact is a discrete variable name that an
application program may turn on to clear all the events
currently in the sequence of events buffer.

The Clear contact is automatically recorded by the sequence
of events when it changes state. It does not have to be
included in the event entries list.

8

Count Register

The Count register is a shared variable register name that
may be used by an application program to monitor the use of
the events buffer. Typically, ladder logic is used to monitor
the Cou

nt register and turn off the Start contact before the
events buffer is full to ensure no events are overwritten. You
may also configure your operators console to monitor the

Industrial Control Services

Historian Package for

W

INTERPRET

(T7832)

Count register for changes to detect when there are new
events that have been recorded and direct appropriate plant
personnel to monitor and collect the SOE buffer using
W

INTERPRET

.

Size Field

A constant must be entered into the Size field to indicate the
size of the events buffer. The larger the buffer, the more
events can be recorded without old events being overwritten,
and the more space the function block utilizes in the Regent.

The maximum value for the events buffer is 32,727. This
represents 32,727 words of space (or 65,454 bytes of Regent
memory) in which to store events. The maximum buffer space
required to store the change-of-state of one variable is six
words (three words for the entry and three words for the time
stamp).

Therefore, the amount of Regent memory required to store the
change-of-state of 1,000 variables of thi

1,000 events x (3 words per event + 3 words per timestamp) =

6,000 words (or 12,000 bytes of Regent memory)

s type is:

Variables that change state within the same scan require only
one time stamp to be recorded. Therefore, the buffer space
used by two events that occur within the same scan can be as
much as:

PD

- 7

042

March, 06

(2 events * 3 words per event) + 3 words per timestamp =

9 words (or 18 bytes of Regent memory)

9

Historian Package for W

INTERPRET

(T7832)

Search Menu

Go to Entry

The Go to Entry command lets you quickly move to different
entries in the sequence of events entries list. From the
Sequence of Events Editor's Search menu choose Go to Entry
(

ALT,S,G

For your convenience, the dialog displays the number of event
entries (indicated as line numbers) currently defined on the
function block.

).

Figure 5. Sequence of Events: Go to Entry.

Entry (Line) Number

Enter the entry number that you want to go to.

Go

Choose Go to move to the entry number that you entered in
the Entry Number text box.

First

Go to the first event entry in the list.

Last

Go to the last event entry in the list.

Options Menu

The Options Menu allows you to enable and disable the
Prompt for Delete option common to all delete operations used
in WINTERPRET.

Window Menu

The Window menu commands are standard throughout all
W

INTERPRET windows. For more information on using the

Window menu commands see Commands Common to all

10

Industrial Control Services

Historian Package for

W

INTERPRET Windows in Section 3, Installing the

W

INTERPRET Application of the Regent User’s Guide.

W

INTERPRET

(T7832)

Help Menu

The Help menu commands are standard throughout al
W

INTERPRET windows. For more information on using the

Help menu commands see Commands Common to all
W

INTERPRET Windows in Section 3, Installing the

W

INTERPRET Application of the Regent User’s Guide.

Using the Process Historian Editor

The Process Historian Editor lets you create and edit process
historian function blocks. When you create a process
historian function block you will define a list of variable
entries and the control parameters that govern the recording
operations for the function block. Ea
function block can have a maximum of 6500 variable entries
(although a practical limit of about 500 entries is suggested).
All variables entered are recorded at the interval specified by
Sample Time. If you wish to record variables at different
intervals, you must define them in function blocks with a
Sample Time of the desired interval.

ch process historian

l

PD

- 7

042

March, 06

Process Historian function blocks are created using the Add
Function Block or Insert Function Block from the Program
Editor. After you have created

a new process historian
function block the Process Historian Editor window is opened
as shown in Figure 6.

11

Historian Package for W

INTERPRET

(T7832)

Figure 6. The Process Historian Editor Window.

Using the drop-down menus you can select commands to
configure the process historian function block variable entries,
control parameters, print the function block and a host of
other configuration operations.

File Menu

The File Menu gives you access to the standard function block
file commands which include: Save Function Block, Revert to
Last Saved, Compile, View Error Messages, Edit Function
Block Description, Edit Function Block Details, Print
Function Block, Print Setup, Log Off and Exit. For more
information on all of these commands refer to Commands
Common to all Function Blocks in Section 5 of the Regent
User’s Guide.

Edit Menu

Add Entry and Insert Entry

12

Choose Add Entry to create a new variable entry at the end of
the list of existing entries. Choose Insert Entry to insert a
new variable entry at the current cu
of the variable entries is the order that the variables will
appear in the historical log.

Industrial Control Services

rsor position. The order

Historian Package for

W

INTERPRET

(T7832)

After choosing Add or Insert Entry a dialog box will open
where you can define the variable name for the entry. The
Add Entry dialog is shown in Figure 7.

Figure 7. Process Historian: Add Entry Dialog.

You only need to enter the name of the variable for each
entry. The description of the variable will automatically be
imported by the editor from the I/O, shared variable or system
variable definitions.

A variable entry must be defined as an I/O word variable (AI,
AO, TI, DIW or DOW), a shared register, a shared floating
point register, or a system register. If you enter the name of a
local variable or a discrete variable for a variable entry, you
will get an error when you compile the function block.

After you have used the Add Entry and Insert Entry
commands, your variable entries will be listed in the Process
Historian Window like those shown in Fig

ure 8.

PD

- 7

042

March, 06

13
