Rockwell Automation T3833 User Manual

ICS Regent
I
mportant!
®
PD-6043
Math Package for
W
INTERPRET
Floating Point Math Function Block
(T3833)
Issue 1,
The Math pac package which allows the user to create Floating Point Math function blocks for Regent application programs. When installed on the PC, the math package is seamlessly integrated with the base WINTERPRET
Floating point math function blocks are used to perform mathematical calculations that require floating point precision or use values that exceed the 16-bit signed integer range (-32768 to +32767) used in ladder logic math operations. The expressions that can be used in floating point math function blocks include addition, subtraction, division, multiplication, exponentiation, logarithms, and square root.
kage for W
INTERPRET
is an add-in software
software.
March, 06

Software Installation

The Math package is installed on the PC running the W
INTERPRET
package provides the necessary installation software to install this add-in math package. The math package should be installed at the same time or after you have installed the W
INTERPRET

Installation Procedure

The files on the Math package diskette are in compressed
form. You cannot simply copy the files to your hard drive — they must be decompressed before they will run. You must have the WINTERPRET base package distribution disk in order to run the setup procedure to install the Math package.
To install the Math package, use the following sequence:
1
application software. The W
base package.
INTERPRET
base
Math Package for
1. Insert the WINTERPRET base package distribution disk into
W
INTERPRET
drive A: or B:
(T3833)
2. Start Windows (if it isn’t already running).
3. Choose Run from the Program Manager’s File menu.
4. Type a:\
W
INTERPRET base package disk in drive B: type
b:\setup.exe
5. In the WINTERPRET Setup dialog box enter the name of the
directory in which you have installed the WINTERPRET base package (This assumes that you have already installed WINTERPRET). Choose Continue.
6. In the WINTERPRET Installation dialog box check the Math
package box.
7. Choose OK to have the setup program install the Math
package software.
When the installation is completed, you can run the W
INTERPRET application and create floating point math
function blocks in you application programs.
setup.exe
.) Choose OK or press ENTER.
in the text box. (if you inserted the

Working with Floating Point Math Function Blocks

Floating point math function blocks are created as part of an application program which may also contain other types of function blocks. A single application program is made up of as many as 50 function blocks of any type or combination.
When you installed the Math package, additional sof was added to W point math function blocks. With this additional software you can create floating point math function blocks by opening a project, opening a program and opening (or creating) a function block.
For an overview about Regent application programs and function blocks and how to create them using WINTERPRET refer to Section 5, Working with Programs and Function Blocks in the Regent User’s Guide.
INTERPRET
to allow you to work with floating
tware
,
2
Industrial Control Services
Math Package for
W
INTERPRET
(T3833)

Using Floating Point Math Statements

In floating point math function blocks you enter mathematical equations and expressions in the form of statements. Each line can contain one statement that calculates the result of a mathematical equation. For example, consider the quadratic equation below.
y = 1.6x2 +8x -22.4
Using floating point math the statement representing this equation would be:
Y = 1.6*X^2 + 8*X - 22.4
You can also enter comments in any line by entering a semicolon (;) and placing your comments after the semicolon as shown below.
Y
= 1.6*X^2 + 8*X - 22.4 ; This is a comment.
Floating point math also allows you to create conditional statements using IF, ELSE, ENDIF, WHILE, ENDW, AND and OR operations. Below is an example of using IF, ELSE and ENDIF to calculate the absolute value of the difference between two variables.
PD-6043
March, 06
IF AI1 > AI2 DIFF = AI1 - AI2 ELSE DIFF = AI2 - AI1 ENDIF
Using combinations of conditional statements and mathematical operations allows you to configure floating point function blocks to meet a wide range requirements.

Mathematical Operations

of control
The mathematical operators perform arithmetic and functional operations.
3
Math Package for
Operator Operation
^ Exponentiation * Multiplication /
Division
+
Addition
- Subtraction
Operator Operation
SQRT(x)
Returns the square root of x
EXP(x)
Raises e to the x power
LOG(x)
Returns the logarithm of x
LN(x)
Returns the natural logarithm of x
Note:
Note:
W
INTERPRET
(T3833)

Arithmetic Operations

Table 1 shows the arithmetic operators recognized by floating point math listed in their default order of precedence.
Table 1. Arithmetic Operators.
Multiplication and division have equal precedence from
right, as do addition and subtraction.
The exponent, X, in an exponential expression (
Y^X
left to
) is always
evaluated as an integer (fractional portion is truncated). Do not use the exponentiation operator to perform square root calculations, instead use the below.
SQRT(X)
function described
Parentheses may be used to clarify the order of operation: operations within parenthesis are performed first. Inside the parentheses, the usual order of precedence is maintained.

Functional Operators

A functional operator is used in an expression to perform a predetermined operation that is to be performed on one or more operands. The Regent’s floating point math has four standard functions that reside in the system as shown in Table 2.
Table 2. Functional Operators.
In each function you can enter a variable or arithmetic expression within the parenthesis of the function. For example the following statement is valid.
4
Industrial Control Services
Math Package for
Note:
W
INTERPRET
(T3833)
The exponentiation operator (
integer power X. If you need to calculate values of X you can use the shown below.

Conditional Statements

ROOT1 = (-B + SQRT(B^2 - 4*A*C)) / (2*A)
Y^X
) can only raise Y to an
YX for non-integer
LN(X)
and
EXP(X)
functions as
Y_2_THE_X = EXP(X*LN(Y))
The statements available in the floating point math let you alter program flow base

IF, ELSE, and ENDIF

d on testing of conditions.
The IF statement is used to make a decision regarding program flow based on the result returned by an expression. The expression can include mathematical and logical operators. The use of ELSE within the lines controlled by the IF statement is optional.
Syntax:
IF expression
• ELSE (optional)
• ENDIF
IF, ELSE, and ENDIF statements must not the same line.

WHILE and ENDW

be combined on
The WHILE statement executes a series of statements in a l
oop as long as the expression is true. The expression can
include mathematical and logical operators. Syntax:
WHILE expression
PD-6043
March, 06
• loop statement
5
Math Package for
Operator
Relation Tested
Expression
=
Equality
X = Y <> Inequality
X <> Y
<
Less than
X < Y
>
Greater than
X > Y <= Less than or equal to
X <= Y
>= Greater than or equal to
X >= Y
Important!
If the expression is true (not zero), loop statements are executed until the ENDW statement is encountered. Floating point math then returns to the WHILE statement and checks expression. If expression is still true, the process is repeated. If the expression is not true, execution resumes with the statement following the ENDW statement.
To avoid infinite loops, the expression must be modified (its
value changed) during repeated execution to make the expression false and exit the loop.
W
INTERPRET
• ENDW
(T3833)
WHILE and ENDW statements may be nested.

Relational and Logical Operators

Relational and logic operators are often used in the expressions for IF and WHILE statements to control the execution of other mathematical statements.

Relational Operators

Relational operators compare two values. The result of the comparison is either true (1) or false (0
). The result can then be used to make a decision regarding program flow. The relational operators are shown in Table 3.
Table 3. Relational Operators.
6
When arithmetic and relational operators are combined in one expression, the arithmetic is always p
Industrial Control Services
erformed first.
Math Package for
Value
A
Value
B
Result
A AND B
Result
A OR B
T T T T T F F T F T F T F F F
F
W
INTERPRET
(T3833)

Logical Operators

Logical operators perform logical, or boolean, operations on numeric values. Just as the relational operators are usually used to make decisions regarding program flow, logical operators are used to connect two or more relations and return a true or false value to be used in a decision.
A logical operator takes a combination of true/false values and returns a true or false result. An operand of a logical operator is considered to be true if it is not equal to zero, or
false if it is equal to zero. The result of the logical operation is a number which is, again, true if it is not equal to zero, or false if it is equal to zero.
In an expression, logical operations are performed after arithmetic and relational operations.
Table 4. Logical Operators.

Using Variables and Constants

Constants

Constants are static values used by the floating point math function blocks during execution of your program. All constants are numeric.
Numeric constants can be either positive or negative. Numeric constants must not contain commas. For example, if the number 20,000 is needed as a constant, it should be typed in the floating point math statement as 20000.
There are two types of numeric constants: integer and floating point.
PD-6043
March, 06
7
Math Package for
W
INTERPRET
(T3833)
Integer Constants
Integer constants are constants entered as whole numbers that do not contain decimal points or commas. Entering
an integer constant greater than 7 numerals long is allowed but the precision of the actual number stored and used in the Regent is limited to 7 significant digits. For example, the integer constants 12345678 and 12345679 may result in an equal values when converted and stored in the Regent.
Floating Point Constants
Floating point constants are positive and negative numbers represented in exponential form (similar to scientific notation). A floating point constant consists of an optionally signed integer or fixed point number (the mantissa) followed by the letter "E" and an optionally signed integer (the exponent). The "E" means "times ten to the power of."
For example:
33E-2
Here, 33 is the mantissa, and -2 is the exponent. This number could be read as "thirty-three times ten to the power of negative two." You could also write this number as 0.33 in regular fixed point notation.
8
You can represent any number from -1.175494E-38 to
3.402823E38 as a floating point constant.

Variables

Variables are names representing values used in the float
ing point math function blocks. All of the variables you use in a floating point math function block must be shared variables, I/O points, or local variables used by floating point math function blocks only. For example, if you scale an analog input value to a register, the register should be defined as a shared variable register if you want to use the scaled result in a floating point function block.
The floating point math compiler assumes that any local var
iables found in the function block will be local floating point registers. If a local variable is used in both a floating point math and other type of function block, a local data allocation error will be reported when you attempt to load the
Industrial Control Services
Math Package for
W
INTERPRET
(T3833)
application program in the Regent. This will prevent the program from being loaded into the Regent.
For more information about Regent variable types, see Regent Variable Types and Memory, in Section 4, Working with Projects, in the Regent User’s Guide.
Floating point math function blocks recognize the following variable types:
Logical Variables
Logical variables are used for digital output, shared control relays, and local control relays. Logical values are always 1 (on) or 0 (off).
Analog Variables
Analog variables are used for analog inputs and outputs. Analog variables must be within the range 0 to 4095. Thermocouple and RTD inputs are within the range of -16384 and 16383.
Integer Variables
Integer variables are used for shared registers and local regist and 32767.
Floating Point Variables
ers. Integer values must be within the range -32768
Floating point variables are used for floating point shared registers and floating point local registers. Floating point values must be within the range -1.175494E-38 and
3.402823E38.
PD-6043
March, 06

Coercion (Type Conversion)

Regardless of the variable type, all calculations performed in floating point math are done using floating point numbers. When logical, analog, or integer type variables are used, code is created in the fun to a floating point number for calculation in the Regent.
ction block to convert the variable value
When storing the result of a calculation, the value is converted to the type of the destination variable.
When performing variable conversions, the rules in Table apply:
9
5
Math Package for
Logical to analog
False to 0, true to 1.
Logical to integer
False to 0, true to 1.
Logical to floating point
False to 0.0, true to 1.0
Analog to logical
0 to
false, otherwise true.
Analog to integer
Valid for all analog values.
Analog to floating point
Valid for all analog values.
Integer to logical
0 to false, otherwise true.
Integer to analog
Valid for all integers between 0 and 4095 (-16384 to +16384 for T/C and RTD inputs). Otherwise a conversion error is reported.
Integer to floating point
Valid for all integers.
Floating point to logical
0.0 to false, otherwise true.
Floating point to analog
Valid for all floating point number
s between 0.0 and 4095.0 (-16384.0 to +16384.0 for T/C and RTD inputs). Otherwise a conversion error is reported.
Floating point to integer
Valid for all floating point numbers between -32768.0 and +32767.0. Otherwise a conversion error is reported.
W
INTERPRET
(T3833)
Table 5. Conversion Rules.

Error Handling

In a floating point math function block, errors may occur during floating point calculations as the values used in the equations change. An example of a math error is the square root of a negative number. For each function block the us must define two tag names which are used to report the line number and error code of the math error. These tag names may be used in the function block to annunciate errors and optionally execute user defined actions if math errors occur.

Hold Last Valid Value

When a math error occurs during a calculation, the result of the equation retains the last valid value.
er
10
For example, consider the equation:
Industrial Control Services
Math Package for
Scan B
SQRT(B)
Result, A
1 25 5 5 2 16 4 4 3 2
1.414213
1.414213 4 -7
<error>
1.414213 5 1 1 1
W
INTERPRET
(T3833)
A = SQRT (B)
During execution in the Regent, the value of B may change from one scan cycle to the ne
xt. Table 6 illustrates the values of B the result stored in A for a series of scan cycles to illustrate the effects of a math error (square root of a negative number).
Table 6. Example of Math Error and Result Values.
During scan 4, the square root of -7 produces an error, and the result, A, retains its last valid value (1.414213
). In scan 5, the square root of 1 is valid so the result, A, is updated with the new value square root of 1 = 1.

User-Supplied Error Handling Logic

Each floating point math function block contains two registers in which error codes are placed by the Regent during execution. Error codes indicate what type of error occurred and the line number on which it occurred. This error information can be tested in the function block as desired.

Error Code Variable

The error code variable must be assigned a name
. This name will hold the error code. Four error codes are generated as shown in Table 7.
PD-6043
March, 06
11
Math Package for
Error Code
Description Example
1 Underflow
C = A / B; |A/B| < 1.175494E-38
2 Overflow
C = A * B; A * B > 3.402823E38
C = A/B; B = 0
3
Not a number
C = SQRT A; A < 0
4
Conversion AO = 3000 + 2000
(where AO is an analog output)
Scan AI
AI+300
AO
Comments
1 3000
3300
3300
No error
2 3200
3500
3500
No error
3 3700
4000
4000
No error
4 3900
4200
4000
Error Code 4, last value used
5 4000
4300
4000
Error Code 4, last value used
6 3780
4080
4080
No error
W
INTERPRET
(T3833)
Table 7. Error Codes.
In most floating point equations, the results do not approach the error limits of floating point math. When equations are used that can produce floating point errors, the variable on the left side of the equal sign will not be changed and it will contain the last valid result. If under error conditions this last value is not the best answer and a better answer can be determined by the error code, then the error term should be examined.
Example:
AO = 300 + AI
where,
AO is analog output (maximum 4095) AI
is analog input (0 - 4095)
if AI > 3795 then an error will occur.
Table 8. Examp
le of Conversion Error, Error Code 4.
The most desirable answer for scans 4 and 5 would probably be AO max = 4095, not the last value of 4000. To alter this value, you may use the error code to examine the error term to determine a bett
er value.
12
Industrial Control Services
Math Package for
Line Equation
Comments
1 LINE = 0
Reset line number variable to 0 to clear status each scan.
2 ERROR = 0
Reset error code variable to 0 to clear status each scan.
3 A = EQUATION 1
Equation that generates an error, a better answer is pre
dictable:
4 IF (ERROR <> 0 AND LINE = 3)
If line 3 produces an error, a better value for A should be determined.
5 A = BETTER VALUE
Equation that sets A to a better value than calculated in line 3.
6 ENDIF
7 B = EQUATION 2
Equation not requiring special error handling.
8 C = EQUATION 3
Equation not requiring special error handling.
9 D = EQUATION 4
Equations not requiring special error handling.
10 E = EQUATION 5
Next equation requiring better error handling.
11 IF (ERROR <> 0 AND LINE = 10)
If line 10 produces an error, a better value for E should be determined.
12 E = BETTER VALUE
Equation that sets A to a better value than calculated in line 10.
13 ENDIF
W
INTERPRET
(T3833)
Table 9 shows a general example of how the error variables can be used in a floating point function block to check for error conditions and conditionally execute alternate equations that calculate a more appropriate result than leaving the value at its last valid value. For example, if our analog output equation, AO = 300 + AI, was the equation in line 3, we could use the equation, AO maximum value for the analog output when AI > 3795.
=
4095, in line 5 to always produce a
Table 9. Using Error Variables.
PD-6043
March, 06
When multiple lines in the function block have math errors, the error code variable and line number variable will change during the execution of the function block. For each equation that you identify a potential for a math error, you must test for errors before executing any other equations which may also generate errors. At the end of the scan, the error variables will have the value of the last math error.
13
Math Package for
The Regent does not reset the values of the line number and error code variables when n When the error condition ceases, these variables contain the values for the last error. You should include equations to reset the error variables (as shown in lines 1 and 2 in Table 9. Otherwise, once an equation generates an error, the test for error will remain true for that equation until a different line number generates a math error.
W
INTERPRET
(T3833)
o more math errors are present.

Using the Floating Point Math Editor

Floating Point Math function blocks are created using the Add Function Block or Insert Function Block from the Program Editor. After you have created a new math function block the Floating Point Math Editor window is opened as shown in Figure 1.
14
Figure 1. The Floating Point Math Editor Window.
Using the drop-down menus you can select commands to create floating point math statements, define error variables, perform cut, copy and paste operations, print the function block and a host of other configuration operations.
The F floating point math function blocks. When you create a math function block you will enter your equations line by line in a simple text-based editor.
loating Point Math Editor lets you create and edit
Industrial Control Services
Math Package for
Note:
W
INTERPRET
(T3833)
The floating point math editor allows you to create up to 6500 lines in a single function block. The size of each compiled function block is limited to 64 kbytes of code which provides up to 1300 lines which contain floating point math statements (a simple statement like A = 1 occupies approximately 50 bytes).

Statement Lines

Each line of the function block may contain up to 72 characters that form a floating point math statement. Additional comment characters may also be included (see Comments below). Statements cannot be extended from one line to the next.
Comments and Blank Lines
In-line comments may be included on any line of the floating point math function block.
Comments begin with a semicolon (;). Anything following a semicolon will be interpreted as a comment. All characters to the right of a
semicolon will be interpreted as comments and will not be used to generate code that is loaded and executed in the Regent. A line beginning with a semicolon is completely a comment line.
Blank lines may be used to make the function block more easily readable by separating sequential lines from others. Blank lines and lines that are completely comments do not generate any executable code, but do require 2 bytes of function block local data.
PD-6043
March, 06
The editor allows you to enter up to 1024 characters per
line,
however, when the function block is printed only the first 125 characters of each line are printed. Avoid entering lines longer than 125 characters wide.
An floating point math example which includes comments and blank lines is shown in Figure 2.
15
Math Package for
W
INTERPRET
Figure 2. Example of the Floating Point Math Editor
(T3833)
Window.

File Menu

The File Menu gives you access to the standard function block file commands which include: Save Function Block, Revert to Last Saved, Compile, View Error Messages, Edit Function Block Description, Edit Function Block Details, Print Function Block, Print Setup, Log Off and Exit. For more information on all of these commands refer to Commands Common to all Function Blocks in Section 5 of the Regent User’s Guide.

Edit Menu

From the Edit Menu the user can select a variety of commands such as cut, copy and paste of the currently selected text in the editor.

Undo

Use the Undo command to restore the text in the editor to its original state before performing a Cut, Copy, Paste or delete.
Cut
16
The Cut command can be used to remove the currently selected text from the editor. Subsequently the text can be inserted into the function block using the Paste command.
Industrial Control Services
Math Package for
W
INTERPRET
(T3833)
Click and drag the mouse to select the desired text to cut. Choose Cut from the Edit Menu to remove the selected text.

Copy

The Copy command can be used to copy the currently selected text to the Windows clipboard. Copied text can later be inserted into the function block using the
Paste command.
Click and drag the mouse to select the desired text to copy. Choose Copy from the Edit Menu to copy the selected text to the clipboard.

Paste

The Paste command is used to insert the current contents of the clipboard at the currently selected position. Paste is normally used in conjunction with the Cut and Copy commands.
After using the Cut or Copy command, place the cursor at the position that you wish to insert the text. Choose Paste from the Edit Menu to insert the contents of the c
Note:
lipboard.
The Paste command can be used to replace text in the function block. Use the mouse to select the range of text that you wish to replace. Choose Paste from the Edit Menu to replace the selected text with the text previously selected by Cut or Copy.
PD-6043
March, 06

Select All

Choose Select All to select all of the lines in the function block. This performs the same operation as selecting all of the lines by clicking and dragging the cursor from the start of the first line to the end of the last line in

Error Variables

the editor.
Use the Error Variables command to define the line number and error code variable names for floating point math error reporting. For additional information about error variables and how they can be used in the function block see Page 10, Error Handling.
When you select the Error Variables command from the Edit menu the following dialog box is opened:
17
Math Package for
W
INTERPRET
(T3833)
Figure 3. Floating Point Math Error Variables.
Line number va
riable
Enter the tag name for the line number variable. The variable is used to report line numbers that generate math errors if they occur during execution in the Regent.
Error code variable
Enter the tag name for the error code variable. The variable is used to report the error code for math errors if they occur during execution in the Regent.

Search Menu

Go to Line

The Go to Line command lets you quickly move to different lines in the floating point math function block. From the Floating Point Math Editor's Search menu choose Go to Line (
ALT,S,G
).
18
Figure 4. Floating Point Math: Go to Line.
For your convenience, the dialog displays the number of lines currently defined in the function block.
Line number
Enter the line number that you want to go to.
Industrial Control Services
Go
Math Package for
W
INTERPRET
(T3833)
Choose Go to move to the line number that you entered in the Line Number text box.
First
Go to the first line in the function block.
Last
Go to the last line in the function block.

Find

The Find command lets you quickly loca
te text strings in the floating point math function block. For example, you can search for a tag name and have the editor locate the line of the function block where the tag name is used. From the Floating Point Math Editor's Search menu choose Find (
ALT,S,F
).
PD-6043
March, 06

Find Next

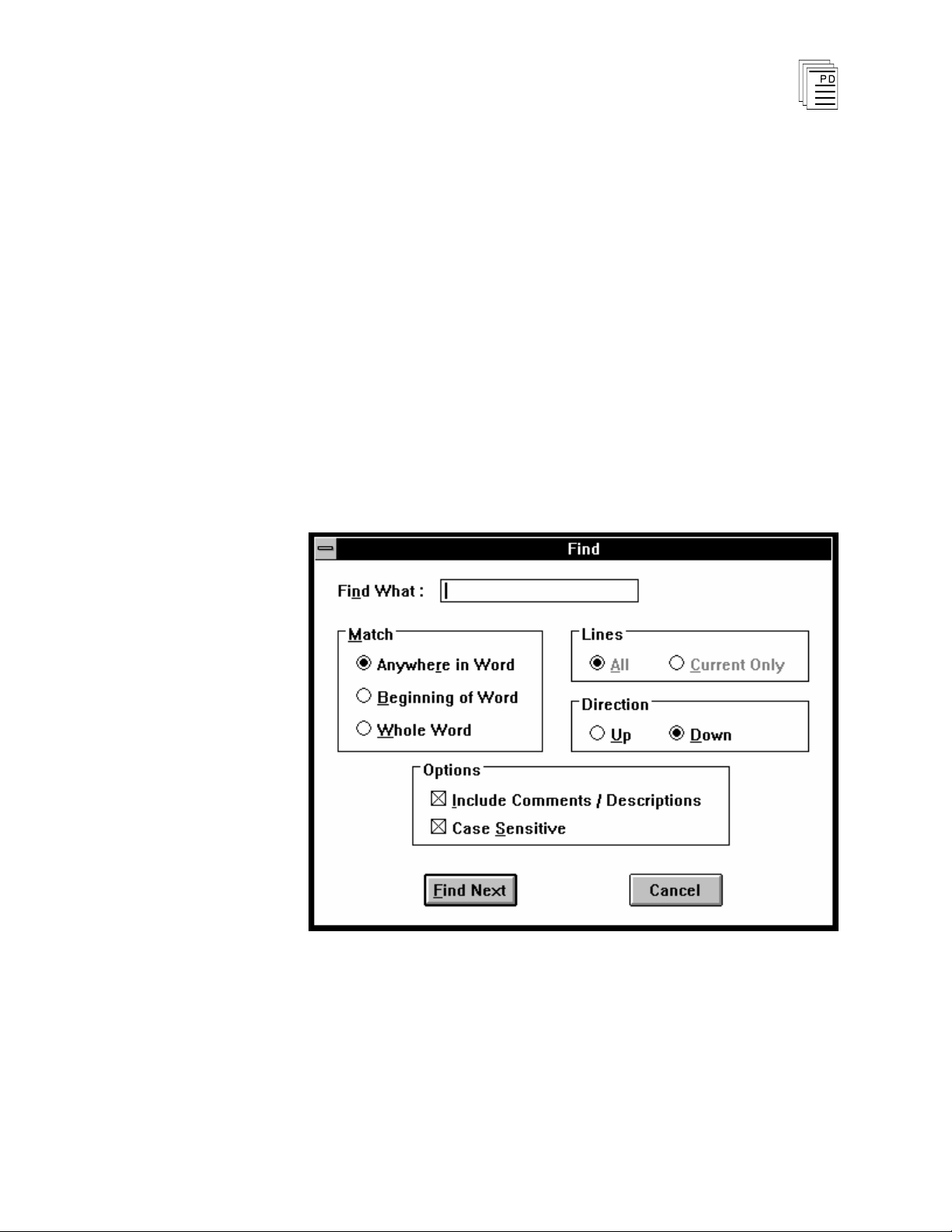

Figure 5. Floating Point Math: Find.
The Find Next command repeats the last selected Find operation. From the Floating Point Math Editor's Search menu choose Find Next (
ALT,S,N
) or simply press F3.
19
Math Package for
W
INTERPRET
(T3833)

Window Menu

The Wi W Window menu commands see Commands Common to all W W
ndow menu commands are standard throughout all
INTERPRET windows. For more information on using the
INTERPRET Windows in Section 3, Installing the INTERPRET Application of the Regent User’s Guide.

Help Menu

The Help menu commands are standard throughout all W
INTERPRET windows. For more information on using the
Help menu commands see Commands Common to all W
INTERPRET Windows in Section 3, Installing the
W
INTERPRET Application of the Regent User’s Guide.

Using the Floating Point Math Monitor

When you have selected a Floating Point Math function block in the Program Monitor window and choose the Monitor command from the Control Menu, the Floating Point Math Monitor window is opened as shown in Figure 6.
20

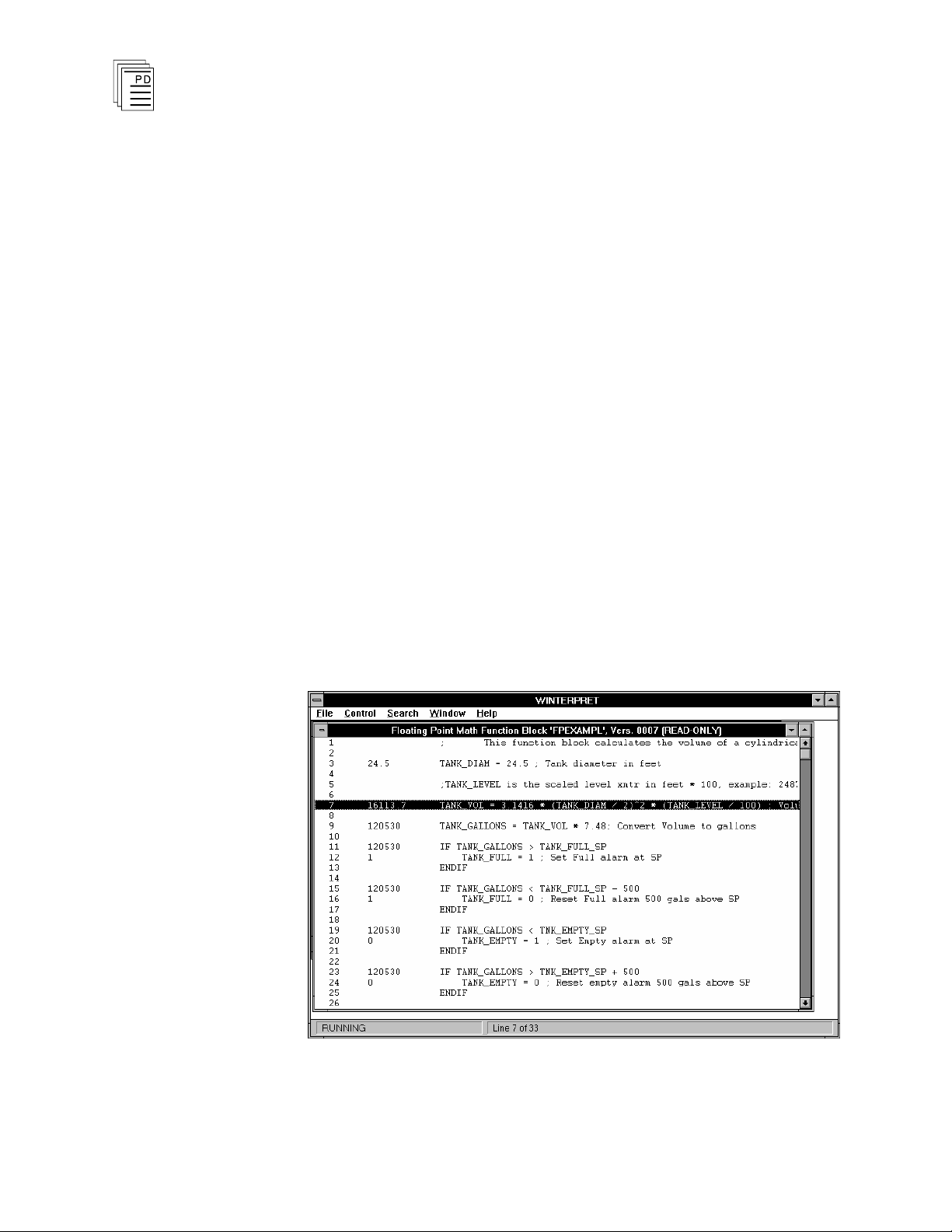

Figure 6. Floating Point Math Monitor Window.
Industrial Control Services
Math Package for
W
INTERPRET
(T3833)
Normally you will use the Floating Point Math Monitor Window to observe results of the floating point math calculations. You can also select a single line and d values of all the variables used in the selected line.
isplay the

File Menu

The File Menu provides access to several commands common to all function block monitors. These include View Function Block Details, View Function Block Description, Log Off and Exit. For descriptions of these commands see Commands Common to all Function Block Monitors in Section 7, Loading Monitoring and Testing Application Programs in the Regent User’s Guide.

Control Menu

The Control Menu provides certain command that are com
mon to all function block monitors. These include Run, Stop and Scan commands to control the execution status of the entire application program. For descriptions of these commands see Commands Common to all Function Block Monitors in Section 7, Loading Monitoring and Testing Application Programs in the Regent User’s Guide.
Additionally the Control Menu provides a Line Details command used specifically for monitoring floating point math function blocks.
PD-6043
March, 06

Line Details

This command opens a dialog box which
displays the status of all variables in the currently selected line. The status of the error variables are also shown in the Line Details dialog.
21
Math Package for
W
INTERPRET
(T3833)

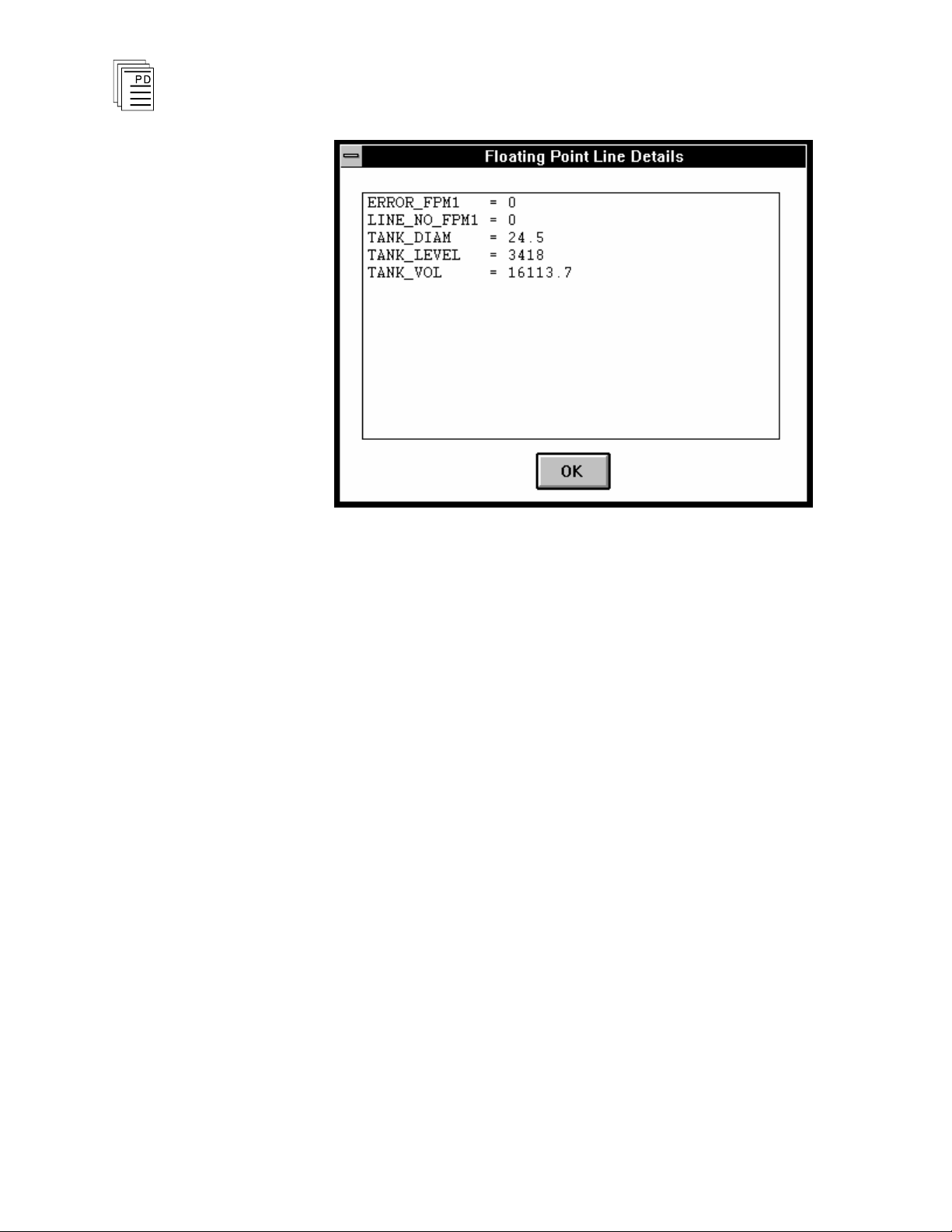

Figure 7. Floating Point Math: Line Details Dialog.

Search Menu

The Search Menu provides commands to locate information in floating point math function block. You can choose Go to Line (to move to a particular line number), Find (to search for test strings) or Find Next (to repeat the last Find selection). More details about each of these commands are described on Page
18.

Window Menu

The Window menu commands are standard throughout all W
INTERPRET windows. For more information on using the
Window menu commands see Commands Common to all W
INTERPRET Windows in Section 3, Installing the
W
INTERPRET Application of the Regent User’s Guide.

Help Menu

22
The Help menu commands are standard throughout all W
INTERPRET windows. For more information on using the
Help menu commands see Commands Common to all W
INTERPRET
W
INTERPRET Application of the Regent User’s Guide.
Windows
in Section 3, Installing the
Industrial Control Services
Math Package for
W
INTERPRET
(T3833)
Typical Equation Sizes and Execution Speeds
The following information may be used for estimating the size and increasing the efficiency of floating point equations. This is only a guideline. Execution speeds and memory size requirements will vary for each equation according to the general rules shown below.

Compiled Function Block Size

As with all types of function blocks, the size of the compiled function block is repor compiling the function block ( later). The total size of the function block along with the data size and code size are reported, where;
Total Size Data Size
=
=
ted in the Error Messages dialog after
Data Size + Code Size (bytes) 2 bytes per line
(all lines, whether they are blank, comments only or actual floating point statements).
W
INTERPRET
version 3.2 or
The code required for actual floating point statements depends on the types of operations used in the st the types of variables used in the statements (see Table 10).
A general rule for size considerations when designing floating point equations for the Regent is: using floating point variables creates the least amount of code, followed by constants, shared registers, analogs, and bit-type variables.
The size required for floating point math operations depends upon the types of variables in the operation. Use the multipliers below to approximate the size based on the variable types used.
Code Size
=
52 + Code for Statements
atements and
PD-6043
March, 06
23
Math Package for
Operation
Format
Code
Min.
Code
Max.
Add + 8 26 Subtract - 12 30 Multiply * 8 26 Divide / 8 26 Logarithm
LOG(x) 4 4
Natural Log
LN(x) 4 4
Square root
SQRT(x)
4 4
Exponentiation
X^Y 10 18
e raised to the X
EXP(x) 4 4 Equality = 44 82 WHILE statement
98
see note, below
IF statement
94
see note, below
Note
W
INTERPRET
(T3833)
Local and Floating point Constant Shared register Analog Bit-type
1.0
1.2
1.5
1.8
2.5
The maximum and minimum code sizes for each operation listed in Table 10 are approximate and will vary according to use in an equation. Code sizes are shown in bytes. These numbers should be used only to estimate the size of a function block. The actual size of the function block can always be checked by compiling the function block and observing the actual size reported by the compile operation.
Table 10. Floating Point Operation Sizes.
WHILE and IF statement sizes will vary with the number and type of equations they contain, use of compare
statements, and use of AND and OR.

Execution Speeds

The execution speeds of each operation listed below were derived using floating point variables in a floating point math
24
Industrial Control Services
Math Package for
Operation
Format
Minimum Speed
(msec.)
Add + 63 Subtract - 87 Multiply * 56 Divide / 56 Logarithm
LOG(x) 45
Natural Log
LN(x) 62
Square root
SQRT(x) 45
Exponentiation
X^Y 90
e raised to the X
EXP(x) 1845
Equality = 15
W
INTERPRET
(T3833)
function block, and will vary according to type of data used and the complexity of the equation.
Table 11. Execution Speeds.
There are two general rules for creating the most efficient floating point equations:
1. Simplify equations. Using parentheses will increase the execution speed of the equation.
2. Store intermediate results in local or shared floating point registers. Other data types are converted to floating point prior to equation execution. The fewer times a conversion is performed, the faster the execution.

Safety Considerations

The floating point math function block is TÜV certified for
Risk Class 5 as non-interfering. These function blocks may only be used in safety critical applications if they do not perform any control actions that affect the value of Risk Class 5 safety critical variables.
PD-6043
March, 06
25
Math Package for
W
INTERPRET
(T3833)
26
Industrial Control Services
Loading...
