Rockwell Logix 5000 Programming Manual

Programming Manual

Logix 5000 Controllers Produced and Consumed Tags

1756 ControlLogix, 1756 GuardLogix, 1769 CompactLogix, 1769 Compact GuardLogix, 1789 SoftLogix, 5069 CompactLogix, 5069 Compact GuardLogix, Studio 5000 Logix Emulate

Original Instructions

Logix 5000 Controllers Produced and Consumed Tags

personal injury or death, property damage, or economic loss.

Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

IMPORTANT

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

temperatures.

for Personal Protective Equipment (PPE).

Important User Information

Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.

Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss.

Identifies information that is critical for successful application and understanding of the product.

Labels may also be on or inside the equipment to provide specific precautions.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous

ARC FLASH HAZARD:

will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and

Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash

2 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Summary of Changes

Change

Topic

Updated branding.

Throughout

Topic Name

Reason

Organize tags for produced or consumed data

Changed topic title.

Set up produced and consumed axes on page 16

New feature

steps to included text only.

tab on page 25

on page 26

on page 27

on page 33

Edit Connection Information on page 34

Added new topic

This manual includes new and updated information. Use these reference tables to locate changed information.

Grammatical and editorial style changes are not included in this summary.

Global changes

This table identifies changes that apply to all information about a subject in the manual and the reason for the change. For example, the addition of new supported hardware, a software design change, or additional reference material would result in changes to all of the topics that deal with that subject.

New or enhanced features

This table contains a list of topics changed in this version, the reason for the change, and a link to the topic that contains the changed information.

Legal Notices on page 7 Updated Legal Notices Produced/consumed tags on page 9 Changed title from Introduction to Produce and

Consumed tags.

Considerations for produced and consumed tags

on page 10

on page 14

Create a produced tag on page 20 Added prerequisite to create user-defined data

Create a consumed tag on page 22 Added prerequisite to create user-defined data

Consumed Tag Connection dialog box - Connection

Consumed Tag Connection dialog box - Status tab

Consumed Tag Connection dialog box - Safety tab

Set Advanced Options dialog box parameters

Set an RPI Range for Produced Tags on page 29 Added new topic.

Added new topic.

type. Updated step 2 to add new tag. Updates

Added tip under the third bullet

Added new topic.

Added tips to the steps

Produce and Consume ControlNet Safety Tags

Added new topic

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 3

Summary of Changes

Topic Name

Reason

Configuration Dialog Box Overview on page 38

Produce and consume array types on page 47

Added new topic

Work with large arrays on page 47

Added new topic

Advanced Connection Reaction Time Limit

Added new topic

4 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Summary of Changes Produce and consume a tag

Preface

Additional resources ................................................................................... 7

Legal Notices ............................................................................................... 7

Chapter 1

Produced/consumed tags ........................................................................... 9

Considerations for produced and consumed tags ..................................10

Controllers and networks that support produced/consumed tags ..10

Two controllers in same chassis .......................................................... 11

Two controllers in separate chassis using SynchLink ....................... 11

Connection requirements of a produced or consumed tag .............. 11

Considerations when migrating projects that contain multicast

produce tags ................................................................................................ 13

Organize tags for produced or consumed data ....................................... 14

Bandwidth limitations adjustments ................................................... 15

Set up produced and consumed axes........................................................ 16

Produced and consumed axis example..................................................... 17

Produced and consumed axis configuration example ............................ 18

Produce and consume program example ................................................ 20

Create a produced tag ............................................................................... 20

Configure connection properties for produced tags......................... 21

Configure status properties for produced tags ................................ 22

Create a consumed tag .............................................................................. 22

Additional steps for a PLC-5C controller ........................................... 24

Consumed Tag Connection dialog box - Connection tab ...................... 25

Consumed Tag Connection dialog box - Status tab ............................... 26

Consumed Tag Connection dialog box - Safety tab ................................ 27

Set Advanced Options dialog box parameters ........................................ 27

Set an RPI Range for Produced Tags ....................................................... 29

Unicast connection option .................................................................. 31

RPI limitations and negotiated default .............................................. 31

Produce and Consume ControlNet Safety Tags ...................................... 33

Edit Connection Information ................................................................... 34

Set up the consuming controller ............................................................... 35

Verify consumed tag acceptance ............................................................... 37

Advanced Connection Reaction Time Limit Configuration Dialog Box

Overview .................................................................................................... 38

Produced and consumed RPI scenarios ................................................... 39

Scenario 1 .............................................................................................. 39

Scenario 2 ............................................................................................ 40

Scenario 3 .............................................................................................. 41

Scenario 4 .............................................................................................. 43

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 5

Table of Contents

Produce a Large Array

Index

1769-L2x and 1769-L3x RPI limits ...............................................................44

RPI I/O faults .............................................................................................. 45

Chapter 2

Produce and consume array types ............................................................ 47

Work with large arrays .............................................................................. 47

Produce a large array................................................................................. 48

6 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Resource

Description

CompactLogix 5380 and Compact GuardLogix 5380

Explains how to use the CompactLogix and Compact

Compact GuardLogix 5370 Controllers User Manual,

Describes the necessary tasks to install, configure,

controller.

Guidelines, publication 1770-4.1

Automation industrial system.

at http://ab.rockwellautomation.com

and other certification details.

Additional resources

Legal Notices

Preface

This manual details how, with a Logix 5000™ controller, to produce and consume standard tags and produce a large array. For information on produced and consumed safety tags, refer to the documentation specific to the controller.

This manual is one of a set of related manuals that show common procedures for programming and operating Logix 5000 controllers.

For a complete list of common procedures manuals, refer to the

Logix 5000 Controllers Common Procedures Programming Manual, publication 1756- PM001.

The term Logix 5000 controller refers to any controller based on the Logix 5000 operating system.

These documents contain additional information concerning related Rockwell Automation products.

Replacement Guidelines: Logix 5000 Controllers Reference Manual, publication 1756-RM100

ControlLogix 5580 and GuardLogix 5580 Controllers User Manual, publication 1756-UM543

Controllers User Manual, publication 5069-UM001 GuardLogix 5570 Controllers User Manual,

publication 1756-UM022

Provides guidelines for migrating projects from ControlLogix 5560 and 5570 controllers to ControlLogix 5580 controllers, and from CompactLogix 5370 controllers to CompactLogix 5380 controllers.

Provides information about designing a system, operating a ControlLogix or GuardLogix-based 5580 controllers system, and developing applications.

GuardLogix 5380 Controllers. Describes the GuardLogix-specific procedures to

configure, operate, and troubleshoot the controller.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 7

publication 1769-UM022

Industrial Automation Wiring and Grounding

Product Certifications webpage, available

program, and operate a Compact GuardLogix 5370

Provides general guidelines for installing a Rockwell

Provides declarations of conformity, certificates,

View or download publications at http://www.rockwellautomation.com/literature

. To order paper copies of technical documentation, contact a local Rockwell Automation distributor or sales representative.

Rockwell Automation publishes legal notices, such as privacy policies, license agreements, trademark disclosures, and other terms and conditions on

the Legal Notices

page of the Rockwell Automation website.

Preface

End User License Agreement (EULA)

You can view the Rockwell Automation End-User License Agreement ("EULA") by opening the License.rtf file located in your product's install folder on your hard drive.

Open Source Licenses

The software included in this product contains copyrighted software that is licensed under one or more open source licenses. Copies of those licenses are included with the software. Corresponding Source code for open source packages included in this product are located at their respective web site(s).

Alternately, obtain complete Corresponding Source code by contacting Rockwell Automation via the Contact form on the Rockwell Automation website:

us/contact/contact.page

Please include "Open Source" as part of the request text.

http://www.rockwellautomation.com/global/about-

A full list of all open source software used in this product and their corresponding licenses can be found in the OPENSOURCE folder. The default installed location of these licenses is

Files\Rockwell\Help\FactoryTalk Services Platform\Release

Notes\OPENSOURCE\index.htm

C:\Program Files (x86)\Common

8 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Number

Description

Controller_4

Term

Definition

without using logic.

Produced/consumed tags

Chapter 1

Produce and consume a tag

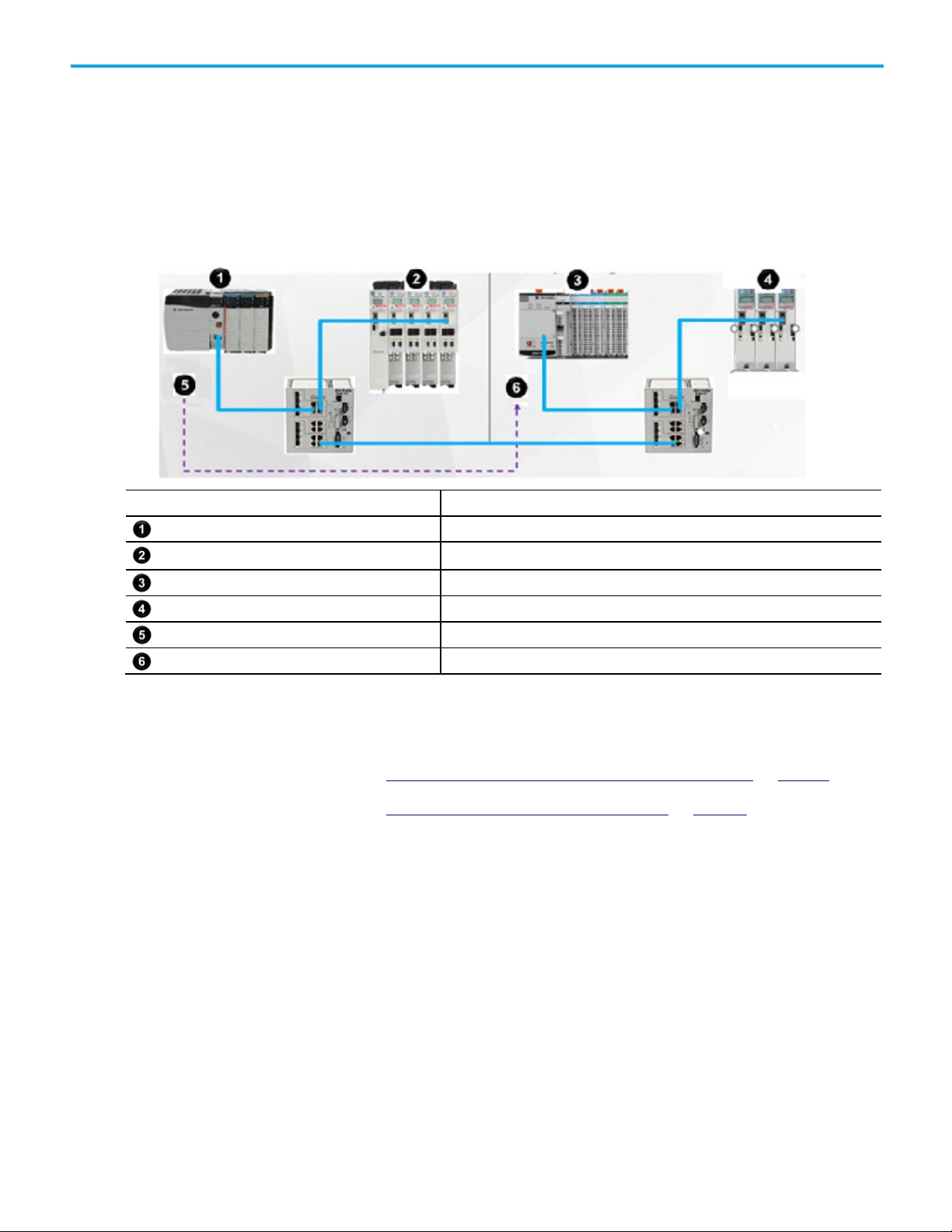

A Logix 5000 controller produces (broadcast) and consumes (receive) systemshared tags.

Produced tag A tag that a controller makes available for use by other controllers. Multiple controllers can simultaneously

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 9

Controller_1

Produced tag Controller_2 Consumed tag Controller_3 Consumed tag

Consumed tag

consume (receive) the data. A produced tag sends its data to one or more consumed tags (consumers)

Chapter 1 Produce and consume a tag

Term

Definition

which the data updates.

Considerations for

Controllers and networks

Consumed tag A tag that receives the data of a produced tag. The data type of the consumed tag must match the data type

(including any array dimensions) of the produced tag. The RPI of the consumed tag determines the period at

Keep the following considerations in mind for produced and consumed tags.

produced and consumed tags

• The tags must be controller-scoped tags.

• The data types must match, including user-defined data type layout.

• The size of the produced and consumed standard tag is limited to less

than or equal to 500 bytes.

• A produced/consumed tag can only be created when the controller is offline.

• Connection status information can be included with the produced tag in a standard controller. In order to do this, create a user defined type whose first member is a CONNECTION_STATUS type. Then, the remaining members in the user-defined data type contain the data to be produced.

For produced and consumed safety tags, these requirements are mandatory:

• The size of the produced and consumed safety tags are limited to 128 bytes.

• Connection status information must be included with produced and consumed safety tags. Create a user-defined data type whose first member is a CONNECTION_STATUS type. The remaining members in the user-defined data type contain the data to be produced.

• The Class field must be set to Safety.

• Safety tags can only be modified when the safety application is not in a

safety secured state.

• Compact GuardLogix 5380 and GuardLogix 5580 Safety controllers can only produce safety tags as unicast. These controllers can consume safety tags as either unicast or multicast.

that support produced/consumed tags

10 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

See also

Organize tags for produced or consumed data on page 14

Create a produced tag on page 20

Create a consumed tag on page 22

For two controllers to share produced or consumed tags, both controllers must be in the same backplane or attached to the same control network, such as ControlNet or EtherNet/IP network. Although produced and consumed tags can be bridged over two networks, Rockwell Automation® does not support this configuration. Check the documentation specific to your

controller to determine which network connections it supports.

IMPORTANT

Two controllers

Two controllers in separate

Connection requirements of

See also

Chapter 1 Produce and consume a tag

in same chassis

Two controllers in same chassis on page 11

Two controllers in separate chassis using SynchLink on page 11

Connection requirements of a produced or consumed tag on page 11

If the controller firmware revision is earlier than revision 9.00, axes in prerevision 9.00 cannot be consumed in a revision 9.00 or later controller because the axis structure changed in revision 9.00. For example, an axis produced in revision 7.00 cannot be consumed in revision 11.00.

If the firmware revision is version 9.00 or earlier, the revision of the controller for the consuming axis must be the same revision or earlier. For example, a revision 11.00 controller can consume an axis from revision 11.00 or revision

10.00, but it is not possible for a revision 10.00 controller to consume an axis from revision 11.00 or revision 12.00. It is not possible in Studio 5000 Logix Designer® to add a new controller under the I/O configuration with a revision later then the revision that is currently in use.

See also

chassis using SynchLink

a produced or consumed tag

Controllers and networks that support produced/consumed tags

on page 10

When using SynchLink to connect two ControlLogix racks, the produced and consumed axis revision is no longer important, if SynchLink is supported. For example, a revision 11.00 controller produces an axis transmitted from a 1756-

SYNCH module. In a different rack, another 1756-SYNCH module receives the axis data. A controller running revision 10.00can then consume this data. In this case, the revision of the consuming end is later then the revision of the producing end. This case is not possible when the controllers are in the same rack. This caseis possible when the controllers are in separate racks using SynchLink to connect the racks.

See also

Controllers and networks that support produced/consumed tags

on page 10

Produced and consumed tags each require connections. As the number of

controllers that consume a produced tag increases, the number of

connections the controller has available for other operations, such as

communication and I/O, decreases.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 11

If a consumed-tag connection fails, all other tags being consumed from that remote controller stop receiving new data.

Each produced or consumed tag uses these connections.

Chapter 1 Produce and consume a tag

This type of tag

Uses this many connections

Example:

Produced tag number_of_consumers + 1 Consumed tag 1

Connection requirements of a Produced or Consumed Tag

• A ControlLogix controller producing 4 tags for 1 controller uses 8 connections:

• Each tag uses 2 connections (1 consumer + 1 = 2).

• 2 connections per tag x 4 tags = 8 connections.

• Consuming 4 tags from a controller uses 4 connections (1 connection per tag x 4 tags

= 4 connections).

Communication Paths to Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers

If a controller running release version 24.00 or earlier intends to consume tag data from Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller, the controller must have a target device in its I/O configuration for the connection. However, releases version 24.00 and earlier do not have profiles for Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers and requires a substitute profile.

Rockwell Automation recommends the following substitutes:

• To consume tags through the embedded Ethernet port on Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller, represent the controller as a Compact 5370 controller, such as the 1769-L36ERM, in the consuming controller’s I/O configuration. These controllers have a built-in Ethernet port and therefore can be addressed using an EtherNet/IP Address.

• To consume tags through the backplane port on a GuardLogix 5580 or ControlLogix 5580 controller, represent the controller as a ControlLogix 5570, such as the 1756-L75, in the consuming controller’s I/O configuration. This process allows connection using the backplane.

See also

Controllers and networks that support produced/consumed tags

on page 10

12 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Considerations when

migrating projects that contain multicast produce tags

When migrating projects from an earlier controller model to Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller, verify that the configuration of projects containing multicast produce tags is correct.

Chapter 1 Produce and consume a tag

Compact GuardLogix 5380 and GuardLogix 5580 controllers in

version 31.00 only produce safety tags as unicast

Compact GuardLogix 5380 and GuardLogix 5580 controllers only produce safety tags as unicast. The controllers consume safety tags as either unicast or multicast. When configuring a consumed safety tag, consider the capabilities of the producer.

• If the producer in the I/O configuration of this controller is a Compact GuardLogix 5380 or GuardLogix 5580 controller consuming a safety tag, configure the consumed tag to use unicast.

• If the producer in the I/O configuration of this controller is a Compact GuardLogix 5370, GuardLogix 5570, or GuardLogix 5560 controller, configure the safety consumed tag as either unicast or multicast.

RPI limitations

In releases before version 28.00, produced tags produce data at the requested packet interval (RPI) of the fastest requesting consumer. This RPI allows multiple consumers, with different RPI settings, to connect successfully to a producer. In releases version 28.00 and later, the first consumer of a produced tag determines the RPI of produced data. All subsequent consumers must request the same RPI value as the first consumer or they fail to connect and display error code 0112.

The device that sends the first consumer connection to the producing controller is the first consumer of a produced tag. The first consumer makes a request based on the order in which the producer and consumer control system powers up. Therefore, cycling power to the system can change the first consumer. A device cannot be configured to be the first consumer. It is difficult to identify which consumer sends the first request to the producing controller, so plan accordingly when configuring multicast produced tags.

To make sure consumers of produced tags connect to Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers:

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 13

• For consumers running releases version 17.00 and earlier that are consumers of a produced tag from Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers:

Chapter 1 Produce and consume a tag

Guideline

Details

• User-defined

Use the same data type for the produced tag and corresponding consumed tag or tags.

This

Then

two or more.)

value

REAL value

Data Type

Description

Organize tags for produced

• Verify that all multicast consumed tags of a produced tag have the

same RPI. If they do not, some consumers fail to connect.

• For multicast consumers running releases version 18.00 and later:

• Verify that all multicast consumed tags of a produce tag have the

same RPI, or

• Verify that all multicast consumers are configured to Allow

Consumed Tags To Use RPI Provided By Producer.

For more information on replacing a ControlLogix 5560/5570 controller with a ControlLogix 5580 controller or a CompactLogix 5370 controller with a CompactLogix 5380 controller, refer to

Replacement Guidelines: Logix5000 Controllers Reference Manual (1756-RM100) in the Rockwell Automation

Literature Library.

See also

Controllers and networks that support produced/consumed tags

on page 10

Follow these guidelines when organizing tags for produced or consumed data (shared data).

or consumed data

Create the tags at the controller scope. Only controller-scoped tags can be shared. Use one of these data types:

• DINT

• REAL

• Array of DINTs or REALs

To share tags with a PLC-5C controller, use a user-defined data type.

Limit the size of the standard tag to 500 bytes.

To share other data types, create a user-defined data type that contains the required data.

Produce Integers Create a user-defined data type that contains an array of INTs with an even

Only one REAL

More than one

Consume Integers Create a user-defined data type that contains these members.

If you must transfer more than 500 bytes, create logic to transfer the data in packets. If the produced tag is over a ControlNet network, the tag may need to be less than 500 bytes.

Important: Produced and consumed safety tags are limited to 128 bytes.

number of elements, such as INT[2]. (When you produce INTs, you must produce

Use the REAL data type.

Create a user-defined data type that contains an array of REALs.

DINT Status INT[x], where x is the output size of the data from the

PLC-5C controller. (If you are consuming only one INT,

omit

Data produced by a PLC-5C controller

14 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Guideline

Details

Verify that Compact GuardLogix 5380,

Take the following steps to make sure consumers of produce tags can connect:

Combine data that goes to the same

If you are producing several tags for the same controller, group the data:

For example, you could create one tag for data that is critical and another tag for data that is not as critical.

Adjustment

Description

Are most of the modules in the chassis non-

Then choose this communication format for the

None

per slot for other uses, such as produced or consumed tags.

Chapter 1 Produce and consume a tag

Use the highest permissible RPI for your application.

CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller projects containing multicast produce tags are configured correctly.

controller.

If the controller consumes the tag over a ControlNet network, use a binary multiple of the ControlNet network update time (NUT). For example, if the NUT is 5 ms, use an RPI of 5, 10, 20, 40 ms, and so forth.

• For consumers running Logix Designer releases v17 and earlier that are consumers of a producer from a Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller:

• Verify that all multicast consumed tags of a produce tag are configured with the same RPI. If they are not, some

consumers will fail to connect.

• For multicast consumers running Logix Designer releases v18 and later, take one of these steps:

• Verify that all multicast consumed tags of a produce tag are configured with the same RPI, or

• Verify that all multicast consumers are configured to Allow Consumed Tags To Use RPI Provided By

Producer.

• Into one or more user-defined data types. (This uses fewer connections than producing each tag separately.)

• According to similar update intervals. (To conserve network bandwidth, use a greater RPI for less critical data.)

See also

Create a produced tag on page 20

Create a consumed tag on page 22

Considerations for produced and consumed tags on page 10

Bandwidth limitations

When a tag is shared over a ControlNet network, the tag must fit within the bandwidth of the network.

adjustments

• As the number of connections over a ControlNet network increases, several connections, including produced or consumed tags, may need to share a network update time (NUT).

• Since a ControlNet network can pass only 500 bytes in one NUT, the data of each connection must be less than 500 bytes to fit into the NUT.

Depending on the size of the system, there may not be enough bandwidth on the ControlNet network for a tag of 500 bytes. If a tag is too large for the ControlNet network, make one or more of these adjustments.

Reduce NUT. At a faster NUT, fewer connections need to share an update slot. Increase the requested packet interval (RPI) of the

connections. For a ControlNet bridge module (CNB) in a remote

chassis, choose the most efficient communication format for that chassis:

At higher RPIs, connections can take turns sending data during an update slot.

diagnostic, digital I/O modules?

Yes Rack Optimization

remote CNB module.

The Rack Optimization format uses an additional 8 bytes for each slot in its chassis. Analog modules or modules that are sending or getting diagnostic, fuse, timestamp, or schedule data require direct connections and cannot take advantage of the rack optimized form. Choosing None frees up the 8 bytes

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 15

Chapter 1 Produce and consume a tag

Adjustment

Description

Create logic to transfer the data in smaller sections (packets).

See

Produce a Large Array

Set up produced and

Separate the tag into two or more smaller tags. 1. Group the data according to similar update rates. For example, create one tag for data that is critical and

another tag for data that is not as critical.

2. Assign a different RPI to each tag.

See also

Produce a large array on page 48

Organize tags for produced or consumed data on page 14

Set up axes to produce and consume axis data in the same chassis or between different chassis.

consumed axes

Prerequisite

• Configure produced and consumer controllers.

To set up produced and consumed axes:

1. In the Controller Organizer, right-click the motion group and select New Axis and select the data tape for the drive.

2. If creating a new axis, in the New Tag dialog box, enter a name for the axis.

3. Set the Type to Produced.

• If editing an existing tag, in the Tag Editor, right-click the tag and

click Edit <name of tag> Properties and change the Type to Produced.

4. Make sure the axis Data Type to the corresponding data type of the produced axis.

5. Select Connection to open the Produced Tag Connection dialog box.

• Change the Max Consumers value to limit or expand the number of

consumers.

• Select Send Data State Change Event to Consumer to use an IOT

Instruction to send event trigger information to the consumers of this tag.

• Click the Advanced tab and to open the Advanced Options dialog

box and configure the behavior of the multicast and unicast connections to the produced tag, for example, limiting the intervals at which data is produced over a multicast connection.

16 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

IMPORTANT

equal to the axis update.

Produced and consumed

The minimum and maximum RPI is disabled for axis types. The produced axis produced data at the axis rate. The minimum and maximum RPI is

Chapter 1 Produce and consume a tag

6. Add the producer controller to the I/O configuration of the consumer controller.

7. Create a new consumed axis

• In the Controller Organizer, right-click the motion group and

select New Axis and select the data tape for the drive.

• If updating an existing axis, right-click Controller Tags and

click New Tag.

8. If creating a new axis, enter a name for the axis.

9. Set the type to Consumed to open the Consumed Tag Connection dialog box.

• On the Connection tab, in the Producer list, select the controller

that has the Produced Axis.

• In Remote Data, enter the name of the produced axis.

• Specify unicast/multicast connection over Ethernet/IP.

10. In the Controller Organizer, expand the Motion Groups folder and double click the axis. Adjust axis properties for the application.

axis example

• In the Units tab to adjust the Position Units value.

• In the Conversion tab, update the Conversation Constant value.

See also

Create a produced tag on page 20

Create a consumed tag on page 22

Configure connection properties for produced tags on page 21

This example requires these prerequisites:

• ControlLogix® and CompactLogix™ controllers must be from the 5380, 5480, or 5580 family of controllers

• Studio 5000 Logix Designer® v32 or higher

• The Logix controls must be on the same Ethernet/IP.

Assume a machine builder delivered a new filler machine to a customer. The machine builder is also upgrading the capper machine on the same manufacturing line.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 17

The filler machine is the lead machine on the line:

• Bottles flow from the filler into the capper machine

• The filler machine uses a ControlLogix controller and Kinetix servo

drives

Chapter 1 Produce and consume a tag

Item

Description

The capper machine must follow the output of the filler machine:

• Once synchronized to the filler, the capper must stay in sync

• This machine will use a CompactLogix controller and Kinetix® servo

drives

The filler machine produces an axis of motion for the capper motion to consume. This enables the capper and filler machine to maintain coordination.

See also

Produced and consumed axis configuration example on page 18

Produce and consume program example on page 20

ControlLogix 5580 Kinetix 5700

CompactLogix 5380 Kinetix 5500 Produced axis Consumed axis

18 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Produced and consumed

axis configuration example

Chapter 1 Produce and consume a tag

This example illustrates how to configure a produced and consumed axis.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 19

Chapter 1 Produce and consume a tag

IMPORTANT

A controller is capable of having producing and consuming tags. A produced

Produce and consume Create a produced tag

program example

See also

Produce and consume program example on page 20

This programming example shows syncing the filler (produced) to the capper (consumed) axis.

See also

Produced and consumed axis example on page 17

The produced tag sends its data to one or more consumed tags without using logic. Multiple controllers are capable of using the produced tags

simultaneously.

Prerequisite:

• Create a user-defined data type defining the structure of the produced data. The first data member must be the predefined CONNECTION_STATUS data type.

To create a produced tag:

20 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

1. Open the Logix Designer application and select a controller.

cannot consume its own data. The local controller is the consumer. The remote controller is the producer.

IMPORTANT

Unicast produced tags can only connect to one controller.

Configure connection

Chapter 1 Produce and consume a tag

2. In the Controller Organizer, right-click Controller Tags and select New Tag. Only controller-scoped tags can be shared.

3. On the New Tag dialog box, in the Name box, type the name of the tag.

4. In the Type box, click Produced.

5. In the Data Type box, select the data type that includes the connection status.

6. If the tag is a produced safety tag, in the Class box, click Safety.

7. Select Connection to define the produced tag. The Produced Tag Connection dialog box opens.

8. On the Connection tab, in the Max Consumers box, type the number of controllers to consume (receive) this tag.

• Producing a tag requires a connection for each consumer. Connections are a limited resource in the controller, so only produce tags that are needed in other controllers.

•

9. (optional) Select Advanced to change the RPI range limitation,

negotiated default, or unicast connection.

10. Select OK to close the Produced Tag Connection dialog box.

11. Select Create to create the tag and close the New Tag dialog box.

properties for produced tags

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 21

See also

Configure connection properties for produced tags on page 21

Configure status properties for produced tags on page 21

Organize tags for produced or consumed data on page 14

Considerations for produced and consumed tags on page 10

Use the Produced Tag Connection dialog box to configure connection properties for produced tags:

• Specify the maximum number of consumers.

• Send event triggers to consumers, using an IOT instruction.

To configure connection properties for produced tags:

1. In Max Consumers, specify the maximum number of tags that can

consume this tag. The valid range for maximum number of tags is 1 to

255.

2. Select Send Data State Change Event to Consumer to use an IOT

instruction to send event trigger information to the consumers of this tag. The check box is selected and disabled for Safety controllers.

3. Click Advanced to open the Advanced Options dialog box and

configure the behavior of the multicast and unicast connections to the produced tag, for example, limiting the intervals at which data is produced over a multicast connection.

Chapter 1 Produce and consume a tag

Configure status properties Create a consumed tag

for produced tags

See also

Advanced Options dialog box on page 27

Produce and consume array types on page 47

Set a RPI Range for Produced Tags on page 29

Use the Produced Tag Connection dialog box Status tab to configure status properties for produced tags, including determining:

• The connection status included.

• The data type that allows for connection status.

To configure status properties for produced tags:

1. Use Connection Status Included to determine the connection status.

The LED is ON when the tag associated with the produced connection is a User-defined data type whose first member is CONNECTION STATUS. In Safety applications: tags associated with Safety I/O and produced or consumed Safety data must be controller-scoped Safety tags. For produced/consumed Safety tags, create a User-Defined data type with the first member of the tag structure (CONNECTION_STATUS) containing the status of the connection. In Standard applications: tags associated produced or consumed data must be controller-scoped tags. For produced/consumed tags, create a User-Defined data type, with the first member of the tag structure (CONNECTION_STATUS) containing the status of the connection.

22 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

2. Use the pull-down menu to pick a data type that allows for connection status.

The pull-down box contains the current data type and a list of all data types whose first member is of type CONNECTION_STATUS. The data type chosen is displayed in the data type field the tag property dialog box or the Create Tag dialog box.

See also

Produce and consume array types on page 47

Set a RPI Range for Produced Tags on page 29

The consumed tag receives data of a produced tag. Match the data type of the

consumed tag to the data type (including any array dimensions) of the produced tag. The Requested Packet Interval (RPI) of the consumed tag determines the period that the data updates.

IMPORTANT

to controller behavior.

stop receiving data.

Set up only one consumed tag to get data from the same producing tag in another controller. Setting up more than one consumed tag results in unpredictable controller

Chapter 1 Produce and consume a tag

Tip: If a consumed tag connection faults, all other consumed tags from that remote controller also

Prerequisite:

• Add the controller that is producing the data to the Controller Organizer I/O Configuration folder.

To create a consumed tag:

1. In the Controller Organizer, right-click Controller Tags and click New

Tag. Only controller-scoped tags can be shared.

2. In the New Tag dialog box, in Name, type the name of the tag.

3. In Type, select Consumed.

4. In the Data Type box, select the data type that includes the connection status. Make the first member of the user-defined data type CONNECTION_STATUS type.

5. If the consumed tag is a consumed safety tab, in Class, select Safety.

6. Select Connection to define the consumed tag. The Consumed Tag Connection dialog box opens.

7. On the Connection tab, in Producer, select the controller that produces the data.

The available controllers depend on if the tag is a Safety Tag or Standard Tag. For a Standard Tag, the list of controller is restricted to controllers that produce standard data. This may include safety controllers. For a Safety Tag, the list of controller is restricted to controllers that produce safety data.

• Tip: If there is only one controller in the I/O Configuration tree, the list is empty. A controller cannot be both the consumer and the producer.

• If the list is empty, add a remote controller to the Controller Organizer I/O Configuration tree.

8. In Remote Data, type the name of the produced tag. If the controller is

a PLC-5, then type the instance number rather than the tag name. Valid range for the remote instance is 1...128.

The controller must be offline to change the remote tag name or instance number.

9. In Requested Packet Interval, enter the RPI for the connection. The

amount of time (in ms) between updates of the data from the remote

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 23

Chapter 1 Produce and consume a tag

specified by the Safety Task Period of the producing controller.

IMPORTANT

Action

Details

If the PLC-5C controller

This

Then in RSNetWorx software

Scheduled Message.

Additional steps for a

controller. This is the minimum rate at which the local controller receives data.

For a Standard Tag, valid ranges are:

• 0.196 ms...536870.911 ms for ControlLogix controllers

• 1 ms...536870.911 ms for CompactLogix controllers

Tip: For a Safety Tag, the parameter is unavailable. The range is 1...500 ms and is set on the Consumed Tag Connection dialog box, Safety tab. The RPI must match the rate

The controller must be offline or online in Program mode to change the RPI.

Changing the RPI while online temporarily disables the connection.

10. If applicable, set the RPI value used by the consumed tag to connect to the producer . This notification appears when a consuming controller accepts an RPI provided by the producer.

The notification ( ) appears only when the controller is online and the consumed tag is connected with a producer provided RPI. The RPI parameter appears dimmed. Use this value to view the time interval the consuming controller had requested and the RPI provided by the producing controller.

PLC-5C controller

11. If applicable, clear the Use Unicast Connection check box to use a Multicast connection.

Use Unicast Connection is selected by default.

12. Select OK to close the Consumed Tag Connection dialog box.

13. Select Create to create the tag and to close the New Tag dialog box.

See also

Consumed Tag Connection dialog box - Connection tab on page 25

Organize tags for produced or consumed data on page 14

Considerations for produced and consumed tags on page 10

Producing and Consuming Arrays on page 47

When sharing data with a PLC-5C controller:

In the ControlNet configuration of the PLC-5C controller, schedule a message.

24 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Produces Integers In the ControlNet configuration of the PLC-5C controller, insert a Send

• In Message size, enter the number of integers in the produced tag.

If the PLC-5C controller consumes

When producing REALs (32-bit floating-point values) for a PLC-5C controller, the PLC-5C controller stores the data in

This pattern continues for each floating-point value.

EXAMPLE

Consumed Tag Connection

Consumes

Chapter 1 Produce and consume a tag

Integers Perform these steps in the ControlNet configuration of the PLC-5C controller.

• Insert a Receive Scheduled Message.

REALs Perform these steps in the ControlNet configuration of the PLC-5C controller.

• Insert a Receive Scheduled Message.

• In Message size, enter two times the number of REALs in the produced tag.

For example, if the produced tag contains 10 REALs, enter 20 for the message size.

REALs, reconstruct the values.

If the PLC-5C controller consumes REALs, reconstruct the values.

consecutive 16-bit integers.

• The first integer contains the upper (leftmost) bits of the value.

• The second integer contains the lower (rightmost) bits of the value.

When producing REALs (32-bit floating-point values) for a PLC-5C controller, the PLC-5C controller stores the data in consecutive 16-bit integers.

• The first integer contains the upper (leftmost) bits of the value.

• The second integer contains the lower (rightmost) bits of the value.

This pattern continues for each floating-point value.

The following example shows how to reconstruct a REAL (floating-point value) in the PLC-5C controller.

Reconstruct a floating point value. The two MOV instructions reverse the order of the integers as the integers move to a new

location. Because the destination of the COP instruction is a floating-point address, the COP instruction takes two consecutive integers, for a total of 32 bits, and converts them to a single floating-point value.

See also

Create a consumed tag on page 22

How do I open the Connection tab?

dialog box - Connection tab

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 25

• In the Tag Editor, right-click the tag that will consume the data and click Edit Properties.

Chapter 1 Produce and consume a tag

Parameter

Description

This control is only active online.

Consumed Tag Connection

• In the Type box in the Edit (name of tag) Properties dialog box, click Consumed and then click Connection.

Use the settings in the Consumed Tag Connection dialog box, Connection tab to configure these connection properties for the Consumed tag:

• Select the controller that produces the data.

• Identify the remote tag name or instance number of the produced tag.

• Set the RPI value.

• View the RPI value when the consuming tag is using a producer RPI.

• Select a Unicast or Multicast connection.

See also

Create a consumed tag on page 22

Set a RPI Range for Produced Tags on page 29

Consumed Tag Connection dialog box - Status tab on page 26

Consumed Tag Connection dialog box - Safety tab on page 27

How do I open the Status tab?

dialog box - Status tab

• In the Tag Editor, right-click the tag that will consume the data and click Edit Properties.

• In the Type box in the Edit (name of tag) Properties dialog box, click Consumed and then click Connection.

• Click the Status tab.

Use the settings on the Status tab in the Consumed Tag Connection dialog box to configure and view the connection status of the consumed tag. Use the tab to:

• Check whether the tag associated with the consumed connection includes the connection status.

• Select the data type that allows the connection status.

• Check if the controller is connected to the producing controller.

• Check if the producing controller is in Run mode.

Connection Status Included The LED is ON when the tag associated with the consumed connection is

a user defined data type whose first member is CONNECTION_STATUS.

Data Type The data type that allows for connection status.

The list includes all data types whose first member is CONNECTION_STATUS.

Connected to Producer The LED is ON when the controller is connected to the producing

controller. It also displays the name of the producing controller.

Producer in Run Mode The LED is ON when the producing controller is in Run mode. The LED is

26 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

OFF for all other modes.

Parameter

Description

Advanced

Opens the dialog box to configure the Connection Reaction Time Limit.

This value is recalculated immediately upon changes to the RPI value.

produced until the time the data was received. The default value is 0.

controller is online.

Consumed Tag Connection

Set Advanced Options

See also

Consumed Tag Connection dialog box - Connection tab on page 25

Create a consumed tag on page 22

How do I open the Safety tab?

Chapter 1 Produce and consume a tag

dialog box - Safety tab

• In the Tag Editor, right-click the tag that will consume the data and click Edit Properties.

• In the Type box in the Edit (name of tag) Properties dialog box, click Consumed and then click Connection.

• Click the Status tab.

Use the settings on the Safety tab in the Consumed Tag Connection dialog box to configure safety connection properties for the consumed tag. The Safety tab is only available for consumed safety tags.

Requested Packet Interval (RPI) The amount of time (in ms) between updates of the data from the

remote controller. The valid range is 1...500 ms for Safety controllers. The default is 20 ms.

The RPI of the consumed safety tag must match the safety task period of the producing safety project. The controller must be offline or online in Program mode to change the RPI.

Advanced Connection Reaction Time Limit Configuration

Connection Reaction Time Limit Displays the predicted period of safety packets on the associated

connection. If the Max Network Delay exceeds the Connection Reaction Time Limit, a connection fault occurs.

Max Network Delay The maximum observed transport delay from the time the data was

Reset Max Resets the Max Network Delay value in the controller. Available when the

See also

Advanced Connection Reaction Time Limit Configuration Dialog Box Overview on page 38

Consumed Tag Connection Dialog box - Status tab on page 26

Consumed Tag Connection Dialog box - Connection tab on page 25

Use the Advanced Options dialog box to configure the behavior of the Multicast and Unicast connections to the produced tag.

dialog box parameters

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 27

Chapter 1 Produce and consume a tag

IMPORTANT

produced at a rate specified by the Safety Task Period.

unavailable for controllers on the ControlNet network or unicast connections.

axis rate. The Minimum RPI is equal to the axis update.

Prerequisites:

For CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, Compact GuardLogix 5380, and GuardLogix 5580 controllers, the first consumer of a produce tag determines the RPI at which data is produced. All subsequent consumers must request the same RPI value as the first consumer or they fail to connect. Take these steps to make sure consumers of produce tags can connect:

• For consumers running Logix Designer releases v17.00 and earlier that are consumers of a producer from CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, Compact GuardLogix 5380, and GuardLogix 5580 controllers:

• Verify that all multicast consumed tags of a produce tag are

configured with the same RPI. If they are not, some consumers fail to connect.

• For multicast consumers running Logix Designer releases v18.00 and later:

• Verify that all multicast consumed tags of a produce tag are

configured with the same RPI, or

• Verify that all multicast consumers are configured to Allow

Consumed Tags To Use RPI Provided By Producer.

The Multicast Connection Options are not available for AXIS tags or safety tags. AXIS produced tags are produced at a rate equal to the Coarse Update Period of the associated motion group. Safety produced tags are

Tip: The RPI limits apply only to Multicast connections on unscheduled networks. This feature is

To set Advanced Options dialog box parameters:

1. Set the Minimum RPI to the smallest requested packet interval (fastest

rate) at which consumers may consume data from the tag.

• For ControlLogix controllers, the minimum RPI is 0.2 ms.

• For CompactLogix controllers, the minimum RPI is 1.0 ms.

Set the Minimum RPI value to less than or equal to the Maximum RPI value. Modify this field in online or offline mode.

Tip: The Minimum RPI is disabled for axis types. The produced axis produced data at the

28 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

2. Set the Maximum RPI to the largest packet interval (slowest rate) at which consumers may consume data from the tag. Rockwell Automation recommends using the default setting of 536870.9 ms.

axis rate. The Maximum RPI is equal to the axis update.

Consumer for Out-of-Range Requests is equal to the axis update.

axis rate. The Default RPI is equal to the axis update.

IMPORTANT

Chapter 1 Produce and consume a tag

Set the Maximum RPI value to greater than or equal to the Minimum RPI value.

Modify this field in online or offline mode.

Tip: The Maximum RPI is disabled for axis types. The produced axis produced data at the

3. Select Provide Default RPI to Consumer for Out-of-Range Requests to enable a producing tag to provide an RPI to a consuming tag whenever a consuming tag has an RPI outside the range of the producer's Minimum RPI and Maximum RPI values. A consumer that supports negotiations then connects with the Default RPI provided by the producer.

Modify this field in online or offline mode.

Tip: The Project Default RPI to Consumer for Out-of-Range Requests is disabled for all axis types. The produced axis produced data at the axis rate. The Project Default RPI to

4. Set the Default RPI to the value that the producer provides to the consumer when the consumer's RPI falls outside the range of the producer's Minimum RPI and Maximum RPI values. This value must be within the Minimum RPI and Maximum RPI ranges of the producer.

This field may be modified in offline mode and when the Provide Default RPI to Consumer for Out-of-Range Requests box is selected.

Tip: The Default RPI is disabled for all axis types. The produced axis produced data at the

On the Controller Properties dialog box - Advanced tab, select Allow Consumed Tags to Use RPI Provided by Producer to allow negotiations to use the RPI provided by the producer.

5. Allow Unicast Consumer Connections allows multiple Unicast consumers to consume from the produced tag. This check box is enabled and selected by default, unless the safety controller is locked.

Tip: Selecting Allow Unicast Consumer Connections results in additional producer resources allocation for each potential consumer. Clear the check box when not using Unicast and when running low on controller resources.

Modify this field in online or offline mode.

See also

Create a produced tag on page 20

Set an RPI Range for Produced Tags

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 29

Create a consumed tag on page 22

Program controllers to enhance the Requested Packet Interval (RPI) acceptance between producing and consuming tags within specified limitations for multicast connections. A producing controller verifies that the RPI of incoming connections are within the produced tag settings. If the

consuming tag's RPI falls outside the configured range, a producing

Chapter 1 Produce and consume a tag

controller rejects the incoming RPI and may provide an RPI (default) to the consuming controller. This allows a consuming controller to be modified or added to an existing multicast connection without interruptions.

This optional default RPI applies only if the consuming controller is set up to allow its consumed tags to use an RPI provided by the producer. If choosing not to use the default value, manually change a rejected RPI to make the value within the limitation settings for the produced tag.

To set an RPI Range for Produced Tags:

1. Set RPI Limits and defaults for the producer tag. RPI Limits and default values are not supported for safety tags and

AXIS tags, and apply only to multicast connections on unscheduled networks. Unavailable for controllers on the ControlNet network or Unicast connections.

a. In Produced Tag Connection, click Advanced.

b. Configure the:

• Minimum RPI

• Maximum RPI

• Select Provide Default RPI to Consumer for Out-of-Range

Requests

• Default RPI

c. Click OK.

2. Set up the consumer tag. The Consuming controller must be set up to allow its consumed tags to

accept an RPI provided by the producer.

a. In the Controller Organizer, right-click the controller and

choose Properties.

b. Click the Advanced tab.

c. Click Allow Consumed Tags to Use RPI Provided by Producer.

d. Click OK.

3. Verify consumed tag acceptance. When a consuming controller accepts a default RPI by a producing

controller, verify the acceptance and the RPI value on the Consumed Tag Connection dialog box. The controller must be online.

a. In the Controller Organizer, right-click the Controller Tags folder and

choose Edit Tags.

b. In Controller Tags, right-click a consuming tag and choose Edit

<tag name> Properties. The Tag Properties dialog box opens.

30 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Unicast connection option

RPI limitations and

c. In Type, choose Consumed.

d. Click Connection to open the Consumed Tag Connection dialog box

with a flag to the right of the RPI field, indicating that the consuming controller has accepted an RPI provided by the producer.

Chapter 1 Produce and consume a tag

See also

Set Advanced Options dialog box parameters on page 27

Unicast connections are point-to-point connections between a producing

controller and consuming controller; no multiple connections. Unicast connections do not require a minimum or maximum RPI range or default RPI value.

The Allow Unicast Consumer Connections check box at the bottom of the Advanced Options dialog box is selected by default to allow multiple unicast consumers to consume from the produced tag.

negotiated default

When the controller is running low on controller memory, clear the Allow Unicast Consumer Connections check box to discontinue using the option.

Additional producer resources allocate for each potential consumer when the check box is selected.

See also

Set an RPI Range for Produced Tags on page 29

Requested packet interval (RPI) limitations and negotiated behavior vary

depending on the Logix Designer application version that is running on the

controllers.

Behavior in release versions 28.00 and later

In release versions 28.00 and later, the first consumer of a produce tag determines the RPI of produced data. All subsequent consumers must request the same RPI value as the first consumer or the subsequent consumers fail to connect and display error code 0112.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 31

The first consumer of a produce tag is the device that sends the first consumer connection to the producing controller. The order in which the producer and consumer control system powers up determines the first consumer request. Therefore, cycling power to the system can change the first consumer. A device cannot be configured to be the first consumer. Determining which consumer sends the first request to the producing controlleris not possible. Plan accordingly when configuring multicast produce tags. See

Chapter 1 Produce and consume a tag

tag for more information.

RPI Limits for details.

Considerations when migrating projects that contain multicast produce tags for more information.

Tip: The controller’s backplane and Ethernet ports can support different RPIs. If multiple consumers need to connect to the controller at different RPIs, configure them to connect through the backplane or the Ethernet port. See Connection requirements of a produced or consumed

Behavior in release versions 18.00 to version 27.00

In version 18.00 and earlier controllerscan be programmed to enhance the RPI acceptance between producing and consuming tags within specified limitations for multicast connections. A producing controller verifies that the RPI of incoming connections are within the produced tag settings. If the consuming tag’s RPI falls outside the configured range, a producing controller rejects the incoming RPI and may provide an RPI (default) to the consuming controller.

This optional default RPI applies only if the consuming controller is set up to allow its consumed tags to use an RPI provided by the producer. When choosing to not use the default value, manually change a rejected RPI to make the value within the limitation settings for the produced tag.

Tip: 1769-L2x and 1769-L3x controllers have additional RPI information. See 1769-Lx2 and 1769-L3x

With multicast consumers running Logix Designer releases version 18.00 and later, performthese steps to make sure consumers of produce tags can connect:

• Verify that all multicast consumed tags of a produce tag are configured with the same RPI, or

• Verify that all multicast consumers are configured to Allow Consumed Tags To Use RPI Provided By Producer.

Behavior in releases version 17.00 and earlier

When using releases version 17.00 and earlier of the application, the producer accepts an incoming RPI of a consuming controller. The producing controller does not offer a default RPI. Use multicast connections to speed up the packet intervals of existing connections from other consumers.

The RPI limitations (the range set on the produced tag) and the default process applies only to multicast connections on unscheduled networks. This feature is unavailable for controllers on the ControlNet network or unicast connections. Scheduled bandwidths on the ControlNet network transmit critical data at pre-determined intervals of time.

32 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

IMPORTANT

Task Period.

Produce and Consume

Safety tags and AXIS tags do not support RPI limits and default values. AXIS produced tags are produced at a rate equal to the Coarse Update Period of the associated motion group. Safety produced tags are produced at a rate specified by the Safety

Chapter 1 Produce and consume a tag

With controllers running releases version 17.00 or earlier that are consumers of a producer from a Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller, verify that all multicast consumed tags of a produce tag have the same RPI. If the consumed tagsdo not, some consumers fail to connect.

See also

Considerations when migrating projects that contain multicast produce tags on page 13

Connection requirements of a produced or consumed tag on page 11

1769-L2x and 1769-L3x RPI Limits on page 44

The ControlNet communications modules support the following.

ControlNet Safety Tags

• Messaging, produced/consumed tags, and distributed I/O.

• Use of coaxial cable and fiber repeaters for isolation and increased

distance.

Produce and Consume Data via the ControlNet Network

The GuardLogix controller supports the ability to produce (broadcast) and consume (receive) system-shared tags over the ControlNet network. Produced and consumed tags each require connections.

The total number of tags that can be produced or consumed is limited by the number of available connections in the GuardLogix controller.

Connections Over the ControlNet Network

You indirectly determine the number of connections the controller uses by configuring the controller to communicate with other devices in the system. Connections are allocations of resources that provide more reliable communications between devices compared to unconnected messages.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 33

Chapter 1 Produce and consume a tag

ControlNet Connections

Connection Type

Description

bandwidth to specifically handle the connection.

Edit Connection Information

ControlNet connections can be either scheduled or unscheduled.

Scheduled (unique to the ControlNet network)

Unscheduled An unscheduled connection is a message transfer between controllers that is triggered by the

A scheduled connection is unique to ControlNet communications. A scheduled connection lets you send and receive data repeatedly at a predetermined interval, which is the requested packet interval (RPI). For example, a connection to an I/O module is a scheduled connection because you repeatedly receive data from the module at a specified interval.

Other scheduled connections include connections to:

• Communication devices

• Produced/consumed tags

On a ControlNet network, you must use RSNetWorx for ControlNet software to enable all scheduled connections and establish a network update time (NUT). Scheduling a connection reserves network

requested packet interval (RPI) or the program (such as a MSG instruction). Unscheduled messaging lets you send and receive data when needed. Unscheduled connections use the remainder of network bandwidth after scheduled connections are allocated. Safety produced/consumed connections are unscheduled, by default.

The 1756-CNB and 1756-CNBR communication modules support 64 CIP connections over a ControlNet network.

The 1756-CN2 module supports 100 CIP connections over the ControlNet network. However, we recommend that you configure only 97 connections for each module to maintain optimal performance.

See also

Set an RPI Range for Produced Tags on page 29

For Produced and Consumed tags, you can edit connection information. Using the Tag Properties dialog box, follow the steps below based on the type

of tag you have chosen.

To edit information for a Produced Tag:

1. In the Maximum Consumers field, enter the maximum number of

consumers you can have for this tag.

2. Check the Programmatically Send Event Triggers to Consumers if you want to use an IOT instruction to send event trigger information to the consumers of this tag.

3. Click Ok to accept your edits and close the Tag Properties dialog box.

34 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Tip: You must be offline to change the remote tag name or the remote instance number.

Tip: You must be offline or online in Program mode to change the RPI.

IMPORTANT

information.

Chapter 1 Produce and consume a tag

To edit information for a Consumed Tag:

1. From the Producer pull-down menu, choose the name of produced tag

you want this tag to consume.

The pull-down menu lists only those options that are available.

2. In the Remote Data field, enter the name or instance number of the tag in the remote controller that you wish to consume.

If your controller is a PLC-5, then you will enter the instance number rather than the tag name. The valid range for the remote instance is

1...128.

3. In the RPI field, enter the Requested Packet Interval. This is the amount of time (in ms) between updates of the data from

the remote controller. This is the minimum rate at which the local controller will receive data. For ControlLogix controllers, the valid RPI range is 0.196 ms...536870.911 ms. For CompactLogix controllers, the valid range is 1 ms...536870.911 ms.

Set up the consuming controller

4. Click Ok to accept your edits and close the Tag Properties dialog box.

See also

Set an RPI Range for Produced Tags on page 29

Set up the Consuming controller to allow its consumed tags to accept an RPI from the producer. Use the Advanced tab in the Controller Properties dialog box to set up the controller.

For controllers running Logix Designer releases version 17.00 or earlier that contain consumers of a producer from Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller, verify that all multicast consumed tags of a produce tag have the same RPI. If they do not, some consumers fail to connect. See RPI limitations and negotiated default for more

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 35

Chapter 1 Produce and consume a tag

IMPORTANT

results in a failed connection.

To set up the consuming controller:

1. In the Controller Organizer, right-click the controller that was set up

with a consuming tag and select Properties.

The Controller Properties dialog box opens.

2. Select the Advanced tab.

36 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

3. Select the Allow Consumed Tags to Use RPI Provided by Producer check box to allow for the RPI negotiation.

The check box is only available when the controller is offline. If the check box is not selected, the consuming controller does not accept the RPI provided by the producer if the consuming controller requests an RPI that is out of the producer’s configured RPI range. As a result, an out-of-range RPI request

4. Select OK.

Verify consumed

tag acceptance

Chapter 1 Produce and consume a tag

See also

RPI limitations and negotiated default on page 31

When a consuming controller accepts a default RPI by a producing controller, verify the acceptance and the RPI value on the Consumed Tag Connection dialog box.

Prerequisite:

• Verify the controller is online and the consumed tag is connected with the producer providing the RPI.

To verify consumed tag acceptance:

1. In the Controller Organizer, right-click the Controller Tags folder and

select Edit Tags.

2. In the Tag Editor, right-click a consuming tag and select Edit <name of tag> Properties. The Tag Properties dialog box opens.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 37

3. In the Type box, select Connection. The Consumed Tag Connection dialog box opens. On the Connection

tab, a flag to the right of the RPI box indicates the consuming

Chapter 1 Produce and consume a tag

Advanced Connection

controller accepted an RPI provided by the producer and the time interval of the RPI.

4. Select Cancel to exit.

Reaction Time Limit Configuration Dialog Box Overview

See also

Set Up the Consumer Tag on page 35

Use the Advanced Connection Reaction Time Limit Configuration dialog box to perform the following actions.

Parameters

Requested Packet Interval (RPI)

Enter the Requested Packet Interval. This is the amount of time (in ms) between updates of the data from the remote controller. This is the minimum rate at which the local controller will receive data. The valid range for the RPI is 1...500 ms for Safety controllers.

You must be offline or online in Program mode to change the RPI.

38 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Timeout Multiplier

Determines the number of RPIs to wait for a packet before declaring a connection timeout.

Produced and consumed Scenario 1

Chapter 1 Produce and consume a tag

Network Delay Multiplier

Defines the message transport time that is enforced by the CIP Safety protocol. The Network Delay Multiplier specifies the round trip delay from the producer to the consumer and back to the producer. You can use the Network Delay Multiplier to increase or decrease the Connection Reaction Time Limit.

Connection Reaction Time Limit

Displays the predicted period of safety packets on the associated connection. If the Max connection reaction time ever exceeds the Reaction Time Limit, a connection fault occurs.

This value is calculated as a function of the RPI value set on this tab, and the Advanced Connection Reaction Time Limit Configuration dialog box. This value is recalculated immediately upon changes to the RPI value.

RPI scenarios

See also

Producing and Consuming Arrays on page 47

These scenarios explain how producing and consuming tags exchange RPI for controllers.

The RPI is within range of the producing controller’s RPI Limits. No default RPI is set up for the producing controller.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 39

Chapter 1 Produce and consume a tag

Number

Description

Default RPI: - ms

RPI = ms

version 17.00 and earlier.

Scenario 2

Produced Tag

Minimum RPI: 2 ms Maximize RPI: 8 ms

Actual Packet Interval (API) = 3 ms

Version 17.00 and earlier: The consuming controller is brought online with an RPI configured at 3 ms. The producer accepts the RPI requested by the consuming tag. All controllers on the multicast connection increase to 3 ms for the API, which is the interval the data is actually being produced.

Version 18.00 and later: The consuming controller is brought online with an RPI configured at 3 ms. The producing controller verifies the requested RPI by the consumer is within the RPI limits set up for the producer. Since the request is within the range, the producing controller accepts the RPI of the consumer.

Tip: When using all the default settings of version 18.00 and later, the behavior matches that of

See also

Produced and consumed RPI scenarios on page 39

The RPI is outside the range of the producing controller’s RPI Limits. No default RPI is set up for the producing controller.

40 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Number

Description

Default RPI: - ms

Scenario 3

Chapter 1 Produce and consume a tag

Produced Tag

Minimum RPI: 2 ms Maximize RPI: 8 ms

Error: 0111 RPI = 1 ms

Version 17.00 and earlier: The RPI requested by the consumed tag is not within the range of the producer. The producer rejects the connection and a 0111 error reports that the connection failed. Re-enter an RPI that is within the range configured on the produced tag. If a version 17.00 consumer tries to connect with a version 18.00 producer, and the RPI is outside the range of the producer, and no default is default set up, error 0111 error reports the connection as failed.

Tip: See

RPI I/O Faults

for an explanation of the error messages.

Version 18.00 and later: The RPI requested by the consumed tag is not within the RPI limitation range of the producer. The producer is not set up to provide a default RPI, so error 0111 reports that the connection failed. Re-enter an RPI within the range configured for the producer because there is no RPI default negotiation with the consumer.

See also

RPI I/O Faults on page 45

The RPI is outside the range of the producing controller’s RPI Limits. A default RPI is set up for the producing controller. But, the network path

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 41

Chapter 1 Produce and consume a tag

Number

Description

Default RPI: 5 ms

contains a bridge that blocks the negotiated RPI to prevent an interruption to other controllers on the network.

Produced Tag Minimum RPI: 2 ms Maximize RPI: 8 ms

Error: 0112, Default RPI = 5 ms RPI = 1 ms Negotiation Disabled

Version 17.00 and earlier: The RPI requested by the consumed tag is not within the range of the producer. The connection is rejected and error 0112 reports that the connection failed. Re-enter an RPI within the range configured on the produced tag. If a version 17.00 consumer tries to connect with a version 18.00 producer, and the RPI is outside the range of the producer, error 0112 reports the connection as failed.

Tip: See

RPI I/O Faults

for an explanation of the error messages.

Version 18.00 and later: The RPI requested by the consumed tag is not within the RPI limitation range of the producer. The producer is configured to provide an RPI default. The producer sends the default RPI to the consumer, but the consumer controller is not set up to accept a default RPI from the producer. The negotiated RPI is disabled to prevent an interruption to the multicast connection. Error message 0112 is reported. Re-enter an RPI within the range of the producer’s limits.

42 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Number

Description

Negotiation Enabled

Scenario 4

Chapter 1 Produce and consume a tag

See also

RPI I/O Faults on page 45

The RPI is outside the range of the producing controller’s RPI Limits. A default RPI is set up for the producing controller. The consumer is set up to

accept the RPI provided by the producer.

Produced Tag Minimum RPI: 2 ms Maximize RPI: 8 ms Default RPI: 5 ms API = 5 ms

Error: 0112, Default RPI = 5 ms RPI = 5 ms (changed from 1 ms)

Version 17.00 and earlier: The RPI requested by the consumed tag is not within the range of the producer. The connection is rejected and a 0112 error reports that the connection failed. Re-enter an RPI within the range configured on the produced tag. If a version 17.00 consumer tries to connect with a version 18.00 producer, and the RPI is outside the range of the producer, error 0112 reports the connection as failed.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 43

Chapter 1 Produce and consume a tag

IMPORTANT

1769-L2x and 1769-L3x

RPI limits

connection is successful and the multicast connection accepts the new RPI of 5 ms.

See also

Produced and consumed RPI scenarios on page 39

All controllers, with the exception of the CompactLogix 1769-L2x and 1769-L3x controllers, produce data in packet intervals ranging from 0.196 through

536870.911 ms. The 1769-L2x and 1769-L3x controllers produce only in packet intervals of 2, 4, 8, 16, 32, 64, 128, 256, 512, or 1024 ms.

Entering these exact values is not required when configuring an RPI limitation range and default RPI for the 1769-L2x and 1769-L3x controllers. However, when entering an unsupported packet interval, the Logix Designer application may override the unsupported packet interval with a supported packet interval. When this occurs, the new effective value displays separately next to the unsupported value.

Similar to other controllers, the 1769-L2x and 1769-L3x controllers verify that the RPI of incoming connections are within the produced tag settings. If the consuming tag’s RPI falls outside the configured range, a producing controller rejects the incoming RPI and then provides an RPI (default) to the consuming controller.

Set up the producing and consuming controllers to allow the consumed tags to use an RPI provided by the producer. See

RPI Limitations and Negotiated Default

procedures to set up the producer and consumer tags to accept a negotiated default RPI.

and

Set up the consuming controller

for

For the 1769-L2x and 1769-L3x controllers use the Effective Minimum RPI, when present, to determine the fastest packet interval allowed by the tag. When present, the Effective Default RPI is the largest packet interval (slowest rate) at which negotiated connections are produced for the tag.

44 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Scenario Description

Software Version

I/O Fault Message

range.

RPI I/O faults

Chapter 1 Produce and consume a tag

A flag on the Advanced Options dialog box presents the effective RPI limit values to indicate that RPI limits are set to values that are different from the entered values.

See also

RPI Limitations and Negotiated Default on page 31

Set up the consuming controller on page 35

The table provides a description of error messages for situations where an RPI is not accepted.

RPI of consumed tag is not within the range of the producer. Producer does not support RPI negotiation or is not configured to provide a default RPI to the consumer.

RPI of consumed tag is not within the range of the producer. Producer is returning default RPI Consumer does not support negotiation or is not configured to accept RPI from producer.

Any (Code 0111) Requested Packet Interval (RPI) out of

range.

18.00 and later

17.00 and earlier (Code 0112) Unknown Error.

(Code 0112) Requested Packet Interval (RPI) out of

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 45

Chapter 1 Produce and consume a tag

Scenario Description

Software Version

I/O Fault Message

contains scheduled network update time (NUT).

containing a scheduled network.

RPI of consumer is out of range, but producer provides a default RPI and consumer can accept default RPI. Network path contains bridge that does not support extended error information. For I/O connectivity between two controllers, such as consuming a tag from a producing controller, both controllers must be attached to the same EtherNet/IP subnet. Two controllers cannot bridge produced or consumed tags over two subnets. For more information on setting up the network, refer to the following publication in the Rockwell Automation Literature Library:

EtherNet/IP Network Configuration User Manual

RPI of consumer is out of range, but producer provides a default RPI and consumer can accept RPI provided by producer. Network path

(ENET-UM001).

Prevent connection failures with Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix 5580 controllers

If a consumer displays error code 0112 and fails to connect to a Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller that provides produce tags, perform these steps to make sure consumers of produce tags can connect:

18.00 and later (Code 0112) Requested Packet Interval (RPI) out of range. Producer provided RPI blocked by the network path.

18.00 and later (Code 0112) Requested Packet Interval (RPI) out of range. Cannot use producer provided RPI over a path

• For consumers running Logix Designer releases version 17.00 and earlier that are consumers of a producer from a Compact GuardLogix 5380, CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, or GuardLogix 5580 controller:

• Verify that all multicast consumed tags of a produce tag have the

same RPI. If they do not, some consumers fail to connect.

• For multicast consumers running Logix Designer releases version

18.00 and later, perform one of these steps:

• Verify that all multicast consumed tags of a produce tag have the

same RPI, or

• Verify that all multicast consumers are configured to Allow

Consumed Tags To Use RPI Provided By Producer.

See also

Rockwell Automation Literature Library

46 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Produce and consume Work with large arrays

Produce a Large Array

DINT, REAL and STRUCTURE

Chapter 2

array types

These types of arrays can be directly produced and consumed. In order to do this, make sure that the sizes of the arrays are the same in both the consumer

and producer controllers.

BOOL, SINT and INT

These types of arrays can be indirectly produced and consumed. In order to do this:

• Define a data type (structure) containing a single member.

• Make the single member an array of the desired type.

• Duplicate the type definition to both controllers.

• Produce and consume tags of this datatype.

In addition, to consume an array of INTs from a PLC-5C:

• Define a datatype with two members:

• Name the first member Status and make a type DINT.

• Make the second member an array of INTs. Ensure the size of the

array matches the size specified in RSNetWorx.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 47

See also

Create a consumed tag on page 22

Create a produced tag on page 20

The Logix 5000 controller can send as many as 500 bytes of data over a single

scheduled connection. This corresponds to 125 DINT or REAL elements of an array. To transfer an array of more than 125 DINTs or REALs, use a produced/consumed tag of 125 elements to create a packet of data. Then use the packet to send the array piecemeal to another controller.

When sending a large array of data in smaller packets, be sure that the packet transmission is complete before moving the data into the destination array.

• Produced data over the ControlLogix backplane is sent in 50 byte segments.

• Data transmission occurs asynchronous to a program scan.

Chapter 2 Produce a Large Array

Number

Description

Consumer

Acknowledge

Produce a large array

The logic that this section includes uses an acknowledge word to make sure that each packet contains new data before the data moves to the destination array. The logic also uses an offset value to indicate the starting element of the packet within the array.

Because of the offset and acknowledge elements, each packet carries 123 elements of data from the array, as shown in the Producer/Consumer Data Elements image.

Producer

Array Packet Offset

In addition, the array must contain an extra 122 elements. In other words, the array must be 122 elements greater than the greatest number of elements to transfer. These elements serve as a buffer. Because each packet contains the same number of elements, the buffer prevents the controller from copying beyond the boundaries of the array. Without the buffer, transferring occurs if the last packet contains fewer than 123 elements of actual data.

See also

48 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Produce and consume array types on page 47

Transferring a large array as smaller packets improves system performance.

• Large arrays use fewer connections than breaking the data into multiple arrays and sending each as a produced tag. For example, an

Tag Name

Type

For

Specify

Remote Tag Name

array_ack

Tag Name

Type

transfer plus 122 elements

array_transfer_time_max

DINT

array_transfer_timer

TIMER

Chapter 2 Produce a Large Array

array with 5000 elements takes40 connections (5000/125=40) by using individual arrays.

• Large arrays achieve faster transmission times than using a message instruction to send the entire array.

• Messages are unscheduled and executed only during the system

overhead portion of the Logix5550 execution. Therefore, messages can take a fairly long time to complete the data transfer.

• Improved transfer time by increasing the system overhead time

slice, but this diminishes the performance of the continuous task.

To produce a large array:

1. In the Controller Tags folder of the controller project that produces the

array, create these tags.

array_ack DINT[2]

X array_packet DINT[125]

2. Convert the array_ack tag to a consumed tag.

Controller Name of the controller that is receiving the packet.

Both controllers use the same name for this data.

3. In either the Controller Tags folder or the tags folder of the program that contains the logic for the transfer, create these tags.

array DINT[x] where x equals the number of elements to

array_offset DINT array_size DINT

array_transfer_time DINT

4. In the array_size tag, enter the number of elements of real data, which is the value of x from step 3 minus the 122 elements of buffer.

5. Create or open a routine for the logic that creates packets of data.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 49

Enter this logic.

When the offset value in array_ack[0] is not equal to the current offset value but array_ack[1] equals -999, the consumer begins receiving a new packet, so the rung moves -999 into the last element of the packet.

Chapter 2 Produce a Large Array

The consumer waits until it receives the value -999 before it copies the packet to the array. This guarantees that the consumer has new data.

When the offset value in array_ack[0] is equal to the current offset value, the consumer copied the packet to the array; so the rung checks for more data to transfer. If the offset value plus 123 is less than the size of the array, there is more data to transfer; so the rung increases the offset by 123. Otherwise, there is no more data to transfer; so the rung resets the offset value, logs the transfer time, and resets the timer. In either case, the rung uses the new offset value to create a new packet of data, appends the new offset value to the packet, and clears the acknowledge element of the packet (packet[124]).

50 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Tag Name

Type

Chapter 2 Produce a Large Array

If the current transfer time is greater than the maximum transfer time, update the maximum transfer time. This maintains a record of the longest time to transfer data.

1. In the Controller Tags folder of the controller project that consumes

the array, create these tags.

X array_ack DINT[2]

array_packet DINT[125]

2. Convert the array_packet tag to a consumed tag.

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 51

Chapter 2 Produce a Large Array

For

Specify

Tag Name

Type

Controller Name of the controller that is sending the packet. Remote tag name array_packet

Both controllers use the same name for this data.

3. In either the Controller Tags folder or the tags folder of the program that will contain the logic for the transfer, create these tags.

array DINT[x] where x equals the number of elements to

transfer plus 122 elements

array_offset DINT

4. Create or open a routine for the logic that moves the data from the packets to the destination array.

5. Enter this logic. When the offset value in array_packet[123] is different than the offset

value in array_ack[0], the controller begins receiving a new packet of data; so the rung checks for the value of -999 in the last element of the packet. If the last element of the packet equals -999, the controller received an entire packet of new data and begins the copy operation.

• The offset value moves from the packet to array_offset.

• The COP instructions copy the data from the packet to the

destination array, starting at the offset value.

• The offset value moves to array_ack[0], which signals that the copy

is complete.

• Array_ack[1] resets to zero and waits to signal the arrival of a new

packet.

If the last element of the packet is not equal to -999, the transfer of the packet to the controller may not be complete; so -999 moves to

52 Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Chapter 2 Produce a Large Array

array_ack[1]. This signals the producer to return the value of -999 in the last element of the packet to verify the transmission of the packet.

See also

Create a consumed tag on page 22

Create a produced tag on page 20

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 53

Index

L3x controller

RPI limits 44

limitations

bandwidth 15 RPI 31

adjust

bandwidth limitations 15

array

defining data packets 47

bandwidth

adjust limitations 15

communicate

other controllers 9

connection

produced or consumed tag 10

consumed tag

connection requirements 10

consumer

RPI scenarios 39 using producer RPI 35 verifying RPI 37

ControlNet

bandwidth limits 15

PLC-5C

share data 24

produced tag

connection requirements 10

producer

RPI scenarios 39

RPI

I/O faults 45 limitations, setting default 31

scenarios

RPI acceptance 39

tag

array 48 consumer RPI verification 37 consumer using producer RPI 35

default

RPI 31

error messages

RPI 45

I/O faults 45

L2x controller

RPI limits 44

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020 55

Technical Support Center

Find help with how-to videos, FAQs, chat, user forums, and product notification

rok.auto/support

Knowledgebase

Access Knowledgebase articles.

rok.auto/knowledgebase

Local Technical Support Phone Numbers Literature Library

Product Compatibility and Download Center

Rockwell Automation support

Use these resources to access support information.

updates.

Locate the telephone number for your country. rok.auto/phonesupport

Find installation instructions, manuals, brochures, and technical data publications. rok.auto/literature

(PCDC)

Get help determining how products interact, check features and capabilities, and find associated firmware.

rok.auto/pcdc

Documentation feedback

Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the form at rok.auto/docfeedback

Waste Electrical and Electronic Equipment (WEEE)

At the end of life, this equipment should be collected separately from any unsorted municipal waste.

Rockwell Automation maintains current product environmental information on its website at rok.auto/pec.

Allen-Bradley, expanding human possibility, Logix, Rockwell Aut omation, and Rockwell Software are trademarks of Rockwell Automation, Inc.

EtherNet/IP is a trademark of ODVA, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Rockwell Otomayson Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752, İçerenkÖy, İstanbul, Tel: +90 (216) 5698400 EEE YÖnetmeliğine Uy gundur

Rockwell Automation Publication 1756-PM011K-EN-P - September 2020

Rockwell Logix 5000 Programming Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Logix 5000 Controllers Produced and Consumed Tags

Important User Information

Summary of Changes

Table of Contents

Additional resources

Legal Notices

Preface

Produced/consumed tags

Produce and consume a tag

Two controllers in same chassis on page 11

Two controllers in separate chassis using SynchLink on page 11

Connection requirements of a produced or consumed tag on page 11

Produce and consume program example on page 20

Configure connection properties for produced tags on page 21

Consumed Tag Connection dialog box - Status tab on page 26

Set an RPI Range for Produced Tags

Unicast connection option

Edit Connection Information

Set up the consuming controller

Scenario 2

Scenario 3

Scenario 4

RPI I/O faults

Produce a large array

Index
