RocknRoller RSH10Q Quick Set Shelf RocknRoller Quick Set Shelf Assembly Instructions

RSH10Q Model Specifications Your RSH10Q shipping box should contain the following part:
Length (Compact)
Length (Extended)
32” 4 x
⁄” low profile socket head screw
6 x swivel tab
Width 16” 1 x 32" x 16" main shelf 10 x small washers
Weight 16.5 lbs. 1 x 18" x 16" shelf extension 10 x small 10 mm hex nut
2 x wing bolts with spring 1 x 10 mm wrench
2 x metal rail, long 1 x Allen wrench, large
2 x metal rail, short 1 x Allen wrench, small
2 x hooked mounting bracket

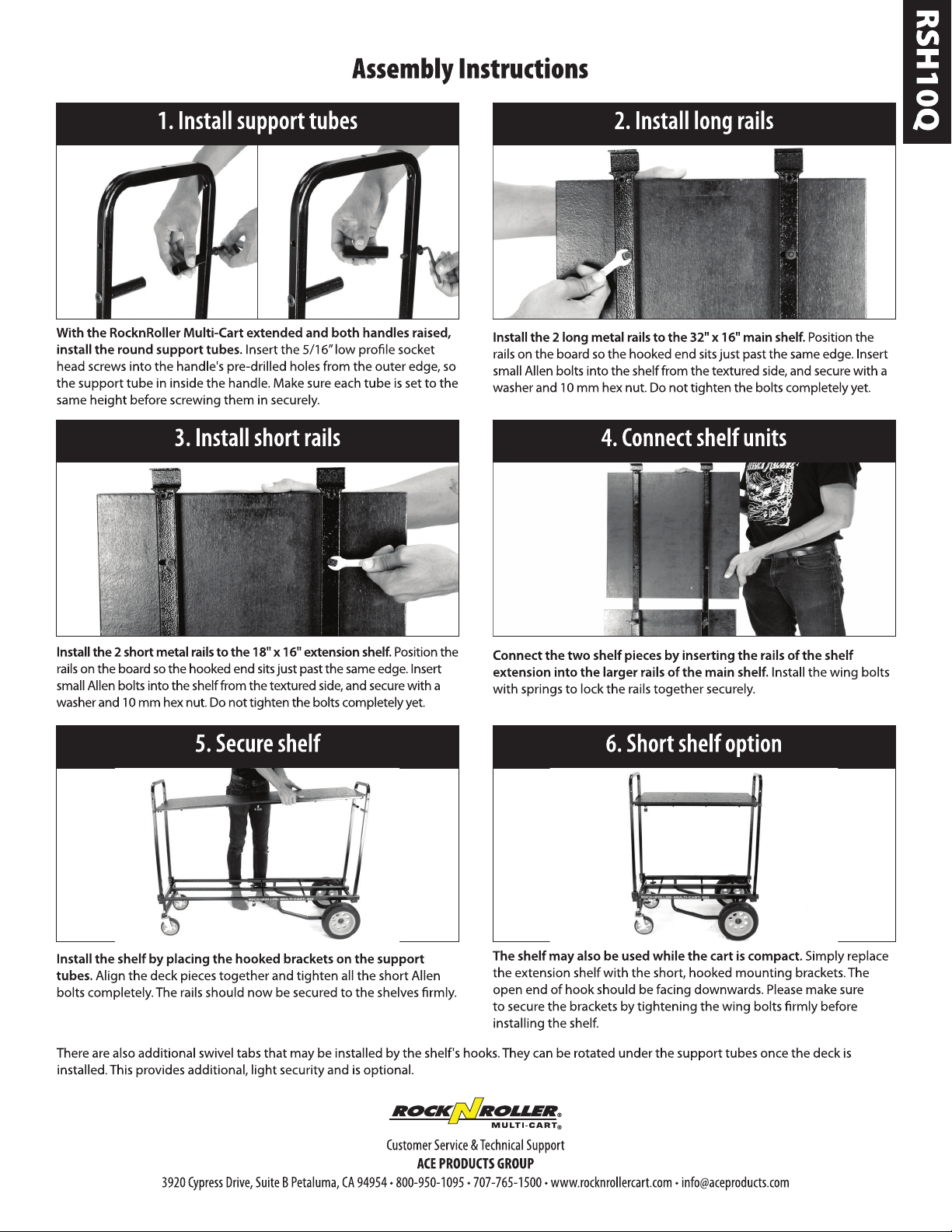

Assembly Instructions
1. Install support tubes
With the RocknRoller Multi-Cart extended and both handles raised, install the round support tubes. Insert the 5/16” low prole socket
head screws into the handle's pre-drilled holes from the outer edge, so the support tube in inside the handle. Make sure each tube is set to the same height before screwing them in securely.
3. Install short rails
2. Install long rails
Install the 2 long metal rails to the 32" x 16" main shelf. Position the rails on the board so the hooked end sits just past the same edge. Insert small Allen bolts into the shelf from the textured side, and secure with a washer and 10 mm hex nut. Do not tighten the bolts completely yet.
4. Connect shelf units
Install the 2 short metal rails to the 18" x 16" extension shelf. Position the rails on the board so the hooked end sits just past the same edge. Insert small Allen bolts into the shelf from the textured side, and secure with a washer and 10 mm hex nut. Do not tighten the bolts completely yet.
5. Secure shelf
Install the shelf by placing the hooked brackets on the support tubes. Align the deck pieces together and tighten all the short Allen
bolts completely. The rails should now be secured to the shelves rmly.
Connect the two shelf pieces by inserting the rails of the shelf extension into the larger rails of the main shelf. Install the wing bolts
with springs to lock the rails together securely.
6. Short shelf option
The shelf may also be used while the cart is compact. Simply replace the extension shelf with the short, hooked mounting brackets. The open end of hook should be facing downwards. Please make sure to secure the brackets by tightening the wing bolts rmly before installing the shelf.
