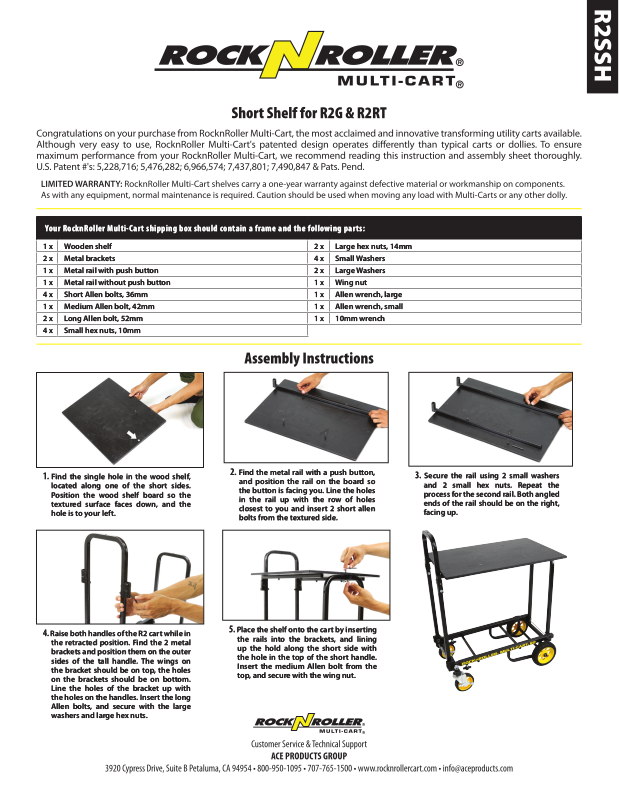

Rock N Roller R2SSH User manual

Your RocknRoller Multi-Cart shipping box should contain a frame and the following parts:

1 x Wooden shelf 2 x Large hex nuts, 14mm

2 x Metal brackets 4 x Small Washers

1 x Metal rail with push button 2 x Large Washers

1 x Metal rail without push button 1 x Wing nut

4 x Short Allen bolts, 36mm 1 x Allen wrench, large

1 x Medium Allen bolt, 42mm 1 x Allen wrench, small

2 x Long Allen bolt, 52mm 1 x 10mm wrench

4 x Small hex nuts, 10mm

1. Find the single hole in the wood shelf,

located along one of the short sides.
Position the wood shelf board so the
textured surface faces down, and the
hole is to your left.

4. Raise both handles of the R2 cart while in

the retracted position. Find the 2 metal
brackets and position them on the outer
sides of the tall handle. The wings on
the bracket should be on top, the holes
on the brackets should be on bottom.
Line the holes of the bracket up with
the holes on the handles. Insert the long
Allen bolts, and secure with the large
washers and large hex nuts.

2. Find the metal rail with a push button,

and position the rail on the board so
the button is facing you. Line the holes
in the rail up with the row of holes
closest to you and insert 2 short allen
bolts from the textured side.

5. Place the shelf onto the cart by inserting

the rails into the brackets, and lining
up the hold along the short side with
the hole in the top of the short handle.
Insert the medium Allen bolt from the
top, and secure with the wing nut.

3. Secure the rail using 2 small washers

and 2 small hex nuts. Repeat the
process for the second rail. Both angled
ends of the rail should be on the right,
facing up.
