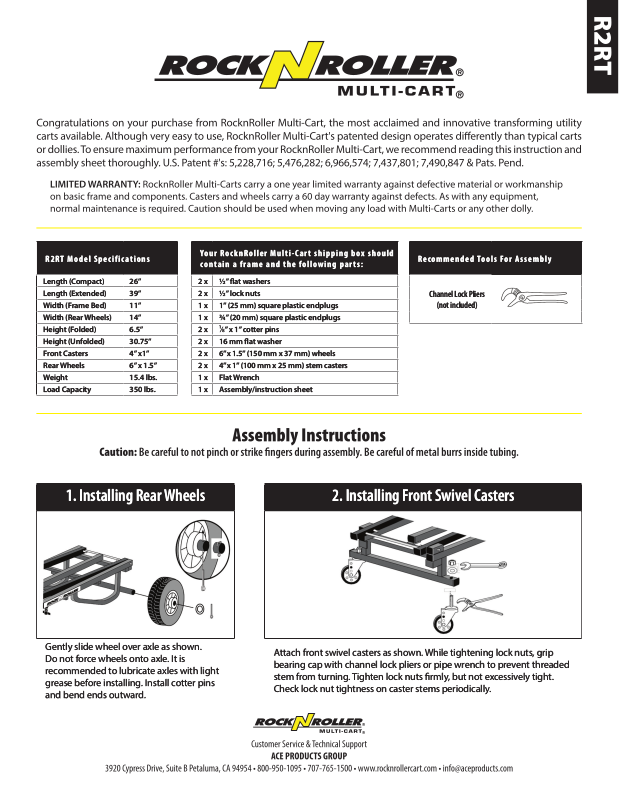

Rock N Roller R2RT User manual

R2RT Model Specifications

Length (Compact) 26” 2 x ½” at washers

Length (Extended) 39” 2 x ½” lock nuts

Width (Frame Bed) 11” 1 x 1” (25 mm) square plastic endplugs

Width (Rear Wheels) 14” 1 x ¾” (20 mm) square plastic endplugs
Height (Folded) 6.5” 2 x 1⁄8” x 1” cotter pins

Height (Unfolded) 30.75” 2 x 16 mm at washer

Front Casters 4” x1” 2 x 6”x 1.5” (150 mm x 37 mm) wheels

Rear Wheels 6” x 1.5” 2 x 4”x 1” (100 mm x 25 mm) stem casters

Weight 15.4 lbs. 1 x Flat Wrench

Load Capacity 350 lbs. 1 x Assembly/instruction sheet

Your RocknRoller Multi-Cart shipping box should
contain a frame and the following parts:

Recommended Tools For Assembly

Channel Lock Pliers

(not included)

1. Installing Rear Wheels

Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.

2. Installing Front Swivel Casters

Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts rmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.

Extending Frame

Raising Foldable Sides

Removable Shelves Solid Deck

Loosen wingbolts 1/4 turn. Step on
rear axle and push in extension
stop button. Pull up on frame as
shown until stop button engages.
Retighten wingbolts.

Cable/headphone

hanger

Firmly press down on release cable
while raising other end of foldable
side as shown.

Repeat with other side.

Laptop Shelf Flex Straps
