550 Watt Power Supply
RF-550WPS
User Guide
Rocketfish RF-550WPS
550 Watt Power Supply
Contents
Introduction ...................................................................... 3
Features .............................................................................. 5
Installing your power supply ...................................... 5
Specifications.................................................................... 7
Appendix............................................................................ 7
Legal notices ...................................................................11
One-year limited warranty.........................................13
Introduction
Thank you for choosing this RF-550WPS power supply unit (PSU).
Please read this manual carefully and follow the instructions before
installing the PSU.
The RF-550WPS power supply complies with the newest Intel ATX12V
version 2.3 specifications. This includes two +12V output circuits that
deliver safe and reliable output to your system's components. In
addition, this power supply is energy efficient, reducing power
consumption by 80%. It also includes two PCI-E connectors for SLI.
3RF-550WPS
Safety information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS DEVICE TO RAIN OR
MOISTURE.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Safety regulations
The power supply meets safety guidelines and regulations for
UL EN60950 and FCC
Important Safety Instructions
• Do not place your system near a radiator or other heat source.
• Do not place your system close to a source of strong magnetic fields.
• Do not place your system in a moist or dusty environment, or in an area
subject to strong vibration.
• Do not place your system in direct sunlight.
• Do not open the cover on the power supply case. Dangerous voltages
are present inside the cover. Your warranty is void if the cover is
removed.
4
Features
• 550W peak 60S (500W continuous)
• Supports the latest Intel ATX12V 2.3 (back compatible with 2.1 and 2.2)
• Six output voltages
• Silent fan speed control
• Build-in DC remote ON/OFF, PG/PF TTL signal
• MTBF 100,000 hours minimum at 77° F (25° C)
•NVIDIA SLI™-ready certified
• Power Efficiency over 80%
•Cable management
•Components include:
• RF-550WPS power supply unit
• UL-approved AC power cable
• Mounting screws (4)
• Cable ties (3)
•User Guide
Installing your power supply
To make sure you connect your power supply correctly, check your
motherboard and graphics card manuals for compatibility before
connecting RF-550WPS to any of your devices.
NOTICE: Cable Management
This product uses color coded sockets and cables for ease of use. Only use the plugs in
the sockets with the same color ends. Red Sockets are to be used for PCI-E cables only.
Black Sockets are to be used for all other connections.
WARNING : Failure to follow these instructions may result in damage to your
components
To install your power supply:
1 Check your local AC voltage before installation (115 VAC voltage is for
USA, Japan, and several others, and 230 VAC voltage is for Europe,
Southeast Asia, and many other countries).
5RF-550WPS
Caution: Make sure that you connect the PSU (Power supply unit) to local input AC
voltage only. Setting the incorrect voltage can damage the power supply and
connected equipment and may void your warranty. The RF-550WPS is compatible
with 115 VAC and 230 VAC input voltage.
2 Turn off your computer, then unplug the power cord from your old
power supply.
3 Open your computer case following the directions provided in your case
manual.
4 Disconnect all PSU connectors from the motherboard and peripheral
devices such as case fans, hard drives, floppy drives, DVD and CD drives.
5 Remove the old power supply from your computer case and install your
new Rocketfish power supply.
6 Connect the 20+4-pin main power connector to your motherboard.
7 Connect the 4+4 +12 V power connector to your motherboard.
8 Connect the Serial ATA (SATA) connectors to the peripheral devices.
9 Connect the peripheral 4-pin power connectors if you are still using an
IDE connector for hard drives or an optical drive.
10 Connect the 6-pin +12 V PCI-E connector to your PCI Express graphics
cards, as needed.
11 Connect your case fans to the regular 4-pin peripheral connectors if you
are using these fans.
Caution: Make sure that all connectors are correctly connected. Incorrect connection
could prevent your computer from booting and some components might even be
damaged.
12 Close your computer case and connect the AC power cord to the power
supply.
Starting your computer
To start your computer:
1 Turn on the power supply by setting the I/O switch on the power supply
to the "I" position.
2 Turn on your computer by pushing the power button on the front of
your computer.
6
Troubleshooting
If the power supply fails to function properly, check the following
before returning it for repair:
• Make sure that the power cord is plugged correctly into an AC power
outlet and into the power supply.
• Make sure that the I/O switch on the power supply is switched to the "I"
position.
• Make sure that all power connectors are properly connected to all
components.
Specifications
Input voltage 100 V ~ 240 V
Active PFC Power factor: >0.9
Efficiency 80% (minimum) at full load (typical)
Input current 115 VAC/6.0 A — 230 VAC/3.0 A max.
Inrush current 110 A max. when AC input is 230 VAC at 25°C cold start
Input frequency 47 Hz ~ 63 Hz
Leakage current 3.5 mA max.
Operating temperature 50°F to 104°F (10°C to 40°C)
Shipping/storage temperature -4°F to 158°F (-20°C to 70°C)
Relative humidity 5% to 95%
Harmonic IEC-1000-3-2 Class D
55 A max. when AC input is 115 VAC at 25°C cold start
Appendix
DC output voltages
DC spec +12 V1 +12V2 +5V +3.3V -12V +5VSB
Amps 18.0 A 18.0 A 15.0 A 24.0 A 0.3 A 3.0 A
Max power 432 W 130 W 3.6 W 15 W
7RF-550WPS
Wire configuration
Model/Wires 20+4-pin
main power
RF-550WPS117612
EPS 12 V
8 (4+4)-pin
5.25" HDD Serial ATA 3.25” floppy
drive
PCI-E 6-pin
Main power connector
Voltage Color Pin Pin Color Voltage
Com Black 24 12 Orange +3.3 V
+5V Red 23 11 Ye ll o w +12 DC
+5 V Red 22
+5 V Red 21 9 Purple +5 Vsb
N/C N/C 20
Com Black 19 7 Black Com
Com Black 18
Com Black 17 5 Black Com
PS_ON Green 16
Com Black 15 3 Black Com
-12 V Blue 14
+3.3 V Orange 13 1 Orange +3.3 V
10 Yellow +12 DC
8GrayPWR_ON
6Red+5 V
4Red+5 V
2Orange+3.3 V
8

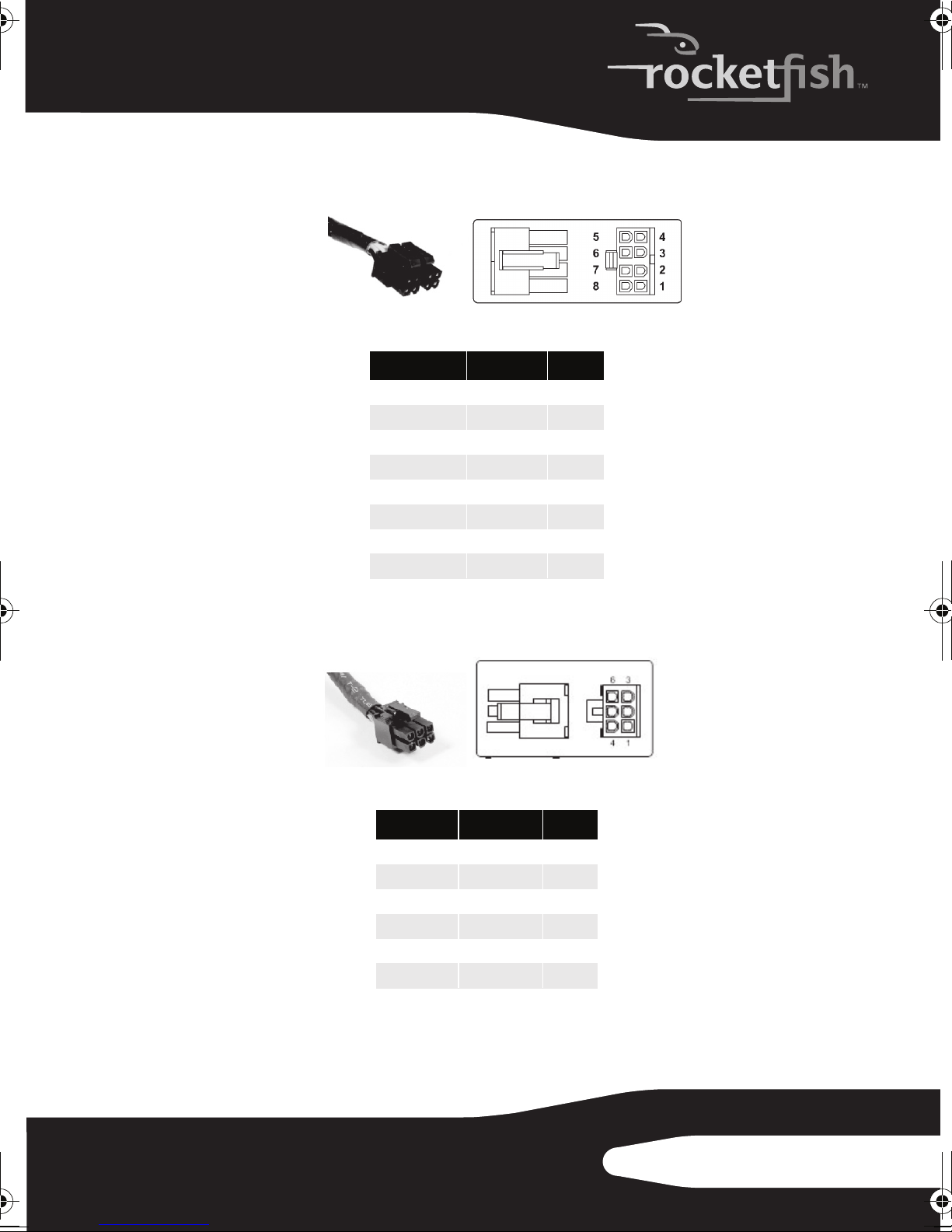

+12 V connector 8 (4+4)-pin
Color Signal Pin
Black Com 1
Black Com 2
Black Com 3
Black Com 4
Yellow/Black +12 VDC 5
Yellow/Black +12 VDC 6
Yellow/Black +12 VDC 7
Yellow/Black +12 VDC 8
PCI Express connector
Color Signal Pin
Yellow +12 VDC 1
Ye ll ow +12 VDC 2
Yellow +12 VDC 3
Black Com 4
Black Com 5
Black Com 6
9RF-550WPS
Floppy drive connector
Color Signal Pin
Red +5 VDC 1
Black Com 2
Black Com 3
Ye ll ow +12 VDC 4
SATA power connector
10
Color Signal Pin
Yellow +12 VDC 1
Black Com 2
Red +5 VDC 3
Black Com 4
Orange +3.3 VDC 5
Peripheral connector
Legal notices
FCC Part 15
Color Signal Pin
Yellow +12 VDC 1
Black Com 2
Black Com 3
Red +5 VDC 4
This device complies with Part 15 of the FCC Rules. Operation of this
product is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply within the
limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
11RF-550WPS
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Changes or modifications not expressly approved by the party
responsible for compliance with the FCC Rules could void the user’s
authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Copyright
© 2009 Rocketfish. Rocketfish and the Rocketfish logo are trademarks
of Best Buy Enterprise Services, Inc. Other brands and product names
are trademarks or registered trademarks of their respective holders.
Specifications and features are subject to change without notice or
obligation.
For service and support call 1-800-620-2790.
12
One-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new
RF-550WPS (“Product”), that the Product shall be free of defects in the original manufacture of
the material or workmanship for one (1) year from the purchase of the Product (“Warranty
Period”). This Product must be purchased from an authorized dealer of Rocketfish brand
products and packaged with this warranty statement. This warranty does not cover refurbished
Product. If you notify Rocketfish during the Warranty Period of a defect covered by this
warranty that requires service, terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for one year (365 days), beginning on the date you purchased the
Product. The purchase date is printed on the receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Rocketfish repair center or store
personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or
(2) replace the Product at no charge with new or rebuilt comparable products or parts. Products
and parts replaced under this warranty become the property of Rocketfish and are not returned
to you. If service of Products and parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as you own your Rocketfish Product
during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the
Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your original receipt and the Product
to the store you purchased it from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from an online web site, mail your original receipt and
the Product to the address listed on the web site. Make sure that you put the Product in its
original packaging or packaging that provides the same amount of protection as the original
packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in the United States, Canada,
and Mexico.
What does the warranty not cover?
This warranty does not cover:
•Customer instruction
•Installation
•Set up adjustments
•Cosmetic damage
13RF-550WPS
• Damage due to acts of God, such as lightning strikes
•Accident
•Misuse
•Abuse
•Negligence
•Commercial use
• Modification of any part of the Product, including the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Rocketfish to service the
Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY.
ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST
PROFITS. ROCKETFISH PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO
THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER
THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in
some countries. All other products and brand names are trademarks of their respective owners.
14
15RF-550WPS
www.rocketfishproducts.com (800) 620-2790
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
Distributed by Best Buy Purchasing, LLC
© 2009 Best Buy Enterprise Services, Inc.
09-0458
ENGLISH
Loading...
