Roche Diagnostics UU18 User Manual

General information for installing

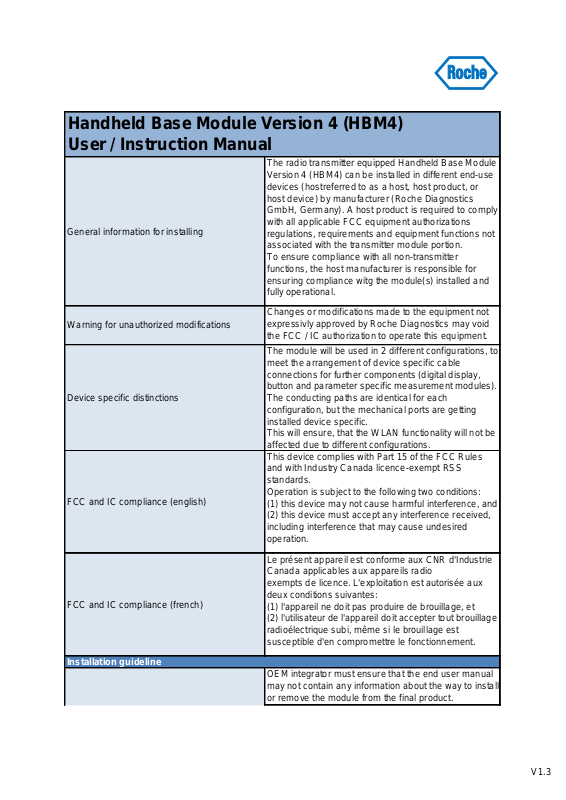

Handheld Base Module Version 4 (HBM4)
User / Instruction Manual

r

Installation guideline

Warning for unauthorized modifications

Changes or modifications made to the equipment not
expressivly approved by Roche Diagnostics may void
the FCC / IC authorization to operate this equipment.

The radio transmitter equipped Handheld Base Module
Version 4 (HBM4) can be installed in different end-use
devices (hostreferred to as a host, host product, or
host device) by manufacturer (Roche Diagnostics
GmbH, Germany). A host product is required to comply
with all applicable FCC equipment authorizations
regulations, requirements and equipment functions not
associated with the transmitter module portion.
To ensure compliance with all non-transmitter
functions, the host manufacturer is responsible for
ensuring compliance witg the module(s) installed and
fully operational.

OEM integrator must ensure that the end user manual
may not contain any information about the way to install
or remove the module from the final product.

Device specific distinctions

The module will be used in 2 different configurations, to
meet the arrangement of device specific cable
connections for further components (digital display,
button and parameter specific measurement modules).
The conducting paths are identical for each
configuration, but the mechanical ports are getting
installed device specific.
This will ensure, that the WLAN functionality will not be
affected due to different configurations.

FCC and IC compliance (english)

This device complies with Part 15 of the FCC Rules
and with Industry Canada licence-exempt RSS
standards.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

FCC and IC compliance (french)

Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.

V1.3

Standard
Data Rates IEEE 802.11b
Modulation IEEE 802.11b

IEEE 802.11g

DSSS/CCK

802.11b/g

OFDM

1, 2, 5.5 and 11 Mbps

The module must be installed and used in strict
accordance with the manufacturer's instructions as
described in the user documentation that comes with
the module.

Label Information

The information on the label and in the user manual is
required to be incorporated in the manual of the final
host device,. see 47 CFR15 requirements for more
details (e.g. 15.19 / 15.21 / 15.101 / 15.105 / RSS-GEN
/ ICES)

Additional authorization requirements for the non­transmitter functions of the transmitter equipped HBM4
Module due to the intended use (IVD device) are
required. The OEM integrator is responsible for
ensuring that the after the moduile is installed and
operational, the host continues to be compliant with the
Part 15B unintentional radiator requirements.

The use of the transceiver module is
authorized in mobile and stationary host
devices taking into account the following
conditions:

User Manual

The end user manual for the final host device operating
with this transmitter must include operating instructions
to satisfy RF exposure compliance requirements

The inforamtion on the label and in the user manual is
required to be incorporated in the manual of the final
host device,. see 47 CFR15 requirements for more
details (e.g. 15.19 / 15.21 / 15.101 / 15.105 / RSS-GEN
/ ICES)

Additional label with the words 'Contains FCC ID:
VO9UU18' and 'Contains IC:3100A-UU18' shall be
applied and visible from the outside of the host device

Integrated antenna

When the final host product operating with this
transmitter deviate from above, installation of this
module into specific final hosts may require the
submission of a Class II permissive change application
containing data pertinent to RF Exposure, spurious
emissions, ERP/EIRP, and host/module authentication,
or new application if appropriate.

General information

The antenna of the module may not be removed,
replaced nor modified. The antenna must not be co­located or operating in conjunction with any other
antenna or transmitter. No additional antenna must be
used

Radiofrequency radiation exposure Information

The radiated output power of the device is far below
the FCC radio frequency exposure limits. Nevertheless,
the device shall be used in such a manner that the
potential for human contact during normal operation is
minimized.

This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance of 20 cm between the radiator and
your body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.

V1.3
