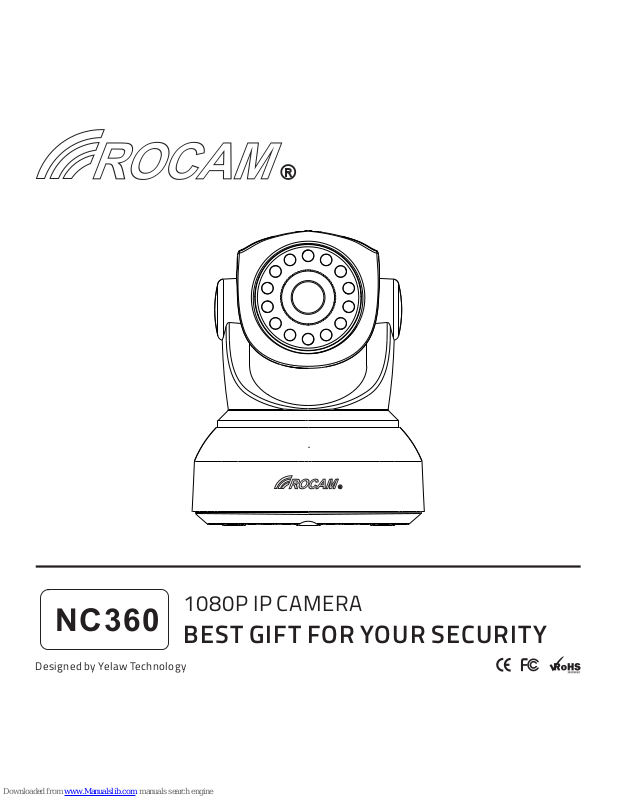

Designed by Yelaw Technology
BEST GIFT FOR YOUR SECURITY
1080P IP CAMERA
NC360
ROCAM
ROCAM
R
• Preface
• Statements
• System requirements
• Functions
• Package Contents
• Hardware Installation - Universal mount
• Physical Description
• Installation Guide Under Ethernet Cord Mode
• Application
• SD Card Setting
• Camera System Time Setting
1
1
1
1
2
2
3
4
5
7
8
Table of content
• WiFi Connection Setting
6
• Resolution Parameter Setting
6
• Audio Parameter Setting
7
• Alarm Notifications Setting
8
• Change Password
• System
9
9
Thank you for choosing Rocam WiFi IP Camera. Now you can view and hear what happens in your room
remotely. Built-in Infrarred LEDs provides you premium night vision experience.Motion Detection and SD
card recording function give you fast, reliable home security options. Please keep your original dated sales
receipt for your records. For warranty service of your Rocam product, you will need to provide a copy of your
dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
For product related questions, please call: US and Canada 1-800-318-0560
Email:support@yelaw.net
Preface
We have made every effort to provide the most current information about our product.We do no grant any
guarantees as to the contents of the present instruction manual and disclaim any implied guarantees
concerning market value or suitability for specific purposes. The information contained here is an instruction
intended to enable the correct usage and maintenance of the device .We reserve the right to introduce
amendments ,changes or translations of the user manual without prior notification.For this reason, we
recommend you to visit our website www.yelaw.net regularly in order to obtain the latest information.
Statements
iOS System
Version 4.2 or above iPhone®/iPad®
Android System
Version 7.0 or above
High Speed (Wi-Fi®) Internet
At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site:
http://www.speedtest.net)
System Requirements
01
- 1080P Full HD Resolution
- Take Pictures and Record Video
- Unlimited Range
- Support 128 GB Micro SD Card
- Enhanced WiFi Signal
- Talk and Listen
- Night Vision
-Multiple Users
-Movement Detection
- Alarm Push Notification
- Pan 355°Tilt 90°
Functions
Package Contents
Ethernet Cable
Hardware installation - Universal mount
Power Adapter
Quick Installation Guide
NC360
ROCAM
R
Universal mount
Mounting Screws
02
Physical Description
Camera
Microphone
Night Light
Reset button
Attach Mounting Bracket
SD Card Slot
Power Interface
Alarm Interface
Wifi Antenna
Speaker
Ethernet
Audio Jack
03
Installation Guide Under Ethernet Cord Mode
1. Plug in Ethernet cord to your router's LAN port and the Camera's Ethernet Cord Port.
2. Plug in the power adapter and wait for 60 seconds.
60 sec
4. Open the application.
5. Tap to add the IP Camera.
6. Tap to scan the QR code at the bottom of the Camera.
Make sure your smartphone or table is connected to the same network as your Camera.
3. Download and setup ‘ROCAM’ application in App Store or on Google Play .
IP Camera
UID
AAAA-XXXXX-XXXX
7. Enter the standard login:
admin
admin
10. Tap
You have now successfully added your Camera to your personal network.
The original password is admin
04
Application
Standard Definition
Add
Refresh
Home
Video
More
Setting
IP Ca mer a
Onli ne
AAAA -1600 67-WY HUR
Edit
Notifications
HELP
2016- 04-28 2 2:04: 42
Live vi ew
Full HD
Live vi ew
SD
Setting
Preset Position
Stop Monitoring
Two-Way Audio
Take Image
Record Video
Image Rotation
Microphone
View Direction
High Definition
Tap to enable the microphone in order
to hear which in front of the camera
Capture snapshot from recent
monitor views
Recrod Video
View Direction
Tap to adjust the view direction,‘ to Flip
Horizontally’ get Left/Right picture,‘Flip
Vertically’to get Portrait or Upside Down images
Image Rotation
Tap to switch full/partial screen mode
Microphone
Keep pressing to talk with who in
front of the camera
Setting
Tap to access the monitor's setting menu
Stop monitoring
Two-Way Audio
Take Image
Preset Position
Tap to set preset position or call preset
position
Stop monitoring and return to
Home page
Tap to start record , appears during
the recording
the recording, tap again to end
05
WiFi Connection Setting
2. Tap or to access the monitor setting menu.
3. Choose ‘WiFi’ .
4. In the ‘Wi-Fi’ interface, find the SSID of your router, and connect it by inputting the correct password.
5. Tap
Camera will reboot and now you could remove the ethernet cable. Camera will connect to your WiFi network.
1. Open the application.
WiFi
Resolution Parameter Setting
2. Tap or to access the monitor setting menu.
3. Tap ‘Resolution’. You can configure
4. You can configure Video Quality and Frame Rate:
1. Open the application.
XXX-WiFi
WiFi Password
Resolution
Li ve vi ew
Full HD
Li ve vi ew
SD
4.1 Tap to set Video Quality
Video Quality
4.2 Tap to input the value of FPS.
The larger value, The more smooth video.
Frame Rate 25FPS
06
Audio Parameter Setting
2. Tap or to access the monitor setting menu.
3. Choose ‘Audio’ . You can configure Microphone, Audio Jack and Speaker.
4. Tap ‘Microphone’ and adjust ‘Input Volume’ . Then you can configure sensitivity of microphone.
The larger value, The higher sensitivity.
Adjust ‘Output Volume’ . Then you can configure the Volume of speaker. The larger value. The larger sound.
1. Open the application.
Audio
SD Card Setting
2. Tap or to access the monitor setting menu.
3. Tap ‘SD Card’ . You can save video on SD Card and configure setting.
4. Enable Camera will save video on SD Card and enable loop recording.
1. Open the application.
5. Tap to input the value of Video Length.
The larger value, The longer video length.
SD Card
Video Length(Minute) 10
5. Tap ‘Audio Jack’ and adjust ‘Input Volume’ . Then you can configure the volume of microphone.
The larger value, The higher volume.
Adjust ‘Output Volume’ . Then you can configure the Volume of audio jack. The larger value. The larger sound.
You can plug speaker or headset into the audio jack.
Cyclic Recording
4. Enable Camera will format SD Card.
Format SD Card
Note. ALL THE DATA WILL BE LOST AFTER FORMAT.
07
Camera System Time Setting
1. Open the application.
3. Choose ‘Time.’
Time
2. Tap or to access the monitor setting menu.
Alarm Notifications Setting
1. Open the application.
2. Tap or to access the monitor setting menu.
4. You can choose one or more options :
Sensitivity Normal
Movement Detection
4.1 When you enable ‘Motion Detection’ . once there is someone moves, you will get notifications on your
mobile phone.
3. Enable ‘Notifications’.
Push Notification
4.2 When you enabe ‘Save Alarm Video on SD Card’ . Once the motion detection is triggered.
The camera will record a video for 15 seconds on the SD Card.
Save Alarm Video on SD Card
4. Tap The time of camera will sync from your phone.
Sync from phone time
5. Tap to choose time zone. Then tap
to enable Time Zone setting.
Device Time Zone GMT -8
Sync from Time Zone
Note. Make sure the time and time zone is as same as phone. otherwise your phone can not get alarm
notifications.
08
Change Password
2. Tap or to access the monitor setting menu.
3. Choose ‘Password.’
4. Enter current password and new password:
5. Tap
You have now successfully changed your password.
1. Open the application.
Password
System
2. Tap or to access the monitor setting menu.
3. Tap ‘System’.
4. Tap to reboot camera.
1. Open the application.
5. Tap to restore camera to factory settings.
System
6. Tap to upgrade camera firmware.
Reboot Camera
Restore Factory Settings
Upgrade Firmware
Current Password
New Password
Confirm Password
09
Designed by Yelaw Technology Made in PRC
Speak with our Experts
Mon-Fri 6:00am~12:00am 6:00pm~12:00pm PST
Email : support@yelaw.net
1-800-318-0560
