EN
Dimension
25mm

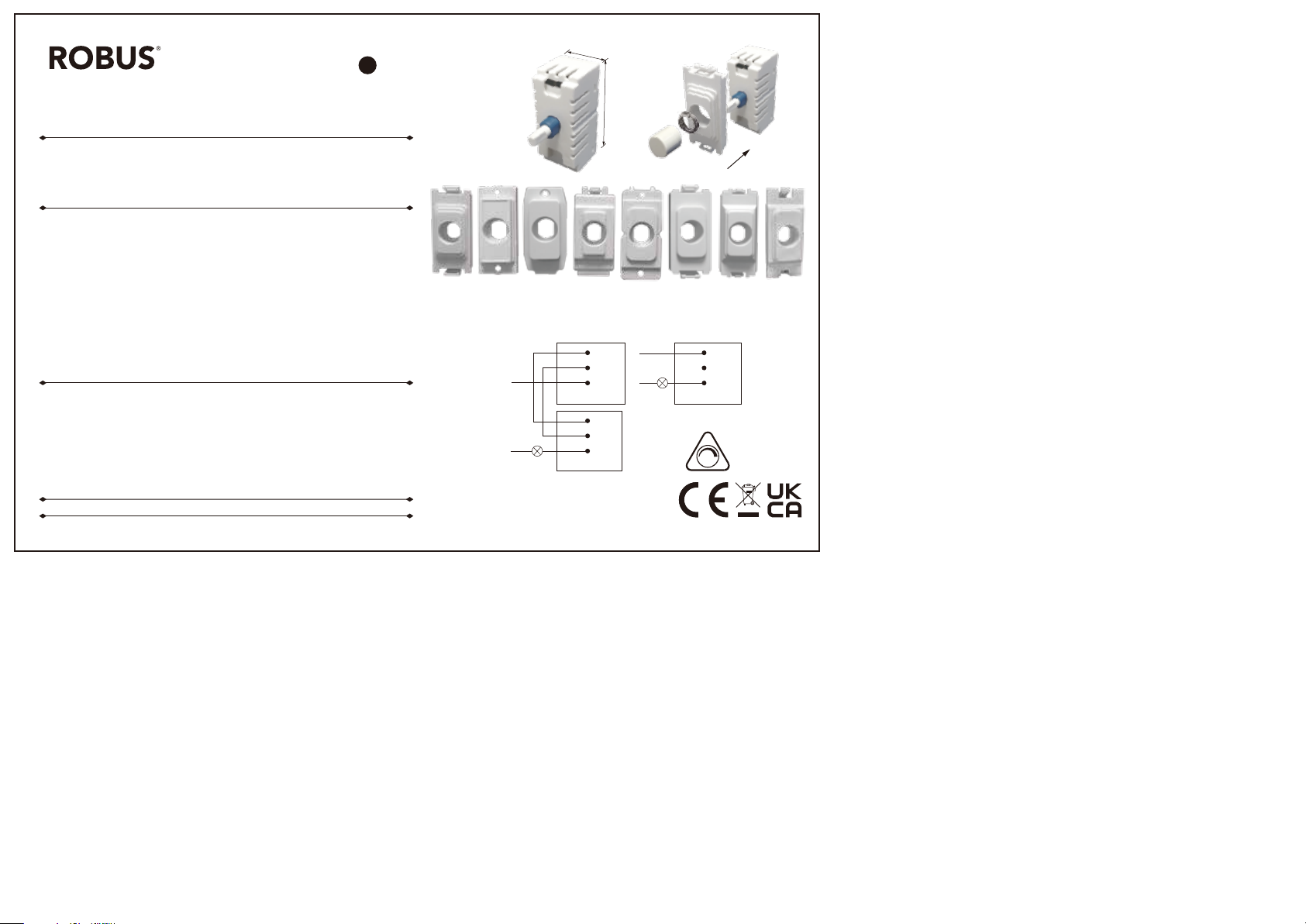

LOADPRO 250W LED GRID DIMMER
RLA250DTG-01
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE
REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation
or use of this product, consult a competent electrician
Note:
Product technical information and specification may change over time without prior notification For the
latest technical information please visit our web site www.robus.com or robusdirect.com
Push-on/push-off switch dimmer for resistive, inductive LV and inductive LED lighting loads.
Trailing edge dimmer.
Supply: 220/240V 50Hz; 0 ° C <Ta <+ 40 °
Loading Information: LV Halogen / Incandescent: 10-400W; LED: 5-250W
! Do Not use this dimmer with wire wound transformers, fans or electric motors or locate it in an area
with high humidity.
Installation
1 Ensure mains supply is switched off before commencing work.
2 Remove existing switch from wall, taking note of wiring connections.
3 Connect existing wires as per circuit diagram, ensuring all terminals are secure.
Note: Only one dimmer can be used on a dimming circuit. Where there are two or more switching
points on a circuit use one dimmer and a standard 2-Way switch.
Adjust the Min./Max. Light Level:
Switch the dimmer on
Using a screw driver adjust Min. and Max.
brightness pots the on the dimmer
Information for the Product user:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household
waste (WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a
collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are
purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of
carelessly. It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The “crossed out wheelie bin symbol” on a product indicates this equipment must not be disposed of in normal
household waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by a qualified electrician
Issue 1 221020
Min. Brightness: Turn knob to minimum,
adjust pot to desired light levels
Max. Brightness: Turn knob to maximum,
adjust pot to desired light levels
WandsworthDETA
Wiring:
Hager Schneider MK Logic CrabtreeBG
TWO WAY DIMMER CIRCUIT
L
RLA250DTG-01 RLA250DTG-01
N
2-way SW.
L.E.D lighting & Electrical Distribution Group UC
IRE: Nangor Road, Dublin 12, D12 E7VP, Ireland
UK: Bracknell Enterprise & Innovation Hub, Ocean
House, 12th Floor, The Ring, Bracknell,
Berkshire RG12 1AX, UK
60mm
Hamilton
ONE WAY DIMMER CIRCUIT
L
L2
L1
N
C
L2
L1
C
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@robus.com
Website: www.robus.com
L2
L1
C
