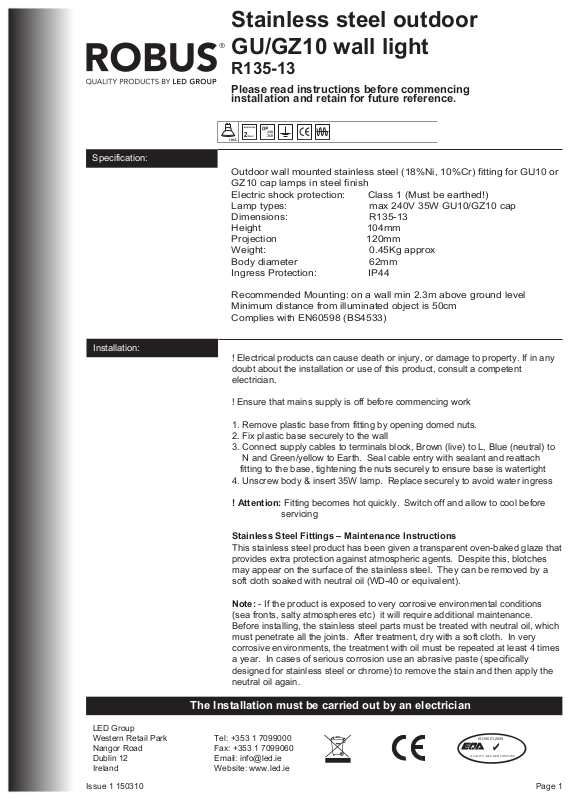

Robus R135-13 Installation Instructions

Specification:

Stainless steel outdoor
GU/GZ10 wall light

R135-13

Please read instructions before commencing
installation and retain for future reference.

incl.

Outdoor wall mounted stainless steel (18%Ni, 10%Cr) fitting for GU10 or
GZ10 cap lamps in steel finish
Electric shock protection: Class 1 (Must be earthed!)
Lamp types: max 240V 35W GU10/GZ10 cap
Dimensions: R135-13
Height 104mm
Projection 120mm
Weight: 0.45Kg approx
Body diameter 62mm
Ingress Protection: IP44

Installation:

Recommended Mounting: on a wall min 2.3m above ground level
Minimum distance from illuminated object is 50cm
Complies with EN60598 (BS4533)

! Electrical products can cause death or injury, or damage to property. If in any
doubt about the installation or use of this product, consult a competent
electrician.

! Ensure that mains supply is off before commencing work

1. Remove plastic base from fitting by opening domed nuts.

2. Fix plastic base securely to the wall

3. Connect supply cables to terminals block, Brown (live) to L, Blue (neutral) to
N and Green/yellow to Earth. Seal cable entry with sealant and reattach
fitting to the base, tightening the nuts securely to ensure base is watertight

4. Unscrew body & insert 35W lamp. Replace securely to avoid water ingress

! Attention: Fitting becomes hot quickly. Switch off and allow to cool before
servicing

Stainless Steel Fittings – Maintenance Instructions

This stainless steel product has been given a transparent oven-baked glaze that
provides extra protection against atmospheric agents. Despite this, blotches
may appear on the surface of the stainless steel. They can be removed by a
soft cloth soaked with neutral oil (WD-40 or equivalent).

Note: - If the product is exposed to very corrosive environmental conditions
(sea fronts, salty atmospheres etc) it will require additional maintenance.
Before installing, the stainless steel parts must be treated with neutral oil, which
must penetrate all the joints. After treatment, dry with a soft cloth. In very
corrosive environments, the treatment with oil must be repeated at least 4 times
a year. In cases of serious corrosion use an abrasive paste (specifically
designed for stainless steel or chrome) to remove the stain and then apply the
neutral oil again.

The Installation must be carried out by an electrician

LED Group
Western Retail Park Tel: [phone]
Nangor Road Fax: [phone]
Dublin 12 Email: [email protected]
Ireland Website: www.led.ie

Issue 1 150310

ISO 9001:2008

QUAL IT Y ASSU RED C OMPA NY

Page 1

Installation diagram:

104mm

62mm dia.

120mm

Figure 1

Figure 3

WALL

Figure 2

Figure 4

N

E

L

Information for the Product user

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household
waste (WEEE marked with crossed out wheelie bin symbol).

2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a
collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are
purchasing a replacement.

3. This equipment may contain substances that are hazardous to health and the environment if disposed of
carelessly. It is important that it is separated from normal household waste and recycled in the WEEE chain

4. The “crossed out wheelie bin symbol” on a product indicates this equipment must not be disposed of in normal
household waste, but should be disposed of according to local WEEE regulations
