1 Ensure mains supply is switched off before commencing
work
2 Remove diffuser by twist and lock arrangement
3 Mark appropriate fixing points on wall or ceiling; check
that fixings will not impinge on concealed cables of pipes
before drilling holes.
4 Introduce supply cables , insert the two screws into plugs
(do not screw fully tighten screw), place luminaire on
mounting surface, rotate luminaireand tighten screws.
5 Connect supply cable to terminal block: Brown to L, Blue
to N, Green/Yellow to E
6 Attached and rotate diffuser, ensure that it is secure
OYSTER 18W IP44 LED
FITTING, WHITE
R18WLED30-01, R18WLED40-01
Page 1
ISO 9001:2008
QUAL IT Y ASSU RE D CO MPANY
Issue 1 140515
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or
use of this prodcut, consult a competent electrician
Note:
Product technical information and specification may change over time without prior notification. For the latest technical
information please visit our web site www.ledgrouprobus.com. au
Specifications Installation
The Installation must be carried out by an electrician
Instruction manual
Model No.：
Voltage:
Power:
Lumen:
CCT:
CRI:
PF:
Beam Angle:
Ta Range:
IP Rating:
Safety Class:
Diameter
Depth:
Weight:
Warranty:
Complie with: EN55015, EN61547, EN61000-3-2, EN 61000-3-3,
EN 60598-2-1, EN 60598-1, EN 62471, EN 62493
R18WLED30-01
100-240V~50/60Hz
18W
1080lm
3000K
80
0.9
120
o
-15
o
C < Ta < +40oC
IP44
Class I
Ø327mm
90mm
0.6Kg
3 Year
R18WLED40-01
100-240V~50/60Hz
18W
1200lm
4000K
80
0.9
120
o
-15
o
C < Ta < +40oC
IP44
Class I
Ø327mm
90mm
0.6Kg
3 Year
LED Group ROBUS Australia
9/210 Queensport Road North Tel: +61 73893 1488
Murarrie Fax: +61 73112 1927
QLD 4172 Email: purchases@ledgrouprobus.com.au
Australia Website: www.ledgrouprobus.com.au
Brown G/Y Blue
78mm
327mm
90mm
Page 2
1
2
3
4
65

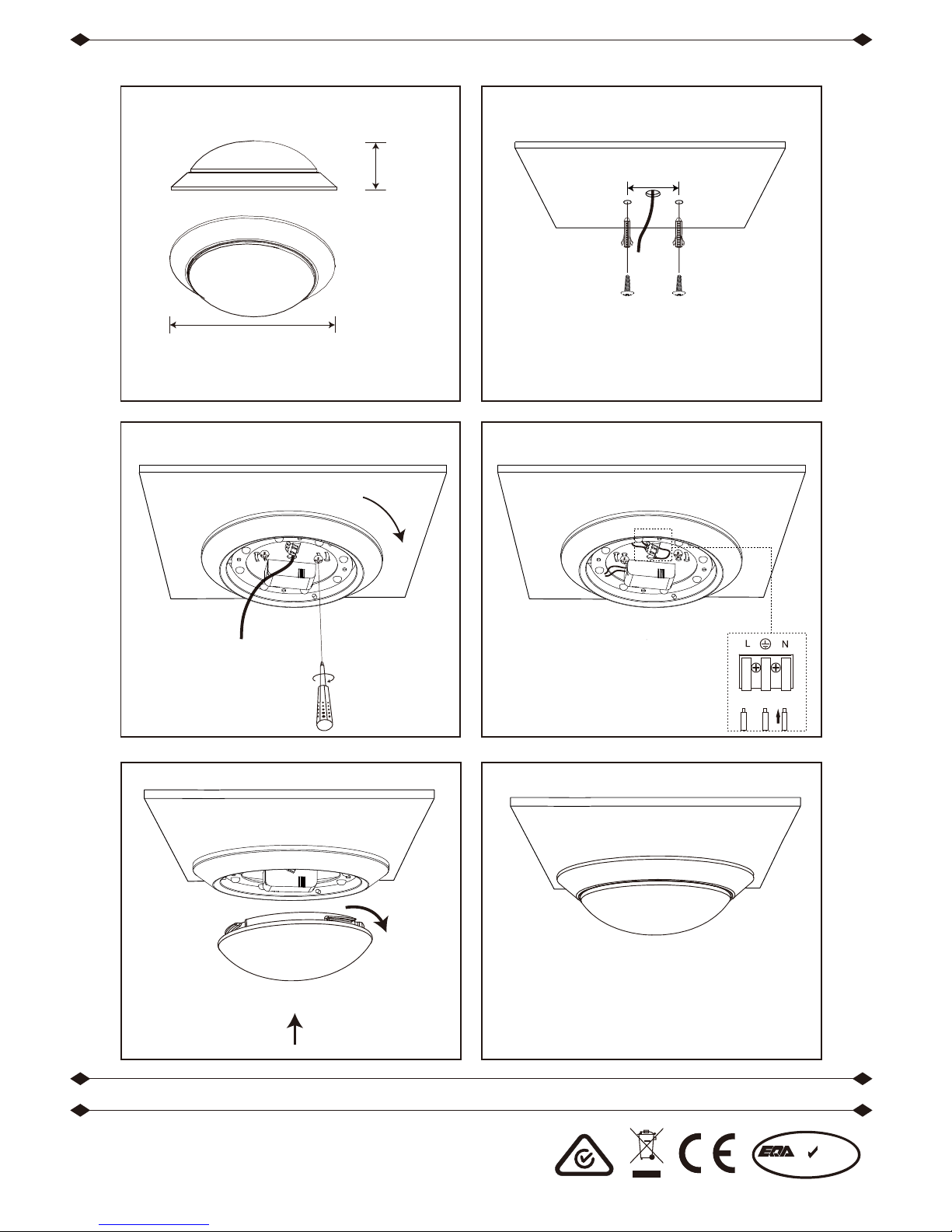

Installation diagram
The Installation must be carried out by an electrician
ISO 9001:2008
QUAL IT Y ASSU RE D CO MPANY
LED Group ROBUS Australia
9/210 Queensport Road North Tel: +61 73893 1488
Murarrie Fax: +61 73112 1927
QLD 4172 Email: purchases@ledgrouprobus.com.au
Australia Website: www.ledgrouprobus.com.au
