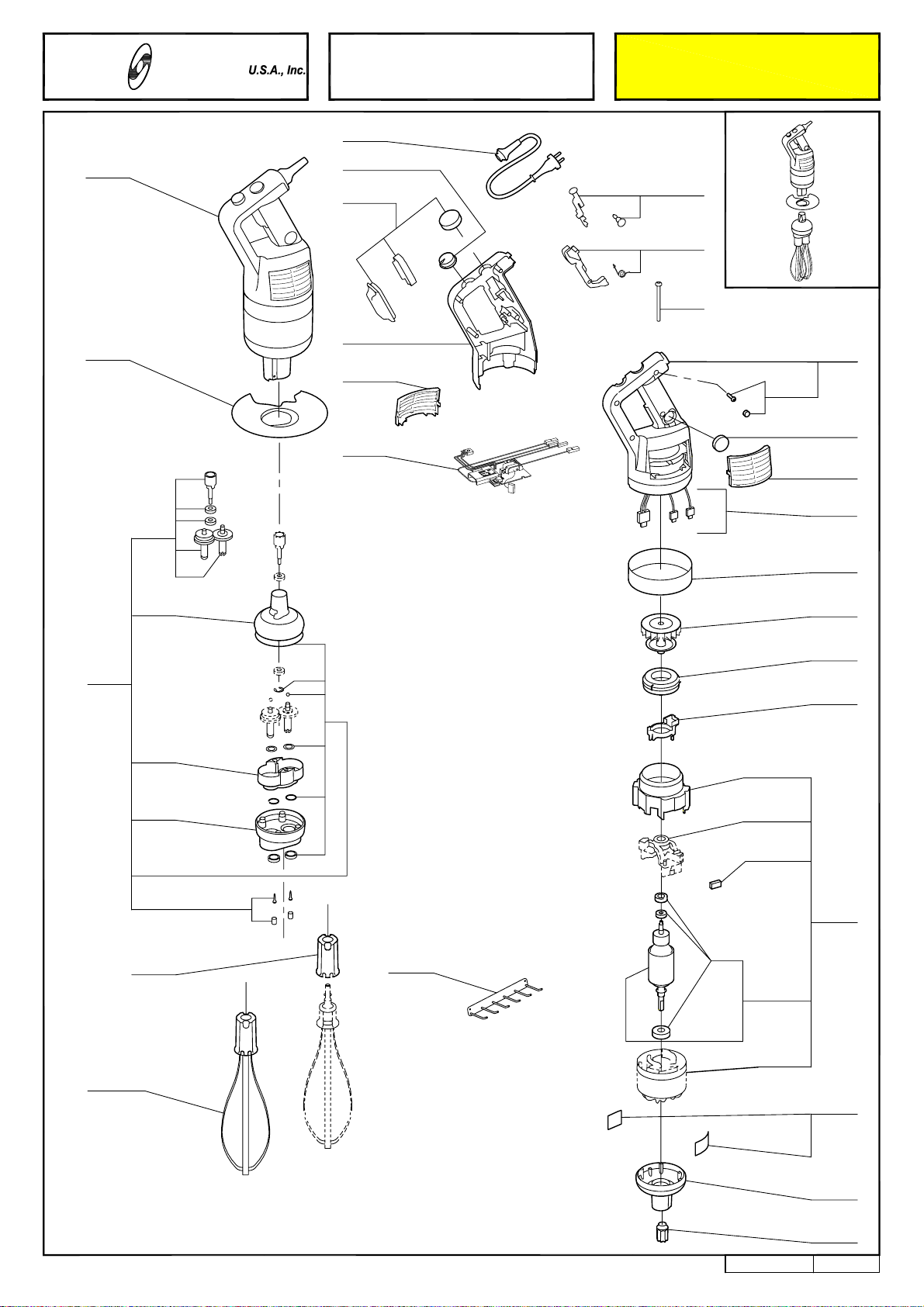

Robot Coupe MP 450 FW Parts List

robot coupe

®

MP 450 Turbo F.W.

Serial number / N° de série

34 160

- 388 - - - - - - -

12

1

13
14

19

20

(x4)

21

15

2

(x2)

16

22

15

(x4)

14

17

(x2)

16
23

5

24

6

25
26

3

27

7

29

8

(x2)

30

9

(x4)

10

28

11

18

32

31

(x2)

4

33

34

35
36

REV : bMaj : 10/2007



MP450FWTurbo

INDEX REF. DESIGNATION Pricelist in USD

2 89634 MPC WALL SUPPORT 10.75
3 89650 Screw 279.55
4 89553 Motor (Repl. 303187) 164.00
6 89379 Variable Speed Controller 34.50
7 89385 MP C 120V ELECT WIRING+SCREW+CAP SCREW 74.20

9 89545 MPC MAGNET VENTILATOR 13.05
10 89389 MP AIR DUCT 14.50
11 89552 MP SELF REST 9.75
12 89541 MP BF ALU LOWER BODY 36.35
13 89536 Seal Washer Kit (Repl 39383) 9.30
14 89533 Screw Cover, Whisk Box Assy 12.75
15 89534 Release Collar "B" 42.95
16 89508 MP/CMP KNOBS KIT+SCREW+CAP SCREW 8.80
17 89462 MP/CMP COMMAND ARM KIT +SCREW+CAP SCREW 70.30
19 89530 Brush Kit (2) (Repl. 39469 & 507302) 21.60
20 89531 Rotor Assy. 42.30
21 89621 Bearing Kit (Repl.29507) 3.95
22 89532 ADHESIVE SECURED LABEL 9.65
23 89461 MPC ALUMINIUM CASING 21.65
24 89595 MP450 T FW FERRULE Contact us
25 89543 MPC DRIVING HUB 11.05
26 89577 Foot Kit (Repl. 102832) 7.65
28 89562 (BA) Motor, MP450 Turbo 254.90
29 89569 Seal, Shaft Encl. (Repl. 102417) 5.30
30 89469 Upper Coupling (Repl. 102422) 13.05
31 89519 Lower Coupling 120.25
32 89507 Seal (Repl.507000) 29.60
33 89615 Drive Shaft Assy (MP450 COMBI) 33.55
34 89636 Complete Shaft Assy MP450Combi "B" Contact us

MP 350 Combi - MP 450 Combi - MP 450 FW - MP 350 V.V. - MP 450 V.V.

120V/60Hz - 220V/60Hz - 230V/50Hz CE - 240V/50Hz CE 1~

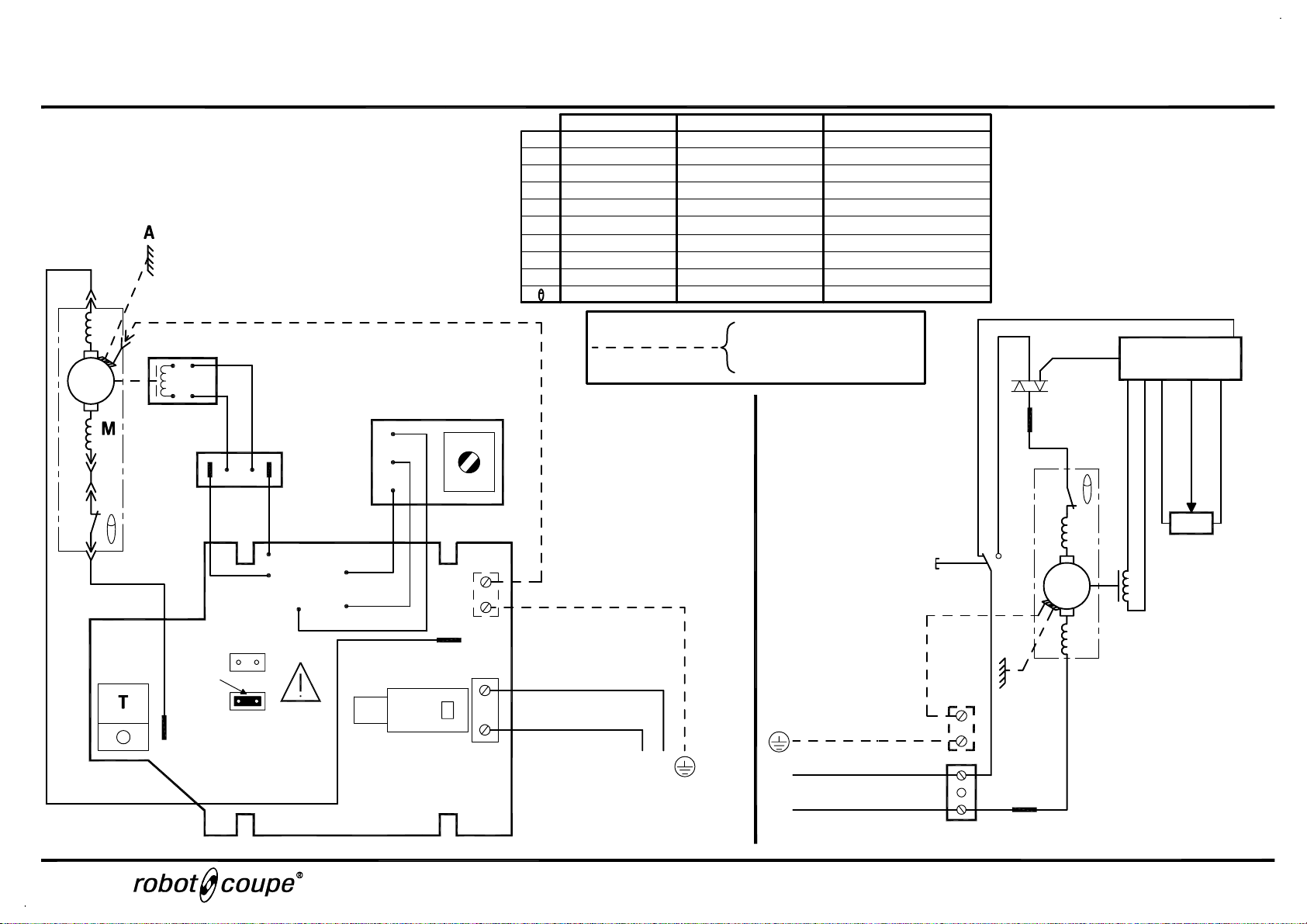

ELECTRIC DIAGRAM

SCHEMA ELECTRIQUE

ELEKTRISCHES SCHALTBILD

VS

J5

POT2

550

P

J

350/450

green-yellow/vert-jaune/grün-gelb

P

J

B

2
3
1

CAPT2
CAPT1

POT1

POT3

SW1

J1

JB
JP

SW1

VS

B2

green / vert / grün

N

white / blanc / weiB

B1

black / noir / schwarz

L

SUPPLY
ALIMENTATION
STROMVERSORGUNG

English

Aluminium housing

A

Control unit

C

Jonction board
Jumper
Motor

M

Potentiometer

P

On/off switch
Triac

T

Velocity sensor Capteur de vitesse GeschwindigKeitfmesser
Thermal protect or

L

Français

Carter aluminium
Unité de contrôle
Circuit de connection
Cavalier
Moteur

Potentiomètre
Interrupteur marche/arrêt
Triac Triac

Protecteur thermique

Only on 120V version
Seulement sur modèles 120V
Gibt es nur für den 120V

N

L

N

Deutsch

Aluminiumhaube
Kontrolleinheit
AnschlussKreilauf
Buegel
Motor

Potentiometer
Betriebsschalter/Stopschalter

Thermoschutz

green / vert / grün

black / noir / schwarz

white / blanc / weiB

SW1

B2

B1

L
N

A

T

J1

C

J5

M

P

VS

N° 406319 a

Maj : 02/02

robot coupe

®

MP 450 Turbo F.W.

Serial number / N° de série

Series B

34 583

- 438 - - - - - - -

12

1

13
14

15

19

20

21

(x4)

15

2

(x4)

16

(x2)

22

14

(x2)

17

16
23

5

24
25

6

3

7

28

29

26

(x2)

8

27

9

10

11

(x4)

18

31

30

32

33

(x2)

4

34

35

36

REV : bMaj : 10/2007



MP450FWTurboSe
riesB

INDEX REF. DESIGNATION Pricelist in USD

1 39465 Splash Shield (Repl.102950) Contact us

2 89634 MPC WALL SUPPORT 10.75

3 89650 Screw 279.55

4 89553 Motor (Repl. 303187) 164.00

6 89379 Variable Speed Controller 34.50

7 89385 MP C 120V ELECT WIRING+SCREW+CAP SCREW 74.20

9 89545 MPC MAGNET VENTILATOR 13.05
10 89389 MP AIR DUCT 14.50
11 89552 MP SELF REST 9.75
12 89541 MP BF ALU LOWER BODY 36.35
13 89536 Seal Washer Kit (Repl 39383) 9.30
14 89533 Screw Cover, Whisk Box Assy 12.75
15 89534 Release Collar "B" 42.95
16 89508 MP/CMP KNOBS KIT+SCREW+CAP SCREW 8.80
17 89462 MP/CMP COMMAND ARM KIT +SCREW+CAP SCREW 70.30
19 89530 Brush Kit (2) (Repl. 39469 & 507302) 21.60
20 89531 Rotor Assy. 42.30
21 89621 Bearing Kit (Repl.29507) 3.95
22 89532 ADHESIVE SECURED LABEL 9.65
23 89461 MPC ALUMINIUM CASING 21.65
24 89543 MPC DRIVING HUB 11.05
25 89577 Foot Kit (Repl. 102832) 7.65
27 89564 Seal (Repl. 507004) 254.60
28 89569 Seal, Shaft Encl. (Repl. 102417) 5.30
29 89469 Upper Coupling (Repl. 102422) 13.05
30 89519 Lower Coupling 120.25
31 89507 Seal (Repl.507000) 29.60
32 89615 Drive Shaft Assy (MP450 COMBI) 33.55
33 89604 Blade (Repl. 29503) Contact us
34 89636 Complete Shaft Assy MP450Combi "B" Contact us

MP 350 Combi - MP 450 Combi - MP 450 FW - MP 350 V.V. - MP 450 V.V.

120V/60Hz - 220V/60Hz - 230V/50Hz CE - 240V/50Hz CE 1~

ELECTRIC DIAGRAM

SCHEMA ELECTRIQUE

ELEKTRISCHES SCHALTBILD

VS

J5

POT2

550

P

J

350/450

green-yellow/vert-jaune/grün-gelb

P

J

B

2
3
1

CAPT2
CAPT1

POT1

POT3

SW1

J1

JB
JP

SW1

VS

B2

green / vert / grün

N

white / blanc / weiB

B1

black / noir / schwarz

L

SUPPLY
ALIMENTATION
STROMVERSORGUNG

English

Aluminium housing

A

Control unit

C

Jonction board
Jumper
Motor

M

Potentiometer

P

On/off switch
Triac

T

Velocity sensor Capteur de vitesse GeschwindigKeitfmesser
Thermal protect or

L

Français

Carter aluminium
Unité de contrôle
Circuit de connection
Cavalier
Moteur

Potentiomètre
Interrupteur marche/arrêt
Triac Triac

Protecteur thermique

Only on 120V version
Seulement sur modèles 120V
Gibt es nur für den 120V

N

L

N

Deutsch

Aluminiumhaube
Kontrolleinheit
AnschlussKreilauf
Buegel
Motor

Potentiometer
Betriebsschalter/Stopschalter

Thermoschutz

green / vert / grün

black / noir / schwarz

white / blanc / weiB

SW1

B2

B1

L
N

A

T

J1

C

J5

M

P

VS

N° 406319 a

Maj : 02/02

robot coupe

®

MP 450 F.W.

Serial number / N° de série

34 123

- 154 - - - - - - -

12

1

13
14

19

20

(x4)

21

15

2

(x2)

16

22

15

(x4)

14

17

(x2)

16
23

5

24

6

25
26

3

27

7

29

8

(x2)

30

9

(x4)

10

28

11

18

32

31

(x2)

4

33

34
35

REV : hMaj : 10/2007



MP450FW

INDEX REF. DESIGNATION Pricelist in USD

2 89634 MPC WALL SUPPORT 10.75

3 89650 Screw 279.55

4 89553 Motor (Repl. 303187) 164.00

6 89379 Variable Speed Controller 34.50

7 89385 MP C 120V ELECT WIRING+SCREW+CAP SCREW 74.20

9 89545 MPC MAGNET VENTILATOR 13.05
10 89389 MP AIR DUCT 14.50
11 89552 MP SELF REST 9.75
12 89541 MP BF ALU LOWER BODY 36.35
13 89536 Seal Washer Kit (Repl 39383) 9.30
14 89533 Screw Cover, Whisk Box Assy 12.75
15 89534 Release Collar "B" 42.95
16 89508 MP/CMP KNOBS KIT+SCREW+CAP SCREW 8.80
17 89407 Circuit Board MPCombi's "B" 107.95
19 89530 Brush Kit (2) (Repl. 39469 & 507302) 21.60
20 89531 Rotor Assy. 42.30
21 89621 Bearing Kit (Repl.29507) 3.95
22 89532 ADHESIVE SECURED LABEL 9.65
28 89559 Motor (Repl. 303187) 327.80
29 89569 Seal, Shaft Encl. (Repl. 102417) 5.30
30 89469 Upper Coupling (Repl. 102422) 13.05
31 89519 Lower Coupling 120.25
32 89507 Seal (Repl.507000) 29.60
33 89636 Complete Shaft Assy MP450Combi "B" Contact us

MP 350 Combi - MP 450 Combi - MP 450 FW - MP 350 V.V. - MP 450 V.V.

120V/60Hz - 220V/60Hz - 230V/50Hz CE - 240V/50Hz CE 1~

ELECTRIC DIAGRAM

SCHEMA ELECTRIQUE

ELEKTRISCHES SCHALTBILD

VS

J5

POT2

550

P

J

350/450

green-yellow/vert-jaune/grün-gelb

P

J

B

2
3
1

CAPT2
CAPT1

POT1

POT3

SW1

J1

JB
JP

SW1

VS

B2

green / vert / grün

N

white / blanc / weiB

B1

black / noir / schwarz

L

SUPPLY
ALIMENTATION
STROMVERSORGUNG

English

Aluminium housing

A

Control unit

C

Jonction board
Jumper
Motor

M

Potentiometer

P

On/off switch
Triac

T

Velocity sensor Capteur de vitesse GeschwindigKeitfmesser
Thermal protect or

L

Français

Carter aluminium
Unité de contrôle
Circuit de connection
Cavalier
Moteur

Potentiomètre
Interrupteur marche/arrêt
Triac Triac

Protecteur thermique

Only on 120V version
Seulement sur modèles 120V
Gibt es nur für den 120V

N

L

N

Deutsch

Aluminiumhaube
Kontrolleinheit
AnschlussKreilauf
Buegel
Motor

Potentiometer
Betriebsschalter/Stopschalter

Thermoschutz

green / vert / grün

black / noir / schwarz

white / blanc / weiB

SW1

B2

B1

L
N

A

T

J1

C

J5

M

P

VS

N° 406319 a

Maj : 02/02

robot coupe

®

MP450 Turbo FW / FWXL Series B

Serial number-FW : - 438 - - - - - - -

Serial number-FWXL : - 553 - - - - - - -

120 Volt, 60Hz, 6 Amps

1/1a

2

14

29

15
16

17
18

(x2)

30

31

(x4)

32

17

(x4)

16

(x2)

19

18
33

5

34

6

35

21

36

7

6

38

3

20

8

(x2)

39

10

9

22

37

(x4)

11

12

(x4)

23

24
25

41

40

(x4)

13

26

4

27

(x2)

42

43
44

PH: 1-800-824-1646 FAX: [phone]
email: [e-mail]

34 583 / 34 083

C

US

Conforms to

UL

Std 763

NSF/ANSI

Std 8

Certified to

CAN/CSA

Std C22.2 No.195

45

28

46

REV : cMaj : 09/2010



MP450XLFWTurbo

INDEX REF. DESIGNATION Pricelist in USD

1 39465 Splash Shield (Repl.102950) Contact us

2 89634 MPC WALL SUPPORT 10.75

3 89092 Power Cord-Cap Screw Assy(Repl. 29758) 404.70

4 89094 Handle Kit L&R 198.00

5 89090 Trigger Seal Kit (Repl.39359 & 39362) 174.10

6 89379 Variable Speed Controller 34.50

7 89091 Louvre "B" 12.50

8 89088 Circuit Board MPCombi's "B" 62.10

9 89077 Gear Box 145.80
10 89076 * Wisk Kit (2ea) (Repl. 105680) 96.60
11 89089 PIGNONS RLT BAG BF MP+SCREW+CAP SCREW 13.50
12 89093 MP/CMP BF UPPER BODY 28.50
13 89078 (BA) Plate Assy/Screw Cap 10.90
14 89541 MP BF ALU LOWER BODY 36.35
15 89536 Seal Washer Kit (Repl 39383) 9.30
16 89533 Screw Cover, Whisk Box Assy 12.75
17 89534 Release Collar "B" 42.95
18 89508 MP/CMP KNOBS KIT+SCREW+CAP SCREW 8.80
19 89462 MP/CMP COMMAND ARM KIT +SCREW+CAP SCREW 70.30
20 89650 Screw 279.55
22 89385 MP C 120V ELECT WIRING+SCREW+CAP SCREW 74.20
24 89545 MPC MAGNET VENTILATOR 13.05
25 89389 MP AIR DUCT 14.50
26 89552 MP SELF REST 9.75
27 89553 Motor (Repl. 303187) 164.00
29 89530 Brush Kit (2) (Repl. 39469 & 507302) 21.60
30 89531 Rotor Assy. 42.30
31 89621 Bearing Kit (Repl.29507) 3.95
32 89532 ADHESIVE SECURED LABEL 9.65
33 89461 MPC ALUMINIUM CASING 21.65
34 89543 MPC DRIVING HUB 11.05
35 89577 Foot Kit (Repl. 102832) 7.65
37 89564 Seal (Repl. 507004) 254.60
38 89569 Seal, Shaft Encl. (Repl. 102417) 5.30
39 89469 Upper Coupling (Repl. 102422) 13.05
40 89519 Lower Coupling 120.25
41 89507 Seal (Repl.507000) 29.60
42 89615 Drive Shaft Assy (MP450 COMBI) 33.55
43 89604 Blade (Repl. 29503) Contact us
44 89636 Complete Shaft Assy MP450Combi "B" Contact us
