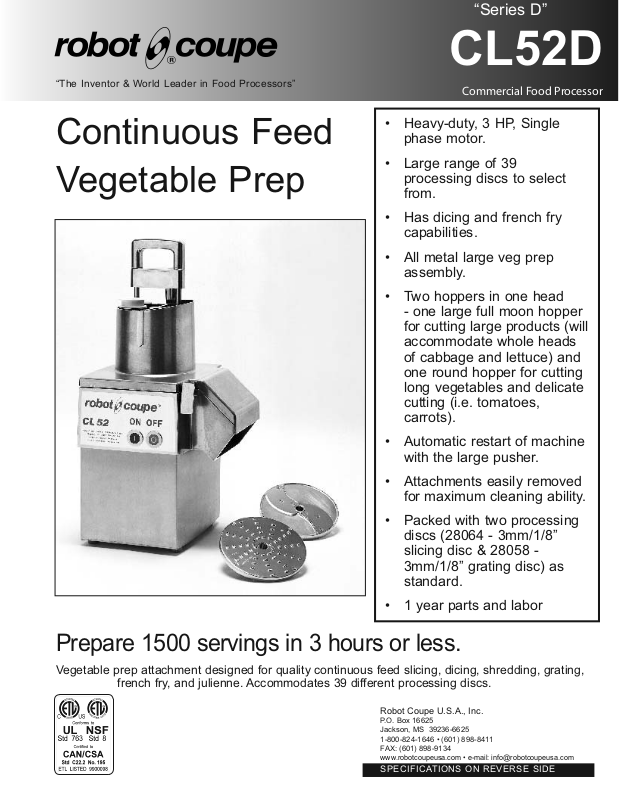

“Series D”
CL52D
“The Inventor & World Leader in Food Processors”
Continuous Feed
Vegetable Prep
Commercial Food Processor
• Heavy-duty, 3 HP, Single
phase motor.
• Large range of 39
processing discs to select
from.
• Has dicing and french fry
capabilities.
• All metal large veg prep
assembly.
• Two hoppers in one head
- one large full moon hopper
for cutting large products (will
accommodate whole heads
of cabbage and lettuce) and
one round hopper for cutting
long vegetables and delicate
cutting (i.e. tomatoes,
carrots).
• Automatic restart of machine
with the large pusher.
• Attachments easily removed
for maximum cleaning ability.
• Packed with two processing
discs (28064 - 3mm/1/8”
slicing disc & 28058 3mm/1/8” grating disc) as
standard.
• 1 year parts and labor
Prepare 1500 servings in 3 hours or less.
Vegetable prep attachment designed for quality continuous feed slicing, dicing, shredding, grating,
french fry, and julienne. Accommodates 39 different processing discs.
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • (601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com • e-mail: info@robotcoupeusa.com
SPECIFICATIONS ON REVERSE SIDE
“The Inventor & World Leader in Food Processors”
Grating Discs
28270 1/16” (1.5mm)
28057 5/64” (2mm)
28058 1/8” (3mm)
28073 5/32” (4mm)
28163 3/16” (5mm)
28164 9/32” (7mm)
28165 11/32” (9mm)
28055 Fine Pulping
28061 Hard Cheese Grate
French Fry Kits
28134* 5/16” (8mm)
28135* 3/8” (10mm)
Romaine Lettuce Kit
28133/104031 2”
PROCESSING DISCS
Slicing Discs
28062 1/32” (1mm)
28063 5/64” (2mm)
28064 1/8” (3mm)
28004 5/32” (4mm)
28128* 3/16” (5mm)
28129* 5/16” (8mm)
28130* 3/8” (10mm)
28131* 9/16” (14mm)
28081 3/4” (19mm)
28132* 25/32” (20mm)
28133* 1” (25mm)
Ripple Cut Slicers
27068 5/64” (2mm)
27069 1/8” (3mm)
27070 3/16” (5mm)
Julienne Discs
28051 5/64” x 5/64” (2mm x 2mm)
27072 5/64” x 5/32” (2mm x 4mm)
27066 5/64” x 1/4” (2mm x 6mm)
27067 5/64” x 5/16” (2mm x 8mm)
28052 5/32” x 5/32” (4mm x 4mm)
28053 1/4” x 1/4” (6mm x 6mm)
28054 5/16” x 5/16” (8mm x 8mm)
Dicing Kits
28110 3/16” x 3/16” (5mm x 5mm)
28111 5/16” x 5/16” (8mm x 8mm)
28112 3/8” x 3/8” (10mm x 10mm)
28113 9/16” x 9/16” (14mm x 14mm)
28114 25/32” x 25/32” (20mm x 20mm)
28115 1” x 1” (25mm x 25mm)
* For Series D machines only
Specifications
STANDARD MODEL: includes motor base unit
with continuous feed attachment, one 1/8”
(3mm) slicing disc and one 1/8” (3mm) medium
grating disc.
ELECTRICAL REQUIREMENTS: 120V, 60Hz, 13.5
Amps, single phase, 1 speed.,
NEMA 5-15 plug.
SWITCHING: Control panel with push-type on
and off buttons.
MOTOR: 3 HP, 425 RPM, belt drive,
fan-cooled.
“Series D”
CL52D
Commercial Food Processor
WEIGHT: 65 lbs. net, 69 lbs. approximate
shipping weight.
OPTIONAL EQUIPMENT: 37 additional processing discs
and single or multiple disc racks or wall-mounted disc rack.
STANDARDS: ETL electrical & sanitation, cETL (Canada)
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
(601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com
e-mail: info@robotcoupeusa.com
Distributed by:
Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2003 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 06/03
