USER GUIDE
robomow.com
Original
Robotic Mower
RK1000, RK1000 Pro
RK2000, RK2000 Pro
Safety First
IMPORTANT!
READ THIS SAFETY GUIDE CAREFULLY BEFORE USE. KEEP
FOR FUTURE REFERENCE
1
Safe Operation Practices
2
Symbols Denitions
3
Safety Features
Do not allow children to use or operate the mower.
Children must be supervised at all times.
1 2
EN v5
This guide includes the original manufacturer’s instructions in terms of Directives
2006/42/EC and 2014/53/EU. It may describe models that are not available in
your country.
Please note the terminology below when using this guide.
Front and Rear of the mower:
The Front is the opposite side of the (red) STOP control. It is the direction of travel
of the mower and where the passive wheel/s are located.
The Rear is where the (red) STOP control is located, and where the traction drive
wheels are located.
Left and Right directions are determined when standing behind the Rear of the
mower and looking at its Front.
Safety Guidelines
DANGER
Describes situations, where, if the hazard is not avoided, it will
cause death or serious injury.
WARNING
Describes situations, where, if the hazard is not avoided, it may result in
death or serious injury.
CAUTION
Describes situations, where, if the hazard is not avoided, it could result
in minor or moderate injury, or damage to property and/or the product.
Provides information for proper use of the product and avoidance of
possible operation malfunctions.
i
Important Safety Information
WARNING
It is your responsibility to:
• Restrict the use of this mower to persons who have read, understood
and follow the warnings and instructions in this guide and in the mower
• Inform your neighbors you have a robot mower in operation and that
they may be injured if they enter your lawn during operation
DANGER
Always connect the power supply to the indoor, weather-protected
power outlet! Follow local electric installation instructions.
WARNING
Allow the blades to completely stop rotating before lifting or tilting
the mower or approaching the blades.
DANGER
Do not connect a damaged power cord to the supply and do not touch
such cord as it can cause electric shock.
Keep all power cords away from underneath the mower to prevent
damage.
3 4
Safe Operation
1
Practices
A. General Information
1. Read, understand and follow all instructions on the mower and in the manual(s)
before attempting to assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation.
3. It is your responsibility to inform your neighbors you have a robotic mower and the
risk of injury if they enter your lawn during its operation.
4. If your lawn is open to the street and/or your neighbor’s property, you must be
present during the mower’s operation to prevent others from contacting the mower
during operation. Alternatively, you must fence your lawn so that others do not
access the lawn during operation.
5. Never allow children under 14 years of age to operate the mower using the remote
control app. Children 14 and over should read and understand the instructions and
safe operation practices in this manual and on the mower and should be trained
and supervised by an adult.
6. Never allow children, persons with reduced physical, sensory or mental capabilities,
or people who are unfamiliar with these instructions to operate the mower.
7. If situations occur which are not covered in this manual, use care and good
judgment. Contact your customer service representative for assistance.
8. This mower is a precision piece of power equipment, not a plaything. Therefore,
exercise extreme caution at all times. This mower has been designed to perform
one job: to mow grass. Do not use it for any other purpose.
B. Preparations Before Operating
PRIOR TO FIRST USE, ENSURE THAT PRODUCT HAS BEEN
CHARGED CONTINUOUSLY FOR 3 HOURS.
i

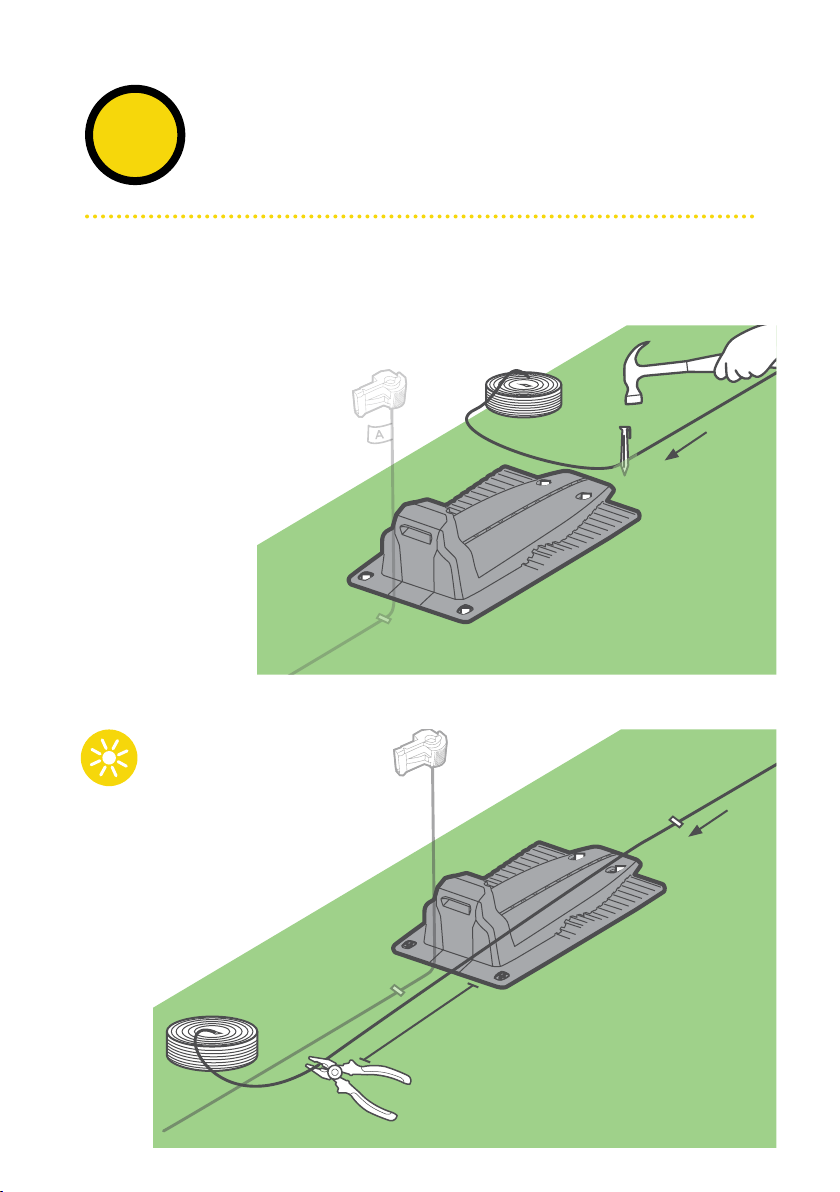

1. Ensure the correct installation of the Perimeter Wire, as instructed later in this
manual.
2. Thoroughly inspect the area where the mower is to be used. Remove all stones,
sticks, wire, bones, toys and other foreign objects which could damage the blade
or be picked up and thrown by the blade. Thrown objects can cause serious
personal injury.
3. Keep bystanders, children and pets inside while the mower is in operation. Stop
mower if anyone enters the mowing area.
4. When there is a risk of a lightning storm, keep the mower in a protected area and
disconnect the power supply.
C. Operation
WARNING!
Do not allow the mower to operate unattended if you
know that there are or may be pets, children or people
in the vicinity.
1. Your robotic mower is a dangerous power tool. Exercise care when operating
it and follow all safety instructions and warnings.
2. In the event of an accident or malfunction during operation immediately press
the red STOP control.
3. Do not allow your mower to operate if any safety feature or any part is
damaged, worn or inoperable.
4. Always remove the disabling device before lifting the mower or making any
adjustments. Removing the device disables power to the wheel drive and blade.
5. Never pick up or carry the mower while the wheels are turning or blade is
moving. Do not touch the blade before it has completely stopped rotating.
6. Do not use the mower for any purpose other than cutting grass.
7. Never attempt to bypass a safety device, or to remove a guard or cover. Doing
so may result in personal injury through contact with the rotating blade. The
sensors are safety devices.
8. The cutting blade continues to rotate for up to two (2) seconds after a safety
sensor is triggered or the red STOP control is pressed. Never place any part of
the body in the blade area until you are certain the blade has stopped rotating.
9. If the mower should start to vibrate abnormally, stop the motor and check
immediately for the cause. Vibration is generally a warning of trouble.
10. Always wear safety glasses during remote control operation and while
performing an adjustment or repair to protect your eyes. Thrown objects
which ricochet can cause serious injury to the eyes.
11. Never operate mower with a damaged safety device, guard or cover. Failure to
follow this warning can result in personal injury.
12. Do not put hands or feet near rotating parts or under the cutting deck. Contact
with the blade(s) can amputate hands and feet.
13. Watch for holes, ruts, bumps, rocks or other hidden objects. Uneven terrain or
hidden objects could cause an accident. Tall grass can hide obstacles.
14. Your mower is designed to cut normal residential grass of a height no more
than 6” (15 cm). Do not attempt to mow through unusually tall grass (e.g.,
pasture).
5 6
15. Do not operate the mower without the cover door closed.
16. Set the weekly program so the mower is in operation when there are no people
likely to be on the grass.
17. Do not connect a damaged power cord to the supply, or touch a damaged cord
before it is disconnected from the supply as it can lead to electric shock.
18. Keep all power cords away from underneath the mower to prevent damage. A
damaged power supply cord can lead to electric shock.
19. Operate the mower manually only when it is within your range of vision. Stay
within 6 meters of the mower when you are operating it manually.
D. Children
1. Tragic accidents can occur if you are not alert to the presence of children.
Children are often attracted to the mower and the mowing activity. They do
not understand the dangers. Never assume that children will remain where
you last saw them. Never assume that children will stay away from the mower
while it is operating.
2. Keep bystanders, children and pets inside while the mower is in operation and
under the watchful care of a responsible adult. Stop mower if anyone enters
the area.
3. Be alert and turn the mower o if a child or bystander enters the area.
4. Do not allow children to ride on the mower. It is not a toy.
5. Never allow children to play in the yard while the mower is in operation. Teach
your children that the mower is dangerous and they must stay away from it.
6. Never allow children under 14 years of age to operate this mower using the
remote control app. Children 14 and over should read and understand the
instructions and safe operation practices in this manual and on the mower and
should be trained and supervised by an adult.
E. Transportation
Before moving or transporting your mower, follow the steps below:
1. Press or pull the red STOP control to stop the mower.
2. You may use the Remote Control (available via the mobile app) to drive your
mower from one place to another.
3. If you select to carry your mower:
• Press the red STOP control and remove the disabling device before
carrying the mower. Switch the mower o by pressing the green button
located under the interface door on top of the mower.
The red STOP control is also a carrying handle.”
4. Always carry with blades facing away from you. Be careful to avoid contacting
the sharp edge of the blade when lifting or carrying the mower.
F. Remote Operation
1. Refer to the separate operator’s manual provided with the downloadable app.
Follow all warnings and instructions provided.
2. Always operate the mower according to the app instructions while standing
away from the mower.
3. Keep a safe distance between you and the mower when it is in operation.
Always stop the mower operation before approaching it for any reason.
4. Use extreme caution when operating the mower towards you.
5. Operate the mower remotely only in daylight or in good articial light, and
avoid operating on wet grass.
6. Never operate the mower remotely in bare feet, sandals, slippery or lightweight
(e.g. canvas) shoes. Always wear substantial footwear and long pants; always
make sure of your footing on slopes.
G. Batteries
1. Use only genuine batteries provided by the manufacturer.
2. Do not open, drop, or damage the sealed Battery Pack. Do not use the battery
with visible defects or deformations, when it is broken or cracked
3. DO NOT ATTEMPT TO REPAIR OR MODIFY BATTERIES! Repair attempts may
result in severe personal injury, due to explosion or electrical shock. If a leak
develops, released electrolytes are corrosive and toxic
4. Do not attempt to remove or destroy any of the battery components.
5. The Battery Pack contains electrolytes. In the case of electrolyte leakage from
the Battery Pack, the following action should be taken:
• Skin contact: Wash the contact areas o immediately with water and
soap.
• Eye contact: Flush the eyes with plenty of clean water for at least 15
minutes. Do not rub.
• Get medical assistance.
6. Do not dispose of the battery in a re. The cell may explode.
7. The battery is intended to be charged when it is inside the mower and properly
connected to the mower. Always use the power supply provided with the
mower. Incorrect usage may result in electric shock, overheating or re.
8. Do not use the battery for any purpose other than powering the dedicated
Robotic Lawnmower. Altering the battery to make it powering another product
is extremely unsafe.
9. Observe proper disposal laws and regulations for batteries to protect the
environment. Refer to the “Rechargeable Battery Disposal” section of this
User Guide for additional information.
7 8
H. Slope Operation
1. All slopes require extra caution. If you feel the mower cannot maintain traction
on the slope, it is too steep to mow. Wet grass will decrease traction and may
cause the mower to slip and slide on the slope. Serious injury or property
damage could result.
2. For your safety, measure any slope before using the mower on the sloped
area. Use a slope measuring device before setting up the mowing zones or
operating this mower on a sloped or hilly area. Smart phone applications can
also be utilized to measure slopes. If the slope at the perimeter is greater
than 15 degrees (27%), RT models may slide out of the mowing zone. For RK
models mower may slide out of the mowing zone at 24 degrees (45%).
3. Do not mow on slopes greater than 15 degrees (27%) with RT models and
greater than 24 degrees (45%) with RK models.
4. Do not operate the mower under any conditions where traction or stability is in
question. Always be sure of the mowing surface. A tip or overturn could cause
serious personal injury or property damage.
5. Stay at least 4 feet (1.2 meter) from drop-os, ditches, embankments or the
edge of water to help ensure the mower does not get out of the mowing zone.
You could damage the mower or cause a serious injury.
I. Maintenance and Special Instructions
1. Keep the mower in good working order. Replace worn, damaged or broken
parts.
2. To avoid serious injury do not modify the mower in any way.
3. Non-O.E.M. blades might not t properly or could be inferior quality and a
safety concern.
4. Always remove the disabling device rst before servicing or inspection.
5. The blade should come to a complete stop within two (2) seconds after
pressing the red stop control. If you do not hear the blade stop in less
than two (2) seconds, your mower must be serviced professionally by an
authorized service dealer.
6. Never use a high pressure power washer or hose to clean the mower. Water
can damage components and the programmable controller. Use a damp cloth
to wipe the display clean.
7. Visually inspect blade for damage (e.g., excessive wear, bent, cracked).
Replace the blade with the original equipment manufacturer’s (O.E.M.) blade
only.
8. Use of service parts which do not meet the original equipment specications
may lead to improper performance and compromise safety.
9. After striking a foreign object, or getting hung up, stop the mower, remove
disabling device and switch o the mower. Thoroughly inspect the mower for
any damage. Repair the damage before starting and operating.

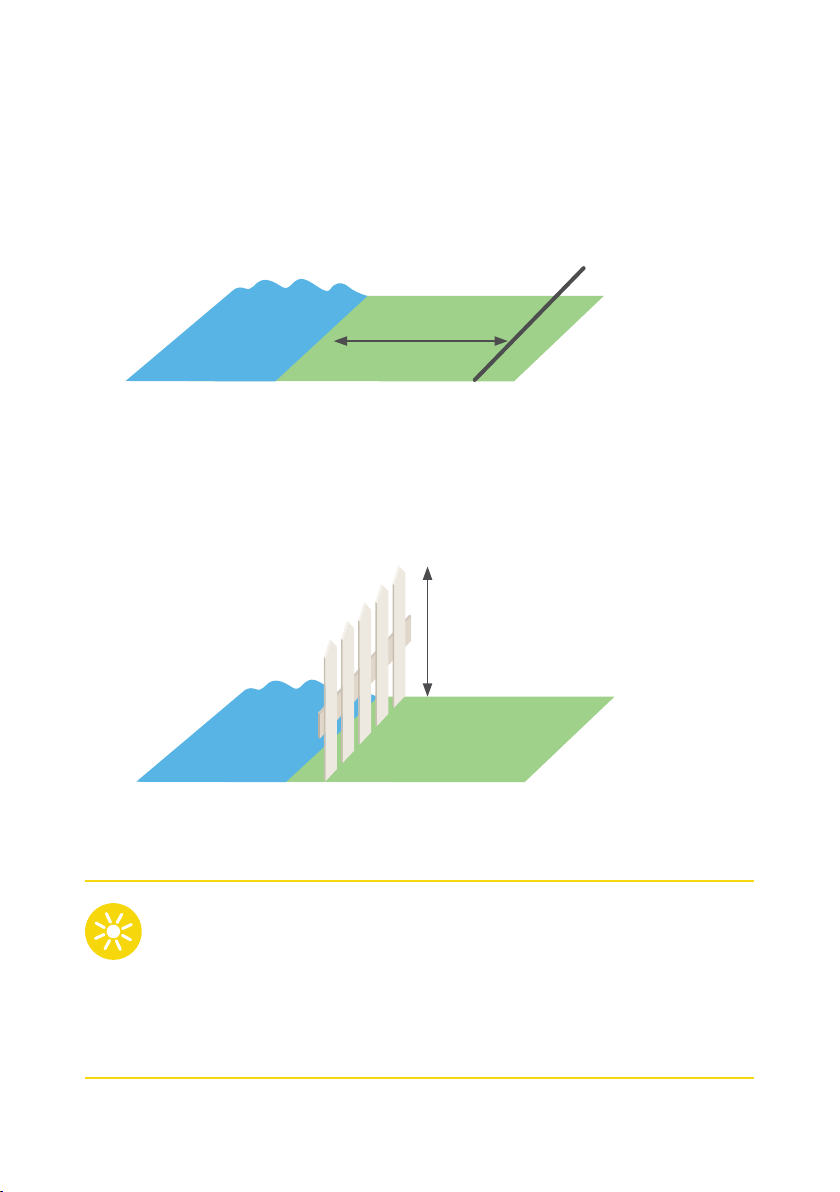

10. For areas close to a children’s play area, bodies of water, drop os or public
roads, supplement the perimeter wire with a rigid (wood/stone) boundary
edge at least 15 cm (6 inches) high which will help prevent the mower from
exiting the mowing zone.
11. Clean or replace safety and instruction labels, as necessary.
J. Product End of Use
1. The mower and its accessories should be properly disposed of at the end
of their useful life to prevent waste electrical and electronic equipment
from ending up in landll sites, and to protect and improve the quality of the
environment. Check with your local trash facility or municipality regarding
disposal laws. Many municipalities provide special waste collection sites for
the disposal of batteries and electronic equipment.
2. Do not dispose of the Battery Pack or the mower in unsorted municipal/
household trash.
3. Do not dispose of the Battery Pack in a re.
4. See local and state regulations for any special disposal or recycling laws
and requirements. Refer to end of the Quick Reference section for disposal
instructions.
9 10
Symbols Denitions
2
on the Mower
Symbol Description
WARNING — READ THE OPERATOR’S MANUAL(S)
Read, understand and follow all the safety rules and
instructions in the manual(s) and on the mower before
attempting to operate this mower. Failure to comply with
this information may result in personal injury or death.
Keep this manual in a safe location for future and regular
reference.
DANGER — AVOID AMPUTATION INJURY
Do not put hands or feet near or under the cutting deck.
Contact with the blade can amputate hands and feet.
WARNING — AVOID CRASH/BLADE INJURY. KEEP A SAFE
DISTANCE FROM THE MACHINE WHEN OPERATING.
Do not mow when children or others are around. To
help avoid blade contact or a thrown object injury keep
others away from the mower while it is in operation. Keep
bystanders, children and pets inside while the mower is in
operation. Stop mower if anyone enters the area.
WARNING — AVOID THROWN OBJECT INJURY
Keep helpers at least 15’ (5 meters) from mower during
operation. Remove all stones, sticks, wire, bones, toys and
other foreign objects which could be picked up and thrown
by the blade(s). Do not operate the mower without the
entire cover or guards in their proper place.
WARNING — AVOID CRASH/BLADE INJURY
Do not allow children to ride on the mower. It is not a toy.
WARNING
Shut o the mower before attempting to service it.
WARNING
Remove the disabling device before working on or lifting
the machine
3
Safety Features
WARNING!
Your mower is equipped with numerous built-in safety features.
However, the mower is a hazardous device with a sharp blade,
which can cause major injury to anyone who comes in contact
with it.
Therefore, it is absolutely forbidden to be on the lawn while the
mower is working.

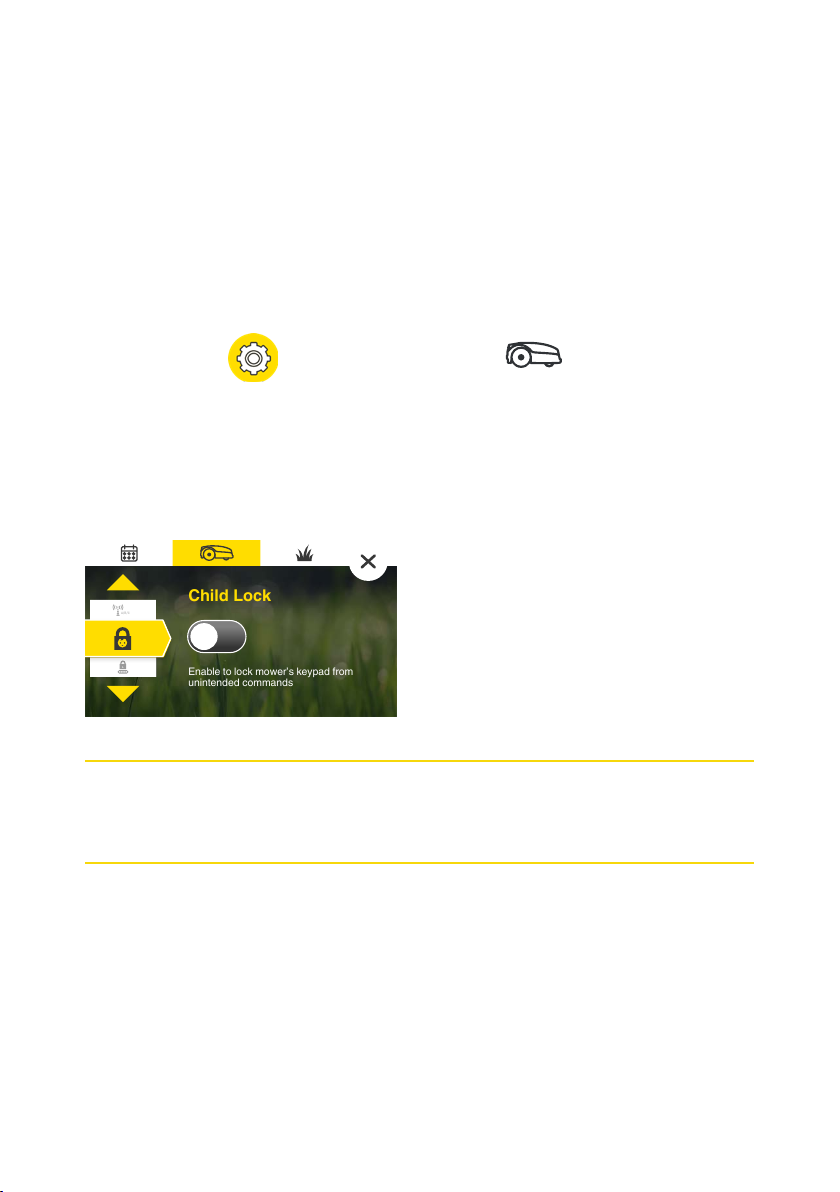

A. Child Lock
The Child Lock prevents unintended operation of the mower by an
accidental press of one of the buttons. Only pressing two buttons in the
right order will initiate the operation. It is required to activate the Child
Lock feature if children under age 6 may come in contact with the mower.
B. Anti-Theft / Lockout
The Anti-Theft Device system function will prevent anyone from using
or driving the mower unless they have a valid code to enter. You will be
prompted to enter a four digit code of your choice to use as your personal
security code (for RT models it is available using mobile app only). It is
highly recommended to activate this feature to prevent operation of the
mower by children or people who are unfamiliar with the mower or not
allowed to use it.
11 12
C. Lift Sensor
If the mower is manually lifted o the ground, the mower and rotation of
the blade will stop in two (2) seconds.
D. Tilt Sensor
If the mower is tilted up towards a vertical position, the mower and
rotation of the blade will stop in two (2) seconds.
E. Obstruction Sensor
Your mower detects interfering obstacles in its way during operation.
When the mower collides with an obstacle it will stop movement in that
direction, reverse itself away from the obstacle and the mower and
rotation of the blade will stop in two (2) seconds.
F. Quick Stop Control
Pressing down (RK and RT models) and/or pulling up (RK models) the
red STOP control at any time during operation will stop the mower and
the blade in (2) two seconds.
G. Removable Disabling Device
Pulling out the disabling device will prevent any operation of the mower.
It is required to pull the disabling device before lifting the mower and
before any maintenance is done.
H. Base Station/Perimeter Switch and Perimeter
Wire
The mower cannot operate without a Perimeter Wire installed and
activated through the Base Station/Perimeter Switch. In the event the
Perimeter Wire signal is turned o, the mower will stop operating.
Let’s get
started.
Can’t wait
to mow
your lawn.
Welcome to a friendly
home
Congratulations on your purchase! You are just a few steps away from
meeting your best team player. Very soon you will come to count on your
new friend to do a perfect job.
It will automatically depart from its Base Station on predetermined days
and times, mow your lawn and return to its Base Station for charging.
A pre-installed perimeter wire sets the boundaries (a “virtual wall”) for
your mower. It will be laid around the edges of your lawn and objects that
you want to protect.
The mower moves randomly within its working area, as dened by the
perimeter wire. This kind of random movement provides the perfect cut
and ensures complete coverage of your lawn.
14 15
In addition, it follows the perimeter wire when it mows the edges of your
lawn to give it a perfect nish.
Good-looking lawns are achieved by consistent mowing, which is exactly
what your Robomow provides.
After following the installation instructions, you will be ready to enjoy your
free time, while your new friend looks after your lawn.
It is highly recommended to read the complete installation guide prior to
installation.

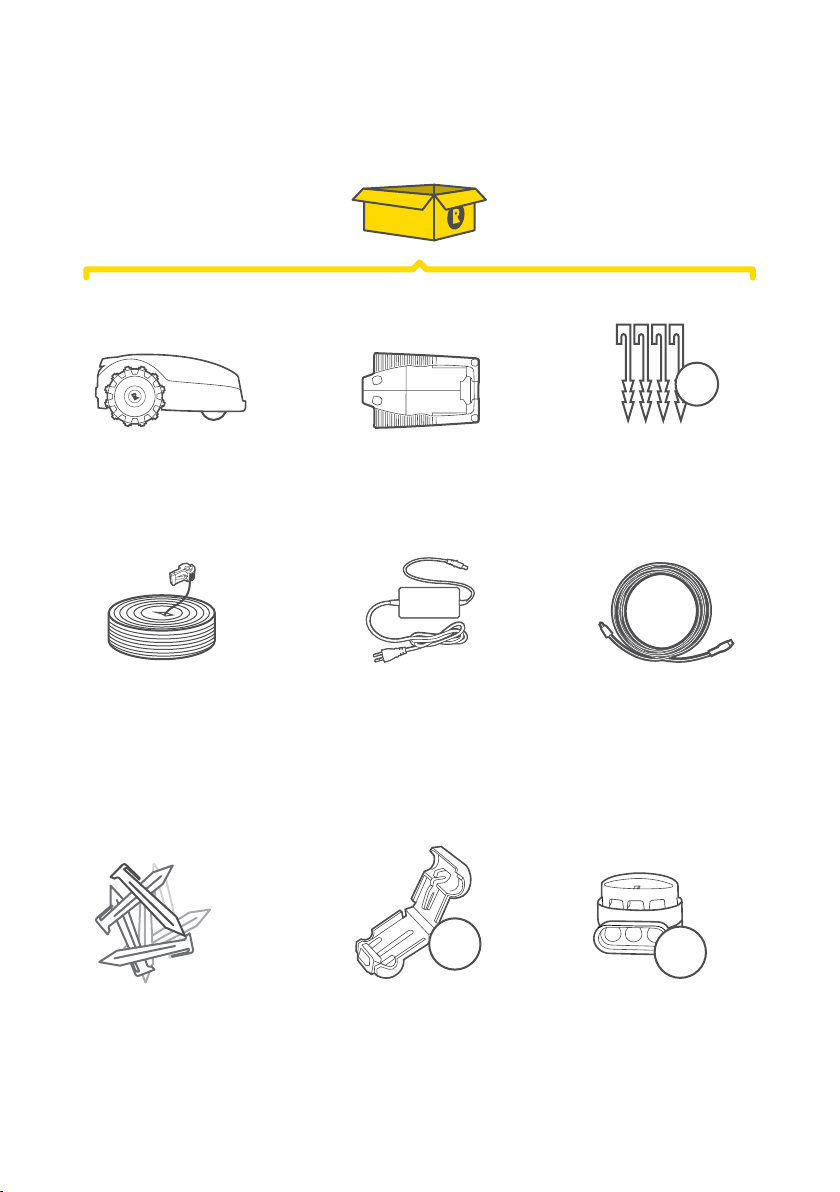

What’s in the Box
x4
The product
Your new Robotic Mower
Perimeter Wire*
Marks the working area for
the mower
(*) Not included in all models
Wire Pegs*
For securing the wire
to the ground
(*) Not included in all
models
Base Station
This is where the mower
recharges itself
Power Supply
The power supply for
charging your mower
x2
Spare Plot Connector
For connecting the
Perimeter Wire to the
Base Station
Base Station Stakes
For axing the Base
Station to the ground
Extension Cable
15 m (50 ft) low voltage
cable to connect the
mower to the Power
Supply unit
x2
Wire Connectors
For splicing the
Perimeter Wire in
case of a cut
16 17
Safety Guide
Getting started guide
RoboRuler
For measuring the Perimeter Wire’s
distance from the lawn’s edge
Tools required for installation
Tools
Ready? Let’s begin...
So where are we
heading?
Correct installation of your mower will ensure maximum results.
This is what it takes to prepare it to do a perfect job for you:
Base Station location
Choose Base Station location
Soft Obstacles
How to protect soft obstacles
Slopes
What slopes can the mower handle
Separated zone
How to wire a separated zone
1
3
5
7
2
4
6
Lay the wire
Lay out the “virtual boundary”
Hard Obstacles
When should they be excluded
Narrow pass
How to wire a Sub-zone
Finish
8
18 19
Complete the installation

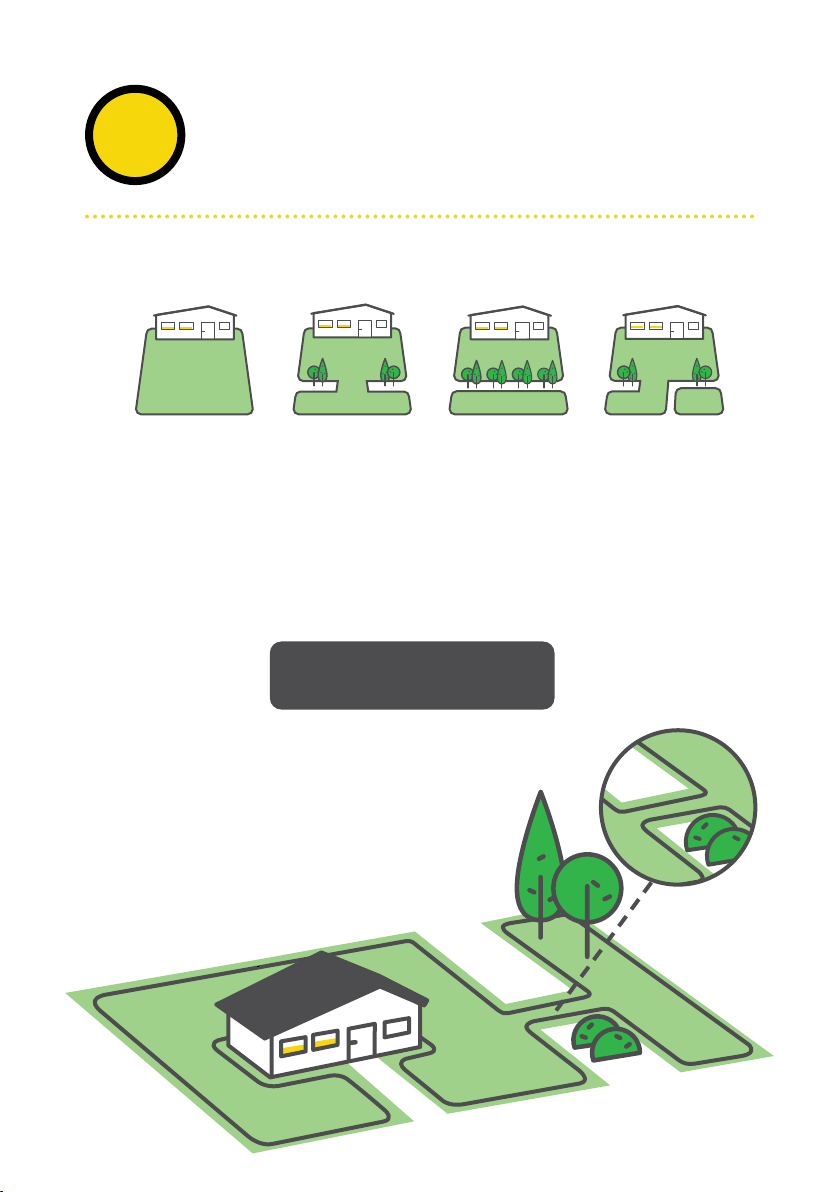

Know Your Lawn
Understanding your lawn will save you unnecessary
mistakes and make the installation process easier and
more straight-forward.
You can also skip some later sections in this manual that are not relevant to
your lawn type.
So, what does your lawn look like?

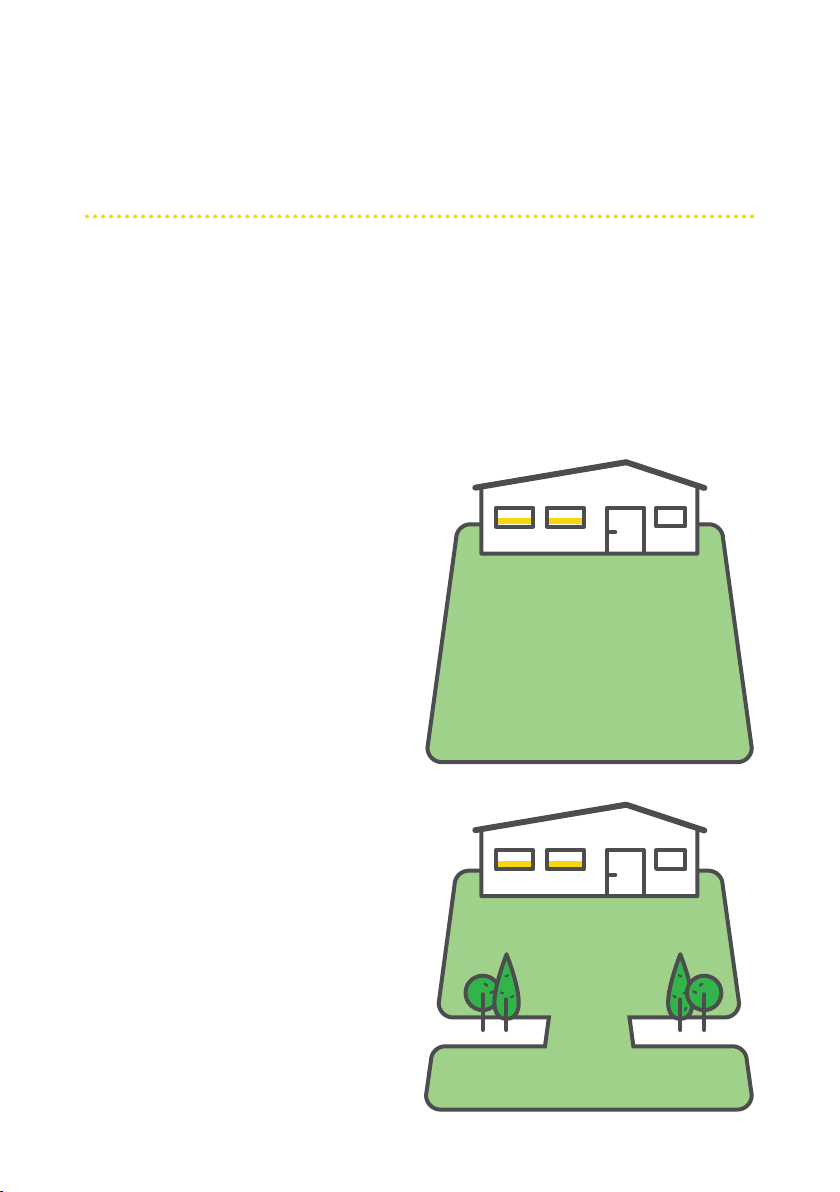

Type A
Main Zone only
Your lawn area is one continuous zone
and all areas of the lawn are wide
enough for the mower to navigate
through (at least 4 m (14 ft) wide at its
narrowest point).
Main Zone

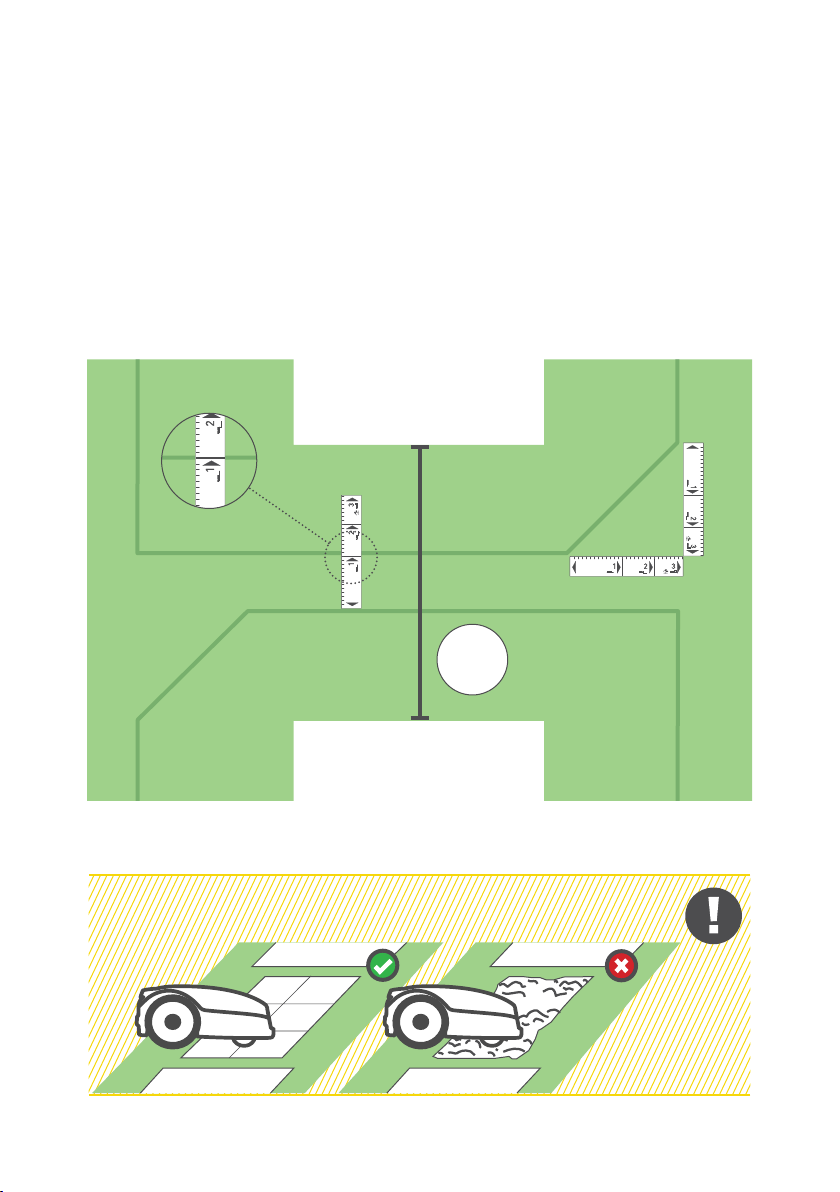

Type B
Main Zone + Sub Zone
Your lawn consists of more than one
zone. These zones are connected by
a narrow passage 1-2 m (3-6ft). The
mower can drive between these zones
to mow the entire area.
Main Zone
Sub Zone
Main Zone
Separated Zone
Type C
Main Zone + Separated
Zone
Your lawn consists of two or more zones
that are not connected (separated by
a fence, sidewalk, pathway or other
obstacle). The mower cannot drive
between these zones.
Type D
Main Zone + Sub Zone +
Separated Zone
Main Zone
Separated Zone
Sub Zone
20 21
Some areas of your lawn are connected
to the Main Zone by a narrow pass (up
to 1-2 m (3-6ft wide) and some areas
are totally separated from the Main Zone
by a fence, sidewalk, pathway or other
obstacle, and the mower can’t drive
between them.
Base Station
1
Location
Choose locations for the Base Station & Power Supply unit

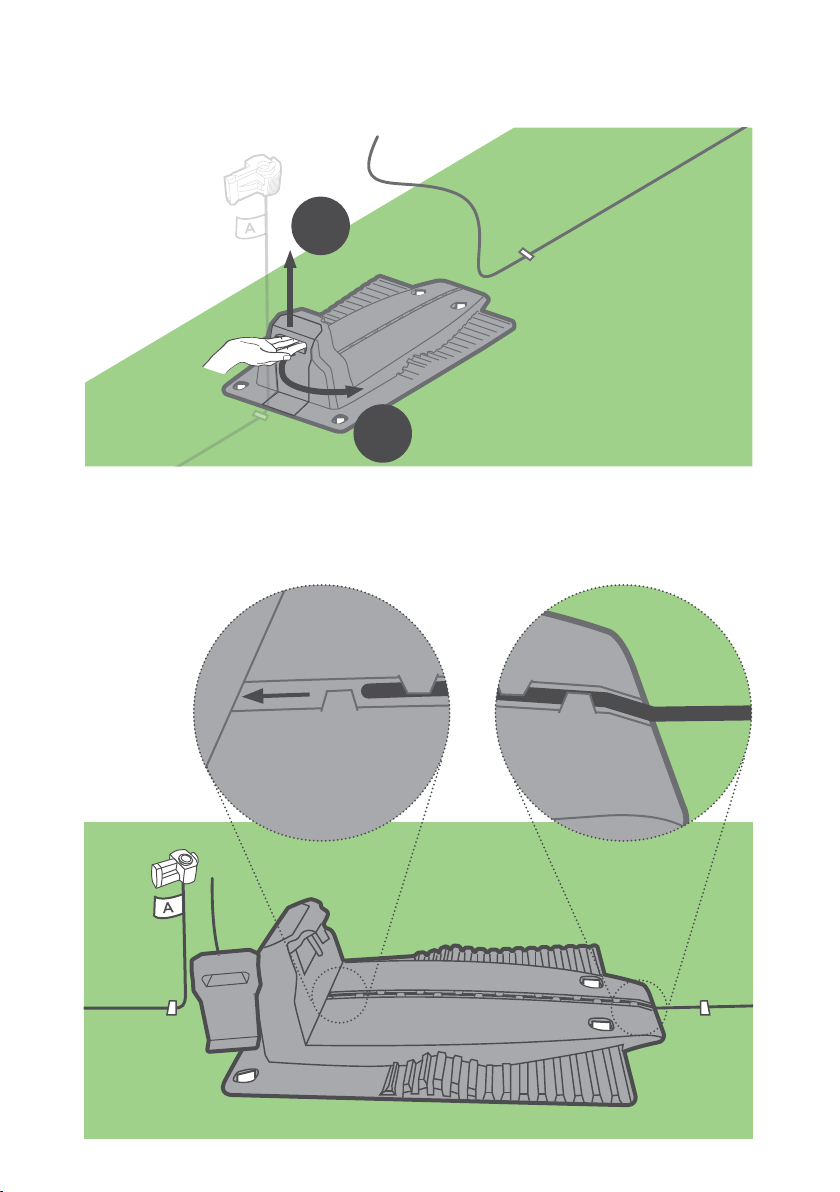

The Base Station is where your mower recharges and where the
perimeter wire starts and ends. In this installation step, you are
going to determine a proper location for the Base Station.
Where should you place your Base
Station?
Consideration A
It is strongly recommended to place the Base Station in the Main
(largest) zone of your lawn
Consideration B
Up to a max. of 15 m (50 ft) from a power outlet
Consideration C
A minimum of 3 m (10 ft) of straight wire in front of the Base Station and a
min. of 1 m (3 ft) behind the Base Station to allow smooth docking
Min 1m
Min 3m
Consideration D
In a shady spot
Keep a minimum of 1 meter (3.3 ft) from a sprinkler head to
avoid damaging the mower’s internal components
TIPS
22 23
Consideration E
Make sure the ground is even and at, and that there is no slope
How to install the Base Station?
ORIENTATION
Place the Base Station according to the image below
DISTANCE FROM EDGE
Use the ruler to install the wire in the correct distance from the edge of your
lawn.
1
When lawn is level
with the ground use 1st
distance of the ruler
2
If there is a drop
where the lawn ends
use the 2nd distance
of the ruler
3
If there is a ‘wall’ on the
lawn edge higher then
5cm please use 3rd
distance
24 25
PEG BASE
After choosing the proper location, Secure the Base Station to the
ground using the provided pegs
Be careful not to damage irrigation pipes when hammering
down the stakes.
Plan Ahead
Before you begin, walk along the edge of your lawn and plan how to set
up the Perimeter Wire. Take note of all obstacles and slopes.
26 27
Obstacles and Slopes
Before you put a single peg into the ground, take note of any obstacles or
slopes.
OBSTACLES
Soft Obstacles
Soft obstacles are ower beds,
ponds or small trees. They need to
be protected by creating Perimeter
Islands.
Hard Obstacles
Hard obstacles are vertical, rigid and
higher than 15 cm (6 in), such as trees
or large hard elements that the mower
can gently bump into without damaging
Ponds
Ponds and other bodies of water need
to be protected by creating Perimeter
Islands.
SLOPES
Slopes along the edge
To ensure your mower doesn’t slip o the lawn, especially when the grass
is wet, the Perimeter Wire must exclude a slope along the edge of your
lawn with an incline of over 20% - that is, 20 cm rise per 1 m [8 in rise per
3 ft].
Less than 20%
Less than 20
cm / 8 in
1 m / 3 ft
More than
20 cm / 8 in
More than 20%
1 m / 3 ft
Slopes within the Lawn
Your mower can mow areas within the lawn with a slope of up to 45%. You can
include slopes near the edge if the slope is down towards the inside of the lawn,
hence there is no risk for your mower to slip outside the lawn. a 45% slope means
45 cm rise per 1 m (17 in rise per 3 ft).
Max 45%
Max 45%
The slope is too steep if...
The mower tilts o the ground while climbing it. Exclude such
slopes from the cutting area.
28 29
TIP
2
Lay the Wire
Lay the perimeter wire (“virtual boundary”), which denes
the working area for the mower.
Now you’re ready to install the Perimeter Wire. Let’s take it step by
step.
• Have your mower’s package nearby.
• Be sure to cut your grass with your old mower one last time
TIPS
WHAT
YOU’LL
NEED
before you start wiring. In addition, the ground should be
moist. This will make inserting pegs easier and help ensure
that the mower doesn’t cut the wire.
• Hammer
• Combination pliers
... A sunny day and a sunny mood :)
Let’s make a good start
Pull out approx. 50 cm (1.6 ft) of wire and peg the beginning of the
wire to the ground where you intend to install your Base Station.
50cm
Start unwinding the wire counter-clockwise around the lawn,
starting at the Base Station’s location.
Lay it loosely along the perimeter as you walk along the lawn edge.
If you get to any area/object that needs special care, make sure you
carefully lay the Perimeter Wire as described in the following sections.
30 31
Maintain Proper Distance
The Perimeter Wire is secured to the ground
by the pegs supplied with the product. Use the
RoboRuler to determine the distances you should
leave between the Perimeter Wire and the lawn’s
edge and obstacles.
• Insert pegs every 2-3m/7-10ft and at corners. At this early stage,
set a minimal number of pegs. You will insert all necessary pegs
later.
• Pull the wire tight while hammering the pegs to their nal depth in
the ground.
• Take care not to damage irrigation pipes.
TIPS
~ 2m
When the edge is at, use the short
distance of the RoboRuler.
1
When the edge is a drop, use distance 2
of the ruler
2
When the edge is a wall (more than 2
cm/ 1” above the ground level), use the
3rd distance of the RoboRuler.
3
32 33
Leave a minimum of 1.2 m (4 ft) if the
edge of the lawn borders water.
Min 1.2m (4ft)
Alternatively, place a physical barrier
close to the water.
15cm (0.5ft)
TIPS
• It is not necessary to bury the Perimeter Wire.
• Burying the wire along exposed areas, such as pavements, is
usually recommended.
• If additional Perimeter Wire is required in order to complete the
setup, you can extend it using the waterproof Wire Connectors
provided (see page 56 “Splicing the Perimeter Wire”).
3
Soft Obstacles
Protect Soft Obstacles
Objects such as ower beds, ponds, or small trees must be
protected by setting Perimeter Islands.
Perimeter Wire position
Perimeter Wire
If the distance between an island and the
perimeter wire is lower than 1.2m (4 ft), make
the obstacle part of lawn’s edge.
Set the Perimeter Wire
clockwise around the
obstacle, otherwise
the mower will drive
into the Perimeter
Island or won’t be
able to mow the
area around it
properly.
• Wires leading to and from an island should be fastened with the
same peg
34 35
Keep min. 1.2 m (4 ft) between
islands; if obstacles are closer
together, use one island.
TIPS
4
Protect Hard Obstacles
Exclude from the lawn any hard objects that are lower than 15cm.
Higher hard objects can be left unprotected inside the lawn
Hard Obstacles
Min 15cm
5
Slopes
Your mower can handle any slope up to 45% inside the lawn
Max 45% (24° )
Slopes
45cm
1m
Max 45% (24° )
36 37
Exclude any slope greater then 20% that are on the edge of your lawn
to prevent the mower from slipping outside your lawn (especially in wet
conditions)
< 20% (11°)
20% =
H=20cm
L=1m
> 20% (11°)
6
Narrow Pass
Recall Your Lawn Type
Main Zone
Main Zone
Sub Zone
Type A
Main Zone only
Type B
Main Zone + Sub
Zone
How to Wire a Sub Zone
Type B / Type D
A Narrow Pass connects the Main
Zone with a Sub Zone.
To allow your mower to drive
through, it should be at least 2 m
(6ft) wide.
Don’t have a Sub Zone?
Skip this section!
Main Zone
Separated Zone
Type C
Main Zone +
Separated Zone
Main Zone
Sub Zone
Type D
Main Zone +
Sub Zone +
Separated Zone
Narrow
Pass
Separ.
Zone
Sub Zone
Main Zone
Main Zone
38 39
W
A Narrow Pass connects the Main Zone with a Sub Zone.
For passages greater than 2m (6.5 ft), the mower will be able to drive
through.
W > 2m
W
When a narrow pass is between 1-2m (3-6ft), the wires should be installed
13cm
5"
45°
the middle of the path with RoboRuler distance 1 between them to allow
the mower to be able follow the wires in and out of the sub zone. On the
entrance to the path from both directions, you should break the corner to 45
degrees so the mower will turn accurately in and out the sub zone.
1m < W < 2m
45°
45°
W
Narrow Passes should be rm, level, and smooth.
40 41
7
Separated Zone
F. How to Wire a Separated Zone
Type C / Type D
Extend the Perimeter Wire from the Main Zone, over the obstacle.
Base Station
Don’t have a Separated Zone?
Skip this section!
Two wires
under same
peg
Splicing the Perimeter Wire (as
TIP
• Insert both wire ends into the leftmost and rightmost
positions on the connector.
• Verify that the wires are fully inserted into the connector.
• Use a pair of pliers to press the button on top of the
connector. The button should be fully pressed, without
damaging the connector.
needed)
42 43
Complete the
8
installation
G. Complete Wire Setup
Once the Perimeter Wire has been
laid completely and you are back
to the Base Station, install the last
peg aprox. 5cm (2 in) in front of the
base. It is very important that the
wire will be in-line with the Base
Station.
TIPS
Unwind the wire up to
about 50 cm beyond the
Base Station and cut it.
30cm
50 cm (20”)
12"
Open the back door of the Base Station.
1
2
Slide or install the wire through the designated tunnel and pass it through
the opening under the charging connectors until it goes out to the back of
the Base Station
44 45
Install the connector to the tip of the wire as described in the
drawings. Cut the wire end, close to the connector.
Yay! You’ve done
the hardest part!
Peg the wire to the ground. Twist and wrap the wires so they could t
nicely in Base Station compartment. Connect the wire end marked with ‘A’
to the connector marked with A on the back of the Base Station. Connect
the other end to the other connector. Tuck the wire in and close the door.
Connect the power cable to the socket
Place mower in the Base
Station, make sure mower
is contacting the charge
arms
46 47

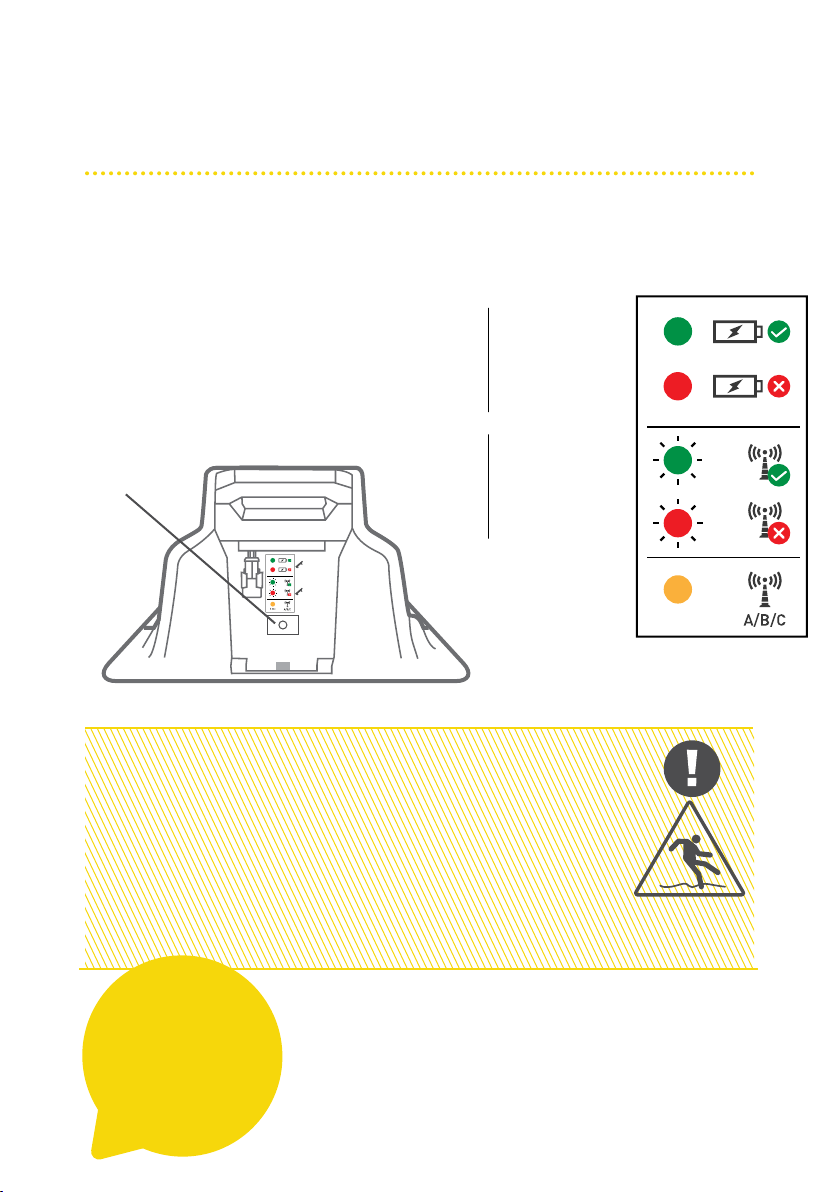

LED Indicators
Now you should see the LED indication on the Base Station blinking green
(if the mower is outside the Base Station), or steady green (if the mower is
inside the base).
Steady Green
Mower in
LED
base
Mower out
of base
Steady Red
Blinking Green
Blinking Red
Orange 4 sec
4 sec
Caution
The Extension Cable from the Power Supply to the Base
Station should be securely fastened to the ground! It should
never present a tripping hazard.
The Extension Cable should cross ONLY over soft surfaces.
It should not cross over hard surfaces (e.g., sidewalk,
driveway) where it cannot be securely fastened.
Just one more
step to go...;)
One Time Setup
Welcome
Make sure the wire and Base Station
are installed according the User Guide
Click next to complete the setup
English (US) Norsk
English (UK) Nederlands
Deutsch Italiano Svenska
Dansk Française Suomi
Español Polski
Turn the mower on and follow the initial settings to get it ready for work.
A. Set Language, Time and date
Language
2 sec
Select your
Language
Welcome
screen
Next
Back
Date
Set date
48 49
Time
Installation Done By…?
My self
Professional
dealer
Main Zone Size
500m2 - 600m2
Time
:
00 00
Setup completed
Set time
Installation done by...
Select who is preforming the
installation.
Main Zone size
Set your Main Zone size.
Setup completed
Initial settings are done. The
next screen will appear in a few
seconds.
Set Cutting Height
Set your cutting height
Mowing Height
High Low
Mowing Height
20mm
10H
08:00 18:00-
M
T T FW S S
Schedule Plan
You can set the cutting height by
rotating the Knob right/left. Once done
press next.
If the grass is high, to get the best
cutting results, it is recommended to
start high and lower the mowing height
gradually over a couple of weeks.
Schedule Plan
The Mower calculates the suggested
automatic mowing plan according to
your lawn size. To start the automatic
plan you need to approve it, or you can
choose to change it from this screen
or come back to it later for adjustment.
You can nd the automatic scheduling
plan settings under the settings screen
on the main screen.
You can read more information about
the automatic plan settings options in
the “Automatic Operation’ section in
this manual.
50 51
Test wire
It is now time to test and adjust the location of the perimeter wire.
1) Remove the mower from the Base Station and place it facing the wire
behind the base.
2) Press the Go Home button.
The mower will drive forward and begin to follow the perimeter wire. As
it follows the wire, observe for the following possible situations:
A. Wire too close to obstacles
If the mower encounters an obstacle while following the wire, it will
maneuver around it. In these situations, adjust the wire further away
so that the mower will clear the obstacle without having to depart the
wire and navigate around it.
B. Wire too close to edge of lawn
If the mower falls o the edge of the lawn as it travels the wire,
adjust the wire further inward away from the edge.
C. Wire too far from obstacles and / or edge of lawn
Your mower has the unique ability to mow very close to obstacles
and the edge of your lawn. If you see areas where it would not mow
as close as you would like, simply adjust the wire further out. Just be
careful to avoid situations A & B.”
D. Rough or challenging terrain
If you see areas where the mower appears to have limited traction
or is otherwise struggling to maneuver accurately, you should likely
adjust the wire around these areas. Very loose or sandy soil, rocky
or rooted terrain, and/or highly uneven surfaces can increase the
chances of your mower getting stuck and not reliably making it
back to the Base Station to charge every time. Areas that are very
challenging in dry conditions are likely to become much more so after
heavy rainfall.
3) To test any adjustments you make to the wire, simply press the stop
control and carry the mower to a location on the wire aprox. 3m before
the area that was adjusted. Send it Home again. Repeat this process as
many times per location and on as many locations as necessary until
you are happy with how it navigates the entire perimeter.
4) Once the mower has made it all the way around the perimeter it will
dock inside the Base Station.
5) Remove the disabling device as you complete the next section.
6) Secure the wire section.
7) Re-install the disabling device.
8) WELL DONE!!
52 53
Secure wire
Now it’s time to add some pegs along the wire.
Using the remaining pegs along the Perimeter Wire, between 0.5m to 1m
(1.5ft to 3.3 ft) apart.
~ 2m
~ 50cm
Well Done!
Now relax, and let your
mower do the work.
54 PB
1
Knowing your mower
2
Menu structure
3
Automatic operation
4
Manual operation
5
Features - how to
6
Periodic maintenance
7
Troubleshooting
8
FAQs
Knowing your
1
mower
In order to fully enjoy your mower, learn about its dierent parts and
messages. Understanding how it works and “interacts” will lead to its smooth
and easy operation.
External Parts
Interface door
Touch
Sensitive
Bumper
STOP control /
Carrying Handle
Charging contacts
56 57
Mow motor
Front wheelBlade disk
Drive wheel
Drive motor
Battery door

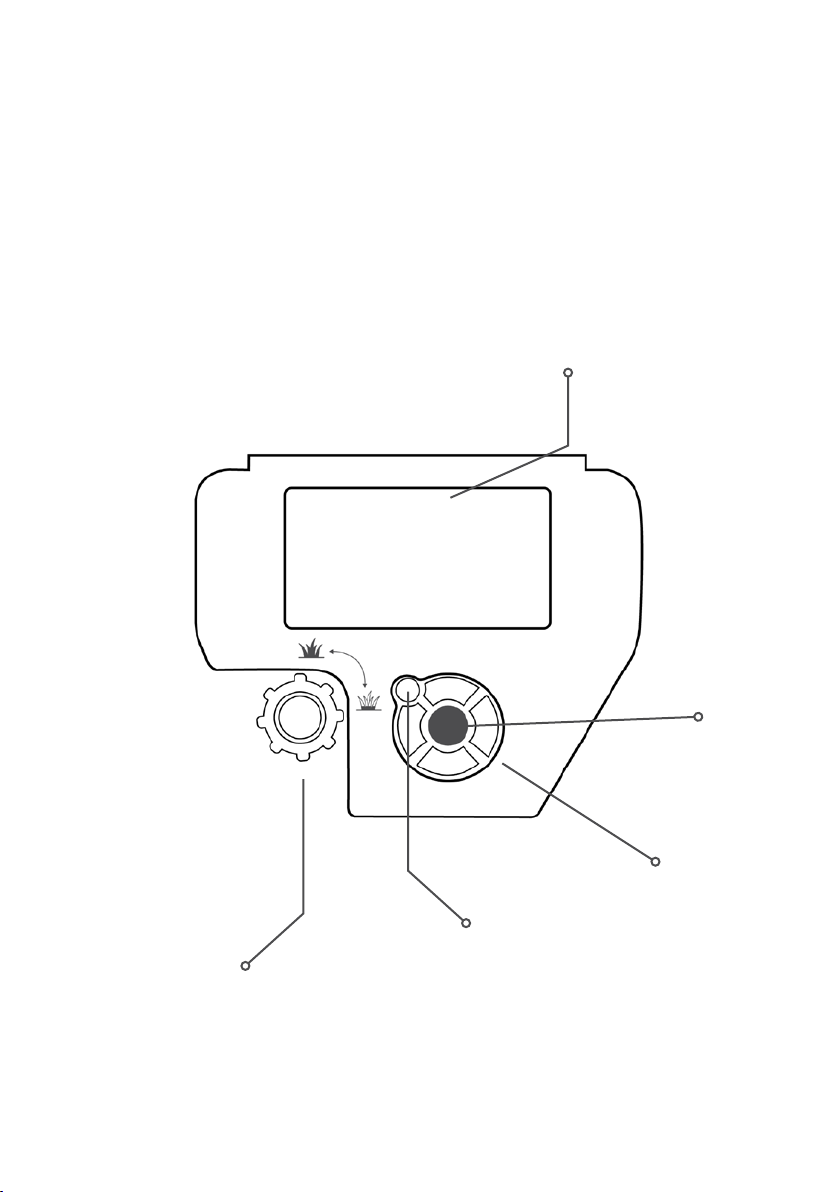

Under the Hood Parts
Operation panel
On/O/Go
Button
Navigation Keypad
Return Button
Mowing Height Adjustment Knob
58 59
Tue, Apr 30, 12:00 PM
Apr 29
03:00 PM
Prev: Sub1
Mon
Next: Main
Tue
M
LCD display
Time & Date
Anti-theft /Child lock
Bluetooth
Battery status
Select zone
Settings
Edge mow
before
mowing
Mowing
mode
On/O
schedule
• next operation
• charging
• automatic depart
status
Previous
operation
Base Station LED indication
Mower in
LED
Indication Meaning
Mower out
base
of base
Steady Green
Steady Red
Blinking Green
Blinking Red
Orange 4 sec
4 sec
Steady green
is inside the base
Perimeter wire signal is OK; the mower
Perimeter wire signal is OK; the mower
Blinking green
is outside the base
Steady red
No charging
Poor perimeter wire connection or the
Blinking red
Orange
60 61
wire is too long
Type signal has changed A/B/C
2
Tue, Apr 30, 12:00 PM
Apr 29
03:00 PM
Prev: Sub1
Mon
Next: Main
Tue
M
Child Lock
A/B/C
Enable to lock mower’s keypad from
unintended commands
A/B/C

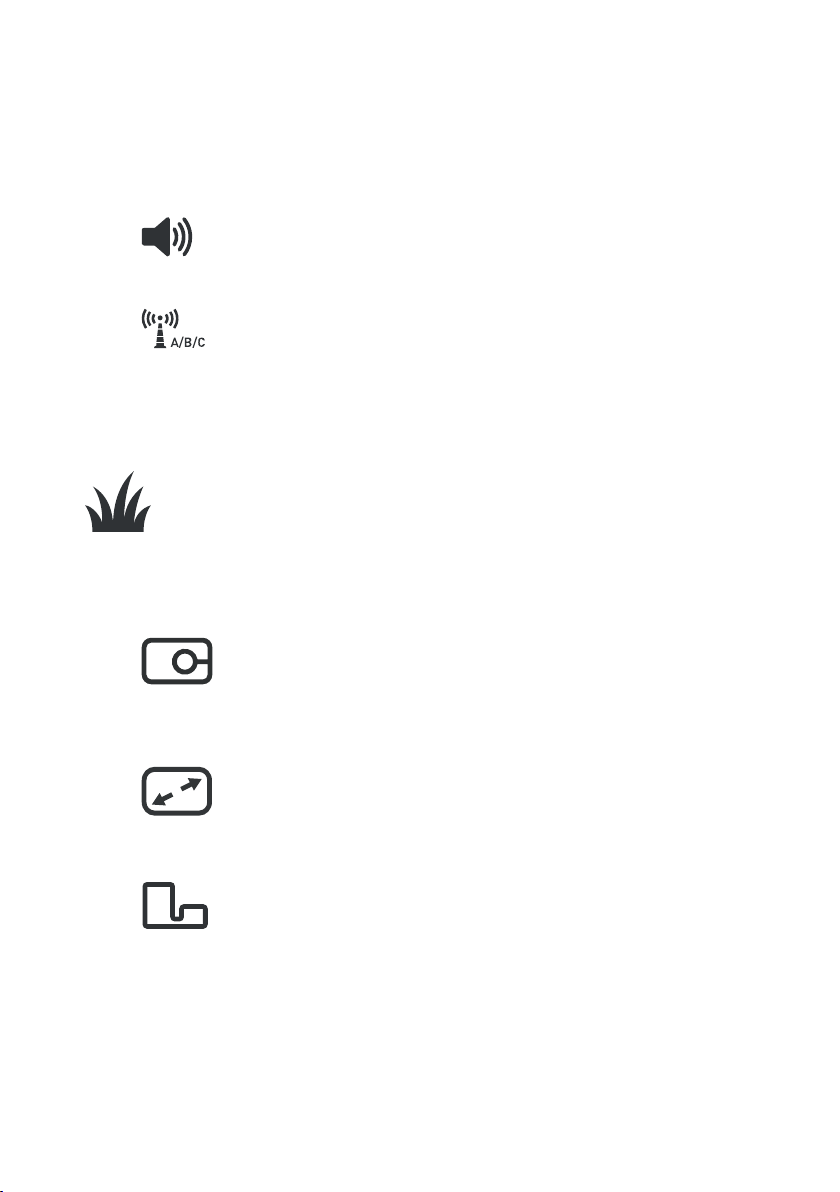

Menu structure
Mower Options
Congure user preferences
Child Lock
Lock the keypad to prevent accidental operation
Anti - Theft
PIN Code protection
Time and Date
Set date & time
Format
Select Time format (24/12)
Language
Change mower’s menu language
Sound
Turn Sounds on/o
Signal Type
Change it to avoid interference with other robotic
mowers around
Lawn Options
For a full description of all menu items, please refer to our online Help
Center. Additionally use the touch screen to navigate through menus by
using the navigation keypad buttons and make a selection by pressing
the green Go button.
Islands
Turn On/O
Size
Set your lawn size
Add Sub-zone
Add up to additional 4 sub zones to the schedule plan
62 63
Near Wire Follow
Prevents wheel tracks along the same path by driving along the
perimeter wire with a dynamic oset (not centred On wire)
Separated Zone
Allows you to operate the mower in separated zones
Edge
Enable or disable edge mowing on automatic operations
Intensive Mowing
Temporarily increases the mowing intensity to
maximum for 7 days
Automatic
19H
05:00 24:00-
M T T FW
Total: 95H
S S
19H
05:00 24:00-
M T T FW
Total: 95H
S S
05:00 24:00-
08:30
19H
3
operation
Learn how to congure automatic operation and manually
bypass/override it when needed
• The Zone Size setting is used by the mower to automatically determine
the required mowing time for your lawn, and to recommend a weekly
schedule for best results.
• This schedule includes the available working days, as well as the
recommended working window available for each day.
• You can modify the working days and the working window according to
your needs.
64 65
• You can split the daily working window into two separate windows if
9.5H
9.5H
05:00 14:30-
14:30 24:00-
M T T FW
Total: 114H
S S
05:00 14:3014:30- - 24:00
9.5H 9.5H
Keep 2 hours gap between the working windows
19H
05:00 24:00-
M T T FW
Total: 38H
S S
i
you’d like the mower to stay o the lawn for a time in between.
• It’s important to not overly limit your mower’s working time. Keeping
the schedule open will allow your mower to better adapt to changing
conditions and reach the needed working hours for the week.
• The mower will alert you if the number of working days and/or size of
the working window is not enough to accommodate the needed weekly
mowing hours.
Your mower will stop mowing once it has reached the required
hours for the week based on lawn size, so don’t think of this
schedule as necessary for preventing the mower from working
too much.
TIP
Mowing Hours
9.5H
9.5H
05:00 14:30-
14:30 24:00-
M T T FW
Total: 114H
S S
2
3
4
M
Mowing Hours
Main
10% 20%
Sub1 Sub2 Sub3 Sub4
-30%
-20%
-10%
0%
10%
10% 20% 0% 0% 0%
1
All
• Though your Robomow determines a smart schedule based on the
size you set for your lawn, you may nd the need to adjust from this at
times.
• The mowing time required to maintain your lawn can very on factors
such as: grass type, weather / time of year, sunlight exposure, soil
drainage, fertilizing, etc... Because of this, it is recommended that you
monitor the quality of your lawn and make adjustments as needed.
• Your mower allows you to adjust the automatic schedule up or down,
either for all your lawn together, or dierently for each sub-zone.
• Too much mowing can damage your lawn and shorten the
66 67
longevity of your mower
• Too little mowing can result in an uneven look or the inability of
the mower to keep up with grass growth
TIP

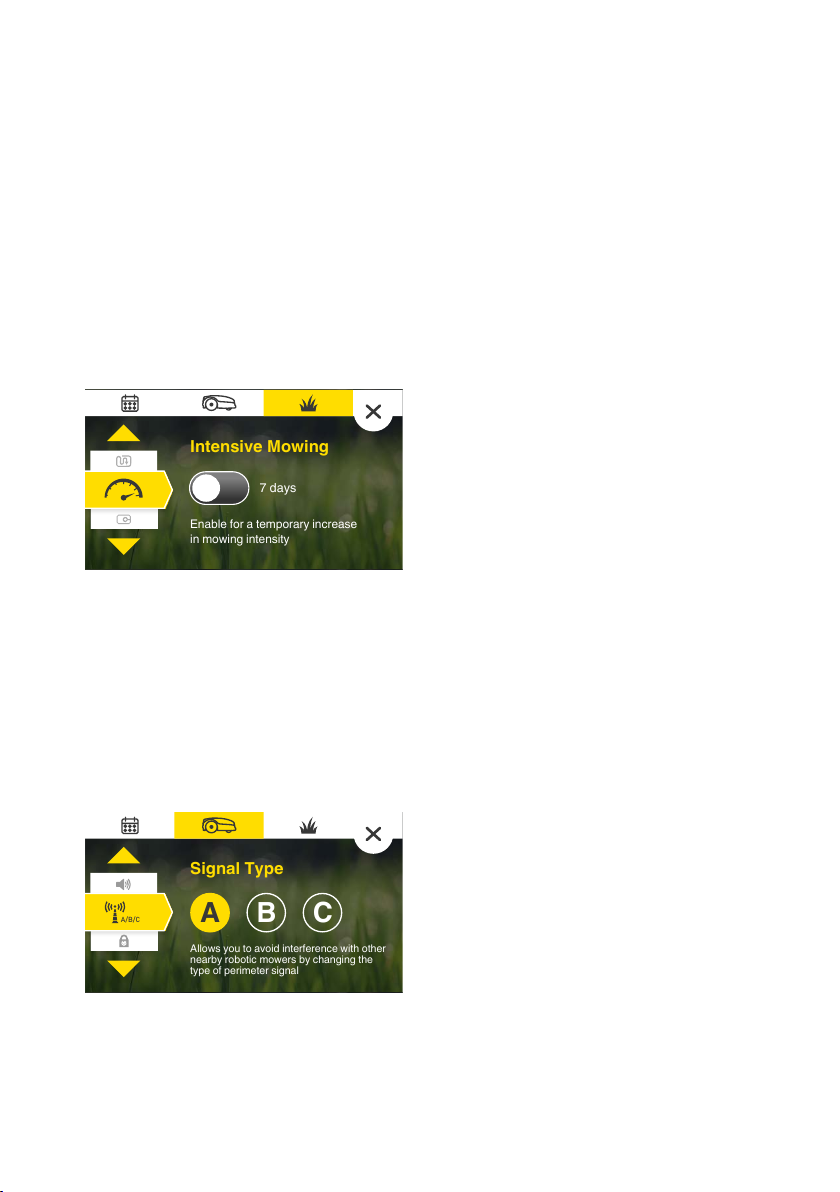

Note:
Intensive Mowing
Enable for a temporary increase
in mowing intensity
7 days
A/B/C
• For best results - It is recommended to not set more than 2 days in a
row without mowing.
• After the necessary mowing is completed for a given day, the mower
will stay in its Base Station until the next working day.
• By default the mower will be set with intensive mode switched ‘On’. In
this mode the mower will temporarily (for 7 days) work in the maximum
capacity mowing mode. This is done to bring your lawn quickly to an
even height before the mower switches into its automatic maintenance
schedule.
• If at any time during the season, the mower has gotten far behind on
coverage (possibly due to being switched o for an extended time, or
because of a burst of very fast grass growth, etc...) you can re-enable
Intensive Mowing to allow for the mower to catch back up. This will
operate the mower at max. capacity for 7 days after which time it will
change back to your previous schedule settings.
Tue, Apr 30, 12:00 PM
Apr 29
03:00 PM
Prev: Sub1
Mon
Next: Main
Tue
M
Turning automatic operation on/off
Skip this zone
Skip Today
Sub1
• The automatic operation comes disabled by default.
• During the one-time setup, the mower will guide you to set your lawn
size. When done you will be able to review the oered automatic plan,
change it and enable it.
• If needed, you can switch o automatic departure completely by
toggling the schedule on / o in the main screen.
• If you want, you can also stop automatic operation on a specic zone in
the lawn settings section.
On/O
schedule
68 69
Manual
Tue, Apr 30, 12:00 PM
Apr 29
03:00 PM
Prev: Sub1
Mon
Next: Main
Tue
M
Tue, Apr 30, 12:00 PM
Apr 29
03:00 PM
Prev: Sub1
Mon
Next: Main
Tue
M
Sub1
Main
M
Separated
4
operation
Manual Operation is used when you want to start a mowing operation,
regardless of the mowing schedule.
Manual Operation with or without edging
To initiate Manual Operation:
Choose between the two operation modes
Edge+Mow or Mow
Edge + MowMow
Select zone
Select
the zone you want the mower to mow by
tapping the select zone icon.
Select
zone, then tap the scan mode.
Note: Edge mode is not available for Sub-zones
5
Adjusting the mowing height
• Lift the interface door at the top of the mower.
• Set the mowing height by rotating the knob left or right. The cutting height
is displayed on the LCD.
• The mowing height’s range is 15-100 mm (0.8-4 in)
Features - how to
70 71
Child Lock
Child Lock
A/B/C
Enable to lock mower’s keypad from
unintended commands
A/B/C
This feature is turned O by default. To turn this feature on:
Tap the settings
icon, then tap the mower icon.
Navigate to “Child Lock” and toggle On to enable.
After a delay of 10 min without touching the screen of keypads, the mower will
become locked.
To temporarily release locked keys:
Press and hold Up and Back buttons for 3 seconds.
The keys will relock after 2 min. without user intervention.
Anti - Theft
Enter Code
1
4
7
3
6
9
2
5
8
0
- - - -
Reenter Code
1
4
7
3
6
9
2
5
8
0
- - - -
Anti - Theft
Change
****
Forgot
****
Anti-Theft / Lockout
The Anti-Theft prevents anyone from using or driving your mower unless
they have a valid code to enter. By default, this feature is turned O.
To turn it On for the rst time:
72 73
Main Zone Size
500m2 - 600m2
Islands
Islands
No Islands
I have big islands
(like ponds or large flower beds)
in this zone
Add Zone
Sub Zone
If you have big islands (like ponds or large ower beds) in this zone
you can set the ‘Island’ switch on to help the mower nd its base more
eciently.
Size
This is where you set your lawn size. Lawn size is important, as it is being
used by your mower to calculate the amount of mowing hours needed.
Sub Zones
Use this section to add or modify sub zones. Just follow the screen
instructions to choose the zone size, dene the zone entry point, and set other
parameters unique to each zone.
Prevents wheel tracks along the same
path by driving along the perimeter wire
with a dynamic offset
(not centred On wire)
Near Wire Follow
5 8
Min Max
Near Wire Follow
Enable to allow usage of the mower
in separated zones
Separated Zone
Near wire follow
Use this feature to reduce wheel tracks along the perimeter when the
mower travels back home to the Base Station. It works by allowing the
mower to travel at various distances from the wire on each trip instead of
always being centered directly over the wire.
Each lawn is dierent, so will require some experimentation to nd the
optimum min. and max. values.
Separated Zone
If you have a separated zone in your lawn, you need to set the separated
zone switch to ‘ON’. This will allow you to select “separated zone” from the
mower’s home screen to initiate mowing after manually placing the mower
in your separated zone. Remember to bring your mower back to the Base
Station at the end of an operation in a separated zone so that it can charge
and be ready to continue the automatic plan without missing an operation.
74 75
Intensive Mowing
Enable for a temporary increase
in mowing intensity
7 days
A/B/C
Signal Type
C
Allows you to avoid interference with other
nearby robotic mowers by changing the
type of perimeter signal
A/B/C
BA
Intensive mode
If at any time during the season, the mower has gotten far behind on
coverage (possibly due to being switched o for an extended time, or
because of a burst of very fast grass growth, etc...) you can re-enable
Intensive Mowing to allow for the mower to catch back up. This will operate
the mower at max. capacity for 7 days after which time it will change back
to your previous schedule settings (automatic operation needs to be turned
on for intensive mode to be activated)
Signal type
The mower supports 3 signal types that you can choose from in the case
that you are experiencing interference from other robot mowers in adjacent
lawns. To change the signal type, place the mower in the Base Station and
select a dierent signal from the one you are currently using. Allow aprox. 5
sec. for the mower to sync. with the Base Station on the new signal.
6
Periodic
maintenance
Severe injury and damage hazard!
Always remove the disabling device and power the mower o before
lifting the mower. Blades are very sharp. They can cause severe cuts
or lacerations. Always wear heavy work gloves when working with or
around the blades. NEVER use a damaged or broken blade.
WARNING
Every couple of weeks
• Inspect the underside of the mower. Clean every couple of weeks if
necessary. Carefully scrape the collected grass debris (using a small
stick or similar object) from under the mowing deck.
• Check the Perimeter Wire and add pegs where it is loose and not tight to
the ground. In case of seasonal changes in the lawn, make sure to adjust
the wire accordingly.
• Inspect the Base Station, clean it from mud and debris to allow proper
docking.
IMPORTANT!
NEVER use high pressure water to clean the mower.
Liquids can damage components. Use only a damp or wet
cloth to wipe the surface clean after scraping.
76 77
Winter storage
The mower
• Turn Schedule O and charge the mower fully in its base for 24 hours
• Remove the disabling device and power the mower o
• Clean the mower and store it in dry indoor conditions at ambient
temperatures above 0˚C.
Base Station
• No winter storage is required for the Base Station. It can be left on the
lawn during the winter period.
• It is recommended to disconnect the Power Supply from the mains during
the winter storage period.
Winter service
• To allow better maintenance and to keep your mower in good condition, it
is recommended to bring it to a certied dealer for service prior to winter
storage.
• Winter service includes operations like cleaning the mower’s parts and
mowing deck, checking for worn parts (such as blades, drive wheels and
other moving parts) and replacing them if required, testing the mower’s
functions and safety components, checking the battery, and uploading
the latest software version, possibly including newly added features.
7
Troubleshooting
Message
Displayed
Cross Outside
Stuck In Place
Check Mow
Height
Check Power
No Wire Signal /
Waiting for Signal
Probable Cause / Event
The Perimeter Wire is too
close to the edge.
The lawn slope near the edge
is too steep and causes the
mower to slip outside.
The lawn’s edge is too bumpy. Fill holes and pits along the edge untill
The mower got stuck in place.
It cannot continue driving.
Mowing system is in overload
due to very tall grass or an
obstacle that is stuck or
wrapped around the blades.
There is a temporary power
cut.
The Power Supply unit is not
plugged in properly.
There is no charging source
detected.
Power Supply unit is
unplugged or there is a
temporary power cut.
Signal generator may need to
be restarted.
The Perimeter Wire is not
connected to the Base
Station.
The Perimeter Wire is cut. Check for cuts in the Perimeter Wire.
Corrective Action
Move the wire towards the inner side of
the lawn.
Do not include areas with very steep
slopes.
level with the ground.
Check the ground for holes or
indentations. Fill it with soil.
Check if the Perimeter Wire is not too
close to the edge. Move the wire towards
the inner side of the lawn.
Turn o the mower and remove the
Disabling device and inspect the blades.
Remove any foreign object or excessive
clogging inside the mowing deck.
Raise the mowing height.
Conrm that the Power Supply unit is
plugged in to mains.
Conrm the Power Supply is properly
connected to the extension cable, and the
cable is connected to the Base Station.
Clean the charging contacts on the Base
Station and verify proper connection of
the Base Station to the Power Supply
unit.
Make sure the Base Station is connected
to the mains supply.
Disconnect the Power Supply from the
mains supply and reconnect after 10
seconds.
Check the connection of the Perimeter
Wire to the Base Station.
78 79
Frequently asked
8
questions
Mower does not dock properly and sometimes misses Base
Station’s contacts
The entrance to the Base Station is not at. Fill some ground to
atten the lawn around the Base Station to allow smooth entrance.
Make sure the Perimeter Wire is straight before and after the
Base Station.
Poor quality of mowing
The blades may be dull. Turn o the mower and, remove the
disabling device and replace them if needed. Use heavy gloves
when inspecting blades.
Patchy and uneven mowing
Make sure the working window is big enough and Increase the
mowing time via the Mowing hours setting to compensate for
lawn’s complexity or fast growing season
Mower does not depart from base for a long time
Tap the mower icon with the information bubble while the
mower is in the Base Station. The non-depart reason code
will be displayed. Refer to our online Help Center for a detailed
description of non-depart codes.
80 PB
K-EN
MTD Products Aktiengesellschaft Industriestraße 23 | 66129 Saarbrücken | Germany
robomow.com
Loading...
