Robomow RC312 Pro S, RC308u, RC304 Pro, RC304u User Manual

Download

Robotic Mower

RC312 Pro S, RC308u, RC304 Pro, RC304u

User Guide

See how to install

Original Operating Instructions

1/Learn

Your Lawn

I’m Robomow, nice to meet you.

Your safety is important to us -

Please review this Manual carefully for all safety warnings and take extra caution to keep both children and pets off the lawn when Robomow is in operation.

Safety first.....................

Installation...................

Quick reference..............

Safety first

IMPORTANT! READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

Warning decal definitions Safety warnings & precautions Safety features

Do not allow children to use or operate the mower. Children must be supervised at all times.

Warning decal definitions

1 2 3 4 5 6 7

1. This is a dangerous power tool. Exercise care when operating it and follow all safety instructions and warnings.

2. Read Safety Instructions carefully before operating your mower.

3. Be careful of thrown objects during operation.

4. Keep a safe distance from the mower while it is operating. Keep people, especially children, pets and bystanders away from the area where the mower is operating.

5. CAUTION – Do not touch the rotating blade. Keep hands and feet away and do not lift the mower from the ground.

6. Activate the disabling device before working on or lifting the mower (see Section 3.b).

7. Do not ride the mower.

Do not dispose of the mower or any of its parts as unsorted municipal waste. They should be collected separately.

This product conforms to applicable EU directives.

This symbol indicates that the mains electricity is double insulated

Safety warnings & precautions

A. Before you begin

1. Read this Safety Manual carefully before operating the mower to become familiar with its controls and proper use.

2. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. You are responsible for accidents or for harm to other people or their property.

3. It is your responsibility to inform your neighbors about the risks, and that it is forbidden to enter your lawn while the mower is operating.

4. If your lawn is open to the street and/or your neighbors, you must be present during the mower’s operation to prevent others from accessing your lawn. Alternatively, you must protect/fence your lawn so that others do not access the mower during operation.

B. Preparations

1. Ensure the correct installation of the Perimeter Wire, as instructed.

2. Inspect periodically the area where the mower is used and remove all stones, sticks, cones, wires and other foreign objects.

3. Periodically visually inspect to verify that the blade is not worn or damaged. Replace a worn or damaged blade (Part No.MRK7003A/MRK7003W).

C. Operation

IMPORTANT SAFETY WARNING!

Do not leave the mower to operate unattended if you know that there are pets, children or people in the vicinity. Never mow while people (especially children) or pets are nearby.

1. Do not operate the mower if any safety feature or any part is damaged, worn or inoperable.

2. Keep hands and feet away from the cutting blade and other moving parts.

3. Always switch off the Safety Switch before lifting it or planning to operate any adjustments.

4. Never pick up or carry the mower while the motors are running.

5. Do not touch the blade before it has completely stopped rotating.

6. Do not use the mower for any purpose other than cutting lawn.

7. Keep all guards, shields, safety devices, and sensors in place. Repair or replace damaged parts, including decals.

8. Set the weekly program at times when there are no people on the grass.

9. Do not connect a damaged power cord to the supply, or touch a damaged cord before it is disconnected from the supply as it can lead to contact with live parts.

10. Keep the extension power cord away from the blade to prevent the mower from damaging it. A damaged power cord can lead to contact with live parts.

11. If the power cord becomes damaged or entangled during use, detach it from the mains by pulling the plug from the socket.

12. In the event of accident or breakdown whilst the mower is operating, immediately press the red STOP button.

D. Transportation

Within the working area:

1. Press STOP to stop the mower.

2. Use the Remote Control. (available as an accessory or via the mobile app) to drive it from one place to another.

3. In case of different ground height level, switch off the Safety Switch, and carry the mower by its carrying handle.

Over long distances: When transporting your mower over long distances, switch off the Safety Switch.

IMPORTANT! It is recommended to keep the original packaging for shipping purposes.

E. Using the remote control (manual mowing)

1. Mow only in daylight or in good artiﬁcial light, and avoid operating on wet grass.

2. Do not operate the mower barefoot or wearing open sandals. Always wear substantial footwear and long trousers; always make sure of your footing on slopes.

3. Use extreme caution when reversing the direction of the mower towards you.

4. Always switch on the motor according to the instructions while standing away from the blade.

5. Do not mow manually in slopes greater than 15 degrees or where a ﬁrm footing is not possible.

F. Batteries

1. Do not open or damage the battery pack.

2. The Battery Pack contains electrolytes. In case of an electrolyte leakage from the Battery Pack, the following actions should be taken:

• Skin contact: Wash the contact areas off immediately with water and soap.

• Eye contact: Immediately ﬂush the eyes with plenty of clean water for at least 15 minutes, without rubbing.

• Get medical assistance.

3. Ensure that the battery is charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.

G. Maintenance and special instructions

1. Always switch off the Safety Switch before clearing blockage/checking/cleaning/working on the mower, or after striking a foreign object to inspect the machine for damage. Never attempt

to service

or adjust the mower while it is in operation.

2. In case of abnormal vibrations, stop the mower, switch off the Safety Switch and check for any damage of the blade. Replace a worn or damaged blade (Part No. MRK7003A/MRK7003W) to preserve balance. If the vibration continues,

call for service.

3. Use heavy gloves when inspecting or servicing the blade.

4. Do not perform maintenance barefoot or wearing open sandals. Always wear suitable

work shoes and long trousers.

5. Replace worn or damaged parts for your safety.

6. Use only original equipment and accessories. It is not permitted to modify the original design of the

mower. All modiﬁcations are made at your own risk.

7. Ensure that only replacement cutting means of the right type (Part No. MRK7003A/MRK7003W) are used

8. Maintenance/servicing/cleaning of the mower should be according to manufacturer’s instructions.

9. Keep all nuts, bolts and screws tight to be sure the machine is in safe working condition.

WARNING!

When there is a risk of a lightning storm, disconnect the Perimeter Wire from the Base Station /Perimeter Switch and the Power Supply 230 V/120 V plug from the power outlet.

H. Product end of use

1. The mower and its accessories should be collected separately at the end of their life to prevent waste electrical and electronic equipment from ending up in landﬁll sites, and to protect and improve the quality of the environment.

2. Do not dispose of the mower or any other of its parts (including the Power Supply and Base Station) as unsorted municipal waste - they should be collected separately.

3. Ask your local distributor/dealer about return and collection systems availability.

4. Do not dispose of the battery pack in a ﬁre, and do not place used batteries in your household trash.

5. The battery must be collected, recycled, or disposed of in an environmentally sound manner.

Safety features

WARNING!

Your mower is equipped with numerous built-in safety features. However, the mower is a hazardous device with a sharp blade, which can cause major injury to anyone who comes in contact with it. Therefore, it is absolutely forbidden to be on the lawn while the mower is working. Alternatively, halt the mower’s operation when people (especially children) or pets are to stay or play on the lawn.

A. Child Lock

The Child Lock prevents unintended operation of the mower by an accidental press of one of the buttons. Only pressing two buttons in the right order will initiate the operation. It is required to activate the Child Lock feature if children under age 6 may come in contact with the mower.

B. Anti-Theft / Disabling Device

The Anti-Theft / Disabling Device system function will prevent anyone from using or driving the mower unless they have a valid code to enter. You will be prompted to enter a four digit code of your choice to use as your personal security code. It is highly recommended to activate this feature to prevent operation of the mower by children or people who are unfamiliar with the mower or not allowed to use it.

C. Lift Sensor

If the mower is raised from the ground during the blade’s operation, the blade will stop rotating immediately.

D. Tilt Sensor

If the mower is tilted up towards a vertical position, the blade will stop immediately.

E. Obstruction Sensor

Your mower detects interfering obstacles in its way during operation. When the mower collides with an obstacle, it will stop the rotation of the blade immediately, will stop movement in that direction and reverse itself away from the obstacle.

F. Emergency Stop Button

Pressing STOP at any time during operation will stop the mower and the blade immediately.

G. Safety Switch

Switching off the Safety Switch will prevent any operation of the mower. It is required to switch it off before lifting the mower and before any maintenance is done.

H. Base Station / Perimeter Switch and

Perimeter Wire

The mower cannot operate without a Perimeter Wire installed and activated through the Base Station / Perimeter Switch. In the event the Perimeter Wire signal is turned off, the mower will stop operating.

Let’s get started. Can’t wait to mow your lawn.

Welcome to a friendly home

Congratulations on your purchase! You are just a few steps away from meeting your best team player. Very soon you will come to count on your new friend to do a perfect job.

The mower will independently depart from its Base Station on predetermined days and times, mow your lawn and return to base for charging.

A preinstalled perimeter wire sets the boundaries (a “virtual wall”) for your mower. It will be laid around the edges of your lawn, and objects that you want to protect.

The mower moves randomly within its working area, as deﬁned by the perimeter wire. This kind of random movement provides the perfect cut and ensures complete coverage of your lawn.

In addition, it centers itself on top of the perimeter wire to ensure accurate, ﬂawless edging.

Good-looking lawns are achieved by consistent mowing, which is exactly what a robotic mower provides.

After following the clear installation instructions, you will be ready to enjoy your free time, while your new friend looks after your lawn.

So where are we headed?

Correct installation of your mower will ensure maximum results. This is what it takes to prepare mower to do a perfect job for you:

Know Your Lawn

What’s your lawn type?

Ready, Set, Test

Setup and trial run

Power Up

Plug it in

Get Started

Choose Base Station location

Lay the Wire

Lay out the

“virtual boundary”

What’s in the box

The product

Your new Robotic Mower

Base Station with Extension Cable

The Base Station is where the mower recharges itself. The 15m (50ft) low voltage cable connects the Base Station to the Power Supply unit

Power Supply

The power supply for charging of your mower

USER GUIDE

User Guide

Perimeter Wire

Marks the working area for your mower

Blade Tool

For safe removal of the blades

Spare Plot Connector

For connecting the Perimeter Wire to the Base Station

Base Station Stakes (x4)

For afﬁxing the Base Station to the ground

Cutting Height Extender

For an easier adjustment of the cutting height

Wire Connectors

For splicing the Perimeter Wire in case of a cut

RoboRuler

For measuring the Perimeter Wire’s distance from lawn’s edge

Wire Pegs

For securing the wire to the ground

Ready? Let’s begin...

Know your lawn

Understanding your lawn will save you unnecessary mistakes and make the installation process easier and more straight-forward.

You can also skip some later sections in this manual that are not relevant to your lawn type.

So, what does your lawn look like?

Type A

Main Zone only

Your lawn area is one continuous zone and all areas of the lawn are wide enough for the mower to navigate through (at least 2 m (7 ft) wide at its narrowest point).

Type B

Main Zone + Sub Zone

Your lawn consists of more than one zone. These zones are connected

Main Zone

by a narrow passage (1-2 m / 3-7 ft wide). The mower can drive between these zones to mow the entire area.

Sub Zone

Main Zone

Separated Zone

Type C

Main Zone + Separated Zone

Your lawn consists of two

or more zones that are not connected (separated by a fence, sidewalk, pathway or other obstacle). The mower cannot drive between these zones.

Type D

Main Zone + Sub Zone + Separated Zone

Main Zone

Sub Zone

Separated

Zone

Some areas of your lawn are

connected to the Main Zone by a narrow pass (up to 2 m

/ 7 ft wide) and some areas

are totally separated from the Main Zone by a fence, sidewalk, pathway or other obstacle, and the mower can’t drive between them.

Get Started

Choose locations for the Base Station & Power Supply unit

The Base Station is where your mower recharges, and where the Perimeter wire starts and ends. In this installation step, you are going to determine a proper location for the Base Station.

The Base Station will be installed at a later stage, after the Perimeter Wire is in place.

TIP

Decide which installation type is right for you

There are two possible ways to install the Base Station:

Inside the lawn Internal Installation

At a corner External Installation

Follow simple guidelines to place your Base Station

Consideration A

Up to a max. of 15 m (50 ft) from a power outlet

Power Supply unit

Base Station

15 m (50 ft) Extension cable [low voltage]

Consideration B

Min. 1.5 m (10 ft)

Min. 10 cm (1 ft)

A min. of 1.5 m [5 ft] of straight wire in front of the base and a min. of 10cm (4 in) behind the base to allow smooth docking

Consideration C

Make sure the ground is even and ﬂat, and that there are no slopes

• If there are additional zones in your lawn, place the Base

Station within the largest zone

• In a ﬂat and shady spot to extend battery life

• Keep a distance of at least 1 m / 3 feet from sprinkler heads

to avoid damaging the mower’s internal components

TIPS

Lay the Wire

Lay the perimeter wire (“virtual boundary”), which deﬁnes the working area for the mower.

Now you’re ready to install the Perimeter Wire. Let’s take it step by step.

• Have the mower’s package nearby.

• Be sure to cut your grass with your old mower one last time

TIPS

WHAT YOU’LL NEED

before you start wiring. This will make inserting pegs easier and help ensure that the mower doesn’t cut the wire.

• Hammer

• Small, ﬂat & Phillips screwdrivers

• Combination pliers

... A sunny day and a sunny mood :)

First things first: obstacles and slopes

Before you put a single peg into the ground, take note of any obstacles or slopes.

OBSTACLES

Soft Obstacles

Soft obstacles are ﬂower beds, ponds or small trees. They need to be protected by creating Perimeter Islands.

Hard Obstacles

Obstacles that are vertical, rigid and higher than 15 cm (6 in), such as trees or telephone poles, do not need to be protected by the Perimeter Wire. The mower will bump into them and turn away..

SLOPES

Slopes along the edge

To ensure your mower doesn’t slip off the lawn, especially when the grass is wet, the Perimeter Wire must exclude a slope along the edge of your lawn with an incline of over 10% - that is, 10 cm rise per 1 m [4 in rise per 3 ft].

Less than 10% More than 10%

Slopes within the Lawn

Your mower can mow areas within the lawn with a slope of up to 35% [35 cm rise per 1 m/14 in rise per 3 ft].

The slope is too steep if...

The mower tilts off the ground while climbing it. Exclude such slopes from the mower cutting area.

Max 35%

TIP

A. Make a good start

Before you begin, walk along the edge of your lawn and plan how to set up the Perimeter Wire. Take note of all obstacles and slopes.

Pull out approx. 30 cm (1 ft) of wire through the hole in the spool’s plastic covering and peg the beginning of the wire to the ground where you intend to install your Base Station.

Once a tail is made, put the ﬁrst peg into the ground to secure the end of the wire

Start unwinding the wire counter-clockwise around the lawn, starting at the Base Station’s location.

Lay it loosely along the perimeter as you walk along the lawn edge. If you get to any area/object that needs special care, make sure you carefully lay the Perimeter Wire as described in the following sections.

Perimeter Wire

Peg

A helpful video

is available

online

What if you prefer an External Base?

Please see the drawings below for proper instructions

on how to lay the perimeter wire in this case.

10 cm (4”)

Min. 10 cm (4”)

Main Zone

Note the straight wire section after the Base.

4-5 cm

10 cm (4”)

TIP

B. Maintain Proper Distance

The Perimeter Wire is secured to the ground by the pegs supplied with the product. Use the RoboRuler to determine the distances you should leave between the Perimeter Wire and the lawn’s edge and obstacles.

• Insert pegs every few meters / feet and at corners. At this early stage, set a minimal number of pegs. You will insert all necessary pegs later.

TIPS

• Pull the wire tight while hammering the pegs to their ﬁnal depth in the ground.

Take care not to damage irrigation pipes.

•

When the edge is ﬂat or a drop, use the short distance of the RoboRuler.

When the edge is a wall, use the longer distance of the RoboRuler.

20 cm (8in)

Leave a minimum of 1.2 m (4 ft) if the edge of the lawn borders water.

28 cm (11in )

Min 1.2m (4ft)

• It is not necessary to bury the Perimeter Wire, though you may

do so, up to 5 cm (2 in) deep.

TIPS

• Burying the wire along exposed areas, such as pavements, is

usually recommended.

• If additional Perimeter Wire is required in order to complete

the setup, you can extend it using the waterproof Wire Connectors provided. (See Section “Splicing the Perimeter Wire” at the very end).

C. Make Smooth Turns

Maintain a 45° angle at all left-turn corners when laying the wire along the perimeter.

45˚

Left turns

20 cm / 8 in

D. Protect Soft Obstacles

Objects such as ﬂower beds, ponds, or small trees must be protected by setting Perimeter Islands.

Perimeter Wire position

Perimeter Wire

If the distance between an island and the perimeter wire is lower than 1 m (3.3 ft), make the obstacle part of lawn’s edge.

Set the Perimeter Wire clockwise around the obstacle, otherwise the mower will drive into the Perimeter Island or won’t be able to mow the area around it properly.

Keep min. 1 m (3.3 ft) between islands; if obstacles are closer together, use one island

• Wires leading to and from an island should be fastened with the same peg

• Perimeter Islands should either be rectangular or round

TIPS

Recall Your Lawn Type

Main Zone

Separated Zone

Type C

Main Zone +

Separated Zone

Main Zone

Type A

Main Zone only

Main Zone

Sub Zone

Type B

Main Zone +

Sub Zone

E. How to Wire a Sub Zone

Type B / Type D

A Narrow Pass connects the Main Zone with a Sub Zone. To allow your mower to drive

Don’t have a Sub Zone?

Skip this section!

Main Zone

Sub Zone

Type D

Main Zone +

Sub Zone +

Separated Zone

Narrow Pass

Separ.

Zone

through, it should be at least 1 m (3.5 ft) wide:

Sub Zone

Main Zone

A helpful video

is available

online

• If a Narrow Pass is shorter than 2 m [7 ft], set up only one square Perimeter Island in the passage

• Take care to wire Narrow Passes correctly to ensure that the mower doesn’t cross into different zones spontaneously while mowing

10cm [4in]

Min 50cm (20in)

50cm [20in]

28cm

[11in]

Min 50cm (20in)

50cm [20in]

Two wires under same peg

Sub Zone

TIPS

Main Zone

Narrow Passes should be ﬁrm, level, and smooth.

F. How to Wire a Separated Zone

Type C / Type D

Don’t have a Separated Zone?

Skip this section!

If your Separated Zone is larger than 100 m2 / 1100 ft2, your mower won’t be able to ﬁnish it in a single operation. Therefore, it is recommended to wire it separately and connect it to its own Base Station.

If your Separated Zone is smaller than 100 m

/ 1100 ft2, you

can wire it in one of two ways.

OPTION 1

Extend the Perimeter Wire from the Main Zone, over the obstacle.

Separated Zone smaller than

Base Station

100m

(1100ft

Two wires under

)

same peg

OPTION 2

Wire the Zone separately and connect it to a Perimeter Switch (optional accessory).

Perimeter Switch

Separated Zone smaller than

100m

Main Zone Power Supply and Base Station

(1100ft

)

G. Complete Wire Setup

Once the Perimeter Wire has been laid completely, the two ends of the wire that meet at the Base Station should be joined together.

• Use the same peg to fasten both tail ends of the wire to the ground

TIPS

• Trim the ends so both wires are the same length

Make sure you twist the two wires together properly.

Strip back 5 mm (0.2 in) of insulation from the wire ends, insert the twisted wire into the connector and secure it using a small ﬂat screwdriver.

Yay! You’ve

done the

hardest

part!

Power Up

Install and connect the Base Station

Place the Base Station in its planned location and align its center on the perimeter wire.

In case of External Installation, the Base Station should be placed in a small shift to the right, in order to allow smooth entry of the mower to the Base Station.

4-5cm

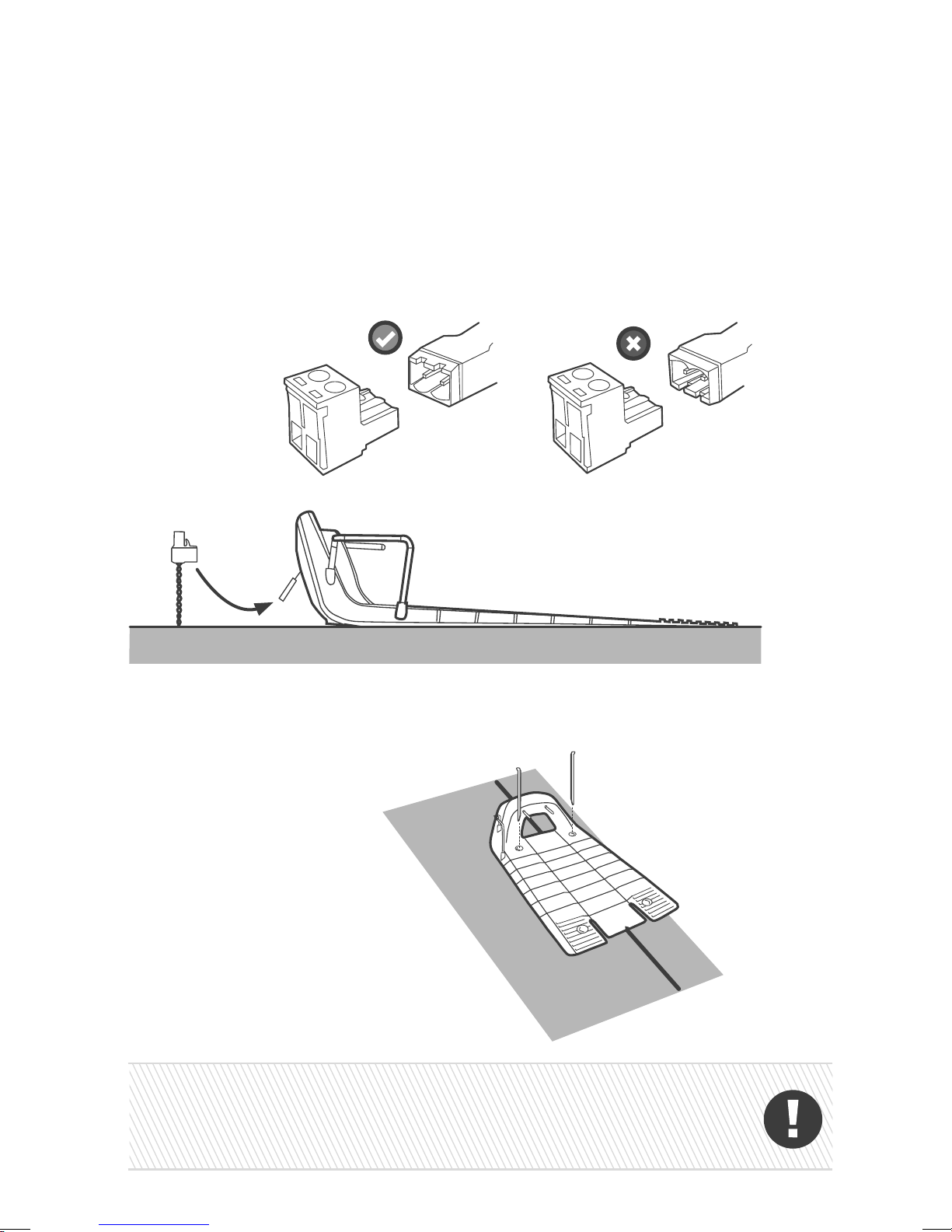

Connect the green connector of the perimeter wire to the Base Station as shown below, while keeping the right polarity.

Insert only two stakes into the Base Station holes as shown.

Be careful not to damage irrigation pipes when hammering down the stakes.

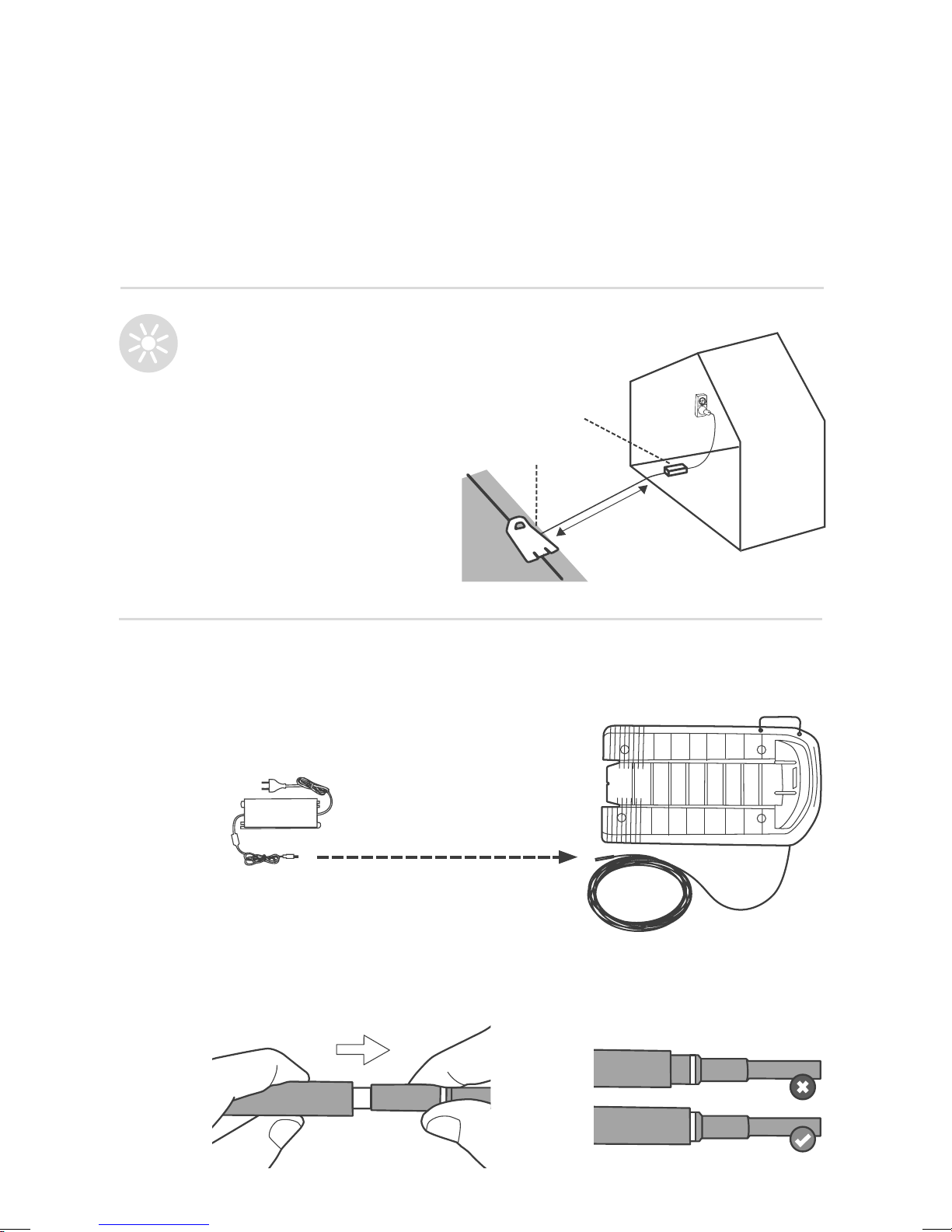

A. Connect the Power Supply unit

Consider the following in order to select a proper

TIP

location for the Power Supply unit:

• Select a suitable location near a power outlet

• Position it outside the lawn perimeter

• A dry and sheltered location is preferable

Power Supply unit

Base Station

15 m (50 ft) Extension cable [low voltage]

Connect the DC cable from the Power Supply unit to the 15 m (50 ft) extension cable.

Make sure the connector is inserted the whole way up to the white mark.

Connect the Power Supply unit to a regular power outlet.

Now you should see the LED indication on the Base Station blinking green (if the mower is outside, or steady green (if the mower is inside the Base Station).

LED indication

The Extension Cable from the Power Supply to the Base Station should be securely fastened to the ground! It should never present a tripping hazard. The Extension Cable should cross ONLY over soft surfaces. It should not cross over hard surfaces (e.g., sidewalk, driveway) where it cannot be securely fastened.

Ready, Set, Test

Prepare your mower and give it a test drive.

Congratulations! Now you are ready to give it a whirl.

WHAT YOU’LL NEED:

• The mower

• Remaining Pegs

• Remaining Base Station stakes

... A glass of champagne (or equivalent)

A. Start up

There are a few things to do before your mower can start.

Operating

1. Adjust the mowing height (15-60 mm/0.6-2.4 in) by turning the cutting height adjustment knob:

Cutting Height Indicator

• To raise the cutting height, turn clockwise.

• To lower the cutting height, turn

panel

Safety Switch

LOW HIGH

anticlockwise

• The cutting height is displayed at the side of the mower.

Always turn the safety switch off before adjusting the cutting height!

• Use the provided extender for an easier adjustment of the cutting height

• We recommend starting from the highest cutting height

and gradually lowering it to the desired height after a few operations

2. Switch on the Safety Switch.

TIPS

B. Set Basic Settings

Follow the instructions on the screen for a quick initial conﬁguration.

Your mower has enough power to complete the conﬁguration. Then, before mowing for the ﬁrst time, you’ll need to do a ﬁrst-time charge that will take up 24 hours.

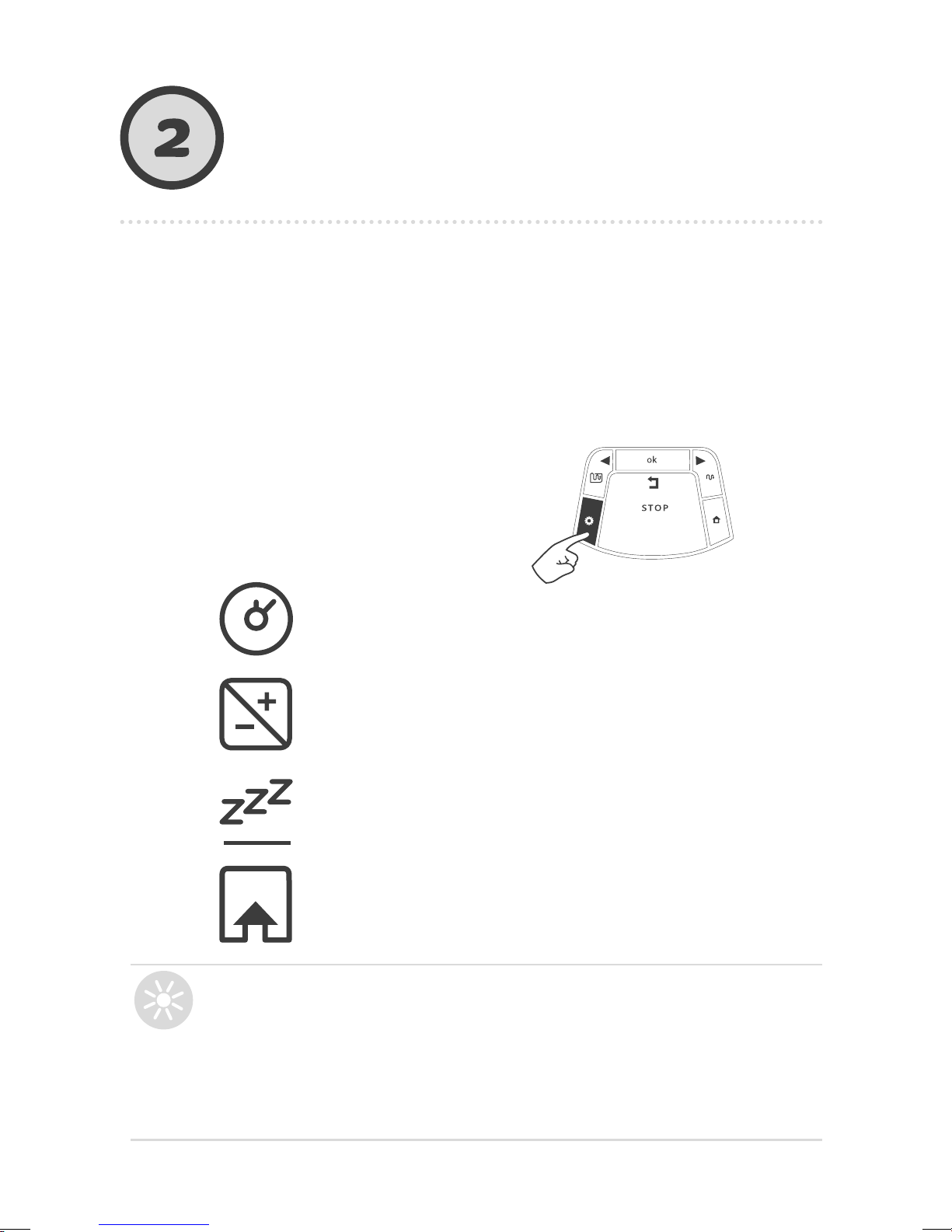

Using the operating panel:

Right/Left arrows

Settings button

• Press the ‘Right’ or ‘Left’ arrows until your desired option is displayed.

• Press OK to select the value shown on the display.

• Press ‘Back’ (STOP) to go back or to cancel.

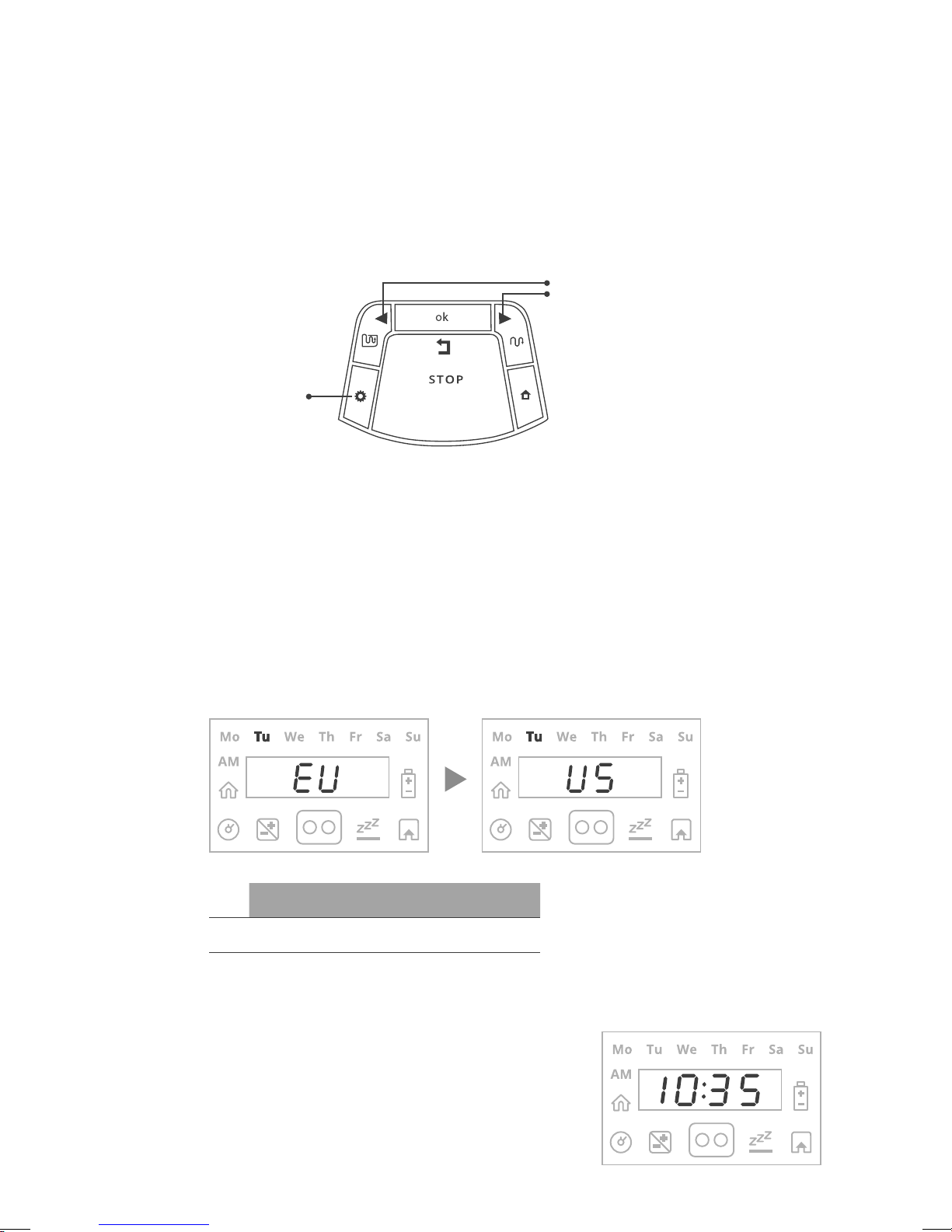

Choose Measurement Units and Formats:

Area/Distance Temp Clock

EU Meter Celsius 24 Hours

US Foot Fahrenheit

Set Day and Time:

• Scroll to set the Day and press OK to conﬁrm

• Scroll to set the Time and press OK to conﬁrm

12 Hours (AM/PM)

Set Main Zone Area:

Scroll to select an approximate area (EU-m

/US-ft2) for the Main Zone, where

the Base Station is installed.

If an additional zone (Sub-Zone or Separated Zone) exists, do not include it in main zone’s area (it will be set separately).

To restart the One-Time Setup process press and hold

TIPS

STOP + Settings + Left arrow together for more than 4 seconds. This will invoke Factory Defaults (out-of-the-box settings).

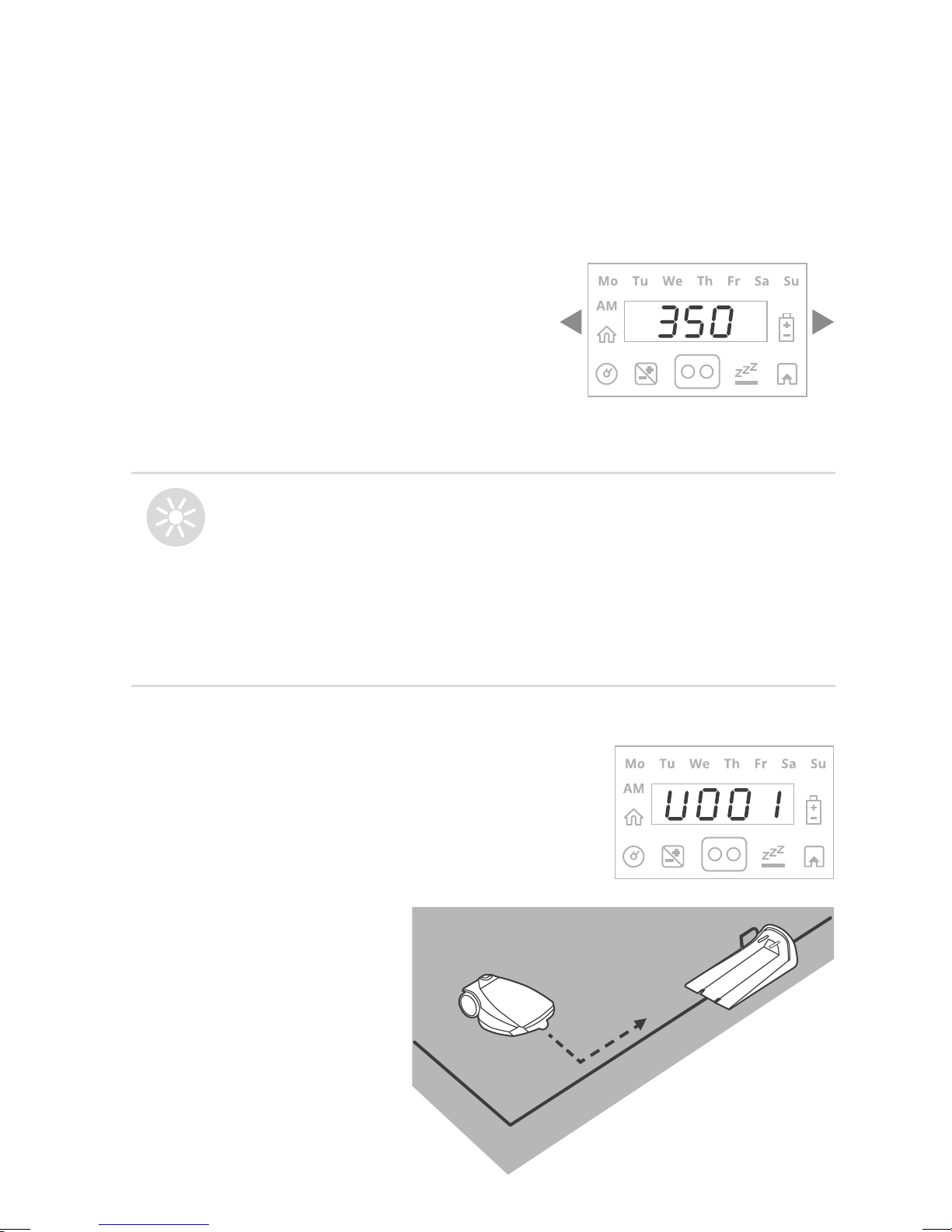

C. Test Base Station Position

After setting the area, U001 (“Test Base Station Position”) is displayed:

Place the mower on the lawn, 3 m (10 ft) in front of the entrance to the Base Station, facing the Perimeter Wire, and press OK to start the test.

The mower will drive to the Base Station and enter it.

Next, it will drive out and wait in front of the Base Station and display U002 (“Peg Base”).

Insert the remaining two stakes into the Base Station. Press OK.

• If the E3 (“No wire signal”) message is displayed, check

that the Power Supply, extension cable and Base Station wires are all connected properly. Check for possible Perimeter Wire cuts.

• If the UO51 (“Reposition Base Station”) message is

displayed, check that the Base Station is aligned with the Perimeter Wire. Move any obstacles preventing entry into the Base Station.

• Be careful not to damage irrigation pipes when hammering down the stakes.

D. Test Wire Position

When you see the message U003 (“Test wire position”), it means your mower is ready to test the Perimeter Wire installation.

Press OK. The mower will start driving. Walk

alongside it as it tours the perimeter.

At the end of a successful tour, the mower will enter the Base Station and the setup process will be completed.

If the UO52 (“Adjust wire”) message is displayed and the mower stops and drives backwards, move the wire slightly inward and press OK to continue the wire test.

TIPS

(Not applicable to models for lawns under 800 m2 / 8600 ft2)

• When the mower completes its operation, it drives to the Base Station at a dynamic offset from the Perimeter Wire (“Near Wire Follow” mode). This is in order to prevent wheel tracks along the same path.

• After completing the Wire Position Test, it is recommended to test the mower in Near Wire Follow mode to make sure it works smoothly.

• Press ‘Settings’ for more than 3 seconds and use menu P006 to initiate the test.

• If the mower fails to complete the Near Wire Follow test smoothly, reduce the maximal allowed offset from the wire using menu P004

E. Finish Installing the Perimeter Wire

Insert the remaining pegs along the Perimeter Wire, approx. 1 m (3.3 ft) apart.

Hammer the extension cable into the ground so it’s not a tripping hazard.

F. Charge your mower

Place your mower on the Base Station and let it fully charge before its ﬁrst mow (up to 24 hours). Once it is fully charged, it willl depart automatically according to its mowing schedule.

• The Safety Switch should be set to ‘On’ during charging

• Don’t touch the blades

• Never mow when people, especially children or pets, are nearby

• Make sure the lawn is clear of debris

Don’t worry if your lawn looks patchy for the ﬁrst few days. It will even out after the ﬁrst few mows!

TIP

Adding Sub Zones

If your lawn has additional zones and they are connected to your main zone by a narrow passage (we call such zones “Sub Zones”), you need to tell your mower how to get to these zones.

To do this, press “Settings” on mower’s panel for more than 3 seconds. Scroll to get to menu P022. The table below describes how to use this menu to program a Sub Zone.

Menu Setting Description

• Upon entering the menu A1/A2/A3/A4 is displayed. This is a name of the next available Sub Zone, which you can program. Press OK

• If the mower is currently not at the Base Station, a message U044 (“Place the mower in the Base Station”) will be displayed. Place the mower in the Base Station

P022 Add Sub-Zone

and press OK.

• The mower will travel along the perimeter wire to the Sub Zone on its own.

• When the mower is at least 5 m (16 ft) inside the Sub Zone, press STOP and select the area size of the Sub Zone. Press OK.

• The distance to the Sub-Zone’s entry point can be updated later through menu P023

Are there any Separated Zones?

For lawns that have completely noncontiguous Separated Zones, the area size of these zones needs to be set separately.

To do this, press “Settings” on the mower’s panel for more than 3 seconds. Scroll to get to the menu P014. The table below describes how to use this menu to program a Separated Zone:

Screen Setting Description

P014

Add Separated

Zone

• Enables to add of a Separated Zone.

• L2 is displayed for Separated Zone A – press OK.

• Scroll to set the area of the Separated Zone and press OK.

Splicing the Perimeter Wire (as needed)

• Insert both wire ends into the leftmost and rightmost positions on the connector.

• Verify that the wires are fully inserted into the connector.

• Use a pair of pliers to press the button on top of the connector. The button should be fully pressed, without damaging the connector.

A helpful video

is available

online

Well Done!

Now relax, and let your mower do the work.

Knowing your mower Menu structure Automatic operation Manual operation Features - how to Periodic maintenance Troubleshooting FAQs

Knowing your mower

In order to fully enjoy your mower, learn about its different parts and messages. Understanding how it works and “interacts” will lead to its smooth and easy operation.

External Parts

STOP Button

Operating Panel

Mowing Height Indicator

Mowing Deck

Blade

Mowing Height Adjustment Knob

Safety Switch

Carrying Handle

External Charging Connector

Operating Panel & Display

Mower is in the Base Station indicator

Day and Time setting indicator

User Messages/ Clock/ Next Departure Time

Mowing Hours

Rain

Sensor setting indicator

Days of the week

Battery and Charging indicator:

Red lit constantly - Low Battery

Green blinking Charging

Green lit constantly Fully Charged

Area setting indicator

Inactive Time setting indicator

Mow with Edging/Left arrow for scrolling

Settings button

Mow without Edging/ Right arrow for scrolling

Home button

STOP/ Back Button

Base Station LED indication

LED indication

Indication

Steady green

Meaning

Perimeter wire signal is OK; the mower is inside the base

Perimeter wire signal is OK; the

Blinking green

mower is outside the base

Perimeter wire is damaged or

Blinking red fast

disconnected

Blinking red slow

Poor perimeter wire connection or the wire is too long

Steady red Faulty power supply

Menu structure

For the full description of all menu items, please refer to our online Help Center.

Basic Settings

The Basic Settings are the most frequently used menu options. Each one of the Basic Settings has a dedicated icon on the mower’s panel.

Press the “Settings” button. Every press on the “Settings” button will move between the following 4 menu options:

TIP

Day and Time

Set current Time and week Day. Update it every time the mower is switched on.

Mowing Hours

Add extra mowing time. See section 3 below.

Inactive Time

Set mowing-free times. See section 3 below.

Area

Set the area size of each zone of your lawn.

Some settings are deﬁned per zone. This is how zones are named:

L1 – Main Zone L2 – Separated Zone A

A1 – Sub-Zone 1 A2 – Sub-Zone 2

L3 – Separated Zone B

A3 – Sub-Zone 3

Advanced Settings

The Advanced Settings are additional menu options that are not changed very often.

Press Settings for 3 seconds

Use the arrow to scroll

Press OK to select the desired setting

P001 is displayed

3 second

Setting Description

P001 Mowing Frequency

Select a higher value for more frequent mowing. See section 3 below.

P002 Islands On/Off

Escape perimeter islands when searching for the base.

P003 * Near-Wire Following On/Off

Drive to base at a dynamic distances from the lawn’s edge to reduce wheel tracks.

(*) This setting is not applicable to models for lawns under 800 m2/8600 ft2.

Setting Description

P004* Max Near-Wire Follow Distance

Maximal allowed distance from the edge, when P003 is On.

P005* Min Near-Wire Follow Distance

Minimal allowed distance from the edge, when P003 is On.

P006* Near Wire Follow Test

Test the mower at the max distance set in P004.

P007 Rain Sensor On/Off

Automatically halt operation in rainy weather.

P008 Rain Sensor Sensitivity

Set higher value for higher sensitivity to rain.

P009 Edging On/Off

Enable/disable automatic edge-mowing.

P010 Child Lock On/Off

Lock the keypad to prevent accidental press. See section 5 further.

P011 Anti-Theft On/Off

Enable and set a 4-digit PIN-code for protection. See section 5 below.

P012 Anti-Theft PIN-code

Change and conﬁrm new anti-theft PIN code. See section 5 below.

P013 Base Station On/Off

Set an additional base for a separated zone.

P014 Add Separated Zone

Deﬁne a new separated zone and set its area size.

P015 Remove Zone

Delete a separated zone or a sub-zone.

P016 Sound On/Off

Disable operating sounds.

(*) This setting is not applicable to models for lawns under 800 m2/8600 ft2.

Setting Description

P017 Mobile Communication System

Enable GSM module accessory (if installed).

P018 Statistics On/Off

Send operating statistics for diagnostics.

P019 Bluetooth Remote Control Pairing

Pair Remote Control accessory with your mower.

P020 Last Termination Event

Enable special debug mode (by a Service Station).

P021 Program On/Off

Enable/Disable automatic operation by zone. See section 4 further.

P022 Add Sub-Zone

Start the process of adding a sub-zone. Refer to the“Adding Sub Zones” section of the Installation Manual.

P023 Update Distance to Sub-Zone

Update the distance to the Sub-Zone’s entry point. This menu option is only shown if a Sub-Zone is deﬁned.

P024 SmartMow On/Off

Increase mowing efﬁciency. May be less efﬁcient with particular lawn shapes.

P025 SmartMow Edge Overlap

Optimize SmartMow mode for your lawn.

P026 Turbo Mow On/Off

Enable faster and stronger cut. When the mowing cycle is completed, this feature is set to off automatically.

P027 RoboHome On/Off

Allow proper rain detection when RoboHome is installed.

P028 External Base

Enable and set the distance of an external base installation.

Automatic operation

Learn how to conﬁgure automatic operation and manually bypass/override it when needed.

• The Area size setting automatically determines the required mowing time for your lawn - the duration of a “Mowing Cycle”

• The mower usually performs several consecutive mowing operations until it completes a full Mowing Cycle

• Each mowing operation starts at predetermined times, once the mower is fully charged

• You can restrict automatic operation at particular times via the Inactive Time setting

• Once a Mowing Cycle is completed, the mower will stay in the Base Station until the next cycle begins

• The interval between mowing cycles is deﬁned by the Mowing Frequency setting

• If required, extra mowing time can be added via the Mowing Hours setting to improve mowing results.

Tell the mower how often to mow

Mowing Frequency* controls the periodicity of mowing cycles. The higher the frequency, the more frequently your lawn will be mowed and vice versa.

Press Settings for 3 second. P001 will be displayed.

3 second

Press OK to get in

Use the arrows to select the desired mowing frequency:

01 – LOW (one mowing

cycle per week)

02 - MEDIUM

(two mowing cycles per week)

03 - HIGH (the lawn

is mowed daily)

Press OK to conﬁrm.

*This option is only available for zones with a Base Station.

When you need extra mowing time

If the mowing results are not satisfactory, the Mowing Hours setting allows adjusting (by percentage) the mowing time allocated for your lawn size.

Press Settings twice until the Mowing Hours indication is lit.

X 2

Use the scrolling arrows to adjust the allocated mowing time (in %) and press OK to conﬁrm.

Example: A value of 110% means that the mower will run 10% more time on your lawn.

The default value of this setting is 0100 (100%); it can be changed from 0050 (50%) to 0150 (150%).

To set speciﬁc “mowing free” days and hours

You can set speciﬁc days or speciﬁc hours during a day, when you don’t want the mower to work on your lawn. For example, during weekends or during hours, when the children usually play in the lawn.

To set such “mowing free” times, press Settings three times.

X 3

Press OK.

Press the RIGHT or LEFT arrows to scroll to the days you want to set as ‘Inactive’.

Press OK to toggle between “Active” and “Inactive” options for that day.

Until the Inactive Day(s) will constantly lit.

‘Mo’ will start blinking.

The LED is lit – ‘Inactive Day’ (mower will stay in the Base Station all day). The LED is off – available day for mowing.

Scroll through all the days to the right, until the ‘Inactive Hours’ will start blinking.

Set the time, at which the Inactive Hours start and press OK.

Set the time at which the Inactive Hours end and press OK.

TIPS

Plan mowing times for safety.

Always make sure that the mower is set to work when the lawn is vacant. In addition, always set “mowing-free” times when people (especially children) or pets may be found in vicinity.

• The mower will not operate during the Inactive Hours throughout all days of the week.

• If too many days/hours have been deactivated relative to the zone area, then “E8” (Decrease Inactive Time) will be displayed - you need to decrease the amount of inactive time so that the mower will have enough time to mow your lawn.

To set the “Inactive Hours” to “Off” set the same time for the

• start and the end (i.e.: 00:00 to 00:00).

Pause automatic operation for a speciﬁc zone

If you wish to pause automatic operation in a particular zone of your lawn, you may do so via the Program On/Off menu.

Press Settings for 3 seconds. P001 will be displayed.

3 second

Use the arrows to scroll to menu P021.

Press OK.

Use the arrows to scroll to the desired zone:

L1 – Main Zone A1 – Sub-Zone 1 A2 – Sub-Zone 2 A3 – Sub-Zone 3 ALL – Entire lawn

Press OK to select

Toggle between ON/OFF.

Press OK to conﬁrm.

When Program is set to Off in a particular zone, the mower will skip the operation in that zone, but will continue to mow the edge of the entire lawn anyway.

Manual operation

Manual Operation is used when you want to start a mowing operation regardless of the mowing schedule.

Press any button to show the display.

If the battery is fully charged, the start time of the next operation is displayed, otherwise the current day and time are displayed.

Operation

Mode

Child Lock

is Off

Child Lock

is On

Mowing

with Edge

Press the LEFT arrow once.

Press the LEFT arrow, then press OK.

Mowing

without Edge

Press the RIGHT arrow once.

Press the RIGHT arrow, then press OK.

If a Sub-Zone is deﬁned, L1 (Main Zone) will be displayed when you choose an operating mode. Use the arrows to scroll

TIP

and choose the required zone to be mowed and press OK.

Features how to

Adjust the cutting height (15-60 mm/0.6-2.4“) of the mower by turning the cutting height adjustment knob:

• To raise the cutting height, turn clockwise.

• To lower the cutting height, turn anticlockwise

• The cutting height is displayed at the side of the mower.

Child Lock

If you wish to prevent accidental press by children of the operating buttons on your mower, you may do so via the Child Lock On/Off menu.

Press Settings for 3 seconds. P001 will be displayed.

3 second

Use the arrows to scroll to menu P010.

Press OK.

Toggle between ON/OFF.

Press OK to conﬁrm.

If the Child Lock is set to ‘On’, to operate the mower, ﬁrst press one of the operating mode buttons and then press OK to conﬁrm.

TIP

Anti-Theft feature

The Anti-Theft feature sets off an alarm in the event of unintended removal of the mower from its designated area. By default, Anti-Theft is turned Off. To turn Anti-Theft On for the ﬁrst time:

Press ‘Settings for 3 seconds. P001 will be displayed.

3 second

Use the arrows to scroll to menu P011.

Press OK.

Select ON.

Press OK to conﬁrm.

Choose a PIN code of 4 digits.

• Select a number you can remember. Write it down in the dedicated place

TIP

at the end of this manual.

• The Anti-Theft system will automatically lock the mower, if there is no user activity (button pressing or mobile app’s connection) for 30 minutes.

• When the Anti-Theft system is activated, 0000 will be displayed. Enter your 4-digit code to deactivate the Anti-Theft feature.

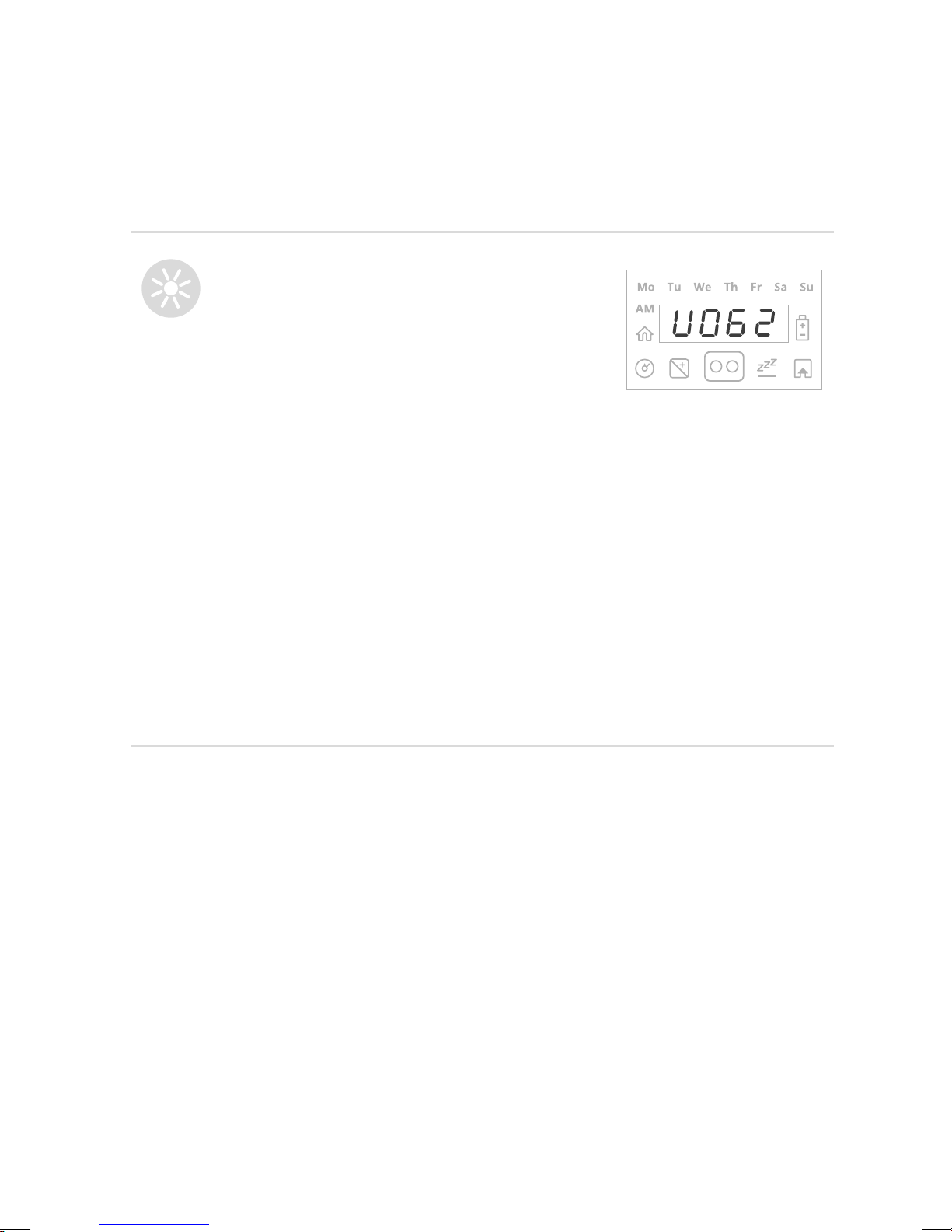

• If the code is not entered, then the message changes to U062 (“Alarm will soon be activated”). Enter the code, otherwise the alarm will start.

Periodic maintenance

Severe injury and damage hazard!

Always turn the Safety Switch off before lifting the mower. The blade is very sharp. It can cause severe cuts or lacerations. Always wear heavy work gloves when working with or around the blades. NEVER use a damaged or broken blade. NEVER sharpen the blade manually.

WARNING

Once a month:

• Inspect the underside of the mower. Clean if necessary. Carefully scrape the collected grass debris (using a small stick or similar object) from under the mowing deck.

• Check the Perimeter Wire and add pegs where it is loose and not tight to the ground. In case of seasonal changes in the lawn, make sure to adjust the wire accordingly.

• Inspect the Base Station, clean it from mud and debris to allow proper docking.

IMPORTANT! NEVER use a high - pressure water to clean the mower. Liquids can damage components. Use only a damp or wet cloth to wipe the surface clean after scraping.

To allow better maintenance and to keep your mower in good condition, it is recommended to take it to a certiﬁed dealer for service prior to winter storage.

Troubleshooting

Message Displayed

E1 “Stuck In Place”

E2 “Cross Outside”

E3 “No Wire Signal”

Probable Cause / Event

The mower got stuck in place. It cannot continue driving.

The Perimeter Wire is too close to the edge.

The lawn slope near the edge is too big and causes the mower to slip outside.

The lawn’s edge is too bumpy.

The Power Supply is unplugged or there is a temporary power cut.

Corrective Action

Check the ground for holes or indentations. Fill it with some earth.

Check if the Perimeter Wire is not too close to the edge. Move the wire towards the inner side of the lawn.

Move the wire towards the inner side of the lawn.

Do not include areas with very steep slopes.

Fill holes and pits along the edge till level with the ground.

Make sure the Power Supply is connected to the mains supply.

E4 “Check Power”

E5 “Check Mow

Height”

Signal generator may need to be restarted.

The Perimeter Wire is not connected to the Base Station.

The Perimeter Wire is cut. Check for cuts in the Perimeter Wire.

There is a temporary power cut.

The Power Supply is not plugged in properly.

There is no charging source detected.

The mowing system is in overload due to very tall grass or an obstacle that is stuck or wrapped around the blade.

Disconnect the Power Supply from the mains supply and reconnect after 10 seconds.

Check the connection of the Perimeter Wire to the Base Station. Make sure the plot connector is properly mounted.

Check main power supply to the Power Supply.

Conﬁrm the Power Supply is plugged in.

Clean the charging contacts on the Base Station and verify proper connection of the Base Station to the Power Supply.

Switch off the Safety Switch and inspect the blades. Remove any foreign object or excessive clogging inside the mowing deck.

Raise the mowing height and switch the TurboMode on.

Message Displayed

Probable Cause / Event / Meaning

Corrective Action

E8 “Decrease

Inactive Time”

E9 “See Troubleshooting in Manual

U009

Too many Inactive Days and/or Hours have been set for your lawn area.

Mowing Frequency is too high for current settings of Inactive Time.

Area setting is too high for current settings of Inactive Time.

E 9 is displayed for all other error messages that are not listed above.

Wait for the operational data to be sent via the GSM module.

Decrease the number of Inactive Days and/or the number of Inactive Hours.

Decrease Mowing Frequency. See “Tell your mower how often to mow”.

Decrease area setting.

Press the Right arrow to receive the stop reason number and refer to our online Help Center.

No action is required. As soon as the operational data has been sent, charging will start. This may take a couple of minutes.

U025

U032

U086

U087

Switch off before lifting. It is required to switch Off the

System Switch before lifting and carrying the mower.

The mower is connected to charging, but switched off.

Waiting for the perimeter signal. Check all power cable

The mowing motor has been overloaded for too long.

Switch the System Switch to ‘On’ to allow charging.

connections. The mower will resume automatically.

No action required. The mower will resume automatically once cooled down.

Frequently asked questions

Mower does not dock properly and sometimes misses Base Station’s contacts

The entrance to the Base Station is not ﬂat. Fill some ground to ﬂatten the lawn around the Base Station to allow smooth entrance. Make sure the Perimeter Wire is straight and centered or shifted 4-5 cm to the left in case of External Installation all the way under the Base Station. Clean the Front Wheel and make sure it rotates freely on its axis.Make sure that the base Station is placed on a relatively level ground.

Poor quality mowing

The blade may be dull. Switch off the Safety Switch, put heavy gloves and inspect the blade. Replace the blade if needed. The grass may be wet. For the best cut, operate your mower when the grass is dry. It is recommended not to mow in the early morning hours.

Patchy and uneven mowing

Minimize Inactive Time for faster Mowing Cycle and even mowing result. If it is the fast growing season - reduce the time between mowing cycles via the Mowing Frequency setting. Increase the allocated mowing time via the Mowing

Hours setting to compensate for lawn’s shape complexity.

Mower does not depart from base for a long time

Press and hold the ‘Home’ button’ for 1 second while the mower is in the Base Station. The non-depart reason code will be displayed for 3 seconds. Refer to our Help Center online for a detailed description of non-depart codes.

Mower operates at wrong times

Verify that the time on the mower is set correctly. The time and Day switched on.

setting needs to be refreshed every time the mower is

1/Learn

Your Lawn

DOC7000E_EN

Robomow RC312 Pro S, RC308u, RC304 Pro, RC304u User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
