1/18
1/18 electric pan car
Instruction Manual
28084-001
TOOLS REQUIRED
BENÖTIGTES WERKZEUG
EQUIPMENT INCLUDED
IM BAUKASTEN ENTHALTENES WERKZEUG
Side cutter
Seitenschneider
Modeling knife
Modelliermesser
Curved scissors
Schere
Long nose pliers
Flachzange
RA2068/1
Hex Wrench 1.5mm
Inbusschlüssel 1.5mm
RA2068/1
Hex Wrench 2.0mm
Inbusschlüssel 2.0mm
RA2068/1
Hex Wrench 2.5mm
Inbusschlüssel 2.5mm
RA2068/4
Trust-Bearing Grease
RA2068/2
Cross wrench
Steckschlüssel
EQUIPMENT REQUIRED
BENÖTIGTES ZUBEHÖR
Double sided Tape
Doppelseitiges Klebeband
Speed Controller
Geschwindigkeitsregler
Receiver (small)
Empfänger (klein)
4-cell 2/3 A Battery-Pack
4-zelligen 2/3 A Akku-Pack
Steering Servo
Lenkservo
Transmitter
Sender
Stick Type
Steuerknüppel-Typ
Wheel & Trigger Type
Pistolen-Griff Typ
SCALPEL
2
www.robitronic.com
SCALPEL
RA2068/3
Differential Grease
STEP1
bAG a
SCALPEL
www.robitronic.com
3
Front Suspension
Vordere Aufhängung
RA2028
RA2031
RA2021
RA2022
RA2030
RA2013
RA2016/3
RA2023
RA2024
RA2032
RA2079
F/H Srew
Senkkopfschraube
F/H Srew
Senkkopfschraube
Ball
Kugelkopf
Shim
Scheibe
Lock Nut M3
Stopmutter M3
O-Ring
O-Ring
Adjust Nut
Einstellmutter
Insert A-Arm
Mutter für Lenkachse
Steering Axle
Lenkachse
Spring
Feder
RA2030
RA2027
RA2035
RA2025
RA2026
RA2014/7
RA2014/6
Lock Nut M3
Stopmutter M3
Axle
Radachse
Ball End
Kugelkopf
Bushing for Steering Axle
Buchse für Lenkachse
Shim
Unterlegscheibe
Steering Arm left
Achsschenkel links
Steering Arm rechts
Achsschenkel links
x4
x4
x4
x8
x2
x2
x2
x2
RA2024
RA2016/3
RA2032
RA2023
x6
x2
x2
x2
x2
RA2035
RA2030
RA2026
RA2025
RA2014/7
RA2027
RA2026
*Ride Height front axle
*Bodenfreiheit der Vorderachse
+3mm
+2mm
+1mm
+0mm
RA2014/6
M3x18mm
x2
M3x14mm
x4
x2
M3 Nut
M3 Mutter
RA2030
RA2022
RA2013
RA2020
RA2021
RA2031
RA2013
RA2028
RA2079
RA2001
STEP2
bAG b
Power Pod
Hinterachse
RA2030
RA2051
RA2036
F/H Srew
Senkkopfschraube
F/H Srew
Senkkopfschraube
Lock Nut M3
Stopmutter M3
RA2012
RA2009
RA2011
RA2008
RA2013
RA2007
RA2031
Spring
Feder
Post
Steher
Adjust Nut
Einstellmutter
T-Bar Bushing
Unterlegscheibe
O-Ring
O-Ring
Ball end
Kugelkopf
F/H Screw
Senkkopfschraube
M3x6mm
M3x8mm
x2
x2
x2
RA2039
RA2038
RA2051
RA2037
RA2036
RA2030
RA2003
www.robitronic.com
SCALPEL
4
RA2010/1
RA2012
RA2011
RA2009
RA2002
RA2008
RA2007
RA2014/1
RA2013
RA2031
x2
x2
x4
x2
M3x14mm
x2
STEP3
bAG b+c
Power Pod
Hinterachse
RA2030
RA2035
RA2076
RA2052
Lock Nut M3
Stopmutter M3
www.robitronic.com
SCALPEL
5
x2
Ball End
Kugelkopf
Screw
Schraube
Srew
Schraube
RA2053
RA2052
RA2076
RA2052
RA2011
RA2012
RA2010/1
RA2035
RA2040
RA2030
M3x5mm
x3
M3x8mm
STEP4
bAG d
Body Posts & Battery mount
Karosseriehalter und Akkuhalterung
RA2035
RA2031
RA2036
RA2006
M3x14mm
M3x8mm
x2
www.robitronic.com
SCALPEL
6
Ball End
Kugelkopf
Support Stay
Steher für Chassisverstrebung
x2
x2
F/H Srew
Senkkopfschraube
F/H Srew
Senkkopfschraube
RA2036
RA2016/1
RA2035
RA2006
RA2031
RA2016/1
RA2058
RA2057
TP/F/H Srew
Senkkopfschneidschraube
2.6x5mm
RA2005/1
RA2005/3
RA2057
RA2057
RA2005/2
x8
*Direction of Battery-Snap.
*Position der Akkuschnallen beachten.
STEP5
bAG E

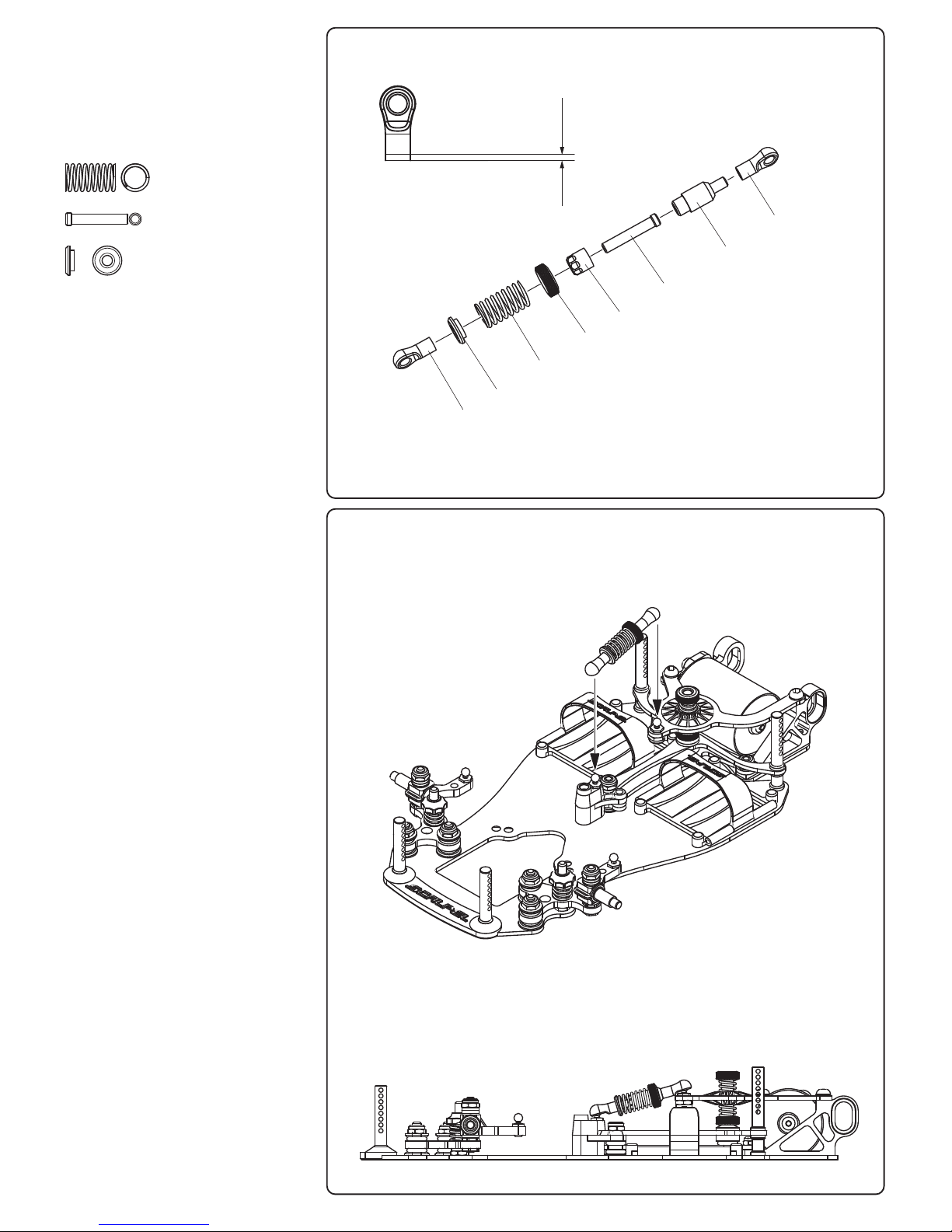

Rear Shock
Hinterer Stoßdämpfer
RA2062
RA2060
RA2063
www.robitronic.com
SCALPEL
7
Spring
Feder
Shock Shaft
Kolbenstange
Spring Holder
Federteller
RA2016/5
RA2063
RA2062
RA2061
RA2016/6
RA2060
RA2059
RA2016/5
Cut 1mm (x2)
1mm kürzen (x2)
STEP6
bAG F
Set-Screws & Rear Axle
Einstellschrauben & Hinterachse
RA2029
RA2019
www.robitronic.com
SCALPEL
8
Set-screw
Madenschraube
M3x5mm
x2
M3x8mm
x2
Set-screw
Madenschraube
RA2029
RA2019
RA2050
RA2042
RA2043
RA2045
RA2049
RA2068/3
RA2010/4
RA2044
RA2045
RA2010/2
RA2034
RA2046
RA2047
RA2030
*Note the direction of shims.
*Einbaurichtung der Tellerfedern beachten.
RA2044
*Carefully tighten the differential nut until the
differential does not slip when accelerating.
*Differentialmutter vorsichtig nur soweit anziehen,
dass das Differential beim Beschleunigen nicht
durchrutscht.
RA2042
RA2045
RA2049
RA2034
RA2046
RA2047
RA2030
Pin
Stift
x2
x6
x4
Ball Bearing 10x6x3mm
Kugellager10x6x3mm
Differential Ball
Differential-Kugel
Trust Bearing
Drucklager
Cup Spring
Tellerfeder
Lock Nut M3
Stopmutter M3
Ball Bearing 7x4x2,5mm
Kugellager 7x4x2,5mm
3.0mm
RA2068/4
STEP7
bAG F
Attaching Rear Axle
Einbau der Hinterachse
RA2042
RA2014/8
RA2034
RA2041
www.robitronic.com
SCALPEL
9
Pin
Stift
x2
x2
Ride Height Insert
Höheneinstellungs-Einsatz
RA2042
RA2041
RA2014/11
RA2034
RA2014/8
RA2034
Ball Bearing 7x4x2,5mm
Kugellager 7x4x2,5mm
O-Ring
O-Ring
*Ride height adjustment for the
rear axle.
*Einstellung der Bodenfreiheit
der Hinterachse.
-2mm -1mm 0mm +1mm +2mm
*Number 2
*Nummer 2
STEP8
bAG G
Steering
Lenkung
RA2035
RA2051
RA2018
RA2026
M3x6mm
M2,5x5mm
www.robitronic.com
SCALPEL
10
Ball end
Kugelkopf
x3
x2
x2
F/H Screw
Senkschraube
*Cut this area.
*Diese Stelle abschneiden.
Cap Screw
Zylinderkopfschraube
30
30
36
12
Optimal servo-size
Optimale Servo-Größe
30x30x12mm
x2
Shim
Unterlegscheibe
4,5mm
13mm
RA2016/4
RA2033/2
RA2016/4
RA2033/1
RA2016/4
RA2016/4
RA2035
RA2014/2
RA2014/3 FUTABA
RA2014/4 KO/AIRTRONICS/SANWA
RA2014/5 HITEC
RA2018
RA2018
RA2026
RA2014/2
RA2051
STEP9
bAG h
Antenna & Wheels
Antenne & Räder
RA2051
RA2030
RA2034
RA2048
RA2055
M3x6mm
www.robitronic.com
SCALPEL
11
F/H Screw
Senkschraube
x4
Lock Nut M3
Stopmutter M3
RA2015/2
RA2015/1
RA2051
Ball Bearing 7x4x2.5mm
Kugellager 7x4x2,5mm
Bushing 7x4x3mm
Buchse7x4x3mm
Ball Bearing 7x3x3mm
Kugellager 7x3x3mm
x4
RA2065 white dot
RA2055
RA2072 blue dot
RA2030
RA2030
RA2034
RA2034
RA2072 blue dot
RA2030
RA2030
RA2065 white dot
RA2048
Screw this M3 Nut 1/2 turn back
for free Differential-operation.
M3 Mutter 1/2 Umdrehung zurück
drehen für optimale Diff-Funktion.
STEP10
bAG i
Antenna & Wheels
Antenne & Räder
RA2017
www.robitronic.com
SCALPEL
12
Pin
Stift
x4
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
47
5,87 5,23 4,70 4,27 3,91 3,61 3,36 3,13 2,94 2,76 2,61 2,47 2,35 2,24 2,14 2,04 1,96
49
6,13 5,44 4,90 4,27 4,08 3,77 3,50 3,27 3,06 2,88 2,72 2,58 2,45 2,33 2,23 2,13 2,04
51
6,36 5,67 5,10 4,64 4,25 3,92 3,64 3,40 3,19 3,00 2,83 2,68 2,55 2,43 2,32 2,22 2,13
Pinion
Spurgear
Gear Chart
RS140P
*Receiver
*Empfänger
RA2056
*Electronic Speed Controller
*Geschwindigkeitsregler
*Battery Pin
*Arretierstift für Akkuhalterung
*Start with 14T Pinion
*Beginnen Sie mit dem 14T Ritzel
RA2016/2
RA2017
RA2016/2
RA2017
www.robitronic.com
SCALPEL
13
SCALPEL
SPARE-PARTS
RA2001 x1
Lower chassis plate
RA2002 x1
Upper stay
RA2003 x1
T-bar
RA2040 x1
Upper power-pod plate
RA2020 x2
Lower a-arm left/right
RA2009 x1
Post for fricton
plates
RA2011 x2
Friction plarte
adjuster nut
RA2008 x1
T-bar bushing
RA2007 x2
Ball-end for t-bar
RA2012 x2
Spring for
friction plates
RA2013 x12
O-ring front
susp. and t-bar
RA2015/1 x1
Antenna
RA2015/2 x1
Antenna cap
RA2017 x4
Pin 1.5x10mm
RA2021 x4
Lower ball end
for a-arm
RA2022 x4
Shim for ball
end a-arm
RA2023 x2
Insert a-arm
RA2024 x2
Steering axle
RA2025 x2
Bushing for
steering axle
RA2026 x8
Shim 1mm
RA2027 x2
Axle frontwheel
RA2032 x2
Front spring
RA2006 x2
Support stay
RA2037 x1
Lower power-pod plate
RA2039 x1
Power-pod plate left
RA2038 x1
Power-pod plate right
RA2033/2 x1
Steering rod left
RA2033/1 x1
Steering rod right
RA2034 x7
Ball bearing
7x4x2.5mm
RA2035 x6
Ball stud
M3x5mm
RA2041 x1
O-ring rear wheel adapter
RA2042 x2
Pin for rear
axle
RA2043 x1
Differential-side left
RA2044 x2
Differential washer
RA2045 x2
Ball bearing
10x6x3mm
RA2046 x1
Trust bearing
RA2047 x4
Cup spring
RA2048 x1
Ball bearing
7x3x3mm
RA2049 x6
Differential
ball 3mm
RA2050 x1 Rear axle
RA2053 x1
POWER 300 motor
RA2055 x1
Bushing for
wheel
RA2058 x2
Inner pin
RA2056 x2
Battery pin
RA2062 x1
Rearshock-spring
RA2060 x1
Shock shaft
RA2063 x1
Rearshock
springholder
RA2059 x1
Shock body
RA2061 x1
Adjust nut for
rear spring
RA2018 x3
Socket screw
M2.5x5mm
RA2029 x2
Set screw
M3x8mm
RA2019 x2
Set screw
M3x5mm
RA2028 x2
F/H screw
M3x18mm
RA2030 x15
Lock nut M3
RA2031 x8
F/H screw
M3x14mm
RA2036 x4
F/H screw
M3x8mm
RA2051 x5
F/H screw
M3x6mm
RA2052 x3
Screw
M3x5mm
RA2057 x8
TP / F/H screw
2.5x5mm
RA2076 x1
Screw
M3x8mm
SET A
RA2005/1 x1
Bumper plate
RA2005/2 x2
Battery-mount
RA2005/3 x2
Battery-snap
SET D
RA2010/1 x2
Friction plate
RA2010/2 x1
Differential side right
RA2010/3 x1
Spur gear 47T
RA2010/4 x1
Spur gear 49T
RA2010/5 x1
Spur gear 51T
SET C
RA2014/1 x1
Antenna mount
RA2014/3 x1
Servo arm
FUTABA
RA2014/2 x2
Servo mount
RA2014/11 x1
Wheel adapter left
RA2014/7 x1
Steering
knuckle left
RA2014/10 x2
Ride Height
adapter 0
RA2014/9 x2
Ride Height
adapter 1
RA2014/8 x2
Ride Height
adapter 2
RA2014/4 x1
Servo arm
KO/SANWA/
AIRTRONICS
RA2014/5 x1
Servo arm
HITEC
RA2014/6 x1
Steering
knuckle right
SET B
RA2016/1 x4
Body post
RA2016/2 x4
Body fastening
RA2016/3 x2
Adjust nut
RA2016/4 x4
Ball end steering
RA2016/5 x2
Ball end short
RA2016/6 x1
Shock cap
PINIONS
RA2054
Pinion set
8T - 22T
RA2079 x2
M3 Nut
M3 Mutter
www.robitronic.com
SCALPEL
14
SCALPEL
SPARE-PARTS
Part number
SPARE PARTS
Part number
ERSATZTEILE
RA2001 Lower chassis-plate Carbon Fiber 1,5mm RA2001 Chassisplatte Kohlefaser 1,5mm
RA2002 Upper stay Carbon Fiber RA2002 Hintere Chassis-Verstrebung Kohlefaser
RA2003 T-bar Carbon Fiber 1,5mm RA2003 T-Bar Kohlefaser 1,5mm
RA2005 Plastic Set A (Battery-mount, Numper) RA2005 Plastik Set A (Batteriehalterung, Bumper)
RA2006 Chassis Support stay red anodized (2 pcs) RA2006 Steher fur Chassis-Verstrebung rot eloxiert (2 Stück)
RA2007 Ball-end for t-bar (2 pcs) RA2007 Kugelkopf T-Bar (2 Stück)
RA2008 T-bar washer red anodized RA2008 Distanzhülse für T-Bar rot eloxiert
RA2009 Post for friction plates red anodized RA2009 Steher fur Reibscheiben rot eloxiert
RA2010 Plastic Set D (Friction plate, Diffparts, Spur Gear) RA2010 Plastik Set D (Reibungsdämpfer, Diffteile, Hauptzahnräder)
RA2011 Friction plate adjuster nut red anodized (2 pcs) RA2011 Einstellmutter für Reibscheiben rot eloxiert (2 Stück)
RA2012 Spring for friction plates (2 pcs) RA2012 Feder fur Reibscheiben (2 Stück)
RA2013 O-ring for front susp. & t-bar (10 pcs) RA2013 O-Ring für vordere Aufh. & T-Bar (10 Stück)
RA2014 Plastic Set C (Steering, ride-height) RA2014 Plastik Set C (Lenkung, Höhenverstellung)
RA2015 Antenna Set fibre glass RA2015 Überroll Antennen Kohlefaser
RA2016 Plastik Set B (body post, ball ends) RA2016 Plastik Set B (Karosseriehalterung, Kugelpfannen)
RA2017 Pin for body fastening plate (10 pcs) RA2017 Stift fur Karosseriehalteplatte (10 Stück)
RA2018 Hexagon socket servo screw M2.5x5mm (5 pcs) RA2018 Servo-Halterungsschraube M2,5x5mm (5 Stück)
RA2019 Set-screw M3x5mm for t-bar (10 pcs) RA2019 Madenschraube M3x5mm T-Bar (10 Stück)
RA2020 Lower a-arm left/right Carbon Fiber (2 pcs) RA2020 Unterer Aufhängungsarm links/rechts Kohlefaser (2 Stück)
RA2021 Lower ball end for a-arm (4 pcs) RA2021 Unterer Aufhangungskugelkopf (4 Stück)
RA2022 Shim for ball end a-arm red anodized (10 pcs) RA2022 Unterlegscheibe Aufhangungskugelkopf rot eloxiert (10 Stück)
RA2023 Insert a-arm (2 pcs) RA2023 Mutter für Lenkachse (2 Stück)
RA2024 Steering axle (2 pcs) RA2024 Lenkachse (2 Stück)
RA2025 Bushing for steering axle (2 pcs) RA2025 Buchse fur Lenkachse (2 Stück)
RA2026 Shim 1mm red anodized (10 pcs) RA2026 Unterlegscheibe 1mm rot eloxiert (10 Stück)
RA2027 Axle frontwheel (2pcs) RA2027 Radachse vorne (2 Stück)
RA2028 Countersink screw M3x18mm (10 pcs) RA2028 Senkschraube M3x18mm (10 Stück)
RA2029 Set-screw M3x8mm (10 pcs) RA2029 Madenschraube M3x8mm (10 Stück)
RA2030 Lock-nut M3 red anodized (5pcs) RA2030 Stopmutter M3 rot eloxiert (5 Stück)
RA2031 Countersink screw M3x14mm (10 pcs) RA2031 Senkschraube M3x14mm (10 Stück)
RA2032 Front spring (2 pcs) RA2032 Feder fur vordere Aufhängung (2 Stück)
RA2033 Steering Rod Set RA2033 Spurstangen Set
RA2034 Ball bearing 7x4x2.5mm (2 pcs) RA2034 Kugellager 7x4x2,5mm (2 Stück)
RA2035 Ball stud M3x5mm (10 pcs) RA2035 Kugelkopf M3x5mm (10 Stück)
RA2036 Countersink screw M3x8mm (10 pcs) RA2036 Senkschraube M3x8mm (10 Stück)
RA2037 Lower power-pod plate 1,5mm red anodized RA2037 Untere Power-Pod-Platte 1,5mm rot eloxiert
RA2038 Power-pod plate right aluminium red anodized RA2038 Motorhalteplatte rot eloxiert
RA2039 Power-pod plate left aluminium red anodized RA2039 Lagerplatte rot eloxiert
RA2040 Power-pod upper plate Carbon Fiber RA2040 Obere Power-Pod-Platte Kohlefaser
RA2041 O-ring 12x9x2mm rear wheel adapter (2 pcs) RA2041 O-Ring Radmitnehmer links
RA2042 Pin for rear axle 2x9mm (5 pcs) RA2042 Stift fur Radmitnehmer 2x9mm (5 Stück)
RA2043 Diff side left aluminium red anodized RA2043 Diffhaelfte links Aluminium rot eloxiert
RA2044 Diff washer (2 pcs) RA2044 Diff-Scheibe (2 Stück)
RA2045 Ball bearing 10x6x3mm (2 pcs) RA2045 Kugellager 10x6x3mm (2 Stück)
RA2046 Trust bearing 8x3,2x3,5mm RA2046 Drucklager Diff 8x3,2x3,5mm
RA2047 Cup Spring for Differential (10 pcs) RA2047 Tellerfeder für Differential (10 Stück)
RA2048 Ball bearing 7x3x3mm (1 pcs) RA2048 Kugellager 7x3x3mm (1 Stück)
RA2049 Diff ball 3mm (10 pcs) RA2049 Diff-Kugel 3mm (10 Stück)
RA2050 Rear axle Steel hardened RA2050 Hinterachse Stahl gehärtet
RA2051 Countersink screw M3x6mm (10 pcs) RA2051 Senkschraube M3x6mm (10 Stück)
RA2052 Hexagon button socket screw M3x5mm (10 pcs) RA2052 Rundkopfschraube M3x5mm (10 Stück)
RA2053 Motor, 300-Size, 4,8V RA2053 Motor, 300ér
RA2054 Pinion-Set 8T- 22T RA2054 Motor-Ritzel Satz 8T- 22T
RA2055 Bushing 4x7x3mm for wheel red anodized RA2055 Distanzbuchse 4x7x3mm rot eloxiert
RA2056 Batterieholder pin (2 pcs) RA2056 Haltestift für Batteriehalterung (2 Stück)
RA2057 Selftapping-screw for battery-mount (10 pcs) RA2057 Schneidschraube fur Batterie-Halterung (10 Stück)
RA2058 Batterieholder Inner pin (2 pcs) RA2058 Haltestift für Batteriehalterung innen (2 Stück)
RA2059 Shock body red anodized RA2059 Stossdaempfer-Zylinder Aluminium rot eloxiert
RA2060 Shock shaft RA2060 Stossdaempfer-Kolbenstange
RA2061 Adjust nut for rear spring red anodized RA2061 Einstellmutter für Dämpfer rot eloxiert
RA2062 Spring for Rear shock RA2062 Stossdaempfer-Feder
RA2063 Spring Holder for Spring RA2063 Stossdaempfer Federteller
RA2065 Rear wheel complete, white dot (2 pcs) supersoft RA2065 Hinterrrad komplett, white dot (2 Stück) supersoft
RA2066 Clear body SCALPEL RA2066 Karosserie SCALPEL , unlackiert
RA2067 Decal Sheet Scalpel RA2067 Aufkleber-Bogen Scalpel
RA2068 Tool Set RA2068 Werkzeug Set
RA2072 Front wheel complete, blue dot (2 pcs) hard RA2072 Vorderrad komplett, blue dot (2 Stück) hart
RA2076 Hexagon button head screw M3x8mm (10 pcs) RA2076 Rundkopfschraube M3x8mm (10 Stück)
RA2078 Body Clip 1/18 (10 pcs.) RA2078 Karosserie-Klammer für 1/18 (10 Stück)
RA2079 M3 Nut (10 pcs.) RA2079 M3 Mutter schmall (10 Stück)
OPTION PARTS OPTION PARTS
RA2064 Front wheel complete, yellow dot (2 pcs) medium RA2064 Vorderrad komplett, yellow dot (2 Stück) medium
RA2069 Power-pod plate right, for Brushless RA2069 Motorträger für Brushless
RA2070 Friction plate alu (2 pcs) RA2070 Reibscheiben Alu (2 Stück)
RA2071 Front wheel complete, red dot (2 pcs) soft RA2071 Vorderrad komplett, red dot (2 Stück) soft
RA2073 Rear wheel complete, red dot (2 pcs) soft RA2073 Hinterrrad komplett, red dot (2 Stück) soft
RA2074 Rear wheel complete, yellow dot (2 pcs) medium RA2074 Hinterrrad komplett, yellow dot (2 Stück) medium
RA2075R Scalpel body, painted red RA2075R Karosserie SCALPEL, lackiert rot
RA2075B Scalpel body, painted blue RA2075B Karosserie SCALPEL, lackiert blau
RA2075G Scalpel body, painted green RA2075G Karosserie SCALPEL, lackiert grün
RA2077 Pinion Set Plastic 9T - 23T RA2077 Ritzel Set Plastik 9T - 23T
ACCESSORY
SCALPEL
scalpel front tires
scalpel rear tires
Pre-GLUED
Pre-GLUED
RA2071 Front Tire red dot (soft)
RA2064 Front Tire yellow dot (medium)
RA2072 Front Tire blue dot (hard)
RA2065 Rear Tire white dot (supersoft)
RA2073 Rear Tire red dot (soft)
RA2074 Rear Tire yellow dot (medium)
robitronic microspeed
electronic speed controller
Scalpel Brushless Gearplate
for Brushless System motor-size CNC-Aluminium
RA2069 Power-pod plate right, BL
RA2075R Painted Body, red
RA2075B Painted Body blue
RA2075G Painted Body green
scalpel painted body
scalpel friction plates
RA2070 Aluminium Friction Plate (red anodized)
for smoother operation of rear suspension
SCALPEL
15
www.robitronic.com
RS140P Power Microspeed Controller
scalpel pinion set 9t - 23t
plastic pinions
RA2077 Pinion Set Plastic 9T - 23T
www.robitronic.com
SCALPEL
16
SCALPEL
NOTE
www.robitronic.com
SCALPEL
17
SCALPEL
NOTE
www.robitronic.com
SCALPEL
18
SCALPEL
NOTE
• 3 Personal Transponder
• 4 Empfängermodule mit Flachkabel für 1.50m Streckenbreite
• PC-Interface mit Datenkabel
• RCM-Beginners-Software mit Trainingsprogramm
Best.Nr. RS160
Der ROBITRONIC LAP COUNTER ist eine preiswerte
Rundenzählanlage für RC-Modelle aller Maßstäbe von 1/10
und 1/12 bis speziell für die Klassen 1/18, 1/24 und 1/27
(Mini-Z).
Mit dem extrem kleinen und leichten Transponder besitzt
jedes Modellauto eine weltweit einzigartige Identifikationsnummer. Fährt ein Fahrzeug über die Start/Ziellinie,
wird das Transpondersignal mit der Identifikationsnummer vom Empfänger-modul in der Zeitnahmebrücke
erkannt und ausgewertet. Die Rundenzählanlage kann
beliebig viele Transponder gleichzeitig erfassen. Die
Anzahl der benötigten Empfängermodule hängt von der
Streckenbreite unter der Brücke ab. Die mitgelieferteSoftware kann in Verbindung mit einem PC, sofort für
Trainingsläufe verwendet werden.
Rennabwicklung mit Vorlauf und
Finalwertung. Kompatibel mit AMB.
Best.Nr. RS168
RCM Advanced software
(optional)
Für einfache Rennabwicklung
und Training. Die Software ist für
alle gängigen Windows
Plattformen.
RCM Beginners software
Robitronics LAP COUNTER is a fully operational lap counting system for all RC-models of
all size. The transponders are extremely small
and can be mount problem-free in mini RC
Cars 1:18, 1:24, etc..
Every tiny and featherweight transponder is
encoded with a worldwide unique number. By
crossing the start/finish line the emitted
signal will be recognised and processed by
the receiver module mounted to the lap
counting bridge.
The system is capable of processing many
transponders simultanously and independent
from the number of receiver modules
installed. The number of receiving modules
required just depends on the track width
under the counter bridge.
Using the included software (and a PC) it is
possible to start timed practice sessions
immediately.
The system will be delivered in a set with 3
personnel transponders, 4 receiver modules, a
PC interface with data cable and the RCM
Beginners software with a training program.
Features
• Lap Count System for RC-Cars all sizes
• For Indoor and Outdoor Tracks
• Unlimited cars running at same time
• Personal Transponder with unique ID
• Small (only 12x16x7mm) and lightweight
Transponder (3g)
• Professional Software for all Windows Systems
RS160
• 3 Personal Transponder
• 4 Receiver Modules for tracks with
1.5m width
• PC-Interface with data cable
• RCM-Beginners-Software with
Practice-program
*Bridge not in set included!
RS168
RCM Advanced
software (optional)
Complete race controls with qualifying and
finals. Software is compatible with existing
AMB systems. (Requires all AMB hardware and
transponders)
cut the carpet
and make racing
with your lap counter
Robitronic Electronic Ges.m.b.H Guntherstrasse 11 A - 1150 Vienna Austria
Tel: +43-1-982 09 20 Fax: +43-1-982 09 21 Homepage: www.robitronic.com
Loading...
