Robinson Willey ATHENA LF LPG User Operating Instructions Manual

THEGAS CONSUMERS' COUNCIL

(GCC) ISAN INDEPENDENT

ORGANISATION WHICH PROTECTS

THE INTERESTOF GAS USERS.

IFYOU NEED ADVICE, YOU WILL

FIND THE TELEPHONE NUMBER IN

YOUR LOCAL TELEPHONE

DIRECTORY UNDER GAS.

"'"ElIlIlll~

Cat

13PG31 at 37mbar in GB and lE

FOR USE ON PROPANE GAS ONLY

UsersOperating Instructions

THIS LEAFLET IS INTENDED TO HELP YOU UNDERSTAND AND USE YOUR NEW FIRE EFFICIENTLY.

PLEASE READ THESE INSTRUCTIONS BEFORE USING THE FIRE AND KEEP FOR FUTURE REFERENCE.

11

5 349

USER

IMPORTANT NOTES

11

________ 1

1. The appliance name and serial number are on the data badge which is located on the left hand side of the fire box.
Remove the outer case for access to read the data badge. (See Fig. 1).

3. This fire must be installed and serviced regularly in accordance with the current Gas Safety (Installation and Use) Regulations
and the rules in force by a competent person e.g. British Gas or CORGI member. Where solid fuel has been used the chimney mu s t
be swept before installation. This fire must be installed in accordance with the installation instructions.

4.Itis recommended that at least once a year the appliance should be removed to check the catchment space and the chimney
for debris. The fire should be checked annually to ensure continued clearance of combustion products and that there is no
excessive build up of soot.

5. WARNING: This fire has a naked flame. Also certain parts, especially the canopy, will be hot when in use. A fireguard
conforming to B.S. 6539 : 1984 (Fireguards for use with solid fuel appliances) should be used for the protection of children,
the elderly or the infirm. Such a guard is also recommended for pet animals.

6. After the fire is installed you may wish to fix a shelf above. This isquite acceptable provided that the underside ofthe shelf is at
least 237mm above the fire and does not project more than 150mm forward. For a deeper shelf allow 13mm increase in shelf
height for every 25mm increase in shelf depth.

8. When the fire is first used itmay give off some slight smoke and smell butthesewill soon clear after afew hours of use atthe
HIGH setting.

1 0 2 4 5 0

9. Do not burn paper or any rubbish in the fire.

10. IMPORTANT: When considering fitting any heating
appliance or wallpapering a room inwhich one is fitted,
if blown vinyl or other heat sensitive wallpapers are
used in the vicinity of the heat source, then they may
become heat damaged or discoloured especially just
above the fire.

11. It is important for safe operation and to maintain
efficiency that the fire is not operated with damaged
or broken coals.
IMPORTANT NOTE: Under no circumstances should
extra coals be used together with the existing coals.

ONL Y THE CORRECT COALS SHOULD BE USED.

12. If purpose built ventilation is provided for the fire, it
should be checked periodically to ensure that it is
free from obstruction.

13. IMPORTANT NOTE

Plaster Applied Directly to Pre-cast Flue Blocks.

Some Pre-castflues built to B.S. 1289:1975 may have
plaster applied directly to the flue blocks.

A recommendation was made, inthe revision B.S.1289

part 1:1986, NOT to apply plaster directly to the flue
blocks, otherwise cracking of the plaster could occur.
It is not recommended to install this fire into such
installations, unless remedial action is taken.

;TA

BADGE POSmON

BEHIND OUTER CASE

If)

TO LIGHT AND OPERATE ••

-------,

WARNING: Ifthe flames are found to be extinguished and the control is not in the OFF position, the control knob should be returned to

the OFF position and no attempt should be made to light the gas until at least 3 minutes have elapsed.

SAFETY

The fire isfitted with a flame supervision device and an atmosphere sensing device which will shut off the gas supply iffor any reason the

pilot goes out. The device will also extinguish the pilot if the oxygen content in the room falls below a prescribed level. If the fire keeps

going out, the fault must be rectified immediately by a competent person.

jy

The control knob is illustrated in Fig. 2 and has the markings OFF, HIGH, MED, ECON and PILOT.

The control knob is located on the right side ofthe fire. Depress the control knob to the PILOT IIGN position until the ignition starts. Keep

the control knob pushed in for a further 10 seconds before releasing. The pilot should remain lit and the control knob will spring back to
the ECON position .. Refer to Fig. 3 for viewing ofthe pilot when lit.

When the pilot is established, slide the control knob to the HIGH position. Your fire is now operating on full heat input. You may now slide
the control knob to any the position, HIGH, LOWor ECON.

11

5 349

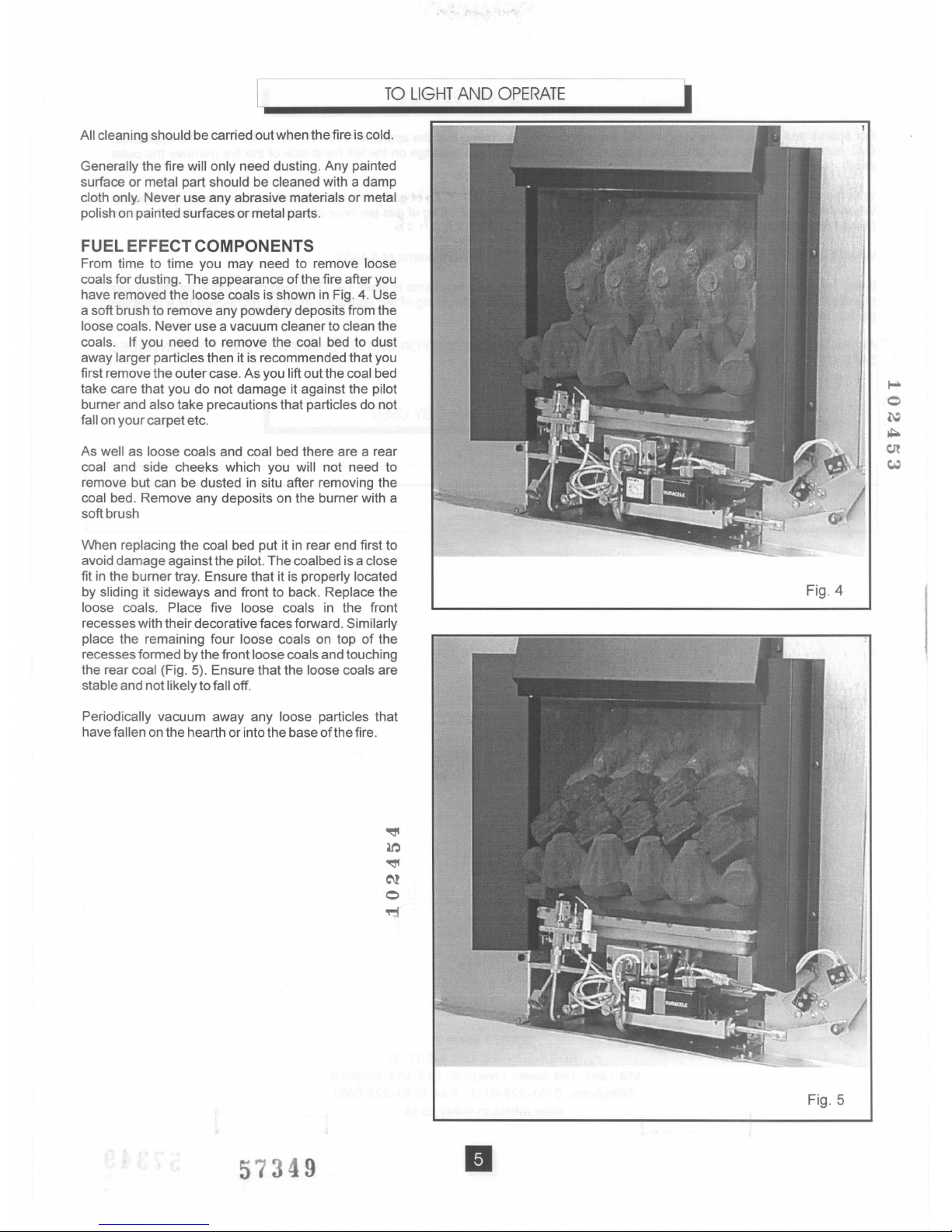

TO LIGHT AND OPERATE

11

--------,

Generally the fire will only need dusting. Any painted
surface or metal part should be cleaned with a damp
cloth only. Never use any abrasive materials or metal

polish on painted surfaces or metal parts.

FUEL EFFECT COMPONENTS

From time to time you may need to remove loose

coals for dusting. The appearance of the fire after you

have removed the loose coals is shown in Fig. 4. Use

a soft brush to remove any powdery deposits from the

loose coals. Never use a vacuum cleaner to clean the

coals. If you need to remove the coal bed to dust

away larger particles then it is recommended that you

first remove the outer case. As you lift out the coal bed

take care that you do not damage it against the pilot

burner and also take precautions that particles do not

fall on your carpet etc.

As well as loose coals and coal bed there are a rear

coal and side cheeks which you will not need to

remove but can be dusted in situ after removing the

coal bed. Remove any deposits on the burner with a

soft brush

When replacing the coal bed put it in rear end first to

avoid damage against the pilot. The coalbed is a close

fit in the burner tray. Ensure that it is properly located

by sliding it sideways and front to back. Replace the
loose coals. Place five loose coals in the front
recesses with their decorative faces forward. Similarly
place the remaining four loose coals on top of the
recesses formed by the front loose coals and touching

the rear coal (Fig. 5). Ensure that the loose coals are

stable and not likely to fall off.

Periodically vacuum away any loose particles that
have fallen on the hearth or into the base of the fire.

5 349

SPARES AND SERVICE ••

~---_-.l'

For spares and service apply to your local supplier or installer stating that the appliance is an ATHENA LF LPG. The appliance
G.C. number, Product code and Serial number are marked on the data badge on the left hand side of the fire (remove the outer
case).

With the fire set at the HIGH position it will consume approximately 0.46 kg of gas per hour at a cost of approximately 16 pence.
When set to the ECON position the fire will consume approximately 0.18 kg of gas per hour at a cost of approximately 6.4 pence.
(based on a domestic bulk price of 18 pence per litre).

If any 'home improvements' are made to the dwelling in which a gas appliance is fitted, i.e. The fitting of an extractor fan, draught
proofing or double glazing, then the air supply to the appliance and the f1uing of the appliance must be rechecked by a competent

person (e.g. A CORGI registered engineer).

ADVANTAGE SHOULD BE TAKEN OF ANNUAL SERVICE/INSPECTION FOR GAS APPLIANCES TO ENSURE CONTINUED
SAFE OPERATION.

PARTS REPLACEABLE BY USER •

~ I

ERWJ

PART NUMBER

DESCRIPTION

992234

Coal Bed

992169

Loose Coals (9 off)

989873 Issue 2

ROBINSON WILLEY LIMITED

Mill Lane, Old Swan, Liverpool. L13 4AJ. England.

Telephone: [phone] Fax: [phone]

www.robinson-willey.co.uk

57349
