Page 1 of 6
Description: ROBINHOOD SUPERTUB DLB DRW
Model Number: ST7001
Model pictured: ST7001
Issue: 1
Page 2 of 6
Exploded Tub Assembly
1 2 3 6 9
8
10
5 7 4
11
12
13
14
15
16
17
Page 3 of 6
Exploded Tub Assembly Cont
Part number
Item
Description
ST 7001
1
Waste grill screw
752230
2
Waste grill
752214SS
3
Overflow O ring
752220
4
Overflow screw (1 off)
999074
5
Waste seal
752209
6
Waste body
752205
7
Overflow hose clip
752229
8
Washing machine waste hose
752224
9
Washing machine waste inlet
752201
10
Overflow hose
752215
11
Overflow body
752219
12
Waste elbow
752204
13
U bend complete kit
75220345
14
Waste T piece
752203
15
Washing machine waste hose clip (1 off)
752228
16
Waste inlet blanking cover
752202
17
Screw (1 off)
999054
Page 4 of 6
Exploded Chassis Assembly
Part number
Item
Description
ST 7001
1
Bottom drawer complete (less handle)
751066
2
Top drawer complete (less handle)
751067
3
Bottom drawer side/runner set (left & right hand) (2 x sides
& 2 x runners)
Supplied with item 1
4
Top drawer side/runner set (left & right hand) (2 x sides &
2 x runners)
Supplied with item 2
5
Handle complete including screws and washers (1 off)
751048
6
Knob hot (red)
750909RD
7
Knob cold (blue)
750909BU
8
Flexible hose
751141
9
Three way ball valve complete (1 off) Hot
752235HT
N/S
Three way ball valve complete (1 off) Cold
752235CD
N/S
Non return valve Hot
Part of item 9
N/S = Not shown
1 2 3 3 64 4
5 5 78 9
Page 5 of 6
Part number
Item
Description
ST7001
1
Tap complete including hoses and fittings
751140
2
Ceramic disc cartridge
751140C
3
Aerator O ring
Part not available
4
Aerator cartridge
Part not available
5
Aerator screw end
Part not available
6
Tap Washer Seal
751140OR
7
Flexible hose hot (red)
751140HT
8
Flexible hose cold (blue)
751140CD
Exploded Tap Assembly
6
Page 6 of 6

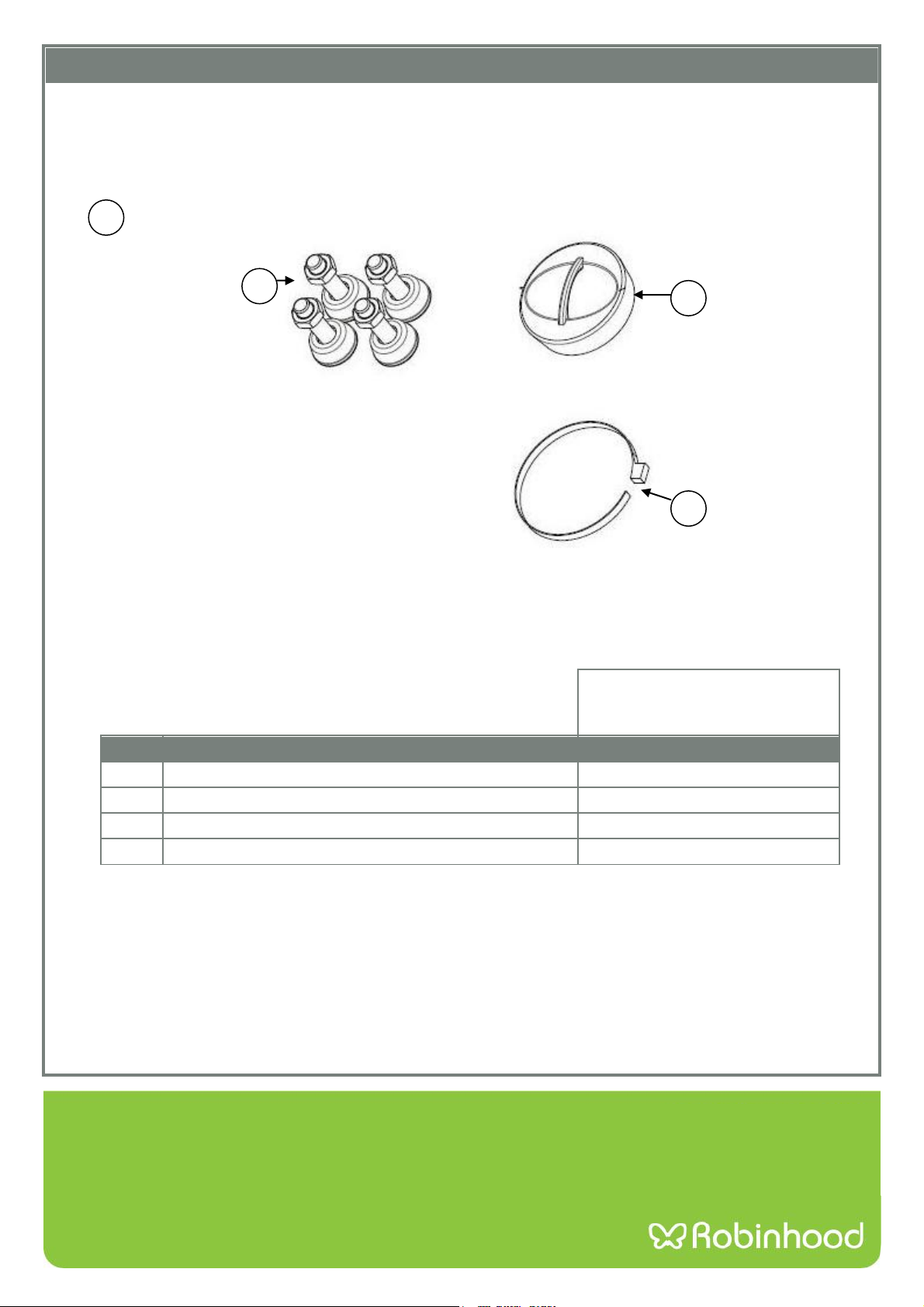

Installation Kit
Part number
Item
Description
ST7001
1
Installation kit complete (as shown above)
752043
2
Plug
750636
3
Adjustable foot assembly (1 off)
750920
4
Cable tie
Available from Hardware Stores
ECN: 07034
41 2
3
Australia
Parbury Pty Limited
(ABN 83 004 568 138)
Telephone: 1800 648 556
Facsimile: 1800 628 577
Email: enquiries@robinhood.com.au
www.robinhood.com.au
