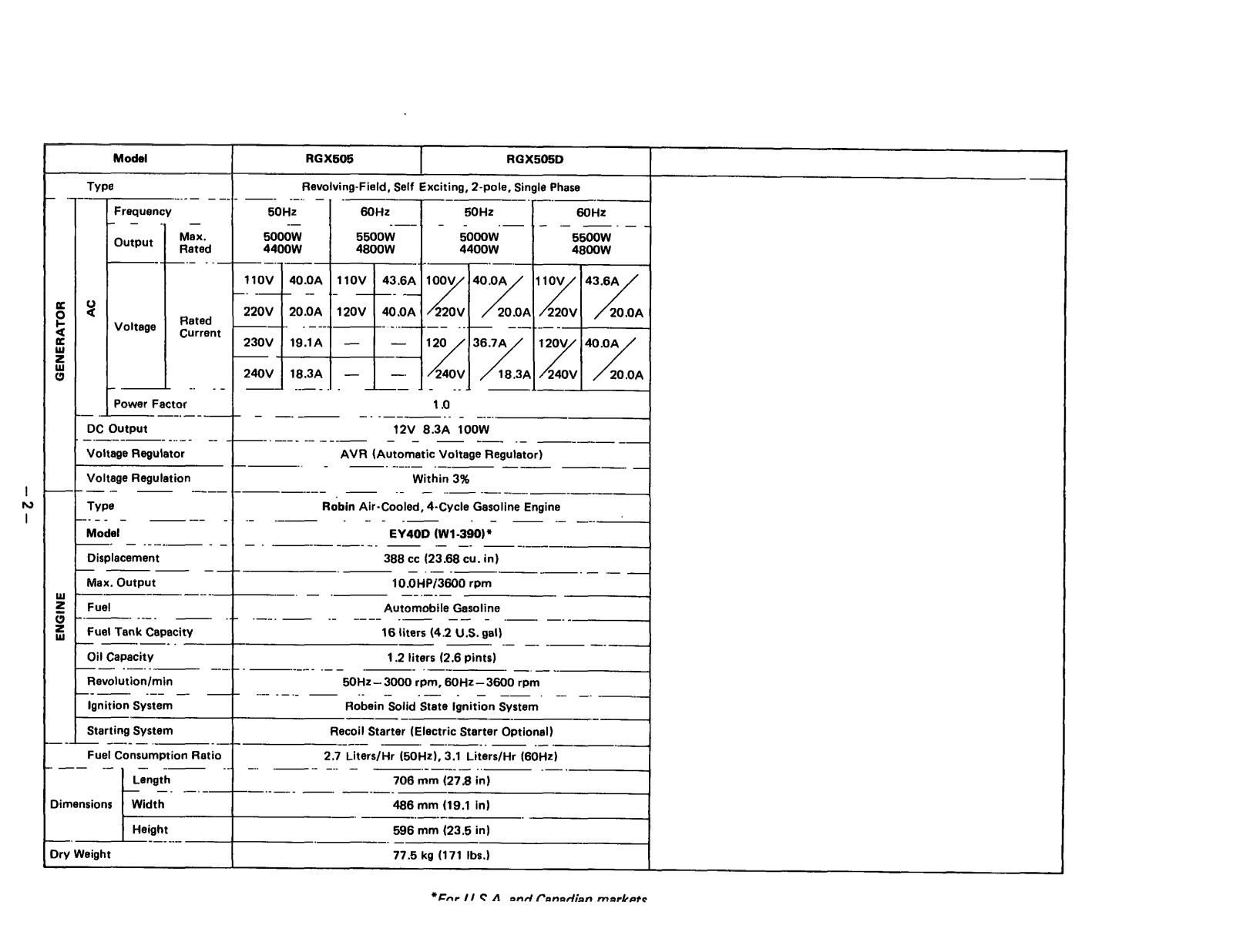

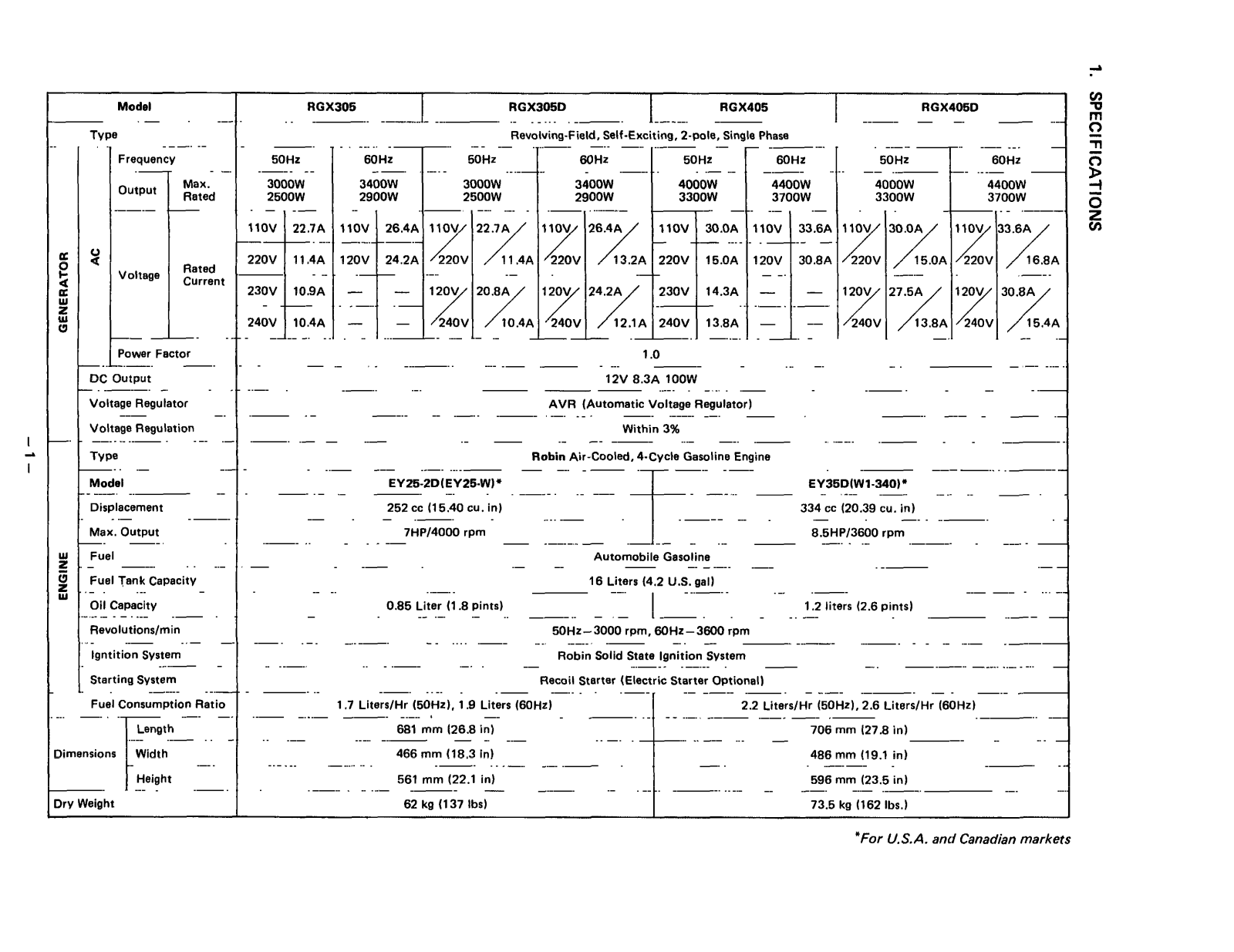

- Model: RGX305, RGX305D, RGX405, RGX405D, RGX505, RGX505D
- Type: Revolving-Field, Self-Exciting, 2-pole, Single Phase.
- Frequency: 50Hz, 60Hz.

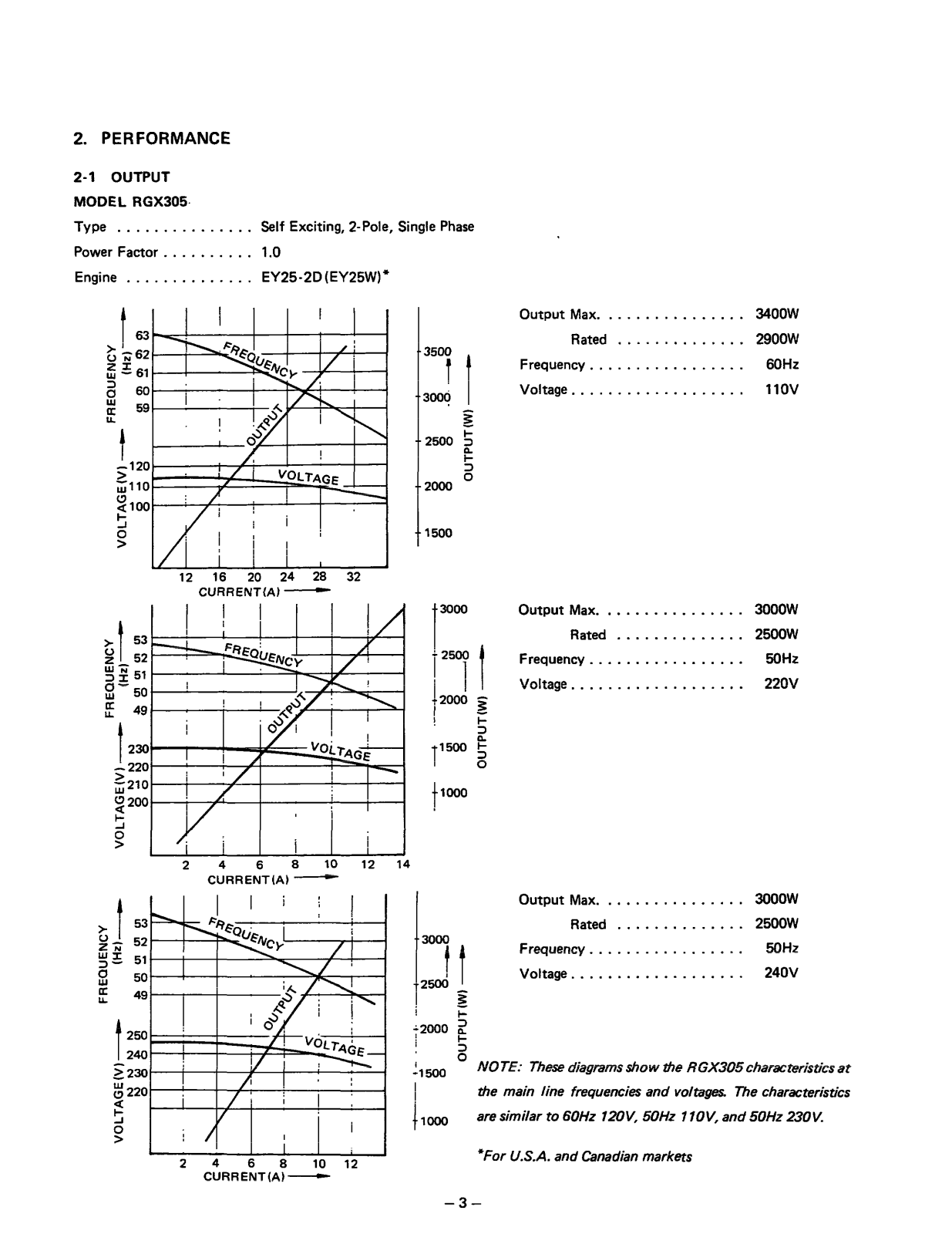

- Output:
- Max:
- RGX305: 3000W

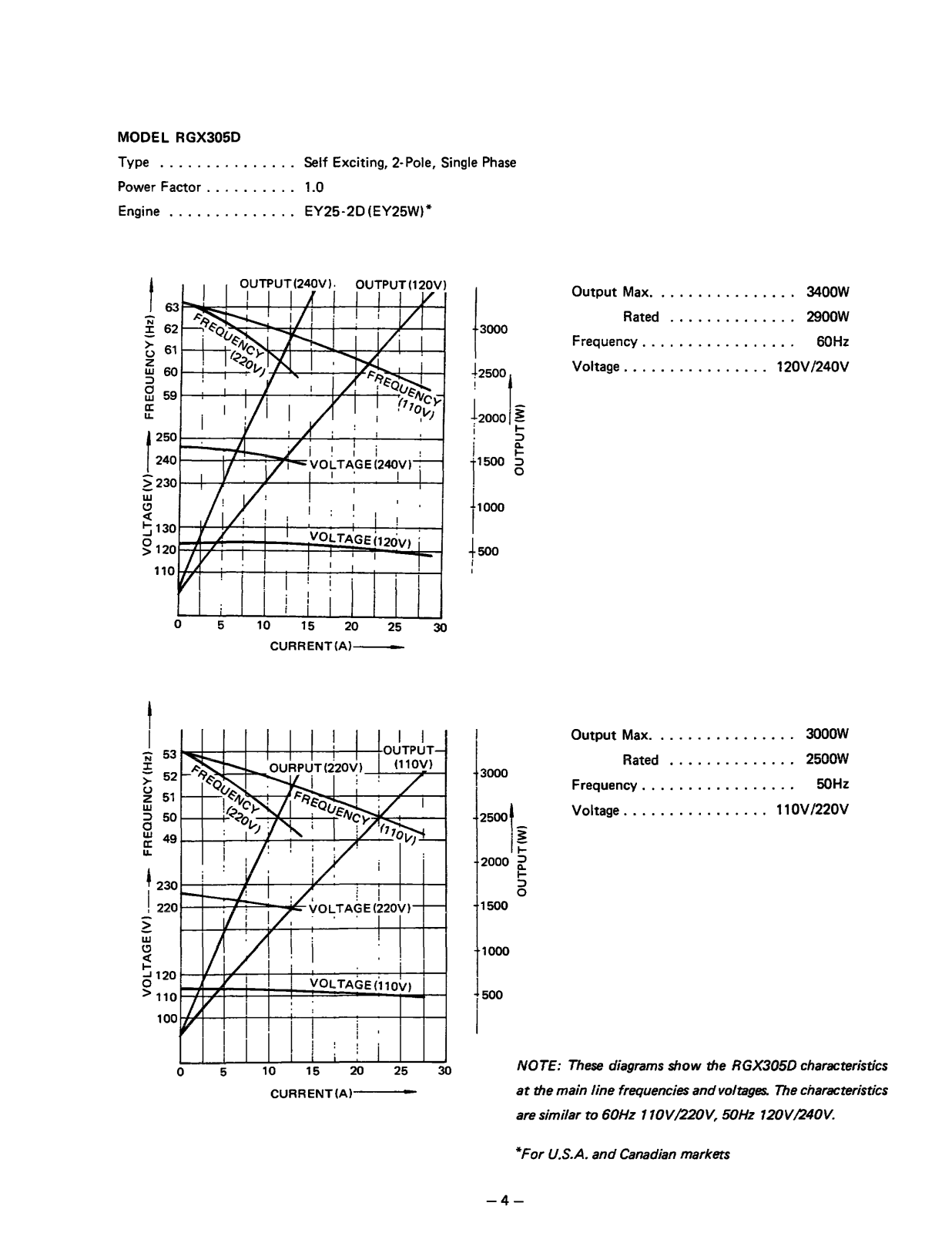

- RGX305D: 3400W
- RGX405: 4000W

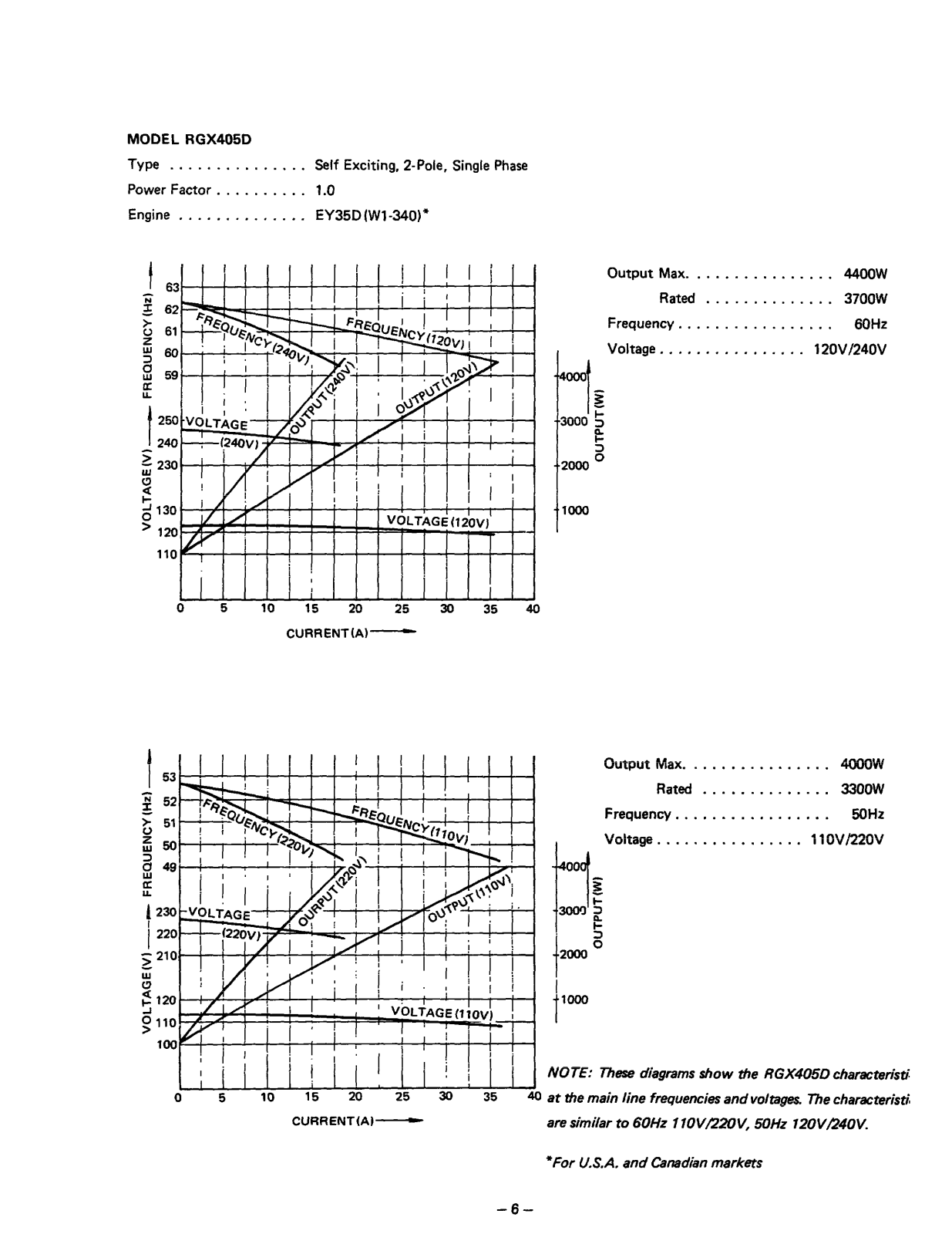

- RGX405D: 4400W
- RGX505: 5000W
- RGX505D: 5500W
- Rated:
- RGX305: 2500W
- RGX305D: 2900W
- RGX405: 3300W
- RGX405D: 3700W
- RGX505: 4400W
- RGX505D: 4800W
- Voltage:
- Rated:
- RGX305: 110V, 220V
- RGX305D: 120V, 240V
- RGX405: 110V, 220V
- RGX405D: 120V, 240V
- RGX505: 110V, 220V
- RGX505D: 120V, 240V
- Current:
- Rated:
- RGX305: 22.7A(110V), 11.4A(220V)
- RGX305D: 26.4A(120V), 15.0A(240V)
- RGX405: 30.0A(110V), 15.0A(220V)
- RGX405D: 33.6A(120V), 20.0A(240V)
- RGX505: 40.0A(110V), 20.0A(220V)
- RGX505D: 43.6A(120V), 20.0A(240V)
- Power Factor: 1.0
- Rd_Output: 12V @ 8.3A = 100W

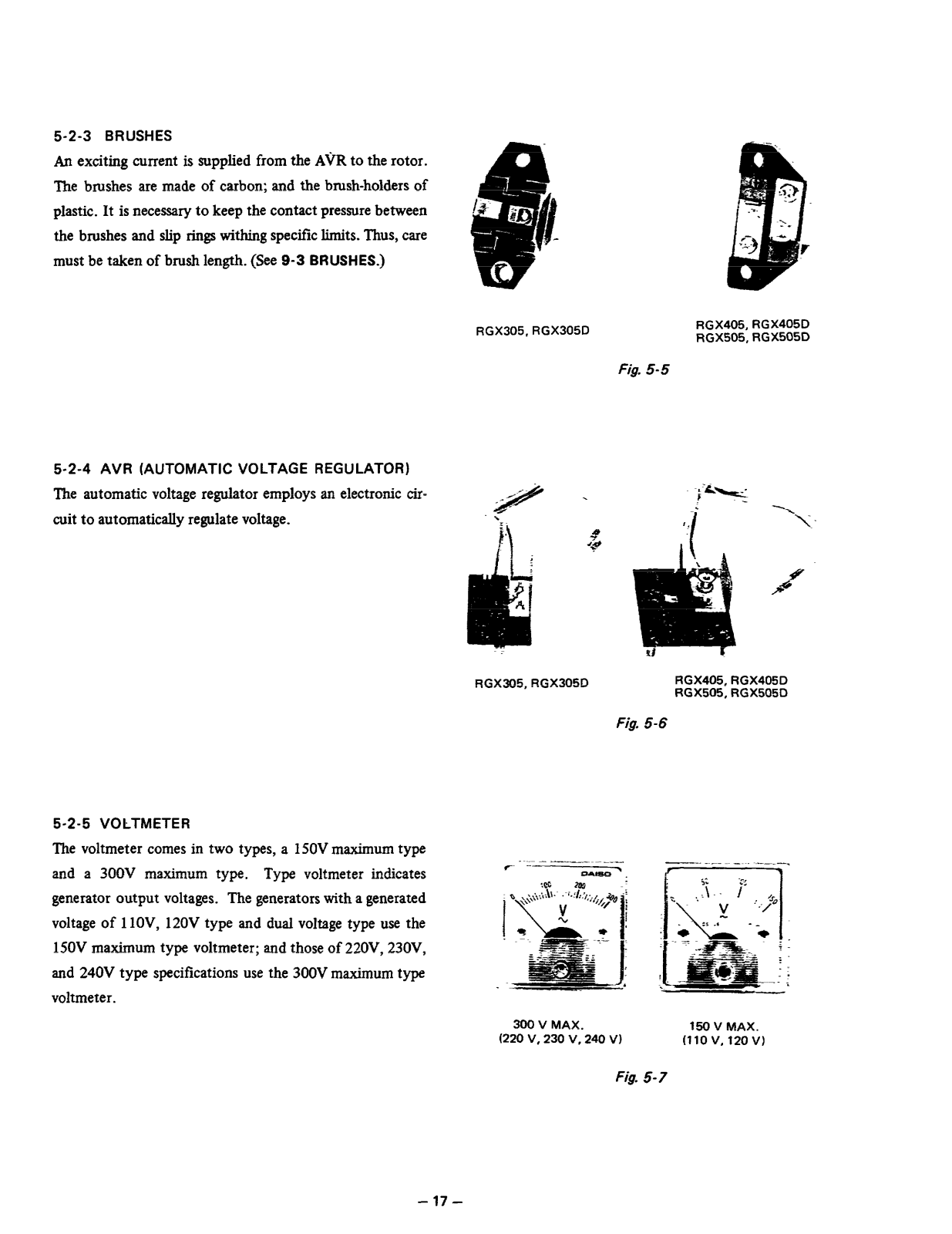

- Voltage Regulator: AVR (Automatic Voltage Regulator)
- Voltage Regulation: 3%

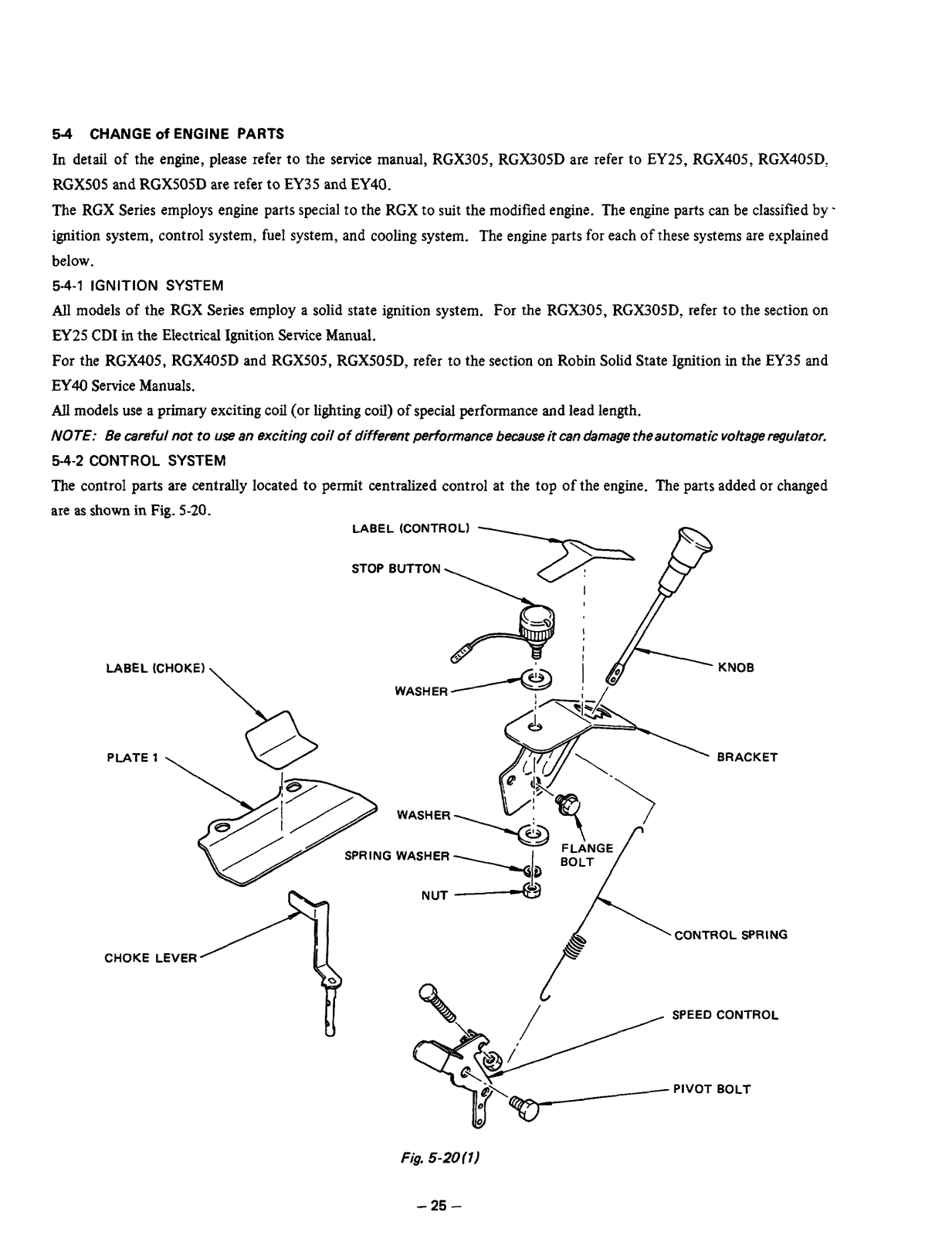

- Engine Type: Robin Air Cooled, 4 Cycle Gasoline Engine.
- Engine Model: EY25-2D (RGX305, RGX305D), EY35D (RGX405, RGX405D), EY40D (RGX505, RGX505D)
- Engine Displacement:
- RGX305, RGX305D: 252 cc
- RGX405, RGX405D: 334 cc
- RGX505, RGX505D: 388 cc
- Max Output:
- RGX305, RGX305D: 7HP/4000rpm
- RGX405, RGX405D: 8.5HP/3600rpm
- RGX505, RGX505D: 10.0HP/3600rpm
- Fuel: Automobile Gasoline

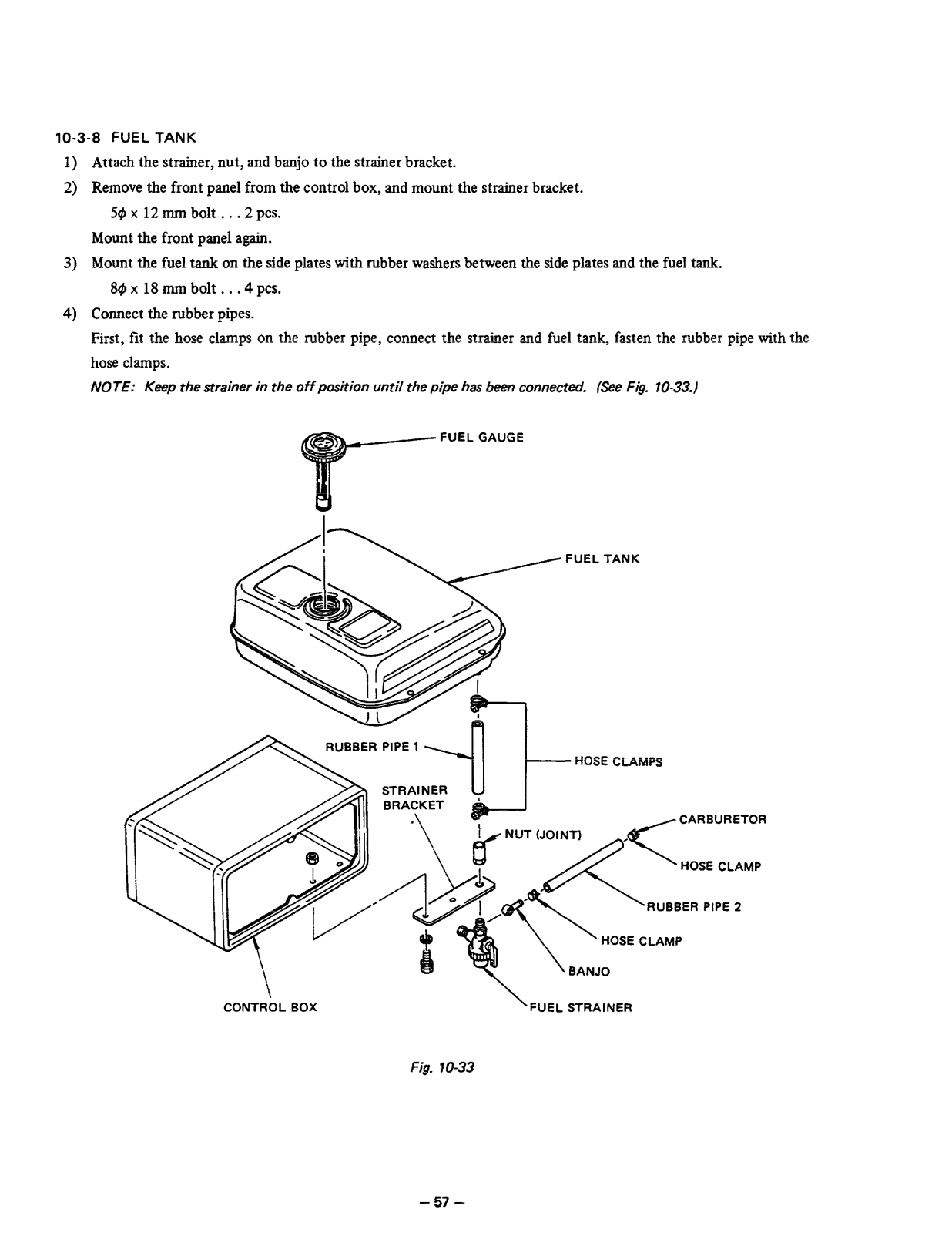

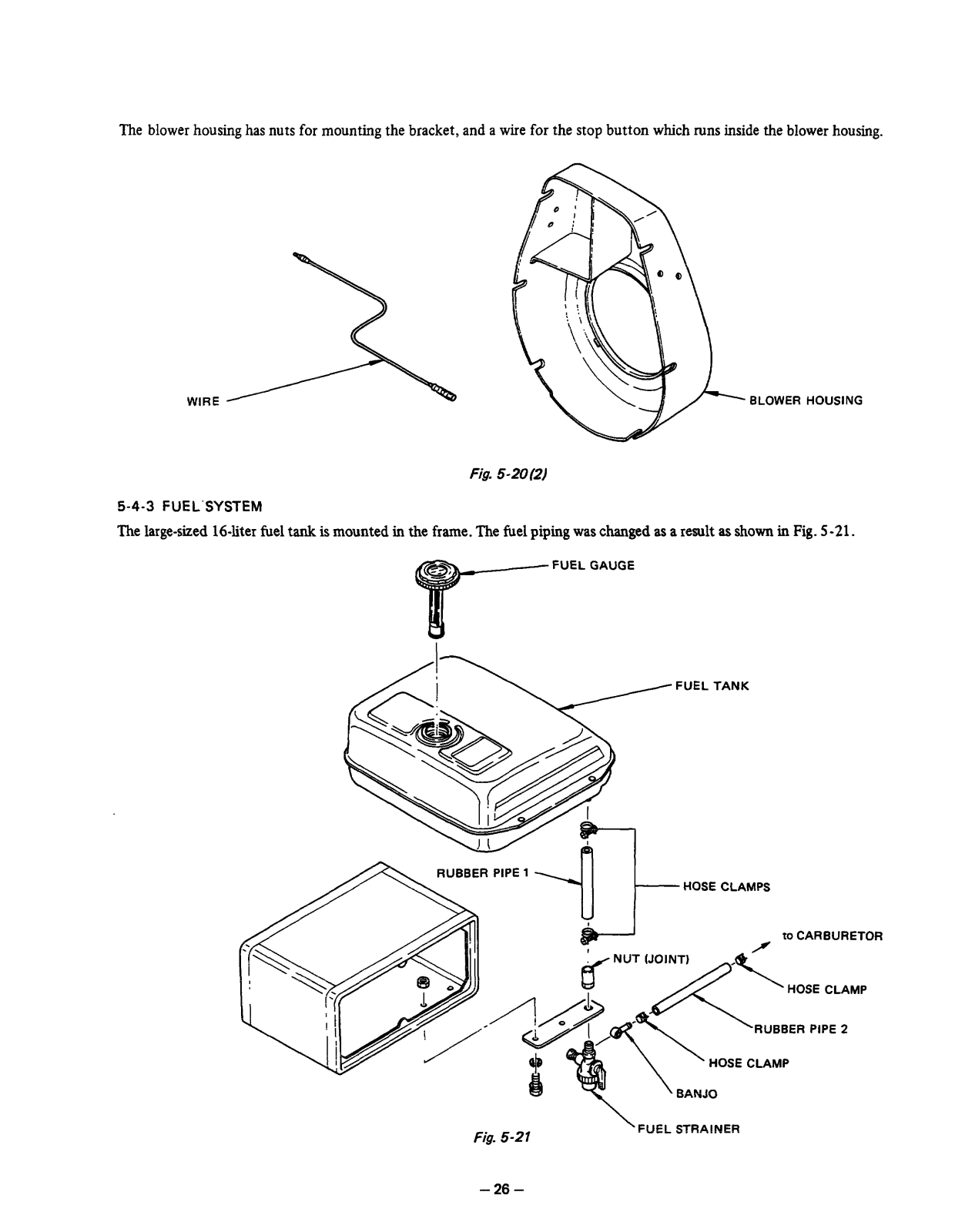

- Fuel Tank Capacity: 16 Liters (4.2 U.S. gal)
- Oil Capacity: 0.85L (RGX305, RGX305D), 1.2L (RGX405, RGX405D, RGX505, RGX505D)
- Dry Weight:
- RGX305: 62 kg (137 lbs)
- RGX305D: 98.8 kg (162 lbs)
- RGX405: 77.5 kg (171 lbs)
Q: What type of engine does this generator use? A: The generator uses a Robin Air Cooled 4 Cycle Gasoline Engine.
Q: What is the fuel tank capacity for the generator? A: The generator has fuel tank capacity of 16 liters 4.2 U.S. gallons.

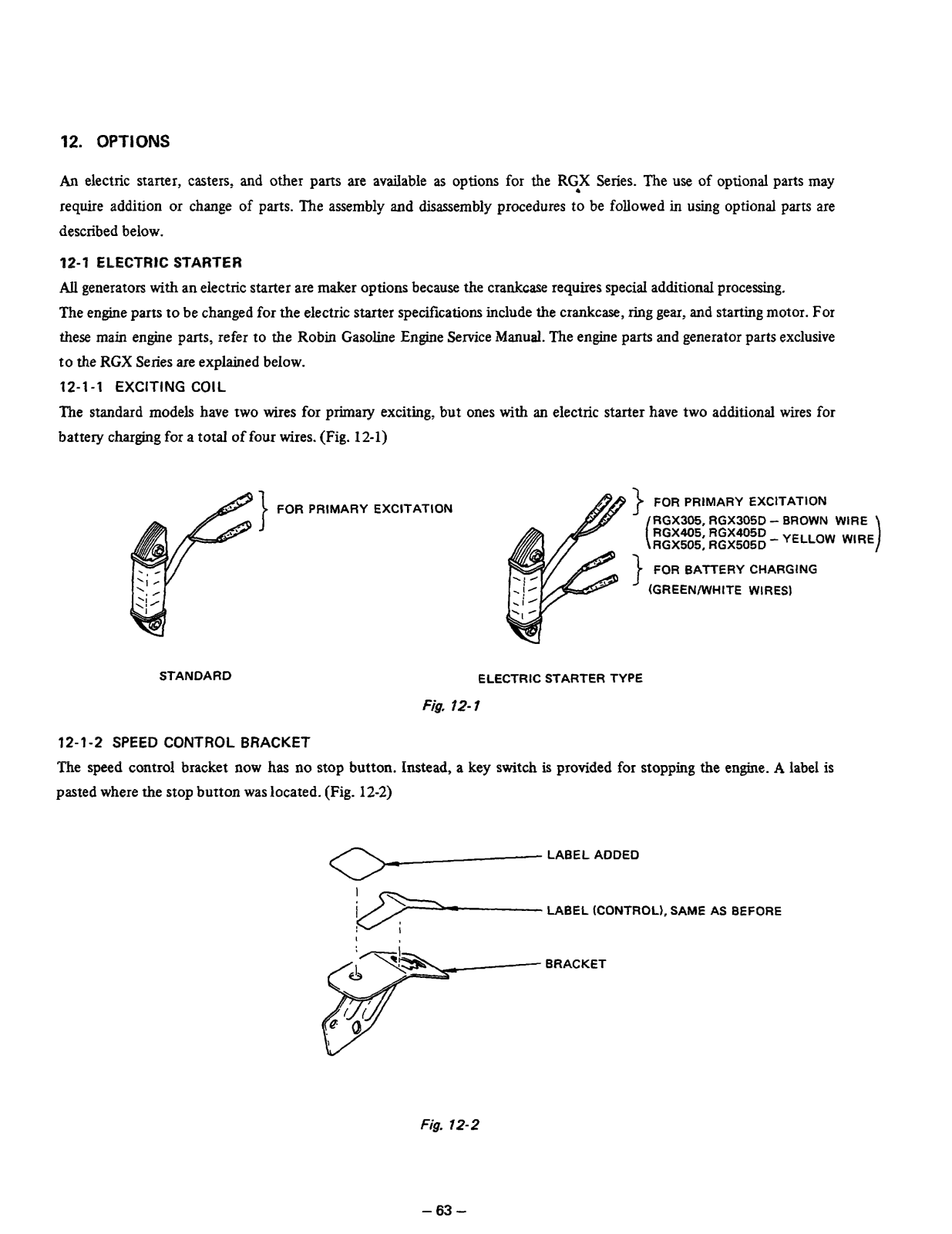

Q: How do I turn on the generator? A: The generator is equipped with recoil starter and electric starter is optional.
Q: What is the voltage output for the RGX series Generators? A: The RGX series Generators can Output 110V and 220V, some models may also output 120V and 240V.
Q: What is the maximum output of the RGX505 model? A: The maximum output of the RGX505 model is 5500W.

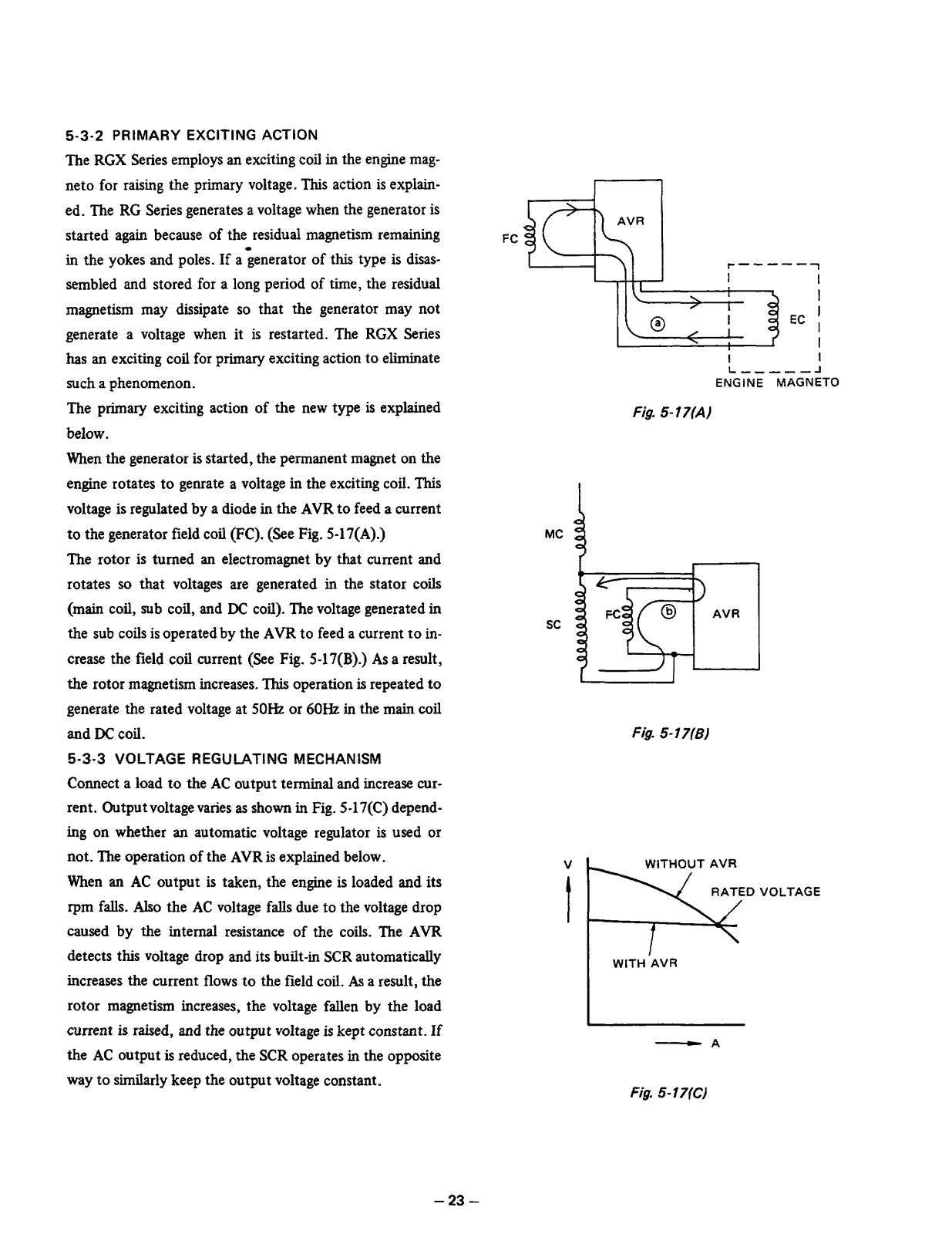

Q: Does the generator have an automatic voltage regulator? A: Yes, the generator has AVR Automatic Voltage Regulator fitted to it for stabilisation of the voltage.

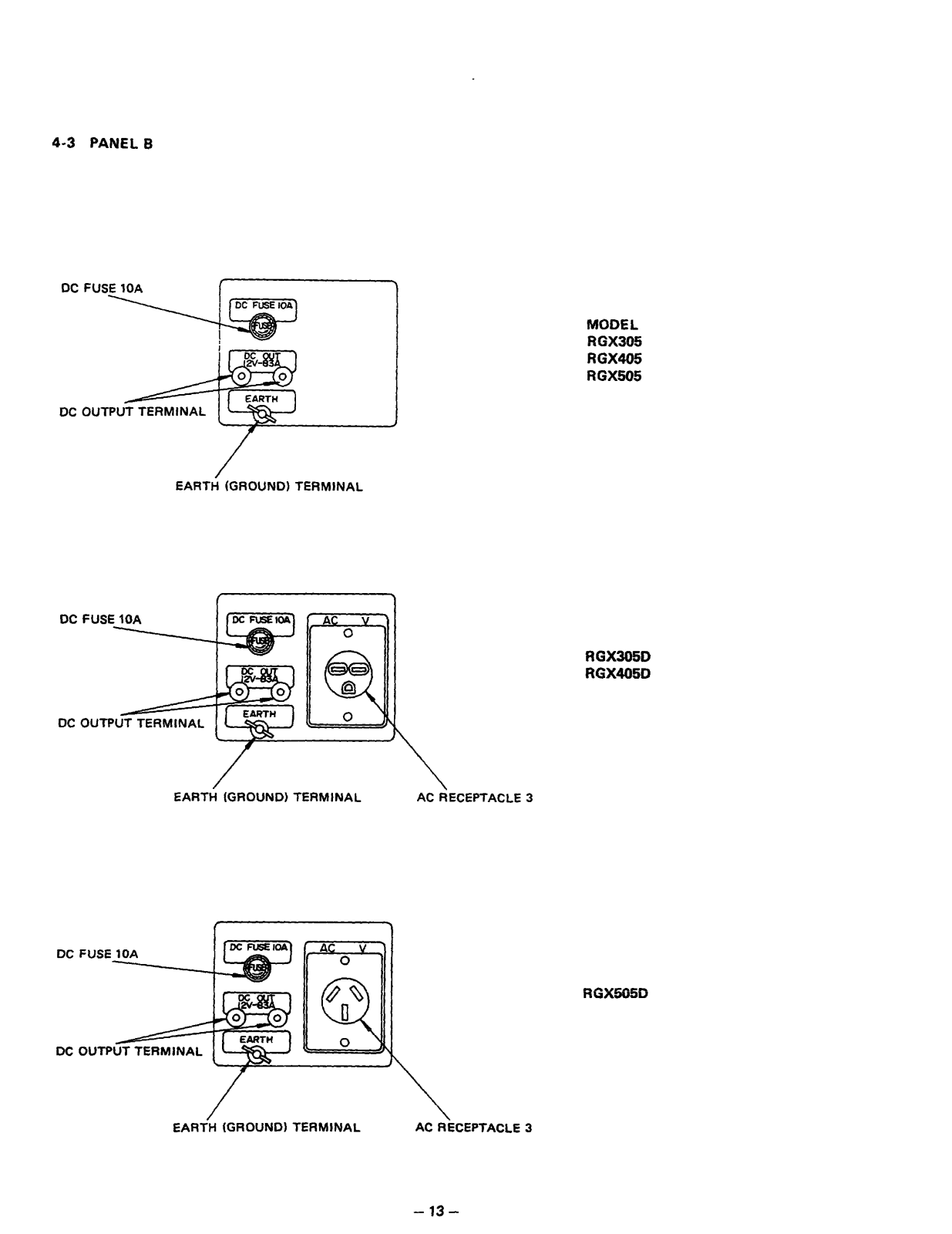

Q: For what purpose is the DC output of the generator?
A: The output is used for charging batteries while the generator is in working state, this is due to the DC output (12V, 100W).
Q: What is the runtime for the generator under continuous use?
A: With a full tank the RGX305 can run for up to ten hours under rated output, while the remaining models will have different runtimes.
