Subaru Robin Power Products RGX5510, RGX1810, RGXl810, RGX2410 User Manual

Specifications and Main Features

Model Numbers: RGX 1810 and RGX 2410

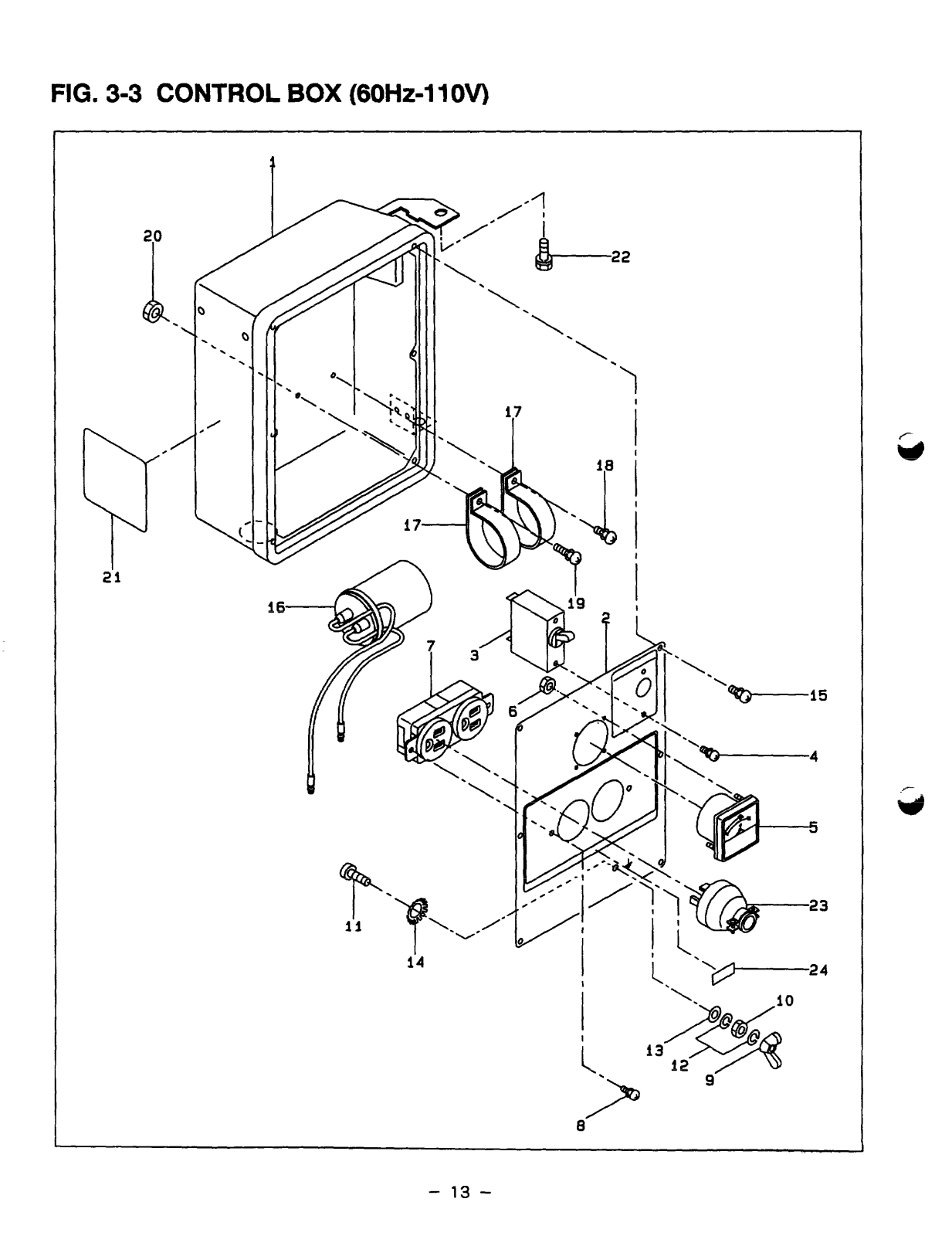

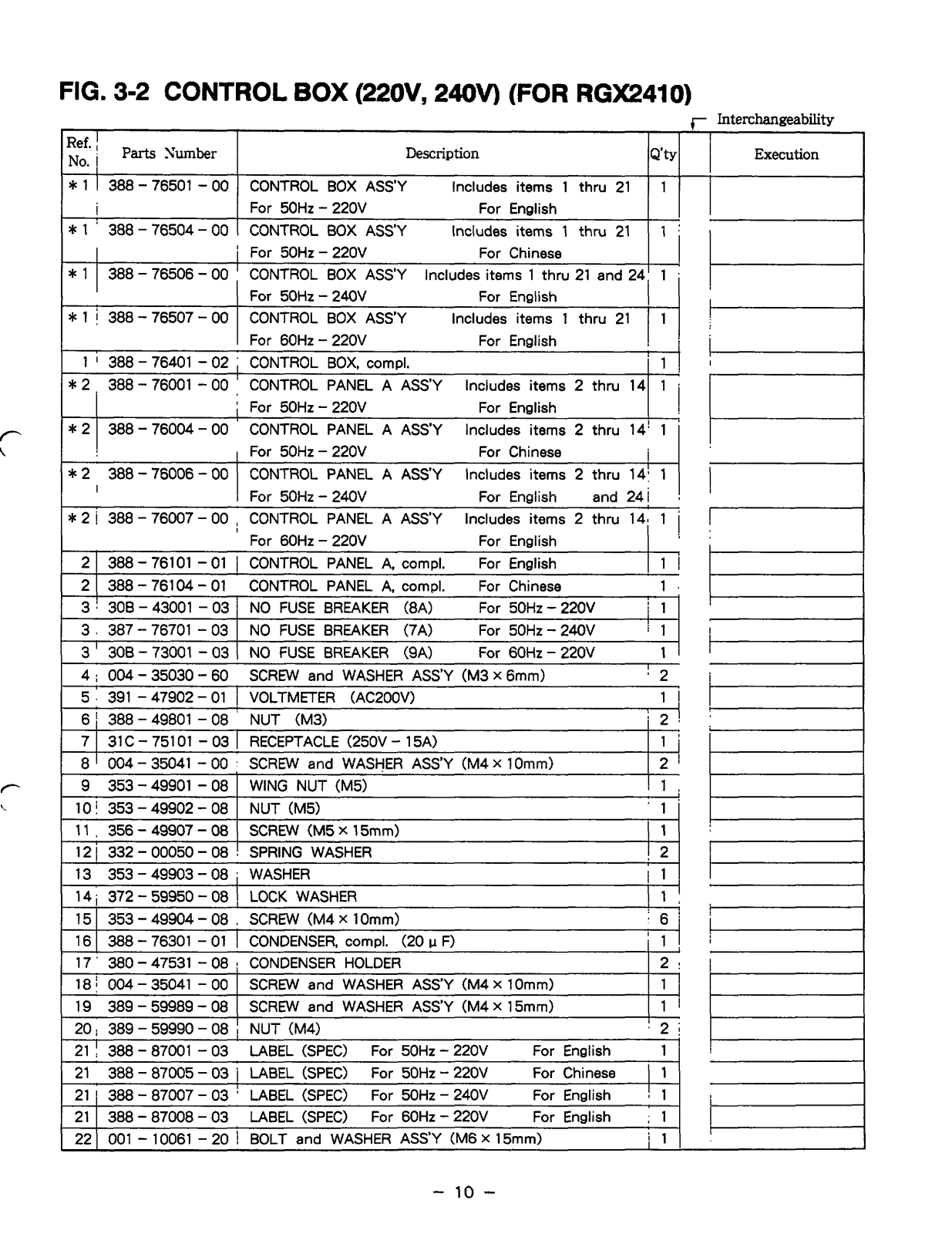

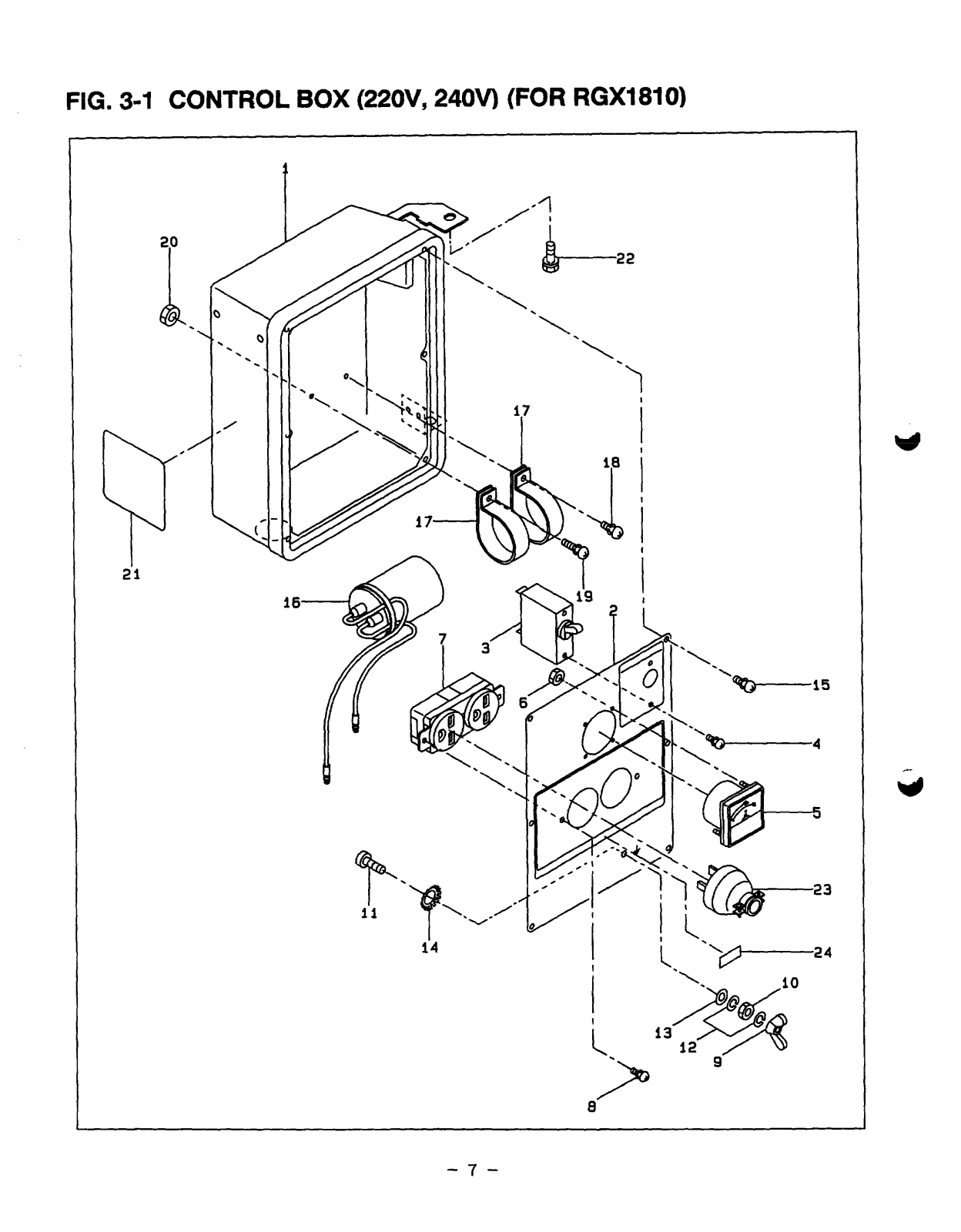

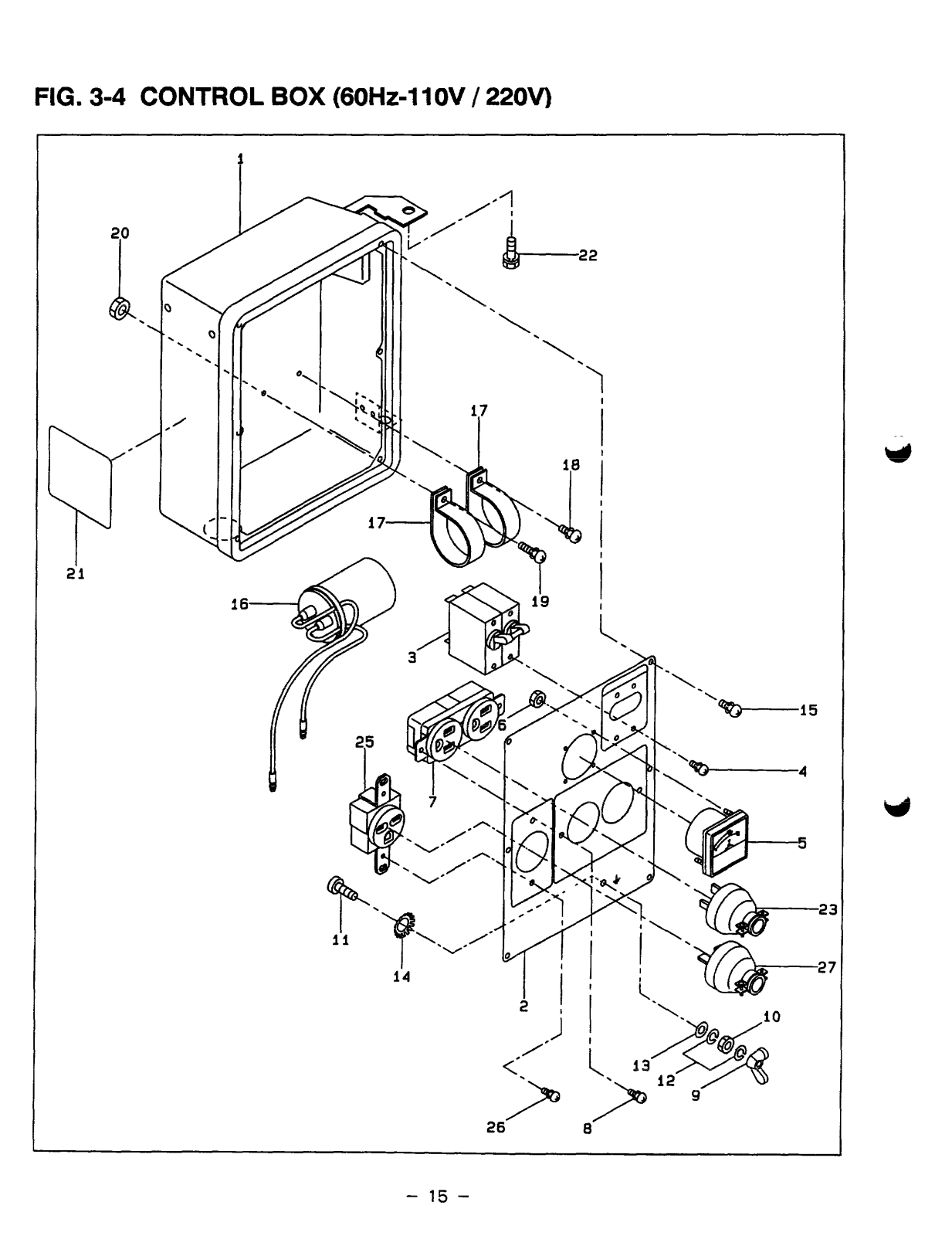

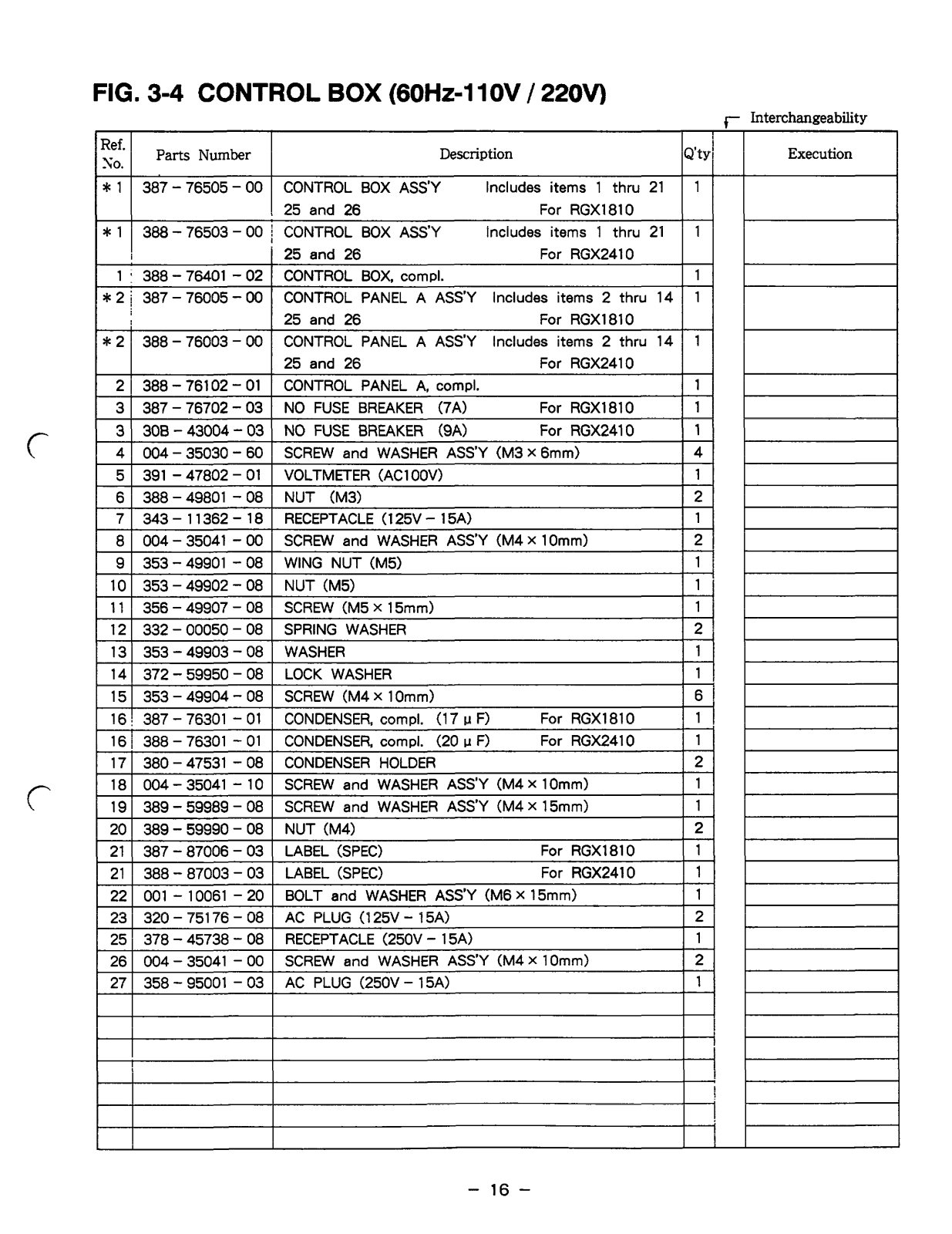

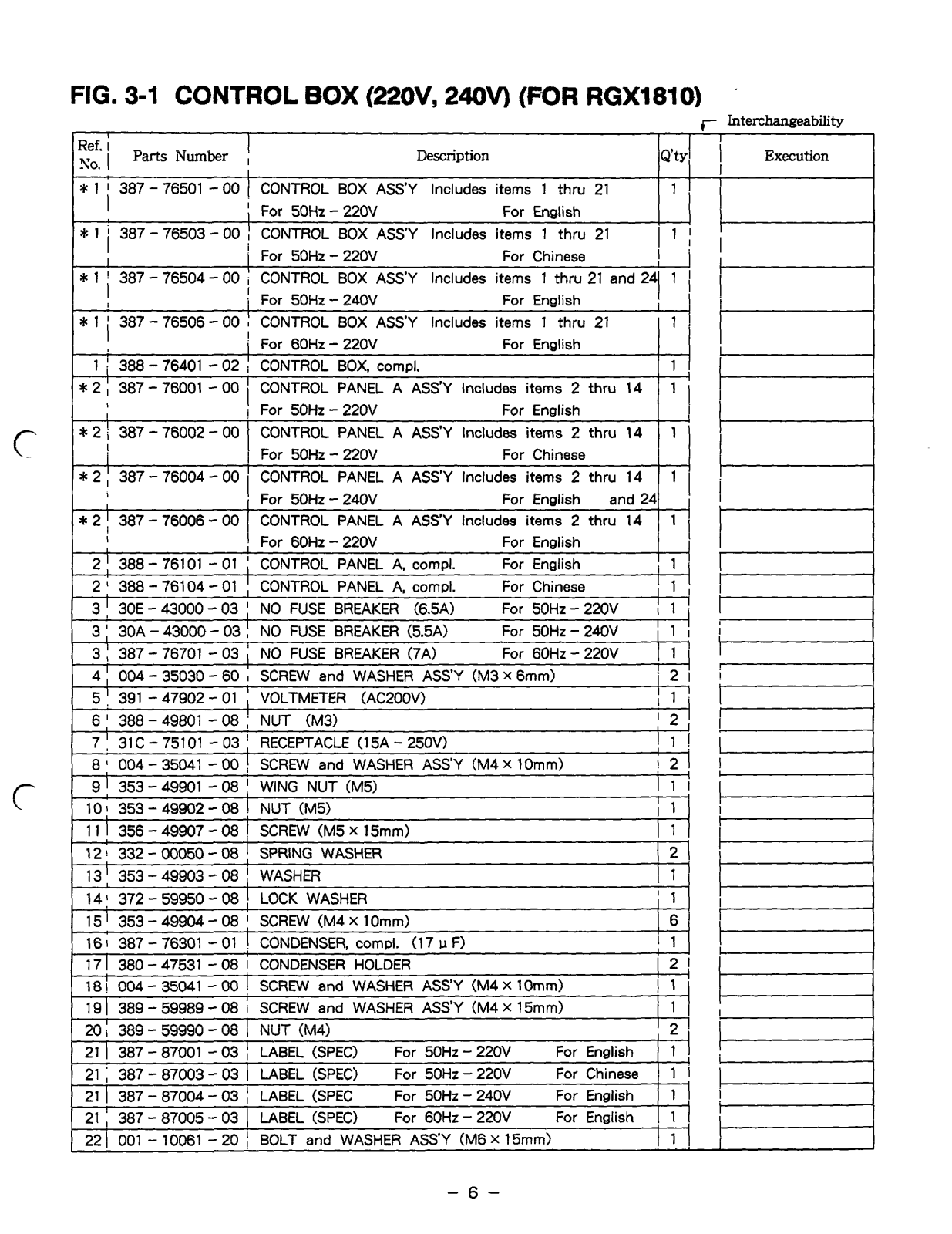

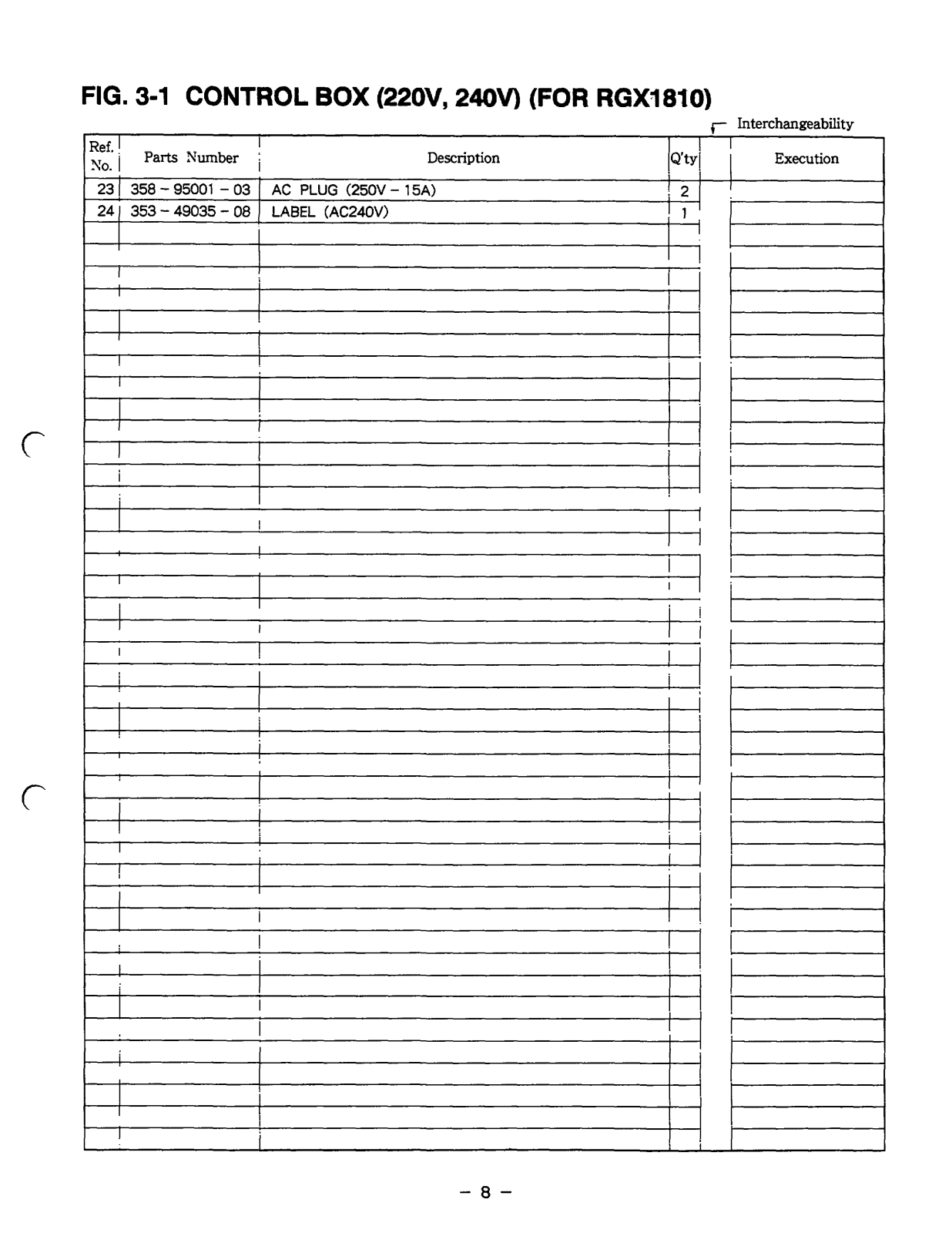

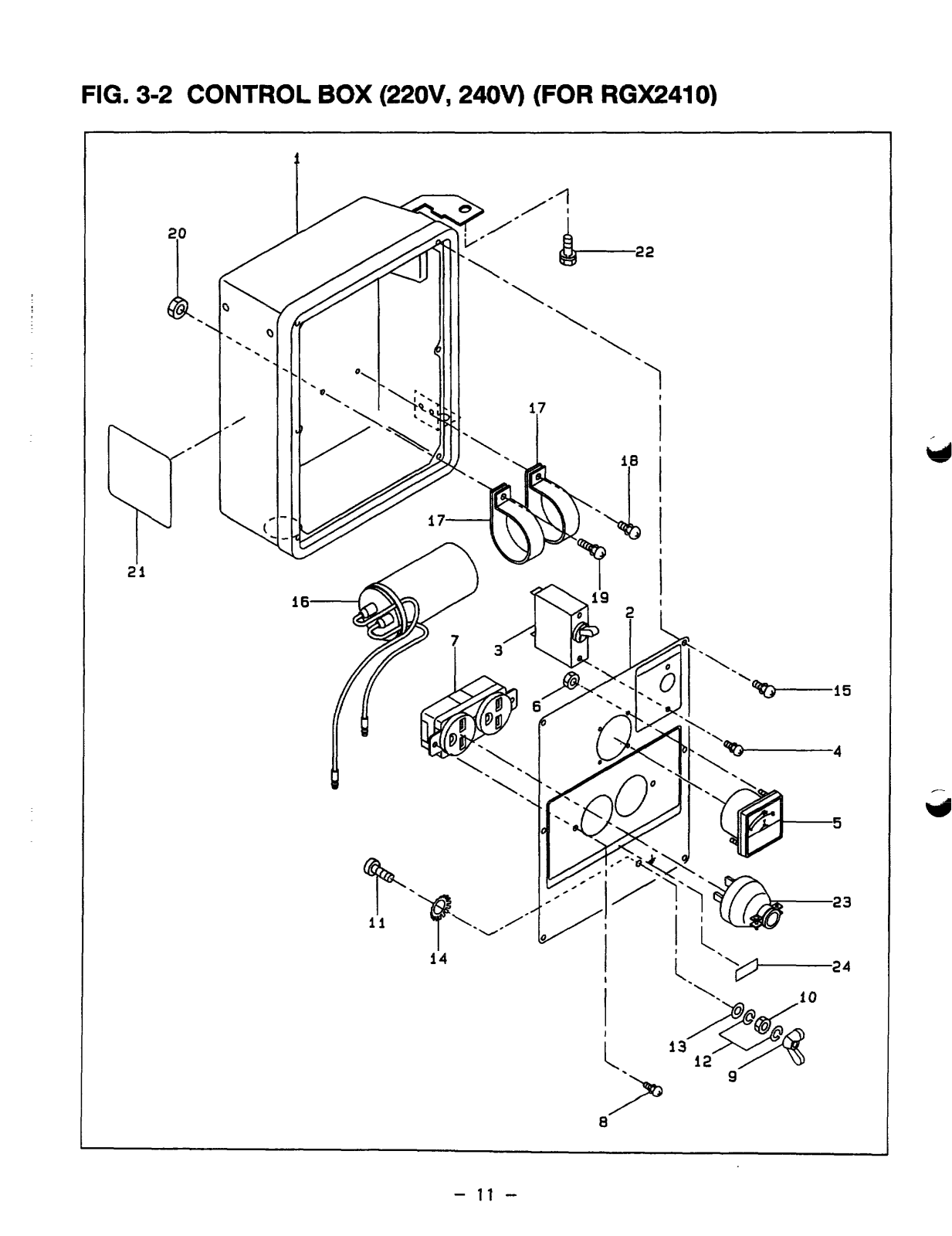

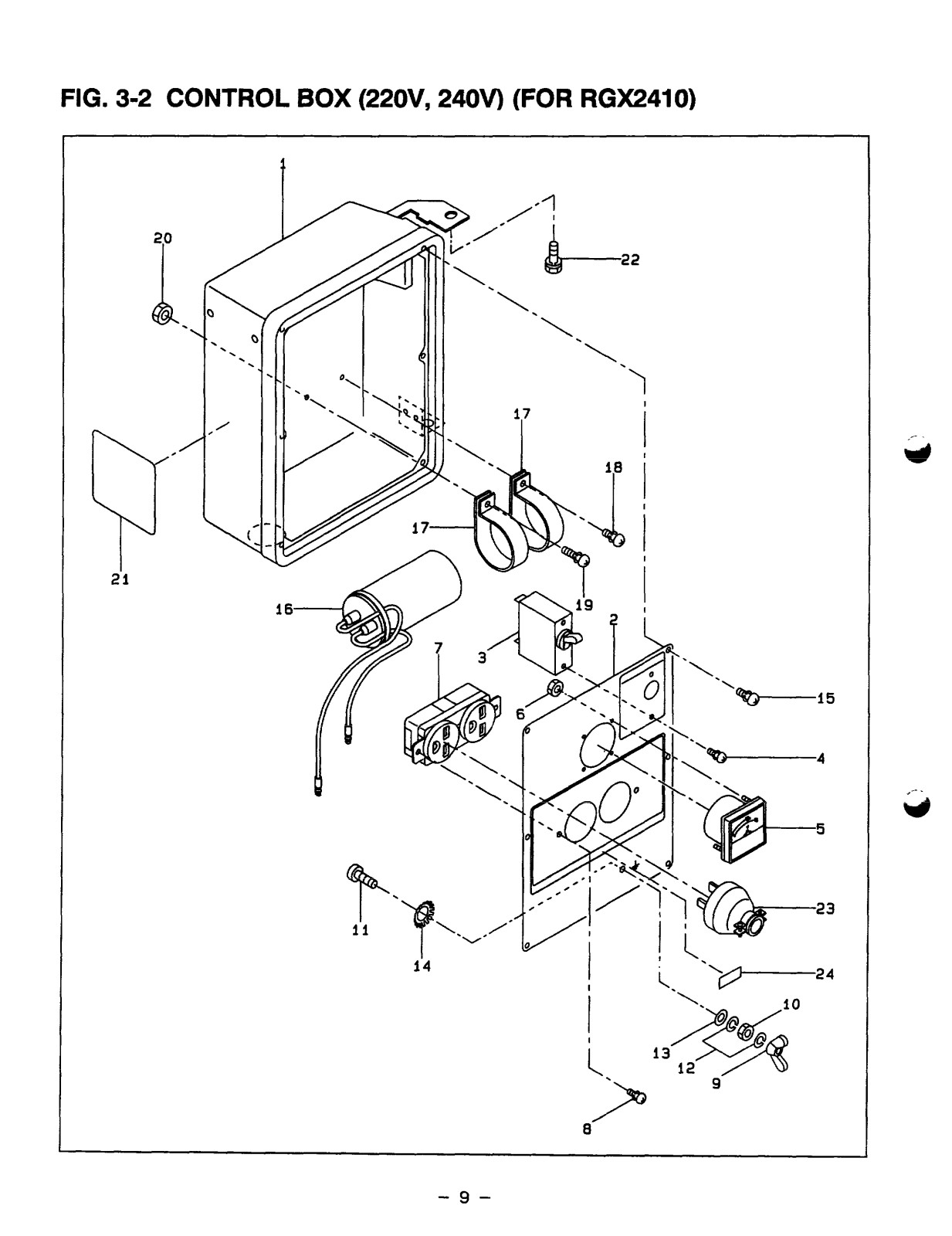

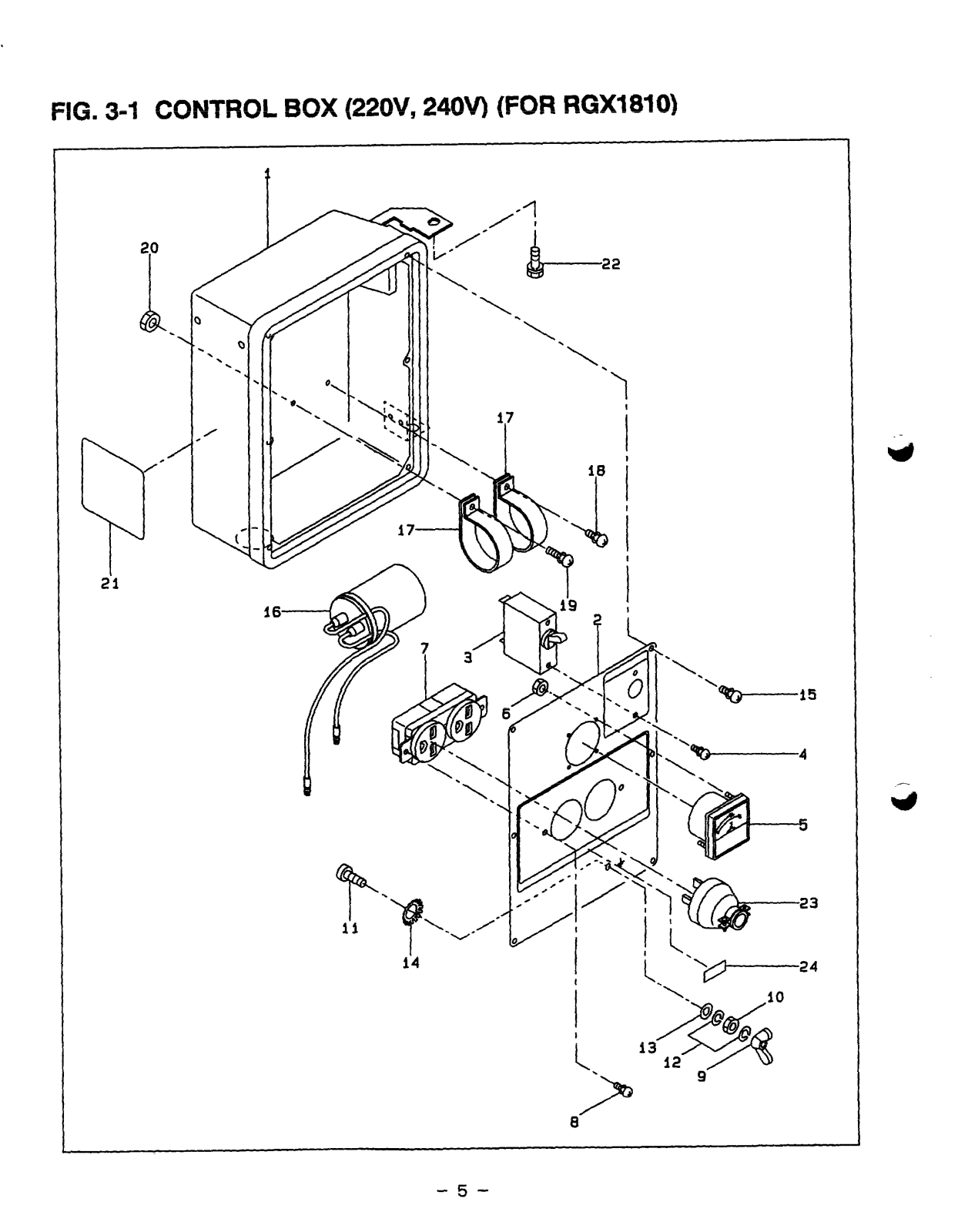

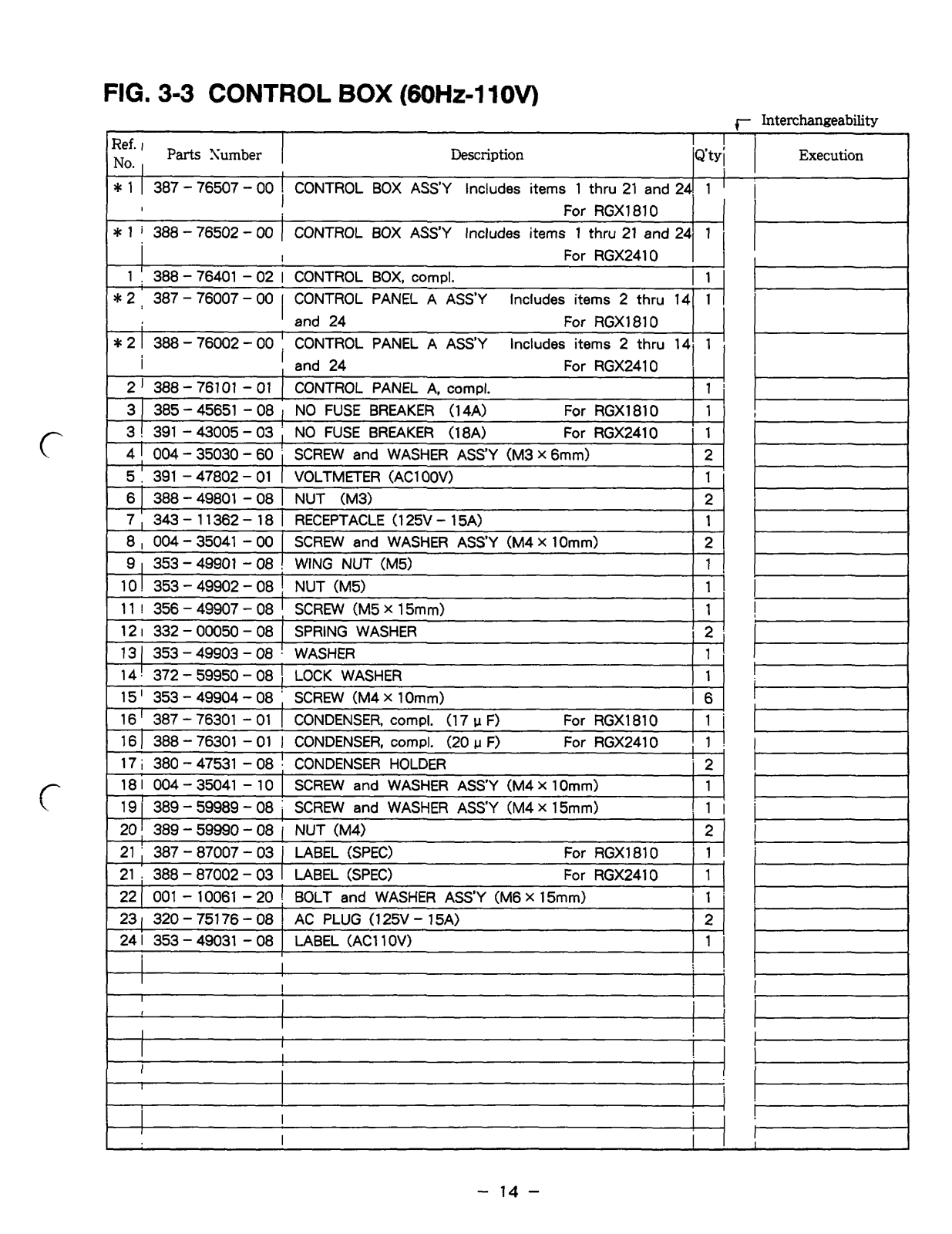

Control Box Options:

control BOX ASS’ D. For 50HZ 220 volt English in Chinese control BOX ASS’ D. For 50 HZ 240 volts English control BOX ASS’ D. For 60 HZ 220 volts English

Rated Pressure Rating: 220 and 240
Voltage Rating: 220 and 240
Common Parts:
Ball Bearing

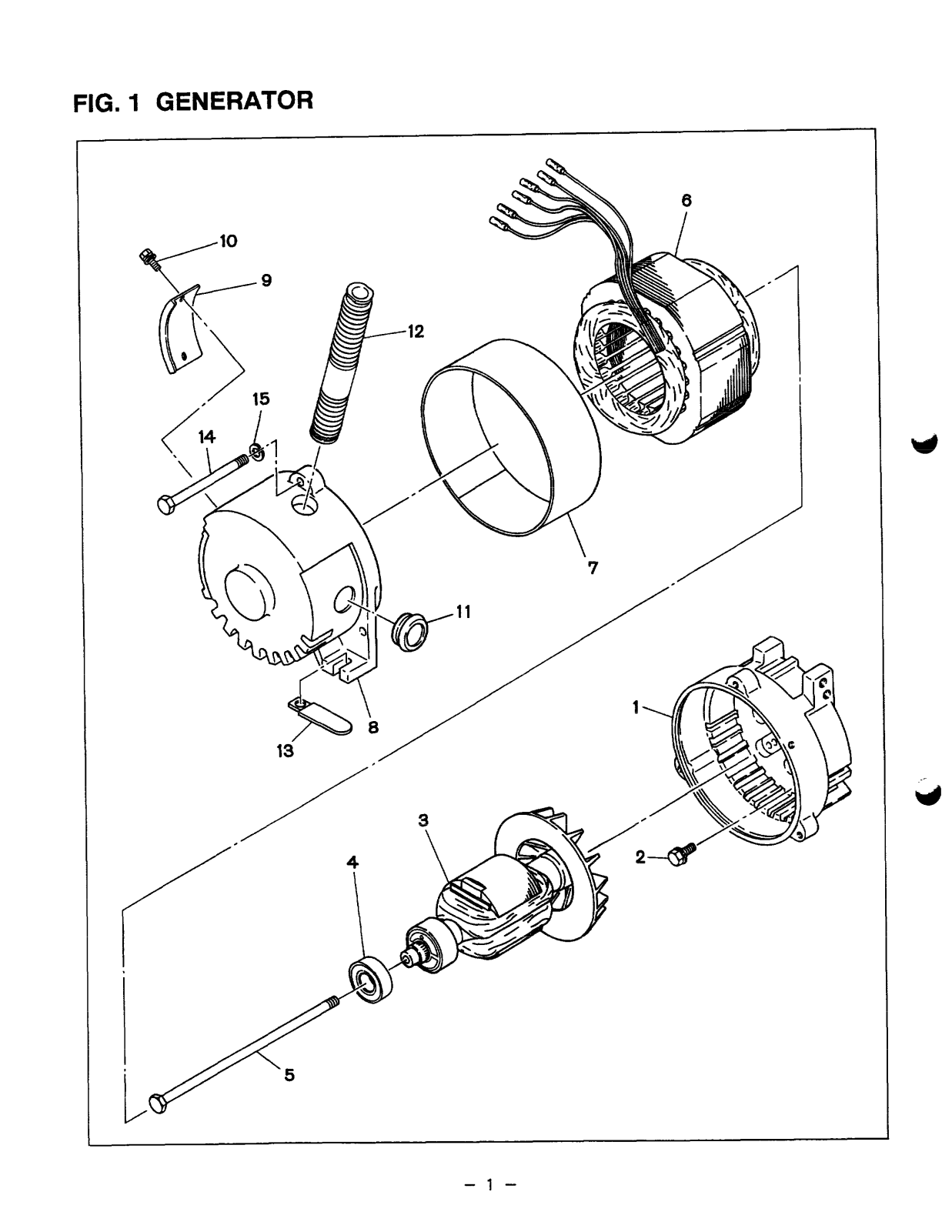

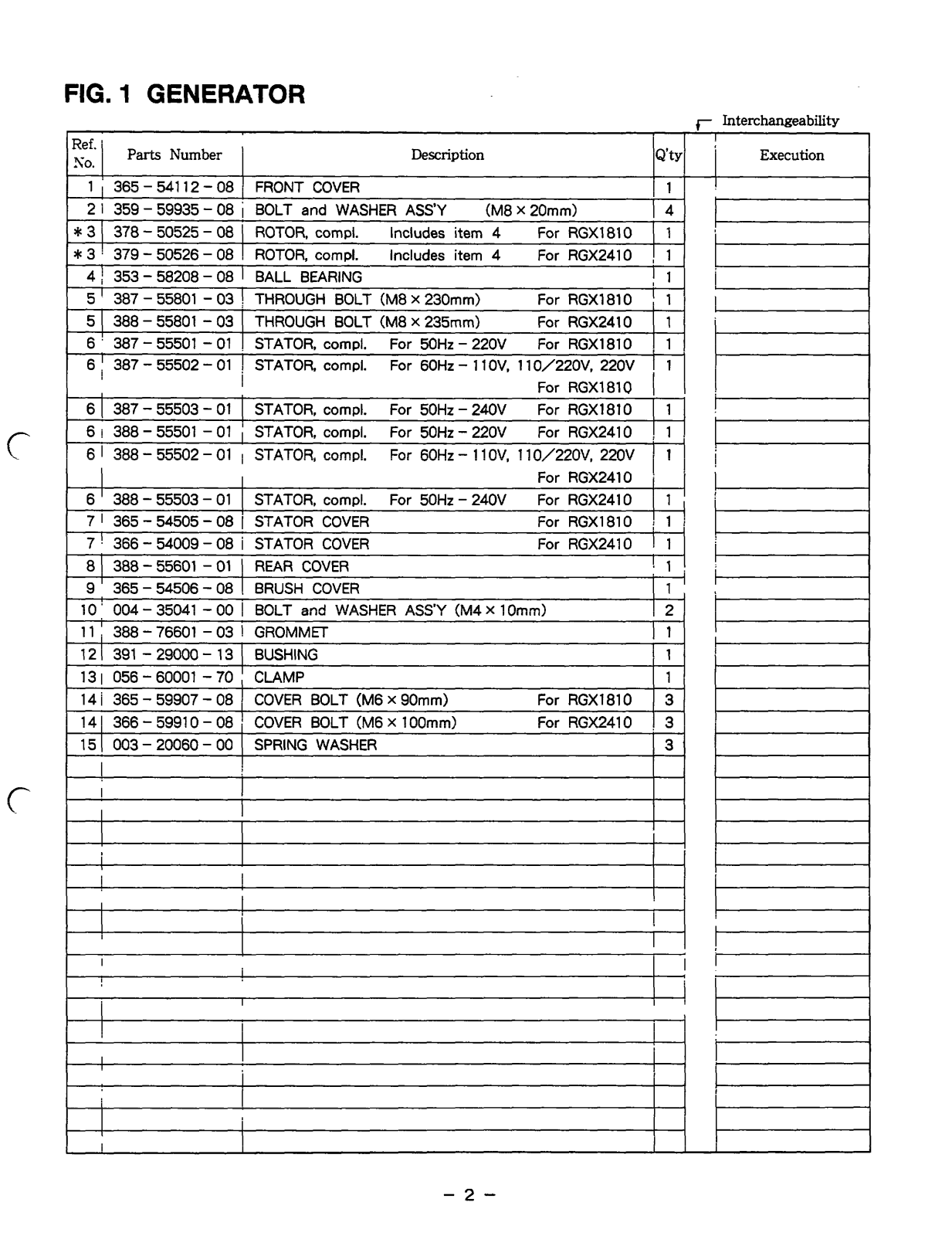

Stator (complete for various voltage and frequency combinations)
Rotor (for RGX1810 and RGX2410)

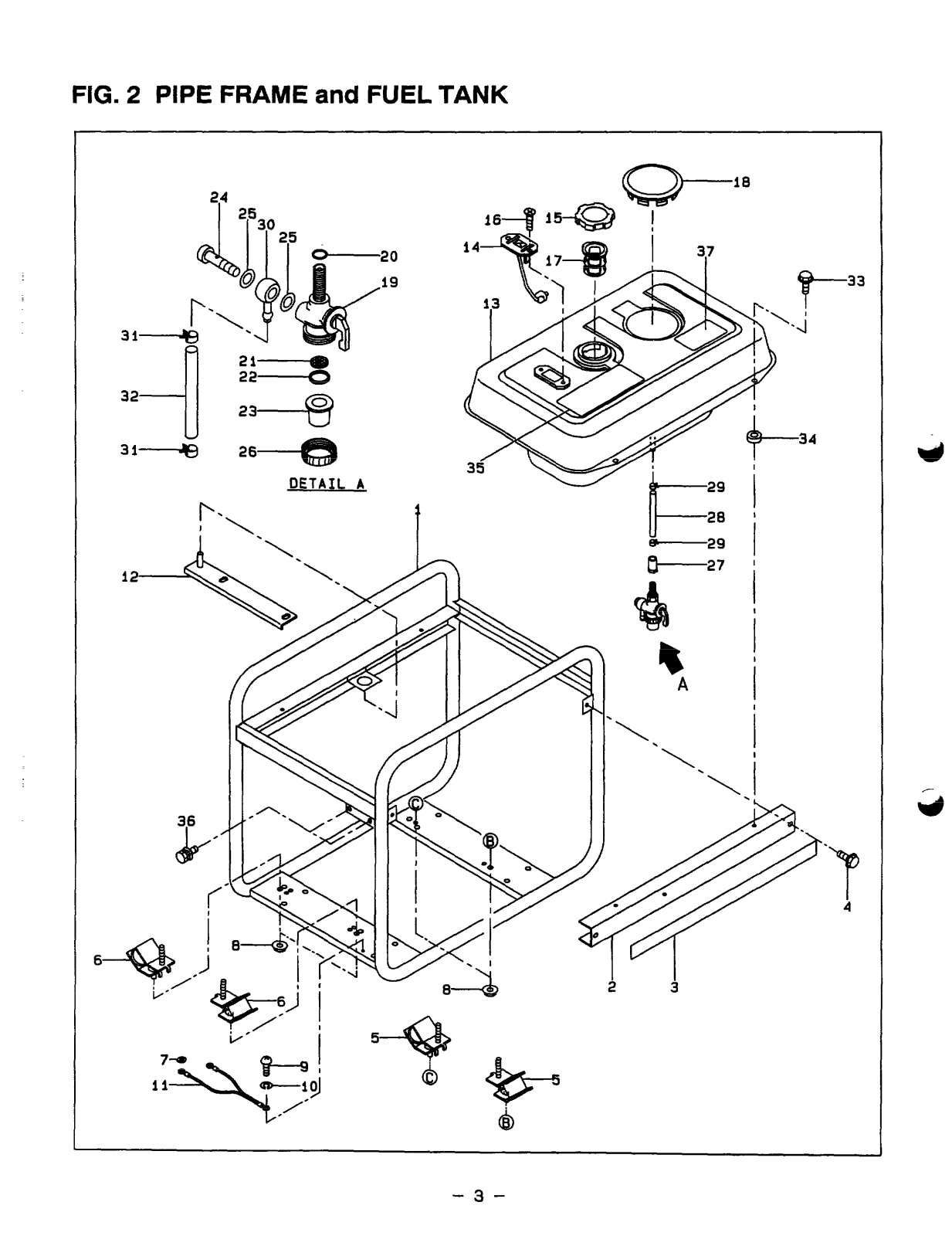

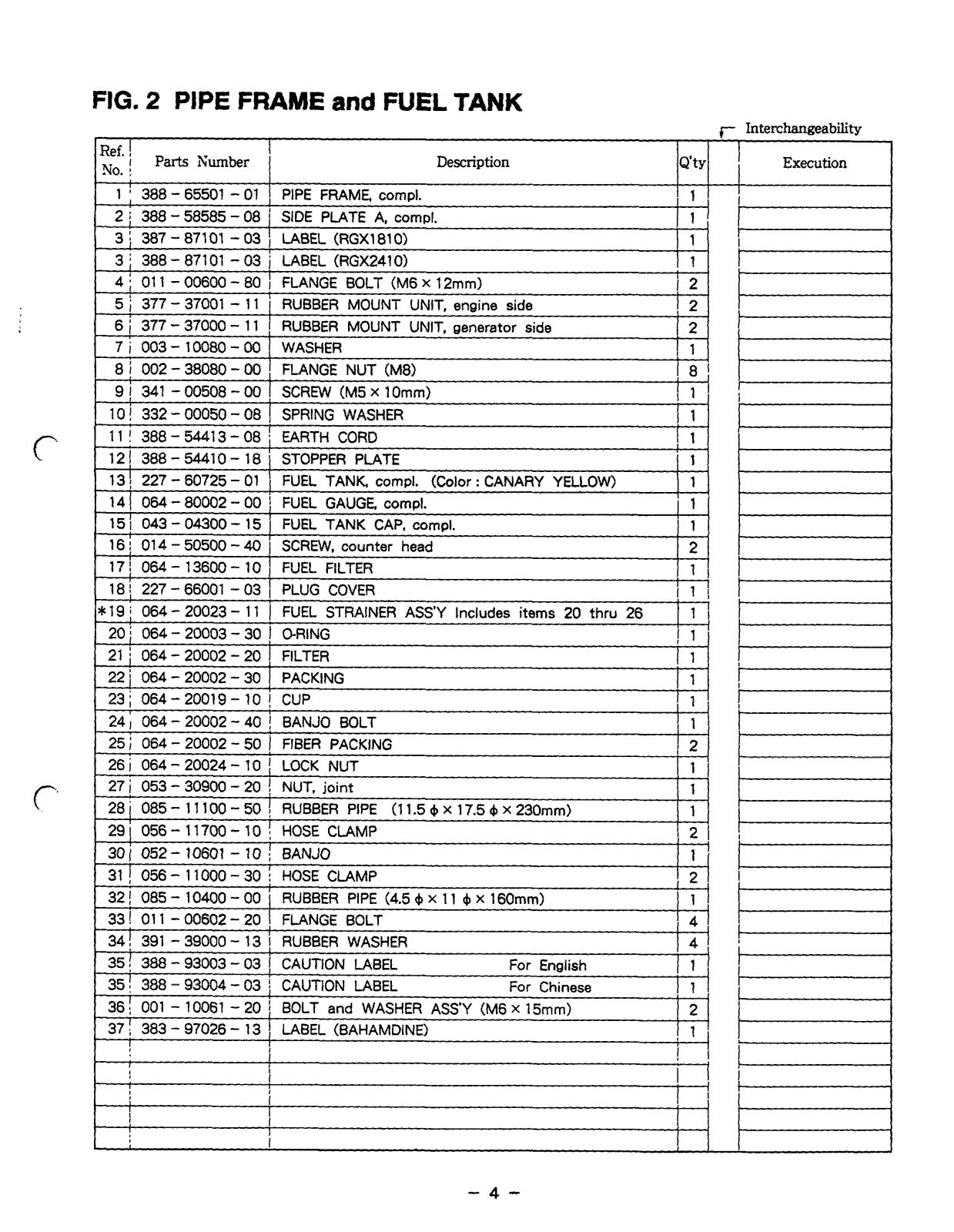

Pipe Frame
Fuel Tank (Complete assembly with gauge and cap)

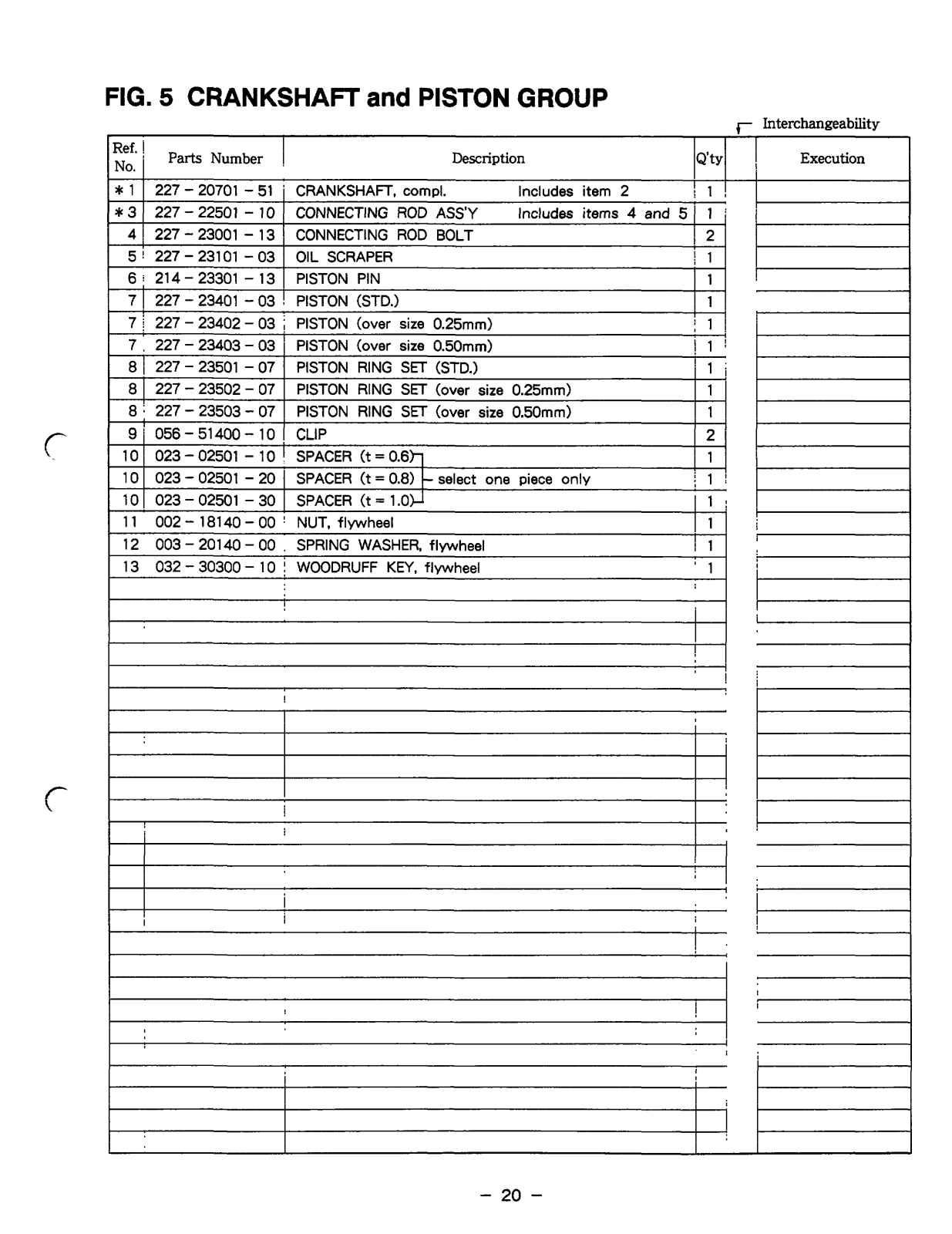

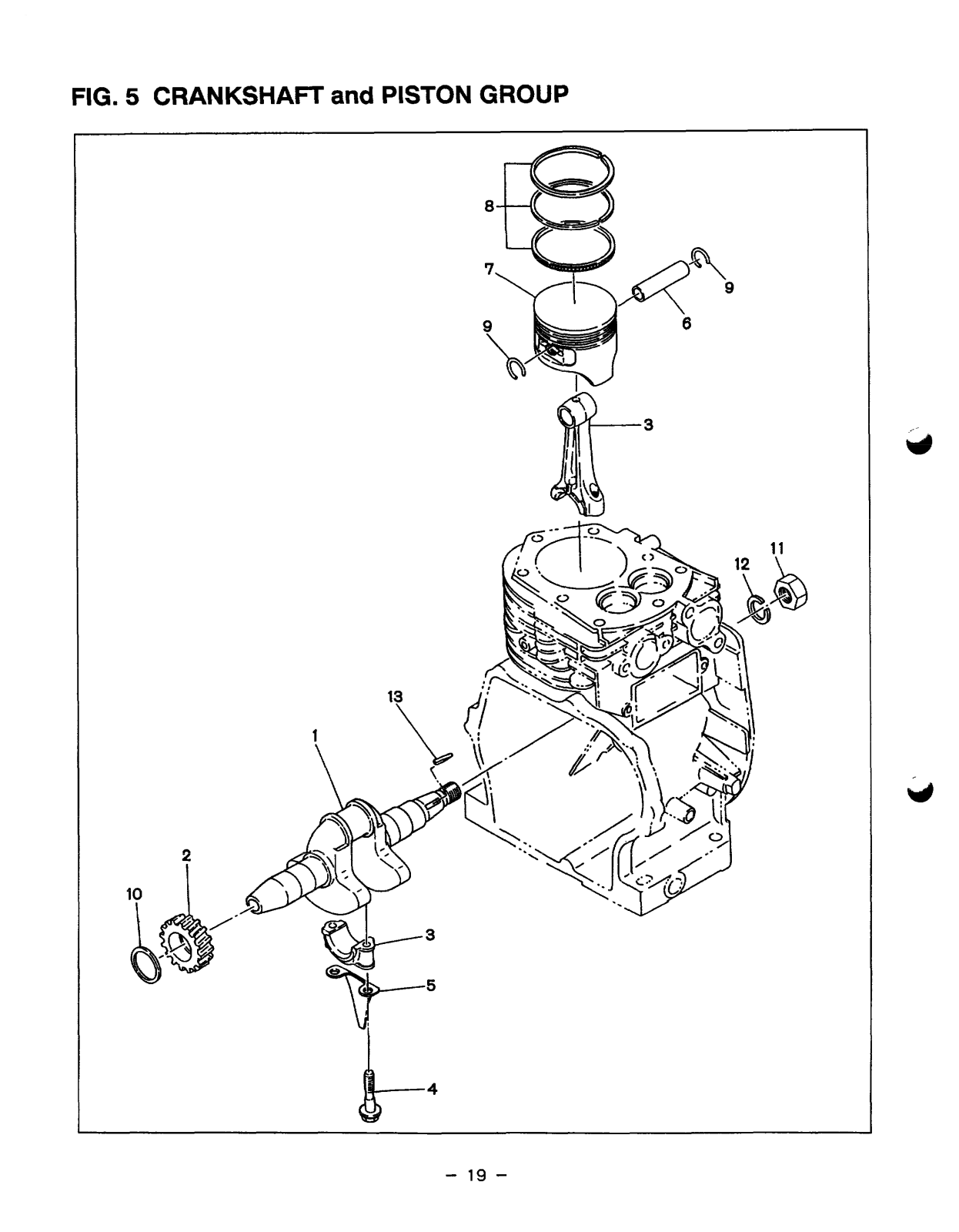

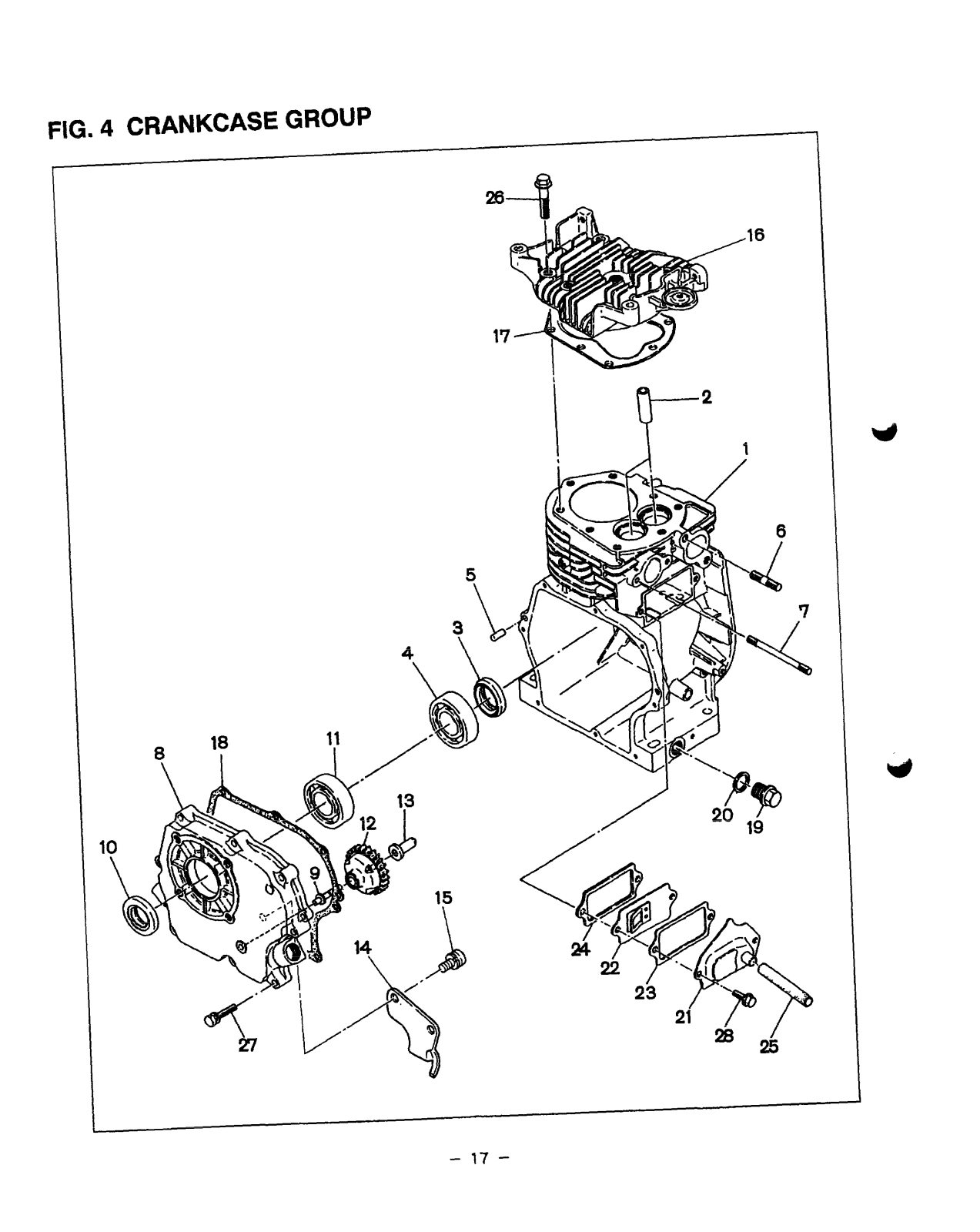

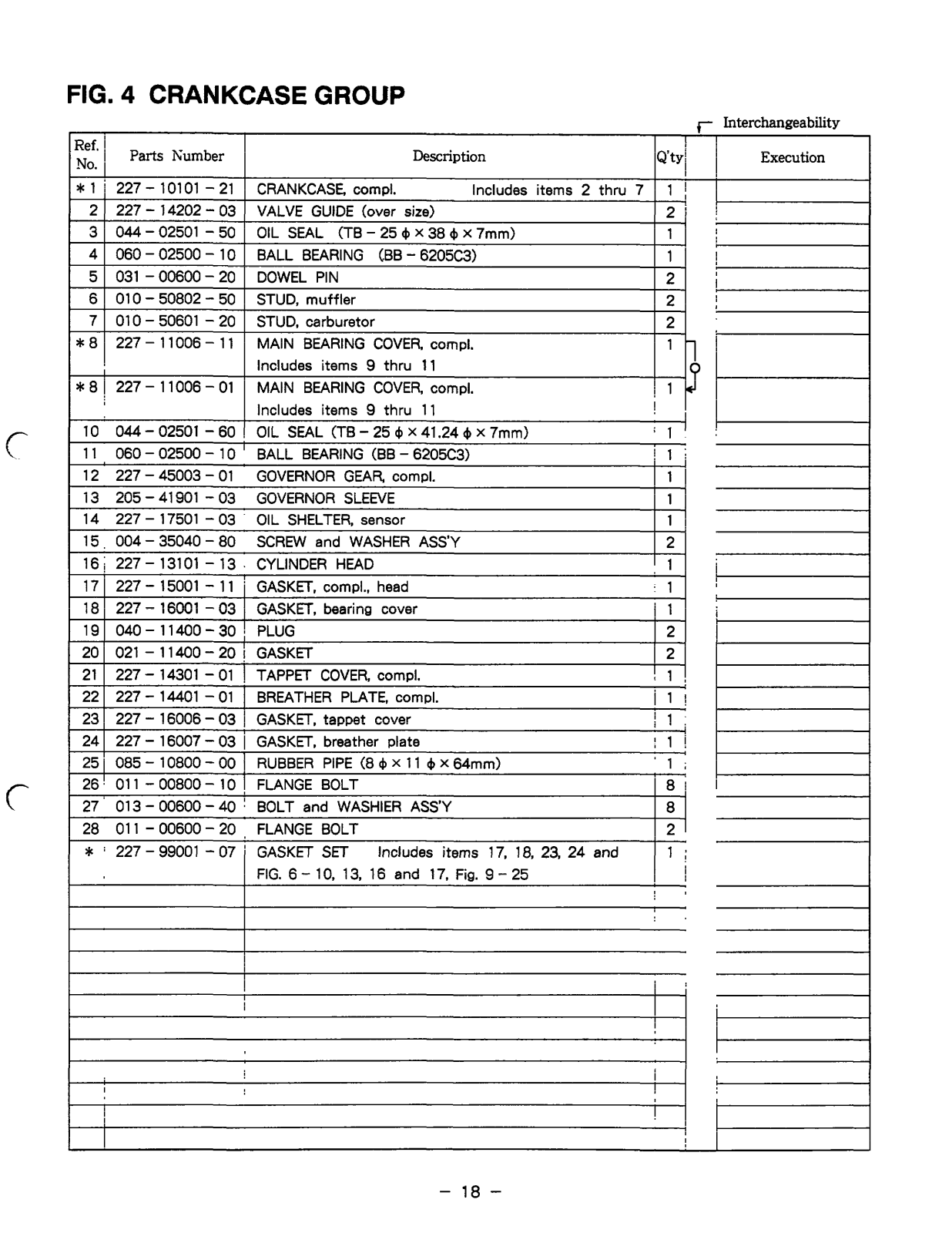

Crankcase Group

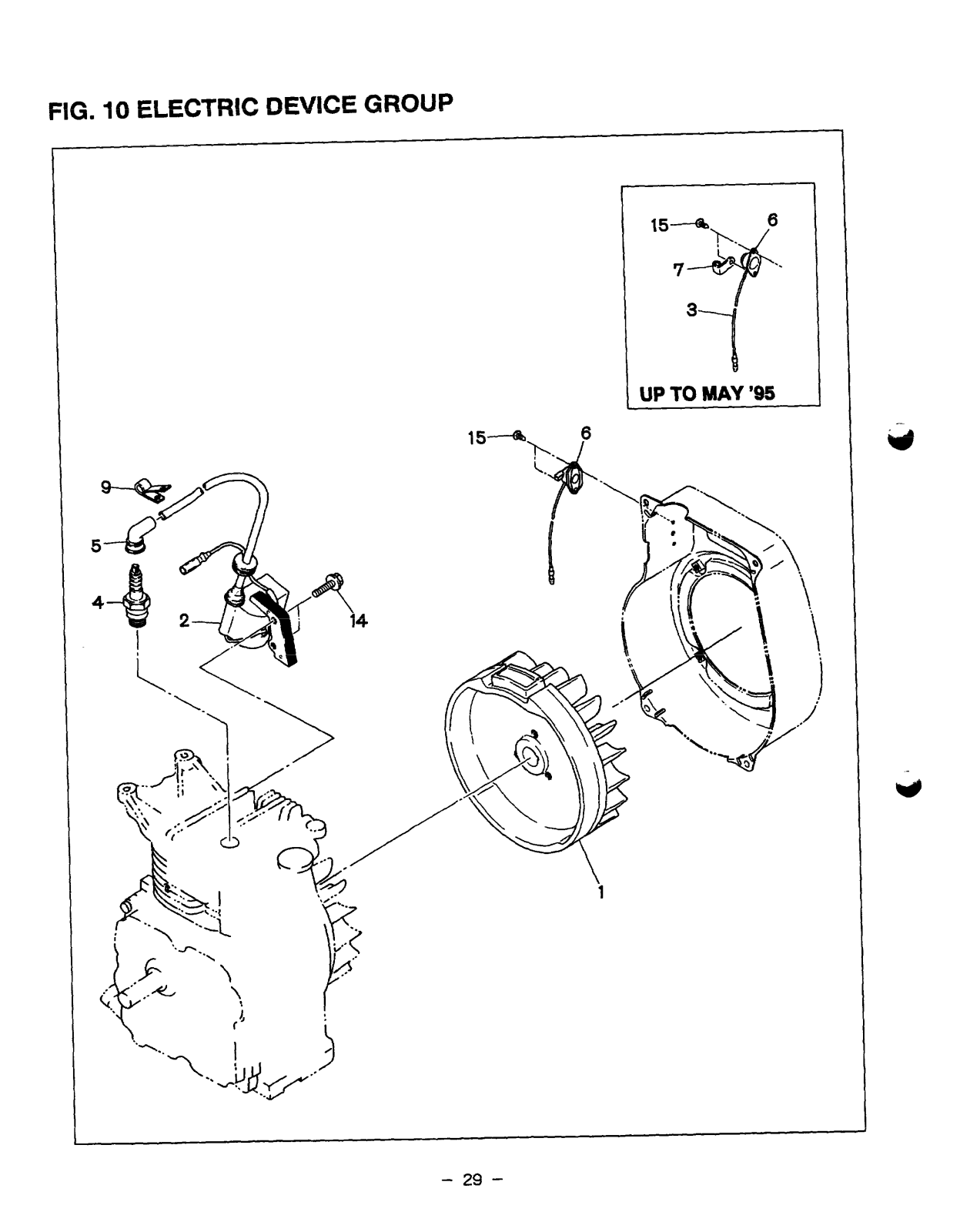

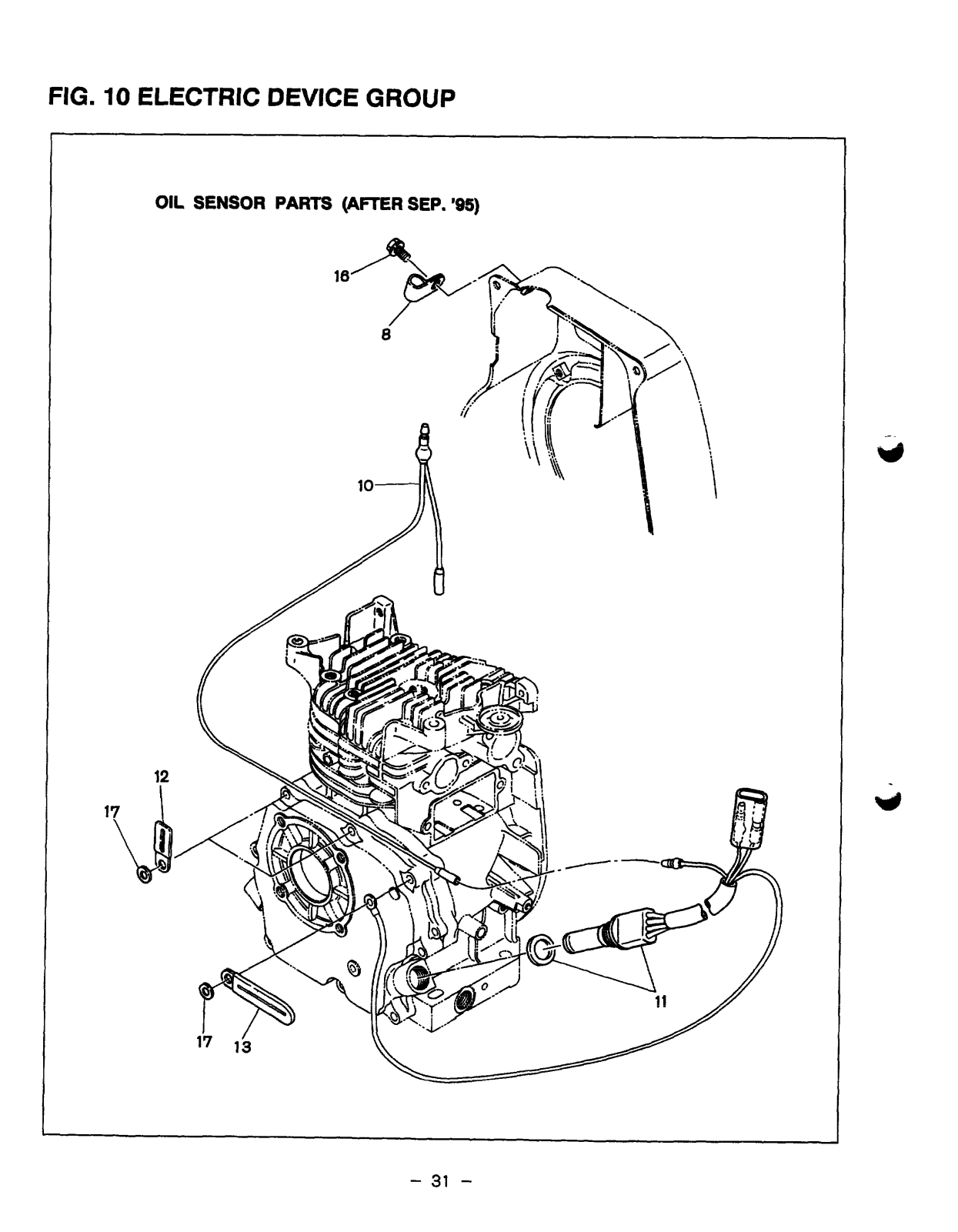

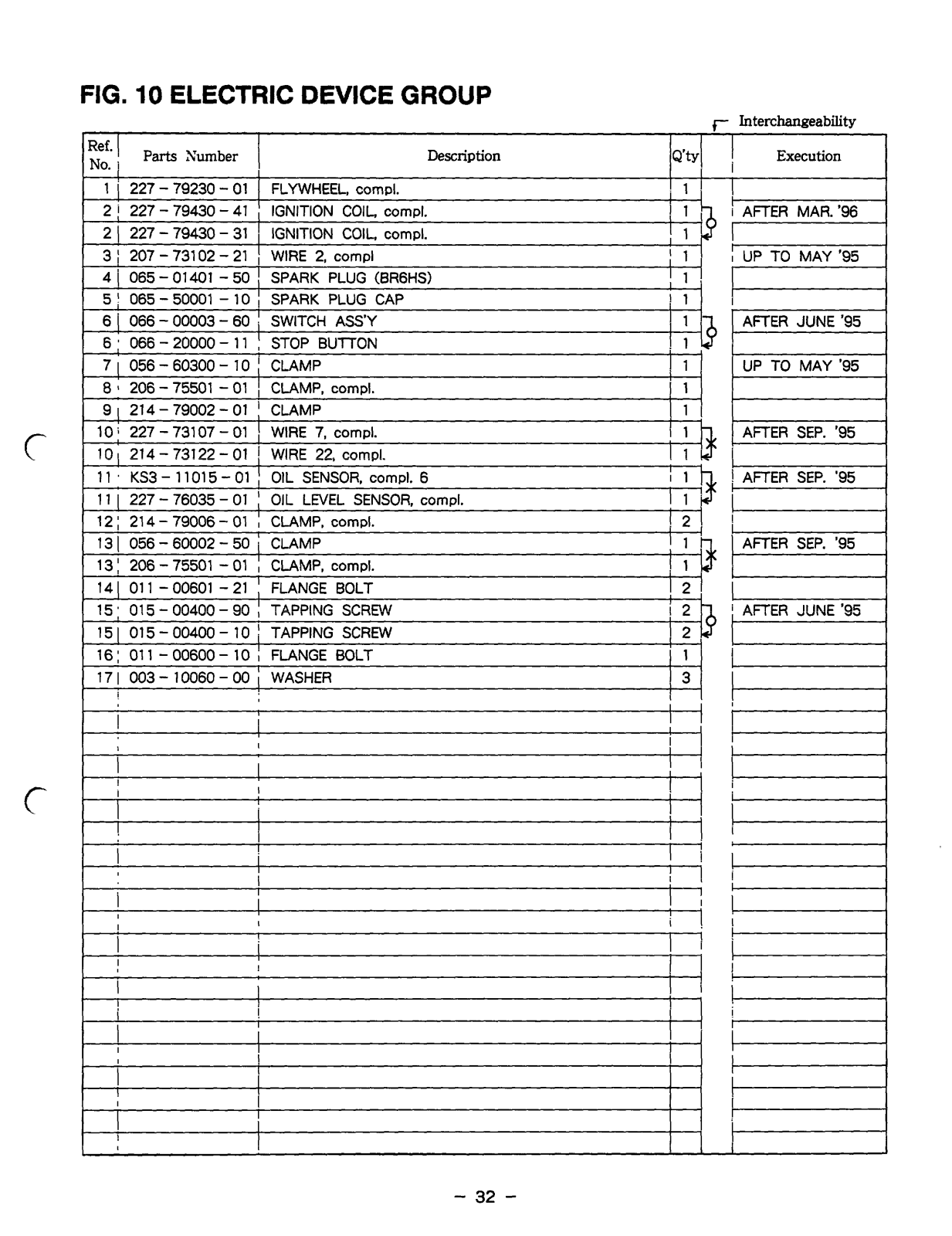

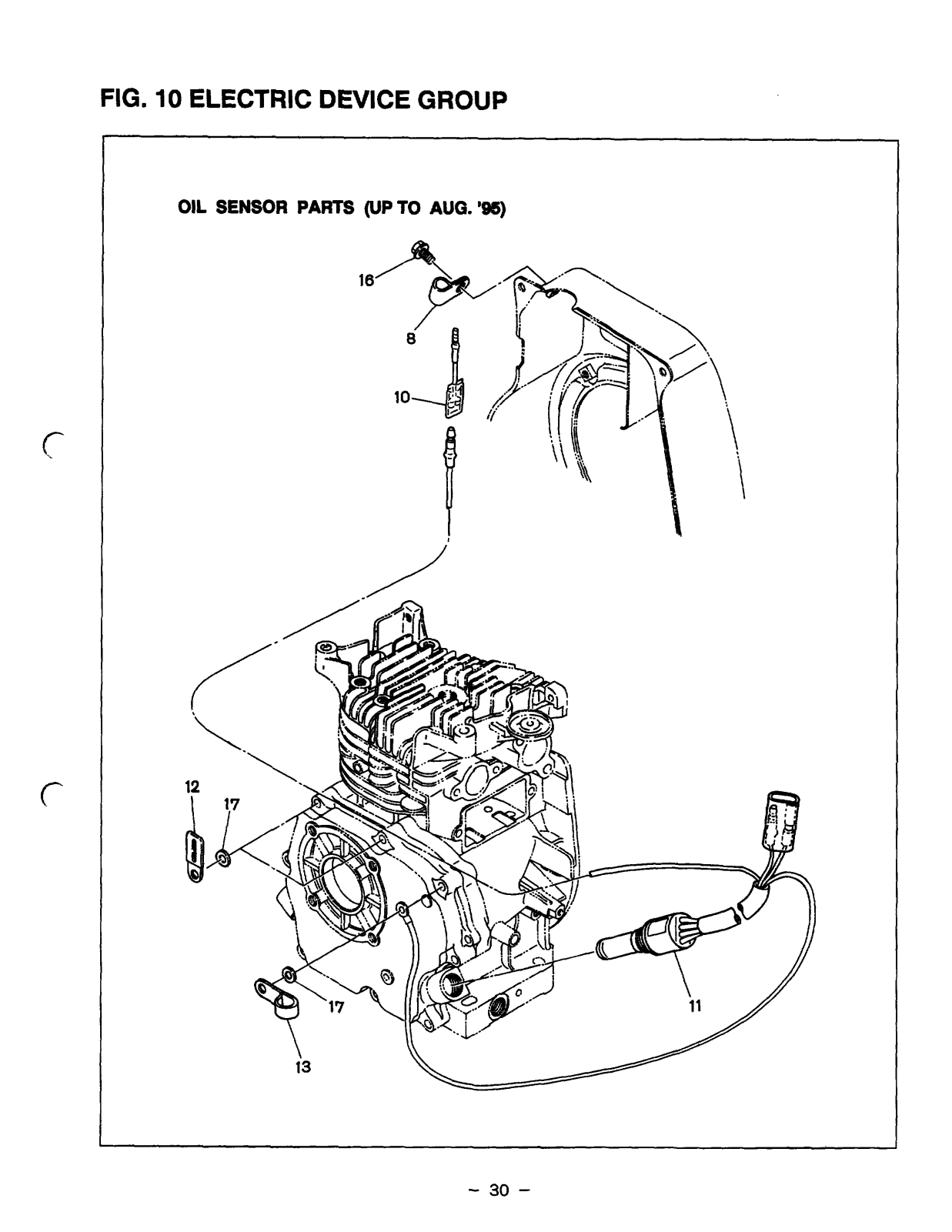

Electric Device Group (including ignition coil and voltmeter)

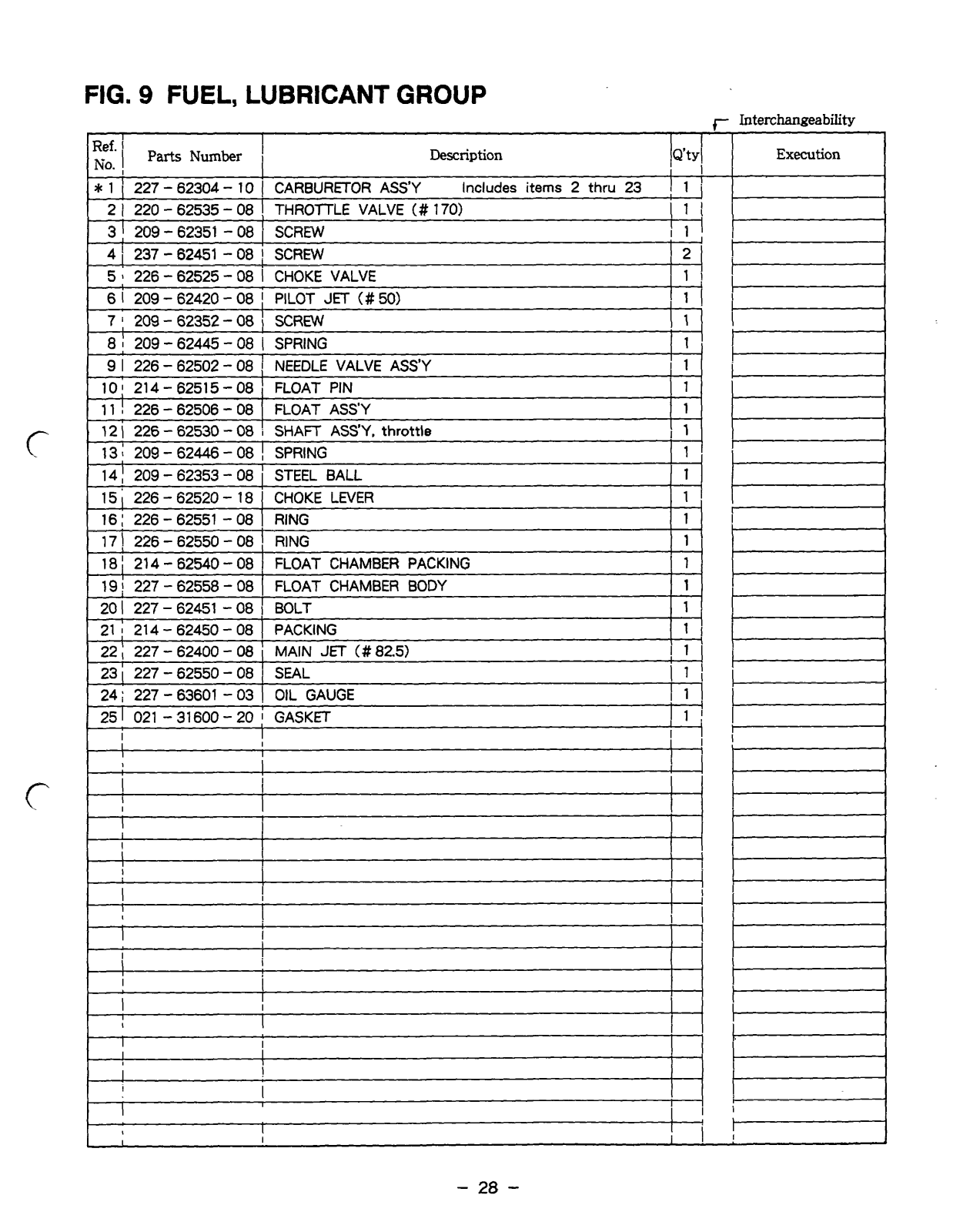

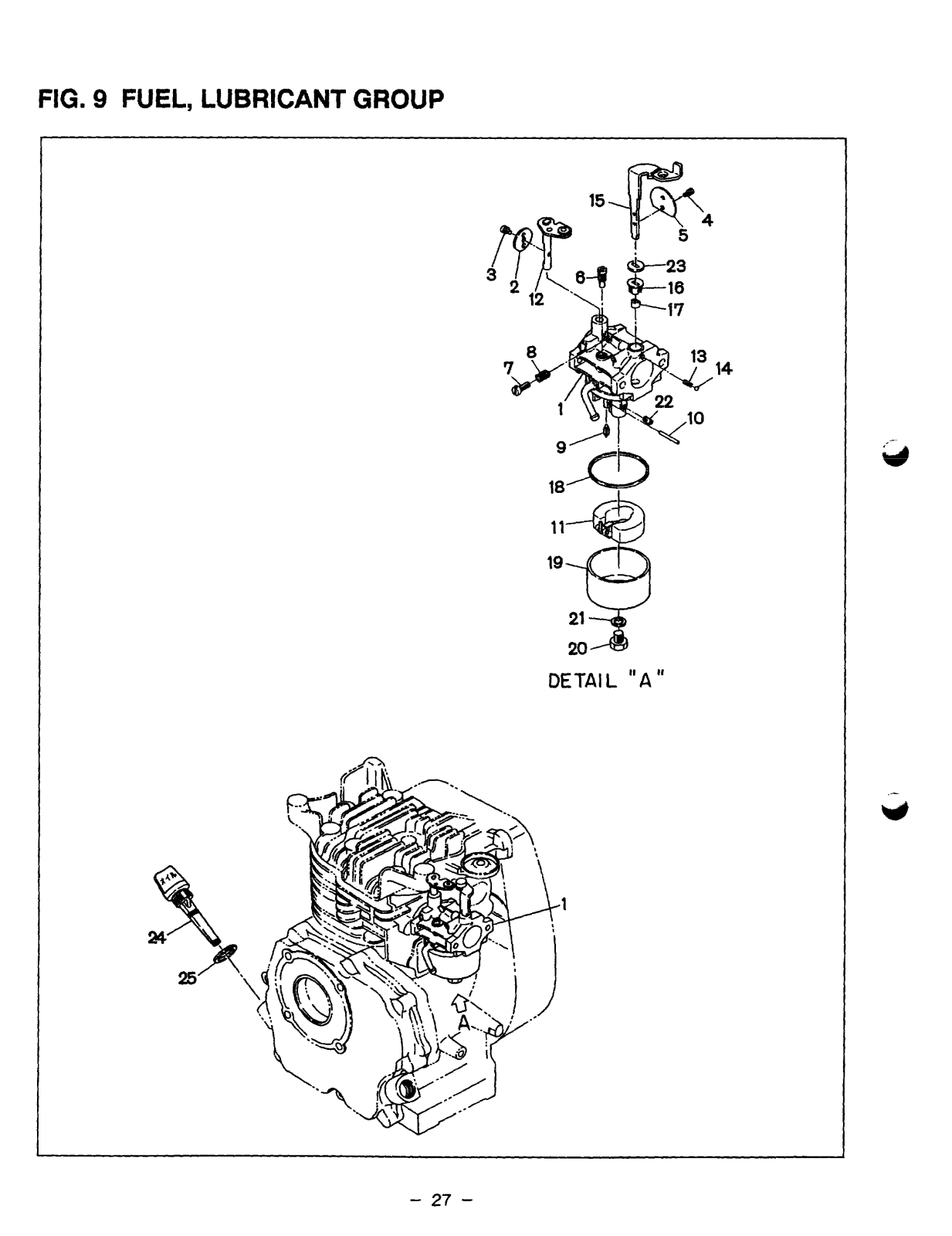

Fuel System (carburetor assembly)

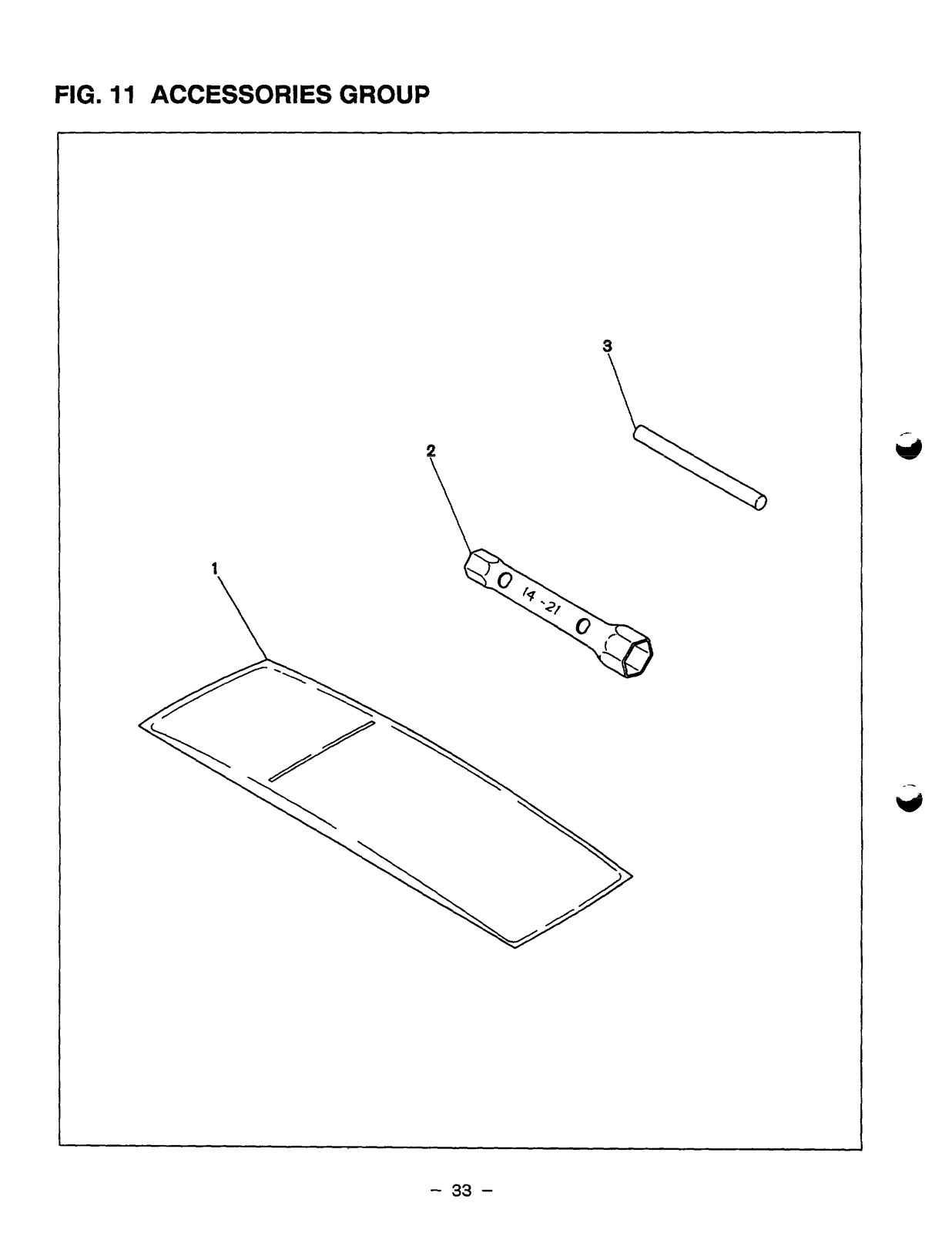

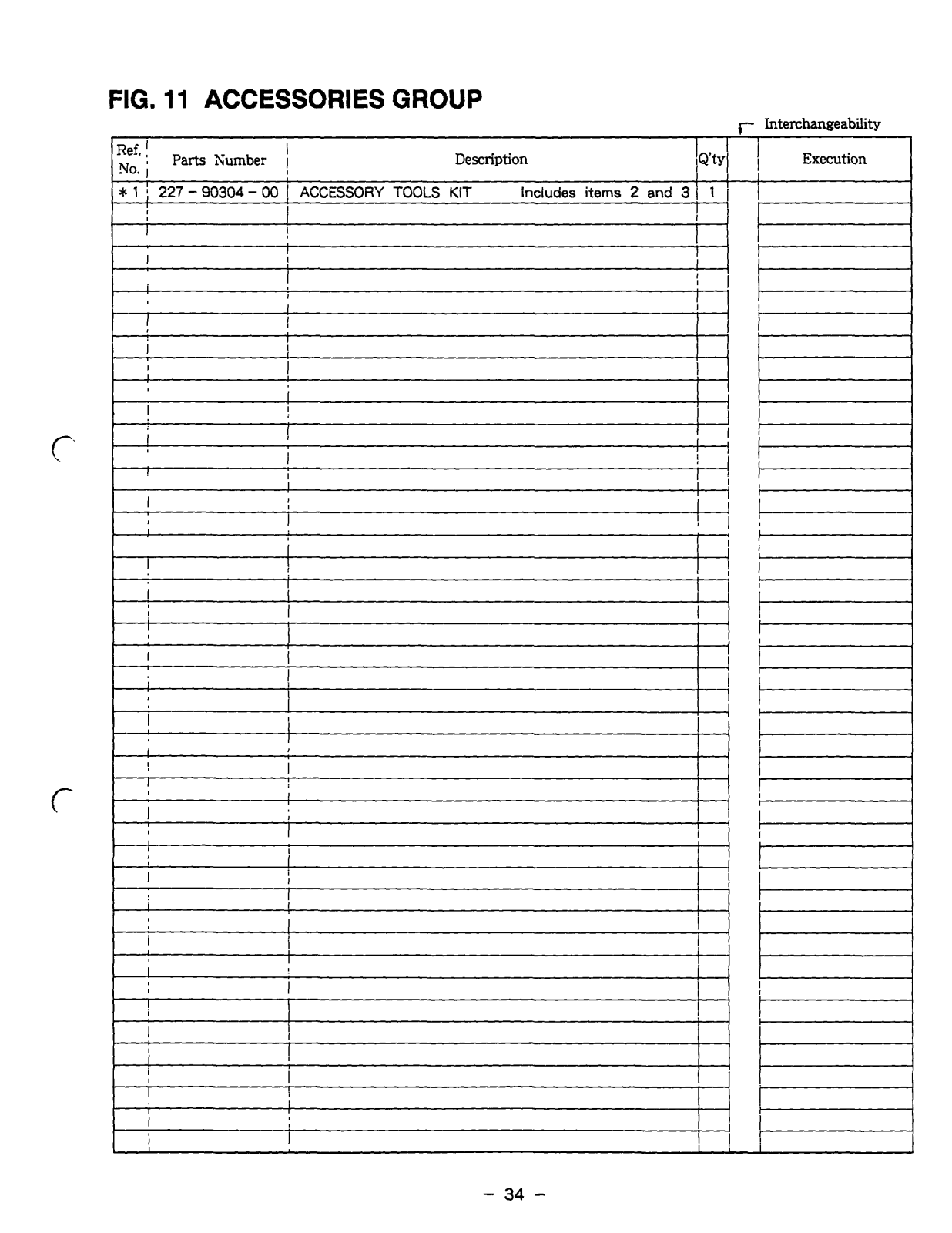

Accessories Group
Cooling and Other Equipment:

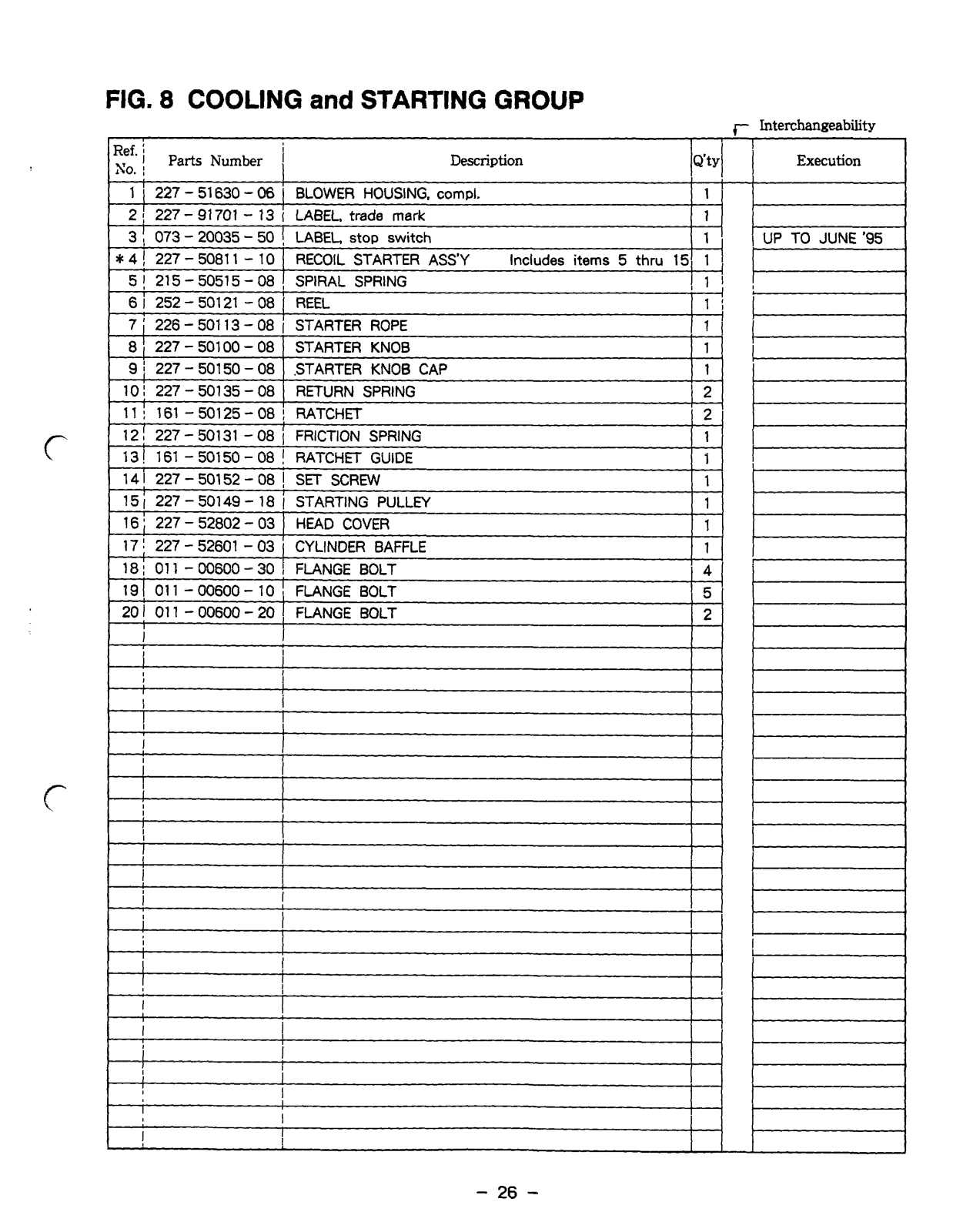

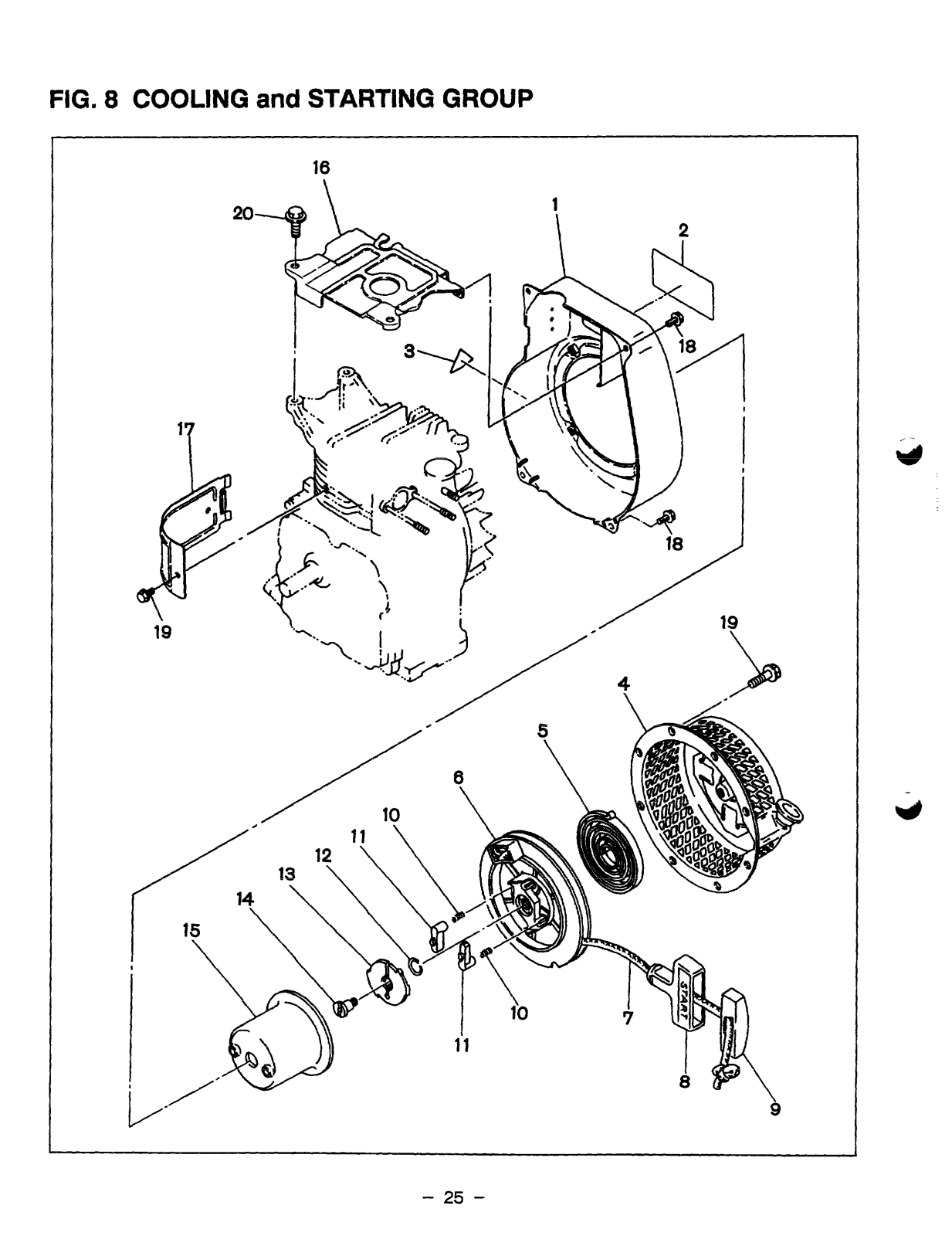

Cooling and Starting Group (including recoil starter)
DIMENSIONS: Does not indicate in the document
WEIGHT: Does not indicate in the document

Frequently Asked Questions

Q: What is the power output of the RGX1810 and RGX2410 models ?
A: Power output specifications are not provided in the document

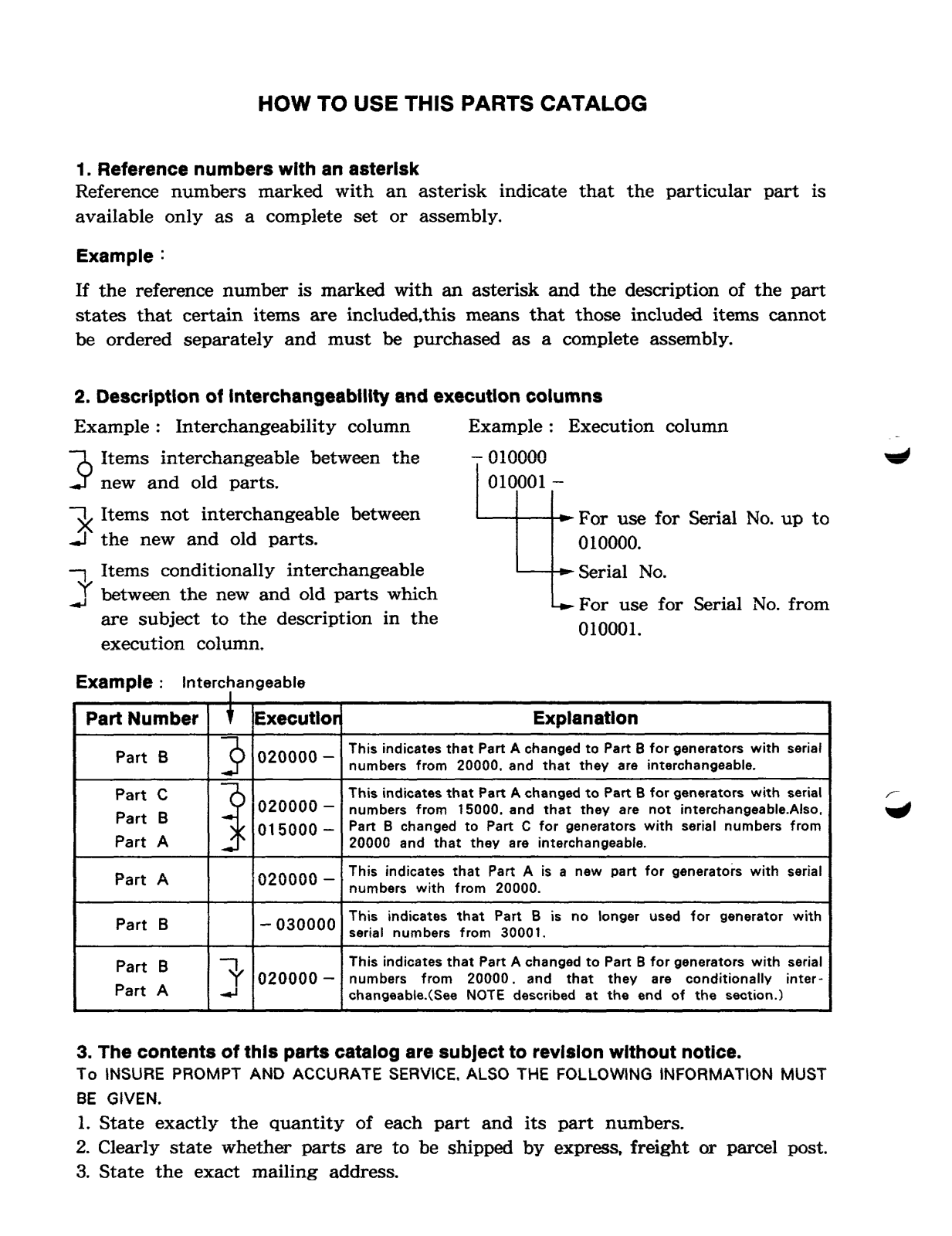

Q:How can I order replacement parts for my generator?
A: Need to state the quantity of each part and its part number clearly when ordering and shipping method detailed.
Q: Are parts interchangeable between RGX1810 and RGX2410?
A: Some components are common but others are model dependent so refer to parts catalog for the specific details on interchangeability.
Q: What is the location of the control panel adjustments?
A: Control panel adjustments are detailed in the documents for the CONTROL PANEL A ASS’Y found in the parts catalog.
Q: The generator has a warranty?
A: Document does not provide such warranties.
Q: Is there information on repairs of this generator?
A: No, the document provided makes no reference to such repair guides so use authorized service centers for help.
Q: What care is required for the fuel system?
A: Cleaning the carburetor and inspecting the fuel system are common practices however there are no specific instructions given in the document.
