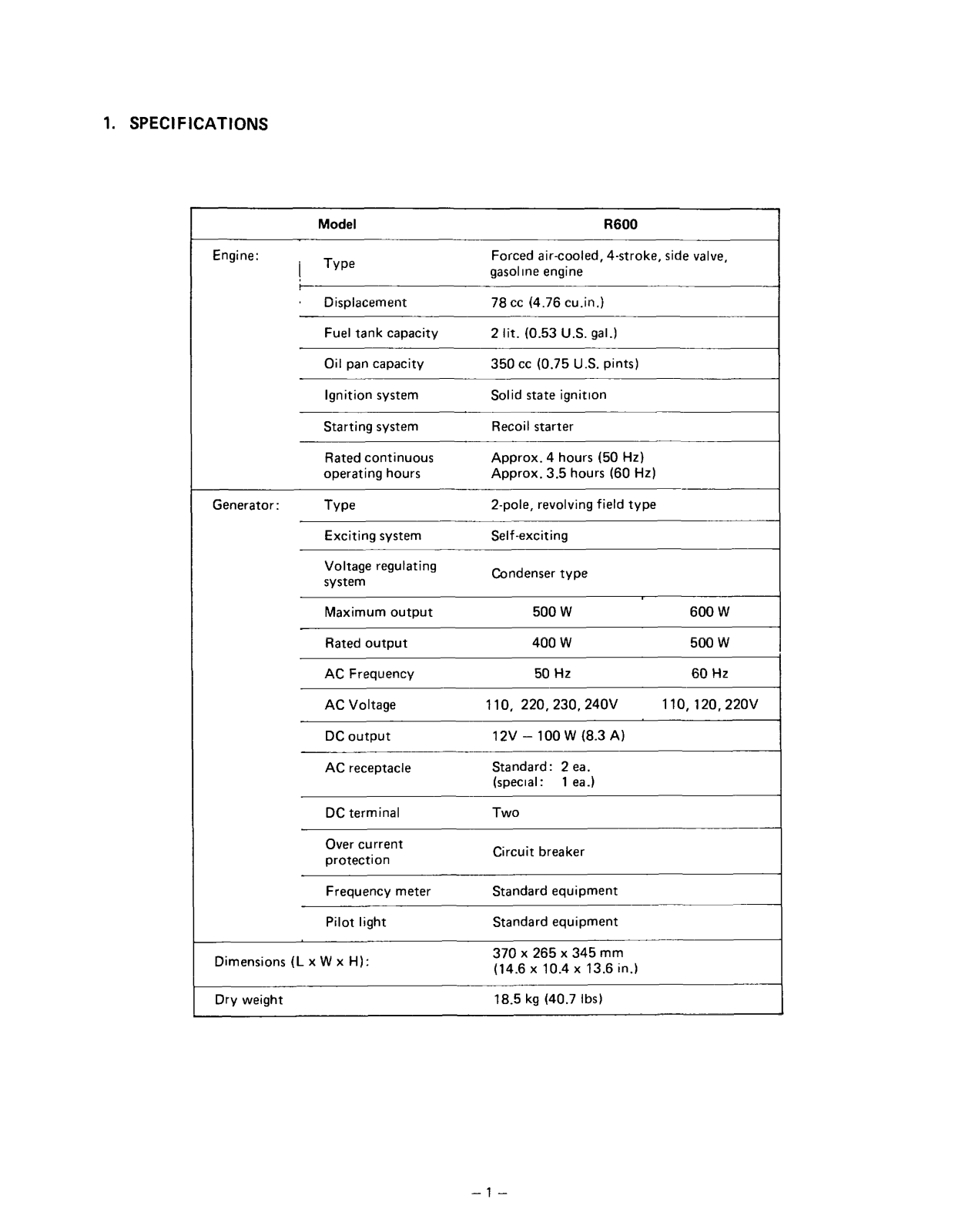

Specifications and Main Features
- Model: R600
- Engine Type: An air cooled engine with a capacity of 78 c.c and consists of 4 strokes alongside a gasoline side valve.
- Fuel Tank Capacity: 2 liters (0.53 U.S. gal)
- Oil Pan Capacity: 350 cm*3 (0.75 U.S. pints)
- Starting System: It has a recoil starter systems.

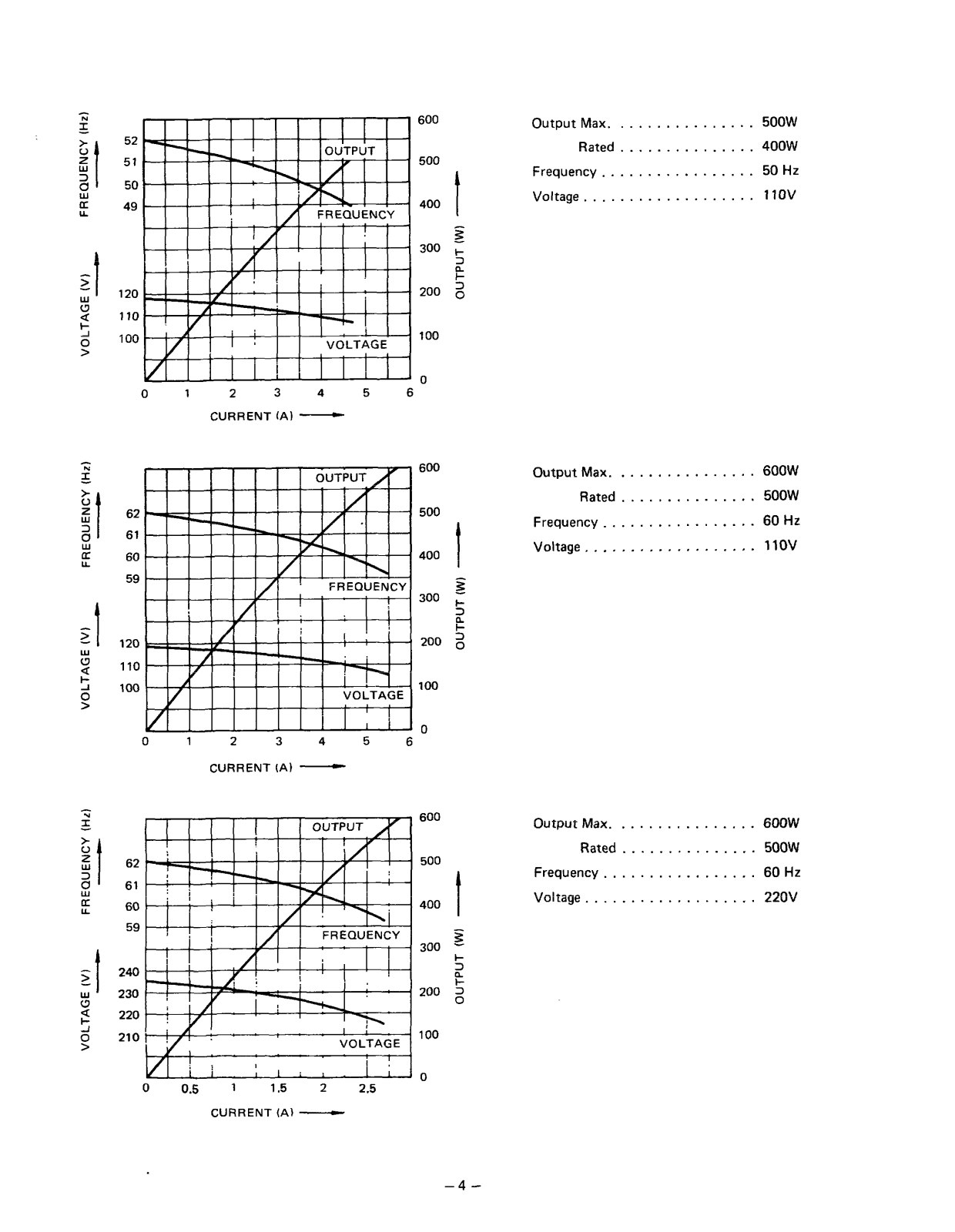

- Rated Continuous operating Hours: Approximately 4 hours for 50 Hz and approximately 3.5 hours for 60 hz.
- Maximum Output: 500 W / 600 W; Rated Output: 400 W / 500 W
- AC Receptacles: Standard: 2 ea. (special: 1 ea)
- Over current Protection: Circuit breaker
- Wind Capability: 70%(however the maximum value is 0.75)
- Weight: 10 kgs
Frequently Asked Questions
- Q: What is the output power for the R600 generator?
\
\
- A: Its maximum output is rated at 500 W and its rated output at 400 W under 50 Hz. As for under 60 Hz, the maximum output is rated at 600 W and the final rated output being 500 W.
\
\
- Q: For how long can a single fill allow the generator to run?
\
\
- A: The generator is capable of running around 4 hours at the maximum capacity of 50hz and around 3.5 hours at a frequency of 60hz. \
\
\
- Q: Which fuel does the generator run on?
\
\
- A: Fuel type used by R600 generators include gasoline.
\
\

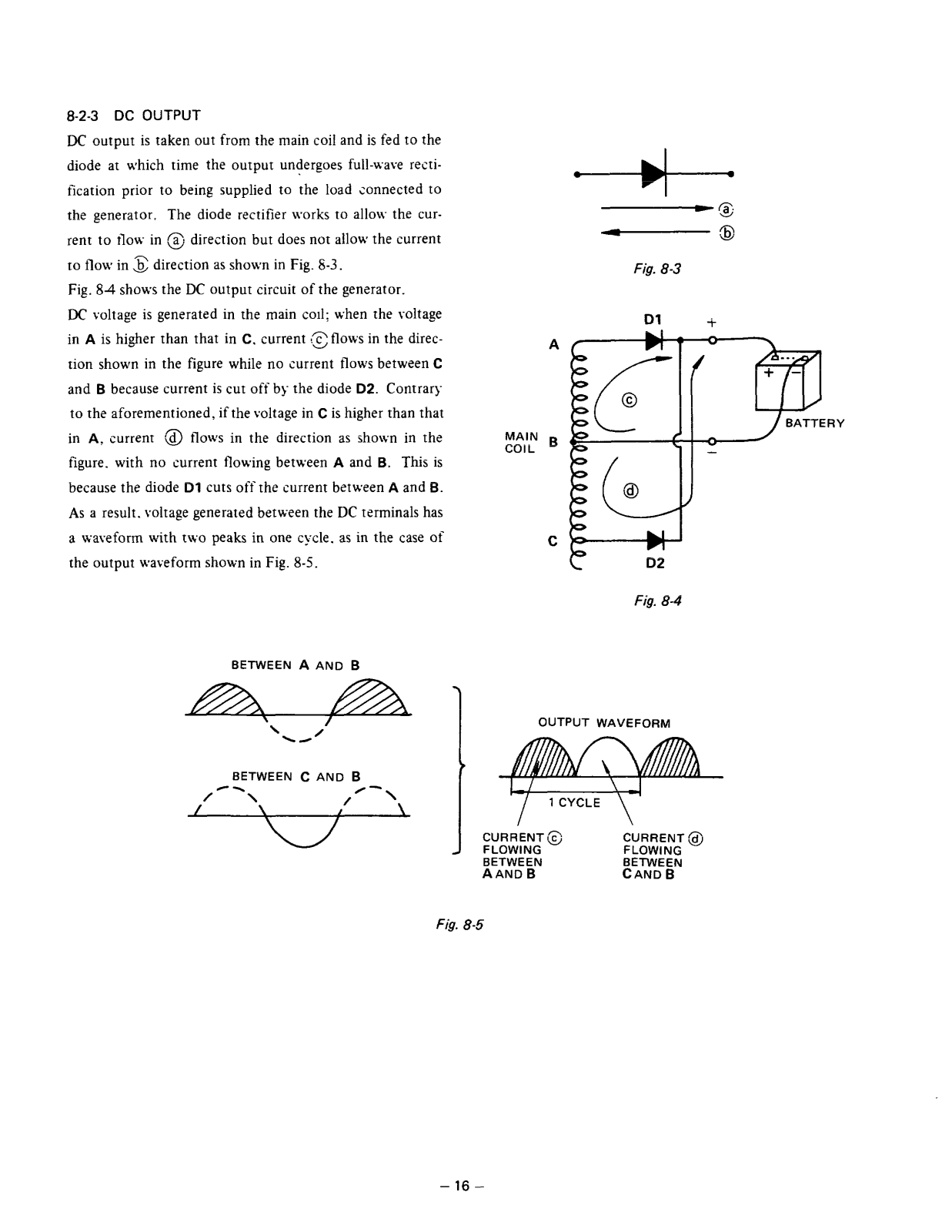

- Q: What’s the specification for the DC output?
\
\
- A: The DC output specification is around 12V and an 8.3 A at the maximum power of 100 W.
\
\
- Q: Does the generator include a circuit breaker?
\
\
- A: Yes, the generator also has been included with a circuit breaker from the manufacturer to ensure overcurrent protection.
\
\
- Q: How much does the generator weigh and what’s it’s overall size?
\
\
- A: It has a weight of 18.5 kg which is around 40.7 pounds and has overall dimensions of 370 x 265 x 345 mm.
\
\
- Q: Is the generator noisy when it is working?
\
\

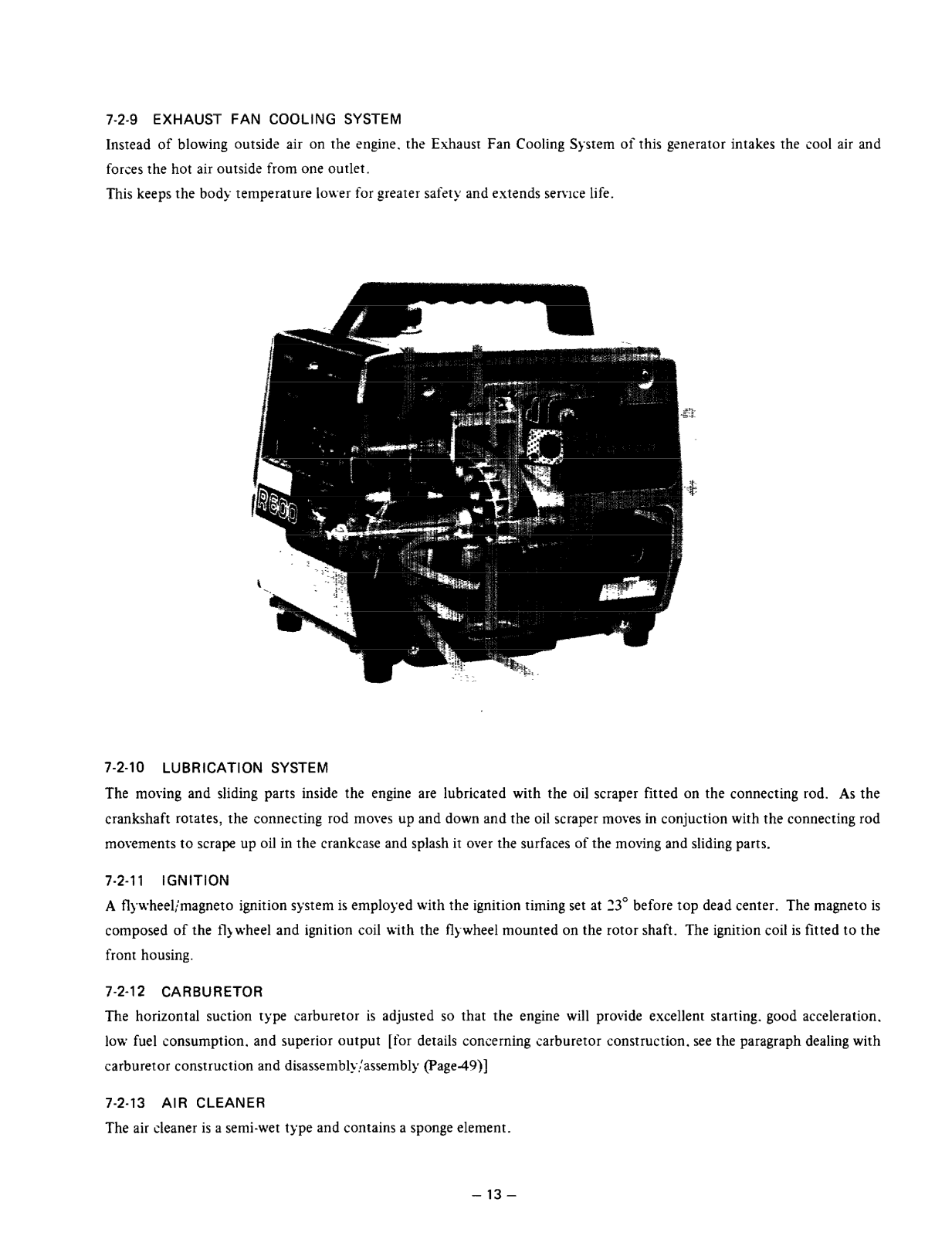

- A: It uses the Robin Exhaust Fan Cooling System which enables the generator to make much quieter noises while preventing or lower the working temperature.

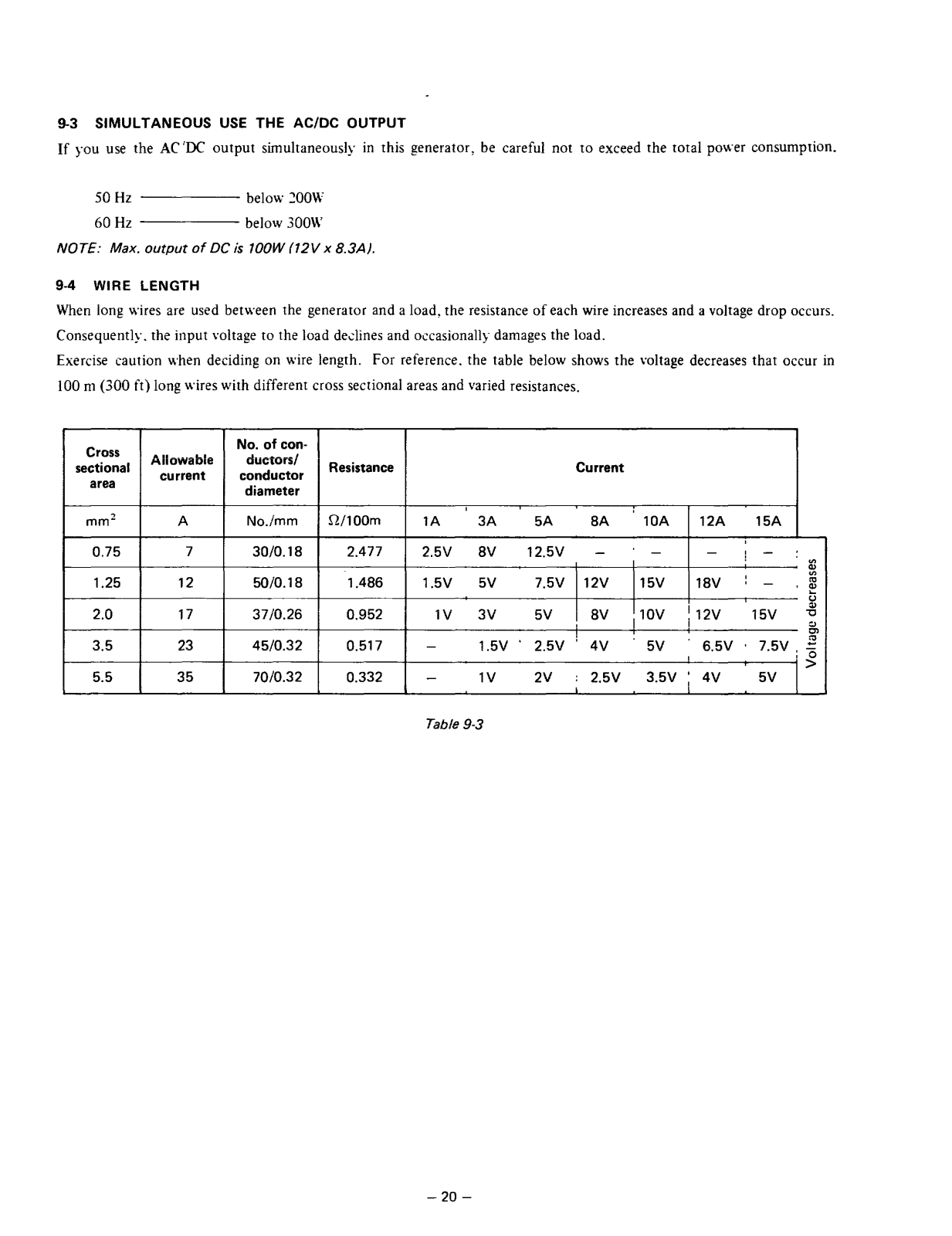

- Q: Is it possible to use both AC and DC outputs at the same time?
- A: Yes, but the maximum overall power consumption must not exceed 200W for 50 Hz and 300W for 60 Hz for power usage in AC and DC mode together.
User Manual
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Page 57
Page 58
Page 59
Page 60
Page 61
Page 62
Page 63
Page 64
Page 65
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
Page 73
Page 74
Page 75
Page 76
Page 77
Page 78
