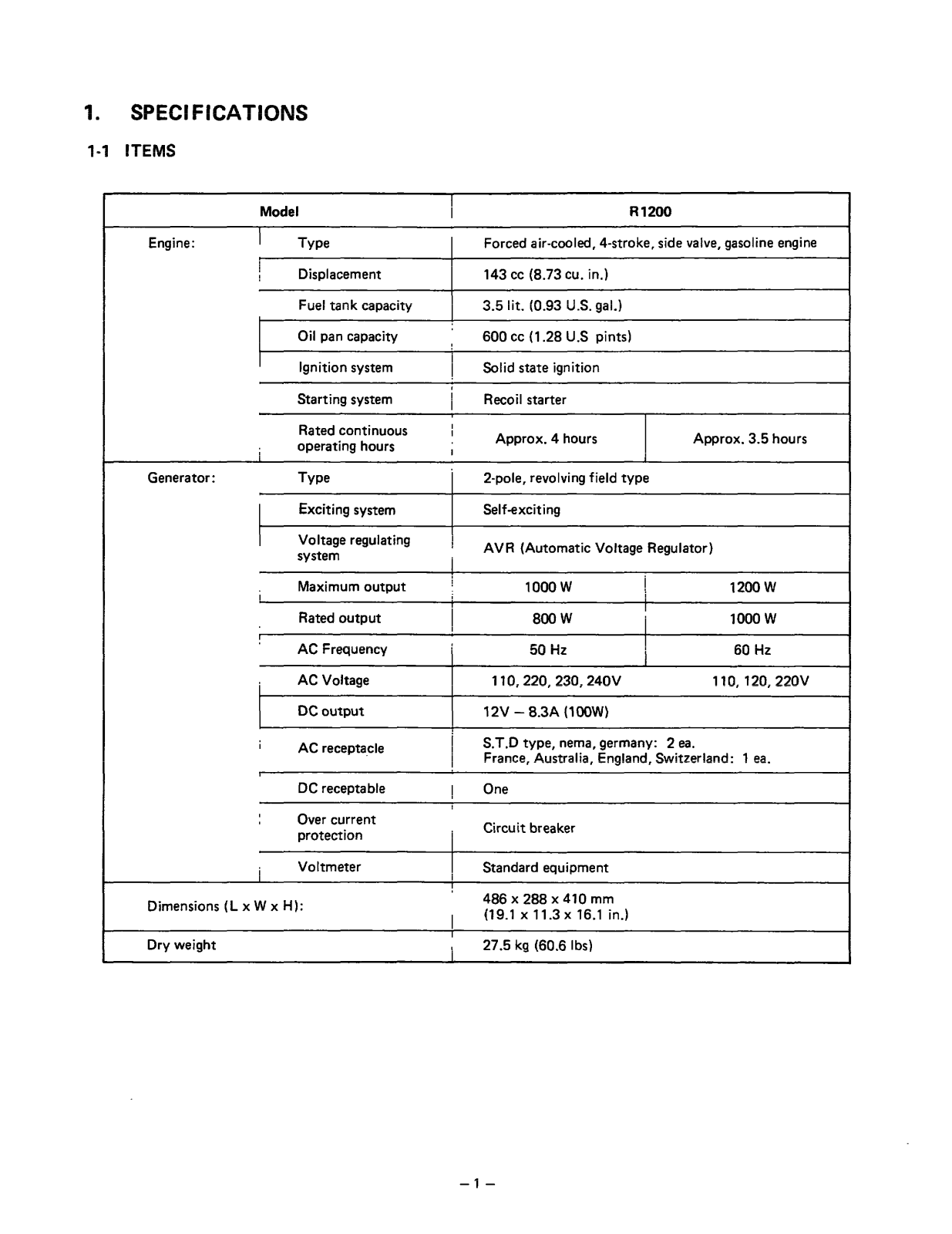

Engine: R 1200
Model: Forced air-cooled, 4-stroke, side valve gasoline engine
Displacement: 143 cc(8.73 cu.in)

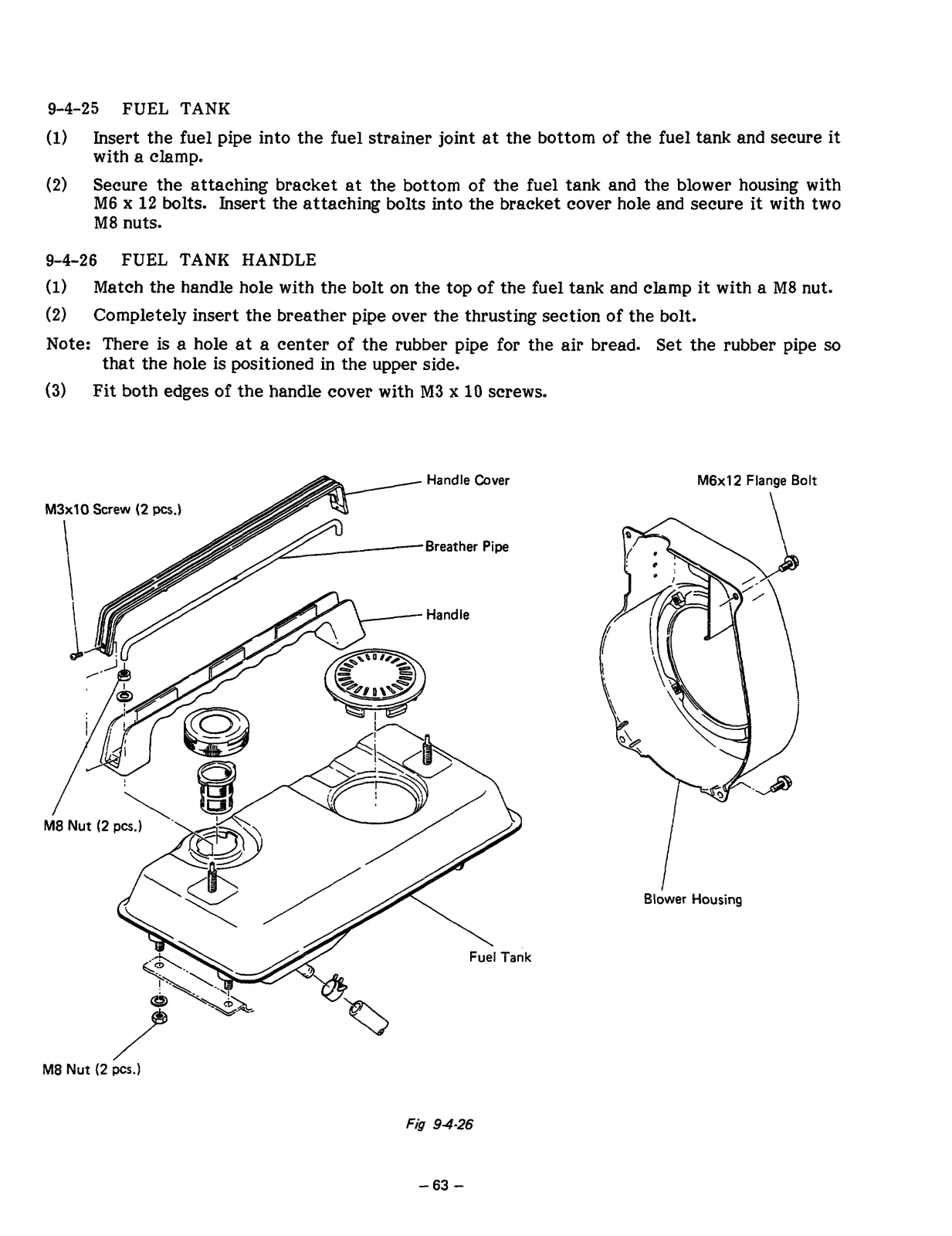

Fuel tank capacity: 3.5 liters (0.93 U.S. gal)
Oil pan capacity: 600 cc (1.28 U.S. pints)

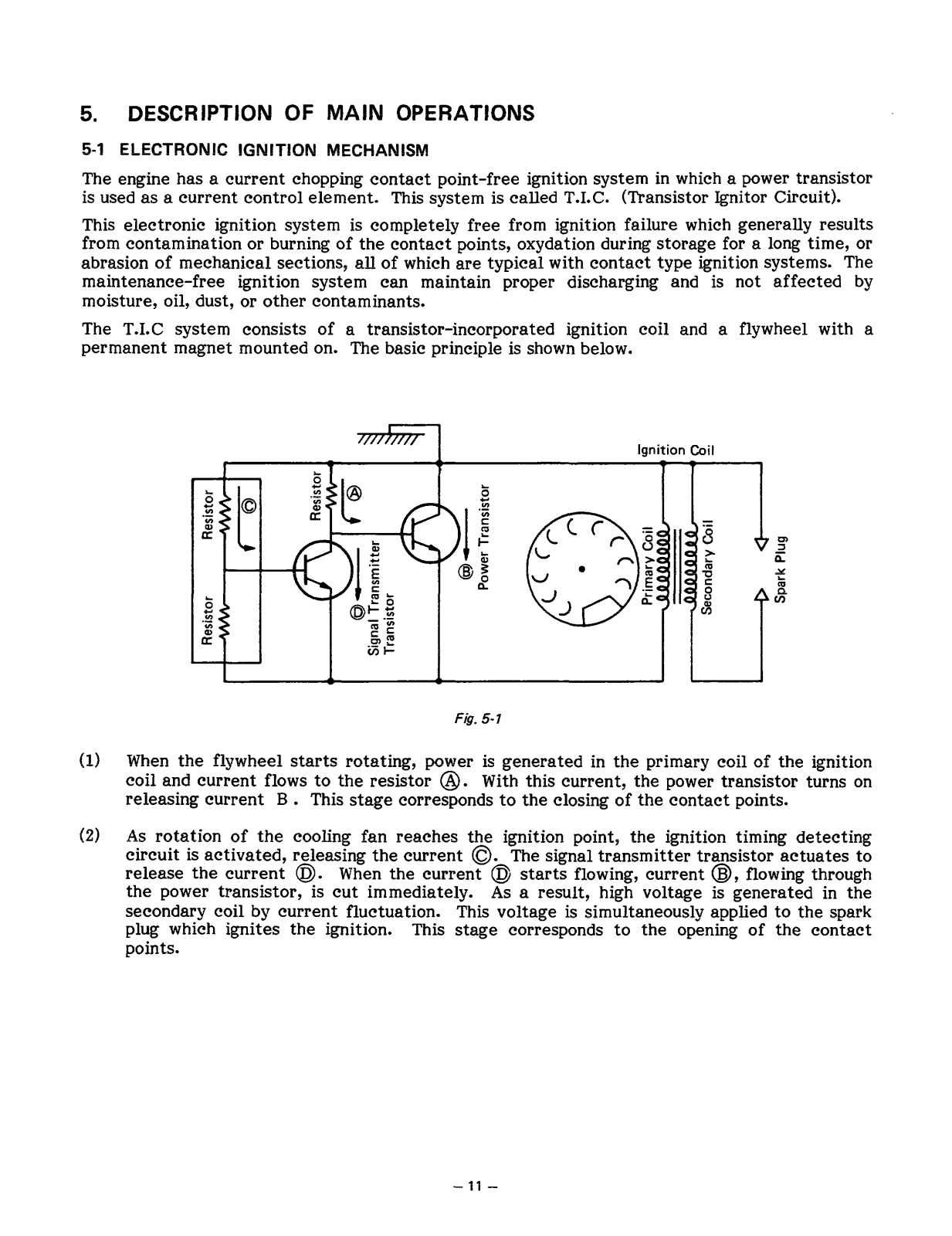

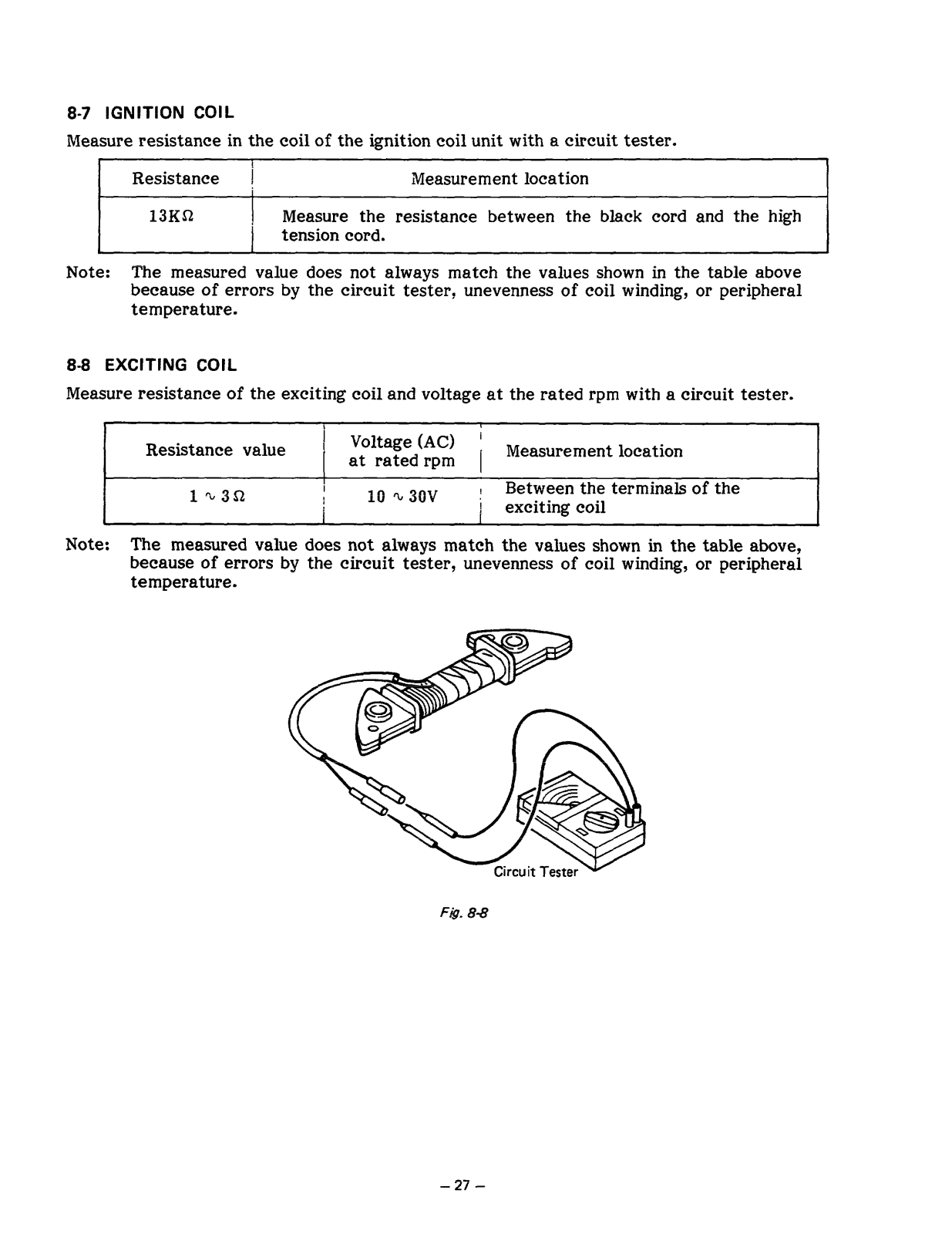

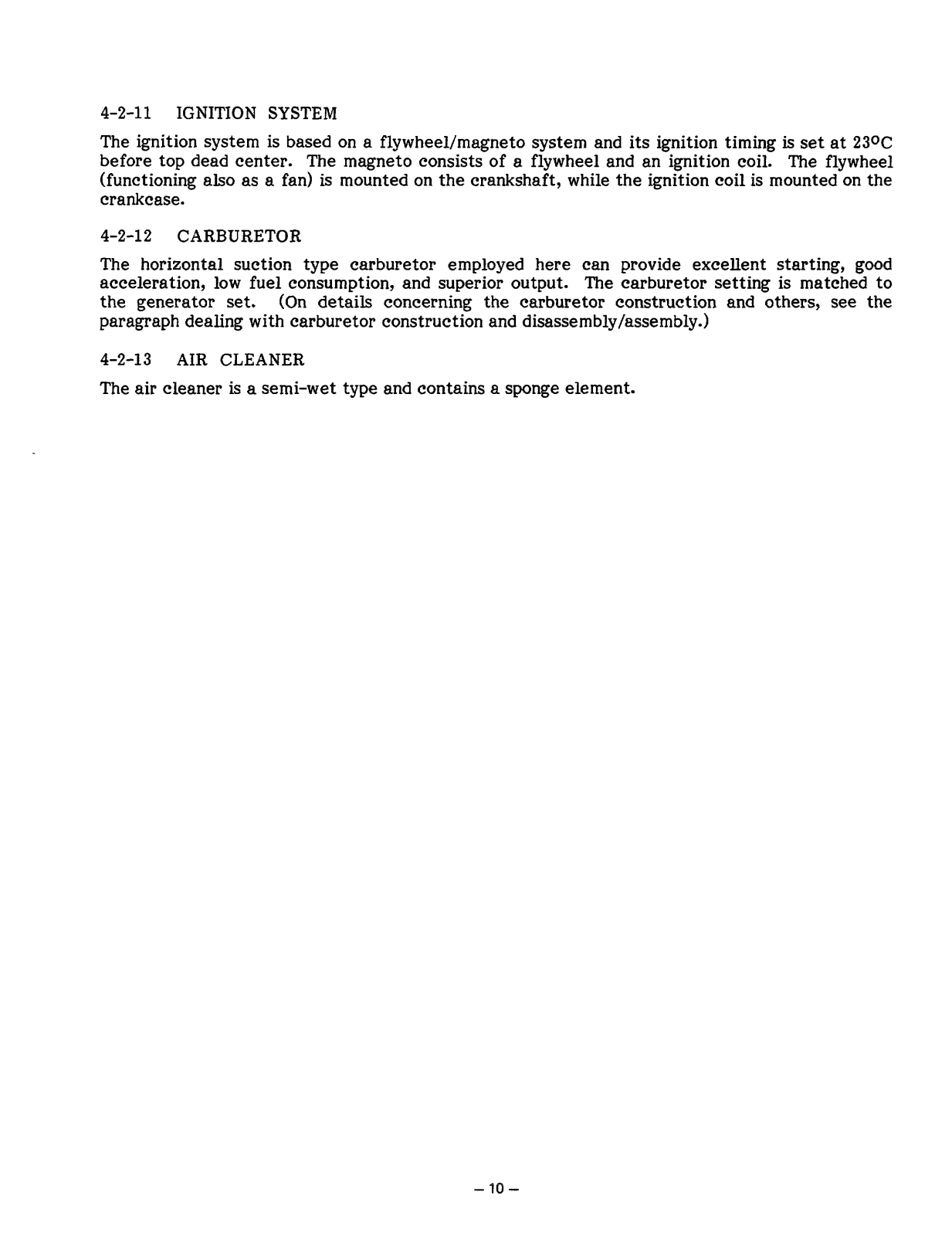

Ignition system: Solid state ignition system

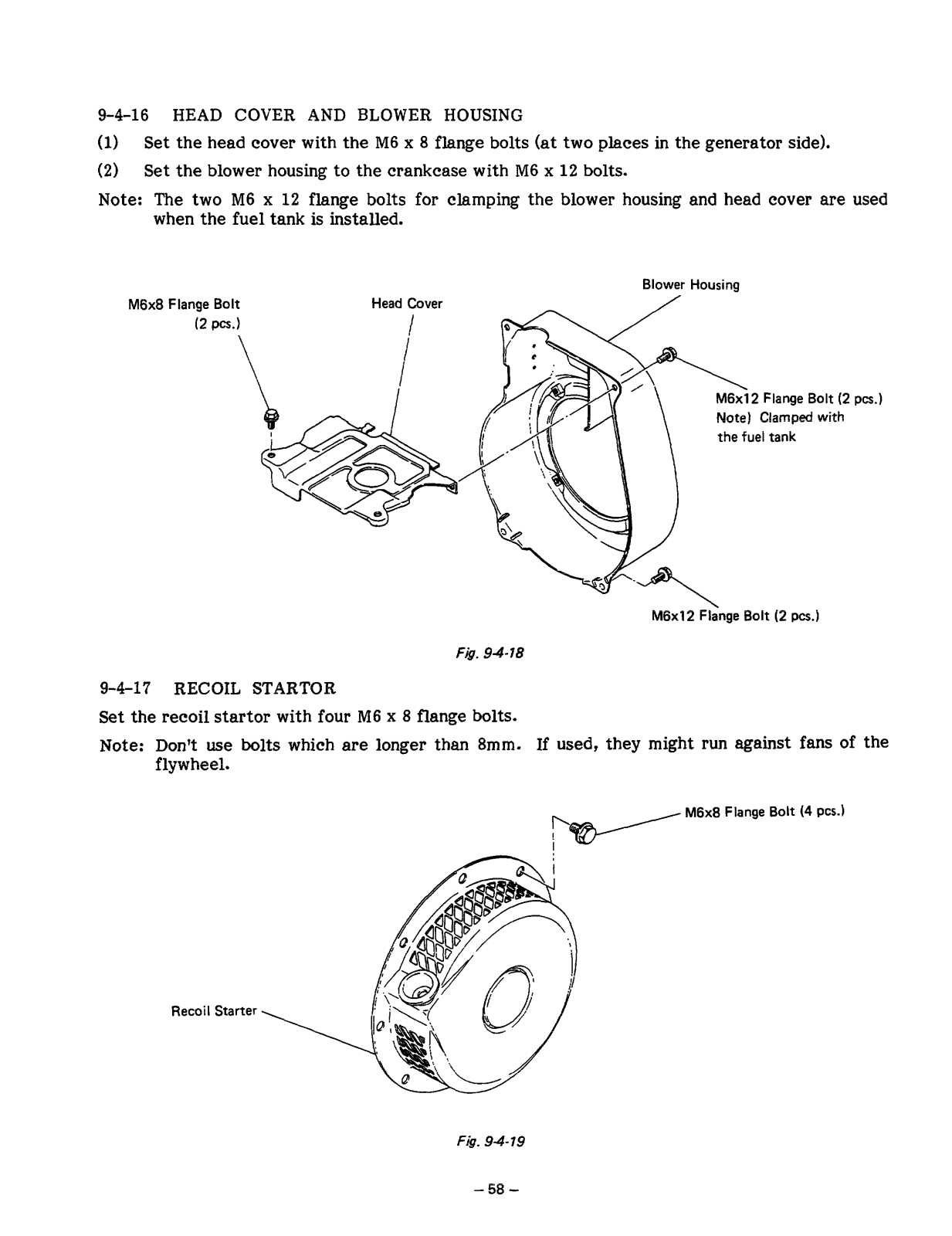

Starting system: Recoil starter
Rated continuous operating hours: Approx.3.5 hours (at rated load of 50 Hz)
Generator type: 2 pole, revolving field type
Exciting system: Self exciting type

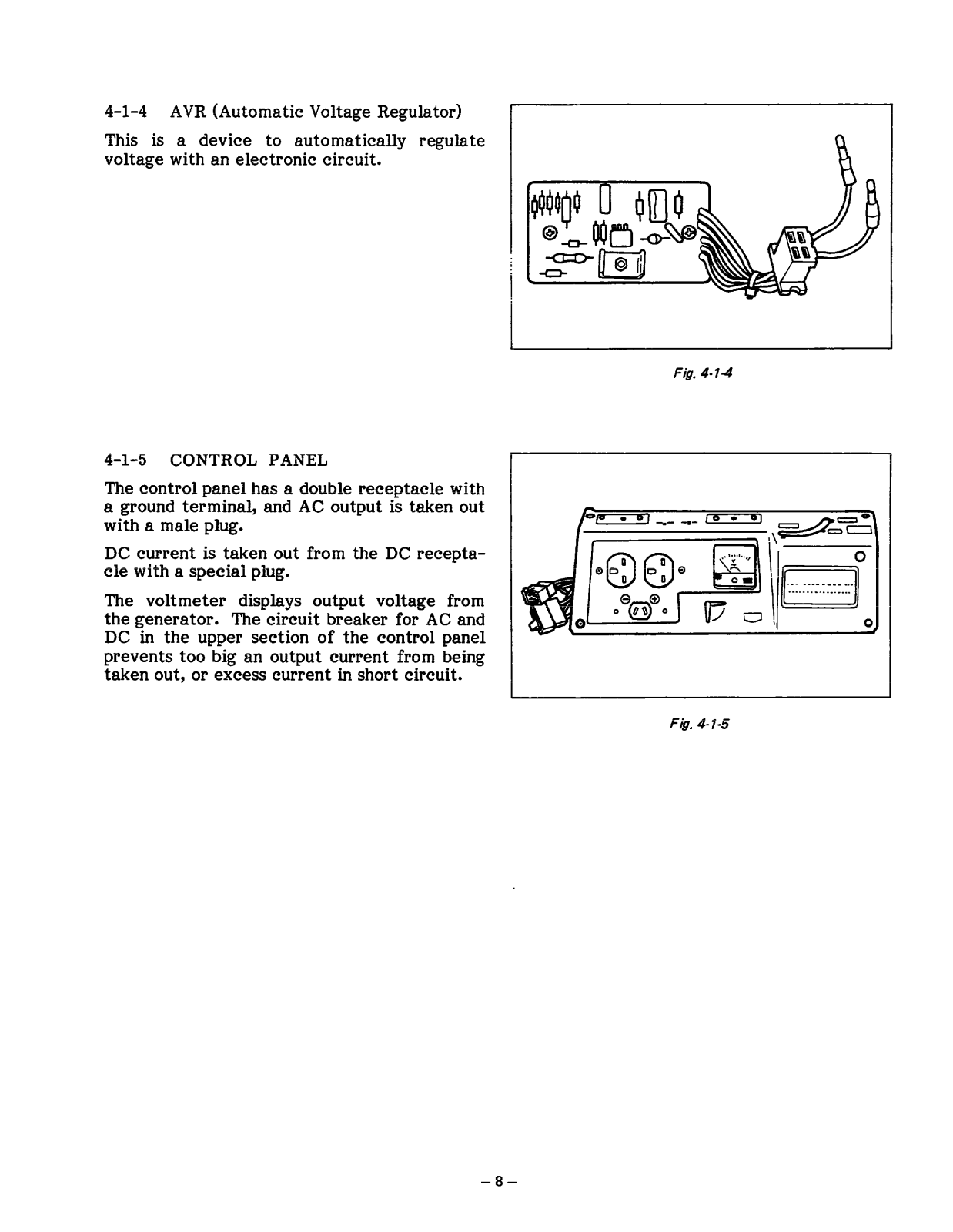

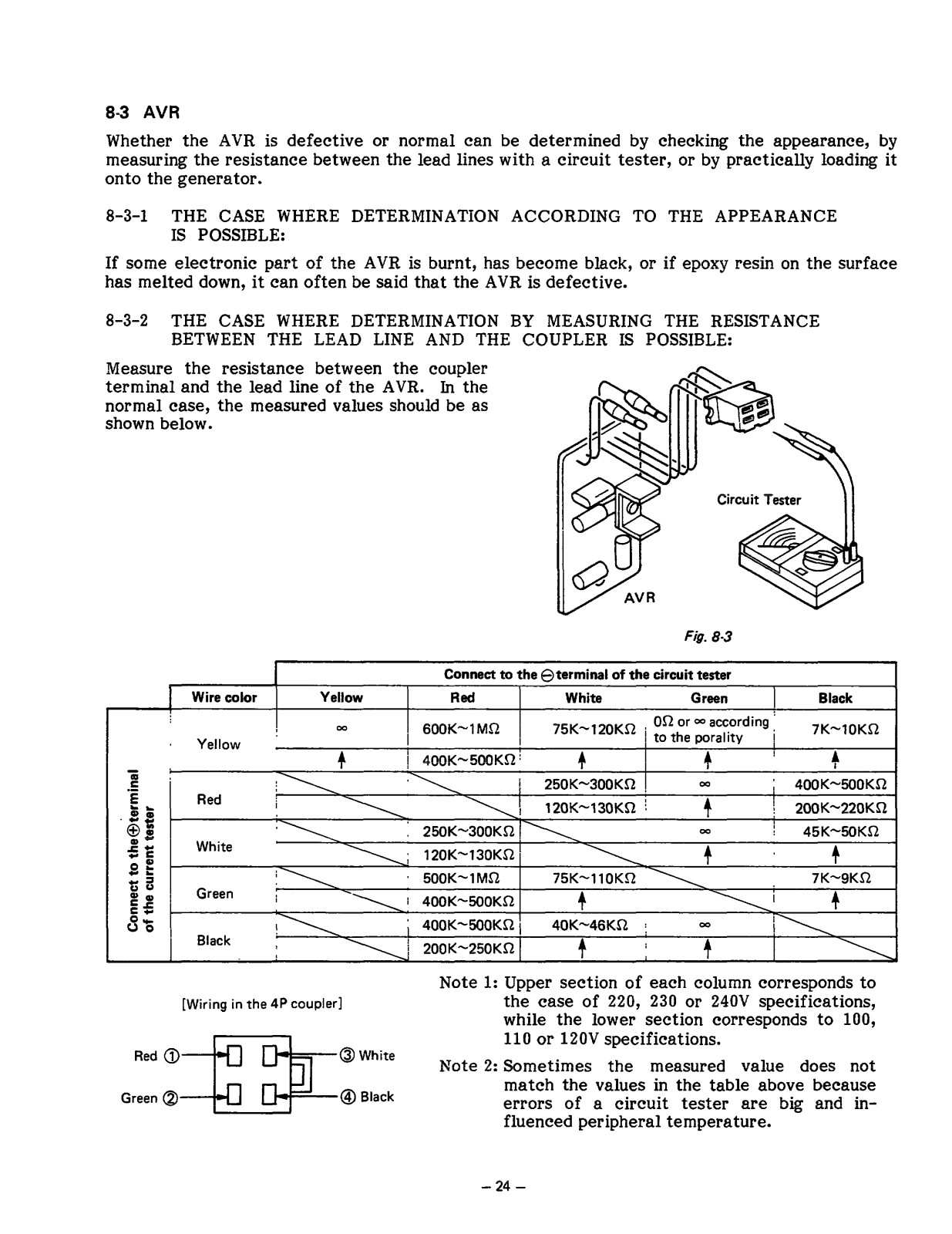

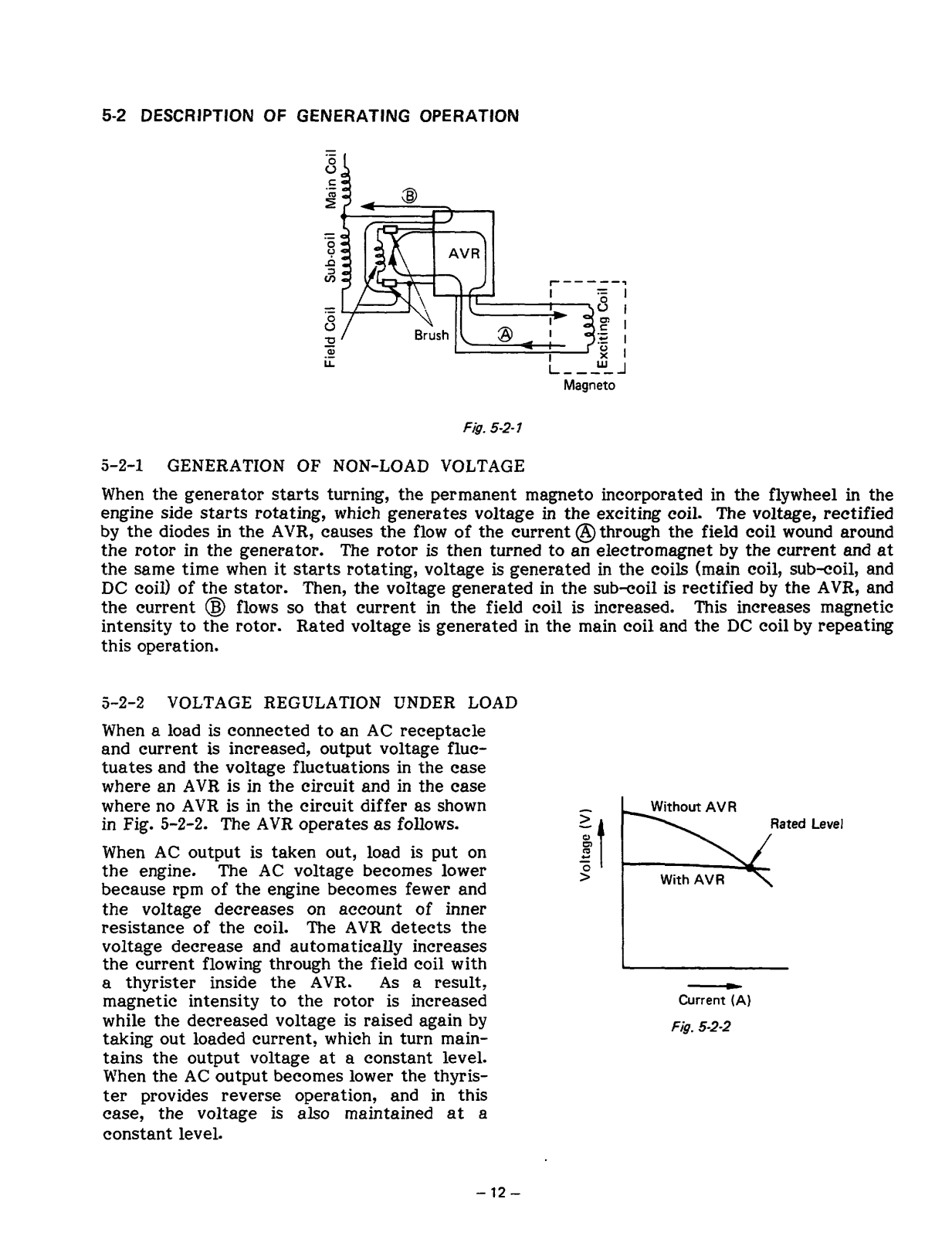

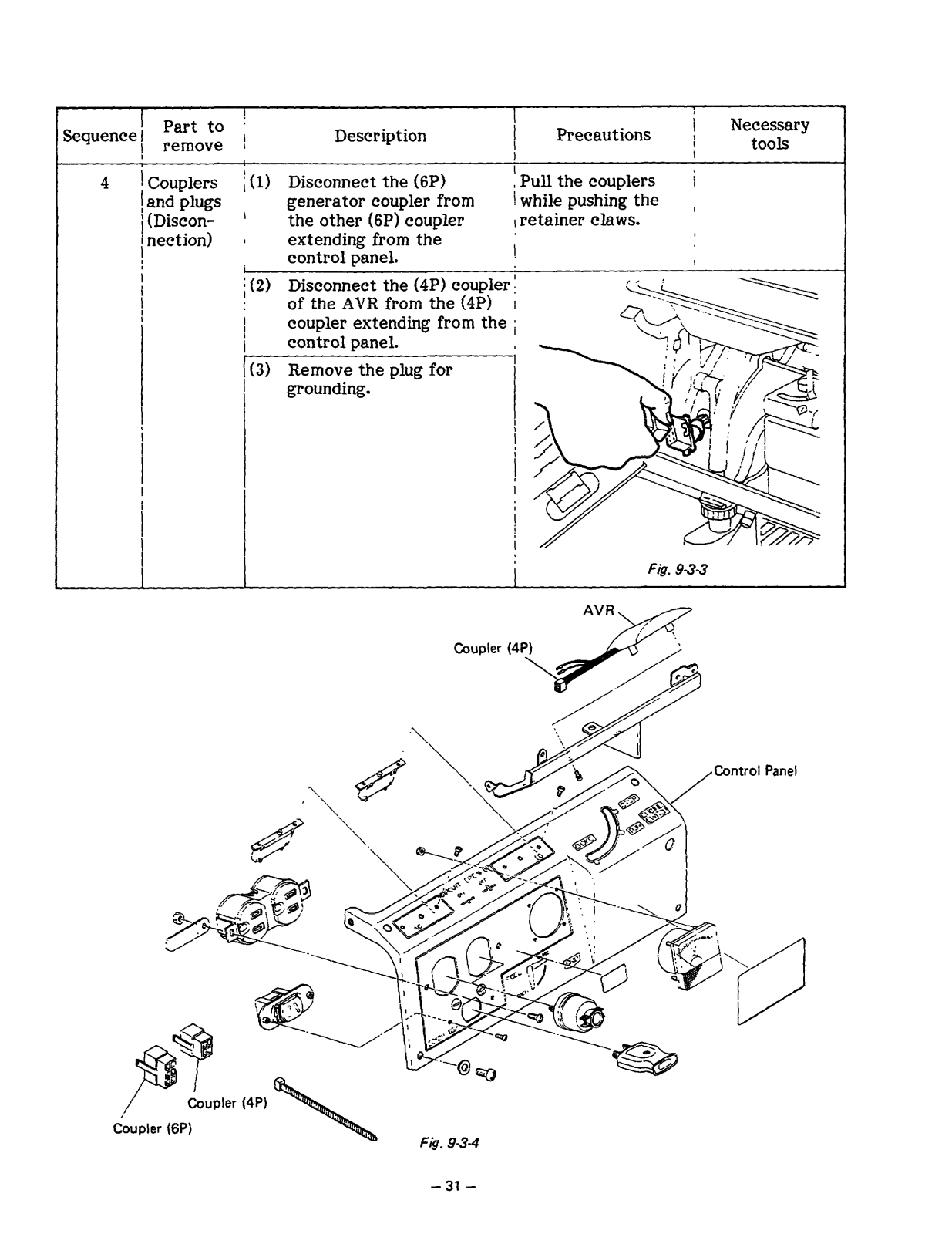

Voltage regulating system: AVR(Automatic Voltage Regulator)

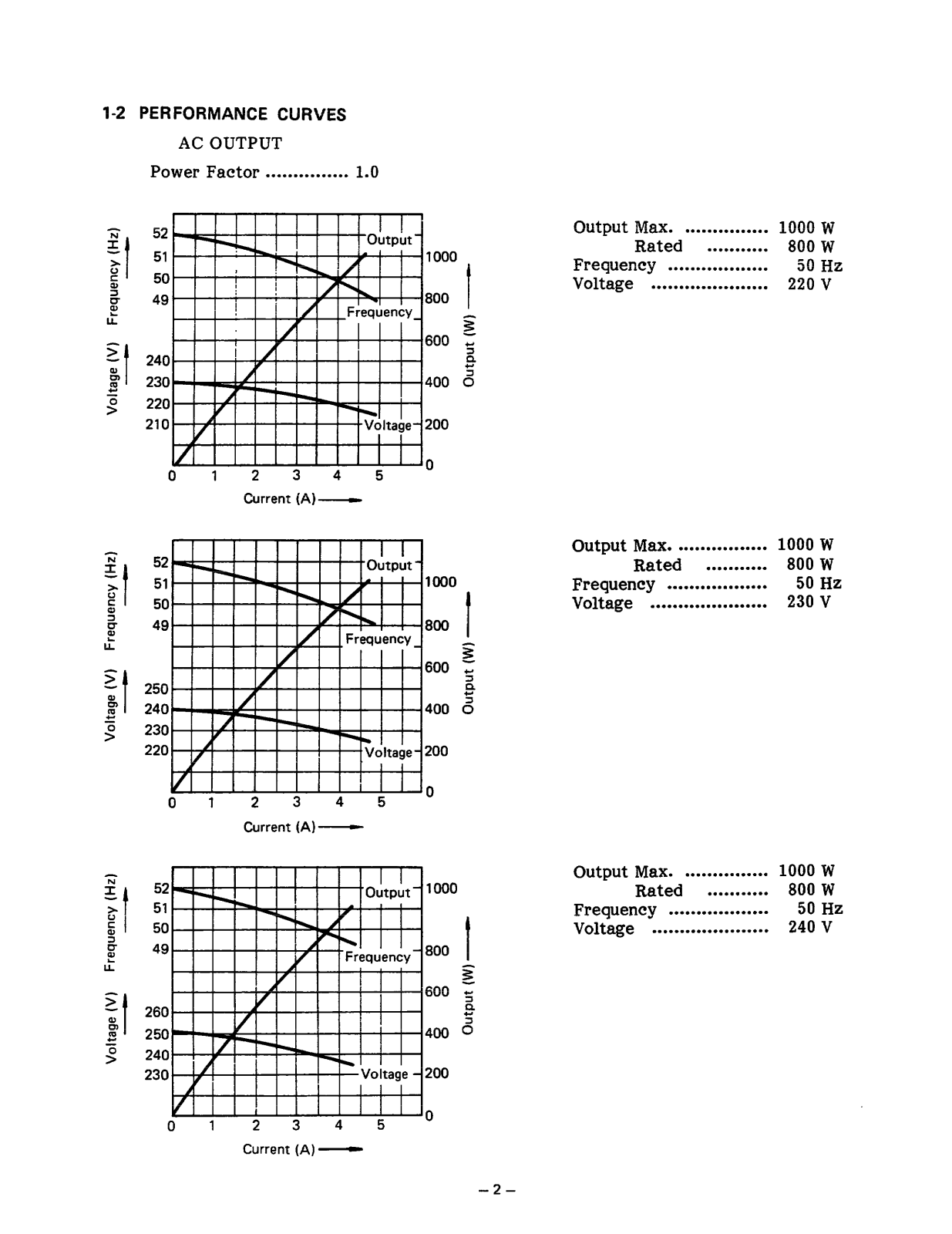

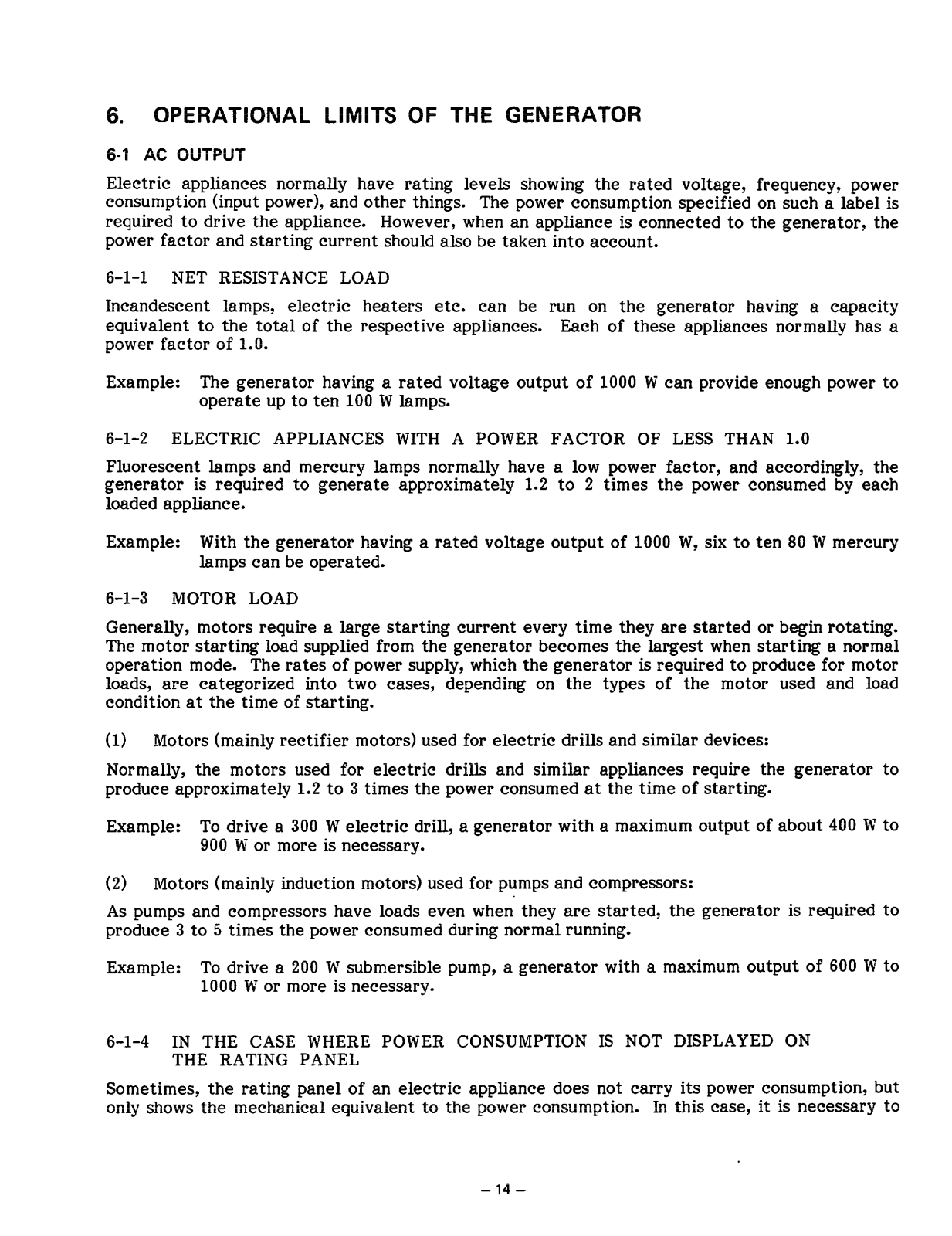

Maximum output: 1000 W
Rated output: 800 W (50Hz), 1000 W(60Hz)
Ac frequency: 50 Hz/60 Hz
Ac voltage rating: 110V, 220V, 230V, 240V (50Hz) / 110V, 120V, 220V (60Hz)

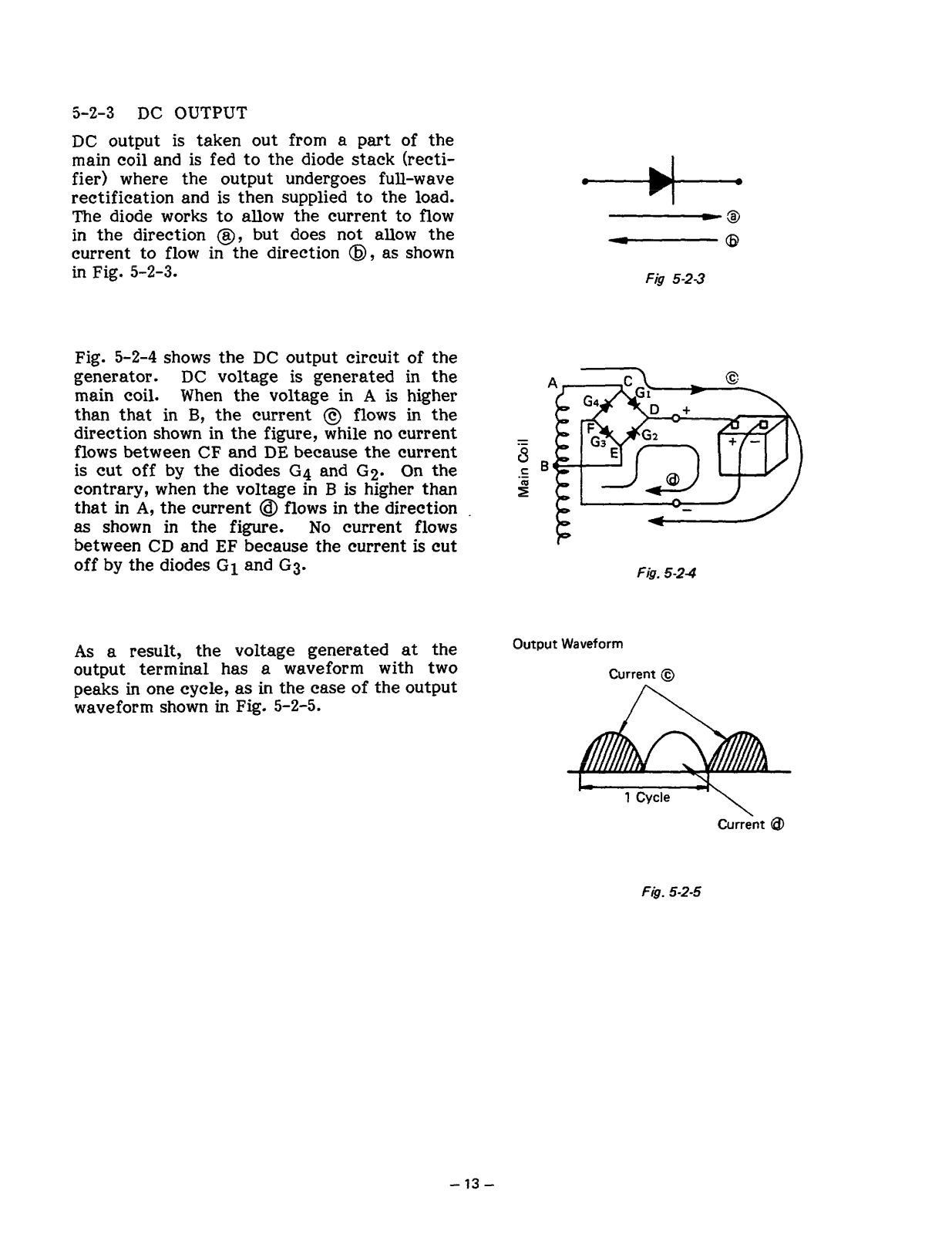

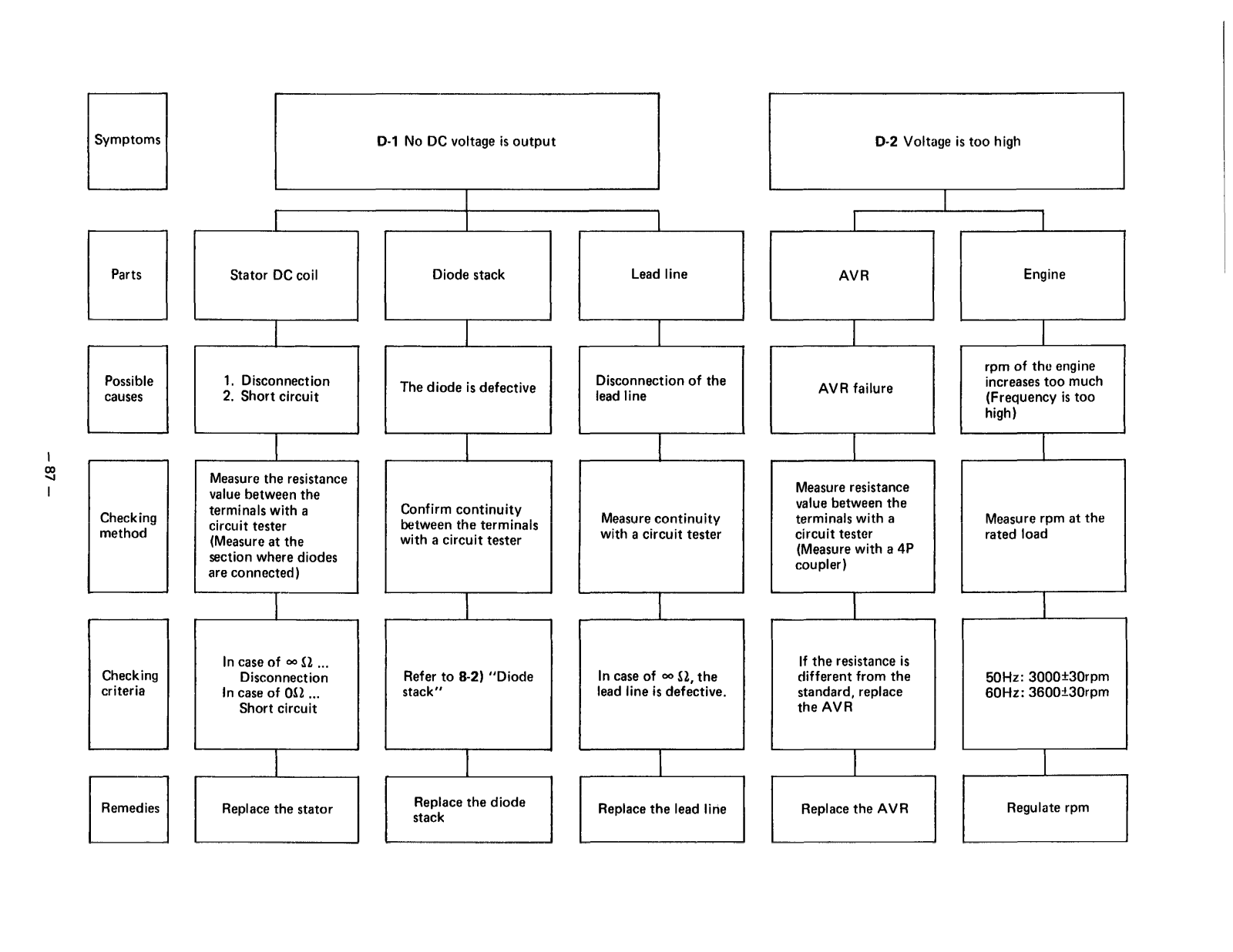

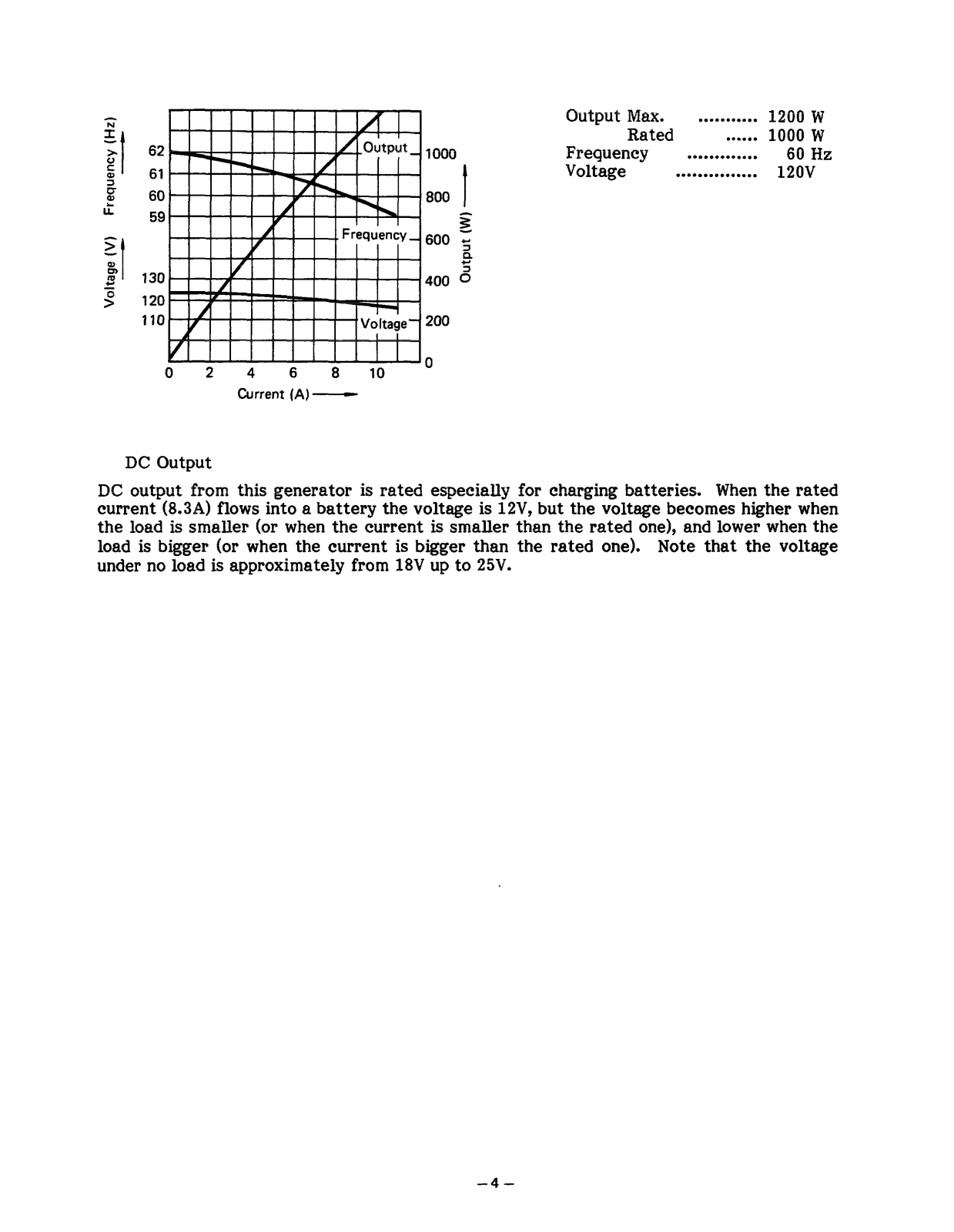

Dc output: 12V — 8.3A (100W)

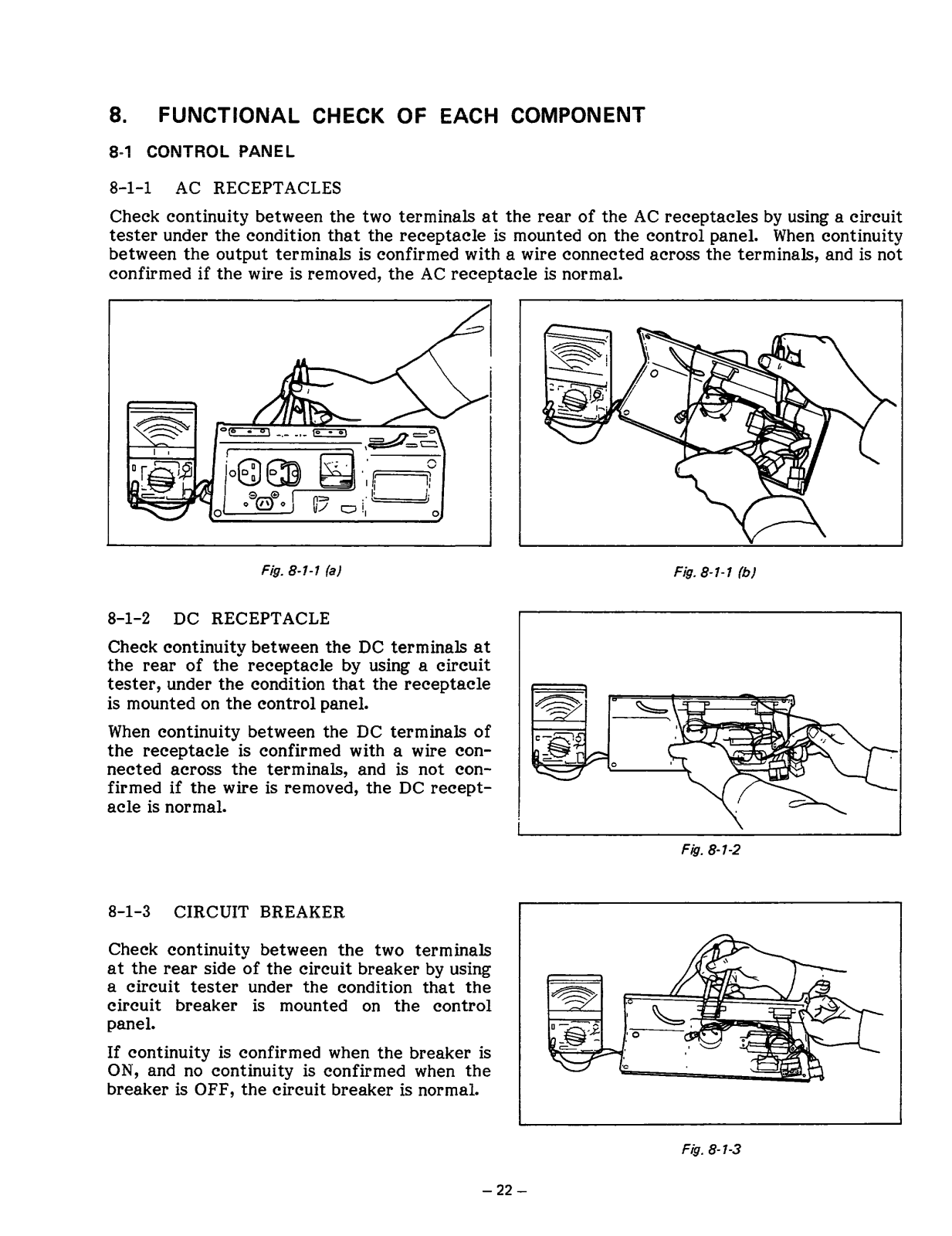

Ac receptacles: 2 ea. (S.T.D type, nema, germany)), 1 ea. (France Australia England Switzerland)
Dc receptacles: One
Over current protection: Circuit breaker

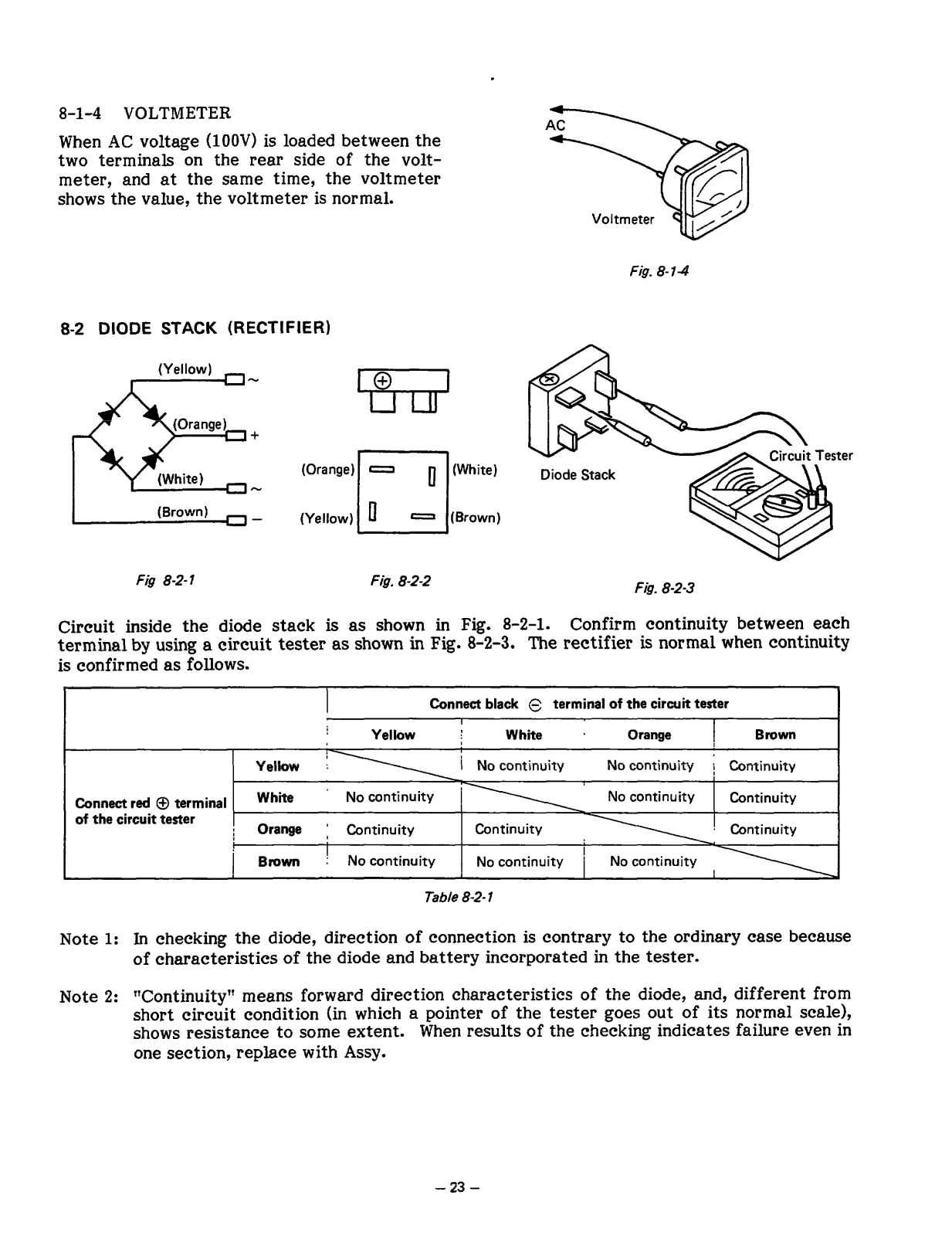

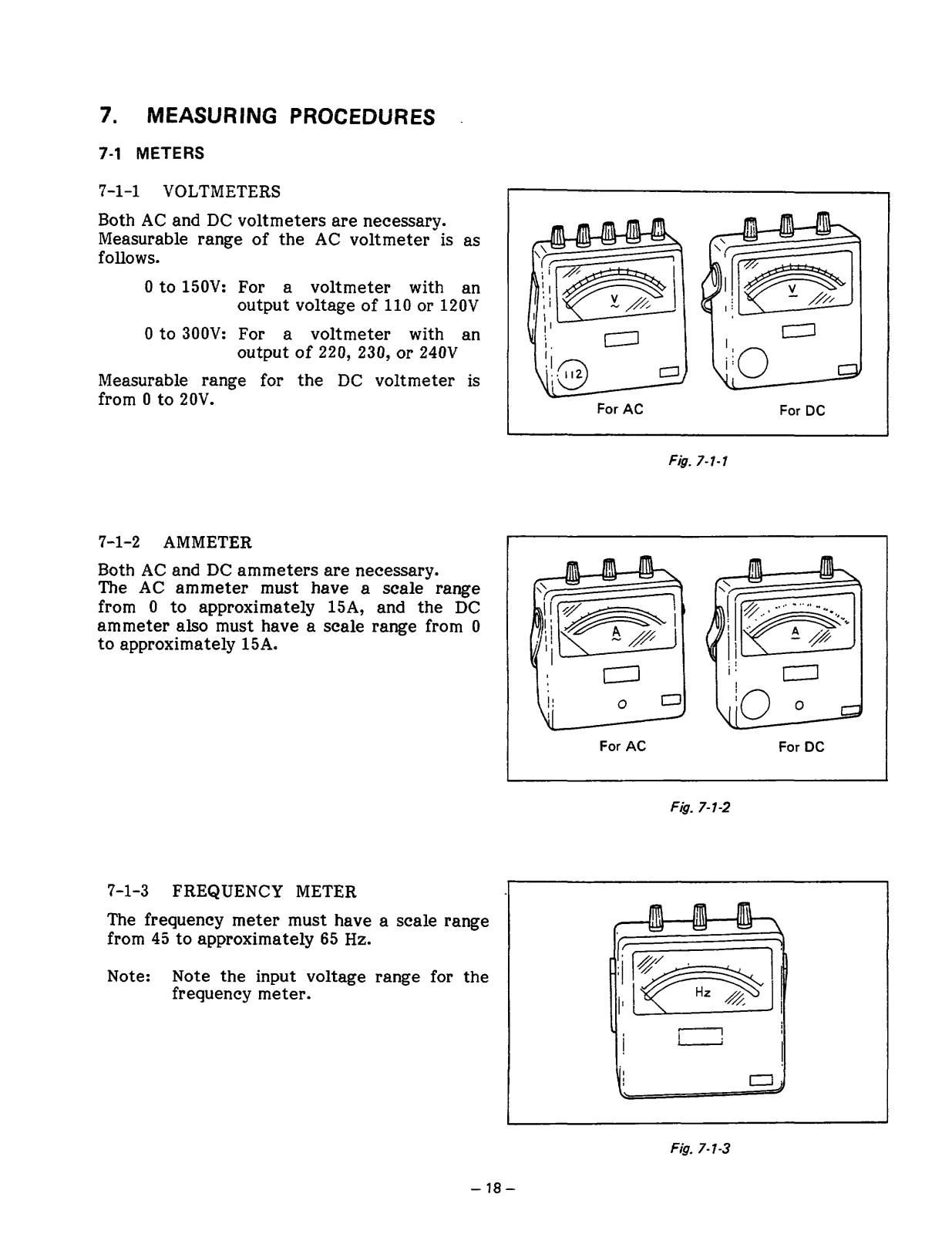

Voltmeter: Standard equipment items
Dimension (Length x Width x Height): 486 x 288 x 410 mm (19.1 x 11.3 x 16.1 in)
Dry weight: 27.5 kg (60.6lbs)
Q: What is the fuel tank capacity of the R1200 generator?
A: The fuel tank capacity is 3.5 liters (0.93 U. S. gal).
Q: How long can the generator run on a full tank?
A: Provided the current load is close to that rated for a frequency of 50 Hz, then the generator may be able to last for four hours within a single full tank.
Q: What is the most output power capacity of R1200?
A: The stated limit for all R1200 generators is up to 1000 W.

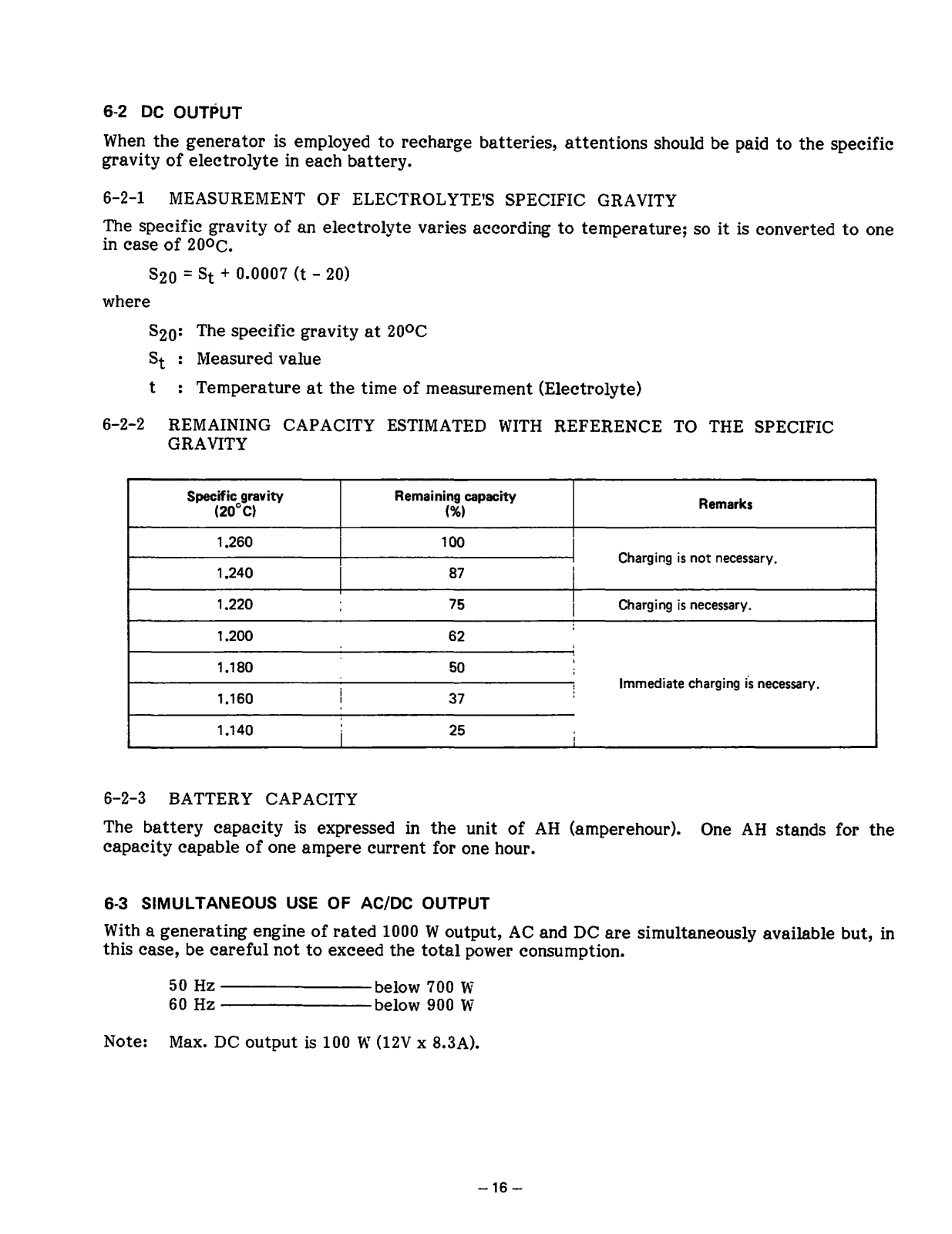

Q: Can both AC and DC outputs be drawn at the same time?
A: Yes, the generator allows for both AC and DC outputs to be used simultaneously provided the combined output does not exceed the specified capacity.
Q: Which engine is fitted on R1200?
A: It features forced air-cooled 4 stroke gasoline side valve engine.
Q: Calculate the weight of the R1200 generator?
A: Weight without fuel or oil is calculated at 27.5 kg (60.6 lb ).
Q: What are the AC voltage ratings available with the generator?
A: Depending on the frequency, voltages of 110V, 220V, 230V and 240V can be chosen as AC voltage levels.

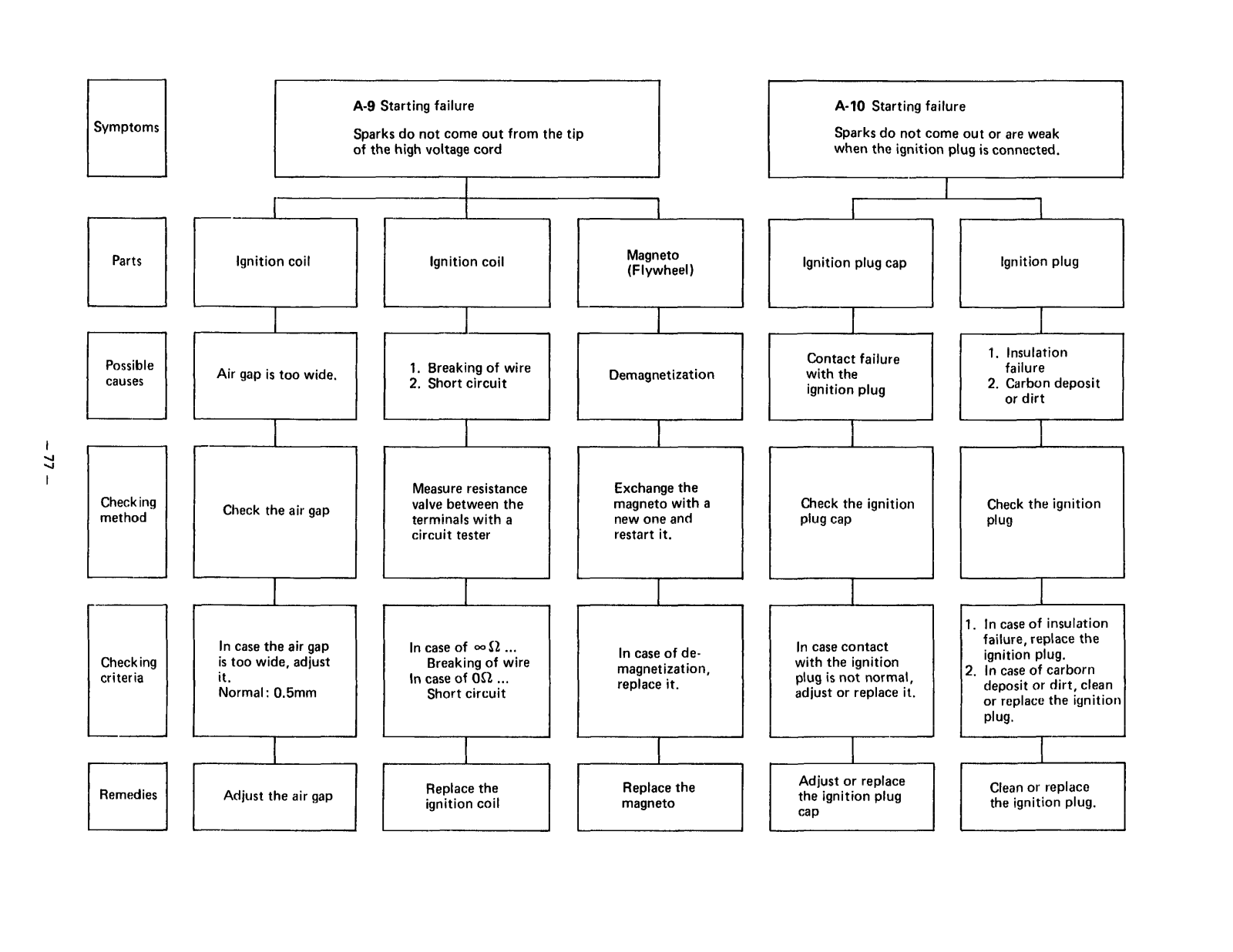

Q: Which type of ignition system is installed in R1200?
A: The generator has a modern ignition solid state system.
Q: By What means is the generator ignited?

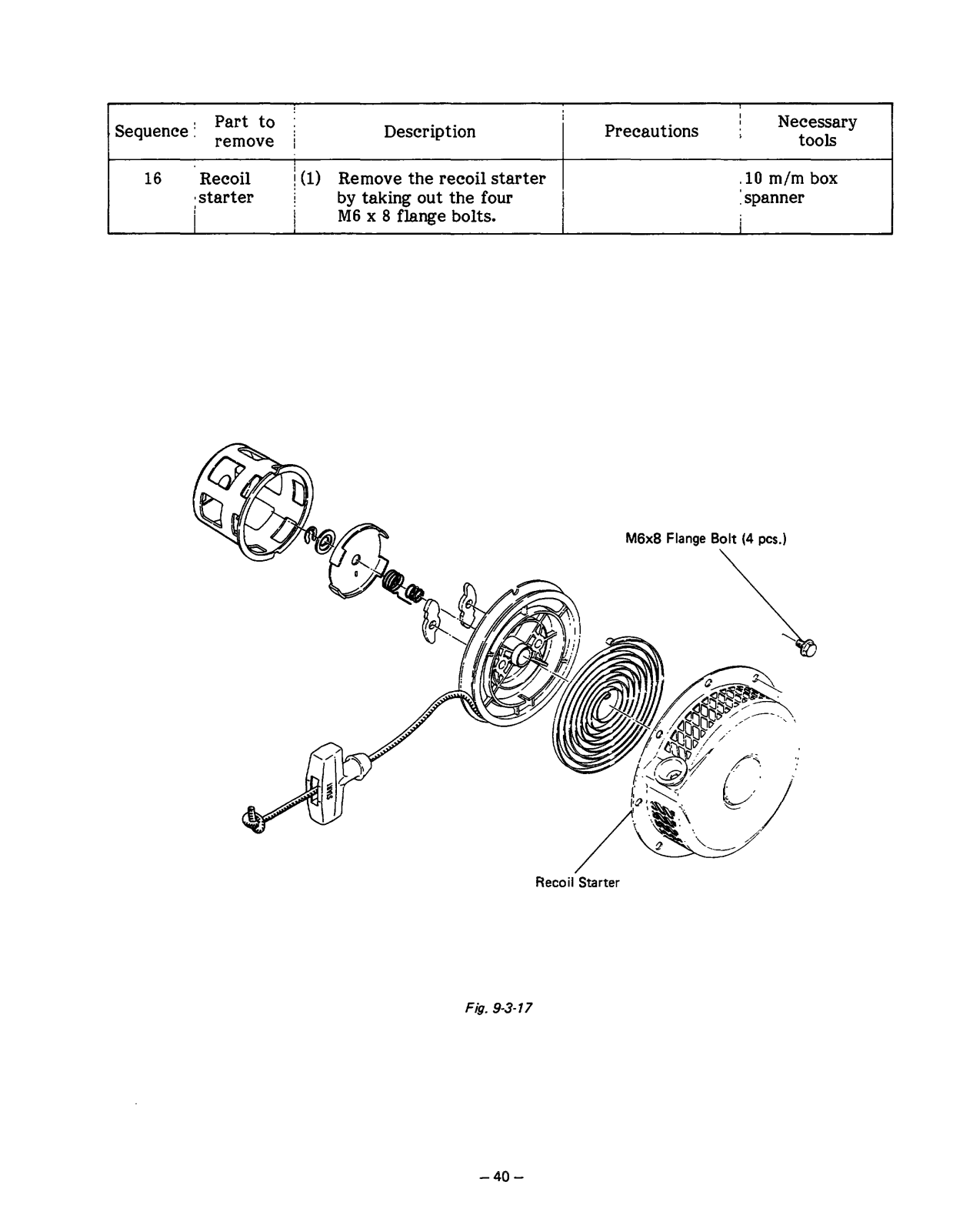

A: The device uses a recoil starter.

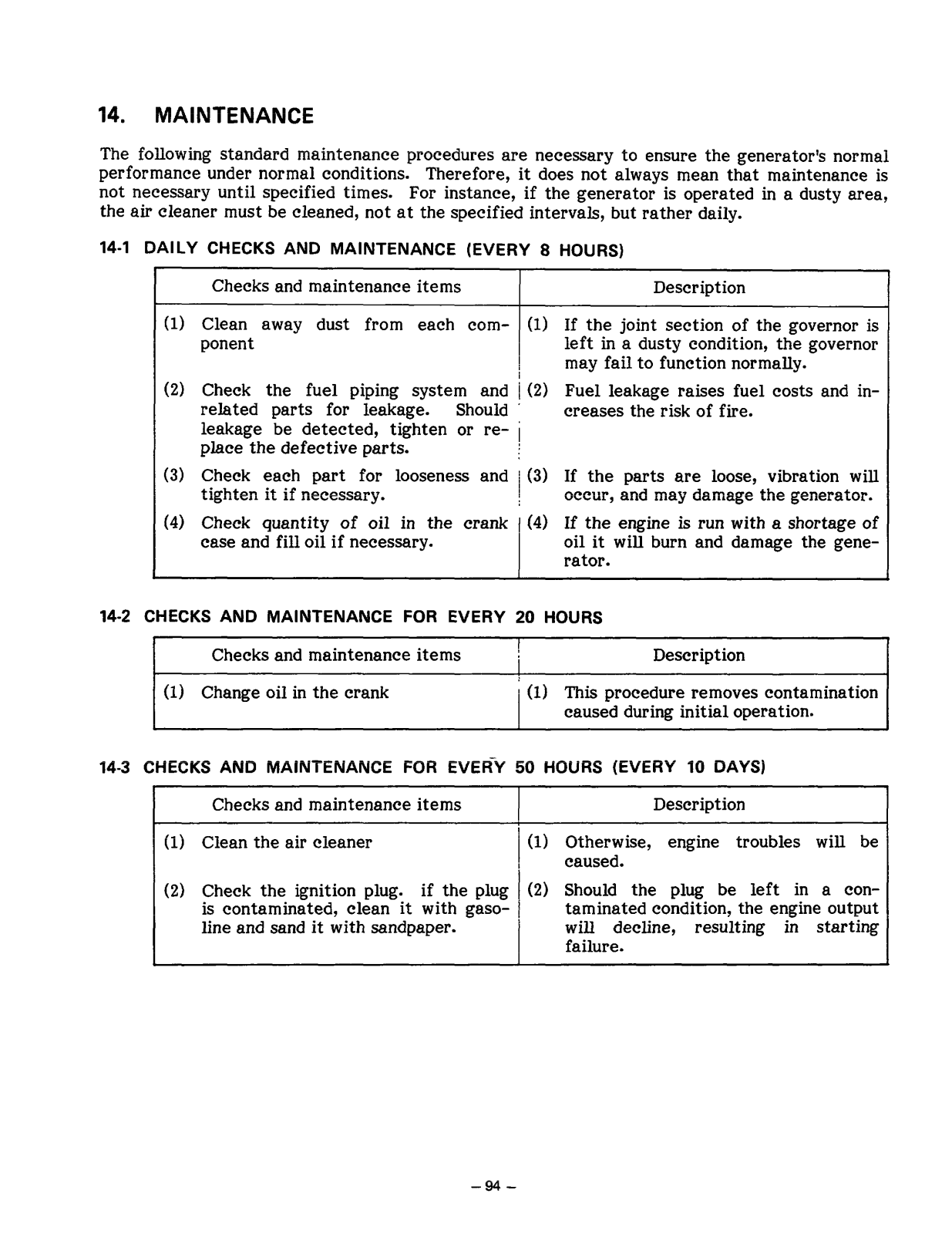

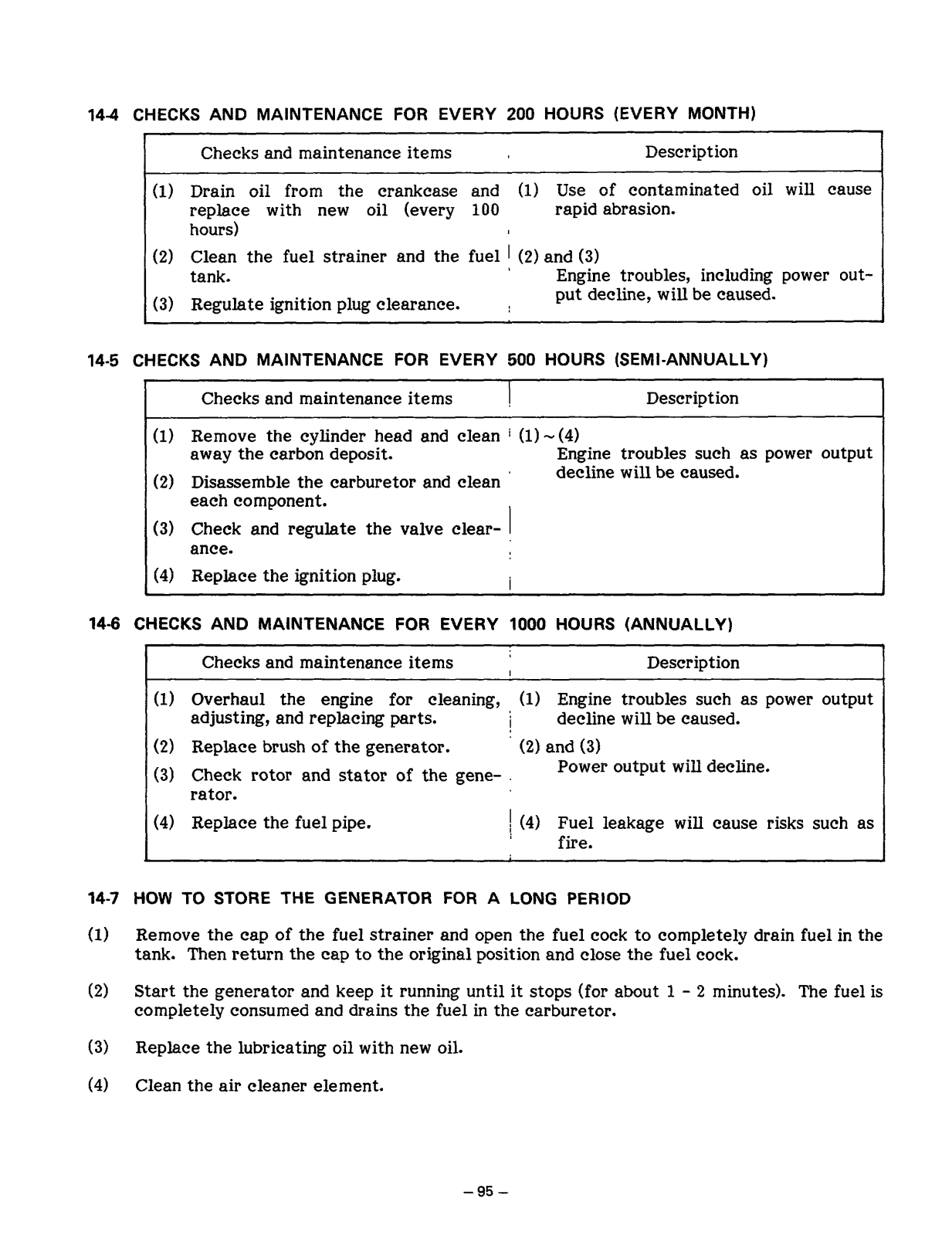

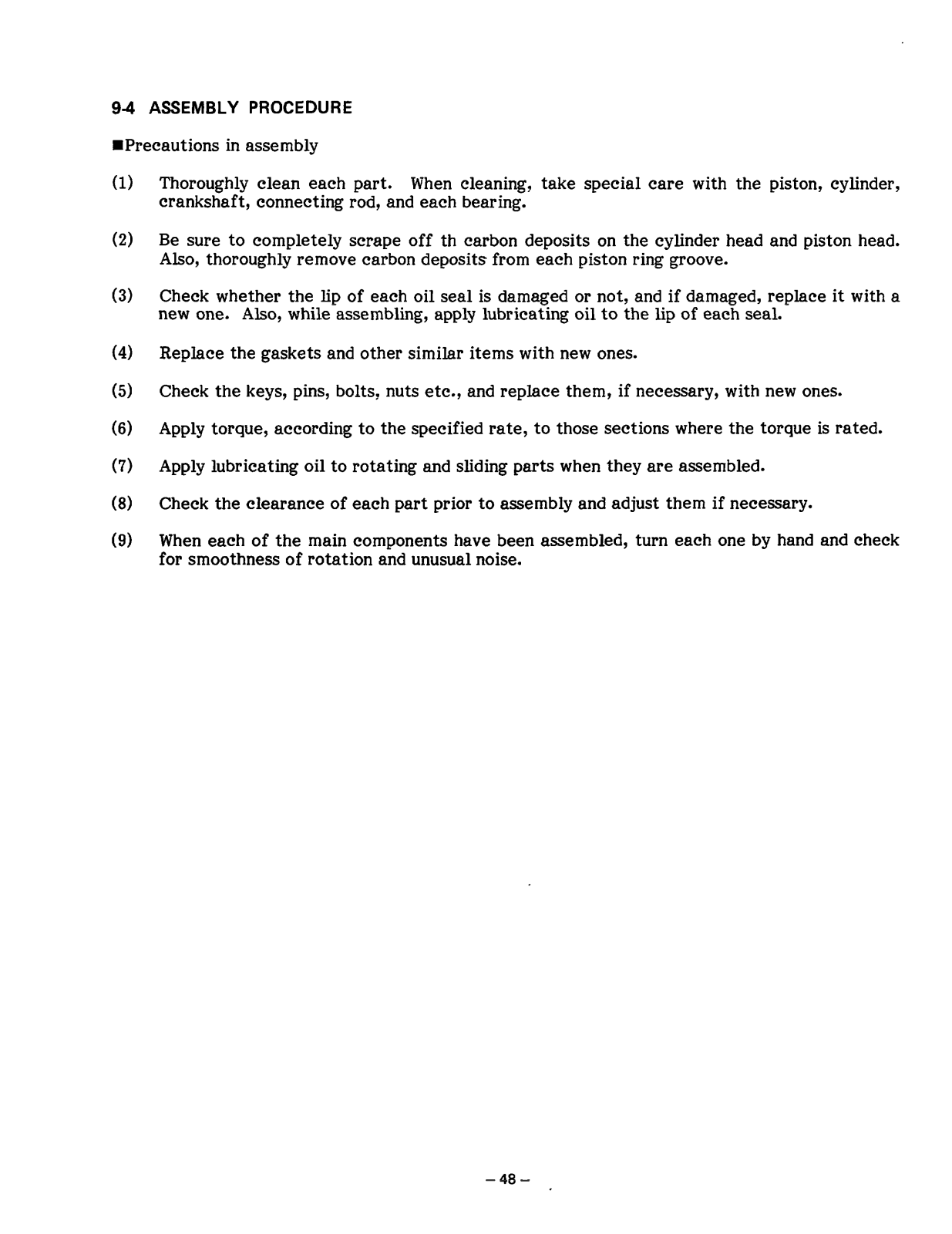

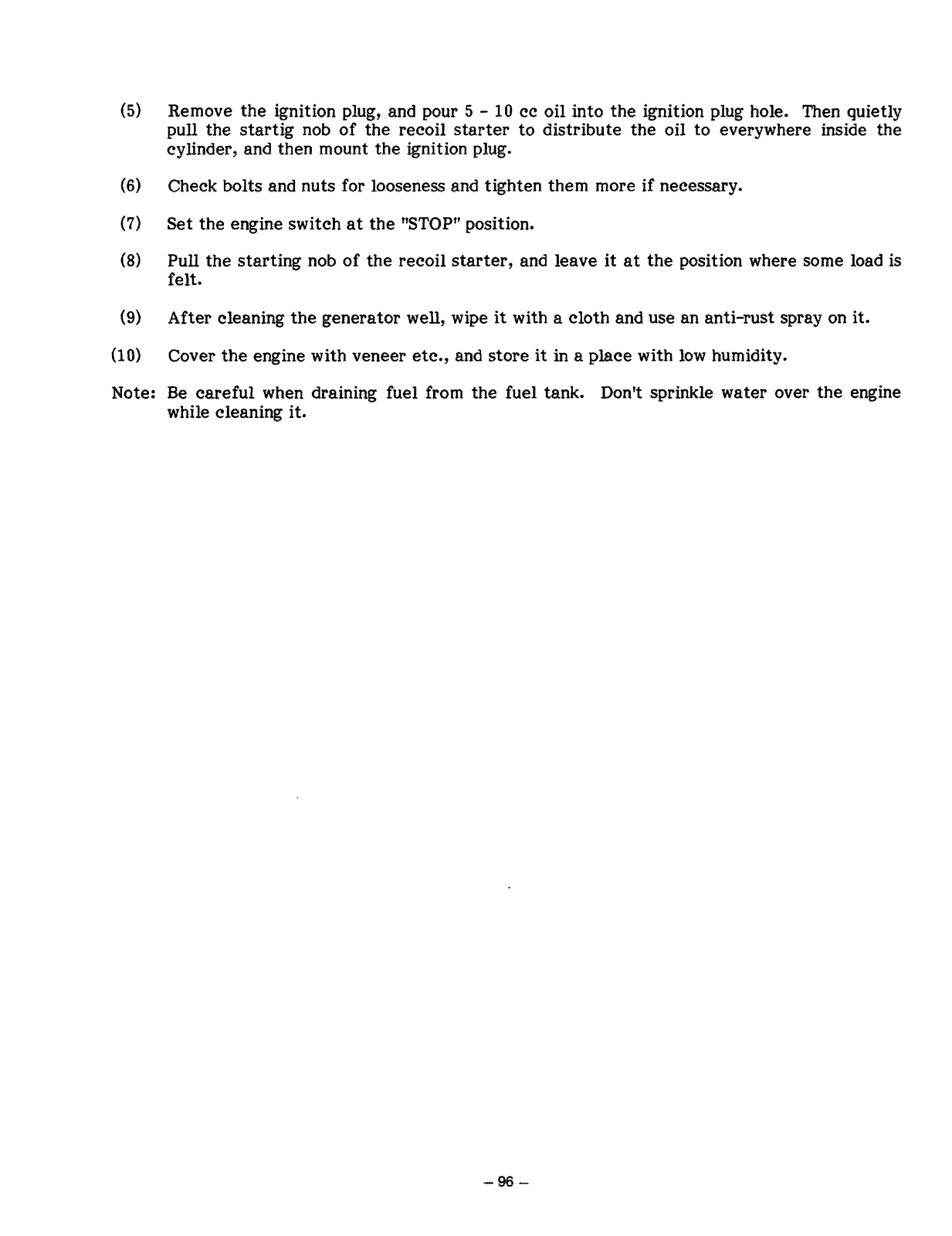

Q: Do we need to service the generator?
A:In most cases the generator will not require much attention but it is wise to examine and service the device periodically.
