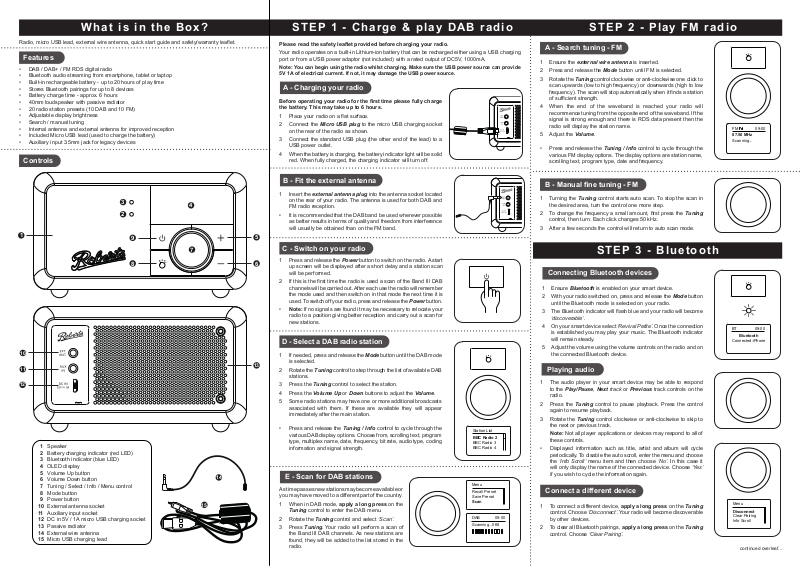

Roberts Revival Petite User guide

STEP 1 - Charge & play DAB radioWhat is in the Box?

STEP 2 - Play FM radio

Radio, micro USB lead, external wire antenna, quick start guide and safety/warranty leaet.

Features

• DAB / DAB+ / FM RDS digital radio

• Bluetooth audio streaming from smartphone, tablet or laptop

• Built-in rechargeable battery - up to 20 hours of play time

• Stores Bluetooth pairings for up to 8 devices

• Battery charge time - approx. 6 hours

• 40mm loudspeaker with passive radiator

• 20 radio station presets (10 DAB and 10 FM)

• Adjustable display brightness

• Search / manual tuning

• Internal antenna and external antenna for improved reception

• Included Micro USB lead (used to charge the battery)

• Auxiliary input 3.5mm jack for legacy devices

Controls

1

10

11

12

1 Speaker
2 Battery charging indicator (red LED)
3 Bluetooth indicator (blue LED)
4 OLED display
5 Volume Up button
6 Volume Down button
7 Tuning / Select / Info / Menu control
8 Mode button

9 Power button
10 External antenna socket
11 Auxiliary input socket
12 DC in 5V / 1A micro USB charging socket
13 Passive radiator
14 External wire antenna
15 Micro USB charging lead

3

2

9

8

4

7

14

15

13

Please read the safety leaet provided before charging your radio.

Your radio operates on a built-in Lithium-ion battery that can be recharged either using a USB charging
port or from a USB power adaptor (not included) with a rated output of DC5V, 1000mA.

Note: You can begin using the radio whilst charging. Make sure the USB power source can provide
5V 1A of electrical current. If not, it may damage the USB power source.

A - Charging your radio

Before operating your radio for the rst time please fully charge
the battery. This may take up to 6 hours.

1 Place your radio on a at surface.

2 Connect the Micro USB plug to the micro USB charging socket

on the rear of the radio as shown.

3 Connect the standard USB plug (the other end of the lead) to a

USB power outlet.

4 When the battery is charging, the battery indicator light will be solid

red. When fully charged, the charging indicator will turn off.

B - Fit the external antenna

1 Insert the external antenna plug into the antenna socket located

on the rear of your radio. The antenna is used for both DAB and
FM radio reception.

• It is recommended that the DAB band be used wherever possible
as better results in terms of quality and freedom from interference

will usually be obtained than on the FM band.

A - Search tuning - FM

1 Ensure the external wire antenna is inserted.

2 Press and release the Mode button until FM is selected.

3 Rotate the Tuning control clockwise or anti-clockwise one click to

scan upwards (low to high frequency) or downwards (high to low

frequency). The scan will stop automatically when it nds a station
of sufcient strength.

4 When the end of the waveband is reached your radio will

recommence tuning from the opposite end of the waveband. If the

signal is strong enough and there is RDS data present then the

radio will display the station name.

5 Adjust the Volume.

• Press and release the Tuning / Info control to cycle through the

various FM display options. The display options are station name,
scrolling text, program type, date and frequency.

B - Manual ne tuning - FM

1 Turning the Tuning control starts auto scan. To stop the scan in

the desired area, turn the control one more step.

2 To change the frequency a small amount, rst press the Tuning

control, then turn. Each click changes 50 kHz.

3 After a few seconds the control will return to auto scan mode.

FM

87.50 MHz

Scanning...

09:00

5

C - Switch on your radio

6

1 Press and release the Power button to switch on the radio. A start

up screen will be displayed after a short delay and a station scan

will be performed.

2 If this is the rst time the radio is used a scan of the Band III DAB

channels will be carried out. After each use the radio will remember

the mode used and then switch on in that mode the next time it is

used. To switch off your radio, press and release the Power button.

• Note: If no signals are found it may be necessary to relocate your
radio to a position giving better reception and carry out a scan for

new stations.

D - Select a DAB radio station

1 If needed, press and release the Mode button until the DAB mode

is selected.

2 Rotate the Tuning control to step through the list of available DAB

stations.

3 Press the Tuning control to select the station.

4 Press the Volume Up or Down buttons to adjust the Volume.

5 Some radio stations may have one or more additional broadcasts

associated with them. If these are available they will appear
immediately after the main station.

• Press and release the Tuning / Info control to cycle through the

various DAB display options. Choose from, scrolling text, program

type, multiplex name, date, frequency, bit rate, audio type, coding

information and signal strength.

E - Scan for DAB stations

As time passes new stations may become available or
you may have moved to a different part of the country.

1 When in DAB mode, apply a long press on the

Tuning control to enter the DAB menu.

2 Rotate the Tuning control and select ‘Scan’.

3 Press Tuning. Your radio will perform a scan of

the Band III DAB channels. As new stations are

found, they will be added to the list stored in the

radio.

Station List

BBC Radio 2

BBC Radio 3
BBC Radio 4

Menu

Recall Preset
Save Preset

Scan

DAB

Scanning...068

09:00

Connecting Bluetooth devices

1 Ensure Bluetooth is enabled on your smart device.

2 With your radio switched on, press and release the Mode button

until the Bluetooth mode is selected on your radio.

3 The Bluetooth indicator will ash blue and your radio will become

‘discoverable’.

4 On your smart device select ‘Revival Petite’. Once the connection

is established you may play your music. The Bluetooth indicator
will remain steady.

5 Adjust the volume using the volume controls on the radio and on

the connected Bluetooth device.

Playing audio

1 The audio player in your smart device may be able to respond

to the Play/Pause, Next track or Previous track controls on the

radio.

2 Press the Tuning control to pause playback. Press the control

again to resume playback.

3 Rotate the Tuning control clockwise or anti-clockwise to skip to

the next or previous track.

Note: Not all player applications or devices may respond to all of

these controls.

• Displayed information such as title, artist and album will cycle

periodically. To disable the auto scroll, enter the menu and choose
the ‘Info Scroll’ menu item and then choose ‘No’. In this case it
will only display the name of the connected device. Choose ‘Yes’
if you wish to cycle the information again.

Connect a different device

1 To connect a different device, apply a long press on the Tuning

control. Choose ‘Disconnect’. Your radio will become discoverable
by other devices.

2 To clear all Bluetooth pairings, apply a long press on the Tuning

control. Choose ‘Clear Pairing’.

STEP 3 - Bluetooth

BT

Connected:iPhone

Menu

Disconnect

Clear Pairing
Info Scroll

09:00

Bluetooth

continued overleaf...

STEP 4 - Selecting menu options

Other information

1 To access your radio’s menu system, apply a long press on the Tuning /

Menu control.

2 To select menu options, rotate the Tuning control to highlight the option.

3 Press the Tuning control to select the menu option.

4 To exit a menu, apply a long press on the Tuning control.

Alternatively, select the ‘Back’ option in the menu.

DAB / FM menus

DAB menu

When in DAB mode, apply a long press
on the Tuning / Menu control to access

the following DAB menu options. Rotate
the control and press to select an option.

Scan - Choose ‘Scan’ to scan the band

III DAB channels.

Menu

Recall Preset
Save Preset

Scan

DAB

Scanning...068

Prune - Choose ‘Prune’ to remove any

stations that are no longer available.

09:00

FM menu

When in FM mode, apply a long press
on the Tuning / Menu control to access

the following FM menu options. Rotate the
control and press to select an option.

Scan setting - Choose ‘Scan Setting’ and
then choose ‘Distant’ (your radio will scan
for both weak and strong signals) or ‘Local’
(your radio will scan for stations with good

reception).

Menu

Recall Preset
Save Preset

Scan Setting

Scan Setting

Local *

Distant
Back

Menu

Brightness

System

Back

System

Time Update
Language
Factory Reset

System settings

System settings

Apply a long press on the Tuning / Menu control

to access the current menu options. Rotate the
control and press to select an option.

Sleep Timer - Your radio can be set to turn off after
a preset time (between 15 and 120 minutes) has
elapsed. Choose ‘Sleep Timer’ and then choose
the desired sleep time. The sleep symbol will

appear on the display
the sleep timer, press the power button to cancel

the sleep timer and switch your radio off.

Menu

Prune
DAB Advanced

Sleep Timer

. If you wish to switch off

Sleep Setup

Sleep off
15 minutes

30 minutes

Factory Reset

Factory Reset - If you wish to completely reset your radio to its initial

state perform a factory reset. Choose ‘System’ then ‘Factory Reset’
and then choose ‘Yes’. All user entered settings will be erased.

System

Time Update
Language

Factory Reset

Factory Reset

No *

Yes

Back

Note: If the unit is in the Bluetooth or Auxiliary input stop mode position

for more than 15 minutes it will automatically switch off. To use the radio
again, simply press the Power button.

Auxiliary input

Connect a stereo or mono audio source to the Auxiliary input socket. Press
and release the Mode button until Aux In mode is selected. Adjust the volume.

Note that audio will be played in mono through the speaker.

Battery safety

Please also read the safety leaet provided

before charging your radio.

• Do not puncture, crush, modify, or cause any unnecessary shock

to the battery. The battery may present a risk of re, explosion or
chemical burn if mistreated.

• Do not dispose of the battery in a re or incinerator.

• Do not leave, charge or expose the battery to a heat source such as

in a car under direct sunlight. Do not expose the battery to moisture.

• Do not use or charge the battery if it appears to be abnormally hot,

swollen, leaking or damaged in any way.

• Do not leave a charging battery unattended. Do not use any
alternative power source as a charger.

• Check the room temperature range is between 5-35°C (41-95°F)
before charging the product / battery.

Note: Reduced power, distortion and stuttering sounds or the battery
indicator in low

are all signs that the battery needs to be recharged.

Specications

Power requirements

DC in Micro USB jack 5V 1A

Charging current 500mA

Battery Rechargeable Lithium-ion 3.63V, 2600 mAh, 9.438Wh.

Battery play time Approx 20 hours from a full charge. This gure is

only approximate and is very dependent on play

back volume, battery age, and temperature.

Battery charge time - Approximately 6 hours.

Menu

Scan

Prune

DAB Advanced

Manual tune - Choose ‘DAB Advanced’
and then choose ‘Manual Tune’ and then

choose the desired DAB channel. The
signal strength will be displayed. The signal

marker (

) shows the minimum strength

needed for good DAB reception.

DAB Advanced

Manual Tune

Station Order
DRC

Manual Tune

11B 218.640MHz
11C 220.352MHz
11D 222.064MHz

Station order - Choose ‘DAB Advanced’,
‘Station Order’ and then choose either

Alphanumeric, Ensemble or Valid (available

stations).

DAB Advanced

Manual Tune

Station Order

DRC

Station Order

Alphanumeric *

Ensemble
Valid

DRC - Choose ‘DAB Advanced’, ‘DRC’ and
then choose ‘Off’, ‘Low’ or ‘High’. The DRC
facility can make quieter sounds easier to
hear when your radio is used in a noisy

environment. Note: Not all DAB broadcasts
use the DRC function.

Preset radio stations

There are 20 memory presets, 10 for DAB

and 10 for FM. Presets are remembered in
the event of a power failure.

To store a preset

1 Tune to the required radio station.

2 Apply a long press on the Tuning /

Menu control.

3 Choose ‘Save Preset’.

4 Use the Tuning control to scroll to an

unused preset or a preset you wish to

change.

Menu

Recall Preset

Save Preset

Scan

5 Press the Tuning control to save

the preset. ‘Preset 2 Saved’ will be
displayed. The preset number will be
shown on the playing display.

To recall a preset

1 Choose DAB or FM mode.

2 Apply a long press on the Tuning /

Menu control.

3 Choose ‘Recall Preset.

4 Use the Tuning control to scroll to the

desired preset.

5 Press the Tuning control to select it.

Save Preset

P1:BBC R1

P2:Empty

P3:Empty

Brightness - Choose ‘Brightness’ and then choose

the desired brightness level.

Menu

DAB Advanced
Sleep Timer

Brightness

Brightness

Brightness

6

Time Update - Your radio will usually set the time
using the DAB signal. From the current menu

choose ‘System’, and then ‘Time Update’ . Choose
to set the time from ‘DAB’, ‘FM’ or ‘ANY’.

System

Time Update

Language
Factory Reset

Time Update

DAB *

FM
ANY

Language - Choose ‘System’, ‘Language’ and

then choose a desired language from the list.

System

Time Update

Language

Factory Reset

Language

English *

Dansk
Français

SW Version - The software display cannot be

altered and is just for your reference. Choose
‘System’ then ‘SW Version’. Press Tuning to exit
the software display.

Revival Petite

DAB / DAB+ / FM radio with Bluetooth

Circuit features

Auxiliary input socket - 3.5mm dia.

Aerial System - DAB / FM external antenna

Bluetooth standards A2DP, AVRCP

Bluetooth codecs supported SBC and AAC

Frequency coverage FM 87.5 - 108MHz, DAB 174.928 - 239.200MHz

Bluetooth 5.0 frequencies 2.402 - 2.480GHz
Bluetooth BLE EIRP POWER (MAX.) 3.71dBm

Bluetooth EDR EIRP POWER (MAX.) 3.68dBm

Product markings

This symbol indicates DC voltage.

Please handle with care. The leather-cloth nish may be susceptible to
damage if mistreated. Avoid all contact with any abrasive material, chemical
substances or cleaning solutions. Your radio may be wiped with a clean
lightly damp cloth. Please ensure that the product is unplugged before

attempting this procedure.

The name plate is located underneath the radio.

The company reserves the right to amend the specication without notice.

Designed & Engineered in the UK
Made in China

DAB Advanced

Manual Tune
Station Order

DRC

DRC

Off *

Low
High

Menu

Recall Preset

Save Preset
Scan

Recall Preset

P1:BBC R1

P2:BBC R2

P3:Empty

System

Language
Factory Reset

SW Version

SW Version

Revival Petite

15-V11-090A01-211A

Please read this guide and the safety/warranty leaet before use

Issue 1

2021-06-23

ROBERTS RADIO LIMITED

www.robertsradio.com

© 2021 Roberts Radio Limited
