Roberts Gemini 11 RD-11, RD-11 User Manual
RD-11
FM RDS/DAB digital radio
with
Please read this manual before use
ROBERTS
Sound for Generations
Controls..............................................................................2
Battery operation ...............................................................3
Mains operati on .................................................................3
Operating your radio - DAB............................................... 4
Selecting a station - DAB .................................................5
Secondary services - DAB................................................6

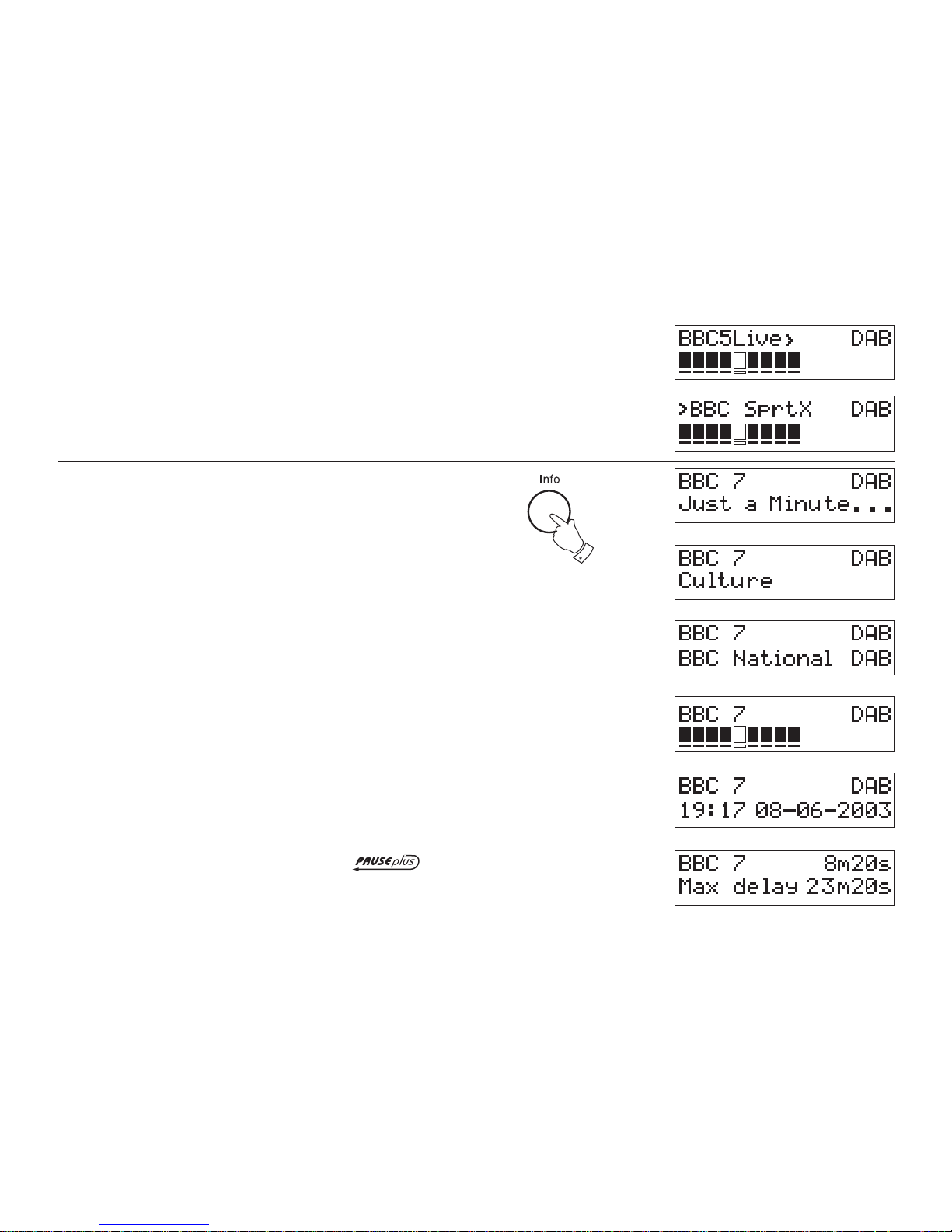

Display modes - DAB........................................................ 6
Finding new stations - DAB ..............................................7

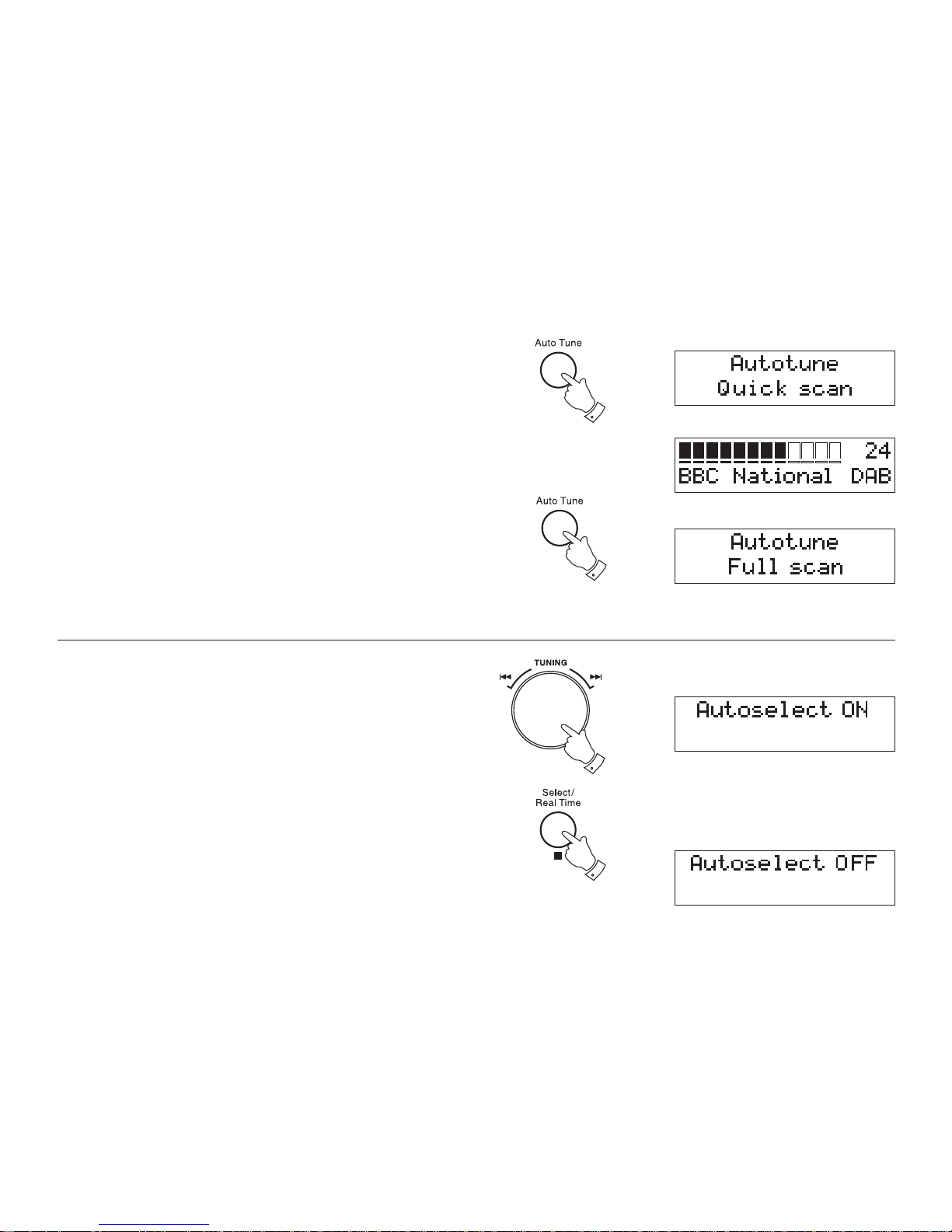

Autoselect - DAB .............................................................. 7

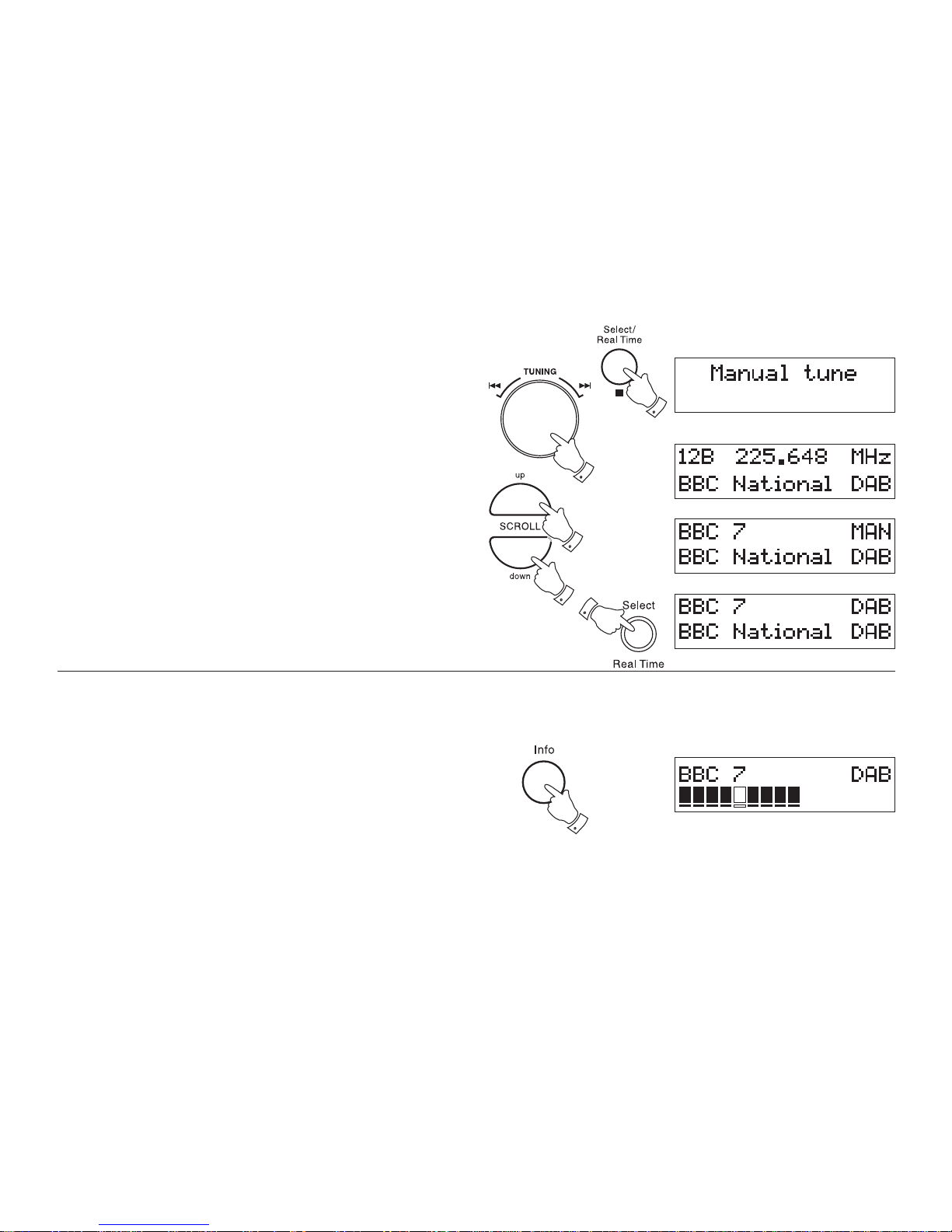

Manual tuning - DAB .........................................................8
Signal strength display - DAB ..........................................8

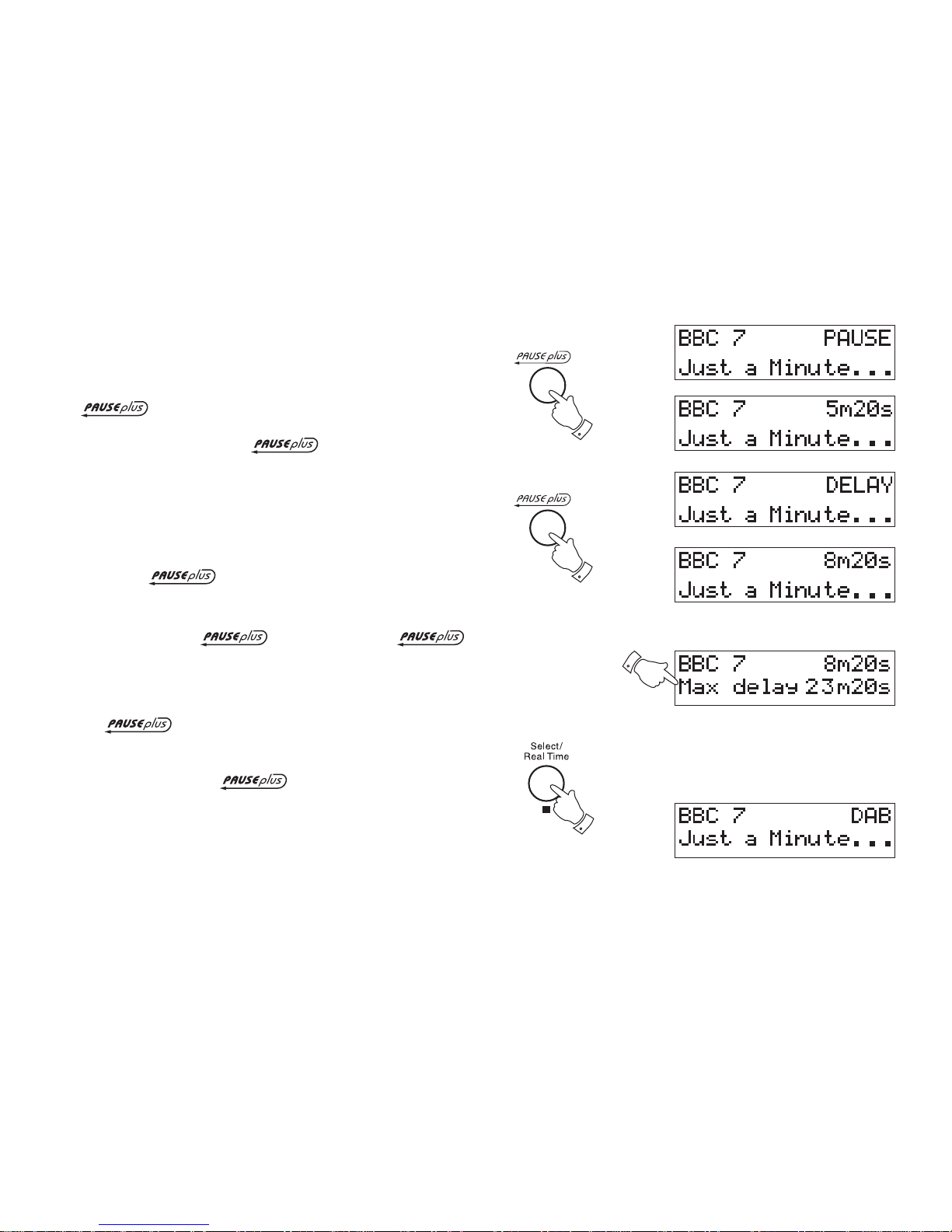

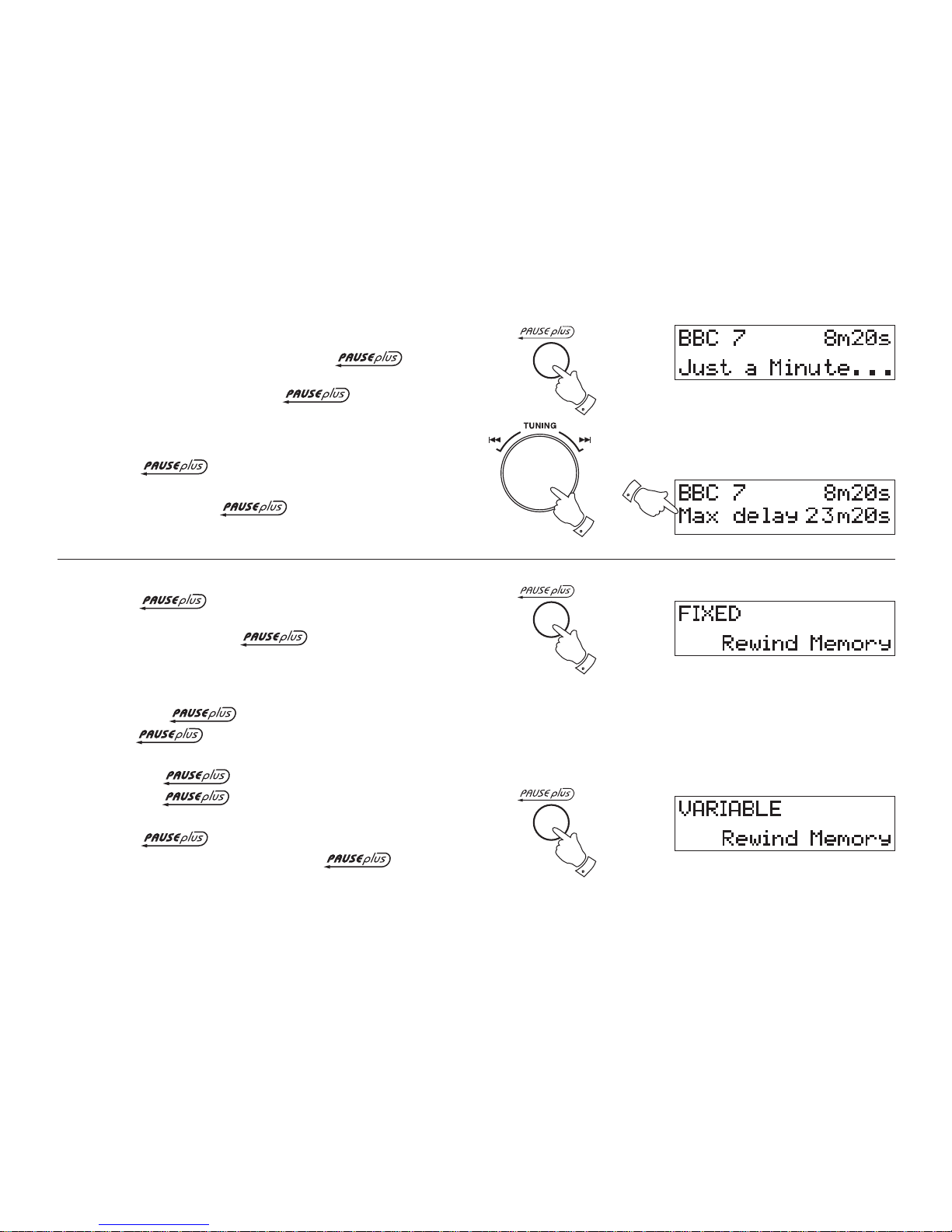

Using your radio's PausePlus feature ......................... 9-10

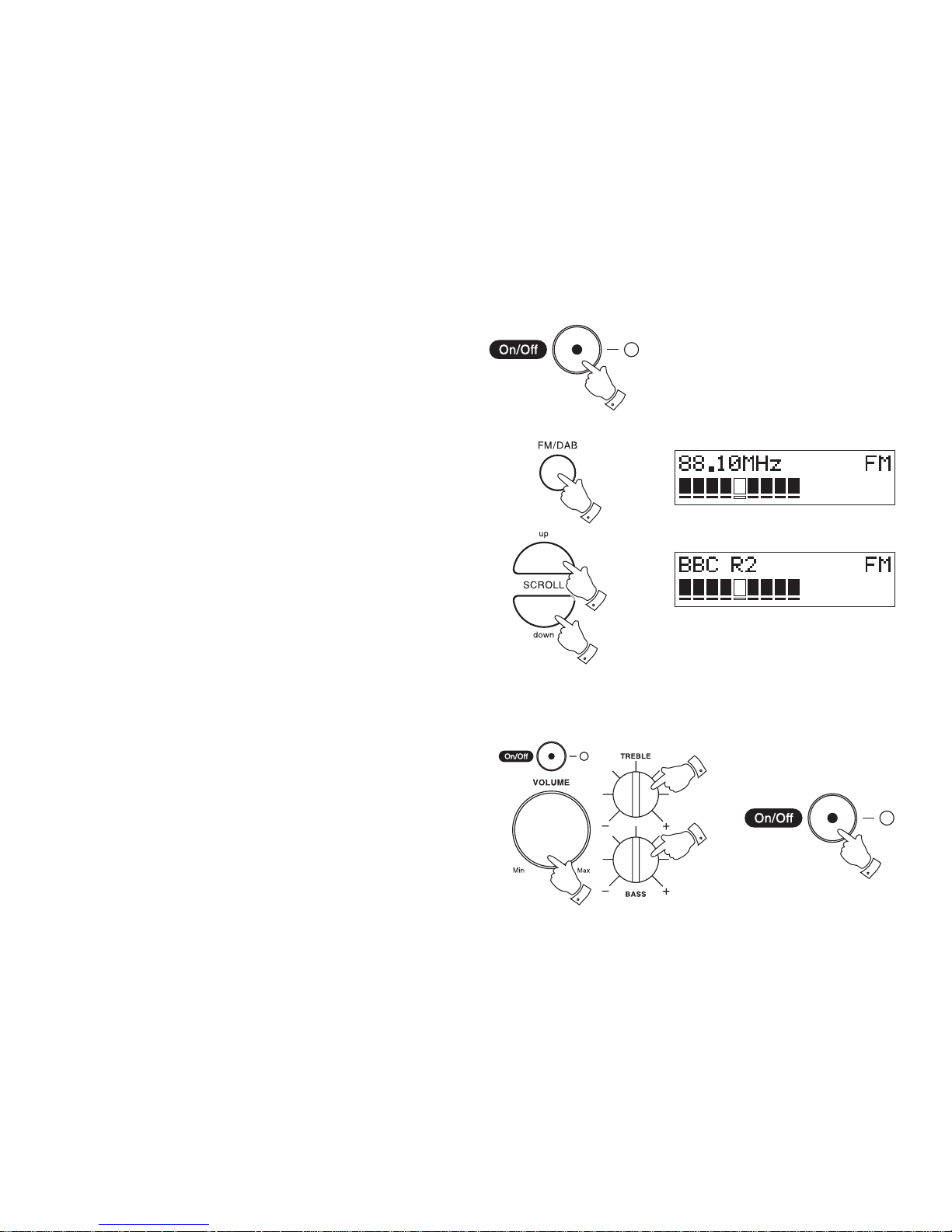

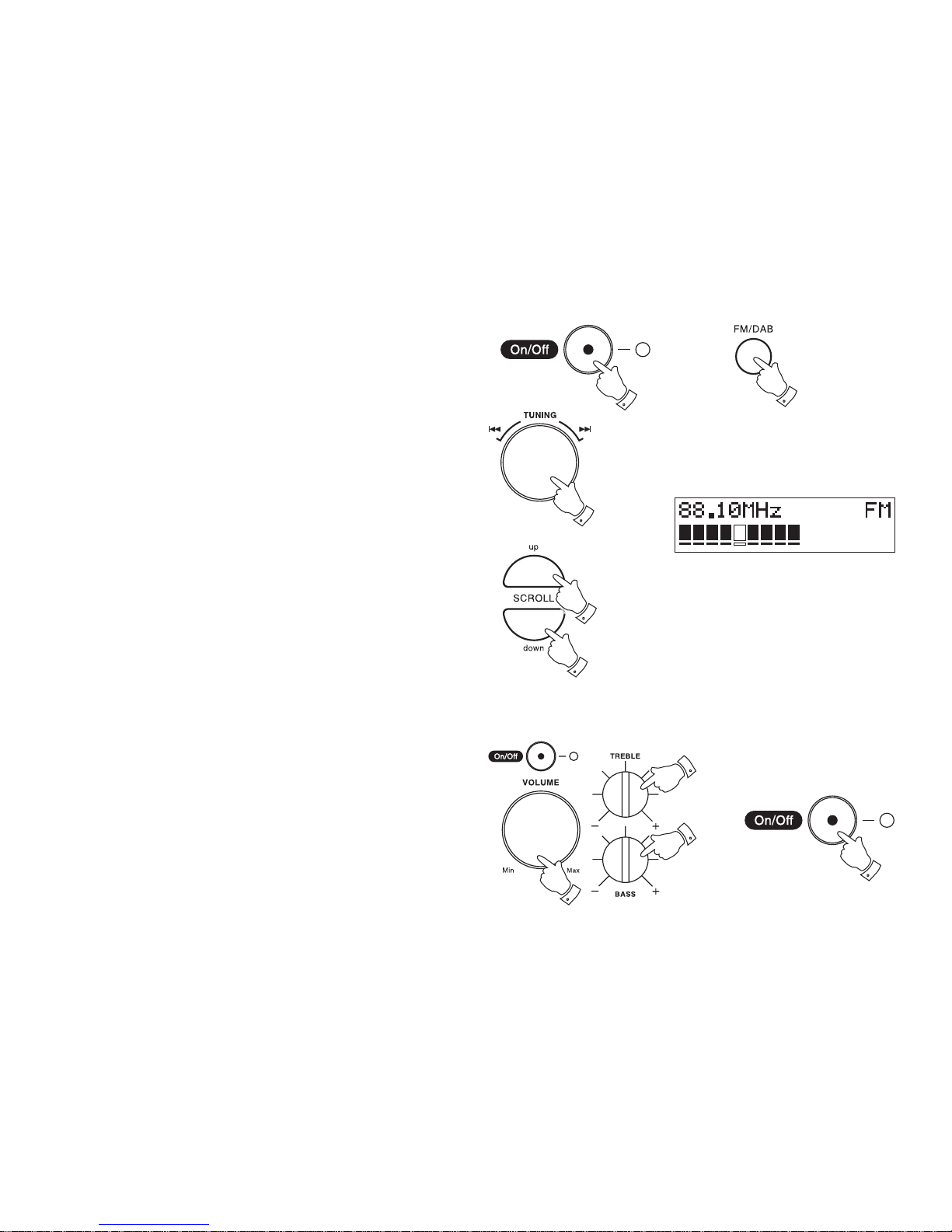

Operating your radio - FM ............................................... 11
Manual tuning - FM.......................................................... 12

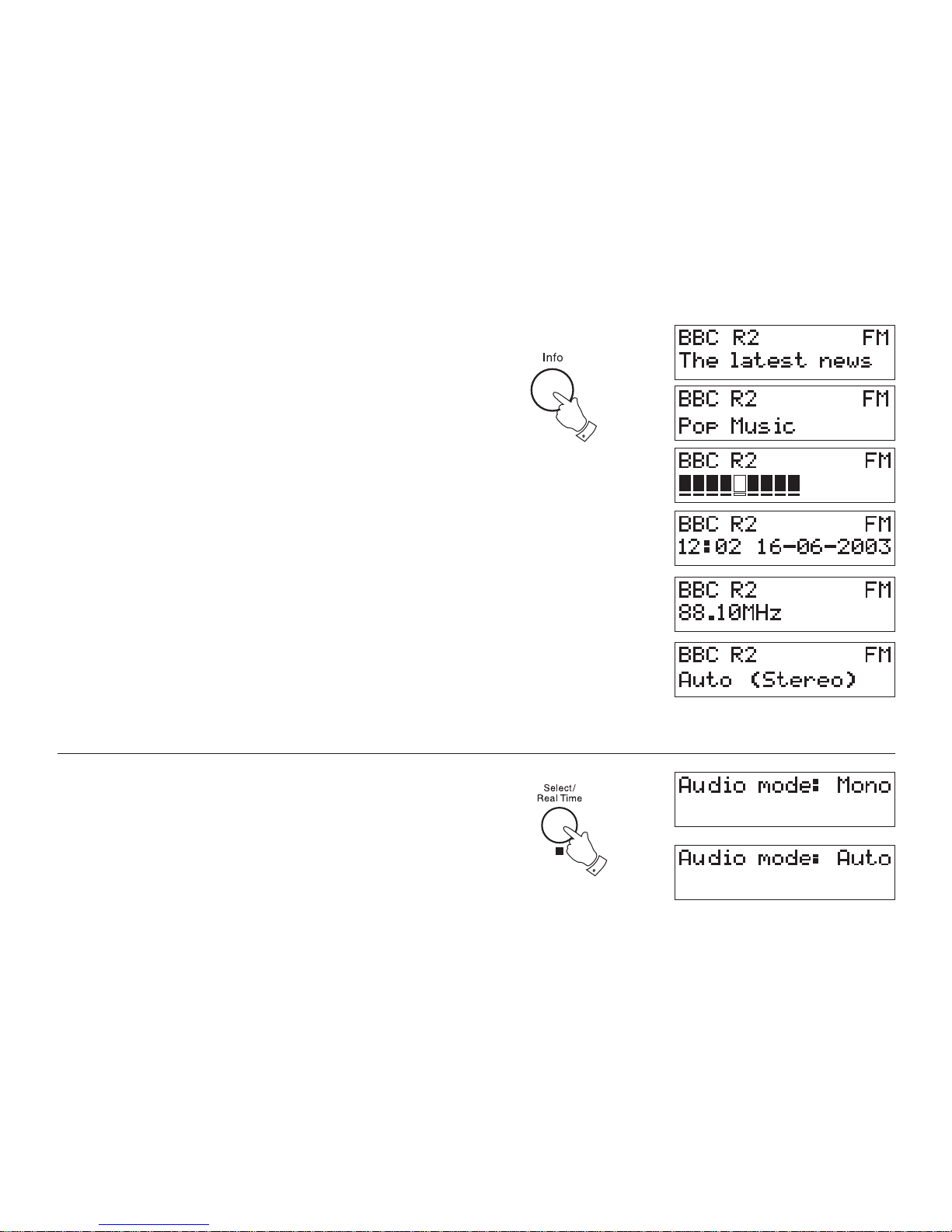

Display modes - FM ........................................................ 13
FM stereo/mono .............................................................. 13

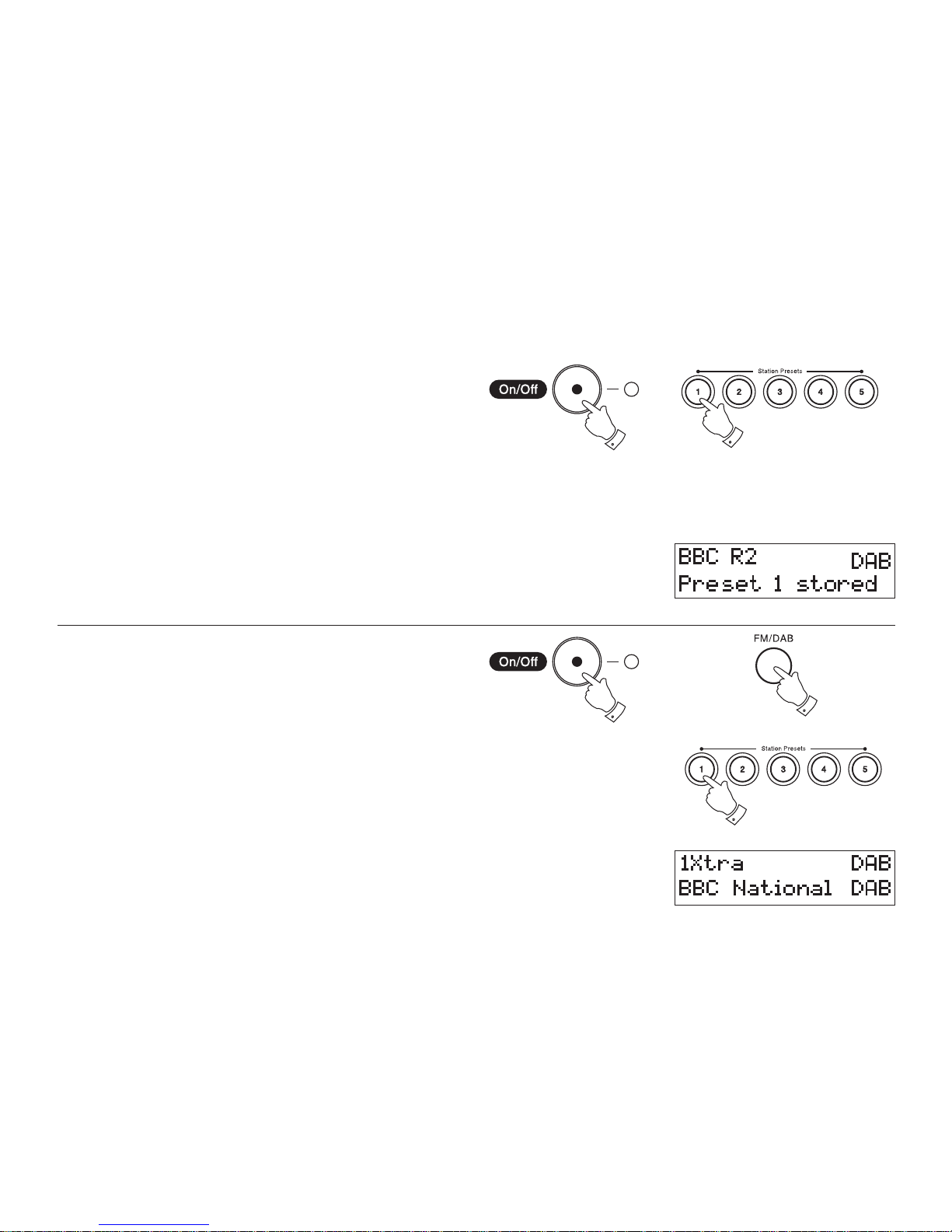

Presetting stations - DAB and FM .................................14
Recalling a preset station - DAB and FM ...................... 14

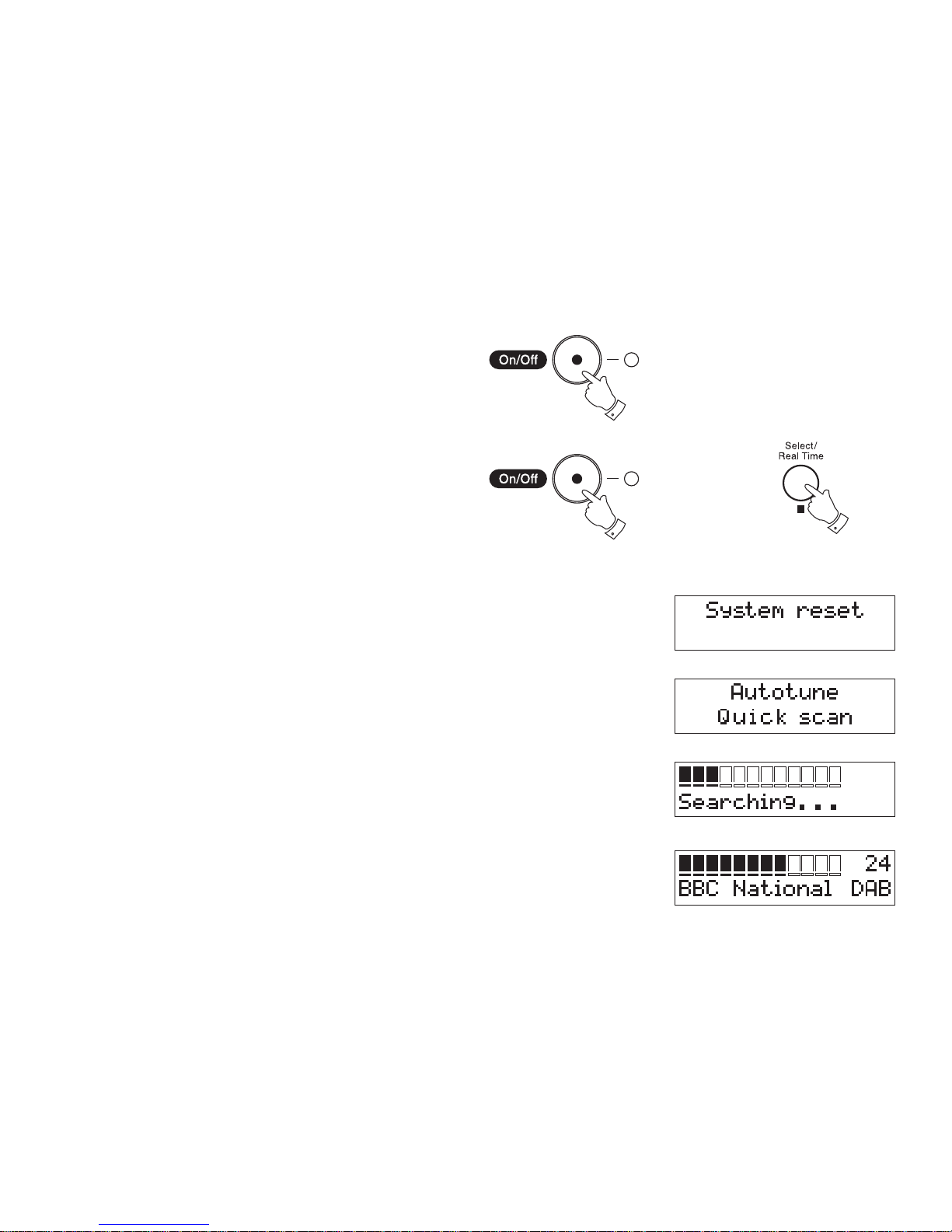

System reset ...................................................................15

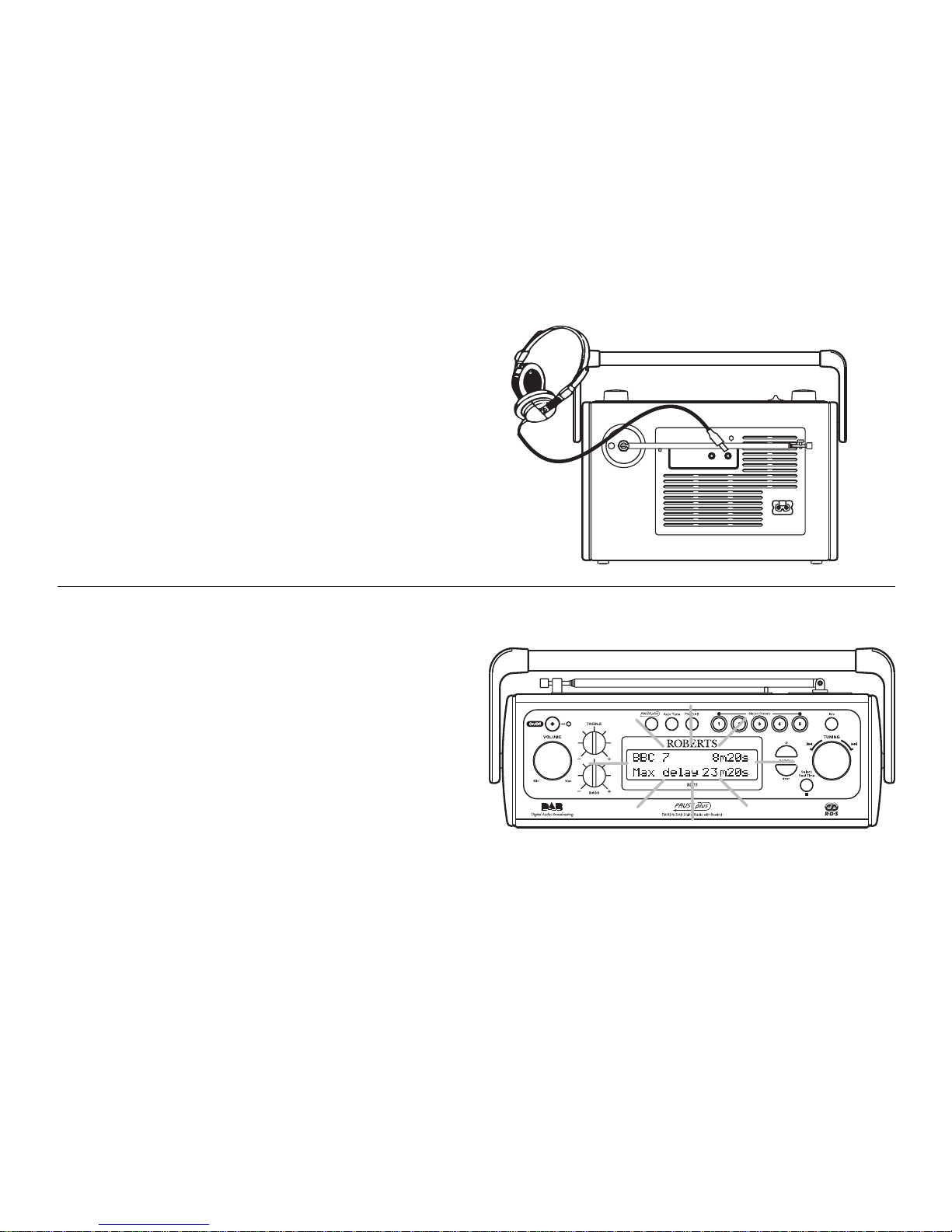

Headphone socket ..........................................................16
Line out socket ...............................................................16
Display backlight.............................................................16
Contents

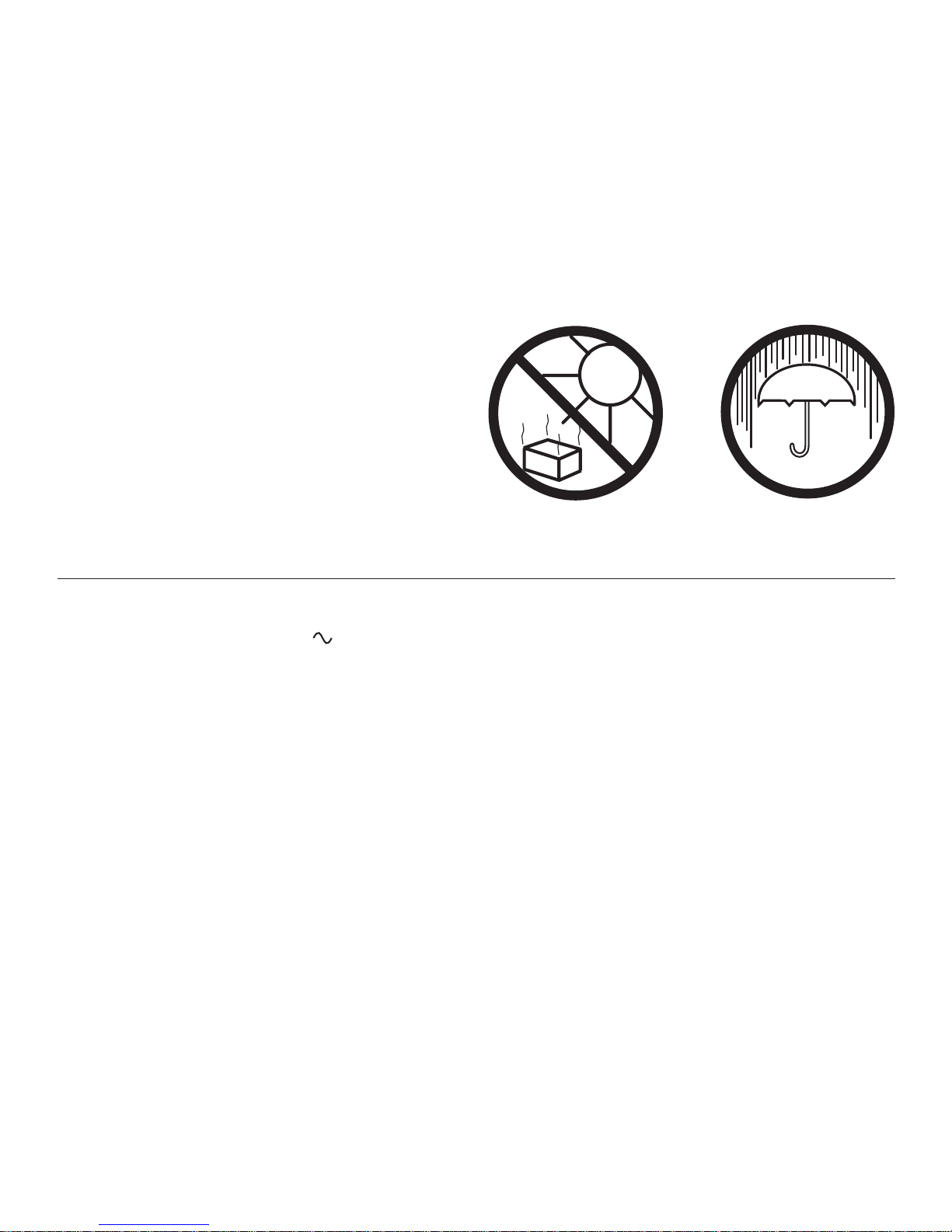

General ............................................................................17
Specifications..................................................................17
Circuit features ................................................................17

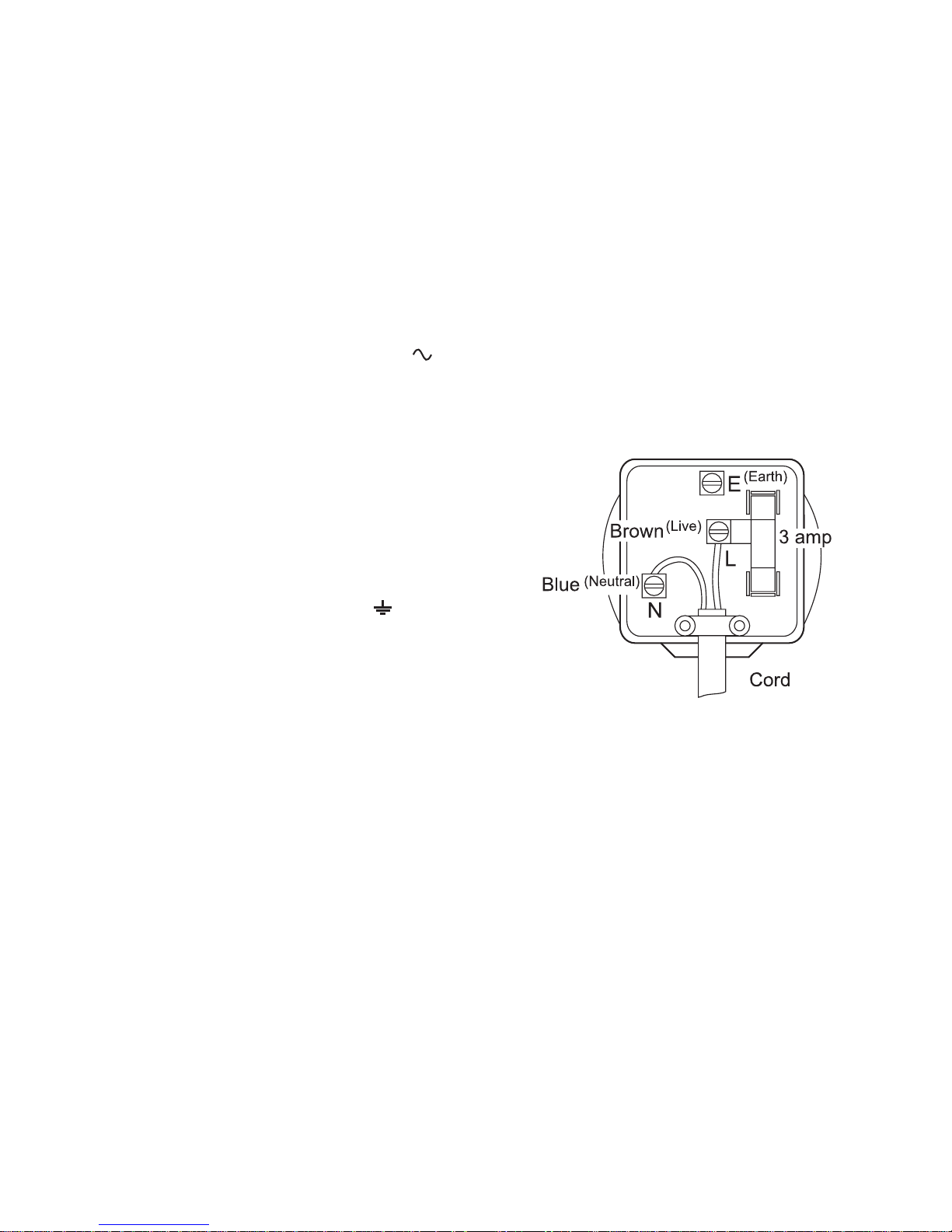

Mains Supply ...................................................................18
Guarantee.........................................................Back cover
1
If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)
2
Controls
1. On/Off button
2. Mains LED indicator
3. Mains input socket (on rear)
4.
button
5. Auto Tune button
6. FM/DAB button
(Top)
1
13. Select button
14. Tuning down button
15. Tuning up button
16. Liquid crystal display (LCD)
17. Treble control
18. Bass control
19. Volume control
7. Headphone socket (on rear)
8. Station presets
9. Line out socket (on rear)
10. Telescopic aerial (on rear)
11. Info button
12. Tuning control
2 4 5 6 10 118
12131415
379
16171819
3
Battery operation
1. Remove the Battery cover on the base of the unit by pushing in the
battery cover on the word "Close" and sliding towards "Open"
2. Insert six LR20 (D size) batteries into the spaces in the compartment.
Take care to ensure all batteries are inserted with the correct polarity
as shown inside the battery compartment. Replace the battery cover.
3. Reduced power, distortion and a ‘stuttering’ sound are all signs that
the batteries may need replacing.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
We would recommend for economy that the RD-11 is used on the
mains whenever possible with battery operation for occasional or
stand-by use only.
Mains operation
1. Place your radio on a flat surface.
2. Plug the mains lead into the Socket located on the rear of your radio
ensuring that the plug is pushed fully into the socket.
3. Plug the other end of the mains lead into a wall socket and switch on
the wall socket.
If you need any further advice, please call our Technical Helpline on :020 8758 0338 (Mon-Fri)
4
Operating your radio - DAB
1. Carefully extend the telescopic aerial
2. Press the On/Off button to switch on your radio. The display will
show Roberts DAB digital radio for a few seconds.
3. If this is the first time the radio is used a quick scan of UK Band III
DAB channels will be carried out. The display will show Autotune
Quick scan. If the radio has been used before the last used station
will be selected.
4. During Autotune as each group of stations is detected the bottom
line of the display will show its name and the station count will be
updated. The top line of the display shows a bargraph indicating
progress of the Autotune.
5. When the Autotune is completed the first station (in numeric-alpha
order 0...9...A....Z) will be selected.
6. If the station list is still empty after the Autotune your radio will display
No Signal.
7. If no signals are found it may be necessary to relocate your radio
to a position giving better reception.
2
5
Selecting a station - DAB
1. The top line of the display shows the name of the station currently
selected.
2. Rotate the Tuning control or press the Up or Down buttons to scroll
through the list of available stations.
3. Press and release the Select button to select the station. The display
may show Tuning while your radio finds the new station.
4. Adjust the Volume and Tone controls to the required settings.
Note: If after selecting a station the display shows Not Available it
may be necessary to relocate your radio to a position giving better
reception.
4
2
2
4
4
2
3
