Robert Juliat D'ARTAGNAN 900 SNX, D'ARTAGNAN 934 SNX, D'ARTAGNAN 933 SNX User Instructions

VALIDATION : 27.10.10

DN30750601

D'ARTAGNAN

Robert Juliat S.A.S. Route de Beaumont, F 60530 Fresnoy-en-Thelle - phone : [phone] - fax : [phone] - [e-mail]
Robert Juliat U.S.A. 48 Capital Drive, Wallingford, CT 06492 - phone : [phone] - fax : [phone] - [e-mail]

930, 933 & 934 SNX

PROJECTEURS DE DÉCOUPES MSR 2500W

REAMORÇAGE À CHAUD /

MSR 2500W HOT RESTRIKE PROFILES

TECHNICAL FILE /

DOSSIER TECHNIQUE :

ii

NOTES

iii

You have in your possession a ROBERT JULIAT prole. We would like to congratulate you on your
choice.

The performance of this prole depends on the care you'll give to its maintenance. We advise you
to read this manual and then keep it for reference.

Do not hesitate to come up with suggestions ; it's thanks to you that our products will continue
to improve.

Thank you.

ROBERT JULIAT

Vous venez de prendre possession de votre nouveau projecteur de découpe et nous vous
remercions de votre choix.
Le résultat que vous en obtiendrez dépendra pour beaucoup du soin que vous apporterez
à son entretien, aussi nous vous conseillons de lire ces quelques pages qui ont été écrites à
votre intention et de les conserver en cas de nécessité.

Ne manquez pas de nous faire part de vos idées ou suggestions ; c’est grâce à vous que le
produit pourra évoluer.

Merci de votre attention.

ROBERT JULIAT

iv

CONTENTS

Section:

Section:

Section:

A TECHNICAL DATA

User's instructions. .................................................................................................... A - 1

The identification plates. ......................................................................................... A - 3

Connections. ............................................................................................................... A - 5

Putting the lamp into place. ................................................................................... A - 7

Admissible lamps. ..................................................................................................... A - 9

Network use. ............................................................................................................. A - 11

Changing the position of the yoke - OPTION. ................................................... A - 13

B MAINTENANCE

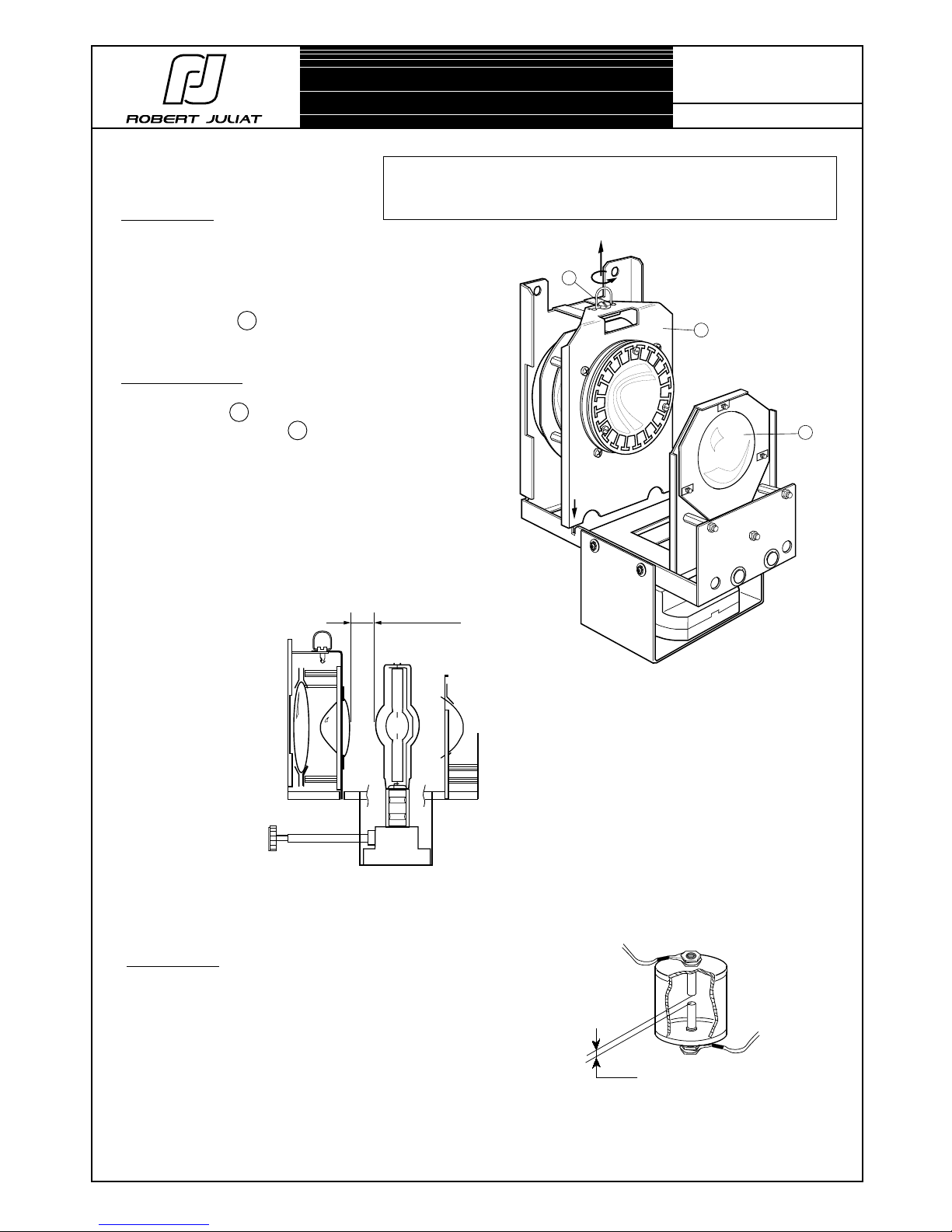

Reflector, aspheric lens and spark-gap. ............................................................... B - 1

Connection. ................................................................................................................ B - 3

Non-functioning diagnosis. ...................................................................... B - 5, 7, 9, 11

Electrical diagram - lamp housing.. .................................................................... B - 14

C SPARE PARTS LIST

Lamp housing & accessoires. ...................................................................................C - 1

Lamp housing and yoke blocking system. ........................................................... C - 2

930 Lens tube. .............................................................................................................C - 3

934 Lens tube. .............................................................................................................C - 4

933 Lens tube. .............................................................................................................C - 5

Aspheric lens and lamp holder................................................................................ C - 6

Dimmer. ........................................................................................................................ C - 7

900 SNX

Section A - 1

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

USER’S INSTRUCTIONS

GENERAL INSTRUCTIONS

1. Not for residential use.

2. Only qualied technicians are permitted to service these xtures.

3. In addition to the instructions indicated on this page, you must
adhere to the relevant health and safety requirements of the
appropriate EU Directives.

4. This xture is in compliance with section 17: Lighting appliance
for theatre stages, television, cinema and photograph studios.
Standards NF EN 60598-1 and NF EN 60598-2-17.

5. This xture is rated as IP20, and is for indoor use only.

FIXTURE

6. Warning: high voltage ignition. Disconnect from the mains before

any servicing.

7. Make sure the xture is correctly mounted on an appropriate
support.

8. The protection screens, lenses or U.V. lters must be replaced if there
is any visual damage which might reduce their performance, for
example, by cracks or deep scratches.

9. When hung or own the xture must be secured by another hanging
accessory (such as a safety cable or bond) that is of suitable length.

10. The safety bond or cable must be securely attached at the back of
the xture. It must be as short as possible or rolled up as necessary
to ensure the xture does not travel any distance should it be
dislodged.

11. Movable accessories (barn doors, HMI shutters, spill rings etc.) must
also be secured with a suitable safety cable or bond at the front of
the xture.

12. Take into account the weight of both the xture and the accessories
when choosing the strength of the attachment point and the safety
cable or bond.

13. Do not open the lighting xture when the lamp is on.

14. Both the lamp and lamp housing heat up when powered. Wait until
the xture is cold before servicing.

15. Do not tamper with the design of the xture nor any of its safety
features.

16. Tighten the electrical mains cable connections regularly. Replace
mains cable with an identical one if damaged.

17. Use only with correct power supply.

Ventilation

18. Keep well away from ammable material.

19. Do not use outside. Do not cover. Do not permit the xture to get
wet.

20. To avoid overheating, do not obstruct air vents.

21. If the xture has fans, make sure they are working correctly. If fans
are not working, turn the xture o immediately and service as
necessary.

Lamp

22. Use only fully enclosed in the xture.

23. Never look at the lamp directly.

24. Warning: U.V. rays : Protect your eyes.

25. Check that the lamp voltage corresponds to the mains voltage used.
Do not use a lamp with power that is an incorrect type or voltage to
the one that is indicated on the lamp housing or packaging.

26. The lamp must be replaced if it has been damaged or deformed by
the heat.

27. Use only when bulb is in place.

Cleaning

28. Do not touch the lamp or the mirror with your ngers.

29. Keep optical parts (lens, lamps,…) clean with alcohol.

30. Regularly remove dust from the mirror with a soft and clean rag.

31. If the xture has lters they must be cleaned frequently.

POWER SUPPLY

32. Disconnect from the mains before any servicing.

33. Mains connection only. Do not connect to an "electronic output"
(dimmer, static relay...).

34. Do not use outside. Do not cover.

35. The power supply has circuit breakers, which should always be kept
accessible.

36. There is no maximum distance between the lighting unit and the
power supply.

37. Check the mains voltage.

PLEASE NOTE

These products have been built to conform to European standards
relating to professional lighting equipment. Any modication made to
our products will void the manufacturers' warranty

Please read carefully all the instructions before operating the appliance.

Danger

The discharge lamp used emits short-wave ultraviolet
radiation which is harmful to skin and eyes.

900 SNX

Section A - 3

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

1

5

4

3

12

7

9

10

8

6

2

11

- The identication plate situated on the lighting unit :

THE IDENTIFICATION PLATES.

1 User's instructions, read the previous page attentively.
2 Lighting unit's reference & name.
3 Serial number.
4 European conformity.
5 Net weight without accessories.
6 Technical characteristics :

- P = Maximum power input.

- AL = Max. amp intensity.

- UL =Max. voltage at the lamp terminal.

- IP 20 = indoor use ONLY.

- t a = max temperature ambient.

- t max = Maximum external temperature of the unit.
7 Restrictive operating position : front view.
8 Minimum distance between a flammable material and the lighting unit.
9 Type of P.S.U.
10 Gobo size.
11 Admissible lamps.
12 WEEE directive label.

Units :

- Dimensions = metre (m) millimetre (mm). - Frequency = Hertz (Hz).

- Weight = kilogram (kg). - Power = Watt (W).

- Intensity = Ampere (A) milliampere (mA). - Temperature = Degree Celsius (°C).

- Voltage = Volt (V).

900 SNX

Section A - 5

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

B

C

A

D

6

g

f

e

h

1

2

3

4

5

7

ERROR

DATA

EXT. DIGI.

EXT.

LOCAL

LOCK

SELECT EXIT

+

CONTROL SHUTTER

DATA

0/10V

0/10V - DMX 512 - AVAB

RESET

a

b

c

d

• Use only the listed cables to connect to the mains -

Refer to the respective PSU technical le.

Each time you switch on: make sure
the fans are working correctly.

A 900 SNX Motorized shutter - CAD 900 version.
e - EM HARTING 16 x 16A power socket.
f - EM XLR7 shutter + DATA (option).
g - EF XLR5 output DATA (colour changer option).
h - EF mains output 220/240V (colour changer option).

B Power supply unit with CAD 900 control module.

C Lamp cable.

Cable H07 RN-F 18G 1,5 mm

2

length 3m fitted

with 16 x 16A M/F HARTING connectors.

D Shutter cable.

14 conductors reinforced shielded cable - length 3m
fitted with XLR7 M/F connector.

DATA out.

DATA in.

CONNECTIONS.

0/+10V. line.

OPTION

DMX colour
changer.

Lighting unit / Power supply connection.

- Connect the lamp cable C to the connector 5 of the
ballast and connector e to the lighting unit.

- Connect the cable D to the connector ( d ) of the
ballast and to the connector f of the lighting unit "XLR7".

- Place the lamp into position - refer to section A - 7.

- Connect the DATA line on connector ( a ) "XLR5" or
the analog command to the connector ( c ) "XLR4".
( For the connection configurations : refer to section B - 3 ).

- Connect the optional units that are possible, to connector g
( Only DATA ).

- Plug the cable 6 to the mains. If the power is present, the
checklight 1 lights up immediately.

- Engage the circuit breaker 3 and check that the CAD 900
protection 4 is well engaged.

- If you use the optional outlet h , engage the circuit breaker 2 .

WARNING !

- Never open the lamp house's bonnet when the lighting unit is on.

- Do not change the safety switches.

- Never connect to a dimmable channel.

- Use only when lamp in place.

Rating plate 7 : Lamp power.

Mains voltage.

- Check the conformity of the mains voltage input with
the values indicated on the identification plate of the
PSU (mains voltage & lamp power)

DESCRIPTION.

a - EM XLR5 input DATA.
b - EF XLR5 output DATA.
c - EM XLR4 0/+10V input.
d - EF XLR7 output DATA luminaire.

900 SNX

Section A - 7

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

2500

1

PUTTING THE LAMP INTO PLACE.

User's precautions :

- Disconnect from the mains.

- Lamp is cold.

- Avoid touching the bulb of the lamp.

- Open the lamp house's bonnet.

- Open the socket jaws by unscrewing 1 .

- Place the lamp into the socket.

- Retighten the socket jaws by using the knob 1 .

For means of security, each time the lamp is changed, it
is recommended to check the condition of the socket
connections: the base of the lamp - socket jaws. A socket or the
base of a lamp which has become black, requires replacement.
Otherwise, damage will be caused to important parts of the
lantern (i.e. ignitor).

WARNING : Fragile lamp - take the lamp out from the
lamp housing, when transporting the lighting unit.

900 SNX

Section A - 9

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

ADMISSIBLE LAMP :

PHILIPS: MSR 2500 HR

Manufacturer's recommendations :

• Read attentively the manufacturer's instructions.

• Positioning of the lamp and connecting the power supply require great care. To make sure there is a good
conduction of current, the mechanical support and the electrical connections must be free from dirt and corrosion.
The clamps and brackets must be checked whenever the lighting unit has been transported.

• The lamp emits ultraviolet radiation. Direct exposure can be harmful to your health.

• It is recommended to avoid air draughts, also avoid exposing the lighting unit to bad weather.

• Use only when bulb in place

Technical characteristics :

User's precautions :

• The lamplife, as given by the manufacturer, is a theoretic lamplife duration as "in laboratory conditions",

a cycle based on 3 hours on / 1 hour off. Briefer cycles reduce the duration of the lamplife.

• In operating conditions, it is uncommon, for the lamp to still be fully efficient after 200 to 300 hours.

Its efficiency can decrease by 30%.

• Premature wearing of lamp under performing conditions is mainly due to frequent switching on. Better leave

the lamp on, through the performance, rather than switching it on repeatedly. ( The lamplife is reduced about
1 hour, each time the lamp is switched on ). It is advised to wait for 10 minutes before switching on again.
(This extends the duration of the lamp.)

• Use over 500 hours of the lamp : change the lamp even if it still lights up.

New lamp :

• To achieve a good ionization of a new lamp, when using it for the first time, it is recommended to leave it on

for a few hours.

• Preserve carefully the guarantee slip of the lamp, as it may be asked for in the event to resolve a dispute.

Thank you.

Voltage at the terminals of the lamp ................................................................................................................................. 115 Volts

Amperage at the terminals of the lamp ..........................................................................................................................25,6 Amps

Luminosity of the lamp ...................................................................................................................................................... 240 000 lm

Luminous efficacy ....................................................................................................................................................................96 lm/W

Colour temperature ........................................................................................................................................................... 6000 Kelvin

Base ......................................................................................................................................................................................................G38

Manufacturer's rated life ..................................................................................................................................................... 500 hours

900 SNX

Section A - 11

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

DATA

IN

DATA

OUT

By - pass

Booster

ERROR

DATA

EXT. DIGI.

EXT.

LOCAL

LOCK

SELECT EXIT

+

CONTROL SHUTTER

DATA

0/10V

0/10V - DMX 512 - AVAB

C A D 900

RESET

a

b

cd

NETWORK USE

DIGITAL

(DMX - AVAB).

1 - PRINCIPLE.

2 - LINK USE.

DATA OUT OPTION (ON THE LIGHTING UNIT).

CONNECTIONS

To install the DATA line, daisy chain all units.
You can not make a star configuration. In this case - use a specific DATA splitter.

- The DATA goes to the connector DATA IN on the
CAD 900 ( a ) .

- The signal is present on the DATA output of the
lighting unit.

- When the lighting unit is in use, there are two
possibilities for the output - DATA OUT :
1 : Booster on - The signal passes by an amp.
2 : Booster off - The signal passes on direct on
the output.
( Refer to the CAD 900 user's manual - page 11 ).

- When the lighting unit is not in use ( power supply
off ), the DATA is still present on DATA output.

a

b

d

OUTIN

a

b

d

OUTIN

OPTION

Colour changer.

OPTION

Colour changer.

Output
DATA +
Shutter control.

Output
DATA +
Shutter control.

etc.

ATHOS

ATHOS

DATA only

DATA only

DATA Link

900 SNX

Section A - 13

TECHNICAL FILE

2500W MSR PROFILES

Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

Dévisser les deux vis du porte-glissière droit et sortir
les deux tiges (voir la schéma "ORDRE DE
DEMONTAGE").

Dévisser les deux vis et les quatre vis sous le zoom
puis retirer l'iris motorisé .

Desserrer et retirer le bouton , puis pousser la tige
du bouton vers l'intérieur. Avancer le porte-lentille
arrière vers l'avant pour accéder à la vis du système
de blocage de fourche .

Démonter la poignée côté droit et la vis côté gauche ,
puis sortir la fourche . Démonter le système de
blocage de fourche côté droit (voir "Fig. 1").

Ouvrir le capot de la lanterne et retirer le support
lentille . Dévisser et retirer les trois vis et sortir
le doublage, puis démonter le cache .

Monter le système de blocage de fourche côté droit et
côté gauche et la nouvelle fourche .
ATTENTION la cale doit être montée devant
l'entretoise et non pas à l'arrière (voir "Fig 2").

Procéder au remontage de toutes les pièces dans le
sens inverse comme expliqué dans les paragraphes
précédents (voir aussi le schéma "ORDRE DE
REMONTAGE").

Unscrew and remove the accessories slot holder and the
two rodes (refer to the "DISMANTLING ORDER"
diagram).

Unscrew the two screws and the four screws under the
lens tube , then remove the motorised shutter unit .

Untighten and remove the knob , then push the knob
axle towards the interior. Push the rear lens holder
towards the front to accede to the yoke's blocking
system screw .

Unscrew the handle on the right-hand side and the screw on
the left-hand side and then remove the yoke.
Dismantle the yoke's blocking system on the right side
(refer to "Fig. 1").

Open the lamp housing's bonnet and remove the
optical lens set. Remove the three screws and remove
the metal plate, then remove the cover .

Reassemble the yoke's blocking system , left and
right-hand side , and the new yoke .
WARNING the wedge plate should b

e remounted
infront of the cone spacer and not at the back
(refer to "g. 2").

Reassemble the parts as explained in the paragraphs
above in reverse order (refer also to the "REASSEMBLING
ORDER" diagram).

1

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2

3

5

A*

1*

B

C

2*

6

7

8

9 10

11

A

A

4

1

1*

2

3

5

6

7

8

2*

9

10

11

A

A*

B

C

A

4

1

2

3

4

6

5

7

7

8

9

10

11

A

ORDRE DE DEMONTAGE /

DISMANTLING ORDER.

A*

2*

1*

3*

5*

1*

4*

7*

8*

6*

10*

9*

(*) ORDRE DE REMONTAGE /

(*) REASSEMBLING ORDER.

11*

côté gauche / left-hand view

côté droit / right-hand view

A

"Fig. 1"

côté gauche / left-hand view

côté droit / right-hand view

"Fig. 2"

A*

B

C

Isoler électriquement avant toute intervention.
Matérial professionnel : Intervention par technicien qualié.

Disconnet from the mains before any servicing.
Professional material : Service only by qualied technician.

ATTENTION / WARNING

•

•

•

•

CHANGEMENT DE POSITION DE FOURCHE /

CHANGING THE POSITION OF THE YOKE.

(OPTION)

930 SNX

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 1

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

2

3

1

MINI = 7mm.

1 mm

MAINTENANCE

REFLECTOR.

- Disconnect from the mains.

- Open the bonnet of the lamp house.

- Take out the lamp.
(Refer to section A - 7).

- Clean the reflector 1 with a soft dry cloth.

ASPHERIC LENS.

- Unscrew the lock 2 .

- Take out the lens holder set 3 .

- Clean the lens with a soft dry cloth.

- Remount the lens holder set.

- Clean in the same way, the lenses in the lens tube.

Check the lamp position.

SPARK-GAP.

- Disconnect from the mains.

- Open the lamp house bonnet.

- Check the distance of the electrodes that should be 1mm.
(If you notice a larger gap, then please contact the ROBERT JULIAT's
technical department).

[e-mail]

Disconnect from the mains before any servicing.

Service only by qualified technician.

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 3

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

a b & f

e

CAD 900/Mechanical Shutter cable

CAD 900 side

FM XLR 7

Shutter side

FF XLR 7

Flexible cable

14 x 0,14 shielded

CN14

1 0V GND
2 Lamp circuit
3 Shutter circuit
4 +15V

DESIGNATION

REP

d

c

Flexible cable

5 x 0,14 shielded

FF XLR 4

0/+10V control

1 0V
2 DATA - IN
3 DATA + IN
4
5

DESIGNATION

REP

1 0V
2 DATA - OUT
3 DATA + OUT
4
5

DESIGNATION

REP

Flexible cable

5 x 0,14 shielded

CN5

FF XLR 5FM XLR 5

Flexible cable

5 x 0,14 shielded

CN5

DATA Link

Delivered standard : 3m

0V
DATA ­ DATA +
PWM
INFO 0/+10V
+U

- U
/

DESIGNATION

REP

1 0V
2 DATA ­ 3 DATA +
4 PWM
5 INFO 0/+10V
6 +U
7 - U
NC /

DESIGNATION

REP

4 x 0,14
1 x 0,14
1 x 0,14
1 x 0,14
1 x 0,14
3 x 0,14
3 x 0,14
Shielded

1
2
3
4
5
6
7

SHELL

k

L Phase

N Neutral

Earth

DESIGNATION

REP

250V -10A IEC C14 male power connector,

for fan power feed.

1 Fan phase
2 Ballast phase
3 Lamp Neutral
4
5
6 Security return 1200W
7 Security return 2500W
8 Security not used

9 Ignition timed phase
10 Ballast phase
11 Lamp Neutral
12 Earth
13 Aux. phase
14 Aux. Neutral
15 Common security
16 Earth
Female side earth only

Lamp cable

Ballast side

FMD 16 x16 A

Harting

Lighting unit side

FFD 16 x16 A

Harting

Cable H07 RN-F

18G 1,5mm

2

REP

DESIGNATION DESIGNATION

REP

Delivered standard : 3m

Note: This is a universal cable and is suitable for a 1200W / 2500W
followspot or prole.

g

h

g

CONNECTION.

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 5

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

1. USING THE "AUTO" MODE .

message displayed :
RJ LAMP LIGHTING
TRY FAILURE

1.1 The ballast and the CAD are on ;
the "lamp on" command is given,
but the lamp does not switch on.

Check that the lamp is in good
condition, in any doubt : change it.

(counter lamplife : page 6/7 - manual CAD)

Check the mains voltage >200 V.

message displayed :
RJ LAMP LIGHTING
TRY FAILURE

Check that the lantern bonnet is well
closed.

Check that the cable is well connected.
(refer to sections A - 5 & A - 11 )

Check that the correct cable has
been used.

message displayed :
RJ LAMP LIGHTING
TRY FAILURE

No ignition sound.

Check that the ignition is well adjusted
( refer to section B - 1 )

ignition sound.

Contact ROBERT JULIAT's
technical department

The ballast does not work.

the mains checklight is not on Check the mains.

Check that the circuit breaker
is engaged.

Check the CAD fuse.

the mains checklight is on
the CAD 900 is not on

the CAD still does not work : Contact the RJ service.

Contact the RJ service.

Message displayed :
RJ LAMP ERR.

NON-FUNCTIONING DIAGNOSIS.

The CAD fuse blows out while in use.

Disconnect the shutter connection
and then change the fuse.

Switch on
the ballast.

If the fuse blows again - change
the CAD: ( refer to section C - 10 ).

The CAD stays on - check the
shutter cable connection.
(refer to sections A - 5 & A - 11 )

Reconnect the shutter cable :
If the problem comes back : Change
the whole block.
( refer to section C - 7 )

Restart the

"LAMP ON"

procedure.

Restart the

"LAMP ON"

procedure.

NON-FUNCTIONING DIAGNOSIS.

FOR MOTORISED MODELS (CAD 900)

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 7

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

message displayed :

LAMP OFF
CHECK SECURITY

Return to 1.1 and follow the
procedure.

message unchanged.

Network transient failure : give the
o command, or switch o

the mains for 30 sec.

1.2. Untimely extinction of the lamp.

2. USING THE " ANALOG " MODE

2.1. The ballast and the CAD are on ;
the" lamp on" command is given,
but the lamp does not switch on.

Check the analog command cable :
the command has not been
received.
( refer to sections A - 5 & A - 11 )

message displayed :
RJ LAMP LIGHTING
TRY FAILURE

Return to 1.1 and follow the
procedure.

2.2. Untimely extinction of the lamp.

message displayed :

LAMP FAILURE
CHECK SECURITY

Command signal failure :
check the cable
( refer to sections A - 5 & A - 11 )

Message in
start-up display :
" RJ LAMP OFF "

Restart the
"LAMP ON"

procedure.

Return to 1.1 and follow the
procedure.

message unchanged.

message unchanged.

Network transient failure : give the
o command, or switch o
the mains for 30 sec.

Restart the
"LAMP ON"
procedure.

Restart the
"LAMP ON"
procedure.

Restart the
"LAMP ON"
procedure.

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 9

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

3. USING THE " DIGI " MODE.

"LAMP ON"
procedure.

3.1.The ballast and the CAD are on ;
the " lamp on" command is given ,
but the lamp does not switch on.

message displayed :
RJ LAMP LIGHTING
TRY FAILURE.

Return to 1.1 and follow the
procedure.

Green
LED
on.

No circuit number "lamp channel"
assigned : refer to page 9 of the
CAD 900 manual.

Transmission Data error :
connection failure : check cable.
( refer to sections A - 5 & A - 11 ).

Transmission Data error :
connection faulty or damaged ­check the wiring.

Important disruption on the Data
line : check the installation.

Bad Protocol : refer to page 7 of the
CAD 900 manual.

Protocol recognition locked :
refer to page 15 of the
CAD 900 manual - The preferences.

Restart the
"LAMP ON"
procedure.

Green &
red LED
o.

3.2. Untimely extinction of the lamp.

message displayed :

LAMP FAILURE
CHECK SECURITY

Network cut o :
give the o command.

message unchanged.

Green
LED
on.

Green &
red LED
on.

Green
LED
on.

Green
LED
on.

Return to 1.1 and follow the
procedure.

Restart the
"LAMP ON"
procedure.

Restart the
"LAMP ON"
procedure.

Restart the
"LAMP ON"
procedure.

Restart the
"LAMP ON"
procedure.

Restart the

Restart the
"LAMP ON"
procedure.

message unchanged.

message unchanged.

message unchanged.

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 11

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

3.3. The o command is given, but the lamp
stays on.

message unchanged.

4 . NON-FUNCTIONING DIAGNOSIS FOR THE SHUTTER :

1.1 The shutter command is given, but no
action.

1.2 . The shutter only excepts an up command,
does not accept a down command.

resend the
level
command.

New shutter level
displayed.

Shutter cable damaged :
Check cable.

Faulty power supply :
Change CAD :
( Refer to section C - 10 )

The shutter does
not react or reacts
badly.

Motor damaged : Change the
whole shutter unit.
( refer to section C - 7 )

1.3 . The shutter reacts badly, and the motor
runs continuously.

1.4. The shutter act in a saw-tooth movement
on a uent command.

1.5. Shutter action is delayed to command.

The shutter level is
correctly displayed.

Error on the shutter unit :
Change the whole shutter unit.
( refer to section C - 7 )

Green &
red LED :
o

Transmission Data error :
connection failure : check the wiring.
( refer to sections A - 7 & A - 14 ).

connection damaged or disturbed :
( refer to sections A - 7 & A - 14 ).

message unchanged.

Resend the
"LAMP OFF"
command.

New shutter level
not displayed.

Command link error :
Digital - refer to 3.1.
Analog - refer to 2.

Green &
red LED
on.

Resend the
"LAMP OFF"
command.

resend the
level
command.

resend the
level
command.

resend the
level
command.

resend the
level
command.

900 SNX

DOSSIER TECHNIQUE

DECOUPES MSR 2500W

Section B - 13

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thelle phone: [phone] - fax: [phone] - www.robertjuliat.fr

B

C

D

A

2

3

4

Date Nom

MODIFICATIONS

2ème raccordement sur point 15 du composant “A” vers point N du composant “D” et dessin “F” corrigé. 16/12/99 E.G.
Code silog du ventilateur “D”à été modié.

Rectication sur le raccordement entre le point 3 du composant “A” et le point 3 du composant “B”.

16/12/99 E.G.

24/02/10 E.W.

A : Connecteur Mâle Harting 16 x 16A / Male connector 16 X 16 Amps (COU0016101).
B : Amorceur 2500W / Ignition block 2500W (ME15100003).
C : Lampe / Lamp - HMI 2500 W/SE ou/or MSR 2500HR.
D : Ventilateur / Fan (Papst 4890N)( ME14220207).
E : Minirupteur sécurité / Security switch - 220/240V. A.C.(ME04200001).
F : Embase femelle IEC C13 / IEC C13 female socket - 2p + T 10A 250V (COU0003250).

(Utilisation maximum autorisée = 2A / Maximum authorised used = 2A.

A

B

C

D

E

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

1

T

HT

HT

T1

1

T

3

4

NO

NC

C

P N

N

T

P N

T

L

T

0,75

2,5

0,75

2,5

0,75

0,75

0,75

2,5

2,5

2,5

2,5

2,5

2,5

0,75

#6HT

#6HT

F

Phase ­Ventilateur / Fan

Phase - Tempo / Timer

Phase - Ballast

Phase - Ballast

Neutre lampe /

Lamp neutral

Neutre lampe /
Lamp neutral

Terre / Earth

Phase Aux.

Neutre Aux. /

Aux. neutral

Sécurité retour /
Commun return

Sécurité commun /
Commun security

Terre / Earth

Terre chassis /

Frame earth

Terre lanterne /

Earth of lamp house.

PLAN ELECTRIQUE /

ELECTRICAL DIAGRAM

VERSION : ALIMENTATION MAGNÉTIQUE / MAGNETIC POWER SUPPLY

LANTERNE / LAMP HOUSING

A404504-C

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 1

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

LANTERNE /

LAMP HOUSING

DJ30468000

DJ40468200
DJ30468100

FPADIV0027

PO00000001
DU40426401
DT40425600

DU40423500
DT40429901
DU40440000
RPAFIX0056
RPAFIX0052

PD90000008

PD90000009

AFGA000001
AFG0000002
MI00000002
DJ40504600
DU40422603
DU40236104
PD90000003
PD10130017
COU0003246
DU40242901
VI19050002
DU40376800
DU40182901

COU0016101
COU0003250
PD90000010

ME15110001

ME15100003

PO00000021
VI08010024

FPADIV0046

OP10051001

Plaque fixe blocage couteaux /

Fixed shutter blocking plate. (930).

Etrier / Bracket. (930).
Plaque mobile blocage couteaux complète /

Complete mobile shutter blocking plate. (930).
Plaque blocage couteaux complète / Complete shutter
blocking plate. (933/934).

Poignée seule / Handle only.
Entretoise / Strut (Ø6).
Ressort presse couteaux /

Shutter press spring.

Galet / Roller.
Ressort / Spring.
Galet de blocage zoom / Zoom locking roller.
Câble de sécurité / Safety cable.
Maillon rapide / Fast link.

Tôlerie lanterne vide /

Empty lantern unit (930).

Tôlerie lanterne vide /

Empty lantern unit (933/934).

Crochet / Hook.
Grenouillère / Safety lock.
Miroir / Reflector.
Plaque de retenu miroir / Mirror support.
Tige de blocage / Locking rod.
Tige de guidage / Guidance rod.
Câble douille / Socket cable.
Minirupteur / Micro switch (03/2000 -->).
Connecteur ventilateur / Fan connector.
Palier téflon / Teflon bearing.
Clips.
Colonnette / Shank.
Bague borgne / Caps.

Connecteur / Connector - Harting 16 x 16A.
Embase secteur / Mains socket - 220/240V.
Boîtier amorceur vide /

Empty ignitor housing.

Eclateur / Spark-gap.

Amorceur complet / Ignition block.

Poignée / Handle.
Vis / Screw (M8).

SGUX Support gobo universel, taille "A"
pour Gobo métal, verre ou verre dépoli Ø100 /

"A" size gobo holder for metal, glass gobo or frosted
glass Ø100.

Option :
VD100 Verre dépoli Ø100 /

Frosted glass Ø100.

ACCESSOIRES / ACCESSORIES

1

2
3

3

4
5
6

7
8

9
10
11

12

12

13
14
15
16
17
18
19
20
21
22
23
24
25

26
27
28

29

30

31
32

33

34

33

34

900 SNX

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 2

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

1

2

30

0

BLOCAGE DE FOURCHE /

YOKE BLOCKING SYSTEM

Côté droit / Right-hand view.Côté gauche / Left-hand view.

1

3 4 5 6 7

8 9

10 11

1213

15

14

16 17

21

181920

2

1

2

1

2
3

4
5
6
7
8

9
10
11
12
13
14
15
16
17

18
19
20
21

LANTERNE /

LAMP HOUSING

ME14220207

COU0003139

DJ30414904
DJ20395105
DJ30414906
DJ20395106

VI10030003
DJ40482201

DJ30482001
DU30482100
VI06030003
VI06010012
VI10030003
VI10020001
DU40477700
VI10030009
PO00000025
VI10010021
VI05010033
VI05010043
DJ40517300
DJ40434101
DJ40434102
DJ40517103
VI10030003
VI10010020
DE40487300

Ventilateur / Fan.

A chaque mise en route: vérifier le bon
fonctionnement des ventilateurs /
Each time you switch on: make sure the

fans are working correctly.

Connecteur d'alimentation des ventilateurs /

Fans power supply connector.

Fourche / Yoke - Standard (933/934).
Fourche / Yoke - Standard (930).
Fourche / Yoke - Option (933/934).
Fourche / Yoke - Option (930).

Rondelle / Washer (Ø10).
Cale / Wedge.

Cône femelle / Female cone.
Cône mâle / Male cone.
Rondelle / Washer (Ø6).
Vis / Screw (M6).
Rondelle / Washer (Ø10).
Ecrou / Nut (M10).
Canon de fourche / Canon cross piece.
Rondelle à plateau / Spring washer.
Poignée femelle / Female handle (M10).
Vis / Screw (M10).
Vis / Screw (M5).
Vis / Screw (M5).
Entretoise de fixation cône / Cone spacer.
Index (933/934).
Index (930).
Canon épaulé côté libre / Blocking nut.
Rondelle/ Washer.
Vis / Screw (M10).
Bande repère / Bearing strip.

900 SNX

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 3

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

930 SNX

PD70000006

PD60000011

DJ20534701

DJ20534702

OP20010003
DU40423601
VI04010053

DU40454400

VI04030005

ME11050204
900P023003
DU40063800

900P021107

BO10000008
VI14050001
DU40754800

DJ30226216

FPADIV0025

DU40165101
DU40165102
DU40183900
900P021103
AFGA000001
AFG0000002

OP11010005
OP11010004

700P043100

700P040100

Glissières avant simples / Single front slot :

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories (French standard).
Verrou à ressort 3 pièces / 3 piece locking device.
(Only for French standard).

Pour accessoires 254 x 254 (standard Nord-Américain) /
For 254 x 254 accessories (North-American standard).
Verrou seul pour d° / Locking device for item above.

Lentille / Lens.
Pince lentille / Lens clip.
Vis / Screw (M4).
Fourreau guidage lentille avant /

Front lens holder guide.

Rondelle / Contact washer (M4).

Maintien de câble / Cable holder.
Porte lentille avant / Front lens sliding holder.
Tige porte bouton / Knob screw.

Tôlerie zoom vide /Empty zoom unit.

Bouton moleté / Focusing knob.
Clip.
Palier Téflon / Teflon bearing.

Tige / Rod.

Support verre dépoli / Frosted glass holder.

Galet delrin / Plastic roller.
Bague delrin / Plastic ring.
Axe porte bouton / Knob axle.
Porte lentille arrière / Rear lens sliding holder.
Crochet / Hook.
Grenouillère / Safety lock.

Lentille / Lens.
Lentille / Lens.

Cassette porte accessoires à double glissières /

Double slot cassette for accessories :

Pour accessoires 245 x 245
(standard Européen & Japon) /

For 245 x 245 accessories
(European & Japanese standard).

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories (French standard).

PIECES INTERIEURES ZOOM /

LENS TUBE INNER PARTS

1

2

3
4
5
6

7

8
9

10

11

12
13
14

15

16

18
19
20
21
22
23

24
25

1

3

2

8

5

11

12

7

4

13

6

14

14

10

15

16

12

18

19

20

21

22

23

24

25

9

OPTION

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 4

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

PD70000006

PD60000011

DJ20534701

DJ20534702

OP20010004
DU40423601
VI04010053

DU40454400

VI04030005

ME11050204
900P023003
DU40063800

900P023002

BO10000008
VI14050001
DU40754800
DJ30226214

FPADIV0025
DJ30223225

DU40165101
DU40165102
DU40183900
900P023005
AFGA000001
AFG0000002

OP11040001
OP11010004

700P043100

700P040100

Glissières avant simples / Single front slot :

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories (French standard).
Verrou à ressort 3 pièces / 3 piece locking device.
(Only for French standard).

Pour accessoires 254 x 254 (standard Nord-Américain) /
For 254 x 254 accessories (North-American standard).
Verrou seul pour d° / Locking device for item above.

Lentille / Lens.
Pince lentille / Lens clip.
Vis / Screw (M4).
Fourreau guidage lentille avant /

Front lens holder guide.

Rondelle / Contact washer (M4).

Maintien de câble / Cable holder.
Porte lentille avant / Front lens sliding holder.
Tige porte bouton / Knob screw.

Tôlerie zoom vide / Empty zoom unit.

Bouton moleté / Focusing knob.
Clip.
Palier Téflon / Teflon bearing.
Tube.

Support verre dépoli / Frosted glass holder.
Tige / Rod.

Galet delrin / Plastic roller.
Bague delrin / Plastic ring.
Axe porte bouton / Knob axle.
Porte lentille arrière / Rear lens sliding holder.
Crochet / Hook.
Grenouillère / Safety lock.

Lentille / Lens.
Lentille / Lens.

Cassette porte accessoires à double glissières /

Double slot cassette for accessories :

Pour accessoires 245 x 245
(standard Européen & Japon) /

For 245 x 245 accessories
(European & Japanese standard).

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories ( French standard).

1

2

3
4
5
6

7

8
9

10

11

12
13
14
15

16
17

18
19
20
21
22
23

24
25

934 SNX

11

1715

16

12

18

19

20

21

22

23

24

25

14

1

3

2

8

5

12

7

4

13

6

14

10

9

PIECES INTERIEURES ZOOM /

LENS TUBE INNER PARTS

OPTION

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 5

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

PD70000006

PD60000011

DJ20534701

DJ20534702

FPADIV0025

ME11050204
900P022004
OP11010004
OP11010005

DU40063800

900P022002

DJ30223219
BO10000008

DU40754800

DU40165101
DU40165102
DU40183900
DJ30461702
AFGA000001
AFG0000002

700P043100

700P040100

Glissières avant simples / Single front slot :

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories (French standard).
Verrou à ressort 3 pièces / 3 piece locking device.
(Only for French standard).

Pour accessoires 254 x 254 (standard Nord-Américain) /
For 254 x 254 accessories (North-American standard).
Verrou seul pour d° / Locking device for item above.

Support verre dépoli / Frosted glass holder.

Maintien de câble / Cable holder.
Porte lentille avant / Front lens sliding holder.
Lentille / Lens.
Lentille / Lens.

Tige porte bouton / Knob screw.

Tôlerie zoom vide / Empty zoom unit.

Tube.
Bouton moleté / Focusing knob.

Palier Téflon / Teflon bearing.

Galet delrin / Plastic roller.
Bague delrin / Plastic ring.
Axe porte bouton / Knob axle.
Porte lentille arrière / Rear lens sliding holder.
Crochet / Hook.
Grenouillère / Safety lock.

Cassette porte accessoires à double glissières /

Double slot cassette for accessories :

Pour accessoires 245 x 245
(standard Européen & Japon) /

For 245 x 245 accessories
(European & Japanese standard).

Pour accessoires 215 x 215 (standard Français) /

For 215 x 215 accessories ( French standard).

1

2

3

4

5

6

7

8

9

10
11

13

15
16
17
18
19
20

PIECES INTERIEURES ZOOM /

LENS TUBE INNER PARTS

OPTION

933 SNX

1

3

4

5

6

7

8

9

10

11

11

15

16

17

18

19

20

6

13

2

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE

REP

DESCRIPTION

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Section C - 6

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

2500

1

2

3

900 SNX

8

1

4

13

7

7*

6

14

11

9

3

2

10

12

5

A

A 900P012010 Ensemble porte-asphérique / Complete lens holder (930 & 934).
900P013001 Ensemble porte-asphérique / Complete lens holder (933).

1 DJ30439400 Support asphérique avec quart de tour / Lens holder with lock.
2 DJ40440100 Rondelle de maintien asphérique / Lens disk support (Ø80).
3 DJ40440200 Rondelle de pression asphérique / Lens spring washer.
4 DJ40461900 Plaque signalétique pour condenseur / Condenser ID plate.
5 DU30221964 Entretoise lisse / Spacer.
6 DJ40505000 Rondelle de pression / Washer (933).
7 DJ40450802 Rondelle porte-lentille / Lens washer holder (933).
7* DT40425800 Rondelle porte-lentille / Lens washer holder (930 & 934).
8 VI03240007 Rivet.
9 VI04010055 Vis / Screw (M4).
10 VI03020001 Ecrou / Nut (M3).
11 VI04030010 Rondelle contact à picot / Contact washer (Ø4).
12 OP08020001 Lentille asphérique / Lens.
13 OP10040002 Lentille / Lens (930 & 934).
OP11040001 Lentille / Lens (933).
14 DU30222015 Colonnette / Spacer (930 & 934).
DU30222054 Colonnette / Spacer (933).

1 PD90000006 Douille G38 complète /Complete G38 socket.

2 DU40409100 Axe de serrage seul / Tightening axle.
3 BO10000006 Bouton / Knob.

Lampe / Lamp :
RLA1435004 PHILIPS MSR 2500 HR.

NOMENCLATURE PIECES DETACHEES /

SPARE PARTS LIST.

CODE DESCRIPTION

REP

Section C - 7

DÉCOUPES MSR 2500W

2500W MSR PROFILES

Measurements are in mm / Mesures en mm.

Robert Juliat reserve the right to change or alter any of the items detailed on this

page, to increase or improve manufacturing techniques without prior notice.

Le constructeur se réserve la possibilité de modier ses matériels sans avis préalable. Les renseignements

mentionnés sur cette notice sont donnés à titre indicatif et ne sauraient présenter de caractère contractuel.

!

ATTENTION - Pour passer une commande de pièces détachées, utiliser toujours les codes. / WARNING - Always use the codes, when ordering spare parts.

!

DETAIL A

DETAIL A

ZOOM

Vue de dessous /

Underneath view.

AA

Points de démontage /

Dismantling points.

A

:

A

A

1

2

3

900P020105

FJTC000060

VI04010012

Obturateur complet / Complete shutter unit.

Cordon liaison obturateur / CAD 900 - 3 m.

3m Shutter / CAD 900 cable connection - XLR 7

Vis / Screw (M4)

1

2

3

900 SNX
