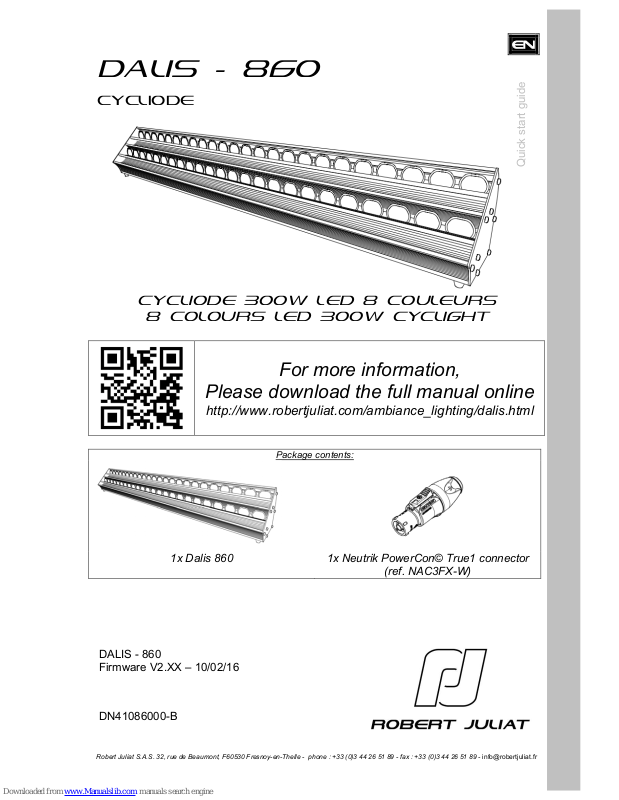

DALIS - 860
Firmware V2.XX – 10/02/16
DN41086000-B
Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - [email protected]
Dalis - 860
Cycliode
Cycliode 300W LED 8 couleurs
8 colours LED 300W Cyclight
For more information,
Please download the full manual online
http://www.robertjuliat.com/ambiance_lighting/dalis.html
Package contents:
1x Dalis 860
1x Neutrik PowerCon© True1 connector
(ref. NAC3FX-W)
Quick start guide
Page 2
EN
EN -1-
1 User’s instructions
GENERAL INSTRUCTIONS
1. Not for residential use.
2. These fixtures must only be serviced by a
qualified technician.
3. In addition to the instructions indicated on this page,
relevant health and safety requirements of the
appropriate EU Directives must be adhered to at all
times.
4. This fixture is in compliance with section 17 - Lighting
appliance for theatre stages, television, cinema and
photograph studios. Standards NF EN 60598-1 and
NF EN 60598-2-17.
5. This fixture is rated as IP20, and is for indoor use
only.
FIXTURE
6. Ensure fixture is correctly mounted on an appropriate
support.
7. Protection screens must be replaced in the event of
any damage, such as cracks or deep scratches, since
these might reduce performance.
8. When hung or flown the fixture must be secured by
an additional hanging accessory (such as a safety
cable or bond) of
suitable length – only use Robert Juliat safety cables
ref. QR-CS1
9. Safety bonds or cables must be securely attached to
the QuickRig system of the fixture and be as short as
possible, or rolled up as necessary, to minimise travel
distance should the fixture be dislodged. .
10. WARNING: LED source become hot during use.
Allow fixture to cool before servicing.
11. Do not tamper with design of fixture nor any of its
safety features.
12. Tighten electrical mains cable connections regularly
and replace with one of identical specification if
damaged.
13. Use only with correct power supply.
14. Do not orientate the fixture towards a source of light
(sun, fixture), in particular for LED versions.
VENTILATION
15. Keep well away from flammable material.
16. Not for outdoor use. Do not cover. Do not permit
fixture to get wet.
17. To avoid overheating, do not obstruct air vents.
PLEASE NOTE
These products have been built to conform to European
standards relating to professional lighting equipment. Any
modification made to our products will void the
manufacturers' warranty.

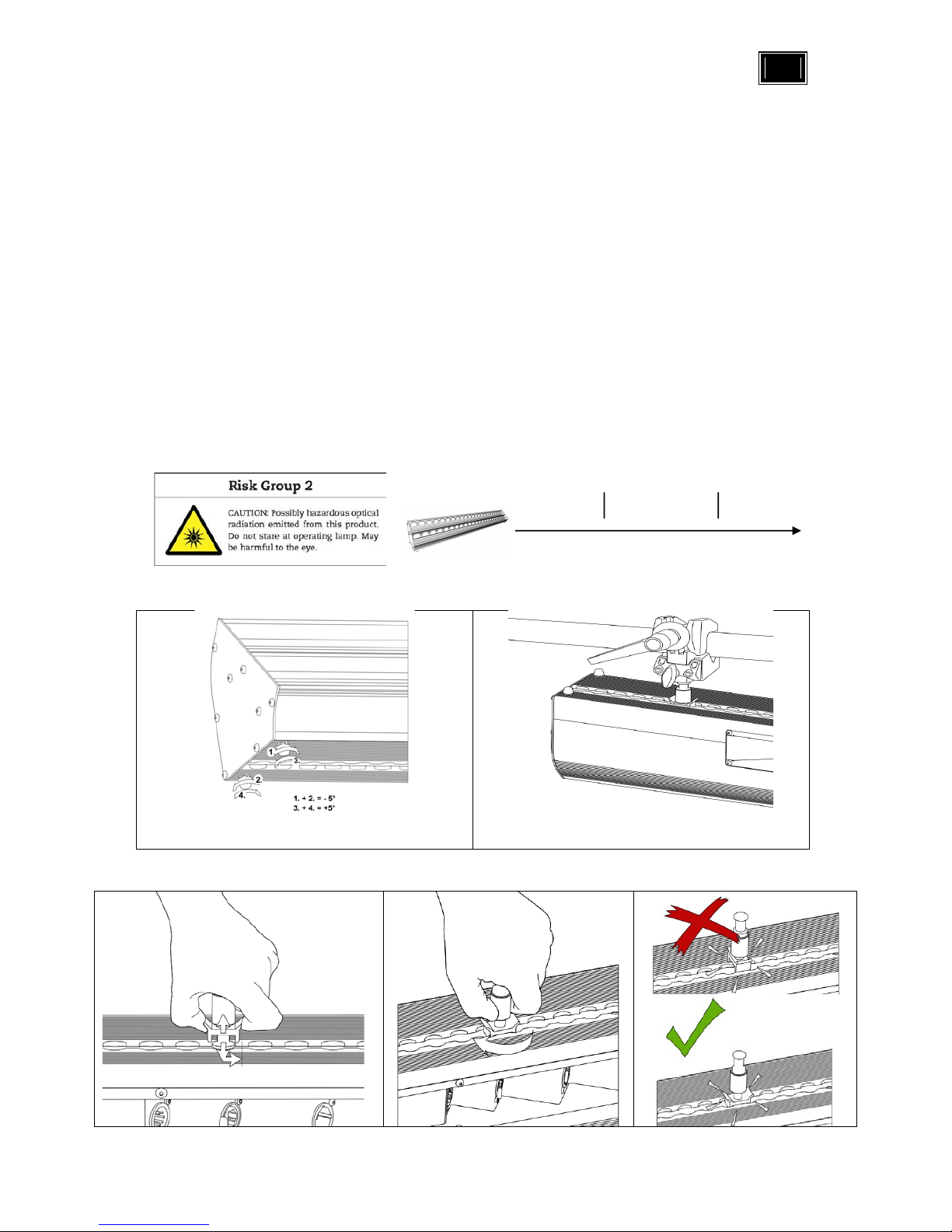

Photobiological safety according to EN62471
Minimum
distance
Risk
group 2
Risk
group 1
0.2 m
0.7 ft
0.8 m
2.6 ft
2 Installation
Floor installation
Top / side installation
Must be secured with QR-CS1 safety cable
3 QuickRig system
Page 3
EN
EN -2-

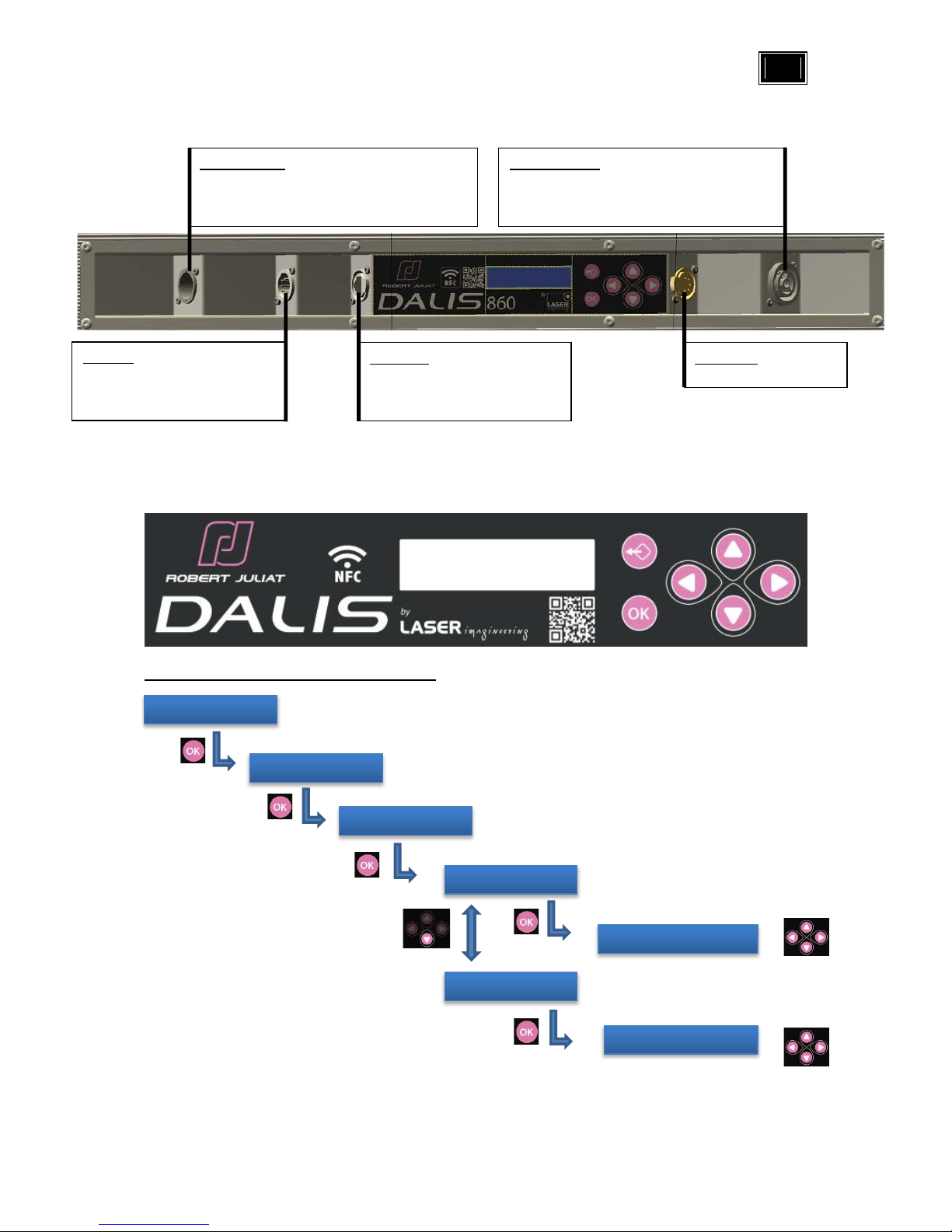

4 Electrical / Data connection
5 DMX control
DMX address and control mode selection:
Power input :
Connector: Neutrik powerCON TRUE1
Voltage: 90 à 265V 50/60Hz
Power consumption: 300W max.
Power output:
Connector: Neutrik powerCON TRUE1
Daisy chain: 230V: 12 units max
110V: 6 units max
Data Out:
Connector: XLR 5-pin
Data In:
Connector: XLR 5-pin
Protocol: USITT DMX 512-A
RDM
Ethernet:
Connector: RJ45
Protocol: Art-Net / sACN
+ software update
Data Mode
DMX
DMX Address
Start addresss : XXX
Mode X : XXXXXXX
Main screen
Personality
Page 4
EN
EN -3-

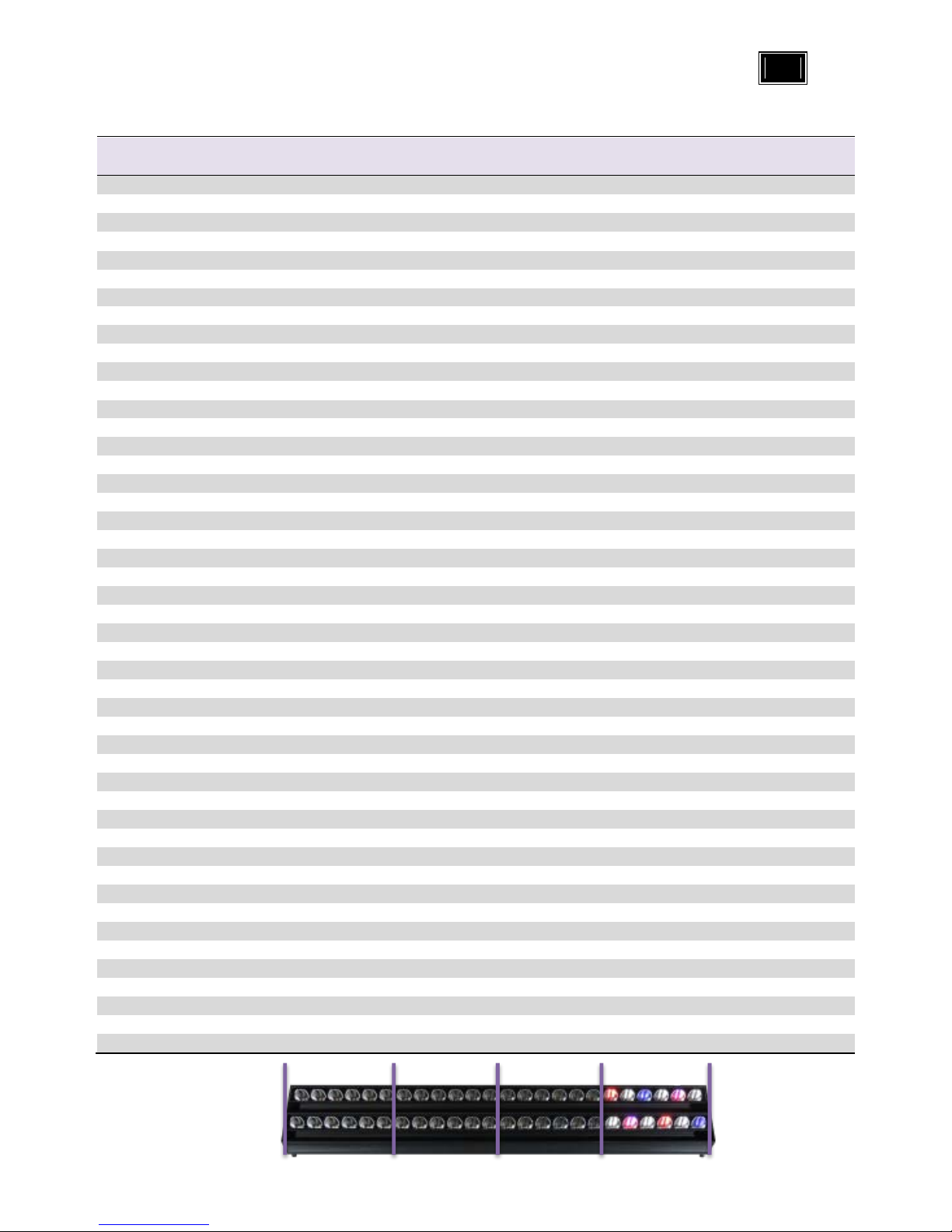

6 DMX chart
DMX
address
Mode 1
Full4groupsmode16b
Mode 2
Full1groupmode16b
Mode 3
Full1groupmode8b
Mode 4
Presetmode16b
Mode 5
Presetmode8b
Mode 6
4groupsindividual16b
1
Dimmer
Dimmer
Dimmer
Dimmer
Dimmer
Dimmer 1
2
Dimmer fine
Dimmer fine
Red
Dimmer fine
Colour presets
Dimmer fine 1
3
Red 1
Red
Green
Colour presets
CCT
Red 1
4
Red fine 1
Red fine
Blue
CCT
Strobe duration
Red fine 1
5
Green 1
Green
Royal blue
Strobe duration
Strobe speed
Green 1
6
Green fine 1
Green fine
Cyan
Strobe speed
Response time
Green fine 1
7
Blue 1
Blue
Amber
Response time
RDM OFF (>0)
Blue 1
8
Blue fine 1
Blue fine
Cool white
RDM OFF (>0)
Blue fine 1
9
Royal blue 1
Royal blue
Warm white
Royal blue 1
10
Royal blue fine 1
Royal blue fine
Strobe duration
Royal blue fine 1
11
Cyan 1
Cyan
Strobe speed
Cyan 1
12
Cyan fine 1
Cyan fine
Response time
Cyan fine 1
13
Amber 1
Amber
RDM OFF (>0)
Amber 1
14
Amber fine 1
Amber fine
Amber fine 1
15
Cool white 1
Cool white
Cool white 1
16
Cool white fine 1
Cool white fine
Cool white fine 1
17
Warm white 1
Warm white
Warm white 1
18
Warm white fine 1
Warm white fine
Warm white fine 1
19
Red 2
Strobe duration
Dimmer 2
20
Red fine 2
Strobe speed
Dimmer fine 2
21
Green 2
Response time
Red 2
22
Green fine 2
RDM OFF (>0)
Red fine 2
…
… … …
… … …
…
…
51
Red 4
Cool white 3
52
Red fine 4
Cool white fine 3
53
Green 4
Warm white 3
54
Green fine 4
Warm white fine 3
55
Blue 4
Dimmer 4
56
Blue fine 4
Dimmer fine 4
57
Royal blue 4
Red 4
58
Royal blue fine 4
Red fine 4
59
Cyan 4
Green 4
60
Cyan fine 4
Green fine 4
64
Amber 4
Blue 4
62
Amber fine 4
Blue fine 4
63
Cool white 4
Royal blue 4
64
Cool white fine 4
Royal blue fine 4
65
Warm white 4
Cyan 4
66
Warm white fine 4
Cyan fine 4
67
Strobe duration
Amber 4
68
Strobe speed
Amber fine 4
69
Response time
Cool white 4
70
RDM OFF (>0)
Cool white fine 4
71
Warm white 4
72
Warm white fine 4
Group 4
Group 3
Group 2
Group 1
