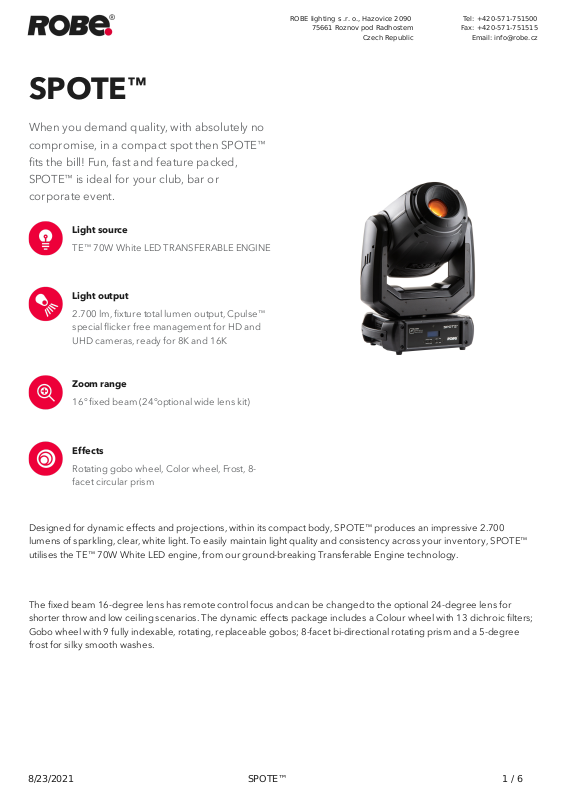

SPOTE™
When you demand quality, with absolutely no
compromise, in a compact spot then SPOTE™
fits the bill! Fun, fast and feature packed,
SPOTE™ is ideal for your club, bar or
corporate event.
Light source
TE™ 70W White LED TRANSFERABLE ENGINE
Light output
2.700 lm, fixture total lumen output, Cpulse™
special flicker free management for HD and
UHD cameras, ready for 8K and 16K
Zoom range
16° fixed beam (24°optional wide lens kit)
Effects
Rotating gobo wheel, Color wheel, Frost, 8facet circular prism
Designed for dynamic effects and projections, within its compact body, SPOTE™ produces an impressive 2.700
lumens of sparkling, clear, white light. To easily maintain light quality and consistency across your inventory, SPOTE™
utilises the TE™ 70W White LED engine, from our ground-breaking Transferable Engine technology.
The fixed beam 16-degree lens has remote control focus and can be changed to the optional 24-degree lens for
shorter throw and low ceiling scenarios. The dynamic effects package includes a Colour wheel with 13 dichroic filters;
Gobo wheel with 9 fully indexable, rotating, replaceable gobos; 8-facet bi-directional rotating prism and a 5-degree
frost for silky smooth washes.
ROBE lighting s .r. o., Hazovice 2090
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 1 / 6
Page 2
Technical Specification
Source
• Light source type: TE™ 70W White TRANSFERABLE ENGINE
• LED life expectancy: min. 50.000 hours
• Colour temperature: 6.700K
• Typical lumen maintenance: L70/B50 @ 50.000 hours
• Light source warranty: 4 years or 20.000 hours
•
Optical system
• Robe’s proprietary optical design
• Beam angle: 16° with remote focus
• Output lens diameter: 70 mm
• Fixture total lumen output: 2.700 lm
• Optional wide lens: 24°
•
Dynamic Effects and Features
• Colour Wheel: 13 dichroic filters + white
• Rotating gobo wheel: 9 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock
system
• Prism: 8-facet prism rotating in both directions at variable speed
• Frost: 5° for even wash
• Motorized focus
• Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100%
• L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
• Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
• AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical
elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
•
Control and programming
• Setting & Addressing: two-row LCD display & 4 control buttons
• Protocols: USITT DMX-512, RDM
• REAP™ - Robe Ethernet Access Portal
ROBE lighting s .r. o., Hazovice 2090
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 2 / 6
Page 3
ROBE lighting s .r. o., Hazovice 2090
• Wireless CRMX™ technology from Lumen Radio - on request
• Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to
automatically maintain network connectivity
• DMX Protocol modes: 1
• Control channels: 25
• Pan/Tilt resolution: 16 bit
• Colour wheel positioning: 16 bit
• Rotating gobo wheel positioning: 8 bit
• Gobo indexing & rotation: 16 bit
• Prism indexing & rotation: 8 bit
• Frost: 8 bit
• Focus: 16 bit
• Dimmer: 16 bit (internal 18 bit)
•
Movement
• Pan movement: 540°
• Tilt movement: 270°
• Movement control: Standard and Speed
• Controllable speed of Pan/Tilt movement
• Automatic Pan/Tilt position correction
•
Rotating gobos
• Glass gobos: 9 rotating gobos + open
• Outside diameter: 15.9 mm
• Image diameter: 12.5 mm
• Thickness: 1.1 mm
• High temperature borofloat or better glass
• Slot & lock system for easy replacement of gobos
•
Thermal specification
• Maximum ambient temperature: 45 °C (113 °F)
• Maximum surface temperature: 70 °C (158 °F)
• Minimum operating temperature: -5 °C (23 °F)
•
Electrical specification
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 3 / 6
Page 4
ROBE lighting s .r. o., Hazovice 2090
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: max. 130 W
• Power in/out connector: Neutrik powerCON TRUE1 in/out
• DMX and RDM data in/out: Locking 5-pin XLR
• Ethernet port in/out: RJ45, for Embedded Epass™ switch 10/100 Mbps - on request
•
Approvals
• CE Compliant
• cETLus Compliant (pending)
•
Mechanical specification
• Height: 510 mm (20") - head in vertical position
• Width: 343 mm (13.5")
• Depth: 220 mm (8.7") - head in vertical position
• Weight: 11 kg (24.3 lbs)
• Ingress protection rating: IP20
•
Rigging
• Mounting positions: Horizontally or vertically
• Universal operating position
• Mounting points: 2 pairs of 1/4-turn locking points
• 2x Omega adaptors with 1/4-turn quick locks
• Safety cable attachment point
• Tilt transport lock
•
Included items
• User Manual
• Omega Adaptor CL-regular 2 pcs: 10980033
•
Optional accessories
• Optional wide lens: 24° 10980553
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 4 / 6
Page 5
ROBE lighting s .r. o., Hazovice 2090
• Wireless DMX external module: 10980127
• Doughty Trigger Clamp: 17030386
• Safety wire 36 kg: 99011963
• Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405
• Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406
• Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439
• Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445
• Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407
• Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440
• Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444
• Single Top Loader Case: 10120269
• Quad Top Loader Case: 10120270
• Foam Shell: 20020394
•
Legal
• SPOTE™ is a Trademark of Robe lighting s. r. o.
• SPOTE™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
•
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 5 / 6
Page 6
ROBE lighting s .r. o., Hazovice 2090
Gobos&Colours
Rotating Gobo Wheel
15020387 15020388 15020389 15020390 15020391 15020392
15020393 15020394 15020395
Colour Wheel
14070356 14070357 14070358 14070374 14070360 14070375
14070371 14070377 14070370 14070364 14070365 14070366
14070367
75661 Roznov pod Radhostem
Czech Republic
Tel: +420-571-751500
Fax: +420-571-751515
Email: [email protected]
8/23/2021 SPOTE™ 6 / 6
