Page 1
1
Version 1.1
Page 2
2
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Operating determination ................................................................................................ 4
3. Fixture exterior view ...................................................................................................... 5
4. Installation ...................................................................................................................... 6
4.1 Connection to the mains ............................................................................................
6
4.5 DMX-512 connection ................................................................................................
11
5. Remotely controllable functions ................................................................................. 14
6. Control menu map ........................................................................................................ 15
7. Control menu ............................................................................................................... 18
8. RDM ...............................................................................................................................26
9. Wireless DMX operation ..............................................................................................27
10. Error and information messages .............................................................................. 27
11. Technical Specications............................................................................................ 29
12. Maintenance and cleaning ......................................................................................... 31

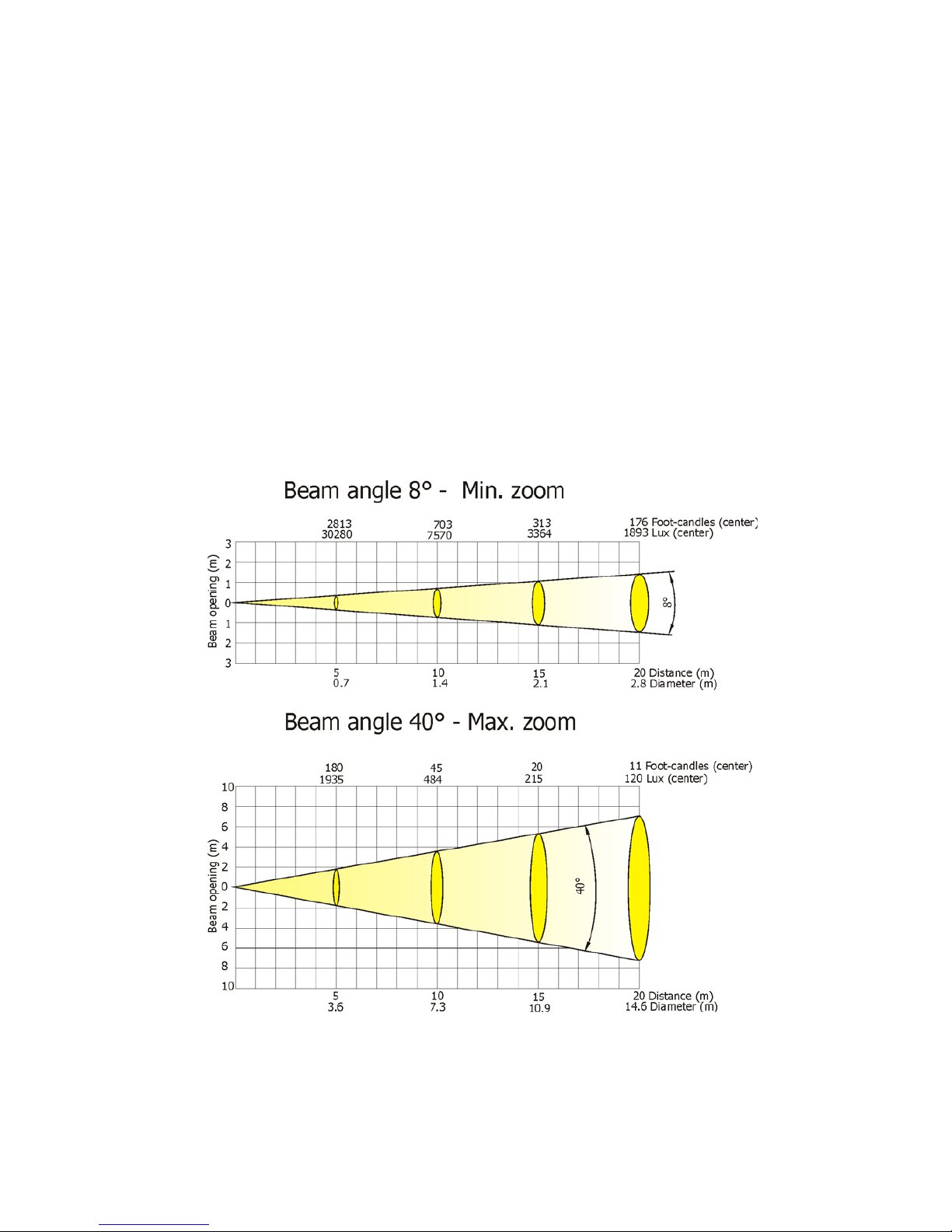

13. Photometric diagrams................................................................................................ 32
14. ChangeLog .................................................................................................................. 33
Robin Viva
Page 3
3
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
1. Safety instructions
Every person involved with installation and maintenance of this device have to:
- be qualied
- follow the instructions of this manual
CAUTION!
Be careful with your operations.
With a high voltage you can suffer
a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en­sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the unit.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the device and the power­cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power­cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to
earth.
The electric connection, repairs and servicing must be carried out by a qualied employee.
Do not connect this device to a dimmer pack.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For replacement use fuses of same type and rating only.
Warning! Risk Group 2 LED product according to EN 62471.
LED light emission. Risk of eye injury!
Do not look straight at the xture´s LED source during operation. The intense light
beam may damage your eyes.
Page 4
4
Do not view the light output with optical instruments or any device that may
conncentrate the beam.
2. Operating determination
This device is a moving head for creating decorative effects and was designed for indoor use only. This device is for professional use only. It is not for household use.
If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the xture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others!
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the x-
ture.
Always x the xture with an appropriate safety rope. Fix the safety rope at the correct holes only.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fas­tened.
The maximum ambient temperature 45°C must never be exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualied for operating the device. Most damages are the result of unprofessional operation!
Do not block the front objective lens with any object when the xture is under operation.
The xture housing never must be covered with cloth or other materials.
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short­circuit, burns, electric shock, burns etc.
CAUTION!
To avoid damage of the internal parts of the xture head, never let the sunlight lights
directly to the front lens , even when the xture is not working !
Page 5
5
3. Fixture exterior view
1 - Head 2 - Front lens
3 - Tilt lock 4 - Pan lock 5 - Handles 6 - Control buttons 7 - Touch screen 8 - Yoke
9 - Power (Neutrik PowerCon) 10 - Fuse holder 11 - DMX OUT (3-pin) 12 - DMX IN (3-pin) 13 - DMX OUT (5-pin) 14 - DMX IN (5-pin) 15 - Ethenet (RJ45)
The head should be locked for transportation- the tilt lock latch (3) and the pan lock latch (4) have to be in the locked positions. To unlock the head, move these latches to unlock positions before operating the xture. The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected
from the mains.
Page 6
6
4. Installation
Fixtures must be installed by a Qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
4.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin Viva is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts. Power cord is enclosed to the xture. Install a suitable plug on the power cord if needed, note that the cores in the power cord are coloured according to the following table. The earth has to be connected! If you have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
Page 7
7
4.2 Replacing colour lters and gobos
DANGER!
Install the colour lters or gobos with the device switched off only.
Unplug from mains before!
Colour lters
1. Disconnect the xture from mains and allow it to cool.
2. Remove the top plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Turn the colour wheel 2 to the desired position.The dichroic lters are xed on the colour wheel 2 by the
magnets.
4. Release the dichroic lter from the colour wheel by inclining it from its position to break the power of the magnet
. Protect the glass lter with a piece of paper or clout.
5. Insert a new dichroic lter into the colour wheel 2.
6. Place the top cover back before applying power.

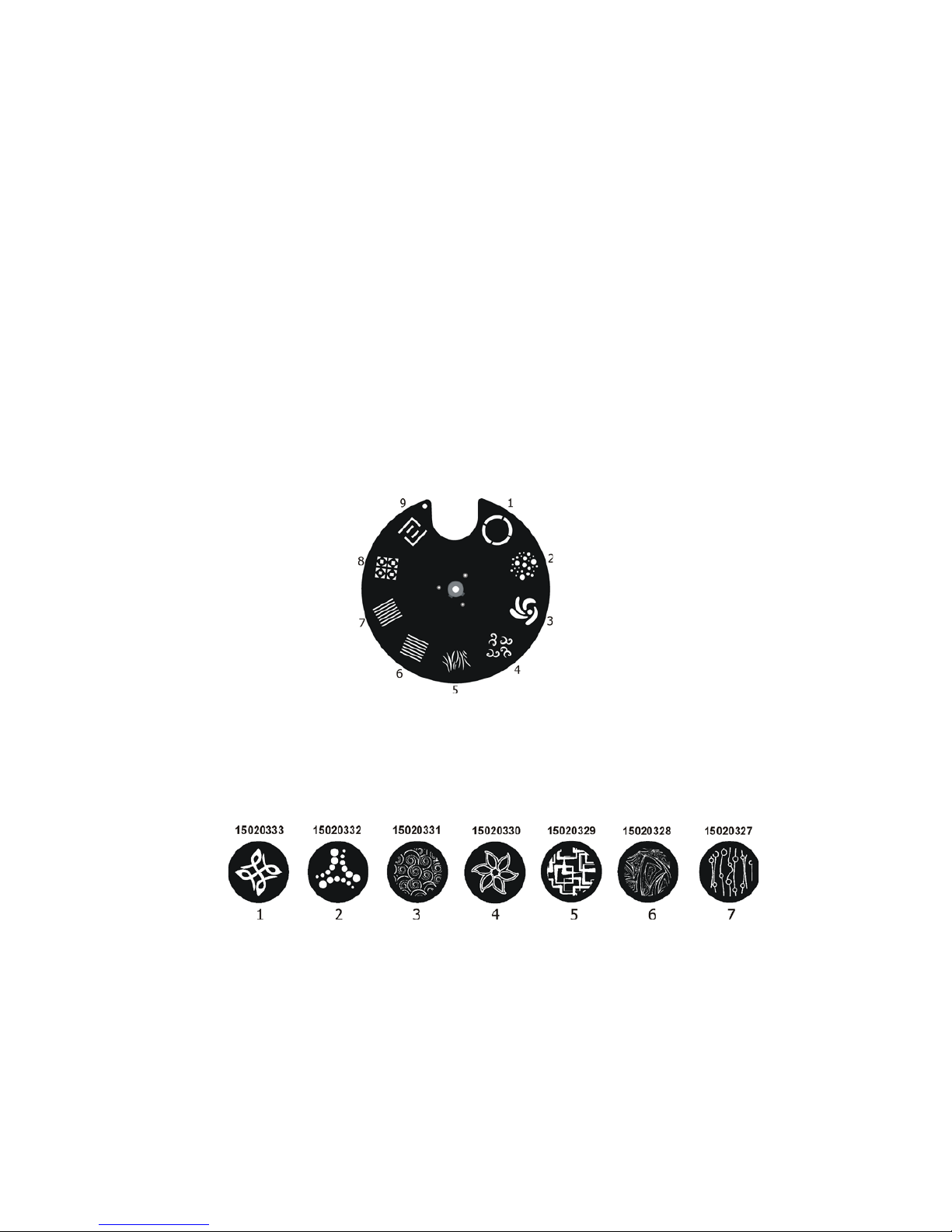

Rotating gobos
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently pull up the gobo holder from the rotation gobo wheel
.
4. Remove the spring gobo-lock with an appro
priate tool (e.g. small-bladed screwdriver) and remove it.
Do not touch the surface of the pattern of the glass gobo.
5. Remove the original gobo and insert the new one (glazy side towards the lamp). Insert the spring-gobo lock to secure it in the gobo holder.
6. Insert the gobo holder back under the distance slots into rotating gobo wheel
.
5. Replace the bottom cover before applying power.
Page 8
8
4.3 Replacing the frost
Install the frost module with the device switched off only.
Unplug from mains before!
To replace the frost module.
1. Disconnect the xture from mains and allow it to cool for 10 minutes.
2. Remove plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover to get access to the frost module (1).
3
. The holder (2) of the frost lm is fastened to the frost holder (6) by means of the four magnets (3). Grip the
holder (2) and carefully tilt it out to break a force of magnets (3) on the frost holder (6).
4
. Insert a new frost module into the frost holder (6). Check, that both slots (5) snapped correctly into
two protrusions (4) on the holder (6)
5. P
lace the plastic cover back on the xture before applying power.
Page 9
9
4.4 Rigging the xture
The installation of the xture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if
the main attachment fails.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the xture. If you lack these qualications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury or damage to property.
The xture has to be installed out of the reach of people.
If the xture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The xture must never be xed swinging freely in the room.
Caution: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s weight.
Danger of re !
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.5 m.
CAUTION!
Use 2 appropriate clamps to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
The xture can be placed directly on the stage oor or rigged in any orientation on a truss without altering its
operation characteristics .
For securing a xture to the truss, install a safety wire that can hold at least 10 times the weight of the xture. Use only the safety wire with screw-on carabine. Pull the safety wire through the safety attachment point on the bottom of the base and around the truss as shown on the pictures below.
Page 10
10
Truss installation
1.Bolt each clamp (1) to the omega holder (3) with M12 bolt and lock nut through the hole in the holder.
2.Fasten the omega holders on the bottom of the base by inserting both quick-lock fasteners (4) into the holes of the base and tighten fully clockwise.
3. Pull the safety wire (2) through the attachment point and around the truss (6).
Alternativelly, xtures handels can be used for safety attachment
When installing xtures side-by-side,
avoid illuminating one xture with another!
DANGER TO LIFE!
Before taking into operation for the rst time,the installation has to be approved by an
expert!
1-Clamps 2-Safety wire 3-Omega holder 4-Quick-lock fastener 5-Attachment point 6-Truss
Page 11
11
4.5 DMX-512 connection
The xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired
in parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the xture or one xture with another.
DMX - output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-out­puts, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always connect one output with the input of the next xture until all xtures are connected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last xture.
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
Page 12
12
4.6 Ethernet connection
The xtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft­ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network. The Universe is a single DMX 512 frame of 512 channels.
The Robin Viva is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.
RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX-
3- RX+ 7- Not connected 4- Not connected 8- Not connected
Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8
If only the xture and the computer are to be interconnected,no hubs or other active components are needed. A cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4
If the xture is connected with active Ethernet socket (e.g. switch) the network icon will appear at the bottom right corner of the screen:
Direct Ethernet operation
Connect the Ethernet inputs of all xtures with the Ethernet network. Option “Artnet (gMaI or gMA2)" has to be selected from “Ethernet Mode” menu on the xture. Set IP address (002.xxx.xxx.xxx / 010.xxx.xxx.xxx) and the Universe.
(DMX address=129) (DMX address=31) (DMX address=1) IP addres=002.168.002.004 IP addres=002.168.002.003 IP addres=002.168.002.002 Universe=1 Universe=1 Universe=1
An advised PC setting: IP address: 002.xxx.xxx.xxx / 010.xxx.xxx.xxx (Different from xture IP addresses) NET mask: 255.0.0.0
Page 13
13

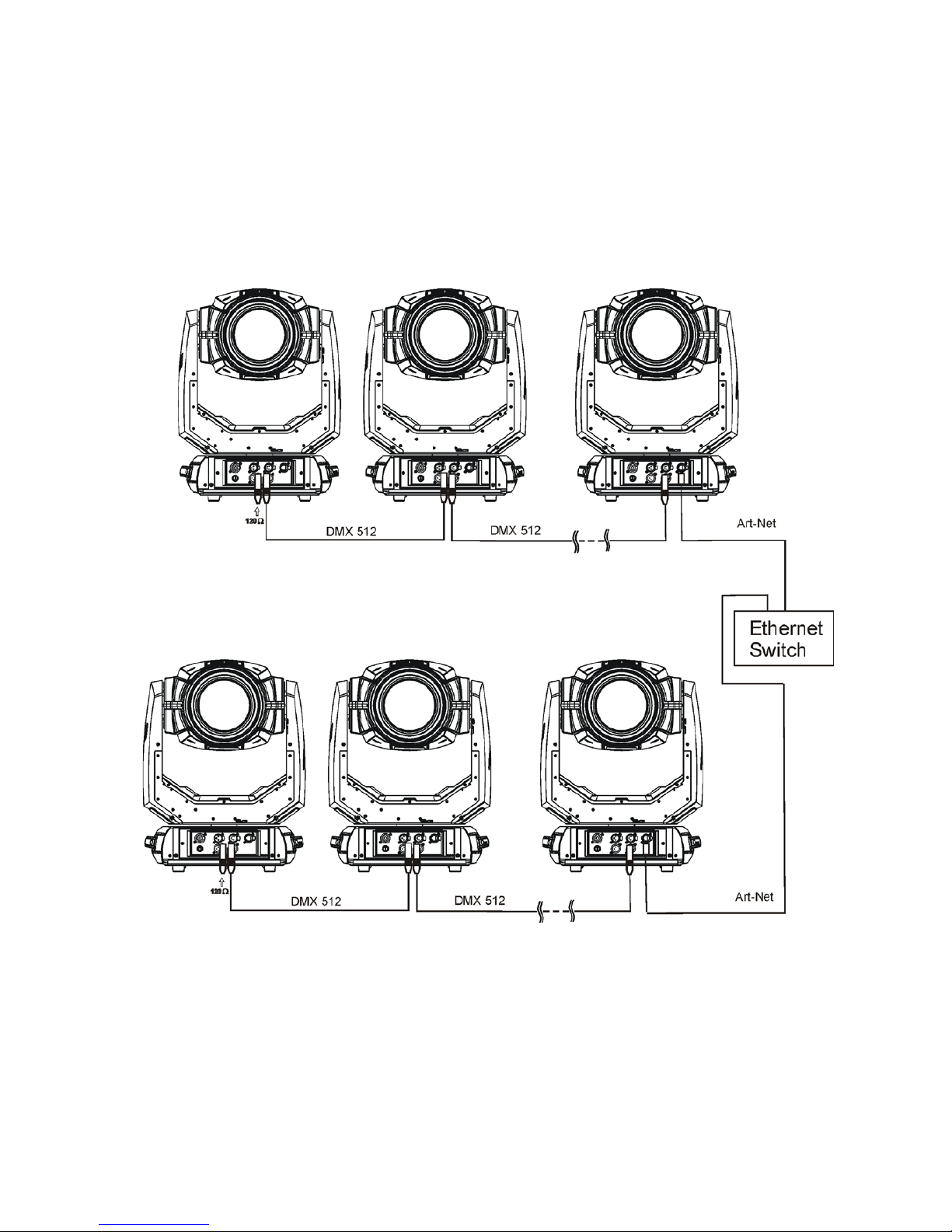

Ethernet / DMX operation
Option “ Artnet" (gMaI or gMA2 or sACN) has to be selected from “Ethernet Mode” menu at rst xture. Option “Ethernet To DMX” has to be selected from the “Ethernet Mode” menu at the rst xture (connected to the Ethernet) in the xture chain, next xtures have standard DMX setting. Connect the Ethernet input of the rst xture in the data chain with the network. Connect the DMX output of this xture with the input of the next xture until all xtures are connected to the DMX chain.
Caution: At the last xture, the DMX chain has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the last xture.
DMX address=1 DMX address=31 DMX address=129 IP addres=002.168.002.002 Universe=0
DMX address=1 DMX address=31 DMX address=129 IP addres=002.168.002.003 Universe=1
Page 14
14
5. Remotely controllable functions
Light source
The 270W white LED light engine gives an extra punchy beam.
Colour wheel 1
This wheel contains 6 dichroic lters + open.The colour wheel can be positioned between two adjacent colours in any position. It is also possible to rotate the colour wheel continuously at different speeds ("Rainbow effect“ in both directions).
Colour wheel 2
This wheel contains 6 replaceable 'SLOT&LOCK' dichroic lters + open.The colour wheel can be positioned between two adjacent colours in any position. It is also possible to rotate the colour wheel continuously at dif­ferent speeds ("Rainbow effect“ in both directions).
Static gobo wheel
The static gobo wheel includes 9 metal gobos. Gobo positioning and a gobo-shake function is available.
Rotating gobo wheel
The rotating gobo wheel includes 7 gobos rotating in both directions, indexable, replaceable "SLOT&LOCK” glass gobos + open position. Gobo positioning and gobo selection speed is available as well as a gobo-shake
function.
Prism
The 3-facet prism rotates in both directions at different speeds, 16 prism/gobo macros are available.
Frost
Replaceable frost module provides variable frost for ne frosting.
Iris
Motorized adjustable iris, wide range of variable pulse effects.
Zoom
Motorized zoom unit enables zoom between 8° and 40° beam angle.
Dimmer/Shutter unit
Smooth 0 - 100 % dimming is provided by the electronic control unit. This unit is also used for strobe effects with variable speed.

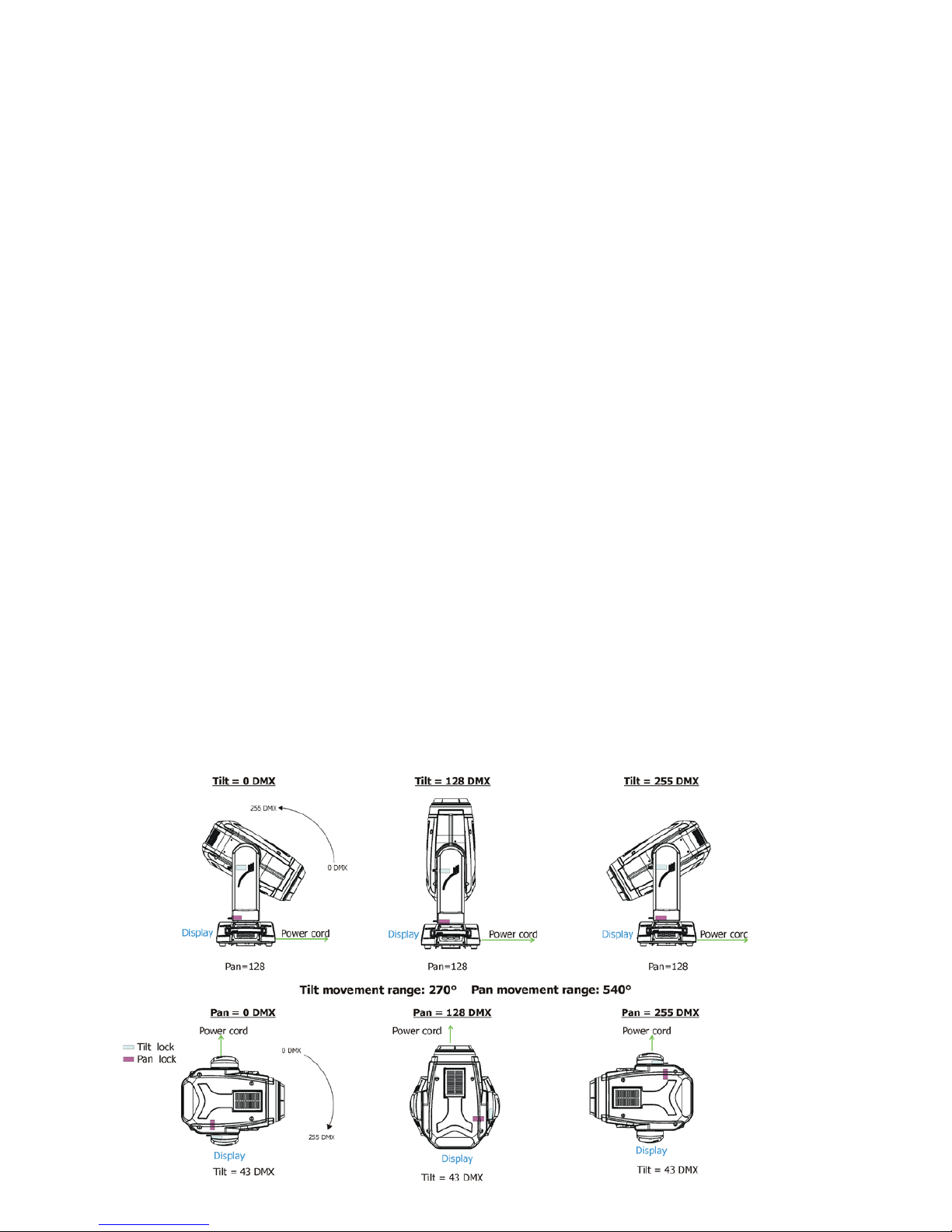

Pan/Tilt
Fast pan/tilt movement due to built-in electronic motion stabilizer. The electronic motion stabilizer ensures precise position of the xture´s head during its movement and reduces its swinging when the truss shakes.
Page 15
15
6. Control menu map
Default settings=Bold print
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
Addressing DMX Address 001-255
DMX Presets Mode 1
Mode 2
View Selected Preset
Ethernet Settings Ethernet Mode Disable
ArtNet
gMAI
gMA2
sACN
Ethernet To DMX Off, On
IP Address/Net Mask Default IP Address
Custom IP Address
Net Mask
ArtNet Universe 0-255
MANet settings MANetI/II Universe 01-256
MANet Session ID 01-32
sACN Settings sACN Universe 00001-32000
sACN Priority 0-255
Information Fixture Times Power On Time Total Hours
Resetable Hours
LEDs On Time Total Hours
Resetable Hours
Air Filters Elapsed Time
Alert Period
Fixture Temperatures
LEDs Temperature Current
Maximum NonRes.
Maximum Res.
Ambient Temperature
Current
Maximum NonRes.
Maximum Res.
Base Temperature Current
Maximum NonRes.
Maximum Res.
DMX Values Pan
:
Dimmer Fine
Wireless State
Signal Quality
U n l i nk W i r e le s s Adapter
Power Channel state
Software Versions Display System
Module M
Module D
Module G
Module O
Product IDs Mac Address
RDM UID
RDM Label
View Logs Fixture Errors
Page 16
16
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
Fixture States Power On
Power Off
Fixture Position
Fixture Temperatures LED Temperatures
Ambient Temperatures
Base Temperatures
Personality User Mode User A Settings
User B Settings
DMX Presets Mode 1
Mode 2
View Selected Preset
DMX Input Wired input
Wireless input
Wireless In/XLR Out
Pan/Tilt Settings Pan Reverse Off, On
Tilt Reverse Off, On
Pan/Tilt Feedback Off, On
Pan/Tilt mode Time
Speed
Pan/Tilt EMS On, Off
Mi cro ph o ne Se n­sitivity
1-10-20
Blackout Settings Blackout During M.C. Off, On
Blackout while: Pan/Tilt moving Off, On
Colour Wheel Moving Off, On
Gobo Wheels Moving Off, On
Init Effect Positions Pan 0-255
:
Dimmer Fine 0-255
Screen Settings Display Intensity 1-10
Screen Saver Delay Off-10min.
Touchscreen Lock Off-10min.
Recalibrate Touchscreen
Display Orientation Normal
Inverted
Auto
Temperature Unit °C,°F
Fan Mode Auto
High
Dimmer Curve Linear
Square law
Date & Time Settings
Default Settings
Password Protection
Off, On
Manual Control Reset Functions Total System Reset
Pan, Tilt reset
Colour System Reset
Ir i s, G obo S ys t e m
Reset
Optics/Prism/Frost Res.
Iris Reset
Manual Effect Con­trol
Pan 0-255
Page 17
17
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
:
Dimmer Fine 0-255
Stand -Alone Test Sequences Dynamic Mode
Static Mode Pan 0-255
Tilt 0-255
Zoom 0-255
Focus 0-255
MusicTrigger Off, On
Preset Playback None
Test
Prg. 1
Prg. 2
Prg. 3
Play Program Play Program 1
Play Program 2
Play Program 3
Edit Program Edit Program 1 Start Step 1-100
End Step 1-100
Edit Program Steps Step 1 Pan 0-255
: :
: Dimmer Fine 0-255
: Step Time 0-25,5 sec.
Step 100 Pan 0-255
:
Dimmer Fine 0-255
Step Time 0-25,5 sec.
Service Adjust DMX Values Pan 0-255
:
Dimmer Fine 0-255
Calibrations Calibrate Effects Pan 0-255
:
Iris 0-255
Load Default Calibra-
tions
Update Software
Page 18
18
7. Control menu

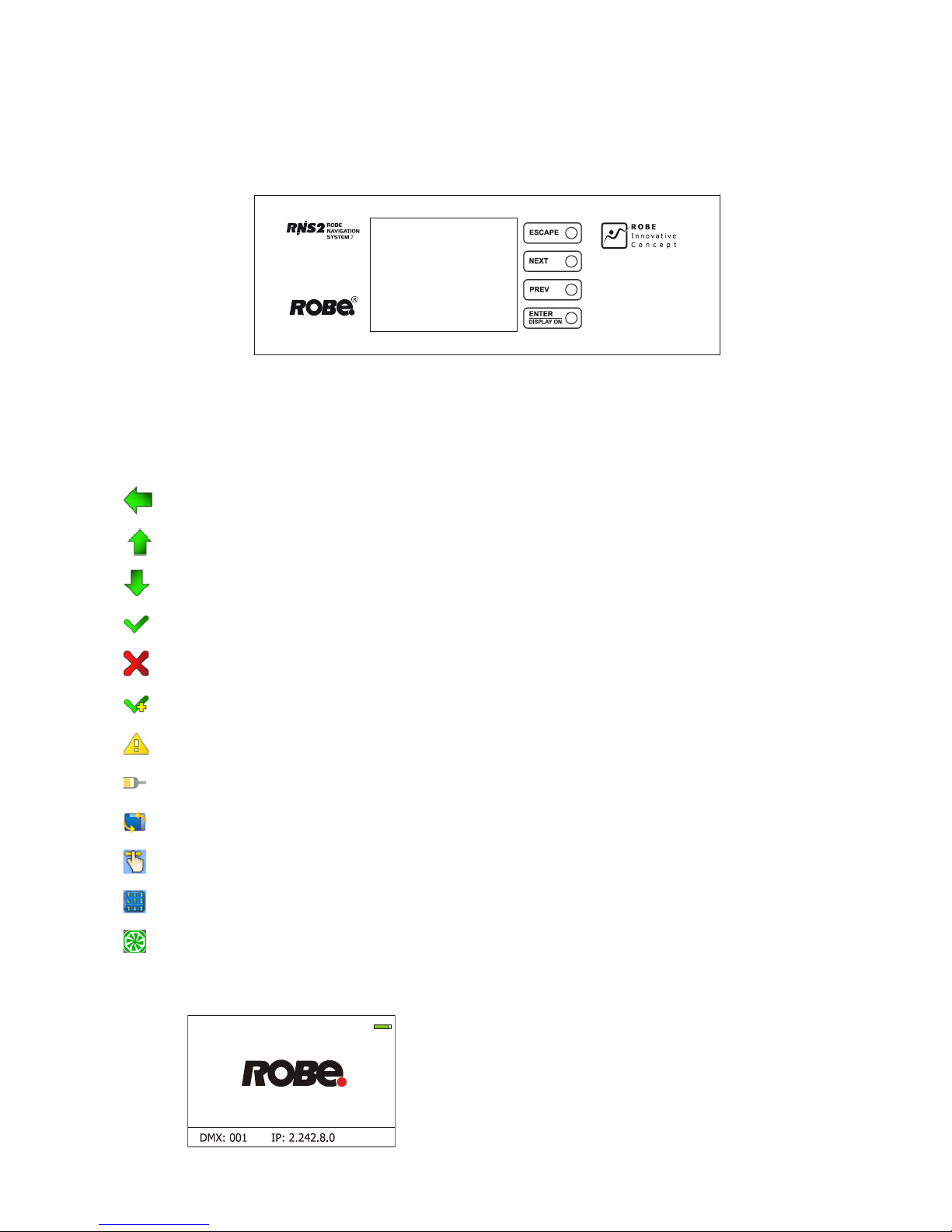

The Robin Viva is equipped with the QVGA Robe touch screen with battery backup which allows to set the xture´s behaviour according to your needs, obtain information on its operation, test its vari­ous parts and lastly program it, if it has to be used in a stand-alone mode. The xture´s menu can be controlled either by the control buttons or directly by touching the icon.
Control buttons on the front panel:
[ESCAPE] button used to leave the menu without saving changes. [NEXT] , [PREV] buttons for moving between menu items and symbols, adjusting values. [ENTER/Display On] button used to enter the selected menu (menu item) and to conrm adjusted value.
If the xture is disconnected from mains, the button switches the touch screen on.
Icons used in the touch screen menu:
- [back arrow] used to move back to the previous screen (menu).
- [up arrow] used to move up on the previous page.
- [down arrow] used to move down on the next page.
- [conrm] used to save adjusted values, to leave menu or to perform desired action.
- [cancel] used to leave menu item without saving changes.
- [conrm+copy] used to save adjusted values and copy them to the next prog. step.
- [warning icon] used to indicate some error which has occurred in the xture.
- [Ethernet] used to indicate Ethernet connected.
- [menu rotation] used to rotate menu 180 degrees from current orientation.
- [slider control] used to recall slider system for setting desired value.
- [keyboard control] used to recall keyboard system for setting desired value.
- [air lters cleaning] used to signal that cleaning period of the air lters elapsed.

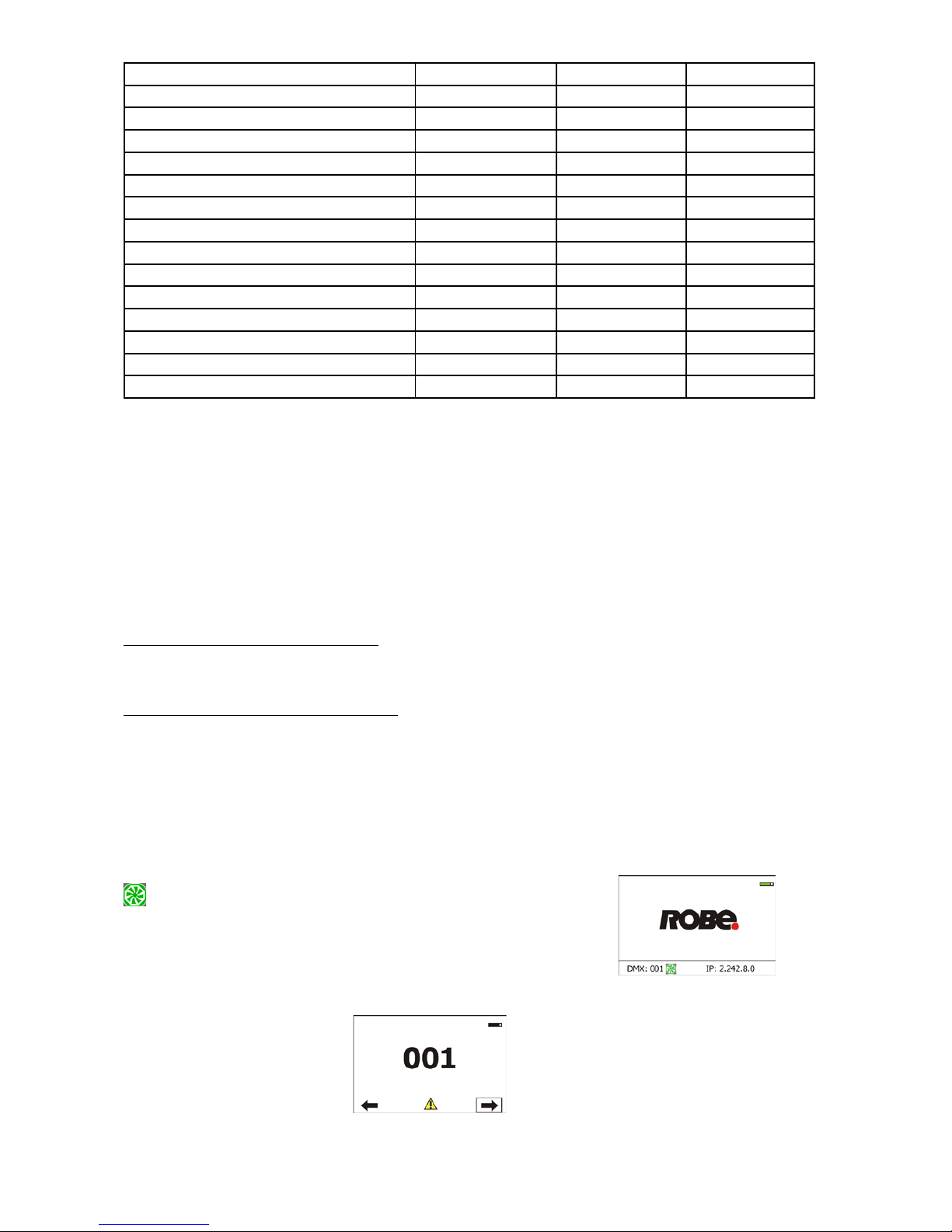

The menu page displays icons for each function that you can perform from the touch screen. After switching the xture on, the touch screen shows the screen with the ROBE logo:
The green icon at the top right corner of the
screen indicates the level of the display battery charging. If the whole icon is green, the batery is fully charged while the red icon indicates exhausted battery. The batery charges during xture operation.
Page 19
19

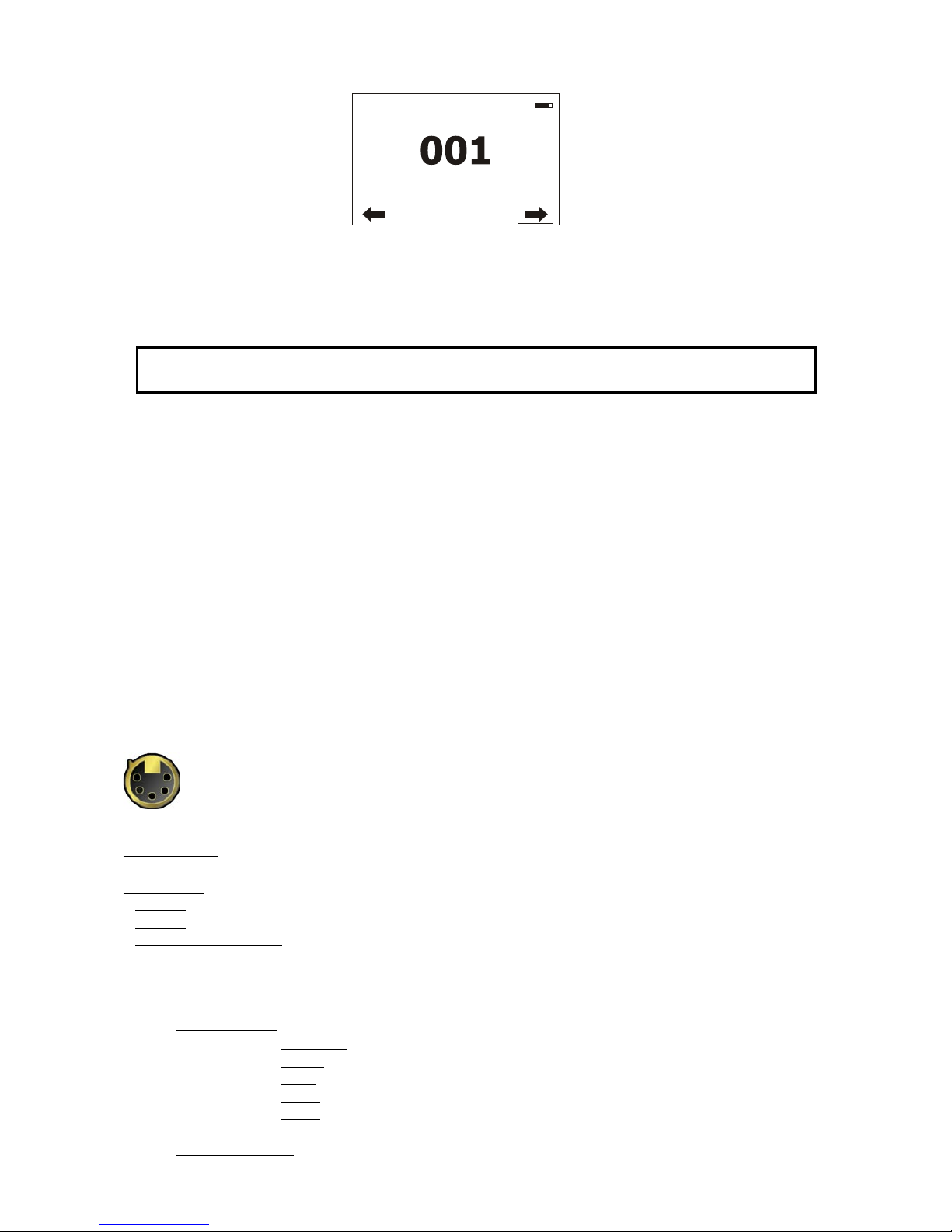

Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur­rent stored DMX address:
Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter the " Address" menu. An item (such as a Tab, menu item, text box, icon) may be selected from a screen by simply touching the item in the list or by pressing the [NEXT] or [PREV] buttons to scroll through list items. With each press, the next item is highlighted. Press [ENTER/Display On] to select the highlighted item.
Before rst xture operation, set current date and time in the menu "Date &Time
Setings" (menu path: Personality--> Date &Time Setings).
Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery. The battery charges during xture operation, its charging lasts cca 6 hours. We recommend that the xture should be in operation at least 7 hours per week to keep the battery fully charged. If you switch the xture on and this screen will not appear till 1 minute, switch the xture off and on again. If the screen lights, the battery is exhausted. In case the screen still does not light, the battery is faulty. This is also indicated by an error message "Faulty battery" and if such an error message appears the battery should be replaced immediately. The lifetime of the battery is highly dependent on ambient temperature (and consequently on base temperature). If the maximum ambient temperatures (as recorded and displayed in menu: Information -> Fixture Temperatures -> Ambient Temperature -> Maximum NonRes.) are kept within the speci­ed limits, the battery should last for at least two years. Shell the ambient temperatures exceed the specied maximum temperature, the lifetime of the batteries could be considerably shortened even up to just one year or less and also result in physical damage (battery leakage) or unreliable xture functions. Damage caused by batteries failed due to exceeded maximum ambient temperature cannot be claimed under warranty terms.
7.1 Tab " Address"
DMX Address - Select the menu to set the DMX start address.
DMX Preset - Use the menu to select desired channel mode.
Mode 1 - 30 control channels Mode 2 - 23 control channels View Selected Preset - Use the menu to display channels included in the selected mode.
Ethernet Settings - The menu allows all needed settings for the Ethernet operation
Ethernet Mode Disable - The option disables Ethernet operation.
Artnet - Fixture
receives Artnet protocol
gMAI
- Fixture
receives MANet I protocol
gMA2
- Fixture
receives MANet 2 protocol
sACN
- Fixture
receives sACN protocol
Ethernet To DMX - Fixture receives
protocol
from the Ethernet input and sends DMX
data to its DMX output (xture works as an "Ethernet/DMX converter",
next xture can be connected
Page 20
20
to its DMX output and you can build a standard DMX chain by connecting another xtures. Only one xture has to be connected to the Ethernet.
IP Address/Net Mask - Select this menu to set IP address. IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network. There cannot be 2 xtures with the same IP address on the network! Default IP Address -Preset IP address, you can set up only rst byte of IP address (2 or 10) e.g. 002.019.052.086.
Custom IP Address - The option enables to set up all bytes of IP address. Net Mask - The option enables to set up all bytes of Net Mask.
ArtNet Universe - Use
this item to set a Universe (0-255). The Universe is a single DMX
512 frame
of 512 channels.
MANet Settings - Use this menu to set parameters for MANet operation. MANet Universe I/II - The value of this item can be set in range 1-256. MANet Session ID - The value of this item can be set in range 1-32.
sACN Settings - Use this menu to set parameters for sACN operation. sACN Universe - The value of this item can be set in range 1-32000. sACN Priority - The value of this item can be set in range 0-255.
7.2 Tab "Information"
Fixture Times - The menu provides readouts of xture and LED module operation hours. Power On Time Hours - Select this menu to read the number of xture operation hours. Total Hours -
The item shows the total number of the operation hours since the
Robin Viva
has been fabricated.
Resetable Hours -
The item shows the number of the operation hours that the
Robin Viva
has been powered on since the counter was last reset.
In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"
LEDs On Time - Select this menu to read the number of LED source operation hours. In order to reset some counter to 0, touch the yellow text box next to desired colour.
Air Filters - Regular cleaning of the air lters is very important for the xture´s life and performance. Bild-up of dust, dirt and fog uid residues reduces the xture´s light output and cooling ability. The two items of this menu help you to keep cleaning period of the air lters. Alert period - Cleaning schedule for the xture depends on the operating environment. It is therefore impossible to specify accurate cleaning interval. This item allows you to change the cleaning interval of the air lters. This "alert" value is 300 hours and it is set as default. Inspect the xture within its 300 hours of operation to see whether cleaning is necessary. If cleaning is required, clean all air lters and change the value in this menu on acceptable level. Min. level of alert period is 10 hours, max. is 300 hours. Elapsed Time - The item allows you to read the time which remains to cleaning air lters. The time period is set in the menu mentioned above. Expired time period is signalled by a negative mark (-) at the time value and a warning icon on the display. Clean the lters and reset this menu item (by touching the text box next to the item "Elapsed Time").
Fixture Temperatures - The menu is used to view temperatures of the xture´s inside.
LEDs temperatures - The menu shows temperature on the LED source. Cur. - A current temperature of the LED source.
Max. - A maximum temperature of the LED source since the xture has been fabricated. Max. Res. - A maximum temperature of the LED source since the counter
Page 21
21
was last reset. In order to reset some counter to 0, touch desired text box under item "Max.Res."
Ambient Temperature - The menu shows temperature of the induced air on the fan in the xture base . Current - A current temperature of the induced air in the xture base.
Maximum NonRes. - A maximum temperature of the induced air in the xture base since the xture has been fabricated. Maximum Res. - A maximum temperature of the induced air in the xture base since since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
Base Temperature - The menu shows temperature in the xture base (on the display PCB).
Current - A current temperature in the xture base.
Maximum NonRes. - A maximum temperature in the xture base since the xture has been fabricated. Maximum Res. - A maximum temperature in the xture base since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
DMX Values - The menu is used to read DMX values of each channel received by the xture.
Wireless State - The menu serves for reading of the wireless operation status Unlink Wireless Adapter - The menu item allows unlinking the xture from the transmitter .
Power Channel State - The menu item shows state of the Power/Special functions switches.
Software Version - Select this item to read the software version of the xture modules:
Display System - A display processor on the display board in the xture base Module M - A pan/Tilt processor. Module D - Colours/light source control processor.
Module G - A rot. gobo/stat. gobo/iris processor. Module O - A focus/zoom/prism/frost/ processor .
Product IDs - The menu is used to read the MAC Address ,RDM UID and RDM Label.
View Logs - Use this menu to read xture´s data which have been recorded during xture operation. This
colected data allows easier troubleshooting.
Fixture Errors - Use this menu to read xture errors which have occured during xture operation. Fixture States - Recorded following actions: Fixture On, Fixture Off. Fixture Position - Recorded installation positions of the xture:
Fixture Temperatures - Recorded temperatures which have exceeded dened levels.
Note: The log buffer can contain 8000 records max. If the buffer is full, old data will be overwritten.
7.3 Tab "Personality"
User mode - The Robin Viva allows you to recall 2 user settings. After switching the xture on for the rst time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing” menu and the “Music Trigger“ and “ Preset Playback“ items from the “Stand-alone” menu are saved to the User A settings. If
Page 22
22
you now select the User B settings, from this moment the changes made in these menus will be saved to the User B settings. After switching the xture off and on, the User B setting is active. In this way you may use the two xture operating behaviours.
User A Settings - the function recalls the user A settings. User B Settings - the function recalls the user B settings.
DMX Preset - Use the menu to select desired channel mode.
Mode 1 - 30 control channels Mode 2 - 23 control channels View Selected Preset - Use the menu to display channels included in the selected mode.
DMX Input- Use the menu to select mode of receiving DMX signal.
Wired - DMX signal is received by means of the standard DMX cable. Wireless - DMX signal is received by means of the inbuilt wireless module. Wireless In/XLR Out- the xture receives wireless DMX and sends the signal to its wired DMX output.
The xture behaves as " Wireless/Wired" adapter. The options "Wired" and "Wireless" are also stated in DMX chart (channel Power/Special functions).
Pan/Tilt Settings - Use the menu set behaviour of both pan and tilt movements.
Pan Reverse - The item allows to invert pan movement. Tilt Reverse - The item allows to invert tilt movement. Pan/Tilt Feedback - The item allows to return the mowing head to the required pan/tilt position after
changing the position by an external force if this option is set on. Note. Be careful, the Pan/Tilt Feedback should be permanent On, the option Off is not suitable for standard operation and the head can be damaged! Pan/Tilt mode - Use this menu to set the mode of the pan/tilt movement Time mode – The pan and tilt will move with different speeds and they will come at the same time to the end point of their tracks (pan and tilt use their optimal speeds). Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt time". Speed Mode - Both pan and tilt will move with the same speed as adjusted at the channel "Pan/Tilt speed, Pan/Tilt time".
Pan/Tilt EMS - Built-in electronic motion stabilizer ensures precise position of the xture´s head during its movement and also reducing its swinging when the truss shakes.
Microphone Sensitivity - Enter the menu if you want to adjust the microphone sensitivity from 1 (max.) to 20 (min.).
Blackout Settings - Use the menu if you need to close the light output under certain conditions which are described below Blackout DMC - Blackout during movement correction. Set this option On if you wish to close light output during the time when the head goes to its correct position, which has been changed by an external force.
Active Blackouts - Use this menu if you wish to close the light output during effect changes. Pan/Tilt Moving - The menu item enables to close light output while the pan/tilt coordinates are changing. Colour Wheels Moving - The menu item enables to close light output while
the colour wheel 1 (2) is moving. Gobo Wheel Moving - The menu item enables to close light output while the rot. gobo wheel l is moving.
Init Effect Positions - Use the menu to set all effects to the desired positions at which they will stay after switching the xture on without DMX signal connected.
Screen Settings - Use this menu to change the touch screen settings. Display Intensity - The item allows to control the intensity of the screen (1-min., 10-max.). Screen saver Delay - The item allows you to keep the screen on or to turn it off automatically after 1-10
minutes after last touch (or pressing any button on the control panel). Touchscreen Lock - The item allows you to lock the screen after last touch (or pressing any button on the control panel). The time delay can be set in range of 1-10 minutes.To unlock the screen, press the [ENTER/Display On] button.
Recalibrate Touchscreen - The item starts calibration of the touchscreen. Follow the instructions on the screen.
Page 23
23

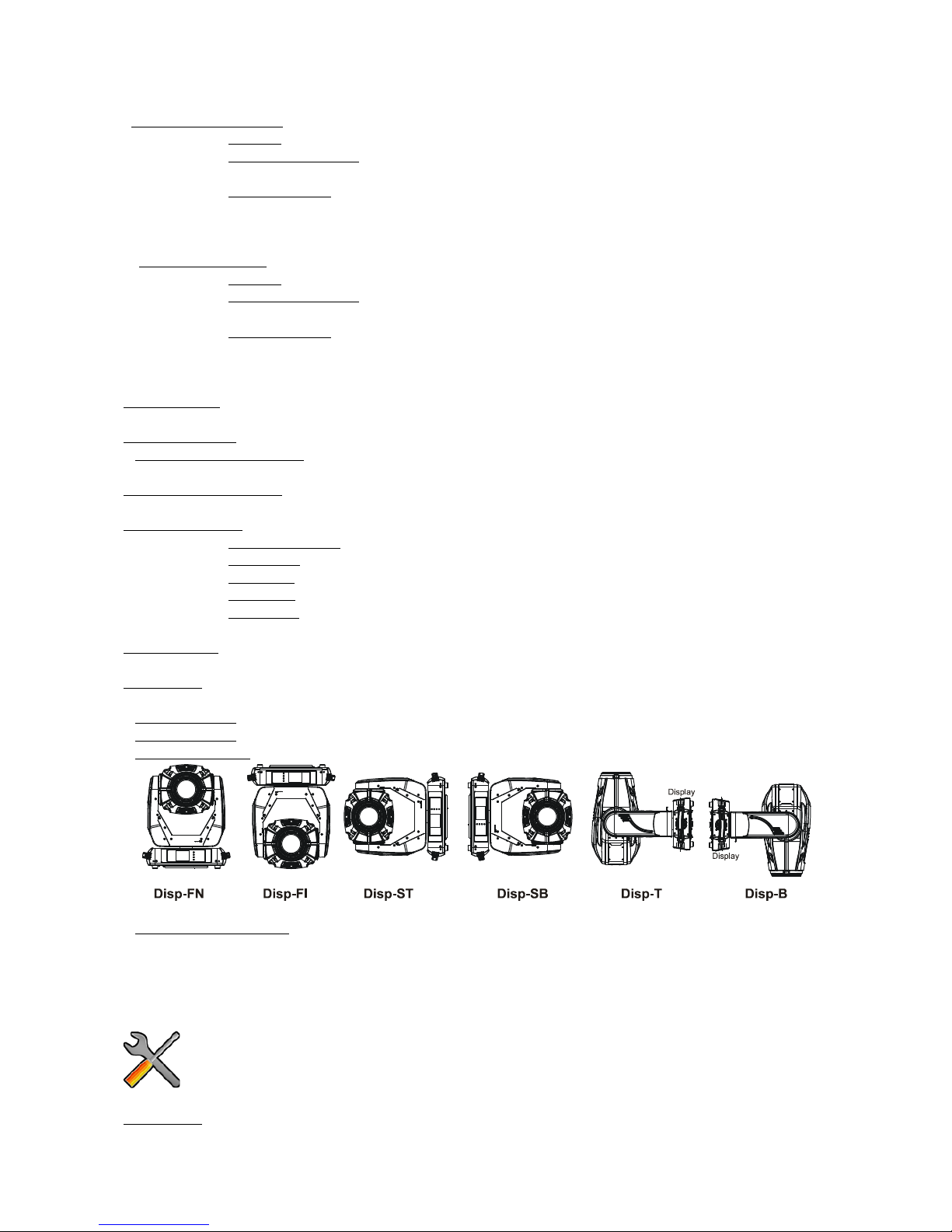

Display Orientation - The menu allows to change display orientation. Normal - Standard display orientation if the xture is placed horizontally (e.g. on the ground).
Inverted - Inverted orientation (needed if the xture is hanging on the truss). Auto - The option activates a gravitation sensor for automatic screen orientation.
Note: Auto option is set as default. You change the display orientation by touching the icon on the display, an the option set in the "Display Orientation" menu is temporarily overriden.
Dimmer Curve - You can select desired dimmer curve: Linear or Square Law.
Temperature unit - Use the menu item to change temperature unit from °C to °F.
Fan Mode - Use the menu to set the xture fans to max. power mode ("High") or to auto-control mode ("Auto").
Date & Time Settings - Use this menu to set current date and time for the xture log system (menu "View Logs"). Set this menu item before rst xture operation.
Default Settings - The menu item allows to set all xture parameters to the default (factory) values.
Password Protection - allows to enter password in order to prevent unauthorized person from changing set-
ting of the xture.
7.4 Tab "Manual Control"
Reset Functions - The menu allows to reset the xture either per function modules or all modules together. Total System Reset - The item resets all function modules. Pan, Tilt Reset - The item resets a pan and tilt movement. Colour System Reset - The item resets a colour wheel and CMY/CTO ags. Iris, Gobo System Reset - The item resets a static/rotating gobo wheel. Optics/Prism/Frost Res. - The item resets a zoom, focus, prism and a frost module.
Manual Effect control - Use the menu to control all xture channels by means of the control panel.
7.5 Tab "Stand-alone"
Test Sequences -Use the menu to run a test/demo sequences without an external controller, which will show you some possibilities of using Robin Viva. Dynamic Mode - This mode uses all Robin Viva functions including pan/tilt movement and therefore is good for a complete introduction of the xture. Static Mode - This mode is suitable for projections on the wall, ceiling or ground without any pan/tilt move­ment. Adjust the pan, tilt, zoom, focus and hot-spot to desired positions an start test sequences by touching
the green icon.
Music Trigger - Use the item to activate the sound control of the running program via the built-in micro- phone.
Preset Playback - This menu allows you to select the program which will be played in a loop after switching the xture on (the option is commonly used in a stand-alone operation without an external controller).
None - The option disables “Presetting playback” function. Test - The option starts the test sequences. Prog. 1 - The option starts user program No. 1.
Prog. 2 - The option starts user program No. 2. Prog. 3 - The option starts user program No. 3.
Page 24
24
Play program - Use the menu to run desired program in a loop. Play Program 1 - The option starts user program No.1. Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3.
Edit Program - Use the menu to create or to edit desired program. The Robin Viva offers 3 free programs,
each up to 100 steps.
Edit Program 1 - The option allows to edit user program No.1. Edit Program 2 - The option allows to edit user program No.2. Edit Program 3 - The option allows to edit user program No.3
To edit program:
1. Touch the item which you want to edit (“Edit Program 1” - “Edit Program 3”).
2. Touch the item "Edit Program Steps".
3. Touch the item "Step 1". 4 From the list of effects touch desired effect and set its value. Browse throw the list by touching the [up arrow] and [down arrow] and set all desired effects. An item "Step Time" (value of 0-25.5 sec.) is the time during which effects last in the current step
5. Save adjusted effects to the current step by touching the [conrm] or save and copy them to the following step by touching the [conrm+copy]. By touching the text box "Preview" next to the current program step you can view created scene.
6. Repeat the steps 4 and 5 for next program steps.
7. After editing desired program steps, adjust the length of the program by touching the text boxes "Start Step" and "End Step".
Meaning of the icons used in the "Edit Program" menu:
- moves down on the next page - saves adjusted values and leaves menu
- moves up on the previous page - saves values to the current step and copy them to the
following prog. step
- leaves menu without saving values
There is a chart describing behaviour of items "Pan/Tilt Macro" and "P./T. Macro Speed".
DMX
0 - 9 10 - 31 32 - 63 64 - 95
96 - 127 128 - 159 160 - 191 192 - 223 224 - 255
Pan/Tilt Macro
Disabled pan/tilt macro Reserved Figure of circle (from small to large) Figure of horizontal eight (from small to large) Figure of vertical eight (from small to large) Figure of rectangle (from small to large) Figure of triangle (from small to large) Figure of star (from small to large) Figure of cross (from small to large)
0
1 - 127 128 - 129 130 - 255
Pan/Tilt Macro Speed
No macro generation
Macro generation from fast to slow-forwards
No macro generation
Macro generation from slow to fast-backwards
7.6 Tab "Service"
Adjust DMX Values - The menu allows you to set all effects to desired positions before ne calibration of the effects .
Calibrations - This menu enables ne calibration of xture effects and download default calibration values. Calibrate Effects - The menu allows the ne adjustment of effects. The menu contains list of effects
which can be calibrated: Pan- a ne pan movement Tilt - a ne tilt movement
Page 25
25
Colour Wheel 1 - a colour wheel 1 Colour wheel 2 - a colour wheel 2
Static Gobo - a static gobo wheel movement Rot. Gobo Wheel - a carousel of rotating gobos
R. Gobo Index 1 - a ne movement of rotating gobo 1
R. Gobo Index 2 - a ne movement of rotating gobo 2 R. Gobo Index 3 - a ne movement of rotating gobo 3 R. Gobo Index 4 - a ne movement of rotating gobo 4 R. Gobo Index 5 - a ne movement of rotating gobo 5 R. Gobo Index 6 - a ne movement of rotating gobo 6 R. Gobo Index 7 - a ne movement of rotating gobo 7 Prism - a prism movement Prism Rot - a prism rotation
Zoom - a zoom module
Frost 1/1 - a frost position 1 Frost 1/2 - a frost position 2 Focus - a focus module Iris - an iris module
By using these items you can calibrate and adjust effects to their right positions.
Calibration via the control board
1. Disconnect DMX controller from the xture and enter the "Calibrate Effects" menu.
2. Use the [up arrow] and [down arrow] to nd desired effect and touch it to enter the ne effect adjustment
screen.
3. Set desired value and save it by touching the [conrm].
4. Repeat steps 2 and 3 for the next effects.
5. After calibrating all effects, touch the [conrm] to save all adjusted values and reset the xture.
Calibration via the DMX controller
1. Connect DMX controller to the xture and set xture effects to the desired positions before ne calibration.
2. Enter the "Calibrate Effects" menu and now you can exactly calibrate desired effects by DMX controller. There is a calibration protocol:
Effect Mode 1 Mode 2
Pan channel 31 channel 24
Tilt channel 32 channel 25
Colour wheel 1 channel 33 channel 26 Colour wheel 2 channel 34 channel 27 Static Gobo channel 35 channel 28 Rot. Gobo Wheel channel 36 channel 29 R. Gobo Index 1 channel 37 channel 30 R. Gobo Index 2 channel 38 channel 31 R. Gobo Index 3 channel 39 channel 32 R. Gobo Index 4 channel 40 channel 33 R. Gobo Index 5 channel 41 channel 34 R. Gobo Index 6 channel 42 channel 35 R. Gobo Index 7 channel 43 channel 36 Prism channel 44 channel 37 Prism rot. channel 45 channel 38
Zoom channel 46 channel 39
Frost 1/1 channel 47 channel 40 Frost 1/2 channel 48 channel 41 Focus channel 49 channel 42 Iris channel 50 channel 43
After having calibrated all effects, touch the [conrm] to save adjusted values and reset the xture.
Load Default Calibrations - The item loads default (factory) calibration values.
Calibrate Pan/Tilt EMS - This menu item allows calibration of the pan/tilt electronic motion stabilizer.
Important: during this calibration any external force must not inuence the xture and the surface at which the xture stands (or truss if the xture hangs) has to be without movement, shake, strokes etc.
Page 26
26
Updating software -
The menu item allows you to update software in the xture via either serial or USB port of PC. The following are required in order to update software:
- PC running Windows 95/98/2000/XP/7/8 or Linux
- DMX Software Uploader
- Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC)
- Robe Universal Interface (if you want to use an USB port of PC) Note: Software update should execute a qualied person. If you lack qualication, do not attempt the update yourself and ask for help your ROBE distributor. DMX address, IP address, programs 1-3 and all items in the menu "Personality" will be set to their default (factory) values.
To update software in the xture:
I. Installation of the DMX Software Uploader.
1. DMX Software Uploader program is available from the ROBE web site at WWW.robe.cz.
2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.
3. Unpack the seftware. II.Fixture software updating.
1.Determine which of your ports is available on your PC and connect it:
- with the DMX input of the xture if you using the ash cable RS232/DMX
- with the DMX output of the Robe Universal Interface if you using the USB cable. Disconnect the xture from the other xtures in a DMX chain. Turn both the computer and the xture on. Make sure the lamp is switched off (only if the xture involves a lamp).
2. Switch the xture to the updating mode by touching the "Updating Software " item Note: If you do not want to continue in software update, you have to switch off and on the xture
to escape from this menu.
We recommend to cancel all running programs before starting the Software Uploader.
3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only later versions of processors, check the “Incremental Update box“. Avoid interrupting the process. Update status is being displayed in the Info Box window. When the update is nished, the line with the text “The xture is successfully updated“ will appear in this window and the xture will reset with the new software. Note: In the case of an interruption of the upload process (e.g. power cut), the xture keeps the updating mode and you have to repeat the software update again.
8. RDM
This xture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device conguration and
status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely affecting existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specications for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specic moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for Robin Viva is the following.
Parameter ID Discovery command SET command GET command
DISC_UNIQUE_BRANCH *
DISC_MUTE *
DISC_UN_MUTE *
DEVICE_INFO *
SUPPORTED_PARAMETERS *
SOFTWARE_VERSION_LABEL *
DMX_START_ADDRESS * *
IDENTIFY_DEVICE * *
Page 27
27
DEVICE_MODEL_DESCRIPTION *
MANUFACTURER_LABEL *
DEVICE_LABEL * *
SENSOR_DEFINITION *
SENSOR_VALUE *
DISPLAY_INVERT * *
DISPLAY_LEVEL * *
PAN_INVERT * *
TILT_INVERT * *
DEVICE_RESET *
DMX_PERSONALITY * *
DMX_PERSONALITY_DESCRIPTION *
STATUS_MESSAGES *
STATUS_ID_DESCRIPTION *
DEVICE_HOURS
1
*
1
...Commands relative resetable values
9. Wireless DMX operation
The wireless DMX version of the Robin Strobe is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.
The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Personal­ity--> DMX Input -->Wireless.).
To link the xture with DMX transmitter. The xture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Wireless State“ (Information
-->Wireless State). To unlink the xture from DMX transmitter. The xture can be unlinked from receiver via the menu item “ Unlink Wireless Adapter“ (Information--> Wireless State --> Unlink Wireless Adapter.).
10. Error and information messages
Information icon
- Air Filters Cleaning
This icon signalizes that cleaning period of the air lters has elapsed and you have to clear air lters and reset the menu item "Elapsed Time".
Errors
Error in the xture is signalled by the yellow warning icon at the bottom line of the screen:
Touch the warning icon or press the [ESCAPE] button to display error messages. List of error and information messages:
Page 28
28
Tilt Error 1 (Tilt Error 2)
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
Pan Error 1 (Pan Error 2)
This message will appear after the reset of the xture if the yoke´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The yoke is not located in the default position after the reset of the xture.
Colour Wheel 1 Error 1 (Colour Wheel 1 Error 2)
The messages will appear after the reset of the colour wheel 1 if this wheel is not located in the default posi­tion.
Colour Wheel 2 Error 1 (Colour Wheel 2 Error 2)
The messages will appear after the reset of the colour wheel 1 if this wheel is not located in the default posi­tion.
Prism Error 1 (Prism Error 2 )
The messages will appear after the reset of the prism wheel if this wheel is not located in the default position.
Zoom Error 1 (Zoom Error 2 )
The messages will appear after the reset of the zoom module if the zoom lens is not located in the default
position.
Focus Error 1 (Focus Error 2 )
The messages will appear after the reset of the focus module if the focus lens is not located in the default.
Gobo Carousel Error 1 (Gobo Carousel Error 2 )
The messages will appear after the reset of the rotating gobo wheel if this wheel is not located in the default
position.
Gobo rotation Error 1 (Gobo Rotation Error 2 )
The messages will appear after the reset of the rotating gobo wheel if the rotating gobos are not located in the default positions.
Static Gobo Error 1 (Static Gobo Wheel Error 2 )
The messages will appear after the reset of the static gobo wheel if this wheel is not located in the default
position.
Clean Air Filters
The message informs that the item "Elapsed Time" in the "Fixture Information" menu is at 0 value. Clean air lters and reset this counter.
White 1 Short Error (White 2 Short Error/ White 3 Short Error/ White 4 Short Error)
White 5 Short Error (White 6 Short Error/ White 7 Short Error/ White 8 Short Error)
Some white LEDs in the light source have short circuit or are disconnected.
Page 29
29
11. Technical Specications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... 100-240V, 50/60Hz
Max. power consumption:.......400 W@230V
Fuse:.......................................T 4 A
Light source
270 W white engine (6100K)
Colour wheel 1
6 dichroic lters (deep red, deep blue, yellow, magenta, green, Congo blue)
Colour wheel 2
6 replaceable 'SLOT&LOCK' dichroic lters (light green, lavander, pink, CTO, blue, orange)
Static gobo wheel
9 metal gobos, image diameter=22.5mm, aluminium, thickness=0.5 mm Gobo wheel continuous rotation
Rotating gobo wheel
7 glass gobos can be indexed and rotated in both directions at different speeds Gobo wheel continuous rotation Glass gobos: outside diameter=26.8 mm, max. thickness=4 mm, high temperature borooat or better glass
"Slot&lock" system for easy replacement of gobos
Prism
Rotating 3-facet 11° prism with continuous rotation in both directions
Iris Motorized iris for different beam diameters
Frost lter
replaceable,variable frost lter 20°
10°and 30° lters as optional (not included)
r
Zoom
Linear motorized zoom (8°-40°)
Page 30
30
Strobe
Strobe effect with variable speed (max.15 ashes/sec.)
Dimmer
Smooth dimmer from 0 - 100 %
Control
Graphic touch screen for xture setting and addressing Gravitation sensor for auto screen positioning Battery backup of the touch screen Readout xture and llight source usage, receiving DMX values, temperatures, etc Built-in analyzer for easy fault nding, error messages Built-in demo sequences Black-out while head moving, colour changing Silent fans cooling, Stand-alone operation 3 user editable programs, each up to 100 steps Supported protocols: USITT DMX 512, RDM, ArtNet, MANet, MANet2, sACN Support of RDM (Remote Device Management) 2 DMX modes (30, 23, control channels)
Optional Wireless DMX/RDM module
Compliance with USITT DMX-512 (1986 & 1990) and 512-A Full DMX delity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio
Pan/Tilt
Pan movement range 540° Tilt movement range 270° 16 bit movement resolution Pan/Tilt electronic motion stabilizer Automatic Pan/Tilt position correction Remotely controllable speed of pan/tilt movement for easy programming Movement control: tracking and vector Pan/tilt-lock mechanism
Rigging
Mounting points: 2 pairs of 1/4-turn locks Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature : 45° C Maximum housing temperature : 80° C
Minimum distances
Min. distance from ammable surfaces: 0.5 m Min. distance to lighted object: 2 m
Total heat dissipation
1460 BTU/h (calculated)
Weight (net)
17.5 kg
Page 31
31

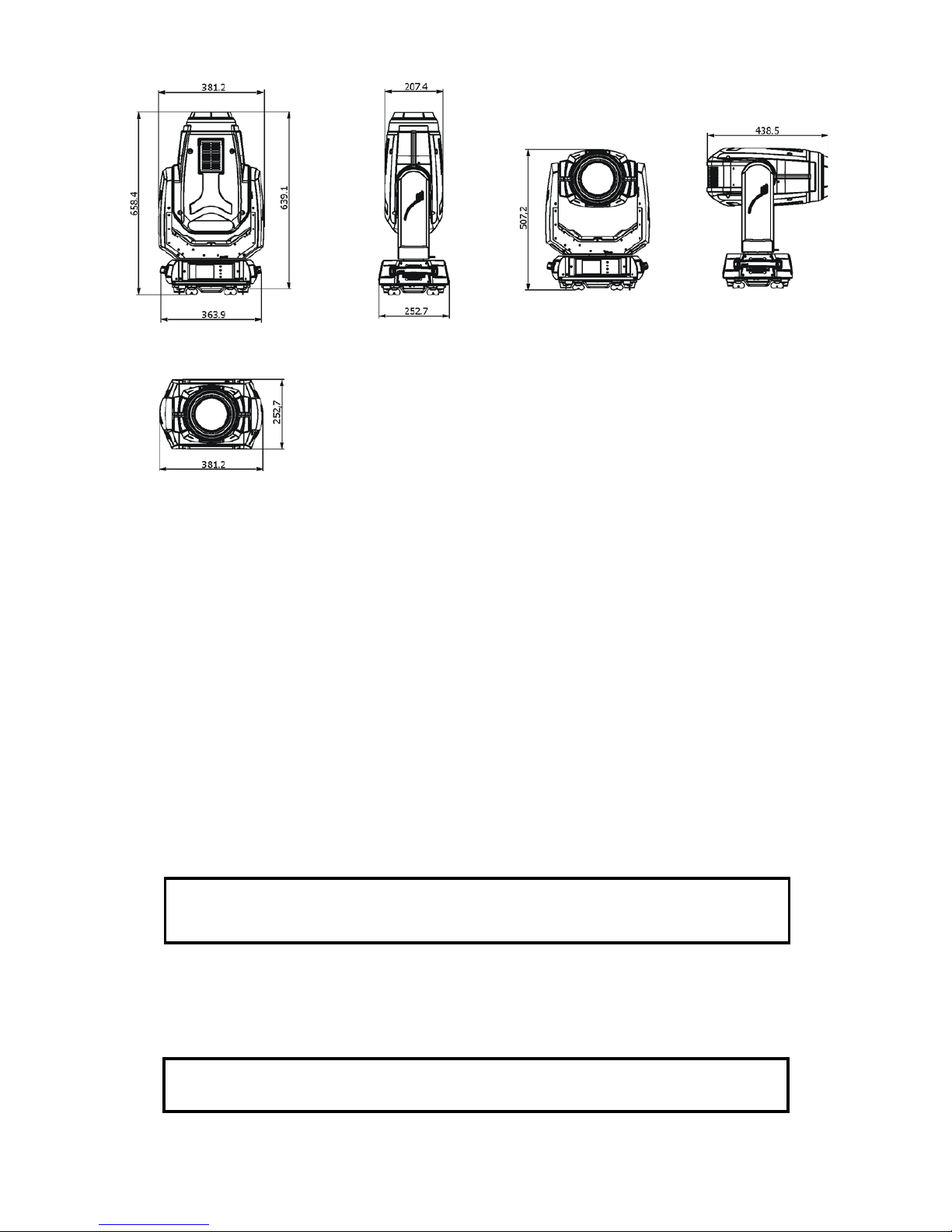

Dimensions (mm)
Connection
DMX data in/out: Locking 3-pin and 5-pin XLR ArtNet: RJ 45 (Neutrik Ethercon) AC power IN: Chassis connector Neutrik PowerCon, NAC3MPX
Accessories
Omega holder (S/N.99010420)................................2 pcs
Power cord................................................................1 pc
Optional Accessories
Flash cable RS232/DMX (No.13050624) Frost lter 10°(P/N 99014817) Frost lter 30°(P/N 99014819)
12. Maintenance and cleaning
It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life. A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances should alcohol or solvents be used!
DANGER !
Disconnect from the mains before starting any
maintenance work
The front objective lens will require weekly cleaning as smoke-uid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly. The interior of the xture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Dichroic colour lters, gobo wheels and the internal lenses should be cleaned monthly. Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air lters periodically and clean before they become
clogged!
Clean the air lters placed in the xture bases. Use a vacuum cleaner, compressed air or you can wash them
Page 32
32
and put back dry. After replacing the air lters, reset the elapsed time counter in the menu "Information" (Information--->Air Fil­ters---> Elapsed Time).
Replacing the fuse.
Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a tting screwdriver from the housing (anti-clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and x it.
12.1 Disposing of the product
To preserve the environment please dispose or recycle this product at the end of its life according to the local
regulations and codes.
13. Photometric diagrams
Specications are subject to change without notice. February 29, 2016
Page 33
33
14. ChangeLog
This section summarizes all types of changes in the user manual.
Version of the
manual
Date of issue Description of changes
1.1
13/01/2016 DMX protocol ver. 1.3 (rot. gobo carousel rotation change)
Page 34
DMX protocol
1 2
1 1
Pan
0 - 255 Pan movement by 540°
proportional
Robin Viva - DMX protocol
Version 1.3 Mode 1 - Standard 16 bit, Mode 2 - Reduced 8 bit
Mode/channel
DMX
Value
Function
Type of control
2
2
Pan Fine
0 - 255 Fine control of pan movement
proportional
3 3
Tilt
0 - 255 Tilt movement by 270°
proportional
4 4
Tilt fine
0 - 255 Fine control of tilt movement
proportional
5 5
Pan/Tilt speed , Pan/Tilt time
0
Standard mode
step
1 Max. Speed Mode
step
Pan/Tilt speed mode
2 - 255 Speed from max. to min.
proportional
Pan/Tilt time mode
2 - 255 Time from 0.2 s to 25.5 sec.
proportional
6
6
Power/Special functions
6
6
Power/Special functions
0 - 9 Reserved
To activate following functions, stop in DMX value for at least 3 s
and shutter must be closed at least 3 sec. („Shutter,Strobe” channel 28/22 must be at range: 0-31 DMX). Corresponding menu items are temporarily overriden except DMX Input.
10-14
DMX input: Wired DMX *
step
15-19
DMX input: Wireless DMX *
step
* function is active only10 seconds after switching the fixture on
20-24
Graphic display On
step
25-29
Graphic display Off
step
30-49
Reserved
50-54
Dimmer curve: Square law
step
55-59
Dimmer curve: Linear
step
60-64
Fans mode: Auto
step
65-69
Fans mode: High
step
70-89
Reserved
90 - 94 Pan/Tilt speed mode
step
95-99 Pan/Tilt time mode
step
100 - 104 Blackout while pan/tilt moving
step
105 -109 Disabled blackout while pan/tilt moving
step
11 0-114
Blackout while colour wheels moving
step
115 -119 Disabled blackout while colour wheels moving
step
120-139 Reserved
step
To activate following functions, stop in DMX value for at least 3
seconds.
140 - 149 Pan/Tilt reset
step
150 - 159 Colour wheels reset
step
160 - 169
Gobo wheels + iris reset
step
170 - 179 Reserved 180 - 189 Zoom/focus/frost/prism reset
step
190 - 199 Reserved
Page 1
Page 35
DMX protocol
1 2
Mode/channel
DMX
Value
Function
Type of control
200 - 209 Total reset
step
210 - 255
Reserved
step
7 7
Colour wheel 1
Continual positioning
0
Open/white
proportional
18 Deep red
proportional
37 Deep blue
proportional
55 Yellow
proportional
73 Magenta
proportional
91 Green
proportional
110 Congo blue
proportional
128-129
White
step
Positioning
130-139 Deep red
step
140-149 Deep blue
step
150-159 Yellow
step
160-169 Magenta
step
170-179
Green
step
170-179
Green
step
180-189 UV
step
190 - 215 Forwards rainbow effect from fast to slow
proportional
216 - 217 No rotation
step
218 - 243 Backwards rainbow effect from slow to fast
proportional
244 - 249 Random colour selection by audio control
step
(Set microphone sensitivity in menu „Personality”)
250 - 255
Auto random colour selection from fast to slow
proportional
8 *
Colour wheel 1 - fine positioning
0 - 255 Fine positioning
proportional
9 8
Colour wheel 2
Continual positioning
0 Open/white
proportional
18 Light green
proportional
37 Lavander
proportional
55 Pink
proportional
73 CTO
proportional
91 Blue
proportional
110 Orange
proportional
128-129 White
step
Positioning
130-139 Light green
step
140-149 Lavander
step
150-159 Pink
step
160-169 CTO
step
170-179 Blue
step
180-189 Orange
step
190 - 215
Forwards rainbow effect from fast to slow
proportional
216 - 217 No rotation
step
218 - 243 Backwards rainbow effect from slow to fast
proportional
244 - 249 Random colour selection by audio control
step
(Set microphone sensitivity in menu „Personality”)
Page 2
Page 36
DMX protocol
1 2
Mode/channel
DMX
Value
Function
Type of control
250 - 255 Auto random colour selection from fast to slow
proportional
10 *
Colour wheel 2 - fine positioning
0 - 255 Fine positioning
proportional
11 9
Effect Speed
Speed of rot. gobo and static gobo selection
0-255 Speed of rot. /static gobo selection from max. to min.
proportional
12 10
Colour wheels time
0
Function is off
step
1 - 255
Time of Colour wheels movement (0.1sec-->25.5sec.)
proportional
13 11
Stat. Gobo+Rot. Gobo
carousel+Zoom+Focus+Frost+Iris+Prism time
0
Function is off
step
1 - 255
Time of stat. Gobo, rot. Gobo, zoom, focus,iris and frost movement (0.1 sec-->25.5 sec.)
proportional
1-50
Time of prism movement (0.1 sec-->5 sec.)
proportional
14 12
Static gobo wheel
0-7 Open/hole
step
9-17
Gobo 1
step
9-17
Gobo 1
step
18-26 Gobo 2
step
27-35 Gobo 3
step
36-44 Gobo 4
step
45-53 Gobo 5
step
54-62 Gobo 6
step
63-71 Gobo 7
step
72-80
Gobo 8
step
81-91 Gobo 9
step
Shaking gobos from slow to fast
92-103 Gobo 1
proportional
104-115 Gobo 2
proportional
116-127 Gobo 3
proportional
128-139 Gobo 4
proportional
140-151 Gobo 5
proportional
152-163 Gobo 6
proportional
164-175 Gobo 7
proportional
176-187 Gobo 8
proportional
188-199 Gobo 9
proportional
200 - 201 Open/hole
step
202 - 222
Forwards gobo wheel rotation from fast to slow
proportional
223 - 243 Backwards gobo wheel rotation from slow to fast
proportional
244 - 249 Random gobo selection by audio control
step
(Set microphone sensitivity in menu „Personality”)
250 - 255 Auto random gobo selection from fast to slow
proportional
15 13
Rotating gobo wheel
In the range of 0-59 DMX the gobo selection speed can be
controlled by the Effect Speed channel.
Index - set indexing on channel 16/14
0-3 Open/hole
step
4-7 Gobo 1
step
8-11 Gobo 2
step
Page 3
Page 37
DMX protocol
1 2
Mode/channel
DMX
Value
Function
Type of control
12-15 Gobo 3
step
16-19 Gobo 4
step
20-23 Gobo 5
step
24-27 Gobo 6
step
28-31
Gobo 7
step
Rotation - set rotation on channel 16/14
32-35 Gobo 1
step
36-39 Gobo 2
step
40-43 Gobo 3
step
44-47 Gobo 4
step
48-51 Gobo 5
step
52-55
Gobo 6
step
56-59 Gobo 7
step
Shaking gobos from slow to fast
Index - set indexing on channel 17/14
60 - 69 Gobo 1
proportional
70 - 79 Gobo 2
proportional
80 - 89
Gobo 3
proportional
80 - 89
Gobo 3
proportional
90 - 99 Gobo 4
proportional
100 - 109 Gobo 5
proportional
110 - 119 Gobo 6
proportional
120 - 129 Gobo 7
proportional
Shaking gobos from slow to fast
Rotation - set rotation on channel 16/14
130 - 139
Gobo 1
proportional
140 - 149 Gobo 2
proportional
150 - 159 Gobo 3
proportional
160 - 169 Gobo 4
proportional
170 - 179 Gobo 5
proportional
180 - 189 Gobo 6
proportional
190 - 199 Gobo 7
proportional
200 - 201 Open/hole
step
202 - 222 Forwards gobo wheel rotation from fast to slow
proportional
223 - 243 Backwards gobo wheel rotation from slow to fast
proportional
244 - 249 Random gobo selection by audio control
step
(Set microphone sensitivity in menu „Personality”)
250 - 255 Auto random gobo selection from fast to slow
proportional
16
14
Rot. Gobo indexing/rotation
Gobo indexing - set position on channel 15/13
0 - 255 Gobo indexing
proportional
Gobo rotation - set position on channel 15/13
0 No rotation
step
1 - 127 Forwards gobo rotation from fast to slow
proportional
128
No rotation - default
step
129 - 255
Backwards gobo rotation from slow to fast
proportional
17 *
Rot. Gobo indexing/rotation - fine
0-255 Fine indexing (rotation)
proportional
18 15
Prism
0 - 19 Open position (hole)
step
Page 4
Page 38
DMX protocol
1 2
Mode/channel
DMX
Value
Function
Type of control
20 - 127 3-facet rotating prism
step
Prism/gobo macros
128 - 135 Macro 1
step
136 - 143 Macro 2
step
144 - 151
Macro 3
step
152 - 159 Macro 4
step
160 - 167 Macro 5
step
168 - 175 Macro 6
step
176 - 183 Macro 7
step
184 - 191 Macro 8
step
192 - 199 Macro 9
step
200 - 207
Macro 10
step
208 - 215 Macro 11
step
216 - 223 Macro 12
step
224 - 231 Macro 13
step
232 - 239 Macro 14
step
240 - 247 Macro 15
step
248 - 255
Macro 16
step
248 - 255
Macro 16
step
19 16
Prism rotation
0 No rotation
step
1 - 127 Forwards rotation from fast to slow
proportional
128
No rotation - default
step
129-255 Backwards rotation from slow to fast
proportional
20 17
Frost
0
Open
step
1 - 179 Frost from 0% to 100%
proportional
180 - 189 100% frost
step
190 - 211 Pulse closing from slow to fast
proportional
212 - 233 Pulse opening from fast to slow
proportional
234 - 255 Ramping from fast to slow
proportional
21 18
Iris
0 Open
step
1 - 179 From max.diameter to min.diameter
proportional
180 - 191 Closed
step
Pulse effects with Iris blackout:
192 -219 Pulse opening from slow to fast
proportional
220 - 247 Pulse closing from fast to slow
proportional
248 - 249
Random pulse opening (fast)
step
250 - 251 Random pulse opening (slow)
step
252 - 253 Random pulse closing (fast)
step
254 - 255 Random pulse closing (slow)
step
22 *
Iris - fine
0 - 255 Fine iris movement
proportional
23 19
Zoom
0 - 255
Zoom from max. to min.beam angle
proportional
24 *
Zoom - fine
0-255 Fine zooming
proportional
25 20
Focus
0 - 255 Continuous adjustment from far to near
proportional
Page 5
Page 39
DMX protocol
1 2
Mode/channel
DMX
Value
Function
Type of control
26 *
Focus - fine
0- 255 Fine focusing
proportional
27 21
Reserved
Reserved for future functions
28
22
Shutter/ strobe
0 - 31 Shutter closed
step
32 - 63 Shutter open
step
64 - 95 Strobe-effect from slow to fast
proportional
96 - 127 Shutter open
step
128 - 143 Opening pulse in sequences from slow to fast
proportional
144 - 159 Closing pulse in sequences from fast to slow
proportional
160 - 191
Shutter open
proportional
192 - 223 Random strobe-effect from slow to fast
proportional
224 - 255 Shutter open
step
29 23
Dimmer intensity
0 - 255 Dimmer intensity from 0% to 100%
proportional
30 *
Dimmer intensity - fine
0 - 255
Fine dimming
proportional
0 - 255
Fine dimming
proportional
Page 6
Page 40
34
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
