Robe ROBIN UV Strobe User Manual

Page 1

Version 1.3

Page 2

Table of contents

1. Safety instructions ......................................................................................................... 3

2. Fixture exterior view ...................................................................................................... 5

3. Installation....................................................................................................................... 6

3.1 Connection to the mains ............................................................................................ 6

3.2 Installing the gel frame and barndoors ....................................................................... 7

3.3 Rigging the xture and oor installation of the xture ................................................ 8

3.4 DMX-512 connection ................................................................................................ 13

3.5 Ethernet connection ................................................................................................. 14

4. Control menu map ........................................................................................................ 16

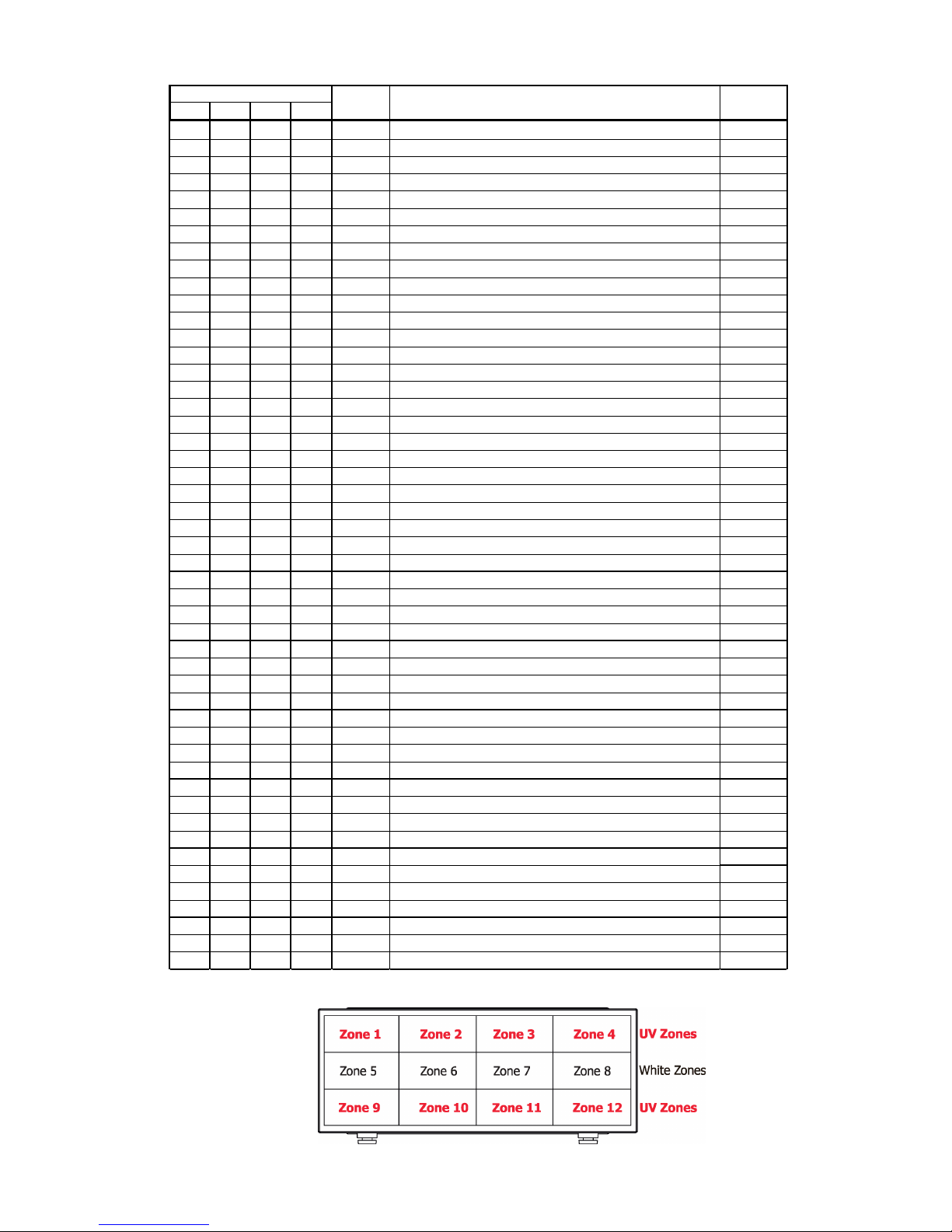

5. DMX chart ...................................................................................................................... 18

6. Strobe and Special e󰀨ects running ........................................................................... 20

6.1 Strobe ...................................................................................................................... 20

6.2 Special e󰀨ects ......................................................................................................... 20

7. Control menu ............................................................................................................... 22

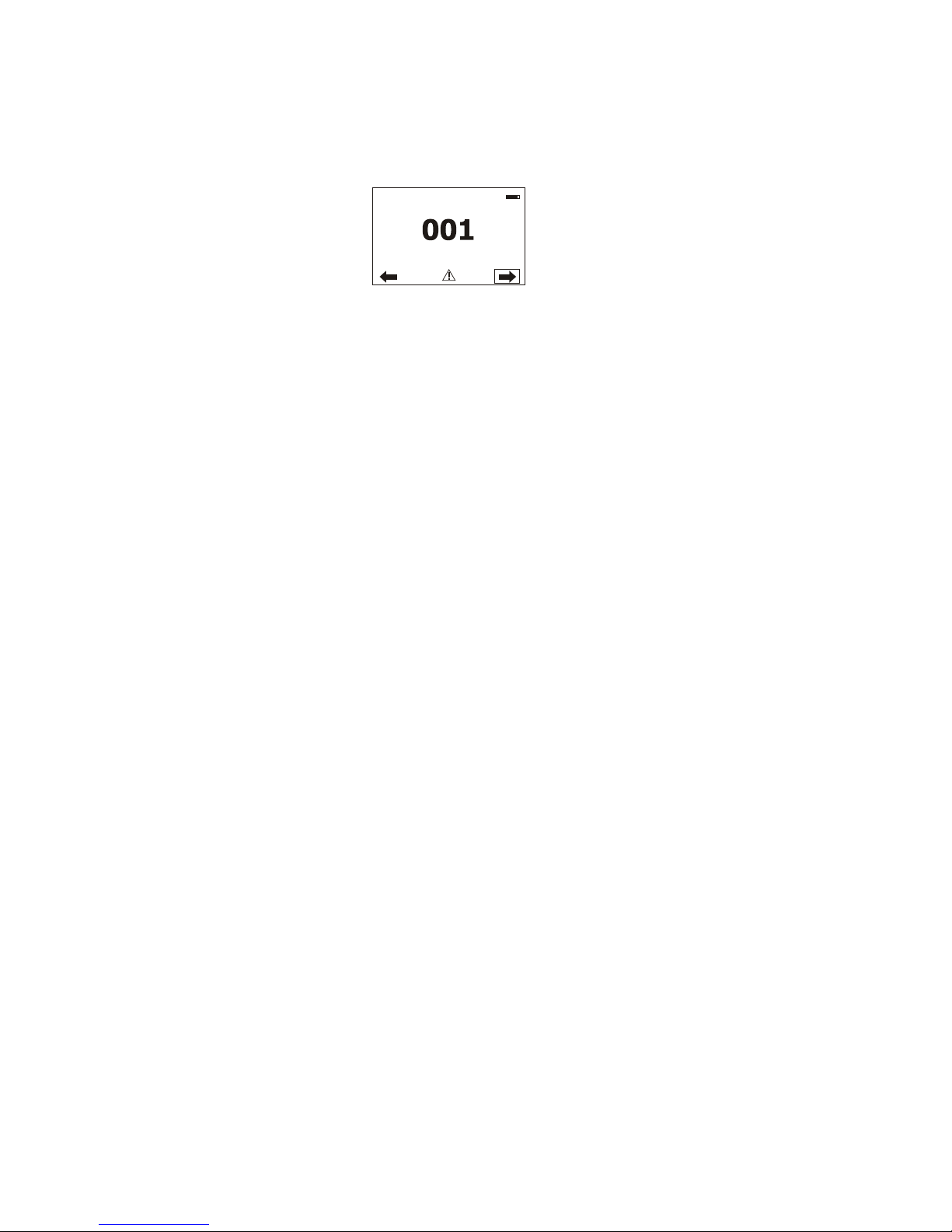

7.1 Tab " Address" .......................................................................................................... 23

7.2 Tab "Information" ...................................................................................................... 24

7.3 Tab "Personality" ......................................................................................................25

7.4 Tab "Manual Control" ................................................................................................ 26

7.5 Tab "Stand-alone" .................................................................................................... 26

7.6 Tab "Service" ............................................................................................................ 27

8. RDM ............................................................................................................................... 28

9. Wireless DMX operation .............................................................................................. 28

10. Error and information messages .............................................................................. 29

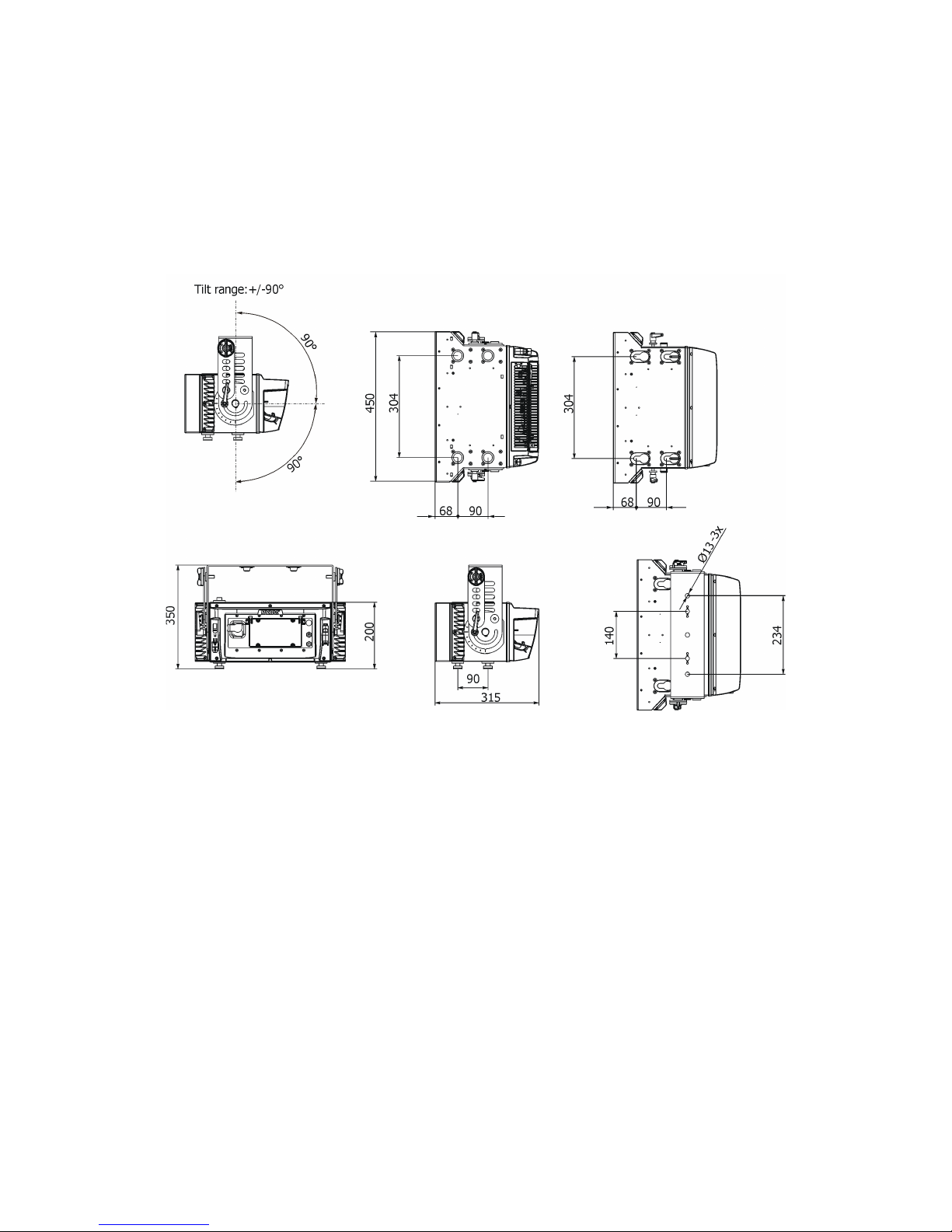

11. Technical Specications ............................................................................................ 30

12. Maintenance and cleaning ......................................................................................... 32

12.1 Replacing fuse ....................................................................................................... 32

12.2 Disposing of the product ........................................................................................ 32

13.Extract from a test report of Brno University Of Technology - Light Laboratory..33

14. Appendix ..................................................................................................................... 34

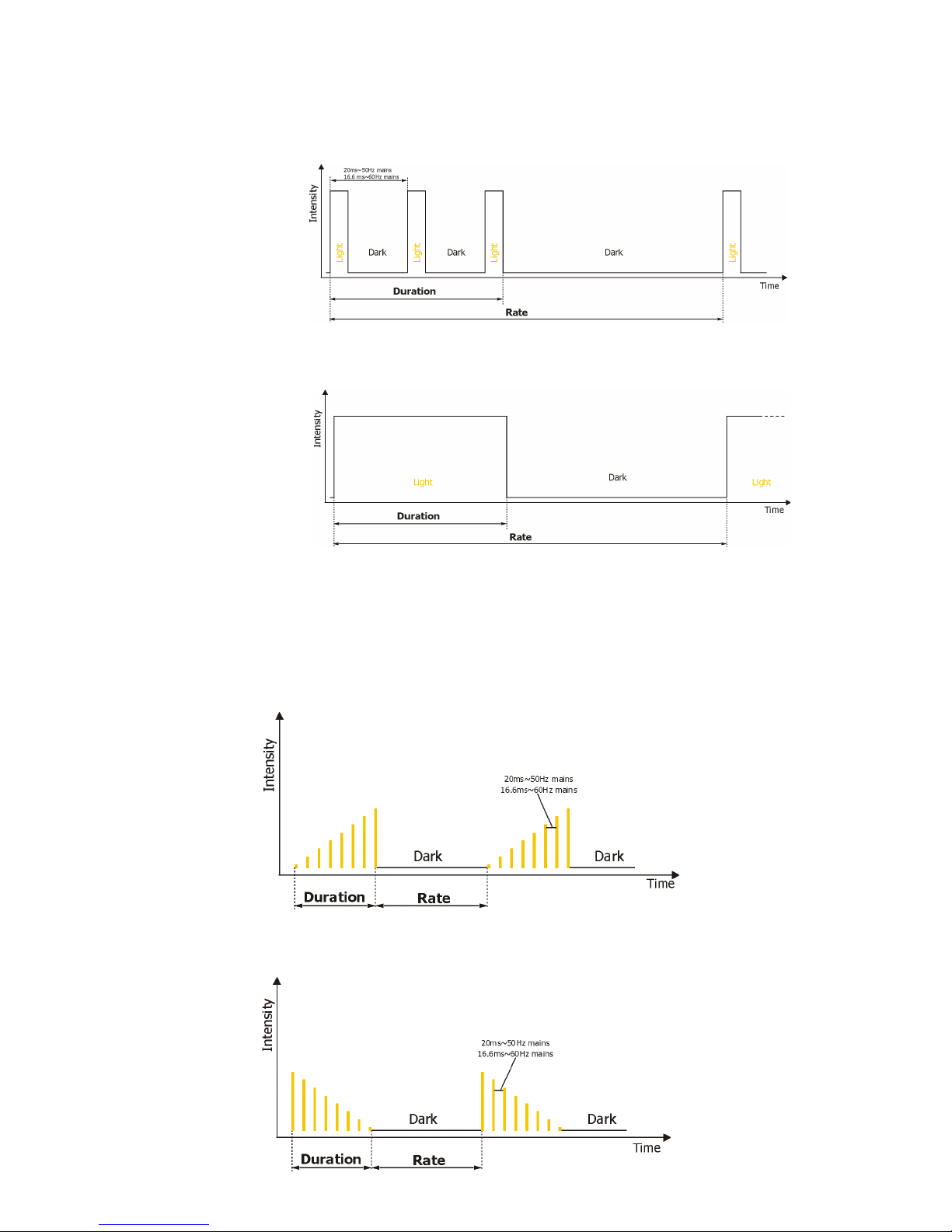

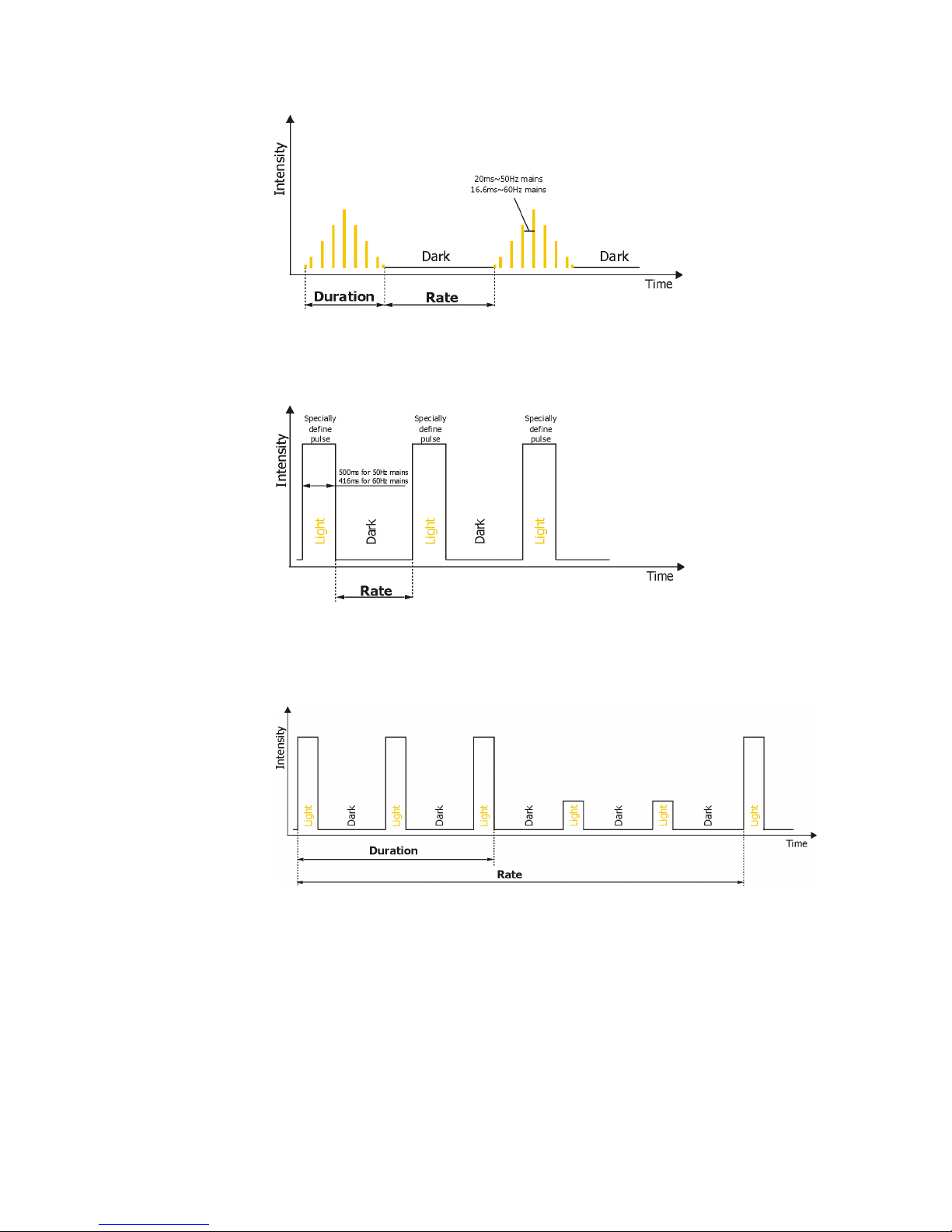

14.1 Strobe and Special e󰀨ects timing .......................................................................... 34

Robin UV Strobe

Page 3

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE POWERING OR INSTALLING YOUR ROBIN UV Strobe !

Save it for future reference.

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modication to the device.

Please consider that damages caused by manual modications to the device are not subject to warranty.

The Robin UV Strobe was designed mainly for indoor use and it is intended for

professional applications only. It is not for household use.

1. Safety instructions

THIS LUMINAIRE IS DESIGNED WITH UV LEDS AND MUST BE INSTALLED IN COMPLIANCE WITH COMPOTENT TECHNICAL DIRECTIONS TO PREVENT THE USER’S EYE AND BARE SKIN FROM EXPOSURE TO HARMFUL UV RADIATION. CE LUMINAIRE EST CONCU POUR ETRE UTILISE AVEC DES LED UV ET DOIT ETRE INSTALLE EN STRICTE CONFORMITE AVEC LES INSTRUCTIONS AFIN D’EVITER QUE LES YEUX OU LA PEAU L’UTILISATEUR NE SOIENT EXPOSES AUX EFFETS NEFASTES DES RAYONS UV.

CAUTION: Radiation exposure may cause blindness and cancer of skin!

Maximum exposure: 22 minutes at 7m(23ft) distance 29 minutes at 8m(26ft) distance 46 minutes at 10m(32.8ft) distance 103 minutes at 15m(49ft) distance 184 minutes at 20m(65.5ft) distance

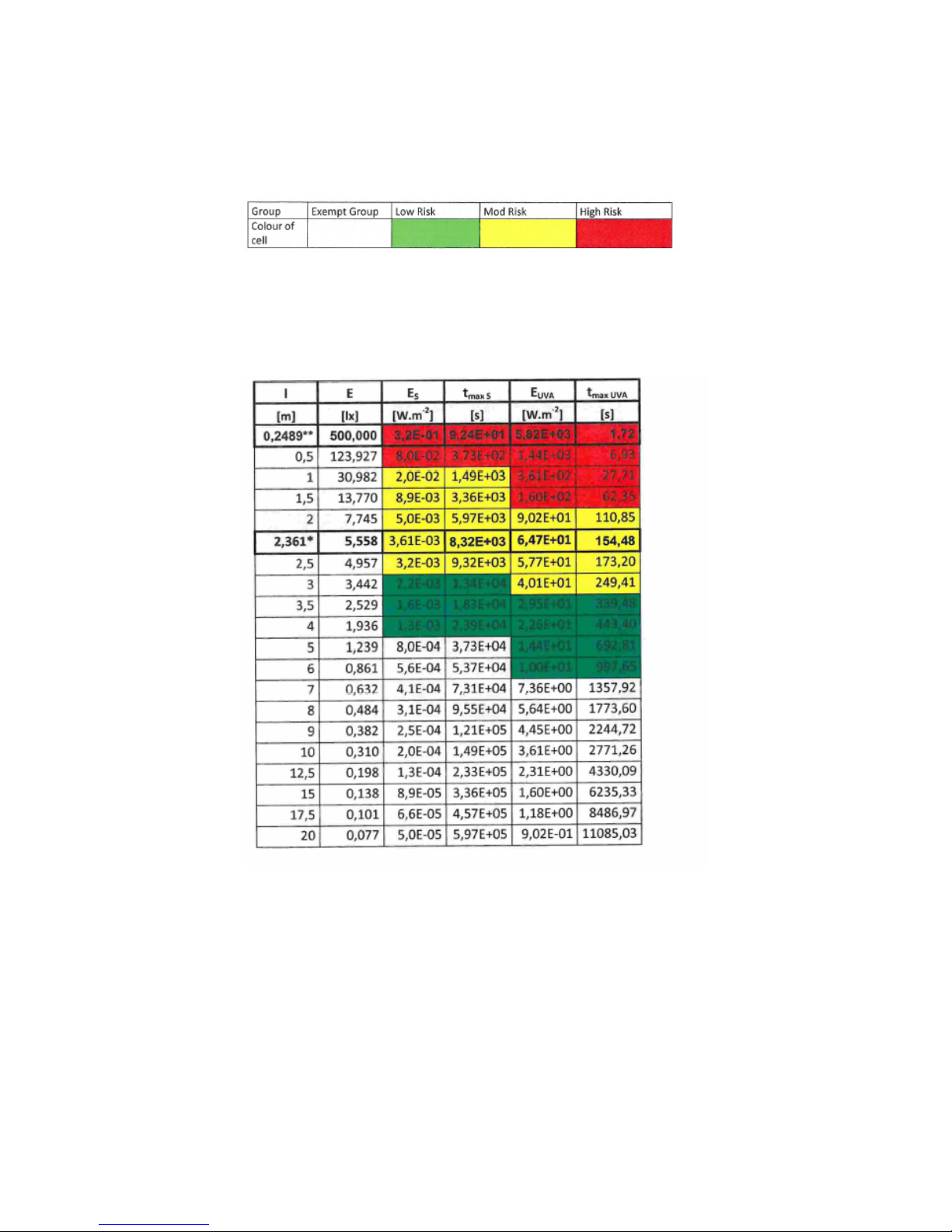

Please read an extract from a test report at the end of the user manual.

Risk Group 3 LED product according to ČSN EN 62471.

Make sure that materials which are exposed to the UV radiation will not be damaged!

Make sure that the available voltage is not higher than stated on the rear panel of the xture. This xture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the xture.

The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords

Page 4

as this can result in re or electric shock.

Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by persons walking on it.

Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power

cord from time to time.

Refer servicing to qualied service personnel.

Do not look at the xture´s LEDs during operation. The light beam may damage your eyes.

This xture falls under protection class I. Therefore this xture has to be connected to

a mains socket outlet with a protective earthing connection.

Do not connect this xture to a dimmer pack.

To guard against epileptic seizure:

Do not operate the xture near stairways. Provide advance notice that strobe lighting

is in use. Avoid extended periods of continuous ashing, particularly at frequencies of

10 to 20 ashes per second

If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until it has reached room temperature.

When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture or dust.

Air vents and slots in the xture are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating.The openings should never be covered with cloth or other materials, and never must be blocked.

This xture should not be placed in a built-in installation unless proper ventilation is provided.

Never place lters or other materials over the front glass cover.

Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.

To avoid damage of the internal optical system of the xture, never let the sunlight (or other

light source) lights directly to the lens array, even when the xture is not working !

Keep ammable materials well away from the xture.

Provide a minimum clearance of 0.3 meters around air vents

Always use a secondary safety cable when rigging this xture.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.

The xture becomes very hot during operation. Allow the xture to cool approximately 20 minutes prior to manipulate with it.

Operate the xture only after having familiarized with its functions. Do not permit operation by persons not qualied for operating the xture. Most damages are the result of unprofessional operation!

Please use the original packaging if the xture is to be transported.

Please consider that unauthorized modications on the xture are forbidden due to safety reasons!

If this device will be operated in any way di󰀨erent to the one described in this manual, the product may su󰀨er damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

Page 5

2. Fixture exterior view

4 - Antenna 5 - DMX IN 6 - DMX OUT 7 - Control buttons

8 - QVGA touch screen 9 - Fuse holder 10 - RJ 45 Input 11 - Power In 12 - Safety screw 13 - Locking mechanism 14 - Safety lock 15 - Screen cover

1 - Glass cover and lens array 2 - U-holder 3 - Tilt lock

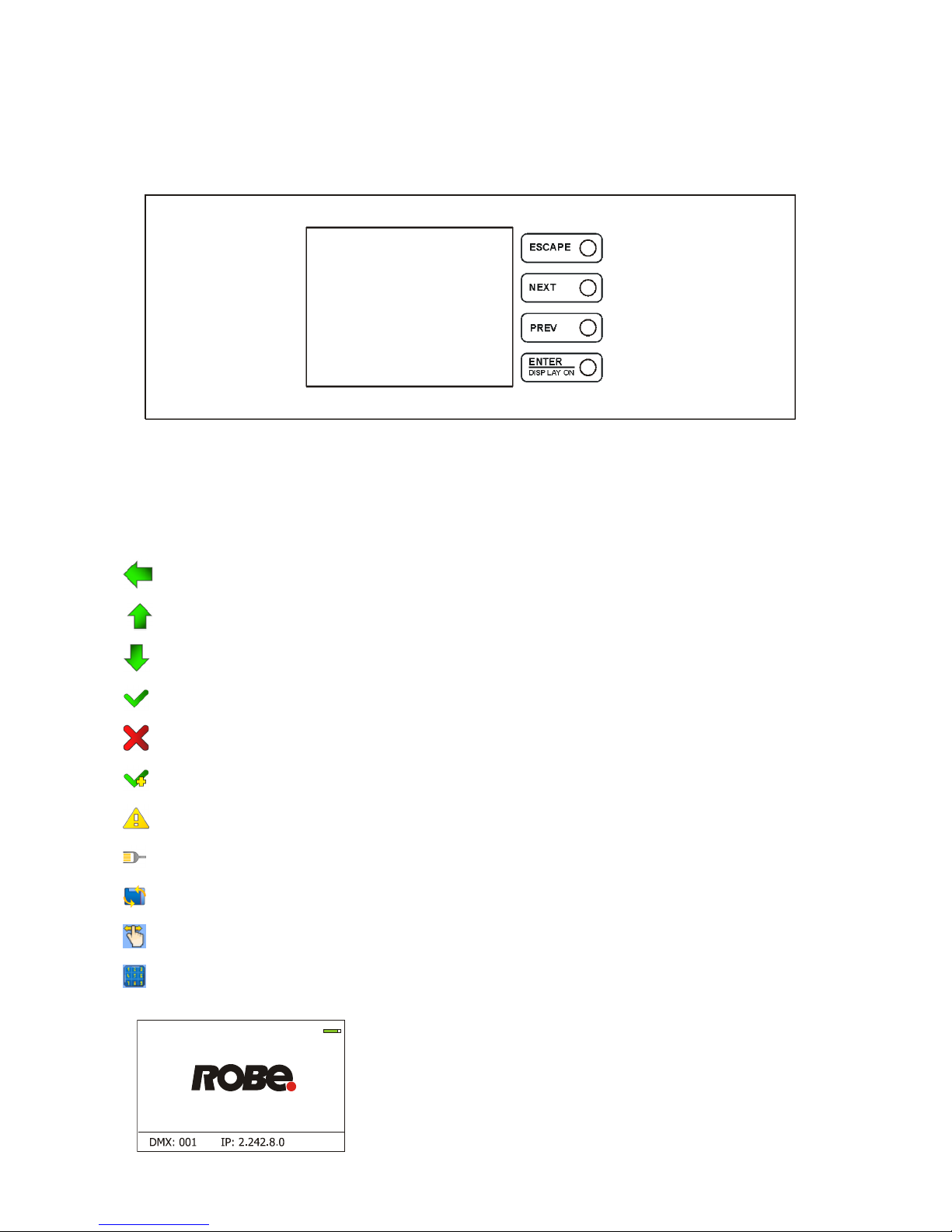

The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected

from mains.

Page 6

3. Installation

Fixtures must be installed by a qualied electrician in accordance with all

national and local electrical and construction codes and regulations.

3.1 Connection to the mains

For protection from electric shock, the xture must be earthed!

The Robin UV Strobe is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts.

Connect the xture to the mains by means of the enclosed power cord If you need to install other plug on the power cord, note that the cores in the power cord are coloured according to the following table. The earth has to be connected! If you have any doubts about proper installation, consult a qualied electrician.

Core (EU) Core (US) Connection Plug Terminal Marking

Brown Black Live L

Light blue White Neutral N

Yellow/Green Green Earth

Do not overload the supply line and the connecting leads. Wiring and connection work must be carried out by qualied sta󰀨!

Page 7

3.2 Installing the gel frame and barndoors

Disconnect the xture from mains before the accessory installation.

Never operate the xture with barndoors closed.

1. Put the frame adaptor (1) on the xture and secure it with four screws (2).

2. Insert the gel frame (4) into slots (3) of the frame adaptor (1). Use the slots closer to the glass cover of the xture.

3. Insert the barndoors (5) into second slots (3) of the frame adaptor (1).

4. Secure inserted barndoors and (or) the gel frame by means of the two locks (6). Lift up a little the lock (6) to release it from the projection (7) and move it to the position as shown on the picture B until the projection (8) snaps into lock (6).

Do not operate the xture with unsecured gel frame or barndoors!

Page 8

3.3 Rigging the xture and oor installation of the xture

A structure intended for installation of the xture (s) must safely hold weight of the xture(s) placed on it. The structure has to be certicated to the purpose.

The xture (xtures) must be installed in accordance with national and local electrical and construction codes and regulation..

For overhead installation, the xture(s) must be always secured with a safety wire

that can bear at least 10 times the weight of the xture(s).

When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the rst time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled

person once a year.

Allow the xture to cool for ten minutes before handling.

The xture should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualications, do not attempt the installation yourself, but use a help of professional

companies.

CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the xture!

The xture has to be installed out of the reach of public.

The xture must never be xed swinging freely in the room.

When installing the device, make sure there is no highly inammable

material (decoration articles, etc.) in a distance of min. 0.5 m.

CAUTION! Use an appropriate clamp to rig the xture on the truss. Follow the instructions mentioned at the bottom of the xture base.

Make sure that the device is xed properly! Ensure that the

structure (truss) to which you are attaching the xture is secure.

The xture can be placed directly on the stage oor or rigged to the truss. The xture can be rigged to the truss via Omega holder and one clamp (two holes with 140mm spacing serve for this method of mounting) or using stacker which allows 2-6 xtures connected in the top-to-bottom method. For oor installation use a oor stand if two or more xtures are to be stacked

Page 9

Single xture installation via the omega holder

1. Bolt the clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder.

2. Fasten the omega holder to the U-holder (4) of the xture by inserting both quick-lock fasteners (3) into

holes in the U-holder and tighten fully clockwise.

3. Clamp the xture on a truss (12) and tighten the rigging clamp (1).

4. For securing the xture to the truss, install a safety wire that can hold at least 10 times the weight

of the xture. Use only a safety wire with a snap hook with screw lock gate. Pull the safety wire (11) through the U-holder (4) and around the truss (12) as shown on the picture below.

5. The tilt lock (7) allows to adjust the xture to desired position. In case, that the tilt lock cannot be loosened (tightened) due to the housing of the xture, pull this tilt lock in a direction from the xture, turn it to desired position, release it and continue in loosening (tightening) this tilt lock (principle of a "ratcheting socket wrench").

If two and more xtures are to be connected in a top-to-bottom method, a stacker with two safety wires has to be used - see article below.

Multiply xtures rigging

Maximum 6 xtures can be connected in the top-to-bottom method

Always use a stacker for a hanging multiply xtures installation . The position of the U-holder allows to tilt the whole "stack" of xtures.

To change the position of the U-holder

1. In order to release the U-holder (4), press and hold the front part (1) of the pin (2) and pull it out from the stacker. Use the same way to remove the pin (2) on the opposite side of the U-holder.

2. Move the U-holder to desired position.

3. Press and hold the top part (1) of the pin (2) and push it throw the U-holder into the hole in the stacker. Secure the second side of the U-holder (4) by inserting the pin (2) into the stacker. Check, that both sides of the U-holder are securely fastened.

Table of tilt angles for di󰀨erent loads of the stacker

Hole position 1 2 3 4 5 6 7 8 9 2 xtures -22 -10° 0° 10° 20° 30° 37° 45° - 4 xtures -10° -5° 0° 8° 15° 20° 25° 30° 35° 6 xtures -7.5° -3° 0° 5° 10° 15° 20° 22° 26°

Page 10

To install multiple xtures in a top-to-bottom method

1. Rig the stacker to the truss (4) by means of two omega holders (2) on the U-holder (5) and two clamps (1) and secure it with two safety wires (15). Use only safety wires with snap hook with screw lock gate.

The snap hooks have to go throw holes in the stacker.

2. Check if the locking mechanism of the rst xture is in an "unlock position" - the lever (18) is in the bottom

position and the red mark (16) is visible.

3. Connect the rst xture with the stacker in a way that feet (8) of the stacker will be inserted into top openings (14) of the rst xture and move the rst xture in a direction as show red arrows on the picture below until you feel a stop.

4. Secure the rst xture with the stacker by means of its locking mechanism: move both levers (18) to the top position until the green mark (17) is visible and move the plastic levers (19) into position under locking levers (18) until they snap. Now levers (18) cannot be moved to unlock position.

5. Make the secondary securing of the installed xture. Loosen both tilt locks (9) and move the U-holder (13) to the horizontal position. Loosen the nuts (12) and move the segments (11) towards the stacker nuts (7). Loosen the nuts (7) and fasten the segments (11) under them. Tighten the nuts (7) and the tilt locks (9).

Always check that locking mechanisms are locked before connecting next xture!

6. Check if the locking mechanism of the second xture is in the "unlock position" - the lever (18) is in

the bottom position and the red mark (16) is visible.

7. Connect the second xture with the rst one in a way that feet (8) of the rst xture will be inserted into top openings (14) of the second xture and move the second xture in a direction as show red arrows on the picture above until you feel a stop.

8. Secure the second xture with the rst one by means of its locking mechanism: move both levers (18) to the top position until the green mark (17) is visible and move the plastic levers (19) into position under locking levers (18) until they snap. Now levers (18) cannot be moved to unlock position.

9. Make the secondary securing of this xture. Loosen both tilt locks (9) and move the U-holder (13) to the horizontal position. Loosen the nuts (12) and move the segments (11) towards the nuts (10). Loosen the nuts (10) and fasten the parts (11) under them. Tighten the nuts (10) and the tilt locks (9).

10. Repeat steps 6-9 for the next xture. In this way, up to six xtures can be connected each other.

11. Check, that all nuts (7), (10) and tilt locks (9) are fully tightened.

Page 11

Always keep correct orientation of xtures towards the stacker.

Warning for outdoor operation!

To ensure declared IP rating, the xture must be in the following positions only (towards ground).

Allowed tilt must not be higher than +/-15° from a horizontal axis of the xture. The display covering transparent cover must be closed and its four screws fully tightened.

Fixture´s XLR connectors are dust and water protected according to IP 65 by mating with related X-HD cable

connectors.

They cannot stay disconnected outdoor. DMX output connector (XLR female) at the last fixture in a DMX line has to be covered with the rubber cap before inserting a terminator. The rubber cap does not supply the terminator. The XLR terminator (male) has to be dust and water protected.

If the fixture is to be outdoor without connecting to DMX line, always interconnect its DMX input with DMX output to keep declared IP rating of XLR connectors.

Ethernet connection is not suitable for outdoor environment, especially in rain!

Page 12

Multiply xtures installation via oor stand

Maximum 6 xtures can be connected in the top-to-bottom method

Always use a oor stand for multiply xture installation in the top-to-bottom method on the oor.

To install multiple xtures in the top-to-bottom method on the oor stand

1. Move both levers (23) to unlock position (red mark is visible) on the oor stand (21).

2. Put the rst xture with its feet (8) into the slots (22) in the oor stand (21) and move the xture in

a direction as show red arrows on the picture below until you feel a stop.

3. Secure the xture in the oor stand by means of its locking mechanism: move both levers (23) to the position until the green mark is fully visible.

4. Put the second xture with its feet (8) into the slots (14) in the rst xture and move the xture in a direction as show red arrows on the picture below until you feel a stop.

5. Secure the rst xture with the second one by means of its locking mechanism: move both levers (18) to the top position until the green mark (17) is visible and move the plastic levers (19) into position under locking levers (18) until they snap. Now levers (18) cannot be moved to unlock position.

6. Make the secondary securing of this xture. Loosen both tilt locks (9) and move the U-holder (13) to the horizontal position. Loosen the nuts (12) and move the segments (11) towards the nuts (10). Loosen the nuts (10) and fasten the parts (11) under them. Tighten the nuts (10) and the tilt locks (9).

7. Repeat steps 4-6 for next xture. In this way, up to six xtures can be connected each other.

8. Check, that all nuts (10) and tilt locks (9) are fully tightened.

Always check that locking mechanisms are locked before connecting next xture!

Page 13

3.4 DMX-512 connection

The xture is equipped with 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the xture or one xture with another.

DMX - output DMX-input

If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX controllers with other XLR-outputs, you need to use adapter cables.

Building a serial DMX-chain:

Connect the DMX output of the rst xture in the DMX-chain with the DMX input of the next xture. Always connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be connected.

Caution: At the last xture, the DMX cable should be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX output of the last xture.

1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Used for wireless DMX 5 - Used for wireless DMX

Page 14

3.5 Ethernet connection

The xtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control software running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.

IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network. The Universe is a single DMX 512 frame of 512 channels.

The Robin 300E Wash is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.

RJ-45 socket (front view): RJ-45 plug (front view):

1- TD+ 5- Not connected

2- TD- 6- RX-

3- RX+ 7- Not connected

4- Not connected 8- Not connected

Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers are connected together:

1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8

If only the xture and the computer are to be interconnected,no hubs or other active components are needed.A cross-cable has to be used:

1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4

If the xture is connected with active Ethernet socket (e.g. switch) the network icon will appear at the bottom right corner of the screen:

Direct Ethernet operation

Connect the Ethernet inputs of all xtures with the Ethernet network. Option “ Artnet (gMaI or gMA2)" has to be selected from “Ethernet Mode” menu on the xture. Set IP address (002.xxx.xxx.xxx / 010.xxx.xxx.xxx) and the Universe.

(DMX address=186) (DMX address=38) (DMX address=1) IP addres=002.168.002.004 IP addres=002.168.002.003 IP addres=002.168.002.002 Universe=1 Universe=1 Universe=1

An advised PC setting: IP address: 002.xxx.xxx.xxx / 010.xxx.xxx.xxx (Di󰀨erent from xture IP addresses) NET mask: 255.0.0.0

Page 15

Ethernet / DMX operation

Option “ Artnet" (gMaI or gMA2 or sACN) has to be selected from “Ethernet Mode” menu at rst xture. Option “Ethernet To DMX” has to be selected from the “Ethernet Mode” menu at the rst xture (connected to the Ethernet) in the xture chain, next xtures have standard DMX setting. Connect the Ethernet-input of the rst xture in the data chain with the network. Connect the DMX output of this xture with the input of the next xture until all xtures are connected to the DMX chain.

Caution: At the last xture, the DMX chain has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the last xture.

DMX address=41 DMX address=9 DMX address=1 IP address=002.168.002.002 Universe=0

DMX address=41 DMX address=9 DMX address=1

IP address=002.168.002.003 Universe=1

Page 16

4. Control menu map

Default settings=Bold print

Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6

Addressing Settings DMX Address 001-255

DMX Presets Mode 1

Mode 4

Ethernet Settings Ethernet Mode Disable

ArtNet

gMAI

gMA2

sACN

Ethernet To DMX On

O󰀨

IP Address/NetMask Default IP Address

Custom IP Address

Net Mask

ArtNet Universe 0-255

MANet settings MANet I/IIUniverse 1-256

MANet Session ID 1-32

sACN Settings sACN Universe

sACN Priority

Information Fixture Times Power On Time Total Hours

Resetable Hours

Fixture Temperatures

LEDs Temperature Current

Maximum NonRes.

Maximum Res.

Leds Board temperature

Current

Maximum NonRes.

Maximum Res.

Base Temperature Current

Maximum NonRes.

Maximum Res.

DMX Values Int. All Zones

Zone 12 Intensity

Wireless State Signal Quality

Unlink Wireless Adapter

Power Channel

State

Software Versions Display System

Module L

Product IDs Mac Address

RDM UID

RDM Label

View Logs Fixture Errors

Fixture Status Power On

Power O󰀨

Fixture Position

Fixture Temperatures LEDs Temperature

Base Temperature

Personality User Mode User A Settings

User B Settings

User C Settings

Page 17

Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6

DMX Presets Mode 1

Mode 4

View Selected Preset

DMX Input Wired Input

Wireless Input

Wireless In/XLR Out

Microphone Sensitivity

1-10-20

Douse Settings O󰀨, On

Dimmer Curve Linear

Square Law

Init E󰀨ect Positions Int. All Zones 0-255

Zone 12 Intensity 0-255

Screen Settings Display Intensity 1-10

Screen Saver Delay O󰀨-10min.

Touchscreen Lock O󰀨-10min.

Recalibrate Touch-

screen

Display Orientation Normal

Inverted

Auto

Temperature Unit °C,°F

Fan Mode Auto

High

Date & Time Settings

Default Settings

Manual Control Manual E󰀨ect Con-

trol

Int. All Zones 0-255

Zone 12 Intensity 0-255

Stand -Alone Test Sequences

MusicTrigger O󰀨, On

Preset Playback None

Test

Prog. 3

Play Program Play Program 1

Play Program 2

Play Program 3

Edit Program Edit Program 1 Start Step 1-100

End Step 1-100

Edit Program Steps Step 1 Int. All Zones 0-255

: :

: Step Time 0-25.5s

: Fade Time 0-25,5s

Step 100 Int. All Zones 0-255

Step Time 0-25.5s

Fade Time 0-25,5s

Service Update Software

Page 18

DMX protocol

Version: 1.2

1234

1111

Intensity (8bit)-all zones

0-5 Closed (mode 3,4 only)

step

6-255 Coarse intensity from min. to max. (Mode 3,4 only)

proportional

0-255 Coarse intensity from min. to max. (Mode 1,2 only)

proportional

22**

Intensity (16bit)-all zones

0-255 Fine intensity from min. to max.

proportional

3322

Duration

0-255 Light time duration from min. —>max.

step

4433

Rate

0-5 No flash

step

6-255 Flash frequency from min. —>max

step

Note: Duration time<Rate: flashing

Duration time>= Rate: Light continuously On

55*4

Special effects

0-5 No function (Mode 3,4 only)

step

0-1 No function (Mode 1,2 only)

step

2-5 Permanent lightening (Mode 1,2 only)

step

6-42

Ramp up

(use channels Duration and Rate for control)

step

43-85

Ramp down

(use channels Duration and Rate for control)

step

86-128

Ramp up/down

(use channels Duration and Rate for control)

step

129-171

Random strobe

(use channel Rate for control)

step

172-214

Lightning

(use channel Rate for control)

step

215-255

Spikes

(use channels Duration and Rate for control)

step

66**

Special Functions

0 -19 Reserved

To activate following functions , stop in DMX value for at least 3 sec. Corresponding menu items are temporarily overrided.

20-24

Graphic display On

step

25-29

Graphic display Off

step

30-59

Reserved

60-64

Fans mode: Auto

step

65-69

Fans mode: high

step

70-79

Douse On*

step

80-89

Douse Off*

step

90-99

Dimmer curve: linear

step

100-109

Dimmer curve: square law

step

110-255

Reserved

77**

Zone Effects

0-2

No function

step

3-4 Effect 1

step

5-6 Effect 2

step

7-8 Effect 3

step

9-10 Effect 4

step

11-12 Effect 5

step

Robin Strobe - DMX protocol

Mode 1 – Zone effects mode , Mode 2 –Zone mode , Mode 3 –Three channel mode , Mode 4 – Four channel mode

Mode/channel

DMX

value

Function

Type of control

5. DMX chart

Page 19

DMX protocol

1234

Mode/channel

DMX

value

Function

Type of control

13-14 Effect 6

step

15-16 Effect 7

step

17-18 Effect 8

step

19-20 Effect 9

step

21-22 Effect 10

step

23-24 Effect 11

step

25-26 Effect 12

step

27-28 Effect 13

step

29-30 Effect 14

step

31-32 Effect 15

step

33-34 Effect 16

step

35-36 Effect 17

step

37-38 Effect 18

step

39-40 Effect 19

step

41-42 Effect 20

step

43-44 Effect 21

step

45-46 Effect 22

step

47-48 Effect 23

step

49-50 Effect 24

step

51-52 Effect 25

step

53-255 Reserved

step

8 8 * * Zone Effects Speed

0-63 Speed from min. —>max. without fade time

proportional

64-127 Speed from max. —>min. without fade time (op. direction)

proportional

128-191 Speed from min. —>max. with fade time

proportional

192-255 Speed from max. —>min. with fade time (op. direction)

proportional

* 9 * * Zone 1-intensity (8bit)
