ROBIN MiniMe
User Manual
41 pgs2.54 Mb0

Robe ROBIN MiniMe, ROBIN MiniMe Wireless DMX CRMX User Manual

Download
Page 1
1
Version 1.6
Page 2
2
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Fixture exterior view ...................................................................................................... 5
3. Installation....................................................................................................................... 6
3.1 Connection to the mains ............................................................................................
6
3.6 DMX-512 connection ................................................................................................
12
4. Control menu map ........................................................................................................ 15
5. Control menu ............................................................................................................... 18

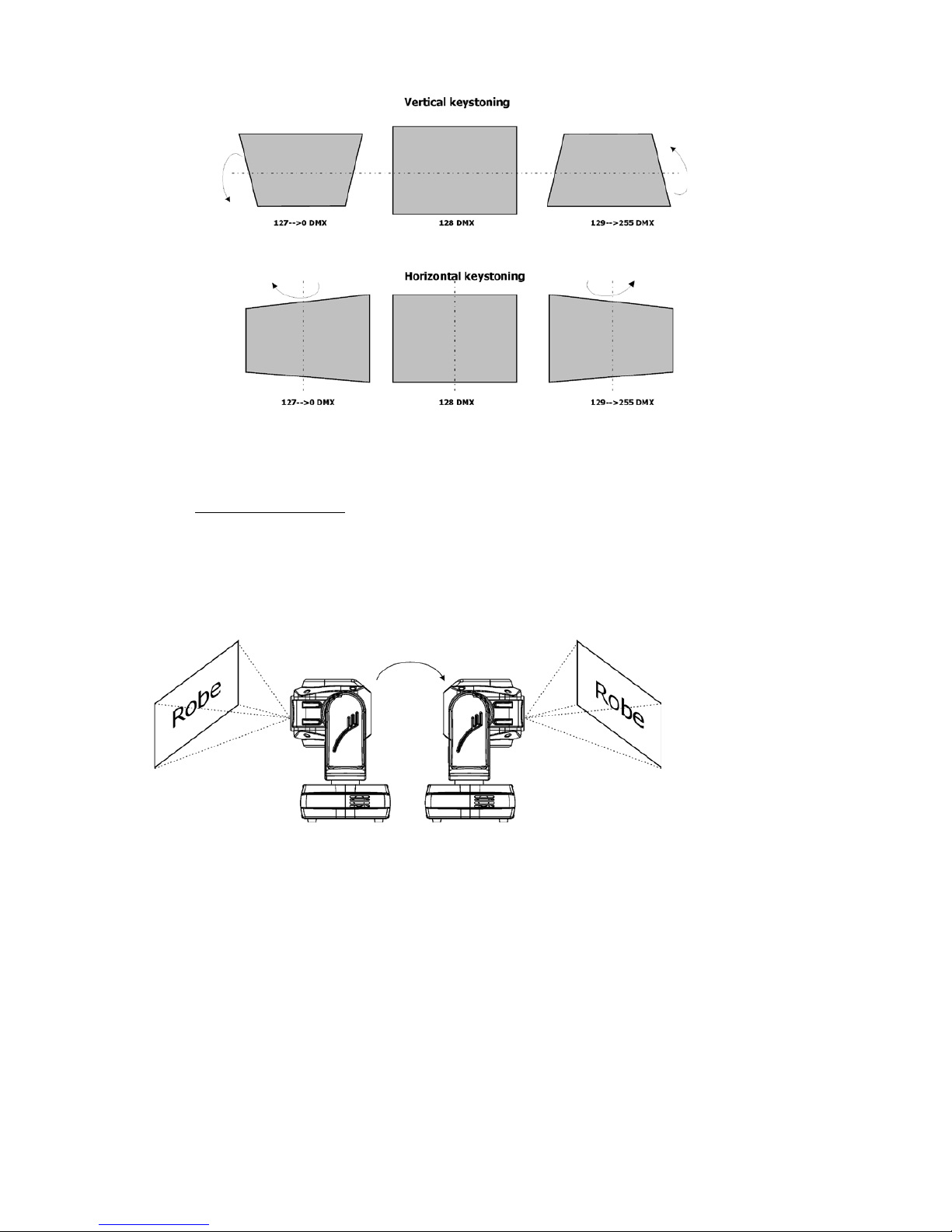

6. Keystones .....................................................................................................................23
7. Using external HDMI input ........................................................................................... 24
8. Error and information messages ................................................................................ 25

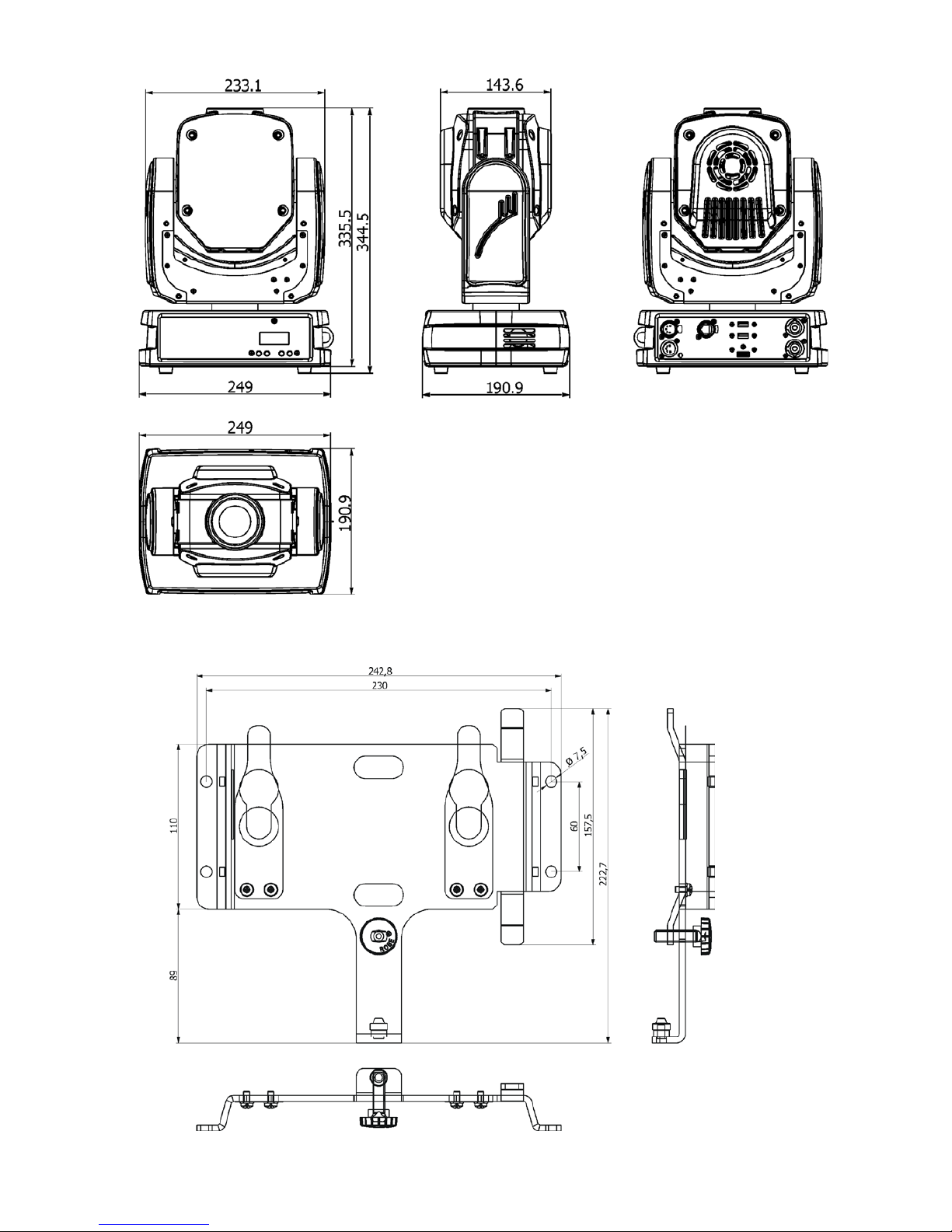

9. Technical Specications.............................................................................................. 26
10. Maintenance and cleaning ......................................................................................... 31
11. ChangeLog ................................................................................................................. 32
Robin MiniMe
Page 3
3
The Robin MiniMe was not designed for merged projection as due to
the nature of the light source, each projector can look slightly different.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ROBIN MiniMe !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
The Robin MiniMe was designed for indoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the xture. This xture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the xture from AC power before cleaning, removing or installing the fuses, or any part.
The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords as this canresult in re or electric shock.
Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power cord from time to time.
Refer servicing to qualied service personnel.
This xture falls under protection class I. Therefore this xture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this xture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam at a distance of less
than 2 meters from the front surface of the product. Do not view the light output with
optical instruments or any device that may conncentrate the beam
If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
Do not shake the xture. Avoid brute force when installing or operating the xture.
Page 4
4
This xture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture, dust or entertainment smoke (haze)
Air vents and slots in the xture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating.
Do not block the light output with any object when the xture is under operation.
The openings should never be covered with cloth or other materials, and never must be blocked.
This xture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly faste-
ned.
Always use a secondary safety cable when mounting this xture.
Do not block the front objective with any object when the xture is under operation.
The xture becomes very hot during operation. Allow the xture to cool approximately 20 minutes prior to manipulate with it.
Operate the xture only after having familiarized with its functions. Do not permit operation by persons not qualied for operating the xture. Most damages are the result of unprofessional operation!
Please use the original packaging if the xture is to be transported.
Please consider that unauthorized modications on the xture are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short­circuit, burns, electric shock, crash etc.
Page 5
5
2. Fixture exterior view
6 - DMX Out (5-pin XLR) 7 - DMX In (5-pin XLR)
8 - Ethernet (RJ45) 9 - 2x USB input 10 - HDMI input 11 - Power Input 12 - Power output
1 - Moving head 2 - Arm 3 - Base 4 - Attachment point for safety cable 5 - Control board
Page 6
6
3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
3.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin MiniMe is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts.
Install a suitable plug on the power cord (if it is needed), note that the cores in the power cord are coloured according to the following table. The earth has to be connected! If you have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
This device falls under class one and must be earthed (grounded)!
Design of the Robin MiniMe allows to connect several xtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specications “
The max. number of connected xtures depends on the AC mains power voltage: 19 xtures at power supply= 230V 16 xtures at power supply= 208V 10 xtures at power supply= 120V
Do not overload the supply line and the connecting leads.
Wiring and connection work must be carried out by qualied staff!
Page 7
7
3.2 Rigging the xture
A structure intended for installation of the xture (s) must safely hold weight of the xture(s) placed on it. The structure has to be certicated to the purpose.
The xture (xtures) must be installed in accordance with national and local electrical and construction codes and regulation.
For overhead installation, the xture must be always secured with a safety wire
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
Allow the xture to cool for ten minutes before handling.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working load limits, installation material being used, and periodic safety inspection of all installation materials and the projector. If you lack these qualications, do not attempt the installation yourself, but use a help of professional companies.
CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the xture!
The xture has to be installed out of the reach of public.
The xture must never be xed swinging freely in the room.
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.5 m.
CAUTION!
Use an appropriate clamp to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
The xture can be placed directly on the stage oor or rigged on a truss without altering its operation characte­ristics .
For securing a xture to the truss install a safety wire that can hold at least 10 times the weight of the xture. Use only safety wire with screw-on carabine. Fasten the safety cable in the attachment point and around
the truss as shown on the picture.
.
Page 8
8
Rigging via omega holder:
1-Omega holder with a quarter-turn loks 2-Clamp 3-Trust 4-Attachment point 5-Safety wire
When installing xtures side-by-side, avoid illuminating one xture with
another!
3.3 Positioning the Robin MiniMe
The Robin MiniMe is designed to be installed in one of four possible installation locations:
1. Front Table - the xture is placed near the oor in front of the screen.
2. Front Ceiling - the xture is suspended upside-down from the ceiling (truss) in front of the screen. Set Ceiling Projection in the menu Personality ("Pers--->"LED Engi" --->"Ceil P"--->"On")
3. Rear Table - the xture is placed near the oor behind the screen. Set Rear Projection in the menu Personality ("Pers--->"LED Engi" --->"Rear P"--->"On") Note that a special rear projection screen is required.
4. Rear Ceiling - the xture is suspended upside-down from the ceiling (truss) behind the screen. Set Rear Projection in the menu Personality ("Pers--->"LED Engi" --->"Ceil P"--->"On") and Ceiling Projection ("Pers--->"LED Engi" --->"Rear P"--->"On") Note that a special rear projection screen is required.
When determining the position of the xture and projection screen, you will need to account for the projected image size, which is directly proportional to the projection distance.
Page 9
9
Note: There is a tolerance among these numbers due to optical component variations. We recommend that if you intend to permanently install the Robin MiniMe, you should physically test the projection size and distance using the actual xture before you permanently install it.
There is a chart of throw distance ratio of 3.5 : 1 to assist you in determining the ideal location for your xture.
Page 10
10
3.4 Using the mounting bracket
The mounting bracket allows simple mounting of the Robin MiniMe on the ceiling. The mounting bracket is intended for horizontal mounting only.
IMPORTANT! Ceiling mounting requires extensive experience, including calculating
working load limits and installation material being used.
To fasten the Robin MiniMe on the ceiling via the mounting bracket, follow these steps:
1. Fasten the mounting bracket (1) on the ceiling (2) by means of the four screws (3). Check, that the stabiliza­tion screw (4) is screwed into mounting bracket. Note The screws are not supplied with the mounting bracket, their length, diameter and a type of screws de­pends on conditions of given installation.
2. Insert a pivot (5) into the mounting point in the xture base (6) and turn it a full 1/4-turn clockwise to lock. Instal the second pivot.
3. Insert the xture with both pivots (5) into circular slots under securing blades (8) and than move the xture towards the stabilization screw (4) until the pivots (5) reach the rectangular slots (7) and both securing blades (8) snap into groove in the pivots.
4. Check the fastening of the xture.
Page 11
11
5. Gently tighten the stabilization screw until reaches the base of the xture to prevent the MiniMe from
wobbling.
6. After connecting power and DMX cables place the cable cover (9) and secure it with an 1/4-turn screw (10)
3.5 Installing the wide-angle lens module
Disconnect from the mains before the wide-angle module installing
If you need to install the optional wide-angle lens module, follow the steps:
1. Remove both top and button covers (1) from the xture head.
2. Unscrew two screws (2) on the each side of the head.
3. Remove the standard lens module (3).
4. Place the wide-angle lens module (4).
5. Secure the wide-angle lens module on the xture head by means of two screws (2) on each side of the
head.
6. Place back both top and button covers (1)
Page 12
12
3.6 DMX-512 connection
The xture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the xture or one xture with another.
DMX - output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-out­puts, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be interconnected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX-output of the last xture.
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
Page 13
13
3.7 Ethernet connection
The xtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft­ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network. The Universe is a single DMX 512 frame of 512 channels.
The Robin MiniMe is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.
RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX-
3- RX+ 7- Not connected 4- Not connected 8- Not connected
Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8
If only the xture and the computer are to be interconnected,no hubs or other active components are needed. A cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4
Connect the Ethernet inputs of all xtures with the Ethernet network. The option “ArtNet" has to be selected from the menu “Mode” at the xture (DMXA 001-->Mode-->ArtNet). Set IP address, NetMask and the Universe.
(DMX address=144) (DMX address=25) (DMX address=1) IP addres=002.168.002.006 IP addres=002.168.002.003 IP addres=002.168.002.002 Universe=1 Universe=1 Universe=1
An advised PC setting: IP address: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx (Different from xture IP addresses) NET mask: 255.0.0.0
Page 14
14

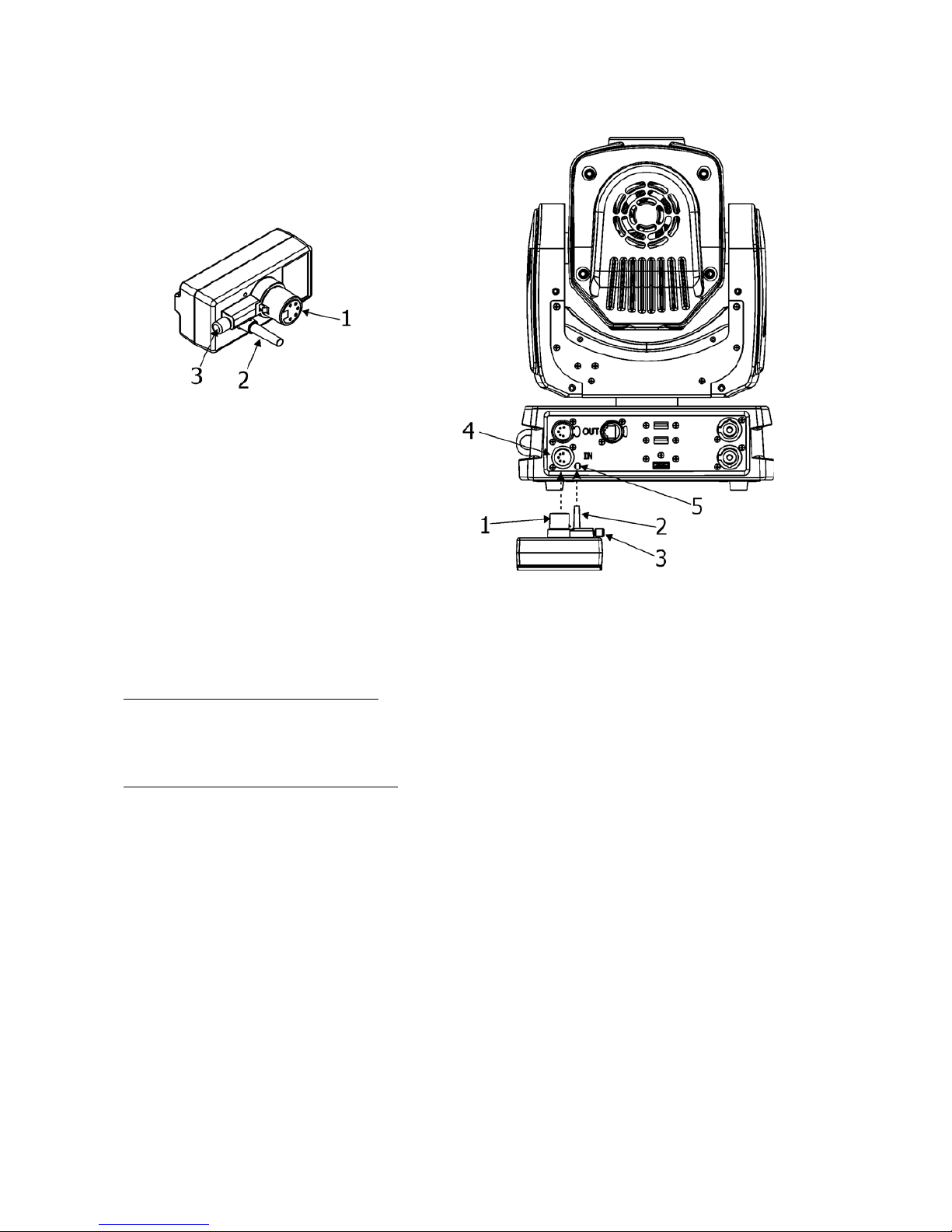

3.8. Wireless DMX operation
The external Robe Wireless CRMX-LB100 module allows receiving wireless DMX. CRMX module operates on the 2.4 GHz band.
Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into hole (5) in the xture. In this way the wireless DMX module is connected with the xture and prepared for operation. NOTE: when you disconnect the DMX wireless module from xture, press and hold lock (5) during getting the wireless module out.
To link the xture with DMX transmitter. The xture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Vireless -­>Stat).
To unlink the xture from DMX transmitter. The xture can be unlinked from receiver via the menu item “ Unlink“ (Special-->Vireless -->Unlink.).
1 - 5-pin XLR (female) 2 - Locating pin 3 - Lock
Robe Wireless CRMX-LB100
Page 15
15
4. Control menu map
Default settings=Bold print
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
DMXA 001
Mode DMX
ArtNet
IP Addr IP Ad1
000-255
:.
IP Ad4 000-255
IP NetM Net M1
000-255
:
Net M4
000-255
DMX Addr
000-255
ArtN Uni
000-255
000-255
Info POn Time Total
Reset
LOn Time
Total
Reset
Air Fil
R Ti
Aler P 10-300
DMX In
Pan 0-255
:
Dimmer 0-255
Temp Current CPU
Head
Highest CPU
Head
High Res CPU
Head
Sw Ver GE
IC-1
Pers
Pan Rev On, Off
Tilt Rev On, Off
P/T Mode Speed
Time
P/T Feed On, Off
BLC DMC On, Off
Act BLC P/T Mov On, Off
C Cal M On, Off
Display Turn
On/Off T On, Off
Contrast 0-15
Backlight 0-15
LED Engi Ceil P. On, Off
Rear P. On, Off
GRP Engi Aspect R
Keep AR On, Off
Gobo Sel Mode ABCD
Page 16
16
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
Gobo Sel Mode Numer
SS Gobo Swap T 0-30 s, 3 s
Fans Auto, High
Defaults
Manual DMX Ctrll Pan 0-255
:
Dimr. 0-255
LED Engi Ext Inp On, Off
Keystone 0-255, 128 center
LED On/Off On, Off
Test Prg Static Pan (0-255)
Tilt (0-255)
Focus (0-255)
Run
Dynamic
St Alone Auto Run Play Off
DMX Prg 1
:
DMX Prg 9
Pl DMX Prg DMX Prg 1
:
DMX Prg 9
Rc DMX Prg DMX Prg 1
:
DMX Prg 9
Reset Reset GE
Reset P/T
Reset Focu
Reset All
User Media No USB
Mirror Media From Minime
To Minime
Mirror Program From Minime
To Minime
Convert Inter
Delete Int. Me.
Special RDM High
RDM Low
Wireless Stat
Unlink
Calib Cal PTF Pan C 0-255
Tilt C. 0-255
Focu C. 0-255
Focu V
Focu H
Store
Cal Col Red C 0-255
Green C 0-255
Page 17
17
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
Blue C 0-255
Gamma C 0-5
Store
Sw Upd
Hw Upd
MAC High
MAC Low
Page 18
18
5. Control menu
The Robin MiniMe is equipped with 2-row LCD display which allows to set the xture´s behaviour according to your needs, obtain information on its operation, test its various parts and lastly program it, if it has to be used
in a stand-alone mode.
Control panel: [ESCAPE] button used to leave the menu without saving changes. [NEXT] , [PREV] buttons for moving between menu items and for value adjusting.
[ENTER] button used to enter the selected menu (menu item) and to conrm adjusted value.
After switching the xture on, display shows current DMX address.
5.1 Addressing (DMXA)
Mode - Set operating mode. Use this menu item to set DMX operating mode (" DMX") or ArtNet operation mode
("ArtNet"). If the ArtNet mode is selected, DMX address (D 001) and Universe (U 000) are shown by rotation.
IP Addr - Set IP Address. Use this menu to set desired IP address of the xture.
IP NetM - Set NetMask. Use this menu to set desired NetMask of the xture.
DMX Addr - Set DMX address. Use this menu item to set desired DMX start address of the xture, which is
dened as the rst channel from which the Robin MiniMe will respond to the controller. If you set, for example, the address 23, the Robin MiniMe will use channels 23 - 54 for control. Please, be sure that you do not have any overlapping channels in order to control each Robin MiniMe correctly and indepen­dently from any other xture on the DMX data link.
ArtN Uni - Set ArtNet Universe. Use this menu item to set desired ArtNet Universe.
5.2 Fixture information (Info)
POn Time - Power on time. Select this menu to read the number of xture operation hours. Total -
The item shows the total number of the operation hours since
the Robin MiniMe
has been fabricated.
Reset -
The item shows the number of the operation hours that the
Robin MiniMe
has been powered on since the counter was last reset.
In order to reset this counter to 0, press the [Enter] button twice.
LOn Time - Light source on time. Select this menu to read the number of the light LED source operation hours.
Total -
The item shows the total number of the LED source operation hours since
the Robin MiniMe
has been fabricated.
Reset -
The item shows the number of the
LED source
operation hours that the
Robin MiniMe
has been powered on since the counter was last reset.
In order to reset this counter to 0, press the [Enter] button twice.
Air Fil - Air lter. Regular cleaning of the air lter is very important for the xture´s life and performance. Dust, dirt and fog uid residues reduces the xture´s light output and cooling ability. The two items of this menu help you to keep cleaning period of the air lter. Aler P - Alert period. Cleaning schedule for the xture depends on the operating
Page 19
19
environment. It is therefore impossible to specify accurate cleaning interval. This item allows you to change the cleaning interval of the air lters. This "alert" value is 300 hours and it is set as default. Inspect the xture within its 300 hours of operation to see whether cleaning is necessary. If cleaning is required, clean all air lters and change the value in this menu on acceptable level. Min. level of alert period is 10 hours, max. is 300 hours. R Ti - Remaining Time.The item allows you to read the time which remains to cleaning air lters.The time period is set in the menu mentioned above. Expired time period is signalled by a negative mark (-) at the time value and a warning message on the display. Clean the air lter and reset the counter by pressing the [Enter] button twice.
DMX In - DMX readout. The menu is used to read DMX values of each channel received by the xture.
Temp - Temperature. The menu shows temperatures in the xture. Current - A current temperature in the xture head and CPU. Highest - A maximum temperature in the xture head and CPU since the xture has
been fabricated. High Res - A maximum temperature in the xture head and CPU since the counter was last reset. In order to reset this counter, press and hold both [NEXT] and [PREV] buttons and the [Enter] button at the same time.
Sw Ver - Software versions. Select this item to read the software version of the xture modules. GE - A graphic engine IC-1 - A pan/tilt and zoom module
5.3 Personality (Pers)
Pan Rev - Pan reverse. The item allows to invert pan movement.
Tilt Rev - Tilt reverse. The item allows to invert tilt movement.
P/T Mode - Pan and Tilt movement mode. Use this menu to set mode of the pan/tilt movement.
Speed - Both Pan and tilt will move with the same speed as adjusted at the channel 5 "Pan/Tilt speed, Pan/Tilt time". Time – The pan and tilt will move with different speeds and they will come at the same time to the end point of their tracks (pan and tilt use their optimal speeds). Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt time".
P/T Feed - Pan & Tilt Feedback. The menu item allows to return the mowing head to the required pan/tilt position after changing the position by an external force if this option is set on. Note. The Pan/Tilt Feedback should be permanent On, the option Off is not suitable for standard operation and the head of the xture can be damaged!
BLC DMC - Blackout during movement correction. Set this option on if you wish to close light output during the time when the head goes to its correct position, which has been changed by an external force.
Act Blc - Active blackout. Use this menu if you wish to close the light output during effect changes. P/T Mov - The menu item allows to close light output while the pan/tilt coordinates
are changing.
C Cal M - Colour calibration mode. The function switches on/off the colour calibration mode. If the function is active, a white colour (0-15 DMX) at the channel " Virtual colour Wheel" is set to 8000K.
Display - Display adjusting. This menu allows you to adjust the display behaviour. Turn - This function turns the display by 180°. The display can be also turned by pressing
and holding the [ESCAPE] button. On/Off T - This function allows you to keep the display permanent on or turn it off two minutes after last pressing any button on the control panel.
Contrast- Use this function to adjust contrast of the display (0-15). Backlight- Use this function to adjust backlight of the display (0-15).
Page 20
20
LED Engi - Led engine options. Enter the menu if you want to set special options for LED engine. Ceil P - Ceiling projection. When this function is "On", the picture is top (bottom and left)
right reversed. This function enables to project the image from a ceiling mounting of the MiniMe. Rear P - Rear projection. When this function is "On", the picture is left (right) reversed. This function enables to project the image to a rear projection screen.
GRP Engi - Graphic engine options. Enter the menu if you want to set special options for graphic engine. Aspect R - Keeping Aspect ratio. If this function is "On", the xture keeps native
aspect ratio of played pictures (videos). If this function is "Off", all pictures (videos) are played in the aspect ration 16:10 regardless of native aspect ratio of each picture (video). Gobo Sel Mode - Gobo selection mode. The media les assigned to the DMX values can be sorted either in alphabetical ( item ABCD) or numerical order (item Numer). Default assigning is the alphabetical order. SS Gobo Swap T - Slide Show gobo swap time. The option sets time period during which a gobo stay in a position before changing at the "Gobos presentation" function (channel 17/ Digital gobo wheel/ DMX range of 251-252).
Fans - Fan mode. Use the menu to set the xture fans to max. fan power mode ("High") or to the auto-control mode ("Auto").
Defaults - The menu item allows to set all xture parameters to the default (factory) values.
5.4 Manual Control (Manual)
DMX Ctrl - DMX channels control. Use the menu to manually control each channel effect.
LED Engi - LED Engine options
Ext Inp - Via this menu option is possible to activate the external input (HDMI). Keystone - The item allows to use LED engine keystoning when the external input is active. Led On/Off - The item allows to switch off LED engine when the external input is active.
5.5 Stand-alone (St Alone)
Auto Run - Presetting playback. This function allows you to select the program which will be played in the
stand-alone mode after switching the xture on. Selected program will be played continuously in a loop.
PL DMX Prg - Play DMX program. Select this menu to run one of 9 programs which have been recorded via the menu “Rc DMX Prg”. When the program is running, pressing the [ENTER] pauses its running.
Rc DMX Prg - Record DMX program. The menu allows you to record DMX data that receives the xture and then replay them again via the menu “PL. DMX Prg”. There is a menu of 9 programs which can be used for recording DMX data. Select desired program and press the [ENTER] to start recording. To stop recording, press the [ENTER]
again.
Recorded programs ca be copied to the USB memory stick (menu "User Media") and after that loaded into another xture (s).
5.6 Reset (Reset)
This option enables to index all effects and return them to their standard positions.
Reset GE - reset of the graphic engine module. Reset P/T - reset of the pan/tilt module. Reset Focu - reset of the focus module. Reset All - reset of all xture modules.
Page 21
21
5.7 User Media (User Media)
Custom media les can be saved in the xture memory or can be called from the external USB drive.
No USB - This item will appear if no USB ash drive is connected.
Init USB - This item will appear if an USB ash drive without desired folder structure is connected. Press [EN-
TER] to start initialization. Initilization process creates folder called ‘minime’ in the root folder of the USB ash drive. Inside this folder are three subfolders: extmedia, intmedia, update. Top level folder
minime extmedia
intmedia programs update
Recommended and supported lesystem on the USB ash drive is FAT16
exmedia - the folder serves for media les which will be played directly from this folder. intmedia - the folder serves for media les which will be loaded into xture memory. programs - the folder serves for recorded programs (St Alone--> Rc DMX). update - the folder for update le.
These folders structure may be also created by means of your computer, but exactly the same names, order and small letters have to be kept.
The folder exmedia (intmedia) serves for a collection of custom media les. In the folder, the Robin MiniMe sorts les in alphabetical or numerical order and assigns them to DMX values. Max. number of media les in the folder is 250.
We recommend to follow the 3-digit conventions for media les, where a 3-digit number is followed by
an underscore and a name e.g.: 001_mountains.jpg, 002_landscape.jpg.......
The numerical order is suitable in the case that you need to assign certain media les to specied DMX
values.
Example: The table below show differences in le DMX assignment between the alphabetical and numerical
sorting.
The table also includes le names without a 3-digit convention to illustrate their behaviour in the numerical
sorting.
Media le name DMX value
at Alphabetical Sorting
DMX value
at Numerical Sorting
001_testle1.jpg 1 1
020_testle2.jpg 2 20
19_testle3.jpg 3 19
3_testle4.jpg 4 3
460_testle5.jpg 5 Not Assigned*
testle.jpg 6 Not Assigned** * The 3-digit number has to be in the range of 001-250. ** The media le name does not contain any digit.
To use custom media les, you have tu set relevant DMX values on the channel 16 (Digital gobo wheel sele­ction).
DMX Function
0-31 Default-Factory Digital gobo wheel 32-63 Internal Custom Digital gobo wheel 64-95 External Custom Digital gobo wheel (USB memory stick)
Supported le formats are: jpg for pictures (resolution up to 4096 x 4096 pixels) mpeg4 and h264 for videos (resolution up to 1920 x1080 pixels, optimal 1280x800) Note: the native resolution of the light projection engine is 1280x800 pixels, therefore optimal resolution for pictures and videos is 1280x800 pixels.
Note: AVI, MOV etc. is a container with video and audio in it. For example, you can have AVI le with audio
Page 22
22
encoded as mp3, video as mpeg2. This le cannot be played. Another AVI le can have audio as ogg vorbis and video as h264. This le can be played. Whether the Robin MiniMe can play the le or not depends on the encoding, not on the container.
Mirror Media - This menu allows to load les from the folder intmedia (on the USB memory stick) into the xture and vice versa. From Minimi - the option copies custom media les from the xture into USB memory stick (custom les only). To Minimi - the option copies custom media les from USB memory stick into the xture. There is 9.5 GB free space available for custom content in the xture.
Note: Custom media les in the xture memory will be overwritten.
Factory les stay without change.
Mirror Program - This menu allows to load programs from the folder programs (on the USB memory stick) into the xture and vice versa. From Minimi - the option copies created programs (menu "St Alone") from the xture into USB memory stick.
To Minimi - the option copies programs from the USB memory stick into the xture. Note: Created programs in the xture will be overwritten.
Convert Inter - The option converts custom pictures (only) in the xture into optimal resolution (1280x800 pixels) for the Robe MiniMe. These converted pictures can be copied back to the USB memory stick (option "Mirror Media").
Delete Int. Me. - This menu delete media les in the xture´s memory.
To copy custom les into xture
1. Connect the MiniMe to the mains.
2. Plug the USB ash drive into the xture.
3. Initialize the USB ash drive (via menu "Init USB") and unplug it.
4. Plug the USB ash drive into computer.
5. Upload content into folder (intmedia) and unplug it.
6. Plug the USB ash drive back into the MiniMe.
7. Mirror content into the MiniMe (only intmedia) via menu "Mirror Media".
8. Unplug the USB ash drive from the MiniMe .
5.8 Special functions (Special)
RDM Low - This menu item shows the rst part of the RDM identication code.
RDM High - This menu item shows the second part of the RDM identication code.
Wireless - Wireless DMX information. The menu allows to read some information about
Wireless DMX operation
Stat - Wireless status. Use the menu to read wireless DMX status. Unlink - use this item to unlink xture from wireless DMX.
Calib - Calibration menu. The menu allows ne adjustment of the pan, tilt, focus, white colour and Gamma curve.
Cal PTF - Calibration of pan, tilt and focus. Pan C - ne calibration of pan
Tilt C - ne calibration of tilt
Focu C - ne calibration of focus Focu V - version of mechanical focus (should be set once more if
the light source has been changed). Focu H - setting of focus hysteresis (should be set once more if the light source has been changed).
Store - saves adjusted values into memory Cal Col - Calibration of white colour and gamma curve. Red C - a red saturation setting Green C - a green saturation setting Blue C - a blue saturation setting
Page 23
23
Gamma C - a gamma setting Store - saves adjusted values into memory
Calibration of pan/tilt/focus via the control board.
1. Disconnect DMX controller from the xture and enter the "Calib" menu.
2. Enter the "Cal PTF" menu.
3. Use the [PREV] and [NEXT] to nd "Pan" and press [ENTER].
4. Set desired value and save it by pressing [ENTER].
5. Repeat steps 3 and 4 for tilt and focus.
6. After calibrating all effects, nd item "Store" and press [ENTER]. to save all adjusted values and reset the xture.
Calibration of white colour and gamma curve.
1. Disconnect DMX controller from the xture and enter the "Calib" menu.
2. Enter the "Manual" menu, open shutter and dimmer and set "Cyan", "Magen" ,"Yellow", "Virt C" items to 0.
3. Enter the "Cal Col" menu. By means of the Red, Green and Blue items adjust the 8000K colour temperature as exactly as possible (∆u´v´= 0).
4. After calibrating, nd item "Store" and press [ENTER]. to save all adjusted colours and reset the xture
Sw Upd - Graphical software update. The item starts update of the graphical software in the xture. Insert the USB ash drive with update le into USB port, select this option and press [ENTER]. Version of the new software will be displayed, eg, v 003 ?. If you want to run update, press [ENTER] again.
HW Upd - HW processors Software update. The item starts update of hardware functions like pan, tilt, focus...etc. and should be performed after graphical software update
To perform software update of the xture
1. Connect the MiniMe to the mains.
2. Plug the USB ash drive into the xture.
3. Initialize the USB ash drive (via menu "Init USB") and unplug it.
4. Plug the USB ash drive into computer.
5. Download update le from Robe website into your computer. Note: Please make sure the full name of the update le is minime_vxxx.tar.gz (vxxx=version number) before you upload it into the USB ash drive.
6. Upload update le into folder (update) and unplug it.
7. Plug the USB ash drive back into the MiniMe.
8. Run graphical software update via menu "Sw Upd".
9. Run HW processors software update via menu " HW Upd".
6. Keystones
If an image is output from the Robin MiniMe at an angle, the image may be skewed.
Page 24
24
Two keystone channels (KeyStoning Vertical, KeyStoning Horizontal) adjust the image shape, aspect ratio is kept. Default DMX value for both channels is 128, it means that no keystone correction has been used.
The channel " KeyStoning Vertical" turns image along X-axis. The channel " KeyStoning Horizontal" turns image along Y-axis. The keystone values can also be used to create interesting skewing effects. Note: The horizontal keystone is not running while the Robin MiniMe displayes external HDMI source.
The option "Save AutoKeystoning" from DMX chart (channel Special functions, range 230-234) allows to save adjusted values of the keystone channels and correct them automatically when head position is changed: First use the Keystoning Vertical channel and the Kyestoning Horizontal channel to adjust image shape, after that go and stay at this DMX range for 3 seconds to write keystoning values into memory. To activate Auto­Keystoning, set channels Horizontal and Vertical Keystoning to 0. Now, if you move with the xture head on another place in the same plane, the image shape will be automatically corrected. If you move the head in a tilt into oposite position, the image shape will be automatically corrected again and the image will not be turned:
7. Using external HDMI input
If you want to use the external HDMI input of the xture, you have to activate the external HDMI input via set­ting DMX value into range of 220-229 on the channel 6 (Special functions). If you want to return back to the internal HDMI , set DMX value into range of 210-219 on this channel. Stay in desired DMX range for at least
3 seconds.
The horizontal keystone is not running while the Robin MiniMe displayes external HDMI source.
Page 25
25
8. Error and information messages
DMX address blinks
It means that no DMX signal is received. Check DMX connectors and cables, check connection between the
xture and the control desk.
Note of exclamation at sign "Art"
It means that no ArtNet signal is received. Check RJ 45 connectors and cables, check connection between the
xture and the control desk.
Tilt Err
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
Pan Err
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
Focus Err
This message will appear after the reset of the xture if the focus module malfunctions (sensor failed or magnet
is missing) or the stepping motor is defective or its driving IC on the PCB.
Temp Err
This message informs you that head temperature exceeded 70°C and light source has been switched off.
InnCom Err
This message informs you that communication between Raspberry and a pan/tilt PCB is faulty.
Ethernet Err
This message informs you that some ethernet error has occured e.g. faulty network card.
Need Hw Upd
This message informs you that hardware update has to be performed.
Clear air Filt.
This message informs that the menu item remaining time ("R Ti ") in the menu "Information" is at 0 value. Clean
air lter and reset this counter.
Page 26
26
9. Technical Specications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... 100-240V, 50-60Hz
Fuse:.......................................T 3.15A/250V ~
Power consumption *:...............100W@230V,I=0.43A, power factor=0.87
*Allow for a deviation of +/-10%
Mains input: CE - max. 16A cETLus - max. 10 A Mains output: CE - max. 15A cETLus - max. 9 A
Light engine
Light source: RGB LED device Light output: 300 ANSI lumens Rated light source life: 20000 hours
Digital gobo/image/video projection output
Aspect ratio: 16:10 Native resolution: WXGA (1280x800) Throw ratio: 3.5:1 Contrast ratio: 700:1 Display colours: 16.7 million colours
Hardware
Raspberry Pi Model B 512MB RAM
Operating system
Linux
Graphic engine
Digital gobo wheel with gobos, images and videos Gobo rotation and indexing Video speed control RGB or CMY colour mixing Virtual colour wheel with pre-programmed 234 colours including 8000K white Colour effect wheel with wide range of built-in colour effects (colour transitions and cross-fades, multiple colour images, rainbow effects) Effect wheel with wide range of graphic effects Effect speed control Horizontal/Vertical keystoning Smooth dimmer Shutter and strobe effects Supported Image Format: JPG (up to 4096 x 4096 pixels)* Supported Video Formats: MPEG4, h264 (resolution up to 1920x1060 pixels)*
*The native resolution of the light projection engine is 1280x800 pixels therefore optimal resolution for pictures and videos is 1280x800 pixels.
Free space available for custom content
9.5 GB
Focus
Motorized focus
Strobe
Independent strobe effect with variable speed (0.3 - 20Hz) Random strobe effect
Page 27
27
Dimmer
Smooth dimmer from 0 - 100 %
Pan/Tilt
Max. pan movement range: 450° Max. tilt movement range: 270° 16 bit movement resolution Automatic Pan/Tilt position correction Remotely controllable speed of pan/tilt movement for easy programming
Control
Upload and projection of custom artwork, photographs and videos Live input via external HDMI Setting & Addressing: two-row LCD display & 4 control buttons Protocols: USITT DMX-512, RDM, ArtNet Optional wireless external module available: CRMX™ technology from Lumen Radio Control channels: 24 Ethernet port: Art-Net, ready for ACN Recommended and supported lesystem on USB memory devices: FAT16
External Wireless DMX/RDM module (optional)
Compliance with USITT DMX-512 (1986 & 1990) and 512-A Full DMX delity and frame integrity Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz Producer: LumenRadio
Connection
DMX data in/out: Locking 5-pin XLR 2 x USB 2.0 connector (series A) ArtNet: RJ 45 (Neutrik Ethercon) External video input: 1 x HDMI AC power IN: Chassis connector Neutrik PowerCon, A-type, NAC3MPA AC power OUT: Chassis connector Neutrik PowerCon, B-type, NAC3MPB
Rigging
Mounting points: one pair of 1/4-turn locks Mounting horizontally or vertically via Omega holder
Temperatures
Ambient operating temperature : 0 - 40° C Maximum housing temperature : 60° C
Distances
Min. distance from ammable surfaces: 0.5 m Min. distance to projection surface: 0.8 m
Total heat dissipation
307 BTU/h (calculated) 90 Wh (calculated)
Weight (net):
5.7 kg
Page 28
28
Dimensions (mm)
Mounting bracket (optional)
Page 29
29
Accessories
Omega holder (P/N 99010420).......................1 piece
Optional accessories
(P/N 10980127) Robe Wireless CRMX-LB100
(P/N 10980197) Lens wide-angle 1:1.5 black (P/N 10980211) Lens wide-angle 1:1.5 white
(P/N 1098 0208) Mounting bracket for MiniMe black (P/N 1098 0209) Mounting bracket for MiniMe white
(P/N1305 1731) Mains Cable PowerCon In/open ended, 2m (P/N 1305 1724) Mains Cable PowerCon In/Schuko, 2m (P/N 1305 1725) Mains Cable PowerCon In/CEE 16A, 2m (P/N 1305 1726) Mains Cable PowerCon In/US, 2m
(P/N 1305 1727) Daisy Chain PowerCon In/Out, EU, 2m (P/N 1305 1728 ) Daisy Chain PowerCon In/Out, US, 2m
Page 30
30
Page 31
31
10. Maintenance and cleaning
DANGER !
Disconnect from the mains before starting any
maintenance work
A soft lint-free cloth moistened with any good glass cleaning uid is recommended for objective lens, under no circumstances should alcohol or solvents be used!
Never use alcohol or solvents for cleaning lenses in the moving head!
Use wet cloth only.
It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life.
The front lens may require monthly cleaning as smoke-uid tends to building up residues, reducing the light­output very quickly. The cooling fans should be cleaned according to the situation (at least annually). The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet.
More complicated maintenance and service operations are only to be carried out by authorized distributors.
Important! Check the air lter periodically and clean before it become
clogged!
Clean the air lter placed in the rear side of the xture head . Use a vacuum cleaner, compressed air or you can wash them and put back dry. After replacing the air lters, reset the elapsed time counter in the menu "Information" (Info--->Air Fil--->Ela T).
10.1 Replacing a fuse
This replacement has to be realized by a qualied person or ROBE service worker only.
Specications are subject to change without notice. March 10, 2014
1- fastening screws 2- rear cover of the head 3- Air lter 4- Velcro fastener
Page 32
32
11. ChangeLog
This section summarizes all types of changes in the user manual.
Version of the
manual
Date of issue Description of changes
1.3 8/12/2013
DMX chart version 0.93 was renamed at version 1.0
1.4 7/01/2014
Added chapter " 7. Using external HDMI input." Changes in technical specications DMX chart version 1.1 (change at channel 17)
1.5 15/01/2014
DMX chart version 1.2. Changes in menu Personality and User Media
1.6 10/03/2014
Added chapters 3.4 Using the mounting bracket
3.5 Installing the wide-angle lens module
Page 33
DMX protocol
Channel
1
Pan
0 - 255 Pan movement by 450°
proportional
2
Pan fine
0 - 255 Fine control of pan movement
proportional
3
Tilt
0 - 255 Tilt movement by 270°
proportional
4
Tilt fine
0 - 255 Fine control of tilt movement
proportional
5
Pan/Tilt speed , Pan/Tilt time
0 Standard mode
step
1 Max. Speed Mode
step
Pan/Tilt speed mode
2 - 255 Speed from max. to min.
proportional
Pan/Tilt time mode
2 - 255 Time from 0.2 s to 25.5 sec.
proportional
6
Special functions
To activate following functions, stop in DMX value for at least 3 s
and shutter must be closed at least 3 sec. („Shutter,Strobe” channel 23 must be at range: 0-31 DMX). Corresponding menu items are temporarily overriden).
0-49 Reserved
50 - 59 Pan/Tilt speed mode
step
60 - 69 Pan/Tilt time mode
step
70 - 79 Blackout while pan/tilt moving
step
80 - 89 Disabled blackout while pan/tilt moving
step
90-94
Ceiling projection On
step
95-99
Ceiling projection Off
step
100-104
Rear projection On
step
105-109
Rear projection Off
step
110 - 129 Reserved
To activate following functions, stop in DMX value for at least 3
seconds.
130-134
Keep aspect ratio On
step
135-139
Keep aspect ratio Off
step
140 - 149 Pan/Tilt reset
step
150 - 179 Reserved 180 - 189 Focus reset
step
190 - 199 Graphic engine reset(software update executing)
step
200 - 209 Total reset
step
210-219 Internal HDMI
step
220-229 External HDMI
step
230-234 Save AutoKeystoning
step
235 - 255
Reserved
7
Digital zoom
0-127
Zoom from min. -->real size
proportional
128
real size (default)
step
129-255
Zoom from real size -->max.
proportional
8
Focus
0 - 255 Continuous adjustment from far to near
proportional
Robin MiniMe - DMX protocol, version 1.2
DMX
Value
Function
Type of control
Page 1
Page 34
DMX protocol
Channel
DMX
Value
Function
Type of control
9
Keystoning Vertical
0-255
Vertical keystoning (128 Default)
proportional
10
Keystoning Horizontal
0 - 255
Horizontal keystoning (128 Default)
proportional
11
Cyan
0 - 255 Cyan (white-->full cyan)
proportional
12
Magenta
0 - 255 Magenta (white-->full magenta)
proportional
13
Yellow
0 - 255 Yellow (white-->full yellow)
proportional
14
Virtual colour wheel
0-15 White (8000K)
step
16 Blue
step
17-55 Blue ---> Cyan
proportional
56 Cyan
step
57-95 Cyan ---> Green
proportional
96 Green
step
97-134 Green ---> Yellow
proportional
135 Yellow
step
136-174 Yellow ---> Red
proportional
175 Red
step
176-214 Red ---> Magenta
proportional
215 Magenta
step
216-246
Magenta ---> Blue
proportional
247 Blue
step
248-255 Reserved
15
Colour Effect wheel
0 No function step
Static effects
1 Horizontal linear shade, white-->black step 2 Horizontal Linear shade, black-->white step 3 Vertical linear shade, black-->white step 4 Vertical linear shade, white-->black step 5 Diagonal shade, white -->black step 6 Diagonal shade, black -->white step 7 Horizontal linear shade, white-->red step 8 Horizontal Linear shade, red-->white step
9 Vertical linear shade, red-->white step 10 Vertical linear shade, white-->red step 11 Diagonal shade, white -->red step 12 Diagonal shade, red -->white step 13 Horizontal linear shade, white-->green step 14 Horizontal Linear shade, green-->white step 15 Vertical linear shade, green-->white step 16 Vertical linear shade, white-->green step 17 Diagonal shade, white -->green step 18 Diagonal shade, green -->white step 19 Horizontal linear shade, white-->blue step 20 Horizontal Linear shade, blue-->white step 21 Vertical linear shade, blue-->white step
Page 2
Page 35
DMX protocol
Channel
DMX
Value
Function
Type of control
22 Vertical linear shade, white-->blue step 23 Diagonal shade, white -->blue step 24 Diagonal shade, blue -->white step 25 Horizontal linear shade, white-->cyan step 26 Horizontal Linear shade, cyan-->white step 27 Vertical linear shade, cyan-->white step 28 Vertical linear shade, white-->cyan step 29 Diagonal shade, white -->cyan step 30 Diagonal shade, cyan -->white step 31 Horizontal linear shade, white-->magenta step 32 Horizontal Linear shade, magenta-->white step 33 Vertical linear shade, magenta-->white step 34 Vertical linear shade, white-->magenta step 35 Diagonal shade, white -->magenta step 36 Diagonal shade, magenta -->white step 37 Horizontal linear shade, white-->yellow step 38 Horizontal Linear shade, yellow-->white step 39 Vertical linear shade, yellow-->white step 40 Vertical linear shade, white-->yellow step 41 Diagonal shade, white -->yellow step 42 Diagonal shade, yellow -->white step 43 RGBW shades step 44 CMYW shades step 45 RGBY shades step 46 RMBG shades step
47-49 Reserved
Dynamic effects
50 Colour changing black -->white, slowly step 51 Colour changing black -->white, fast step 52 Colour changing red -->white, slowly step 53 Colour changing red -->white, fast step 54 Colour changing green -->white, slowly step 55 Colour changing green -->white, fast step 56 Colour changing blue -->white, slowly step 57 Colour changing blue -->white, fast step 58 Colour changing yellow -->white, slowly step 59 Colour changing yellow -->white, fast step 60 Colour changing magenta -->white, slowly step 61 Colour changing magenta -->white, fast step 62 Colour changing cyan -->white, slowly step 63 Colour changing cyan -->white, fast step 64 Colour changing (slow) red -->green -->blue -->yellow step 65 Colour changing (fast) red -->green -->blue -->yellow step 65 Colour changing (fastest) red -->green -->blue -->yellow step
66-69 Reserved
70 Horizontal linear shade, white-->black and vice versa, slowly step 71 Horizontal linear shade, white-->black and vice versa,fast step 72 Vertical linear shade, white-->black and vice versa, slowly step 73 Vertical linear shade, white-->black and vice versa, fast step 74 Diagonal shade, black -->white and vice versa, slowly step
Page 3
Page 36
DMX protocol
Channel
DMX
Value
Function
Type of control
75 Diagonal shade, black -->white and vice versa, fast step 76 Shade black -->white, slow rotation, clockwise step 77 Shade black -->white, fast rotation, clockwise step 78 Shade black -->white, slow rotation, anticlockwise step 79 Shade black -->white, fast rotation, anticlockwise step 80 Horizontal linear shade, white-->red and vice versa, slowly step 81 Horizontal linear shade, white-->red and vice versa,fast step 82 Vertical linear shade, white-->red and vice versa, slowly step 83 Vertical linear shade, white-->red and vice versa, fast step 84 Diagonal shade, red -->white and vice versa, slowly step 85 Diagonal shade, red -->white and vice versa, fast step 86 Shade red -->white, slow rotation, clockwise step 87 Shade red -->white, fast rotation, clockwise step 88 Shade red -->white, slow rotation, anticlockwise step 89 Shade red -->white, fast rotation, anticlockwise step 90 Horizontal linear shade, white-->green and vice versa, slowly step 91 Horizontal linear shade, white-->green and vice versa,fast step 92 Vertical linear shade, white-->green and vice versa, slowly step 93 Vertical linear shade, white-->green and vice versa, fast step 94 Diagonal shade, green -->white and vice versa, slowly step 95 Diagonal shade, green -->white and vice versa, fast step 96 Shade green -->white, slow rotation, clockwise step 97 Shade green -->white, fast rotation, clockwise step 98 Shade green -->white, slow rotation, anticlockwise step 99 Shade green -->white, fast rotation, anticlockwise step
100 Horizontal linear shade, white-->blue and vice versa, slowly step 101 Horizontal linear shade, white-->blue and vice versa,fast step 102 Vertical linear shade, white-->blue and vice versa, slowly step 103 Vertical linear shade, white-->blue and vice versa, fast step 104 Diagonal shade, blue -->white and vice versa, slowly step 105 Diagonal shade, blue -->white and vice versa, fast step 106 Shade blue -->white, slow rotation, clockwise step 107 Shade blue -->white, fast rotation, clockwise step 108 Shade blue -->white, slow rotation, anticlockwise step 109 Shade blue -->white, fast rotation, anticlockwise step 110 Horizontal linear shade, white-->cyan and vice versa, slowly step 111 Horizontal linear shade, white-->cyan and vice versa,fast step 112 Vertical linear shade, white-->cyan and vice versa, slowly step 113 Vertical linear shade, white-->cyan and vice versa, fast step 114 Diagonal shade, cyan -->white and vice versa, slowly step 115 Diagonal shade, cyan -->white and vice versa, fast step 116 Shade cyan -->white, slow rotation, clockwise step 117 Shade cyan -->white, fast rotation, clockwise step 118 Shade cyan -->white, slow rotation, anticlockwise step 119 Shade cyan -->white, fast rotation, anticlockwise step 120 Horizontal linear shade, white-->magenta and vice versa, slowly step 121 Horizontal linear shade, white-->magenta and vice versa,fast step 122 Vertical linear shade, white-->magenta and vice versa, slowly step 123 Vertical linear shade, white-->magenta and vice versa, fast step 124 Diagonal shade, magenta -->white and vice versa, slowly step
Page 4
Page 37
DMX protocol
Channel
DMX
Value
Function
Type of control
125 Diagonal shade, magenta -->white and vice versa, fast step 126 Shade magenta -->white, slow rotation, clockwise step 127 Shade magenta -->white, fast rotation, clockwise step 128 Shade magenta -->white, slow rotation, anticlockwise step 129 Shade magenta -->white, fast rotation, anticlockwise step 130 Horizontal linear shade, white-->yellow and vice versa, slowly step 131 Horizontal linear shade, white-->yellow and vice versa,fast step 132 Vertical linear shade, white-->yellow and vice versa, slowly step 133 Vertical linear shade, white-->yellow and vice versa, fast step 134 Diagonal shade, yellow -->white and vice versa, slowly step 135 Diagonal shade, yellow -->white and vice versa, fast step 136 Shade yellow -->white, slow rotation, clockwise step 137 Shade yellow -->white, fast rotation, clockwise step 138 Shade yellow -->white, slow rotation, anticlockwise step 139 Shade yellow -->white, fast rotation, anticlockwise step 140 RGBW shades, slow rotation , clockwise step 141 RGBW shades, fast rotation ,clockwise step 142 RGBW shades, slow rotation , anticlockwise step 143 RGBW shades, fast rotation ,anticlockwise step 144 Random colours slowly, black between colours step 145 Random colours fast, black between colours step 146 Random colours slowly, white between colours step 147 Random colours fast, white between colours step 148 Random colours slowly step 149 Random colours fast step 150 Horizontal black shade -->random colour, slowly step 151 Horizontal black shade -->random colour, fast step 152 Vertical black shade -->random colour, slowly step 153 Vertical black shade -->random colour, fast step 154 Diagonal black shade -->random colour, slowly step 155 Diagonal black shade -->random colour, fast step 156 Black shade -->random colour, slow rotation ,clockwise step 157 Black shade -->random colour, fast rotation ,clockwise step 158 Black shade -->random colour, slow rotation ,anticlockwise step 159 Black shade -->random colour, fast rotation ,anticlockwise step 160 Random colour in two corners, slow rotation, clockwise step 161 Random colour in two corners, fast rotation, clockwise step 162 Random colour in two corners, slow rotation, anticlockwise step 163 Random colour in two corners, fast rotation, anticlockwise step 164 Random colour in four corners, slow rotation, clockwise step 165 Random colour in four corners, fast rotation, clockwise step 166 Random colour in four corners, slow rotation, anticlockwise step 167 Random colour in four corners, fast rotation, anticlockwise step 168 Horizontal colour transition, slowly, random step 169 Horizontal colour transition, fast, random step 170 Vertical colour transition, slowly, random step 171 Vertical colour transition, fast, random step 172 Diagonal colour transition, slowly step 173 Diagonal colour transition, fast step 174 Horizontal/Vertical/Diagonal colour transition slowly step
Page 5
Page 38
DMX protocol
Channel
DMX
Value
Function
Type of control
175 Horizontal/Vertical/Diagonal colour transition fast step
176-255 Reserved
16
Digital gobo wheel selection
0-31 Default-Factory Digital gobo wheel
step
32-63 Internal Custom Digital gobo wheel
step
64-95 External Custom Digital gobo wheel (USB memory stick)
step
96-255 Reserved (for future functions)
17
Digital gobo wheel
0
Open
step
1-250
Gobos/videos (by one DMX value:1,2,3…...250)
proportional
The following distribution serves for factory gobos/videos only
1-59
Black and white gobos (by one DMX value: 1, 2, 3…..59)
proportional
60-202
Colour pictures (by one DMX value: 60, 61, 62…..202)
proportional
203-216
Animations (by one DMX value: 203, 204, 2050…216)
proportional
To activate following two functions, set a transition effect (1-48)
at Effect Wheel - channel 21
251
Gobos presentation (gobos selected randomly)
step
252
Gobos presentation (gobos selected in alphabetical order)
step
253-255 Reserved
18
Video speed control
0 Original speed
step
1 Standing in first frame
step
2-254 Speed from min. to max.
proportional
255 Original speed
step
19
Digital gobo indexing and rotation
0 - 127 Gobo indexing
proportional
128-191 Forwards gobo rotation from fast to slow
proportional
192-193 No rotation
step
194- 255 Backwards gobo rotation from slow to fast
proportional
20
Digital gobo gobo indexing and rotation fine
0-255 Fine indexing (rotation)
proportional
21
Effect wheel
The following effects are controlled by means of the "Effect
speed/Time" channel below. Type of control is stated in the column on the right.
0 Open position (hole)
step
Transition effects between two gobos (pictures)
1 Random transition
1
2 Transition with blending
1
3 Transition from left --> right, horizontally
1
4 Transition from right --> left, horizontally
1
5 Stripe transition from left --> right, horizontally
1
6 Stripe transition from right -->left, horizontally
1
7 3-stripe transition from left-->right, horizontally
1
8 3-stripe transition from right-->left, horizontally
1
9 6-stripe transition from left-->right, horizontally
1
10 6-stripe transition from right-->left, horizontally
1
11 Transition up --> down, vertically
1
12 Transition down -->up, vertically
1
13 Stripe transition up --> down, vertically
1
14 Stripe transition down -->up, vertically
1
Page 6
Page 39
DMX protocol
Channel
DMX
Value
Function
Type of control
15 3-stripe transition up-->down, vertically
1
16 3-stripe transition down-->up, vertically
1
17 6-stripe transition up-->down, vertically
1
18 6-stripe transition down-->up, vertically
1
19 Transition 2 from left --> right, horizontally (diffusion edge)
1
20 Transition 2 from right --> left, horizontally (diffusion edge)
1
21 Transition 2 up --> down, vertically (diffusion edge)
1
22 Transition 2 down -->up, vertically (diffusion edge)
1
23 Iris transition out--> in
1
24 Iris transition in--> out
1
25 Iris transition out--> in (Diffusin edge)
1
26 Iris transition in--> out (Diffusion edge)
1
27 Iris transition 3 out--> in (more diffusion edge)
1
28 Iris transition 3 in--> out (more diffusion edge)
1
29 Moving transition from left --> right
1
30 Moving transition from left --> right
1
31 Moving transition up --> down
1
32 Moving transition from down --> up
1
33 Drop transition
1
34 Simple transition
1
35 Pixel transition
1
36 Transition via blending
1
37 Transition with white output
1
38 Crossing transition
1
39 Picture in picture transition
1
40 Direct transition
1
41 Transition with vertical rotation
1
42 Transition with horizontal rotation
1
43 Transition with diagonal rotation
1
44 Transition with diagonal rotation-opposite direction
1
45 Zoom out transition
1
46 Zoom in transition
1
47 Zoom transition in horizontal direction
1
48 Zoom transition in vertical direction
1
49-79 Reserved
Effects applied at one gobo (picture)
80 Kaleidoscope 1
3
81 Kaleidoscope 2
3
82 Kaleidoscope 3
3
83 Kaleidoscope 4
3
84 Kaleidoscope 5
3
85 Sunflower Kaleidoscope (coarse)
3
86 Sunflower Kaleidoscope (soft)
3
87 Sunflower kaleidoscope (slow)
4
88 Sunflower kaleidoscope (faster)
4
89 Sunflower kaleidoscope (fastest)
4
90-99 Reserved
100 Circle Iris in/out
2
101 Circle Iris in/out (diffusion edge)
2
102 Vertical Ellipse Iris in/out
2
Page 7
Page 40
DMX protocol
Channel
DMX
Value
Function
Type of control
103 Horizontal Ellipse Iris in/out
2
104 Reserved 105 Positive/negative (black and white)
2
106 White/negative (black and white)
2
107 Positive/negative (coloured)
2
108 Pixeling
2
109-179 Reserved
Manual effects
180 Circular Iris
5
181 Elliptical Iris -vertical
5
182 Elliptical Iris-horizontal
5
183 Black mask
6
184 Inverse black mask
6
185 White mask
6
186 Inverse white mask
6
187 Gobo/video movement in horizontal (X) axis
7
188 Gobo/video movement in vertical (Y) axis
7
189 Reserved 190 Crossfade effect
8
191 Addition effect
8
192 Substraction effect
8
193 Multiplication effect
8
194 Minimum effect
8
195 Maximum effect
8
196-255 Reserved
22
Effect Speed/Time
Type of control 1
0 Presentation* (time=0.8 sec)
step
1-250 Time from 0,1 sec. to 25 sec.
proportional
251-255 Stop
step
*Presentation serves for showing effect
Type of control 2
0 Presentation (time=0.8 sec)
step
1-126 Time from 0,1 sec. to 12,6 sec.
proportional
127-128 Stop
step
129-254 Time from 12.6 sec to 0.1 sec. - opposite direction
proportional
255 Stop
step
Type of control 3
0 Presentation
step
1-255 Effect speed from min. to max.
proportional
Type of control 4
0 Presentation (4 corners)
step
1-255 Number of corners from min. to max.
proportional
Type of control 5
0 Open
step
1-255 Iris from open to close
proportional
Page 8
Page 41
DMX protocol
Channel
DMX
Value
Function
Type of control
Type of control 6
0 Open
step
1-255 Mask effect from min. level to max. level
proportional
Type of control 7
0-127 Movement from edge to centre
proportional
128 Centre
step
129--255 Movement from centre to edge
proportional
Type of control 8
0-255 Continuous effect changing
proportional
23
Shutter/ strobe
0 - 31 Shutter closed
step
32 - 63 Shutter open
step
64 - 95 Strobe-effect from slow to fast
proportional
96 - 127 Shutter open
step
128 - 143 Opening pulse in sequences from slow to fast
proportional
144 - 159 Closing pulse in sequences from fast to slow
proportional
160 - 191 Shutter open
step
192 - 223 Random strobe-effect from slow to fast
proportional
224 - 255 Shutter open
step
24
Dimmer
0 - 255 Dimmer intensity from 0% to 100%
proportional
Page 9
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
