Robin LedBeam 150
User Manual
32 pgs4.81 Mb0

Robe Robin LedBeam 150 User Manual

Download
Page 1
1
Version 1.0 Version 1.2
Page 2
2
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Fixture exterior view ...................................................................................................... 5
3. Installation....................................................................................................................... 6
3.1 Connection to the mains ............................................................................................ 6
3.2 Rigging the xture ...................................................................................................... 7
3.3 Eggcrate installation....................................................................................................8
3.4 DMX-512 connection .................................................................................................. 9
4. Control menu map ........................................................................................................ 11
5. Control menu ............................................................................................................... 13
6. RDM ............................................................................................................................... 18
7. Error and information messages ................................................................................ 18
8. Technical Specications .............................................................................................. 19
9. Maintenance and cleaning ........................................................................................... 21
10. Photometric diagrams................................................................................................ 23
11. ChangeLog .................................................................................................................. 26
ROBIN LEDBeam 150
Page 3
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ROBIN LEDBeam 150 !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en­sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this ma­nual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
The ROBIN LEDBeam 150 was designed for indoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the xture. This xture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the xture from AC power before cleaning, removing or installing any part of the xture.
The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords as this can result in re or electric shock.
Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power cord from time to time.
Refer servicing to qualied service personnel.
This xture falls under protection class I. Therefore this xture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this xture to a dimmer pack.
Warning! Risk Group 2 LED product according to EN 62471.
LED light emission. Risk of eye injury. Do not look into the beam at short distance of
the of the product.
Do not view the light output with optical instruments or any device that may
conncentrate the beam.
The light source contains blue LEDs.
If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until it has reached room temperature.
Avoid brute force when installing or operating the xture.
Page 4
4
This xture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture or dust.
Do not block the lens array with any object when the xture is under operation.
The cooling openings in head and base of the xture should never be covered with cloth or other materials, and never must be blocked.
This xture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.
Always use a secondary safety wire for overhead installation of the xture.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.
The xture becomes hot during operation. Allow the xture to cool approximately 15 minutes prior to manipu­late with it.
To avoid damage of an internal optical system of the xture, never let the sunlight (or
other light source) lights directly to the lens array, even when the xture is not working
Operate the xture only after having familiarized with its functions. Do not permit operation by persons not qualied for operating the xture. Most damages are the result of unprofessional operation!
Please use the original packaging if the xture is to be transported.
Please consider that unauthorized modications on the xture are forbidden due to safety reasons!
If this device will be operated in any way di󰀨erent to the one described in this manual, the product may su󰀨er damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
-circuit, burns, electric shock, crash etc.
Page 5
5
2. Fixture exterior view
1 - Lens array 2 - Yoke 3 - Mains IN 4 - Attachment point
for a safety wire
5 - Mains OUT
6 - Control panel 7 - DMX IN 8 - DMX OUT 9 - Base 10 - Slots for mounting
bracket omega CL
1 - Moving head 2 - Attachment point for safety cable 3 - Base
Page 6
6
3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
3.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The ROBIN LEDBeam 150 is equipped with auto-switching power supply that automatically adjusts to any 50­60Hz AC power source from 100-240 Volts.
If you install a cord cap on the power cable to allow connection to power outlets, install a grounding-type (earthed)
plug, following the plug manufacturer’s instructions. If you have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
The device falls under class one and must be earthed (grounded)!
Design of the ROBIN LEDBeam 150 allows to connect several xtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specications “ The max. number of connected xtures depends on the AC mains power voltage: CE: ETL: 15 xtures at power supply= 230V 9 xtures at power supply= 230V 13 xtures at power supply= 208V 8 xtures at power supply= 208V 7 xtures at power supply= 120V 4 xtures at power supply= 120V Actual numbers of xtures may di󰀨er from values stated above as you have to take into account the length of supply cables, circuit breaker etc. at projecting of the xtures installation Do not overload the supply line and the connecting leads. Do not overload the supply line and the connecting leads.
Wiring and connection work must be carried out by qualied sta󰀨!
Page 7
7
3.2 Rigging the xture
The installation of the xture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
The xture should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury or damage to property. The xture has to be installed out of the reach of people.
If the xture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The xture must never be xed swinging freely in the room.
Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s weight.
When installing the device, make sure there is no highly inammable material (decoration articles, etc.) in a distance of min. 0.4 m.
CAUTION!
Use an appropriate clamp to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
The xture can be placed directly on the stage oor or rigged on a truss without altering its operation characte­ristics .
For securing the xture to the truss, install a safety wire which can hold at least 10 times the weight of the x­ture. Use only the safety wire with a snap hook with screw lock gate. Fasten the safety cable in the attachment point and around the truss as shown on the picture below.
.
Page 8
8
Rigging via omega bracket:
When installing xtures side-by-side, avoid illuminating one xture with another!
3.3 Eggcrate installation
Disconnect the xture from mains before installing the eggcrate .
Screw the eggcrate (1) on the lens array module via the three screws (2).
1-Omega bracket 2-Clamp 3-Truss 4-Attachment point 5-Safety chain
Page 9
9
3.4 DMX-512 connection
The xture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the xture or one xture with another.
DMX output DMX input
XLR socket: XLR plug:
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be interconnected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX-output of the last xture.
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Used for wireless DMX 5 - Used for wireless DMX
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Used for wireless DMX 5 - Used for wireless DMX
Page 10
10
3.5. Wireless DMX operation
The external Robe Wireless CRMX-LB150 module allows receiving wireless DMX. This device is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the
2.4 GHz band.
Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into hole (5) in the xture. In this way the wireless DMX module is connected with the xture. NOTE: when you disconnect the DMX wireless module from xture, press and hold lock (5) during getting the wireless module out.
To link the xture with DMX transmitter. The xture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Vireless -->Stat).
To unlink the xture from DMX transmitter. The xture can be unlinked from receiver via the menu item “ Unlink“ (Special-->Vireless -->Unlink.).
1 - 5-pin XLR (female) 2 - Locating pin 3 - Lock
Robe Wireless CRMX-LB100
Page 11
11
4. Control menu map
Default settings=Bold print
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
DMXA Set DMXA 001-255
DMX Pres Mode 1
Mode 2
Info POn Time Total
Reset
DMX In Pan 0-255
:
Dimm F 0-255
Hea Temp Current
Highest
High Res
Sw Ver IC-1
IC-2
IC-3
Pers
DMX Pres Mode 1
Mode 2
Pan Rev On, O󰀨
Tilt Rev On, O󰀨
P/T Mode Speed
Time
P/T Feed On, O󰀨
Display Turn
On/O󰀨 T On, O󰀨
Contrast 0-100%
Backlight 0-100%
BLC DMC On, O󰀨
BLC P/T On, O󰀨
Mic Sens 0...10...19
Fans Auto, High,Quiet
C Mix M RGBW, CMY
White P On, O󰀨
Dimmer C Square, Linear
Temp Uni °C, °F
I Ef Pos Pan
:
Dim F
Store
Defaults
Manual Pan 0-255
:
Dimm F 0-255
Test Prg Static Pan 0-255
Tilt 0-255
Run
Dynamic
Page 12
12
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
Sta Alone Music T On, O󰀨
Auto Run O󰀨
Test
Prog 1
Prog 2
Prog 3
Pr Play Test Prg
Prog 1
Prog 2
Prog 3
Pr Edit Prog 1 Step 1 Pan
Prog 2 : :
Prog 3 Step 40 F.Tim 0-25.5
S.Tim 0-25.5
COPY
Prg End 1-40
Reset
Special RDM Low
RDM Hight
Wireless Stat
Unlink
Adjust DMX Val Pan 0-255
:
Dimm F 0-255
Clalib Cal Mech Pan C 0-255
Tilt C 0-255
Zoom C 0-255
Store
Cal Col Red C 0-255
Gre C 0-255
Blu C 0-255
Whi C 0-255
Store
Cal Load
Sw Upd On, O󰀨
Page 13
13
5. Control menu
The ROBIN LEDBeam 150 is equipped with 2-row LCD display which allows to set the xture´s behaviour ac­cording to your needs, obtain information on its operation, test its various parts and lastly program it, if it has to be used in a stand-alone mode.
Control panel: [ESCAPE] button used to leave the menu without saving changes. [NEXT] , [PREV] buttons for moving between menu items and for value adjusting.
[ENTER] button used to enter the selected menu (menu item) and to conrm adjusted value.
After switching the xture on, display shows current DMX address.
5.1 Addressing (DMXA)
Set DMXA- Use this menu item to set the DMX start address of the xture, which is dened as the rst channel from which the ROBIN LEDBeam 150 will respond to the controller. If you set, for example, the address 23, the ROBIN LEDBeam 150 will use channels 23 - 44 for control (if Mode 1 is selected). Please, be sure that you do not have any overlapping channels in order to control each ROBIN LEDBeam 150 correctly and independently from any other xture on the DMX data link. If there is no data received at the DMX input, the display will start to ash "0001” with actually stored DMX address.
DMX Pres - DMX preset. Use the menu to select desired channel mode. Mode 1 - 22 control channels (default) Mode 2 - 16 control channels
5.2 Fixture information (Info)
POn Time - Power on time. Select this menu to read the number of xture operation hours. Total -
The item shows the total number of the operation hours since
the ROBIN LEDBeam 150
has been fabricated.
Reset -
The item shows the number of the operation hours that the
ROBIN LEDBeam 150
has been powered on since the counter was last reset. In order to reset this counter to 0, press and hold both [NEXT] and [PREV] buttons and the [Enter] button at the same time.
DMX In - DMX readout. The menu is used to read DMX values of each channel received by the xture.
Hea Temp - Hhead Temperature. The menu shows temperature on the LED module. Current - A current temperature of the LED module. Highest - A maximum temperature of the the LED module since the xture has
been fabricated. High Res - A maximum temperature of the the LED module since the counter was last reset. In order to reset this counter, press and hold both [NEXT] and [PREV] buttons and the [Enter] button at the same time.
Sw Ver - Software versions. Select this item to read the software version of the xture modules. IC-1 - A pan/Tilt processor.
IC-2 - A display processor. IC-3 - LED control processor.
Page 14
14
5.3 Personality (Pers)
DMX Pres - DMX preset. Use the menu to select desired channel mode. Mode 1 - 22 control channels Mode 2 - 16 control channels
Pan Rev - Pan reverse. The item allows to invert pan movement.
Tilt Rev - Tilt reverse. The item allows to invert tilt movement.
P/T Mode - Pan and Tilt movement mode. Use this menu to set mode of the pan/tilt movement.
Speed - Both Pan and tilt will move with the same speed as adjusted at the channel 5 "Pan/Tilt speed, Pan/Tilt time". Time – The pan and tilt will move with di󰀨erent speeds and they will come at the same time to the end point of their tracks (pan and tilt use their optimal speeds). Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt time".
P/T Feed - Pan and Tilt Feedback. The menu item allows to return the mowing head to the required pan/tilt position after changing the position by an external force if this option is set on. Note. The Pan/Tilt Feedback should be permanent On, the option O󰀨 is not suitable for standard operation and the head of the xture can be damaged!
Display - Display adjusting. This menu allows you to adjust the display behaviour. Turn - This function turns the display by 180°. On/O󰀨 T - This function allows you to keep the display permanent on or turn it o󰀨
two minutes after last pressing any button on the control panel.
Contrast- Use this function to adjust contrast of the display (0-100%). Backlight- Use this function to adjust backlight of the display (0-100%).
BLC DMC - Blackout during movement correction. Set this option on if you wish to close light output during the time when the head goes to its correct position, which has been changed by an external force.
BLC P/T - Active blackout. The menu item allows to close light output while the pan/tilt DMX values are changing.
C Mix M - Colour mixing mode. This item allows switching into RGBW or CMY mode. In the CMY mode, the white(8bit)/white (16) bit channels are not active.
White P - White Point 8000K. If the function is on, the CTC channel allows to set desired white in range of 8000K-2700K (0 DMX=8000K, 255 DMX=2700K). Necessary condition is , that RGBW channels have to be full or set at the same DMX values, e.g. 150. If this function is o󰀨, the range of whites is not uniform and may be di󰀨erent for each xture.
Mic Sens - Microfon sensitivity. Enter the menu if you want to adjust the microphone sensitivity ( 1-max., 19-min.).
Fans - Fans mode. Use the menu to set the xture fans to the max. power ("High") ,auto-control mode ("Auto") and quiet mode ("Quiet").
Temp Uni - Temperature unit. Use the menu item to change temperature unit from °C to °F.
I Ef Pos - Init e󰀨ect positions. Use the menu to set all e󰀨ects to the desired positions at which they will stay
after switching the xture on without DMX signal connected. Defaults - The menu item allows to set all xture parameters to the default (factory) values.
Page 15
15
5.4 Manual Control (Manual)
Use the menu to control all xture channels by means of the control panel.
5.5 Test program (Test Prg)
Use this menu to to run a special demo-test sequences without an external controller, which will show you some possibilities of using ROBIN LEDBeam 150. Static - Static mode. This mode is suitable for projections on the wall, ceiling or ground without any head movement. Dynamic - Dynamic mode. This mode uses all ROBIN LEDBeam 150 functions including pan/tilt movement and therefore is good for a complete introduction of the xture.
5.6 Stand-alone (St Alone)
Music T - Music trigger. Select this function to enable the sound control of the running program via the built-in microphone. Auto Run - Presetting playback. This function allows you to select the program which will be played in the stand-alone mode after switching the xture on. Selected program will be played continuously in a loop.
O󰀨 - The option disables „Auto Run” function.
Test - The option will start built-in test program. Prog 1 - The option will start user-created program 1
Prog 2 - The option will start user-created program 2 Prog 3 - The option will start user-created program 3
Pr Play - Playing program. Select this menu to run a user-created program in a loop.
Test Prg - The option runs built-in test program. Prog 1 - The option runs user-created program 1 Prog 2 - The option runs user-created program 2 Prog 3 - The option runs user-created program 3
Select the program you wish and press [ENTER]. The selected program starts running. By Pressing [ENTER] again, program pauses running.
Pr Edit - Editing program. Select this menu to edit or create the program. The ROBIN LEDBeam 150 has one built-in program and one user-editable program up to 40 steps. Each program step has a step time - during which e󰀨ects last in the current step and a fade time- during which e󰀨ects move to new positions. To edit program:
Procedure:
1. Press [NEXT] or [PREV] to select the menu "Edit" and press [ENTER].
2. Press [NEXT] or [PREV] to select the desired program step and press [ENTER] button.
3. Press [NEXT] or [PREV] to select the desired item and press [ENTER] button. Now you can edit by [NEXT] or [PREV] buttons the DMX value (0-255) for selected item:
Prg End.
a total number of the program steps (value 1-40). This value you should be set before
starting of programming
(e.g. if you want to create program with the 10 steps,
set Prg End=10).
PAn a coarse pan movement PAn F a ne pan movement Tilt a coarse tilt movement Tilt F a ne tilt movement P/T Sp a pan/tilt speed Powr power/special functions Virt C a virtual colour wheel Red a red colour coarse Red F a red colour ne Green a green colour coarse Green F a green colour ne Blue a blue colour coarse Blue F a blue colour ne White a white colour White F a white colour ne CTC a colour temperature correction
Page 16
16
C Mix C a colour mix control Zoom a zoom function Zoom F a zoom function ne Stro a strobe/shutter function Dimm a dimmer function coarse Dim F a dimmer function ne F.Tim a fade time (0-25.5 sec) S.Tim a step time (0-25.5 sec) COPY copying the current prog. step to the next prog. step
4. Press [ENTER] button to conrm adjusted value .
5. Press [ESCAPE] button, select next prog. step, press [ENTER] button and repeat steps 3 - 5).
5.7 Reset
This option enables the ROBIN LEDBeam 150 to index all e󰀨ects and return to their standard positions.
5.8 Special functions (Special)
RDM Low - This menu item shows the rst part of the RDM identication code.
RDM High - This menu item shows the second part of the RDM identication code.
Wireless - Wireless DMX information. The menu allows to read some information about
Wireless DMX operation
Stat - Wireless status. Use the menu to read wireless DMX status. Unlink - use this item to unlink xture from wireless DMX.
Adjust - Adjustment. The menu allows the ne adjustment of e󰀨ects. DMX Val- DMX values. Use the menu to set DMX values of xture´s channels.
Calib - calibration of white colour. Cal Mech - Use this menu to calibrate pan/tilt/zoom position. Cal Col - Use this menu to set white colour 5600K.
Calibration of the pan/tilt/zoom via the control board
1. Disconnect DMX controller from the xture and enter the "Cal Mech" menu.
2. Use the [PREV] and [NEXT] to nd "Pan C" and press [ENTER].
3. Set desired value and save it by pressing [ENTER].
4. Repeat steps 2 and 3 for "Tilt C" and "Zoom C".
5. After calibrating both e󰀨ects, nd item "Store" and press [ENTER]. to save all adjusted values and reset the xture.
Calibration of the white 5600K via the control board
1. Disconnect DMX controller from the xture , set the shutter, dimmer and RGBW channels at 255 DMX, zoom at 128 DMX and the CTC channel at DMX=64 (white 5600K). Aim the light beam on the lux meter (e.g. Minolta CL-500 A Chroma meter) which is placed cca 5m from the xture.
2. Set the menu items Colour Mix Mode to RGBW and "White Point 8000K to On (Pers-> C Mix M -> RGBW, Pers-> White P -> On).
3. Enter the menu "Cal Col".
4. By means of the "Red C, Gre C, Blu C and Whi C" items adjust the 5600K colour temperature as exactly as possible (∆u´v´= 0).
5. After adjusting 5600K colour temperature, select item Store and press the [ENTER] button to save all adjusted values .
Note: you can also use DMX controler for both calibrations stated above, calibration protocol is the following:
Eect Mode 1 Mode 2
Pan-ne adjustment channel 23 channel 17 Tilt - ne adjustment channel 24 channel 18
Page 17
17
Zoom -ne adjustment channel 25 channel 19
Red - red saturation channel 26 channel 20 Green- green saturation channel 27 channel 21 Blue - blue saturation channel 28 channel 22 White - white saturation channel 29 channel 23
Cal Load - Loads default (factory) calibration.
Sw Upd - Software update. The menu item allows you to update software in the xture via either serial or
USB port of PC. The following are required in order to update software:
- PC running Windows XP/7 /8/10 or Linux
- Update software
- Flash cable RS232/DMX P/N.13050624 (if you want to use a serial port of PC)
- Robe Universal Interface (if you want to use an USB port of PC)
Note 1: Software update should execute a qualied person. If you lack qualication, do not attempt the update yourself and ask for help your ROBE distributor.
Note 2: DMX address, , programs 1-3 and all items in the menu "Pers" will be set to their default (factory) values after software update.
To update software in the xture:
I. Installation of the update software.
1. Update Software available from the ROBE web site at WWW.robe.cz.
2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.
3. Unpack the program to the directory. II.Fixture software updating.
1.Determine which of your ports is available on your PC and connect it:
- with the DMX input of the xture if you using the ash cable RS232/DMX
- with the USB input of the Robe Universal Interface if you using the USB cable. Connect DMX output of the Robe Universal Interface with the xture via a standard DMX cabel. Turn both the computer and the xture on. Make sure the lamp is switched o󰀨 (only if the xture has a lamp).
2. Switch the xture to the updating mode (Special -> "SW Upd "-> On). Note: If you do not want to continue in software update, you have to switch o󰀨 and on the xture to escape from this menu. We recommend to cancel all running programs on PC before starting the software update.
3. Run the Software Uploader. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only later versions of processors, check the “Incremental Update box“. Avoid interrupting the process. Update status is being displayed in the Info Box window. When the update is nished, the line with the text “The xture is successfully updated“ will appear in this window and the xture will reset with the new software. Note: In case upload process is interrupted (e.g. power loss), the xture stays in “Updating mode” and you will have to repeat the software update again.
.
Page 18
18
6. RDM
This xture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device conguration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely a󰀨ecting existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specications for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specic moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for ROBIN LEDBeam 150 is the following.
Parameter ID Discovery command SET command GET command
DISC_UNIQUE_BRANCH *
DISC_MUTE *
DISC_UN_MUTE *
DEVICE_INFO *
SUPPORTED_PARAMETERS *
SOFTWARE_VERSION_LABEL *
DMX_START_ADDRESS * *
IDENTIFY_DEVICE * *
DEVICE_MODEL_DESCRIPTION *
MANUFACTURER_LABEL *
DEVICE_LABEL * *
SENSOR_DEFINITION *
SENSOR_VALUE *
DISPLAY_INVERT * *
DISPLAY_LEVEL * *
PAN_INVERT * *
TILT_INVERT * *
DEVICE_RESET *
DMX_PERSONALITY * *
DMX_PERSONALITY_DESCRIPTION *
STATUS_MESSAGES *
STATUS_ID_DESCRIPTION *
DEVICE_HOURS
*
PARAMETER_DESCRIPTION *
ROBE_DMX_INPUT * *
ROBE_WIRELESS_UNLINK *
7. Error and information messages
Short Err
The message informs you that short circuit has occured on the LED PCB.
Tilt Err
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
Page 19
19
8. Technical Specications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50-60Hz
Fuse:.......................................T 3.15A
Max. power consumption ........220W (I=0.98A, power factor=0.97 at 230V)
Mains input: CE - max. 16A
ETL - max. 10A Mains output: CE - max. 15A ETL - max. 9A
Optic
Light source: 7 x high power RGBW multichip LEDs Min LED life expectancy: 20.000 hours RGBW/CMY colour mixing Variable CTO 2700K-8000K
Virtual colour wheel
66 preset colours Halogen lamp e󰀨ect at whites 2700K and 3200K Rainbow e󰀨ect with in both directions with variable speed
Zoom range
3.8°-60°
Strobe
Strobe e󰀨ect with variable speed (0.3 - 20Hz) Random strobe pulse-e󰀨ect with variable speed Opening/closing pulse e󰀨ect with variable speed
Dimmer
Smooth dimmer from 0 - 100 %
Pan/Tilt
Max. pan movement range: 540° Max. tilt movement range: 228° 16 bit movement resolution Automatic Pan/Tilt position correction Remotely controllable speed of pan/tilt movement for easy programming Movement control: tracking and vector
Control
2-row LCD display & 4 buttons Readout xture usage, receiving DMX values, temperatures, etc Built-in analyzer for easy fault nding, error messages Built-in demo sequences Silent fans cooling, Stand-alone operation 3 user editable programs, each up to 40 steps Supported protocols: USITT DMX 512, RDM, Support of RDM (Remote Device Management) 2 DMX modes (22, 16 control channels)
External Wireless DMX/RDM module (optional)
Compliance with USITT DMX-512 (1986 & 1990) and 512-A
Page 20
20
Full DMX delity and frame integrity Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz Producer: LumenRadio
Connection
DMX data in/out: Locking 5-pin XLR AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA AC power output: Chassis connector Neutrik PowerCon, B-type, NAC3MPB
Rigging
Mounting points: pair of 1/4-turn locks
Mounting horizontally or vertically via Omega bracket
Temperatures
Maximum ambient temperature : 45° C Maximum housing temperature : 80° C
Distances
Min. distance from ammable surfaces: 0.4 m Min. distance of illuminated objects: 0.8 m
Total heat dissipation
750 BTU/h (calculated)
Weight:
5.7 kg

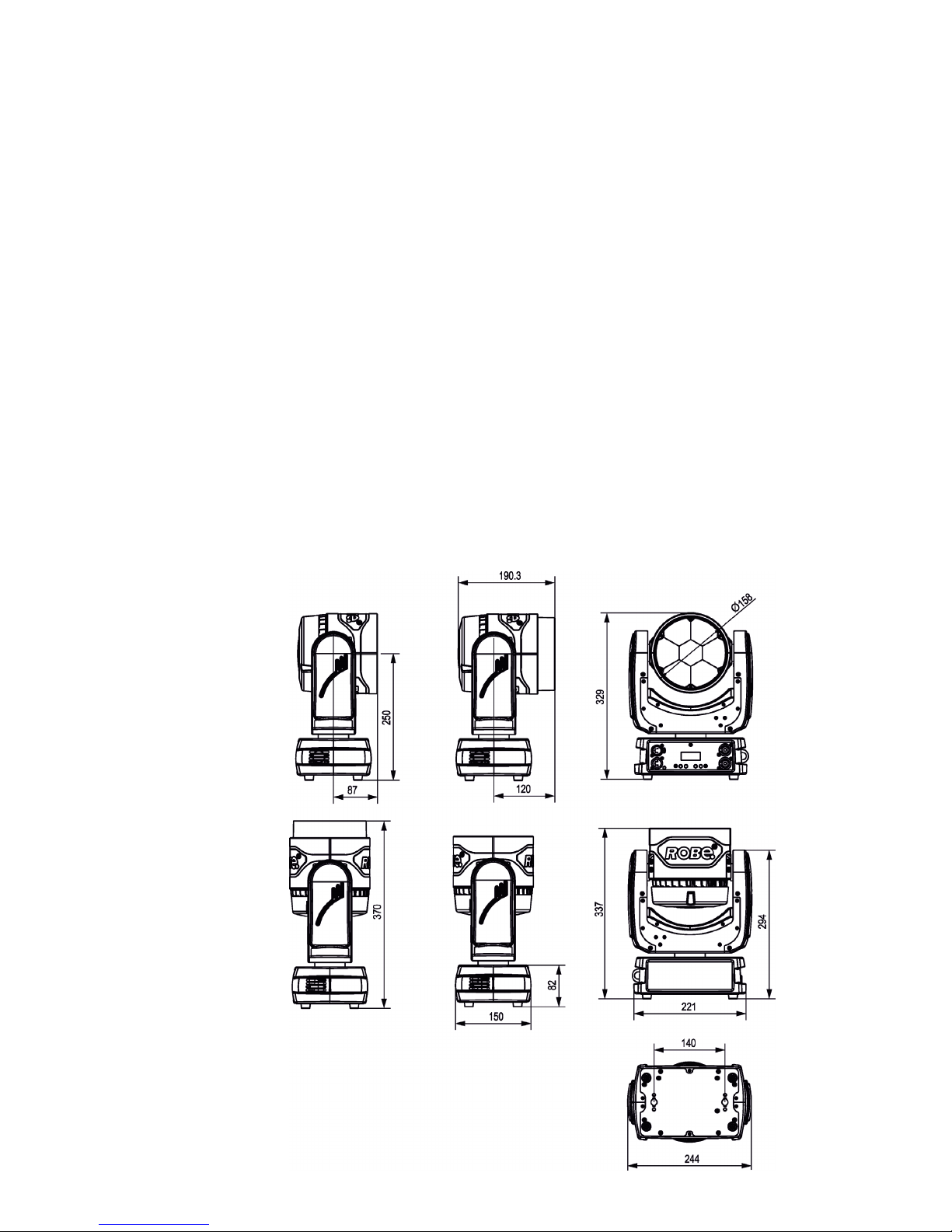

Dimensions (mm)
Page 21
21
Accessories
1x Mounting bracket Omega CL assembled (P/N 99010420)
Optional accessories
(P/N 10980127) Robe Wireless CRMX-LB100 (P/N1305 1731) Mains Cable PowerCon In/open ended, 2m (P/N 1305 1724) Mains Cable PowerCon In/Schuko, 2m (P/N 1305 1725) Mains Cable PowerCon In/CEE 16A, 2m (P/N 1305 1726) Mains Cable PowerCon In/US, 2m (P/N 1305 1727) Daisy Chain PowerCon In/Out, EU, 2m (P/N 1305 1728 ) Daisy Chain PowerCon In/Out, US, 2m
(P/N 10980346 ) EggCrate for Robin LEDBeam 150
9. Maintenance and cleaning
DANGER !
Disconnect from the mains before starting any
maintenance work
A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances should solvents be used!
Never use solvents for cleaning lenses in the moving head!
It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life.
Lenses may require monthly cleaning as smoke-uid tends to building up residues, reducing the light output very quickly. The cooling fans should be cleaned according to the situation (at least annually). The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet.
More complicated maintenance and service operations are only to be carried out by authorized distributors.
Page 22
22
9.1 Replacing fuse
1.Replace the fuse by a fuse of the same type and rating only.
Before replacing the fuse, unplug mains lead!
2. Remove the plastic covers of the base (3) by unscrewing 5 fastening screws (1) and (2) on each cover.
3. Unscrew four screws (4) on the top chassis (5). Lay down the xture and unscrew four screws (6) on the bottom plate (9) to push out inside module of the base.
4. Unscrew two screws (8) on the bottom plate to remove rear panel of the xture (7).
5. Now you have access for the fuse holder (10) in the inside module of the base.
6. Remove the old fuse from the fuseholder.
7. Install the new fuse into the fuseholder.
8. Assemble the base of the xture.
Page 23
23

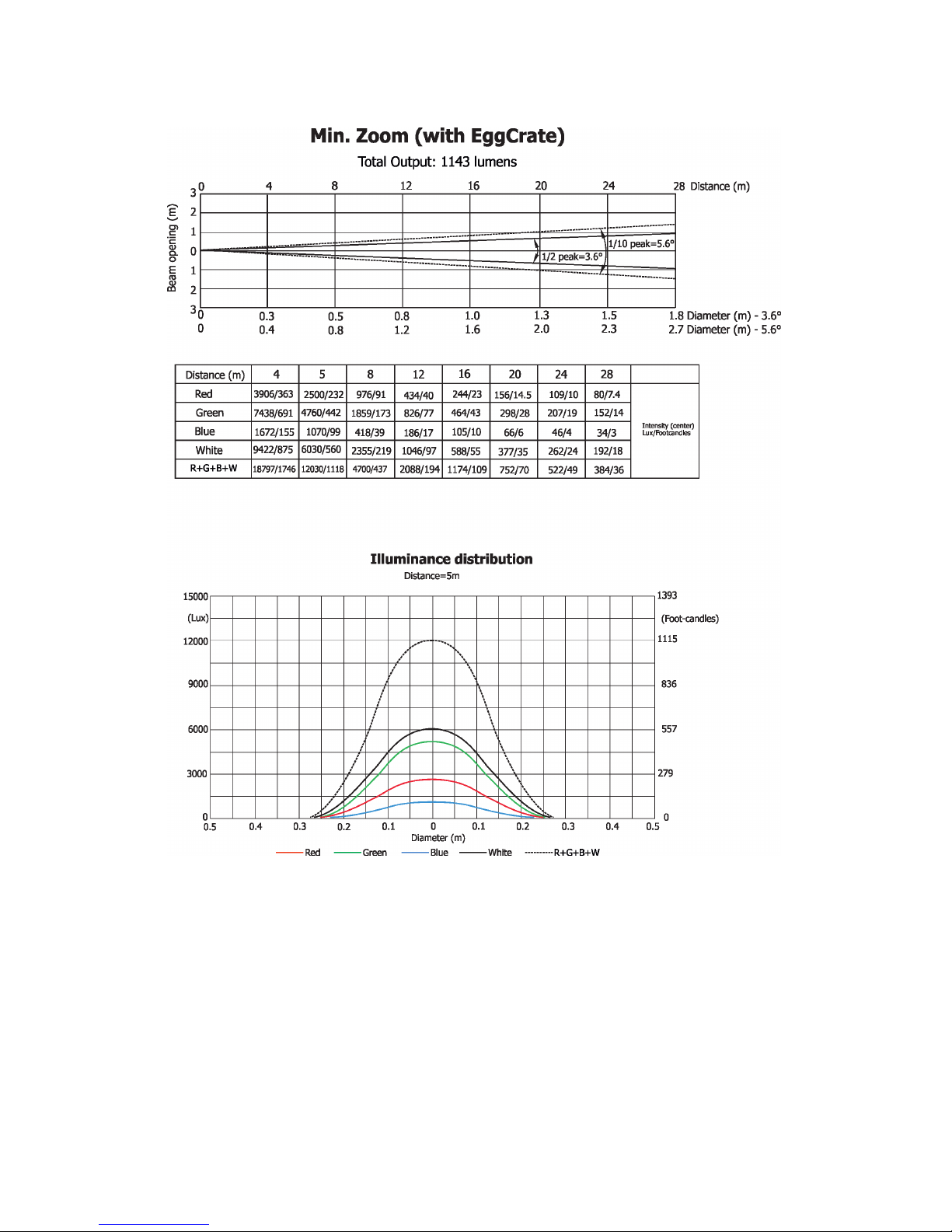

10. Photometric diagrams
Page 24
24
Page 25
25
Page 26
26
June 6, 2017 Copyright © 2017 Robe Lighting - All rights reserved
All Specications subject to change without notice Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic
11. ChangeLog
This section summarizes all types of changes in the user manual.
Version of the
manual
Date of issue Description of changes
1.1 05/05/2017 EggCrate installation added, DMX protocol ver.1.1
1.2 07/06/2017 Quiet mode for fan in menu Personality, DMX protocol ver. 1.2
Page 27
DMX protocol
1
2
1 1
Pan (8 bit)
0 - 255 Pan movement by 540° (128=default) proportional
2 2
Pan Fine (16 bit)
0 - 255 Fine control of pan movement (0=default) proportional
3 3
Tilt (8 bit)
0 - 255 Tilt movement by 228° (128=default) proportional
4 4
Tilt fine (16 bit)
0 - 255 Fine control of tilt movement (0=default) proportional
5 5
Pan/Tilt speed , Pan/Tilt time
0 Max. speed -tracking mode (0=default) step
Pan/Tilt speed
1 - 255 Speed from max. to min. (vector mode) proportional
Pan/Tilt time
1 - 255 Time from 0.1 s to 25.5 sec. proportional
6 6
Power/Special functions
0 -19 Reserved (0=default)
To activate following functions, stop in DMX value for at least 3 s
and shutter must be closed at least 3 sec. („Shutter,Strobe” channel 20/15 must be at range: 0-31 DMX). Corresponding menu items are temporarily overriden.
20-24
Display ON
step
25-29
Display OFF
step
30-34
RGBW colour mixing mode
step
35-39
CMY colour mixing mode
step
40-44 Pan/Tilt speed mode step
45 - 49 Pan/Tilt time mode step
50 -54 Blackout while pan/tilt moving step
55 -59 Disabled blackout while pan/tilt moving step 60 - 64 Dimmer curve - square law step 65 - 69 Dimmer curve - linear step 70 - 74
Fans mode: Auto
step
75 - 79
Fans mode: High
step
80-84
White point 8000K ON
step
85-89
White point 8000K OFF
step
90-94
Fans mode: Quiet
step
95 -129
Reserved
To activate following functions, stop in DMX value for at least 3
seconds.
130 - 139 Reserved 140 - 149 Pan/Tilt reset step 150 - 159 Zoom reset step 160 - 169 Reserved step
Tungsten effect simulution for whites 2700K and 3200K
170-171 Tungsten effect simulation (750W) On step 172-173 Tungsten effect simulation (1000W) On step 174-175 Tungsten effect simulation (1200W) On step 176-177 Tungsten effect simulation (2000W) On step
Robin LedBeam 150 - DMX protocol
Version: 1.2 Mode 1-Standard 16-bit, Mode 2 -Reduced 8-bit
Mode/channel
DMX
Value
Function
Type of control
Page 1
Page 28
DMX protocol
1
2
Mode/channel
DMX
Value
Function
Type of control
178-179 Tungsten effect simulation (2500W) On step 180-181 Tungsten effect simulation Off step
182-199 Reserved 200 - 209 Total fixture reset step 210 - 255 Reserved
7 7
Virtual colour wheel
0 No function (0=default) step
1-2
Filter 4 (Medium Bastard Amber)
step
3-4
Filter 25 (Sunset Red)
step
5-6
Filter 19 (Fire)
step
7-8
Filter 26 (Bright Red)
step
9-10
Filter 58 (Lavender)
step
11-12
Filter 68 (Sky Blue)
step
13-14
Filter 36 (Medium Pink)
step
15-16
Filter 89 (Moss Green)
step
17-18
Filter 88 (Lime Green)
step
19-20
Filter 90 (Dark Yellow Green)
step
21-22
Filter 49 (Medium Purple)
step
23-24
Filter 52 (Light Lavender)
step
25-26
Filter 102 (Light Amber)
step
27-28
Filter 103 (Straw)
step
29-30
Filter 140 (Summer Blue)
step
31-32
Filter 124 (Dark Green)
step
33-34
Filter 106 (Primary Red)
step
35-36
Filter 111 (Dark Pink)
step
37-38
Filter 115 (Peacock Blue)
step
39-40
Filter 126 (Mauve)
step
41-42
Filter 117 (Steel Blue)
step
43-44
Filter 118 (Light Blue)
step
45-46
Filter 122 (Fern Green)
step
47-48
Filter 182 (Light Red)
step
49-50
Filter 121 (Filter Green)
step
51-52
Filter 128 (Bright Pink)
step
53-54
Filter 131 (Marine Blue)
step
55-56
Filter 132 (Medium Blue)
step
57-58
Filter 134 (Golden Amber)
step
59-60
Filter 135 (Deep Golden Amber)
step
61-62
Filter 136 (Pale Lavender)
step
63-64
Filter 137 (Special Lavender)
step
65-66
Filter 138 (Pale Green)
step
67-68
Filter 798 (Chrysalis Pink)
step
69-70
Filter 141 (Bright Blue)
step
71-72
Filter 147 (Apricot)
step
73-74
Filter 148 (Bright Rose)
step
75-76
Filter 152 (Pale Gold)
step
77-78
Filter 154 (Pale Rose)
step
79-80
Filter 157 (Pink)
step
81-82
Filter 143 (Pale Navy Blue)
step
83-84
Filter 162 (Bastard Amber)
step
Page 2
Page 29
DMX protocol
1
2
Mode/channel
DMX
Value
Function
Type of control
85-86
Filter 164 (Flame Red)
step
87-88
Filter 165 (Daylight Blue)
step
89-90
Filter 169 (Lilac Tint)
step
91-92
Filter 170 (Deep Lavender)
step
93-94
Filter 172 (Lagoon Blue)
step
95-96
Filter 194 (Surprise Pink)
step
97-98
Filter 180 (Dark Lavender)
step
99-100
Filter 181 (Congo Blue)
step
101-102
Filter 197 (Alice Blue)
step
103-104
Filter 201 (Full C.T. Blue)
step
105-106
Filter 202 (Half C.T. Blue)
step
107-108
Filter 203 (Quarter C.T. Blue)
step
109-110
Filter 204 (Full C.T. Orange)
step
111-112
Filter 219 (Fluorescent Green)
step
113-114
Filter 206 (Quarter C.T. Orange)
step
115-116
Filter 247 (Filter Minus Green)
step
117-118
Filter 248 (Half Minus Green)
step
119-120
Filter 281 (Three Quarter C.T. Blue)
step
121-122
Filter 285 (Three Quarter C.T. Orange)
step
123-124
Filter 352 (Glacier Blue)
step
125-126
Filter 353 (Lighter Blue)
step
127-128
Filter 507 (Madge)
step
129-130
Filter 778 (Millennium Gold)
step
131-132
Filter 793 (Vanity Fair)
step
133-235 Raw DMX proportional
236-245 Rainbow effect (with fade time) from slow-> fast proportional
246-255 Rainbow effect (without fade time) from slow-> fast proportional
8 8
Red/Cyan (8 bit)*
0 - 255 Colour saturation control - coarse 0-100% (255=default) proportional
9 *
Red/Cyan (16bit)*
0 - 255 Colour saturation control - fine (255=default) proportional
10 9
Green/Magenta (8 bit) *
0 - 255 Colour saturation control - coarse 0-100% (255=default) proportional
11 *
Green/Magenta (16bit) *
0 - 255 Colour saturation control - fine (255=default) proportional
12 10
Blue/Yellow (8 bit) *
0 - 255 Colour saturation control - coarse 0-100% (255=default) proportional
13 *
Blue/ Yellow (16bit) *
0 - 255 Colour saturation control - fine (255=default) proportional
14 11
White (8 bit)
If RGBW mode is selected:
0-255 Colour saturation control - coarse 0-100% (255=default) proportional
If CMY mode is selected:
0 - 255 No function
15 *
White (16 bit)
0 - 255 Colour saturation control - fine (255=default) proportional
16 12
CTC
If function "White Point 8000K" is ON
0-255 Col. temperature correction from 8000K to 2700K -for whites only proportional
Page 3
Page 30
DMX protocol
1
2
Mode/channel
DMX
Value
Function
Type of control
(0=8000K, 64=5600K, 128=4200K, 192=3200K, 255=2700K)
To get colour temperatures stated above, RGBW channels have to
be set at the same value e.g. 255DMX (0=default)
(To activate Tungsten effect at 2700K and 3200K , set DMX value at
"Power/Special functions" channel)
If function "White Point 8000K" is OFF
0-255 Colour temperature correction for from cool white to 2700K proportional
17 13
Colour Mix control
Defines relation between colour channels
"Virtual" = Virtual Colours (Virtual Colour Wheel) "Colour mix" = Colour channels (RGBW/CMY)
0-9 Virtual colors ("Virtual" has priority) step 10-19 Maximum mode (highest values have priority) step 20-29 Minimum mode (lowest values have priority) step 30-39 Multiply mode (multiply Virtual and Colour Mix) step 40-49 Addition mode (Virtual + Colour mix) (45=default) step 50-59 Subtraction mode (Virtual – Colour mix) step 60-69 Inverted Subtraction mode (Virtual – Colour mix) step
70-128 Reserved
129 Virtual colors (virtual has priority) step
130-254 Crossfade (crossfade between Virtual and Colour mix) proportional
255 Colour channels ("Colour mix" has priority) step
18 14
Zoom
0-255 Zoom from max. to min.beam angle (128=default) proportional
19 *
Zoom - fine
0-255 Fine zooming (0=default) proportional
20 15
Shutter/ strobe
0 - 31 Shutter closed step
32 - 63 Shutter open (32=default) step 64 - 95 Strobe-effect from slow to fast proportional
96 - 127 Shutter open step 128 - 143 Opening pulse in sequences from slow to fast proportional 144 - 159 Closing pulse in sequences from fast to slow proportional 160 - 191 Shutter open step 192 - 223 Random strobe-effect from slow to fast proportional 224 - 255 Shutter open step
21 16
Dimmer intensity (8 bit)
0 - 255 Dimmer intensity from 0% to 100% (0=default) proportional
22 *
Dimmer intensity - fine (16 bit)
0 - 255 Fine dimming (0=default) proportional
*Select RGB or CMY mixing mode on channel "Power/Special functions" .
Copyright © 2017 Robe Lighting s.r.o. - All rights reserved
All Specifications subject to change without notice
Page 4
Page 31
Colour name
Red
(DMX)
Green
(DMX)
Blue
(DMX)
White (DMX)
Filter 4 (Medium Bastard Amber)
255
1180109
Filter 25 (Sunset Red)
255470
3
Filter 19 (Fire)
255130
0
Filter 26 (Bright Red)
25500
0
Filter 58 (Lavender)
117097
155
Filter 68 (Sky Blue)
31
219
105
6
Filter 36 (Medium Pink)
255748
24
Filter 89 (Moss Green)
69
24503
Filter 88 (Lime Green)
187
22600
Filter 90 (Dark Yellow Green)
2
25500
Filter 49 (Medium Purple)
255027
0
Filter 52 (Light Lavender)
232886
166
Filter 102 (Light Amber)
223
16400
Filter 103 (Straw)
191
144028
Filter 140 (Summer Blue)
0
1493220
Filter 124 (Dark Green)
29
255012
Filter 106 (Primary Red)
24211
0
Filter 111 (Dark Pink)
2556711
49
Filter 115 (Peacock Blue)
0
2552943
Filter 126 (Mauve)
255039
0
Filter 117 (Steel Blue)
179
25514197
Filter 118 (Light Blue)
0
2557630
Filter 122 (Fern Green)
98
25504
Filter 182 (Light Red)
255162
0
Filter 121 (Filter Green)
165
25500
Filter 128 (Bright Pink)
255013
32
Filter 131 (Marine Blue)
73
2452730
Filter 132 (Medium Blue)
0
230
120
0
Filter 134 (Golden Amber)
166830
0
Filter 135 (Deep Golden Amber)
255500
0
Filter 136 (Pale Lavender)
140
1012540
Filter 137 (Special Lavender)
1106045
102
Filter 138 (Pale Green)
241
255448
Filter 798 (Chrysalis Pink)
49098
26
Filter 141 (Bright Blue)
0
225625
Filter 147 (Apricot)
190
107015
Filter 148 (Bright Rose)
25530
37
Filter 152 (Pale Gold)
179
119039
Filter 154 (Pale Rose)
214
118048
Filter 157 (Pink)
255565
43
Filter 143 (Pale Navy Blue)
0
19367148
Filter 162 (Bastard Amber)
211
153636
Filter 164 (Flame Red)
255270
4
Filter 165 (Daylight Blue)
23
2369381
Filter 169 (Lilac Tint)
185
1230109
Filter 170 (Deep Lavender)
235
1234137
Filter 172 (Lagoon Blue)
0
255635
Robin LEDBeam 150/Parfect 150 - colours on Virtual Colour Wheel
1
Page 32
Colour name
Red
(DMX)
Green
(DMX)
Blue
(DMX)
White (DMX)
Filter 194 (Surprise Pink)
110021
255
Filter 180 (Dark Lavender)
13643181
120
Filter 181 (Congo Blue)
240255
9
Filter 197 (Alice Blue)
79
193
154
36
Filter 201 (Full C.T. Blue)
153
22366156
Filter 202 (Half C.T. Blue)
255
24834116
Filter 203 (Quarter C.T. Blue)
245
21314147
Filter 204 (Full C.T. Orange)
230
13133
Filter 219 (Fluorescent Green)
99
1481650
Filter 206 (Quarter C.T. Orange)
199
152060
Filter 247 (Filter Minus Green)
255790
187
Filter 248 (Half Minus Green)
255
1380112
Filter 281 (Three Quarter C.T. Blue)
225
25599189
Filter 285 (Three Quarter C.T. Orange)
181
121015
Filter 352 (Glacier Blue)
0
1614990
Filter 353 (Lighter Blue)
0
1152197
Filter 507 (Madge)
255310
0
Filter 778 (Millennium Gold)
255650
0
Filter 793 (Vanity Fair)
255013
16
2
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
