Robin CycPix 12
User Manual
29 pgs1.78 Mb0

Robe Robin CycPix 12 User Manual

Download
Page 1
Version 1.3
Page 2
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Installation .................................................................................................................................................................. 5
3.1 Rigging the fixture ................................................................................................................................................. 5
3.2 Connection to the mains ...................................................................................................................................... 7
3.3 DMX 512 connection ............................................................................................................................................ 7
3.4 Wireless DMX operation ....................................................................................................................................... 8
4. Robin CycPix 12 - DMX protocol ................................................................................................................................. 9
5. Control menu map .................................................................................................................................................... 16
6. Control menu ............................................................................................................................................................ 19
6.1 Addressing (DMXA) ............................................................................................................................................. 19
6.2 Fixture information (Info) ................................................................................................................................... 19
6.3 Personality (Pers) ................................................................................................................................................ 20
6.4 Manual Control (Manual) ................................................................................................................................... 20
6.5 Test program (Test Prg) ...................................................................................................................................... 21
6.6 Stand-alone (St Alone) ........................................................................................................................................ 21
6.7 Reset ................................................................................................................................................................... 21
6.8 Special functions (Special) .................................................................................................................................. 22
7. RDM .......................................................................................................................................................................... 23
8. Technical specifications ............................................................................................................................................ 24
9. Cleaning and maintenance ....................................................................................................................................... 28
9.1 Replacing a fuse .................................................................................................................................................. 28
9.2 Disposing of the product .................................................................................................................................... 28
Page 3
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Robin CycPix 12!
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device is for professional use only. It is not for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear side of the fixture. This fixture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company.
WARNING! The unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the unit.
Do not overload wall outlets and extension cords as this can result in fire or electric shock.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord from time to time.
Do not install the unit near naked flames.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with a protective earthing connection.
Do not connect this fixture to a dimmer pack.
Warning! Risk Group 2 LED product according to EN 62471
LED light emission. Risk of eye injury.Do not look straight at the fixture´s LEDs during operation. The intense
light beam may damage your eyes. The light source contains blue LEDs.
Keep compustible materials away from the fixture.
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
Page 4
4
Avoid brute force when installing or operating the fixture.
This device is for professional use only. It is not for household use.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Do not block the front covering glass with any object when the fixture is under operation. The fixture body never must be covered with cloth or other materials.
Always fix the fixture with an appropriate safety cable. Fix the safety cable at the anchor point.
The fixture becomes very hot during operation. Allow the fixture to cool approximately 30 minutes prior to manipulate with it.
Operate the fixture only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the fixture. Most damages are the result of unprofessional operation!
Do not attempt to dismantle or modify the unit.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short­circuit, burns, electric shock etc.
Page 5
5
2. Fixture exterior view
3. Installation
3.1 Rigging the fixture
The Robin CycPix 12 can be rigged in any orientation on a truss without altering its operation characteristics. For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. You must only use safety cable with screw-on carbine. Use the safety wire anchor point for safety cable attachment for this fixture.
Ensure that the structure (truss) to which you are attaching
the fixture is secure.
For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times
the wight of the fixture
Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the device and consult installation with an expert.
1.
Head locks
2. LED zone
3. Head
4. Bracket
5. Sockets for ¼- turn locks
6. DMX IN
/Out
7. Display
8. Power OUT
9. Power IN
10. Control buttons
11. Anchor point for safety cable
Page 6
6
Truss installation
1. Bolt clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the omega holder.
2. Fasten the omega holder to the bracket of the CycPix 12 by inserting both ¼ turn quick locks (3) into the holes of the bracket and tighten fully clockwise.
3. Clamp the fixture on a truss (5) and tighten the rigging clamps.
4. Pull a safety wire (4) around the truss (5) and lock the screw-on carabine through attachment point (6) as shown on the picture below.
.
1- Clamp 4- safety wire 2- Omega holder 5- truss 3- ¼ turn quick locks 6- attachment point
For a floor installation, you can use a stand with ¼ turn quick locks. Please, keep correct position of the fixture towards the stand to ensure sufficient stability of the composition fixture-stand.
Page 7
7
3.2 Connection to the mains
Fixtures must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
If you install a cord cap on the power cable to allow connection to power outlets, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions. The cores in the power cable are coloured according to the following table
.
C
ore (Eu) C
ore (US) Connection
Plug Terminal Marking
Brown
Black
Live L
Light blue
White
Neutral
N
Yellow/Green Green Earth
, GND, PE
This device falls under class one and must be grounded!
Design of the Robin CycPix 12 allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specifications “ The max. number of connected fixtures depends on the AC mains power voltage and fixture version: EU version (CE) US version (cETLus) 21 fixtures at power supply= 230V 12 fixtures at power supply= 230V 19 fixtures at power supply= 208V 11 fixtures at power supply= 208V 11 fixtures at power supply= 120V 6 fixtures at power supply= 120V
Actual numbers of fixtures may differ from values stated above as you have to take into account the length of supply cables, circuit breaker etc. at projecting of the fixtures installation. Do not overload the supply line and the connecting leads. Wiring and connection work must be carried out by qualified staff!
3.3 DMX 512 connection
The fixture is equipped with 3-pin and 5-pin XLR connectors for DMX input/output. Only use a shielded twisted­pair cable designed for RS-485 and 3-pin/5-pin XLR- connectors in order to connect the controller with the fixture or one fixture with another.
Wiring of the XLR connectors: DMX input DMX output XLR socket: XLR plug
1
– Shield
2
- Signal (-)
3
- Signal (+)
4
– Not connected
5
– Not connected
To build a DMX chain
1. Connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain.
2. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture.
3. Always connect the DMX output with the input of the next fixture until all fixtures are connected.
Do not overload the link. Max. 32 fixtures may be connected on a DMX link.
Page 8
8
Warning for outdoor operation!
Fixture´s XLR connectors are dust and water protected according to IP 65 by mating with related X-HD cable connectors. They cannot stay disconnected outdoor. DMX output connector (XLR female) at the last fixture in a DMX line has to be covered with the rubber cap before inserting a terminator. The rubber cap does not supply the terminator. The XLR terminator (male) has to be dust and water protected.
If the fixture is to be outdoor without connecting to DMX line, always interconnect its DMX input with DMX output to keep declared IP rating of XLR connectors.
Caution: Terminate the link by installing a termination plug in the output of the last fixture. The termination plug is a 5-pin XLR male plug with a 120 Ohm resistor soldered between Signal (–) and Signal (+).
3.4 Wireless DMX operation
The wireless version of the Robin CycPix 12 (Robin CycPix 12/W) is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.
1. Select wireless DMX input from the menu PErS (PErS-->dMX In.-->Wireless).
2. To link the fixture with DMX transmitter.
The fixture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Wireless--> Stat).
3. To unlink the fixture from DMX transmitter.
The fixture can be unlinked from receiver via the menu item “Unlink“ (Special-->Wireless-->Unlink).
Page 9
9
4. Robin CycPix 12 - DMX protocol
Version 1.1
Mode 1 - Standard 16 bit, Mode 2 - Reduced 8 bit, Mode 3 - Extended 16bit +RGB pixels, Mode 4 - Extended 16bit + RGBD pixels
Mode/Channel
Value Function Type of
control
1 2
3 4
1 1 1 1
0-19
20-24 25-29 30-39 40-49 50-59 60-69 70-89
90-99 100-109 110-119 120-129 130-179
180-189 190-255
Special functions
Reserved
To activate following functions , stop in DMX value for at least 3 sec. and shutter must be closed at least 3 sec. (Shutter channel 11/16 must be at range of 0-31 DMX). Corresponding menu items are temporily overrided
Display On Display Off RGBW colour mixing mode CMY colour mixing mode Colour calibration mode On Colour calibration mode Off Reserved Dimmer curve: linear Dimmer curve: square law White counting On White counting Off Reserved
To activate zoom reset function, stop in DMX value for at least 3 sec.
Zoom reset Reserved
step step step step step step
step step step step
step
2 2 2 2
0-255
Red (Cyan) coarse
- all pixels
Red LEDs saturation control (0-100%)
proportional
3 - 3 3
0-255
Red (Cyan) fine
- all pixels
Red LEDs saturation fine control min.—>max.
proportional
4 3 4 4
0-255
Green (Magenta) coarse
- all pixels
Green LEDs saturation control (0-100%)
proportional
5 - 5 5
0-255
Green (Magenta) fine
- all pixels
Green LEDs saturation fine control min.—>max.
proportional
6 4 6 6
0-255
Blue (Yellow) coarse
- all pixels
Blue LEDs saturation control (0-100%)
proportional
7 -
7
7
0-255
Blue (Yellow) fine
- all pixels
Blue LEDs saturation fine control min.—>max.
proportional
8 5 8 8
0-255
White coarse (RGBW mode only)
- all pixels
White LEDs saturation control (0-100%)
proportional
9 - 9 9
0-255
White fine (RGBW mode only)
- all pixels
White LEDs saturation fine control min.—>max.
proportional
Page 10
10
10 6 10 10
0
1-255
CT0
(
All pixels
)
No function
Colour temperature correction
step
proportional
11 7 11 11
0
1-2
3
4-5
6
7-9 10-12 13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 - 246
247 248-251 252-255
Virtual c
olour
wheel (All pixels)
No function White 2700 K White 2700 K (tungsten emulation)* White 3200 K White 3200 K (tungsten emulation)* White 4200 K White 5600 K White 8000 K Blue (Blue=full, Red+Green+White=0) Red=0, Greenup,Blue =full, White=0 Light Blue
(Red=0, Green=full, Blue =full, white=0)
Red=0, Green=full, Bluedown, White=0 Green (Red=0, Green=full, Blue =0, White=0) Redup, Green=full, Blue=0, White=0 Yellow
(Red=full, Green=full, Blue=0,White=0)
Red=full, Greendown, Blue=0, White=0 Red(Red=full, Green=0, Blue=0, White=0) Red=full, Green=0, Blueup, White=0 Magenta
(Red=full, Green=0, Blue=full, White=0)
Reddown, Green=0, Blue=full, White=0 Blue (Red=0, Green=0, Blue=full, White=0) Rainbow effect
( with fade time)
from min.->max. s
peed
Rainbow
effect(without fade time)from min
.->
max.speed
step step step step step step step step step proportional step proportional step proportional step proportional step proportional step proportional step proportional proportional
12 8 12 12
0-2 3-4 5-6
: 181-182 183-255
Pixel effects
(see table below DMX chart)
No function Effect 1 Effect 2 : Effect 90 Reserved
step step : step
13 9 13 13
0-63
64-127 128-191 192-255
Pixel effects speed
Speed from min. —>max. without fade time
Speed from max. —>min. without fade time (op. direction)
Speed from min. —>max. with fade time Speed from max. —>min. with fade time
(op. direction)
proportional proportional proportional proportional
14 10 14 14
0-255
Zoom
coarse
Zoom from min. to max. beam angle
proportional
15 - 15 15
0-255
Zoom fine
Fine zooming from min.—>max.
proportional
16 11 16 16
0-31 32-63 64-95
Shutter/ Strobe
(All pixels)
Shutter closed Shutter open Strobe-effect from slow to fast
step step
proportional
Page 11
11
96-127
128-143 144-159 160-191 192-223 224-255
Shutter open
Opening pulses in sequences slow--> fast Closing pulses in sequences fast --> slow Shutter open Random strobe-effects from slow to fast Shutter open
step
proportional proportional
step
proportional
step
17 12 17 17
0 - 255
Dimmer
coarse (All pixels)
Dimmer intensity from 0% to 100%
proportional
18 - 18 18
0 - 255
Dimmer
fine (All pixels)
Dimmer intensity from min.—>max.
proportional
- - 19 19 0-255
Red pixel 1
Red LED saturation control (0-100%)
proportional
- - 20 20 0-255
Green
pixel
1
Green LED saturation control (0-100%)
proportional
- - 21 21 0-255
Blue
pixel 1
Blue LED saturation control (0-100%)
proportional
- - - 22 0-255
Dimmer 1
Dimmer intensity from 0% to 100%
proportional
- - 22 23 0-255
Red pixel 2
Red LED saturation control (0-100%)
proportional
- -
23
24
0-255
Green
pixel 2
Green LED saturation control (0-100%)
proportional
- -
24
25
0-255
Blue
pixel 2
Blue LED saturation control (0-100%)
proportional
- - - 26 0-255
Dimmer 2
Dimmer intensity from 0% to 100%
proportional
- - 25 27 0-255
Red pixel 3
Red LED saturation control (0-100%)
proportional
- - 26 28 0-255
Green
pixel 3
Green LED saturation control (0-100%)
proportional
- - 27 29 0-255
Blue
pixel 3
Blue LED saturation control (0-100%)
proportional
- - - 30 0-255
Dimmer 3
Dimmer intensity from 0% to 100%
proportional
- - 28 31 0-255
Red pixel 4
Red LED saturation control (0-100%)
proportional
- - 29 32 0-255
Green
pixel 4
Green LED saturation control (0-100%)
proportional
- - 30 33 0-255
Blue
pixel 4
Blue LED saturation control (0-100%)
proportional
Page 12
12
- - - 34 0-255
Dimmer 4
Dimmer intensity from 0% to 100%
proportional
- - 31 35 0-255
Red pixel 5
Red LED saturation control (0-100%)
proportional
- - 32 36 0-255
Green
pixel 5
Green LED saturation control (0-100%)
proportional
- - 33 37 0-255
Blue
pixel 5
Blue LED saturation control (0-100%)
proportional
- - - 38 0-255
Dimmer 5
Dimmer intensity from 0% to 100%
proportional
- - 34 39 0-255
Red pixel 6
Red LED saturation control (0-100%)
proportional
- - 35 40 0-255
Green
pixel 6
Green LED saturation control (0-100%)
proportional
- - 36 41 0-255
Blue
pixel 6
Blue LED saturation control (0-100%)
proportional
- - - 42 0-255
Dimmer 6
Dimmer intensity from 0% to 100%
proportional
- - 37 43 0-255
Red pixel 7
Red LED saturation control (0-100%)
proportional
- - 38 44 0-255
Green
pixel 7
Green LED saturation control (0-100%)
proportional
- - 39 45 0-255
Blue
pixel 7
Blue LED saturation control (0-100%)
proportional
- - - 46 0-255
Dimmer 7
Dimmer intensity from 0% to 100%
proportional
- - 40 47 0-255
Red pixel 8
Red LED saturation control (0-100%)
proportional
- - 41 48 0-255
Green
pixel 8
Green LED saturation control (0-100%)
proportional
- - 42 49 0-255
Blue
pixel 8
Blue LED saturation control (0-100%)
proportional
- - - 50 0-255
Dimmer
8
Dimmer intensity from 0% to 100%
proportional
- - 43 51 0-255
Red pixel 9
Red LED saturation control (0-100%)
proportional
- - 44 52 0-255
Green
pixel 9
Green LED saturation control (0-100%)
proportional
- - 45 53 0-255
Blue
pixel 9
Blue LED saturation control (0-100%)
proportional
Page 13
13
- - - 54 0-255
Dimmer 9
Dimmer intensity from 0% to 100%
proportional
- - 46 55 0-255
Red pixel 10
Red LED saturation control (0-100%)
proportional
- - 47 56 0-255
Green
pixel 10
Green LED saturation control (0-100%)
proportional
- - 48 57 0-255
Blue
pixel 10
Blue LED saturation control (0-100%)
proportional
- - - 58 0-255
Dimmer 10
Dimmer intensity from 0% to 100%
proportional
- - 49 59 0-255
Red pixel 11
Red LED saturation control (0-100%)
proportional
- - 50 60 0-255
Green
pixel 11
Green LED saturation control (0-100%)
proportional
- - 51 61 0-255
Blue
pixel 11
Blue LED saturation control (0-100%)
proportional
- - - 62 0-255
Dimmer 11
Dimmer intensity from 0% to 100%
proportional
- - 52 63 0-255
Red pixel 12
Red LED saturation control (0-100%)
proportional
- - 53 64 0-255
Green
pixel 12
Green LED saturation control (0-100%)
proportional
- - 54 65 0-255
Blue
pixel 12
Blue LED saturation control (0-100%)
proportional
- - - 66 0-255
Dimmer 12
Dimmer intensity from 0% to 100%
proportional
*Halogen lamp effect during dimming
Colour channels priority:
1. Pixel effects channel
2. Virtual colour wheel channel
3. RGBW ALL PIXELS channels
4. If some colour from RGBW ALL PIXELS is set at 0 DMX, this colour can be set individually on each pixel 1-12 using R1G1B1….R12G12B12.

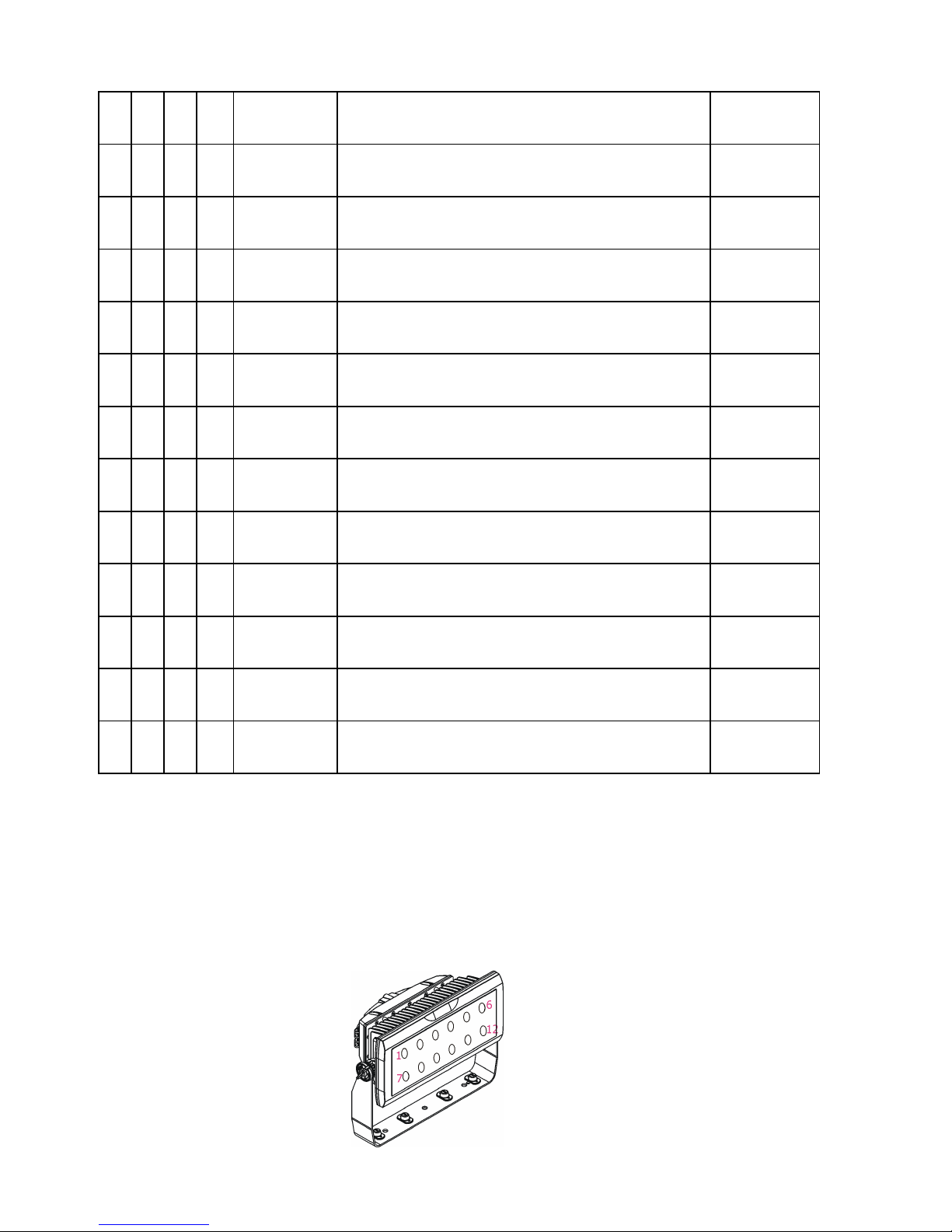

Pixel order:
Page 14
14
Pixel effects
DMX value
Effect
Type of
Control
0-2 No function
Step
3-4 Effect 1
Step
5-6 Effect
2 Step
7-8 Effect
3
Step
9-10 Effect
4
Step
11-12 Effect
5
Step
13-14 Effect
6
Step
15-16 Effect
7
Step
17-18 Effect
8
Step
19-20 Effect
9
Step
21-22 Effect
10
Step
23-24 Effect
11
Step
25-26 Effect
12
Step
27-28 Effect
13
Step
29-30 Effect
14
Step
31-32 Effect
15
Step
33-34 Effect
16
Step
35-36 Effect
17
Step
37-38 Effect
18
Step
39-40 Effect
19 Step
41-42 Effect
20
Step
43-44 Effect
21
Step
45-46 Effect
22
Step
47-48 Effect
23
Step
49-50 Effect
24
Step
51-52 Effect
25
Step
53-54 Effect
26
Step
55-56 Effect
27
Step
57-58 Effect
28
Step
59-60 Effect
29
Step
61-62 Effect
30
Step
63-64 Effect
31
Step
65-66 Effect
32
Step
67-68 Effect
33
Step
69-70 Effect
34
Step
71-72 Effect
35
Step
73-74 Effect
36
Step
75-76 Effect
37
Step
77-78 Effect
38
Step
79-80 Effect
39
Step
81-82 Effect
40
Step
83-84 Effect
41
Step
85-86 Effect
42
Step
87-88 Effect
43
Step
89-90 Effect
44
Step
91-92 Effect
45
Step
93-94 Effect
46
Step
95-96 Effect
47
Step
97-98 Effect
48
Step
99-100 Effect
49
Step
Page 15
15
101-102 Effect
50
Step
103-104 Effect
51
Step
105-106 Effect
52
Step
107-108 Effect
53
Step
109-110 Effect
54
Step
111-112 Effect
55
Step
113-114 Effect
56
Step
115-116 Effect
57
Step
117-118 Effect
58
Step
119-120 Effect
59
Step
121-122 Effect
60
Step
123-124 Effect
61
Step
125-126 Effect
62
Step
127-128 Effect
63
Step
129-130 Effect
64
Step
131-132 Effect
65
Step
133-134 Effect
66
Step
135-136 Effect
67
Step
137-138 Effect
68
Step
139-140 Effect
69
Step
141-142 Effect
70
Step
143-144 Effect
71
Step
145-146 Effect
72
Step
147-148 Effect
73
Step
149-150 Effect
74
Step
151-152 Effect
75
Step
153-154 Effect
76
Step
155-156 Effect
77
Step
157-158 Effect
78
Step
159-160 Effect
79
Step
161-162 Effect
80
Step
163-164 Effect
81
Step
165-166 Effect
82
Step
167-168 Effect
83
Step
169-170 Effect
84
Step
171-172 Effect
85
Step
173-174 Effect
86
Step
175-176 Effect
87
Step
177-178 Effect
88
Step
179-180 Effect
89
Step
181-182 Effect
90 Step
183-
255 Reserved
Page 16
16
5. Control menu map
Default settings=Bold print
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
DMXA
Set DMX
address
001-255
DMX Pres
Mode 1
:
Mode 4
Info
POn Time
Total
Reset
DMX In
Powr
0-
255
:
Dimm
F 0-255
Temp
Current
High Res
Highest
Sw Ver
IC-1
IC-2
IC-3
WL
Pers
DMX Pres
Mode 1
:
Mode 4
DMX In
Wired
Wireless
Display
Turn
On/Off T
On, Off
Contrast
0-
100%
Backlight
0-
100%
C Cal M
On, Off
Page 17
17
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
C Mix M
RGBW
, CMY
Whi Cnt
On,
Off
Dimmer
SqL
Linear
Temp Uni
°C, °F
I Ef Pos
Powr
:
Dimm
F
Store
Defaults
Manual
Powr
:
Dimm F
Test Prg
Sta Alone
Auto Run
Off
Test
User
Pr Play
Test Prg
User Prg
Pr Edit
Step 1
Prg End
: Power
Step 4
0 :
Copy
Reset
Special
RDM
UID RDM L
Page 18
18
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
RDM H
Wireless
Stat
Unlink
Adjust
DMX Val
Powr
0-
255
:
Dimm
F 0-
255
Calib
R C 1
G C 1
B C 1
W C 1
:
R C 12
G C 1
2
B C 1
2
W C 1
2
Store
Load d. C
Sw Upd
On, Off
Page 19
19
6. Control menu
The Robin CycPix 12 is equipped with 2-line LCD display which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, control various range of effects and lastly program it, if it has to be used in a stand-alone mode.

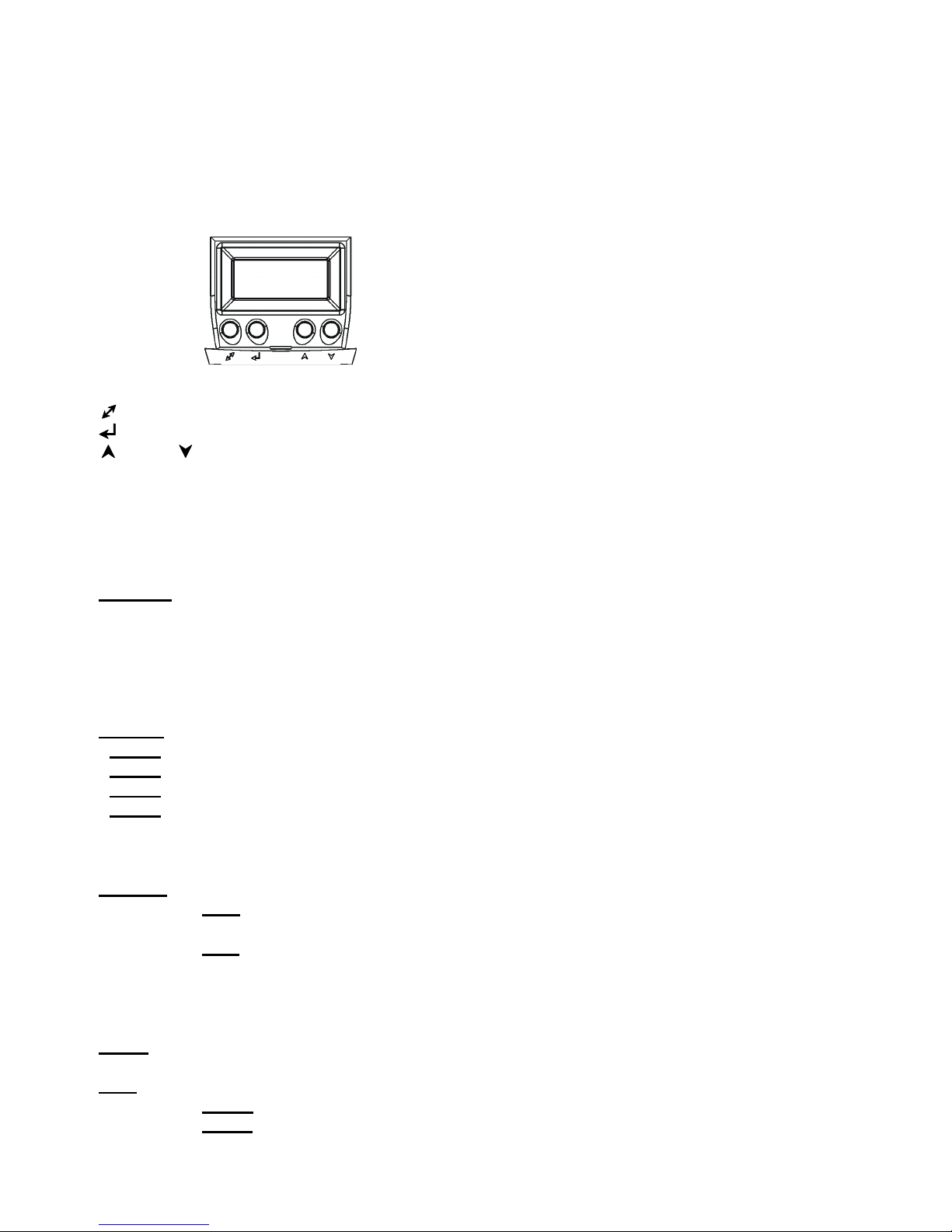

Control board:
The four control buttons on the front have the following functions:
- ESCAPE button-leaves menu without saving changes.
- ENTER button- enters menu, confirms adjusted values and leaves menu.
- UP and - DOWN buttons - move between menu items on the same level, sets values.
After switching the fixture on, display shows current DMX address
.
6.1 Addressing (DMXA)
Set DMXA- Use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the Robin will respond to the DMX controller. Please, be sure that you do not have any overlapping channels in order to control each Robin CycPix 12 correctly and independently from any other fixture on the DMX data link. If there is no data received at the DMX input, the display will start to flash "0001” with actually stored DMX address.
DMX Pres - DMX preset. Use the menu to select desired channel mode. Mode 1 - 18 control channels
Mode 2 - 12 control channels Mode 3 - 54 control channels Mode 4 - 66 control channels
6.2 Fixture information (Info)
POn Time - Power on time. Select this menu to read the number of fixture operation hours. Total - The item shows the total number of the operation hours since
the Robin CycPix 12 has been fabricated. Reset - The item shows the number of the operation hours that the
Robin CycPix 12 has been powered on since the counter was last reset. In order to reset this counter to 0, press and hold both [UP] and [DOWN] buttons and the [Enter] button at the same time.
DMX In - DMX readout. The menu is used to read DMX values of each channel received by the fixture.
Temp
- Temperature. The menu shows temperature in the moving LED head. Current - A current temperature of the moving LED head. Highest - A maximum temperature of the moving LED head since the fixture has been fabricated.
Page 20
20
High Res - A maximum temperature of the the moving LED head since the counter was last reset. In order to reset this counter, press and hold both [UP] and [DOWN] buttons and the [Enter] button at the same time.
Sw Ver - Software versions. Select this item to read version of software in fixture processors (IC-1, IC-2, IC-3,IC4, WL).
6.3 Personality (Pers)
DMX Pres - DMX preset. Use the menu to select desired channel mode. Mode 1 - 18 control channels Mode 2 - 12 control channels Mode 3 - 54 control channels Mode 4 - 66 control channels
DMX In - DMX input.
Use the menu to select mode of receiving DMX signal.
Wired -
DMX signal is received by means of the standard DMX cable.
Wireless - DMX signal is received by means of the inbuilt wireless module (if the module is installed).
Display - Display adjusting. This menu allows you to adjust the display behaviour. Turn - This function rotates menu 180 degrees from current orientation. On/Off T - This function allows you to keep the display permanent on or turn it off two
minutes after last pressing any button on the control panel. Contrast- Use this function to adjust contrast of the display (0-100%). Backlight- Use this function to adjust backlight of the display (0-100%).
C Cal M - Colour calibration mode. If the functin is on, the white output (2700K-8000K) from the fixture (and also mixed colours) is more uniform. Each colour is dynamically corrected according to the value set in the menu "Calibrate Effects" (Special-> Adjust-> Calib).
C Mix M - Colour mixing mode. This item allows switching into RGBW or CMY mode. In the CMY mode, white channels (8-bit and 16-bit) are not active.
Whi Cnt – White counting. If this function is On, the white LED of each pixel lights when a white colour is mixed. The light intensity of the white LED is in a proportion to the intensity of the rest of pixel´s LEDs (red, Green, blue) and improves the white output of the pixel. The function influences “pixel modes” only - DMX mode 3 and 4 (RGBW colour mixing mode has to be set).
Dimer C – Dimmer curve. This menu item allows to set linear (Linear) or square law (SqL) dimmer curve.
Temp Uni - Temperature unit. Use the menu item to change temperature unit from °C to °F.
I Ef Pos - Init effect positions. Use the menu to set all effects to the desired positions at which they will stay after
switching the fixture on without DMX signal connected.
Defaults - The menu item allows to set all fixture parameters to the default (factory) values.
6.4 Manual Control (Manual)
Manual C - Manual control. Use the menu to control all fixture channels by means of the control panel. Displayed menu items depend on selected DMX mode.
Page 21
21
6.5 Test program (Test Prg)
Use this menu item to run a special demo-test sequences without an external controller, which will show you some possibilities of using Robin CycPix 12.
6.6 Stand-alone (St Alone)
Auto Run - Presetting playback. This function allows you to select the program which will be played in the stand­alone mode after switching the fixture on. Selected program will be played continuously in a loop.
Off - The option disables „Auto Run” function.
Test - The option will start built-in test program. User - The option will start user-created program Pr Play - Playing program. Select this menu to run a user-created program in a loop. Test Prg - The option runs built-in test program. User Prg - The option runs user-created program
Select the program you wish and press [ENTER]. The selected program starts running. By Pressing [ENTER] again, program pauses running.
Pr Edit - Editing program. Select this menu to edit or create the program. The Robin CycPix 12 has one built-in program and one user-editable program up to 40 steps. Each program step has a step time during which effects last in the current step. To edit program:
Procedure:
1. Press [UP] or [DOWN] to select the menu "Pr Edit" and press [ENTER].
2. Press [UP] or [DOWN] to select the desired program step and press [ENTER] button.
3. Press [UP] or [DOWN] to select the desired item and press [ENTER] button. Now you can edit by [UP] or [DOWN] buttons the DMX value (0-255) for selected item: Prg End. a total number of the program steps (value 1-40). This value you should be set before starting of programming (e.g. if you want to create program with the 10 steps, set Prg End=10). Stro a strobe/shutter Dimm a dimmer Powr a power/special functions R L 1 a red LED pixel 1 R L A red LEDs (all pixels) G L 1 a green LED pixel 1 G L A green LEDs (all pixels) B L 1 a blue LED pixel 1 B L A blue LEDs (all pixels) Dim 1 a dimmer for pixel 1 W L A white LEDs (all pixels) : : CTO a colour temperature correction R L 12 a red LED pixel 12 Vir C a virtual colour G L 12 a green LED pixel 12 Pix E pixel effects B L 12 a blue LED pixel 12 Pix E pixel effects Dim 12 a dimmer for pixel 12 Px E S a pixel effect speed S.Tm a step time (0-25.5 sec) Zoom a zoom movement COPY copying the current prog. step to the next prog. step
4. Press [ENTER] button to confirm adjusted value .
5. Press [ESCAPE] button, select next prog. step, press [ENTER] button and repeat steps 3 - 5).
6.7 Reset
This option resets zoom system of the fixture
Page 22
22
6.8 Special functions (Special)
RDM UID
RDM Low - This menu item shows the first part of the RDM identification code. RDM High - This menu item shows the second part of the RDM identification code.
Wireless - Wireless DMX status. The menu serves for reading of the wireless operation status.
Stat - Wireless DMX information. The menu item shows level of received signal in %. UnLink - Wireless DMX unlink. The item serves for unlinking the fixture from transmitter.
Adjust - Adjustment. The menu allows the fine adjustment of colours. DMX Val- DMX values. Use the menu to set DMX values of fixture´s channels.
Calib - A colour calibration.
Load d. C. – Loading a default (factory) calibration.
Sw Upd - Software update. The menu item allows you to update software in the fixture via either serial or USB port of PC. The following are required in order to update software:
- PC running Windows 95/98/2000/XP/7/8 or Linux
- DMX Software Uploader
- Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC)
- Robe Universal Interface (if you want to use an USB port of PC)
Note 1: Software update should execute a qualified person. If you lack qualification, do not attempt the update yourself and ask for help your ROBE distributor.
Note 2: DMX address, user program and all items in the menu "Pers" will be set to their default (factory) values.
To update software in the fixture:
I. Installation of the DMX Software Uploader.
1. DMX Software Uploader program is available from the ROBE web site at WWW.robe.cz.
2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.
3. Unpack the program to the directory. II.Fixture software updating.
1.Determine which of your ports is available on your PC and connect it:
- with the DMX input of the fixture if you using the flash cable RS232/DMX
- with the DMX output of the Robe Universal Interface if you using the USB cable. Disconnect the fixture from the other fixtures in a DMX chain. Turn both the computer and the fixture on. Make sure the lamp is switched off (only if the fixture involves a lamp).
2. Switch the fixture to the updating mode by selecting the "SW Upd " item and press [ENTER]. Note: If you do not want to continue in software update, you have to switch off and on the fixture to escape from this menu. We recommend to cancel all running programs before starting the Software Uploader.
3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only later versions of processors, check the “Incremental Update box“. Avoid interrupting the process. Update status is being displayed in the Info Box window. When the update is finished, the line with the text “The fixture is successfully updated“ will appear in this window and the fixture will reset with the new software. Note: In the case of an interruption of the upload process (e.g. power cut), the fixture keeps the updating mode and you have to repeat the software update again.
Page 23
23
7. RDM
This fixture is ready for RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device configuration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely affecting existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specifications for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for Robin 8 is the following.
Parameter ID Discovery command SET command GET command
DISC_UNIQUE_BRANCH *
DISC_MUTE *
DISC_UN_MUTE *
DEVICE_INFO
*
SUPPORTED_PARAMETERS
*
SOFTWARE_VERSION_LABEL
*
DMX_START_ADDRESS
* *
IDENTIFY_DEVICE
* *
DEVICE_MODEL_DESCRIPTION
*
MANUFACTURER_LABEL
*
DEVICE_LABEL
* *
SENSOR_DEFINITION
*
SENSOR_VALUE
*
DISPLAY_LEVEL
* *
DEVICE_RESET
*
DMX_PERSONALITY
* *
DMX_PERSONALITY_DESCRIPTION
*
STATUS_MESSAGES
*
STATUS_ID_DESCRIPTION
*
DEVICE_HOURS
*
Please, see the Robe Universal Interface user manual for detail description of RDM operation.
Page 24
24
8. Technical specifications
Power supply
• Electronic auto-ranging
• Input voltage: 100 - 240V AC, 50-60 Hz
• Max. power consumption: 150W@230V (power factor=0,94)
• Mains input: CE - max. 16A
cETLus - max. 10A
• Mains output: CE - max. 15A
cETLus - max. 9A
Optic & Effects
• Light source: 12 x 15W LED multi-chip
• Zoom range: 8° - 44°( at ½ beamu) 15° - 66° (at 1/10 beamu)
• RGBW or CMY colour mixing
• Built-in colour macros and pixel effects
• Adjustable strobe sequences
•Typical Lumen maintenance: 70% @ 60.000 hours
Control
• Setting & Addressing: two-row LCD display & 4 control buttons
• Control: USITT DMX 512 (RDM support)
• DMX protocol modes: 4 (18,12,54,66 controll channels)
• Operations modes: DMX, Stand-alone
• Manual control of all effects via control panel
• One editable program, up to 40 steps
Wireless DMX/RDM module (only for Robin CycPix 12 Wireless DMX)
• Compliance with USITT DMX-512 (1986 & 1990) and 512-A
• Full DMX fidelity and frame integrity
• Auto sensing of DMX frame rate and frame size
• <5ms DMX latency
• Operational frequency range of 2402-2480 MHz
• Producer: LumenRadio
Strobe
• Strobe effect with variable speed (max. 20 flashes per second)
• Pre-programmed random strobe pulse-effects
Dimmer
• Smooth 16-bit dimming from 0 - 100 %
Connection
•DMX data In/Out: DMX outdoor cable CA-0611 + NC5MX-HD/NC5FX-HD (5-pin connectors)
•Power In/Out: Neutrik NAC 3PX In/Out
Rigging
• Via bracket + Omega clamp
Temperatures
• Maximum ambient temperature: 40° C
• Maximum housing temperature: 80° C
Page 25
25
Minimum distances
Min. distance from flammable surfaces: 0.4 m Min. distance to lighted object: 0.8 m
Total heat dissipation
• 560 BTU/h (calculated)
Weight
• 12.2 kg (fixture)
• 2.2 kg (stand)
Protection factor
• IP 65 (CE)
• Suitable for wet locations (ETL)
Impact resistance
• IK 10

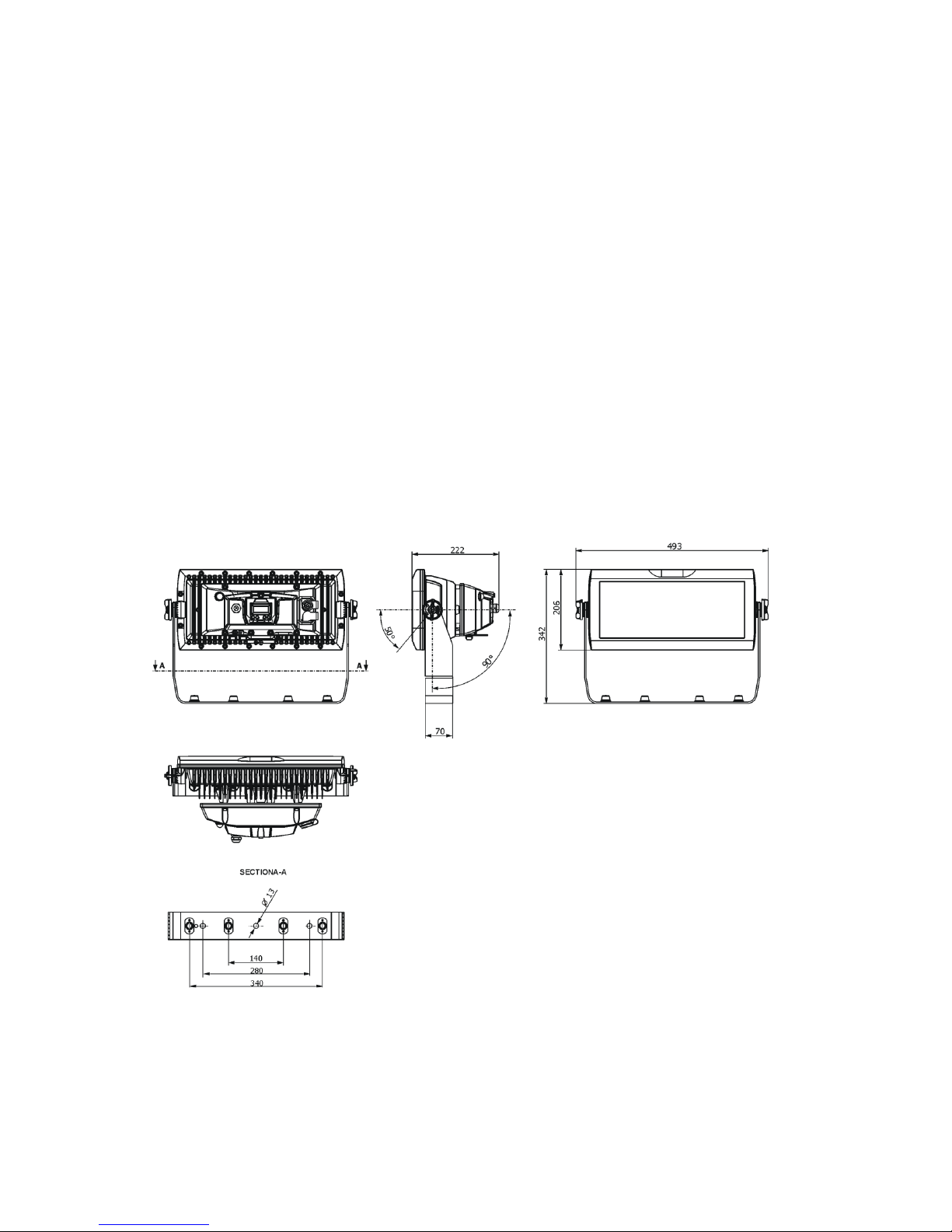

Dimensions (mm)
Page 26
26

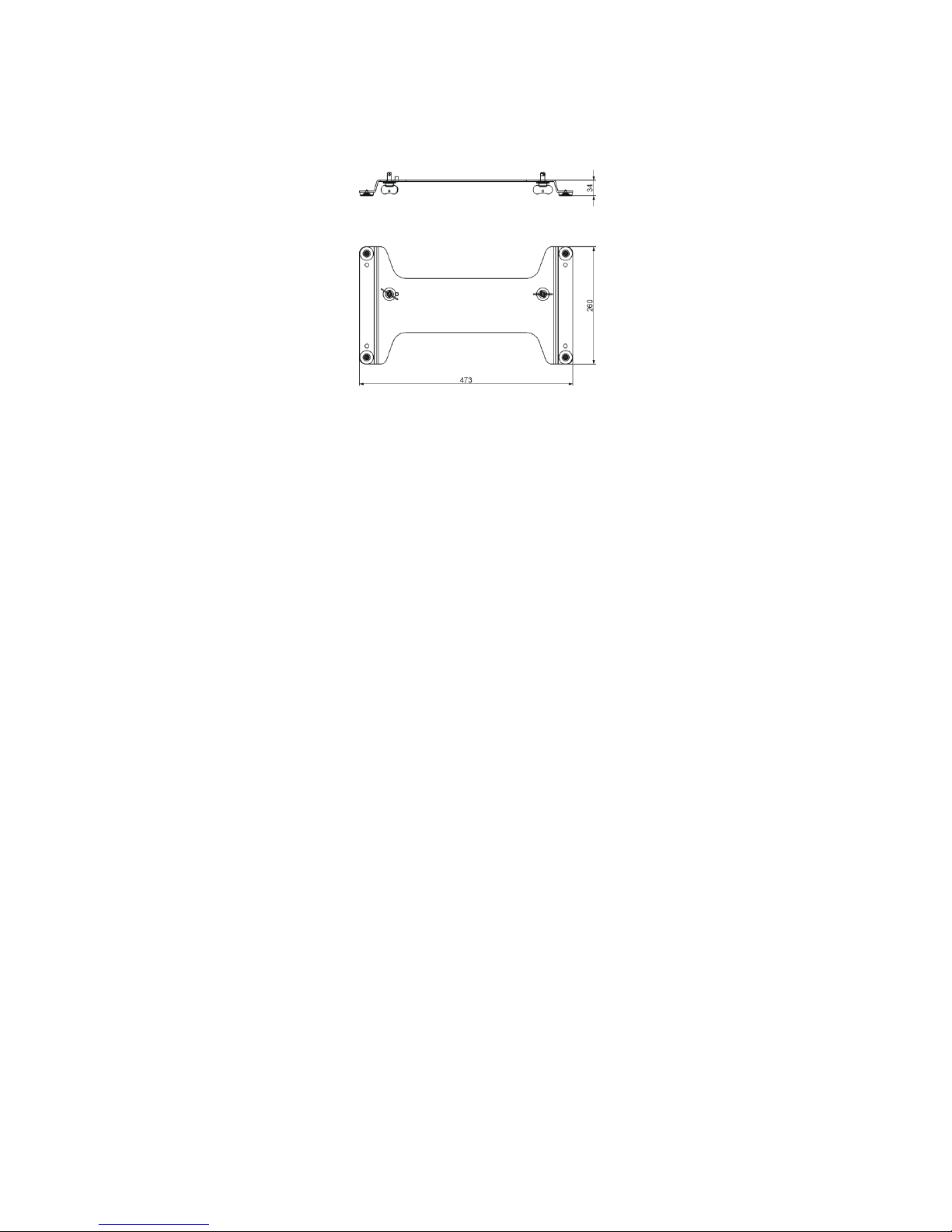

Floor stand
Included items
• 1 x Robin CycPix 12
• 1 x Omega holder (P/N 99010420)
• 1 x Cap for XLR connector (P/N 19020175)
• 1 x User manual
Optional accessories
(P/N 1098 0270 ) Floor stand (P/N 13 052 276) Mains Cable PowerCon TRUE1 In/open ended, EU 2m (P/N 13 052 277) Mains Cable PowerCon TRUE1 In/open ended, US 2m (P/N 13 052 278) Daisy Chain PowerCon TRUE1 In/Out, EU, 0,75m (P/N 13 052 279) Daisy Chain PowerCon TRUE1 In/Out, US, 0,75m (P/N 13 052 280) Daisy Chain PowerCon TRUE1 In/Out, EU, 2m (P/N 13 052 281) Daisy Chain PowerCon TRUE1 In/Out, US, 2m
Page 27
27

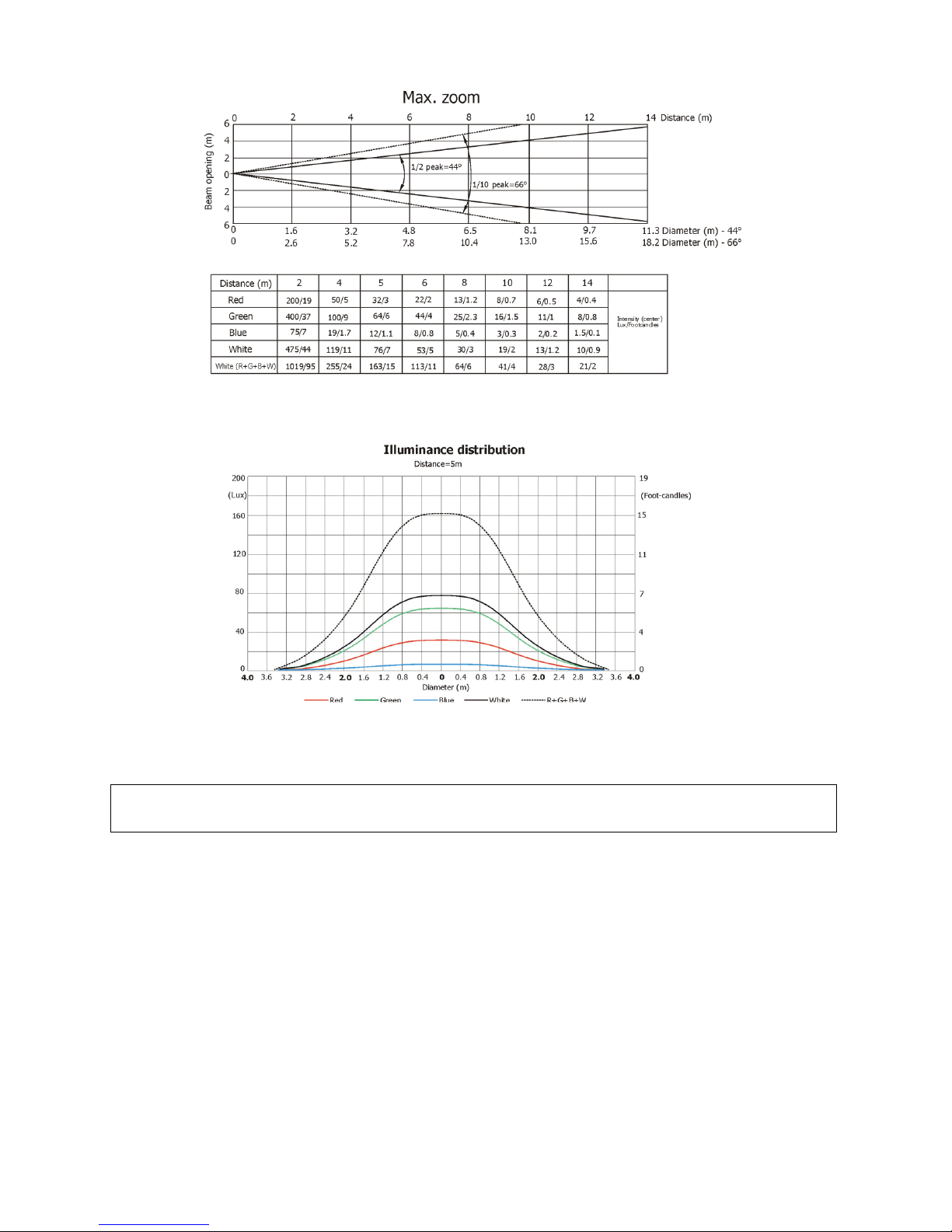

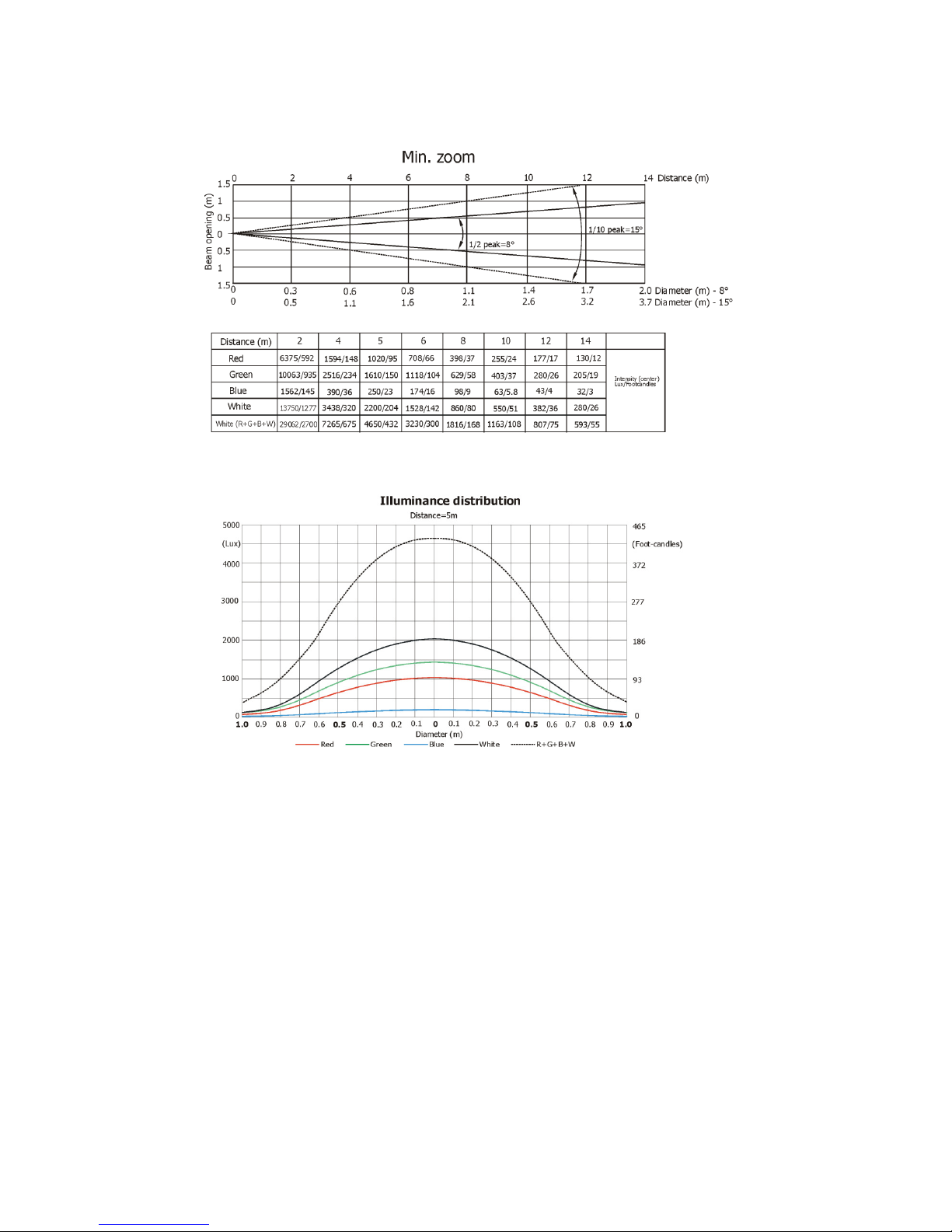

Beam distribution
Page 28
28
9. Cleaning and maintenance
DANGER !
Disconnect from the mains and allow to cool completely before starting any cleaning or maintenance work
The front transparent cover will require monthly cleaning as smoke fluid tends to build up residues, reducing the light output very quickly. For cleaning use a wet clout or an air-jet. Do not use solvents or any other aggressive cleaning fluid. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use genuine parts.
9.1 Replacing a fuse
This replacement has to be realized by a qualified person or ROBE service worker only.
9.2 Disposing of the product
To preserve the environment please dispose or recycle this product at the end of its life according to the local regulations and codes.
Specifications are subject to change without notice November 30, 2015
Page 29
29
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
