Robe Robin BMFL Blade User Manual

1

Version 1.2

2

Table of contents

1. Safety instructions ......................................................................................................... 3

2. Operating determination ................................................................................................ 4

3. Fixture exterior view ...................................................................................................... 5

4. Installation....................................................................................................................... 6

4.1 Connection to the mains ............................................................................................

6

4.2 Installing the lamp ...................................................................................................... 7

4.3 Lamp adjustment .......................................................................................................7

4.4 Replacing colour lters ............................................................................................... 8

4.5 Replacing rotating gobos ..........................................................................................9

4.6 Installing handle for the Follow Spot Mode ............................................................. 10

4.7 Replacing light frost .................................................................................................10

4.8 Rigging the xture .................................................................................................... 12

4.9 DMX-512 connection ................................................................................................14

4.10 Ethernet connection ...............................................................................................

15

5. Remotely controllable functions ................................................................................. 17

6. Control menu map ........................................................................................................ 19

7. Control menu ............................................................................................................... 22

7.1 Tab " Address" .........................................................................................................

23

7.2 Tab "Information"...................................................................................................... 24

7.3 Tab "Personality" ...................................................................................................... 26

7.4 Tab "Manual Control" ............................................................................................... 28

7.5 Tab "Stand-alone" ...................................................................................................28

7.6 Tab "Service"............................................................................................................ 29

7.7 Icon "Lamp menu" .................................................................................................... 32

8. RDM ...............................................................................................................................33

9. Wireless DMX operation ..............................................................................................33

10. Error and information messages .............................................................................. 35

11. Technical Specications............................................................................................ 39

12. Maintenance and cleaning ......................................................................................... 44

13. Change log .................................................................................................................. 44

Robin BMFL Blade

3

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualied

- follow the instructions of this manual

CAUTION!

Be careful with your operations.

With a high voltage you can suffer

a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en­sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes
written in this manual.

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this

manual or any unauthorized modication to the device.

Please consider that damages caused by manual modications to the device are not subject to warranty.

During the operation the housing becomes hot). Allow the xture to cool approximately 20 minutes prior to

manipulate with it.

Make sure that the available voltage is not higher than stated on the rear panel.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable

to completely remove power from unit when not in use or before cleaning or servicing the xture.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power­cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power­cord by the plug. Never pull out the plug by tugging the power cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to
earth.

The electric connection, repairs and servicing must be carried out by a qualied employee.

Do not connect this device to a dimmer pack.

Do not switch the xture on and off in short intervals as this would reduce the lamp’s life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION ! EYE DAMAGES !

Avoid looking directly into the light source

(meant especially for epileptics) !

4

2. Operating determination

This device is a moving head for creating decorative effects and was designed for indoor use only.
This device is for professional use only. It is not for household use.

If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched off until
it has reached room temperature.

Before switching the xture OFF, turn the lamp OFF and allow the xture to cool for a while.

Never run the device without lamp!

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
xture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture
or dust. There should not be any cables lying around. You endanger your own and the safety of others!

The minimum distance between light output and the illuminated surface must be more than 8 meters.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the x­ture.

Always x the xture with an appropriate safety rope. Fix the safety rope at the correct holes only.

Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fas-

tened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may

explode and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature 45°C must never be exceeded.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualied for operating the device. Most damages are the result of unprofessional operation!

CAUTION!

The lamp shall be changed if it has become damaged or thermally deformed

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

NOTE!

If the lamp is off (and xture is connected to mains), both colour wheels

cannot be controlled by the control panel or DMX command.

To control them, switch the lamp on.

CAUTION!

To avoid damage of the internal parts of the xture head, never let the sunlight or other

xture's lights directly to the front lens , even when the xture is not working !

5

3. Fixture exterior view

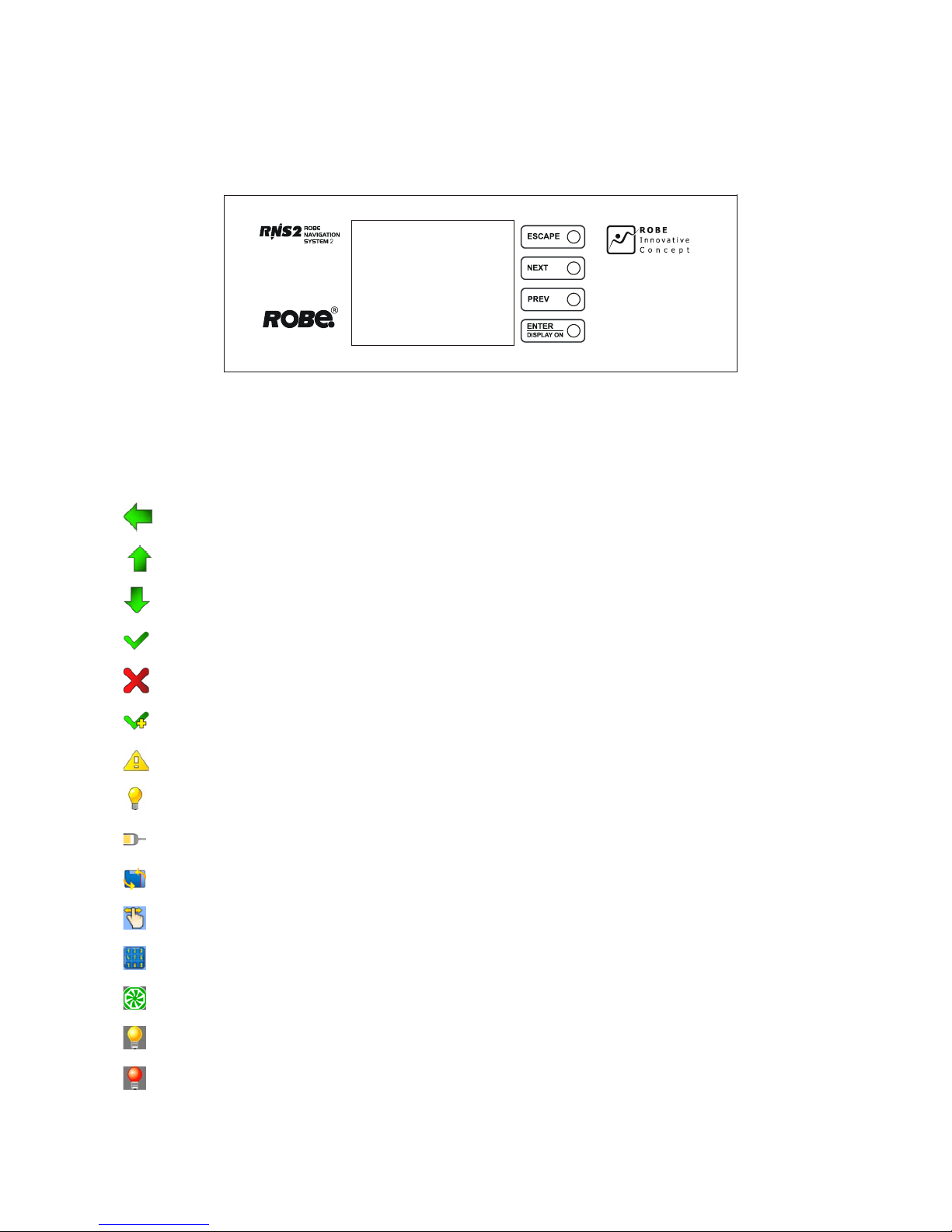

Front panel of the base:
1 - Touch screen
2 - ESCAPE button
3 - NEXT button
4 - PREVIOUS button
5 - ENTER/DISPLAY ON button
6 - Dust lters

The head should be locked for transportation - the tilt lock (7) and the pan lock (3) have to be in the locked
positions. To unlock the head, move these latches to unlock positions before operating the xture.

1 - Front lens
2 - Air vents + lter
3 - Pan lock
4 - Air vents + lter
5 - Handle
6 - Yoke
7 - Tilt lock
8 - Head covers

The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected

from the mains.

Rear panel of the base:
1 - DMX output (5-pin XLR)
2 - DMX input (5-pin XLR)

3 - Ethernet input (RJ45)
4 - Fuse holder
5 - DMX output (3-pin XLR)
6 - DMX input (3-pin XLR)

7 - Power input (Neutrik
PowerCon)

6

4. Installation

Fixtures must be installed by a Qualied electrician in accordance with all

national and local electrical and construction codes and regulation.

4.1 Connection to the mains

For protection from electric shock, the xture must be earthed!

The Robin BMFL Blade is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz

AC power source from 200-240 Volts. The xture is protected by one 15 A blow primary fuse.

If you install a cord cap on the power cable to allow connection to power outlets, install a grounding-type (earthed)
plug, following the plug manufacturer’s instructions.
To apply power, rst check that the head pan and tilt locks are released.

The cores in the power cable are coloured according to the following table.

Core (EU) Core (US) Connection Plug Terminal Marking

Brown Black Live L

Light blue White Neutral N

Yellow/Green Green Earth

The earth has to be connected!

If you have any doubts about proper installation, consult a qualied electrician.

Do not connect the xture to a dimmer system!

7

4.2 Installing the lamp

DANGER ! Install the lamp with the device switched off only.
Unplug from mains before !

To insert the new lamp.

1. Disconnect the xture from power and allow it to cool at least 20 min­utes.

2. Make sure that the xture´s head is in the position as
shown on the picture (notices on the lamp cover are in

a readable position) .Loosen the three quarter-turn

fasteners (1) on the lamp cover to

open this cover.

3. Holding the lamp by its ceramic base, carefully
turn the lamp to the left to loosen the lamp from
the lamp holder.
Gently pull the lamp out of the lamp holder

4. Holding the new lamp by its ceramics base and keeping its orientation as shown at the picture below,
gently insert the lamp to the lamp holder and turn its base to the right until two lamp electrodes snap
into slots in the lamp holder. Make sure that the lamp is installed tightly into the lamp socket.

Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not de­signed for. Damages caused by non-observance are not subject to warranty.
Please follow the lamp manufacturer‘s notes! Do not touch the glass bulb bare hand during the
installation!

5. Re-insert the lamp cover and tighten the three quarter-turn

fasteners (1).

6. Switch on the xture.

7. Align the lamp (see instructions below)

8. Reset the "Lamp On Time” and "Lamp Strikes” counters

in the menu "Information”.

Do not operate this xture with open lamp cover!

4.3 Lamp adjustment

The lamp holder is aligned at the factory. Due to differences between lamps,the ne adjustment may improve

light performance:

To adjust the lamp in the xture.

1. Switch on the xture and after its reset turn on the

lamp.

2. Go to the "Service" menu and select the item "Adjust
Lamp" to project the light beam on the wall.

3. Use items in this menu to focus the light beam

4. Turn adjustment screws (2) one after another until you
c

enter the hot spot (the brightest part of the beam) and

reach a max. light intensity at desired light distribution.

8

4.4 Replacing colour lters

Install colour lters with the device switched off only.

Unplug from mains before!

Colour lters

1. Disconnect the xture from mains and allow it to cool 10 minutes.

2. Remove the plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.

3. Turn the colour wheel 2 to the suitable position.

The dichroic lters are xed on the colour wheel by the magnets.

4. Release the dichroic lter (1) from the colour wheel 2 by inclining it from its position

to break the power of the magnet

. Protect the glass lter with a piece of paper or clout.

5. Insert a new dichroic lter into the colour wheel 2.

6. Place the top cover back before applying power.

9

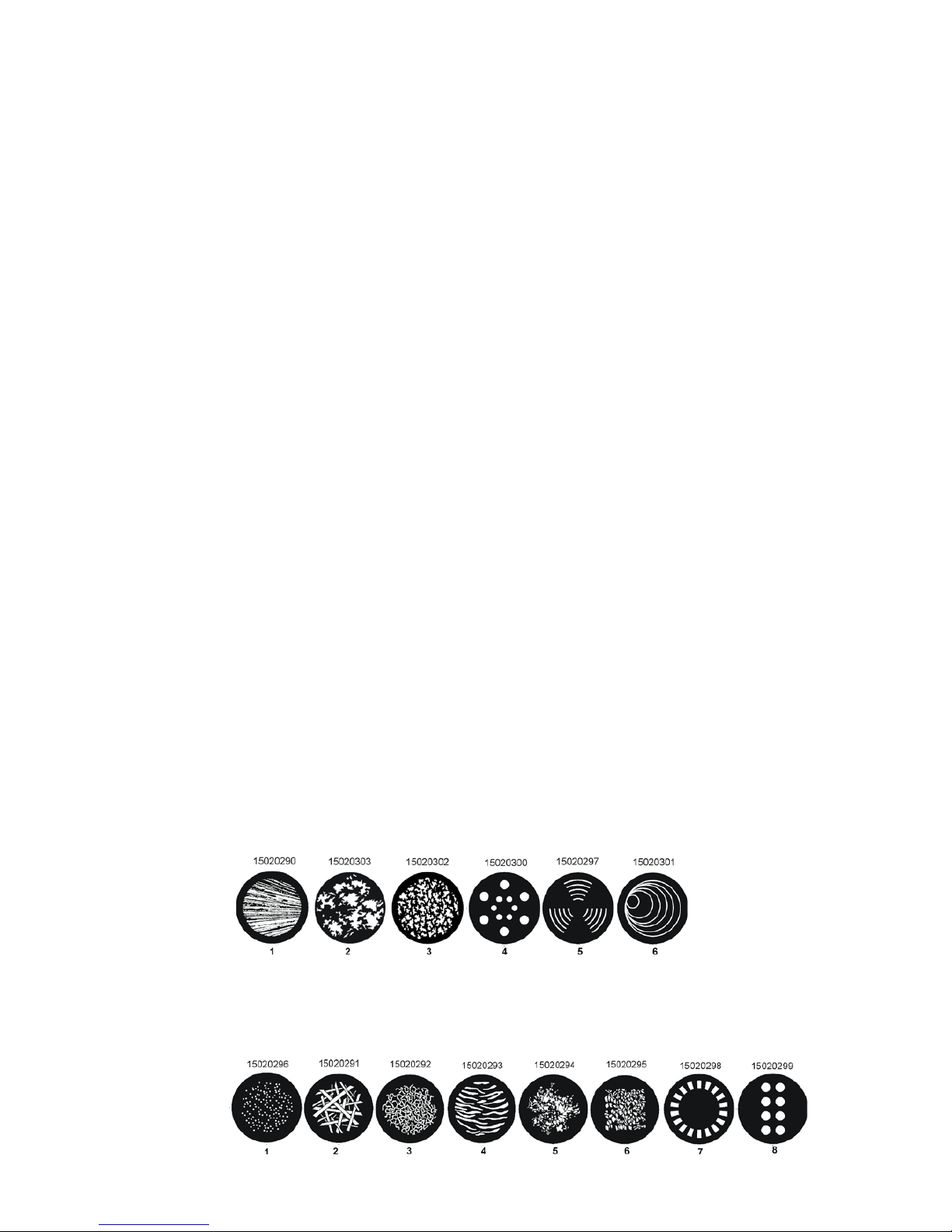

4.5 Replacing rotating gobos

Install gobos with the device switched off only.

Unplug from mains before!

To replace rotating gobos.

1. Disconnect the xture from mains and allow it to cool for 10 minutes .

2. Remove the plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.

3. Gently pull up the gobo holder (3) from the rotation gobo wheel

.

4. Remove the spring lock (1) with an appro

priate tool (e.g. small-bladed screwdriver) and remove it.

Do not touch the surface of the pattern of the glass gobo with bare ngers.

5. Remove the original gobo (2) and insert the new one (glazy side towards the lamp).
The Robe gobo has a small position point (8) at its edge which has to aimed at the position point (4) on
the gobo holder (4). Insert the spring lock to secure correct gobo position in the gobo holder.

6. Insert he gobo holder back under the distance slots (6, 7) into rotating gobo wheel in this way, that its
position point (4) has to aimed at a small toothlike projection (5) on the edge of the rotating gobo wheel.

Important! When inserting the gobo holder back to the rotating gobo wheel, one of the adjacent gobo holder

has to be oriented according to the same rule, it means that its position point (4) has to aimed at

the toothlike

projection (5) on the edge of the rotating gobo wheel. You have keep both marks (4) and (5) side by side when

rotating the gobo wheel to the position allows inserting the gobo holder back.

5. Place the plastic cover back before applying power.

6. Use the menu Service to ne adjust replaced gobo (Service -> Calibration -> Calibrate effects -> R. Gobo

Index 1....6).

Note. The magnet (9) of the gobo holder has the same function as the position point (4) on the rest of gobo

holders.

Note: First three gobos have as a position point (8) little triangle, the second three gobos have a little line.

10

4.6 Installing handle for the Follow Spot Mode

Before installation of handle (handles) , switch the xture to the Follow Spot Mode (Personality--> Follow Spot

Mode). You can install one or two handles in different positions as needed. See picture below. Before switching

the Follow Spot Mode off, remove handle (handles) from the xture.

4.7 Replacing light frost

Install light frost module with the device switched off only.

Unplug from mains before!

To replace the light frost module.

1. Disconnect the xture from mains and allow it to cool for 10 minutes.

2. Move the head to the position that signs on the lamp cover (1) lead down (turned by 180°)

3. Remove plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.

4.

Remove the fan assembly (2) by unscrewing two screws (3) on both sides of the fan assembly.

11

5

. Insert with caution a at-tip screwdriver between the metal sheet of the frost module (4) and the frost holder
(5) and gently turn the screwdriver to break a force of magnets (6) on the frost holder (5) and pull the light
frost module (4) out from the xture

. The Frost module (4) is fastened to the frost holder (5) by means of

the four magnets (6).

6

. Insert new frost module in the frost holder (5). Check, that both slots (8) snapped correctly into
two protrusions (7) on the frost holder (5)

7. Screw

the fan assembly (2) back to the xture and place the plastic cover back on the xture before

applying power.

12

4.8 Rigging the xture

A structure intended for installation of the xture(s) must safely hold weight of the xture(s) placed on it. The
structure has to be certicated to the purpose.

The xture (xtures) must be installed in accordance with national and local electrical and construction codes

and regulation.

For overhead installation, the xture must be always secured with a safety wire that

can bear at least 10 times the weight of the xture

When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,

under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the rst time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.

Allow the xture to cool for ten minutes before handling.

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working
load limits, installation material being used, and periodic safety inspection of all installation material and the

projector. If you lack these qualications, do not attempt the installation yourself, but use a help of professional

companies.

CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety
of a possible installation, do not install the xture!

The xture has to be installed out of the reach of public.

The xture must never be xed swinging freely in the room.

Danger of re !

When installing the device, make sure there is no highly inammable

material (decoration articles, etc.) in a distance of min. 1 m.

The minimum distance of 8 meters between light output from the moving head and the

lit objects must be kept!

CAUTION!

Use 2 appropriate clamps to rig the xture on the truss.

Follow the instructions mentioned at the bottom of the base.

Make sure that the device is xed properly! Ensure that the

structure (truss) to which you are attaching the xtures is secure.

The xture can be placed directly on the stage oor or rigged in any orientation on a truss without altering its

operation characteristics .

For securing a xture to the truss, install two safety wires which can hold at least 10 times the weight of the
xture. Use only the safety wires with screw-on carabines.

.

.

.

13

Omega holders positions:

Truss installation

1. Bolt each clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder.

2. Fasten the omega holders to the bottom of the base by inserting both quick-lock fasteners (3) into

the holes of the base and tighten fully clockwise.

3. Clamp the xture on a truss (6) and tighten the rigging clamps.

4. Pull one safety wire (4) around the truss (6) and through the handle (7) and another safety wire (4) pull

around the truss (6) and through the handle (7) and lock the screw-on carabine through attachment point (5)

as shown on the picture below.

When installing xtures side-by-side,

avoid illuminating one xture with another!

DANGER TO LIFE!

Before taking into operation for the rst time,the installation has to be approved by

an expert!

1-Clamp
2-Omega holder
3-Quick-lock fastener
4-Safety wire
5-Attachment point
6-Truss
7-Handle

14

4.9 DMX-512 connection

The xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired

in parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in

order to connect the controller with the xture or one xture with another.

DMX - output DMX-input

XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):

If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with
the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX controllers with other XLR out­puts, you need to use adapter cables.

Building a serial DMX-chain:

Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always
connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be

connected.

Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor be-
tween Signal (–) and Signal (+) into a 3-pin (5-pin) XLR-plug and plug it in the DMX-output of the last xture.

1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected

1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected

15

4.10 Ethernet connection

The xtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft­ware running on your PC (or light console) has to support Art-Net protocol.

Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow
transfer of large amounts of DMX 512 data over a wide area using standard network technology.

IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network.
The Universe is a single DMX 512 frame of 512 channels.

The Robin MMX Blade is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5
(with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.

RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX­ 3- RX+ 7- Not connected
4- Not connected 8- Not connected

Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers

are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8

If only the xture and the computer are to be interconnected,no hubs or other active components are needed.

A cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4

If the xture is connected with active Ethernet socket (e.g. switch) the network icon will appear at the
bottom right corner of the screen:

Direct Ethernet operation

Connect the Ethernet inputs of all xtures with the Ethernet network.
Option “ Artnet" (gMaI or gMA2 or sACN) has to be selected from “Ethernet Mode” menu at each xture.
Set IP address (002.xxx.xxx.xxx / 010.xxx.xxx.xxx) and the Universe at each xture.

An advised PC setting: IP address: 002.xxx.xxx.xxx / 010.xxx.xxx.xxx (Different from xture IP addresses)

NET mask: 255.0.0.0

(DMX address=150) (DMX address=42) (DMX address=1)
IP addres=002.168.002.004 IP addres=002.168.002.003 IP addres=002.168.002.002
Universe=1 Universe=1 Universe=1

16

Ethernet / DMX operation

Option “ Artnet" (gMaI or gMA2 or sACN) has to be selected from “Ethernet Mode” menu at rst xture.
Option “Ethernet To DMX” has to be selected from the “Ethernet Mode” menu at the rst xture (connected to
the Ethernet) in the xture chain, next xtures have standard DMX setting.
Connect the Ethernet input of the rst xture in the data chain with the network. Connect the DMX output of this
xture with the input of the next xture until all xtures are connected to the DMX chain.

Caution: At the last xture, the DMX chain has to be terminated with a terminator. Solder a 120 Ω resistor
between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the last xture.
Example:

DMX address=1 DMX address=42 DMX address=150
IP addres=002.168.002.002
Universe=0

DMX address=1 DMX address=42 DMX address=150
IP addres=002.168.002.003
Universe=1

17

5. Remotely controllable functions

Lamp

The Osram Lok-it! HTI 1700/PS is a highly efcient, single-ended short-arc metal halide lamp with
6000 Kelvin colour temperature. The new Lok-it! plug’n’play system allows a quick one-touch lamp

replacement.

The xture allows three levels of the lamp power: 1700W, 1500W and Quiet (Quiet mode - the lamp power is
auto-controlled to ensure minimum noise of xture fans).

Note: It is also important to note, that the discharge lamp is a cold restrike type, that means, that the lamp has
to be cold before re-striking. For this reason, you have to wait a while after having switched the lamp off before
you can switch it on again.

Colour wheel 1

This wheel contains 6 dichroic lters + open.The colour wheel can be positioned between two adjacent colours
in any position. It is also possible to rotate the colour wheel continuously at different speeds ("Rainbow effect“

in both directions).

Colour wheel 2

This wheel contains 6 replaceable 'SLOT&LOCK' dichroic lters + open.The colour wheel can be positioned

between two adjacent colours in any position. It is also possible to rotate the colour wheel continuously at dif-

ferent speeds ("Rainbow effect“ in both directions).

CMY+CTO colour mixing system

The CMY color mixing system is based on graduated cyan, magenta, and yellow colour lters. A continuous
range of colors may be achieved by varying the amount of each lter from 0 to 100%.

Effect wheel

The effect wheel rotating in both directions with variable speed which creates wide spectrum of graphic ef­fects.

Gobo wheels

The xture includes one static gobo wheel with 8 replaceable gobos and one rotating gobo wheel with 6 glass
gobos rotating in both directions, indexable, replaceable "SLOT&LOCK” system Gobo positioning and gobo

selection speed is available as well as a gobo-shake function.

Prism

Two rotating prisms (6-facet linear, 6-facet axial) with continuous rotation in both directions. 16 prism/gobo

macros available.

Frost

Frost module provides 3 types of variable frosts: light, medium and heavy.

Iris

Motorized adjustable iris, wide range of variable pulse effects.

Zoom

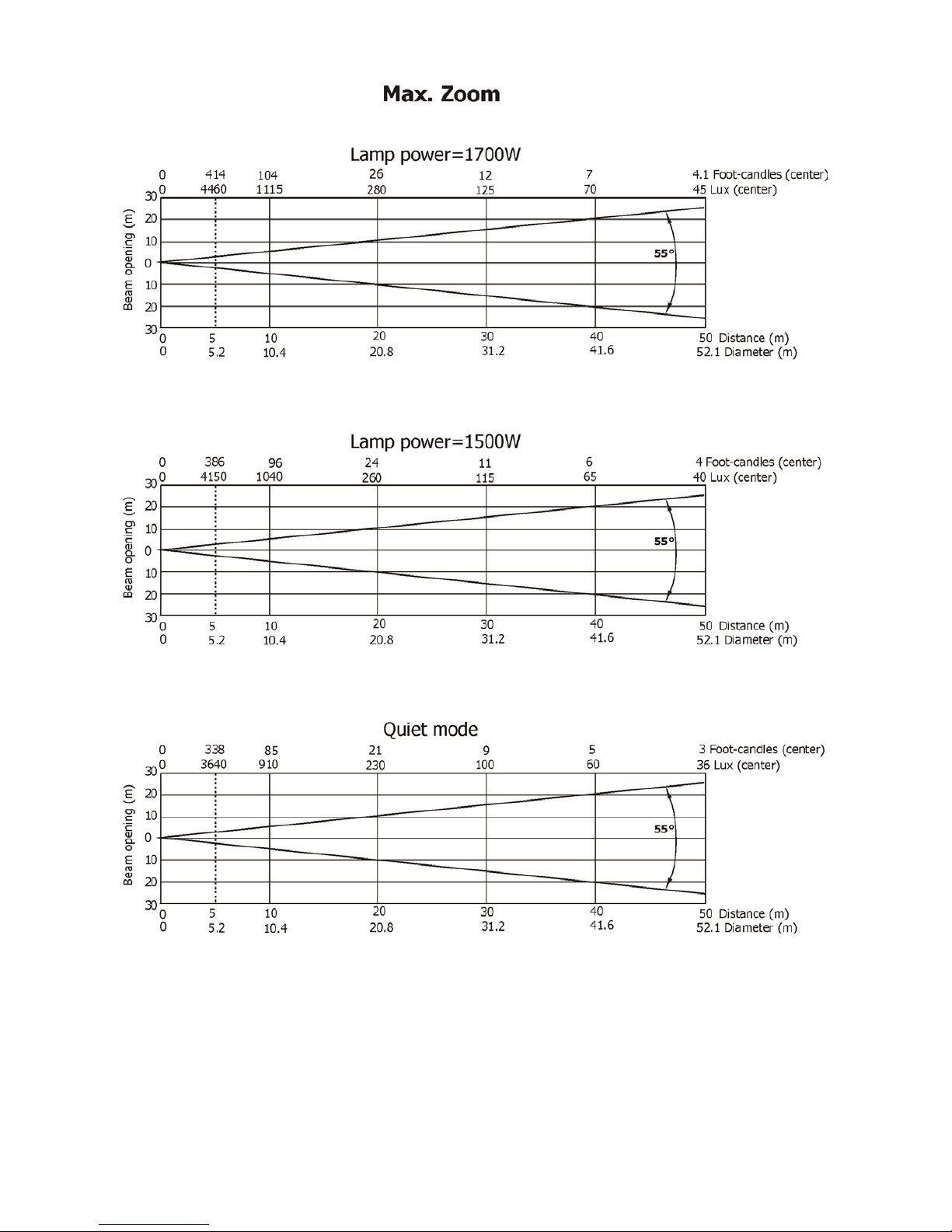

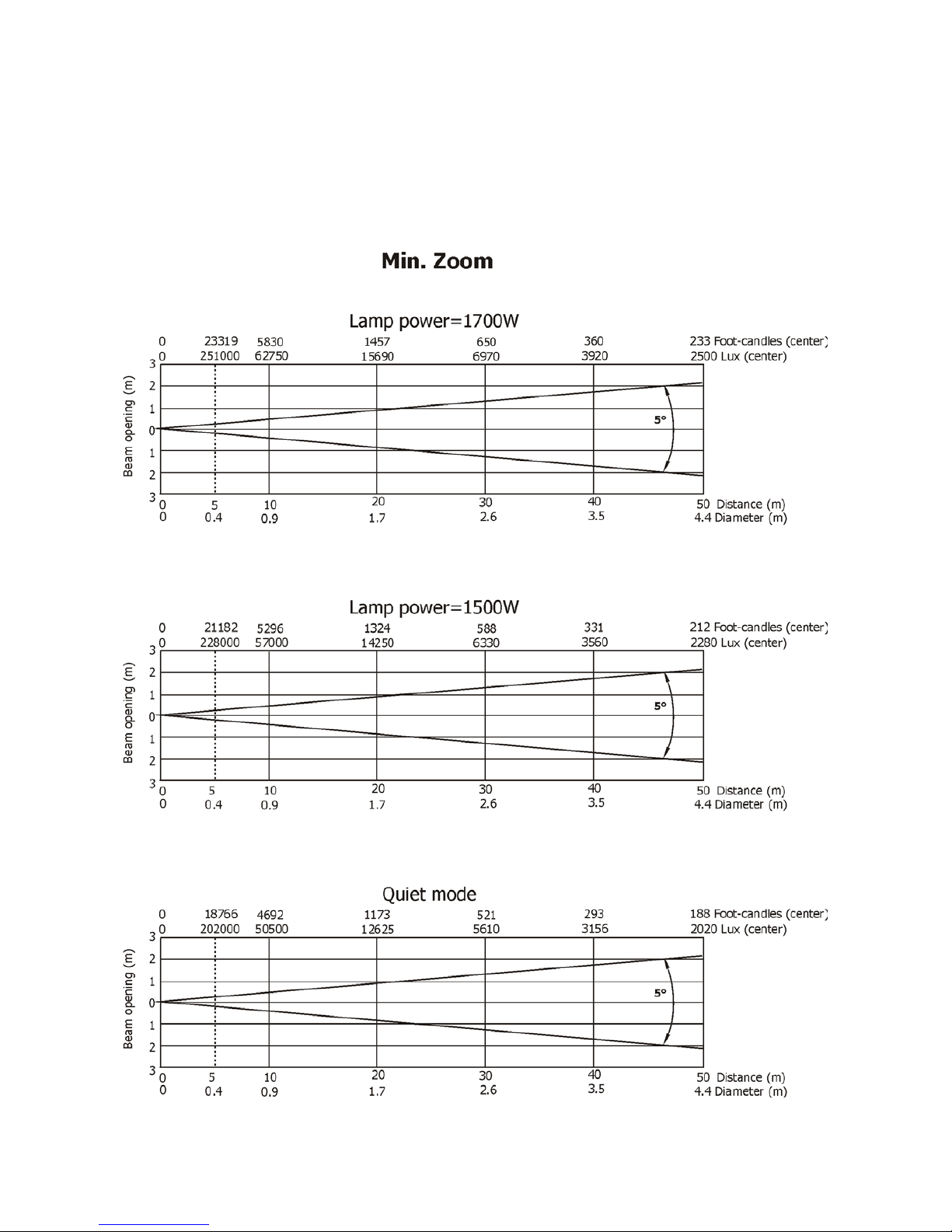

Motorized zoom unit enables zoom between 5 °- 55° (open hole); 5° – 48° (gobo).

Focus

Motorized focus allows to focus beam from approx. 5 metres to innity.

Shutter unit

This unit is used for strobe effects with variable speed.

Dimmer unit

Smooth 0 - 100 % dimming is provided by the mechanical dimmer unit.

18

Pan/Tilt

Fast pan/tilt movement due to built-in electronic motion stabilizer. The electronic motion stabilizer ensures precise

position of the xture´s head during its movement and reduces its swinging when the truss shakes.

Framing system

Framing system consists of four framing shutters which can be moved or swivelled to desired position sepa­rately.

19

6. Control menu map

Default settings=Bold print

Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6

Addressing DMX Address 001-255

DMX Presets Mode 1

Mode 2

View Selected Preset

Ethernet Settings Ethernet Mode Disable

ArtNet

gMAI

gMA2

sACN

Ethernet To DMX Off, On

IP Address/Net Mask Default IP Address

Custom IP Address

Net Mask

ArtNet Universe 0-255

MANet settings MANetI/II Universe 01-256

MANet Session ID 01-32

sACN Settings sACN Universe 00001-32000

sACN Priority 0-255

Information Fixture Times Power On Time Total Hours

Resetable Hours

Lamp On Time Total Hours

Remaining hours

Lamp Strikes Total Strikes

Resetable Strikes

Air Filters Elapsed Time

Alert Period 10-300

Fixture Temperatures

Head Temperature Current

Maximum NonRes.

Maximum Res.

Ambient Temperature

Current

Maximum NonRes.

Maximum Res.

Base Temperature Current

Maximum NonRes.

Maximum Res.

DMX Values Pan

:

Dimmer Fine

Wireless State

Signal Quality

Unlink Wireless Adapter

Power Channel State

Software Versions Display System

Module M

Module G

Module P

Module O

Module C

Module D

Module S

Module F-A

Module F-B

20

Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6

Wireless

Product IDs Mac Address

RDM UID

RDM Label

View Logs Fixture Errors

Fixture States Power On

Power Off

Lamp On

Lamp Off

Lamp On

Lamp Off

Fixture Position

Fixture Temperatures Head Temperature

Ambient Temperature

Base Temperature

Personality User Mode User A Settings

User B Settings

DMX Presets Mode 1

Mode 2

View Selected Preset

DMX Input Wired input

Wireless input

Wireless In/XLR Out

Pan/Tilt Settings Pan Reverse Off, On

Tilt Reverse Off, On

Pan/Tilt Feedback Off, On

Pan/Tilt mode Time

Speed

Pan/Tilt EMS On, Off

Follow Spot Mode Off

Soft

Medium

Hard

Mi cro ph o ne Se n­sitivity

1-10-20

Blackout Settings Blackout During M.C. Off, On

Blackout while: Pan/Tilt moving Off, On

Colour Wheel Moving Off, On

TimeOut Blackout Off, On

Init Effect Positions Pan 0-255

:

Dimmer Fine 0-255

Screen Settings Display Intensity 1-10

Screen Saver Delay Off-10min.

Touchscreen Lock Off-10min.

Recalibrate Touchscreen

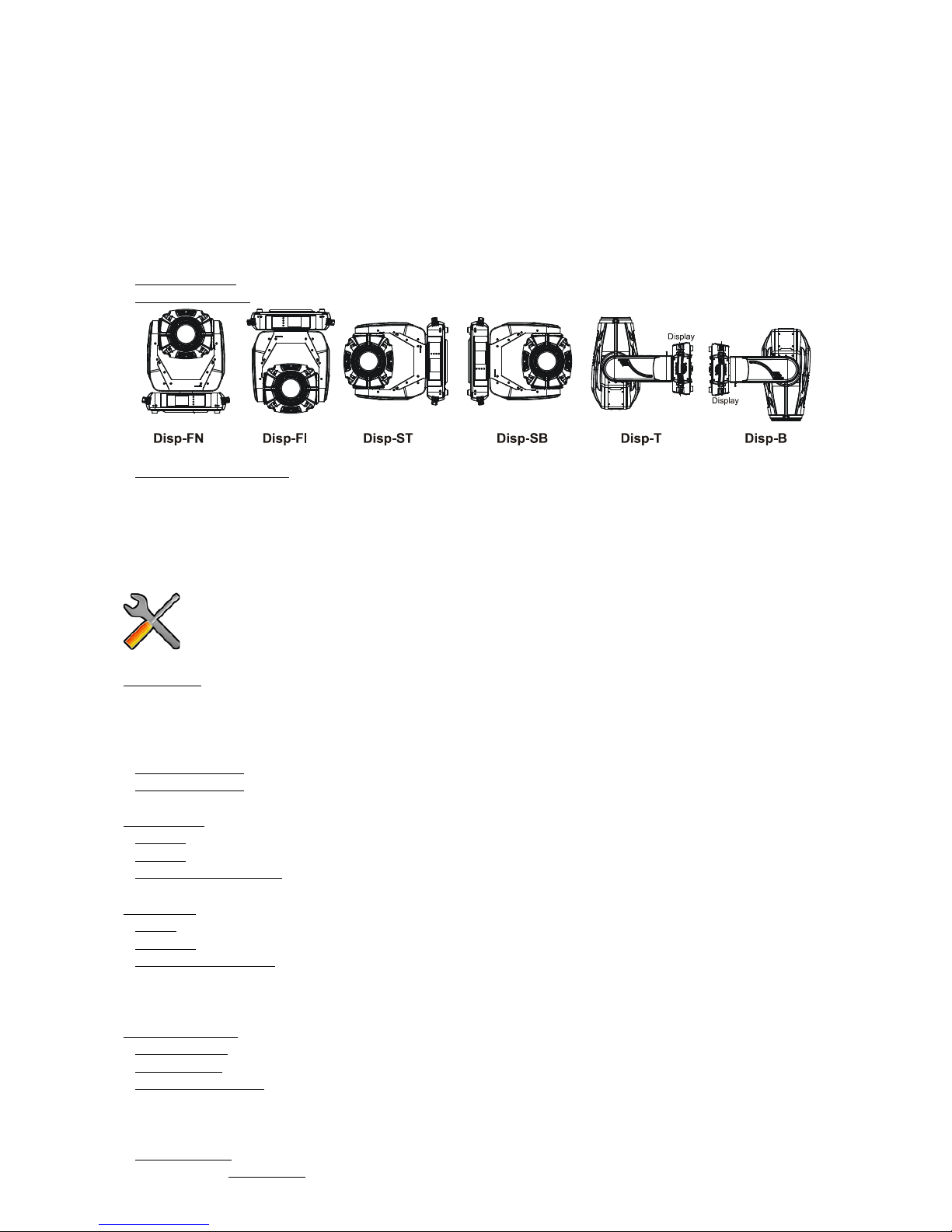

Display Orientation Normal

Inverted

Auto

Temperature Unit °C,°F

Fan Mode Auto

High

Dimmer Curve

Linear

Square Law

Date & Time Settings

21

Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6

Password Protection

Off, On

Manual Control Reset Functions Total System Reset

Pan,Tilt reset

Colour System Reset

Gobo System Reset

Dimmer, Strobe Reset

Optics. Prism, Frost Res.

Iris, Fr. Sh.Eff. Wh Reset

Manual Effect Con­trol

Pan 0-255

:

Dimmer Fine 0-255

Stand -Alone Test Sequences Dynamic Mode

Static Mode Pan 0-255

Tilt 0-255

Zoom 0-255

Focus 0-255

MusicTrigger Off, On

Preset Playback None

Test

Prg. 1

Prg. 2

Prg. 3

Play Program Play Program 1

Play Program 2

Play Program 3

Edit Program Edit Program 1 Start Step 1-100

End Step 1-100

Edit Program Steps Step 1 Pan 0-255

: :

: Dimmer Fine 0-255

: Step Time 0-25,5 sec.

Step 100

Pan 0-255

:

Dimmer Fine 0-255

Step Time 0-25,5 sec.

Service Adjust DMX Values Pan 0-255

:

Dimmer Fine 0-255

Adjust Lamp Pan 0-255

:

Focus 0-255

Calibrations Calibrate Effects Pan 0-255

:

Fr. Shutter 4 Swiv. 0-255

Calibrate Pan/Tilt EMS.

Load Default Calibra­tions

Update Software

22

7. Control menu

The Robin BMFL Blade is equipped with the QVGA Robe touch screen with battery backup which
allows to set the xture´s behaviour according to your needs, obtain information on its operation, test its vari­ous parts and lastly program it, if it has to be used in a stand-alone mode.

The xture´s menu can be controlled either by the control buttons or directly by touching the icon.

Control buttons on the front panel:

[ESCAPE] button used to leave the menu without saving changes.
[NEXT] , [PREV] buttons for moving between menu items and symbols, adjusting values.

[ENTER/Display On] button used to enter the selected menu (menu item) and to conrm adjusted value.

If the xture is disconnected from mains, the button switches the touch screen on.

Icons used in the touch screen menu:

- [back arrow] used to move back to the previous screen (menu).

- [up arrow] used to move up on the previous page.

- [down arrow] used to move down on the next page.

- [conrm] used to save adjusted values, to leave menu or to perform desired action.

- [cancel] used to leave menu item without saving changes.

- [conrm+copy] used to save adjusted values and copy them to the next prog. step.

- [warning icon] used to indicate some error which has occurred in the xture.

- [lamp menu] used to switch on/off the lamp and to set lamp functions.

- [Ethernet] used to indicate Ethernet connected.

- [menu rotation] used to rotate menu 180 degrees from current orientation.

- [slider control] used to recall slider system for setting desired value.

- [keyboard control] used to recall keyboard system for setting desired value.

- [air lters cleaning] used to signal that cleaning period of the air lters elapsed.

- [250 hours remain] used to signal that 250 hours remain to change the lamp.

- [50 hours remain] used to signal that 50 hours remain to change the lamp.

The menu page displays icons for each function that you can perform from the touch screen.

The menu page displays icons for each function that you can perform from the touch screen.

23

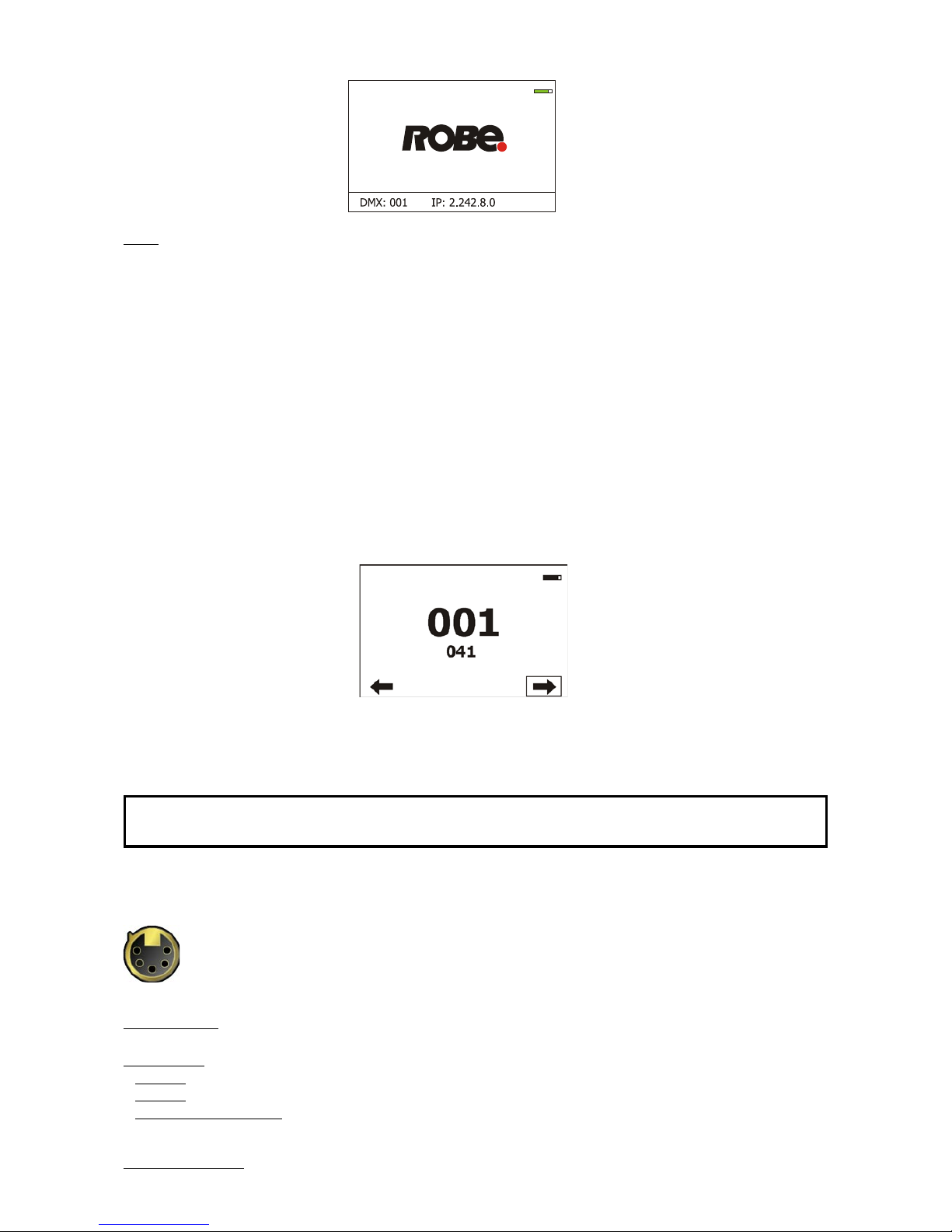

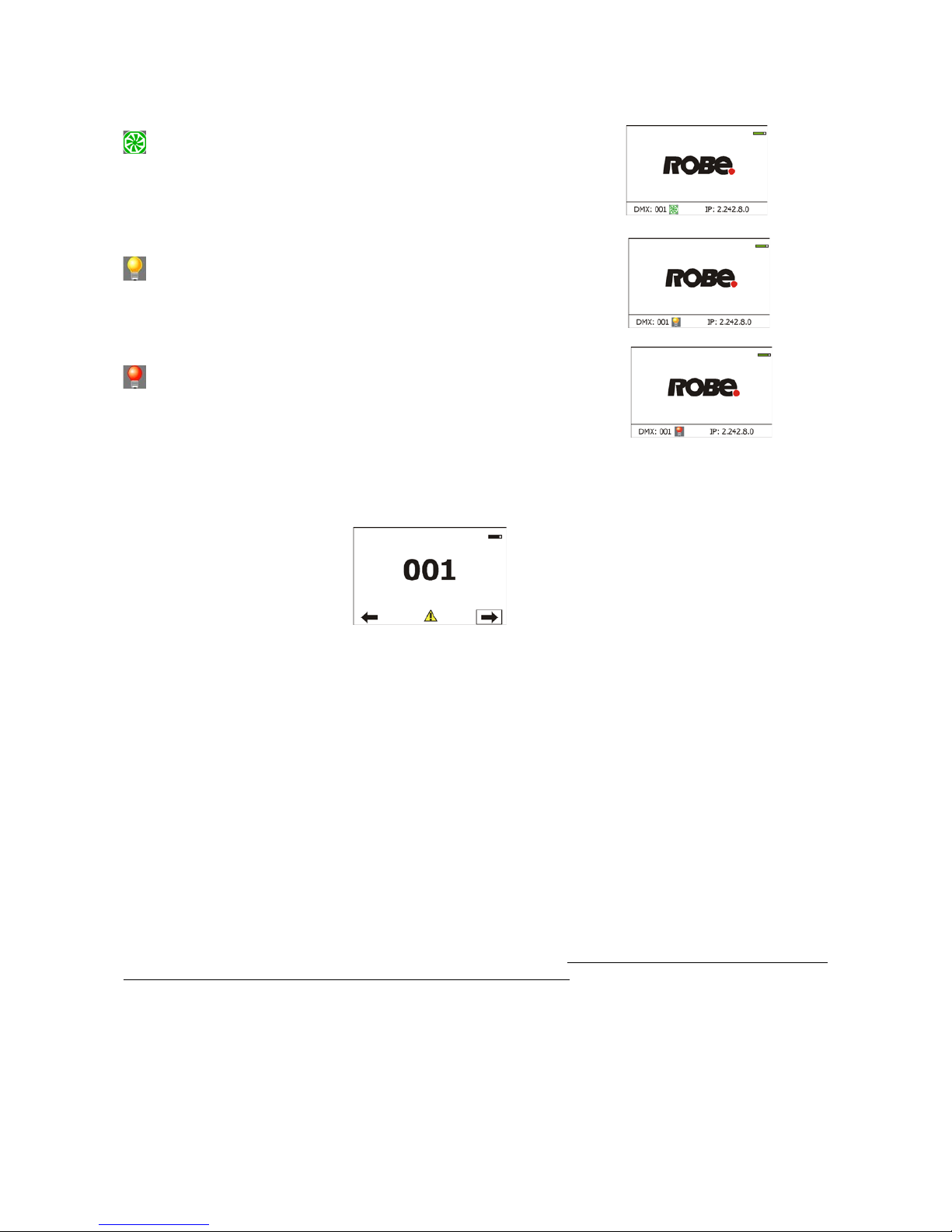

After switching the xture on, the touch screen shows the screen with the ROBE logo:

Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If

the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery. The battery
charges during xture operation, its charging lasts cca 6 hours.
We recommend that the xture should be in operation at least 7 hours per week to keep the battery fully

charged.

If you switch the xture on and this screen will not appear till 1 minute, switch the xture off and on again. If the
screen lights, the battery is exhausted. In case the screen still does not light, the battery is faulty.

This is also indicated by an error message "Faulty battery" and if such an error message appears the battery

should be replaced immediately. The lifetime of the battery is highly dependent on ambient temperature (and
consequently on base temperature). If the maximum ambient temperatures (as recorded and displayed in menu:
Information -> Fixture Temperatures -> Ambient Temperature -> Maximum NonRes.) are kept within the speci­ed limits, the battery should last for at least two years. Shell the ambient temperatures exceed the specied
maximum temperature, the lifetime of the batteries could be considerably shortened even up to just one year
or less and also result in physical damage (battery leakage) or unreliable xture functions.
Damage caused by batteries failed due to exceeded maximum ambient temperature cannot be claimed under

warranty terms.

Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur-

rent stored DMX address (and the end address for selected DMX mode):

Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter
the " Address" menu.

An item (such as a Tab, menu item, text box, icon) may be selected from a screen by simply touching the

item.

Before rst xture operation, set current date and time in the menu "Date &Time Set-

tings" (menu path: Personality--> Date &Time Settings).

7.1 Tab " Address"

DMX Address - Select the menu to set the DMX start address.

DMX Preset - Use the menu to select desired channel mode.

Mode 1 - 49 control channels
Mode 2 - 42 control channels
View Selected Preset - Use the menu to display channels included in the selected mode.

Ethernet Settings - The menu allows all needed settings for the Ethernet operation

24

Ethernet Mode
Disable - The option disables Ethernet operation.

Artnet - Fixture

receives Artnet protocol

gMAI

- Fixture

receives MANet I protocol

gMA2

- Fixture

receives MANet 2 protocol

sACN

- Fixture

receives sACN protocol

Ethernet To DMX - Fixture receives

protocol

from the Ethernet input and sends DMX

data to its DMX output (xture works as an "Ethernet/DMX converter",

next xture can be connected
to its DMX output and you can build a standard DMX chain by connecting another xtures.
Only one xture has to be connected to the Ethernet.

IP Address/Net Mask - Select this menu to set IP address. IP address is the Internet protocol

address.The IP uniquely identies any node (xture) on a network.
There cannot be 2 xtures with the same IP address on the network!
Default IP Address -Preset IP address, you can set up only rst byte of IP address
(2 or 10) e.g. 002.019.052.086.

Custom IP Address - The option enables to set up all bytes of IP address.
Net Mask - The option enables to set up all bytes of Net Mask.

ArtNet Universe - Use

this item to set a Universe (0-255). The Universe is a single DMX

512 frame

of 512 channels.

MANet Settings - Use this menu to set parameters for MANet operation.
MANet Universe I/II - The value of this item can be set in range 1-256.
MANet Session ID - The value of this item can be set in range 1-32.

sACN Settings - Use this menu to set parameters for sACN operation.
sACN Universe - The value of this item can be set in range 1-32000.
sACN Priority - The value of this item can be set in range 0-255.

7.2 Tab "Information"

Fixture Times - The menu provides readouts of xture and lamp operation hours.
Power On Time Hours - Select this menu to read the number of xture operation hours.
Total Hours -

The item shows the total number of the operation hours since the

Robin BMFL Blade

has been fabricated.

Resetable Hours -

The item shows the number of the operation hours that the

Robin BMFL Blade

has been powered on since the counter was last reset.

In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"

Lamp On Time Hours - Select this menu to read the number of hours of lamp operation.
Total Hours -

The item shows the total number of the lamp operation hours since the

Robin BMFL Blade

has been fabricated.

Remaining Hours -

The item shows hours remaining

to replacement of

the lamp. The initial value for this counter is 750 hours. In order to reset this counter to 0,

touch the text box next to the item "Remaining Hours:"

Lamp Strikes - Select this menu to read the number of lamp strikes.
Total Strikes - The item shows the total number of the lamp strikes since the

Robin BMFL Blade has been fabricated.
Resetable Strikes - The item shows the number of the lamp strikes since the counter was
last reset.

In order to reset this counter to 0, touch the text box next to the item "Resetable Strikes:"

Air Filters - Regular cleaning of the air lters is very important for the xture´s life and performance.
Bild-up of dust, dirt and fog uid residues reduces the xture´s light output and cooling ability.

25

The two items of this menu help you to keep cleaning period of the air lters.

Alert period - Cleaning schedule for the xture depends on the operating environment.
It is therefore impossible to specify accurate cleaning interval. This item allows

you to change the cleaning interval of the air lters. This "alert" value is 300 hours and it
is set as default. Inspect the xture within its 300 hours of operation to see whether cleaning
is necessary. If cleaning is required, clean all air lters and change the value in this menu
on acceptable level. Min. level of alert period is 10 hours, max. is 300 hours.
Elapsed Time - The item allows you to read the time which remains to cleaning air lters.

The time period is set in the menu mentioned above.

Expired time period is signalled by a negative mark (-) at the time value and a warning icon

on the display.

Clean the lters and reset this menu item (by touching the text box next to the item

"Elapsed Time").

Fixture Temperatures - The menu is used to view temperatures of the xture´s inside.

Head Temperature - The menu shows temperatures in the xture head near the lamp.
Current - A current temperature of the xture head.

Maximum NonRes. - A maximum temperature of the xture head since the xture has

been fabricated.
Maximum Res. - A maximum temperature of the xture head since the counter
was last reset.

In order to reset this counter to 0, touch the text box next to the item "Maximum Res."

Note: if the "Head Temperature" exceeds 115°C, the lamp will be switched off.

Base Temperature - The menu shows temperature in the xture base (on the display PCB).

Current - A current temperature in the xture base.

Maximum NonRes. - A maximum temperature in the xture base since the xture has

been fabricated.
Maximum Res. - A maximum temperature in the xture base since the counter
was last reset.

In order to reset this counter to 0, touch the text box next to the item "Maximum Res."

Ambient Temperature - The menu shows temperature of the induced air on the fan in the xture base .
Current - A current temperature of the induced air in the xture base.

Maximum NonRes. - A maximum temperature of the induced air in the xture base since
the xture has been fabricated.

Maximum Res. - A maximum temperature of the induced air in the xture base since
since the counter was last reset.

In order to reset this counter to 0, touch the text box next to the item "Maximum Res."

DMX Values - The menu is used to read DMX values of each channel received by the xture.

Wireless State - The menu serves for reading of the wireless operation status
Unlink Wireless Adapter - The menu item allows unlinking the xture from the transmitter .

Power Channel State - The menu item shows state of the Power/Special functions switches.

Software Version - Select this item to read the software version of the xture modules:

Display System - A display processor on the display board in the xture base
Module M - A pan/Tilt
Module G - A rot. gobo wheel, effect wheel position/ rotation, static gobo wheel
Module P - A prism, frost
Module O - A zoom, focus
Module C - A CMY+CTO module
Module D - A dimmer, lamp fans
Module S - A shutter, colour 1 and colour 2
Module FA - A framing lamella 1/2, iris
Module S - A framing lamella 3/4, framing module rotation

Product IDs - The menu is used to read the MAC Address ,RDM UID and RDM Label.

View Logs - Use this menu to read xture´s data which have been recorded during xture operation. This col-

lected data allows easier troubleshooting.
Fixture Errors - Use this menu to read xture errors which have occurred during xture operation.
There is a list of error messages:

26

Pan Error Prism Error
Tilt Error Prism Rotation Error
Dimmer 1 Error Frost Error
Dimmer 2 Error Cyan Error
Colour Error Magenta Error
Yellow Error CTO Error
Gobo Error Clean Air Filters
Gobo Carousel Error Iris Error
Static Gobo Error Active Lamp Timer
Focus Error Lamp Error
Zoom Error Temp. Sensor Error
Base Overheated
Fixture States - Recorded following actions: Fixture On, Fixture Off, Lamp On, Lamp Off.
Fixture Position - Recorded installation positions of the xture:

Fixture Temperatures - Recorded temperatures which have exceeded dened levels.

Note: The log buffer can contain 8000 records max. If the buffer is full, old data will be overwritten.

7.3 Tab "Personality"

User mode - The Robin BMFL Blade allows you to recall two user settings. After switching the xture on for the
rst time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing” menu
and the “Music Trigger“ and “ Preset Playback“ items from the “Stand-alone” menu are saved to the User A

settings. If you now select the User B settings, from this moment the changes made in these menus will be

saved to the User B settings. After switching the xture off and on, the User B setting is active.

User A Settings - the function recalls the user A settings.
User B Settings - the function recalls the user B settings.

DMX Preset - Use the menu to select desired channel mode.
Mode 1 - 49 control channels
Mode 2 - 42 control channels
View Selected Preset - Use the menu to display channels included in the selected mode.

DMX Input- Use the menu to select mode of receiving DMX signal.
Wired - DMX signal is received by means of the standard DMX cable.
Wireless - DMX signal is received by means of the inbuilt wireless module.
Wireless In/XLR Out- the xture receives wireless DMX and sends the signal to its wired DMX output.

The xture behaves as " Wireless/Wired" adapter.
The options "Wired" and "Wireless" are also stated in DMX chart (channel Power/Special functions).

Pan/Tilt Settings - Use the menu set behaviour of both pan and tilt movements.
Pan Reverse - The item allows to invert pan movement.
Tilt Reverse - The item allows to invert tilt movement.
Pan/Tilt Feedback - The item allows to return the moving head to the required pan/tilt position after

changing the position by an external force if this option is set on.

Note. Be careful, the Pan/Tilt Feedback should be permanent On, the option Off is not suitable for standard

operation and the head of the xture can be damaged!

Pan/Tilt mode - Use this menu to set the mode of the pan/tilt movement
Time mode – The pan and tilt will move with different speeds and they will come at

27

the same time to the end point of their tracks (pan and tilt use their optimal speeds).
Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt

time".
Speed Mode - Both Pan and tilt will move with the same speed as adjusted at the channel
"Pan/Tilt speed, Pan/Tilt time".

Pan/Tilt EMS - Built-in electronic motion stabilizer ensures precise position of the xture´s head during its

movement and also reducing its swinging when the truss shakes.

Follow Spot Mode - If the function is activated, the pan/tilt motors perform on lower power and the head posi­tion can be controlled manually. You can choose from three levels of the pan/tilt "consistency": soft, medium
and hard.

Note: reset of pan/tilt will not be executed if the xture is in the Follow Spot Mode.

Microphone Sensitivity - Enter the menu if you want to adjust the microphone sensitivity from 1 (max.) to 20
(min.).

Blackout Settings - Use the menu if you need to close the light output under certain conditions which are
described below
Blackout DMC - Blackout during movement correction. Set this option On if you wish to close light
output during the time when the head goes to its correct position, which has been changed by an

external force.

Active Blackouts - Use this menu if you wish to close the light output during effect changes.
Pan/Tilt Moving - The menu item enables to close light output while the pan/tilt coordinates
are changing.
Colour Wheel Moving - The menu item enables to close light output while the colour wheel
is moving.
Note: Due to the fast movement of the colour wheels, the function "Active Blackouts" is used at
movent on longer distances correctly. When you move the colour to the adjacent position, blackout cannot be
made so fast.
Timeout Blackout - If this function is On, two framing lamellas close on expiration
5 seconds after that the dimmer was closed in order to totally close light output from

the xture.

Init Effect Positions - Use the menu to set all effects to the desired positions at which they will stay after

switching the xture on without DMX signal connected.

Screen Settings - Use this menu to change the touch screen settings.
Display Intensity - The item allows to control the intensity of the screen (1-min., 10-max.).
Screen saver Delay - The item allows you to keep the screen on or to turn it off automatically after 1-10

minutes after last touch (or pressing any button on the control panel).

Touchscreen Lock - The item allows you to lock the screen after last touch (or pressing any button on the
control panel). The time delay can be set in range of 1-10 minutes.To unlock the screen, press the
[ENTER/Display On] button.
Recalibrate Touchscreen - The item starts calibration of the touchscreen. Follow the instructions on
the screen.

Display Orientation - The menu allows to change display orientation.
Normal - Standard display orientation if the xture is placed horizontally (e.g. on the ground).

Inverted - Inverted orientation (needed if the xture is hanging on the truss).
Auto - The option activates a gravitation sensor for automatic screen orientation.

Note: Auto option is set as default. You change the display orientation by touching the icon on the display,
an the option set in the "Display Orientation" menu is temporarily overriden.

Temperature unit - Use the menu item to change temperature unit from °C to °F.

Fan Mode - Use the menu to set the xture fans to max. power mode ("High") or to auto-control mode
("Auto").

Dimmer Curve - You can select desired dimmer curve: Linear or Square Law.

Date & Time Settings - Use this menu to set current date and time for the xture log system (menu "View
Logs"). Set this menu item before rst xture operation.
Default Settings - The menu item allows to set all xture parameters to the default (factory) values.

28

Password Protection - allows to enter password in order to prevent unauthorized person from changing set-

ting of the xture.

7.4 Tab "Manual Control"

Reset Functions - The menu allows to reset the xture either per function modules or all modules together.
Total System Reset - The item resets all function modules.
Pan,Tilt Reset - The item resets a pan and tilt movement (except Follow Spot Mode).
Colour System Reset - The item resets a colour wheels and CMY/CTO ags.
Gobo System Reset - The item resets rotating gobo wheels.
Dimmer, Strobe Reset - The item resets strobe and shutter lamellas .
Optics,Prism,Frost Reset - The item resets a zoom, focus, prism and a frost module.
Iris,Fr. Sh., Eff. wh Reset - The item resets an iris, effect wheel and framing shutters.

Manual Effect control - Use the menu to control all xture channels by means of the control panel.

7.5 Tab "Stand-alone"

Test Sequences -Use the menu to run a test/demo sequences without an external controller, which will show
you some possibilities of using Robin BMFL Blade.
Dynamic Mode - This mode uses all Robin BMFL Blade functions including pan/tilt movement and there­fore

is good for a complete introduction of the xture.

Static Mode - This mode is suitable for projections on the wall, ceiling or ground without any pan/tilt move­ment. Adjust the pan, tilt, zoom, focus and hot-spot to desired positions an start test sequences by touching
the green icon.

Music Trigger - Use the item to activate the sound control of the running program via the built-in micro­phone.
Preset Playback - This menu allows you to select the program which will be played in a loop after switching

the xture on (the option is commonly used in a stand-alone operation without an external controller).

None - The option disables “Presetting playback” function.
Test - The option starts the test sequences.
Prog. 1 - The option starts user program No. 1.

Prog. 2 - The option starts user program No. 2.
Prog. 3 - The option starts user program No. 3.

Play program - Use the menu to run desired program in a loop.
Play Program 1 - The option starts user program No.1.
Play Program 2 - The option starts user program No. 2.
Play Program 3 - The option starts user program No. 3.

Edit Program - Use the menu to create or to edit desired program. The Robin BMFL Blade offers 3 free pro-

grams, each up to 100 steps.

Edit Program 1 - The option allows to edit user program No.1.
Edit Program 2 - The option allows to edit user program No.2.
Edit Program 3 - The option allows to edit user program No.3

To edit program:

1. Touch the item which you want to edit (“Edit Program 1” - “Edit Program 3”).

2. Touch the item "Edit Program Steps".

3. Touch the item "Step 1".
4 From the list of effects touch desired effect and set its value. Browse throw the list by touching the [up arrow]
and [down arrow] and set all desired effects.

29

An item "Step Time" (value of 0-25.5 sec.) is the time during which effects last in the current step

5. Save adjusted effects to the current step by touching the [conrm] or save and copy them to the following
step by touching the [conrm+copy]. By touching the text box "Preview" next to the current program step you

can view created scene.

6. Repeat the steps 4 and 5 for next program steps.

7. After editing desired program steps, adjust the length of the program by touching the text boxes "Start Step"

and "End Step".

Meaning of the icons used in the "Edit Program" menu:

- moves down on the next page - saves adjusted values and leaves menu

- moves up on the previous page - saves values to the current step and copy them to the

following prog. step

- leaves menu without saving values

There is a chart describing behaviour of items "Pan/Tilt Macro" and "P./T. Macro Speed".

DMX

0 - 9
10 - 31
32 - 63
64 - 95

96 - 127
128 - 159
160 - 191
192 - 223
224 - 255

Pan/Tilt Macro

Disabled pan/tilt macro
Reserved

Figure of circle (from small to large)
Figure of horizontal eight (from small to large)
Figure of vertical eight (from small to large)
Figure of rectangle (from small to large)
Figure of triangle (from small to large)
Figure of star (from small to large)
Figure of cross (from small to large)

0

1 - 127
128 - 129
130 - 255

Pan/Tilt Macro Speed

No macro generation
Macro generation from fast to slow-forwards
No macro generation
Macro generation from slow to fast-backwards

7.6 Tab "Service"

Adjust DMX Values - The menu allows you to set all effects to desired positions before ne calibration of the
effects .

Adjust Lamp - This item opens the light output of the xture and enables to focus the light beam on the wall
to perform the ne lamp adjustment.

Calibrations - This menu enables ne calibration of xture effects and download default calibration values.
Calibrate Effects - The menu allows the ne adjustment of effects. The menu contains list of effects

which can be calibrated:

Pan- a ne pan movement
Tilt - a ne tilt movement
Colour Wheel 1 - a colour wheel 1
Colour Wheel 2 - a colour wheel 2
Cyan - cyan ags
Magenta - magenta ags
Yellow - yellow ags
CTO - CTO ags
Effect Wheel - an effect wheel
Static gobo - a static gobo wheel

Rot. Gobo Wheel - a carousel of rotating gobos
R. Gobo Index 1 - a ne movement of rotating gobo 1

R. Gobo Index 2 - a ne movement of rotating gobo 2
R. Gobo Index 3 - a ne movement of rotating gobo 3
R. Gobo Index 4 - a ne movement of rotating gobo 4

R. Gobo Index 5 - a ne movement of rotating gobo 5

30

R. Gobo Index 6 - a ne movement of rotating gobo 6
Prism 1 - a 6-facet radial prism

Prism 1 Rot - a 6-facet radial prism rotation
Prism 2 - a 6-facet axial prism
Zoom - a zoom position
Frost 1/1 - a light frost position 1
Frost 1/2 - a light frost position 2
Frost 2/1 - a medium frost position 1
Frost 1/2 - a medium frost position 2
Focus 1 - a focus position 1
Focus 2 - a focus position 2
Iris - an iris
Strobe 1/1 - a strobe lamella 1 position 1
Strobe 1/2 - a strobe lamella 1 position 2
Strobe 2/1 - a strobe lamella 2 position 1
Strobe 2/2 - a strobe lamella 2 position 2
Dimmer 1/1 - a dimmer lamella 1 position 1
Dimmer 1/2 - a dimmer lamella 1 position 2
Dimmer 2/1 - a dimmer lamella 2 position 1
Dimmer 2/1 - a dimmer lamella 2 position 2
Diffusor - auxiliary optic element
Fr. Shutters Rot. - a rotation of framming carousel
Fr. Reset 1 M1 - a Fram. lamella 1 motor 1 - distance from stop
Fr. Reset 1 M2 - a Fram. lamella 1 motor 2- distance from stop
Fr. Reset 2 M1 - a Fram. lamella 2 motor 1 - distance from stop
Fr. Reset 2 M2 - a Fram. lamella 2 motor 2 - distance from stop
Fr. Reset 3 M1 - a Fram. lamella 3 motor 1 - distance from stop
Fr. Reset 3 M2 -a Fram. lamella 3 motor 2 - distance from stop
Fr. Reset 4 M1 - a Fram. lamella 4 motor 1 - distance from stop
Fr. Reset 4 M2 -a Fram. lamella 4 motor 2 - distance from stop
Fr. Shutter 1 Mov. - a Fram. lamella 1 moving
Fr. Shutter 1 Swiv. - a Fram. lamella 1 swivelling
Fr. Shutter 2 Mov. - a Fram. lamella 2 moving
Fr. Shutter 2 Swiv.- a Fram. lamella 2 swivelling
Fr. Shutter 3 Mov. - a Fram. lamella 3 moving
Fr. Shutter 3 Swiv. - a Fram. lamella 3 swivelling
Fr. Shutter 4 Mov. - a Fram. lamella 4 moving
Fr. Shutter 4 Swiv. - a Fram. lamella 4 swivelling

By using these items you can calibrate and adjust effects to their right positions.

Calibration via the control board

1. Disconnect DMX controller from the xture and enter the "Calibrate Effects" menu.

2. Use the [up arrow] and [down arrow] to nd desired effect and touch it to enter the ne effect adjustment

screen.

3. Set desired value and save it by touching the [conrm].

4. Repeat steps 2 and 3 for the next effects.

5. After calibrating all effects, touch the [conrm] to save all adjusted values and reset the xture.

Calibration via the DMX controller

1. Connect DMX controller to the xture and set xture effects to the desired positions before ne calibration.

2. Enter the "Calibrate Effects" menu and now you can exactly calibrate desired effects by DMX controller.

A calibration protocol:

Effect Mode 1 Mode 2

Pan channel 50 channel 43
Tilt channel 51 channel 44
Colour Wheel 1 channel 52 channel 45
Colour Wheel 2 channel 53 channel 46
Cyan channel 54 channel 47
Magenta channel 55 channel 48
Yellow channel 56 channel 49
CTO channel 57 channel 50

31

Effect wheel channel 58 channel 51
Static gobo channel 59 channel 52
Rot. Gobo Wheel channel 60 channel 53

R. Gobo Index 1 channel 61 channel 54
R. Gobo Index 2 channel 62 channel 55
R. Gobo Index 3 channel 63 channel 56
R. Gobo Index 4 channel 64 channel 57
R. Gobo Index 5 channel 65 channel 58
R. Gobo Index 6 channel 66 channel 59

Prism 1 channel 67 channel 60
Prism 1 Rot channel 68 channel 61
Prism 2 channel 69 channel 62
Zoom channel 70 channel 63
Frost 1/1 channel 71 channel 64
Frost 1/2 channel 72 channel 65
Frost 2/1 channel 73 channel 66
Frost 2/2 channel 74 channel 67
Focus 1 channel 75 channel 68
Focus 2 channel 76 channel 69
Iris channel 77 channel 70
Strobe 1/1 channel 78 channel 71
Strobe 1/2 channel 79 channel 72
Strobe 2/1 channel 80 channel 73
Strobe 2/2 channel 81 channel 74
Dimmer 1/1 channel 82 channel 75
Dimmer 1/2 channel 83 channel 76
Dimmer 2/1 channel 84 channel 77
Dimmer 2/1 channel 85 channel 78
Diffusor channel 86 channel 79
Fr. Shutters Rot. channel 87 channel 80
Fr. Reset 1 M1 channel 88 channel 81
Fr. Reset 1 M2 channel 89 channel 82
Fr. Reset 2 M1 channel 90 channel 83
Fr. Reset 2 M2 channel 91 channel 84
Fr. Reset 3 M1 channel 92 channel 85
Fr. Reset 3 M2 channel 93 channel 86
Fr. Reset 4 M1 channel 94 channel 87
Fr. Reset 4 M2 channel 95 channel 88
Fr. Shutter 1 Mov. channel 96 channel 89
Fr. Shutter 1 Swiv. channel 97 channel 90
Fr. Shutter 2 Mov. channel 98 channel 91
Fr. Shutter 2 Swiv. channel 99 channel 92
Fr. Shutter 3 Mov. channel 100 channel 93
Fr. Shutter 3 Swiv. channel 101 channel 94
Fr. Shutter 4 Mov. channel 102 channel 95
Fr. Shutter 4 Swiv. channel 103 channel 96

After having calibrated all effects, touch the [conrm] to save adjusted values and reset the xture.

Load Default Calibrations - The item loads default (factory) calibration values.

Calibrate Pan/Tilt EMS - This menu item allows calibration of the pan/tilt electronic motion stabilizer.

Important: during this calibration any external force must not inuence the xture and the surface at which
the xture stands (or truss if the xture hangs) has to be without movement, shake, strokes etc.

Updating software -

The menu item allows you to update software in the xture via either serial or USB port

of PC.
The following are required in order to update software:

- PC running Windows 95/98/2000/XP/7/8 or Linux

- DMX Software Uploader

- Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC)

- Robe Universal Interface (if you want to use an USB port of PC)
Note: Software update should execute a qualied person. If you lack qualication, do not attempt the

update yourself and ask for help your ROBE distributor.

32

DMX address, IP address, programs 1-3 and all items in the menu "Personality" will be set to their default

(factory) values.

To update software in the xture:

I. Installation of the DMX Software Uploader.

1. DMX Software Uploader program is available from the ROBE web site at WWW.robe.cz.

2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.

3. Unpack the seftware.

II.Fixture software updating.

1.Determine which of your ports is available on your PC and connect it:

- with the DMX input of the xture if you using the ash cable RS232/DMX

- with the DMX output of the Robe Universal Interface if you using the USB cable.

Disconnect the xture from the other xtures in a DMX chain. Turn both the computer and
the xture on. Make sure the lamp is switched off (only if the xture involves a lamp).

2. Switch the xture to the updating mode by touching the "Updating Software " item
Note: If you do not want to continue in software update, you have to switch off and on the xture

to escape from this menu.
We recommend to cancel all running programs before starting the Software Uploader.

3. Run the Software Uploader program. Select desired COM and then click on the Connect button.

(Select COM if the serial port is used or Robe Universal Interface if the USB port is used).
If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several

minutes to perform software update.

If the option "Incremental Update" is not checked, all processors will be updated (including

processors with the same software version).

If you wish to update only later versions of processors, check the “Incremental Update box“.
Avoid interrupting the process. Update status is being displayed in the Info Box window.
When the update is nished, the line with the text “The xture is successfully updated“ will appear in
this window and the xture will reset with the new software.
Note: In the case of an interruption of the upload process (e.g. power cut), the xture keeps the updating mode

and you have to repeat the software update again.

7.7 Icon "Lamp menu"

Lamp Status - The item enables to switch the lamp on/off. The Osram Lok-it! HTI 1700/PS lamp is a cold
restrike type, that means, that it has to be cold before striking.

Settings - The menu offers many items for setting of lamp behaviour.
Lamp Power - The menu offers two levels of the lamp power: 1700W, 1500W and the option Quiet,

at which the lamp power is auto-controlled to ensure minimum noise of the xture fans.

All these options are available at DMX channel 6. The factory setting is 1700W.

Lamp Ignition Delay - The item allows to set the time delay( 0-90sec.) before igniting the lamp by DMX

command. If the lamp is started directly from the control panel, the set time delay will be ignored.
Lamp Light Sensor - Select this item to switch the light sensor off. The option "On” is intended for a standard
operation. The option "Off” is for “emergency operation” only! If the lamp light sensor is switched off, the xture

will still try to ignite the lamp (even when the lamp is damaged or absent), on this account some electronics
parts of the xture can be damaged!

Lamp On/Off Settings - Use the menu to set rules for automatic switching on/off the lamp.
Lamp On Power On - If the item is on, the lamp will be automatically turn on after switching the

xture on.

Lamp Off via DMX - The item enables to switch the lamp off via DMX command from DMX
controller.
Lamp On if DMX Present - The item allows you to strike the lamp automatically after 26 seconds

if DMX signal is present on the xture´s DMX input.

Lamp Off if not DMX - The item allows you to switch off the lamp automatically after 2 minutes

if DMX signal is missing on the xture´s DMX input.

33

8. RDM

This xture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications

protocol for use in DMX512 control systems, it is the new open standard for DMX512 device conguration and
status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely affecting

existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specications

for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive

messages from specic moving lights.
RDM allows explicit commands to be sent to a device and responses to be received from it.

The list of commands for Robin BMFL Blade is the following.

Parameter ID Discovery command SET command GET command

DISC_UNIQUE_BRANCH *

DISC_MUTE *

DISC_UN_MUTE *

DEVICE_INFO *

SUPPORTED_PARAMETERS *

SOFTWARE_VERSION_LABEL *

DMX_START_ADDRESS * *

IDENTIFY_DEVICE * *

DEVICE_MODEL_DESCRIPTION *

MANUFACTURER_LABEL *

DEVICE_LABEL * *

SENSOR_DEFINITION *

SENSOR_VALUE *

DISPLAY_INVERT * *

DISPLAY_LEVEL * *

PAN_INVERT * *

TILT_INVERT * *

DEVICE_RESET *

DMX_PERSONALITY * *

DMX_PERSONALITY_DESCRIPTION *

STATUS_MESSAGES *

STATUS_ID_DESCRIPTION *

LAMP_STATE * *

LAMP_ON_MODE

1

* *

DEVICE_HOURS

2

*

LAMP_HOURS

2

*

LAMP_STRIKES

2

*

ROBE_DMX_INPUT * *

ROBE_WIRELESS_UNLINK *

1

...Another options for this command (only for Robe´s xtures):
value PARAMETER_DATA=0x84 - lamp OFF by DMX value on DMX channel
value PARAMETER_DATA=0x88 - lamp OFF if DMX is not present

2

...Commands relative resetable values

9. Wireless DMX operation

The wireless version of the Robin BMFL Blade is equipped with the Lumen Radio CRMX module and antenna
for receiving DMX signal. CRMX module operates on the 2.4 GHz band.

The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Personal­ity--> DMX Input -->Wireless.). First two options from the "DMX Input" menu are stated in DMX chart as well

34

(channel Power/Special functions , range of 10-19 DMX). If DMX input option is changed by DMX command,
the change is permanently written into xture´s memory.

DMX range of 10-19 switching xture to the wired/wireless operation is active only during rst 10 sec­onds after switching the xture on.

After switching the xture on, the xture checks both modes of receiving DMX in the following order:

1. For the rst ve seconds, the xture receives DMX signal from the wired input. If the Power/Special functions
channel is set at some DMX input option, the xture will receive DMX value according to this option. If DMX input
option is set to the wired input , this option is saved and checking procedure is nished. If DMX input option is
not set, the xture continues next 5 seconds in scanning wireless DMX signal-see point 2.

2. For the next 5 seconds the xture receives wireless DMX signal and again detects if the Power/Special
functions channel is set at some DMX input option, if not, the xture will take option which is set in the xture

menu "DMX Input".

To link the xture with DMX transmitter.
The xture can be only linked with the transmitter by running the link procedure at DMX transmitter .
After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Wireless State“ (Information

-->Wireless State).

To unlink the xture from DMX transmitter.
The xture can be unlinked from receiver via the menu item “ Unlink Wireless Adapter“ (Information--> Wireless
State --> Unlink Wireless Adapter).

35

10. Error and information messages

Information icons

- Air Filters Cleaning

This icon signalizes that cleaning period of the air lters has elapsed
and you have to clear air lters and reset the menu item "Elapsed Time".

- Lamp time - 250 hours remaining

This icon signalizes that 250 hours remain before replacing the lamp.

- Lamp time - 50 hours remaining

This icon signalizes that 50 hours remain before replacing the lamp.

Errors

Error in the xture is signalled by the yellow warning icon at the bottom line of the screen:

Touch the warning icon or press the [ESCAPE] button to display error messages.
List of error and information messages:

Active Lamp Timer

This message appears if you try to switch on the hot lamp. The xture tries to ignite the lamp and during time
period before next attempt of the lamp ignation the message is displayed. Also faulty (missing) lamp can be

reason of the message.

Lamp Error

This message appears if the lamp was switched off without command of the lamp control software.

Overheated

This message informs that the xture head has been overheated and the lamp was switched off by means of
the head temperature sensor (sensor Head Temperature).

Base Overheated

This message informs that the xture base has been overheated and the lamp was switched off by means of
the temperature sensor (sensor Ambient Temperature) in the base. Before switching the lamp on again, the
xture must be disconnected from mains and connected once again.

Temper.Sensor Error

The message informs you that the communication between the temperature sensor in the xture head and its

processor failed and the lamp has been switched off.

Internal Error 1

Communication error between PCBs (error or noise was detected on communication wires)

Internal Error 2

Ballast communication error (some PCB has failed or is disconnected (this PCB will show as N/A in menu -->
Information --> Software versions) or error/noise was detected on communication wires)

36

Tilt Error 1 (Tilt Error 2)

This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not
located in the default position after the reset.

Tilt Error 3

This message signalizes error of the tilt feedback. Check connection of the tilt sensor.

Pan Error 1 (Pan Error 2)

This message will appear after the reset of the xture if the yoke´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The yoke is not

located in the default position after the reset of the xture.

Pan Error 3

This message signalizes error of the pan feedback. Check connection of the pan sensor.

Pan/Tilt EMS Call Error

If the message appears, run Pan/Tilt EMS calibration (tab Service --> Calibration --> Calibrate Pan/Tilt EMS)

Colour Wheel 1 Error 1(Colour Wheel 1 Error 2)

The messages will appear after the reset of the colour wheel if this wheel is not located in the default posi­tion.

Colour Wheel 2 Error 1(Colour Wheel 2 Error 2)

The messages will appear after the reset of the colour wheel if this wheel is not located in the default posi­tion.

Cyan Lamella Error 1 (Cyan Error 2 )

The messages will appear after the reset of the cyan ag if the ag is not located in the default position.

Magenta Lamella Error 1 (Magenta Error 2 )

The messages will appear after the reset of the magenta ags if the ag is not located in the default position.

Yellow Lamella Error 1 (Yellow Error 2 )

The messages will appear after the reset of the yellow ags if the ag is not located in the default position.

CTO Lamella Error 1 (CTO Lamella Error 2)

The messages will appear after the reset of the CTO ag if the ag is not located in the default position.

Prism 1 Error 1 (Prism 1 Error 2 )

The messages will appear after the reset of the 6-facet linear prism if this prism is not located in the default
position.

Prism 1 Rot. Error 1 (Prism 1 Rot. Error 2 )

The messages will appear after the reset of the 6-facet linear prism if the prism rotation is not in the default
position.

Prism 2 Error 1 (Prism 2 Error 2 )

The messages will appear after the reset of the 6-facet axial prism if this prism is not located in the default

position.

Zoom Error 1 (Zoom Error 2 )

The messages will appear after the reset of the zoom module if the zoom lens is not located in the default
position.

Focus 1 Error 1 (Focus 1 Error 2 )

The messages will appear after the reset of the focus module if the focus module 1 is not located in the default
position.

Focus 2 Error 1 (Focus 2 Error 2 )

The messages will appear after the reset of the focus module if the focus module 2 is not located in the default
position.

37

Gobo Carousel Error 1 (Gobo Carousel Error 2 )

The messages will appear after the reset of the gobo carousel 1 if this wheel is not located in the default posi­tion.

Gobo rotation Error 1 (Gobo Rotation Error 2 )

The messages will appear after the reset of the rotating gobo wheel 1 if the rotating gobos are not located in
the default positions.

Static Gobo Error 1 (Static Gobo Error 2 )

The messages will appear after the reset of the static gobo wheel if this wheel is not located in the default
position.

Faulty battery

The battery on the display board is exhausted and should be replaced immediately.

Vcc 5V failure

The 5V supply failure has appeared.

Vcc 48V failure

The 48V supply failure has appeared.

Lamp Fan 1 (2) Bad, Lamp Off

One of the blowers (Fan 1, Fan 2) cooling the lamp malfunctioned and the lamp was switched off.

Front Fan Bad, Lamp Off.

One of the sucking fans (Fan 6, Fan 7) in the xture head malfunctioned and the lamp was switched off.

Base Fan Bad, Lamp Off

One of the fans (Fan 5, Fan 6) in the xture base malfunctioned and the lamp was switched off.

CMY Fans Bad, Lamp Off

Both fans (Fan 3, Fan 4) in the CMY module in the xture head malfunctioned and the lamp was switched

off.

CMY Fan Bad, Lamp P. Reduced

One of the fans (Fan 3, Fan 4) in the CMY module in the xture head malfunctioned and the lamp power has

been reduced.

Gobo Fan Bad, Lamp P. Reduced

The gobo blower (Fan 5) at gobo wheels in the xture head malfunctioned and the lamp power is reduced when
the gobo wheel 1 (2) or animation wheel is moving into the light beam.

FS Fans Bad, Lamp Off

Both blowers (Fan 11, Fan 12) of the framing shutters module in the xture head malfunctioned and the lamp

was switched off.

FS Fan Bad, Lamp P. Red.

One of the blowers (Fan 11, Fan 12) of the framing shutters module in the xture head malfunctioned and the

lamp power has been reduced.

Arm Fan Bad

The small fan (Fan 8) in the xture arm malfunctioned.

38

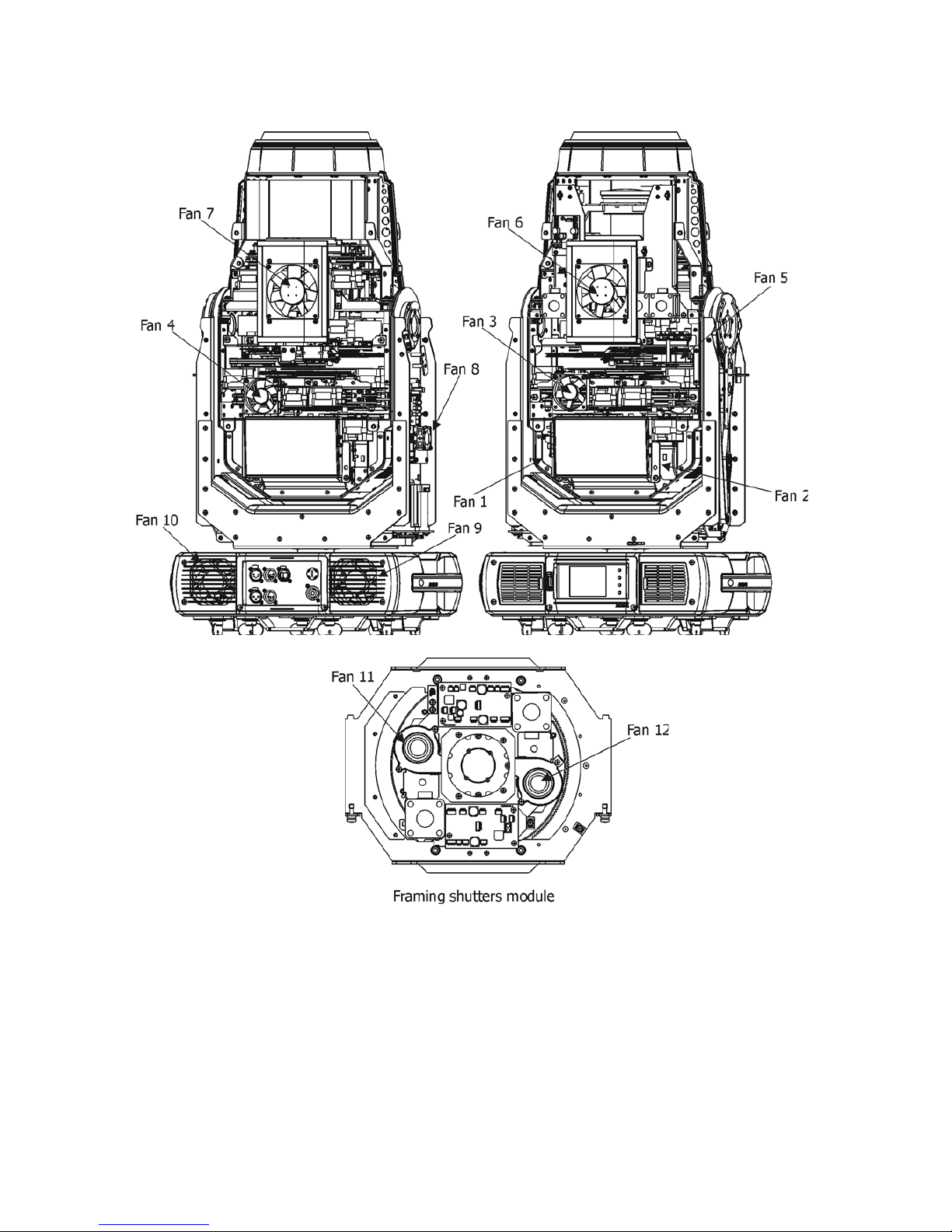

Fans location:

39

11. Technical Specications

Electrical

Power supply: electronic auto-ranging
Input voltage range: 200-240V, 50-60Hz

Power consumption* @230V (*Allow for a deviation of +/-5%)

Lamp power 1700W............ 2000W (power factor=0.99, I=8.96 A)

Lamp power 1500W............ 1820W (power factor=0.99, I=8.04 A)

Fuse: T 12 A/250V

Lamp

Osram Lok-it! HTI 1700/PS (140,000 lumens, CRI=90, CCT=6000K,

750 hrs. life @ 1700W/1200W/Quiet mode )

Base: PGJ28 Lok-it!

Ballast

Electronic

Optical System

High luminous-efciency glass reector
Zoom range: 5 °- 55° (open hole); 5° – 48° (gobo)

Colour wheel 1

6 dichroic lters (deep red, deep blue, orange, green, magenta, congo blue) + open

Colour wheel 2

6 replaceable 'SLOT&LOCK' dichroic lters (pink, lavender, laser green, CTB,

minus 1/1 green, minus 1/2 green) + open

CMY + CTO mixing module

Smooth CMY colour mixing system

Colour temperature correction lter lowers the colour temperature to 2700 K
30 colour macros

Rotating gobo wheel

6 glass gobos can be indexed and rotated in both directions at different speeds

Gobo wheel continuous rotation

Glass gobos: outside diameter=30.8 mm, image diameter=25 mm, max. thickness=3.5 mm, high
temperature borooat or better glass

"Slot&lock" system for easy replacement of gobos

Static gobo wheel

8 replaceable ‘SLOT&LOCK’ glass gobos , outside diameter=

30.8

mm,

image diameter=25 mm

Gobo wheel continuous rotation

40

Prism

2 rotating prisms (6-facet linear, 6-facet axial) with continuous rotation in both directions

Iris Motorized iris for different beam diameters

Frost lters

3

separate,variable frost lters (light, medium, heavy)

Replaceable light lter

Zoom

Linear motorized zoom

Effect wheel

Effect wheel rotating in both directions

Strobe

Strobe effect with variable speed (up to 10 Hz)

Electronic strobe

Dimmer

Smooth dimmer from 0 - 100 %

Control

Graphic touch screen for xture setting and addressing

Gravitation sensor for auto screen positioning
Battery backup of the touch screen

Readout xture and lamp usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault nding, error messages

Remotely switching on/off the lamp
Black-out while head moving or colour changing
Pan/Tilt electronic motion stabilizer
Stand-alone operation
3 user editable programs, each up to 100 steps
Supported protocols: USITT DMX 512, RDM, ArtNet, MANet, MANet2, sACN

Support of RDM (Remote Device Management)
2 DMX modes (49, 42 control channels)

Wireless DMX/RDM module (Wireless DMX version only)

Compliance with USITT DMX-512 (1986 & 1990) and 512-A
Full DMX delity and frame integrity

Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz
Producer: LumenRadio

Framing shutters

4 individually positionable blades

rotation of each blade in range of 50°
rotation of the complete framing system in range of 90°

Pan/Tilt

Pan movement range 540°

Tilt movement range 270°
16 bit movement resolution
Automatic Pan/Tilt position correction
Remotely controllable speed of pan/tilt movement for easy programming
Movement control: tracking and vector
Pan/tilt-lock mechanism

41

Rigging

Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets

Temperatures

Maximum ambient temperature: 45°C (for CE)
25°C (for cETLus)
Maximum housing temperature : 170° C (at air vents in xture head)

Minimum distances

Min. distance from ammable surfaces: 1 m

Min. distance to alight object: 8 m

Connection

DMX data in/out: Locking 3-pin and 5-pin XLR

ArtNet: RJ 45 (Neutrik Ethercon)

AC power IN: Chassis connector Neutrik PowerCon, A-type, NAC3MPA

Total heat dissipation

6480 BTU/h (calculated)

Weight (net):

37.9 kg

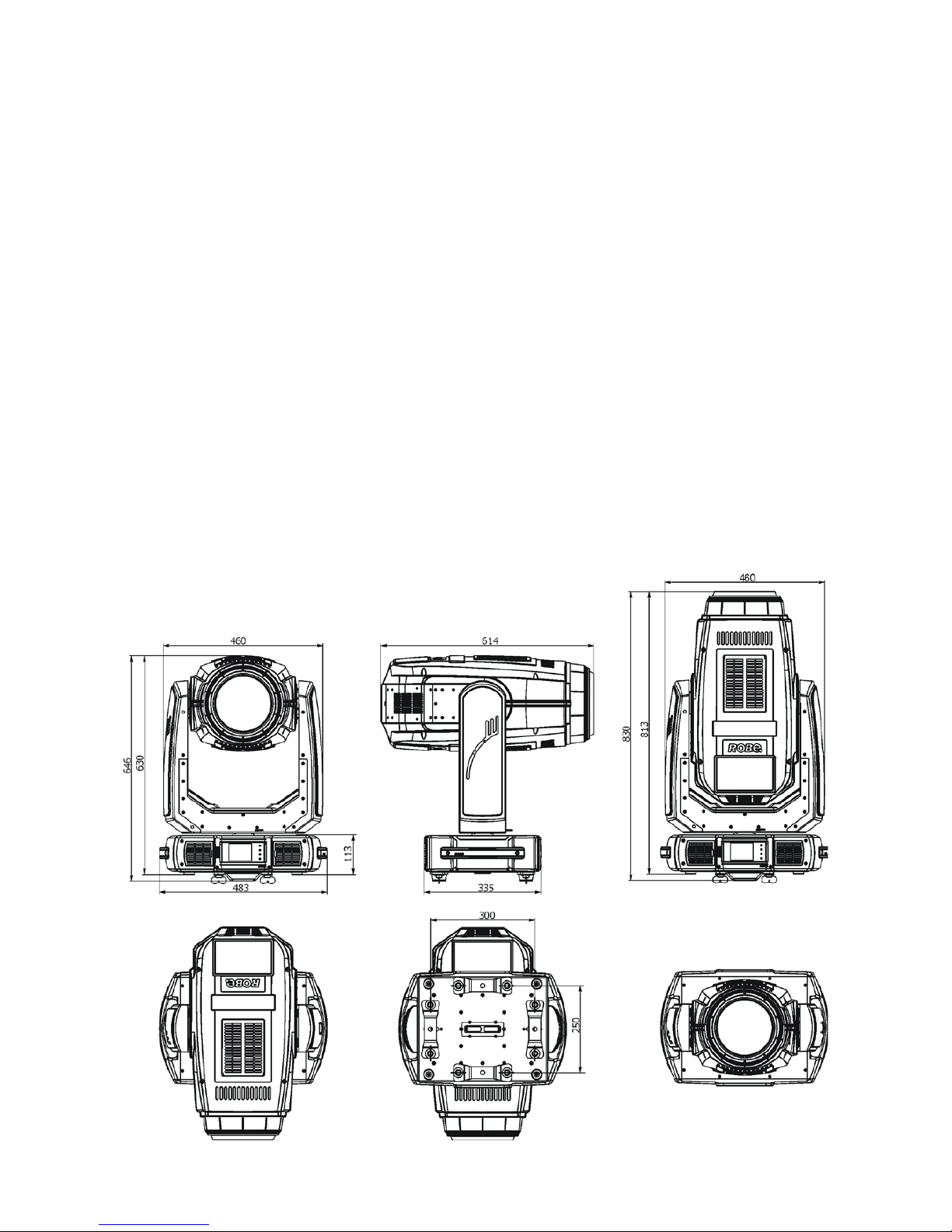

Dimensions (mm)

42

Accessories

Omega holder (S.N.99010420)................................2 pcs

Power cable ............................................................1 pc

Optional accessories

Handle for Follow Spot Mode (S.N. 10980232)
Upgrade kit CRMX Universal 260 (S.N. 9903 0100)

Photometric diagrams

43

44

12. Maintenance and cleaning

It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build
up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will
not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances

should alcohol or solvents be used!

DANGER !

Disconnect from the mains before starting any

maintenance work

The front objective lens will require weekly cleaning as smoke-uid tends to building up residues, reducing

the light-output very quickly. The cooling-fans should be cleaned monthly.

The interior of the xture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
Dichroic colour lters, CMY lamellas, gobo and effect wheels and the internal lenses should be cleaned

monthly.
Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.

Important! Check the air lters periodically and clean before they become

clogged!

Clean two air lters placed in the xture´s covers and two in the xture base. Use a vacuum cleaner, compressed

air or you can wash them and put back dry.

After replacing the air lters, reset the elapsed time counter in the menu "Information" (Information--->Air Fil­ters---> Elapsed Time).

Replacing the fuse.

Before replacing the fuse, unplug mains lead.

1) Remove the fuse holder on the rear panel of the base with a tting screwdriver from the housing
(anti-clockwise).

2) Remove the old fuse from the fuse holder.

3) Install the new fuse in the fuse holder (only the same type and rating).

4) Replace the fuseholder in the housing and x it.

13. ChangeLog

This section summarizes all types of changes in the user manual.

Version of the

manual

Date of issue Description of changes

1.1 20/05/2015

Replacement of the light frost added.

1.2 06/04/2016

DMX chart version 1.2 (Silent mode renamed to Quiet mode)

April 5, 2016

Copyright © 2015-2016 Robe Lighting - All rights reserved

All Specications subject to change without notice

DMX protocol

1 2

1 1

Pan

0 - 255 Pan movement by 540°

proportional

Robin BMFL Blade - DMX protocol

version 1.2 Mode 1 - Standard 16 bit, Mode 2 - Reduced 8 bit

Mode/channel

DMX

Value

Function

Type of
control

2

2

Pan Fine

0 - 255 Fine control of pan movement

proportional

3 3

Tilt

0 - 255 Tilt movement by 270°

proportional

4 4

Tilt fine

0 - 255 Fine control of tilt movement

proportional

5 5

Pan/Tilt speed , Pan/Tilt time

0

Standard mode

step

1 Max. Speed Mode

step

Pan/Tilt speed mode

2 - 255 Speed from max. to min.

proportional

Pan/Tilt time mode

2 - 255 Time from 0.2 s to 25.5 sec.

proportional

6

6

Power/Special functions

6

6

Power/Special functions

0 - 9 Reserved

To activate following functions, stop in DMX value for at least 3 s

and shutter must be closed at least 3 sec. („Shutter,Strobe”
channel 47/41 must be at range: 0-31 DMX). Corresponding menu
items are temporarily overriden except DMX Input.

10-14

DMX input: Wired DMX *

step

15-19

DMX input: Wireless DMX *

step

* function is active only10 seconds after switching the fixture on

20-24

Graphic display On

step

25-29

Graphic display Off

step

30-34

Reserved

35-39

Lamp power 1500W

step

40-44

Lamp power 1700W

step

45-49

Quiet mode

step

50-54

Dimmer curve: Square law

step

55-59

Dimmer curve: Linear

step

60-64

Fans mode: Auto

step

65-69

Fans mode: High

step

70-89

Reserved

90 - 94 Pan/Tilt speed mode

step

95-99

Pan/Tilt time mode

step

100 - 104 Blackout while pan/tilt moving

step

105 -109 Disabled blackout while pan/tilt moving

step

11 0-114 Blackout while colour wheels moving

step

115 -119 Disabled blackout while colour wheels moving

step

120-129 Reserved

To activate following functions, stop in DMX value for at least 3

seconds.

130 - 139 Lamp On

step

140 - 149 Pan/Tilt reset

step

150 - 159 Colour system reset

step

Page 1

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

160 - 169 Gobo wheels reset

step

170 - 179 Dimmer/Shutter reset

step

180 - 189 Zoom/focus/frost/prism reset

step

190 - 199 Iris/framing shutters/effect wheel reset

step

200 - 209

Total reset

step

210 - 229

Reserved

230 - 239

Lamp Off

step

240 - 255

Reserved

step

7 7

Colour wheel 1

Continual positioning

0 Open/white

proportional

18

Deep red

proportional

37 Deep blue

proportional

55 Orange

proportional

73 Green

proportional

91 Magenta

proportional

110 Congo blue (UV)

proportional

128-129

White

step

128-129

White

step

Positioning

130-139 Deep red

step

140-149 Deep blue

step

150-159 Orange

step

160-169 Green

step

170-179 Magenta

step

180-189

Congo blue (UV)

step

190 - 215 Forwards rainbow effect from fast to slow

proportional

216 - 217 No rotation

step

218 - 243 Backwards rainbow effect from slow to fast

proportional

244 - 249 Random colour selection by audio control

step

(Set microphone sensitivity in menu „Personality”)

250 - 255 Auto random colour selection from fast to slow

proportional

8 *

Colour wheel 1 - fine positioning

0 - 255 Fine positioning

proportional

9 8

Colour wheel 2

Continual positioning

0 Open/white

proportional

18 Pink

proportional

37

Lavander

proportional

55 Laser green

proportional

73 CTB

proportional

91 minus 1/1 green

proportional

110 minus 1/2 green

proportional

128-129 White

step

Positioning

130-139

Pink

step

140-149 Lavander

step

150-159 Laser green

step

160-169 CTB

step

170-179 minus 1/1 green

step

Page 2

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

180-189 minus 1/2 green

step

190 - 215 Forwards rainbow effect from fast to slow

proportional

216 - 217 No rotation

step

218 - 243 Backwards rainbow effect from slow to fast

proportional

244 - 249

Random colour selection by audio control

step

(Set microphone sensitivity in menu „Personality”)

250 - 255 Auto random colour selection from fast to slow

proportional

10 *

Colour wheel 2 - fine positioning

0 - 255 Fine positioning

proportional

11 9

Cyan

0 - 255 Cyan (0-white, 255-full cyan)

proportional

12

10

Magenta

0 - 255 Magenta (0-white, 255-full magenta)

proportional

13 11

Yellow

0 - 255 Yellow (0-white, 255-full yellow)

proportional

14 12

CTO filter

0 - 255 (0-6000K, 255-2700K)

proportional

15

13

CMY +CTO + CW1+CW2 macros

15

13

CMY +CTO + CW1+CW2 macros

See table "Colour macros" to find components of each colour

The following channels are disabled: 7-14 (Mode 1),7-12 (Mode2)

0 - 7 No function

step

8 - 9 Colour Macro 1

step

10-11 Colour Macro 2

step

12-13 Colour Macro 3

step

14-15

Colour Macro 4

step

16-17 Colour Macro 5

step

18-19 Colour Macro 6

step

20-21 Colour Macro 7

step

22-23 Colour Macro 8

step

24-25 Colour Macro 9

step

26-27 Colour Macro 10

step

28-29 Colour Macro 11

step

30-31 Colour Macro 12

step

32-33 Colour Macro 13

step

34-35 Colour Macro 14

step

36-37 Colour Macro 15

step

38-39 Colour Macro 16

step

40-41

Colour Macro 17

step

42-43 Colour Macro 18

step

44-45 Colour Macro 19

step

46-47 Colour Macro 20

step

48-49 Colour Macro 21

step

50-51 Colour Macro 22

step

52-53 Colour Macro 23

step

54-55

Colour Macro 24

step

56-57 Colour Macro 25

step

58-59 Colour Macro 26

step

60-61 Colour Macro 27

step

62-63 Colour Macro 28

step

Page 3

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

64-65 Colour Macro 29

step

66-67 Colour Macro 30

step

LEE colour swatches

68-69

LEE 4 (Medium Bastard Amber)

step

70-71

LEE 10 (Medium Yellow)

step

72-73

LEE 19 (Fire)

step

74-75

LEE 26 (Bright Red)

step

76-77

LEE 58 (Lavender)

step

78-79

LEE 68 (Sky Blue)

step

80-81

LEE 71 (Tokyo Blue)

step

82-83

LEE 79 (Just Blue)

step

84-85

LEE 88 (Lime Green)

step

86-87

LEE 90 (Dark Yellow Green)

step

88-89

LEE 100 (Spring Yellow)

step

90-91

LEE 101 (Yellow)

step

92-93

LEE 102 (Light Amber)

step

94-95

LEE 103 (Straw)

step

96-97

Lee 104 (Deep Amber)

step

96-97

Lee 104 (Deep Amber)

step

98-99

LEE 105 (Orange)

step

100-101

LEE 106 (Primary Red)

step

102-103

LEE 111 (Dark Pink)

step

104-105

LEE 115 (Peacock Blue)

step

106-107

LEE 116 (Medium Blue-Green)

step

108-109

LEE 117 (Steel Blue)

step

110-111

LEE 118 (Light Blue)

step

112-113

LEE 119 (Dark Blue)

step

114-115

LEE 120 (Deep Blue)

step

116-117

LEE 121 (LEE Green)

step

118-119

LEE 128 (Bright Pink)

step

120-121

LEE 131 (Marine Blue)

step

122-123

LEE 132 (Medium Blue)

step

124-125

LEE 134 (Golden Amber)

step

126-127

LEE 135 (Deep Golden Amber)

step

128-129

LEE 136 (Pale Lavender)

step

130-131

LEE 137 (Special Lavender)

step

132-133

LEE 138 (Pale Green)

step

134-135

LEE 139 (Primary Green)

step

136-137

LEE 141 (Bright Blue)

step

138-139

LEE 147 (Apricot)

step

140-141

LEE 148 (Bright Rose)

step

142-143

LEE 152 (Pale Gold)

step

144-145

LEE 154 (Pale Rose)

step

146-147

LEE 157 (Pink)

step

148-149

LEE 158 (Deep Orange)

step

150-151

LEE 162 (Bastard Amber)

step

152-153

LEE 164 (Flame Red)

step

154-155

LEE 165 (Daylight Blue)

step

156-157

LEE 169 (Lilac Tint)

step

158-159

LEE 170 (Deep Lavender)

step

Page 4

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

160-161

LEE 172 (Lagoon Blue)

step

162-163

LEE 179 (Chrome Orange)

step

164-165

LEE 180 (Dark Lavender)

step

166-167

LEE 181 (Congo Blue)

step

168-169

LEE 197 (Alice Blue)

step

170-171

LEE 201 (Full C.T. Blue)

step

172-173

LEE 202 (Half C.T. Blue)

step

174-175

LEE 203 (Quarter C.T. Blue)

step

176-177

LEE 204 (Full C.T. Orange)

step

178-179

LEE 205 (Half C.T. Orange)

step

180-181

LEE 206 (Quarter C.T. Orange)

step

182-183

LEE 247 (LEE Minus Green)

step

184-185

LEE 248 (Half Minus Green)

step

186-187

LEE 281 (Three Quarter C.T. Blue)

step

188-189

LEE 285 (Three Quarter C.T. Orange)

step

190-191

LEE 352 (Glacier Blue)

step

192-193

LEE 353 (Lighter Blue)

step

194-195

LEE 715 (Cabana Blue)

step

194-195

LEE 715 (Cabana Blue)

step

196-197

LEE 778 (Millennium Gold)

step

198-199

LEE 793 (Vanity Fair)

step

200-243

Reserved

244 - 249 Random macro selection by audio control

step

(Set microphone sensitivity in menu "PErsonality")

250 - 255 Auto random macro selection from fast to slow

proportional

16

14

Effect Speed

Speed of CMY&CTO movement and Rot./Static Gobo selection

0-255 Speed of CMY+CTO movement from max. to min.

proportional

0-255 Speed of Rot. gobo & Static gobo selection from max. to min.

proportional

17 15

CMY+CTO+Colour wheel time

0

Function is off

step

1 - 255

Time of CMY, CTO and Colour wheel movement (0.1sec-->25.5sec.)

proportional

18 16

Framing shutters+Zoom+Focus+Frost+Iris+Prism time

0

Function is off

step

1 - 255

Time of framing shutters, zoom, focus, iris and frost
movement (0.1 sec-->25.5 sec.)

proportional

1-50

Time of prism movement (0.1 sec-->5 sec.)

proportional

19 17

Effect wheel positioning

0-19

No function

step

20-127 Proportional indexing (73-center)

proportional

128-170 Ramping from open to full position ( max--->min. speed)

proportional

171-213 Ramping from open to half position ( max. --->min. speed)

proportional

214-255 Ramp. from half position to full position ( max. --->min. speed)

proportional

20 18

Effect wheel rotation

0 No rotation

step

1 - 127 Forwards rotation from fast to slow

proportional

128

No rotation -default

step

129 -255 Backwards rotation from slow to fast

proportional

21 19

Effect wheel animations

Page 5

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

0-7 No animation

Note :

Set suitable DMX value at

Focus

channel to get desired

animation. All animations were created at distance 5 m from
screen with zoom=128DMX, Focus=200DMX

Coloured animations.

The channels are blocked: Colour wheel 1

and 2, CMY+CMY nacros, Effect wheel positioning, Effect wheel

rotation, stat. Gobo, Rotat. gobo, gobo rotation, Prism, Prism
rotation

8-9 Animation Macro 1 step
10-11 Animation Macro 2 step
12-13 Animation Macro 3 step
14-15 Animation Macro 4 step
16-17 Animation Macro 5 step
18-19 Animation Macro 6 step
20-21 Animation Macro 7 step
22-23 Animation Macro 8 step
24-25 Animation Macro 9 step
26-27 Animation Macro 10 step

Black and white animations

. The channels are blocked: Effect

wheel positioning, Effect wheel rotation, stat. Gobo, Rotat. gobo,
gobo rotation, Prism, Prism rotation

28-29 Animation Macro 1 step
30-31 Animation Macro 2 step
32-33 Animation Macro 3 step
34-35 Animation Macro 4 step

36-37

Animation Macro 5

step

38-39 Animation Macro 6 step
40-41 Animation Macro 7 step
42-43 Animation Macro 8 step
44-45 Animation Macro 9 step
46-47 Animation Macro 10 step

48-255 Reserved

22

20

Static gobo wheel

0-7 Open/hole

step

Positioning

8-19 Gobo 1

step

20-31 Gobo 2

step

32-43 Gobo 3

step

44-55 Gobo 4

step

56-67 Gobo 5

step

68-79 Gobo 6

step

80-91 Gobo 7

step

92-103 Gobo 8

step

Shaking gobos from slow to fast

104-115 Gobo 1

proportional

116-127

Gobo 2

proportional

128-139 Gobo 3

proportional

140-151 Gobo 4

proportional

152-163 Gobo 5

proportional

164-175 Gobo 6

proportional

Page 6

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

176-187 Gobo 7

proportional

188-199 Gobo 8

proportional

200 - 201 Open/hole

step

202 - 222 Forwards gobo wheel rotation from fast to slow

proportional

223 - 243

Backwards gobo wheel rotation from slow to fast

proportional

244 - 249 Random gobo selection by audio control

step

(Set microphone sensitivity in menu „Personality”)

250 - 255 Auto random gobo selection from fast to slow

proportional

23 21

Rotating gobo wheel

In the range of 0-59 DMX the gobo selection speed is controlled

by the Effect Speed channel.

Index - set indexing on channel 24/22

0-4 Open/hole

step

5-8 Gobo 1

step

9-13 Gobo 2

step

14-17 Gobo 3

step

18-22 Gobo 4

step

23-26 Gobo 5

step

27-31 Gobo 6

step

Rotation - set rotation on channel 27/24

32-35 Gobo 1

step

36-40 Gobo 2

step

41-44 Gobo 3

step

45-49 Gobo 4

step

50-54

Gobo 5

step

55-59 Gobo 6

step

Shaking gobos from slow to fast

Index - set indexing on channel 24/22

60-71 Gobo 1

proportional

72-83 Gobo 2

proportional

84-95 Gobo 3

proportional

96-106

Gobo 4

proportional

107-118 Gobo 5

proportional

119-129 Gobo 6

proportional

Shaking gobos from slow to fast

Rotation - set rotation on channel 24/22

130-141 Gobo 1

proportional

142-153

Gobo 2

proportional

154-165 Gobo 3

proportional

166-176 Gobo 4

proportional

177-188 Gobo 5

proportional

189-199 Gobo 6

proportional

200 - 201 Open/hole

step

202 - 221 Forwards gobo wheel rotation from fast to slow

proportional

222-223

No rotation

224 - 243 Backwards gobo wheel rotation from slow to fast

proportional

244 - 249 Random gobo selection by audio control

step

(Set microphone sensitivity in menu „Personality”)

250 - 255 Auto random gobo selection from fast to slow

proportional

Page 7

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

24 22

Rot. Gobo indexing/rotation

Gobo indexing - set position on channel 23/21

0 - 255 Gobo indexing

proportional

Gobo rotation - set position on channel 23/21

0

No rotation

step

1 - 127 Forwards gobo rotation from fast to slow

proportional

128

No rotation - default

step

129 - 255 Backwards gobo rotation from slow to fast

proportional

25 *

Rot. Gobo indexing/rotation - fine

0-255 Fine indexing (rotation)

proportional

26 23

Prism

0 - 19

Open position (hole)

step

20 -49 6-facet linear prism -indexing

step

50 - 75 6-facet linear prism - rotation

step

76 - 105 6-facet circular prism- Indexing

step

106-127 6-facet circular prism-rotation

step

Prism/gobo macros

The channels are blocked: Prism, prism rot., rot. gobo, gobo rot.

128 - 135 Macro 1

step

136 - 143 Macro 2

step

144 - 151 Macro 3

step

152 - 159 Macro 4

step

160 - 167 Macro 5

step

168 - 175

Macro 6

step

176 - 183 Macro 7

step

184 - 191 Macro 8

step

192 - 199 Macro 9

step

200 - 207 Macro 10

step

208 - 215 Macro 11

step

216 - 223 Macro 12

step

224 - 231

Macro 13

step

232 - 239 Macro 14

step

240 - 247 Macro 15

step

248 - 255 Macro 16

step

27 24

Prism rotation

0 No rotation

step

1 - 127

Forwards rotation from fast to slow

proportional

128

No rotation - default

step

129-255 Backwards rotation from slow to fast

proportional

28 25

Frost

0

Open- default

step

Light

1-50 Frost from 0% to 100%

proportional

51-53

100% frost

step

54-63 Pulse closing from slow to fast

proportional

64-73 Pulse opening from fast to slow

proportional

74-83 Ramping from fast to slow

proportional

84-86 Open

step

Page 8

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

Medium

87-136 Frost from 0% to 100%

proportional

137-139 100% frost

step

140-149 Pulse closing from slow to fast

proportional

150-159

Pulse opening from fast to slow

proportional

160-169 Ramping from fast to slow

proportional

170-172 Open

step

Heavy

173-222 Frost from 0% to 100%

proportional

223-225 100% frost

step

226-235 Pulse closing from slow to fast

proportional

236-245

Pulse opening from fast to slow

proportional

246-255 Ramping from fast to slow

proportional

29 26

Iris

0 Open

step

1 - 179 From max.diameter to min.diameter

proportional

180 - 191 Closed

step

Pulse effects with Iris blackout:

Pulse effects with Iris blackout:

192 -219 Pulse opening from slow to fast

proportional

220 - 247 Pulse closing from fast to slow

proportional

248 - 249 Random pulse opening (fast)

step

250 - 251 Random pulse opening (slow)

step

252 - 253 Random pulse closing (fast)

step

254 - 255 Random pulse closing (slow)

step

30

*

Iris - fine

0 - 255 Fine iris movement

proportional

31 27

Zoom

0 - 255 Zoom from max. to min.beam angle

proportional

32 *

Zoom - fine

0-255 Fine zooming

proportional

33 28

Focus

0 - 255 Continuous adjustment from far to near

proportional

34 *

Focus - fine

0- 255 Fine focusing

proportional

35 29 Reserved

Reserved for autofocus

36 30 Framing shutters module rotation

0-127

Rotation from left (0°) to 45°

proportional

128 45°

step

129-255 Rotation from 45° to right (90°)

proportional

37 31 Framing shutter 1- movement

0-255 Movement from Outward to Inward

proportional

38 32 Framing shutter 1- swivelling

0-127 Swivelling from -25 degrees towards 0 degrees

proportional

128

0 degrees (default)

step

129-255 Swivelling from 0 degrees to +25 degrees

proportional

39 33 Framing shutter 2- movement

0-255 Movement from Outward to Inward

proportional

40 34 Framing shutter 2- swivelling

Page 9

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

0-127 Swivelling from -25 degrees towards 0 degrees

proportional

128 0 degrees (default)

step

129-255 Swivelling from 0 degrees to +25 degrees

proportional

41 35 Framing shutter 3 movement

0-255

Movement from Outward to Inward

proportional

42 36 Framing shutter 3- swivelling

0-127 Swivelling from -25 degrees towards 0 degrees

proportional

128 0 degrees (default)

step

129-255 Swivelling from 0 degrees to +25 degrees

proportional

43 37 Framing shutter 4 movement

0-255 Movement from Outward to Inward

proportional

4438Framing shutter 4- swivelling

0-127 Swivelling from -25 degrees towards 0 degrees

proportional

128 0 degrees (default)

step

129-255 Swivelling from 0 degrees to +25 degrees

proportional

45 39

Framing shutters macros

0-3

No function

4-7

Macro 1

step

4-7

Macro 1

step

8-11

Macro 2

step

12-15

Macro 3

step

16-19

Macro 4

step

20-23

Macro 5

step

24-27

Macro 6

step

28-31

Macro 7

step

32-35

Macro 8

step

36-39

Macro 9

step

40-43

Macro 10

step

44-47

Macro 11

step

48-51

Macro 12

step

52-55

Macro 13

step

56-59

Macro 14

step

60-63

Macro 15

step

64-67

Macro 16

step

68-71

Macro 17

step

72-75

Macro 18

step

76-79

Macro 19

step

80-83

Macro 20

step

84-87

Macro 21

step

88-91

Macro 22

step

92-95

Macro 23

step

96-99

Macro 24

step

100-103

Macro 25

step

104-107

Macro 26

step

108-111

Macro 27

step

112-115

Macro 28

step

116-119

Macro 29

step

120-123

Macro 30

step

124-127

Macro 31

step

128-131

Macro 32

step

Page 10

DMX protocol

1 2

Mode/channel

DMX

Value

Function

Type of
control

132-135

Macro 33

step

136-139

Macro 34

step

140-143

Macro 35

step

144-147

Macro 36

step

148-151

Macro 37

step

152-155

Macro 38

step

156-159

Macro 39

step

160-163

Macro 40

step

164-167

Macro 41

step

168-171

Macro 42

step

172-175

Macro 43

step

176-179

Macro 44

step

180-183

Macro 45

step

184-187

Macro 46

step

188-191

Macro 47

step

192-195

Macro 48

step

196-199

Macro 49

step

200-203

Macro 50

step

200-203

Macro 50

step

204-207

Macro 51

step

208-211

Macro 52

step

212-255

Reserved

46 40

Framing shutters macro speed

0- 255 Speed from slow to fast.

proportional

47 41

Shutter/ strobe

0 - 31

Shutter closed

step

32 - 63 Shutter open

step

64 - 95 Strobe-effect from slow to fast

proportional

96 - 127 Shutter open

step

128 - 143 Opening pulse in sequences from slow to fast

proportional

144 - 159 Closing pulse in sequences from fast to slow

proportional

160 - 191 Shutter open, Electronic strobing „ZAP” from slow to fast

proportional

192 - 223 Random strobe-effect from slow to fast

proportional

224 - 255 Shutter open

step

48 42

Dimmer intensity

0 - 255 Dimmer intensity from 0% to 100%

proportional

49 *

Dimmer intensity - fine

0 - 255 Fine dimming

proportional

Copyright © 2015-2016 Robe Lighting s.r.o. - All rights reserved

All Specifications subject to change without notice

Page 11

Color name

CW1

DMX

CW1

fine

DMX

CW2

DMX

CW2

fine

DMX

Cyan

DMX

Magenta

DMX

Yellow

DMX

CTO

DMX

Colour Macro 1

000

0

0 116 0 95

Colour Macro 2

000

0

0 148 0 108

Colour Macro 3

000

0

0 196 0 108

Colour Macro 4

000

0

0 255 0 98

Colour Macro 5

000

0

0 255 0 215

Colour Macro 6

000

0

0 255 161 0

Colour Macro 7

000

0

0 255 210 0

Colour Macro 8

000

0

0 255 255 0

Colour Macro 9

000

0

0 220 255 0

Colour Macro 10

000

0

0 192 255 0

Colour Macro 11

000

0

0 144 255 0

Colour Macro 12

000

0

0 97 255 0

Colour Macro 13

000

0

0 0 255 95

Colour Macro 14

000

0

0 0 255 65

Colour Macro 15

000

0

0 0 255 0

Colour Macro 16

000

0

91 0 255 0

Colour Macro 17

000

0

152 0 255 0

Colour Macro 18

000

0

213 0 255 0

Colour Macro 19

000

0

255 0 231 0

Colour Macro 20

000

0

255 0 188 0

Colour Macro 21

000

0

255 0 90 0

Colour Macro 22

000

0

255 0 70 0

Colour Macro 23

000

0

255 0 0 0

Colour Macro 24

000

0

255 57 0 0

Colour Macro 25

000

0

255 83 0 0

Colour Macro 26

000

0

255 127 0 0

Colour Macro 27

000

0

255 166 0 0

Colour Macro 28

000

0

255 226 0 0

Colour Macro 29

000

0

255 255 0 0

Colour Macro 30

000

0

255 255 95 0

LEE 4 (Medium Bastard Amber)

0000094107

0

LEE 10 (Medium Yellow)

00001100255

0

LEE 19 (Fire)

00000

222

236

0

LEE 26 (Bright Red)

1750000

255

221

255

LEE 58 (Lavender)

0000200

16600

LEE 68 (Sky Blue)

0000226

12500

LEE 71 (Tokyo Blue)

145000241

11600

LEE 79 (Just Blue)

0000254

14900

LEE 88 (Lime Green)

001550890134

0

LEE 90 (Dark Yellow Green)

00002280236

0

LEE 100 (Spring Yellow)

00001280231

0

LEE 101 (Yellow)

0000970245

0

LEE 102 (Light Amber)

0000840190

0

LEE 103 (Straw)

0000052106

0

Lee 104 (Deep Amber)

000009218

0

LEE 105 (Orange)

00000

132

242

0

Colour macros

LEE 106 (Primary Red)

1550135091

2550255

LEE 111 (Dark Pink)

00000

152800

LEE 115 (Peacock Blue)

00002000124

0

LEE 116 (Medium Blue-Green)

00002360145

0

LEE 117 (Steel Blue)

000010670

0

LEE 118 (Light Blue)

0000196760

0

LEE 119 (Dark Blue)

001450238470

0

LEE 120 (Deep Blue)

1450007910

0

LEE 121 (LEE Green)

00001820225

70

LEE 128 (Bright Pink)

000089

21600

LEE 131 (Marine Blue)

00001730125

0

LEE 132 (Medium Blue)

0000255

13600

LEE 134 (Golden Amber)

00000

108

176

0

LEE 135 (Deep Golden Amber)

00000

193

246

0

LEE 136 (Pale Lavender)

0000104

10500

LEE 137 (Special Lavender)

0000155

11700

LEE 138 (Pale Green)

00001430179

0

LEE 139 (Primary Green)

00002160236

0

LEE 141 (Bright Blue)

0000217740

0

LEE 147 (Apricot)

0000099143

0

LEE 148 (Bright Rose)

00000

210

110

0

LEE 152 (Pale Gold)

0000086103

0

LEE 154 (Pale Rose)

0000093101

0

LEE 157 (Pink)

00000

159

117

0

LEE 158 (Deep Orange)

00000

156

231

0

LEE 162 (Bastard Amber)

0000083100

0

LEE 164 (Flame Red)

00000

217

210

0

LEE 165 (Daylight Blue)

0000191940

0

LEE 169 (Lilac Tint)

000076850

0

LEE 170 (Deep Lavender)

0000118

12300

LEE 172 (Lagoon Blue)

0000191080

0

LEE 179 (Chrome Orange)

0000090251

0

LEE 180 (Dark Lavender)

0000206

16600

LEE 181 (Congo Blue)

145014501310103

0

LEE 197 (Alice Blue)

0000203

13700

LEE 201 (Full C.T. Blue)

0000123950

0

LEE 202 (Half C.T. Blue)

000096750

0

LEE 203 (Quarter C.T. Blue)

000073590

0

LEE 204 (Full C.T. Orange)

0000071142

0

LEE 205 (Half C.T. Orange)

0000049106

0

LEE 206 (Quarter C.T. Orange)

000001293

0

LEE 247 (LEE Minus Green)

000009972

0

LEE 248 (Half Minus Green)

000008371

0

LEE 281 (Three Quarter C.T. Blue)

0000111810

0

LEE 285 (Three Quarter C.T. Orange)

0000049124

0

LEE 352 (Glacier Blue)

0000171830

0

LEE 353 (Lighter Blue)

0000153077

0

LEE 715 (Cabana Blue)

0000248

15500

LEE 778 (Millennium Gold)

00000

171

240

0

LEE 793 (Vanity Fair)

000072

222180

45
