Table of contents
1. Safety instructions ......................................................................................................... 3
2. Fixture exterior view ...................................................................................................... 5
3. Installation....................................................................................................................... 6
3.1 Connection to the mains ............................................................................................6
3.2 Installing the top hat ...................................................................................................7
3.3 Installing the diffusion lter ......................................................................................... 8
3.4 Rigging the xture ...................................................................................................... 9
3.5 DMX-512 connection ................................................................................................ 11
3.6. Wireless DMX operation .........................................................................................12
4. Control menu map ........................................................................................................13
5.Robin 100 LEDBeam - DMX chart ................................................................................15
5.1 Virtual colour wheel - colour mixing chart ................................................................19

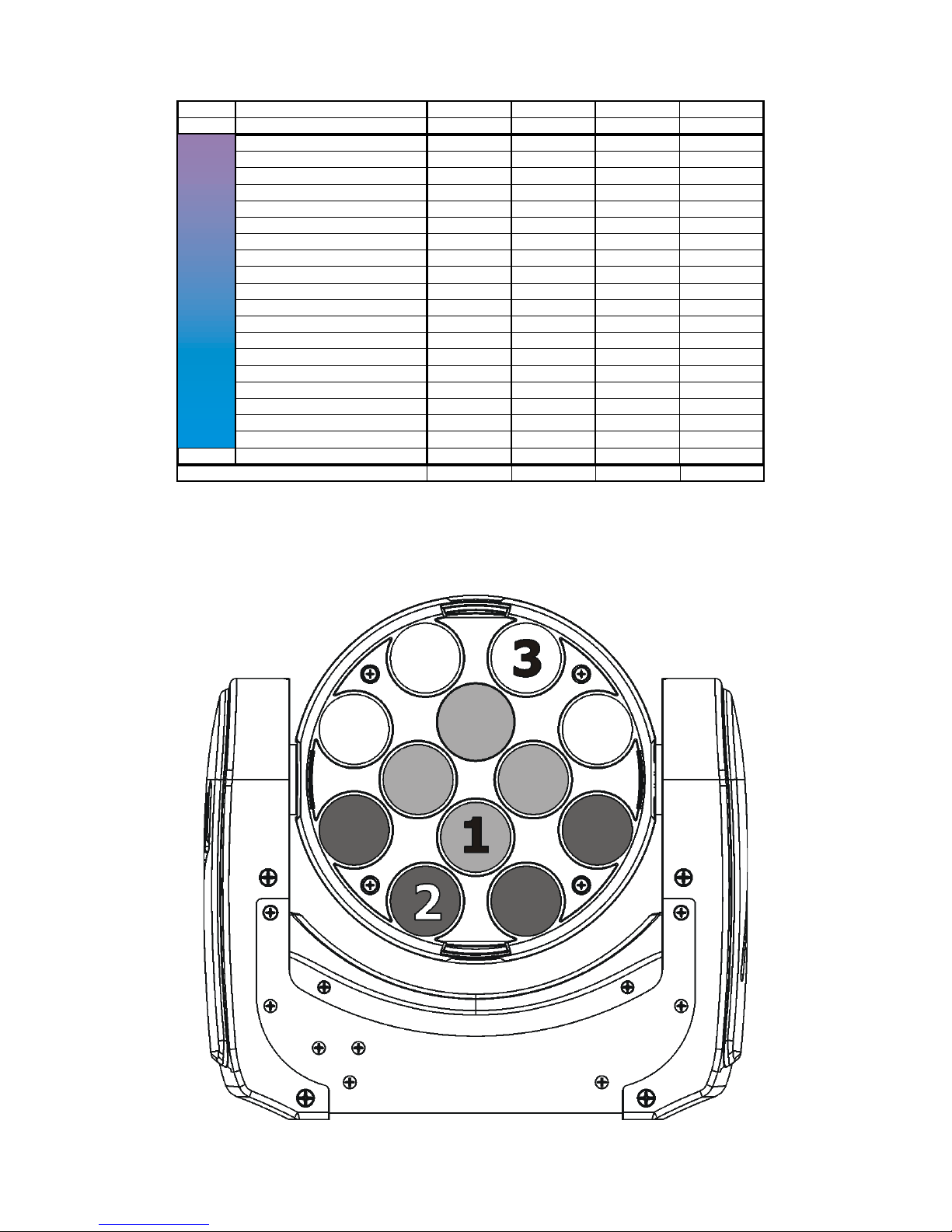

5.2 LED zone order ........................................................................................................ 23
6. Control menu ............................................................................................................... 24
6.1 Addressing (DMXA) .................................................................................................24
6.2 Fixture information (Info) .......................................................................................... 24
6.3 Personality (Pers) ..................................................................................................... 25
6.4 Manual Control (Manual) .......................................................................................... 26
6.5 Test program (Test Prg) ........................................................................................... 26
6.6 Stand-alone (St Alone) ............................................................................................. 26
6.7 Reset ........................................................................................................................ 27
6.8 Special functions (Special) ....................................................................................... 27
7. RDM ...............................................................................................................................28
8. Error and information messages ................................................................................ 29
9. Technical Specications.............................................................................................. 29
10. ChangeLog .................................................................................................................32
11. Maintenance and cleaning .........................................................................................32
11.1 Replacing fuse .......................................................................................................33
12. Photometric diagrams................................................................................................ 34
Robin 100 LEDBeam
Robin 100 LEDBeam Wireless DMX
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ROBIN 100 LEDBeam !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
The Robin 100 LEDBeam was designed for indoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS
UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the xture.
This xture should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the xture from AC power before cleaning, removing or installing the fuses, or any part.
The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords
as this canresult in re or electric shock.
Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by
persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power
cord from time to time.
Refer servicing to qualied service personnel.
This xture falls under protection class I. Therefore this xture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this xture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam at a distance of less
than 2 meters from the front surface of the product. Do not view the light output with
optical instruments or any device that may conncentrate the beam
If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until
it has reached room temperature.
Do not shake the xture. Avoid brute force when installing or operating the xture.
This xture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture
4
or dust.
Air vents and slots in the xture´s head and base are provided for ventilation, to ensure reliable operation of
the device and to protect it from overheating.
Do not block the LEDs array with any object when the xture is under operation.
The openings should never be covered with cloth or other materials, and never must be blocked.
This xture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly faste-
ned.
Always use a secondary safety cable when mounting this xture.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.
Do not block the front objective LEDs with any object when the xture is under operation.
The xture becomes very hot during operation. Allow the xture to cool approximately 20 minutes prior to
manipulate with it.
Operate the xture only after having familiarized with its functions. Do not permit operation by persons not
qualied for operating the xture. Most damages are the result of unprofessional operation!
Please use the original packaging if the xture is to be transported.
Please consider that unauthorized modications on the xture are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like shortcircuit, burns, electric shock, crash etc.
5
2. Fixture exterior view
4 - Yoke
5 - DMX out
6 - DMX in
7 - Control board
8 - Mains in
9 - Mains out
1 - Moving head
2 - Attachment point for safety cable
3 - Base
6
3. Installation
Fixtures must be installed by a Qualied electrician in accordance with all
national and local electrical and construction codes and regulation.
3.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin 100 LEDBeam is equipped with auto-switching power supply that automatically adjusts to any 5060Hz AC power source from 100-240 Volts.
Install a suitable plug on the power cord, note that the cores in the power cord are coloured according to the
following table. The earth has to be connected!
If you have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
This device falls under class one and must be earthed (grounded)!
Design of the Robin 100 LEDBeam allows to connect several xtures to AC mains power in one interconnected
daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter
“Technical specications “
The max. number of connected xtures depends on the AC mains power voltage:
12 xtures at power supply= 230V
10 xtures at power supply= 208V
6 xtures at power supply= 120V
Do not overload the supply line and the connecting leads.
Wiring and connection work must be carried out by qualied staff!
7
3.2 Installing the top hat
Disconnect the xture from mains before top hat installation
1. Go to the xture menu and limit tilt movement (Pers --> Tilt Red--> On).
2.Put the top hat (1) on the head of the xture (3) in such a way that both clips (2) of the top hat snap into cavi-
ties (4) in the head. Check that both clips are rmly egaged in the head cavities.
8
3.3 Installing the diffusion lter
Disconnect the xture from mains before diffusion lter installation
1. Insert two screws (1) into holder with diffusion lter (2) and secure them with securing washers (3).
2. Screw the holder (3) to the head via two screws (1).
9
3.4 Rigging the xture
The installation of the xture has to be built and constructed in a way that it can hold 10 times the weight for 1
hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the installation can fall down if
the main attachment fails.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.
The xture should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily injury or damage to property.
The xture has to be installed out of the reach of people.
If the xture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The
xture must never be xed swinging freely in the room.
Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of
a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s
weight.
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.4 m.
CAUTION!
Use an appropriate clamp to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
The xture can be placed directly on the stage oor or rigged on a truss without altering its operation characteristics .
For securing a xture to the truss install a safety wire that can hold at least 10 times the weight of the xture.
Use only safety wire with screw-on carabine. Fasten the safety cable in the attachment point and around
the truss as shown on the picture below.
.
10
Rigging via omega holder:
1-Omega holder
2-Clamp
3-Trust
4-Attachment point
5-Safety chain
When installing xtures side-by-side, avoid illuminating one xture with
another!
11
3.5 DMX-512 connection
The xture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair
cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the
xture or one xture with another.
DMX output DMX input
XLR socket: XLR plug:
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the
DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,
you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always
connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be
interconnected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor
between Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX-output of the last xture.
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Used for wireless DMX
5 - Used for wireless DMX
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Used for wireless DMX
5 - Used for wireless DMX
12
3.6. Wireless DMX operation
The external Robe Wireless CRMX-LB100 module allows receiving wireless DMX. This device is equipped
with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the
2.4 GHz band.
Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into hole (5) in the
xture. In this way the wireless DMX module is connected with the xture.
NOTE: when you disconnect the DMX wireless module from xture, press and hold lock (5) during getting the
wireless module out.
To link the xture with DMX transmitter.
The xture can be only linked with the transmitter by running the link procedure at DMX transmitter .
After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Vireless ->Stat).
To unlink the xture from DMX transmitter.
The xture can be unlinked from receiver via the menu item “ Unlink“ (Special-->Vireless -->Unlink.).
Note:Wireless DMX operation is implemented in the processor IC-1 (Info -->Sw Ver). Version of this processor
has to be following:
IC-1 = 2.2 and higher for RGBW version
IC-1 = 1.2 and higher for SmartWhite and Day Light version.
1 - 5-pin XLR (female)
2 - Locating pin
3 - Lock
Robe Wireless CRMX-LB100
13
4. Control menu map
Default settings=Bold print
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
DMXA Set DMXA 001-255
Info POn Time Total
Reset
DMX In
Pan 0-255
:
Dimm F 0-255
Temp Current
Highest
High Res
Sw Ver IC-1
IC-2
IC-3
Pers
DMX Pres Mode 1
:
Mode 6
Pan Rev On, Off
Tilt Rev On, Off
P/T Mode Speed
Time
P/T Feed On, Off
Tilt Red On, Off
Display Turn
On/Off T On, Off
Contrast 0-100%
Backlight 0-100%
BLC DMC On, Off
Act BLC P/T Mov On, Off
C Cal M
On, Off
C Mix M RGBW, CMY
Mic Sens 0...10...19
Fans Auto, High
Temp Uni °C, °F
I Ef Pos Pan
:
Dimm F
Store
Defaults
Test Prg Static Pan 0-255
Tilt 0-255
Run
Dynamic
Manual Pres Eff Pan Pos 1-Pos 3
:
Dimmer Pos 1- Pos 5
Manual Pan 0-255
:
Dimm F 0-255
14
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7
Sta Alone Music T On, Off
Auti Run Off
Test
Prog 1
Prog 2
Prog 3
Pr Play Test Prg
Prog 1
Prog 2
Prog 3
Pr Edit Prog 1 Step 1 Pan
Prog 2 : :
Prog 3 Step 40 F.Tim 0-25.5
S.Tim 0-25.5
COPY
Prg End 1-40
Reset
Special RDM Low
RDM Hight
Wireless Stat
Unlink
Adjust DMX Val Pan 0-255
:
Dimm F 0-255
Calib Pan C 0-255
Tilt C 0-255
Red C 0-255
Gren C 0-255
Blue C
0-255
Whit C 0-255
Store
Sw Upd On, Off
15
5.Robin 100 LEDBeam - DMX chart
Version 1.1
Mode/Channel
Value Function
Type of
control
1 2 3 4 5 6
1 1 1 1 1 1
0-255
Pan (8 bit)
Pan movement by 450° proportional
2 2 2 2 2 2
0-255
Pan Fine (16 bit)
Fine control of pan movement proportional
3 3 3 3 3 3
0-255
Tilt (8bit)
Tilt movement by 300° proportional
4 4 4 4 4 4
0-255
Tilt ne (16 bit)
Fine control of tilt movement proportional
5 5 5 5 5 5
0
1 - 255
1 - 255
Pan/Tilt speed, Pan/Tilt time
Max. speed (tracking mode)
P./T. speed-set Speed Mode in menu: P./T. Mode
Speed from max. to min. (vector mode)
P./T. time - set Time Mode in menu: Pan/Tilt Mode
Time from 0.1 s to 25.5 s.
step
proportional
proportional
6 6 6 6 6 6
0 - 9
10 - 29
30 - 39
40 - 49
50 - 59
60 - 69
70 - 79
80 - 89
90-109
110-114
115-119
120-124
125-129
130-139
140 - 149
150 - 199
200 - 209
210 - 255
Special functions
Reserved
To activate following functions , stop in DMX value
for at least 3sec. and shutter must be closed at least
3sec. (Shutter channel 33/17/13/8/7/35 must be at
range of 0-31DMX). Corresponding menu items are
temporily overrided except DMX Input.
Reserved
RGBW colour mixing mode
CMY colour mixing mode
Pan/Tilt speed mode
Pan/Tilt time mode
Blackout while pan/tilt moving
Disabled blackout while pan/tilt moving
Reserved
Colour calibration mode On
Colour calibration mode Off
Tilt movement reduction On
Tilt movement reduction Off
Reserved
To activate following reset functions, stop in DMX
value for at least 3 sec.
Pan/Tilt reset
Reserved
Total reset
Reserved
step
step
step
step
step
step
step
step
step
step
step
step
- 7 7 - - -
0-255
Red/Cyan (8 bit) - all zones
Red LEDs saturation control (0-100%) proportional
- 8 - - - -
0-255
Red/Cyan ne(16 bit) - all zones
Fine red LEDs saturation control proportional
- 9 8 - - -
0-255
Green/Magenta (8 bit) - all zones
Green LEDs saturation control (0-100%) proportional
- 10 - - - -
0-255
Green/Magenta ne (16 bit) - all zones
Fine green LEDs saturation control proportional
- 11 9 - - -
0-255
Blue/Yellow (8 bit) - all zones
Blue LEDs saturation control (0-100%) proportional
- 12 - - - -
0-255
Blue/Yellow ne (16 bit) - all zones
Fine blue LEDs saturation control proportional
16
Mode/Channel
Value Function
Type of
control
1 2 3 4 5 6
- 13 10 - - -
0-255
White (8 bit) - all zones
If RGBW mode is selected:
White colour saturation control coarse (0-100%)
If CMY mode is selected:
No function
proportional
- 14 - - - -
0-255
White ne (16 bit) - all zones
Fine white LEDs saturation control (RGBW mode) proportional
7 - - - 12 7
0-255
Red/Cyan (8 bit) - zone 1
Red LEDs saturation control (0-100%) proportional
8 - - - 13 8
0-255
Red/Cyan ne (16 bit) - zone 1
Fine red LEDs saturation control proportional
9 - - - 14 9
0-255
Green/Magenta (8 bit) - zone 1
Green LEDs saturation control (0-100%) proportional
10 - - - 15 10
0-255
Green/Magenta ne (16 bit) - zone 1
Fine green LEDs saturation control proportional
11 - - - 16 11
0-255
Blue/Yellow (8 bit) zone 1
Blue LEDs saturation control (0-100%) proportional
12 - - - 17 12
0-255
Blue/Yellow (16 bit) zone 1
Fine blue LEDs saturation control) proportional
13 - - - 18 13
0-255
White (8 bit) - zone 1
If RGBW mode is selected:
White colour saturation control coarse (0-100%)
If CMY mode is selected:
No function
proportional
14 - - - 19 14
0-255
White (16 bit) - zone 1
Fine white LEDs saturation control (RGBW mode) proportional
15 - - - 20 15
0-255
Red/Cyan ( 8bit) - zone 2
Red LEDs saturation control (0-100%) proportional
16 - - - 21 16
0-255
Red/Cyan ne (16 bit) - zone 2
Fine red LEDs saturation control proportional
17 - - - 22 17
0-255
Green/Magenta (8 bit) - zone 2
Green LEDs saturation control (0-100%) proportional
18 - - - 23 18
0-255
Green/Magenta ne (16 bit) - zone 2
Fine green LEDs saturation control proportional
19 - - - 24 19
0-255
Blue/Yellow (8 bit) - zone 2
Blue LEDs saturation control (0-100%) proportional
20 - - - 25 20
0-255
Blue/Yellow ne (16 bit) - zone 2
Fine blue LEDs saturation control proportional
21 - - - 26 21
0-255
White (8 bit) - zone 2
If RGBW mode is selected:
White colour saturation control coarse (0-100%)
If CMY mode is selected:
No function
proportional
22 - - - 27 22
0-255
White (16 bit) - zone 2
Fine white LEDs saturation control (RGBW mode) proportional
23 - - - 28 23
0-255
Red/Cyan (8 bit) - zone 3
Red LEDs saturation control (0-100%) proportional
24 - - - 29 24
0-255
Red/ Cyan ne (16 bit) - zone 3
Fine red LEDs saturation control proportional
25 - - - 30 25
0-255
Green/Magenta (8 bit) - zone 3
Green LEDs saturation control (0-100%) proportional
26 - - - 31 26
0-255
Green/Magenta ne (16 bit) - zone 3
Fine green LEDs saturation control proportional
17
Mode/Channel
Value Function
Type of
control
1 2 3 4 5 6
27 - - - 32 27
0-255
Blue/Yellow (8 bit) zone 3
Blue LEDs saturation control (0-100%) proportional
28 - - - 33 28
0-255
Blue/Yellow ne (16 bit) zone 3
Fine blue LEDs saturation control proportional
29 - - - 34 29
0-255
White (8 bit) zone 3
If RGBW mode is selected:
White colour saturation control coarse (0-100%)
If CMY mode is selected:
No function
proportional
30 - - - 35 30
0-255
White ne (16 bit) zone 3
Fine white LEDs saturation control (RGBW mode) proportional
31 15 11 - 10 31
0
1-255
CTC
No function
Colour temperature correction from 19000K to
2700K
step
proportional
32 16 12 7 11 32
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 - 246
247
248
249
250
251
252
253
254
255
Virtual Colour Wheel
For detailed description see " Virtual colour wheel- colour mixing chart
No function
White 2700 K
White 2700 K (Halogen lamp mode*)
White 3200 K
White 3200 K (Halogen lamp mode*)
White 4200 K
White 5600 K
White 8000 K
Blue (Blue=full, Red+Green+White=0)
Red=0, Green->up,Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full, White=0)
Red=0, Green=full, Blue->down, White=0
Green (Red=0, Green=full, Blue =0, White=0)
Red->up, Green=full, Blue=0, White=0
Yellow (Red=full, Green=full, Blue=0, White=0)
Red=full, Green->down, Blue=0, White=0
Red(Red=full, Green=0, Blue=0, White=0)
Red=full, Green=0, Blue->up, White=0
Magenta (Red=full, Green=0, Blue=full, White=0)
Red -> down, Green=0, Blue=full, White=0
Blue (Red=0, Green=0, Blue=full, White=0)
--------------------------------------------------------------------
Speed of the following effects can be controlled by the
Shutter/Strobe channel (DMX values of 96-127)
Rainbow effect (with fade time)
Rainbow effect
Zone effect 1
Zone effect 2
Zone effect 3
Zone effect 4
Zone effect 5
Zone effect 6
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
step
step
step
step
step
step
step
step
- - - - - 33
No function
- - - - - 34
No function
33 17 13 8 7 35
0-31
32-63
64-95
96-111
112-127
Shutter/Strobe
Shutter closed
Strobe effect from slow--> fast (zones 2,3 only)
Strobe effect from slow--> fast (All zones together)
--------------Set value on Virtual colour wheel--------------
Zone effects+rainbow effects speed control, slow--> fast
Zone effects+rainbow effects speed control, fast--> slow
/opposite direction/
---------------------------------------------------------------------------
step
proportional
proportional
proportional
proportional
18
Mode/Channel
Value Function
Type of
control
1 2 3 4 5 6
33 17 13 8 7 35
128-143
144-159
160-175
176-191
192-223
224-255
Shutter/Strobe
Opening pulses in sequences from slow--> fast
(All zones together)
Closing pulses in sequences from fast--> slow
(All zones together)
Random strobe effect from slow--> fast (random zone)
Random strobe effect from slow--> fast (random zone +
random strobe)
Random strobe effect from slow --> fast (All zones together)
Shutter open
proportional
proportional
proportional
proportional
proportional
step
34 18 14 9 8 36
0-255
Dimmer (8 bit)
Dimmer intensity from 0% to 100% proportional
35 19 - - 9 37
0-255
Dimmer ne (16 bit)
Fine dimming proportional
*In the Halogen lamp mode the Dimmer channel imitates behaviour of the halogen lamp during dimming.
19
5.1 Virtual colour wheel - colour mixing chart
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
1-2 (White 2700K) 250 118 0 63
3 (White 2700K /Hal.mode/) 250 118 0 63
4-5 (White 3200K) 255 141 5 89
6 (White 3200K /Hal.mode/) 255 141 5 89
7-9 (White 4200K) 254 141 3 255
10-12 (White 5600K) 254 207 37 255
13-15 (White 8000K) 228 255 79 255
16 0 0 255 0
17 0 3 255 0
18 0 6 255 0
19 0 9 255 0
20 0 12 255 0
21 0 15 255 0
22 0 18 255 0
23 0 21 255 0
24 0 24 255 0
25 0 27 255 0
26 0 30 255 0
27 0 36 255 0
28 0 41 255 0
29 0 46 255 0
30 0 52 255 0
31 0 58 255 0
32 0 64 255 0
33 0 68 255 0
34 0 74 255 0
35 0 80 255 0
36 0 86 255 0
37 0 92 255 0
38 0 98 255 0
39 0 104 255 0
40 0 110 255 0
41 0 119 255 0
42 0 129 255 0
43 0 138 255 0
44 0 147 255 0
45 0 156 255 0
46 0 165 255 0
47 0 174 255 0
48 0 183 255 0
49 0 192 255 0
50 0 201 255 0
51 0 210 255 0
52 0 219 255 0
53 0 228 255 0
54 0 237 255 0
55 0 246 255 0
56 0 255 255 0
57 0 255 246 0
58 0 255 237 0
59 0 255 228 0
60 0 255 219 0
61 0 255 210 0
62 0 255 201 0
630255
192
0
20
Robin 600 LED Wash - Virtual Colour Wheel
Scale*
V
irtual Colour Wheel Red Green Blue White
DM
XDMXDMXDMXDMX
64 0 255 183 0
65 0 255 174 0
66 0 255 165 0
67 0 255 156 0
68 0 255 147 0
69 0 255 138 0
70 0 255 129 0
71 0 255 119 0
72 0 255 110 0
73 0 255 104 0
74 0 255 98 0
75 0 255 92 0
76 0 255 86 0
77 0 255 80 0
78 0 255 74 0
79 0 255 68 0
80 0 255 64 0
81 0 255 58 0
82 0 255 52 0
83 0 255 46 0
84 0 255 41 0
82 0 255 36 0
86 0 255 30 0
87 0 255 27 0
88 0 255 24 0
89 0 255 21 0
90 0 255 18 0
91 0 255 15 0
92 0 255 12 0
93 0 255 9 0
94 0 255 6 0
95 0 255 3 0
96 0 255 0 0
97 3 255 0 0
98 6 255 0 0
99 9 255 0 0
100 12 255 0 0
101 15 255 0 0
102 18 255 0 0
103 21 255 0 0
104 24 255 0 0
105 27 255 0 0
106 30 255 0 0
107 36 255 0 0
108 41 255 0 0
109 46 255 0 0
110 52 255 0 0
111 58 255 0 0
112 64 255 0 0
113 68 255 0 0
114 74 255 0 0
115 80 255 0 0
116 86 255 0 0
117 92 255 0 0
118 98 255 0 0
21
Robin 600 LED Wash - Virtual Colour Wheel
Scale*
V
irtual Colour Wheel Red Green Blue White
DM
XDMXDMXDMXDMX
119 104 255 0 0
120 110 255 0 0
121 119 255 0 0
122 129 255 0 0
123 138 255 0 0
124 147 255 0 0
125 156 255 0 0
126 165 255 0 0
127 174 255 0 0
128 183 255 0 0
129 192 255 0 0
130 201 255 0 0
131 210 255 0 0
132 219 255 0 0
133 228 255 0 0
134 240 255 0 0
135 255 255 0 0
136 255 246 0 0
137 255 237 0 0
138 255 228 0 0
139 255 219 0 0
140 255 210 0 0
141 255 201 0 0
142 255 192 0 0
143 255 183 0 0
144 255 174 0 0
145 255 165 0 0
146 255 156 0 0
147 255 147 0 0
148 255 138 0 0
149 255 129 0 0
150 255 119 0 0
151 255 110 0 0
152 255 104 0 0
153 255 98 0 0
154 255 92 0 0
155 255 86 0 0
156 255 80 0 0
157 255 74 0 0
158 255 68 0 0
159 255 64 0 0
160 255 58 0 0
161 255 52 0 0
162 255 46 0 0
163 255 41 0 0
164 255 36 0 0
165 255 30 0 0
166 255 27 0 0
167 255 24 0 0
168 255 21 0 0
169 255 18 0 0
170 255 15 0 0
171 255 12 0 0
172 255 9 0 0
173 255 6 0 0
22
Robin 600 LED Wash - Virtual Colour Wheel
Scale*
V
irtual Colour Wheel Red Green Blue White
DM
XDMXDMXDMXDMX
174 255 3 0 0
175 255 0 0 0
176 255 0 3 0
177 255 0 6 0
178 255 0 9 0
179 255 0 12 0
180 255 0 15 0
181 255 0 18 0
182 255 0 21 0
183 255 0 24 0
184 255 0 27 0
185 255 0 30 0
186 255 0 36 0
187 255 0 41 0
188 255 0 46 0
189 255 0 52 0
190 255 0 58 0
191 255 0 64 0
192 255 0 68 0
193 255 0 74 0
194 255 0 80 0
195 255 0 86 0
196 255 0 92 0
197 255 0 98 0
198 255 0 104 0
199 255 0 110 0
200 255 0 119 0
201 255 0 129 0
202 255 0 138 0
203 255 0 147 0
204 255 0 156 0
205 255 0 165 0
206 255 0 174 0
207 255 0 183 0
208 255 0 192 0
209 255 0 201 0
210 255 0 210 0
211 255 0 219 0
212 255 0 228 0
213 255 0 237 0
214 255 0 246 0
215 255 0 255 0
216 246 0 255 0
217 237 0 255 0
218 228 0 255 0
219 219 0 255 0
220 210 0 255 0
221 201 0 255 0
222 192 0 255 0
223 183 0 255 0
224 174 0 255 0
225 165 0 255 0
226 156 0 255 0
227 147 0 255 0
228 138 0 255 0
23
Robin 600 LED Wash - Virtual Colour Wheel
Scale*
V
irtual Colour Wheel Red Green Blue White
DM
XDMXDMXDMXDMX
229 129 0 255 0
230 119 0 255 0
231 110 0 255 0
232 104 0 255 0
233 98 0 255 0
234 91 0 255 0
235 84 0 255 0
236 77 0 255 0
237 70 0 255 0
238 63 0 255 0
239 56 0 255 0
240 49 0 255 0
241 42 0 255 0
242 35 0 255 0
243 28 0 255 0
244 21 0 255 0
245 14 0 255 0
246 7 0 255 0
247 0 0 255 0
248-255 (Rainbow+ zone effects)
**** **** **** ****
* Colour scale as an illustration only
5.2 LED zone order
24
6. Control menu
The Robin 100 LEDBeam is equipped with 2-row LCD display which allows to set the xture´s behaviour according to your needs, obtain information on its operation, test its various parts and lastly program it, if it has
to be used in a stand-alone mode.
Control panel:
[ESCAPE] button used to leave the menu without saving changes.
[NEXT] , [PREV] buttons for moving between menu items and for value adjusting.
[ENTER] button used to enter the selected menu (menu item) and to conrm adjusted value.
After switching the xture on, display shows current DMX address.
6.1 Addressing (DMXA)
Set DMXA- Use this menu item to set the DMX start address of the xture, which is dened as the rst channel
from which the Robin 100 LEDBeam will respond to the controller.
If you set, for example, the address 36, the Robin 100 LEDBeam will use channels 36 - 70 for control (if Mode
1 is selected).
Please, be sure that you do not have any overlapping channels in order to control each Robin 100 LEDBeam
correctly and independently from any other xture on the DMX data link.
If there is no data received at the DMX input, the display will start to ash "0001” with actually stored DMX
address.
6.2 Fixture information (Info)
Pon Time - Power on time. Select this menu to read the number of xture operation hours.
Total -
The item shows the total number of the operation hours since
the Robin 100 LEDBeam
has been fabricated.
Reset -
The item shows the number of the operation hours that the
Robin 100 LEDBeam
has been powered on since the counter was last reset.
In order to reset this counter to 0, press and hold both [NEXT] and [PREV] buttons and the
[Enter] button at the same time.
DMX In - DMX readout. The menu is used to read DMX values of each channel received by the xture.
Temp - Temperature. The menu shows temperature in the LED module.
Current - A current temperature of the LED module.
Highest - A maximum temperature of the the LED module since the xture has
been fabricated.
High Res - A maximum temperature of the the LED module since the counter
was last reset.
In order to reset this counter, press and hold both [NEXT] and [PREV] buttons and the
[Enter] button at the same time.
Sw Ver - Software versions. Select this item to read the software version of the xture modules.
IC-1 - A pan/Tilt processor.
IC-2 - A display processor.
IC-3 - LED control processor.
25
6.3 Personality (Pers)
DMX Pres - DMX preset. Use the menu to select desired channel mode.
Mode 1 - 35 control channels
Mode 2 - 19 control channels
Mode 3 - 14 control channels
Mode 4 - 9 control channels
Mode 5 - 35 control channels
Mode 6 - 37 control channels (equivalent to the LEDWash 300/600 in mode 1)
Pan Rev - Pan reverse. The item allows to invert pan movement.
Tilt Rev - Tilt reverse. The item allows to invert tilt movement.
P/T Mode - Pan and Tilt movement mode. Use this menu to set mode of the pan/tilt movement.
Speed - Both Pan and tilt will move with the same speed as adjusted at the channel 5
"Pan/Tilt speed, Pan/Tilt time".
Time – The pan and tilt will move with different speeds and they will come at
the same time to the end point of their tracks (pan and tilt use their optimal speeds).
Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt
time".
P/T Feed - Pan and Tilt Feedback. The menu item allows to return the mowing head to the required pan/tilt
position after changing the position by an external force if this option is set on.
Note. The Pan/Tilt Feedback should be permanent On, the option Off is not suitable for standard operation and
the head of the xture can be damaged!
Tilt Red - Tilt movement reduction. Use this menu to set the range of the tilt movement of the xture head
Off – Standard range: 0-300°.
On- Reduced range: 0-210°. This option must be set before top hat placing otherwise the
top hat will ran into xture´s yoke.
Display - Display adjusting. This menu allows you to adjust the display behaviour.
Turn - This function turns the display by 180°.
On/Off T - This function allows you to keep the display permanent on or turn it off two minutes
after last pressing any button on the control panel.
Contrast- Use this function to adjust contrast of the display (0-100%).
Backlight- Use this function to adjust backlight of the display (0-100%).
BLC DMC - Blackout during movement correction. Set this option on if you wish to close light
output during the time when the head goes to its correct position, which has been changed by an
external force.
Act Blc - Active blackout. Use this menu if you wish to close the light output during effect changes.
P/T Mov - The menu item allows to close light output while the pan/tilt coordinates
are changing.
C Cal M - Colour calibration mode. If the functin is on, the white output (R+G+B+W=full) from the xture (and
also mixed colours) is more uniform. Each colour is dynamically corrected according to the value set in the
menu "Calibrate Effects" (Special-> Adjust-> Calib).
C Mix M - Colour mixing mode. This item allows switching into RGBW or CMY mode. In the CMY mode, the
white(8bit)/white (16) bit channels are not active.
Mic Sens - Microfon sensitivity. Enter the menu if you want to adjust the microphone sensitivity ( 1-max.,
19-min.).
Fans - Fan mode. Use the menu to set the xture fans to max. fan power mode ("High") or to auto- control
mode ("Auto").
Temp Uni - Temperature unit. Use the menu item to change temperature unit from °C to °F.
I Ef Pos - Init effect positions. Use the menu to set all effects to the desired positions at which they will stay
after switching the xture on without DMX signal connected.
Defaults - The menu item allows to set all xture parameters to the default (factory) values.
26
6.4 Manual Control (Manual)
Pres Eff - Preset effects. Use the menu to show preset positions of each channel effect.
Manual C - Manual control. Use the menu to control all xture channels by means of the control panel.
6.5 Test program (Test Prg)
Use this menu to to run a special demo-test sequences without an external controller, which will show you some
possibilities of using Robin 100 LEDBeam.
Static - Static mode. This mode is suitable for projections on the wall, ceiling or ground
without any head movement.
Dynamic - Dynamic mode. This mode uses all Robin 100 LEDBeam functions including
pan/tilt movement and therefore is good for a complete introduction of the xture.
6.6 Stand-alone (St Alone)
Music T - Music trigger. Select this function to enable the sound control of the running program via the built-in
microphone.
Auto Run - Presetting playback. This function allows you to select the program which will be played in the
stand-alone mode after switching the xture on. Selected program will be played continuously in a loop.
Off - The option disables „Auto Run” function.
Test - The option will start built-in test program.
Prog 1 - The option will start user-created program 1
Prog 2 - The option will start user-created program 2
Prog 3 - The option will start user-created program 3
Pr Play - Playing program. Select this menu to run a user-created program in a loop.
Test Prg - The option runs built-in test program.
Prog 1 - The option runs user-created program 1
Prog 2 - The option runs user-created program 2
Prog 3 - The option runs user-created program 3
Select the program you wish and press [ENTER]. The selected program starts running. By Pressing [ENTER]
again, program pauses running.
Pr Edit - Editing program. Select this menu to edit or create the program. The Robin 100 LEDBeam has one
built-in program and one user-editable program up to 40 steps. Each program step has a step time - during
which effects last in the current step and a fade time- during which effects move to new positions.
To edit program:
Procedure:
1. Press [NEXT] or [PREV] to select the menu "Edit" and press [ENTER].
2. Press [NEXT] or [PREV] to select the desired program step and press [ENTER] button.
3. Press [NEXT] or [PREV] to select the desired item and press [ENTER] button. Now you can edit by [NEXT]
or [PREV] buttons the DMX value (0-255) for selected item:
Prg End.
a total number of the program steps (value 1-40). This value you should be set before
starting of programming
(e.g. if you want to create program with the 10 steps,
set Prg End=10).
PAn a coarse pan movement CTC a colour temperature correction
PAn F a ne pan movement Virt C a virtual colour
Tilt a coarse tilt movement Strob a strobe/shutter
Tilt F a ne tilt movement Dimmer a dimmer coarse
P/T Sp a pan/tilt speed Dimm F a dimmer ne
Power power/special functions F.Tim a fade time (0-25.5 sec)
R Led 1 (2/3) red coarse -zone 1 (2,3) S.Tim a step time (0-25.5 sec)
G Led 1 (2/3) green coarse - zone 1(2,3) COPY copying the current prog. step to
B Led 1 (2/3) blue coarse - zone 1(2,3) the next prog. step
W Led 1 (2/3) white coarse - zone 1(2,3)
4. Press [ENTER] button to conrm adjusted value .
5. Press [ESCAPE] button, select next prog. step, press [ENTER] button and repeat steps 3 - 5).
27
6.7 Reset
This option enables the Robin 100 LEDBeam to index all effects and return to their standard positions.
6.8 Special functions (Special)
RDM Low - This menu item shows the rst part of the RDM identication code.
RDM High - This menu item shows the second part of the RDM identication code.
Wireless - Wireless DMX information. The menu allows to read some information about
Wireless DMX operation
Stat - Wireless status. Use the menu to read wireless DMX status.
Unlink - use this item to unlink xture from wireless DMX.
Adjust - Adjustment. The menu allows the ne adjustment of effects.
DMX Val- DMX values. Use the menu to set DMX values of xture´s channels.
Calib - calibration of white colour.
Cal P/T - Use this menu to calibrate pan/tilt positio.
Cal Col - Use this menu to set white colour 5600K.
Calibration of the pan/tilt via the control board
1. Disconnect DMX controller from the xture and enter the "Cal P/T" menu.
2. Use the [PREV] and [NEXT] to nd "Pan" and press [ENTER].
3. Set desired value and save it by pressing [ENTER].
4. Repeat steps 2 and 3 for Tilt.
5. After calibrating both effects, nd item "Store" and press [ENTER]. to save all adjusted values and reset the
xture.
Calibration of the white 5600K via the control board
1. Disconnect DMX controller from the xture , open the sShutter and Dimmer and set the Virtual colour wheel
channel at DMX=10 (white 5600K). Aim the light beam on the lux meter (e.g. Minolta CL-200A Chroma meter)
which is placed cca 5m from the xture.
2. Set the menu item Colour Calibration Mode to On (Pers-> C Cal M -> On).
3. Enter the menu "Cal Col".
4. Use the [NEXT] or [PREV] button to select desired colour and press the [ENTER] button.
5. Use the [NEXT] or [PREV] button to set desired value of colour.
5. By means of the "Red C, Grn C, Blue C and Whi C" items adjust the 5600K colour temperature
as exactly as possible (∆u´v´= 0).
7. After adjusting 5600K colour temperature, select item Store and press the [ENTER] button to save all
adjusted values .
Note: you can also use DMX controler for both calibrations stated above, calibration protocol is the following:
Effect Mode 1 Mode 2 Mode 3 Mode 4 Mode 5
Pan-ne adjustment channel 36 channel 20 channel 15 channel 10 channel 36
Tilt - ne adjustment channel 37 channel 21 channel 16 channel 11 channel 37
Red - red saturation channel 38 channel 22 channel 17 channel 12 channel 38
Green- green saturation channel 39 channel 23 channel 18 channel 13 channel 39
Blue - blue saturation channel 40 channel 24 channel 19 channel 14 channel 40
White - white saturation channel 41 channel 25 channel 20 channel 15 channel 41
Cal Load - Loads default (factory) calibration.
Sw Upd - Software update. The menu item allows you to update software in the xture via either serial or
USB port of PC.
The following are required in order to update software:
- PC running Windows 95/98/2000/XP/7 or Linux
- Update software
- Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC)
- Robe Universal Interface (if you want to use an USB port of PC)
Note 1: Software update should execute a qualied person. If you lack qualication, do not attempt the update
28
yourself and ask for help your ROBE distributor.
Note 2: DMX address, , programs 1-3 and all items in the menu "Pers" will be set to their default (factory) values
after software update.
To update software in the xture:
I. Installation of the update software.
1. Update Software available from the ROBE web site at WWW.robe.cz.
2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.
3. Unpack the program to the directory.
II.Fixture software updating.
1.Determine which of your ports is available on your PC and connect it:
- with the DMX input of the xture if you using the ash cable RS232/DMX
- with the USB input of the Robe Universal Interface if you using the USB cable. Connect DMX
output of the Robe Universal Interface with the xture via a standard DMX cabel.
Turn both the computer and the xture on. Make sure the lamp is switched off (only if the xture
has a lamp).
2. Switch the xture to the updating mode (Special -> "SW Upd "-> On).
Note: If you do not want to continue in software update, you have to switch off and on the xture
to escape from this menu.
We recommend to cancel all running programs on PC before starting the software update.
3. Run the Software Uploader. Select desired COM and then click on the Connect button.
(Select COM if the serial port is used or Robe Universal Interface if the USB port is used).
If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several
minutes to perform software update.
If the option "Incremental Update" is not checked, all processors will be updated (including
processors with the same software version).
If you wish to update only later versions of processors, check the “Incremental Update box“.
Avoid interrupting the process. Update status is being displayed in the Info Box window.
When the update is nished, the line with the text “The xture is successfully updated“ will appear in
this window and the xture will reset with the new software.
Note: In the case of an interruption of the upload process (e.g. power cut), the xture keeps the updating mode
and you have to repeat the software update again.
7. RDM
This xture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications
protocol for use in DMX512 control systems, it is the new open standard for DMX512 device conguration and
status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely affecting
existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specications
for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive
messages from specic moving lights.
RDM allows explicit commands to be sent to a device and responses to be received from it.
The list of commands for Robin 100 LEDBeam is the following.
Parameter ID Discovery command SET command GET command
DISC_UNIQUE_BRANCH *
DISC_MUTE *
DISC_UN_MUTE *
DEVICE_INFO *
SUPPORTED_PARAMETERS *
SOFTWARE_VERSION_LABEL *
DMX_START_ADDRESS * *
IDENTIFY_DEVICE * *
DEVICE_MODEL_DESCRIPTION *
MANUFACTURER_LABEL *
DEVICE_LABEL * *
SENSOR_DEFINITION *
29
SENSOR_VALUE *
DISPLAY_INVERT * *
DISPLAY_LEVEL * *
PAN_INVERT * *
TILT_INVERT * *
DEVICE_RESET *
DMX_PERSONALITY * *
DMX_PERSONALITY_DESCRIPTION *
STATUS_MESSAGES *
STATUS_ID_DESCRIPTION *
DEVICE_HOURS
*
PARAMETER_DESCRIPTION *
ROBE_DMX_INPUT * *
ROBE_WIRELESS_UNLINK *
8. Error and information messages
Short Err
The message informs you that short circuit has occured on the LED PCB.
Tilt Err
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not
located in the default position after the reset.
9. Technical Specications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50-60Hz
Fuse:.......................................T 3.15A/250V ~
Power consumption *:...............200W@230V,I=0.89A, power factor=0.96 (R+G+B+W=full)
200W@208V,I=0.99A, power factor=0.96 (R+G+B+W=full)
200W@110V,I=1.9A, power factor=0.94 (R+G+B+W=full)
*Allow for a deviation of +/-10%
Optic
Light source: 12 Osram Ostar RGBW multichips (SMT LE RTDUW S2W)
3 zones with individual colour control of each
Min LED life expectancy: 20.000 hours
RGBW colour mixing +CTO
Beam angle: 7°
Virtual colour wheel
237 colours including whites (2700K, 3200K, 4200K, 5600K and 8000K)
Halogen lamp effect at whites 2700K and 3200K
Rainbow effect with in both directions with variable speed
Zone effects in both directions with variable speed
30
Strobe
All LED zones together:
Strobe effect with variable speed (0.3 - 20Hz)
Random strobe pulse-effect with variable speed
Opening/closing pulse effect with variable speed
Independent strobe effect with variable speed (0.3 - 20Hz) at zones 2+3
Random strobe and random LED zone effect
Dimmer
Smooth dimmer from 0 - 100 %
Pan/Tilt
Max. pan movement range: 450°
Max. tilt movement range: 300° (280° reduced)
16 bit movement resolution
Automatic Pan/Tilt position correction
Remotely controllable speed of pan/tilt movement for easy programming
Movement control: tracking and vector
Pan movement 0° - 450° at max. speed: 1 sec.
Tilt movement 0° - 300° at max. speed: 0.5 sec.
Control
2-row LCD display & 4 buttons
Readout xture usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault nding, error messages
Built-in demo sequences
Silent fans cooling,
Stand-alone operation
3 user editable programs, each up to 40 steps
Supported protocols: USITT DMX 512, RDM,
Support of RDM (Remote Device Management)
6 DMX modes (35, 19, 14, 9, 35, 37 control channels)
External Wireless DMX/RDM module (option)
Compliance with USITT DMX-512 (1986 & 1990) and 512-A
Full DMX delity and frame integrity
Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz
Producer: LumenRadio
Connection
DMX data in/out: Locking 5-pin XLR
AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA
AC power output: Chassis connector Neutrik PowerCon, B-type, NAC3MPB
Rigging
Mounting points: pair of 1/4-turn locks
Mounting horizontally or vertically via Omega holder
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 80° C
Distances
Min. distance from ammable surfaces: 0.4 m
Min. distance to lighted object: 0.8 m
31
Total heat dissipation
680 BTU/h (calculated)
Weight (net):
4.5 kg
Dimensions (mm)
Wireles DMX module: Robe Wireless CRMX-LB100
Accessories
Omega holder (P/N 99010420).......................1 piece
Optional accessories
(P/N 10980127) Robe Wireless CRMX-LB100
(P/N 1098 0118) Top hat (black)
(P/N 1098 0123) Diffusion lter 40°
(P/N 1098 0122) Diffusion lter 20°
(P/N 1098 0194) Diffusion lter 10°
(P/N1305 1731) Mains Cable PowerCon In/open ended, 2m
(P/N 1305 1724) Mains Cable PowerCon In/Schuko, 2m
(P/N 1305 1725) Mains Cable PowerCon In/CEE 16A, 2m
(P/N 1305 1726) Mains Cable PowerCon In/US, 2m
(P/N 1305 1727) Daisy Chain PowerCon In/Out, EU, 2m
(P/N 1305 1728 ) Daisy Chain PowerCon In/Out, US, 2m
32
10. ChangeLog
This section summarizes all types of changes in the user manual.
Version of the
manual
Date of issue Description of changes
1.3
15/5/2012 Added chapter "Installation of diffusion lters"
1.4
18/7/2012 Added photometric diagrams for diffusion lters 20°and 40°
1.5
3/12/2012 Added chapter 3.6 Wireless DMX operation
1.6
27/01/2014 Change in the chapter "Installing diffusion lter"
1.7
05/03/2014 Added 10° diffusion lter photometric diagram
11. Maintenance and cleaning
DANGER !
Disconnect from the mains before starting any
maintenance work
A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances
should alcohol or solvents be used!
Never use alcohol or solvents for cleaning lenses in the moving head!
Use wet cloth only.
It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build
up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will
not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances
should alcohol or solvents be used!
Lenses may require monthly cleaning as smoke-uid tends to building up residues, reducing the light-output
very quickly. The cooling fans should be cleaned according to the situation (at least annually).
The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet.
More complicated maintenance and service operations are only to be carried out by authorized distributors.
33
11.1 Replacing fuse
1.Replace the fuse by a fuse of the same type and rating only.
Before replacing the fuse, unplug mains lead!
2. Remove the plastic covers of the base (3) by unscrewing 5
fastening screws (1) and (2) on each cover.
3. Unscrew four screws (4) on the top chassis (5). Lay down
the xture and unscrew four screws (6) on the bottom plate
(9) to push out inside module of the base.
4. Unscrew two screws (8) on the bottom plate to remove
rear panel of the xture (7).
5. Now you have access for the fuse holder (10) in the inside
module of the base.
6. Remove the old fuse from the fuseholder.
7. Install the new fuse into the fuseholder.
8. Assemble the base of the xture.
34
12. Photometric diagrams
Specications are subject to change without notice.
March 5, 2014
35
36
37
38
Loading...
