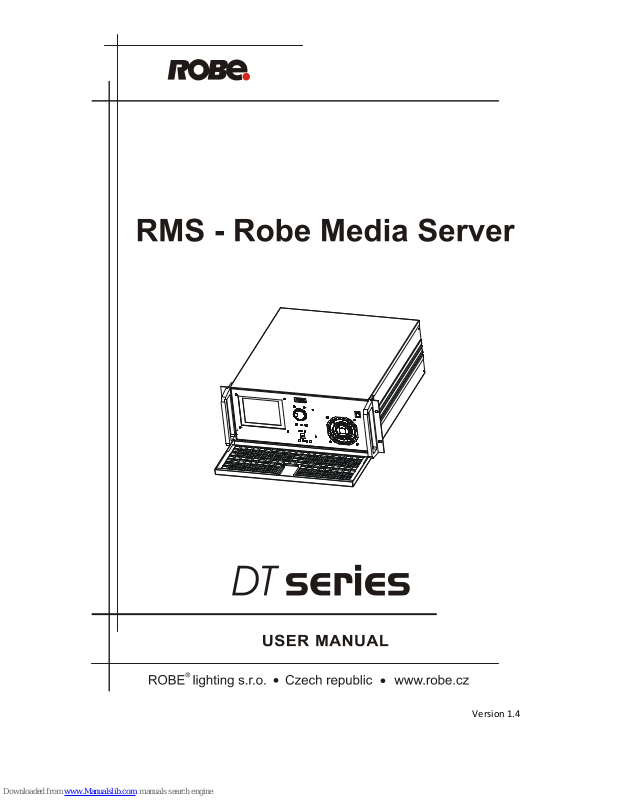

Robe RMS DT Series, DT Series, RMS User Manual
Version 1.
4
RMS-Robe Media Server
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 4
2. Unpacking ................................................................................................................................................................... 5
3. Introduction ................................................................................................................................................................ 5
4. Fixture exterior view ................................................................................................................................................... 6
5. Video inputs/outputs .................................................................................................................................................. 7
6. Connection to the mains ............................................................................................................................................ 8
6.1 Powering on the ROBE Media Server ................................................................................................................... 8
6.2 Shutting down the ROBE Media Server ................................................................................................................ 8
7. DMX 512 connection .................................................................................................................................................. 8
8. Ethernet connection ................................................................................................................................................... 9
9. Folder organization ................................................................................................................................................... 10
10. Control menu map .................................................................................................................................................. 12
11. Operating modes .................................................................................................................................................... 17
12. Control menu .......................................................................................................................................................... 17
12.1 Fixture Address ................................................................................................................................................. 17
12.2 Fixture information ........................................................................................................................................... 18
12.3 Personality ........................................................................................................................................................ 18
12.4 Manual control ................................................................................................................................................. 19
12.5 Stand-alone setting ........................................................................................................................................... 19
12.6 Preview mode. .................................................................................................................................................. 21
12.7 Reset functions ................................................................................................................................................. 21
12.8 Service menu .................................................................................................................................................... 21
12.9 Special functions ............................................................................................................................................... 21
12.10 Pixel mapping ................................................................................................................................................. 23
12.11 Fixture Off ....................................................................................................................................................... 23
13. Keystones ................................................................................................................................................................ 23
13.1 Global keystone parameters............................................................................................................................. 23
13.2 Layer keystone parameters .............................................................................................................................. 24
14. In Frame and Out Frame parameters ..................................................................................................................... 28
15. Video Control .......................................................................................................................................................... 28
16. Playback speed ...................................................................................................................................................... 29
17. Graphic effects ........................................................................................................................................................ 30
17.1 Kaleidoscopic effect .......................................................................................................................................... 30
17.2 Circular effect (Fish eye) ................................................................................................................................... 32
17.3 RGB (CMY) effects ............................................................................................................................................. 32
RMS-Robe Media Server
3
17.4 Iris effect on layer ............................................................................................................................................. 37
17.5 Auto iris effect on layer .................................................................................................................................... 40
17.6 Zoom effects on layer ....................................................................................................................................... 40
17.7 Another graphic effects on layers..................................................................................................................... 41
18. Media content management .................................................................................................................................. 43
18.1 Moving files between the fixture and PC ......................................................................................................... 43
18.2 Moving files between networked fixtures ........................................................................................................ 47
19. Remote control of the fixture via WWW browser ................................................................................................. 48
20. Picture merging....................................................................................................................................................... 52
20.1 Picture merging control channels ..................................................................................................................... 52
20.2 Picture merging example .................................................................................................................................. 60
21. Pre-cut content mode for Picture Merging ........................................................................................................... 61
22. Effect video synchronization .................................................................................................................................. 63
23. Projection onto angular, cylindric or spheric surfaces ........................................................................................... 64
23.1 Curved surface support channels ..................................................................................................................... 64
23.2 Rectangle onto circle (sphere) mapping with picture merging ........................................................................ 66
24. Video processing on gobo layers from a streaming video server .......................................................................... 67
25. RDM ........................................................................................................................................................................ 74
25.1 CITP/MSEX protocol ......................................................................................................................................... 74
26. Pixel mapping.......................................................................................................................................................... 76
27. Technical specifications .......................................................................................................................................... 83
28. Maintenance ........................................................................................................................................................... 85
28.1 Installing the DVI/VGA (SDI/ASI ) capture card ................................................................................................ 85
28.2 Cleaning the air filter ........................................................................................................................................ 85
28.3 System restore .................................................................................................................................................. 86
28.4 Cleaning ............................................................................................................................................................ 86
RMS-Robe Media Server
4
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ROBE MEDIA SERVER !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
The ROBE Media Server was designed for indoor use and it is intended for professional application only.It is not
for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the fixture.
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part.
Make sure that the power switch is set to off-position before you connect the fixture to the mains. The power plug
has to be accessible after installing the fixture. Do not overload wall outlets and extension cords as this can
result in fire or electric shock.
Do not allow anything to rest on the power cord. Do not locate this fixture where the cord may be damaged by
persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord
from time to time.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with a
protective earthing connection.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until it has
reached room temperature.
Do not shake the device. Avoid brute force when installing or operating the device.
This fixture was designed for indoor use only, Do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the device is not exposed to extreme heat, moisture or
dust.
RMS-Robe Media Server
5
Air vents and slots in the fixture are provided for ventilation, to ensure reliable operation of the device and to
protect it from overheating.
The openings should never be covered with cloth or other materials, and never must be blocked.
This fixture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
Operate the fixture only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the fixture. Most damages are the result of unprofessional operation!
Please use the original packaging if the fixture is to be transported.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like shortcircuit, burns, electric shock etc.
To switch the ROBE Media Server off, always use either option "Fixture Off" in the main menu of the control board
or set a DMX value of the channel 1 (Power/Special Functions) between 240-249.
Never switch the fixture off by pulling out the power plug from the socket otherwise the fixture may be damaged
(operating system)!
2. Unpacking
The ROBE Media Server is packaged in either a cardboard box or one-unit flight case to protect the product during
transportation.
The following items are included:
- 1 x ROBE Media Server
- 1 x USB flash drive with a System recovery utility
- 1 x user manual
3. Introduction
The ROBE Media Server features a DMX controllable digital media server installed in a 19” rackmount case. The
built-in 32-bit Graphics Engine utilizes Linux and DirectX application programming interface to provide extensive
image control of graphic objects.
The
ROBE Media Server
uses DMX512 protocol to control media fixture capabilities including loading images and
movies. The graphics engine allows you manipulate position, scale, rotation, apply visual effects and colour mix
each image.
RMS-Robe Media Server
6
4. Fixture exterior view
Front panel of the fixture
Rear panel of the fixture
1
- Handle
2
- Covering
3
- Front doors
1 - 5" TFT Display
2 - Escape button
3 - RNS control wheel
4 - Enter button
5 - Reset button
6 - 2xUSB
7 - System indicator
8 - Fan fail indicator
9 - HDD indicator
10 - Power indicator
11 - ATX power switch
1 -
Power input
2 - Power switch
3 - 2 x USB
4 - 2 x USB
5 - Ethernet input
6 - Video input - S-video
7 - VGA outputs 1-4
8 - Video input - Composite
9 - 3-pin DMX input/output- DMX 1
10 - 5-pin DMX input/output- DMX 2
RMS-Robe Media Server
7
5. Video inputs/outputs
Two video inputs S-Video (6) and Composite (8) allow to process data in a graphics engine, you can use all
spectrum of effects that the graphic engine of the Robe Media Server offers.
One parallel video output is splitted with 4 Full HD layers available via 4 VGA outputs (7).
One of the four VGA output marked as Master- VGA 1 utilizes EDID data passed from the monitor connected to
this output.
EDID ( Extended Display Identification Data) is a data-structure, provided by a display, to describe its capabilities to
a graphics card (that is connected to the display’s source). The EDID enables the Robe Media Server to “know”
what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type,
the timing data supported by the display, the display size and luminance data.
For correct function of the EDID you should keep the following rules:
- The Master-VGA 1 output has to be always connected to the monitor
- If more monitors are connected to the Robe Media Server, all monitors has to be the same type
- Switch on monitors before powering on the Robe Media Server
RMS-Robe Media Server
8
6. Connection to the mains
Fixtures must be installed by a Qualified electrician in accordance with all national and local electrical
and construction codes and regulation.
Install a suitable plug on the power cord, note that the cores in the power cord are colored according to the
following table.
C
ore (Eu) C
ore (US) Pin Symbol
Brown
Black
Live L
Light blue
White
Neutral
N
Yellow/Green Green Earth
The earth has to be connected!
6.1 Powering on the ROBE Media Server
When the fixture is connected to the AC mains supply and the power switch is on, press the ATX power switch, it
automatically begins a setup procedure to verify that all functions of the fixture in good order.
If the fixture is in a stand- by mode, you can use option “ Wake On DMX” on the Pover/Special Functions channel
(control channel 1 ) - see DMX chart.
6.2 Shutting down the ROBE Media Server
There are two recommended ways how to shutdown the fixture:
1. A DMX controller can shut down the fixture with the " Fixture Off" option on the Pover/Special Functions
channel (control channel 1 ) - see DMX chart.
2. The option "Fixture Off" in main menu of ROBE Media Server shuts down the fixture.
After shutting down the fixture switch the power switch on the rear side of the fixture base to the off position in
order to save energy.
Removing power directly without the shutdown procedure
can reduce fixture reliability!
7. DMX 512 connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. Only use a shielded
twisted-pair cable designed for RS-485 and 3-pin/5-pin XLR- connectors in order to connect the controller with the
fixture or one fixture with another.
Wiring of the XLR connectors:
DMX output DMX input
XLR mounting sockets (rear view): XLR mounting plugs (rear view):
1
– Shield
2
- Signal (-)
3
- Signal (+)
4
– Not connected
5
– Not connected
To build a DMX chain
1. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.
2. Use menu "DMX Settings " to set the DMX start address on all fixtures (see the "Fixture address" menu).
3. The option Activate DMX mode has to be confirmed in the “DMX Settings" menu on all fixtures.
RMS-Robe Media Server
9
Do not overload the link. Max. 32 fixtures may be connected on a DMX link.
Example:
Caution: Terminate the link by installing a termination plug in the DMX output of the last fixture. The termination
plug is a male 3-pin XLR plug with a 120 Ohm resistor soldered between Signal (–) and Signal (+).
8. Ethernet connection
The fixtures on a data link are connected to the Ethernet network with an Art-Net communication protocol. The
control software from PC (or lighting console) has to support the Art-Net protocol.
The Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP. Its purpose is to allow
transfer of large amounts of DMX 512 data over a wide area using standard network technology.
IP address is the Internet protocol address. The IP uniquely identifies any node (fixture) on a network.
The Universe is a single DMX 512 frame of 512 channels.
The the ROBE Media Server is equipped with 8-pin RJ- 45 socket for Ethernet input. Use a network cable category 5
(with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the fixture to the network.
RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX-
3- RX+ 7- Not connected
4- Not connected 8- Not connected
Patch cables that connect fixtures to the hubs or LAN sockets are wired 1:1, that is, pins with the same numbers
are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8
If only the fixture and the computer are to be interconnected, no hubs or other active components are needed. A
cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4
Ethernet operation.
Connect the Ethernet inputs of all fixtures in the fixture chain with the network.
Use the menu "Artnet Settings " to set an IP address , artnet universe and artnet subnet on all fixtures (see the
"Fixture address" menu).
The option “Activate Artnet mode" has to be confirmed in “Artnet Settings ” menu on all fixtures.
Example:
RMS-Robe Media Server
10
9. Folder organization
The library structure is reflected on the hard drive where all files for the library are stored. The whole library is
contained within a special folder called ‘Media’.
Inside the Media folder is a collection of folders (000,001...240) each named with a 3-digit number. Each folder
following this convention represents a library folder and the 3-digit number represents the name of the folder.
Because of this, you can’t have folders without the 3 digit number scheme. You can’t neither have two folders with
the same digits.
Inside each folder is a collection of media files that the library folder holds. The media files also should follow the
3-digit conventions where a 3-digit number is followed by an underscore and a name e.g.: 001_testfile1.png.
Note that for media files the digit starts at 001_ since visual 0 is always considered as being empty.
The media files assigned to the DMX values can be sorted either in an alphabetical or numerical order. Default
assigning is the alphabetical order. If you need to change this sorting, go to the menu ”Personality“ and select
“Gobo selection mode“ option.
The numerical order is suitable in the case that you need to exactly assign certain media files to specified DMX
addresses.
The table below show differences in fileDMX assignment between the alphabetical and numerical sorting.
The table also includes file names without a correct 3-digit convention to illustrate their behaviour in
the numerical sorting.
Media file
name
DMX
value
at Alphabetical Sorting
DMX
value
at Numerical Sorting
1 1
2 20
3 19
4 3
5
Not Assigned
*
6 Not Assigned
**
* The 3-digit number has to be in range of 001-255. If there is more than 255 media files in the folder, files above
255 are ignored.
** The media file name does not contain any digit.
Subfolders 000-020 are reserved for default gobos and videos (from factory) and their content cannot be
changed.
The images and video clips can be in one of the following formats: bmp, jpg, tga; .png, gif, pcx, pnm, xpm and lbm
for images and mpeg1, mpeg2 for videos.
The folder "Programs" serves for saving recorded DMX programs (dprg_01.csv,......dprg_10.csv).
The folder named "Update" contains subfolders with the update files.The subfolders are created automatically
during software updating and their names matching to date when software update has been executed.
RMS-Robe Media Server
11
The folder a "Log" serves for saving log files generate by the option "Generate Log File" in a menu "Special
Functions" of the control panel.Log file names are deducated from the date when the file has been logged out.
Top level folder
Media
000
001
002
:
240
Programs
Update
13-08-06_09:15:33
:
01-03-06_14:23:50
Log
RMS-Robe Media Server
12
10. Control menu map
Default settings=Bold print
Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8
Fixture
Address
DMX Settings
Set DMX
Address
001-512
Activate DMX
Mode
Ethernet
Settings
Set IP Address
Default IP
Address
Custom IP
Address
Set ArtNet
Universe
0-15
Set ArtNet
Subnet
0-15
Activate
Artnet Mode
Fixture
Information
DMX Values Power 0-255
:
Synchro to L4 0-255
Media Disk
Space Usage
Free Disk
Space
Used Disk
Space
Software
Version
Graphic
Engine
GPU Info: GPU:
Video Bios:
Driver
Version:
Disp:
Product IDs Mac Addr.
RDM UID
Personality
Display
Adjusting
Display
Permanent On
Display Off After
5 min
Permanent On
Display
Orientation
Normal
Orientation
Rotated
Orientation
RMS-Robe Media Server
13
Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8
Display Modes CRT-I: CRT-I
Screen
Resolution
1024x768
Projection
Presetting
Ceiling
Projection
On, Off
Rear
Projection
On, Off
Dmx Protocol
Set DMX
Mode
2 Layers
3 Layers
4 Layers
Protocol
Version
Version 1.1
Gobo Selection
Mode
Alphabetical
Order
Y;
Numerical
Order
Microphone
Sensitivity
1..10..20
Verbose Mode
Verbose Mode 0
Verbose Mode 1
DMX Verbose
Mode
Synchro
Verbose Mode
Default
Settings
Set Default
Values
Remove User
Media Content
Manual
Control
Manual DMX
Control
Power 0-255
:
Synchro to L4 0-255
Stand-alone
Setting
Play Program
Program 1 in
Loop
:
Program 10 in
Loop
Edit Program Program 1
: Edit Steps Step 1
Powe
Program 10 :
:
Step 99
Synchro To L4
Step Time
0.1 - 25.5 sec.
RMS-Robe Media Server
14
Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8
Fade Time
0.1-25.5 sec.
Snap DMX
Save
Start Step 1-99
Save and Copy
End Step 1-99
Play DMX
Program
Test DMX
program
DMX Program
1
:
DMX Program
10 in Loop
Record DMX
Program
DMX Program
1
:
DMX Program
10
Preset
Playback
Deactivated
:
DMX Program
10 in Loop
Fixture Off
Timer
Timer
Deactivated
Timer
Activated
Set Timer
Hours
Set Timer
Minutes
Actual Time to
Off
Preview Mode
Reset
Functions
Reset Graphics
Engine
Service Menu
Power On
Time
Total Hours
Resetable
Hours
Special
Functions
Regenerate
Thumbnails
Set Thumbnail
size
50..96...300
Regenerate
Thumbnails
FTP Server Set Account
RMS-Robe Media Server
15
Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8
Allow
Anonymous
Yes/No
HTTP Access Set Account
Allow
Anonymous
Yes/No
USB Data
Synchronization
USB1 Open Media Open 000 Open
USB2 :
Synchronize to
Fixture
240
Synchronize
from Fixture
Synchronize to
Fixture
Synchronize
from Fixture
Update Open
Synchronize to
Fixture
Synchronize
from Fixture
Init Flash Disc
Software
Update
Update
Graphical
Software
Update HW
processors
Software
Update Media
Content
Generate Log
File
Remote Servis
Set Service IP
Address
Remote IP
Address
077.048.000.224
Remote Port 08283
Service Port 08290
Set Default
Gateway
Gateway
Address
002.001.001.001
Start Remote
Service
Pixel Mapping Actual Mode Not Active
Artnet Config 1
:
Artnet Config 5
DMX Config 1
:
RMS-Robe Media Server
16
Menu Level 1
Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8
DMX Config 5
Pixel Mapper
Type
Nearest
Linear
Prewiew LED
Mapping
Config Mode Not Active
Artnet Config 1 Set Grid Width
: Set Grid Height
Artnet Config 5
Config Dots
Address
Test Picture 1
DMX Config 1 :
: Test Picture 10
DMX Config 5
Config PM
Outputs
Artnet PM
Output
Enabled,Disabled
DMX 1 PM
Output
Enabled,Disabled
DMX 2 PM
Output
Enabled,Disabled
Num. Dots On
DMX 1
Num. Dots On
DMX 2
Fixture Off
RMS-Robe Media Server
17
11. Operating modes
Before operating the ROBE Media Server from a DMX 512 controller, you need to define the source of DMX data,
which may be:
DMX 512 - data is transmitted over standard DMX cables. Set a valid DMX start address, which is defined as the
first channel from which the ROBE Media Server will respond to the controller.
Please, be sure that you don’t have any overlapping channels in order to control each ROBE Media Server correctly
and independently from any other fixture on the DMX data link.
For DMX start address setting, please refer to the instructions under "Fixture Address".
ArtNet - data is transmitted over Ethernet network using Artnet protocol. Set an IP address, Artnet Universe and
Artnet Subnet.
For Artnet setting, please refer to the instructions under article "Fixture Address".
12. Control menu
The control panel situated on the front panel of the base offers several features. You can simply set the fixture
addresses, configure the fixture, run test, make a reset and also use many functions for setting fixture
behaviour.
Control elements on the control board:
[RNS] encoder wheel-moves between menu items on the same level, scrolls between values.
[ESC] button-leaves menu without saving changes
[ENTER] button-enters menu, confirms adjusted values and leaves menu
After switching the fixture on, than press [ENTER] and
the display shows the initial screen: the display shows address:
The main menu of the control panel is accessed by pressing the [ENTER] button. To browse through the menu,
rotate the [RNS] wheel. To select a function or submenu, press the [ENTER] button.
12.1 Fixture Address
Use this menu to set the DMX address.
DMX Setting --- Select this submenu to set the DMX start address.
Set DMX Address - sets DMX address. After selecting desired DMX address confirm setting
by using the function "Activate DMX Mode":
Activate DMX Mode - Data is
received from DMX input.
Artnet Setting --- Select this submenu to set the fixture for Ethernet operating.
Set IP Address - Select this submenu to set an IP address and NetMask.
The IP address is the Internet protocol address and uniquely identifies any node (fixture) on
a network. There can't be 2 fixtures with the same IP address on the network!
Default IP Address -Preset IP address.
Custom IP Address - The option enables edit all numbers of the IP address.
To set the custom IP address:
1. Select „Custom IP Address” and press the [ENTER].
2. Use RNS wheel to set the first number of the IP address
RMS-Robe Media Server
18
3. Press the [ENTER] to move on the second number of the IP address
4. Repeat steps 2 and 3 for the third and fourth number of the IP address.
If you want to return back on the previously edited number, press [ESC].
The same way you can set the Netmask Address.
Set ArtNet Universe -
Select this submenu to set a Universe (0-15).
The Universe is a single DMX 512 frame
of 512 channels.
Set ArtNet Subnet -
Select the option to set Ethernet subnetworks to which the fixture
belongs (0-15)
After setting all Artnet parameters confirm setting by using the function
"Activate Artnet Mode":
Activate Artnet Mode - Data is
received from the Ethernet input.
12.2 Fixture information
DMX Values --- Select this item to read DMX values of each channel received by the fixture.
Media Disk Space Usage --- Select the item to read information about the hard disk space.
Free Disk Space --- Select the item to show a size of free hard disk space (MB).
Used Disk Space --- Select the item to show a size of used hard disk space (MB).
Software Version --- Select this function to read the software version of the fixture´s Graphic Engine.
GPU Info --- Select the item to read information about graphics processing unit, drivers and display device.
Product IDs --- Select the function to read the MAC address and the RDM UID code.
12.3 Personality
Use this menu to modify ROBE Media Server operating behaviour.
Display Adjusting --- This function allows you to change the display settings:
Display Permanent On - This function allows you to keep the display permanent on or
to turn it off after 5 minutes of inactivity of control buttons (wheel)
Display Orientation - Select this function to adjust the display orientation:
Normal orientation - A standard display orientation.
Rotated Orientation - Inverts the display by 180°.
Display Mode --- Use this menu to set suitable resolution for connected monitor (monitors):
CRT-I: CRT-I --- On this line is displayed the name of connected monitor (e.g. CRT-I: Philips 170C)
Screen Resolution - the menu item includes the standard list of resolutions, if the monitor
is connected to the “ Master- VGA1” output, this list is extended with another resolutions
supported by the monitor. Default resolution is 1024x768.
Projection Presetting --- Use this menu depending on the installation location of the fixture:
Ceiling Projection --- When this function is "On", a picture is top (bottom and left) right
reversed.This function enables to project the image from a ceiling mounting of
the ROBE Media Server.
Rear projection --- When this function is "On", picture is left (right) reversed.
This function enables to project the image to a rear projection screen.
DMX protocol
--- Use this menu to set desired number of gobo/video layers and DMX channels.
Set DMX mode --- the item allow you to select a desired number of control channels
2 Layers - 92 control channels
RMS-Robe Media Server
19
3 Layers - 120 control channels
4 Layers - 148 control channels
Protocol Version --- the item allow you to select a desired protocol version.
Gobo Selection Mode --- Use this menu to select desired sorting of media files in media subfolders.
Alphabetical Order --- The media files are assigned to DMX values in an alphabetical order.
Numerical projection --- The media files are assigned to DMX values in a numerical order.
Verbose Mode --- Use this menu to hide messages displayed on the screen when you are changing some setting
on the Power/Special functions channel (e.g. Rear projection on, Rear projection off.....) .
Verbose Mode 0 --- Generated messages are hidden.
Verbose Mode I --- Generated messages are visible on the projection screen.
DMX Verbose Mode --- It displayes information regards picture at the bottom left corner of
the image (channel, name, DMX value):
Synchro Verbose Mode --- used for debugging of video synchronization.
Default Settings --- Select this option to set default values or to remove user´s content in the fixture.
Set Default Values --- Select this option to reset all fixture personalities to the default values.
Remove User Media Content --- The item deletes all user media contents except the factory media
content.
12.4 Manual control
Manual DMX control ---Select this menu to control all channels by the control elements on the control board.
12.5 Stand-alone setting
Use this menu to set options for a stand-alone mode as a selection of the program, programming and modifying
user programs.
Play Program --- Select this menu to run a built-in program or 10 freely-programmable programs
in a loop.
Program 1 In Loop
: These options start user defined programs
Program 10 In Loop
Running program can be paused by pressing the [ENTER] button.
Edit Program
--- Select this menu to edit or create a program. The ROBE Media Server has 10 freely-programmable
programs, each up to 99 steps. Each program step has a step time, during which effects last in a current step.
RMS-Robe Media Server
20
Procedure:
1. Select the program you want to edit (“Program 1” - “Program 10”) and press the [ENTER] button.
2. Select “Edit Steps” menu and press [ENTER] button.
3. Select the desired program step (“Step 01” - “Step 99”) and press [ENTER] button.
4. Select the desired item and press the [ENTER] button. Now you can edit a DMX value of selected item by the
[RNS] encoder wheel
5. Press the [ENTER] to save adjusted value.
6. Select another effects (channels) and repeat steps 4 an 5.
7. Select “Save” or “Save and Copy” and press the [Enter] to confirm all adjusted values in a current step:
“Save” - saves the current prog. step
“Save and Copy” - saves and copies the current prog. step to the next prog. step.
Option “Snap DMX”- inserts current values from DMX to all effects (channels). It is very useful function, you don
not have to adjust all effects to desired positions, all values are loaded from DMX.
8. Go to the next prog. step ,press the [ENTER] and repeat this procedure (steps 4 and 7).
After creation of the program, you can simply reduced its length (by changing the start/end step) using either the
“Start Step” item or the “End Step” item.
Play DMX Program --- Select this menu to run one of 10 programs which have been recorded via the menu
“Record DMX program”. By pressing the [ENTER] you can switch the running program into the 3 following modes:
Pause, Playing, Playing in Loop. The current program step is shown on the fixture display:
Record DMX Program --- The menu allows to record DMX data that receives the fixture and then replay them again
via the menu “Play DMX program”. There is a list of 10 programs for recording with unlimited steps each.
Select desired program number and press the [ENTER] to enter the recording screen.
The data record starts after changing any receiving DMX value. To stop recording, press [ENTER] or [ESC].
Recorded DMX program has the name dprg_xx.csv where the xx means the number of the program (e.g.
dpr_01.csv, dprg_02.csv....) and is stored in the folder “Programs” accessible by means of FTP. The format of this
file is a plain text that allows additional user editing. The first line of the file includes all DMX channels with their
starting DMX values and the next lines display changes of DMX values of channel effect and a relevant time of the
changes.
Note: If you select the program which contains previously recorded data, the data will be overwritten without
warning.
Preset playback --- The menu allows to select a program (or a DMX program), which will be played automatically in
a loop after switching the fixture on.
Fixture Off Timer --- The menu offers to control the time during which the fixture is on and, for example, plays the
recorded program. The adjusted time period is counted from starting the fixture.
Deactivated Timer
--- The item disables the “Fixture Off Timer” option.
Set Timer Hours --- The item enables to set hours for the “Fixture Off Timer”.
RMS-Robe Media Server
21
Set Timer Minutes --- The item enables to set minutes for the “Fixture Off Timer”.
Actual Time to Off --- Shows time remaining to switching the fixure off.
12.6 Preview mode.
This item enables to display the image, sending to monitors, on the fixture´s display.
Note: If this function is called out ,the video sequence on monitors will not be played continuously because the
fixture´s processor has to display this sequence twice at the same time ( on the wall and on the display)
12.7 Reset functions
Reset Graphics Engine --- This function resets a graphics engine of the ROBE Media Server.
12.8 Service menu
Use this menu to read time information about the fixture.
Power On Time ---Select this submenu to read the number of operation hours of the fixture.
Total Hours - The function shows the total number of the operation hours since
the ROBE Media Server has been fabricated.
Resetable Hours - The function shows the number of the operation hours that
the ROBE Media Server has been powered on since the counter was last reset. In order
to reset this counter to 0, press [ENTER] twice.
12.9 Special functions
Use this menu for special services like remote servis or software update.
Regenerate Thumbnails --- Use the menu to manage thumbnails behaviour.
Set Thumbnail size - The menu item allows set the size of the thumbnail: 50-min.size,
300-max.size.
Regenerate Thumbnails - By pressing the "Enter" button the refreshing process
of gobo/video thumbnails starts. This action should be performed if you have changed
gobo/video files and the fixture was not switched off after the change , otherwise the
refreshing process runs automatically at starting up of the ROBE Media Server.
FTP Server --- The FTP (File Transfer Protocol) server is used to transfer files between the fixture and a PC over an
ethernet network by means of FTP client running on your PC. The "FTP Server" menu allows control of an access to
the fixture´s folders.
Set Account - The option allows you to protect the access to the fixture folders by setting
the name and password. The same data must be entered in FTP terminal running on
your PC.
Allow Anonymous - If this option is set "Yes" ,no password is required in FTP terminal but
the user name may be "ftp" or "anonymous".
HTTP Access --- This menu enables to set access privileges which are used at entering to the Remote
control program via your WWW browser.
Set Account - The option allows you to protect the access to the Remote control
program by setting the name and password. The same data must be used in the Remote
control program running on your PC or a light control console.
Allow Anonymous - If this option is set "Yes" ,no password is required at entering to
the Remote control program.
USB Data Synchronization
--- The menu allows transfer of media files (images, videos) and software files between
the USB stick and fixture´s hard disk and related operations.
The USB stick must contain the following folders structure:
RMS-Robe Media Server
22
Top level folder
Media
000
001
002
:
240
Programs
Update
Log
To create the folders structure mentioned above, use the option "Init Flash Disc". After creating folders structure
on the USB stick you may load/download files into folders/subfolders .Maximum number of media files in one
Media subfolder is 240. Subfolders 000-020 are reserved for default images/videos and cannot be changed (you
cannot copy media files into these subfolders).
To upload a file/folder from the USB stick to the Media folder in the fixture:
1. Insert the USB stick to the USB port , select "USB Data Synchronize" from the menu and press the
[ENTER], "USB1" or "USB2" (depends on used USB port) is displayed on the screen.
2. Press the [ENTER], select "Open", press the [ENTER].
3. Select "Media", press the [ENTER],
4. If you want to copy all Media folder (including subfolders 000-240), select item "Synchronize to Fixture". If you
want to copy only one subfolder (e.g. 035) ,select "Open", press the [ENTER] , select desired subfolder from a list
of subfolders ,press the [ENTER] and select option "Synchronize to Fixture". If you want to copy only one file,
select "Open" and press the [ENTER]. Select the desired file, press the [ENTER] and confirm a question in a dialogue
box.
To download folder from the Media folder to the USB stick.
1. Insert the USB stick to the USB port , select "USB Data Synchronize" from the menu and press
the [ENTER]. "USB1" or "USB2" (depends on used USB port) is displayed on the screen.
2. Press the [ENTER], select Open, press the [ENTER].
3. Select "Media", press the [ENTER],
4. If you want to copy all Media folder from the fixture (including subfolders 000-240), select item "Synchronize
from Fixture". If you want to copy only one subfolder (e.g. 035) ,select "Open", press the [ENTER] , select desired
subfolder from a list of subfolders ,press the [ENTER] and select option "Synchronize from Fixture". If you want to
copy only one file, select "Open" and press Enter. Select the desired file, press the [ENTER] and confirm a question
in a dialogue box.
Software Update --- This menu allows to update graphical software or hardware processors software.
You have to download the latest version of the ROBE Media Server software from ROBE website to your hard disk
and then use either Ethernet network or the USB stick to move this file to the relevant folder in the ROBE Media
Server.
Copying software update file from the USB stick to the fixture:
1. Insert the USB stick to the USB port, select "USB Data Synchronize" from the menu and press
Enter. There is an USB1 or USB2 (depends on used USB port) displayed on the screen.
2. Press Enter, select Open, press the [ENTER].
3. Select Update and press the [ENTER]. If you want to upload whole Update folder to the fixture, select option
"Synchronize to Fixture".
If you only want to copy one or more files to the fixture, select option "Open" and press the [ENTER]. Select
desired file, press the [ENTER] and confirm a question in a dialogue box.
After copying update file to the fixture, the desired software update will be activated by confirming the
follow items:
Update Graphical Software
- starts update of the graphical software.
If the message Please Update HW Processors in Menu "Special Functions" will appear
after updating, run update of the hardware functions.
RMS-Robe Media Server
23
Update HW processors Software - starts update of the display module.
Update Media Content - starts update of the factory media folders 00-20 (pictures, videos)
Generate Log File
---
This item starts generating a log file. The file is saved in a folder "Log" on the hard disk.
This file records events in a certain scope in order to provide an audit trail that can be used to diagnose problems
of the fixture.
Remote servis
---
This menu provides necessary items for remote servis of the ROBE Media Server.
12.10 Pixel mapping
The menu serves for pixel mapping of the ArcDots modules.
Actual Mode --- Use the menu to select previously adjusted configuration of the ArcDot modules.
Pixel Mapper Type --- This menu allows to select type of the image edges.
Nearest – sets sharp edges of the projected image.
Linear – sets fuzzy edges of the projected image.
Preview Led Mapping --- This menu item shows current projected image.
Config Mode --- The menu contains options for performing pixel mapping of Led modules.
12.11 Fixture Off
This menu item shuts down the fixture. We strictly recommend to use this function because removing power
directly without the shutdown procedure can reduce fixture reliability.
13. Keystones
13.1 Global keystone parameters
If an image is output from the projector at an angle the image may be skewed. Eight keystone channels (KeyStone
Top Left X, KeyStone Top Left Y, KeyStone Top Right X, KeyStone Top Right Y, KeyStone Bottom Right X, KeyStone
Bottom Right Y, KeyStone Bottom Left X, KeyStone Bottom Left Y) adjust the image shape.It is possible to control
each of the four corners of the image and reshape it.
Default DMX value is 0, it means that no keystone correction has been used.
Setting all keystone values to 0 will place all four corners of the image at the four corners of the projector output.
The keystone values can also be used to create interesting skewing effects.
For the picture merging are important both the KeyStone X-ratio and KeyStoneY-ratio channels for correction of
the image distortion caused by placing projectors at different distances from the final image.
RMS-Robe Media Server
24
13.2 Layer keystone parameters
By the global keystone parameters stated above you can control each of the four corners of the graphics output
individually to reshape your image to a form that is projected correctly.
By the layer keystone parameters you can control all four corners of the image at the same time. With these
parameters you can create the same skewing and shape effects like with the global keystone parameters but on
each gobo layer.
Major use of these effects is in a situation where the gobo mask is applied on a layer and you need to adjust a mask
shape onto some object on the scene. More important is adjusting of the inner part of the image on the layer than
the outer shape of the graphics output.
Characteristic case is a composition of 2 layers: the layer 1, where is applied a picture of the landscape and the
layer 2, where is a gobo mask selected (see picture below).
To adjust desired image shape you can use the following (keystone) parameters on the gobo layer 2:
1. Layer zoom in X and Y direction.
The channels Gobo zoom X coarse and Gobo zoom X fine allow 8-bit/16-bit zooming in X-direction.
The channels Gobo zoom Y coarse and Gobo zoom Y fine allow 8-bit/16-bit zooming in Y-direction.
use
the
channel
KeyStone Y-ratio
for correction
use channel
the KeyStone X
-
ratio
for
correction
RMS-Robe Media Server
25
2. Gobo position in X and Y direction.
The channels Gobo position X coarse and Gobo position X fine allow 8-bit/16-bit positioning in X-direction.
The channels Gobo position Y coarse and Gobo position Y fine allow 8-bit/16-bit positioning in Y-direction.
3. Layer skewing along X and Y axis.
On the channel Gobo effect 1 selection adjust a DMX value=150 and using the control parameters 1 an 2 you can
skew the image in either X or Y axis.
The channel Gobo effect 1 – Parameter 1 skews the image in X-axis.
The channel Gobo effect 1 – Parameter 2 skews the image in Y-axis.
RMS-Robe Media Server
26
4. Layer Squeezing/Stretching along X and Y axis.
On the channel Gobo effect 1 selection adjust a DMX value=150 and using the Control Parameters 3 you can
squeeze the image in X axis.
The channel Gobo effect 1 – Parameter 3 squeezes/stretches the image edges in Y-axis.
On the channel Gobo effect 2 selection adjust a DMX value=150 and using the control parameters 1 you can
squeeze the image in Y axis. Note. To allows this effect, the channel Gobo effect 1 selection has to be set to
DMX=150.
The channel Gobo effect 2 – Parameter 1 squeezes/stretches the image edges in X-axis.
RMS-Robe Media Server
27
5. Image X-ratio and Y-ratio.
On the channel Gobo effect 2 selection adjust a DMX value=150 and the second and third parameter control image
X-ratio and Y-ratio.
Note. To allows this effect, the channel Gobo effect 1 selection has to be set at DMX=150.
The channel Gobo effect 2 – Parameter 2 compresses or expands the image in X- axis
The channel Gobo effect 2 – Parameter 3 compresses or expands the image in Y- axis.
After shaping the image by means of the parameters stated above, you can apply the global banner effects on the
whole graphics output and this final image should appear for instance like this:
RMS-Robe Media Server
28
14. In Frame and Out Frame parameters
You can select any segment of a video file for playback by assigning parameters for In Frame (start point) and an
Out Frame (end point) as pictured below.
The In Frame parameter corresponds to a 16-bit DMX value equal to a starting point for the playback segment of
the selected video file. The Out Frame parameter corresponds to a 16-bit DMX value equal to an end point for the
playback segment of the selected video file.
1.Assigning the In Frame DMX values to 0
and Out Frame DMX values to 255 you will
playback the entire video file.
2.
You can create a segment anywhere
between the beginning and the end of the
video file
.
3.
It is possible to skip a segment in the
video file by setting the In Frame to a
point following the Out Frame value.
15. Video Control
The channel Gobo control defines how the current layer will be ‘composed’ with the previous layers and the
playback options in each mode .The
ROBE Media Server
supports the following options:
Copy mode (0-17 DMX): In this mode, the pixels of the layer are written on top of the previous layers.
Addition mode (20-37 DMX: In this mode, the pixel values of the current layer are added to the ones of
the previous layers. This means that “dark” pixels in the current layer image won’t alter the pixels
that are underneath while “light” pixel will saturate the image underneath.
RMS-Robe Media Server
29
Subtraction mode (40-47DMX): In this mode, the pixel values of the current layer are subtracted from the pixel
value in the underlying layers. Dark pixel from the current layer won’t alter the pixel of
the layers underneath while light pixel will darken them.
Multiplication mode (60-77 DMX): In this mode, the pixels from the current layer will be multiplied by the pixels of
the underlying layers. For a pixel to appear bright in the output, the equivalent pixel of
the current layer and the underlying layer needs to be bright. If any of the layers has
a dark pixel, the result will be dark.
Minimum mode (80-97 DMX): This mode takes the pixel that is the darkest between the current layer and
the layer underneath
Maximum mode (100-117 DMX): This mode takes the pixel that is the brightest between the current layer and
the layer underneath.
The playback options:
DMX value Playback option Meaning
0. Play forward continuously if dimmer >0 Plays the video segment from In Frame point to
Out Frame point, continuous looping. The dimmer
value has to be greater than 0.
1 Play forward once if dimmer >0 Plays the video segment from In Frame point to
Out Frame point and holds on the last frame.
The dimmer value has to be greater than 0.
2 Pause Stops playback of video file at the current playing
3 Play forward in continuous loop Plays the video segment from In frame point to Out
Frame point, looping continuously
frame
4 Play forward once Plays the video segment from In Frame point to Out
Frame point and holds on the last frame
6 Scrub (display) the selected In Frame Displays the frame which has been defined by
the In Frame value.
7 Scrub (display) the selected Out Frame Displays the frame which has been defined by
the Out Frame value.
16. Playback speed
The Playback speed channel controls the speed of video playback at selected playback options.
DMX value Playback speed Meaning
0 or 128 Normal speed Plays back video files at the original record. speed
1-127 Slow speeds from slowest to normal Plays back video files at an increasing speed,
from the slowest to the original recorded speed
129-255 Faster than normal to fastest Plays back video files at an increasing speed,
from faster than normal to the fastest.
RMS-Robe Media Server
30
17. Graphic effects
There are two gobo effect channels on each gobo layer (Gobo effect 1 selection, Gobo effect 2 selection), which
offer amount of effects that can be applied to the current running picture/video. Each effect channels have three
control channels - Parameter 1, Parameter 2, Parameter 3 – which allow to change the behaviour of selected
effect (e.g. speed, amount...)
17.1 Kaleidoscopic effect
The kaleidoscopic effect section on the channel Gobo effect 1 selection allows selection of the static or dynamic
mode of the kaleidoscopic effect according to the desired mosaic segment.
DMX value
Segment of mosaic
Example
Source picture
Static
mode
Dynamic
mode
100
101
Square
102
103
Right triangular
104
105
Isosceles triangular
106
107
Triangular 1
108
109
Triangular 2
Loading...
