Robe DL4X User Manual

Version1.2
1
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Operating determination ................................................................................................ 4
3. Fixture exterior view ...................................................................................................... 5
4. Installation....................................................................................................................... 6
4.1 Connection to the mains ............................................................................................ 6
4.2 Replacing gobos ....................................................................................................... 7
4.3 Rigging the xture ...................................................................................................... 8
4.4 DMX-512 connection ................................................................................................ 10
4.5 Ethernet connection ................................................................................................. 11
4.6 Wireless DMX operation .......................................................................................... 13
5. Remotely controllable functions ................................................................................. 14
6. Control menu map ........................................................................................................ 15
7. Control menu ............................................................................................................... 18

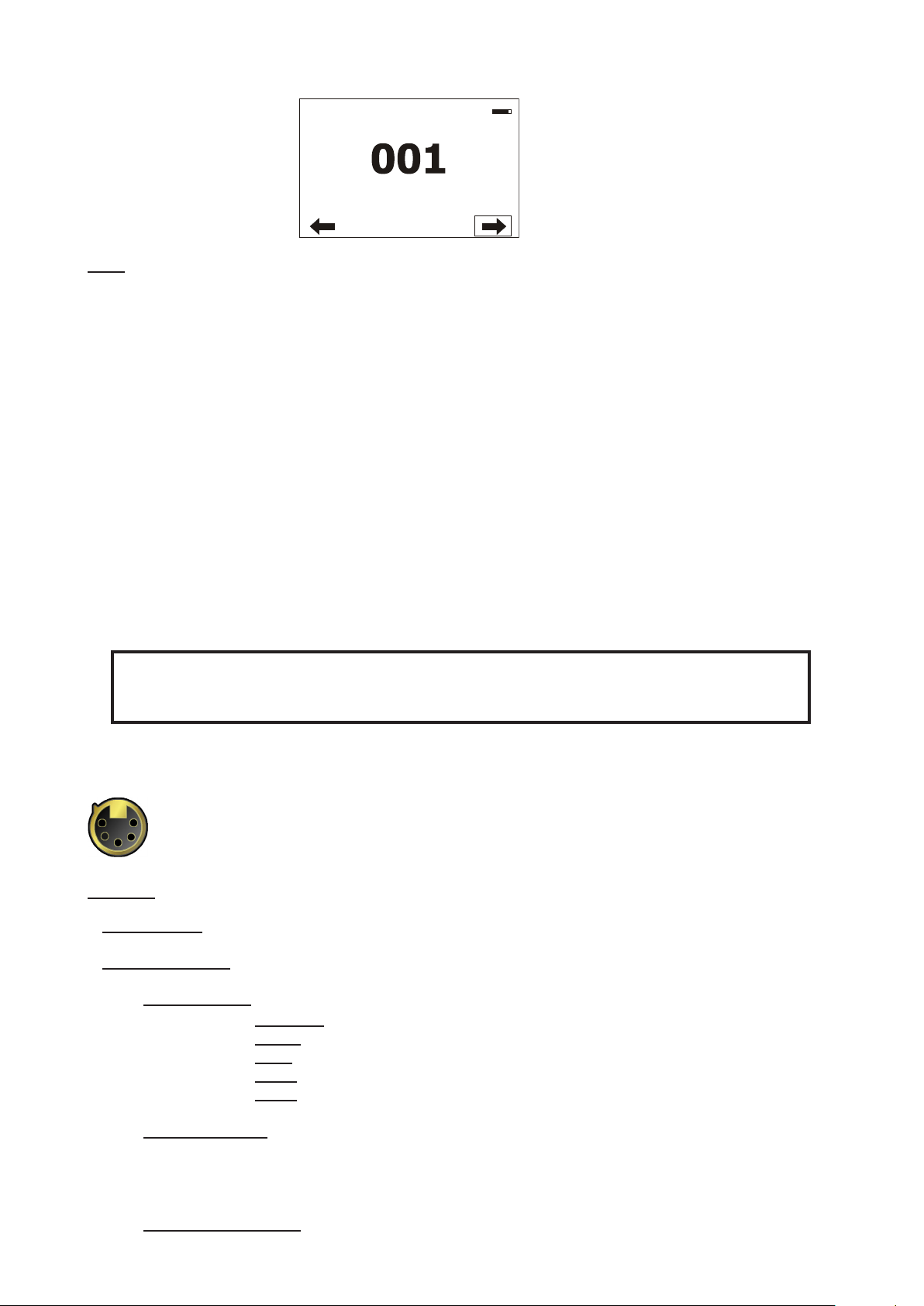

7.1 Tab " Address" .......................................................................................................... 19
7.2 Tab "Information" ...................................................................................................... 20
7.3 Tab "Personality" ...................................................................................................... 22
7.4 Tab "Manual Control" ................................................................................................ 24
7.5 Tab "Stand-alone" .................................................................................................... 24
7.6 Tab "Service" ............................................................................................................ 25
8. RDM ............................................................................................................................... 28
9. Error and information messages ................................................................................ 29
10. Technical Specications ............................................................................................ 30
11. Maintenance and cleaning ......................................................................................... 33

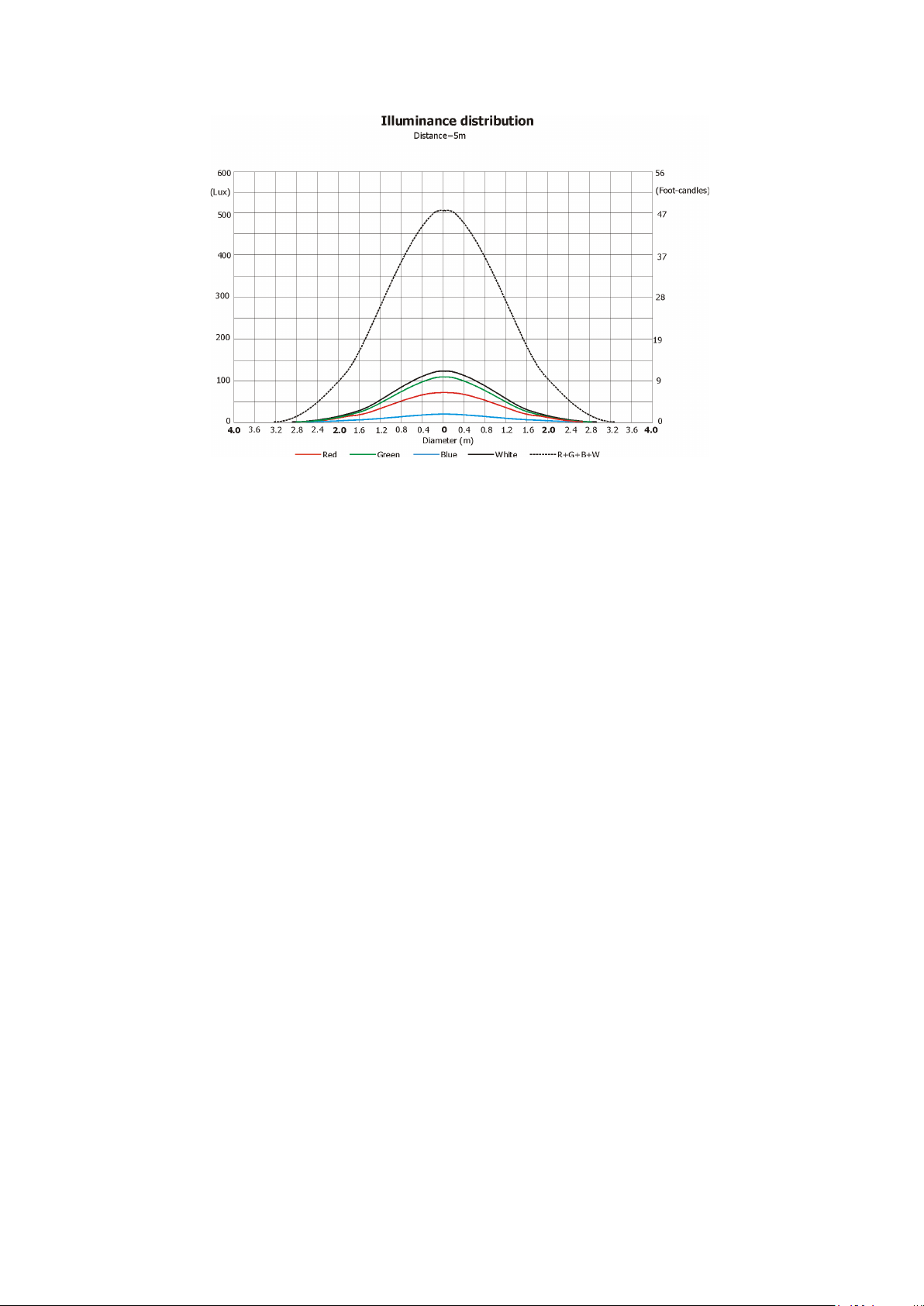

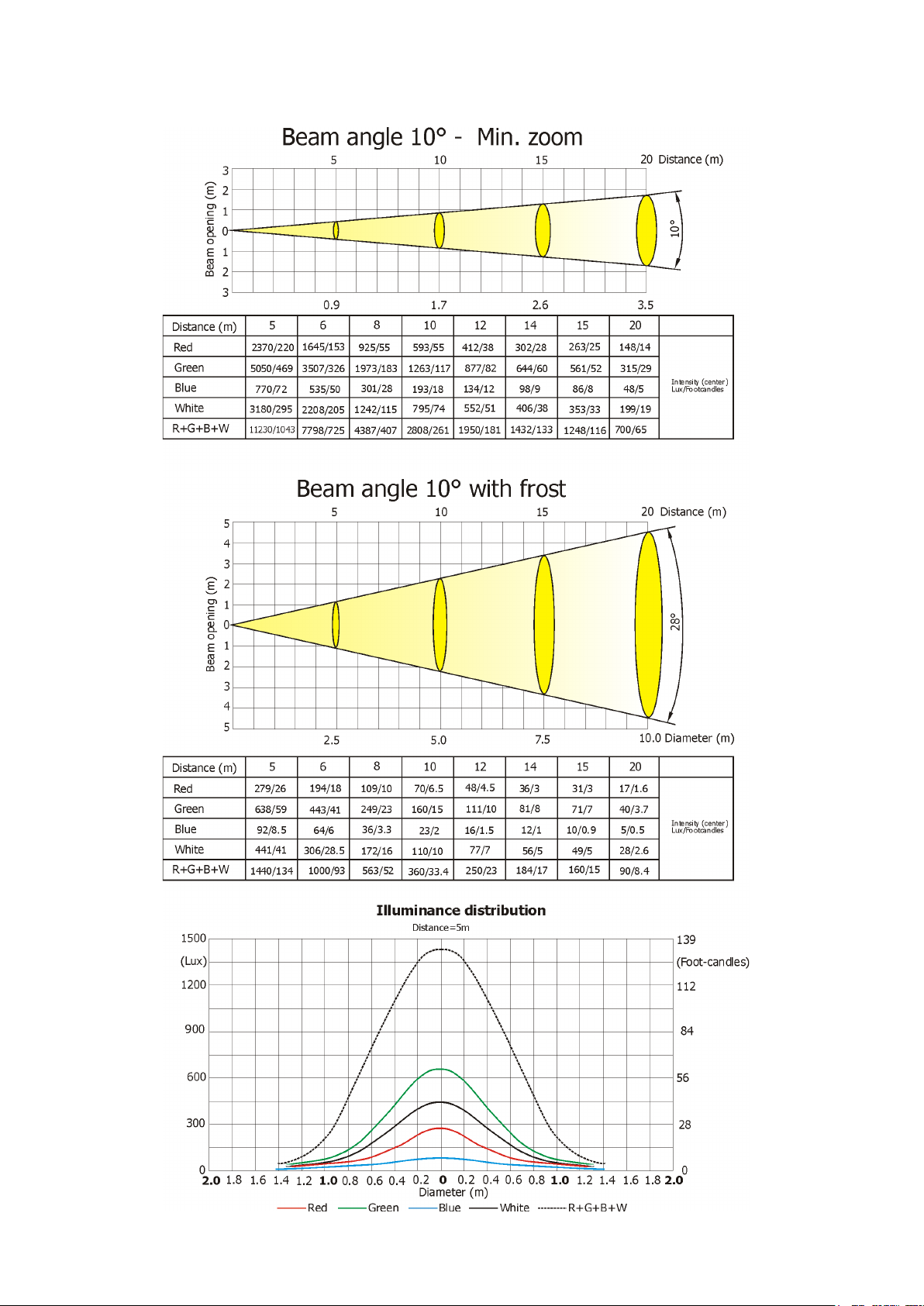

12. Photometric diagrams................................................................................................ 34
2
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
1. Safety instructions
Every person involved with installation and maintenance of this device have to:
- be qualied
- follow the instructions of this manual
CAUTION!
Be careful with your operations.
With a high voltage you can suer
a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en­sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the unit.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the pow­er-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the pow­er-cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualied employee.
Do not connect this device to a dimmer pack.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! Warning! Risk Group 2 LED product according to EN 62471.
LED light emission. Risk of eye injury. Do not look into the beam at short distance of
the of the product. Do not view the light output with optical instruments or any device
that may conncentrate the beam
The light source contains blue LEDs.
3
2. Operating determination
This device is a moving head for creating decorative e󰀨ects and was designed for indoor use only.
This device is for professional use only. It is not for household use.
If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until it has reached room temperature.
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the xture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others!
The minimum distance between light output and the illuminated surface must be more than 3 meters.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.
Always x the xture with an appropriate safety rope. Fix the safety rope at the correct holes only.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.
The maximum ambient temperature 45°C must never be exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualied for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modications on the device are forbidden due to safety reasons!
If this device will be operated in any way di󰀨erent to the one described in this manual, the product may su󰀨er damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-cir­cuit, burns, electric shock etc.
CAUTION!
To avoid damage of the internal parts of the xture head, never let the sunlight lights
directly to the front lens , even when the xture is not working !
4
3. Fixture exterior view
1 - Front lens 2 - Tilt lock 3 - Pan lock 4 - Base 5 - Moving head 6 - Arm
The head should be locked for transportation- the tilt lock latch (2) and the pan lock latch (3) have to be in the locked positions. To unlock the head, move these latches to unlock positions before operating the xture.
Rear panel of the base: 1 - 3-pin DMX output 2 - 5-pin DMX output
3 - Ethernet input-RJ45 4 - Fuse - live 5 - Fuse - neutral 6 - 3-pin DMX input 7 - 5-pin DMX input 8 - PowerCon
Front panel of the base: 1 - QVGA touch screen 2 - ESCAPE button 3 - NEXT button 4 - ENTER/DISPLAY ON button 5 - PREV button
The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected from the mains.
5
4. Installation
Fixtures must be installed by a Qualied electrician in accordance with all
national and local electrical and construction codes and regulation.
4.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin DL4X is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts.
Install a suitable plug on the power cord if needed, note that the cores in the power cord are coloured according to the following table. The earth has to be connected! If you have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
6

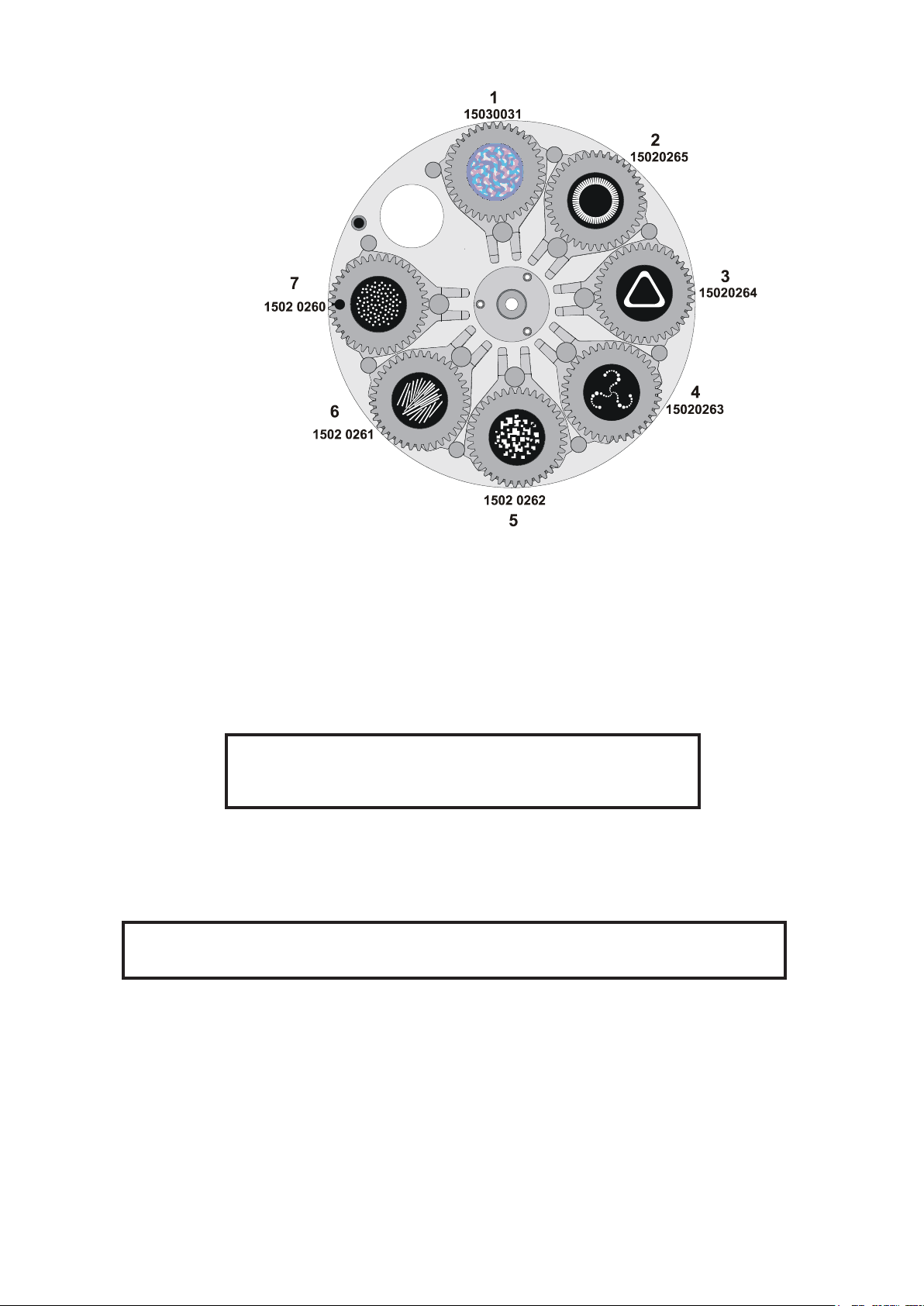

4.2 Replacing gobos
DANGER!
Install the gobos with the device switched o only.
Unplug from mains before!
Static gobos
1. Disconnect the xture from mains and allow it to cool.
2. Remove the top plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently skew the gobo module to release it from the hole in the static gobo wheel and
4. Insert the new gobo module spring holder under the distance stop and push the gobo module into hole in the static gobo wheel
5. Replace the top cover before applying power.
.
pull it up.
Rotating gobos
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently pull up the gobo holder from the rotation gobo wheel
4. Remove the spring gobo-lock with an appro Do not touch the surface of the pattern of the glass gobo.
5. Remove the original gobo and insert the new one (glazy side towards the light source). Insert the spring-
gobo lock to secure it in the gobo holder.
6. Insert the gobo holder back under the distance slots into rotating gobo wheel
5. Replace the bottom cover before applying power.
priate tool (e.g. small-bladed screwdriver) and remove it.
.
.
7
4.3 Rigging the xture
The installation of the xture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if
the main attachment fails.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the xture. If you lack these qualications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury or damage to property.
The xture has to be installed out of the reach of people.
If the xture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The xture must never be xed swinging freely in the room.
Caution: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s weight.
.
Danger of re !
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.5 m.
CAUTION!
Use 2 appropriate clamps to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
The xture can be placed directly on the stage oor or rigged in any orientation on a truss without altering its operation characte ristics . For securing a xture to the truss install a safety wire that can hold at least 10 times the weight of the xture. Use only safety wire with screw-on carabine. Pull the safety wire through the carrying handles and around the truss as shown on the pictures below. Note: If the safety wire is too long, whip it several times around the trusss in order to attach the xture tight. In case of an accident, the way of the falling xture will be short.
8
Truss installation
1.Bolt each clamp (1) to the omega holder (3) with M12 bolt and lock nut through the hole in the holder.
2.Fasten the omega holders on the bottom of the base by inserting both quick-lock fasteners (4) into the holes
of the base and tighten fully clockwise.
3. Pull the safety wire (2) through the carrying handles (5) and around the truss (6) as shown on the pictures
below.
Securing the xture via one safety wire Securing the xture via two safety wires
1-Clamps 2-Safety wire 3-Omega holder 4-Quick-lock fastener 5-Carrying handles 6-Truss
When installing xtures side-by-side,
avoid illuminating one xture with another!
DANGER TO LIFE!
Before taking into operation for the rst time,the installation has to be approved
by an expert!
9
4.4 DMX-512 connection
The xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the xture or one xture with another.
DMX - output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-out­puts, you need to use adapter-cables.
Building a serial DMX-chain:
1 - Shield 2 - Signal (-) 3 - Signal (+) 4 - Not connected 5 - Not connected
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always connect one output with the input of the next xture until all xtures are connected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last xture.
10
4.5 Ethernet connection
The xtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft­ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network. The Universe is a single DMX 512 frame of 512 channels.
The Robin DL4X is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.
RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX-
3- RX+ 7- Not connected
4- Not connected 8- Not connected
Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8
If only the xture and the computer are to be interconnected,no hubs or other active components are needed.A cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4
If the xture is connected with active Ethernet socket (e.g. switch) the network icon will appear at the bottom right corner of the screen:
Direct Ethernet operation
Connect the Ethernet inputs of all xtures with the Ethernet network. Option “Artnet (gMaI or gMA2)" has to be selected from “Ethernet Mode” menu on the xture. Set IP address (002.xxx.xxx.xxx / 010.xxx.xxx.xxx) and the Universe.
(DMX address=131) (DMX address=35) (DMX address=1) IP addres=002.168.002.004 IP addres=002.168.002.003 IP addres=002.168.002.002 Universe=1 Universe=1 Universe=1
An advised PC setting: IP address: 002.xxx.xxx.xxx / 010.xxx.xxx.xxx (Di󰀨erent from xture IP addresses) NET mask: 255.0.0.0
11
Ethernet / DMX operation
Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the rst xture (connected to the Ethernet) in the xture chain,next xtures have standard DMX setting. Connect the Ethernet-input of the rst xture in the data chain with the network. Connect the DMX output of this xture with the input of the next xture until all xtures are connected to the DMX chain.
Caution: At the last xture, the DMX chain has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the last xture.
Example:
DMX address=1 DMX address=35 DMX address=131 IP addres=002.168.002.002 Universe=0
DMX address=1 DMX address=35 DMX address=131 IP addres=002.168.002.003 Universe=1
12
4.6 Wireless DMX operation
The wireless version of the Robin DL4X Spot is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.
The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Person­ality--> DMX Input -->Wireless.). First two options from the "DMX Input" menu are stated in DMX chart as well (channel Power/Special functions , range of 10-19 DMX). If DMX input option is changed by DMX command, the change is permanently written into xture´s memory.
DMX range of 10-19 switching xture to the wired/wireless operation is active only during rst 10 sec­onds after switching the xture on.
After switching the xture on, the xture checks both modes of receiving DMX in the following order:
1. For the rst ve seconds, the xture receives DMX signal from the wired input. If the Power/Special functions
channel is set at some DMX input option, the xture will receive DMX value according to this option. If DMX input option is set to the wired input , this option is saved and checking procedure is nished. If DMX input option is not set, the xture continues next 5 seconds in scanning wireless DMX signal-see point 2.
2. For the next 5 seconds the xture receives wireless DMX signal and again detects if the Power/Special
functions channel is set at some DMX input option, if not, the xture will take option which is set in the xture menu "DMX Input".
To link the xture with DMX transmitter. The xture can be only linked with the transmitter by running the link procedure at DMX transmitter . After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Wireless State“ (Information
-->Wireless State).
To unlink the xture from DMX transmitter. The xture can be unlinked from receiver via the menu item “ Unlink Wireless Adapter“ (Information--> Wireless State --> Unlink Wireless Adapter.).
Note: If the option "Wireless In/XLR Out" is selected (Personality--> DMX Input -->Wireless In/XLR Out), the xture receives wireless DMX and sends the signal to its wired DMX output. The xture behaves as " Wireless/ Wired" adapter.
Example:
13
5. Remotely controllable functions
Virtual colour wheel
This wheel contains 236 colours including whites (2700K, 3200K, 4200K, 5600K and 8000K). Tungsten lamp e󰀨ect at whites 2700K and 3200K.
RGBW or CMY colour mixing system
The RGBW colour mixing system is based on red, green, blue and white high power LEDs. Option for switching the xture to the CMY colour mixing system is also available.
Static gobo wheel
The static gobo wheel includes 8 replaceable „SLOT&LOCK” metal gobos and one glass gobo. Gobo positioning and continual gobo positioning is available as well as a gobo-shake function.
Rotating gobo wheel
The rotating gobo wheel includes 7 gobos rotating in both directions, indexable, replaceable "SLOT&LOCK” glass gobos + open position. Gobo positioning and gobo selection speed is available as well as a gobo-shake function.
Rotating gobo wheels
The xture includes 2 rotating gobo wheels. Each rotating gobo wheel includes 7 gobos rotating in both direc­tions, indexable, replaceable "SLOT&LOCK” glass gobos + open position. Gobo positioning and gobo selection speed is available as well as a gobo-shake function.
Prism
The 3-facet prism rotates in both directions at di󰀨erent speeds, 16 prism/gobo macros are available.
Frost
Frost module provides variable frost for ne frosting.
Iris
Motorized adjustable iris, wide range of variable pulse e󰀨ects.
Zoom
Motorized zoom unit enables zoom between 10 °- 45°.
Focus/Autofocus
Motorized focus allowes to focus beam from approx. 2 meters to innity. Special function autofocus allows to keep focused image during zooming . Select desired distance and e󰀨ect on which you need to focus at channel "Autofocus (priority & distance selection)" and use standard "Focus" channel to focus the image. The correct value at "Autofocus (priority & distance selection)" channel can be typically in tolerance of + 2 DMX -2DMX . You should try to set value , set focus and check min/max. zoom. Note: If you use the Autofocus function in the program steps (scenes), there is important to switch o󰀨 Autofocus before using it in the sequence of program steps. Step(Scene) Zoom Focus Autofocus 1 255 187 0 (hole) 2 255 181 8 (hole) 3 0 181 8 (hole) 4 0 165 136 (rot. gobo) 5 255 165 139 (rot. gobo) If you want to in the step 6 repeat the Autofocus scenes 2-5, you have to go to step 1, after that to the step
2,3...5 If you will go to directly to the step 2, after that to the step 3.... the Autofocus will not work properly be-
cause the initial position of the focus module will not be the same as it was in the step 1.
Pan & Tilt
Pan/Tilt movement ranges 0-540°/0-280°.
Dimmer/Shutter unit
Smooth 0 - 100 % dimming is provided by the electronic control unit. This unit is also used for strobe e󰀨ects with variable speed.
14
6. Control menu map
Default settings=Bold print
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
Addressing Settings DMX Address 001-512
Information Fixture Times Power On Time Total Hours
Fixture Temperatures
DMX Values Pan
Wireless State
Power channel state
Software Versions Display System
Product IDs Mac Address
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
Ethernet Settings Ethernet Mode Disable
ArtNet
gMAI
gMA2
sACN
Ethernet To DMX O󰀨, On
IP Address/Net Mask Default IP Address
Custom IP Address
Net Mask
ArtNet Universe 0-255
MANet settings MANetI/II Universe 01-256
MANet Session ID 01-32
sACN Settings sACN Universe 00001-32000
sACN Priority 0-255
Resetable Hours
LEDs On Time Total Hours
Resetable Hours
Air Filters Elapsed Time
Alert Period 10-300
LEDs Temperature Current
Maximum NonRes.
Maximum Res.
LEDs Board Temperature
Ambient Temperature
Base Temperature Current
:
Dimmer Fine
Signal Qualityr
Current
Maximum NonRes.
Maximum Res.
Current
Maximum NonRes.
Maximum Res.
Maximum NonRes.
Maximum Res.
Unlink Wireless Adapter
Module M
Module L
Module I
Module OI
RDM UID
RDM Label
15
View Logs Fixture Errors Pan Errors
:
Temp.Sensor Errors
Fixture States Power On
Power O󰀨
Fixture Position
Fixture Temperatures LED Temperatures
Ambient Temperatures
Base Temperatures
Personality User Mode User A Settings
User B Settings
DMX Presets Mode 1
DMX Input Wired
Pan/Tilt Settings Pan Reverse O󰀨, On
Microphone Sen­sitivity
Blackout Settings Blackout During M.C. O󰀨, On
Theatre Mode O󰀨
Colour Calibration
Mode
Colour Mixing Mode
White Point 8000K On
Colour Compatible
Mode
Init E󰀨ect Positions Pan 0-255
Screen Settings Display Intensity 1-10
Temperature Unit °C,°F
Fan Mode Auto
Dimmer Curve Linear
Date & Time Settings
User C Settings
Mode 2
Mode 3
View Selected Preset
Wireless
Wireless In/XLR Out
Tilt Reverse O󰀨, On
Pan/Tilt Feedback O󰀨, On
Pan/Tilt mode Time
Speed
1-10-20
Blackout while: Pan/Tilt moving O󰀨, On
Gobo Wheels Moving O󰀨, On
Auto
Silent 0-100%
O󰀨, On
RGBW
CMY
O󰀨
On
O󰀨
:
Dimmer Fine 0-255
Screen Saver Delay O󰀨-10min.
Touchscreen Lock O󰀨-10min.
Recalibrate Touchscreen
Display Orientation Normal
Inverted
Auto
High
Square Law
Tab Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
16
Unlink Wireless Adapter *
Default Settings
Manual Control Reset Functions Reset All Systems
Pan/Tilt reset
Preset E󰀨ect Con­trol
Manual E󰀨ect Con­trol
Stand -Alone Test Sequences Dynamic Mode
MusicTrigger O󰀨, On
Preset Playback None
Play Program Play Program 1
Edit Program Edit Program 1 Start Step 1-100
Gobo System Reset
Optics/Prism/Frost Res.
Iris Reset
Pan Position 1-Position 5
Dimmer Position 1- Position 5
Pan 0-255
:
Dimmer Fine 0-255
Static Mode Pan 0-255
Test
Prg. 1
Prg. 2
Prg. 3
Play Program 2
Play Program 3
Tilt 0-255
Zoom 0-255
Focus 0-255
End Step 1-100
Edit Program Steps Step 1 Pan 0-255
: :
: Dimmer Fine 0-255
: Step Time 0-25,5 sec.
Step 100 Pan 0-255
:
Dimmer Fine 0-255
Step Time 0-25,5 sec.
Service Adjust DMX Values Pan 0-255
:
Calibrations Calibrate E󰀨ects Pan 0-255
Update Software
Dimmer Fine 0-255
:
Focus 0-255
Calibrate colours Red 0-255
Green 0-255
Blue 0-255
Load Default Calib­rations
17
7. Control menu
The Robin DL4X Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the xture´s behaviour according to your needs, obtain information on its operation, test its various parts and lastly program it, if it has to be used in a stand-alone mode. The xture´s menu can be controlled either by the control buttons or directly by touching the icon.
Control buttons on the front panel:
[ESCAPE] button used to leave the menu without saving changes. [NEXT] , [PREV] buttons for moving between menu items and symbols, adjusting values. [ENTER/Display On] button used to enter the selected menu (menu item) and to conrm adjusted value. If the xture is disconnected from mains, the button switches the touch screen on.
Icons used in the touch screen menu:
- [back arrow] used to move back to the previous screen (menu).
- [up arrow] used to move up on the previous page.
- [down arrow] used to move down on the next page.
- [conrm] used to save adjusted values, to leave menu or to perform desired action.
- [cancel] used to leave menu item without saving changes.
- [conrm+copy] used to save adjusted values and copy them to the next prog. step.
- [warning icon] used to indicate some error which has occurred in the xture.
- [Ethernet] used to indicate Ethernet connected.
- [display turn] used to turn the display by 180°.
The menu page displays icons for each function that you can perform from the touch screen.
After switching the xture on, the touch screen shows the screen with the ROBE logo:
18
Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur­rent stored DMX address:
Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery. The battery charges during xture operation, its charging lasts cca 6 hours. We recommend that the xture should be in operation at least 7 hours per week to keep the battery fully charged. If you switch the xture on and this screen will not appear till 1 minute, switch the xture o󰀨 and on again. If the screen lights, the battery is exhausted. In case the screen still does not light, the battery is faulty. This is also indicated by an error message "Faulty battery" and if such an error message appears the battery should be replaced immediately. The lifetime of the battery is highly dependent on ambient temperature (and consequently on base temperature). If the maximum ambient temperatures (as recorded and displayed in menu: Information -> Fixture Temperatures -> Ambient Temperature -> Maximum NonRes.) are kept within the spec­ied limits, the battery should last for at least two years. Shell the ambient temperatures exceed the specied maximum temperature, the lifetime of the batteries could be considerably shortened even up to just one year or less and also result in physical damage (battery leakage) or unreliable xture functions. Damage caused by batteries failed due to exceeded maximum ambient temperature cannot be claimed under warranty terms.
Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter the " Address" menu. Each item (such as a Tab, menu item, text box, icon) may be selected from a screen by simply touching the item in the list or by pressing the [NEXT] or [PREV] buttons to scroll through list items. With each press, the next item is highlighted. Press [ENTER/Display On] to select the highlighted item.
Before rst xture operation, set current date and time in the menu "Date &Time
Setings" (menu path: Personality--> Date &Time Setings).
7.1 Tab " Address"
Settings - Select the menu to set desired xture address setting.
DMX Address - Select the menu to set the DMX start address.
Ethernet Settings - The menu allows all needed settings for the Ethernet operation
Ethernet Mode Disable - The option disables Ethernet operation.
Artnet - Fixture gMAI gMA2 sACN
- Fixture
- Fixture
- Fixture
receives Artnet protocol
receives MANet I protocol
receives MANet 2 protocol receives sACN protocol
Ethernet To DMX - Fixture receives data to its DMX output (xture works as an "Ethernet/DMX converter", to its DMX output and you can build a standard DMX chain by connecting another xtures. Only one xture has to be connected to the Ethernet.
IP Address/Net Mask - Select this menu to set IP address. IP address is the Internet protocol
protocol
from the Ethernet input and sends DMX
next xture can be connected
19
address.The IP uniquely identies any node (xture) on a network. There cannot be 2 xtures with the same IP address on the network! Default IP Address -Preset IP address, you can set up only rst byte of IP address (2 or 10) e.g. 002.019.052.086.
Custom IP Address - The option enables to set up all bytes of IP address. Net Mask - The option enables to set up all bytes of Net Mask.
ArtNet Universe - Use frame
MANet Settings - Use this menu to set parameters for MANet operation. MANet Universe I/II - The value of this item can be set in range 1-256. MANet Session ID - The value of this item can be set in range 1-32.
sACN Settings - Use this menu to set parameters for sACN operation. sACN Universe - The value of this item can be set in range 1-32000. sACN Priority - The value of this item can be set in range 0-255.
this item to set a Universe (0-255). The Universe is a single DMX 512
of 512 channels.
7.2 Tab "Information"
Fixture Times - The menu provides readouts of xture and LED module operation hours. Power On Time Hours - Select this menu to read the number of xture operation hours. Total Hours -
Robin DL4X
Resetable Hours -
Robin DL4X In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"
LEDs On Time - Select this menu to read the number of LEDs operation hours for each colour (R,G,B,W). In order to reset some counter to 0, touch the yellow text box next to desired colour.
Air Filters - Regular cleaning of the air lters is very important for the xture´s life and performance. Bild-up of dust, dirt and fog uid residues reduces the xture´s light output and cooling ability. The two items of this menu help you to keep cleaning period of the air lters. Alert period - Cleaning schedule for the xture depends on the operating environment. It is therefore impossible to specify accurate cleaning interval. This item allows you to change the cleaning interval of the air lters. This "alert" value is 300 hours and it is set as default. Inspect the xture within its 300 hours of operation to see whether cleaning is necessary. If cleaning is required, clean all air lters and change the value in this menu on acceptable level. Min. level of alert period is 10 hours, max. is 300 hours. Elapsed Time - The item allows you to read the time which remains to cleaning air lters. The time period is set in the menu mentioned above. Expired time period is signalled by a negative mark (-) at the time value and a warning icon on the display. Clean the lters and reset this menu item (by touching the text box next to the item "Elapsed Time").
Fixture Temperatures - The menu is used to view temperatures of the xture´s inside. LEDs temperatures - The menu shows temperature on the LED PCBs (R-red LEDs, GW-green + white LEDs, B-blue LEDs).
Cur. - A current temperature of the LED PCB. Max. - A maximum temperature of the LED PCB since the xture has
been fabricated. Max. Res. - A maximum temperature of the LED PCB since the counter was last reset. In order to reset some counter to 0, touch desired text box under item "Max.Res."
The item shows the total number of the operation hours since the
has been fabricated.
The item shows the number of the operation hours that the
has been powered on since the counter was last reset.
LEDs Board Temperature - The menu shows temperature in the xture head on the LEDs control PCB.
Current - A current temperature on the LEDs control PCB.
20
Maximum NonRes. - A maximum temperature on the LEDs control PCB since the xture has been fabricated. Maximum Res. - A maximum temperature on the LEDs control PCB since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
Ambient Temperature - The menu shows temperature of the induced air on the fan in the xture base . Current - A current temperature of the induced air in the xture base.
Maximum NonRes. - A maximum temperature of the induced air in the xture base since the xture has been fabricated. Maximum Res. - A maximum temperature of the induced air in the xture base since since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
Base Temperature - The menu shows temperature in the xture base (on the display PCB).
Current - A current temperature in the xture base.
Maximum NonRes. - A maximum temperature in the xture base since the xture has been fabricated. Maximum Res. - A maximum temperature in the xture base since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
DMX Values - The menu is used to read DMX values of each channel received by the xture.
Wireless State - The menu serves for reading of the wireless operation status. Unlink Wireless Adapter - The item serves for unlinking the xture from the transmitter.
Power channel State - The item shows current settings of the following functions situated at Power/Special
functions channel: Colour Mixing Mode Pan/Tilt mode Blackout if Pan/Tilt move Blackout if Gobo move White Point 8000K
Software Version - Select this item to read the software version of the xture modules:
Display System - A display processor on the display board in the xture base Module M - A pan/Tilt processor on the board in the xture arm Module L - LEDs control processors on the board in the xture head.
Module I - A rot. gobo/stat. gobo/iris processor on the board in the xture head. Module O - A focus/zoom/prism/frost/ processor on the board in the xture head.
Product IDs - The menu is used to read the MAC Address ,RDM UID and RDM Label.
View Logs - Use this menu to read xture´s data which have been recorded during xture operation. This
colected data allows easier troubleshooting. Fixture Errors - Use this menu to read xture errors which have occured during xture operation. There is a list of error folders: Pan Errors Prism Errors Tilt Errors Prism Rotation Errors Dimmer 1 Errors Frost Errors Dimmer 2 Errors Clean Air Filters Colour Errors Overheated Zoom Errors Gobo Errors Temp. Sensor Errors Gobo Carousel Errors Clean Air Filters Static Gobo Errors Iris Errors Focus Errors
Fixture States - Recorded following actions: Fixture On, Fixture O󰀨. Fixture Position - Recorded installation positions of the xture:
21
Fixture Temperatures - Recorded temperatures which have exceeded dened levels.
Note: The log bu󰀨er can contain 8000 records max. If the bu󰀨er is full, old data will be overwritten.
7.3 Tab "Personality"
User mode - The Robin DL4X allows you to recall up to 3 user settings. After switching the xture on for the rst time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing” menu and the “Music Trigger“ and “ Preset Playback“ items from the “Stand-alone” menu are saved to the User A settings. If you now select the User B settings, from this moment the changes made in these menus will be saved to the User B settings. After switching the xture o󰀨 and on, the User B setting is active. In this way you may use the 3 xture operating behaviours.
User A Settings - the function recalls the user A settings. User B Settings - the function recalls the user B settings. User C Settings - the function recalls the user C settings.
DMX Preset - Use the menu to select desired channel mode.
Mode 1 - 35 control channels Mode 2 - 24 control channels Mode 3 - 22 control channels View Selected Preset - Use the menu to display channels included in the selected mode.
DMX Input- Use the menu to select mode of receiving DMX signal.
Wired - DMX signal is received by means of the standard DMX cable. Wireless - DMX signal is received by means of the inbuilt wireless module. Wireless In/XLR Out- the xture receives wireless DMX and sends the signal to its wired DMX output.
The xture behaves as " Wireless/Wired" adapter. The options "Wired" and "Wireless" are also stated in DMX chart (channel Power/Special functions).
Pan/Tilt Settings - Use the menu set behaviour of both pan and tilt movements.
Pan Reverse - The item allows to invert pan movement. Tilt Reverse - The item allows to invert tilt movement. Pan/Tilt Feedback - The item allows to return the mowing head to the required pan/tilt position after
changing the position by an external force if this option is set on. Note. Be careful, the Pan/Tilt Feedback should be permanent On, the option O󰀨 is not suitable for standard operation and the head of the xture can be damaged! Pan/Tilt mode - Use this menu to set the mode of the pan/tilt movement Time mode – The pan and tilt will move with di󰀨erent speeds and they will come at the same time to the end point of their tracks (pan and tilt use their optimal speeds). Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt
time". Speed Mode - Both Pan and tilt will move with the same speed as adjusted at the channel
"Pan/Tilt speed, Pan/Tilt time".
Microphone Sensitivity - Enter the menu if you want to adjust the microphone sensitivity from 1 (max.) to 20 (min.).
Blackout Settings - Use the menu if you need to close the light output under certain conditions which are described below
Blackout DMC - Blackout during movement correction. Set this option On if you wish to close light
22
output during the time when the head goes to its correct position, which has been changed by an external force.
Active Blackouts - Use this menu if you wish to close the light output during e󰀨ect changes. Pan/Tilt Moving - The menu item enables to close light output while the pan/tilt coordinates
are changing. Gobo Wheel Moving - The menu item enables to close light output while the rot. gobo wheel or the static gobo wheel is moving.
Theatre Mode - The mode reduces noise of the xture due to ne control of fans and reduced speed of pan/ tilt movement and gobo/prism rotation.
O󰀨 - The option is disabled Auto - Automatic regulation of fans noise level. Silent - After selecting this item, the option "Fan Noise Level" is accessible where desired level of the fans noise can be set.
Colour Calibration Mode - If the function is on, the white output from the xture (and also mixed colours) is more uniform. Each colour is dynamically corrected according to the value set in the menu "Calibrate E󰀨ects" (Service-> Calibrations-> Calibrate E󰀨ects).
Colour Mixing Mode - This item allows switching into RGBW or CMY mode. In the CMY mode, the white(8bit)/ white (16) bit channels are not active.
White Point 8000K - If the function is on, via the CTO channel you can set desired white in range of 8000K-2700K (0DMX-255DMX). Necessary condition is , that RGBW channels have to be full or set at the same DMX values. The CTO channel does not e󰀨ect mixed colours except whites. If you wish to "apply" CTO lter on mixed colours, set this menu item to O󰀨.
Colour Compatible Mode - If this function is on, mixed colours are close to the Robin DLX Spot.
Init E󰀨ect Positions - Use the menu to set all e󰀨ects to the desired positions at which they will stay after switching the xture on without DMX signal connected.
Screen Settings - Use this menu to change the touch screen settings. Display Intensity - The item allows to control the intensity of the screen (1-min., 10-max.). Screen saver Delay - The item allows you to keep the screen on or to turn it o󰀨 automatically after 1-10
minutes after last touch (or pressing any button on the control panel). Touchscreen Lock - The item allows you to lock the screen after last touch (or pressing any button on the control panel). The time delay can be set in range of 1-10 minutes.To unlock the screen, press the [ENTER/Display On] button. Recalibrate Touchscreen - The item starts calibration of the touchscreen. Follow the instructions on the screen.
Display Orientation - The menu allows to change display orientation. Normal - Standard display orientation if the xture is placed horizontally (e.g. on the ground).
Inverted - Inverted orientation (needed if the xture is hanging on the truss). Auto - The option activates a gravitation sensor for automatic screen orientation.
Note: Auto option is set as default. You change the display orientation by touching the icon on the display, an the option set in the "Display Orientation" menu is temporarily overriden.
Temperature unit - Use the menu item to change temperature unit from °C to °F.
Fan Mode - Use the menu to set the xture fans to max. power mode ("High") or to auto-control mode ("Auto"). Dimmer Curve - You can select desired dimmer curve: Linear or Square Law.
Date & Time Settings - Use this menu to set current date and time for the xture log system (menu "View
Logs"). Set this menu item before rst xture operation.
Default Settings - The menu item allows to set all xture parameters to the default (factory) values.
23
7.4 Tab "Manual Control"
Reset Functions - The menu allows to reset the xture either per function modules or all modules together.
Total Reset - The item resets all function modules. Pan/Tilt Reset - The item resets a pan and tilt movement. Gobo System Reset - The item resets a static/rotating gobo wheel. Optics/Prism/Frost Res. - The item resets a zoom, focus, prism and a frost module. Iris Reset - The item resets an iris module.
Preset E󰀨ect Control - Use the menu to show preset positions of each channel e󰀨ect.
Manual E󰀨ect control - Use the menu to control all xture channels by means of the control panel.
7.5 Tab "Stand-alone"
Test Sequences -Use the menu to run a test/demo sequences without an external controller, which will show
you some possibilities of using Robin DL4X. Dynamic Mode - This mode uses all Robin DL4X functions including pan/tilt movement and therefore is good for a complete introduction of the xture. Static Mode - This mode is suitable for projections on the wall, ceiling or ground without any pan/tilt movement. Adjust the pan, tilt, zoom and focus to desired positions an start test sequences by touching the green icon.
Music Trigger - Use the item to activate the sound control of the running program via the built-in microphone.
Preset Playback - This menu allows you to select the program which will be played in a loop after switching
the xture on (the option is commonly used in a stand-alone operation without an external controller).
None - The option disables “Presetting playback” function. Test - The option starts the test sequences. Prog. 1 - The option starts user program No. 1.
Prog. 2 - The option starts user program No. 2. Prog. 3 - The option starts user program No. 3.
Play program - Use the menu to run desired program in a loop. Play Program 1 - The option starts user program No.1. Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin DL4X o󰀨ers 3 free programs,
each up to 100 steps.
Edit Program 1 - The option allows to edit user program No.1. Edit Program 2 - The option allows to edit user program No.2. Edit Program 3 - The option allows to edit user program No.3
To edit program:
1. Touch the item which you want to edit (“Edit Program 1” - “Edit Program 3”).
2. Touch the item "Edit Program Steps".
3. Touch the item "Step 1".
4 From the list of e󰀨ects touch desired e󰀨ect and set its value. Browse throw the list by touching the [up arrow] and [down arrow] and set all desired e󰀨ects. An item "Step Time" (value of 0-25.5 sec.) is the time during which e󰀨ects last in the current step
5. Save adjusted e󰀨ects to the current step by touching the [conrm] or save and copy them to the following
step by touching the [conrm+copy]. By touching the text box "Preview" next to the current program step you can view created scene.
6. Repeat the steps 4 and 5 for next program steps.
7. After editing desired program steps, adjust the length of the program by touching the text boxes "Start Step"
and "End Step".
24
Meaning of the icons used in the "Edit Program" menu:
- moves down on the next page - saves adjusted values and leaves menu
- moves up on the previous page - saves values to the current step and copy them to the
following prog. step
- leaves menu without saving values
There is a chart describing behaviour of items "Pan/Tilt Macro" and "P./T. Macro Speed".
DMX
0 - 9 10 - 31 32 - 63 64 - 95
96 - 127 128 - 159 160 - 191 192 - 223 224 - 255
0
1 - 127 128 - 129 130 - 255
Pan/Tilt Macro
Disabled pan/tilt macro Reserved Figure of circle (from small to large) Figure of horizontal eight (from small to large) Figure of vertical eight (from small to large) Figure of rectangle (from small to large) Figure of triangle (from small to large) Figure of star (from small to large) Figure of cross (from small to large)
Pan/Tilt Macro Speed
No macro generation Macro generation from fast to slow-forwards No macro generation Macro generation from slow to fast-backwards
7.6 Tab "Service"
Adjust DMX Values - The menu allows you to set all e󰀨ects to desired positions before ne calibration of the e󰀨ects .
Calibrations - This menu enables ne calibration of xture e󰀨ects and download default calibration values. Calibrate E󰀨ects - The menu allows the ne adjustment of e󰀨ects. Pan- a pan position ne adjustment Tilt - a tilt position ne adjustment Static Gobo - a static gobo wheel Rot. Gobo Wheel - a carousel of rotating gobos R. Gobo Index - an indexing of rotating gobo Prism - a prism module Iris - an iris module Zoom - a zoom module Focus - a focus module
Calibration of the eects via the control board
1. Disconnect DMX controller from the xture and enter the "Calibrate E󰀨ects" menu.
2. Use the [up arrow] and [down arrow] to nd "Pan" and touch it to enter the ne e󰀨ect adjustment screen.
3. Set desired value and save it by touching the [conrm].
4. Repeat steps 2 and 3 for next item
5. After calibrating all e󰀨ects, touch the [conrm] to save all adjusted values and reset the xture.
Calibrate Colours - The menu serves for adjusting of LEDs saturation to achieve colour temperature of 5600K for white output.
Red - a red LEDs saturation ne adjustment Green - a green LEDs saturation ne adjusment Blue - a blue LEDs saturation ne adjustment White- a white LEDs saturation ne adjustment
Calibration of the white colours via DMX controller
1. Connect DMX controller to the xture , open shutter and dimmer, set zoom at 128 DMX ,focus image and set the "Virtual Colour Wheel" channel at 8000K. Aim the light beam on the lux meter (e.g. Minolta CL-200 Chroma meter) which is placed at min distance of 2.5 from the xture.
25
2. The channel "Power" has to be set at 240 DMX (disable theatre mode) and the channel "CTC" at 0 DMX.
3. Set the menu item "Colour Calibration Mode" to On (Personality-> Colour Calibration Mode-> On).
4. Enter the menu "Calibrate Colours".
For example, DMX mode 3 is set in the xture.
5. Set the channel " Virtual Colour Wheel" (ch.5) at 8000K
6. Set the channel "White" (ch.36) from the calibration protocol at 255DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 8000K colour temperature as exactly as possible (∆u´v´=+/-0.0005)
7. After adjusting of 8000K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
8. Set the channel " Virtual Colour Wheel" (ch.5) at 4200K.
9. Set the channel "White" (ch.36) from the calibration protocol at 200 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 4200K colour temperature as exactly as possible (∆u´v´=+/-0.0005) 10 After adjusting of 4200K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
11. Set the channel " Virtual Colour Wheel" (ch.5) at 3200K.
12. Set the channel "White" (ch.36) from the calibration protocol at 60 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 3200K colour temperature as exactly as possible (∆u´v´=+/-0.0005) 13 After adjusting of 3200K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
14. Set the channel " Virtual Colour Wheel" (ch.5) at 2700K.
15. Set the channel "White" (ch.36) from the calibration protocol at 50 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 2700K colour temperature as exactly as possible (∆u´v´=+/-0.0005) 16 After adjusting of 2700K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
17. Set the channel "Power" at 241 DMX (enable theatre mode).
18. Set the channel " Virtual Colour Wheel" (ch.5) at 8000K. Set the channel "White" (ch.36) from the calibration protocol at cca 60 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 8000K colour temperature as exactly as possible (∆u´v´=+/-
0.0005). Note: Sum of DMX values for green and white channel must be < 319 for correct operation of the Theatre Mode.
19. After adjusting of 8000K colour temperature, set the channel "CTC" (ch.5) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
20. Set the channel " Virtual Colour Wheel" (ch.5) at 5600K. Set the channel "White" (ch.36) from the calibration protocol at cca 50 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 5600K colour temperature as exactly as possible (∆u´v´=+/-
0.0005). Note: Sum of DMX values for green and white channel must be < 319 for correct operation of the Theatre Mode.
21. After adjusting of 5600K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
22. Set the channel " Virtual Colour Wheel" (ch.5) at 4200K. Set the channel "White" (ch.36) from the calibration protocol at cca 60 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 5600K colour temperature as exactly as possible (∆u´v´=+/-
0.0005). Note: Sum of DMX values for green and white channel must be < 319 for correct operation of the Theatre Mode.
23. After adjusting of 5600K colour temperature, set the channel "CTC" (ch.10) at 1 for a few seconds until a light blink will appear. After that, set this channel back to 0 DMX.
24. Set the channel "Power" at 240 DMX (disable theatre mode).
25. Set the channel " Virtual Colour Wheel" (ch.5) at 5600K. Set the channel "White" (ch.36) from the calibration protocol at 255 DMX and by means of the channels "Red", "Green", "Blue" (ch.33, 34,35) adjust the 5600K colour temperature as exactly as possible (∆u´v´=+/-0.0005).
26. After adjusting of 5600K colour temperature, touch on xture display to save adjusted values and reset the xture.
26
Calibration protocol:
E󰀨ect Mode 1 Mode 2 Mode 3
Pan channel 36 channel 26 channel 24 Tilt channel 37 channel 27 channel 25 Static Gobo channel 38 channel 28 channel 26 Rot. Gobo Wheel channel 39 channel 29 channel 27
Rot. Gobo Index. channel 40 channel 30 channel 28 Prism channel 41 channel 31 channel 29 Iris channel 42 channel 32 channel 30 Zoom channel 43 channel 33 channel 31 Focus channel 44 channel 34 channel 32
Red channel 45 channel 35 channel 33
Green channel 46 channel 36 channel 34 Blue channel 47 channel 37 channel 35
White channel 48 channel 38 channel 36
Load Default Calibrations - The item loads default (factory) calibration values.
Updating software -
The menu item allows you to update software in the xture via either serial or USB port
of PC.
The following are required in order to update software:
- PC running Windows 95/98/2000/XP or Linux
- DMX Software Uploader
- Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC)
- Robe Universal Interface (if you want to use an USB port of PC)
Note 1: Software update should execute a qualied person. If you lack qualication, do not attempt the update yourself and ask for help your ROBE distributor.
Note 2: DMX address, IP address, programs 1-3 and all items in the menu "Personality" will be set to their default (factory) values.
To update software in the xture:
I. Installation of the DMX Software Uploader.
1. DMX Software Uploader program is available from the ROBE web site at WWW.robe.cz.
2. Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it.
3. Unpack the program from the archive. If the Robe xture is produced in both magnetic and electronic ballast version, name of DMX Software Uploader is the same for both versions. II.Fixture software updating.
1.Determine which of your ports is available on your PC and connect it:
- with the DMX input of the xture if you using the ash cable RS232/DMX
- with the DMX output of the Robe Universal Interface if you using the USB cable. Disconnect the xture from the other xtures in a DMX chain. Turn both the computer and the xture on. Make sure the lamp is switched o󰀨 (only if the xture involves a lamp).
2. Switch the xture to the updating mode by touching the "Updating Software " item Note: If you do not want to continue in software update, you have to switch o󰀨 and on the xture to escape from this menu. We recommend to cancel all running programs before starting the Software Uploader.
3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or DreamBox1 if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only later versions of processors, check the “Incremental Update box“. Avoid interrupting the process. Update status is being displayed in the Info Box window. When the update is nished, the line with the text “The xture is successfully updated“ will appear in this window and the xture will reset with the new software.
After updating, the xture, calibration of the LED driver may start (it depends on software version
before calibration).
27
8. RDM
This xture supports RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device conguration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely a󰀨ecting existing non-RDM equipment. By using a special „Start Code,“ and by complying with the timing specications for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specic moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for Robin DL4X is the following.
Parameter ID Discovery command SET command GET command
DISC_UNIQUE_BRANCH *
DISC_MUTE *
DISC_UN_MUTE *
DEVICE_INFO *
SUPPORTED_PARAMETERS *
SOFTWARE_VERSION_LABEL *
DMX_START_ADDRESS * *
IDENTIFY_DEVICE * *
DEVICE_MODEL_DESCRIPTION *
MANUFACTURER_LABEL *
DEVICE_LABEL * *
SENSOR_DEFINITION *
SENSOR_VALUE *
DISPLAY_INVERT * *
DISPLAY_LEVEL * *
PAN_INVERT * *
TILT_INVERT * *
DEVICE_RESET *
DMX_PERSONALITY * *
DMX_PERSONALITY_DESCRIPTION *
STATUS_MESSAGES *
STATUS_ID_DESCRIPTION *
LAMP_STATE * *
LAMP_ON_MODE
DEVICE_HOURS
LAMP_HOURS
LAMP_STRIKES
1
...Another options for this command (only for Robe´s xtures): value PARAMETER_DATA=0x84 - lamp OFF by DMX value on DMX channel value PARAMETER_DATA=0x88 - lamp OFF if DMX is not present
2
...Commands relative resetable values
1
2
2
2
* *
*
*
*
28
9. Error and information messages
Occurred errors during xture operation are signalled by the yellow warning icon at the bottom line of the screen:
Touch the warning icon or press the [ESCAPE] button to display error messages. List of error and information messages:
Temper.Sensor Error
The message informs you that the communication betwen the head temperature sensor and the main pro­cessor failed.
Tilt Error 1 (Tilt Error 2)
This message will appear after the reset of the xture if the head´s magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
Pan Error 1 (Pan Error 2)
This message will appear after the reset of the xture if the yoke´s magnetic-indexing circuit malfunctions (sen­sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The yoke is not located in the default position after the reset of the xture.
Prism Error 1 (Prism Error 2 )
The messages will appear after the reset of the prism wheel if this wheel is not located in the default position.
Zoom Error 1 (Zoom Error 2 )
The messages will appear after the reset of the zoom module if the zoom lens is not located in the default position.
Focus Error 1 (Focus Error 2 )
The messages will appear after the reset of the focus module if the focus lens is not located in the default.
Gobo Carousel Error 1 (Gobo Carousel Error 2 )
The messages will appear after the reset of the rotating gobo wheel if this wheel is not located in the default
position.
Gobo rotation Error 1 (Gobo Rotation Error 2 )
The messages will appear after the reset of the rotating gobo wheel if the rotating gobos are not located in the default positions.
Static Gobo Error 1 (Static Gobo Wheel Error 2 )
The messages will appear after the reset of the static gobo wheel if this wheel is not located in the default position.
Faulty battery
The battery on the display board is exhausted and should be replaced immediately.
Clean Air Filters
The message informs that the item "Elapsed Time" in the "Fixture Information" menu is at 0 value. Clean air lters and reset this counter.
Red 1 Short Error/ Red 2 Short Error/ Red 3 Short Error/ Red 4 Short Error
Some red LEDs in the light source have short circuit or are disconnected.
Blue 1 Short Error/ Blue 2 Short Error/ Blue 3 Short Error/ Blue 4 Short Error
Some blue LEDs in the light source have short circuit or are disconnected.
Green 1 Short Error/ Green 2 Short Error/ Green 3 Short Error/ Green 4 Short Error
Some green LEDs in the light source have short circuit or are disconnected.
White 1 Short Error/ White 2 Short Error/ White 3 Short Error/ White 4 Short Error
Some white LEDs in the light source have short circuit or are disconnected.
29
10. Technical Specications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... supply 100-240V, 50-60Hz
Live Fuse:...............................T 8 A
Neutral Fuse:..........................T 8 A
Max. power consumption* (RGBW=full):.............550W at 230V ( power factor= 0.97; I=2.4A )
*Allow for a deviation of +/-5%
Optic
Light source: RGBW LED module RGBW or CMY colour mixing +CTC Min. LED life expectancy: 20.000 hours
Virtual colour wheel
237 colours including whites (2700K, 3200K, 4200K, 5600K and 8000K) Halogen lamp e󰀨ect at whites 2700K and 3200K Rainbow e󰀨ect with in both directions with variable speed

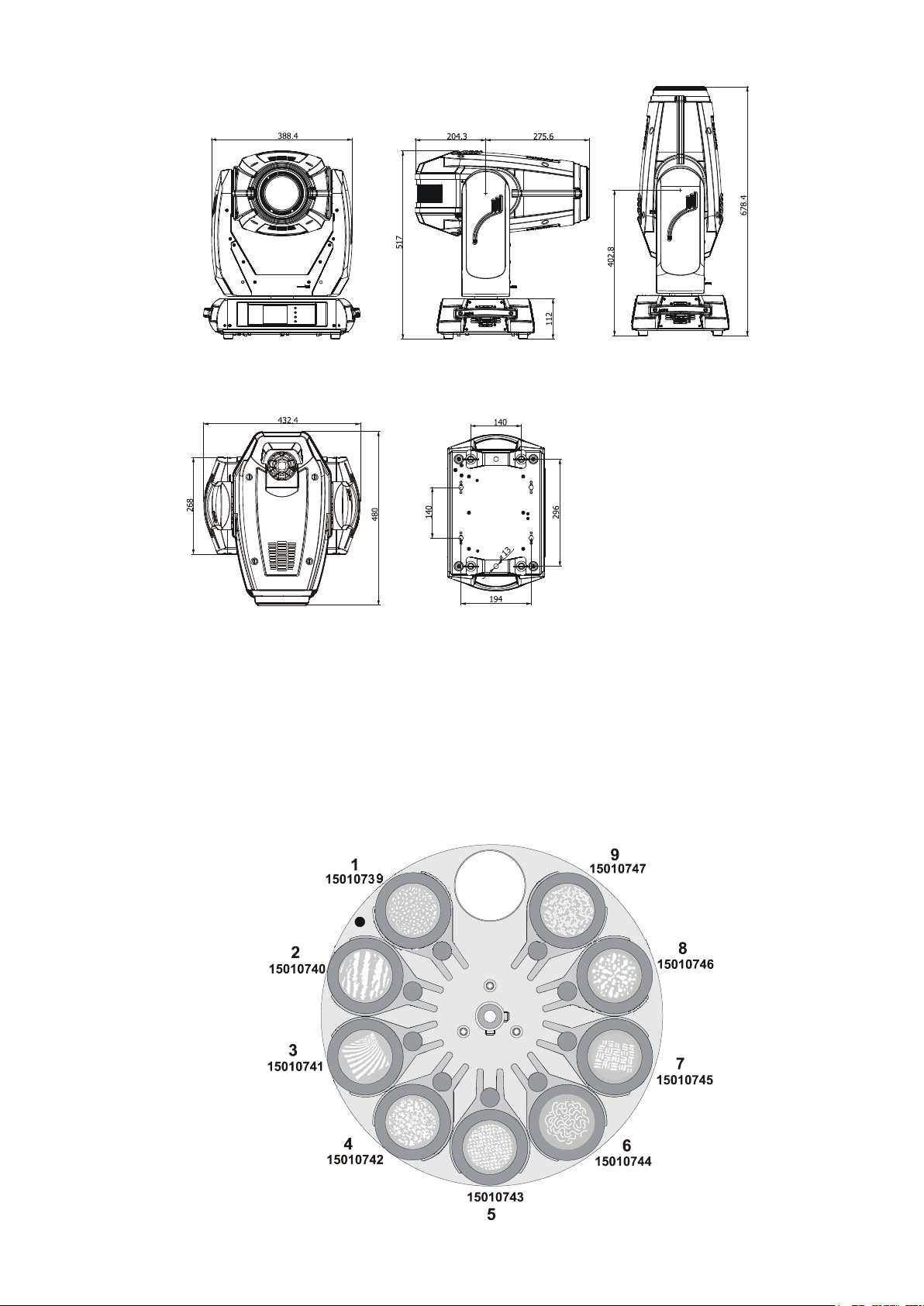

Static gobo wheel
9 replaceable ‘SLOT&LOCK’ metal gobos ( aluminium, outside diameter=26.9mm, image di­ameter=22.5mm, aluminium, thickness=0.5 mm Gobo wheel continuous rotation
)
Rotating gobo wheel
7 glass gobos can be indexed and rotated in both directions at di󰀨erent speeds Gobo wheel continuous rotation Glass gobos: outside diameter=26.8 mm, max. thickness=4 mm, high temperature borooat or better glass "Slot&lock" system for easy replacement of gobos
Prism
Rotating 3-facet 11° prism with continuous rotation in both directions
Iris Motorized iris for di󰀨erent beam diameters
Frost lter
Separate,variable frost lter
Zoom
Linear motorized zoom Min. beam angle :10° (gobo position) Max. beam angle: 45°(free hole)
Strobe
Strobe e󰀨ect with variable speed (0.3 - 20Hz)
Dimmer
Smooth dimmer from 0 - 100 %
30
Control
Graphic touch screen for xture setting and addressing Gravitation sensor for auto screen positioning Battery backup of the touch screen Readout xture and LED usage, receiving DMX values, temperatures, etc Built-in analyzer for easy fault nding, error messages Built-in demo sequences Black-out while head moving, colour or gobo changing Silent fans cooling, Self-resetable thermo-fuse Stand-alone operation 3 user editable programs, each up to 100 steps Supported protocols: USITT DMX 512, RDM, ArtNet, MANet, MANet2, sACN Support of RDM (Remote Device Management) 3 DMX modes (35, 24, 22 control channels)
Wireless DMX/RDM module (only for Wireles DMX version)
Compliance with USITT DMX-512 (1986 & 1990) and 512-A Full DMX delity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio
Pan/Tilt
Pan movement range 540°
Tilt movement range 280°
16 bit movement resolution Automatic Pan/Tilt position correction Remotely controllable speed of pan/tilt movement for easy programming Pan/tilt-lock mechanism
Connection
DMX data in/out: Locking 3-pin and 5-pin XLR AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA Cable connector Neutrik PowerCon, A-type, NAC3FCA , for power-in, (installed on the power cord)
Rigging
Mounting points: 2 pairs of 1/4-turn locks Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature : 45° C Maximum housing temperature : 90° C
Minimum distances
Min. distance from ammable surfaces: 0.5 m Min. distance to lighted object: 2 m
Total heat dissipation
Maximum: 1770 BTU/hr
Weight (net)
21.4 kg
31
Dimensions (mm)
Accessories
1 x Omega adaptor CL-regular 2 pcs in box (P/N 10980033) 1 x Power cable 1 x Gobo-set 16 (P/N. 15050025)
Optional accessories
Upgrade kit CRMX Univerzal 260 (No. 9903 0100) Safety wire 35 kg (P/N 99011963) Doughty Trigger Clamp (P/N 17030386)
Gobo order
Static gobos
32
Rotating gobos
11. Maintenance and cleaning
It is absolutely essential that the xture is kept clean and that dust, dirt and smoke-uid residues must not build up on or within the xture. Otherwise, the xture‘s light-output will be signicantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the xture to function reliably throughout its life. A soft lint-free cloth moistened with any good glass cleaning uid is recommended, under no circumstances should alcohol or solvents be used!
DANGER !
Disconnect from the mains before starting any
maintenance work
The front objective lens will require weekly cleaning as smoke-uid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly. The interior of the xture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Gobo wheels and the internal lenses should be cleaned monthly. Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air lters periodically and clean before they become
clogged!
Clean the air lters placed in the xture´s covers and base. Use a vacuum cleaner, compressed air or you can wash them and put back dry. After replacing the air lters, reset the elapsed time counter in the menu "Information" (Information--->Air Fil­ters---> Elapsed Time).
Replacing the fuse.
Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a tting screwdriver from the housing (anti-clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and x it.
33
12. Photometric diagrams
34
35
April 27, 2018
Copyright © 2016-2018 Robe Lighting - All rights reserved All Specications subject to change without notice Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici
36
DMX protocol
Pan
Pan Fine
Tilt
Tilt fine
Pan/Tilt speed , Pan/Tilt time
Power/Special functions
To activate following functions, stop in DMX value for at least 3 s
To activate following functions, stop in DMX value for at least 3
Robin DL4X Spot - DMX protocol - version 1.2
Mode/channel
1 2 3 1 1 1
2 2 *
3 3 2
4 4 *
5 5 3
6 6 4
DMX
Value
Function
Type of control
0 - 255 Pan movement by 540° proportional
0 - 255 Fine control of pan movement proportional
0 - 255 Tilt movement by 280° proportional
0 - 255 Fine control of tilt movement proportional
0 Max. speed-Standard Mode (0=default) step
P./T. speed-set Speed Mode in menu: Pan/Tilt Mode
1 - 255 Speed from max. to min. proportional
P./T. time - set Time Mode in menu: Pan/Tilt Mode
1 - 255 Time from 0.1 s to 25.5 sec. proportional
0 -9 Reserved
and shutter must be closed at least 3 sec. („Shutter,Strobe” channel 33/24/22 must be at range: 0-31 DMX). Corresponding menu items are temporarily overriden).
10-14 15-19
20-24 25-29 30-39 40-49
DMX input: Wired DMX * DMX input: Wireless DMX *
* function is active only10 seconds after switching the fixture on
White point 8000K ON White point 8000K OFF RGB colour mixing mode CMY colour mixing mode
step
step
step
step
step
step
50 - 59 Pan/Tilt speed mode step 60 - 69 Pan/Tilt time mode step 70 - 79 Blackout while pan/tilt moving step 80 - 89 Disabled blackout while pan/tilt moving step
90-94 DL Colour compatible mode On step
95-99 DL Colour compatible mode Off step 100-104 Dimmer curve: Square law step 105-109 Dimmer curve: Linear step
110 - 119 Blackout while gobo wheel moving step
120-129 Disabled blackout while gobo wheel moving step
seconds.
130 - 139 Fixture reset (except pan/tilt) 140 - 149 Pan/Tilt reset step 150 - 159 Reserved 160 - 169 Gobo wheels reset step 170 - 179 Reserved 180 - 189 Zoom/focus/frost/prism reset step 190 - 199 Iris reset step 200 - 209 Total fixture reset step
Page 1
DMX protocol
Virtual colour wheel
Red/Cyan (8 bit)***
Red/Cyan (16bit)***
Green/Magenta (8 bit)***
Green/Magenta (16bit)***
Blue/Yellow (8 bit)***
Blue/ Yellow (16bit)***
White (8 bit)
If RGBW mode is selected:
White colour saturation control - coarse (0-100%)
If CMY mode is selected:
White (16 bit)
CTC
Mode/channel
1 2 3
7 7 5
8 8 6
9 * *
10 9 7
11 * *
12 10 8
13 * *
14 11 9
DMX
Value
210 - 239 Reserved
240 Disable "Theatre mode" step 241 "Theatre mode" -automatic control of fan noise step
242 - 255 "Theatre mode" -fan noise control from min. to max. proportional
0 No function step
1-2 White 2700 K step
3 White 2700 K (Halogen lamp mode**) step
4-5 White 3200 K step
6 White 3200 K (Halogen lamp mode**) step
7-9 White 4200 K step 10-12 White 5600 K step 13-15 White 8000 K step
16 Blue (Blue=full, Red+Green+White=0) step
17-55 Red=0, Green->up,Blue =full, White=0 proportional
56 Light Blue (Red=0, Green=full, Blue =full, White=0) step
57 - 95 Red=0, Green=full, Blue->down, White=0 proportional
96 Green (Red=0, Green=full, Blue =0, White=0) step
97 – 134 Red->up, Green=full, Blue=0, White=0 proportional
135 Yellow (Red=full, Green=full, Blue=0, White=0) step
136 - 174 Red=full, Green->down, Blue=0, White=0 proportional
175 Red(Red=full, Green=0, Blue=0, White=0) step
176 -214 Red=full, Green=0, Blue->up, White=0 proportional
215 Magenta (Red=full, Green=0, Blue=full, White=0) step
216 - 246 Red -> down, Green=0, Blue=full, White=0 proportional
247 Blue (Red=0, Green=0, Blue=full, White=0) step 248-251 Rainbow effect (with fade time)from slow-> fast proportional 252-255 Rainbow effect from slow-> fast proportional
0 - 255 Red or Cyan colour saturation control - coarse (0-100%) proportional
0 - 255 Red or Cyan colour saturation control - fine proportional
0 - 255 Green or Magenta colour saturation control - coarse (0-100%) proportional
0 - 255 Green or Magenta colour saturation control - fine proportional
0 - 255 Blue or Yellow colour saturation control - coarse (0-100%) proportional
0 - 255 Blue or Yellow colour saturation control - fine proportional
Function
Type of control
0-255
0 - 255 No function
15 * *
0 - 255 White colour saturation control - fine (RGBW mode only) proportional
16 12 10
proportional
Page 2
DMX protocol
To get colour temperatures stated above, RGBW channels have to
Speed of rot. Gobo selection
Static gobo wheel
In range 0-64 DMX is possible fine gobo positioning - set value at
Mode/channel
1 2 3
17 13 11
18 14 12
DMX
Value
If function "White Point 8000K" is ON
0-255 Col. temperature correction from 8000K to 2700K -for whites only proportional
(0=8000K, 64=5600K, 128=4200K, 192=3200K, 255=2700K)
be set at the same value (e.g. 255DMX) or RGB=0 and White channel > 0 DMX
If function "White Point 8000K" is OFF
0-255 Colour temperature correction for mixed colours proportional
0-255 Speed of rot. gobo selection from max. to min. (0-25.5sec.) proportional
Continual Positioning
channel 19
0 Open/hole proportional
7 Gobo 1 proportional 13 Gobo 2 proportional 19 Gobo 3 proportional 26 Gobo 4 proportional 32 Gobo 5 proportional 39 Gobo 6 proportional 45 Gobo 7 proportional 51 Gobo 8 proportional 58 Gobo 9 proportional 64 Open/hole proportional
Positioning
65 - 69 Gobo 1 step 70 - 74 Gobo 2 step 75 - 79 Gobo 3 step 80 - 84 Gobo 4 step 85 - 89 Gobo 5 step 90 - 94 Gobo 6 step
95 - 99 Gobo 7 step 100 - 104 Gobo 8 step 105 - 109 Gobo 9 step
Shaking gobos from slow to fast
110 - 119 Gobo 1 proportional 120 - 129 Gobo 2 proportional 130 - 139 Gobo 3 proportional 140 - 149 Gobo 4 proportional 150 - 159 Gobo 5 proportional 160 - 169 Gobo 6 proportional 170 - 179 Gobo 7 proportional 180 - 189 Gobo 8 proportional 190 - 199 Gobo 9 proportional 200 - 201 Open/hole step 202 - 221 Forwards gobo wheel rotation from fast to slow proportional 222 - 223 No rotation 224 - 243 Backwards gobo wheel rotation from slow to fast proportional 244 - 249 Random gobo selection by audio control step
Function
Type of control
Page 3
DMX protocol
Static gobo wheel-fine
Rotating gobo wheel
In the range of 0-59 DMX the gobo selection speed is controlled by
Shaking gobos from slow to fast
Shaking gobos from slow to fast
Rot. gobo indexing and rotation
Mode/channel
1 2 3
19 * *
20 15 13
DMX
Value
(Set microphone sensitivity in menu „Personality”)
250 - 255 Auto random gobo selection from fast to slow proportional
0 - 255 Fine positioning proportional
the Effect Speed channel.
Index - set indexing on channel 21/16/14
0-3 Open/hole step 4-7 Gobo 1 step
8-11 Gobo 2 step 12-15 Gobo 3 step 16-19 Gobo 4 step 20-23 Gobo 5 step 24-27 Gobo 6 step 28-31 Gobo 7 step
Rotation - set rotation on channel 21/16/14
32-35 Gobo 1 step 36-39 Gobo 2 step 40-43 Gobo 3 step 44-47 Gobo 4 step 48-51 Gobo 5 step 52-55 Gobo 6 step 56-59 Gobo 7 step
Function
Type of control
21 16 14
Index - set indexing on channel 21/16/14
60 - 69 Gobo 1 proportional 70 - 79 Gobo 2 proportional 80 - 89 Gobo 3 proportional
90 - 99 Gobo 4 proportional 100 - 109 Gobo 5 proportional 110 - 119 Gobo 6 proportional 120 - 129 Gobo 7 proportional
Rotation - set rotation on channel 21/16/14
130 - 139 Gobo 1 proportional 140 - 149 Gobo 2 proportional 150 - 159 Gobo 3 proportional 160 - 169 Gobo 4 proportional 170 - 179 Gobo 5 proportional 180 - 189 Gobo 6 proportional 190 - 199 Gobo 7 proportional 200 - 201 Open/hole step 202 - 221 Forwards gobo wheel rotation from fast to slow proportional 222 - 223 No rotation step 224 - 243 Backwards gobo wheel rotation from slow to fast proportional 244 - 249 Random gobo selection by audio control step
(Set microphone sensitivity in menu „Personality”)
250 - 255 Auto random gobo selection from fast to slow proportional
Page 4
DMX protocol
Rot. gobo indexing/rotation - fine
Prism
Prism rotation
Frost
Iris
Mode/channel
1 2 3
22 * *
23 17 15
24 18 16
25 19 17
26 20 18
DMX
Value
Gobo indexing - set position on channel 20/15/13
0 - 255 Gobo indexing proportional
Gobo rotation - set position on channel 20/16/13
0 No rotation step
1 - 127 Forwards gobo rotation from fast to slow proportional 128 - 129 No rotation step 130 - 255 Backwards gobo rotation from slow to fast proportional
0-255 Fine indexing (rotation) proportional
0 - 19 Open position (hole) step
20 - 127 3-facet rotating prism step 128 - 255 Prism/gobo macros 128 - 135 Macro 1 step 136 - 143 Macro 2 step 144 - 151 Macro 3 step 152 - 159 Macro 4 step 160 - 167 Macro 5 step 168 - 175 Macro 6 step 176 - 183 Macro 7 step 184 - 191 Macro 8 step 192 - 199 Macro 9 step 200 - 207 Macro 10 step 208 - 215 Macro 11 step 216 - 223 Macro 12 step 224 - 231 Macro 13 step 232 - 239 Macro 14 step 240 - 247 Macro 15 step 248 - 255 Macro 16 step
0 No rotation step
1 - 127 Forwards rotation from fast to slow proportional 128 - 129 No rotation step 130 - 255 Backwards rotation from slow to fast proportional
0 Open step
1 - 179 Frost from 0% to 100% proportional 180 - 189 100% frost step 190 - 211 Pulse closing from slow to fast proportional 212 - 233 Pulse opening from fast to slow proportional 234 - 255 Ramping from fast to slow proportional
0 Open step
1 - 179 From max.diameter to min.diameter proportional 180 - 191 Closed step
Pulse effects with Iris blackout:
192 -219 Pulse opening from slow to fast proportional 220 - 247 Pulse closing from fast to slow proportional 248 - 249 Random pulse opening (fast) step
Function
Type of control
Page 5
DMX protocol
Iris - fine
Zoom
Zoom - fine
Focus
Focus - fine
Shutter/ strobe
Mode/channel
1 2 3
27 * *
28 21 19
29 * *
30 22 20
31 * *
32 23 21 Autofocus (priority & distance selection)
DMX
Value
250 - 251 Random pulse opening (slow) step 252 - 253 Random pulse closing (fast) step 254 - 255 Random pulse closing (slow) step
0 - 255 Fine iris movement proportional
0 - 255 Zoom from max. to min.beam angle proportional
0-255 Fine zooming proportional
0 - 255 Continuous adjustment from far to near proportional
0- 255 Fine focusing proportional
Select desired distance and effect on which you need to focus and use "Focus" channel (30/22/20) to focus the image.
0 Autofocus Off step
Hole
1 4 metres proportional
Function
Type of control
33 24 22
8 6 metres proportional 16 8 metres proportional 24 10 metres proportional 32 12 metres proportional 40 14 metres proportional 48 16 metres proportional 56 18 metres proportional
Static gobo wheel
64 4 metres proportional 72 6 metres proportional 80 8 metres proportional 88 10 metres proportional 96 12 metres proportional
104 14 metres proportional 112 16 metres proportional 120 18 metres proportional
Rotating gobo wheel
128 4 metres proportional 136 6 metres proportional 144 8 metres proportional 152 10 metres proportional 160 12 metres proportional 168 14 metres proportional 176 16 metres proportional 184 18 metres proportional
192-255 Reserved
0 - 31 Shutter closed step
32 - 63 Shutter open step
Page 6
DMX protocol
Dimmer intensity
Dimmer intensity - fine
Mode/channel
1 2 3
34 25 23
35 * *
** In the Halogen lamp mode the Dimmer channel imitates behaviour of the halogen lamp during dimming
*** Select RGB or CMY mixing mode on channel "Power/Special functions"
DMX
Value
64 - 95 Strobe-effect from slow to fast proportional
96 - 127 Shutter open step 128 - 143 Opening pulse in sequences from slow to fast proportional 144 - 159 Closing pulse in sequences from fast to slow proportional 160 - 191 Shutter open step 192 - 223 Random strobe-effect from slow to fast proportional 224 - 255 Shutter open step
0 - 255 Dimmer intensity from 0% to 100% proportional
0 - 255 Fine dimming proportional
Function
Type of control
Page 7
Virtual colour wheel - colour mixing chart
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
Theatre mode off
1-3 (White 2700K) 255 176 8 20
13-15 (White 8000K)
172
25565255
Theatre mode on
13-15 (White 8000K)
171
2556161
4-6 (White 3200K) 255 201 12 100 7-9 (White 4200K) 249 243 28 200
10-12 (White 5600K) 165 255 36 255
1-3 (White 2700K) 255 176 8 20 4-6 (White 3200K) 255 201 12 100 7-9 (White 4200K) 248 253 31 35
10-12 (White 5600K) 209 255 46 63
16 0 0 255 0 17 0 3 255 0 18 0 6 255 0 19 0 9 255 0 20 0 12 255 0 21 0 15 255 0 22 0 18 255 0 23 0 21 255 0 24 0 24 255 0 25 0 27 255 0 26 0 30 255 0 27 0 36 255 0 28 0 41 255 0 29 0 46 255 0 30 0 52 255 0 31 0 58 255 0 32 0 64 255 0 33 0 68 255 0 34 0 74 255 0 35 0 80 255 0 36 0 86 255 0 37 0 92 255 0 38 0 98 255 0 39 0 104 255 0 40 0 110 255 0 41 0 119 255 0 42 0 129 255 0 43 0 138 255 0 44 0 147 255 0 45 0 156 255 0 46 0 165 255 0 47 0 174 255 0 48 0 183 255 0 49 0 192 255 0 50 0 201 255 0 51 0 210 255 0 52 0 219 255 0 53 0 228 255 0 54 0 237 255 0 55 0 246 255 0 56 0 255 255 0 57 0 255 246 0 58 0 255 237 0
Page 1
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
59 0 255 228 0 60 0 255 219 0 61 0 255 210 0 62 0 255 201 0 63 0 255 192 0 64 0 255 183 0 65 0 255 174 0 66 0 255 165 0 67 0 255 156 0 68 0 255 147 0 69 0 255 138 0 70 0 255 129 0 71 0 255 119 0 72 0 255 110 0 73 0 255 104 0 74 0 255 98 0 75 0 255 92 0 76 0 255 86 0 77 0 255 80 0 78 0 255 74 0 79 0 255 68 0 80 0 255 64 0 81 0 255 58 0 82 0 255 52 0 83 0 255 46 0 84 0 255 41 0 82 0 255 36 0 86 0 255 30 0 87 0 255 27 0 88 0 255 24 0 89 0 255 21 0 90 0 255 18 0 91 0 255 15 0 92 0 255 12 0 93 0 255 9 0 94 0 255 6 0 95 0 255 3 0 96 0 255 0 0 97 3 255 0 0 98 6 255 0 0
99 9 255 0 0 100 12 255 0 0 101 15 255 0 0 102 18 255 0 0 103 21 255 0 0 104 24 255 0 0 105 27 255 0 0 106 30 255 0 0 107 36 255 0 0 108 41 255 0 0 109 46 255 0 0 110 52 255 0 0 111 58 255 0 0 112 64 255 0 0 113 68 255 0 0 114 74 255 0 0
Page 2
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
115 80 255 0 0 116 86 255 0 0 117 92 255 0 0 118 98 255 0 0 119 104 255 0 0 120 110 255 0 0 121 119 255 0 0 122 129 255 0 0 123 138 255 0 0 124 147 255 0 0 125 156 255 0 0 126 165 255 0 0 127 174 255 0 0 128 183 255 0 0 129 192 255 0 0 130 201 255 0 0 131 210 255 0 0 132 219 255 0 0 133 228 255 0 0 134 240 255 0 0 135 255 255 0 0 136 255 246 0 0 137 255 237 0 0 138 255 228 0 0 139 255 219 0 0 140 255 210 0 0 141 255 201 0 0 142 255 192 0 0 143 255 183 0 0 144 255 174 0 0 145 255 165 0 0 146 255 156 0 0 147 255 147 0 0 148 255 138 0 0 149 255 129 0 0 150 255 119 0 0 151 255 110 0 0 152 255 104 0 0 153 255 98 0 0 154 255 92 0 0 155 255 86 0 0 156 255 80 0 0 157 255 74 0 0 158 255 68 0 0 159 255 64 0 0 160 255 58 0 0 161 255 52 0 0 162 255 46 0 0 163 255 41 0 0 164 255 36 0 0 165 255 30 0 0 166 255 27 0 0 167 255 24 0 0 168 255 21 0 0 169 255 18 0 0 170 255 15 0 0
Page 3
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
171 255 12 0 0 172 255 9 0 0 173 255 6 0 0 174 255 3 0 0 175 255 0 0 0 176 255 0 3 0 177 255 0 6 0 178 255 0 9 0 179 255 0 12 0 180 255 0 15 0 181 255 0 18 0 182 255 0 21 0 183 255 0 24 0 184 255 0 27 0 185 255 0 30 0 186 255 0 36 0 187 255 0 41 0 188 255 0 46 0 189 255 0 52 0 190 255 0 58 0 191 255 0 64 0 192 255 0 68 0 193 255 0 74 0 194 255 0 80 0 195 255 0 86 0 196 255 0 92 0 197 255 0 98 0 198 255 0 104 0 199 255 0 110 0 200 255 0 119 0 201 255 0 129 0 202 255 0 138 0 203 255 0 147 0 204 255 0 156 0 205 255 0 165 0 206 255 0 174 0 207 255 0 183 0 208 255 0 192 0 209 255 0 201 0 210 255 0 210 0 211 255 0 219 0 212 255 0 228 0 213 255 0 237 0 214 255 0 246 0 215 255 0 255 0 216 246 0 255 0 217 237 0 255 0 218 228 0 255 0 219 219 0 255 0 220 210 0 255 0 221 201 0 255 0 222 192 0 255 0 223 183 0 255 0 224 174 0 255 0 225 165 0 255 0 226 156 0 255 0
Page 4
Scale*
Virtual Colour Wheel
Red
Green
Blue
White
DMX
DMX
DMX
DMX
DMX
227 147 0 255 0
****
****
****
****
228 138 0 255 0 229 129 0 255 0 230 119 0 255 0 231 110 0 255 0 232 104 0 255 0 233 98 0 255 0 234 91 0 255 0 235 84 0 255 0 236 77 0 255 0 237 70 0 255 0 238 63 0 255 0 239 56 0 255 0 240 49 0 255 0 241 42 0 255 0 242 35 0 255 0 243 28 0 255 0 244 21 0 255 0 245 14 0 255 0 246 7 0 255 0 247 0 0 255 0
248-255 (Rainbow effect)
* Colour scale as an illustration only
Page 5
Loading...
