FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE POWERING OR INSTALLING YOUR Divine 60 UV!

Save it for future reference.

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.

Unauthorized modification will void warranty.

1. Safety instructions

THIS LUMINAIRE IS DESIGNED WITH UV LEDS AND MUST BE INSTALLED IN COMPLIANCE WITH
COMPOTENT TECHNICAL DIRECTIONS TO PREVENT THE USER’S EYE AND BARE SKIN FROM EXPOSURE
TO HARMFUL UV RADIATION.

CE LUMINAIRE EST CONCU POUR ETRE UTILISE AVEC DES LED UV ET DOIT ETRE INSTALLE EN STRICTE
CONFORMITE AVEC LES INSTRUCTIONS AFIN D’EVITER QUE LES YEUX OU LA PEAU L’UTILISATEUR NE
SOIENT EXPOSES AUX EFFETS NEFASTES DES RAYONS UV.

CAUTION:

Radiation exposure may cause blindness and cancer of skin!

Maximum exposure (beam angle 38°)

Distance from UV source

Fixture with clear glass

Fixture with black glass

3.5m (11.4ft) - 18 minutes
4m (13) - 23 minutes
5m (16.4ft) 24 minutes 37 minutes
6m (19.7ft) 35 minutes 53 minutes
7m (23ft) 48 minutes 73 minutes
8m (26ft) 63 minutes 95 minutes
9m (29.5ft) 80 minutes 120 minutes
10m (32.8ft) 98 minutes 149 minutes

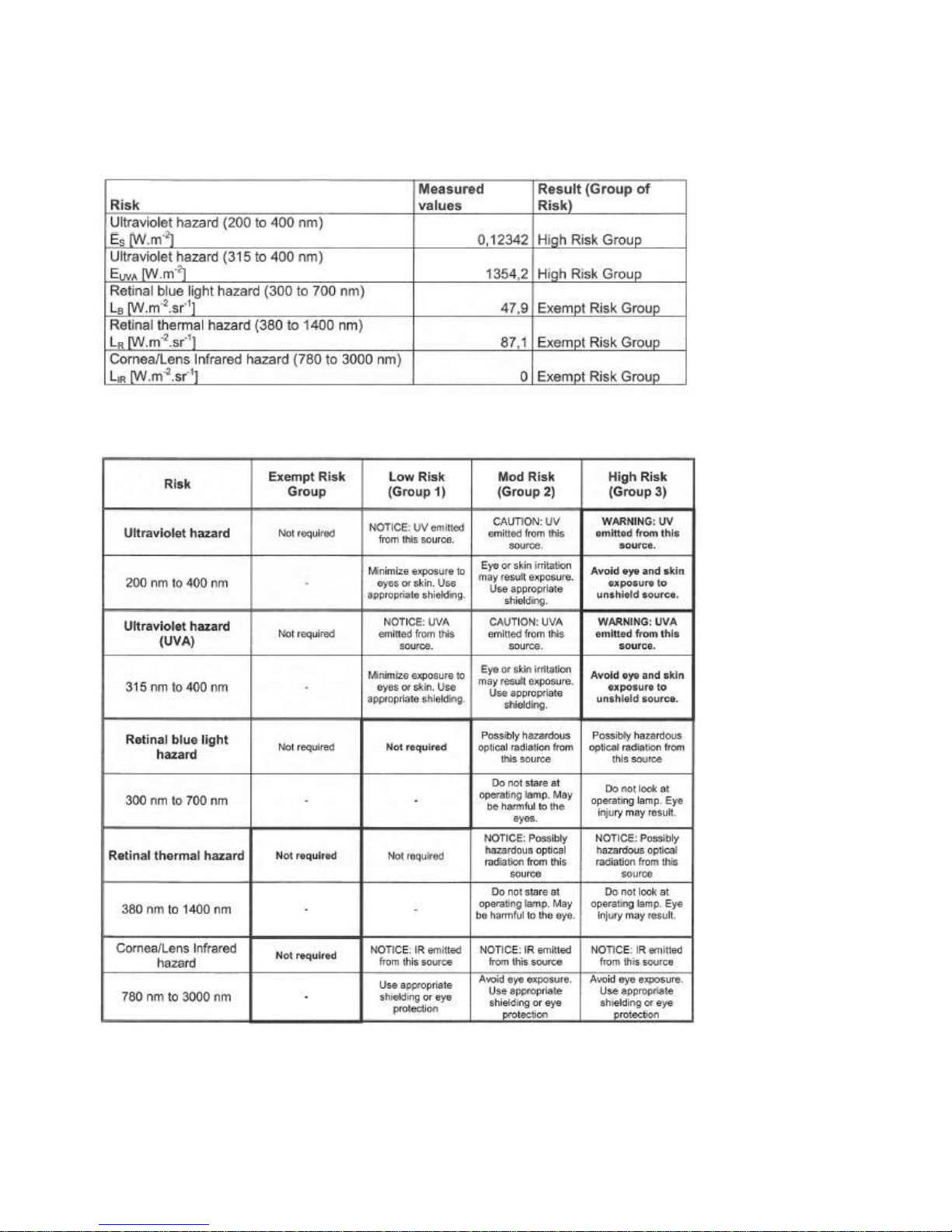

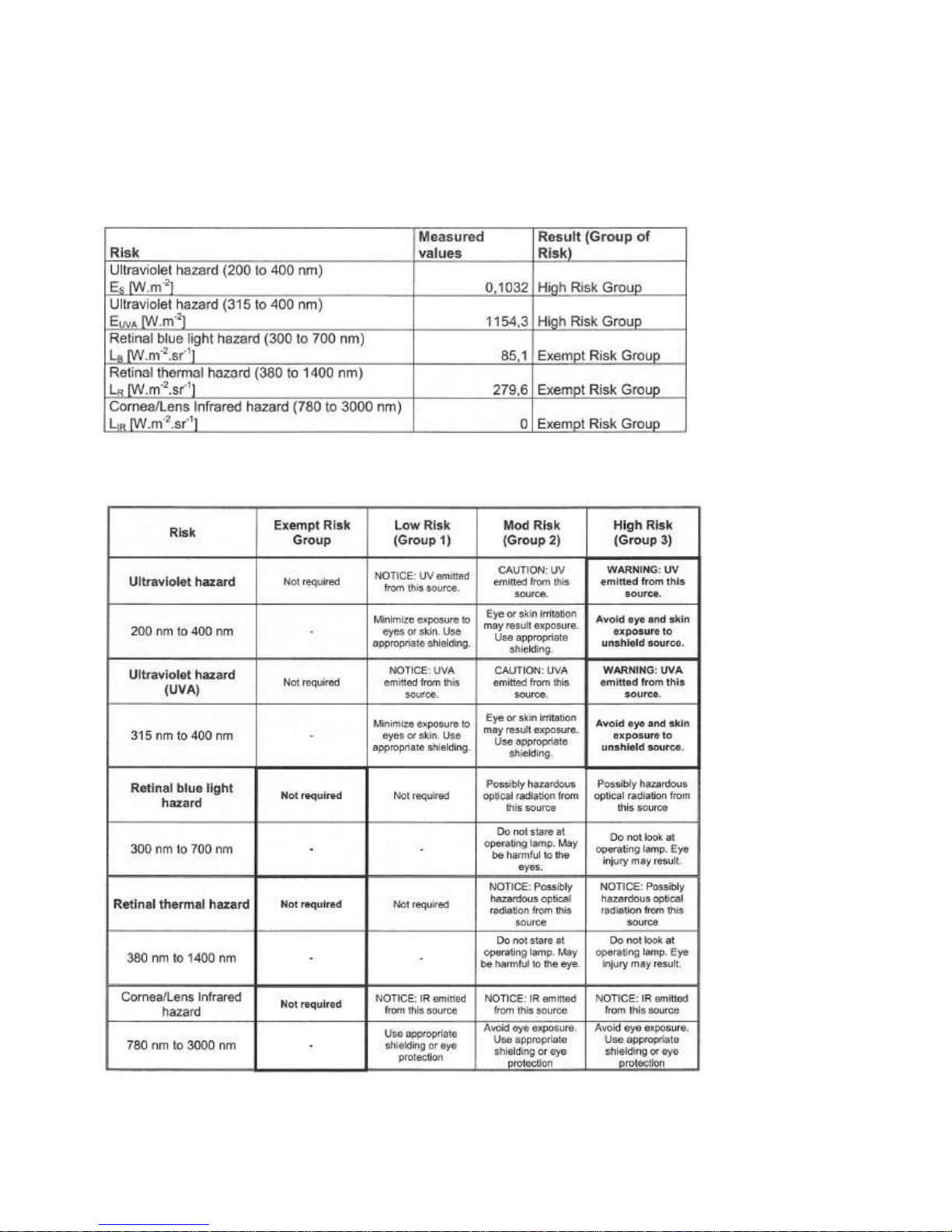

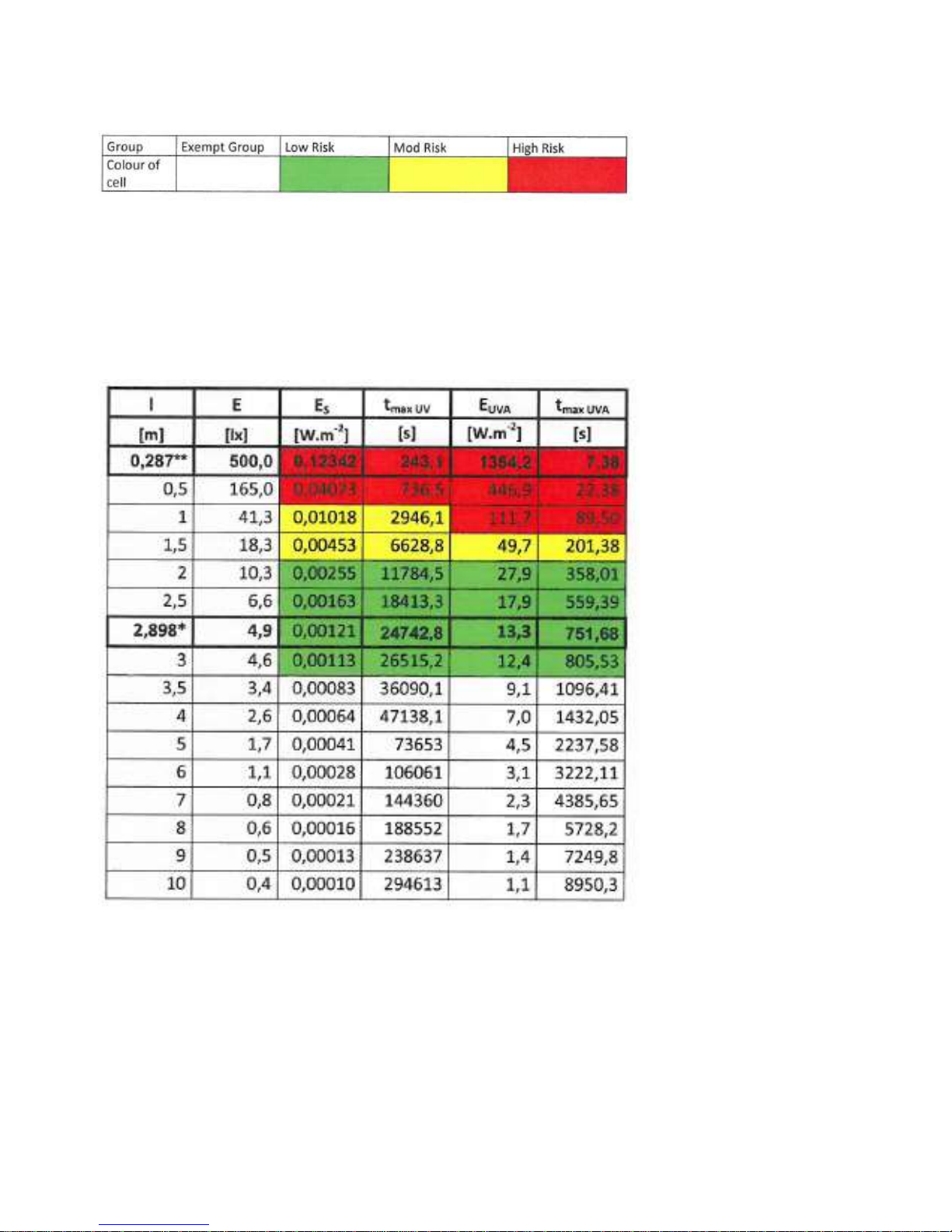

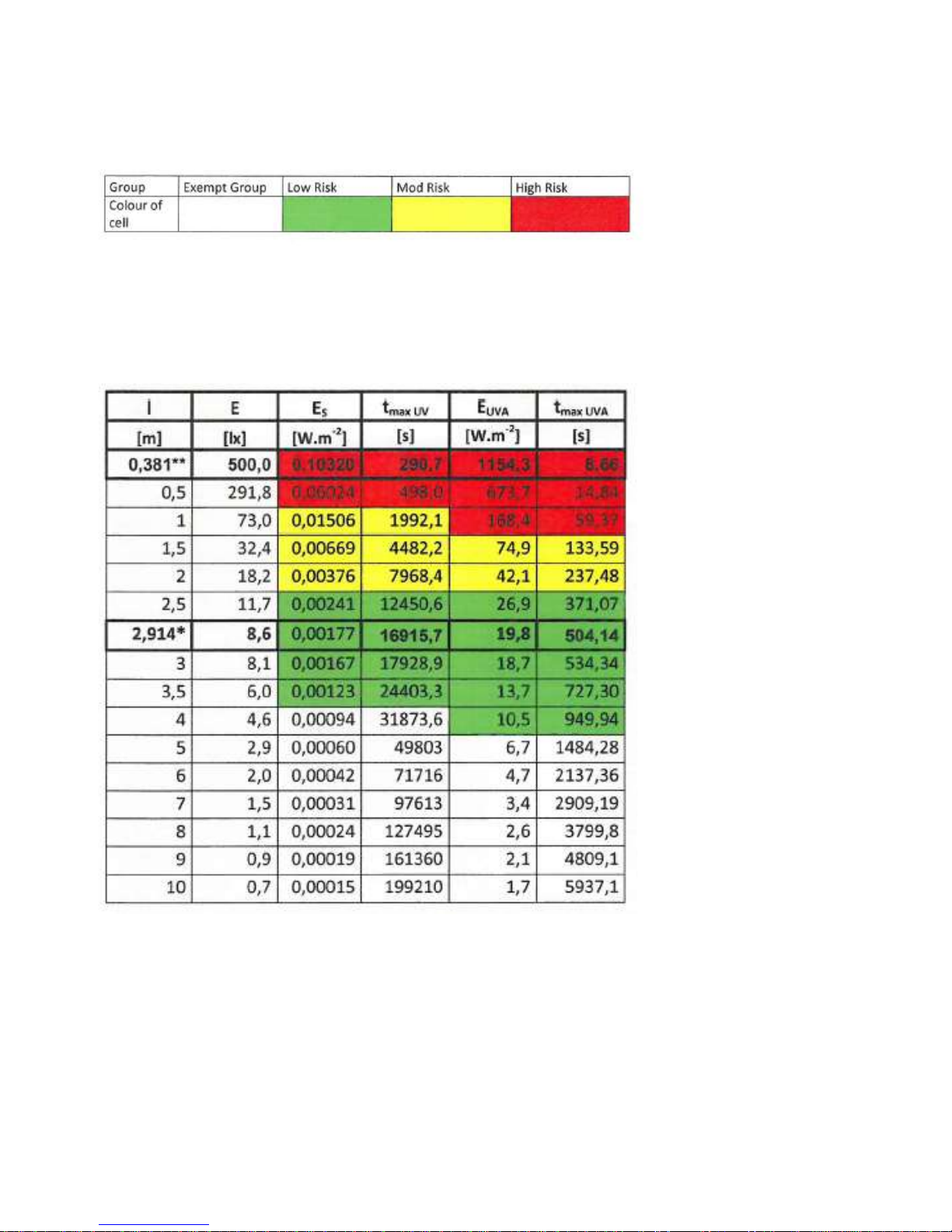

Please read an extract from a test report at the end of the user manual.

Divine 60 UV

4

Risk Group 3 LED product according to ČSN EN 62471

.

Make sure that materials which are exposed to UV radiation will not be damaged!

Do not look at the fixture´s LEDs during operation. The light beam may damage your eyes.

Make sure that the available voltage is not higher than stated on the rear side of the fixture.
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.

Always disconnect the fixture from AC power before servicing or cleaning internally.

Do not overload supply line as this can result in fire or electric shock.

Make sure the power/data cable is never crimped or damaged by sharp edges. Check the fixture and the
power/data cable from time to time.

Do not install the unit near an open flame.

Refer servicing to qualified service personnel.

This fixture falls under protection class I. Therefore, this fixture has to be connected to a mains socket outlet
with a protective earthing connection.

Do not connect this fixture to a dimmer pack.

Keep combustible materials at least 0.3 m away from the fixture.

If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation of water might damage your device. Leave the device switched off until it
has reached room temperature.

Avoid brute force when installing or operating the fixture.

When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.

Avoid using the unit in locations subject to possible impacts.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

Do not block the front glass cover with any object when the fixture is under operation.

The fixture body must never be covered with cloth or other materials.

The fixture becomes very hot during operation. Allow the fixture to cool approximately 30 minutes prior to
servicing or maintenance.

Operate the fixture only after having familiarized yoursef with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!

Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!

Divine 60 UV

5

Please use the original packaging if the fixture is to be transported.

If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.

Divine 60 UV

6

2. Fixture exterior view

3. Installation

3.1 Connection to the mains

Fixtures must be installed by a qualified worker in accordance with all national

and local electrical and construction codes and regulations.

This device falls under class one and must be grounded!

The Divine 60 UV is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC
power source from 100-240V (CE) or 100-277 V (US). The fixture must be connected to a non-dimmable power
source in order to avoid damage to its internal power supply and other electrical components.
Connect the fixture to the mains by means of inbuilt power cord with the plug.

1.

Head with LED array

2. Tilt lock

3. Base

4. Power and DMX connection

5. Attachment point for safety wire

6. Rubber feet

7. Openings for mounting brackets Omega CL assemble

8. Universal base adaptor for Strobe IP

Divine 60 UV

7

3.2 Mounting the fixture

The Divine 60 UV can be arranged in any position/orientation without altering its operation characteristics. The LED
module can be tilted to desired position by means of the tilt lock.

The Universal base adaptor of the fixture (8) is equipped with two pairs of rubber feet (6) for standing the fixture
on the floor and three pairs of openings (7) for installation of the mounting brackets Omega CL (9) which allow to
rig the fixture to the truss.

For overhead installation, the fixture must be always secured with a safety wire.

A structure (truss) intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it.
The structure has to be certificated to the purpose.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the first time and after changes before taking into operation another time.

IMPORTANT! Overhead installation requires extensive experience including calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and fixtures.
Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible
installation, do not install the fixtures and consult installation with an expert.

CAUTION!

Use 2 mounting brackets Omega CL and appropriate clamps to rig the fixture on the truss.

Make sure that the device is fixed properly!

Ensure that the structure (truss) to which you are attaching the fixtures is secure

.

The fixture must never be fixed swinging freely in the room.

For securing the fixture to the truss, install a safety wire which can hold at least 10 times the weight of the fixture.
Use only the safety wire with a snap hook with screw lock gate.

Truss installation

1.Bolt clamp to the bracket Omega CL (9) with M12 bolts and lock nuts through the hole in the bracket
Omega CL.

2.Fasten the two brackets Omega CL on the universal base adaptor (8) by means of the quick-lock fasteners (10)
and tighten them fully clockwise.

3. Fasten the safety cable (11) in the attachment point (5) and around the truss.

Divine 60 UV

8
