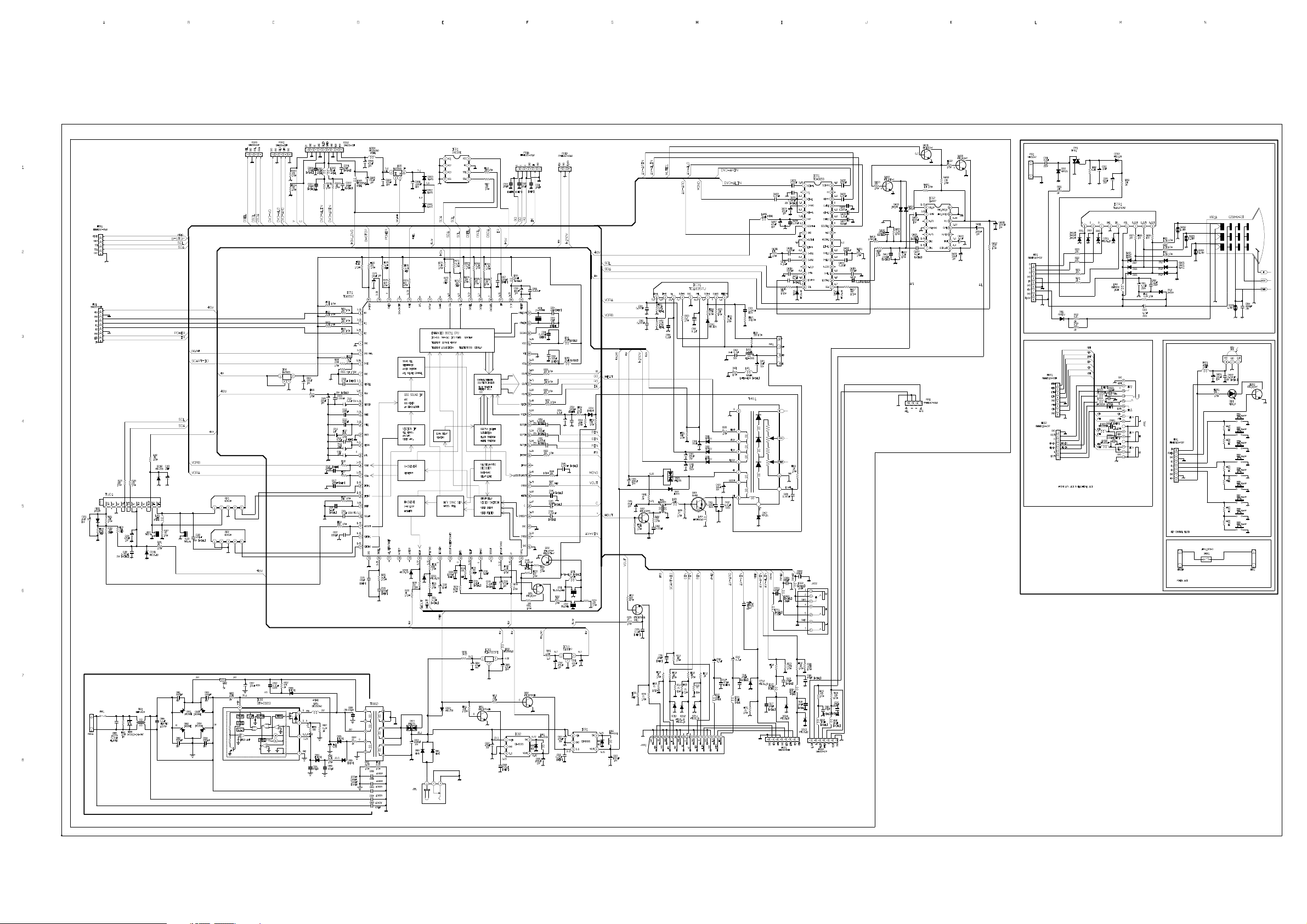

Roadstar tvd 1052 schematic

R

-TVD-1052

- TVD-1052

TVD-1052

Service Manual

Service Manual

BILL OF MATERIAL

MODEL : TVD1052

Level P_No. Item No. Description Unit q'ty Line

1 A001 150032163 MAIN, PAL PTNM03 10GN9RUT P 1 L1
2 A001A 150032164 MAIN, PAL PTNM03(SMD) 10GN9RUT P 1 U1
3 C008 12752224T CHIP CERAMIC CAP, X7R 50V 0.22MF K P 1 S1
3 C014 12752104T CHIP CERAMIC CAP, X7R 50V 0.1MF K P 1 S1
3 C016 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C017 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C026 12751331T CHIP CERAMIC CAP, COG 50V 330PF J P 1 S1
3 C034 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C059 12752473T CHIP CERAMIC CAP, X7R 50V 0.047MF K P 1 S1
3 C061 12752473T CHIP CERAMIC CAP, X7R 50V 0.047MF K P 1 S1
3 C063 12751220T CHIP CERAMIC CAP, COG 50V 22PF J P 1 S1
3 C064 12751220T CHIP CERAMIC CAP, COG 50V 22PF J P 1 S1
3 C066 12752473T CHIP CERAMIC CAP, X7R 50V 0.047MF K P 1 S1
3 C067 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C205 12752104T CHIP CERAMIC CAP, X7R 50V 0.1MF K P 1 S1
3 C211 12751101T CHIP CERAMIC CAP, COG 50V 100PF J P 1 S1
3 C526 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C554 12752102T CHIP CERAMIC CAP, X7R 50V 1000PF K P 1 S1
3 C613 12752391T CHIP CERAMIC CAP, X7R 50V 390PF K P 1 S1
3 C808 12752103T CHIP CERAMIC CAP, X7R 50V 0.01MF K P 1 S1
3 C810 12752103T CHIP CERAMIC CAP, X7R 50V 0.01MF K P 1 S1
3 CD591 12751820T CHIP CERAMIC CAP, COG 50V 82PF J P 1 S1
3 CD691 12752821T CHIP CERAMIC CAP, X7R 50V 820PF K P 1 S1
3 CD692 12752821T CHIP CERAMIC CAP, X7R 50V 820PF K P 1 S1
3 IC01 11118499T IC,EEPROM-8K AT24C08AN-10SI-2.7SMD P 1 S1
3 IC51 11118503T IC. UOC TDA9567H/N1/5I (W/T OTP) P 1 S1
3 IC53 11118516T IC, REGU. BA08FP-E2(8.0V) SMD P 1 S1
3 Q211 11114465T CHIP TR, KTC3875S-GR-RTK P 1 S1
3 Q801 11114465T CHIP TR, KTC3875S-GR-RTK P 1 S1
3 Q802 11114465T CHIP TR, KTC3875S-GR-RTK P 1 S1
3 R026 12873392T CHIP RES, 1/16W 3.9K OHM J(1608) P 1 S1
3 R030 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R034 12873331T CHIP RES, 1/16W 330 OHM J(1608) P 1 S1
3 R035 12873391T CHIP RES, 1/16W 390 OHM J (1608) P 1 S1
3 R047 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R048 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R055 12873103T CHIP RES, 1/16W 10K OHM J(1608) P 1 S1
3 R071 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R072 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R102 12873101T CHIP RES, 1/16W 100 OHM J(1608) P 1 S1
3 R103 12873104T CHIP RES, 1/16W 100K OHM J(1608) P 1 S1
3 R104 12873203T CHIP RES, 1/16W 20K OHM J (1608) P 1 S1
3 R206 12873102T CHIP RES, 1/16W 1K OHM J(1608) P 1 S1
3 R211 12873750T CHIP RES, 1/16W 75 OHM J(1608) P 1 S1
3 R215 12873750T CHIP RES, 1/16W 75 OHM J(1608) P 1 S1
3 R217 12873750T CHIP RES, 1/16W 75 OHM J(1608) P 1 S1
3 R222 12873750T CHIP RES, 1/16W 75 OHM J(1608) P 1 S1
3 R506 12873513T CHIP RES, 1/16W 51K OHM J(1608) P 1 S1
3 R530 12873302T CHIP RES, 1/16W 3K OHM J (1608) P 1 S1
3 R576 12873332T CHIP RES, 1/16W 3.3K OHM J(1608) P 1 S1
3 R578 12873332T CHIP RES, 1/16W 3.3K OHM J(1608) P 1 S1
3 R580 12873332T CHIP RES, 1/16W 3.3K OHM J(1608) P 1 S1
3 R811 12873223T CHIP RES, 1/16W 22K OHM J(1608) P 1 S1
3 RA016 12873391T CHIP RES, 1/16W 390 OHM J (1608) P 1 S1
3 RA017 12873391T CHIP RES, 1/16W 390 OHM J (1608) P 1 S1
2 A001B 150032165 MAIN, PAL PTNM03 10GN9RUT P 1 U3
3 AB01R 150630520 MAIN, RHU PTNM03 10GN9RUT P 1 U3

4 AB01U 150130878 MAIN, AUTO PTNM03 10GN9RUT P 1 R2
5 AB01A 150230956 MAIN, AXIAL PTNM03 10GN9RUT P 1 U2
6 C009 12497223T CERAMIC CAP, F 25V 0.022MF Z AXIAL P 1 U1
6 C020 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 C035 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 C039 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 C040 12477473T CERAMIC CAP, F 50V 0.047MF Z AXIAL P 1 U1
6 C042 12477473T CERAMIC CAP, F 50V 0.047MF Z AXIAL P 1 U1
6 C044 12477473T CERAMIC CAP, F 50V 0.047MF Z AXIAL P 1 U1
6 C045 12474121T CERAMIC CAP, B 50V 120PF K AXIAL P 1 U1
6 C046 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 C048 12477473T CERAMIC CAP, F 50V 0.047MF Z AXIAL P 1 U1
6 C051 12497223T CERAMIC CAP, F 25V 0.022MF Z AXIAL P 1 U1
6 C052 12497223T CERAMIC CAP, F 25V 0.022MF Z AXIAL P 1 U1
6 C053 12497223T CERAMIC CAP, F 25V 0.022MF Z AXIAL P 1 U1
6 C102 12497103T CERAMIC CAP, F 25V 0.01MF Z AXIAL P 1 U1
6 C182 12497223T CERAMIC CAP, F 25V 0.022MF Z AXIAL P 1 U1
6 C531 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 C611 12474471T CERAMIC CAP, B 50V 470PF K AXIAL P 1 U1
6 C615 12474471T CERAMIC CAP, B 50V 470PF K AXIAL P 1 U1
6 C616 12474471T CERAMIC CAP, B 50V 470PF K AXIAL P 1 U1
6 C617 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 C618 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 C619 12474471T CERAMIC CAP, B 50V 470PF K AXIAL P 1 U1
6 C620 12474471T CERAMIC CAP, B 50V 470PF K AXIAL P 1 U1
6 CA005 12477473T CERAMIC CAP, F 50V 0.047MF Z AXIAL P 1 U1
6 CA015 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 CA018 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 CA606 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 CA607 12477104T CERAMIC CAP, F 50V 0.1MF Z AXIAL P 1 U1
6 CD001 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 CD002 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 CD003 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 CD004 12474101T CERAMIC CAP, B 50V 100PF K AXIAL P 1 U1
6 D054 11115024T SILICON DIODE, 1N4148 P 1 U1
6 D101 11115024T SILICON DIODE, 1N4148 P 1 U1
6 D281 11115444T DIODE, RGP15J P 1 U1
6 D381 11115444T DIODE, RGP15J P 1 U1
6 D382 11115444T DIODE, RGP15J P 1 U1
6 D402 11115444T DIODE, RGP15J P 1 U1
6 D881 11115464T DIODE, RECTIFIER 1N5398E P 1 U1
6 D882 11115464T DIODE, RECTIFIER 1N5398E P 1 U1
6 D883 11115464T DIODE, RECTIFIER 1N5398E P 1 U1
6 D884 11115464T DIODE, RECTIFIER 1N5398E P 1 U1
6 D885 11115542T DIODE, FAST RECOVERY EU1ZV1 P 1 U1
6 D886 11115542T DIODE, FAST RECOVERY EU1ZV1 P 1 U1
6 D887 11115542T DIODE, FAST RECOVERY EU1ZV1 P 1 U1
6 D888 11115542T DIODE, FAST RECOVERY EU1ZV1 P 1 U1
6 DA016 11115626T ZD, MTZJ5.6B (VZ5.45-5.73) 0.5W P 1 U1
6 DA606 11115024T SILICON DIODE, 1N4148 P 1 U1
6 DA607 11115024T SILICON DIODE, 1N4148 P 1 U1
6 DZ030 11115638T ZD, MTZJ8.2B (VZ7.78-8.19) 0.5W P 1 U1
6 DZ031 11115638T ZD, MTZJ8.2B (VZ7.78-8.19) 0.5W P 1 U1
6 DZ181 11115623T ZD, MTZJ5.1B (VZ4.94-5.20) 0.5W P 1 U1
6 DZ182 11115686T ZD, MTZJ33B (VZ30.32-31.88) 0.5W P 1 U1
6 DZ211 11115623T ZD, MTZJ5.1B (VZ4.94-5.20) 0.5W P 1 U1
6 DZ212 11115623T ZD, MTZJ5.1B (VZ4.94-5.20) 0.5W P 1 U1
6 DZ213 11115623T ZD, MTZJ5.1B (VZ4.94-5.20) 0.5W P 1 U1
6 DZ214 11115623T ZD, MTZJ5.1B (VZ4.94-5.20) 0.5W P 1 U1
6 DZ215 11115641T ZD, MTZJ9.1B (VZ8.57-9.01) 0.5W P 1 U1

6 DZ216 11115641T ZD, MTZJ9.1B (VZ8.57-9.01) 0.5W P 1 U1
6 DZ301 11115651T ZD, MTZJ12B (VZ11.44-12.03) 0.5W P 1 U1
6 DZ801 11115686T ZD, MTZJ33B (VZ30.32-31.88) 0.5W P 1 U1
6 EL01 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL02 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL03 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL04 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL05 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL06 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL07 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL08 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL09 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL10 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL11 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL12 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL13 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL14 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL15 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL16 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL17 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL18 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL19 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL20 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL21 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL22 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL23 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL24 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL25 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL26 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL27 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL28 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL29 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL30 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 EL31 11061303 EYELET, HTR 2.80*2.9 SNI P 1 U1
6 ES01 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES02 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES03 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES04 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES05 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES06 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES07 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES08 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES09 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES10 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES11 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES12 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES13 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES14 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES15 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES16 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES17 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES18 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES19 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES20 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES21 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES22 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES23 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES24 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES25 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES26 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1

6 ES27 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES28 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES29 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES30 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES31 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES32 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES33 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES81 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES82 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES83 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 ES84 11061202 EYELET, HTR 2.11*2.8 SNI P 1 U1
6 J001 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J002 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J003 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J004 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J005 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J006 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J007 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J008 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J009 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J010 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J011 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J012 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J013 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J014 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J015 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J016 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J017 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J018 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J020 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J021 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J022 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J023 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J024 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J025 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J026 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J027 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J028 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J029 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J030 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J031 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J032 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J033 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J034 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J036 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J037 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J038 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J039 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J040 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J041 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J042 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J043 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J044 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J045 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J046 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J047 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J048 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J049 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J050 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J051 11183004 PLATING WIRE, 0.6MM M 0,055 U1

6 J052 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J053 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J054 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J055 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J056 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J058 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J059 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J060 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J061 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J062 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J063 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J064 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J065 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J066 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J067 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J069 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J070 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J071 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J073 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J074 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J076 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J078 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J079 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J080 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J081 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J082 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J083 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J084 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J101 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J102 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J103 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J104 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J201 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J202 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J204 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J205 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J206 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J207 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J208 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J209 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J210 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J211 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J212 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J213 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J214 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J215 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J216 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J217 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J218 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J219 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J220 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J221 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 J223 11183004 PLATING WIRE, 0.6MM M 0,055 U1
6 L059 11237100T COIL, AXIAL LAL02TB 10UH K P 1 U1
6 L061 11237100T COIL, AXIAL LAL02TB 10UH K P 1 U1
6 L066 11237101T COIL, AXIAL LAL02TB 100UH J P 1 U1
6 L101 11237109T COIL, AXIAL LAL02TB 1UH K P 1 U1
6 L201 11237829T COIL, AXIAL LAL02TB 8.2UH K P 1 U1
6 L404 11103041T B-CORE, BF40 BTL3.5*7B (BFS 3565AO) P 1 U1
6 L421 11248331T COIL, AXIAL LAL03TB 330UH K P 1 U1
