Page 1
R
- CD-484
- CD-484
CD-484
Service Manual
Service Manual
Page 2
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
1 001-0000S-B90 P.C.B FILTER BOX 1

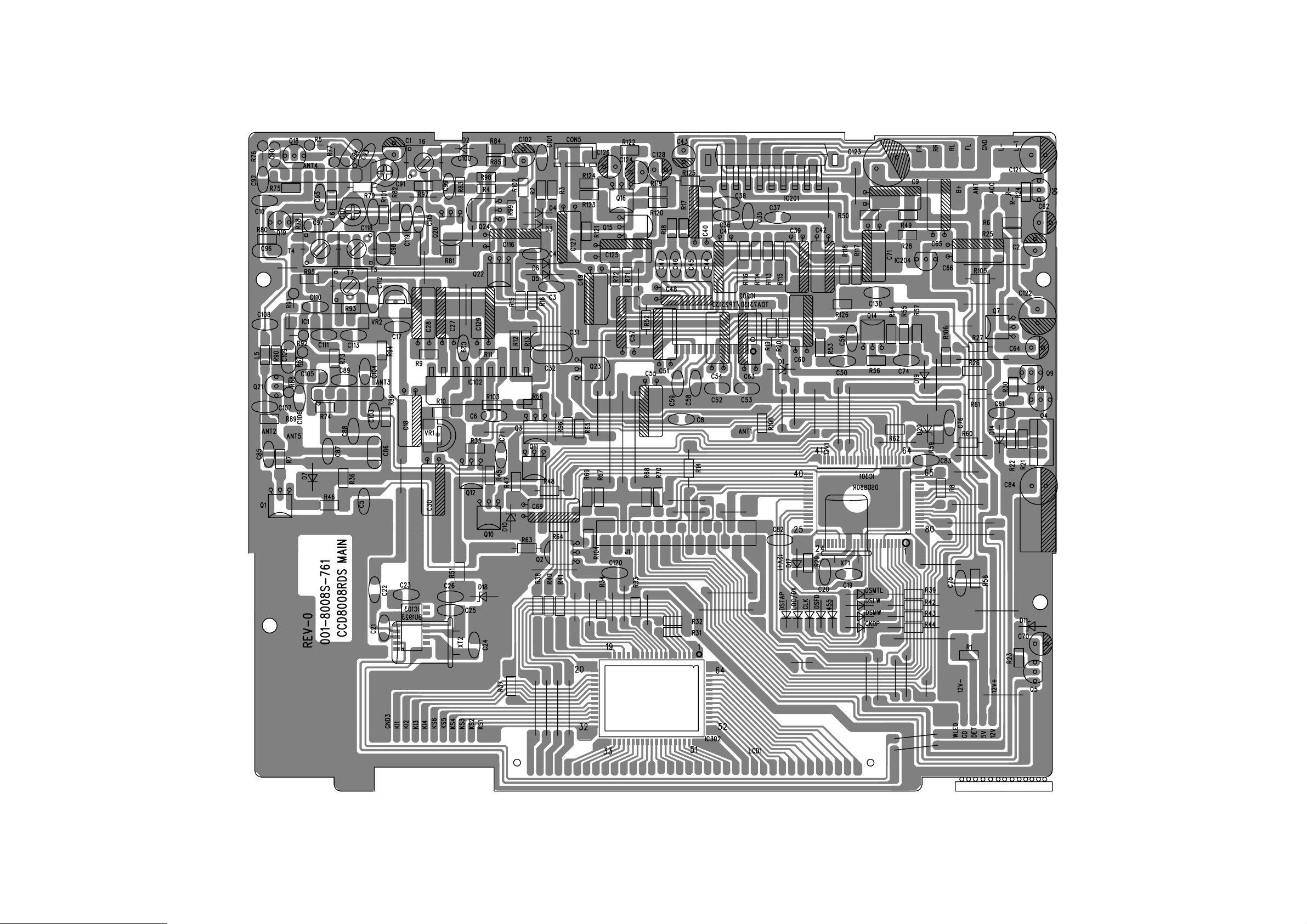

2 001-8008S-761 P.C.B MAIN BOARD 1
4 002-00240-000 I.C DSD240 1 IC 302
5 002-02245-A01 I.C KA2245 1 IC 101
6 002-07343-A00 I.C TA7343AP/KIA6043 1 IC 102
7 002-0880R-000 I.C DSD880R 1 IC 301
8 002-1558Q-A05 I.C TDA1558Q1 1 IC 201
9 002-1923F-H07 I.C BU1923 1 IC 103
10 002-7313D-B06 I.C TDA7313D 1 IC 202
11 002-78L05-F00 I.C 78L05 1 IC 204
12 003-01273-A03 TRANSISTOR A1273 1 Q6
13 003-01368-C00 TRANSISTOR B1368 1 Q4
14 003-9018G-D00 TRANSISTOR 9018G 2 Q21.3
15 003-1271Y-A03 TRANSISTOR A1271 2 Q12.24
16 003-3199Y-D03 TRANSISTOR C3199 11 Q1.2.7.8.9.10.11.14.15.16.23
17 003-3203Y-D00 TRANSISTOR C3203 2 Q22.5
18 003-9011G-D00 TRANSISTOR 9011G 3 Q18.19.20
19 004-0IN60-000 DIODE IN60 1 D2
20 004-04001-000 DIODE IN4001 1 FILTER PCB
D3.4.5.6.7.DSTAP.LOC.CLK.
21 004-04148-000 DIODE IN4148 14
22 005-00051-A00 ZENER DIODE 1/2W 5.1V 2 D18.20
23 005-00056-A00 ZENER DIODE 1/2W 5.6V 1 D11
24 005-00082-A00 ZENER DIODE 1/2W 8.2V 1 D14
25 005-00100-A00 ZENER DIODE 1/2W 10V 1 D1
26 005-00120-A00 ZENER DIODE 1/2W 12V 1 D10
27 006-04330-000 CRYSTAL 4.33MHz 2 XT1.2
28 007-00419-7YW I.F.T 7mm 804-419 YELLOW 1 T5
29 007-00420-7RD I.F.T 7mm 804-420 RED 1 T4
30 007-00421-7PK I.F.T 7mm 804-421 PINK 1 T7
455.CLKDP.17.19.DLW.DMTL.
31 007-00422-7BK I.F.T 7mm 804-422 BLACK 1 T6
32 008-91432-C00 LCD Display 91432MITTN-P 1
33 009-3208F-C06 METAL TUNER MTR CMT-3208F 1
34 010-D0475-000 MICRO INDUCTOR EC-36 4.7uH 2 L5.6
Page 3
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
35 011-A010F-200 RESISTOR 1 OHM 1/2W ±5% 1 R105
36 011-A100A-200 RESISTOR 10 OHM 1/16W ±5% 1 R28
37 011-A101A-200 RESISTOR 100 OHM 1/16W ±5% 7 R37.38.40.41.54.74.103
38 011-A102A-200 RESISTOR 1K OHM 1/16W ±5% 7 R9.19.20.79.85.89.125
39 011-A103A-200 RESISTOR 10K OHM 1/16W ±5% 9 R21.29.48.35.64.93.101.4.100
40 011-A104A-200 RESISTOR 100K OHM 1/16W ±5% 3 R53.52.77
41 011-A105A-200 RESISTOR 1M OHM 1/16W ±5% 2 R56.58
42 011-A181A-200 RESISTOR 180 OHM 1/16W ±5% 3 R26.106.104
43 011-A183A-200 RESISTOR 18K OHM 1/16W ±5% 2 R34.75
44 011-A221A-200 RESISTOR 220 OHM 1/16W ±5% 3 R30.76.65
45 011-A222A-200 RESISTOR 2.2K OHM 1/16W ±5% 4 R80.96.99.126
46 011-A223A-200 RESISTOR 22K OHM 1/16W ±5% 8 R2.3.46.63.98.50.C3.4
47 011-A224A-200 RESISTOR 220K OHM 1/16W ±5% 3 R11.86.88
48 011-A225A-200 RESISTOR 2.2M OHM 1/16W ±5% 1 R94
49 011-A273A-200 RESISTOR 27K OHM 1/16W ±5% 2 R67.68
50 011-A330A-200 RESISTOR 33 OHM 1/16W ±5% 2 R73.95
51 011-A331A-200 RESISTOR 330 OHM 1/16W ±5% 4 R8.90.91.92
52 011-A332A-200 RESISTOR 3.3K OHM 1/16W ±5% 10 R12.13.31.32.33.62.69.70.119.120
53 011-A333A-200 RESISTOR 33K OHM 1/16W ±5% 2 R15.16
54 011-A334A-200 RESISTOR 330K OHM 1/16W ±5% 3 R117.118.66
55 011-A391A-200 RESISTOR 390 OHM 1/16W ±5% 1 R51
56 011-A394A-200 RESISTOR 390K OHM 1/16W ±5% 2 R121.122
57 011-A471A-200 RESISTOR 470 OHM 1/16W ±5% 2 R97.23
58 011-A472A-200 RESISTOR 4.7K OHM 1/16W ±5% 7 R14.59.60.61.5.84.45
59 011-A473A-200 RESISTOR 47K OHM 1/16W ±5% 8 R1.27.39.42.44.49.57.102
60 011-A564A-200 RESISTOR 560K OHM 1/16W ±5% 1 R?
61 011-A561A-200 RESISTOR 560 OHM 1/16W ±5% 2 R123.124
62 011-A562A-200 RESISTOR 5.6K OHM 1/16W ±5% 10 R115.114.113.116.55.17.18.10.72.71
63 011-A563A-200 RESISTOR 56K OHM 1/16W ±5% 1 R24
64 011-A680A-200 RESISTOR 68 OHM 1/16W ±5% 1 R7
65 011-A681A-200 RESISTOR 680 OHM 1/16W ±5% 1 R83
66 011-A682A-200 RESISTOR 6.8K OHM 1/16W ±5% 3 R36.82.87
67 011-A683A-200 RESISTOR 68K OHM 1/16W ±5% 1 R81
68 011-A684A-200 RESISTOR 680K OHM 1/16W ±5% 1 R78
69 011-A821A-200 RESISTOR 820 OHM 1/16W ±5% 4 R6.22.25.47
70 012-C105F-300 ELECT CAP 1uF 50V ±20% 5x11mm 10 C40.41.42.39.124.125.30.27.18.102
71 012-C106F-300 ELECT CAP 10uF 50V ±20% 5x11mm 3 C62.64.43
72 012-C106C-300 ELECT CAP 10uF 16V ±20% 5x11mm 1 C66
73 012-C107C-300 ELECT CAP 100uF 16V ±20% 5x11mm 8 C65.128.60.63.129.69.2.116
Page 4
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
74 012-C226C-300 ELECT CAP 22uF 50V ±20% 5x11mm 2 C71.9
75 012-C335F-300 ELECT CAP 3.3uF 50V ±20% 5x11mm 1 C28
76 012-C336C-300 ELECT CAP 33uF 16V ±20% 5x11mm 1 C1
77 012-C475C-300 ELECT CAP 4.7uF 16V ±20% 5x11mm 9 C57.55.54.51.49.48.126.127.70
78 012-G108C-300 ELECT CAP 1000uF 10V ±20% 8x16mm 3 C121.122.84
79 012-K108C-300 ELECT CAP 1000uF 16V ±20% 10x17mm 2 C123. FILTER BOX
80 013-A102A-500 MYLAR CAP 0.001uF 50V ±20% 2 C96.17
81 013-A103A-500 MYLAR CAP 0.01uF 50V ±20% 2 C90.97
82 013-A152A-500 MYLAR CAP 0.0015uF 50V ±20% 1 C94
83 013-A272A-500 MYLAR CAP 0.0027uF 50V ±20% 2 C52.53
84 013-A223A-500 MYLAR CAP 0.022uF 50V ±20% 2 C31.32
85 013-B102A-300 POLY CAP 1000PF ±5% 1 C29
86 013-B181A-300 POLY CAP 180PF ±5% 1 C118
87 014-A030C-A00 CERAMIC CAP 3PF 50V NPO 1 C87
88 014-A100C-A00 CERAMIC CAP 10PF NPO 1 C88
89 014-A101C-600 CERAMIC CAP 100PF 50V ±20% 3 C119.113.8
90 014-A102C-600 CERAMIC CAP 0.001uF 50V ±20% 5 C35.36.38.37.130
91 014-A103C-600 CERAMIC CAP 0.01uF 50V ±20% 7 C10.106.75.95.100.101.110
C21.26.44.45.46.47.50.56.
92 014-A104C-600 CERAMIC CAP 0.1uF 50V ±20% 18
93 014-A120C-A00 CERAMIC CAP 12PF NPO 1 C112
94 014-A121C-600 CERAMIC CAP 120PF 50V ±20% 1 C93
95 014-A150C-A00 CERAMIC CAP 15FPF NPO 1 C85
96 014-A200C-A00 CERAMIC CAP 20PF NPO 3 C24.25.7
97 014-A223C-600 CERAMIC CAP 0.022uF 50V ±20% 9 C5.6.89.92.103.107.108.111. 115
98 014-A271C-600 CERAMIC CAP 270PF 50V ±20% 1 C22
99 014-A300C-A00 CERAMIC CAP 30FPF 50V NPO 3 C19.20.104
100 014-A473C-600 CERAMIC CAP 0.047uF 50V ±20% 1 C99
101 014-A561C-600 CERAMIC CAP 560PF 50V ±20% 1 C23
102 015-H0103-E00 SEM-FIXED 10KB 1 VR1
58.59.61.74.76.82.83.120.?.?
103 015-H0503-E00 SEM-FIXED 50KB 1 VR2
104 016-C0300-000 TRIMMER CAP +-10% 30PF 1
105 016-C0600-000 TRIMMER CAP +-10% 60PF 1
106 016-C0700-000 TRIMMER CAP +-10% 70PF 1
107 017-A0004-800 BAND PASS FILTER PFWB4 1 C86
108 017-B0107-400 CERAMIC FILTER 10.7MHz 2 C105.109
109 017-B0455-500 CERAMIC FILTER 455KHz 1 C98
110 024-60063-300 LAMP 6.3V 60mA 3mm 2
111 024-60140-300 LAMP 14V 60mA 3mm 1
Page 5
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
112 029-B0000-010 Antenna Jack Double Screw 36A41009 1
113 032-E0500-054 RAINBOW WIRE 5PIN 3+50+10 1
114 032-E1100-044 RAINBOW WIRE 4PIN 3+110+10 2
115 033-S1000-GY0 SHIELD WIRE ANT 1P 100mm 1
116 034-A1612-005 ISO 16P W/WIRE 12P H/P 1
117 035-B5300-BE4 JUMPER WIRE #20 530mm BLUE W/FUSE 0. 1
118 035-E0900-RD1 Jumper Wire #26 90mm RED 3-90-3 3 TUNER:1 LAMP:2
119 035-E0600-BE1 Jumper Wire #26 60mm Blue 3-60-3 1 TUNER :1
120 036-A0250-030 Connector 3Pin Socket P=2.5mm 1 CON5
121 036-D0125-250 Connector 25Pin P=1.25mm 1 J1
122 037-G5300-2B1 3P H'ING P=2.5mm 2xSH 300mm GREY 1 LINE OUT
123 042-30010-000 FUSE HOLDER 2
124 201-EI240-000 TRANSFORMA EI-24 1
125 221-S0040-040 BARE WIRE D=0.4x40mm 70
126 230-100BK-100 PLASTIC TIE L=100mm 1
FRONT PCB
127 001-8058S-S10 P.C.B FRONT CD-8058 RDS 1
128 011-A102A-200 RES 1/16W ±5% 1K OHM 6 R9.15.16.17.18.19
129 023-A0030-RD0 LED 3mm RED 1
130 023-A0030-BE3 LED Super Bright 3mm 3.6V 20mA Blue 10
131 025-TA020-500 TACT SWITCH 2P 5mm 10
132 025-TA020-800 TACT SWITCH 2P 8mm 7
133 025-PS060-580 PUSH S/W 6P 5.8x5.8 W/O LOCK 1
134 035-G1450-RD1 JUMPER WIRE #30 145mm RED 1 B-B
135 035-G1600-BK1 JUMPER WIRE #30 160mm BLACK 1 A-A
136 035-G1900-YW1 JUMPER WIRE #30 190mm YELLOW 1 C-C
137 035-G0700-WE1 JUMPER WIRE #30 70mm WHITE 1 K-K
138 035-G0800-BN1 JUMPER WIRE #30 80mm BROWN 1 F-F
139 035-G1000-GD1 JUMPER WIRE #30 100mm GOLD 1 H-H
140 035-G1350-GN1 JUMPER WIRE #30 135mm GREEN 1 D-D
141 035-G1400-VT1 JUMPER WIRE #30 140mm VIOLET 1 E-E
142 035-G1650-PK1 JUMPER WIRE #30 165mm PINK 1 J-J
143 037-B6170-5A0 5P H'ING P=2.0mm #28 170mm INSERT 1 1x170mm 2x65mm 1x75mm 1x70mm
1x150mm 2x140mm 5x65mm
144 037-B6150-BA3 11P H'ING P=2.0mm #28 150mm INSERT 1
CDP BOARD ASSEMBLY 1
145 001-3900D-C20 P.C.B CD-3900 CDP 1 COMMON USE TOOL501532HO
146 002-9223B-G01 I.C KB9223B 1 IC101
147 002-9259D-A01 I.C KA9259D 1 IC301
1x55mm 1x80mm 1x85mm
Page 6
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
148 002-9286B-A01 I.C KS9286B 1 IC201
149 003-933AS-A07 TRANSISTOR 2SA933AS SOT TYPE 1 TR1 /STA1037YR40
150 004-04148-000 SILICON DIODE IN4148/SDS7000 2 D1 D2
151 004-SR23G-000 PHOTO DIODE SR-23G 2 IR1 IR2
152 006-16934-100 CRYSTAL 16.9344MHZ 1 x1 (Small Type)
153 010-D0106-000 COIL 10UH AXIAL EC-36 2 COIL1 COIL2
154 011-S100A-200 0805 RES ±5% 10 OHM 1 R40
155 011-S102A-200 0805 RES ±5% 1K OHM 2 R29.43
156 011-S103A-200 0805 RES ±5% 10K OHM 2 R32.33
157 011-S104A-200 0805 RES ±5% 100K OHM 5 R17.19.30.52.53
158 011-S105A-200 0805 RES ±5% 1M OHM 1 R14
159 011-S123A-200 0805 RES ±5% 12K OHM 3 R18.41.42
160 011-S124A-200 0805 RES ±5% 120K OHM 4 R21.24.34
161 011-S153A-200 0805 RES ±5% 15K OHM 1 R23
162 011-S154A-200 0805 RES ±5% 150K OHM 2 R16.31
163 011-S184A-200 0805 RES ±5% 180K OHM 2 R13.27
164 011-S204A-200 0805 RES ±5% 200K OHM 2 R55.60
165 011-S205A-200 0805 RES ±5% 2M OHM 1 R1
166 011-S224A-200 0805 RES ±5% 220K OHM 1 R22
167 011-S273A-200 0805 RES ±5% 27K OHM 6 R3.4.11.12.48.26
168 011-S332A-200 0805 RES ±5% 3.3K OHM 2 R49.50
169 011-S434A-200 0805 RES ±5% 430K OHM 1 R2
170 011-S473A-200 0805 RES ±5% 47K OHM 2 R20.47
171 011-S562A-200 0805 RES ±5% 5.6K OHM 6 R5-10
172 011-S564A-200 0805 RES ±5% 560K OHM 1 R28
173 011-S680A-200 0805 RES ±5% 68 OHM 1 R51
174 011-S683A-200 0805 RES ±5% 68K OHM 1 R25
175 011-S820A-200 0805 RES ±5% 82 OHM 1 R39
176 011-S822A-200 0805 RES ±5% 8.2K OHM 1 R15
177 011-S823A-200 0805 RES ±5% 82K OHM 5 R46 R56-59
178 012-4106C-300 MINE ELEC CAP ±20% 10uF 16V 4x5mm 2 EC7 (smsll type)
179 012-B105F-300 MINE ELEC CAP ±20% 1uF 50V 3 EC16.17.12 (small type)
180 012-B107A-800 MINI ELEC CAP+80-20% 100uF6.3V 1 EC11
181 012-B107B-800 MINI ELEC CAP+80-20% 100uF 10V 3 EC13.18.15 (small type)
182 012-B107C-800 MINI ELEC CAP+80 -20% 100uF 16V 1 EC14 (small type)
183 012-B225F-300 MINE ELEC CAP ±20% 2.2uF 50V 2 EC2-3 (small type)
184 012-B474F-300 MINE ELEC CAP ±20% 0.47uF 50V 2 EC5.6 (small type)
185 012-B475F-300 MINE ELEC CAP ±20% 4.7uF 50V 1 EC4
186 014-A104C-500 CERAMIC CAP 0.1uF 1 EC8
Page 7
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
187 014-S040C-400 0805 SMT.CAP ±5% 4PF 1 C27
188 014-S080C-500 0805 SMT.CAP ±10% 8PF 1 C28
189 014-S102C-500 0805 SMT.CAP ±10% 0.001UF 1 C20
190 014-S103C-500 0805 SMT.CAP ±10% 0.01UF 8 C2.4.14.16.21.26.30.33
191 014-S104C-500 0805 SMT.CAP ±10% 0.1UF 14 C12.13.22.23.24.31.36.37.44.47-49
192 014-S151C-500 0805 SMT.CAP ±10% 150UF 2 C5.9
193 014-S152C-500 0805 SMT.CAP ±10% 0.0015UF 3 C1.6.10
194 014-S200C-400 0805 SMT.CAP ±5% 20PF 2 C34.35
195 014-S201C-500 0805 SMT.CAP ±10% 200PF 1 C17
196 014-S222C-500 0805 SMT.CAP ±10% 0.0022UF 2 C19.38
197 014-S331C-500 0805 SMT.CAP ±10% 330PF 2 C7.8
198 014-S333C-500 0805 SMT.CAP ±10% 0.033UF 4 C3.11.18.25
199 014-S472C-500 0805 SMT.CAP ±10% 0.0047UF 1 C29
200 014-S473C-500 0805 SMT.CAP ±10% 0.047UF 1 C32
201 014-S561C-500 0805 SMT.CAP ±10% 560PF 2 C42.43
202 014-S683C-500 0805 SMT.CAP ±10% 0.068UF 1 C15
203 025-TA020-330 SWITCH (NEW) 2P 3.3mm SW-111 HC-49S 1 SW1 (small type)
204 031-0140U-250 FFC CABLE 25P 140mm 1.25P ITCH 1 140mm
205 032-E1000-031 RAINBOW WIRE 3P 1 3+100+3
206 036-B0200-4A0 4P SOCKET P=2.0mm 1 CON2
207 036-G0100-171 17P SMT SOCKET P=1.0mm+C15 1 CON1
208 203-8008S-C2E CD DECK CDM-211 1
209 209-30010-K00 REL SPRING 1 SUS T0.35 PULL KNOB 3001COM
210 209-34000-N00 LOCK SPRING 1 SUS T0.4 73400436
211 209-11860-K00 REL SPRING 1 SUS T0.35 81188606
212 209-80580-KOO RELEASE-SPRING-8058 2 SUS T=0.3 TUNING-KNOB-B:1
213 209-39050-E00 EJ-KNOB SPRING 1 SUS T=0.25 (RDS)
214 212-52090-14S SPRING WASHER (Ø5.2) 3 SET:1 ACC:2
215 212-52100-05P PLATE WASHER (Ø5.2) 3 SET:1 ACC:2
216 214-18880-C00 MAIN FIBER 1 FIBER T0.5
217 214-DECK0-A00 DECK FIBER 105x95x0.5 1 T=0.5 (FOR CD ALL)
218 216-1888A-C00 HEAT SINK 1 AL DIE CASSTING
219 217-1001E-E12 MOUNTING STRIP 1 EGI T1.2 70028046
220 218-18882-E06 SIDE BRACKET 2 EGI T0.6
221 218-1888P-E12 TUNER BRACKET 1 EGI T1.2
218-3003E-E10 IC BRACKET 1
222 218-8008L-E10 DECK BRACKET(LEFT) 1 EGI T1.0
223 218-8008R-E10 DECK BRACKET(RIGHT) 1 EGI T1.0
RDS用
Page 8
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
224 218-8058C-E10 DECK BRACKET-F-8058 1 EGJ T=1.0
225 222-1001S-E06 SLEEVE CASE 1 EGI T0.6 70028039
226 222-3510B-H06 BOTTOM COVER (A/R) 1 EGI T0.6 3510 COM
227 222-8058T-E06 TOP-COVER-8058 1 EGI T=0.6 CD1888 MODIFY
228 223-1888L-E10 SIDE CHASSIS (L) 1 EGI T1.0
229 223-1888R-E10 SIDE CHASSIS (R) 1 EGI T1.0
230 225-09007-400 CUSHION BOTTOM 9x7x4mm 1 RUBBER
231 227-30010-EA5 CASE CHSHION 2 SPONGE T15mm 80038130
232 227-30050-E60 CASE CHSHION (B) 2 93005028
233 227-80580-L50 LEFT-SPONGE 1 SPONGE WHITE T=0.5
234 227-80580-R50 RIGHT-SPONGE 1 SPONGE WHITE T=0.5
235 228-8009A-100 CD FELT 1 CLOTH (BLACK)
236 233-N030W-H00 HEX NUT: M3 1 IC:1
237 233-N050W-H00 HEX NUT: M5 2 SET:1 ACC:1
238 234-HEX50-220 HEX BOLT: 5x22mm 1 SET:1
239 234-PB017-06B SCREW: TS 1.7x6 PB BLACK 1 N/BACK:1
240 234-KM030-040 SCREW: MS 3x4 KM 5 TUNER BKT:5
241 234-BMT20-040 SCREW: TS 2x4 BM TAP TYPE 4 DECK:4
242 234-MS030-040 SCREW: MS 3x4 (5.5x1x4) 5 BASE PANEL:4 DECK BRACKET:1
243 234-PA020-10B SCREW: TS 2x10 PA BLACK 1 COUPLER:1
244 234-PA050-160 SCREW: TS 5x16 PA 1 ACCESSORY:1
Lamp PCB:2 Base Panel:7 LCD
245 234-PB020-040 SCREW: TS 2x4 PB 12
246 234-PB020-050 SCREW: TS 2x5 PB 1 CD Guild Ref:1(White)
247 234-PB020-06B SCREW: TS 2x6 PB BLACK 7 N/BACK:5 LEFT REFLECTOR:2
248 234-PB020-06B SCREW: TS 2x6 PB BLACK 2 TUNING GEAR BRKT
249 234-PM030-130 SCREW: MS 3x13 PM 2 IC:2
250 234-PT026-040 SCREW: TS 2.6x4 TAP TYPE 4 DECK:4
251 234-PT030-050 SCREW: TS 3x5 TAP TYPE(C) 11
CAP:2 Left Relector
SIDE BKT:2 M/PCB:4
DECK BKT"3 SIDE CHA:2
252 234-PTT30-080 SCREW: TS 3x8 TAP TYPE(B) 2 CORD CLAMPER:2
253 234-PTT30-050 SCREW: TS 3x5 TAP TYPE(B) 6 HEAT SINK:6
254 235-10010-H12 SET KEY 2 EGI T1.2 70028036
255 236-38503-H10 CORD CLAMPER 1 EGI T1.0 66522430
256 301-0C025-060 POLY BAG 1 OPEN 2.5"x6"xt0.04
257 301-0C070-105 POLY BAG 1 OPEN 7"x10.5"xt0.04
258 301-0C110-140 POLY BAG 1 OPEN 11"x14"xt0.04
259 301-0C040-090 POLY BAG 1 OPEN 4"x9"xt70.040
260 303-00000-000 SNOW BOX 2
261 304-00000-000 GIFT BOX 1
Page 9
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
262 305-00000-000 INST'S MANUAL 1
263 306-00000-006 CARTON BOX (1/6) 1
264 313-39000-S00 PVC SHEEF TOR-LCD CAP 1 FOR LCD
265 314-0000T-000 TOP LABEL 1
266 314-0000W-000 WARRANTY LABEL 1
267 315-80580-AWE KNOB-COVER 1 PAPER WHITE T-0.1
268 315-36100-AWE LCD LAMP COVER 1 PAPER WHITE 93610096
269 316-BE835-205 LCD FILTER 83.5x20.5x0.1mm 1 NEFAM
270 319-00000-010 SILICA GEL 1gm 1 PACK
271 402-3003S-4BK NOSE PIECE CASE 1 P.P BLACK
272 402-8058A-3BK B-PANEL-8058 1 PC(BLACK) CCD8008 MODIFY
273 402-8058B-1BK NOSE-PIECE-8058 1 ABS(777)
274 402-8058C-3BK NOSE-PIECE-BACK-8058 1 PC CCD8008 MODIFY
275 413-8058A-2CR LCD-LENS 1 ACRYL(CLEAR)
276 413-8058R-2CR DISC-WINDOW 1 ACRYL CLEAR ( RDS )
277 414-8008D-2CR REFIECTOR CD GUIDE 1 Acryl Milk/White
278 414-80582-2CR RIGHT-REFLECTOR 1 ACRYL (CLEAR)
279 414-80583-2CR ORNAMENT-REFLECTOR 1 ACRYL (CLEAR)
280 414-80584-2CR REFLECTOR-CIRCLE 1 ACRYL(CLEAR)
281 414-80585-2CR RIGHT-REF-REAR 1 ACRYL(CLEAR)
282 414-80586-2CR MIDDLE-REF-REAR 1 ACRYL(CLEAR)
283 414-8058H-2CR LEFT-REF 1 ACRYL(CLEAR)
284 414-8058J-2CR LEFT-REF-REAR 1 ACRYL(CLEAR)
285 414-8058W-2CR MIDDLE-REFLECTOR 1 ACRYL (CLEAR)
286 414-3899V-2BE VOLUME-REFLECTOR 1 ACRYL (SKY BLUE)
287 421-8058D-1CR PLAY-KNOB 1 ABS(CLEAR)
288 421-8058E-1CR PLAY-KNOB-ARM 1 ABS(CLEAR)
289 423-8058A-2SE BAND-KNOB 1 ACRYL(SKY BLUE)
290 423-8058C-1NL BAND-KNOB-ARM 1 ABS(NATURAL)
291 425-8058A-2SE EQ-KNOB 1 ACRYL(SKY BLUE)
292 425-8058C-1NL EQ-KNOB-ARM 1 ABS(NATURAL)
293 426-3902A-1BK PULL KNOB 1 ABS (BLACK)CD3902COM
294 427-8058A-2SE POWER-KNOB 1 ACRYL(SKY BLUE)
295 427-8058C-1NL POWER-KNOB-ARM 1 ABS(NATURAL)
296 428-8058A-1NL VOLUME-KNOB-8058 1 ABS(CLEAR)
297 429-1186R-1BK TUNE KNOB (R) 1 ABS BLACK 61186430
298 429-8058A-1BK TUNING-KNOB-8058 1 ABS(BLACK)
299 429-8058B-3BK TUNE-KNOB-B-8058 1 PC(CLEAR)
Page 10
CONFIDENTIAL
NO PARTNO DESCRIPTION SPEC QTY SYMBOL
300 429-8058N-3BK TUNE-GEAR 1 PC(CLEAR)
301 429-8058P-3BK TUNE-KNOB-B-BRACKET 1 PC(CLEAR)
302 430-8058A-1NL EJECT-KNOB 1 ABS(CLEAR)
303 430-8058C-1NL EJECT-KNOB-RDS 1 ABS(CLEAR) (RDS )
304 430-8058L-1CR EJECT-KNOB-ARM 1 ABS(CLEAR)
305 435-8058D-1NL LOUD-KNOB-ARM 1 ABS(NATURAL)
306 435-8058F-2SE LOUD-RDM-KNOB 1 ACRYL(SKY BLUE)
307 436-8058A-1NL MUTE-KNOB 1 ABS(CLEAR)
308 436-8058C-1CR MUTE-KNOB-ARM 1 ABS(CLEAR)
309 437-8058A-1NL DSP-KNOB 1 ABS(CLEAR)
310 437-8058C-1CR DSP-KNOB-ARM 1 ABS(CLEAR)
311 439-8058A-1BK RELEASE-KNOB 1 ABS(BLACK)
312 440-1888A-3BK HOOK 1 P.C BLACK
313 441-1888A-3BK TRIM COVER 1 P.C BLACK
314 441-8008C-3WE LCD CAP PC White 1 P.C BLACK
315 447-3099A-1BK PUSH KNOB(FOR TEST SWITCH) 1 ABS (BLACK)3099COM
316 450-8058C-1CR LOC/RPT-KNOB-ARM 1 ABS(CLEAR)
317 450-8058E-1NL LOC/RPT KNOB 1 ABS(CLEAR)
318 454-8058A-2SE ORNAMENT-KNOB 1 ACRYL(SKY BLUE)
319 457-8058A-1NL TRACK-DOWN-KNOB 1 ABS(CLEAR)
320 457-8058B-1NL TRACK-UP-KNOB 1 ABS(CLEAR)
321 457-8058C-1CR TRACK-DOWN-ARM 1 ABS(CLEAR)
322 457-8058D-1CR TRACK-UP-ARM 1 ABS(CLEAR)
323 463-0000C-4BK FILTER FUSE BOX 1 P.P BLACK
324 472-3850A-3BK CONNECTOR GUIDE 1 P.C (BLACK) 66522960
325 472-8009C-5BK CD GUIDE SHEET 1 P.V.C (BLACK) T1.0
326 473-80580-5CR PVC-COVER-FOR-KNOB 1 PVC(CLEAR) T=0.3
327 473-8058A-5CR KNOB-TENSION-A 1 PVC(CLEAR) T=0.5
328 473-8058B-5CR KNOB-TENSION-B 1 PVC(CLEAR) T=0.5
329 473-8058C-5CR KNOB-TENSION-C 1 PVC(CLEAR) T=0.5
330 473-8058D-5CR KNOB-TENSION-D 1 PVC(CLEAR) T=0.5
331 474-1888A-3BK COUPLER (A) 1 P.C BLACK
332 474-1888B-3BK COUPLER (B) 1 P.C BLACK
333 491-8058A-1NL AUDIO-KNOB 1 ABS(CLEAR)
334 491-8058C-1CR AUDIO-KNOB-ARM 1 ABS(CLEAR)
335 496-8058A-1NL MO/INT KNOB 1 ABS(CLEAR)
336 496-8058C-1CR MO/INT-KNOB-ARM 1 ABS(CLEAR)

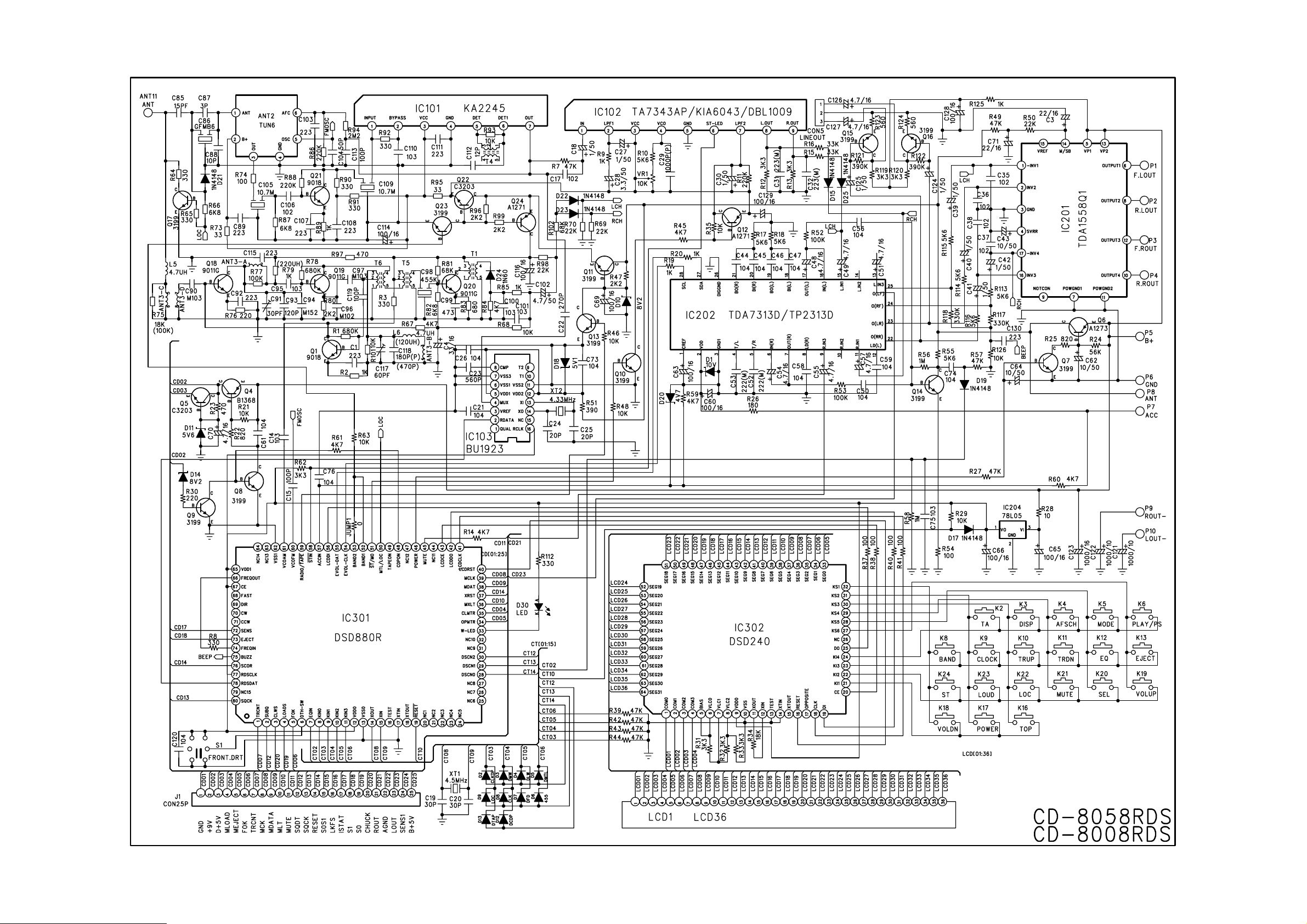

Page 11
Page 12
Loading...
