Service Manual
- CD-302MP/FM
R
CD-302MP/FM
Service Manual
- CD-302MP/FM
NO ITEM CODE DESCRIPTION QTY SYMBOL
1 001-0000S-B90 P.C.B FILTER BOX 1

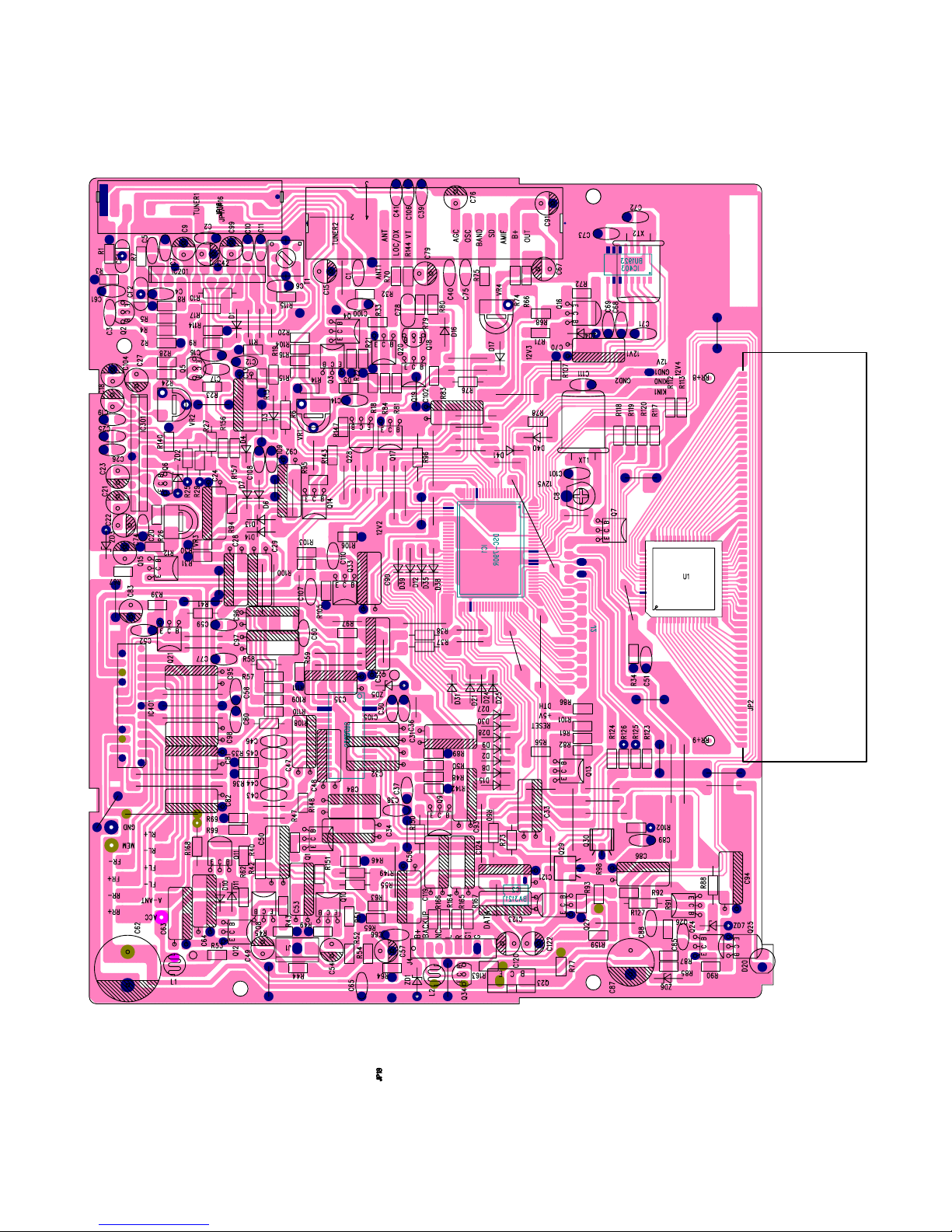

2 001-3900S-P90 P.C.B MAIM BOARD 1
3 002-01140-A09 I.C LA1140 1 IC201
4 002-03370-A09 I.C LA3370 1 IC301
5 002-2313L-B00 I.C PT2313L 1
6 002-07900-H00 I.C DSC-7900 1
7 002-07381-J06 I.C TDA7381 1 IC401
8 002-07035-T00 I.C KIA7035 1 Q30
9 002-75823-H00 I.C LC75823 1
10 002-78L05-F00 I.C KIA78L05 1 Q29
11 003-0966Y-A02 TRANSISTOR 2SA966Y PNP TO-92 1 Q11
12 003-01368-C00 TRANSISTOR KTB1368 1 Q23
13 003-1267Y-A00 TRANSISTOR KTA1267Y 1 Q5
14 003-1271Y-A03 TRANSISTOR KTA1271Y 1 Q14
15 003-03205-E03 TRANSISTOR C3205 1 Q26
16 003-3192Y-D03 TRANSISTOR KTC3192Y 1 Q2
17 003-3199Y-A00 TRANSISTOR KTC3199Y 18
Q18.4.20.17.3.19.33.7.6.
21.12.8.1.10.13.24.25.9
18 003-3203Y-D03 TRANSISTOR STC3203Y 2 Q28.15
19 004-04001-000 DIODE IN4001 1 FILTER BOX
20 004-04148-000 DIODE IN4148 25
D40.41.16.17.1.3.6.7.13.14.12.
35.31.21.24.25.15.8.28.30.27.
10.11.4.38
21 005-00051-A00 ZENER DIODE 1/2W 5.1V 2 ZD2.1
22 005-00039-A00 ZENER DIODE 1/2W 3.9V 1 ZD7
23 005-00075-A00 ZENER DIODE 1/2W 7.5V 1 ZD6
24 005-00100-A00 ZENER DIODE 1/2W 10V 2 ZD5.3
25 006-04500-000 CRYSTAL HC-49U 4.5MHz 1 XT1
NO ITEM CODE DESCRIPTION QTY SYMBOL
26 007-05046-7GY I.F.T 7x7mm K5046 GREY 1 T1
27 008-93197-C02 LCD DISPLAY 93197 BMM1 1 (GREEN)
28 009-00730-A01 TUNER (AM) CET-730 1
29 009-0201V-A02 TUNER (FM) KCF-201V 1
30 010-A0222-000 CHOCK COIL 22mH 1 L1
31 011-A010F-200 RES 1/2W ±5% 1 OHM 1 R168
32 011-A100D-200 RES 1/4W ±5% 10 OHM 1 R127
33 011-A100A-200 RES 1/16W ±5% 10 OHM 1 R98
34 011-A101A-200 RES 1/16W ±5% 100 OHM 5 R117.118.119.120.105
35 011-A102A-200 RES 1/16W ±5% 1K OHM 14
D5.R96.83.144.81.32.26.108.
109.110.111.55.54.88
36 011-A103A-200 RES 1/16W ±5% 10K OHM 18
R33.70.140.4.41.148.40.65.50.
60.77.92.123.124.86.101.61.6
5
37 011-A104A-200 RES 1/16W ±5% 100K OHM 4 R21.18.97.99
38 011-A105A-200 RES 1/16W ±5% 1M OHM 1 R103
39 011-A151A-200 RES 1/16W ±5% 150 OHM 1 R80
40 011-A152A-200 RES 1/16W ±5% 1.5K OHM 4 R79.85.87.82
41 011-A153A-200 RES 1/16W ±5% 15K OHM 2 R11.12
42 011-A181A-200 RES 1/16W ±5% 180 OHM 1 R53
43 011-A182A-200 RES 1/16W ±5% 1.8K OHM 1 R3
44 011-A221A-200 RES 1/16W ±5% 220 OHM 1 R90
45 011-A222A-200 RES 1/16W ±5% 2.2K OHM 3 R95.125.126
46 011-A223A-200 RES 1/16W ±5% 22K OHM 17
R74.15.16.104.19.9.114.10.
24.8.115.94.30.31.37.38.63
47 011-A224A-200 RES 1/16W ±5% 220K OHM 1 R102
48 011-A330A-200 RES 1/16W ±5% 33 OHM 4 R76.28.17.6
49 011-A331A-200 RES 1/16W ±5% 330 OHM 3 R5.7.1
50 011-A332A-200 RES 1/16W ±5% 3.3K OHM 6 R25.29.44.149.150.52
51 011-A333A-200 RES 1/16W ±5% 33K OHM 1 R20
52 011-A334A-200 RES 1/16W ±5% 330K OHM 3 R23.57.58
53 011-A471A-200 RES 1/16W ±5% 470 OHM 2 R84.91
54 011-A472A-200 RES 1/16W ±5% 4.7K OHM 8 R112.113.78.75.2.42.151.64
55 011-A473A-200 RES 1/16W ±5% 47K OHM 9
R107.66.14.13.27.39.106.69.89
56 011-A474A-200 RES 1/16W ±5% 470K OHM 4 R43.47.51.48
NO ITEM CODE DESCRIPTION QTY SYMBOL
57 011-A513A-200 RES 1/16W ±5% 51K OHM 1 R34
58 011-A561A-200 RES 1/16W ±5% 560 OHM 4 R45.49.46.142
59 011-A562A-200 RES 1/16W ±5% 5.6K OHM 6 R22.156.157.100.35.36
60 011-A681A-200 RES 1/16W ±5% 680 OHM 2 R147.143
61 011-A821A-200 RES 1/16W ±5% 820 OHM 2 R67.62
62 012-C105F-300 ELEC CAP 1uF 50V 5x11mm 8 C67.15.42.13.21.23.83.82
63 012-C106C-300 ELEC CAP 10uF 16V 5x11mm 5 C9.24.63.102.18
64 012-C107C-300 ELEC CAP 100uF 16V 5x11mm 6 C99.104.74.55.56.57
65 012-C224F-300 ELEC CAP 0.22uF 50V 5x11mm 1 C79
66 012-C104F-300 ELEC CAP 0.1uF 50V 5x11mm 4 C96.97.98.95
67 012-C474F-300 ELEC CAP 0.47uF 50V 5x11mm 2 C53.50
68 012-C335F-300 ELEC CAP 3.3uF 50V 5x11mm 2 C27.22
69 012-C475F-300 ELEC CAP 4.7uF 50V 5x11mm 15
C28.29.105.32.31.47.48.84.
34.93.119.54.49.64.33
70 012-C476C-300 ELEC CAP 47uF 16V 5x11mm 7 C91.92.90.81.86.94.35
71 012-L108C-300 ELEC CAP 1000uF 16V 10x18mm 1 C87
72 012-U228C-300 ELEC CAP 2200uF 16V 10x30mm 1 C62
73 012-P108D-300 ELEC CAP 1000uF 25V 13x20mm 1 FILTER BOX
74 013-A103A-400 MYLAR CAP ±10% 0.01uF 2 C78.19
75 013-A223A-400 MYLAR CAP ±10% 0.022uF 2 C25.26
76 013-A272A-400 MYLAR CAP ±10% 0.0027uF 2 C30.36
77 013-B102A-400 POLY CAP 1000PF 50V 1 C20
78 014-A101C-500 CER CAP ±10% 100PF 50V 2 C16.11
79 014-A102C-500 CER CAP ±10% 0.001uF 50V 4 C80.58.77.59
80 014-A103C-500 CER CAP ±10% 0.01PF 50V 5 C60.41.106.40.75
81 014-A104C-500 CER CAP ±10% 0.1uF 50V 17
C100.111.110.107.52.46.?.
37.38.65.66.89.85.2.43.44.4
5
82 014-A222C-500 CER CAP ±10% 0.0022uF 50V 3 C108.109.14
83 014-A223C-500 CER CAP ±10% 0.022uF 50V 7 C5.7.61.3.4.12.88
84 014-A271C-500 CER CAP ±10% 270PF 50V 1 C17
85 014-A200C-500 CER CAP ±10% 20PF 50V 2 C1.39
86 014-A330C-500 CER CAP ±10% 33PF 50V 1 C101
87 014-A150C-500 CER CAP ±10% 15PF 50V 1 C10
NO ITEM CODE DESCRIPTION QTY SYMBOL
88 014-A473C-500 CER CAP ±10% 0.047uF 50V 1 C6
89 014-A681C-500 CER CAP ±10% 680PF 50V 1 C51
90 015-H0103-E00 SEMI-FIXED 10KB 1 VR3
91 015-H0203-E00 SEMI-FIXED 20KB 2 VR2.4
92 015-H0503-E00 SEMI-FIXED 50KB 1 VR1
93 016-C0300-600 TRIMMER CAP 30PF 1 C8
94 017-B0107-400 CER FILTER 10.7MJA 2 CF1.2
95 022-C7000-000 FUSE 7A 1
96 023-A0030-RD0 LED RED 3mm 1 D20
97 029-B0000-000 ANTENNA JACK D.SCRWE 1
98 033-S1000-GY0 28# 1P SHIELD WIRE 100mm 1
99 034-A1612-005 I.S.O 16P W/WIRE 12P 1
100 035-B0500-BK1 JUMPER WIRE #20 50mm BLACK 1
101 035-B0600-RD1 JUMPER WIRE #20 60mm RED 1
035-E0600-RD1 JUMPER WIRE #26 60mm RED 1
102 035-E1000-BE1 JUMPER WIRE #26 100mm BLUE 1
103 035-E1200-BK1 JUMPER WIRE #26 120mm BLACK 1
104 036-A0250-030 3P WAFER P=2.5mm ST 1
105 036-D0125-250 25PIN CONNECTOR PITCH P=1.25mm 1
106 037-G5300-2B1 3P H'ING P2.5mm 2xSH L=300mm GREY 1
107 042-30010-000 FUSE HOLDER 2
108 316-WE838-214 LCD FILTER 83.8x21.4mm 2 (3900 COM) (WHITE)
109 201-EI240-000 CHOCK TRANS EI-24 1
FRONT PCB ASSEMBLY
110 001-3908S-T10 P.C.B FRONT BOARD 1
111 011-A102A-200 RES 1/16W +-5% 1K OHM 2 R15.5
112 011-A152A-200 RES 1/16W +-5% 1.5K OHM 2 R16.6
113 011-A181A-200 RES 1/16W +-5% 180 OHM 1 R10
114 011-A221A-200 RES 1/16W +-5% 220 OHM 1 R11
115 011-A222A-200 RES 1/16W +-5% 2.2K OHM 1 R7
116 011-A223A-200 RES 1/16W +-5% 22K OHM 1 R19
NO ITEM CODE DESCRIPTION QTY SYMBOL
117 011-A331A-200 RES 1/16W +-5% 330 OHM 2 R2.12
118 011-A391A-200 RES 1/16W +-5% 390 OHM 1 R1
119 011-A392A-200 RES 1/16W +-5% 3.9K OHM 1 R17
120 011-A332A-200 RES 1/16W +-5% 3.3K OHM 1 R8
121 011-A471A-200 RES 1/16W +-5% 470 OHM 2 R3.13
122 011-A472A-200 RES 1/16W +-5% 4.7K OHM 1 R9
123 011-A681A-200 RES 1/16W +-5% 680 OHM 2 R14.4
124 011-A822A-200 RES 1/16W +-5% 8.2K OHM 1 R18
125 024-40140-300 LAMP 14V 40mA 3mm 2
126 024-40063-260 LAMP 6.3V 40mA 2.6mm 6
127 024-40063-300 LAMP 6.3V 40mA 3mm 8
128 025-TA020-500 TACT SW 5mm 2P 15
129 025-TA020-800 TACT SW 8mm 2P 6
130 025-TA060-580 PUSH S/W 5.8x5.8 2216N NO LOCK 1
131 035-F1400-BE1 JUMPER WIRE #28 140mm Blue 1 B-B
132 035-F1500-BK1 JUMPER WIRE #28 150mm Black 1 F-F
133 035-F1600-RD1 JUMPER WIRE #28 160mm RED 1 E-E
134 035-F1600-YW1 JUMPER WIRE #28 160mm Yellow 1 12V
135 035-F1600-BE1 JUMPER WIRE #28 160mm Blue 1 KEY2
136 035-F1600-VT1 JUMPER WIRE #28 160mm Violet 1 KEY1
137 035-F1600-BK1 JUMPER WIRE #28 160mm Black 1 GND
138 035-F1000-GY1 JUMPER WIRE #28 100mm GRAY 2 TO LAMP PCB
139 035-F1500-PK1 JUMPER WIRE #28 150mm PINK 1 RESET
140 035-F1500-RD1 JUMPER WIRE #28 150mm RED 1 DTH
141 040-GN030-A00 LAMP CAP 3mm GREEN 9
142 040-GN026-A00 LAMP CAP 2.6mm GREEN 4
CDP BOARD ASSEMBLY
1 001-3895D-C20 P.C.B CD-3895 CDP MP3 1 NEW
2 002-0016M-P00 I.C 16M DRAM 1 U5
3 002-09226-S01 I.C SIL9226X 1
4 002-09276-H00 I.C S5L9276 1
NO ITEM CODE DESCRIPTION QTY SYMBOL
5 002-09290-G01 I.C S5L9290 1
6 002-9259D-A01 I.C KA9259D 1
7 003-01504-B03 TRANSISTOR KTA1504S GR (SMD TYPE) 1 Q1
8 003-01576-S07 TRANSISTOR 2SA1576 SMD 5 Q2.5.6.3.4
9 004-04148-000 DIODE IN4148 5 D3.4.5.1.2
10 004-SR23G-000 PHOTO DIODE SR-23G 2 LED3.4
11 006-16934-000 CRYSTAL 16.9344MHz (2PIN) 1
12 011-S000A-200 RES CHIP ±5% 0805 0 OHM 1 R112
13 011-S102A-200 RES CHIP ±5% 0805 1K OHM 9
R127.111.56.113.114.
115.102.101.116
14 011-S103A-200 RES CHIP ±5% 0805 10K OHM 8
R125.124.105.107.106.219.129.
130
15 011-S104A-200 RES CHIP ±5% 0805 100K OHM 8
R103.104.218.220.
228.223.226.227
16 011-S105A-200 RES CHIP ±5% 0805 1M OHM 5 R1.117.118.27.215
17 011-S124A-200 RES CHIP ±5% 0805 120K OHM 2 R202.207
18 011-S153A-200 RES CHIP ±5% 0805 15K OHM 4 R213.212.209.221
19 011-S184A-200 RES CHIP ±5% 0805 180K OHM 1 R211
20 011-S203A-200 RES CHIP ±5% 0805 20K OHM 1 R216
21 011-S204A-200 RES CHIP ±5% 0805 200K OHM 1 R126
22 011-S220A-200 RES CHIP ±5% 0805 22 OHM 1 R201
23 011-S222A-200 RES CHIP ±5% 0805 2.2K OHM 5 R119.120.121.122.123
24 011-S392A-200 RES CHIP ±5% 0805 3.9K OHM 1 R210
25 011-S473A-200 RES CHIP ±5% 0805 47K OHM 4 R131.222.217.128
26 011-S680A-200 RES CHIP ±5% 0805 68 OHM 1 R34
27 011-S683A-200 RES CHIP ±5% 0805 68K OHM 5 R204.206.203.205.225
28 011-S820A-200 RES CHIP ±5% 0805 82 OHM 1 R208
29 011-S822A-200 RES CHIP ±5% 0805 8.2K OHM 1 R214
30 011-S913A-200 RES CHIP ±5% 0805 91K OHM 1 R224
31 012-1107B-300 ELECT CAP 100uF 10V +-20% 5x7mm 3 C102.1.124
32 013-D106L-50A Tantal Chip CAP 10uF 10V ±20% "A-Size" 6 C109.110.211.222.?.?
33 013-D476L-50B Tantal Chip CAP 47uF 10V ±20% "B-Size" 2 Q7.C202
34 014-S050C-500 CER CAP CHIP ±10% 0805 5PF 50V 1 C208
35 014-S102C-500 CER CAP CHIP ±10% 0805 0.001uF 50V 4 C205.210.121.201
NO ITEM CODE DESCRIPTION QTY SYMBOL
36 014-S103C-500 CER CAP CHIP ±10% 0805 0.01uF 50V 6 C206.204.216.221.220.108
37 014-S104C-500 CER CAP CHIP ±10% 0805 0.1uF 50V 19
C123.113.112.114.53.203.234.
214.215.212.229.228.115.104.
38 014-S152C-500 CER CAP CHIP ±10% 0805 0.0015uF 50V 2 C111.112
39 014-S222C-500 CER CAP CHIP ±10% 0805 0.0022uF 50V 4 C101.107.213.226
40 014-S330C-500 CER CAP CHIP ±10% 0805 33PF 50V 2 C117.118
42 014-S333C-500 CER CAP CHIP ±10% 0805 0.033uF 50V 2 C230.217
43 014-S391C-500 CER CAP CHIP ±10% 0805 390PF 50V 2 C225.227
44 014-S472C-500 CER CAP CHIP ±10% 0805 0.0047uF 50V 2 C209.233
45 014-S474C-500 CER CAP CHIP ±10% 0805 0.47uF 50V 2 C218.219
46 014-S560C-500 CER CAP CHIP ±10% 0805 56PF 50V 1 C231
47 014-S683C-500 CER CAP CHIP ±10% 0805 0.068uF 50V 1 C223
48 014-S821C-500 CER CAP CHIP ±10% 0805 820PF 50V 1 C119
49 025-TA020-330 SWITCH 2P 3.3mm SW-111 HC-49S 1 SW1 (small type)
50 031-0140U-250 FFC CABLE 25P 140mm 1.25P ITCH 1 140mm
51 032-E1000-031 RAINBOW WIRE 3P 1 3+100+3
52 036-B0200-041 4P SOCKET 53015-0410 (ROHM) 1 J4
53 036-G0100-171 17P SMT SOCKET P=1.0mm 1 J1
54 203-8008S-C2E CD DECK CDM-211 1
197 209-11000-N00 LOCK SPRING 1 SUS T0.4
198 209-30010-K00 RELEASE SPRING 1
SUS T0.35
HOOK 1
199 209-18880-F00 PULL SPRING 1
200 209-38000-G00 FF/REW SPRING 1 SUS FOR REL 1
201 212-52090-14S SPRING WASHER (Ф5.2) 3 SET:1 ACC:2
202 212-52100-05P PLATE WASHER (Ф5.2) 3 SET:1 ACC:2
203 214-18880-C00 MAIN FIBER 1 FIBER T0.5
204 214-DECK0-A00 CD FIBER 105x95x0.5mm 1 FOR CD KMC DECK
205 216-3888A-C00 HEAT SINK 1 AL DIECASTING
206 217-1001E-E12 MOUNTING STRIP 1 EGI T1.2
207 218-3880E-E10 IC BRACKET 1 EGI T1.0
208 218-3888C-E10 DECK BRACKET 1 EGI T1.0
NO ITEM CODE DESCRIPTION QTY SYMBOL
209 218-3888L-E10 DECK BRACKET "L" 1 EGI T1.0
210 218-3888R-E10 DECK BRACKET "R" 1 EGI T1.0
211 222-1001S-E06 SLEEVE CASE 1 EGI T1.0
212 222-3501B-H06 BOTTOM COVER A/R 1 EGI T0.6
213 222-3888L-E10 SIDE CHASSIS "L" 1
EGI T1.0
214 222-3888R-E10 SIDE CHASSIS "R" 1 EGI T1.0
215 222-3888T-E06 TOP COVER 1 EGI T0.6
216 223-1888A-E06 SIDE BRACKET 2 RGI T0.6
217 225-09007-400 CUSHION BOTTOM 5
218 227-30010-EA5 CASE CUSHION 2 SPONGE T15mm
219 227-30050-E60 CASE CUSHION "B" 2 SPONGE
220 227-39080-L50 LEFT SPONGE WHITE T=5.0mm 1 SOFT SPONGE
221 227-39080-R50 RIGHT SPONGE WHITE T=5.0mm 1 SOFT SPONGE
222 227-39080-M30 MIDDLE SPONGE WHITE T=3.0mm 1 SOFT SPONGE
223 228-3888A-000 CD FELT 1 CLOTH BLACK
230-100WE-200 WIRE CLIP 2
224 231-P0060-130 PVC TUBE Ф13mm L=60mm 1.0mm 1
225 233-N030W-H00 HEX NUT: M3 1
233-N050W-H00 HEX NUT: M5 2
226 234-HEX50-220 HEX BOLT: 5x22mm 1 SET:1
227 234-MS030-050 SCREW: MS 3x5 (5.5x1x5) 4 BASE PANEL:4
228 234-PA020-05B SCREW: TS 2x5 PA BLACK 13
F/PCB:7 LAMP PCB:2
L/CAP:2 REF
(
REAR) R:1 L:1
229 234-PA020-06B SCREW: TS 2x6 PA BLACK 6 N/BACK:6
230 234-PA050-160 SCREW: TS 5x16 PA 1 ACC:1
231 234-PM030-080 SCREW: TS 3x8 PM 1 IC:1
232 234-PM030-130 SCREW: MS 3x13 PM 2 IC:2
233 234-BMT20-040 SCREW: TTP 2x4 BM TAP TYPE 4 SUB PCB:4
234 234-PT026-040 SCREW: TS 2.6x4 TAP TYPE 5 DECK BRT:5
235 234-PT030-050 SCREW: TS 3x5 TAP TYPE (C) 10
236 234-PTT30-050 SCREW: TS 3x5 TAP TYPE (B) 8
237 234-PTT30-080 SCREW: TS 3x8 TAP TYPE (B) 2 CORD CLAMPER:2
NO ITEM CODE DESCRIPTION QTY SYMBOL
238 235-10010-H12 SET KEY 1 EGI T1.2
239 236-38501-H10 CORD CLAMER "B" 1
EGI T1.0 (LINE OUT)
240 301-0C025-060 POLY BAG 1 OPEN 2.5"x6"XT0.04
241 301-0C070-105 POLY BAG 1 OPEN 7"x10.5"XT0.05
242 301-0C110-140 POLY BAG 1 OPEN 11"x14"XTo.04
243 303-0000A-A10 POLYFOAM BOX 2
244 304-3908A-A10 GIFT BOX 1
245 305-3908A-A10 INSTRUCTION MANUAL 1
246 306-39080-A06 CARTON BOX 1/6 1
247 313-38880-A00 P.V.C CD GUIDE SHEET BLACK 1 T1.0
248 313-39000-S00 PVC SHEET 1 PVC BLACK T=0.3
249 313-39080-5CR MEMORY KNOB PLECE 1 PVC T=0.3 CLEAR
250 314-3908A-000 AZIMUTH LABEL 1
251 314-3908T-000 TOP LABEL 1
252 314-3908W-000 WARRANTY LABEL 1
253 314-3900K-A00 GOLD LABEL 55x55mm 1
254 319-00000-010 SILICA GEL 1 PACK 1GM
255 402-3906A-3BK BASE PANEL 1 PC BLACK
256 402-3908B-1BK NOSE PIECE 1 ABS BLACK
257 402-3908C-3BK NOSE PIECE BACK 1 PC BLACK
258 402-3003S-4BK NOSE PIECE CASE 1 P.P BLACK
259 411-3900C-3WE LCD CAP 1 PC WHITE
260 413-3908A-2CR LCD WINDOW 1 PMMA (CLEAR)
261 414-3900A-2WE CD GUIDE REFLECTOR 1 PMMA (MILK WHITE)
262 414-3908B-2WE LEFT REFLECTOR REAR 1 PMMA (MILK WHITE)
263 414-3908C-2WE RIGHT REFLECTOR REAR 1 PMMA (MILK WHITE)
264 414-3908D-2BE REFLECTOR RING 1 PMMA ( BLUE)
265 414-3908L-2WE FRONT REFLECTOR 1 PMMA ( MILK WHITE)
266 414-3908Y-2WE MIDDLE REFLECTOR REAR 1 PMMA (MILK WHITE)
267 423-3908A-1NL BAND KNOB 1 ABS (NATURAL)
NO ITEM CODE DESCRIPTION QTY SYMBOL
268 431-39081-1NL MEMORY KNOB "1" 1 ABS (NATURAL)
269 431-39082-1NL MEMORY KNOB "2" 1 ABS (NATURAL)
270 431-39083-1NL MEMORY KNOB "3" 1 ABS (NATURAL)
271 431-39084-1NL MEMORY KNOB "4" 1 ABS (NATURAL)
272 431-39085-1NL MEMORY KNOB "5" 1 ABS (NATURAL)
273 431-39086-1NL MEMORY KNOB "6" 1 ABS (NATURAL)
274 424-3908A-1NL ST KNOB 1 ABS (NATURAL)
275 426-3902A-1BK PULL KNOB 1 ABS (BLACK)
276 427-3908A-1NL POWER KNOB 1 ABS (NATURAL)
277 428-3908C-1NL VOLUME KNOB 1 ABS (NATURAL)
278 429-3908D-1NL TUNE TRK "》" 1 ABS (NATURAL)
279 429-3908E-1NL TUNE TRK "《" 1 ABS (NATURAL)
280 430-3908A-1NL EJECT KNOB 1 ABS (NATURAL)
281 432-3908A-1NL SEL KNOB 1 ABS (NATURAL)
282 437-3908A-1NL DISP KNOB 1 ABS (NATURAL)
283 439-3908A-1NL RELEASE KNOB 1 ABS (BLACK)
284 440-3900A-3BK HOOK 1 PC BLACK
285 441-1888A-3BK TRIM COVER 1 PC BLACK
286 445-3908A-1NL MODE KNOB 1 ABS (NATURAL)
287 446-3908A-INL AF KNOB 1 ABS (NATURAL)
288 446-3908D-1NL TA KNOB 1 ABS (NATURAL)
289 446-3908H-1NL PTY KNOB 1 ABS (NATURAL)
290 447-3099A-1BK PUSH KNOB 1 ABS (BLACK)
291 463-0000C-4BK FILTER & FUSE BOX 1 P.P BLACK
292 472-6522B-3BK CONNECTOR GUIDE 1 PC BLACK
293 483-3908A-1BK ORNAMENT RING 1 ABS (BLACK)
Loading...
