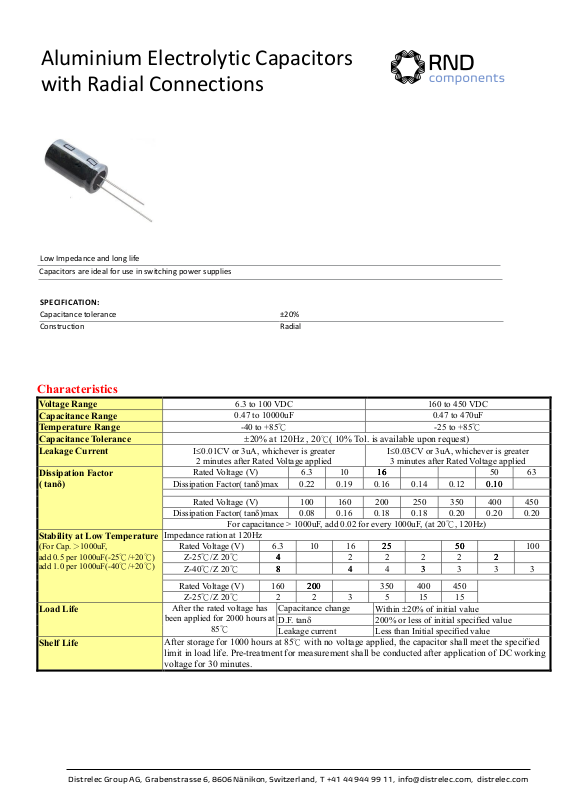

Aluminium Electrolytic Capacitors
with Radial Connections
Low Impedance and long life
Capacitors are ideal for use in switching power supplies
SPECIFICATION:
Capacitance tolerance
Construction Radial
±20%
Characteristics
Voltage Range
Capacitance Range
Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
( tanδ)
Stability at Low Temperature
(For Cap.＞1000uF,
add 0.5 per 1000uF(-25℃/+20℃)
add 1.0 per 1000uF(-40℃/+20℃)
Load Life
Shelf Life
6.3 to 100 VDC 160 to 450 VDC
0.47 to 10000uF 0.47 to 470uF
-40 to +85℃ -25 to +85℃
20% at 120Hz , 20
I0.01CV or 3uA, whichever is greater
2 minutes after Rated Voltage applied
Rated Voltag (V)e 6.3 10 116166 16 63 50
Dissipation Factor( tanδ)max 0.16 0.19 0.22 0.14 0.12 00.10.10.1
Rated Voltag (V)e 160 100 200 250 350 450 400
Dissipation Factor( tanδ)max 0.16 0.08 0.18 0.18 0.20 0.20 0.20
For capacitance > 1000uF, add 0.02 for every 1000uF, (at 20℃, 120Hz)
Impedance ration at 120Hz
Rated Voltag (V)e 6.3 16 10 252525 505050 100
Z-25 /Z 20℃℃ 444 2 2 2 2 222
Z-40 /Z 20℃℃ 888 44 4 33 3 3 3
Rated Voltag (V)e 160 20020020 400 350 450
Z-25 /Z 20℃℃ 2 2 5 3 15 15
After the rated voltage has
been applied for 2000 hours at
85℃
After storage for 1000 hours at 85
limit in load life. Pre-treatment for measurement shall be conducted after application of DC working
voltage for 30 minutes.
Capacitance change
D.F. tan
Leakage current Less than Initial specified value
℃( 10% Tol. is available upon request)
I0.03CV or 3uA, whichever is greater
3 minutes after Rated Voltage applied
Within 20% of initial value
200% or less of initial specified value
℃ with no voltage applied, the capacitor shall meet the specified
Distrelec Group AG, Grabenstrasse 6, 8606 Nänikon, Switzerland, T +41 44 944 99 11, info@distrelec.com, distrelec.com
Drawing
D
p
d
5 6.3 8 10 13 16 18 22
2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8
Ripple Current Coefficients
Frequency (Hz) 50(60) 120 400 1K 10K 100K
Cap.(uF) / Hz Multiplier
Ca ≦p. 10
10 Cap.＜≦100
100 Cap.＜≦1000
1000＜Cap.
PRODUCT RANGE:
Art. Nr. Capacitance Rated voltage Dimensions ø x L Pitch
RND 150EXR681M16B 680 µF 16 V 10 x 16 mm 5 mm
RND 150EXR681M25B 680 µF 25 V 10 x 21 mm 5 mm
RND 150EXR681M35B 680 µF 35 V 13 x 21 mm 5 mm
RND 150EXR681M50B 680 µF 50 V 13 x 26 mm 5 mm
RND 150EXR221M35B 220 µF 35 V 10 x 16 mm 5 mm
RND 150EXR101M25B 100 µF 25 V 6.3 x 11 mm 2.5 mm
RND 150EXR101M2AB 100 µF 100 V 13 x 21 mm 5 mm
RND 150EXR101M35ATA 100 µF 35 V 8 x 12 mm 3.5 mm
RND 150EXR101M35B 100 µF 35 V 8 x 12 mm 3.5 mm
RND 150EXR101M50B 100 µF 50 V 10 x 12.5 mm 5 mm
RND 150EXR101M63B 100 µF 63 V 10 x 16 mm 5 mm
RND 150EXR102M16B 1000 µF 16 V 10 x 21 mm 5 mm
RND 150EXR102M25B 1000 µF 25 V 13 x 21 mm 5 mm
RND 150EXR102M35B 1000 µF 35 V 13 x 26 mm 5 mm
RND 150EXR221M16B 220 µF 16 V 8 x 12 mm 3.5 mm
RND 150EXR221M25B 220 µF 25 V 8 x 12 mm 3.5 mm
RND 150EXR221M63B 220 µF 63 V 10 x 21 mm 5 mm
RND 150EXR222M35B 2200 µF 35 V 16 x 31.5 mm 7.5 mm
0.8 1 1.30 1.45 1.65 1.70
0.8 1 1.23 1.36 1.48 1.53
0.8 1 1.16 1.25 1.35 1.38
0.8 1 1.11 1.17 1.25 1.28
Distrelec Group AG, Grabenstrasse 6, 8606 Nänikon, Switzerland, T +41 44 944 99 11, info@distrelec.com, distrelec.com
Art. Nr. Capacitance Rated voltage Dimensions ø x L Pitch
RND 150EXR331M25ATA 330 µF 25 V 8 x 14 mm 3.5 mm
RND 150EXR331M35B 330 µF 25 V
10 x 16 mm
3.5 mm
RND 150EXR331M50B 330 µF 50 V 10 x 21 mm 5 mm
RND 150EXR332M25B 3300 µF 25 V 16 x 31.5 mm 7.5 mm
RND 150EXR470M2AB 47 µF 100 V
10 x 16 mm
5 mm
RND 150EXR470M50ATA 47 µF 50 V 6.3 x 11 mm 2.5 mm
RND 150EXR470M63B 47 µF 63 V 8 x 12 mm 3.5 mm
RND 150EXR471M16B 470 µF 16 V 10 x 12.5 mm 5 mm
RND 150EXR471M25B 470 µF 25 V 10 x 16 mm 5 mm
RND 150EXR471M35B 470 µF 35 V 10 x 21 mm 5 mm
RND 150EXR471M50B 470 µF 50 V 13 x 21 mm 5 mm
RND 150EXR471M63B 470 µF 63 V 13 x 26 mm 5 mm
RND 150EXR680M50B 68 µF 50 V 8 x 12 mm 3.5 mm
RND 150EXR680M63B 68 µF 16 V
10 x 12.5 mm
2 mm
Distrelec Group AG, Grabenstrasse 6, 8606 Nänikon, Switzerland, T +41 44 944 99 11, info@distrelec.com, distrelec.com
