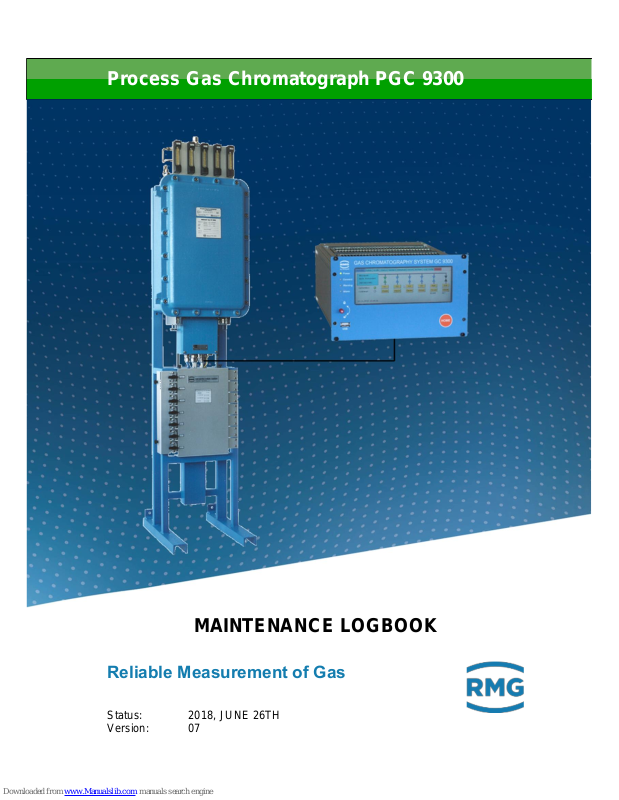

Page 1
Process Gas Chromatograph PGC 9300
MAINTENANCE LOGBOOK
Reliable Measurement of Gas
Status: 2018, JUNE 26TH
Version: 07
Page 2
Contact
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
Manufacturer
Our customer service is available for technical queries
Address
RMG Messtechnik GmbH
Otto-Hahn-Straße 5
D-35510 Butzbach
Telefon switchboard
+49 6033 897 – 0
Telefon service
+49 6033 897 – 0
Telefon spare parts
+49 6033 897 – 173
Fax +49 6033 897 – 130
E-mail
Original Document
The logbook PGC9300_maintenance_manual_en_07
from 2018, June 26th for the gas chromatograph
PGC9300 is the document translated first from the
German original version. Anyhow, this document may
serve as reference for translations into other languages.
Please use in case of any uncertainties the German
version as main reference.
Note
Unfortunately, paper is not updated automatically,
whereas technical development continuously advances.
Therefore, we reserve the right to make technical
changes in regard to the representations and
specifications of these operating instructions. The latest
version of this manual (and other devices) can be
downloaded at your convenience from our Internet
home-page
www.rmg.com
Date created
-
…
4th revision date
January 2016
5th revision date
March 2018
6th revision date
2018, June 26th
Document version and
language
Dokument
version
PGC9300_maintenance_manual_en_07
2018, June 26th
Language
EN
Page 3
Your PGC9300
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
PGC 930 Maintenace Logbook
PGC manufacturer number
PGC year of manufacture
Meter serial number
GC 9300 manufacturer number
GC 9300 year of manufacture
GC 9300 software version
Approved for
Calorific value
Gas quality
Operator
Station
Commissioning
Type / carrier
gas
Column temperature
[°C]
Column pressure
[kPa]
Flushing time
[s]
Column A
Column B
Column C
Date
Signature
Page 4
Contents
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
Inhalt
1. Instructions for Keeping the Maintenance Logbook .................................. 1
1.1. Inspection.................................................................................................... 1
1.1.1. Operating parameters on the GC 9300 .................................................. 1
1.1.2. Cylinder pressures .................................................................................. 2
1.2. Maintenance by service technicians ......................................................... 2
2. Manufacturer's requirements ........................................................................ 3
2.1. Annual maintenance of the process gas chromatograph ....................... 3
2.2. Metrological check / (re)calibration .......................................................... 3
Table Section 1 ..................................................................................................... 4
Cylinder pressures ............................................................................................... 4
Table section 2 ..................................................................................................... 8
Maintenance measures, general ................................................................ ......... 8
Table section 3 ................................................................................................... 19
Annual routine maintenance ............................................................................. 19
Table section 4 ................................................................................................... 30
Test gas analyses ............................................................................................... 30
Page 5
1. Instructions for Keeping the Maintenance Logbook
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
1
1. Instructions for Keeping the Maintenance
Logbook
The maintenance logbook is part of the design approval and is used to monitor the
operation of the device. It is therefore mandatory that this maintenance logbook
should be kept. When a service callout is required, the original maintenance
logbook, or a copy, should be sent to the manufacturer.
The information on the first page and the relevant data in the table are entered by
the testing laboratory before the device is delivered. This documents the condition
of the device on delivery.
The device is to be inspected by the operator every 8 weeks until the first annual
routine maintenance check/recalibration (inspections). After the first annual
routine maintenance check/recalibration, it is sufficient for the operator to
perform an inspection every six months. The values listed in Table Section 1 of
this maintenance logbook must be documented during every inspection. Routine
maintenance should be performed once a year by qualified personnel according to
the manufacturer's instructions and should be documented in Table Section 3 in
the maintenance logbook. The data described in Table Section 4 of this logbook
should also be completed for each recalibration and similar check.
1.1. Inspection
1.1.1. Operating parameters on the GC 9300
The setpoints for the operating parameters are entered on the first page of this
book by the test laboratory during commissioning and shall remain unchanged
during operation, unless altered by an RMG service technician.
The actual values of the operating parameters can be checked at any time on the
GC 9300 analyser under the Status->Meter tab or using RMGViewGC. Because
these values are constantly monitored by the controller and because divergences
are officially recorded as “faults”, these parameters do not have to be documented
in the maintenance logbook. It is therefore necessary to check whether active or
inactive faults or warnings are displayed on the GC 9300 at every visit to the
station.
Page 6
1. Instructions for Keeping the Maintenance Logbook
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
2
1.1.2. Cylinder pressures
The pressure in the gas cylinders is checked directly at the high-pressure gauges
of the relevant pressure reducing unit at regular intervals, in other words at every
maintenance check, and the information is then documented in the relevant table
in Table Section 1 of this logbook. If a cylinder has been changed or switched, this
should also be documented in the relevant column. If the PGC is found to be
malfunctioning, this fact should also be recorded.
The pressures should be checked for:
• Carrier gas 1
• Carrier gas 2 (if applicable)
• Internal calibration gas
1.2. Maintenance by service technicians
This section records all changes and measures carried out by service technicians.
This encompasses routine maintenance tasks, software updates and service
activities in the event of a malfunction. In the event of a malfunction, the operator
or service technician should enter a brief description of the problem in the
appropriate place.
It should be noted that this maintenance logbook is linked to a meter. In the event
of a serious malfunction that requires the meter to be replaced, a new
maintenance logbook must be started. This will be supplied with the new meter.
The old maintenance logbook, either a copy or the original, should be sent
to the manufacturer for analysis.
Page 7
2. Manufacturer's requirements
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
3
2. Manufacturer's requirements
2.1. Annual maintenance of the process gas
chromatograph
The annual inspection of the PGC 930x must be carried out on the basis of the
checklist (Table Section 4) by persons who have received appropriate training
from RMG to provide such maintenance.
2.2. Metrological check / (re)calibration
Once the maintenance activities described in Section 2 are complete, the device
will subsequently undergo routine recalibration. A representative of the responsible
calibration authorities must be on hand for this purpose. The design approval and
the relevant guidelines and standards it contains are key to the technical
calibration of the system.
Recalibration entails:
• Checking the area around the existing power outputs
• Basic calibration of the PGC with internal calibration gas
• Verification with external calibration gasses with chromatogram
• Verification of power transmission and/or bus transmission of mandatory
calibration values
• Protokollierung aller durchgeführten Arbeiten, Eintragungen im Wartungsbuch
Following the verification of the official parameters to be set in the GC 9300 (tab: Detail),
metrological check begins with the opening of the calibration lock and the implementation
of a basic calibration (select tab: Detail->01-GC 9300->Mode->Basic Calibration).
Following basic calibration, the new response factors (tab: Detail->09 Calibration
Results->RFZ) and retention times (tab: Detail->09 Calibration Results->RTZ) are noted
down in Table Section 4. If the device is calibrated using the “new mathematics”, the
GLKs (tab: Detail->11 Component Parameters/ [component]->GLK) are to be noted down
instead of the RFZs. In addition, the chromatograms for the calibration gas are compared
with the sample chromatograms shown in the design approval. The chromatograms can
be analysed using the RMGViewGC software or on the basis of the chromatogram
displays in GC 9300 (tab: Graph->Chroms).
The metrological check of the device takes place subsequently. The test gases defined in
the design approval are analysed in succession. At least three analyses are required for
each gas. The result of the third analysis is to be used for the verification. The results of
these analyses are to be found in the GC 9300 (tab: Archives) and should be fully
recorded in the table provided for this purpose. The key parameters for the official
verification (according to the design approval) are indicated in the table. The setpoints can
be found in the certificates for the test gasses used and should also be noted. It is
recommended that the chromatograms of the test gasses should be checked.
Page 8
Table section 1
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
4
Table Section 1
Cylinder pressures
To be performed at:
• Every inspection
• Every maintenance
Entries made by:
• Operator
• RMG Service
Page 9
Table section 1 / cylinder pressures
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
5
: Cylinder changed
: Device faulty
Carriergas I
Int. calibration gas
Carrier gas II
Date
Initials
Pressure / bar
Pressure / bar
Pressure / bar
Page 10
Table section 1 / cylinder pressures
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
6
: Cylinder changed
: Device faulty
Carriergas I
Int. calibration gas
Carrier gas II
Date
Initials
Pressure / bar
Pressure / bar
Pressure / bar
Page 11
Table section 1 / cylinder pressures
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
7
: Cylinder changed
: Device faulty
Carriergas I
Int. calibration gas
Carrier gas II
Date
Initials
Pressure / bar
Pressure / bar
Pressure / bar
Page 12
Table section 2
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
8
Table section 2
Maintenance measures, general
To be performed at:
• Annual routine maintenance
• Software update
• Metrological check
• (Re)calibration
• Repair
Entries made by:
• Trained personnel
• RMG Service
Page 13
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
9
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 14
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
10
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 15
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
11
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 16
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
12
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 17
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
13
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 18
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
14
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 19
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
15
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 20
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
16
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 21
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
17
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 22
Table section 2 / maintenance measures, general
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
18
Maintenance measure
Performed by
Performed on
Measures performed
Routine maintenance
Table 3
Software update
Metrological check
Table 4
(Re)calibration
Table 4
Defect
See below
Description of problem
Measure
Description of problem
Measure
Signature
Page 23
Table section 3
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
19
Table section 3
Annual routine maintenance
To be performed at:
• Annual routine maintenance
Entries made by:
• Trained personnel
• RMG Service
Page 24
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
20
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 25
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
21
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 26
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
22
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 27
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
23
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 28
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
24
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 29
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
25
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 30
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
26
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 31
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
27
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 32
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
28
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 33
Table section 3 / annual routine maintenance
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
29
Tested:
OK
n. OK
None
Checklist for HP reduction type DRS
Functional check of regulator
Leak check
Functional check of analysis gas heating (if any)
Functional check of HP reduction heating (if any)
Checklist for cylinder rack
Check and documentation of cylinder pressures of carrier
gas/gases and calibration gas
Functional test of cylinder heating
Functional check of HP regulator
Verification of contact gauge
Functional check of the second pressure regulation level
(porter regulator, if any)
Leak check
Checklist for measuring element and GC 9300
Verification of the prefilters on the gas connector unit (change of
filter as necessary)
Leak check
Verification of the initial pressures for carrier gas/gases,
measuring gas, internal and external calibration gas
Functional check of solenoid valve control
Functional check of housing heating in measuring element
Verification of all significant operating parameters (see Section 1
Operating parameters)
Evaluation of the documented automatic calibrations
Verification of the “method” by means of special service software
Verification of retention times
Evaluation of the chromatograms
Date
Signature
Page 34
Table section 4
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
30
Table section 4
Test gas analyses
To be performed at:
• Metrological check
• (Re)calibration
Entries made by:
• Trained personnel
• RMG Service
Page 35
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
31
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 36
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
32
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 37
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
33
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 38
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
34
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 39
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
35
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 31 to 35.
Service
Authority
Page 40
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
36
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 41
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
37
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 42
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
38
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 43
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
39
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 44
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
40
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 36 to 40.
Service
Authority
Page 45
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
41
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 46
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
42
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 47
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
43
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 48
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
44
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 49
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
45
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 41 to 45.
Service
Authority
Page 50
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
46
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 51
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
47
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 52
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
48
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 53
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
49
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 54
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
50
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 46 to 50.
Service
Authority
Page 55
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
51
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 56
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
52
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 57
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
53
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 58
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
54
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 59
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
55
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 51 to 55.
Service
Authority
Page 60
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
56
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 61
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
57
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 62
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
58
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 63
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
59
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 64
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
60
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 56 to 60.
Service
Authority
Page 65
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
61
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 66
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
62
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 67
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
63
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 68
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
64
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 69
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
65
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 61 to 65.
Service
Authority
Page 70
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
66
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 71
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
67
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 72
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
68
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 73
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
69
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 74
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
70
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 66 to 70.
Service
Authority
Page 75
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
71
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 76
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
72
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 77
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
73
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 78
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
74
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 79
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
75
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 71 to 75.
Service
Authority
Page 80
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
76
Procedure for metrological check / (re)calibration
1. Performance of basic calibration with logging of the
- retention times (RTZ)
- response factors (RFZ / GLK)
2. Analysis of the test gases
3. Verification of the chromatograms / data transmission
Current outputs only need to be checked if they are used for official
transmission of fiscal metering readings.
4. Verification of software CRC
5. Entry of notes, as necessary
Basic calibration
RTZ / s
RFZ / GLK
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 81
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
77
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 82
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
78
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 83
Table section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
79
Relevant for
calibration?
Test gas 1
Test gas 2
↓
Type
Error
Type
Error
set
actual
absolute
set
actual
absolute
Calorific value
Standard density
Carbon dioxide
Methane
Ethane
Propane
Isobutane
N-butane
Neopentane
Isopentane
N-pentane
Hexane (C6+)
Heptane
Octane
Nonane
Hydrogen
Oxygen
Nitrogen
Helium
Page 84
Tabellenteil section 4 / test gas analyses
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
80
OK?
Verification of the chromatogram of the internal calibration gas
Verification of the chromatogram of test gas 1
Verification of the chromatogram of test gas 2
Verification of the chromatogram of test gas 3
Verification of the chromatogram of test gas 4
Verification of the chromatogram of test gas 5
Verification of the chromatogram of test gas 6
Checking the range of the current outputs
Verification of the fiscal metering values transmitted at the outputs
Verification of the software and kernel CRCs
Are all results correctly logged?
Remarks
Signatures
The signatures relate to the entire
metrological check / recalibration,
i.e. including the entries
on pages 76 to 80.
Service
Authority
Page 85
Contact
PGC9300 Maintenance Logbook · EN07 · 2018, June 26th
81
Subject to technical modification
For further information
please visit our website:
www.rmg.com
or contact your local sales support office
to learn more about the RMG products.
RMG Messtechnik GmbH
Otto-Hahn-Straße 5
35510 Butzbach, Germany
Phone: +49 (0) 6033 897 – 0
Fax: +49 (0) 6033 897 – 130
Email: [email protected]
Internet: www.rmg.com
Loading...
