RM VLA-150 Schematics

Download

Costruzioni Elettroniche

di Marchioni Davide & Daniele s.n.c.

www.cbservis.ru

VLA 150 VHF linar amplifier

Via IV Novembre 215/5

Casella postale N° 33

40045 Ponte della Venturina (BO) ITALY

Tel +39 0534 60460

Fax +39 0534 60463

E-MAIL ufftec@rmitaly.com

http://www.rmitaly.com

www.cbservis.ru

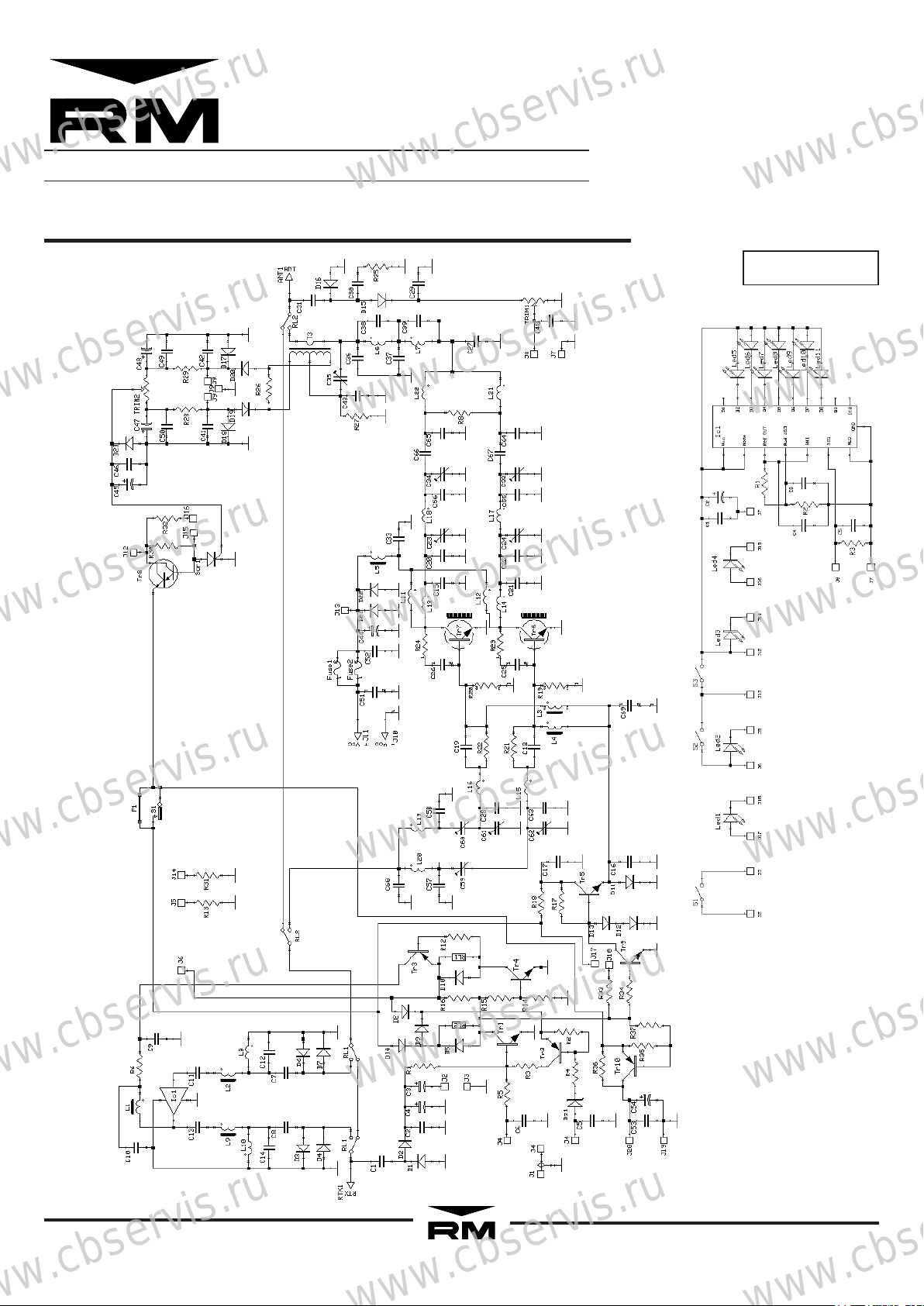

Schematic diagram

www.cbservis.ru

Version 2.10

www.cbservis.ru

date 06-06-2005 Page 1 di 3

www.cbservis.ru

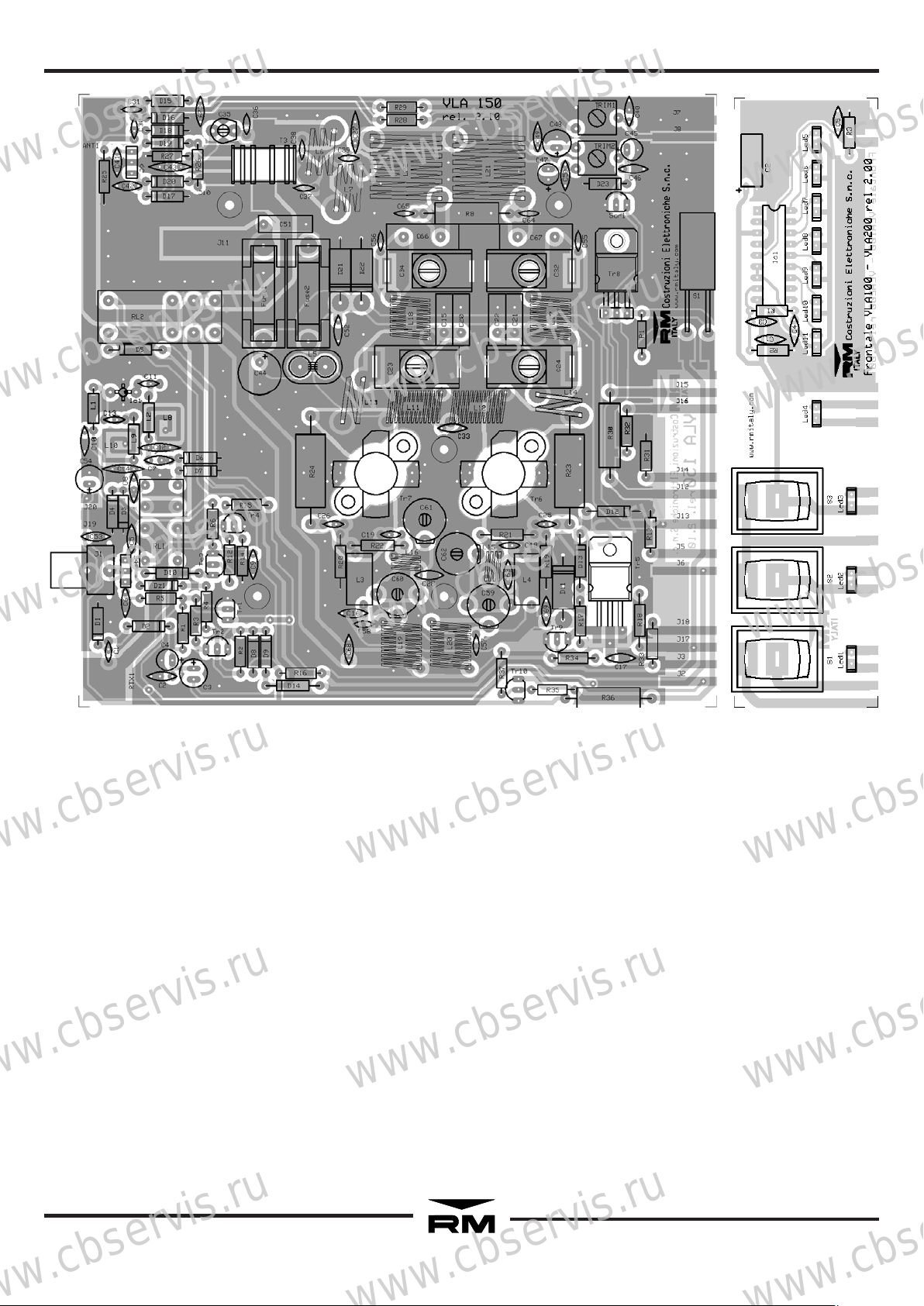

VLA 150 2.10

Board A

www.cbservis.ru

Board B

www.cbservis.ru

List of components Board A

C 1 = 3,3 pF 50 V NP0 C 2 = 10 nF 50 V C 3 = 33 μF 16 V C 4 = 4,7 μF 16 V C 5 = 100 nF 50 V

www.cbservis.ru

C 6 = 100 nF 50 V C 7 = 10 nF 50 V C 8 = 10 nF 50 V C 9 = 100 nF 50 V C 10 = 100 nF 50 V C 11 = 6,8 pF 50 V NP0 C 12 = 470 pF 50 V N750 C 13 = 5,6 pF 50 V NP0 C 14 = 470 pF 50 V N750 C 15 = 51 pF 500 V Silvered Mica

www.cbservis.ru

C 16 = 100 nF 50 V C 17 = 100 nF 50 V C 18 = 1,0 nF 50 V C 19 = 1,0 nF 50 V

www.cbservis.ru

C 20 = 200 pF 500 V Silvered Mica C 21 = 51 pF 500 V Silvered Mica C 22 = 200 pF 500 V Silvered Mica C 23 = 10 - 100 pF Mica Trimmer

www.cbservis.ru

C 24 = 10 - 100 pF Mica Trimmer C 25 = 1,0 nF 50 V C 26 = 1,0 nF 50 V C 27 = 120 pF 500 V NP0 C 28 = 180 pF 50 V N750 C 29 = 100 nF 50 V C 30 = 33 pF 50 V NP0 C 31 = 2,2 pF 50 V NP0 C 32 = 10 - 100 pF Mica Trimmer C 33 = 100 nF 50 V C 34 = 10 - 100 pF Mica Trimmer C 35 = 3 - 10 pF NP0 Trimmer C 36 = 47 pF 500 V NP0 C 37 = 56 pF 500 V NP0 C 38 = 33 pF 500 V NP0

www.cbservis.ru

date 06-06-2005 Page 2 di 3
