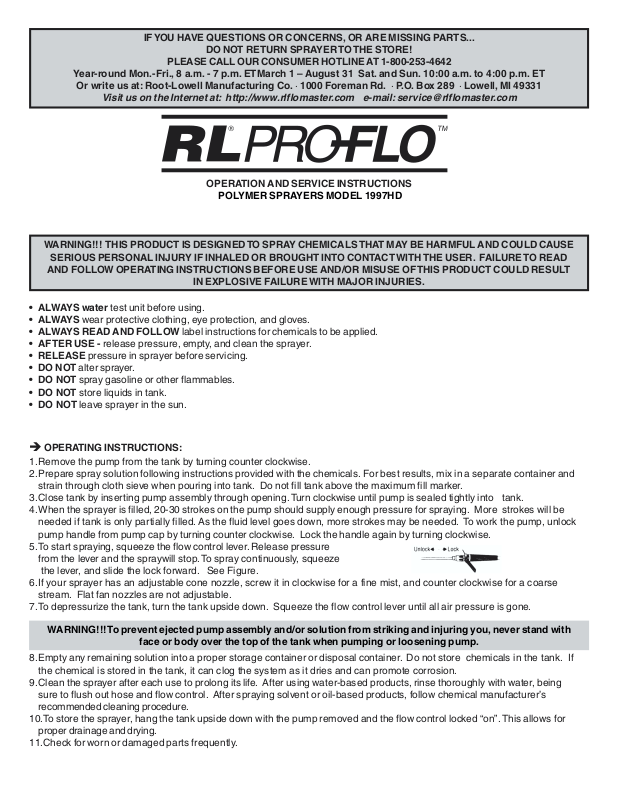

OPERATION AND SERVICE INSTRUCTIONS

POLYMER SPRAYERS MODEL 1997HD

WARNING!!! THIS PRODUCT IS DESIGNED TO SPRAY CHEMICALS THAT MAY BE HARMFUL AND COULD CAUSE

SERIOUS PERSONAL INJURY IF INHALED OR BROUGHT INTO CONTACT WITH THE USER. FAILURE TO READ

AND FOLLOW OPERATING INSTRUCTIONS BEFORE USE AND/OR MISUSE OF THIS PRODUCT COULD RESULT

IN EXPLOSIVE FAILURE WITH MAJOR INJURIES.

• ALWAYS water test unit before using.

•ALWAYS wear protective clothing, eye protection, and gloves.

• ALWAYS READ AND FOLLOW label instructions for chemicals to be applied.

• AFTER USE - release pressure, empty, and clean the sprayer.

• RELEASE pressure in sprayer before servicing.

• DO NOT alter sprayer.

• DO NOT spray gasoline or other flammables.

• DO NOT store liquids in tank.

• DO NOT leave sprayer in the sun.

! OPERATING INSTRUCTIONS:

1.Remove the pump from the tank by turning counter clockwise.

2.Prepare spray solution following instructions provided with the chemicals. For best results, mix in a separate container and
strain through cloth sieve when pouring into tank. Do not fill tank above the maximum fill marker.

3.Close tank by inserting pump assembly through opening. Turn clockwise until pump is sealed tightly into tank.

4.When the sprayer is filled, 20-30 strokes on the pump should supply enough pressure for spraying. More strokes will be
needed if tank is only partially filled. As the fluid level goes down, more strokes may be needed. To work the pump, unlock
pump handle from pump cap by turning counter clockwise. Lock the handle again by turning clockwise.

5.To start spraying, squeeze the flow control lever. Release pressure
from the lever and the spraywill stop. To spray continuously, squeeze
the lever, and slide the lock forward. See Figure.

6.If your sprayer has an adjustable cone nozzle, screw it in clockwise for a fine mist, and counter clockwise for a coarse
stream. Flat fan nozzles are not adjustable.

7.To depressurize the tank, turn the tank upside down. Squeeze the flow control lever until all air pressure is gone.

WARNING!!! To prevent ejected pump assembly and/or solution from striking and injuring you, never stand with

face or body over the top of the tank when pumping or loosening pump.

8.Empty any remaining solution into a proper storage container or disposal container. Do not store chemicals in the tank. If
the chemical is stored in the tank, it can clog the system as it dries and can promote corrosion.

9.Clean the sprayer after each use to prolong its life. After using water-based products, rinse thoroughly with water, being
sure to flush out hose and flow control. After spraying solvent or oil-based products, follow chemical manufacturer’s
recommended cleaning procedure.

10.To store the sprayer, hang the tank upside down with the pump removed and the flow control locked “on”.This allows for
proper drainage and drying.

11.Check for worn or damaged parts frequently.

! MAINTENANCE AND DISASSEMBLY: To keep the pump working smoothly

and efficiently, the plunger u-cup seal needs to be lubricated often. Disassemble
pump and apply grease or petroleum jelly around the outside of the plunger cup.
Unscrew cap at top of pump cylinder in a counter clockwise motion. Remove plunger
assembly from cylinder. When reassembling be sure that notches in cam plate are
fitting into cylinder notches, then screw cap onto cylinder assembly. Note: Your
sprayer was lubricated at the time of manufacture.

! !

TROUBLESHOOTING: Always depressurize the sprayer, remove chemical solution, and clean the sprayer before making

!

! !

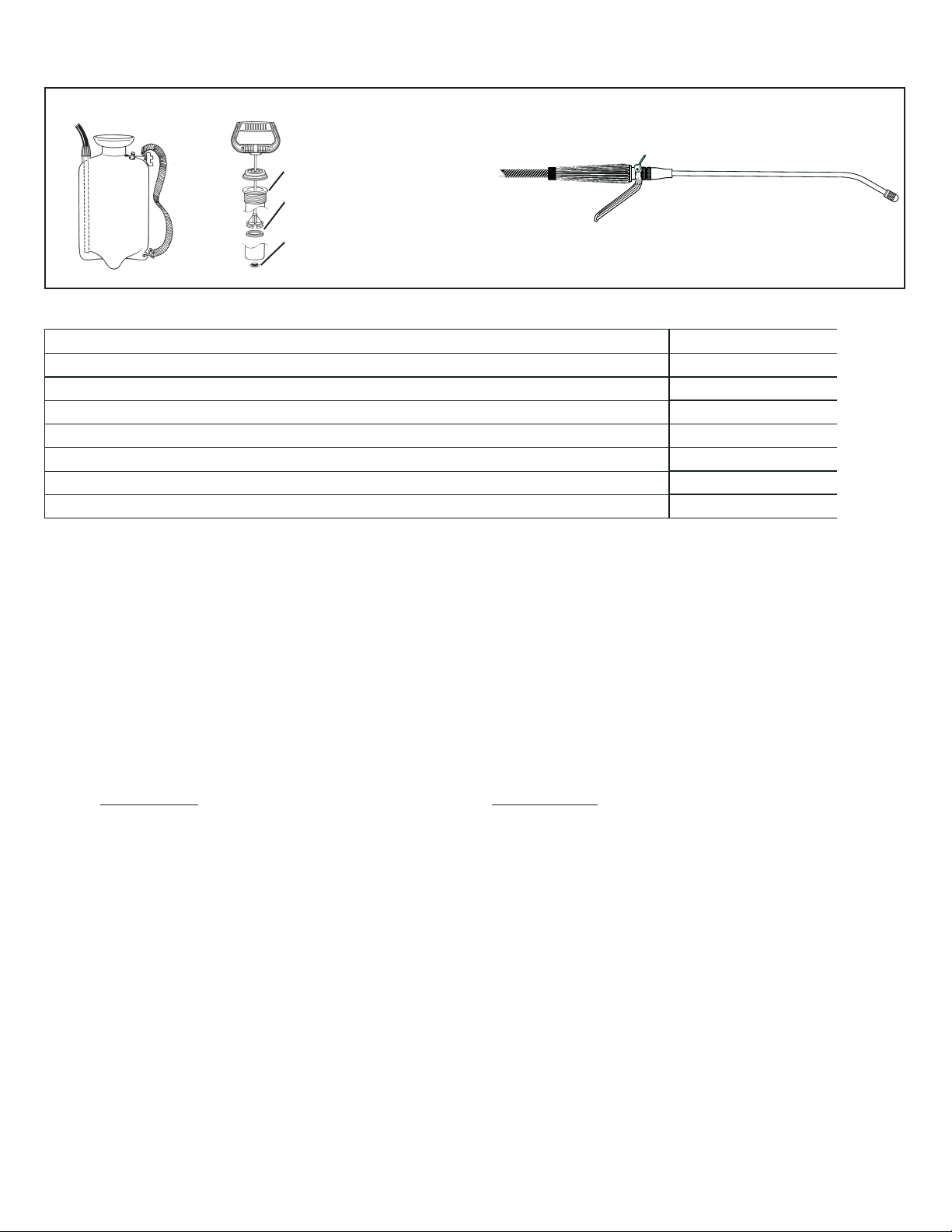

repairs. Refer to the parts diagram for part numbers and names. Replacement parts may be purchased at most RL

TER dealers

PROBLEM: Pump works hard or does not pressurize tank.
CAUSE: Plunger cup or plunger o-ring either not lubricated or damaged.
SOLUTION: Apply petroleum jelly around outside of plunger cup or plunger o-ring. Check for cracks or other damage and replace

if necessary.

PROBLEM: Spray solution backs up through pump cylinder.
CAUSE: Check valve on bottom of pump cylinder prevented from sealing by dirt, residue, or damage.
SOLUTION: Remove pumps cylinder and examine check valve. Clean if dirty. Replace if damaged.

PROBLEM: Hose leaks at tank connection.
CAUSE: (1) Hose/tank screw connector loose OR (2) Hose damaged.
SOLUTION: (1) Tighten screw connector - hand tighten only. OR (2) Cut off damaged section of hose and reassemble with

gear clamp, or replace with new hose/flow control assembly.

, or they can be ordered from our Consumer Service Hotline at 1-800-253-4642.

FLO-MAS-

PROBLEM: Flow control leaks.
CAUSE: (1) Extension o-ring prevented from sealing by dirt or damage OR (2) Extension nut not screwed in all the way on flow

control.

SOLUTION: (1) Clean and examine o-ring, replace if damaged OR (2) Push extension into flow control until it is fully seated into

place. Then screw extension nut into flow control. Hand tighten only.

PROBLEM: Bad spray pattern or low spray volume.
CAUSE: Extension nozzle clogged with dirt or damaged.
SOLUTION: Remove nozzle and clean. Remove extension and clean. If extension cannot be unclogged, replace it.

PROBLEM: Nozzle leaks when flow control is closed.
CAUSE: (1) Extension o-ring prevented from sealing by dirt or damage. OR (2) Nozzle is worn.
SOLUTION: (1) Clean and examine o-ring, replace if damaged. OR (2) Replace nozzle cap.

PROBLEM: Leak at tank opening.
CAUSE: (1) Pump cylinder not sealed tightly into tank OR (2) Damaged cylinder gasket or o-ring.
SOLUTION: (1) Apply grease or petroleum jelly to cylinder gasket. OR (2) Thoroughly clean cylinder gasket or o-ring and

surrounding area then apply grease or petroleum jelly to cylinder gasket. OR (3) Replace with new gasket or o-ring.

PROBLEM: Tank leaks around or through pressure release valve (does not apply to all models).
CAUSE: (1) Valve prevented from closing properly by dirt or residue. OR (2) Valve assembly not screwed in completely. OR

(3) Valve gasket prevented from sealing by residue, dirt, or damage.

SOLUTION: (1) Pull up on valve stem several times, allowing it to snap back into place. OR (2) Screw in valve assembly

tightly. OR (3) Unscrew valve from tank and examine the gasket. Clean if dirty, replace if damaged.
