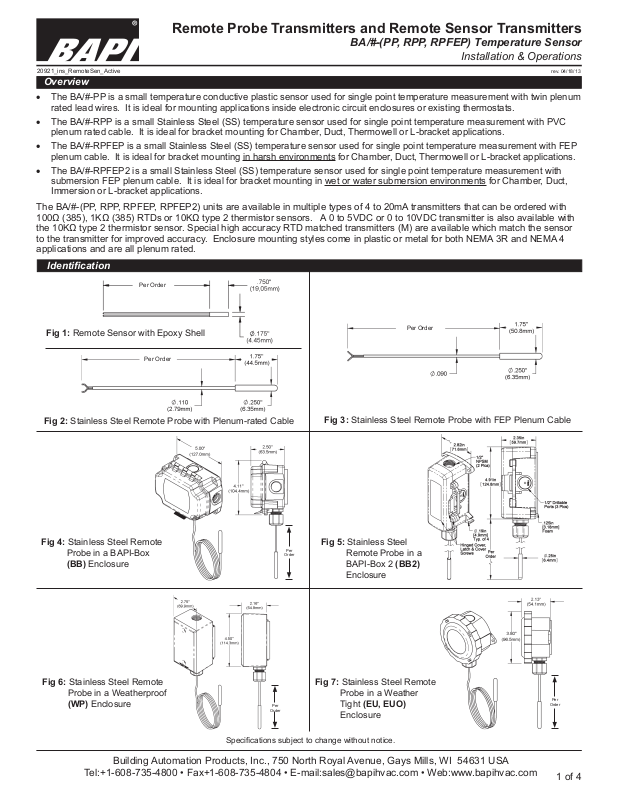

RLE TSP User Manual

Remote Probe Transmitters and Remote Sensor Transmitters

BA/#-(PP, RPP, RPFEP) Temperature Sensor

Installation & Operations

20921_ins_RemoteSen_Active

Overview

• The BA/#-PP is a small temperature conductive plastic sensor used for single point temperature measurement with twin plenum
rated lead wires. It is ideal for mounting applications inside electronic circuit enclosures or existing thermostats.

• The BA/#-RPP is a small Stainless Steel (SS) temperature sensor used for single point temperature measurement with PVC
plenum rated cable. It is ideal for bracket mounting for Chamber, Duct, Thermowell or L-bracket applications.

• The BA/#-RPFEP is a small Stainless Steel (SS) temperature sensor used for single point temperature measurement with FEP
plenum cable. It is ideal for bracket mounting in harsh environments for Chamber, Duct, Thermowell or L-bracket applications.

• The BA/#-RPFEP2 is a small Stainless Steel (SS) temperature sensor used for single point temperature measurement with
submersion FEP plenum cable. It is ideal for bracket mounting in wet or water submersion environments for Chamber, Duct,
Immersion or L-bracket applications.

The BA/#-(PP, RPP, RPFEP, RPFEP2) units are available in multiple types of 4 to 20mA transmitters that can be ordered with
100Ω (385), 1KΩ (385) RTDs or 10KΩ type 2 thermistor sensors. A 0 to 5VDC or 0 to 10VDC transmitter is also available with
the 10KΩ type 2 thermistor sensor. Special high accuracy RTD matched transmitters (M) are available which match the sensor
to the transmitter for improved accuracy. Enclosure mounting styles come in plastic or metal for both NEMA 3R and NEMA 4
applications and are all plenum rated.

Identication

Per Order

rev. 04/18/13

Fig 1: Remote Sensor with Epoxy Shell

Per Order

Fig 2: Stainless Steel Remote Probe with Plenum-rated Cable

Fig 4: Stainless Steel Remote

Probe in a BAPI-Box
(BB) Enclosure

Per

Order

Per Order

Fig 3: Stainless Steel Remote Probe with FEP Plenum Cable

Fig 5: Stainless Steel

Remote Probe in a
BAPI-Box 2 (BB2)
Enclosure

Fig 6: Stainless Steel Remote

Probe in a Weatherproof
(WP) Enclosure

Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA

Tel:[phone] • Fax[phone] • E-mail:[e-mail] • Web:www.bapihvac.com

Fig 7: Stainless Steel Remote

Probe in a Weather

Per

Order

Specications subject to change without notice.

Tight (EU, EUO)
Enclosure

Per

Order

1 of 4

20921_ins_RemoteSen_Active

Mounting

Step 1

Fig 9-A: Break-Off Tab from a BAPI

Flexible Probe Bracket (BA/FP)

Remote Probe Transmitters and Remote Sensor Transmitters

BA/#-(PP, RPP, RPFEP) Temperature Sensor

Installation & Operations

rev. 04/18/13

Step 1: Secure Sensor To Have Good Contact With Bare Pipe

Step 2: Insulate Over The Sensor (See Notes Below)

Notes: Insulation should be installed a minimum of 4 pipe

diameters on each side of the strap-on sensor.

Example: ½” pipe x 4 = 2”.
Insulation should be 2” on each side of the sensor wrapped all

the way around the pipe.

Step 2

Fig 8: Stainless Steel Remote Probes Strapped to Pipes

Fig 9-B: Break-Off Tab Used to

Mount a Stainless Steel
Remote Probe.

Fig 12: Stainless Steel

Remote Probe with
BAPI-Box 2 (BB2)
Enclosure

Fig 10: Stainless Steel Remote

Fig 13: Stainless Steel

Remote Probe
with Weather
Tight (EU, EUO)
Enclosure

Probe with Weatherproof
(WP) Enclosure

Fig 14: Remote Sensor

Shown Installed in a
Pneumatic Thermostat

Fig 11: Stainless Steel Remote

Probe with BAPI-Box (BB)
Enclosure

Fig 15: Remote Sensor

Shown Installed in
an Junction Box
with a Wall Plate
Cover

Specications subject to change without notice.

Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA

Tel:[phone] • Fax[phone] • E-mail:[e-mail] • Web:www.bapihvac.com

2 of 4

Remote Probe Transmitters and Remote Sensor Transmitters

BA/#-(PP, RPP, RPFEP) Temperature Sensor

Installation & Operations

20921_ins_RemoteSen_Active

Wiring & Termination

BAPI recommends using twisted pair of at least 22AWG and sealant lled connectors for all wire connections. Larger gauge
wire may be required for long runs. All wiring must comply with the National Electric Code (NEC) and local codes. Do NOT
run this device’s wiring in the same conduit as high or low voltage AC power wiring. BAPI’s tests show that inaccurate signal
levels are possible when AC power wiring is present in the same conduit as the sensor wires.

rev. 04/18/13

Fig. 16: Typical RTD 4-20 mA Transmitter W/Flying Leads

Fig. 18: Typical Thermistor 4 to 20mA Transmitter

Fig. 17: Typical RTD 4-20mA Transmitter W/Terminals

Fig. 19: Typical Thermistor Voltage Transmitter

Diagnostics

Possible Problems: Possible Solutions:

• Unit will not operate. - Measure the power supply voltage by placing a voltmeter across the transmitter’s (+) and

- Check if the RTD wires are physically open or shorted together and are terminated to the

- Measure the physical temperature at the temperature sensor’s location using an accurate

• The reading is incorrect in the controller. - Determine if the input is set up correctly in the controllers and BAS software.

- For a 4-20mA current transmitter measure the transmitter current by placing an ammeter

Voltage Temperature Equation

T = TLow + (V x TSpan)
VSpan
T = Temperature at sensor
TLow = Low temperature of span
THigh = High temperature of span
TSpan = THigh - TLow
VLow = Low transmitter voltage
usually=(0, 1 or 2v)
VHigh = High transmitter voltage
usually=(5 or 10v)
VSpan = VHigh - VLow
V = Signal reading in volts

(-) terminal. Make sure that it matches the drawings above and power requirements in the
specications.

transmitter.

temperature standard. Disconnect the temperature sensor wires and measure the
temperature sensor’s resistance with an ohmmeter. Compare the temperature sensor’s
resistance to the appropriate temperature sensor table on the BAPI web site.

in series with the controller input. The current should read according to the “4-20mA
Temperature Equation” shown below.

- For a voltage transmitter, measure the signal with a volt meter (Orange or Orange/Black to
Black). The signal should read according to the “Voltage Temperature Equation” shown below.

4-20mA Temperature Equation

T = TLow + (A -4) x (TSpan)
16
T = Temperature at sensor
TLow = Low temperature of span
THigh = High temperature of span
TSpan = THigh - TLow
A = Signal reading in mA

Specications subject to change without notice.

Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA

Tel:[phone] • Fax[phone] • E-mail:[e-mail] • Web:www.bapihvac.com

20921_ins_RemoteSen_Active

Specications

Remote Probe Transmitters and Remote Sensor Transmitters

BA/#-(PP, RPP, RPFEP) Temperature Sensor

Installation & Operations

rev. 04/18/13

RTD Transmitter

Power Required: 7 to 40VDC
Transmitter Output: 4 to 20mA, 850Ω@24VDC
Output Wiring: 2 wire loop
Output Limits: <1mA (short), <22.35mA (open)
Span:
Zero:
Zero & Span Adjust: 10% of span
Accuracy: ±0.065% of span
Linearity: ±0.125% of span
Power Output Shift: ±0.009% of span
RTD Sensor: 2 wire Platinum (Pt), 385 curve
Transmitter Ambient -4 to 158ºF(-20 to 70ºC)
0 to 95% RH, Non-condensing

Thermistor Transmitter

Supply Voltage:

10 to 35 VDC (0 to 5 VDC or 4 to 20 mA Outputs)
15 to 35 VDC (0 to 10 VDC Output)
12 to 24 VAC (0 to 5 VDC Outputs)

15 to 24 VAC (0 to 10 VDC Output)
Transmitter Output: 4 to 20mA, 700Ω@24VDC
0 to 5 & 0 to 10VDC, 10KΩ min
Output Wiring: 2 & 3 wire (See wiring detail on pg. 3)
Transmitter Limits: -40 to 185ºF, (-40 to 85ºC)
Accuracy: ±1.015ºC, from (0 to 65ºC)
Linearity: ±0.065ºC, from (0 to 65ºC)
Resolution: Span/1024
Thermistor Sensor: 10K-2 Thermistor, 10KΩ @77ºF
Transmitter Ambient: 32 to 158ºF, (0º to 70ºC)
0 to 95% RH, Noncondensing

Thermistor:

Accuracy (Std): ±0.36ºF, (±0.2ºC)
Accuracy (High): ±0.18ºF, (±0.1ºC), [XP] option
Stability: < 0.036ºF/Year, (<0.02ºC/Year)
Heat Dissipation: 2.7 mW/ºC
Probe Range: -40º to 221ºF (-40º to 105ºC)
Wire Colors:
Standard: Yellow/Yellow (no polarity)
High Acc. [XP]: Yellow/Yellow (no polarity)

RTD:

Platinum (Pt): 100Ω and 1KΩ @0ºC, 385 curve,
Pt Accuracy (Std): 0.12% @Ref, or ±0.55ºF, (±0.3ºC)
Pt Accuracy (High): 0.06% @Ref, or ±0.277ºF,
(±0.15ºC), [A]option

Pt Stability: ±0.25ºF, (±0.14ºC)
Pt Self Heating: 0.4 ºC/mW @0ºC
Pt Probe Range: -40º to 221ºF, (-40 to 105ºC)
Wire Colors:
1KΩ, Class B Orange/Orange (no polarity)
1KΩ, Class A Orange/White (no polarity)
100Ω, Class B Red/Red (no polarity)
100Ω, Class A Red/Red-w/black stripe (no polarity)

Min. 30ºF (17ºC), Max 1000ºF, (555ºC)
Min. -148°F (-100°C), Max 900ºF (482ºC)

10K-2,Thermal Resistor (Bare Sensor)

Resistance Temp Device (Bare Sensor)

General color code (other colors possible)

Sensitivity: Approximate @ 32ºF (0ºC)
Thermistor: Non-linier - (See www.bapihvac.com,
click “Sensor Specs”)

RTD (Pt): 3.85Ω/ºC for 1KΩ RTD

0.385Ω/ºC for 100Ω RTD

Lead wire 22awg stranded
Wire Insulation

-PP Etched Teon leads, plenum rated

-RPP Flame Retardant PVC plenum cable

-RPFEP FEP jacketed plenum rated cable

-RPFEP2 FEP jacketed plenum and
submersion rated cable

Probe

-PP Heat conductive plastic cup

-RPP, RPFEP Rigid, 304 Stainless Steel, 0.25” OD
Probe Length

-PP 0.875” (22.2mm)

-RPP, RPFEP 1.75” (44.5mm)

Mounting External Probe Bracket required
Probe Vented polycarbonate shield, ½” OD
Probe Length 1.2” with ½” NPT threads
Mounting Extension tabs (ears), 3/16” holes

Wall Gasket Closed cell foam (impervious to mold)

Enclosure Types

Weather Proof -WP, w/ two ½” FNPT entries, (Bell box)
BAPI-Box -BB, w/ four ½” NPSM & one ½” drill-outs

BAPI-Box 2

Weather Tight -EU, -EUO, w/ two ½” knock-outs

Enclosure ratings

Weather Proof -WP, NEMA 3R, IP14
BAPI-Box -BB, NEMA 4, IP66
BAPI-Box 2 -BB2, NEMA 4, IP66
Weather Tight -EU, NEMA 4, IP66, UV rated

Enclosure materials

Weather Proof -WP, Cast Aluminum, UV rated
BAPI-Box -BB, Polycarbonate, UL94V-0, UV rated
BAPI-Box 2 -BB2, Polycarbonate, UL94V-0, UV rated
Weather Tight -EU, ABS Plastic, UL94V-0, UV rated

Ambient (Enclosure): 0 to 100% RH, Non-condensing
BB, BB2 -40ºF to 185ºF, (-40º to 85ºC)
EU & EUO -40ºF to 185ºF, (-40º to 85ºC)
WP -40ºF to 212ºF, (-40º to 100ºC)

Agency

PT = DIN43760, IEC Pub 751-1983,
JIS C1604-1989

-BB2, w/ three ½” NPSM & three ½” drill-outs

RoHS, CE (CE for all sensors below 10KΩ)

Related Products

BA/FPB-50 Flexible probe brackets (50 units)
BA/Foamback White foam insulation 2.6” x 4.4” x 0.25 thick
