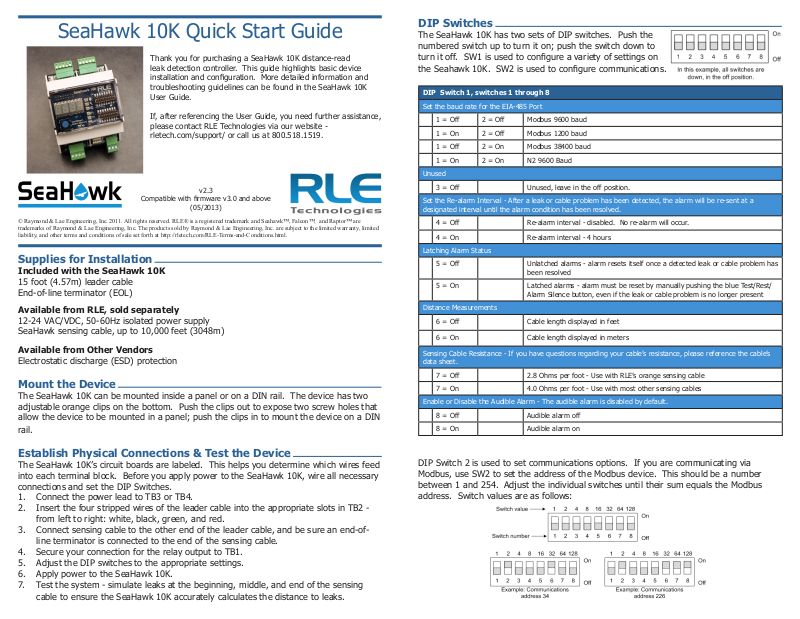

SeaHawk 10K Quick Start Guide
Thank you for purchasing a SeaHawk 10K distance-read
leak detection controller. This guide highlights basic device
installation and conguration. More detailed information and
troubleshooting guidelines can be found in the SeaHawk 10K
User Guide.
If, after referencing the User Guide, you need further assistance,
please contact RLE Technologies via our website rletech.com/support/ or call us at 800.518.1519.
Compatible with rmware v3.0 and above
© Raymond & Lae Engineering, Inc. 2011. All rights reserved. RLE® is a registered trademark and Seahawk™, Falcon™, and Raptor™ are
trademarks of Raymond & Lae Engineering, Inc. The products sold by Raymond & Lae Engineering, Inc. are subject to the limited warranty, limited
liability, and other terms and conditions of sale set forth at http://rletech.com/RLE-Terms-and-Conditions.html.
Supplies for Installation
Included with the SeaHawk 10K
15 foot (4.57m) leader cable
End-of-line terminator (EOL)
Available from RLE, sold separately
12-24 VAC/VDC, 50-60Hz isolated power supply
SeaHawk sensing cable, up to 10,000 feet (3048m)
Available from Other Vendors
Electrostatic discharge (ESD) protection
Mount the Device
The SeaHawk 10K can be mounted inside a panel or on a DIN rail. The device has two
adjustable orange clips on the bottom. Push the clips out to expose two screw holes that
allow the device to be mounted in a panel; push the clips in to mount the device on a DIN
rail.
v2.3
(05/2013)
DIP Switches
The SeaHawk 10K has two sets of DIP switches. Push the
numbered switch up to turn it on; push the switch down to
turn it off. SW1 is used to congure a variety of settings on
the Seahawk 10K. SW2 is used to congure communications.
DIP Switch 1, switches 1 through 8
Set the baud rate for the EIA-485 Port
1 = Off 2 = Off Modbus 9600 baud
1 = On 2 = Off Modbus 1200 baud
1 = Off 2 = On Modbus 38400 baud
1 = On 2 = On N2 9600 Baud
Unused
3 = Off Unused, leave in the off position.
Set the Re-alarm Interval - After a leak or cable problem has been detected, the alarm will be re-sent at a
designated interval until the alarm condition has been resolved.
4 = Off Re-alarm interval - disabled. No re-alarm will occur.
4 = On Re-alarm interval - 4 hours
Latching Alarm Status
5 = Off Unlatched alarms - alarm resets itself once a detected leak or cable problem has
been resolved
5 = On Latched alarms - alarm must be reset by manually pushing the blue Test/Rest/
Alarm Silence button, even if the leak or cable problem is no longer present
Distance Measurements
6 = Off Cable length displayed in feet
6 = On Cable length displayed in meters
Sensing Cable Resistance - If you have questions regarding your cable’s resistance, please reference the cable’s
data sheet.
7 = Off 2.8 Ohms per foot - Use with RLE’s orange sensing cable
7 = On 4.0 Ohms per foot - Use with most other sensing cables
Enable or Disable the Audible Alarm - The audible alarm is disabled by default.
8 = Off Audible alarm off
8 = On Audible alarm on
Establish Physical Connections & Test the Device
The SeaHawk 10K’s circuit boards are labeled. This helps you determine which wires feed
into each terminal block. Before you apply power to the SeaHawk 10K, wire all necessary
connections and set the DIP Switches.
1. Connect the power lead to TB3 or TB4.
2. Insert the four stripped wires of the leader cable into the appropriate slots in TB2 from left to right: white, black, green, and red.
3. Connect sensing cable to the other end of the leader cable, and be sure an end-ofline terminator is connected to the end of the sensing cable.
4. Secure your connection for the relay output to TB1.
5. Adjust the DIP switches to the appropriate settings.
6. Apply power to the SeaHawk 10K.
7. Test the system - simulate leaks at the beginning, middle, and end of the sensing
cable to ensure the SeaHawk 10K accurately calculates the distance to leaks.
DIP Switch 2 is used to set communications options. If you are communicating via
Modbus, use SW2 to set the address of the Modbus device. This should be a number
between 1 and 254. Adjust the individual switches until their sum equals the Modbus
address. Switch values are as follows:
Front Panel Indicators
The front panel of the SeaHawk 10K contains a 4-character LED and series of colored
LEDs that are used together to convey device status and information regarding detected
leaks and cable faults. A blue button is used to cycle the 4-character LED, silence the
audible alarm, and reset the alarm.
Indicator Symbol Description
4-character
LED
LED Red LED - leak is detected - distance is displayed on 4-character LED
Test/Reset/
Alarm Silence
Button
SH10
675
(e.g.)
cbr
Ft
m
mA
Blue Push
Button
System is running in its normal operating state.
A leak, fault, or contamination has been detected. A numerical distance displays on
the LED. A green LED lights next to Ft or m, and either the LED next to the water
drop glows red to indicate a leak, or the LED next to the wrench glows yellow to
indicate cable contamination. If the distance is measured in meters, a tenths place
decimal value will appear in measurements from 0.0 - 999.9. All meter values over
1000 will display as whole meter measurements.
Cable break/fault detected. Yellow LED ashes next to wrench symbol.
Yellow LED - Cable fault - 4-characted LED displays cbr
Yellow LED - Cable contamination - 4-character LED displays distance
Green LED - Power on
Green LED - Measurements are made in feet
Green LED - Measurements are made in meters
Green LED - Microamps of current on cable - amperage displayed on 4-character LED
In normal operating conditions, the button functions include:
• Press once: Displays cable current in ohms/foot and the green LED lights next to
the microamp symbol
• Press twice: Displays the length of installed cable components and the green
LED lights next to the appropriate Ft or m symbol
• Press three times: Return to the default display (SH10 )
• Press and hold: Self-test is initiated and the character display reads cal 8060,
which indicates the value of the test resistor.
If an alarm sounds, briey press the button to turn off the audible alarm. The Status
LED remains red, and the 4-character LED continues to show the alarm condition.
In an alarm condition, whether the audible alarm is sounding or not, press and hold
this button for 3 seconds to clear the alarm.
Modbus Registers
The SeaHawk 10K uses its EIA-485 port to communicate via Modbus. The SeaHawk 10K
is congured to act as a slave device on a common network and is a slave only device – it
will never initiate a communications sequence.
Read Input Registers
04
Input
Registers
(3x)
30001 b0=Leak alarm, b1=cable break,
30002 Leak distance
30003 0=meters, 1=feet
30004 Leakage current on cable (mA)
30005 Installed Cable Length (ft/dm)
30006 Cable resistance, leg 1 (ohms)
30007 Cable resistance, leg 2 (ohms)
30008 Resistance per foot (milliohms)
30009 Firmware version number
38001 Leak Distance - Meters (oat)
38003 Cable Length - Meters (oat)
Read Output Registers
03
Holding
Registers
(4x)
40001 Leakage threshold (writeable)
40002 Contamination threshold (writeable)
40003 Re-alarm interval (read only, set with
40004 Latching alarms (read only, set with
40005 Silence audible alarm
40006 Reset alarm
Description
b2=contamination, b3=summary
Description
Default 120 mA; range: 25mA-175mA
Default 50 mA; range: 25mA-175mA
DIP SW1)
Default: 0 (disabled); 0=disabled, 4
hours
DIP SW1)
Default: 0 (disabled); 0=disabled,
1=enabled
Default: 0 (disabled); 0=disabled,
1=enabled
Default: 0 (no reset); 0=do not reset,
1=reset alarm
03
Holding
Registers
(4x)
40007 Sample size (writeable)
40008 Resistance per foot in mΩ
40009 AC rejection mode (needed only if the
40010 40015
40016 Leak alarm delay (writeable)
40017 Contamination alarm delay (writeable)
Description
Default: 12; range 4-25; 0 sets to
default
Set to 2000-3500 or 3500-4240
10K is AC-powered)
Default: 1 (50Hz); 0 = 60Hz, 1 = 50Hz
Not used - reads 0
Default: 10 seconds; range: 5-999
seconds
Default 120 seconds; range 5-999
seconds
