RKI Instruments 72-2102RK User manual

12 VDC Beacon 200

Operator’s Manual

Part Number: 71-0293RK
Revision: A
Released: 12/11/17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free
from defects in materials, workmanship, and performance for a period of
one year from date of shipment from RKI Instruments, Inc. Any parts found
defective within that period will be repaired or replaced, at our option, free
of charge. This warranty does not apply to those items, which by their
nature, are subject to deterioration or consumption in normal service, and
which must be cleaned, repaired, or replaced on a routine basis. Examples
of such items are as follows:

a) Absorbent cartridges d) Batteries

b) Pump diaphragms and valves e) Filter elements

c) Fuses

Warranty is voided by abuse including mechanical damage, alteration,
rough handling, or repair procedures not in accordance with the operator’s
manual. This warranty indicates the full extent of our liability, and we are
not responsible for removal or replacement costs, local repair costs,
transportation costs, or contingent expenses incurred without our prior
approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER
WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED,
AND ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF
RKI INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL RKI INSTRUMENTS,
INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF
ITS PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR
OPERATE PROPERLY.

This warranty covers instruments and parts sold to users by authorized
distributors, dealers, and representatives as appointed by RKI Instruments,
Inc.

We do not assume indemnification for any accident or damage caused by
the operation of this gas monitor, and our warranty is limited to the
replacement of parts or our complete goods.

12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Table of Contents

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About the 12 VDC Beacon 200 Gas Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

External Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Internal Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 3: Installation and Start Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Mounting the 12VDC Beacon 200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Wiring the 12 VDC Beacon 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Starting Up the 12 VDC Beacon 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Chapter 4: Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Recorder Output Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Alarm Indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Viewing & Resetting Min/Max Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Chapter 5: Channel Control and Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Enable/Disable Channel(s) Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Configure Channel Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

View System Information Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 6: Input Setup Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Setting up a New Channel or Changing an Existing Channel. . . . . . . . . . . . . . . 34

Chapter 7: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Calibration Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Replacing the Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 1: Introduction

Overview

This chapter briefly describes the 12 VDC Beacon 200. This chapter also

describes the 12 VDC Beacon 200 Operator’s Manual (this document).

Table 1 at the end of this chapter lists the specifications for the 12 VDC
Beacon 200.

About the 12 VDC Beacon 200

The 12 VDC Beacon 200 is a fixed-mounted, continuous-monitoring gas
detection instrument. This gas monitor is capable of detecting gas at two
locations. The display screen simultaneously displays the gas readings of
the active channel or channels. Both direct connect (internal amplifier type)
detector heads and 4 - 20 mA transmitter (remote amplifier type) detector
heads may be used with the 12 VDC Beacon 200.

The 12 VDC Beacon 200 includes audible and visual alarms that warn you
of hazardous gas conditions. The alarm circuit includes two levels of gas
alarms. The fail circuit alerts you to failures in the gas detector heads or 12
VDC Beacon 200.

Three instrument programs allow you to display and change channel and
calibration settings and change channel types. They are the Channel
Control & Setup Program and the Calibration Program, and the Input Setup
Program.

12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

About this Manual

!

The 12 VDC Beacon 200 Gas Monitor Operator’s Manual uses the

following conventions for notes, cautions, and warnings.

NOTE: Describes additional or critical information.

CAUTION: Describes potential damage to equipment.

WARNING: Describes potential danger that can result in injury or

Caution: refer to accompanying documentation

death.

~ Vac (AC voltage)

Vdc (DC voltage)

2 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications

Table 1 lists specifications for the 12 VDC Beacon 200.

Table 1: 12 VDC Beacon 200 Specifications

Description Specification

Input Power 10.8 - 14.5 VDC, 1.2A

Construction (housing) Fiberglass/polyester with lexan window (NEMA 4X)

Controller Dimensions 10.5 in. H x 8.5 in. W x 6.25 in. D

(267 mm H x 216 mm W x 158 mm D)

Weight 8 lbs.

Environmental Conditions • -20°C to 50°C (-4°F to 122°F) max. ambient

• Maximum humidity of 80% relative

Relays • Relay contacts rated for 10A @ 115/220V~ resistive or 10A @ 30V

User Controls • Reset switch

resistive

• SPDT Form C

• Program buttons: ESCAPE, UP/YES, DOWN/NO, and ENTER

WARNING: When using the 12 VDC Beacon 200, you must follow the

instructions and warnings in this manual to assure
proper and safe operation of the 12 VDC Beacon 200 and
to minimize the risk of personal injury. Be sure to
maintain and periodically calibrate the 12 VDC Beacon
200 as described in this manual.

12 VDC Beacon 200 Operator’s Manual • 3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 2: Description

FACTORY
WIRED

NO NC CNO NC C

COM-A 2COM-A1CH2-A2

NO NC C

CH1-A1

CH1-A2

Display PCB

Program
Button (4)

Fuses, DC
Power Switch

Button
Repeater
Buzzer

Fail LED
Pilot LED

Alarm Terminal
Strip

Relays

NO NC C

COM-FAIL
NO NC C

Detector /

Transmitter

Terminal Strip,

Channel 1

Display

Contra st

Adjust Pot

Alarm

1LED

MainPCB

DC I n
Terminal
Strip

Reset
Switch

Mounting F oot, 4 X

Buzzer

ConduitHub (3X)

Controller
Terminal Strip

Detector/

Transmitter

Terminal Strip,

Channel 2

NO NC C

CH2- A 1

NO NC C

Display

Alarm 2

LED

Figure 1. 12 VDC Beacon 200 Component Location

Overview

This chapter describes external and internal components of the 12 VDC
Beacon 200.

4 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

External Description

This section describes the housing and all external components of the 12
VDC Beacon 200. For the purposes of this description, the housing door is
considered the front of the monitor.

Housing

The 12 VDC Beacon 200’s fiberglass housing is weather- and corrosion­resistant. It is suitable for installation where general purpose equipment is
in use. The housing door is hinged on the left side and is secured by two
latches on the right side. The display screen and status lights are visible
through windows in the housing door. Four mounting feet are attached to
the back of the housing (one at each corner). The mounting feet allow you
to install the housing to a vertical surface. Three conduit hubs on the
bottom of the housing are for external wiring connections.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason.

CAUTION: To avoid elect rical inte rference, do not ro ute detector head and

power wiring thro ugh the same conduit hub.

Reset Switch

The reset switch is on the bottom of the housing. It is in front of the conduit
hubs. The reset switch serves three functions:

• Resets the alarm circuits for “latched” alarms after an alarm 1 or alarm 2
condition passes.

You can set each channel for latched or self-resetting alarms in the
Channel Control & Setup Program.

• Silences the buzzer during an alarm 1 or alarm 2 condition. You cannot
silence failure alarms.

• Displays and resets the minimum and maximum gas concentration
values.

Buzzer

The buzzer is on the bottom of the housing. It is on the far right. The buzzer
sounds audible alarms to warn you of gas alarms and instrument failures.

12 VDC Beacon 200 Operator’s Manual • 5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Internal Description

ESCAPE
Button

UP/YES
Button

ENTER
Button

DOWN/NO
Button

Button Repeater
Buzzer

Display Screen

FAIL Light

PILOT Light

Display Cable Connector

J1

Display Contrast
Adjust Pot

ALARM 2 Light

ALARM 1 Light

Figure 2. Display Board Component Location

This section describes the internal components of the 12 VDC Beacon 200.

Display Printed Circuit Board (PCB)

The display PCB is mounted to the power supply mounting plate which is in
turn mounted to the main PCB. The power supply mounting plate and main
PCB are described below. The display PCB includes the display, the status
lights, and the program buttons.

Display

The display simultaneously indicates the channel number, current gas
reading, measuring unit, and target gas of all active channels.

The display also indicates messages, settings, and other data when you
are operating the instrument programs.

6 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Status Lights

The 12 VDC Beacon 200 includes four status lights that indicate the current
status of the monitor. The status lights are to the left and right of the display
(see Figure 2).

• Pilot Light. The pilot light is on when the 12 VDC Beacon 200 is
receiving incoming power.

• Fail Light. The fail light turns on when the 12 VDC Beacon 200 is
experiencing a fail condition. A fail condition can be caused by a failure
within the 12 VDC Beacon 200 or detector head(s) wired to the 12 VDC
Beacon 200. See “Chapter 7: Maintenance” on page 38 for instructions
to respond to a fail condition.

• Alarm 1 Light. The alarm 1 light is on when the 12 VDC Beacon 200 is
experiencing an alarm 1 gas condition.

• Alarm 2 Light. The alarm 2 light is on when the 12 VDC Beacon 200 is
experiencing an alarm 2 gas condition.

Program Buttons

The 12 VDC Beacon 200 includes four program buttons that allow you to
enter the instrument programs, navigate through the programs, update
instrument and channel settings, and save changes to the program
settings. When a program button is pressed, a buzzer located on the
display PCB beeps. The program buttons are near the right edge of the
display PCB (see Figure 2).

Table 2: 12 VDC Beacon 200 Program Button Functions

Button Function

ESCAPE • Moves backward through the program menus

• Cancels changes you make in the program menus

• Enters the Channel Control and Setup program (press with the ENTER button)

UP/YES • Accepts the displayed setting and proceeds to the next setting

• Changes the displayed setting

• Enters the Calibration program (press with the ENTER button)

DOWN/NO • Allows you to update the displayed setting

• Changes the displayed setting

ENTER • Saves changes you make in the programs

• Enters the Channel Control and Setup program (press with ESCAPE button)

• Enters the Calibration program (press with the UP/YES button)

12 VDC Beacon 200 Operator’s Manual • 7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Main PCB

The main PCB is mounted inside the housing. The power supply mounting
plate is mounted to the main PCB with four standoffs and the display PCB
is mounted to the power supply mounting plate with four standoffs. The
main PCB includes the terminal strips, relays, fuses, and power switch.

Terminal Strips

The 12 VDC Beacon 200 includes four terminal strips for external wiring
connections. See “Wiring the 12 VDC Beacon 200” on page 13 for detailed
wiring procedures.

• Detector/Transmitter Terminal Strips. Two detector/transmitter
terminal strips are located near the bottom left corner of the main circuit
board (see Figure 1). These two 9-point terminal strips facilitate wiring
connections to the detectors or transmitters. Although each terminal
strip can accommodate several different detector head models, only
one detector head at a time may be wired per channel. The top terminal
strip is for channel 1 and the bottom terminal strip is for channel 2.

• Alarm Terminal Strip. The alarm terminal strip is located along the
bottom edge of the main circuit board (see Figure 1). This 21-point
terminal strips facilitates wiring connections to external alarm devices
(horn, strobe, etc.). Terminals are provided for individual channels as
well as common alarm relay contacts.

• Controller Terminal Strip. The 10-point controller terminal strip is near
the lower right edge of the main circuit board (see Figure 1). The
controller terminal strip facilitates various internal and external wiring
connections. Table 3 lists the function of each terminal.

Table 3: Terminal Assignments for the Controller Terminal Strip

Terminal Connects to:

NOT USED (top terminal) not used

NOT USED (bottom terminal) not used

+ CH1 OUT + connection of 4 - 20 mA output, channel 1

- CH 1 OUT - connection of 4 - 20 mA output, channel 1

+ CH2 OUT + connection of 4 - 20 mA output, channel 2

- CH2 OUT - connection of 4 - 20 mA output, channel 2

RESET (2) Reset switch (factory-wired)

BUZ-/BUZ+ Internal buzzer (factory-wired)

8 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

• DC In Terminal Strip. The DC in terminal strip is a 3-point terminal strip

K5 K6 K7

Channel 2, Alarm 1

Channel 1, Alarm 2

Channel 1, Alarm 1

K1 K2 K3

Common Alarm 1

Common Alarm 2

Common Fail

K4

Channel 2, Alarm 2

Figure 3. 12 VDC Beacon 200 Channel Relay Allocation

located above the controller terminal strip (see Figure 1). It facilitates
wiring from a 12 VDC power source. Table 4 lists the function of each
terminal.

Table 4: Terminal Assignments for the AC In Terminal Strip

Terminal Connects to:

12 VDC + + wire from 12 VDC power source

12 VDC - - wire from 12 VDC power source

Earth ground

Relays

The 12 VDC Beacon 200 includes four channel relays (two per channel)
and three common relays. Both sets of relays are single-pole, double-throw
(SPDT) and are rated for 10 amps at 250 VAC (resistive).

NOTE: You can select normally energized (NE) or normally de-energized

(NDE) settings for each channel in the Channel Control and Setup
program. This section describes the default setting: normally de­energized.

The alarm 1 and alarm 2 common relays are factory-set as NDE
and the fail common relay is factory-set as NE. The alarm 1, alarm
2, and fail common relays’ NE/NDE settings are not user­adjustable.

• Channel relays. The four channel relays are above the alarm terminal
strip (see Figure 1). These relays are dedicated to specific channels
and alarm levels.

For example, the channel 1, alarm 1 relay energizes if channel 1
recognizes an alarm 1 condition. Figure 2 below illustrates the
allocation of the channel relays.

12 VDC Beacon 200 Operator’s Manual • 9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: The alarm 2 channel relays may be set to operate as individual

channel fail relays. See “Configure Channel Settings Menu” on
page 31 for instructions.

• Common relays. The three common relays, alarm 1, alarm 2, and fail,
are to the left of the controller terminal strip (see Figure 1). These relays
are common for both channels.

For example, the alarm 1 common relay energizes if either channel 1 or
channel 2 recognizes an alarm 1 condition.

Fuses

There are two DC fuses that are used in the 12 VDC Beacon 200. They are
located directly to the left of the controller terminal strip. They cut off the
incoming DC power in the event of a short circuit or other electrical fault
which causes a high current draw in the 12 VDC Beacon 200. They are
housed in vertical fuse holders and are held in the holder by a quarter turn
cover. They are labelled as F2 (top fuse) and F3 (bottom fuse) on the PCB
silk-screen and are rated at 3 A, 250 V.

A third fuse located to the left of the power switch is labelled F1. This fuse
is not used in this version of the Beacon 200.

Power Switch

The power switch is located above the relays and to the left of the DC fuses
(see Figure 1). The power switch turns the incoming DC power source on
and off at the 12 VDC Beacon 200. When the switch is up, the power
switch is on.

Power Converter

The power converter is mounted to the power supply mounting plate with
standoffs. The power supply mounting plate is located behind the display
PCB and is mounted to the main PCB with four standoffs. The power
converter takes 12 VDC voltage supplied to the 12 VDC Beacon 200 and
converts it to 24 VDC which is used to run the 12 VDC Beacon 200.

10 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 3: Installation and Start Up

Overview

This chapter describes procedures to mount the 12 VDC Beacon 200,
make wiring connections to the monitor, and start up the monitor.

WARNING: Perform all installation and start-up procedures in a

“fresh air” environment (known to be free of combustible
gas, toxic gas, and of normal oxygen content). The 12
VDC Beacon 200 is not in operation as a gas monitoring
system until the start-up procedure is complete.

Mounting the 12 VDC Beacon 200

Perform the following procedure to install the 12 VDC Beacon 200 at the
mounting site.

12 VDC Beacon 200 Operator’s Manual • 11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Mounting
Feet, 4X

Ø .31x .50slot, 4X

PILOT

FAIL

.41

3/4 ConduitHubs (4X)

Buzzer

RESET

ALARM 1

ALARM 2

6.45

10.94

10.50

Reset Switch

8.50

6.00

GAS MONITOR

BEAC ON 200

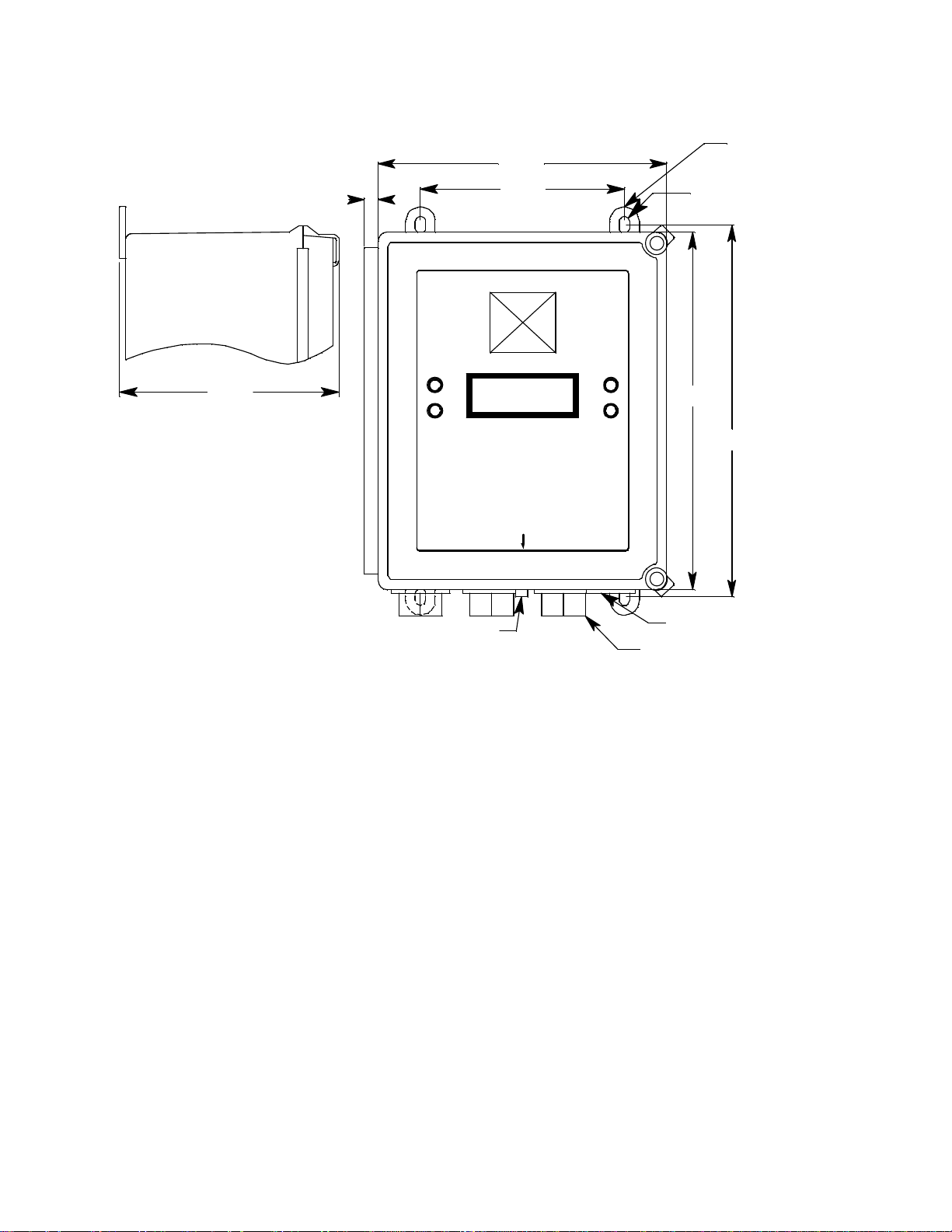

Figure 4. 12 VDC Beacon 200 Outline and Mounting Dimensions

1. Select the mounting site. When you select the mounting site consider

the following factors:

• Is a 12 VDC power source available?

• Is there enough room to open the housing door and make wiring

connections through the conduit hubs at the bottom of the housing?

• Are the display screen and status lights visible?

2. Close and latch the housing door.

3. Position the monitor on a vertical surface at eye level (4 1/2 to 5 feet

from the floor).

4. The 12 VDC Beacon 200 is shipped with the mounting feet positioned

behind the housing. Loosen the screws that secure the feet to the
housing, rotate the feet to their mounting position (as shown in
Figure 4), then tighten the screws.

5. Insert 1/4 in. or 5/16 in. screws through the slots in the mounting feet at

each corner of the housing to secure the housing to the mounting
surface (see Figure 4).

12 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Wiring the 12 VDC Beacon 200

COM-A1 COM-FAILCOM-A2

NO NC C NO NC CNO NC C

NOT

+

+

+

Ch an ne l 1 Re c order

1K M ax Imp edance

CH2-A1CH1-A2

NO NC C NO NC C

BUZ

Reset Switch

(Factory Wired)

Buzzer

(Factory Wired)

Oxygen
Det ector

+ S

OXYGENAMP/PREAMP

+

Green

White

+ S

AMP/PREAMP OXYGEN

+

CHANNEL 2

USED

DC

In Te rminal Stri p W iri ng

12 V
DC

CH1
OUT

LE L De t e c tor

Black

LEL

R W G B

TypicalDe tector/TransmitterTerminal

Strip Wiring

Only one detector or transmitter can be

wire d to Ch1 or Ch2 at a time. See detecto r

head wiring diagram for specific wi ring.

TypicalAl arm Relay Termina l Strip

Wiring

CH2-A2

NO NC C

BUZ +

RESET

RESET

2-W i r e 4- 20 ma
Transmitter

+ 24 V

Red

White

Green

+ 24 V

FB (4 -20 mA)

LEL

R W G B

Contac t Rat ing of 10 Amps at 115/
220 V~ R esistive or
10A @ 30V Resistiv e for
Eac h S et of Al arm Rel ay
Contacts.

Alarm Devi ces

Ch an ne l 2 Re c order

1K M ax Imp edance

CHANNEL 1

CH2
OUT

FB (4 -20 mA)

Controller Termin al St rip

Wiring

4- 2 0mA Out

4- 2 0mA Out

NO NC C

CH1-A1

ALARM
DEVI CE
POWER

- DC GROUND
3-W i r e 4- 20 ma
Transmitter

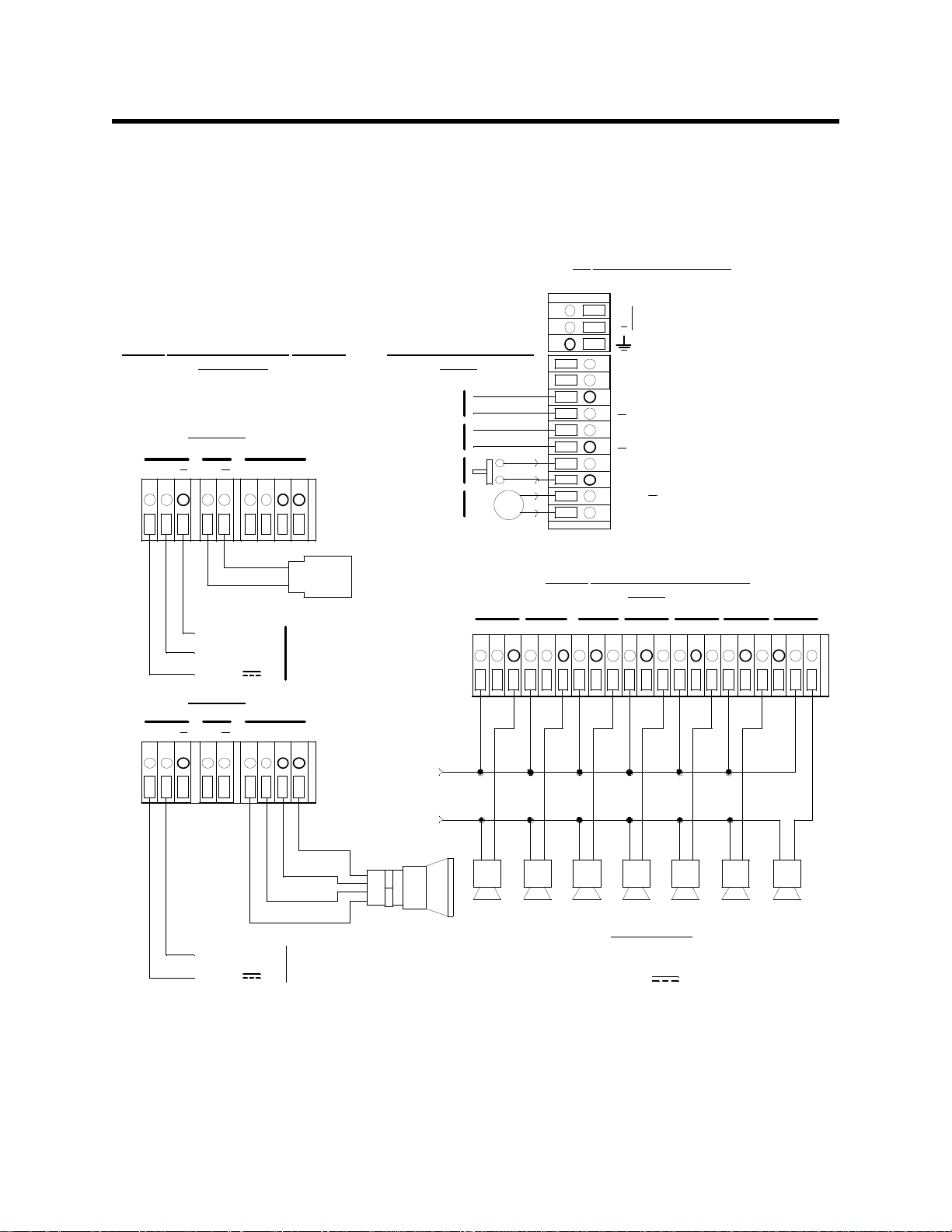

Figure 5. 12 VDC Beacon 200 General External Wiring Diagram

This section describes procedures to connect the 12 VDC power source,
external alarm(s), a recorder, and detector head(s). See Figure 5 for a
general wiring diagram of all external wiring to the 12 VDC Beacon 200.

12 VDC Beacon 200 Operator’s Manual • 13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

The power converter, reset switch, and alarm buzzer are all factory wired.

Figure 6. 12 VDC Beacon 200 Factory Wiring Diagram

P1

P2

CH1
OUT

+

BUZZER

NOT
USED

12 V
DC

+

RESET

CH2
OUT

+

RESET SWITCH

TB1

RESET

BUZ +

BUZ

Power

Converter

MAIN PCB

14 • 12 VDC Beacon 200 Operator’s Manual

WARNING: Make all connections to the 12 VDC Beacon 200 before

you connect the DC power source. Before you make any
wiring adjustments, always verify that all power sources
are not live.

Routing Wiring Into the Beacon 200 Housing

Wiring must be brought into the housing through one of the three factory­installed conduit hubs on the bottom of the housing.

Do not drill into the Beacon 200 housing for any reason. Drilling the Beacon
200 housing and routing wiring through holes not factory drilled will void the
warranty and could result in:

• Damage to internal components from the drilling process.

• Moisture damage to internal components from poorly sealed holes.

• Unpredictable Beacon 200 behavior due to EMI/RFI interference
caused by wires routed across the PCBs.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

• Possible shorting of Beacon 200 components due to wires routed

12 VDC In

Term inal Strip

-

+

12 VDCPow er

Source

Figure 7. Power Wiring

across the PCBs.

Connecting the DC Power Source

Perform the following functions to connect the 12 VDC Beacon 200 to DC
power.

NOTE: Be sure to turn off the 12 VDC Beacon 200 before connecting or

disconnecting it from the 12 VDC power source.

1. Turn off, unplug, or disconnect all incoming power to the 12 VDC

Beacon 200.

2. Open the housing door, then place the power switch in the OFF

position.

3. Install an appropriately rated cable bushing or conduit in an unused

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason. See “Routing Wiring Into the Beacon
200 Housing” on page 14 for more information.

4. Guide the power wiring through the selected conduit hub on the bottom

of the 12 VDC Beacon 200 housing.

CAUTION: Do not route the power wiring and detector head wiring

through the same conduit hub. The power wiring may disrupt
the transmission of the detector signal to the 12 VDC Beacon

200.

5. Connect the leads from the power supply to the DC In terminal strip as

shown in Figure 7.

Find Quality Products Online at: [e-mail]

12 VDC Beacon 200 Operator’s Manual • 15

www.GlobalTestSupply.com

Connecting External Alarms

Perform the following procedure to connect external alarm devices to the
12 VDC Beacon 200.

NOTE: The alarm terminal strip includes terminals for channel alarms

and common alarms. Channel alarms are activated by one
particular channel. Common alarms are activated by either of the
two channels.The example used in this procedure describes
connecting an external alarm device to one of the channel alarm
terminals: the channel 1, alarm 1 terminals.

1. Turn off or unplug power to the 12 VDC Beacon 200.

2. Open the housing door, then place the power switch in the OFF

position. Locate the alarm terminal strip (see Figure 1).

3. Install an appropriately rated cable bushing or conduit in an unused

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason. See “Routing Wiring Into the Beacon
200 Housing” on page 14 for more information.

4. Guide the wiring of the external alarm device through the selected

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Do not route the external alarm wiring and detector head

wiring through the same conduit hub. The external alarm
wiring may disrupt the transmission of the detector signal to
the 12 VDC Beacon 200.

16 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Connect the leads from the external alarm device and power to the

Beacon 200 Alarm
Terminal Strip

-(N)

+ (H)

CH1-A1

NO NC C

External Alarm

Device

External Power

Source

Figure 8. Typical External Alarm Wiring

alarm terminals as shown in Figure 8.

6. Repeat steps 4 and 5 for additional external alarm devices.

Connecting a Recorder

Perform the following procedure to connect an analog recording device to
the 12 VDC Beacon 200. The output at the recorder output terminals is a 4

- 20 mA signal that is proportional to the detection range of the applicable

detector head.

1. Turn off or unplug power to the 12 VDC Beacon 200.

2. Open the housing door, then place the power switch in the OFF

position. Locate the recorder output terminals on the controller terminal
strip (see Figure 1).

3. Install an appropriately rated cable bushing or conduit in an unused

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason. See “Routing Wiring Into the Beacon
200 Housing” on page 14 for more information.

4. Guide the wiring from the recording device through the selected

conduit hub on the 12 VDC Beacon 200.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12 VDC Beacon 200 Operator’s Manual • 17

5. Connect the wires from the recording device to the recorder output

+

CH2
OUT

+

CH1
OUT

+

Recording Device
#2, 1Kohm Max
Impedance

Recording Device
#1, 1Kohm Max
Impedance

+

Figure 9. Recorder Output Wiring

terminals as shown in Figure 9.

Connecting RKI Detector Heads

Perform the following procedure to connect an RKI detector head to the 12
VDC Beacon 200.

1. Turn off or unplug power to the 12 VDC Beacon 200.

2. Open the 12 VDC Beacon 200 housing door and place the power

switch in the off position.

3. See the detector head instruction manual for instructions on how to

connect wires to the detector head.

4. Install an appropriately rated cable bushing or conduit in an unused

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason. See “Routing Wiring Into the Beacon
200 Housing” on page 14 for more information.

5. Route the wires in conduit or shielded cable from the detector head

through the selected conduit hub into the 12 VDC Beacon 200. See
Table 5 below for wire size and distance guidelines.

Unshielded twisted pair cable in conduit or shielded twisted pair cable
is recommended for all the direct connect detector heads. For the LEL
detector, pair the R & B wires and the W & G wires. Shielded cable or
wires in conduit are recommended for the 2-wire and 3-wire 4 - 20 mA
transmitters.

6. Connect the wires from the detector head to the appropriate detector/

transmitter terminals. The top detector terminal strip is for channel 1
and the bottom one is for channel 2. See the detector head instruction
manual for controller terminal connections.

18 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

CAUTION: Do not route power and det ector head wiring through the same

conduit hub. The p ower wiring may disrupt th e tra nsm issi on of
the detector head’s to the 12 VDC Beacon 200.

Table 5: Wire Size Guidelines for RKI Detector Head Wiring

Number of

Detector Head Type

Direct Connect LEL 4 500 ft. 1,000 ft. 2,000 ft.
Direct Connect Oxygen 2 5 00 ft. 1,000 ft. 2,000 ft.
Direct Connect H2S 2 5 00 ft. 1,000 ft. 2,000 ft.
Direct Connect CO 2 5 00 ft. 1,000 ft. 2,000 ft.
Direct Connect Cl2 2 500 f t. 1,000 ft. 2,000 ft.

Direct Connect SO2 2 500 ft. 1,000 ft. 2,000 ft.

2-Wire 4 - 20 mA Transmitter 2 2,500 ft. 5,000 ft. 8,000 ft.

3-Wire 4 - 20 mA Transmitter 3 2,500 ft. 5,000 ft. 8,000 ft.

Wires to

Controller

Max Distance to

Controller w/18

Gauge Wire

Max Distance

to Controller w/

16 Gauge Wire

Max Distance to

Controller w/14

Gauge Wire

Connecting User-Supplied 4 - 20 mA Transmitters

The 12 VDC Beacon 200 may be used with a user supplied 2-wire or 3-wire
4 - 20 mA transmitter which runs on 24 VDC. When this is done, the 12
VDC Beacon 200 is normally setup at RKI Instruments with the following
channel parameters: unit of measure, item name, and full scale. For
example, “PSI AIR” with a full scale of 10 PSI.

Perform the following procedure to connect a 4 - 20 mA transmitter, which
you supply, to the 12 VDC Beacon 200.

1. Turn off power to the 12 VDC Beacon 200 at the power source.

2. Open the 12 VDC Beacon 200 door and turn off the power switch.

3. See the transmitter’s instruction manual for instructions on how to

connect wires to the transmitter.

4. Install an appropriately rated cable bushing or conduit in an unused

conduit hub on the bottom of the 12 VDC Beacon 200 housing.

CAUTION: Only use the three facto ry installed condui t hubs on the bottom

of the housing for wire entry into the housing. Do not drill the
housing for any reason. See “Routing Wiring Into the Beacon
200 Housing” on page 14 for more information.

5. Route the wires from the transmitter through the selected conduit hub

into the 12 VDC Beacon 200.

12 VDC Beacon 200 Operator’s Manual • 19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6. Connect the wires from the transmitter to the appropriate detector/

AMP/PREAMP OXYGEN

+ + S

LEL

R W G B

2-Wire 4-20 ma
Transmitter

+ 24 VDC

FB (4-20 mA)

OXYGEN

2-Wire Connection

+ S

AMP/PREAMP

+

3-Wire 4-20 ma
Transmitter

3-Wire Connection

+ 24 VDC

FB (4-20 mA)

-

(DC GROUND)

LEL

R W G B

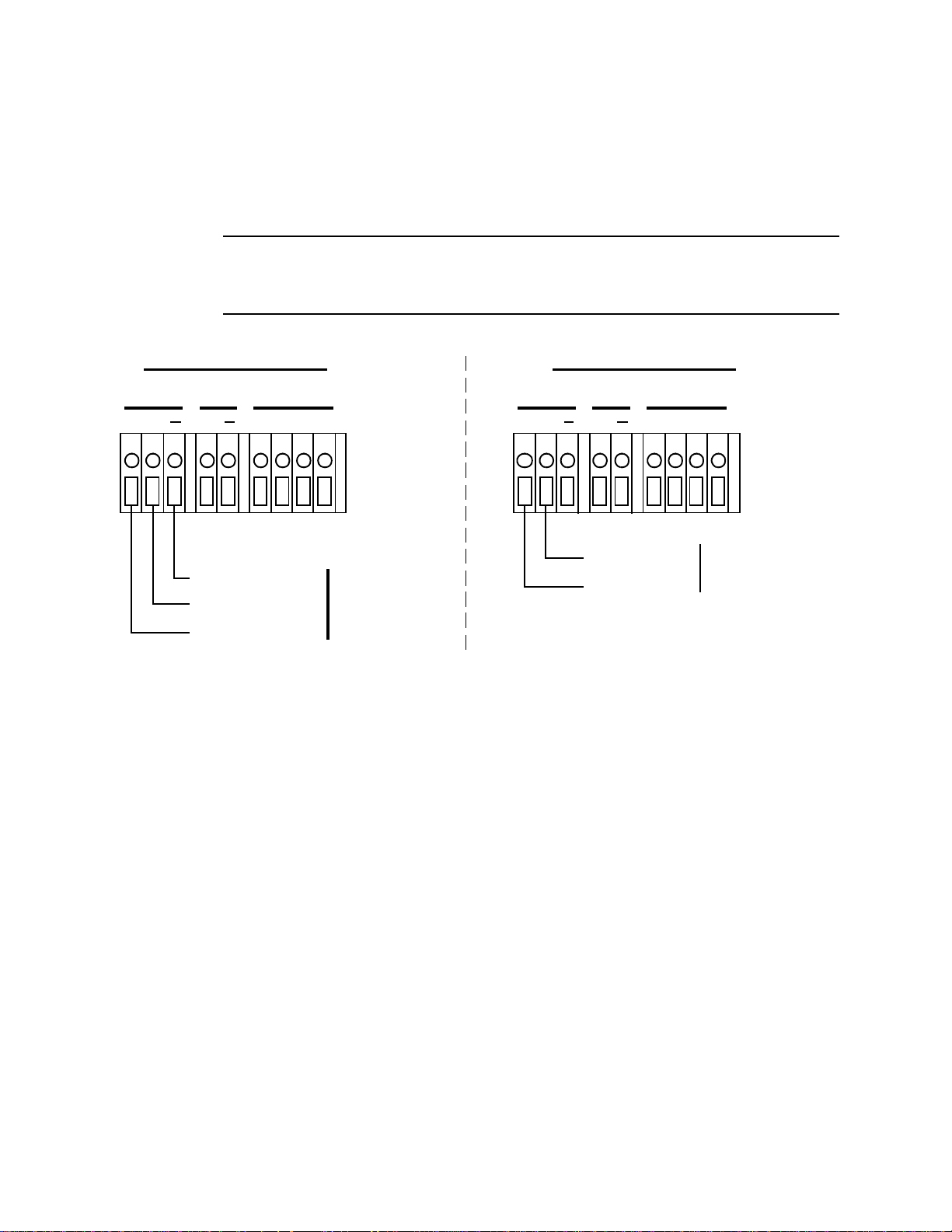

Figure 10. Generic 4 to 20 mA Transmitter Output Wiring

transmitter terminals. The top detector terminal strip is for channel 1
and the bottom one is for channel 2. See the transmitter instruction
manual for controller terminal connections. Figure 10 below illustrates
typical transmitter wiring connections.

CAUTION: Do not route power and transmitter wiring through the same

conduit hub. The p ower wiring may disrupt th e tra nsm issi on of
the transmit ter’s signal to the 12 VDC Beacon 20 0.

Find Quality Products Online at: [e-mail]

20 • 12 VDC Beacon 200 Operator’s Manual

www.GlobalTestSupply.com

Starting Up the 12 VDC Beacon 200

Perform the following procedure to place the 12 VDC Beacon 200 into
normal operation.

1. Complete the mounting and wiring procedures described earlier in this

chapter.

2. Complete all installation procedures described in the detector head or

user supplied 4-20 mA transmitter instruction manual.

3. Verify that all wiring connections are correct and secure and that the 12

VDC Beacon 200’s power switch is in the OFF position.

4. Plug in or turn on the 12 VDC power source.

5. Place the 12 VDC Beacon 200’s power switch in the ON position. RKI

INSTRUMENTS BEACON 200 appears on the display for a few
seconds, then WARMING UP appears for each active channel. The
warm-up period will last for one minute.

NOTE: To prevent unwanted alarms during warm up, the alarm circuits

are not active while the WARMING UP message is displayed.

6. Verify that the PILOT light is on. If the PILOT light is not on, see

“Troubleshooting” on page 46.

7. Perform the start-up procedure for each detector head or user supplied

4 - 20 mA transmitter as described in the detector head or transmitter
instruction manual.

12 VDC Beacon 200 Operator’s Manual • 21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 4: Operation

1
2

0

20.9

%

L

E

%

CH4

Oxy

L

:
:

g

e

n

Overview

This chapter describes the 12 VDC Beacon 200 in normal operation. This
chapter also describes the 12 VDC Beacon 200 in alarm 1, alarm 2, and fail
conditions and suggests response to these conditions.

Normal Operation

Normal operation is defined as follows:

• The start-up procedure is complete.

• The 12 VDC Beacon 200 is not indicating an alarm 1, alarm 2, or fail
condition.

• The 12 VDC Beacon 200 is not running the Channel Control & Setup or
Calibration Programs.

During normal operation, the 12 VDC Beacon 200 simultaneously displays
the current gas reading, unit of measure, and target gas for each active
channel.

The PILOT light is on during normal operation indicating that the 12 VDC
Beacon 200 is receiving incoming power.

Find Quality Products Online at: [e-mail]

22 • 12 VDC Beacon 200 Operator’s Manual

www.GlobalTestSupply.com

Recorder Output Operation

The output at the recorder output terminals is a 4 - 20 mA signal for each
active channel that is proportional to the detection range of the channel. A
channel that is set as CHANNEL NOT USED or CHANNEL DISABLED in
the Channel Control & Setup Program (see “Chapter 5: Channel Control
and Setup Program” on page 29) has an output of 0 mA.

There are several special circumstances where the recorder output will
behave as follows:

• When a channel is in WARMUP after the 12 VDC Beacon 200 is turned
on, the recorder output will be at 4 mA.

• If the 12 VDC Beacon 200 is being powered by a battery and is in low
battery alarm, the recorder output for each channel will be 0 mA.

• When a channel is added or a channel type changed, the display will
indicate NEEDS CALIBRATION for that channel when the 12 VDC
Beacon 200 is first turned on and will continue to indicate this until the
channel is calibrated. In this situation, the recorder output will be at 3.2
mA until the channel is calibrated.

• If a channel goes into a fail condition, the recorder output will be 0 mA.

• If you enter any of the instrument programs, such as the Calibration
Program, the recorder output will hold at the value it was at when you
entered the program was entered until you return to normal operation.

12 VDC Beacon 200 Operator’s Manual • 23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Alarm Indications

This section describes the 12 VDC Beacon 200 in alarm 1, alarm 2, and fail
conditions and suggests response to these conditions. Table 6 below lists
the alarm indications for each condition.

NOTE: The 12 VDC Beacon 200 includes alarm on and alarm off delay

settings for each channel and level of gas alarm. The alarm
indications described in this section operate according to the
factory set delay settings. See “Configure Channel Settings Menu”
on page 31 for all the factory settings.

Table 6: Visual and Audible Alarm Indications

Condition Cause Visual Indication(s)

Alarm 1

Alarm 2

Fail • Disconnected or misconnected

Low Battery

NOTE: Under typical operating conditions, there will be no low power alarm. Most 12 VDC power sources’ output voltage
will decrease too quickly in a low power condition for the 12 VDC Beacon 200 to recognize a low power condition before it
shuts down.

1

1

Increasing (decreasing for O2) gas
reading at or above (below for O
alarm 1 setpoint

Increasing gas reading at or above the
alarm 2 setpoint

detector wiring

• Display reading below -10% of full
scale or lower

• Defective components

Dead 12 VDC battery. • FAIL light is on

) the

2

• ALARM 1 light is on

• Gas reading flashes and
alternates with ALARM-1
message

• Strobe/horn turns on

• ALARM 2 light is on

• Gas reading flashes and
alternates with ALARM-2
message

• FAIL light is on

• FAIL message flashes in
place of gas reading

• SUPPLY VOLTAGE IS TOO

LOW LOW POWER
STANDBY message and

actual voltage of incoming
DC power

Audible

Indication

Pulsing tone

Pulsing tone

Steady tone

None

1

If the 12 VDC Beacon 200 is in both an alarm 1 and an alarm 2 condition, both alarm lights are on and the

*

display alternates between the gas reading and the ALARM-1 ALARM-2 message.

24 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: You can select normally energized (NE) or normally de-energized

(NDE) channel relay settings in the Channel Control & Setup
menu. The following sections describe the default setting for the
channel relays which is NDE.

Common alarm 1 and alarm 2 relays are factory-set as NDE, and
the common fail relay is factory set as NE. The common relays’
NE/NDE settings are not user-adjustable.

Alarm 1 Condition

This section describes the audible and visual indications for an alarm 1
condition and suggests response to an alarm 1 condition.

Alarm 1 Condition Indications

When the gas reading of an active channel reaches the alarm 1 setpoint,
the 12 VDC Beacon 200 senses an alarm 1 condition. The 12 VDC Beacon
200 alerts you to an alarm 1 condition as follows:

• The ALARM 1 light turns on.

• The gas reading in alarm 1 condition flashes and alternates with the
ALARM-1 message.

• The buzzer sounds a Pulsing tone.

• The common alarm 1 relay energizes.

• The applicable alarm 1 channel relay energizes.

Responding to an Alarm 1 Condition

This section suggests response to an alarm 1 condition.

1. Follow your established procedure for a low level combustible or toxic

gas condition or a decreasing oxygen content condition.

2. Oxygen alarms are self-resetting and will automatically clear when the

oxygen rises above the alarm 1 setpoint.

3. Alarms for all other gas types are latching. After the gas reading falls

below the alarm 1 setpoint, press the reset switch to reset the alarm 1
circuit. Resetting the alarm 1 circuit silences the buzzer, turns off the
ALARM 1 light, resets the channel display, and de-energizes the
common and channel alarm 1 relays.

12 VDC Beacon 200 Operator’s Manual • 25

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: To silence the buzzer while in an alarm 1 condition, press the

reset switch.

You cannot de-energize the alarm 1 relays and consequently the
strobe/horn until the gas reading falls below the alarm 1 setpoint.

Alarm 2 Condition

This section describes the audible and visual indications for an alarm 2
condition and suggests response to an alarm 2 condition.

Alarm 2 Condition Indications

When the gas reading of an active channel reaches the alarm 2 setpoint,
the 12 VDC Beacon 200 senses an alarm 2 condition. The 12 VDC Beacon
200 alerts you to an alarm 2 condition as follows:

• The ALARM 2 light turns on.

• The gas reading in alarm 2 condition continues to flash and alternates
with the ALARM-2 messages.

• The buzzer sounds a Pulsing tone.

• The common alarm 2 relay energizes.

• The applicable alarm 2 channel relay energizes.

Responding to an Alarm 2 Condition

This section suggests response to an alarm 2 condition.

1. Follow your established procedure for a high level combustible or toxic

gas condition or an increasing oxygen content condition.

2. Oxygen alarms are self-resetting and will automatically clear when the

oxygen rises above the alarm 2 setpoint.

3. Alarms for all other gas types are latching. After the gas reading falls

below the alarm 2 setpoint, press the reset switch to reset the alarm
circuit. Resetting the alarm circuit turns off the ALARM 2 light, and de­energizes the common and channel alarm 2 relays.

NOTE: To silence the buzzer while in an alarm 2 condition, press the

reset switch.

You cannot de-energize the alarm 2 relays until the gas reading
falls below the alarm 2 setpoint.

26 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Fail Condition

This section describes the audible and visual indications for a fail condition
and suggests response to a fail condition.

Fail Condition Indications

The 12 VDC Beacon 200 senses a fail condition for any of the following:

• The detector head wiring to the 12 VDC Beacon 200 is disconnected or
incorrectly connected.

• The detector head’s detector is disconnected or incorrectly connected.

• The display reading is -10% of full scale or lower.

• The 12 VDC Beacon 200 or detector head is malfunctioning.

When the 12 VDC Beacon 200 senses a fail condition, it alerts you as
follows:

• The FAIL light turns on.

• The gas reading for the failing channel is replaced by the FAIL
message.

• The buzzer sounds a steady tone.

• The common fail relay de-energizes.

NOTE: If you elected to use the channel’s alarm 2 relay as an individual

fail relay in the Channel Control & Setup menu, the relay de­energizes in a fail condition. See “Chapter 5: Channel Control and
Setup Program” on page 29 for a description of this setting.

Responding to a Fail Condition

This section suggests response to a fail condition.

1. Verify that the detector head wiring to the 12 VDC Beacon 200 is

correctly and securely connected.

2. Verify that the detector head’s detector is correctly and securely

connected.

3. See the troubleshooting guide in the detector head instruction manual.

Low Power Condition

Most 12 VDC power sources’ output voltage will decrease too quickly in a
low power condition for the 12 VDC Beacon 200 to recognize a low power
condition before it shuts down. As a result, when the 12 VDC Beacon 200
is used with a 12 VDC power source, there may be no low power alarm and

12 VDC Beacon 200 Operator’s Manual • 27

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

the unit may instead shut off if the input voltage decreases below 10.8 V.

Viewing & Resetting Min/Max Readings

The Reset switch may be used to view and reset the minimum and
maximum gas readings for the active channel(s).

1. While the 12 VDC Beacon 200 is in normal operation, press and hold

the Reset switch button for 3 seconds.

2. The display will indicate MIN / MAX Display Press RESET when

done viewing . . . for 5 seconds before displaying the minimum and
maximum readings for the active channel(s). The minimum reading is
on the left and the maximum is on the right side of the display for each
channel.

3. Press and release the Reset switch button to exit the min/max screen.

The display will indicate To RESET Min/MAX values Press and
HOLD RESET Button for 10 seconds and then return to normal
operation.

• To return to normal operation without resetting the minimum and

maximum readings, do not press the Reset switch button and allow
the unit to return to normal operation.

• To reset the minimum and maximum readings, before the unit

returns to normal operation press and hold the Reset switch button
until the display indicates Min/Max Values Have Been Reset.
Release the Reset switch button.The unit will then return to normal
operation.

28 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 5: Channel Control and Setup Program

Overview

The Channel Control & Setup Program allows viewing of and changes to
instrument setup parameters. It is accessed using the program buttons.
The Channel Control & Setup Program includes three menus as described
in Table 7.

Table 7: Channel Control & Setup Program Menus

Menu Function

Enable/Disable Channel(s) Configures channels as enabled, disabled, or not used

Configure Channel Settings Configures alarm settings, noise filter setting, and zero

suppression setting for each channel

View System Information Displays the firmware version number and the instrument

operating voltage

To enter the Channel Control & Setup Program, simultaneously press and
hold the ESCAPE and ENTER buttons for approximately 5 seconds.

The Channel Control & Setup Program menu includes a 5-minute time-out
feature. If you do not press a button for 5 minutes, the 12 VDC Beacon 200
automatically returns to normal operation.

NOTE: If the 12 VDC Beacon 200 returns to normal operation because of

a program time-out, the active channels enter a warm-up period
just as they do when the unit is first turned on.

If you are installing a new system, the channels have been setup
at the factory for the ordered detector heads. Use the Channel
Control & Setup Program only if you want to disable or enable a
channel, delete a channel, or change channel settings. If a
channel is being added or a channel is being changed from one
type to another, contact RKI Instruments, Inc. for additional
documentation required to define the channel type.

12 VDC Beacon 200 Operator’s Manual • 29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Enable/Disable Channel(s) Menu

1. From normal operation, simultaneously press and hold the ESCAPE

and ENTER buttons for approximately 5 seconds to enter the Channel
Control & Setup Program. Release the buttons when the Control &
Setup Program Proceed? [YES] or [NO] message appears on the
display screen.

2. Press the UP/YES button to continue.

3. Press the UP/YES or DOWN/NO button until the 1) Enable/Disable

Channel(s) message appears on the display screen, then press the
ENTER button.

4. Use the UP/YES and DOWN/NO buttons to select the channel you

want to enable or disable, then press the ENTER button.

5. Press the DOWN/NO button. The CHANNEL USAGE setting displays

on the display screen.

6. Use the UP/YES and DOWN/NO buttons to display the setting you

want, then press the ENTER button to select the setting. The table
below describes the three available settings.

Table 8: 12 VDC Beacon 200 Channel Usage Settings

Setting Description

CHANNEL ENABLED The 12 VDC Beacon 200 displays gas readings and initiates gas and channel failure

alarms when appropriate.
Use this setting for normal operation when the channel has a detector head wired to
it.

CHANNEL DISABLED The 12 VDC Beacon 200 displays DISABLED for the channel and the channel’s

alarm circuit is not active.
Use this setting when the channel has a detector head wired to it, but gas readings
and alarms are not required for the channel (for example if the detector head requires
maintenance or is malfunctioning).

CHANNEL NOT USED The 12 VDC Beacon 200 leaves the channel blank on the display screen.

Use this setting when the channel does not have a detector head wired to it.

7. Press the ESCAPE button, then press the DOWN/NO button to return

to normal operation.

30 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Configure Channel Settings

Con f iguration for

CHANNEL 1

has nbee

completed

eSav Se t t i ngs

?

[

Y

/N

]

Menu

This section describes how to view and change channel parameters for the
installed gas channels.

1. Simultaneously press and hold the ESCAPE and ENTER buttons for

approximately 5 seconds to enter the Channel Control & Setup
Program. Release the buttons when the Control & Setup Program
Proceed? [YES] or [NO] message appears on the display screen.

2. Press the UP/YES button to continue.

3. Press the UP/YES or DOWN/NO button until the 2) Configure

Channel Setting(s) message appears on the display screen, then
press the ENTER button.

4. Use the UP/YES and DOWN/NO buttons to select the channel for

which you want to set parameters, then press the ENTER button.

5. Press the UP/YES button until the parameter you want to set appears

on the display screen. The screen will display the current setting and
ask if it is OK.

Table 9 lists the parameters you can set for a channel. Table 9 also lists
the factory set value for each parameter.

NOTE: Use the ESCAPE button to go back to a previously displayed

parameter.

6. If the setting is not OK and you want to change the it, press the DOWN/

NO button. The parameter is now adjustable.

7. Use the UP/YES or DOWN/NO button to update the parameter, then

press the ENTER button to continue.

8. Repeat steps 5 through 7 to set any other channel parameters.

9. Press the UP/YES button until the following message appears on the

display screen.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12 VDC Beacon 200 Operator’s Manual • 31

10. Press the UP/YES button to save the configuration. The screen will

then return to the Channel Control & Setup menu.

11. To view or change the Channel 2 settings, scroll to the Configure

Channels Menu and repeat steps 4 through 10.

12. To exit the Channel Control & Setup menu, press ESCAPE to return to

the screen which asks Control & Setup Program Proceed? [YES] or
[NO].

13. Press the DOWN/NO button to return to normal operation.

Table 9: Channel Setting Parameters

Parameter

(Factory-Set Value)

ALARM-1 Level
(See the Beacon 200 Detector Head
Specification Sheet for the detector
head installed on this channel)

ALARM-1 ON DELAY
(1 sec)

ALARM-1 OFF DELAY
(0 sec)

ALARM-1 (activation)
(DECREASING for oxygen channels,
INCREASING for all other channel
types)

ALARM-1 Relay (action)
(NORMALLY DE-ENERGIZED)

ALARM-1 Relay (reset)
(SELF RESETTING for oxygen,
LATCHING for all other channel types)

Description

The gas reading at which the 12 VDC Beacon 200 initiates an alarm 1
condition for this channel.

The amount of time the 12 VDC Beacon 200 delays activation of the
alarm 1 circuit once an alarm 1 condition is initiated.

The amount of time the 12 VDC Beacon 200 delays turning off the alarm
1 circuit once an alarm 1 condition passes.

Indicates if the alarm 1 circuit is activated by gas readings INCREASING
or DECREASING to the ALARM-1 Level.

If set as NORMALLY DE-ENERGIZED, the channel’s alarm 1 relay is de-
energized in normal operation and energizes when an alarm 1 condition
is initiated.
If set as NORMALLY ENERGIZED, the channel’s alarm 1 relay is
energized in normal operation and de-energizes when an alarm 1
condition is initiated.

If set as LATCHING, you must press the RESET button to reset the
alarm 1 circuit after the alarm 1 condition passes.
If set as SELF RESETTING, the 12 VDC Beacon 200 automatically
resets the alarm 1 circuit after the alarm 1 condition passes.

ALARM-2 Relay (used for)
(ALARM-2 Condition)

ALARM-2 Level
(See the Beacon 200 Detector Head
Specification Sheet for the detector
head installed on this channel)

ALARM-2 ON DELAY
(2 min for oxygen, 1 sec for all other
channel types)

If set as ALARM-2 Condition, the channel’s alarm 2 relay activates
when an alarm 2 condition is initiated for the channel.
If set as FAIL Condition, the channel’s alarm 2 relay activates when a
fail condition is initiated for the channel.

The gas reading at which the 12 VDC Beacon 200 initiates an alarm 2
condition for this channel.

The amount of time the 12 VDC Beacon 200 delays activation of the
alarm 2 circuit once an alarm 2 condition is initiated.

32 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Table 9: Channel Setting Parameters (Continued)

Parameter

(Factory-Set Value)

ALARM-2 OFF DELAY
(0 sec)

ALARM-2 (activation)
(INCREASING)

ALARM-2 Relay (action)
(NORMALLY DE-ENERGIZED)

ALARM-2 Relay (reset)
(SELF RESETTING for oxygen,
LATCHING for all other channel types)

NOISE FILTER
(3)

Description

The amount of time the 12 VDC Beacon 200 delays turning off the alarm
2 circuit once an alarm 2 condition passes.

Indicates if the alarm 2 circuit is activated by gas readings INCREASING
or DECREASING to the ALARM-2 Level.

If set as NORMALLY DE-ENERGIZED, the channel’s alarm 2 relay is de-
energized in normal operation and energizes when an alarm 2 condition
is initiated.
If set as NORMALLY ENERGIZED, the channel’s alarm 2 relay is
energized in normal operation and de-energizes when an alarm 2
condition is initiated.

If set as LATCHING, you must press the RESET button to reset the
alarm 2 circuit after the alarm 2 condition passes.
If set as SELF RESETTING, the 12 VDC Beacon 200 automatically
resets the alarm 2 circuit after the alarm 2 condition passes.

The noise filter feature helps “smooth out” jumpy or noisy signals from
the detector head. You can set the noise filter from 1 to 8.
A setting of 8 produces the greatest amount of smoothing but also
responds slowest to changes in the response reading.
A setting of 1 responds fastest to changes in the response reading but
produces the least amount of smoothing.

ZERO SUPPRESSION
(0.5% oxygen for oxygen channels,

2.0% of full scale for all other channel
types)

View System Information Menu

The View System Information Menu consists of only one display screen
which indicates the version number of the firmware that is running the
instrument and the system voltage. The system voltage is the voltage that
is directly running the instrument’s circuitry. Although 12 VDC is supplied to
this version of the Beacon 200, the system voltage will typically indicate 24
VDC because of the 12 VDC to 24 VDC converter in the 12 VDC Beacon

200.

The zero suppression feature helps prevent “jumpy” readings near the
fresh air reading.
For example, if the zero suppression setting on a %LEL channel is 2.0%
and the full scale is 100% LEL, the 12 VDC Beacon 200 will display a
reading of 0% LEL for gas readings from -2% LEL to 2% LEL.

12 VDC Beacon 200 Operator’s Manual • 33

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 6: Input Setup Program

Overview

This chapter describes how to use the Input Setup Program to add a
channel or change the channel type of an installed channel on the 12 VDC
Beacon 200. The Input Setup Program allows you to define the type of
detector head, the units and gas type, and the full scale for that channel.

To enter the Input Setup Program, the 12 VDC Beacon 200 must first be
off. While the 12 VDC Beacon 200 is off, press and hold the ENTER button,
then turn on the 12 VDC Beacon 200 with the ON/OFF switch.

The Input Setup Program menu includes a 5-minute time-out feature. If you
do not press a button for 5 minutes, the 12 VDC Beacon 200 automatically
begins normal operation.

NOTE: If the 12 VDC Beacon 200 enters normal operation because of a

program time-out, the active channels enter a warm-up period just
as they do when the unit is first turned on.

Setting Up a New Channel or Changing an Existing Channel

1. While the 12 VDC Beacon 200 is off, press and hold the ENTER

button, then turn on the 12 VDC Beacon 200 with the ON/OFF switch.

2. The 12 VDC Beacon 200 will beep repeatedly while you are holding

down the ENTER button and then the screen will show INPUT SETUP
PROGRAM on the top line.

3. Press the ENTER button to continue.

If you press the ESCAPE button, the unit will start-up and enter its
warm-up period.

4. Press the UP/YES or DOWN/NO button until the channel you wish to

add or change appears on the display screen, then press the ENTER
button. The detector head type screen appears.

5. The display screen indicates what type of detector head is currently

selected for that channel and asks if it is OK. Table 1 below briefly

34 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

describes each type.

Table 10: 12 VDC Beacon 200 Detector Head Types

Detector Head Type Description

4 - 20 mA Amp [+S(-)] A 4 - 20 mA detector head is connected to the 12 VDC

Beacon 200 with 2 or 3 wires, depending on the detector
head model, using the AMP/PREAMP +, S, and - terminals
on a detector head terminal strip. All calibration adjustments
are made at the detector head.

PreAmp [+S] A PreAmp detector head is connected to the 12 VDC Beacon

200 with 2 wires using the AMP/PREAMP + and S terminals
on a detector head terminal strip. All calibration adjustments
are made at the 12 VDC Beacon 200.

O2 Direct [+-] An O2 Direct detector head is an oxygen detector head in

which the oxygen detector is wired to the 12 VDC Beacon
200 with 2 wires using the OXYGEN + and - terminals on a
detector head terminal strip. All calibration adjustments are
made at the 12 VDC Beacon 200.

LEL Direct [RWGB] An LEL Direct detector head is a combustible gas detector

head in which the combustible gas detector is wired to the 12
VDC Beacon 200 with 4 wires using the LEL R, W, G, and B
terminals on a detector head terminal strip. All calibration
adjustments are made at the 12 VDC Beacon 200.

If the detector head type is not correct, press the DOWN/NO button
and continue with step 6.

If the detector head type is correct, press the UP/YES button to
proceed to the units and gas type screen and skip to step 7.

NOTE: See the detector head operator’s manual and the Beacon 200

Detector Head Specification sheet for the detector head to
determine the detector head type.

6. Use the UP/YES and DOWN/NO buttons to scroll through the list of

detector head types until the correct one is displayed. Press the
ENTER button to accept the type.The units and gas type screen
appears.

7. If the units and gas type are not correct, press the DOWN/NO button

and continue with step 8.

If the units and gas type are correct, press the UP/YES button to
proceed to the full scale screen and skip to step 9.

8. Use the UP/YES and DOWN/NO buttons to scroll through a list of units

and gas type choices.

12 VDC Beacon 200 Operator’s Manual • 35

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: See the Beacon 200 Detector Head Specification Sheet for the

detector head to determine the correct units and gas type.

When the desired units and gas type appears, press the ENTER
button to accept the choice. The full scale screen appears.

One of the choices is User Will Specify. If the desired units and gas
type setting is not in the list, this setting will allow you to enter a 10
character units and gas type setting. With this choice displayed, press
the ENTER button and a screen will appear which allows you to input
the characters. Use the UP/YES and DOWN/NO buttons to select a
character and then press ENTER to accept it and continue with the
next character. When all characters have been entered, the full scale
screen will appear.

9. If the full scale setting is not correct, press the DOWN/NO button and

continue with step 10.

If the full scale setting is correct, press the UP/YES button to proceed
to the save screen and skip to step 11.

10. Use the UP/YES and DOWN/NO buttons to scroll through a list of full

scale settings.

NOTE: See the Beacon 200 Detector Head Specification Sheet for the

detector head to determine the correct full scale setting.

When the desired full scale setting appears, press the ENTER button
to accept the setting. The save screen appears.

One of the choices is User Will Specify. If the desired full scale setting
is not in the list, this setting will allow you to enter a full scale setting.
With this choice displayed, press the ENTER button and a screen will
appear which prompts you to choose how many decimal places you
want in the full scale setting. You can select up to 3 decimal places,
then press the ENTER button to proceed to the select full scale screen.
Use the UP/YES and DOWN/NO buttons to select a full scale setting,
then press ENTER to accept it. The save screen appears.

11. To save the settings, press the UP/YES button and the settings will be

saved. The display will return to the first screen of the Input Setup
Program.

If you do not want to save the settings, press the DOWN/NO button.
The display will return to the first screen of the Input Setup Program.

12. Press the ENTER button to perform additional setup or the ESCAPE

button to exit the Input Setup Program and begin the 12 VDC Beacon
200’s warm-up sequence.

36 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: Once the 12 VDC Beacon 200 channels are configured correctly,

see the detector head operator’s manual(s) for a complete
description of detector head installation procedures.

12 VDC Beacon 200 Operator’s Manual • 37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 7: Maintenance

Overview

This chapter describes use of the Calibration Program and corrective
maintenance procedures for the 12 VDC Beacon 200. It includes a
troubleshooting guide for problems you may encounter with the 12 VDC
Beacon 200. Procedures to replace components of the 12 VDC Beacon
200 are at the end of this chapter.

Calibration Program

The Calibration Program is used to calibrate the 12 VDC Beacon 200’s
active channel(s). Since the 12 VDC Beacon 200 can support both direct
connect (internal amp) and 4-20 mA transmitter (remote amp) detector
heads, when calibrating the active channel(s) there are three possible
detector head combinations:

• Direct connect detector head(s) only.

If one or two direct connect detector heads are active, then all
calibration adjustments are made at the 12 VDC Beacon 200 after
calibration gas is applied at the detector(s).

• 4-20 mA transmitter detector head(s) only.

If one or two 4-20 mA transmitter detector heads are active, then all
calibration adjustments are made at the detector head(s) after
calibration gas is applied to the detector(s).

• A direct connect and a 4-20 mA transmitter detector head.

If one direct connect and one 4-20 mA transmitter detector head are
installed, then calibration adjustments must be made at the 12 VDC
Beacon 200 for the direct connect detector head after applying gas to
its detector, and at the detector head for the 4-20 mA transmitter
detector head.

Calibration Program Flow

Figures 11, 12, and 13 below illustrate the general flow of the Calibration
Program for the three possible detector head combinations. See the next
section, Entering the Calibration Program, for instructions to enter the
Calibration Program. In general, the program screens provide instructions

38 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

to guide you through the program. At any point in the calibration program,

Select Cal. Gas

Concentration

for Channel 2

Calibrate

Channel 1 Y/N?

Calibration

Timeout

Selection

ENTER

Normal

Operation

Apply Gas to

Ch. 1 & Ch. 2

Detect ors

Air Adjust
Channel 2

(If Installed)

Press Enter to

Adjust Span

Span

Channel 2 Y/N?

(If Installed)

Select Cal. Gas

Concentration

for Channel 1

Air Adjust
Channel 1

Calibration

Program Enter

ENTER/ESCAPE

ESCAPE

Calibrate

Channel 2 Y/N?

(If Installed)

Span

Channel 1 Y/N?

Figure 11. Direct Connect Detector Head(s) Only

the ESCAPE key may be used to either return to the previous screen or
abort a process.

12 VDC Beacon 200 Operator’s Manual • 39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Press Enter

When Done

Calibrate

Channel 1 Y/N?

Calibration

Timeout

Selection

ENTER

Calibrate at

Detector

Head(s)

Calibration

Program Enter

ENTER/ESCAPE

ESCAPE

Calibrate

Channel 2 Y/N?

(If Installed)

Normal

Operation

Figure 12. 4 - 20 mA Transmitter Detector Head(s) Only

40 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Normal

Operation

ENTER

ESCAPE

Calibration

Timeout

Selection

Calibration

Program Enter

ENTER/ESCAPE

Yes

No

TransmitterTransmitter

Calibrate

Channel 2 Y/N?

Direct Connect

Calibrate

Channel 2 at

Detector Head

Air Adjust

Channel 2

Press Enter

When Done

Select Cal. Gas

Concentration
for Channel 2

Apply Gas to

Ch. 2 Detector

Press Enter to

Adjust Span

YesNoYes

Calibrate

Channel 1 Y/N?

Transmitter

Calibrate

Channel 1 at

Detector Head

Press Enter
When Done

Press Enter to

Adjust Span

Direct Connect

Air Adjust

Channel 1

Select Cal. Gas

Concentration

for Channel 1

Apply Gas to

Ch. 1 Detector

Figure 13. 4 - 20 mA & Direct Connect Detector Head(s)

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12 VDC Beacon 200 Operator’s Manual • 41

Entering the Calibration Program

1. Assemble the calibration kit(s). See the instruction manual for each

detector head for procedures specific to that detector head.

2. Simultaneously press and hold the ENTER and UP/YES buttons for

approximately 5 seconds to enter the Calibration Program. Release the
buttons when the CALIBRATION PROGRAM... message displays and
asks if you want to continue or return to normal operation.

NOTE: While in the Calibration Program, the alarm status of the 12 VDC

Beacon 200 will be locked in the state it was when the Calibration
Program was entered.

3. Press the ENTER button to continue and display the Calibration Time-

out setting.

The 12 VDC Beacon 200 will remain in the Calibration Program for the
amount of time indicated by the Calibration Time-out setting or until
you exit the program. If necessary, adjust the setting using the UP/YES
and DOWN/NO buttons. Make sure you have allotted enough time to
perform the calibration procedure. Consider the type of detector
head(s) installed and the distance from the 12 VDC Beacon 200 when
determining the time required.

NOTE: If you do not accept a Time-out setting and stay at this screen or

press ESCAPE and do not press control buttons again, then the
12 VDC Beacon 200 will exit the Calibration Program and begin its
warm-up period 5 minutes after the last button was pushed. This
warm-up period functions as if the unit were just powered up.

4. Press the ENTER button to accept the Time-out setting, start the Time-

out period and continue in the Calibration Program.

NOTE: The following describes calibration with a typical channel

allocation which may be different from yours. This example
allocation has two active channels with both types of detector
heads installed. Channel 1 is a 4-20 mA detector head and
channel 2 is a direct connect detector head. See the detector
head instruction manuals for calibration information and
procedures specific to the detector heads.

42 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Calibrating a 4-20 mA Detector Head

1. The display asks if you want to calibrate channel 1 (in this example a 4-

20 mA detector head). Press the UP/YES button to continue with
calibrating channel 1.

If you press the DOWN/NO button, the display will skip channel 1 and
ask if you want to calibrate channel 2.

2. If you pressed the UP/YES button, since channel 1 is a 4 - 20 mA

detector head in this example, the unit will display the following
message for a few seconds before continuing: Reminder. Calibration
Must Be Done at the Detector Head. Then the display will alternate
between the current gas reading for channel 1 and the message
CALIBRATE AT HEAD above the time remaining in the calibration
Time-out.

3. Verify that the detector head is in a fresh-air environment. (If

necessary, use a zero-emission air cylinder, also known as zero air, to
introduce a fresh-air sample when adjusting the zero reading below.)

4. Adjust the detector head’s zero (fresh air reading for oxygen) reading.

See the detector head’s instruction manual for instructions on how to
adjust the zero reading (fresh air reading for oxygen).

5. Apply calibration gas to the detector head’s detector and adjust the

detector head’s span reading (zero reading for oxygen). See the
detector head’s instruction manual for instructions on how to adjust the
span (zero reading for oxygen) reading.

6. Press the ENTER button to indicate that you are done with calibrating

channel 1 and are ready to continue.

Calibrating a Direct Connect Detector Head

1. The display asks if you want to calibrate channel 2 (in this example a

direct connect detector head). Press the UP/YES button to continue
with calibrating channel 2.

If you press the DOWN/NO button, the display will skip channel 2 and
return to the first calibration program screen which asks if you want to
continue or escape from the program.

2. If you pressed the UP/YES button, since channel 2 is a direct connect

detector head in this example, the unit will display the following
message for a few seconds before continuing: Expose Dectector(s)
To Fresh Air. . . When Done Press ENTER. Then the display will
alternate between the gas reading and the message FRESH AIR
ENTER to ACCEPT ESCAPE to ABORT above the time remaining
in the calibration Time-out.

12 VDC Beacon 200 Operator’s Manual • 43

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. If the detector is in a fresh air environment, press the ENTER button.

The unit will adjust the zero reading and display the message Fresh
Air Adjust Passed for: Channel 2 before continuing.

If you suspect the detector area is not a fresh air environment, apply
zero air to the detector before pressing the ENTER button. See the
detector head instruction manual for instructions to apply zero air to the
detector. The 12 VDC Beacon 200 will freeze the display reading for
channel 2 at the lowest level reached while applying zero air (highest
level for an oxygen channel). After applying zero air for the required
amount of time, usually two minutes, remove the zero air source from
the detector. Press the ENTER button at the 12 VDC Beacon 200.
The unit will adjust the zero reading and display the message Fresh
Air Adjust Passed for: Channel 2 before continuing.

4. The display asks if you want to perform a span (zero for an oxygen

channel) operation on channel 2 by applying gas. Press the UP/YES
button to continue with adjusting the span on channel 2.

If you press the DOWN/NO button, the unit will return to the first
calibration program screen which asks if you want to continue or
escape from the Calibration Program.

5. If you pressed the UP/YES button, the display will prompt you for the

span gas (zero gas for an oxygen channel) concentration that will be
used. Adjust the displayed concentration up or down as needed using
the UP/YES and DOWN/NO buttons so that it matches the
concentration in the calibration cylinder.

6. Press the ENTER button to accept the calibration gas concentration

and continue. The unit will display the message Expose Dectector(s)
To Gas. . . When Done Press ENTER for a few seconds. It will
then alternate between the gas reading for channel 2 and the message
APPLYING GAS ENTER to ACCEPT ESCAPE to ABORT above
the time remaining in the calibration time-out.

7. Apply the calibration gas to the detector. See the detector head

instruction manual for instructions on how to apply gas to the detector.

When the calibration gas is applied, the 12 VDC Beacon 200 will
freeze the display gas reading at the highest level reached while the
gas was applied (lowest for an oxygen channel).

8. After applying calibration gas for the required amount of time, usually

two minutes, remove the gas from the detector.

44 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

9. Press the ENTER button at the 12 VDC Beacon 200 to proceed with

the calibration adjustment.

If the 12 VDC Beacon 200 is able to successfully make the calibration
adjustment, it will display the message Cal Passed for: Channel 2. It
will then return to the first calibration program screen which asks if you
want to continue or escape from the program. Press ESCAPE to return
to normal operation.

If the 12 VDC Beacon 200 is not able to make the calibration
adjustment, it will display the message Not Enough Response! CAL
Failed for: Channel 2, then return to the first calibration program
screen which asks if you want to continue or escape from the program.
Press ENTER to start the calibration process again or ESCAPE to
return to normal operation.

NOTE: Be sure to allow enough time between the application of

calibration gas and returning to normal operation for the gas
reading to return to normal levels to avoid false alarms. The alarm
circuits are active when the 12 VDC Beacon 200 returns to normal
operation.

Replacing the Fuses

The 12 VDC Beacon 200 includes two replaceable DC fuses. A third fuse
holder labelled F1 is not used in this version of the Beacon 200. To replace
other components of the 12 VDC Beacon 200, contact RKI Instruments,
Inc. for further information.

1. Turn off or unplug incoming power to the 12 VDC Beacon 200.

2. Open the housing door of the 12 VDC Beacon 200, then place the

power switch in the OFF position.

3. Locate the vertical fuse holders on either side of the power switch. The

DC fuses are labelled F2 and F3 and are on the right of the power
switch.

4. Use a flat-blade screwdriver to rotate the applicable fuse holder 1/4

turn counterclockwise. The fuse holder releases from the socket.

5. Remove the fuse holder from the socket, then remove the fuse from

the fuse holder.

12 VDC Beacon 200 Operator’s Manual • 45

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

CAUTION: Verify that the r eplace ment fuse i s the same t ype and rating a s

the fuse you are replacing.

6. Install the appropriate replacement fuse in the fuse holder, then place

the fuse holder in the socket.

7. Push the fuse holder into the socket, then turn the holder 1/4 turn

clockwise to secure it in the socket.

8. Turn on or plug in power to the 12 VDC Beacon 200.

9. Place the 12 VDC Beacon 200’s power switch in the ON position, then

verify that the PILOT light is on.

10. Close and secure the housing door.

Preventive Maintenance

Preventive maintenance of the 12 VDC Beacon 200 consists of daily,
monthly, and quarterly procedures to ensure that the detector head is
operating properly. See the detector head instruction manual(s) for
preventive maintenance procedures that apply to the detector head(s)
supplied with your 12 VDC Beacon 200.

Troubleshooting

The troubleshooting guide describes symptoms, probable causes, and
recommended action for problems you may encounter with the 12 VDC
Beacon 200.

Table 11: Troubleshooting the 12 VDC Beacon 200

Condition Symptom(s) Probable Causes Recommended Action

No Power

• The PILOT light is off.

• The display screens
are blank.

• The power wiring is
disconnected or
misconnected.

• One or both DC fuses is
blown.

• The display cable is
disconnected or
misconnected.

• The power source is
dead or at a very low
voltage.

1. Verify that the wiring to the power source
is correct and secure.

2. At the 12 VDC Beacon 200, verify that the
wiring to the DC terminals is correct and
secure.

3. Check the continuity of the DC fuses.

4. Verify that the display cable is connected.
The display (ribbon) cable plugs into

connectors on the top edge of the display
board (labeled J1) and on the top edge of
the main circuit board (also labelled J1).

5. If the power difficulties continue, contact
RKI for further instruction.

46 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Table 11: Troubleshooting the 12 VDC Beacon 200 (Continued)

Condition Symptom(s) Probable Causes Recommended Action

Frequent or
Suspect
Alarms

Flickering
Display

• The 12 VDC Beacon
200 alerts you to
frequent or suspect
alarms.

• The detector head’s
fresh air readings
remain on zero (20.9
for oxygen).

• The display readings
flicker often.

• The 12 VDC Beacon 200
is experiencing false
readings due to RFI or
EMI.

• The detector head wiring
is disconnected,
misconnected, or
intermittent.

• The 12 VDC Beacon 200
is experiencing false
readings due to RFI or
EMI.

• The noise filter setting is
too low.

• The zero suppression
setting is too low.

• The display screen is
malfunctioning.

1. Verify that the detector head wiring is
properly shielded (see the detector head
instruction manual).

2. Verify that the detector head wiring is
correct and secure.

3. Verify that power and detector head wiring
is routed through separate conduit hubs on
the bottom of the 12 VDC Beacon 200
housing.

4. Increase the alarm on delay setting in the
Channel Control & Setup Program.

5. If the frequent or suspect alarm difficulties
continue, contact RKI for further
instruction.

1. Verify that the detector head wiring is
properly shielded (see the detector head
instruction manual).

2. Verify that the detector head wiring is
correct and secure.

3. Verify that power and detector head wiring
is routed through separate conduit hubs on
the bottom of the 12 VDC Beacon 200
housing.

4. Increase the noise filter setting in the
Channel Control & Setup Program.

5. Increase the zero suppression setting in
the Channel Control & Setup Program.

6. If the display difficulties continue, contact
RKI for further instruction.

Buzzer Not
Working

Reset Switch
Not Working

• The buzzer does not
sound an audible
alarm during alarm
conditions.

• The buzzer sounds
weak or broken.

• The buzzer does not
silence when you
press the reset switch.

• The applicable alarm
circuit does not reset
when you press the
reset switch after an
alarm condition
passes.

• The buzzer is
disconnected or
misconnected.

• The buzzer is
malfunctioning.

• The reset switch is
disconnected or
misconnected.

• The reset switch is
malfunctioning.

1. Verify that the wiring to the BUZ- and
BUZ+ terminals of the controller terminal
strip is correct and secure.

2. If the buzzer difficulties continue, contact
RKI for further instruction.

1. Verify that the wiring to the RESET (2)
terminals of the controller terminal strip is
correct and secure.

2. If the reset switch difficulties continue,
contact RKI for further instruction.

12 VDC Beacon 200 Operator’s Manual • 47

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Parts List

Table 12 lists the part numbers and descriptions for replacement parts and
accessories offered for the 12 VDC Beacon 200.

Table 12: Parts List, 12 VDC Beacon 200

Part No. Description

18-0061RK Cable bushing

18-0107RK Conduit Hub (3/4 in.)

43-0440RK Reset Switch

43-4155RK Fuse, 1/4” x 1 1/4”, fast acting, 3A, 250 V

52-1016RK Buzzer

71-0293RK 12 VDC Beacon 200 Operator’s Manual (this document)

48 • 12 VDC Beacon 200 Operator’s Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
