RKI Instruments 72-0290-22-D User manual

GX-2012 Data Logger

Management Program

Operator’s Manual

Part Number: 71-0245RK

Revision: E

Released: 4/8/19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free
from defects in materials and workmanship, and performance for a period
of one year from date of shipment from RKI Instruments, Inc. Any parts
found defective within that period will be repaired or replaced, at our option,
free of charge. This warranty does not apply to those items which by their
nature are subject to deterioration or consumption in normal service, and
which must be cleaned, repaired, or replaced on a routine basis. Examples
of such items are:

Absorbent cartridges Batteries

Pump diaphragms and valves Filter elements

Fuses

Warranty is voided by abuse including mechanical damage, alteration,
rough handling, or repairs procedures not in accordance with the
instruction manual. This warranty indicates the full extent of our liability,
and we are not responsible for removal or replacement costs, local repair
costs, transportation costs, or contingent expenses incurred without our
prior approval.

This warranty is expressly in lieu of any and all other warranties and
representations, expressed or implied, and all other obligations or liabilities
on the part of RKI Instruments, Inc. including but not limited to the warranty
of merchantability or fitness for a particular purpose. In no event shall RKI
Instruments, Inc. be liable for indirect, incidental, or consequential loss or
damage of any kind connected with the use of its products or failure of its
products to function or operate properly.

This warranty covers instruments and parts sold to users only by
authorized distributors, dealers, and representatives as appointed by RKI
Instruments, Inc.

We do not assume indemnification for any accident or damage caused by
the operation of this gas monitor and our warranty is limited to replacement
of parts or our complete goods.

Warranty

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the GX-2012 Data Logger Management Program. . . . . . . . . . . . . . . . . . . . 7

IrDA Downloading Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing an IrDA Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Windows® Infrared Operation Note. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

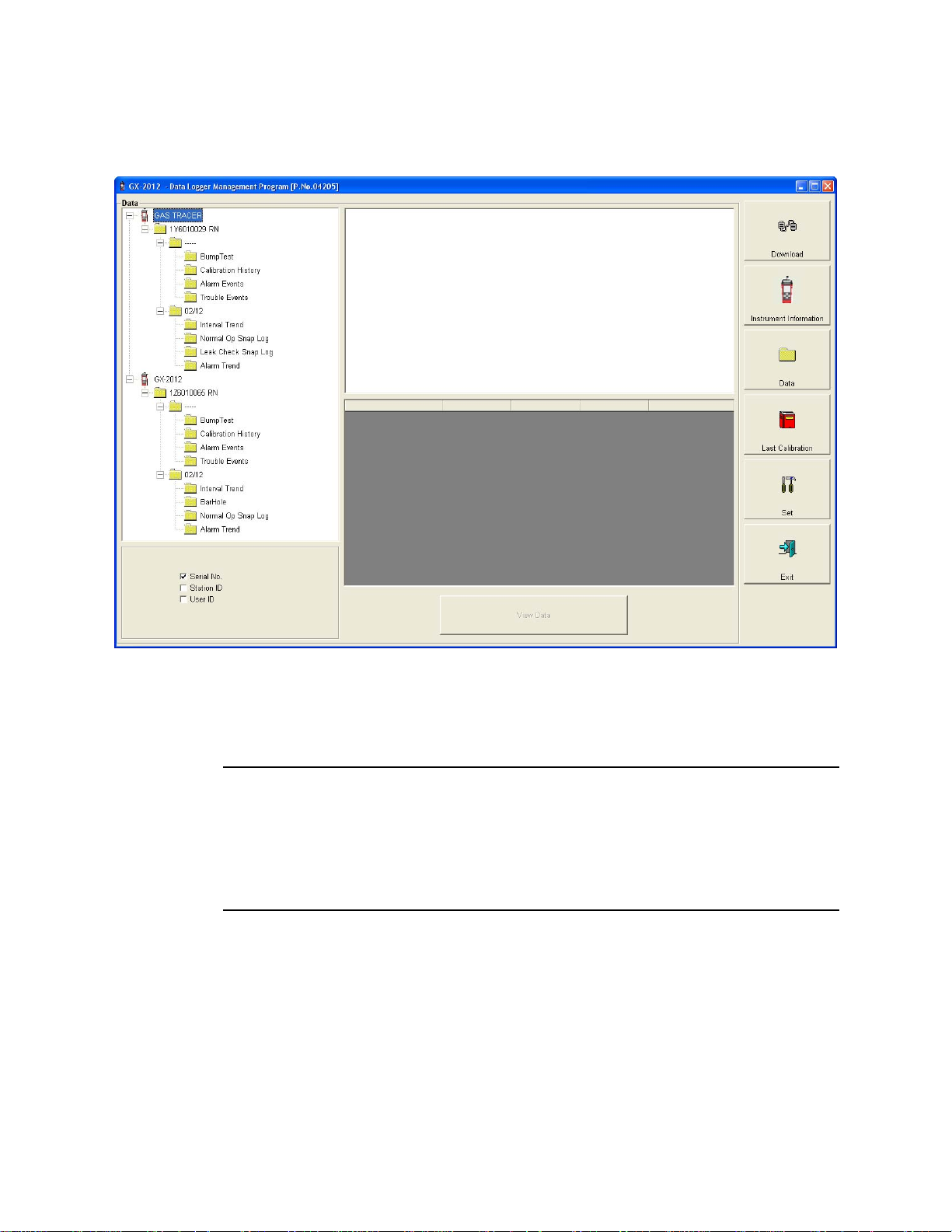

Launching the Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Download Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Instrument Information Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Data Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Last Calibration Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Accessing a Common Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Downloading Data from an Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

GX-2012 and Gas Tracer Data Logging Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Overwriting Data in the GX-2012 and Gas Tracer . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

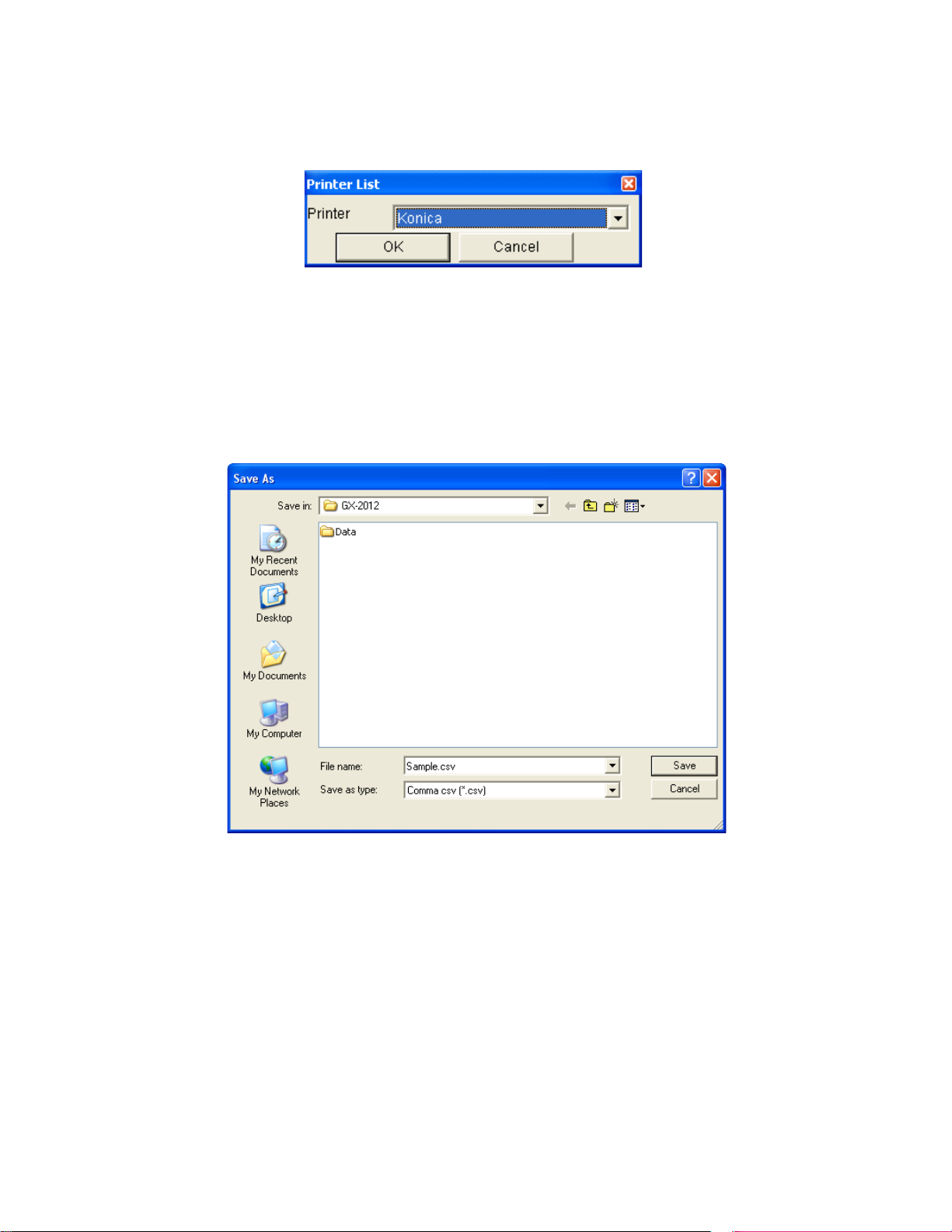

Viewing, Printing, Exporting &Deleting Data in the Data Window . . . . . . . . . . . . . 29

Bump Test Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Calibration History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Event Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bar Hole Mode Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Snap Log Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Normal Operation Snap Log Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Leak Check Snap Log Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

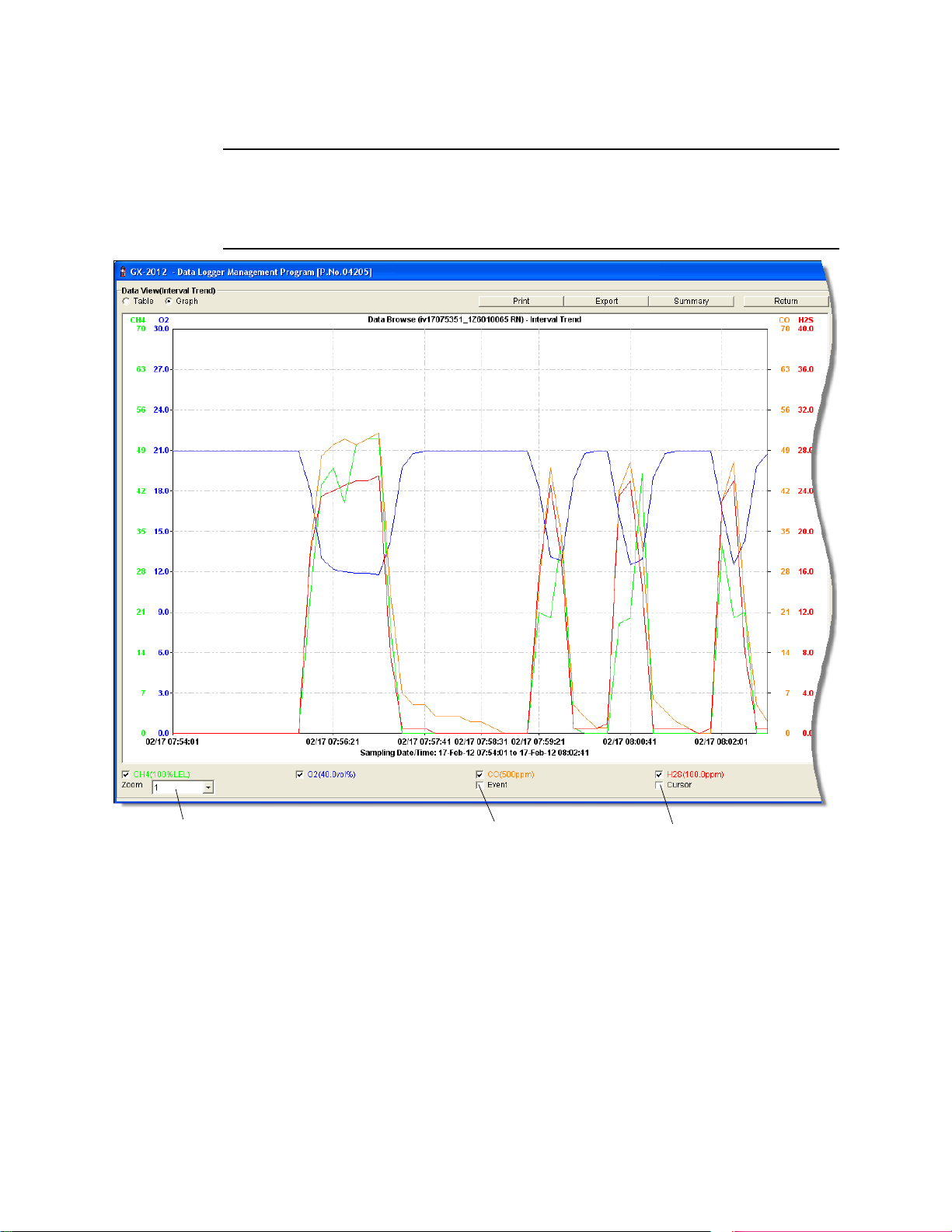

Interval Trend Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Alarm Trend Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Deleting Data in the Data Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Changing the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Table of Contents

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Last Calibration Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Effects of BUMP DSP Parameter Setting on Appearance of Last

Calibration Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Viewing & Printing Last Calibration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Need Calibration/Need Bump Test View Option . . . . . . . . . . . . . . . . . . . . . 72

Calibration Date/Bump Test Date View Option . . . . . . . . . . . . . . . . . . . . . . 75

Calibration Record/Bump Test Record View Option . . . . . . . . . . . . . . . . . . 76

Deleting Last Calibration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Set Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Changing Instrument Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Detail Settings Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Directly Editing Station and User ID Lists . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Updating Station and User ID Lists Using CSV Files . . . . . . . . . . . . . . . . .84

Importing CSV Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Changing the Appearance of the Program Screens . . . . . . . . . . . . . . . . . . . . . . 89

Instrument Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

CAUTION: Read and understand this manual before using the

GX-2012 Data Logger Management Program. Also read
and understand the GX-2012 Operator’s Manual included
with the GX-2012 portable gas detection unit or the Gas
Tracer Operator’s Manual included with the Gas Tracer
portable gas det ec tion unit.

Table of Contents

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Introduction

Using an advanced detection system consisting of up to five gas sensors,
the GX-2012 and Gas Tracer Personal Gas Monitors detect the presence
of combustible gases, oxygen (O2), carbon monoxide (CO), and hydrogen

sulfide (H2S, GX-2012 only) simultaneously. The compact size and easy­to-use design make them ideally suited for a wide range of applications as

described in the GX-2012 Operator’s Manual and in the Gas Tracer
Operator’s Manual. Please read the GX-2012 Operator’s Manual or the
Gas Tracer Operator’s Manual first before using the GX-2012 Data Logger
Management Program.

The GX-2012 Data Logger Management Program downloads stored data
in the GX-2012 or Gas Tracer to a Windows-based PC. After the data has
been downloaded, you can view, save, or print it using your computer and
the GX-2012 Data Logger Management Program.

NOTE: The GX-2012 Data Logger Management Program is intended for

use with a GX-2012 or with a Gas Tracer. It is capable of
operating with both types of instruments.

The purpose of this manual is to explain how to use and set up the
GX-2012 Data Logger Management Program. You will learn how to:

• install and launch the software

• install the downloading cable (if needed)

• access and store data in a common database

• download data from the GX-2012 or Gas Tracer

• view, print, and save data

• change data logging parameters

• create user and station IDs

• change the appearance of the program screens

• change the color of graphed readings for a particular gas

Before you get started, be sure to review the system requirements in the
next section.

Introduction • 5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

CAUTION: The GX-2012 and Gas Tracer units detects oxygen

deficiency and elevated levels of oxyge n, combu sti bl e
gases, carbon mono xi de , an d hyd ro ge n su l fide, all of which
can be dangerous or life threatening. When using the
GX-2012 or Gas Tracer, you must follow the instructions
and warnings in the GX-2012 Operator’s Manual or Gas
Tracer Operator’s Manual to assure proper and safe
operation of the unit and to minimize the risk of personal
injury.

CAUTION: The operator of this instrument is advised that if the

equipment is used i n a m a nne r n ot specified in this manual,
the protection provided by the equipment may be impaired.

6 • Introduction

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

System Requirements

To use the GX-2012 Data Logger Management Program, your personal
computer must meet the following requirements:

• Operating Systems: Windows® 7, Windows® 8, or Windows® 10.

• Processor: IBM® compatible PC running Pentium® 2 or higher.

• Memory: 32 MB RAM minimum

• Available Hard Disk Space: 32 MB minimum

• Infrared port or

USB port and a USB/IrDA adapter cable

Installing the GX-2012 Data Logger Management Program

1. Launch Windows®.

2. Exit from all applications and open windows.

3. Go to www.rkiinstruments.com/gx2012.

4. Click on the Download tab.

5. Click the GX-2012 Data Logger Program link.

6. A .zip file will begin to download. Select whether you want to open or
save the .zip file.

7. Extract the contents of the .zip file.

8. Double click the setup.exe file.

System Requirements • 7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

9. After a few seconds, a screen appears indicating that the InstallShield

Figure 1: GX-2012 Data Logger Management Installation Program

Wizard is preparing to install the Data Logger Management Program,
then the GX-2012 InstallShield Wizard window appears to guide you
through installation.

10. Follow the on-screen instructions in the InstallShield Wizard Window to
install the program.

11. If the InstallShield Wizard finds versions of Windows® files on your
computer newer than those in the downloaded .zip file, it will ask you if
you want to keep these newer files. Click Yes.

12. When the InstallShield Wizard indicates that installation is complete,
click the Finish button.

8 • Installing the GX-2012 Data Logger Management Program

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

IrDA Downloading Cable

The instrument communicates with a computer via an on-board infrared
communication port that complies with IrDA protocol standards.

NOTE: If your computer has a built-in infrared port, you do not need an

adapter cable to download data.

If your computer does not have an infrared port, you will need to install an
IrDA/USB adapter cable on your computer to use the GX-2012 Data
Logger Management Program with your instrument. The IrDA/USB cable is
available from RKI Instruments, Inc. See the Spare Parts List at the end of
this manual for the RKI part number.

Some versions of Windows® already have several infrared device drivers
loaded in Windows® and will automatically recognize a cable during the

installation process and guide you in installing the drivers. Other versions
of Windows® will require you to load device drivers provided by the

manufacturer of the cable during the installation process. RKI makes no
warranty for the operation or compatibility of the drivers with any particular
device.

Installing an IrDA Adapter Cable

After installing the GX-2012 Data Logger Management Program, connect
the IrDA/USB cable to your computer and follow the manufacturer’s
instructions for installing the cable on your computer. Make sure the cable

is compatible with your Windows® operating system.

If you do not have instructions from the cable manufacturer for installing
your cable, see your Windows documentation. In general, you must go to
the Control Panel and use the Add Hardware Wizard to install the cable
drivers.

IrDA Downloading Cable • 9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Windows® Infrared Operation Note

When using an IrDA adapter cable and the GX-2012 Data Logger
Management Program on a Windows® computer, it is necessary to make a

special setting in the Infrared Configuration window for proper
communication between the instrument and the GX-2012 Data Logger
Management Program. This must be done before attempting to use the
program.

NOTE: If you have a Windows 7 computer, the Infrared Configuration

window may not appear. If the Infrared Configuration window
does not appear, disregard the directions below.

Follow these steps to make this setting:

1. Click Start on the Windows® Icon Tray.

2. If Control Panel is available to select in the Start menu, select it. The
Control Panel will appear.

If Control Panel is not selectable in the Start menu but Settings is,
select Settings, then select Control Panel. The Control Panel will
appear.

3. If the Control Panel is viewed by category, open the Hardware and
Sound folder then click “Send or Receive a File” under the Infrared
section. The Infrared Configuration window will appear.

If the Control Panel is viewed by icon, click the Infrared icon. The
Infrared Configuration window will appear.

4. Click on the Image Transfer tab.

10 • IrDA Downloading Cable

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Deselect the selection box for “Allow digital cameras to use infrared to

Figure 2: Image Transfer Tab

Deselect

transfer images directly to my computer”.

6. Click OK.

7. Close the Control Panel window.

IrDA Downloading Cable • 11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Launching the Program

Figure 3: The Download Window

1. For Windows® 7 computers, click the Start icon in the Windows® Icon
Tray, then select Programs, then select GX-2012. Your operating
system may also have a shortcut installed in the Start menu.

For Windows® 8 and Windows® 10 computers, click the Start icon in
the Windows® Icon Tray, then click the downward-pointing arrow icon

in the lower left corner of the screen, then select GX-2012 from the list
of apps.

2. The program will launch and the Download window will appear. For
more convenient viewing, the window can be enlarged by clicking and
dragging the edges.

3. For convenience, make a shortcut of the GX-2012 Data Logger

®

Management Program and place it on the Windows
your Windows® documentation for information about making shortcuts.

12 • Launching the Program

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

desktop. See

Control Buttons

Figure 4: Windows Accessed by Control Buttons

This section provides an overview of the control buttons. Instructions for
using the various parts of the program accessed by the control buttons are
given in other parts of this manual.

When the program is launched, it opens in the Download Window. Along
the right side of the Download Window are six control buttons that access
other windows in the program.The figure below shows the various windows
that you can access when you click the control buttons.

Control Buttons • 13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Download Button

Figure 5: Instrument Information Window

If you are in another program window, clicking the Download button opens
the Download Window (see Figure 3). The Download window has several
download commands that allow you to perform various data retrieval
functions with an instrument that is connected to the software. Data can be
retrieved from the instrument, data can be cleared from the instrument, and
the instrument can be turned off. See “Downloading Data from an
Instrument” on page 23 for a complete description of downloading data
from an instrument.

Instrument Information Button

Clicking the Instrument Information button opens the Instrument
Information Window.

The Instrument Information Window displays various instrument
parameters for an instrument that has been downloaded using the
Complete Download or Instrument Information download commands
and is currently connected to the program. If an instrument is turned off
after being connected to the program, then the program will lose the
connection with the instrument and the fields in the Instrument Information
Window will become empty.

14 • Control Buttons

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Button

Figure 6: Data Window

Clicking the Data button opens the Data Window.

In the Data Window, you can view, print, export, and delete data that has
been downloaded from instruments.

NOTE: If the GX-2012 Data Logger Management Program database is

on the user’s computer (default setting), data will only appear for
instruments downloaded to that computer. If the database is on a
network, data will appear for all instruments downloaded to that
database. See “Accessing a Common Database” on page 19 for
more instruction.

The following types of data files are saved in the Data window:

• Bump Test Files

A bump test file is saved for each instrument that has been
downloaded. It records the bump test information for every bump test
that was downloaded. The instrument can save information for up to
124 bump tests and calibrations combined in its memory.

Control Buttons • 15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

• Calibration History Files

A calibration history file is saved for each instrument that has been
downloaded. It records the calibration information for every calibration
that was downloaded. The instrument can save information for up to
124 bump tests and calibrations in its memory.

• Alarm Event Files

Alarm event files record gas alarm events that have been downloaded
from instruments. The instrument can save up to 124 alarm events in its
memory.

• Trouble Event Files

Trouble event files record sensor failure and system failure events that
have been downloaded from instruments. The instrument can save up
to 124 trouble events in its memory.

• Interval Trend Data Files

Interval trend data is logged at the interval time defined in the
instrument. Each logged point is an average reading over the previous
time interval.

• Bar Hole Mode Data Files

Bar hole mode data is logged when the instrument is taking bar hole
samples. The average and maximum gas readings for combustible gas
and oxygen are recorded.

• Normal Operation Snap Log Files

Normal operation snap log files contain gas reading information that
was taken in Snap Log Mode in Normal Operation. A station ID is
associated with each snap log.

• Leak Check Operation Snap Log Files

Leak check operation snap log files contain gas reading information that
was taken in Snap Log Mode in Leak Check Operation. A station ID is
associated with each snap log.

NOTE: Only Gas Tracer instruments will have Leak Check Operation

Snap Log Files since the GX-2012 cannot be used in Leak Check
Mode.

• Alarm Trend Data Files

Alarm trend data is logged around an alarm event. The instrument can
save up to 9 alarm trend data files in its memory.

16 • Control Buttons

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Last Calibration Button

Figure 7: Last Calibration Window

Clicking the Last Calibration button opens the Last Calibration Window.

NOTE: The setting of the BUMP DSP instrument parameter affects

whether the Bump Test portion of the Last Calibration Window is
shown. For further explanation of the BUMP DSP parameter as it
pertains to the Last Calibration Window, see “Effects of BUMP
DSP Parameter Setting on Appearance of Last Calibration
Window” on page 70.

The Last Calibration Window stores the information for the most recent
successful calibration and for the most recent successful bump test for
each instrument that has been downloaded. Calibration data is displayed in
the top part of the screen while bump test data is displayed in the bottom
part. You can display the information three ways by using the Need
Calibration/Need Bump Test, Calibration Date/Bump Test Date, or
Calibration Record/Bump Test Record selection buttons. You can also print
the information if you select the Need Calibration/Need Bump Test or
Calibration Date/Bump Test Date display options.

Control Buttons • 17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Set Button

Figure 8: Set Window

Clicking the Set button opens the Set Window.

In the Set Window, you can perform the following functions:

• Alter the appearance of the program windows with the Font and Color

buttons

• Change parameters of a connected instrument by editing the fields in

the GX-2012 Status frame and in the Gas/Sensor frame at the bottom of
the window and clicking the Update button

• Update the date and time in a connected instrument by using the Date/

Time Set button

• Update the station and user ID lists using the Detail Settings button

18 • Control Buttons

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Accessing a Common Database

The GX-2012 Data Logger Management Program stores downloaded data
in a database file. This database file is automatically stored on the
computer’s hard drive in the same folder as the GX-2012 Data Logger
Management Program. In this configuration, a computer has access to its
own database but no other computer’s. Only data downloaded to that
computer may be viewed. If the database was set up on a network location,
multiple computers could access the same database. All computers
accessing that database could view all data that was downloaded from any
computer.

The GX-2012 Data Logger Management Program has the ability to map its
database along any other valid path to another file location. That file
location can be on the same computer or it can be on a network location.
Putting it on a network location allows multiple users to save data to and
access data from the same location. This allows access to instrument data
that was downloaded at another computer.

NOTE: Only one computer at a time may access the database, so only

one software installation mapped to a common database can be
running at a time. If two installations attempt to access the same
database, an error indication will occur when the second program
is launched.

To set up this new database path:

1. You must first determine where the database is going to be located and
make a note of that file path.

2. If the GX-2012 Data Logger Management Program hasn’t been
launched on the computer yet, you must launch and close the program.
This creates a GX2012.ini file that contains configuration settings.

Accessing a Common Database • 19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. Locate the GX2012.ini file by searching your C drive for “GX-2012.ini”.

Figure 9: GX2012.ini File Found on C Drive

4. Double click the GX2012.ini file and open it in Notepad.

20 • Accessing a Common Database

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Scroll down to the very last line. This line is the Data Location path. An

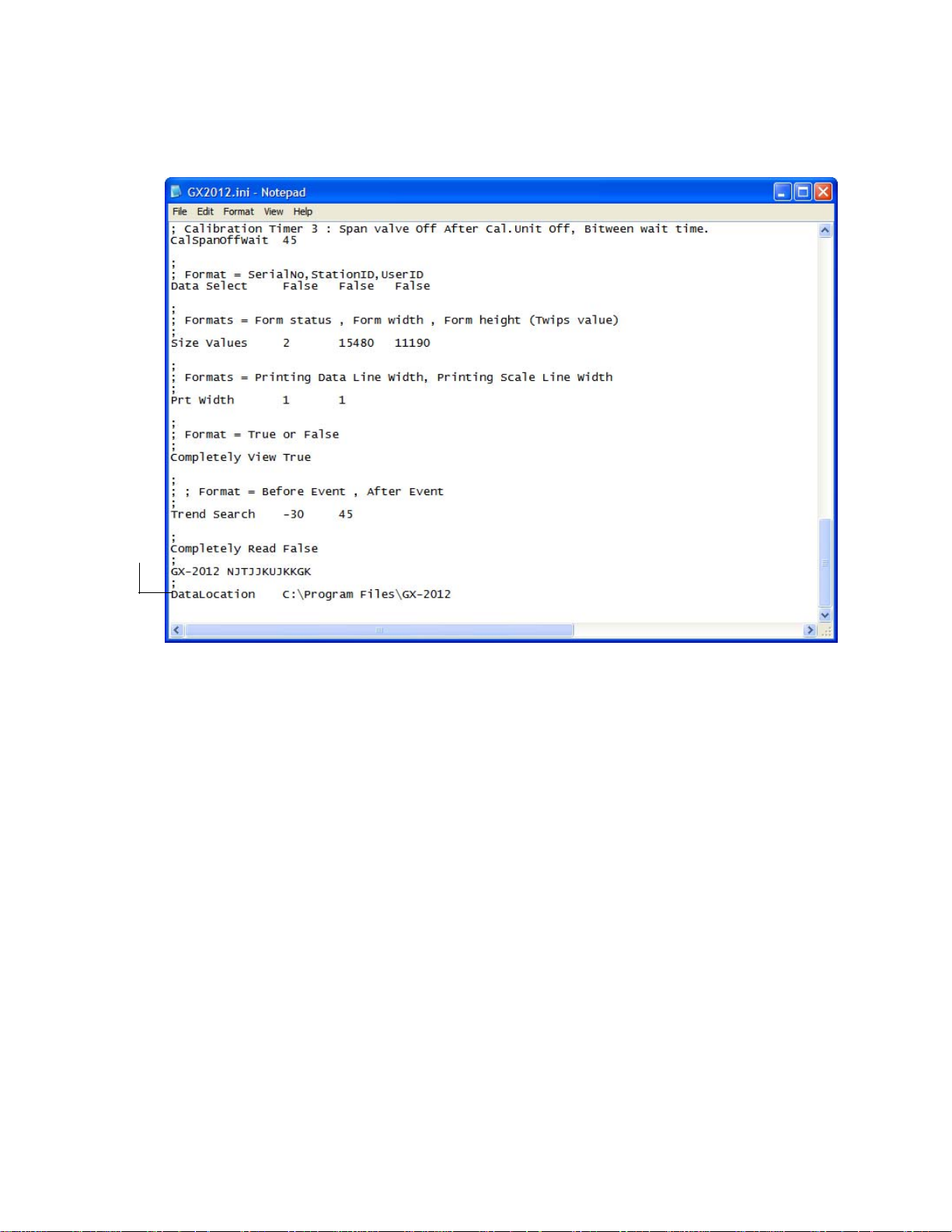

Figure 10: GX2012.ini File with Original Path

file

Old

path

example of the path created by the program is shown in Figure 10.
Replace the current path with the desired path (see Figure 11).

Accessing a Common Database • 21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 11: GX2012.ini File with New Path

file

New

path

6. Save the file and reopen the GX-2012 Data Logger Management
Program.

7. When you launch the program again, a database will be created in the
specified location.

8. Repeat steps 2-5 for all installations that need access to the common
database.

22 • Accessing a Common Database

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Downloading Data from an

Figure 12: Automatic Download Selection Box

Click here for

automatic

downloads

Instrument

You have the option of downloading data manually or automatically. If you
want to download data using the automatic download feature, click the
Automatic Download selection box in the Download Window before
attempting to download data from the instrument. Remember that if
Automatic Download is selected, the Instrument Information Window will
remain blank and the instrument will turn off automatically after the data
has been downloaded. If you want the data in the instrument to be cleared
automatically after an automatic download, select the Automatic Data
Removal box. The Automatic Data Removal box is only available for
selection if the Automatic Download box is selected.

To download data from an instrument:

1. Launch the GX-2012 Data Logger Management Program. The
Download Window displays. When the program comes up and no
instrument is connected, the Download Commands are not selectable.

2. Place the instrument within an inch or two of the infrared port on your
computer aligning the infrared port located below the RESET SILENCE
button on the instrument with the infrared port on your computer.

Downloading Data from an Instrument • 23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

If your computer does not have a built in infrared port, place the

Infrared Port

Cable'sI nfrared Port

GX-2012

To Computer
USB Port

Figure 13: Aligning the Instrument with the Cable Infrared Receiver

Figure 14: Connection

Message

instrument within an inch or two of the infrared port on the IrDA adapter
cable as shown in Figure 13 below, aligning the infrared port below the
RESET SILENCE button on the instrument with the infrared port on the
cable.

3. Press and hold the POWER
ENTER button on the instrument
until you hear a beep, then release
it. The instrument will begin its
power up sequence. If the L./B
MODE menu item in Maintenance
Mode is set to bH, LC, or LC bH,
press and release the POWER
ENTER button to continue the
power up sequence. If you do not
press a button for 20 seconds, the
instrument will automatically
continue. If a successful
connection between the instrument and the computer occurs, the
Connect light in the Download window turns green after a few seconds
and “Connection Successful.” displays in the Download area of the

®

Download window. The Windows

icon tray will indicate that a wireless

24 • Downloading Data from an Instrument

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

connection is in effect.

Figure 15: Download

Commands

4. If you selected Automatic Download, the downloading process begins
automatically after a successful connection is made.

If Automatic Download is not selected, the Complete Download,
Instrument Information, and Power Off Download Commands become
selectable.

5. If you are going to download
data manually, you can perform
a complete download, download
only the instrument information,
or download only the data files
by using the Download
Commands.

• To download logged data and
instrument information from
the instrument, click
Complete Download.

• To download instrument
information only

, click

Instrument Information.

• To download logged data
only, click Download Logger

Data. Download Logger
Data becomes selectable only after a Complete Download or

Instrument Information Download Command has been performed.

6. While the data is being downloaded, messages in the download
message area of the Download window indicate what actions the
program is performing and if there are any communication or
downloading problems. These messages also tell you what type of
information has been downloaded.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Downloading Data from an Instrument • 25

Figure 16: Download Messages & Download Commands

Download
messages

Instrument

Clear data

Use to download all data

Use to

download

subsets of

the data

button

Use to turn

off

ID

instrument

7. If the unit has been downloaded manually (Automatic Download not
selected), the unit’s instrument information may be viewed after
downloading by using the Instrument Information control button if the
unit is still turned on and connected to the computer. The instrument
information includes instrument parameters such as serial number and
alarm points. It also includes the results of the most recent successful
calibration for each channel and, if the bump test feature on the
downloaded unit is activated, the most recent bump test results. To
view instrument information for a unit, click Instrument Information
along the right side of the Download Window. The Instrument
Information Window displays. This screen cannot be printed from the
downloading software. If the unit is turned off, the Instrument
Information window will be blank.

26 • Downloading Data from an Instrument

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 17: Instrument Information Window

8. You can view, print, export, or delete downloaded data by entering the
Data or Last Calibration Windows. These windows are accessed by
clicking Data or Last Calibration along the right side of the Download
Window. See “Viewing, Printing, Exporting, & Deleting Data in the Data
Window” on page 29 or “Last Calibration Button” on page 17.

9. After downloading data from an instrument, you can delete all the data
in the instrument by clicking Clear Logger Data if desired. This will not
delete instrument parameters such as serial number, alarm settings, or
autocalibration settings.

WARNING: If you click Clear Logger Data, all data is erased in the

instrument, but not in your computer’s memory. So it’s
advisable that you download the data from the
instrument first before clearing the data.

Downloading Data from an Instrument • 27

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

GX-2012 and Gas Tracer Data Logging Capacity

Table 1: GX-2012 and Gas Tracer Data Logging Capacity, 5 Sensor Versions

Interval Trend Time Data Logging Hours

10 seconds 10 hours

20 seconds 20 hours

30 seconds 30 hours

60 seconds 60 hours

180 seconds (3 minutes) 180 hours

300 seconds (5 minutes) 300 hours

600 seconds (10 minutes) 600 hours

Table 1 above lists the GX-2012’s and the Gas Tracer’s data logging
capacity for each interval trend time setting assuming no alarms or other
events. The interval trend time setting can be set using the Set Window
(see “Changing Instrument Parameters” on page 79).

Overwriting Data in the GX-2012 and Gas Tracer

The instrument’s Data Log Overwrite setting is factory set to On so that

when the instrument’s data logging memory becomes full, it begins to
overwrite the oldest interval trend data with new interval trend data.
Download data regularly to avoid over-writing data in the instrument before
it can be downloaded. The Data Log Overwrite setting is accessible in the
instrument’s Maintenance Mode. To set the Data Log Overwrite setting to

Off, see the GX-2012 Operator’s Manual or Gas Tracer Operator’s Manual.

When the Data Log Overwrite setting is set to off, the instrument will stop
saving data when its data logging memory is full.

The Data Log Overwrite setting applies only to interval trend data. All other
data, such as alarm trend data, event data, or calibration data, will continue
to be saved when the memory is full. If the maximum number of each of
these types of data has been reached, the oldest data will be overwritten.

28 • GX-2012 and Gas Tracer Data Logging Capacity

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Viewing, Printing, Exporting, & Deleting Data in the Data Window

The instrument logs seven types of data files: bump test data, calibration
history, bar hole data, interval trend data, alarm trend data, snap log data,
and event data.

You can view, print, and export (save to a file) each of these types of data
files. All of these types of data files can also be deleted. The deleting of
files is password protected and is described in “Deleting Data in the Data
Window” on page 65.

NOTE: If the GX-2012 Data Logger Management Program database is

on the user’s computer (default setting), data will only appear for
instruments downloaded to that computer. If the database is on a
network, data will appear for all instruments downloaded to that
database. See “Accessing a Common Database” on page 19 for
more instruction.

All the data, other than the most recent calibration and bump test
information that is accessible in the Last Calibration Window, can be
accessed in the Data Window. The Data Window is accessed by clicking

Data along the right side of the program window.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 18: Data Window, Basic Data Organization

click to

show

Click to

expand

folder

Click to

show

Interval

interval

data

trend

trend

files

files

folders

Double

The Data Window is divided into four frames. The upper left frame is the
Data Frame and displays all the data folders. They are grouped under
either the Gas Tracer or the GX-2012 icon in the upper left part of the
frame. When you open the program for the first time, the GX-2012 icon will
appear. If you download a Gas Tracer to the program, the Gas Tracer icon
will appear. If the data folders are not visible, double click the GX-2012 or
Gas Tracer icon to make them visible. If no data has been saved, then no
folders will appear when the GX-2012 or Gas Tracer icon is double clicked.

The lower left frame contains three selection boxes for organizing data. If
none of the boxes are selected, then the data is organized as shown in
Figure 18. The data may be organized by one or more of the following
parameters: serial number, station ID, or user ID. Click the selection box or
boxes in the lower left frame to organize the data as desired.

30 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: In the examples that follow, the data will be shown organized by

serial number. If you do not select any of the organization boxes
or select the Station ID or User ID boxes instead of or in addition
to the Serial No. box, your Data Window will look slightly different.
The following examples also show the combustible channel as
“CH4”. The combustible channel may also be “HC”. See the
GX-2012 Operator’s Manual or Gas Tracer Operator’s Manual for
details.

The upper right frame shows the contents of a data folder that is selected in
the Data Frame. The lower right frame shows the summary information for
a data file that is selected in the upper right frame.

The View Data control button is located at the bottom of the lower right
frame. The View Data button becomes active when a data file is selected
in the upper right frame. Clicking View Data opens the data file and
displays the data.

NOTE: If data is being viewed and the data folders are left open before

instrument downloading is done, close all folders after
downloading and re-open them to be able to view newly
downloaded files.

Bump Test Data

The instrument is capable of saving information for up to 124 of the most
recent bump tests and calibrations combined. This bump test history is
retrieved by the Data Logger Management Program when data is
downloaded from the instrument using either the Complete Download
download command or the Download Logger Data download command.

Instrument bump test information is also available in the Last Calibration
Window. The information regarding the most recent successful calibration
and bump test for each downloaded instrument along with whether or not
an instrument is due for calibration or bump testing can be accessed using
the Last Calibration button on the right side of the program window. See
“Last Calibration Window” on page 70 for a complete description of the
information that can be accessed by the Last Calibration button.

All downloaded bump test data for all downloaded instruments is available
in the Bump Test folders in the Data Window. This information is saved in a
Bump Test Folder that is located in an untitled folder for each instrument.
The bump test files are differentiated by instrument. The bump test
information available here is more comprehensive than that in the Last
Calibration Window. The bump test information for all bump tests
downloaded, whether successful or not, is saved instead of just the most
recent successful bump test for each instrument.

To view, print, or export the bump test information for any instrument in the
database:

1. With the program already launched, click the Data control button along

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 31

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

the right side of the program window. The Data Window will appear.

Figure 19: Data Window - Selecting Bump Test Files

click to

show

Click to

expand

Click to

Bump

data

folders

folder

show

Bump

Test

File

Test

File

Double

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Bump Test Folder
along with folders for calibration history, alarm events, and trouble
events. The rest of the folders contain folders for the interval trend files,
bar hole mode files, snap log files, and alarm trend files and are named
and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the untitled
folder. The Bump Test folder will appear below the untitled folder along
with the Calibration History, Alarm Events, and Trouble Events folders.

5. Click the Bump Test folder. The Bump Test file or files for that
instrument will appear in the top right frame. If multiple Station ID’s or
User ID’s are used for an instrument, then more than one Bump Test
file will appear.

The serial number, station ID, user ID, and date/time appear on the line

32 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

for each file. The date/time correspond to the date and time of the

Figure 20: Data View, Bump Test

instrument download and not a date or time of a bump test.

6. Click the file to select it. The first two bump tests saved will be shown in
the bottom right frame along with the total number of bump tests saved
if it is more than two.

Each saved bump test shows the date/time of the bump test, the gas,
the test result, the concentration of gas used, and the result of the
bump test.

7. To view the Bump Test file in table format, double click the Bump Test
file or click the View Data button. Bump Test files can only be viewed in
table format.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 33

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. If you want to print the data, click the Print button. A Printer List dialog

Figure 21: Printer List Dialog Box, Calibration History

Figure 22: Save as Dialog Box

box will appear for you to select a printer.

9. Select a printer and click OK to print the data.

10. To export the data to another application, for example a spreadsheet or
database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename, file type, and file location. The default
file type is “.csv” (comma-separated values).

After specifying the file name, file type, and file location click the Save
button to save the file to the specified location.

11. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

34 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Calibration History

The instrument is capable of saving information for up to 124 of the most
recent bump tests and calibrations combined. This calibration history is
retrieved by the Data Logger Management Program when data is
downloaded from the instrument using either the Complete Download
download command or the Download Logger Data download command.

Instrument calibration information is also available in the Last Calibration
Window. The information regarding the most recent successful calibration
and bump test for each downloaded instrument along with whether or not
an instrument is due for calibration or bump testing can be accessed using
the Last Calibration button on the right side of the program window. See
“Last Calibration Window” on page 70 for a complete description of the
information that can be accessed by the Last Calibration button.

All downloaded calibration information for all downloaded instruments is
available in the Calibration History folders in the Data Window. This
information is saved in a Calibration History Folder that is located in an
untitled folder for each instrument. The calibration history files are
differentiated by instrument. The calibration information available here is
more comprehensive than that in the Last Calibration Window. The
calibration information for all calibrations downloaded, whether successful
or not, is saved instead of just the most recent successful calibration for
each instrument.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 35

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To view, print, or export the calibration history for any instrument in the

Figure 23: Data Window - Selecting Calibration History Files

click to

show

Click to

expand

Click to

Cal.

file

Histories

data

folders

folder

show Cal.

Histories

File

Double

database:

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

36 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Calibration History
Folder along with folders for bump tests, alarm events, and trouble
events. The rest of the folders contain folders for the interval trend files,
bar hole mode files, snap log files, and alarm trend files and are named
and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the untitled
folder. The Calibration History folder will appear below the untitled
folder along with the Bump Test, Alarm Events, and Trouble Events
folders.

5. Click the Calibration History folder. The Calibration Histories file or files

www.GlobalTestSupply.com

for that instrument will appear in the top right frame. If multiple Station

Figure 24: Data View, Calibration History

ID’s or User ID’s are used for an instrument, then more than one
Calibration Histories file will appear.

The serial number, station ID, user ID, and date/time appear on the line
for each file. The date/time correspond to the date and time of the
instrument download and not a date or time of calibration.

6. Click the file to select it. The first two calibrations saved will be shown
in the bottom right frame along with the total number of calibrations
saved if it is more than two.

Each saved calibration shows the date/time of calibration, the gas, the
concentration before calibration, and the concentration after
calibration. If a calibration failed, dashes will appear in the Aft er c o lum n
rather than gas concentrations. If a channel was not calibrated, dashes
will appear in the Before and After columns.

7. To view the Calibration Histories file in table format, double click the
Calibration Histories file or click the View Data button. Calibration
Histories files can only be viewed in table format.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. If you want to print the data, click the Print button. A Printer List dialog

Figure 25: Printer List Dialog Box, Calibration History

Figure 26: Save as Dialog Box

box will appear for you to select a printer.

9. Select a printer and click OK to print the data.

10. To export the data to another application, for example a spreadsheet or
database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename, file type, and file location. The default
file type is “.csv” (comma-separated values).

After specifying the file name, file type, and file location click the Save
button to save the file to the specified location.

11. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

38 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Event Data

Figure 27: Data Window - Selecting Event Data Files

click to

show

Click to

data

folders

expand

folder

Click to

show

Alarm

Event

File

Alarm

Event

Files

Double

The instrument not only saves trend files which include logged data at
scheduled times, but also saves the 124 most recent alarm events and the
124 most recent trouble events. When an instrument is downloaded, the
GX-2012 Data Logger Management Program will retrieve these events
from that instrument and save them in alarm event files and trouble event
files for each instrument that is downloaded.

Alarm event files save the time, instrument channel, and alarm type of
every gas alarm event that occurs on a particular instrument. Warning (low
alarm), Alarm (high alarm), STEL, TWA, and overscale events are saved.

Trouble event files note the time, whether the event is an instrument
system failure or sensor failure and the specific type of failure. Dead
battery alarms and sensor failures are among the trouble events that are
saved.

To view, print, or export the event data for any instrument in the database:

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Alarm Events
Folder and Trouble Events Folder along with the Calibration History
Folder and Bump Test Folder. The rest of the folders contain folders for
the interval trend files, bar hole mode files, snap log files, and alarm
trend files and are named and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the untitled
folder. The Alarm Events Folder and Trouble Events Folder will appear
below the untitled folder along with the Calibration History Folder and
Bump Test Folder.

5. Click the Alarm Events or Trouble Events folder. One or more alarm or
trouble event files will appear in the top right frame. An Alarm Events
Folder has been opened in the example in Figure 27. If multiple user
IDs or Station IDs are used for an instrument, then more than one
event file will appear.

The serial number, station ID, user ID, and date/time appear on the line
for each alarm event or trouble event file. The date/time correspond to
the date and time that the instrument was downloaded and not the date
and time of an alarm or trouble event.

6. Click the desired event file to select it. An event list will appear in the
bottom right frame with the date, time, channel, and event type for the
first eight events saved in the selected file. If more than eight events
are saved, the first eight events are shown and the total number of
events in the file is shown at the bottom of the list.

40 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7. Click the View Data button at the bottom of the Data Window or

Figure 28: Data View - Alarm Events

Figure 29: Data View - Trouble Events

double-click the event file name to open the file and view it in table
format. Event files can only be viewed in table format.

8. If you click the Summary button, the Data Window will split into two
frames one above the other with the event list in the lower frame and
the summary information shown in the upper frame. The summary
information is the same as the information shown in the upper right
frame in Figure 27. To return to the one-frame format, click Summary
again.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 41

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

9. If you want to print the data, click the Print button. A Printer List dialog

Figure 30: Printer List Dialog Box, Event Data

Figure 31: Save as Dialog Box

box will appear for you to select a printer.

10. Select a printer and click OK to print the data.

11. To export the data to another application, for example a spreadsheet or
database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename and file location. The default file type is
“.csv” (comma-separated values).

12. After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

13. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

42 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Bar Hole Data

Figure 32: Data Window - Selecting Bar Hole Data Files

click to

show

Click to

data

folders

expand

folder

Click to

show

Bar Hole

Data

File

Bar
Hole
Data

Double

Files

To view, print, or export bar hole mode data for any instrument in the
database:

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Alarm Events
Folder and Trouble Events Folder along with the Calibration History
Folder and Bump Test Folder. The rest of the folders contain folders for
the interval trend files, bar hole mode files, snap log files, and alarm
trend files and are named and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the dated folder
whose contents you want to see.

5. Click the Bar Hole folder. One or more bar hole files will appear in the
top right frame. There will be as many bar hole files as there are bar

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 43

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

hole tests. Each bar hole test has its own bar hole file. A Bar Hole

Figure 33: Data View - Bar Hole

Figure 34: Printer List Dialog Box, Event Data

Folder has been opened in the example in Figure 33.

The serial number, station ID, user ID, and date/time appear on the line
for each bar hole data file. The date/time correspond to the date and
time that the instrument was downloaded and not the date and time the
file was created. Each file corresponds to one bar hole test.

6. Click one of the bar hole data file names. A summary will appear in the
bottom right frame with instrument and alarm setting information. It will
also show the minimum, maximum, and average gas readings for
combustible gas and oxygen for the bar hole test.

7. If you want to view, print, or export the bar hole data, double-click the
filename or click the View Data button at the bottom of the window. Bar
hole files can only be viewed in table format.

8. If you want to print the data, click the Print button. A Printer List dialog
box will appear for you to select a printer.

9. Select a printer and click OK to print the data.

44 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

10. To export the data to another application, for example a spreadsheet or

Figure 35: Save as Dialog Box

database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename and file location. The default file type is
“.csv” (comma-separated values).

11. After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

12. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 45

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Snap Log Data

Figure 36: Data Window - Selecting Normal Op Snap Log Data Files

click to

show

Click to

expand

folder

Click to

Normal Op

Snap Log

data

folders

show

Normal

Operation

Snap Log

files

Double

Files

Snap log data can be taken in Normal Operation or in Leak Check Mode
Operation.

Normal Operation Snap Log Data

Normal Operation Snap Log Data can be taken on GX-2012 and Gas
Tracer instruments. To view, print, or export normal operation snap log data
for any instrument in the database:

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

46 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Alarm Events
Folder and Trouble Events Folder along with the Calibration History
Folder and Bump Test Folder. The rest of the folders contain folders for
the interval trend files, bar hole mode files, snap log files, and alarm
trend files and are named and organized by date (month/year).

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

4. Click the expanded view symbol (+) of or double-click the dated folder

Figure 37: Data View - Normal Op Snap Log

whose contents you want to see.

5. Click the Normal Op Snap Log folder. One or more snap log files will
appear in the top right frame. One snap log file is generated for all
normal operation snap logs taken during an operating session. If you
turn the instrument off and turn it back on, a new snap log file will be
created.

The serial number, start date/time, and end date/time appear on the
line for each snap log data file. The start date/time corresponds to the
date and time that the instrument was turned on. The end date/time
corresponds to the date and time that the instrument was turned off.

6. Click one of the snap log data file names. A summary will appear in the
bottom right frame with instrument information. It will also show the gas
reading that was saved for the first snap log in that snap log file.

7. If you want to view, print, or export the snap log data, double-click the
filename or click the View Data button at the bottom of the window.
Snap log files can only be viewed in table format.

If a gas concentration increases above a warning or alarm point during
a snap log, it will be displayed when the data is opened.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 47

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. If you want to print the data, click the Print button. A Printer List dialog

Figure 38: Printer List Dialog Box, Event Data

Figure 39: Save as Dialog Box

box will appear for you to select a printer.

9. Select a printer and click OK to print the data.

10. To export the data to another application, for example a spreadsheet or
database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename and file location. The default file type is
“.csv” (comma-separated values).

11. After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

12. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

48 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Leak Check Snap Log Data

Figure 40: Data Window - Selecting Leak Check Snap Log Data Files

click to

show

Click to

expand

folder

Click to

Leak Check

data

folders

show

Leak Check

Mode

Operation

Snap Log

Double

Snap Log

Files

files

Leak Check Snap Log Data can be taken on GX-2012 and Gas Tracer
instruments. To view, print, or export leak check snap log data for any
instrument in the database:

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

2. If necessary, double-click the Gas Tracer icon in the top of the Data
Window’s upper left frame to see the folders of downloaded data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Alarm Events
Folder and Trouble Events Folder along with the Calibration History
Folder and Bump Test Folder. The rest of the folders contain folders for
the interval trend files, bar hole mode files, snap log files, and alarm
trend files and are named and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the dated folder
whose contents you want to see.

5. Click the Leak Check Snap Log folder. One or more snap log files will
appear in the top right frame. One snap log file is generated for all leak

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 49

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

check snap logs taken during an operating session. If you turn the

Figure 41: Data View - Leak Check Snap Log

instrument off and turn it back on, a new snap log file will be created.

The serial number, start date/time, and end date/time appear on the
line for each snap log data file. The start date/time corresponds to the
date and time that the instrument was turned on. The end date/time
corresponds to the date and time that the instrument was turned off.

6. Click one of the snap log data file names. A summary will appear in the
bottom right frame with instrument information. It will also show the gas
reading that was saved for the first snap log Base reading in that snap
log file.

7. If you want to view, print, or export the snap log data, double-click the
filename or click the View Data button at the bottom of the window.
Snap log files can only be viewed in table format.

Each leak check snap log consists of a Base reading and a Peak
reading. Base readings are shown in yellow and Peak readings are
shown in white. The User ID, Station ID, date/time, and methane
reading are shown. The methane reading is based on a 5000 ppm
scale. It does not matter what the display range was set to when the
gas reading was taken. The actual gas reading will be displayed up to
5000 ppm. If the concentration was over 5000 ppm, OVER will replace
the gas reading. If the Gas Tracer’s CO Display in Leak Check Mode
setting was turned on for operation, the CO reading will not be shown
in this screen because it is not saved.

50 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. If you want to print the data, click the Print button. A Printer List dialog

Figure 42: Printer List Dialog Box, Event Data

Figure 43: Save as Dialog Box

box will appear for you to select a printer.

9. Select a printer and click OK to print the data.

10. To export the data to another application, for example a spreadsheet or
database, click the Export button. A “Save As” dialog box will appear
for you to specify the filename and file location. The default file type is
“.csv” (comma-separated values).

11. After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

12. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 51

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Interval Trend Data

Average gas concentrations over the user defined interval trend time are
logged in the interval trend data files. The interval trend time can be set in
the Set window. See “Changing Instrument Parameters” on page 79. It can
also be set in the instrument’s Maintenance Mode. See the GX-2012
Operator’s Manual or the Gas Tracer Operator’s Manual for instructions to
set the interval trend time. Events such as gas alarms or sensor failures
are saved in the interval trend data file when they occur.

When the user ID of the instrument is changed during operation, a new
interval trend file is created. When the station ID of the instrument is
changed during operation, is it shown as an event in the interval trend file.
A new interval trend file is not created for a station ID change done during
operation.

An interval trend data file is created and saved in the instrument when the

instrument is turned off. The serial number, user ID, and station ID that are
entered in the instrument when it is turned on are saved for the

corresponding interval trend file. If the instrument’s serial number, user ID,
or station ID are changed in the Set window, any interval trend files that
result from subsequent operating sessions will have the new serial number,
user ID, or station ID saved in them.

The data may be viewed either in table format or graph format if at least 5
scheduled data points have been logged at the programmed interval trend
time. This does not include events. If an interval data file has fewer than
five scheduled data points, the graph controls are not functional and the
data cannot be graphed.

52 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To view and perform desired operations with the interval trend files:

Figure 44: Data Window - Selecting Interval Trend Data Files

click to

show

Click to

expand

folder

Click to

Interval

trend

data

folders

show

interval

trend

files

files

Double

1. With the program already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data Window’s upper left frame to see the folders of downloaded
data.

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Calibration History,
Bump Test Data, Alarm Event, and Trouble Event folders. The rest of
the folders contain folders for the interval trend files, bar hole mode
data, snap log data, and alarm trend files and are named and
organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the dated folder
whose contents you want to see.

5. Click on the Interval Trend Folder. In the upper right frame of the Data
Window, a list of file names will appear in the Name column. A prefix of
“iv” indicates an interval trend data file.

The serial number, station ID, user ID, and date/time appear on the line

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 53

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

for each interval trend file. The date/time is the date and time that the

Figure 45: Interval Trend Data in Table Format

Click to see

Click to save data to a file

Click to show

Select table or

graph view

Click to see

Click to print data

condensed data

session summary

events only

Click to return to
Data Window

data file was created and data began being recorded in that file.

6. Click one of the interval trend data file names. A summary will appear
in the bottom right frame with instrument and alarm setting information.
If you want to view, graph, print, or export the interval trend data,
double-click the filename or click the View Data button at the bottom of
the window.

7. Interval trend data can be viewed in either table or graph format by
selecting the Table or Graph selection buttons. The example below in
Figure 45 is shown in table format.

54 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

• In table format, the interval trend data is shown as the average gas

Figure 46: Alarm Trend Cursor Symbol

Alarm

Cursor

Symbol

Trend

readings over the user defined interval trend time. So if the data
logging session started at 4:13:38 PM and the interval time is set to
1 minute, then the readings logged at 4:14:38 PM are the average
reading for each channel over that one minute period.

• Events are displayed on the screen under the channel in which they
occur and with the time of the event. Events are displayed whether
they occurred at scheduled log times or in between them. Events
include gas alarms such as a warning condition, trouble conditions
such as a low sensor failure, an indication that the unit is returning to
“normal” condition after an alarm has been reset using the RESET
SILENCE button on the instrument, and changing the station ID
during operation.

• If you click the Summary button, the Data Window will split into two
frames, one above the other, with the data table in the lower frame
and the summary information shown in the upper frame. The
summary information is the same as the one shown in the lower
right frame in Figure 44. To return to the one frame format, click
Summary again.

8. When the data is viewed in table format, if you move the cursor over an
alarm event, it will change into a small symbol that looks like an alarm
trend data file while it is kept over the alarm event.

If you click on the event, the corresponding alarm trend data file will be
opened in a new window that pops up over the Data Window. No
control buttons will be visible along the right side of the new window

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 55

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

when an alarm trend data file is displayed in this way. To return to the

Figure 47: Data Displayed by Alarm Trend Cursor Symbol

Click to return to interval trend data

interval trend data file, click the Return button or click the “X” in the
upper right corner of the new window to close the window.

9. To view only events in the interval trend data file, click the Events Only
selection box to select it.

10. To view the interval trend data in condensed form, click the
Condensed selection box to select it. When the data is condensed, the
software shows only important and eventful data as follows:

• The first and last scheduled data points in the session are shown.

• If there are more than two consecutive data points with the same
readings for all channels, only the first and last of these consecutive
data points are shown.

• All events, such as gas alarms or sensor failures, are shown.

• For any event, the data point before and after the event is always
shown.

11. To view the data in graph format, click the Graph selection button. Five
or more scheduled data points are required in an interval trend data file

56 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

to be able to display it in graph format.

Figure 48: Interval Trend Data in Graph Format

Zoom level Event select Cursor feature

NOTE: The data count shown when you have selected an interval trend

data file, as in Figure 44 above, can be more than five if you have
events, such as the instrument going into and out of alarm, but
you may not have five scheduled data points.

When viewing interval trend data in graph format, you have several
options:

• You can choose which gas you want to graph

• You can choose the zoom level, or displayed time interval, on the
graph. The zoom feature shows greater detail relative to time. Thus,
the length of a time division on the graph will depend on both the
length of the datalogging session and on the zoom factor.
Depending on the length of the data session, data sessions that
show changing readings will normally have more choices for zoom

Find Quality Products Online at: [e-mail]

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 57

www.GlobalTestSupply.com

levels than sessions that show stable data to allow for viewing of

Figure 49: Printer List Dialog Box, Interval Data

gas reading changes in greater detail.

• When selected, the Cursor feature allows you to display the gas
reading and log time for each data point saved on the graph. The
number of data points on the graph is minimized depending on the
length of a data session by several means including omitting
consecutive data points that have the same gas readings. As you
use the left and right arrow buttons on your keyboard to move the
cursor across the graph horizontally, readings at specific log times
are displayed. Use the up and down arrows on the keyboard to
move the readings up or down on the screen.

• If you click the Summary button, the data window will split into two
frames, one above the other, with the graph in the lower frame and
the summary information shown in the upper frame. The summary
information is the same as the information shown in the lower right
frame in Figure 44. To return to the one frame format, click
Summary again.

• When you select the Event box, indications appear on the graph
pointing to the exact time that a warning, alarm, start of calibration,
or end of calibration occurred. Each indication is color coded to each
gas color.

12. To print the data, whether it is viewed in table or graph format, click the
Print button. A Printer List dialog box will appear for you to select a
printer.

13. Select a printer and click OK to print the data. Data displayed in Graph
view will print as a graph and data displayed in Table view will print as a
table.

58 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

14. To export the data to a file so it can be used by another application, for

Figure 50: Save as Dialog Box

example a spreadsheet or database (for table data) or a word
processing or presentation program (for graph data), click the Export
button. A “Save As” dialog box will appear for you to specify the
filename, file location, and file type.

For Graph view, the export file type is Windows bitmap (.bmp). For
Table view, the default file type is “.csv” (comma-separated values).
After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

15. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

Alarm Trend Data

In addition to the interval trend data, the instrument also saves files that
describe the most recent gas alarm events. If a gas alarm event occurs,
then an alarm trend file that is centered around the event is saved
separately from the interval trend data files. It shows the readings up to 30
minutes before and 30 minutes after the event, with the log interval time
every five seconds. The gas readings logged at the alarm event time are
highlighted in red and the gas readings logged every 5 seconds around the
alarm event are the peak (minimum for oxygen) readings for the previous
five seconds. If the instrument has not been on for 30 minutes before the

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 59

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

alarm event occurs, the data during this time is left blank. If the instrument

Figure 51: Data Window - Selecting Alarm Trend Data Files

click to

show

Click to

expand

Click to

show

Alarm

data

folders

folder

alarm

trend

files

trend

files

Double

is turned off less than 30 minutes after an alarm event occurs, the data file
will only have logged data until the unit was turned off.

NOTE: If you are operating your instrument in Inert Mode with the

oxygen alarm pattern set to H-HH, the maximum reading for the
oxygen channel will be saved every 5 seconds instead of the
minimum.

The instrument saves up to 8 alarm trend files. When an alarm event
triggers an alarm trend file to be saved, subsequent alarm events must
occur 15 minutes after the previous triggering event in order to trigger the
saving of another alarm trend file. If 9 alarm trend files are already saved in
the instrument’s memory, the oldest alarm trend file is overwritten when a
new alarm trend file is saved. Alarm trend data can always be displayed in
either table or graph format.

To view and perform desired operations with the alarm trend files:

1. With the software already launched, click the Data control button along
the right side of the program window. The Data Window will appear.

2. If necessary, double-click the GX-2012 or Gas Tracer icon in the top of
the Data window’s upper left frame to see the folders of downloaded
data.

60 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. Find your instrument by serial number, then click the expanded view
symbol (+) of or double-click the serial number folder to view the
contents.The top folder is untitled and contains the Calibration History
folder and Bump Test Data Folder along with folders for alarm events
and trouble events. The rest of the folders contain folders for the
interval trend files, bar hole mode data, snap log data, and alarm trend
files and are named and organized by date (month/year).

4. Click the expanded view symbol (+) of or double-click the dated folder
whose contents you want to see.

5. Click on the Alarm Trend Folder in the upper left frame. In the upper
right frame of the Data window, a list of file names will appear in the
Name column. A prefix of “al” indicates an alarm trend data file.

The serial number, station ID, user ID, and date/time appear on the line
for each alarm trend file. The date/time is the date and time that the
data file was created and data began being recorded in that file.

6. Click one of the alarm trend data file names. A summary will appear in
the bottom right frame with instrument and alarm setting information. If
you want to view, graph, print, or export the alarm trend data, double­click the filename or click the View Data button at the bottom of the
window.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 61

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7. Alarm trend data can be viewed in either table or graph format by

Alarm Event

Figure 52: Alarm Trend Data in Table Format

Click to print data

Click to save data to a file

Click for a summary
of the data

Select table or

graph view

selecting the Table or Graph selection buttons. The example below in
Figure 52 is in table format.

• In table format, the log times are shown along with the peak
(minimum for oxygen) gas readings for the previous five seconds.

• The gas readings at the time of the alarm event around which the
logged data are centered are highlighted in red and are the
instantaneous readings at that time.

• If you click the Summary button, the data window will split into two
frames, one above the other, with the data table in the lower frame
and the summary information shown in the upper frame. The
summary information is the same as the information shown in the
lower right frame in Figure 51.

62 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. To view the data in graph format, click the Graph button. An alarm

Figure 53: Alarm Trend Data in Graph Format

Cursor feature

Zoom level

Alarm event and gas concentration

trend file can always be graphed regardless of the number of logged
points.

When viewing alarm trend data in graph format, you have several
options:

• You can choose which gas you want to graph

• You can choose the zoom level, or displayed time interval, on the
graph. The zoom feature shows greater detail relative to time. Thus,
the length of a time division on the graph will depend on both the
length of the datalogging session and on the zoom factor.

• When selected, the Cursor feature allows you to display the gas
reading and log time for each data point in the alarm trend file. As
you use the left and right arrow buttons on your keyboard to move
the cursor across the graph horizontally, readings at specific log
times are displayed. Use the up and down arrows on the keyboard

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 63

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

to move the readings up or down on the screen.

Figure 54: Printer List Dialog Box, Interval Data

• If you click the Summary button, the data window will split into two
frames, one above the other, with the graph in the lower frame and
the summary information shown in the upper frame. The summary
information is the same as the information shown in the lower right
frame in Figure 51. To return to the one frame format, click
Summary again.

• When you select the Event box, an indication appears to show
which alarm event created the alarm trend file that was opened.

9. To print the data, whether it is viewed in table or graph format, click the
Print button. A Printer List dialog box will appear for you to select a
printer.

10. Select a printer and click OK to print the data. Data displayed in Graph
view will print as a graph and data displayed in Table view will print as a
table.

64 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

11. To export the data to another application, for example a spreadsheet or

Figure 55: Save as Dialog Box

database (for table data) or a word processing or presentation program
(for graph data), click the Export button. A “Save As” dialog box will
appear for you to specify the filename, file location, and file type.

For Graph view the export file type is Windows bitmap (.bmp). For
Table view the default file type is “.csv” (comma-separated values).
After specifying the file name, file location, and file type click the Save
button to save the file to the specified location.

12. To go back and view other data, click the Return button in the upper
right corner of the Data Window or the Data button on the right side of
the program window and select the data you want to view.

Deleting Data in the Data Window

The following items can be deleted in the Data Window:

• Data folders

• Calibration History files

• Bump Test Data files

• Alarm and Trouble Event files

• Bar Hole Data files

• Snap Log Data files

• Interval Trend and Alarm Trend data files

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 65

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To delete any of the above items in the Data Window:

Figure 56: Delete Box

Figure 57: Password Window

1. With the program launched, click the Data control button on the right
side of the program window.

2. Find the folder or file you want to delete.

3. Place the cursor on the folder or file you want to delete and click it with
the right mouse button. The Delete box will appear.

4. Click Delete with the left mouse button. The Password Window
appears.

5. Enter the password and click Continue. The password when the
program is first installed is “rki”. The password is case sensitive. See
“Changing the Password” on page 68 for instructions to change the
password if desired.

6. When the password has been entered and Continue clicked, the
Delete Data Window (if a folder is selected for deletion) or Delete

66 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Sample Window (if a file is selected for deletion) will appear asking you

Figure 58: Delete Data Window

to confirm that you want to delete the selected folder or file. In the
example below, the Delete Data Window appears because the data
folder shown in Figure 56 has been selected for deletion.

7. If you want to delete the selected item, click Yes. The item will be
deleted by the program.

If you do not want to delete the selected item, click No and the
operation will be cancelled.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 67

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Changing the Password

Figure 59: Delete Box

Figure 60: Password Window

CAUTION: Changing the password requires use of the Delete box.

T ake car e to avoid accident ally deleting data if you decide to
change the password.

It is possible to change that password as follows:

1. Right-click a data folder, data file, or event file. The Delete box will
appear.

2. Click Delete with the left mouse button. The Password Window
appears.

68 • Viewing, Printing, Exporting, & Deleting Data in the Data Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. Click Change Password. The Password Window asks you to input the

Figure 61: Inputting Current Password

Figure 62: Inputting New Password

Figure 63: Confirming New Password

Figure 64: Confirming New Password

current password.

4. Type the current password, then click Current password. The
Password Window asks you to input the new password.

5. Type the new password and click New Password. The Password
Window asks you to input the new password again to confirm it.

6. Type the new password again, then click Confirm New Password.

7. Click OK when the program confirms that you have changed the
password.

8. Close the Password Window by clicking the red “X” in the upper right
corner of the window.

Viewing, Printing, Exporting, & Deleting Data in the Data Window • 69

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Last Calibration Window

You can access data on the most recent successful calibration and bump
test for each instrument that has been downloaded in the Last Calibration
Window. You can view, print (calibration date/bump test date only), and
delete this data in the Last Calibration Window.

NOTE: If the GX-2012 Data Logger Management Program database is

on the user’s computer (default setting), data will only appear for
instruments downloaded to that computer. If the database is on a
network, data will appear for all instruments downloaded to that
database. See “Accessing a Common Database” on page 19 for
more instruction.

Effects of BUMP DSP Parameter Setting on Appearance of Last Calibration Window

The setting of the BUMP DSP instrument parameter has an effect on the
appearance of the Last Calibration Window. This instrument parameter can

be set in the instrument’s Maintenance Mode. The factory setting is Off.
If the BUMP DSP parameter is set to Off for every instrument that has been

downloaded to the GX-2012 Data Logger Management Program using the
Complete Download or Instrument Information download buttons, the Last
Calibration Window will appear as shown in the screen below. The screen
is shown with the Need Calibration option selected. The Bump Test portion
of this window is not shown.

70 • Last Calibration Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 65: Last Calibration Window: BUMP DSP Off

If any instrument has been downloaded to the GX-2012 Data Logger
Management Program using the Complete Download or Instrument
Information download buttons that has the BUMP DSP parameter set to

On, the Last Calibration Window will appear as below. The screen below is

shown with the Need Calibration and Need Bump Test options selected.

Only instruments that had the BUMP DSP instrument parameter turned On

when downloaded will appear in the Bump Test portion of the window. It
should be noted that once an instrument that has the BUMP DSP

parameter set to On has been downloaded using the Complete Download

or Instrument Information download buttons, the Bump Test portion of this
screen will always appear.

Last Calibration Window • 71

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 66: Last Calibration Window: Bump Test Function On

The following screens are shown with the Bump Test portion of the window
active. If the BUMP DSP on all of the instruments you have downloaded is

set to Off, you will not see the Bump Test portion of these screens. For

more information on setting the BUMP DSP parameter, see the GX-2012
Operator’s Manual or Gas Tracer Operator’s Manual.

Viewing and Printing Last Calibration Data

Open the Last Calibration Window by clicking Last Calibration along the
right side of the program window. When you open the Last Calibration
Window the first time after launching the program, it will open with the
Need Calibration/Need Bump Test view options selected. There are three
view options in the Last Calibration window: Need Calibration/Need Bump
Test, Calibration Date/Bump Test Date, and Calibration Record/Bump Test
Record.

Need Calibration/Need Bump Test View Option

Selecting this option shows the last calibration date, last bump test date,
and the last download date for the instruments that are due for calibration
or bump testing. The calibration data appears at the top half of the screen

72 • Last Calibration Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

while the bump test data appears in the bottom half of the screen.

Figure 67: Last Calibration Window: Need Calibration View Option

NOTE: The calibration interval, the number of days after a calibration that

a new calibration is due, is saved in the instrument but it is only
accessible in the instrument’s Maintenance Mode. If the
calibration time limit is changed in the instrument using
Maintenance Mode, the new calibration time limit value will not be
known by the program until the instrument is downloaded.

The Need Calibration/Need Bump Test view option shows the following
fields for both calibration and bump test data:

• No. — lists, in numerical order, the sequence of instruments whose
data have been downloaded to the computer. The most recently
downloaded instrument will be No. 1.

• SerialNo — shows the serial number of the instrument that was
downloaded.

• UserID — shows the user ID of the of the instrument that was
downloaded.

• StationID — shows the station ID of the instrument that was
downloaded.

• Target Gases (CH4 or HC, O2, H2S, CO) — shows when the unit

Last Calibration Window • 73

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

was calibrated or bump tested for each of the target gases using the

Figure 68: Printer List Dialog Box, Need Calibration View Option

MM/DD/YY format and 24-hour military standard time.

• Last Downloaded — shows when the last download took place for a
unit using the MM/DD/YY format and 24-hour military time standard.

The instruments that are due for calibration or bump testing (in the case of
the Need Calibration/Need Bump Test view option, that will be all of them),
will have their last calibration date or last bump test date highlighted in red.
The instruments that have not been downloaded for more than 90 days will
have their last download date highlighted in purple.

To print a list of the instruments shown in the Need Calibration/Need Bump
Test view option along with their user ID and last calibration date or last
bump test date, click the Print button. A Printer List dialog box will appear.

Select a printer and click the OK button to print the instrument list.

74 • Last Calibration Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Calibration Date/Bump Test Date View Option

Figure 69: Last Calibration Window: Calibration Date View Option

Figure 70: Printer List Dialog Box, Calibration Date View Option

Selecting this option shows the last calibration date, last bump test date,
and the last download date for all the instruments that are in the program’s
database. The fields for the Calibration Date/Bump Test Date view option
are the same as for the Need Calibration/Need Bump Test view option.

To print a list of the instruments shown in the Calibration Date/Bump Test
Date view option along with their user ID and last calibration date or last
bump test date, click the Print button. A Printer List dialog box will appear.

Select a printer and click the OK button to print the instrument list.

Last Calibration Window • 75

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Calibration Record/Bump Test Record View Option

Figure 71: Last Calibration Window: Calibration Record View Option

Selecting the Calibration Record/Bump Test Record view option shows
detailed calibration or bump test information for each instrument’s most
recent successful calibration or bump test.

The fields on this screen include SerialNo, UserID, and StationID just as in
the Need Calibration/Need Bump Test and Calibration Date/Bump Test
Date screens. The Calibration Record fields also include the following:

• Gas — Lists the target gas for which the Before, After, and A.Cal
readings are displayed.

• Before — shows the settings prior to calibration.

• After — shows the settings after calibration.

• A. Cal. — lists the auto-calibration setting for each channel of the
instrument. If an instrument passes its calibration, the “After” column
should match the “A. Cal.” column. If the instrument fails calibration
on any of its channels, those channels will retain the previous
calibration information.

76 • Last Calibration Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: If a unit is calibrated using One Cal in the instrument’s Calibration

Mode (see the GX-2012 Operator’s Manual or Gas Tracer
Operator’s Manual) it is possible for the “After” reading to be
different from the “A.Cal” setting if the unit was set to a level
different than the “A.Cal” setting.

• Cal. Due (Days) — shows when calibration is due in days (e.g.,
“Remaining 25 Day” means that calibration is due in 25 days, and
“Now” means that calibration is due immediately). If the instrument
is due now, the box will be highlighted in red.

The Bump Test Record fields also include the following:

• Gas — Lists the target gas for which the Test Result and
Concentration readings are displayed.

• Test Result — Shows the gas reading resulting from the bump test.

• Concentration — Shows the concentration values of the applied
gas.

• Bump Test Due — Indicates what day a bump test is due for the
instrument. If the instrument is due now, the box will be highlighted
in red.

It is not possible to print any information when the Calibration Record/
Bump Test Record view option is selected.

To view and print all past calibrations for an instrument, see “Calibration
History” on page 35.

Deleting Last Calibration Data

To delete an instrument and its calibration or bump test data from the Last
Calibration Window:

1. With the program launched, click Last Calibration on the right side of
the program window. The Last Calibration Window will appear.

2. Select the Need Calibration/Need Bump Test or Calibration Date/Bump
Test Date option.

3. Click the row for the instrument whose calibration or bump test
information you want to delete to select it. It will be highlighted to show
that it is selected.

Last Calibration Window • 77

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

4. Click the row with the right mouse button. The Delete box appears.

Figure 72: Delete Box

Figure 73: Password Window, Deleting Last Calibration Data

Figure 74: Delete History Window

5. Click Delete with the left mouse button. The Password window
appears.

6. Enter the password and click the Continue button. The password
when the software is first installed is “rki”. The password is case
sensitive. See “Changing the Password” on page 68 for instructions to
change the password if desired.

7. When the password has been entered and the Continue button
clicked, the Delete History window will appear asking you to confirm
that you want to delete the most recent calibration or bump test
information for the selected instrument.

8. If you want to delete the calibration or bump test information, click Yes.
The information will be deleted by the program.

If you do not want to delete the calibration or bump test information,
click No and the operation will be cancelled.

78 • Last Calibration Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NOTE: Deleting instrument data from the folder list along the left side of

Set Window

Changing Instrument Parameters

To make changes to parameters stored in the instrument, use the
GX-2012’s Data Logger Management Program’s Set Window. Follow the
steps below to make these changes.

1. Launch the GX-2012 Data Logger Management Program.

2. If the Automatic Download selection box is selected, deselect it.

3. Connect an instrument to the program. See “Downloading Data from
an Instrument” on page 23, instruction 1 through instruction 3, to
connect an instrument to the program.

the Data screen will not delete calibration data from the Last
Calibration screen. Data in the Last Calibration screen must be
deleted manually.

4. Once the connection is made, the Complete Download, Instrument
Information, and Power Off download commands will be selectable.
Click the Instrument Information download command to retrieve the
instrument information from the instrument. If you wish to download
data before making changes, click Complete Download instead of

Instrument Information.

Set Window • 79

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Click the Set button to display the Set Window. Use the GX-2012

Figure 75: Set Window

Click to upload changes to instrument

Status Frame and the Gas/Sensor Frame to change parameters stored
in the instrument.

6. To change the serial number stored in the instrument, click the serial
number field and use the backspace key to remove the current entry,
then type the new serial number.

7. To change the station ID or user ID, click on the down arrow in the
desired box and select a new station ID or user ID from the list. The
available station and user IDs are ones that are stored in the
instrument’s memory.

8. To change the datalogging trend interval time, click on the down arrow
in the Interval Trend Time box and select the desired interval time in
seconds. The available choices are 10, 20, 30, 60, 180, 300, and 600
seconds.

9. To change the channel parameters, double-click the field you wish to
change (e.g. H2S AutoCal.) to select it, then type the new information.

10. After you have finished entering new parameters, you must upload this

80 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

information to the instrument by clicking the Update button, then

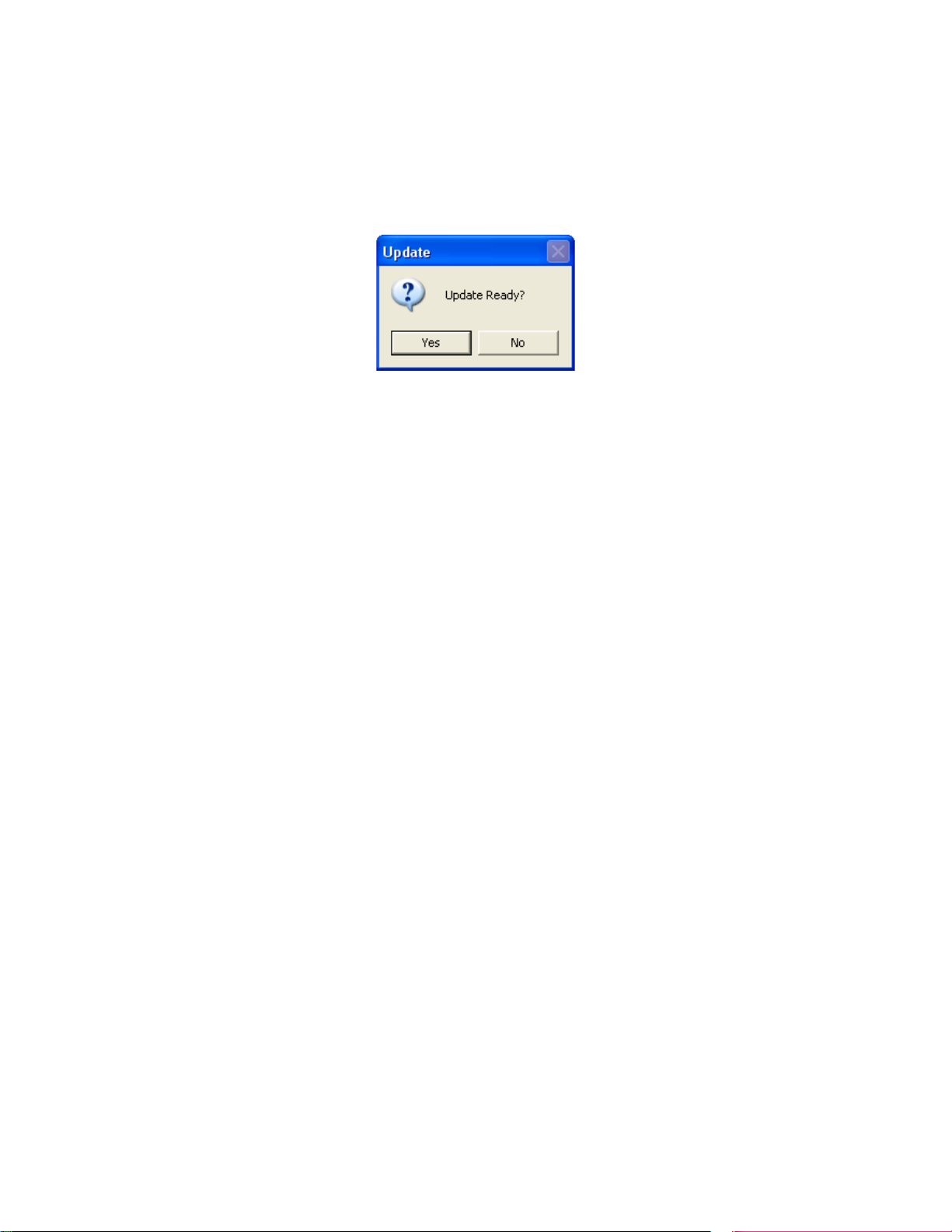

Figure 76: Update Window

confirming that you want to update the information by clicking the Yes
button when the Update window appears.

11. To update the instrument’s date and time to match the computer’s, click
the Date/Time Set button and then click the Yes button when the
Update window appears.

Detail Settings Button

The detail settings button allows the user to create or change a User ID list
or Station ID list and upload it to an instrument. The detail settings button is
located along the left part of the Set window under the font and graph color
buttons. To update the Station ID or User ID list in an instrument, you must
first connect the instrument to the program.

1. Launch the GX-2012 Data Logger Management Program.

2. If the Automatic Download selection box is selected, deselect it.

3. Connect an instrument to the program. See “Downloading Data from
an Instrument” on page 23, instruction 1 through instruction 3, to
connect an instrument to the program.

4. Once the connection is made, the Complete Download, Instrument
Information, and Power Off download commands will be selectable.
Click the Instrument Information download command to retrieve the
instrument information from the instrument. If you wish to download
data before making changes, click Complete Download instead of

Instrument Information.

Set Window • 81

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Click the Set button to display the Set window.

Figure 77: Set Window

Directly Editing Station and User ID Lists

The station and user ID lists can be edited directly or through the use of csv
files. Editing them directly is often more convenient if your station or user ID
list is short. For longer ID lists, using csv files will be more convenient. See
“Updating Station and User ID Lists Using CSV Files” on page 84 for
instructions to use csv files.

82 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1. Click the Detail Settings button in the Set window. If you do not

Figure 78: Detail Settings Window

currently have any User IDs or Station IDs programmed into the
instrument, the screen will appear as shown below.

The Station ID list is shown on the left and the User ID list is shown on
the right. Both lists have Export csv file and Import csv file buttons
located to the right of each list.

If the instrument had any station or user IDs, they would be displayed
in the appropriate list.

2. Double click the station or user ID you wish to change and delete the
existing information. Type in the new station or user ID. Each ID can
contain uppercase letters or numbers. Each ID can be 16 characters
long but only the first 8 of those characters will be visible on the
instrument. Be sure the first 8 characters of each station or user ID are
distinguishable from each other. All 16 characters will be visible in the
GX-2012 Data Logger Management Program.

3. Click OK to save the changes and return to the Set window.

Click Cancel to return to the Set window without saving changes.

4. The new station and user ID lists will be visible in the Station ID and
User ID selection boxes in the Set window. Use the drop down menu to
select a current station and user ID for the instrument.

5. To upload the updated station and/or user ID list to the instrument and

Set Window • 83

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

upload any other changes you have made, click Update and click OK

Figure 79: Detail Settings Window

when the confirmation box appears.

Updating Station and User ID Lists Using CSV Files

Station and user ID lists can also be edited by using csv files. A Station csv
file and a User csv file are provided with the program but you can also
create your own csv file.

1. Click the Detail Settings button in the Set window. If you do not
currently have any User IDs or Station IDs programmed into the
instrument, the screen will appear as shown below.

The Station ID list is shown on the left and the User ID list is shown on
the right. Both lists have Export csv file and Import csv file buttons
located to the right of each list.

84 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2. To create a new ID list, click the Export csv file button located to the

Figure 80: Station ID CSV File Save As

right of the Station ID list or the User ID list. In the example below, the
Export csv file button to the right of the Station ID list was clicked.

Navigate to the location you would like to save the csv file, type in a file
name, and click Save.

3. The csv files can be opened, edited, and saved using a word
processing program such as Word, WordPad, or Notepad. The Station
and User csv files consist of the Station or User ID number and its
associated name. Below is an example of the Station csv file opened in
WordPad.

Set Window • 85

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 81: Station ID CSV File Opened in WordPad

Any existing Station or User IDs will be displayed. Undefined Station or
User IDs will appear as dashes. To edit a Station or User ID, delete
either the existing name or the dashes and replace them with the
desired name. The name may consist of any uppercase letter or
number and can be up to 16 characters long. Only the first 8 characters
are visible on the instrument so be sure that the first 8 characters of
your station or user IDs are distinguishable from each other.

86 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Importing CSV Files

Figure 82: Import csv File

Press to import Station csv Press to import User csv

1. Locate an existing Station ID or User ID csv file. See above for
instructions to generate a csv file.

2. In the Detail Settings window, click “Import csv file” for either the
Station ID or User ID and select a csv file.

Set Window • 87

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. Select the file you want to import and click Open.

Figure 83: Import csv File

Figure 84: Update Window

4. Once the Station ID and/or User ID lists have been imported, click OK
to save changes and return to the Set window.

If you do not want to save the changes, click Cancel.

5. The new station and user ID lists will be visible in the Station ID and
User ID selection boxes in the Set window. Use the drop down menu to
select a current station and user ID for the instrument.

6. To upload the new information from the GX-2012 Data Logger
Management Program to the instrument, click the Update button in the
Set window.

7. Click Yes when the Update window appears.

88 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Changing the Appearance of the Program Screens

Figure 85: Set Window, Changing Fonts and Graph Colors

Choose these options to change the

graph colors for the target gases

Click to
change
font type

To change how information is displayed in the program (e.g., text font or
graph colors), use the program’s Set Window. Follow the steps below to
make changes.

1. Launch the GX-2012 Data Logger Management Program.

2. Click the Set button to display the Set window. Use the Font And Color
Frame in the left side of the window to change fonts and graph colors.

3. Specify new fonts by clicking the button with the name of a font
inscribed on it. This action will display the Font Window. Choose the
font type, style, size, and script, then click OK.

Set Window • 89

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 86: Font Window

Figure 87: Color and Custom Color Windows

4. Select the colors used to graph the various target gases in the interval
trend and alarm trend data files by clicking the appropriate Graph
Color button on the left side of the Set Window in the Font and Color
frame.

• The Color Window shown on the left above appears when the
Graph Color button is clicked.

• If you want to define a custom color, click the Define Custom

90 • Set Window

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Colors button and the Custom Color Window shown on the right
above replaces the Color Window.

5. After making the desired changes, click OK.

6. The changes you have made will take effect after you exit and restart
the program.

Instrument Power Off

To turn a connected instrument off:

1. Select the Download button if you are not already in the Download
window.

2. Click the Power Off button. The instrument will shut off.

3. Exit the program by clicking the Exit button in the bottom right corner of
the program.

NOTE: If you shut down the GX-2012 Data Logger Management

Program without first turning off the instrument, the instrument will
go into alarm after 3 minutes to indicate that it is still on but not
connected to a program. Starting up the GX-2012 Data Logger
Management Program and establishing a connection will reset
the alarm. Using the POWER ENTER button to turn the
instrument off will also reset the alarm.

Instrument Power Off • 91

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Spare Parts List

Table 2: Spare Parts List

Part Number Description

47-5084RK USB/IrDA adapter module, Legasic, for use with all premier

portables (without USB cable)

47-5084RK-01 USB/IrDA adapter assembly, Legasic, for use with all premier

portables (with module and USB cable)

47-5085RK Cable, USB A to USB mini, 6 feet, for USB/IrDA adapter module

47-5093 USB/IrDA adapter with cable and CD (not for use with Eagle 2)

71-0245RK GX-2012 Data Logger Management Program Operator’s Manual

(this document)

71-8004RK GX-2012 Product CD, Includes the GX-2012 Data Logger

Management Program, and Operator’s Manuals

92 • Spare Parts List

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
